Aeon Labs DSB45 WATER SENSOR User Manual water sensor englise manual
Aeon Labs LLC. WATER SENSOR water sensor englise manual
User Manual
View the expanded manual:
http://aeot.ec/spprt/watersensor
Water Sensor
Metal
Nonmetallic
Nonmetallic
Iron plates
Water
Aeotec by Aeon Labs Water Sensor
Your Z-Wave system is only as good as it is smart. Aeotec
by Aeon Labs’ Water Sensor brings it a new level of
inte l l i g e n c e , one that is suited to both safety and
convenience. Capable of detecting either the presence or
absence of water to as little as 3% of an inch, each sensor is
crafted into the smallest and most subtle of packages.

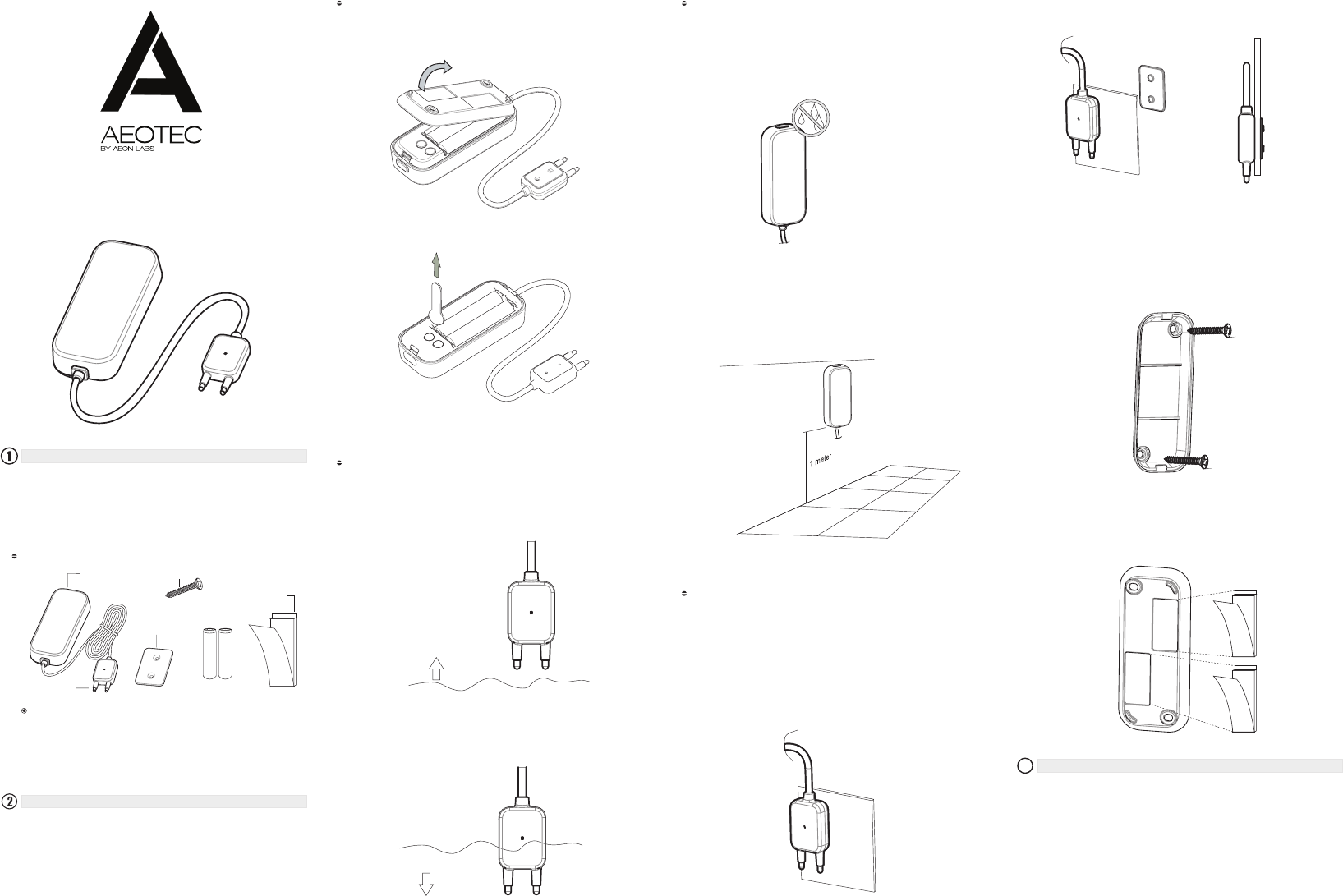

Familiarise yourself with your sensor
Iron plate
Water Sensor Screw
AAA Battery
Double-Sided
Mounting Tape
Package Contents:
Water Sensor ×1
Iron Plate ×1
Screw ×2
AAA Battery ×2
Double-Sided Mounting Tape ×2
Quick Start
Your Aeotec by Aeon Labs’ Water Sensor is capable of
detecting the presence or absence of water. Choosing the
scenario you want will help you determine where best to
place your sensor. The most common scenario is the
detection of leaking water from the likes of a hot water
system or an air conditioner. In other instances you may
wish to detect when the level of water in a tank has
decreased passed a certain level.
Probe
Prepare your Water Sensor
The first step is to activate your Water Sensor
1. Take out the back shell of Water Sensor
2. Remove the clear battery insulator by pulling it away from
the Water Sensor
With the battery insulator removed, your Water Sensor
powered and activated. It is now time prepare to install
your Water Sensor.
3.
Choosing a position for the Water probe
The following tips will help you select a position that will
optimise the performance of your water probe.
If detecting the presence of water, your probe’s two prongs
should sit flat against the surface where water will collect.
Water
If detecting the absence of water, your probe’s two prongs
should sit at the minimum water level you want.
If detecting the absence of water, it’s fine to submerge your
probe in water - it’s waterproof.
Choosing a position for the Water Sensor
The following tips will help you select a position that will
optimise the performance of your Water Sensor.
Your water sensor is not waterproof or weatherproof, as such
you should not place it in any area where it is likely to get wet.
This includes not placing it directly underneath objects which
you may be monitoring for leaks, such as water heaters.
For an optimal wireless signal, position your Water Sensor 1
meter off of the ground.
Additionally, for an optimal wireless signal mount your Water
Sensor with its longest side vertical.
Will have an optimal wireless signal when affixed 1 meter or
above your home's floor.
Placed within 30 meters of another Z-Wave device that is
either a gateway or not powered by batteries.
If outdoors should be protected from the elements - such as
inside a recess or within a waterproof box
Keep Dry
Installation your Water Probe
Once you've selected the best position for both parts of your
Water Sensor to be installed, it's time to affix both to their
respective surfaces.
1. Affixing your water probe’s mounting plate
There is a magnet inside the water probe, if you’ve sure the
position where your water probe should install, only adsorption
your water probe up to a metal.
If you can’t find the metal to affixing your water probe. Use the
Iron plates .
1. installation your Water Sensor
Your water sensor ’s mounting plate can be affixed using screws
or double-sided tape. You needn't worry about which end is the
top or the bottom, they can be mounted with either end at the top
- they're bidirectional.
If using screws, attach your water sensor’s mounting plate
using the screws. If either surface is soft, plasterboard for
instance, use the screw anchors.
If mounting your water sensor indoors in an area where itself
won't be exposed to condensation or moisture in the air, it is
possible to use mounting tape to affix it to a wall. To begin, wipe
the respective surface clean of any oil or dust. When the surface
has dried, peel one side of the tape back and attach it to the
corresponding section on the rear of main mounting plate.
Probe
3Adding your Water Sensor to Z-Wave network
With your mounting plates prepared to hold each component of
your sensor, it’s time to add it to your Z-Wave network.
On the rear of your water sensor, remove the spacing tab to
connect the batteries. Your water sensor’s LED will blink for 3
seconds.
Press the Z-Wave button on your primary Z-Wave controller /
gateway. If you’re unsure of how to do this, refer to its user
manual.
Press the Z-Wave button on your water sensor. If it has been
successfully added to your Z-Wave network, its LED will
1.
2.
3.
Z-Wave
Wake Up
Associate your Water Sensor with other Z-Wave
devices
It's possible to use your Aeotec by Aeon Labs’s Water
Sensor to talk to more than just your gateway. As an
example, you can create an automation activity that would
activate a siren when water is detected.
1.Set gateway sent Association set command, and Assign
route command to Water Sensor.
Then press and hold Z-Wave button of Water Sensor 3
seconds. Water Sensor will sent wake up notification to
gateway.
After gateway received the wake up notification, Gateway
will sent preset commands to Water Sensor.
Your Water Sensor is capable of directly controlling 5 other
Z-Wave devices within your Z-Wave network. The following
association steps are performed automatically if your
primary Z-Wave controller / gateway is either a SUC (Static
Update Controller) or a SIS (SUC ID Server). When this is
the case, you'll need to create automation activities directly
through your controller / gateway - refer to its user manual
for further information.
illuminate for 10 minutes. During this period your primary Z-
Wave controller / gateway is able to configure your sensor.
Your sensor will then automatically exit setup mode at the end
of 10 minutes.
4.
2.
3.
Remove your Water Sensor from Z-Wave network
Your sensor can be removed from your Z-Wave network at
any time. You'll need to use the main controller in your Z-
Wave network to do this. The following instructions tell you
how to do this using Aeotec by Aeon Labs’s Z-Stick and
Minimote controllers. If you are using other products as
your main Z-Wave controller, please refer to the part of their
respective manuals that tells you how remove devices from
your network.

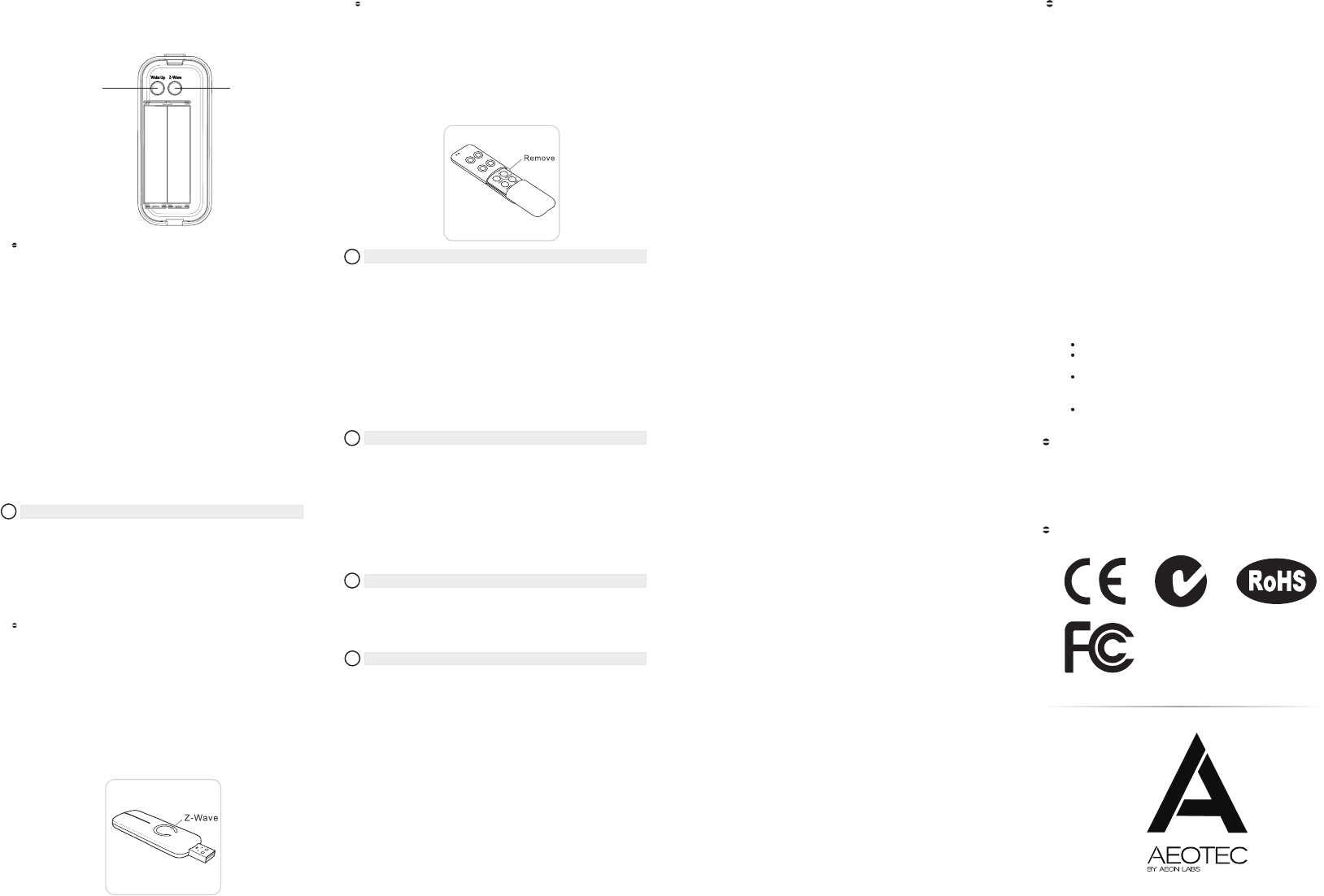

If you are using a Z-Stick
If your Z-Stick is plugged into a gateway or a computer,
unplug it.
Take your Z-Stick to your sensor.
Press the Z-Wave Button on your Z-Stick and hold for 3
seconds.
Press the Z-Wave button on your sensor.
If your sensor has been successfully removed from your
network, its LED will blink for 3 seconds. If the removal
was unsuccessful the light will be solid for 3 seconds after
pressing your sensor's Inclusion button.
Press the Z-Wave Button on the Z-Stick again to take it
out of removal mode.
1.
2.
3.
4.
5.
6.
If you are using a Minimote
Take your Minimote to your sensor.
Press Remove button on your Minimote.
Press the Z-Wave button on your sensor.
If your sensor has been successfully removed from your
network, its LED will blink for 3 seconds. If the removal
was unsuccessful the light will be solid for 3 seconds after
pressing your sensor's Inclusion button.
Press any button on your Minimote to take it out of
removal mode.
1.
2.
3.
4.
5.
4
Send wake up notification
4
In order to send your sensor new configuration commands
from your Z-Wave controller or gateway, it'll need to be
woken up.
Remove your Water Sensor from its mounting plate by
pressing down on the latch button and pulling it away from
its mounting plate.
Press the Wake-up Button 3 times quickly on the rear of
your sensor. Your sensor will now remain awake for 10
minutes.
When done, return your Water Sensor to its mounting
plate. To do this align the plate's hitch with your sensor's
hitch hole, and push the top of your sensor into the
mounting plate until the two parts click firmly together.
1.
2.
3.
Reset all your sensor’s configurations
5
Press and hold the Z-Wave button on the rear of your
Water Sensor for 20 seconds.
Your Water Sensor will reset to its factory default
configuration. Its LED will blink for 3 seconds to let you
know it was reset successfully.
1.
2.
Should you wish to reset all your sensor's configurations,
you are able to reset it to its factory defaults.
Your water sensor's configurations will also be reset to
factory defaults if you remove it from your Z-Wave network.
Technical specifications
6
Operating distance: Up to 100 feet / 30 meters indoors and
300 feet / 100 meters outdoors.
Operating temperature: -35℃ to +60℃.
Aeon Labs warrants to the original purchaser of Products
that for the Warranty Period (as defined below), the
Products will be free from material defects in materials and
workmanship. The foregoing warranty is subject to the
proper installation, operation and maintenance of the
Products in accordance with installation instructions and
the operating manual supplied to Customer. Warranty
claims must be made by Customer in writing within thirty
(30) days of the manifestation of a problem. Aeon Labs' sole
obligation under the foregoing warranty is, at Aeon Labs'
option, to repair, replace or correct any such defect that was
present at the time of delivery, or to remove the Products
and to refund the purchase price to Customer.
Warranty
7
The "Warranty Period" begins on the date the Products is
delivered and continues for 12 months.
Any repairs under this warranty must be conducted by an
authorized Aeon Labs service representative and under
Aeon Labs' RMA policy. Any repairs conducted by
unauthorized persons shall void this warranty.
Excluded from the warranty are problems due to accidents,
acts of God, civil or military authority, civil disturbance, war,
strikes, fires, other catastrophes, misuse, misapplication,
storage damage, negligence, electrical power problems, or
modification to the Products or its components.
Aeon Labs does not authorize any person or party to
assume or create for it any other obligation or liability in
connection with the Products except as set forth herein.
Aeon Labs will pass on to Customer all manufacturers'
Material warranties to the extent that they are transferable,
but will not independently warrant any Material.
Customer must prepay shipping and transportation charges
for returned Products, and insure the shipment or accept
the risk of loss or damage during such shipment and
transportation. Aeon Labs wi ll ship the repaired or
replacement products to Customer freight prepaid.
Customer shall indemnify, defend, and hold Aeon Labs and
Aeon Labs' affiliates, shareholders, directors, officers,
employees, contractors, agents and other representatives
harmless from all demands, claims, actions, causes of
action, proceedings, suits, assessments, losses, damages,
lia b il itie s , set tl emen t s, ju d gmen t s, fi n es, p en alti e s,
in te r es t, c o st s a nd ex pe n s e s ( in cl u di ng fe es a n d
disbursements of counsel) of every kind (i) based upon
personal injury or death or injury to property to the extent
any of the foregoing is proximately caused either by a
defective product (including strict liability in tort) or by the
negligent or willful acts or omissions of Customer or its
officers, employees, subcontractors or agents, and/or (ii)
arising from or relating to any actual or alleged infringement
or misappropriation of any patent, trademark, mask work,
copyright, trade secret or any actual or alleged violation of
any other intellectual property rights arising from or in
connection with the products, except to the extent that such
infringement exists as a result of Aeon Labs' manufacturing
processes.
IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY
IN DI RE C T, I N C ID EN TA L, P U NI TI VE , S PE C IA L O R
CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS
OF PRO F I TS , REVE N U E, OR US E INCURR E D B Y
CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN
ACTION IN CONTRACT, OR TORT, OR OTHERWISE EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
AEON LABS' LIABILITY AND CUSTOMER'S EXCLUSIVE
REMEDY FOR ANY CAUSE OF ACTION ARISING IN
CONNECTION WITH THIS AGREEMENT OR THE SALE
OR USE OF THE PRODUCTS, WHETHER BASED ON
N E G L I G E N C E , S T R I C T L I A B I L I T Y, B R E A C H O F
WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE
PRINCIPLES, IS EXPRESSLY LIMITED TO, AT AEON
LABS' OPTION, REPLACEMENT OF, OR REPAYMENT OF
THE PUR C HASE PRI C E FO R T HAT P O RT IO N OF
PRODUCTS WITH RESPECT TO WHICH DAMAGES ARE
CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN
CONNECTION WITH THIS AGREEMENT OR THE SALE
OR USE OF PRODUCTS SHALL BE DEEMED WAIVED
UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS
FROM AEON LABS'S DELIVERY, OR THE DATE FIXED
FOR DELIVERY IN THE EVENT OF NONDELIVERY.
TH E INDEMNIT Y AND WA RRANTY IN ABOVE A RE
EXCLUSIVE AND IN LIEU OF ALL OTHER INDEMNITIES
OR WARRANTIES, WHETHER EXPRESS OR IMPLIED,
I N C L U D I N G T H E I M P L I E D W A R R A N T I E S O F
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
U N A U T H O R I Z E D M O D I F I C A T I O N S T O T H I S
EQUIPMENT. SUCH MODIFICATIONS COULD VOID
T H E U S E R 'S A U T H O R I T Y T O O P E R AT E T H E
EQUIPMENT.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired
operation. This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
int e rfer e nc e by o ne o r mor e of t h e fo l lo wing
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
diffe r ent f rom t ha t to w hich the rec ei ver i s
connected.
Consul the dealer or an experienced radio/TV
technician for help.
1.
2.
FCC NOTICE(for USA)
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact your local government for information regarding
the collection systems available.
Warning
Version:501004500001-AA www.aeotec.com
Certifications (regional):
