Aeon Labs DSD37 Z-Wave Network Repeater User Manual Repeater
Aeon Labs LLC. Z-Wave Network Repeater Repeater
Manual
Repeater
Guide Contents
Aeotec Repeater
Familiarise yourself with your Repeater
Quick Start
If you’re using a Z-Stick
If you’re using a Minimote
Advanced Functions
If you’re using a Z-Stick
If you’re using a Minimote
1 .
2 .
3 .
4 .
5 . Warranty
1
2
1
2
3
4
5
6
7
Aeotec Repeater can be used as a Z-Wave network repeater.
1Aeotec Repeater
Placed Repeater to the right position, it can work well.

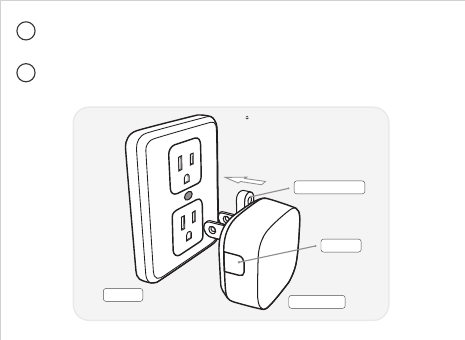

2Familiarise yourself with your repeater
- -1
Outlet Repeater
Switch
Fixing holes
Product use Instruction
- -2
Quick Start
3
Getting your Aeotec Repeater up and running is as simple as plugging it into
a wall outlet and linking it to your existing Z-Wave network. The following
instructions tell you how to link your Repeater to your Z-Wave network using
Aeotec's Z-Stick or Minimote controllers. If you are using other products as
your main Z-Wave controller, please refer to the part of their respective
manuals that tells you how add new devices to your network.

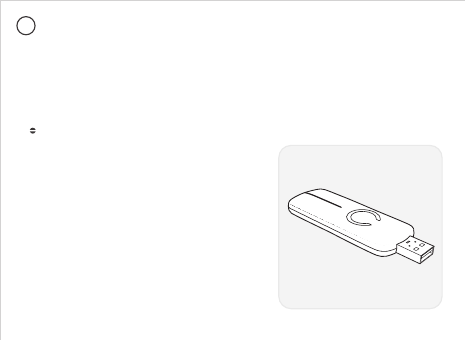

If you’re using a Z-Stick:
D e c i d e o n w he r e y o u w a n t y o u r
Repeater to be placed and plug it
in. Its main light will begin to blink.
If your Z-Stick is plugged into a gateway
or a computer, unplug it.
Take your Z-Stick to your Repeater
Press the Action Button on your Z-Stick.
Pr e s s t h e A c ti o n B utt o n o n yo u r
Repeater.
I f y o u r R e p e a t e r has been
successfully linked to your network,
its light will no longer blink. If the
linking was unsuccessful the light will
continue to blink.
Press the Action Button on the Z-Stick
to take it it out of installation mode.
1 .
2 .
3 .
4 .
5 .
6 .
7 .
- -3

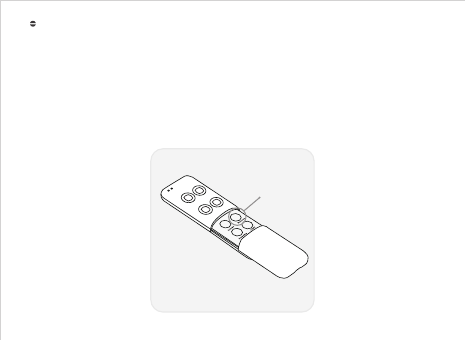

If you’re using a Minimote:
Decide on where you want your Repeater to be placed and plug it in. Its
main light will begin to blink.
Take your Minimote to your Repeater.
Press the Include on your Minimote.
Press the Action Button on your Repeater.
If your Repeater has been successfully linked to your network, its light
will no longer blink. If the linking was unsuccessful the light will continue
to blink.
Press any button on your Minimote to take it it out of installation mode.
1 .
2 .
3 .
4 .
5 .
6 .
Now that your Repeater is up and running .
Include
- -4
4Advanced Functions
Your Repeater can be removed from your Z-Wave network at any time. You'll
need to use your Z-Wave network's main controller to do this. The following
instructions tell you how to do this using Aeotec's Z-Stick and Minimote
controllers. If you are using other products as your main Z-Wave controller,
please refer to the part of their respective manuals that tells you how
remove devices from your network.
Removing your Repeater from a Z-Wave network
If you’re using a Z-Stick:
If your Z-Stick i s plugged into a
gateway or a computer, unplug it.
Take your Z-Stick to your Repeater.
Press the Action Button on your Z-
Stick.
Press the Ac t i o n B u t t o n o n your
Repeater.
If your Repeater has been successfully
removed from your network, its light
w i l l b l i n k . I f t h e r e m o v a l w a s
unsuccessful its light will not blink.
Press the Action Button on the Z-Stick
to take it it out of removal mode.
1 .
2 .
3 .
4 .
5 .
6 .
- -5

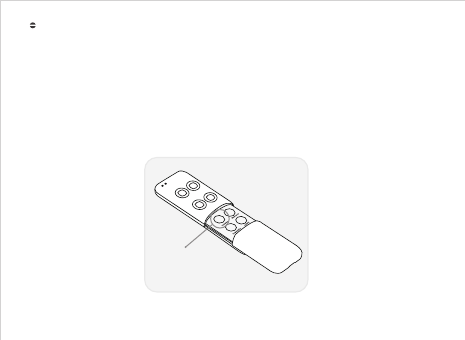

If you’re using a Minimote:
Take your Minimote to your Repeater.
Press the Remove Button on your Minimote.
Press the Action Button on your Repeater.
If your Repeater has been successfully removed from your network,
its light will blink. If the removal was unsuccessful its light will not
blink.
Press any button on your Minimote to take it it out of removal mode.
1 .
2 .
3 .
4 .
5 .
Remove
- -6
Warranty
5
Aeon Labs warrants to the original purchaser of Products that for the
Warranty Period (as defined below), the Products will be free from material
defects in materials and workmanship. The foregoing warranty is subject to
the proper installation, operation and maintenance of the Products in
accordance with installation instructions and the operating manual supplied
to Customer. Warranty claims must be made by Customer in writing within
thirty (30) days of the manifestation of a problem. Aeon Labs' sole obligation
under the foregoing warranty is, at Aeon Labs' option, to repair, replace or
correct any such defect that was present at the time of delivery, or to remove
the Products and to refund the purchase price to Customer.
The "Warranty Period" begins on the date the Products is delivered and
continues for 12 months.
Any repairs under this warranty must be conducted by an authorized Aeon
Labs service representative and under Aeon Labs’RMA policy. Any repairs
conducted by unauthorized persons shall void this warranty.
Excluded from the warranty are problems due to accidents, acts of God, civil
or military authority, civil disturbance, war, strikes, fires, other catastrophes,
misuse, misapplication, storage damage, negligence, electrical power
problems, or modification to the Products or its components.
- -7
Aeon Labs does not authorize any person or party to assume or create for it
any other obligation or liability in connection with the Products except as set
forth herein.
Aeon Labs will pass on to Customer all manufacturers’ Material warranties
to the extent that they are transferable, but will not independently warrant
any Material.
Customer must prepay shipping and transportation charges for returned
Products, and insure the shipment or accept the risk of loss or damage
during such shipment and transportation. Aeon Labs will ship the repaired
or replacement products to Customer freight prepaid.
Customer shall indemnify, defend, and hold Aeon Labs and Aeon Labs’
affiliates, shareholders, directors, officers, employees, contractors, agents
and other representatives harmless from all demands, claims, actions,
causes of action, proceedings, suits, assessments, losses, damages,
liabilities, settlements, judgments, fines, penalties, interest, costs and
expenses (including fees and disbursements of counsel) of every kind (I)
based upon personal injury or death or injury to property to the extent any of
the foregoing is proximately caused either by a defective product (including
strict liability in tort) or by the negligent or willful acts or omissions of
Customer or its officers, employees, subcontractors or agents, and/or (ii)
arising from or relating to any actual or alleged infringement or
- -8
misappropriation of any patent, trademark, mask work, copyright, trade
secret or any actual or alleged violation of any other intellectual property
rights arising from or in connection with the products, except to the extent
that such infringement exists as a result of Aeon Labs’ manufacturing
processes.
IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, OR
DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY
CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN
CONTRACT, OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AEON LABS’ LIABILITY AND
CUSTOMER’ S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR
USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR
EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO, AT AEON LABS’
OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE
PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH
DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN
CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF
PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING
WITHIN THIRTY (30) DAYS FROM AEON LABS’ S DELIVERY, OR THE
DATE FIXED FOR DELIVERY IN THE EVENT OF NONDELIVERY.
- -9
FCC NOTICE (for USA):
THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES, WHETHER
EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO
THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
This device may not cause harmful interference, and
This device must accept any interference received, including interference
that may cause undesired operation. This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1.
2.
- -10
Warning:
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities.
Contact your local government for information regarding the collection
systems available.
- -11
Certifications (regional):
www.aeon-labs.com www.aeotec.com
Version:14A0010038-AA
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
