Aeon Labs ZW078 HEAVY DUTY SMART SWITCH GEN5 User Manual 501001000001 Heavy Duty Smart Switch AL001 AA 1

Aeon Labs LLC. HEAVY DUTY SMART SWITCH GEN5 501001000001 Heavy Duty Smart Switch AL001 AA 1

User Manual

Heavy Duty Smart Switch Gen5
http://aeot.ec/spprt/heavyduty
View the digital manual:
Aeotec by Aeon Labs’ Heavy Duty Smart Switch is
a Z-Wave switch controller that can also report the
wattage energy usage and KWH usage of the
device wired in to it. As part of its switching
functionality, Heavy Duty Smart Switch can be
controlled by other Z-Wave devices to turn loads
on or off. It can bear up to 40 amps current of
resister loads.
It also act as a repeater, forwarding Z-Wave
command messages to destination nodes if the
originating controller is out of range from the
destination node.
By taking advantage of the Z-Wave mesh network,
commands can be routed to their destination via
intermediary Z-Wave products. Products that are
Z-Wave certified can be used and communicate
with other Z-Wave certified device.
Aeotec by Aeon Labs Heavy Duty Smart Switch
Important: A licensed electrician with knowledge and
understanding electrician systems and electrical safety
should complete the electrical installation.
Your Heavy Duty Smart Switch
Heavy Duty Smart Switch .... ...... x1
8AWG Wire terminal ................................ x8
10AWG Wire terminal .............................. x8
Screws ................................................... x2
Instruction Manual.................................... x1
...............
Package Contents
Action button: Used for Heavy Duty Smart Switch’s Z-
Wave network inclusion and exclusion and to manually
turn on/off;
Status LED: Indicates the switch’s status;
Terminals: There are two groups of terminals. As
marked of the silk print, AC Power be connected to main
power, Load for electric load.
Installation
Important : Heavy Duty Smart Switch MUST wired
behind an air break switch for safety and electric
appliance protection.
Before wiring, you must switch off the Air Break Switch
and confirm the circuit power is down, if the Air Break
Switch is out of sight, please lock it to ‘OFF’ position and
tag it to prevent unexpected application of power:

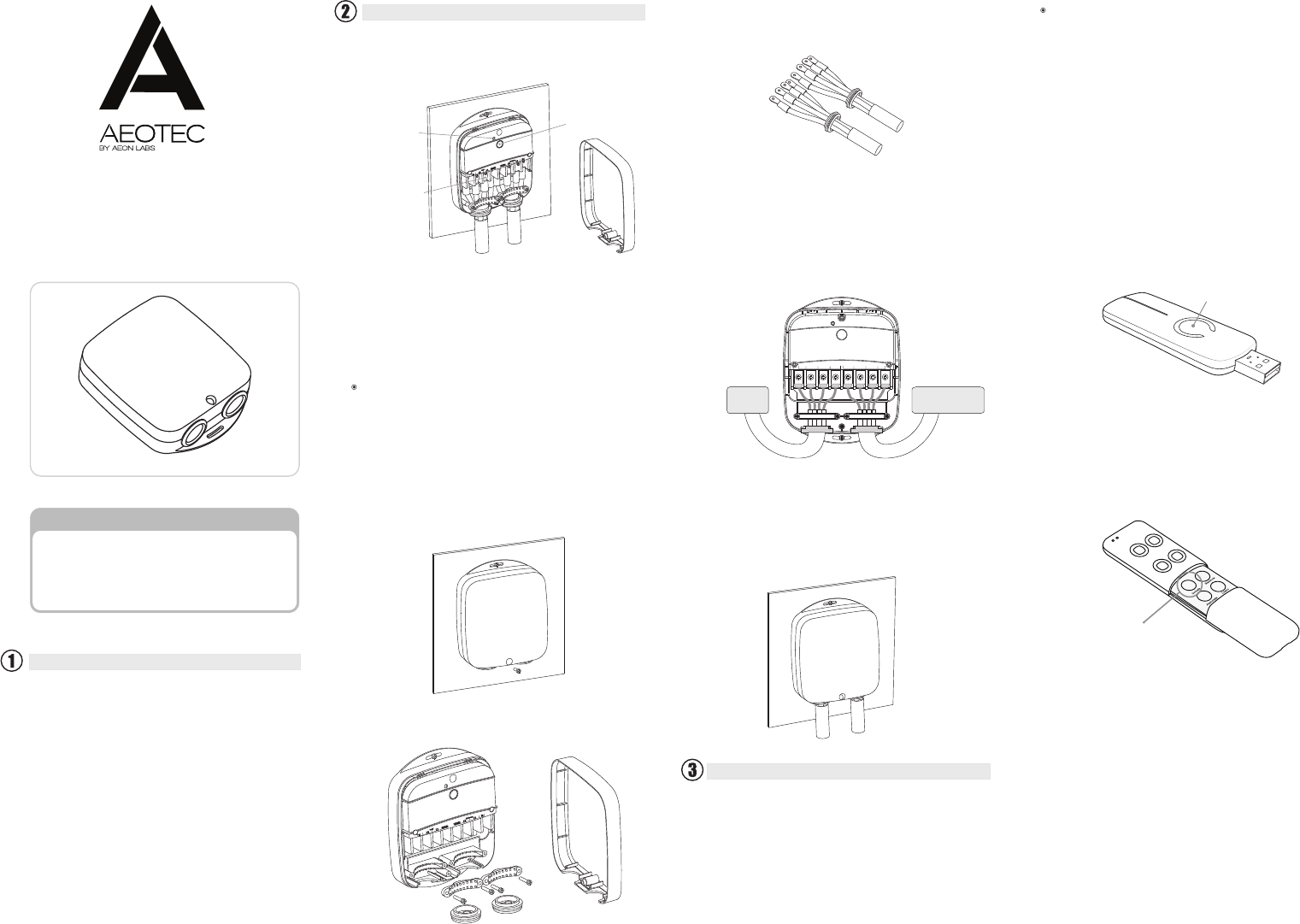

1. Mount Heavy Duty Smart Switch on a wall as shown in
following figure:
2. Loosen your switch’s lower screw to release its shell.
Remove the shell to reveal the inner electronics.
3. Preparing the wires you will be attaching to your
Heavy Duty Smart Switch by stripping the wires to the
necessary length. Add wire terminals to each wire.
4. Wire according to the following diagram, as shown in
the figure, connect each live lines(L1,L2) from Air Break
Switch to corresponding terminals that marked L1 and L2
on the Heavy Duty Smart Switch, if there is Neutral line
and ‘GND’, please connect to the terminals which market
‘GND’ and ‘N’ on Heavy Duty Smart Switch, similarly wire
the electric load with Heavy Duty Smart Switch. Then
tighten screws to the wire terminals.
Important: You must make sure the wire terminals
connected firmly with each corresponding terminals on
the Heavy Duty Smart Switch.
5. Power on your Heavy Duty Smart Switch. At this stage
you need to add it to your Z-Wave network. For
instructions on how to do this, please refer to the
following “Z- Wave Network Instructions” section.
6. Once added to your Z-Wave network, replace your
Heavy Duty Smart Switch’s shell, and refasten to the
shell. Your installation is now complete.
Z-Wave Network Instructions
Adding/Including/Pairing your Heavy Duty
Smart Switch into a Z-Wave Network
Heavy Duty Smart Switch must be paired(included) into a
Z-Wave network before it can receive Z-Wave commands
to turn on/off and report its energy usage. The Heavy
Duty Smart Switch can only communicate to devices
within its own Z-Wave network.
Note: The LED on the Heavy Duty Smart Switch will blink
if it is currently not operating within a Z-Wave network.
Tip: Before including / excluding Heavy Duty Smart
Switch from your Z-Wave network, it’s recommended that
you turn off most of the appliances connected to it. This
will help to prevent load damage.
To add your Heavy Duty Smart Switch to your Z-Wave
network with a Z-Stick, bring your Z-Stick near your
Heavy Duty Smart Switch then press the button on the Z-
Stick to begin the Z-Wave inclusion process.
When your Heavy Duty Smart Switch is first powered on
and it’s not a part of a Z-Wave network, its Status LED will
blink. If it’s not blinking see the tip below. Press your
switch’s Action button to connect it to the Z-Stick. If it’s
successfully added to the network its Status LED will stop
blinking or pulse steadily. If this fails, repeat the above
steps.
Tip: If the Status LED of your Heavy Duty Smart Switch
does not blink when it’s first powered up, it means that
your switch is already part of another Z-Wave network. To
rectify this, first follow the subsequent Removing
instructions before following the Adding/Including/Pairing
steps above.
Action Button
OR
To add your Heavy Duty Smart Switch to your Z-Wave
network with a Minimote, bring your Minimote to be
within range of your Heavy Duty Smart Switch then press
the remote button labelled “Include” on the Aeon Labs
Minimote to begin the Z-Wave inclusion process.
Include
When your Heavy Duty Smart Switch is first powered on
and it’s not a part of a Z-Wave network, its Status LED
will blink. If it’s not blinking see the tip below. Press your
switch’s Action button to connect it to the Z-Stick. If it’s
successfully added to the network its Status LED will
stop blinking or pulse steadily. If this fails, repeat the
above steps.
Tip: If the Status LED of your Heavy Duty Smart Switch
does not blink when it’s first powered up, it means that
your switch is already part of another Z-Wave network. To
rectify this, first follow the subsequent Removing
instructions before following the Adding/Including/Pairing
steps above.
Action Button
Status LED
Wire terminals
N L2 L1
Load GND G ND
Acpower
L2 L1 N
Air Break Switch
Load
To include the Aeon Labs Heavy Duty Smart Switch with
other controllers, please consult the operation manual for
these controllers on how to include Z-Wave products into
an existing network.
The wires please use the minimum AWG10 #, or AWG8#.
Aeon Labs warrants to the original purchaser of
Products that for the Warranty Period (as defined
below), the Products will be free from material defects
in materials and workmanship. The foregoing warranty
is subject to the proper installation, operation and
maintenance of the Products in accordance with
installation instructions and the operating manual
supplied to Customer. Warranty claims must be made
by Customer in writing within thirty (30) days of the
manifestation of a problem. Aeon Labs' sole obligation
under the foregoing warranty is, at Aeon Labs' option,
to repair, replace or correct any such defect that was
present at the time of delivery, or to remove the
Pr od ucts an d to refund the p ur ch ase pri ce t o
Customer.
The "Warranty Period" begins on the date the Products
is delivered and continues for 12 months.
Any repairs under this warranty must be conducted by
an authorized Aeon Labs service representative and
under Aeon Labs' RMA policy. Any repairs conducted
by unauthorized persons shall void this warranty.
Excluded from the warranty are problems due to
accidents, acts of God, civil or military authority, civil
disturbance, war, strikes, fires, other catastrophes,
misuse, misapplication, storage damage, negligence,
electrical power problems, or modification to the
Products or its components.
Aeon Labs does not authorize any person or party to
assume or create for it any other obligation or liability
in connection with the Products except as set forth
herein.
Aeon Labs will pass on to Customer all manufacturers'
Material warranties to the extent that they are
transferable, but will not independently warrant any
Material.
Customer must prepay shipping and transportation
ch ar ge s for r et ur ne d Products, a nd i ns ur e the
shipment or accept the risk of loss or damage during
such shipment and transportation. Aeon Labs will ship
the repaired or replacement products to Customer
freight prepaid.
Customer shall indemnify, defend, and hold Aeon Labs
and Aeon Labs' affiliates, shareholders, directors,
officers, employees, contractors, agents and other
representatives harmless from all demands, claims,
act ion s, cau ses o f ac tio n, pro cee d ing s, su i ts,
a s s e s s m e n t s , l o s s e s , d a m a g e s , l i a b i l i t i e s ,
settlements, judgments, fines, penalties, interest,
costs and expenses (including fees and disbursements
of counsel) of every kind (i) based upon personal injury
or death or injury to property to the extent any of the
foregoing is proximately caused either by a defective
product (including strict liability in tort) or by the
negligent or willful acts or omissions of Customer or its
officers, employees, subcontractors or agents, and/or
(ii) arising from or relating to any actual or alleged
infringe ment or m isapprop riation of any patent,
trademark, mask work, copyright, trade secret or any
actual or alleged violation of any other intellectual
property rights arising from or in connection with the
products, except to the extent that such infringement
exists as a result of Aeon Labs' manufacturing
processes.
IN NO EVENT SHALL AEON LABS BE LIABLE FOR
ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL
OR CONSEQUENTIAL DAMAGES, OR DAMAGES
FOR LOSS OF P ROFIT S, REVENUE, OR USE
INCURRED BY CUSTOMER OR ANY THIRD PARTY,
WHETHER IN AN ACTION IN CONTRACT, OR TORT,
OR O T HER WISE EVEN I F AD VIS E D O F T H E
POSSIBILITY OF SUCH DAMAGES. AEON LABS'
LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY
F O R A N Y C A U S E O F A C T I O N A R I S I N G I N
CONNECTION WITH THIS AGREEMENT OR THE
SALE OR USE OF THE PRODUCTS, WHETHER
BAS ED O N N EGL I GEN CE, S TRI CT LIA B ILI TY,
BREACH OF WARRANTY, BREACH OF AGREEMENT,
OR E QUI TAB L E P R INC I PLE S , I S E XPRE SSLY
L I M I T E D T O , A T A E O N L A B S ' O P T I O N ,
RE PL ACEMENT OF, O R REPAYM EN T OF T HE
P U R C H A S E P R I C E F O R T H AT P O R T I O N O F
PRODUCTS WITH RESPECT TO WHICH DAMAGES
ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING
IN CONNECTION WITH THIS AGREEMENT OR THE
SALE OR USE OF PRODUCTS SHALL BE DEEMED
WAIV ED UNL ESS M ADE IN WRI TIN G W IT HIN
THIRTY (30) DAYS FROM AEON LABS'S DELIVERY,
OR THE DATE FIXED FOR DELIVERY IN THE EVENT
OF NONDELIVERY.
THE INDEMNITY AND WARRANTY IN ABOVE ARE
E X C L U S I V E A N D I N L I E U O F A L L O T H E R
I N D E M N I T I E S O R W A R R A N T I E S , W H E T H E R
EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
U N A U T H O R I Z E D M O D I F I C AT I O N S T O T H I S
EQUIPMENT. SUCH MODIFICATIONS COULD VOID
THE U S ER'S A UTHO R I TY TO O PERAT E T HE
EQUIPMENT.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference, and
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Co nta ct you r l oc al g ov ern men t for inf or mat ion
regarding the collection systems available.
www.aeotec.com
This device must accept any interference received,
including interference that may cause undesired
operation. This equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
ag ain st har mf ul int erf er enc e in a r esi den ti al
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
i n s t a l l e d a n d u s e d i n a c c o r d a n c e w i t h t h e
instructions, may cause harmful interference to
ra dio co mmu nic at ion s. How ever, the re is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
Consul the dealer or an experienced radio/TV
technician for help.
1.
2.
Warranty
Warning
6
FCCNOTICE (for USA)
Certifications (regional)
Version:501001000001-AA
You can remove your Heavy Duty Smart Switch from
your Z-Wave network at any time. To do this you need
use your main controller such as a Z-Stick or Minimote.
Removing your Heavy Duty Smart Switch From
a Z-Wave Network
If you are using a Z-Stick:
If your Z-Stick is plugged into a gateway or a computer,
unplug it.
Bring your Z-Stick near your Heavy Duty Smart
Switch.
Press the Action Button on your Z-Stick.
Press the Action Button on your Heavy Duty Smart
Switch.
I f y o u r H e a v y Duty S m a r t S w i t c h h a s b e e n
successfully removed from your network, its light will
blink. If the removal was unsuccessful its light will not
blink.
Press the Action Button on the Z-Stick to make it out of
removal mode.
If you are using a minimote:
Bring your Minimote near your Heavy Duty Smart
Switch.
Press the Remove Button on your Minimote.
Press the Action Button on your Heavy Duty Smart
Switch.
I f y o u r H e a v y Duty S m a r t S w i t c h h a s b e e n
successfully removed from your network, its light will
blink. If the removal was unsuccessful its light will not
blink.
Press any button on your Minimote to make it out of
removing mode.
Your Heavy Duty Smart Switch can be turned on or off
through the use of Z-Wave commands built into Z- Wave
certified controllers and gateways. The specific Z-Wave
commands supporting this function are the Basic
Command Class and Binary Switch Command Class.
Ple a se con s ult t h e ope r ati on ma n ual f o r t he s e
controllers for specific instructions on controlling your
Heavy Duty Smart Switch.
Turn Your Heavy Duty Smart Switch On or Off
Monitoring Power Consumption
Your Aeon Labs Heavy Duty Smart Switch can report
Watts energy usage or KWh energy usage to a Z-Wave
gateway or controller. If this function is supported by
the gateway/controller, the energy consumption will be
displayed in its user interface. The specific Z-Wave
commands supporting energy monitoring are the Meter
Command Class and Multilevel Sensor Command
Class. Automatic reports go to the only association
group 1, which is setup via the Association Command
Class. Please also consult the operation manual for
these gateways/controllers for specific instructions on
monitoring your Heavy Duty Smart Switch.
Technical Specifications
Model number: DSC10-ZWUS
Waterproof: IP44
Power Consumption: 1W
Ratings: 240VAC,50/60Hz(2Phases L1,L2) ;
Maxim 9600 Watts 40A Resister;
240VAC 5HP AC Motor;
RF range: 300ft/100m outdoor;
Endurance of 10ms period peak current of 1440A
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.

Navigation menu
