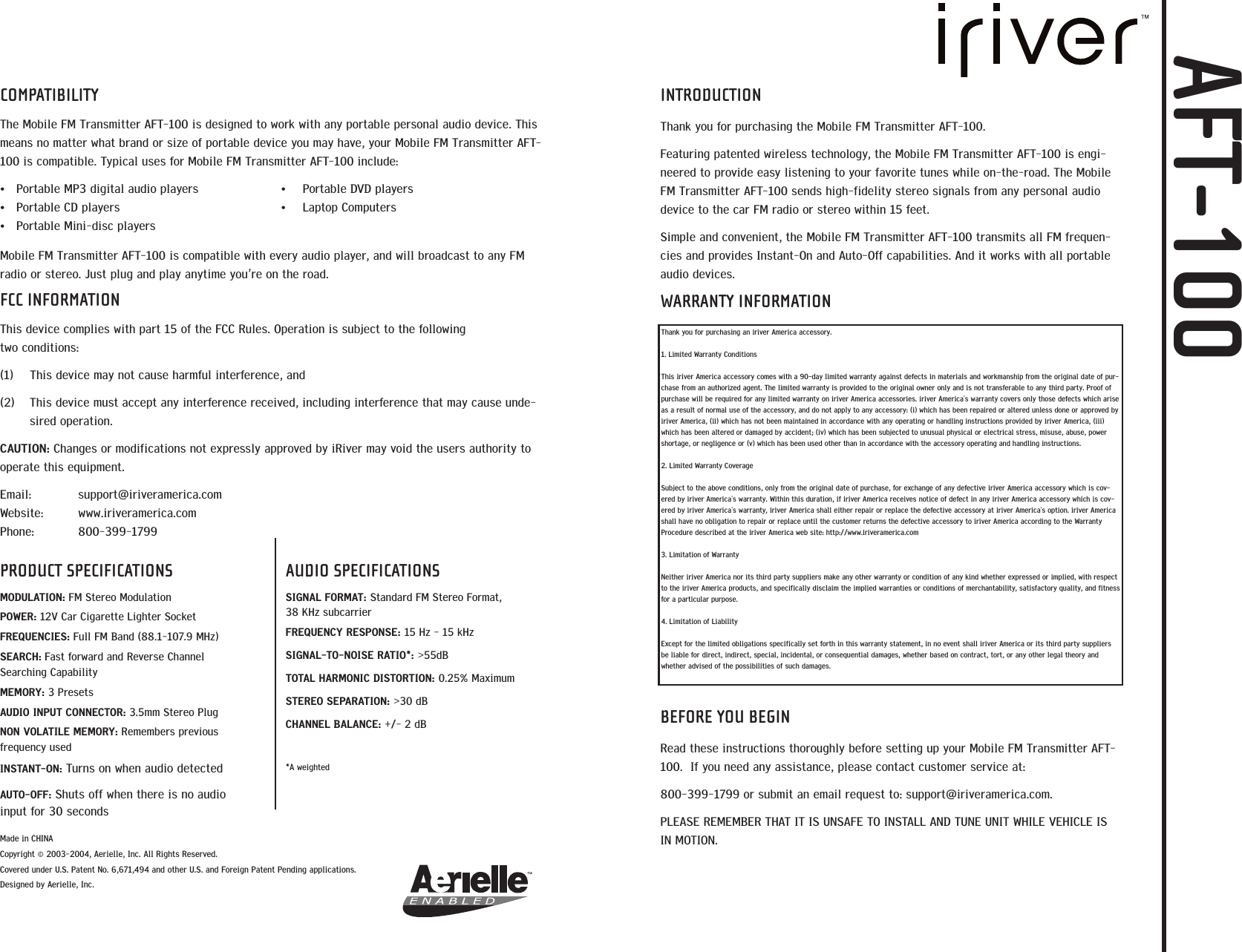

COMPATIBILITYThe Mobile FM Transmitter AFT-100 is designed to work with any portable personal audio device. Thismeans no matter what brand or size of portable device you may have, your Mobile FM Transmitter AFT-100 is compatible. Typical uses for Mobile FM Transmitter AFT-100 include:•Portable MP3 digital audio players • Portable DVD players•Portable CD players • Laptop Computers•Portable Mini-disc playersMobile FM Transmitter AFT-100 is compatible with every audio player, and will broadcast to any FMradio or stereo. Just plug and play anytime you’re on the road. FCC INFORMATIONThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)  This device may not cause harmful interference, and (2)  This device must accept any interference received, including interference that may cause unde-sired operation. CAUTION: Changes or modifications not expressly approved by iRiver may void the users authority tooperate this equipment. Email: support@iriveramerica.comWebsite: www.iriveramerica.comPhone: 800-399-1799Made in CHINA Copyright © 2003-2004, Aerielle, Inc. All Rights Reserved.Covered under U.S. Patent No. 6,671,494 and other U.S. and Foreign Patent Pending applications. Designed by Aerielle, Inc.  PRODUCT SPECIFICATIONSMODULATION: FM Stereo ModulationPOWER: 12V Car Cigarette Lighter SocketFREQUENCIES: Full FM Band (88.1-107.9 MHz)SEARCH: Fast forward and Reverse Channel Searching CapabilityMEMORY: 3 PresetsAUDIO INPUT CONNECTOR: 3.5mm Stereo PlugNON VOLATILE MEMORY: Remembers previous frequency usedINSTANT-ON: Turns on when audio detectedAUTO-OFF: Shuts off when there is no audioinput for 30 secondsAUDIO SPECIFICATIONSSIGNAL FORMAT: Standard FM Stereo Format, 38 KHz subcarrierFREQUENCY RESPONSE: 15 Hz - 15 kHzSIGNAL-TO-NOISE RATIO*: >55dBTOTAL HARMONIC DISTORTION: 0.25% MaximumSTEREO SEPARATION: >30 dBCHANNEL BALANCE: +/- 2 dB*A weightedINTRODUCTIONThank you for purchasing the Mobile FM Transmitter AFT-100.Featuring patented wireless technology, the Mobile FM Transmitter AFT-100 is engi-neered to provide easy listening to your favorite tunes while on-the-road. The MobileFM Transmitter AFT-100 sends high-fidelity stereo signals from any personal audiodevice to the car FM radio or stereo within 15 feet. Simple and convenient, the Mobile FM Transmitter AFT-100 transmits all FM frequen-cies and provides Instant-On and Auto-Off capabilities. And it works with all portableaudio devices.WARRANTY INFORMATIONBEFORE YOU BEGINRead these instructions thoroughly before setting up your Mobile FM Transmitter AFT-100.  If you need any assistance, please contact customer service at:800-399-1799 or submit an email request to: support@iriveramerica.com.PLEASE REMEMBER THAT IT IS UNSAFE TO INSTALL AND TUNE UNIT WHILE VEHICLE ISIN MOTION.  Thank you for purchasing an iriver America accessory. 1. Limited Warranty ConditionsThis iriver America accessory comes with a 90-day limited warranty against defects in materials and workmanship from the original date of pur-chase from an authorized agent. The limited warranty is provided to the original owner only and is not transferable to any third party. Proof ofpurchase will be required for any limited warranty on iriver America accessories. iriver America's warranty covers only those defects which ariseas a result of normal use of the accessory, and do not apply to any accessory: (i) which has been repaired or altered unless done or approved byiriver America, (ii) which has not been maintained in accordance with any operating or handling instructions provided by iriver America, (iii)which has been altered or damaged by accident; (iv) which has been subjected to unusual physical or electrical stress, misuse, abuse, powershortage, or negligence or (v) which has been used other than in accordance with the accessory operating and handling instructions.2. Limited Warranty CoverageSubject to the above conditions, only from the original date of purchase, for exchange of any defective iriver America accessory which is cov-ered by iriver America's warranty. Within this duration, if iriver America receives notice of defect in any iriver America accessory which is cov-ered by iriver America's warranty, iriver America shall either repair or replace the defective accessory at iriver America's option. iriver Americashall have no obligation to repair or replace until the customer returns the defective accessory to iriver America according to the WarrantyProcedure described at the iriver America web site: http://www.iriveramerica.com3. Limitation of WarrantyNeither iriver America nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied, with respectto the iriver America products, and specifically disclaim the implied warranties or conditions of merchantability, satisfactory quality, and fitnessfor a particular purpose.4. Limitation of LiabilityExcept for the limited obligations specifically set forth in this warranty statement, in no event shall iriver America or its third party suppliersbe liable for direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory andwhether advised of the possibilities of such damages.AFT-100

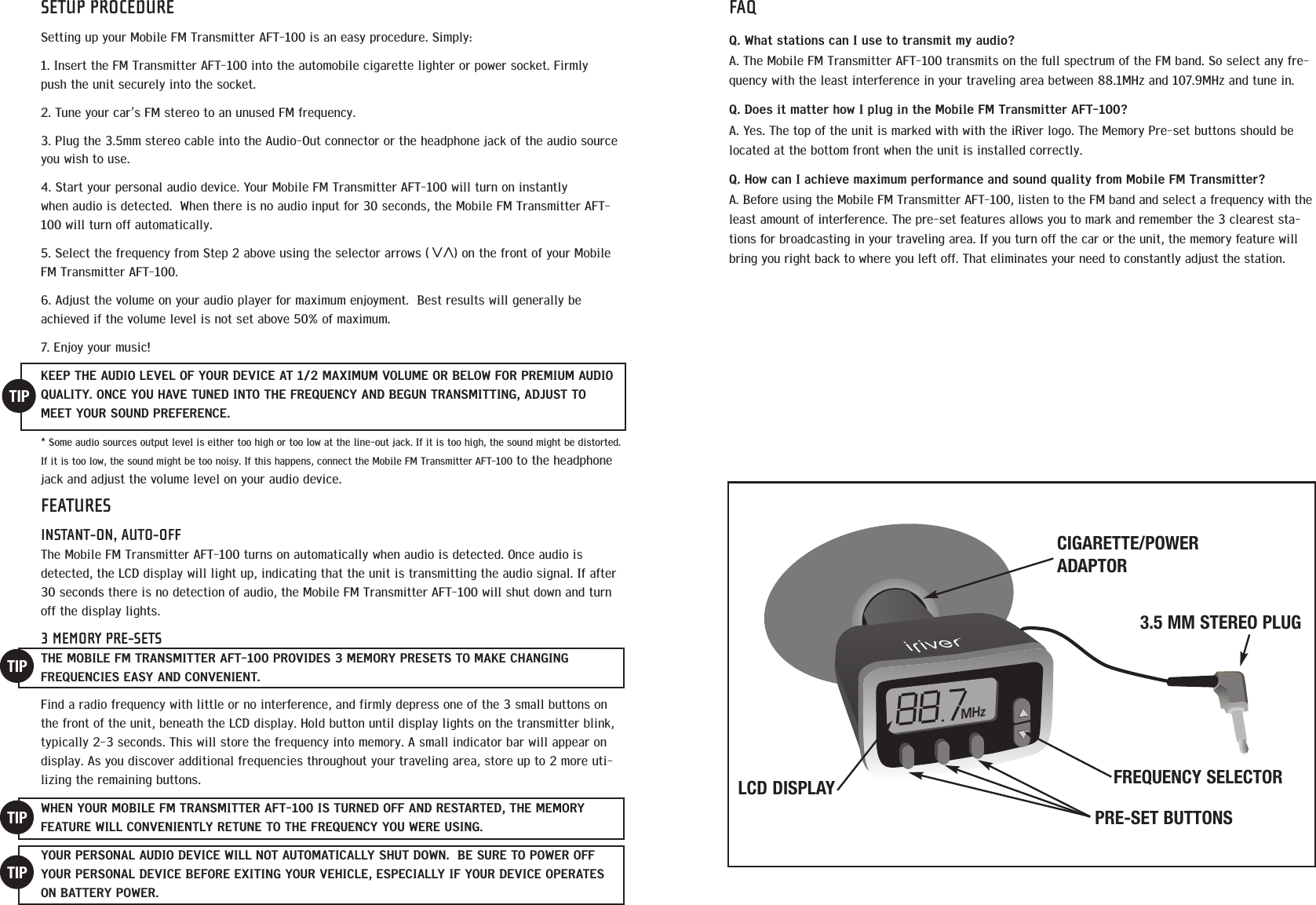

SETUP PROCEDURESetting up your Mobile FM Transmitter AFT-100 is an easy procedure. Simply:1. Insert the FM Transmitter AFT-100 into the automobile cigarette lighter or power socket. Firmlypush the unit securely into the socket. 2. Tune your car’s FM stereo to an unused FM frequency.  3. Plug the 3.5mm stereo cable into the Audio-Out connector or the headphone jack of the audio sourceyou wish to use. 4. Start your personal audio device. Your Mobile FM Transmitter AFT-100 will turn on instantlywhen audio is detected.  When there is no audio input for 30 seconds, the Mobile FM Transmitter AFT-100 will turn off automatically.  5. Select the frequency from Step 2 above using the selector arrows (      ) on the front of your MobileFM Transmitter AFT-100. 6. Adjust the volume on your audio player for maximum enjoyment.  Best results will generally beachieved if the volume level is not set above 50% of maximum.7. Enjoy your music!KEEP THE AUDIO LEVEL OF YOUR DEVICE AT 1/2 MAXIMUM VOLUME OR BELOW FOR PREMIUM AUDIOQUALITY. ONCE YOU HAVE TUNED INTO THE FREQUENCY AND BEGUN TRANSMITTING, ADJUST TOMEET YOUR SOUND PREFERENCE.* Some audio sources output level is either too high or too low at the line-out jack. If it is too high, the sound might be distorted.If it is too low, the sound might be too noisy. If this happens, connect the Mobile FM Transmitter AFT-100 to the headphonejack and adjust the volume level on your audio device.FEATURESINSTANT-ON, AUTO-OFFThe Mobile FM Transmitter AFT-100 turns on automatically when audio is detected. Once audio isdetected, the LCD display will light up, indicating that the unit is transmitting the audio signal. If after30 seconds there is no detection of audio, the Mobile FM Transmitter AFT-100 will shut down and turnoff the display lights. 3 MEMORY PRE-SETSTHE MOBILE FM TRANSMITTER AFT-100 PROVIDES 3 MEMORY PRESETS TO MAKE CHANGING FREQUENCIES EASY AND CONVENIENT. Find a radio frequency with little or no interference, and firmly depress one of the 3 small buttons onthe front of the unit, beneath the LCD display. Hold button until display lights on the transmitter blink,typically 2-3 seconds. This will store the frequency into memory. A small indicator bar will appear ondisplay. As you discover additional frequencies throughout your traveling area, store up to 2 more uti-lizing the remaining buttons.  WHEN YOUR MOBILE FM TRANSMITTER AFT-100 IS TURNED OFF AND RESTARTED, THE MEMORY FEATURE WILL CONVENIENTLY RETUNE TO THE FREQUENCY YOU WERE USING.  YOUR PERSONAL AUDIO DEVICE WILL NOT AUTOMATICALLY SHUT DOWN.  BE SURE TO POWER OFFYOUR PERSONAL DEVICE BEFORE EXITING YOUR VEHICLE, ESPECIALLY IF YOUR DEVICE OPERATESON BATTERY POWER.TIPTIPTIPTIPFAQQ. What stations can I use to transmit my audio? A. The Mobile FM Transmitter AFT-100 transmits on the full spectrum of the FM band. So select any fre-quency with the least interference in your traveling area between 88.1MHz and 107.9MHz and tune in.  Q. Does it matter how I plug in the Mobile FM Transmitter AFT-100? A. Yes. The top of the unit is marked with with the iRiver logo. The Memory Pre-set buttons should belocated at the bottom front when the unit is installed correctly.Q. How can I achieve maximum performance and sound quality from Mobile FM Transmitter?  A. Before using the Mobile FM Transmitter AFT-100, listen to the FM band and select a frequency with theleast amount of interference. The pre-set features allows you to mark and remember the 3 clearest sta-tions for broadcasting in your traveling area. If you turn off the car or the unit, the memory feature willbring you right back to where you left off. That eliminates your need to constantly adjust the station. MHzPRE-SET BUTTONSCIGARETTE/POWERADAPTOR3.5 MM STEREO PLUGFREQUENCY SELECTORLCD DISPLAY<<
