Aerielle ATBPA6V100 FM Transmitter User Manual XRAA Guide

Aerielle, Inc FM Transmitter XRAA Guide

User Manual

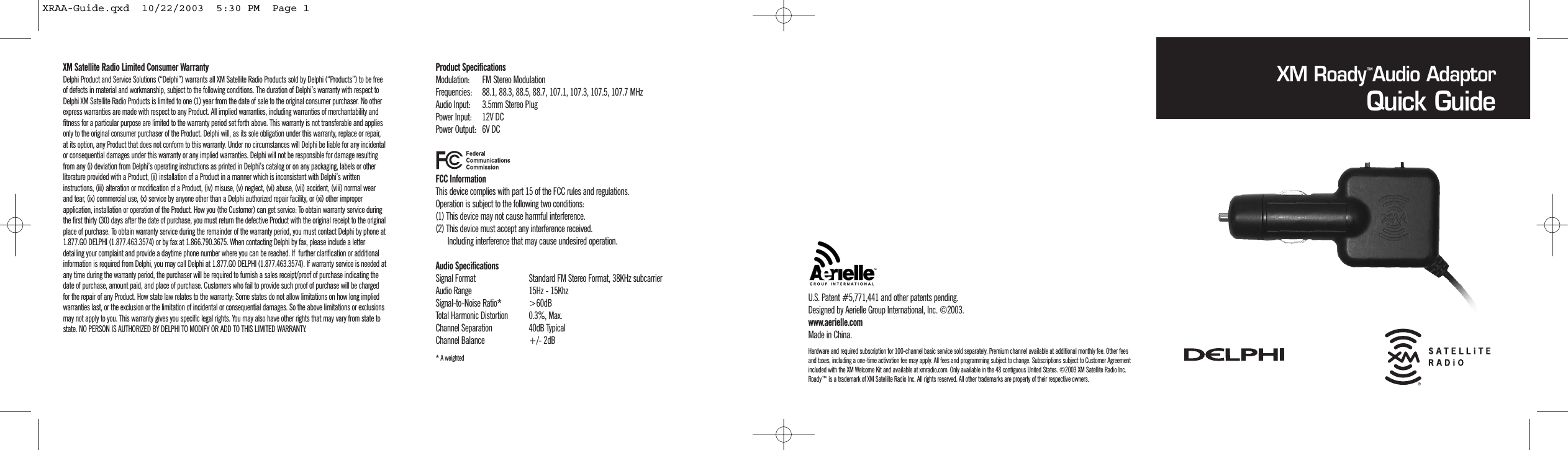

XM Satellite Radio Limited Consumer Warranty Delphi Product and Service Solutions (“Delphi”) warrants all XM Satellite Radio Products sold by Delphi (“Products”) to be freeof defects in material and workmanship, subject to the following conditions. The duration of Delphi’s warranty with respect toDelphi XM Satellite Radio Products is limited to one (1) year from the date of sale to the original consumer purchaser. No otherexpress warranties are made with respect to any Product. All implied warranties, including warranties of merchantability andfitness for a particular purpose are limited to the warranty period set forth above. This warranty is not transferable and appliesonly to the original consumer purchaser of the Product. Delphi will, as its sole obligation under this warranty, replace or repair,at its option, any Product that does not conform to this warranty. Under no circumstances will Delphi be liable for any incidentalor consequential damages under this warranty or any implied warranties. Delphi will not be responsible for damage resultingfrom any (i) deviation from Delphi’s operating instructions as printed in Delphi’s catalog or on any packaging, labels or otherliterature provided with a Product, (ii) installation of a Product in a manner which is inconsistent with Delphi’s writteninstructions, (iii) alteration or modification of a Product, (iv) misuse, (v) neglect, (vi) abuse, (vii) accident, (viii) normal wearand tear, (ix) commercial use, (x) service by anyone other than a Delphi authorized repair facility, or (xi) other improperapplication, installation or operation of the Product. How you (the Customer) can get service: To obtain warranty service duringthe first thirty (30) days after the date of purchase, you must return the defective Product with the original receipt to the originalplace of purchase. To obtain warranty service during the remainder of the warranty period, you must contact Delphi by phone at1.877.GO DELPHI (1.877.463.3574) or by fax at 1.866.790.3675. When contacting Delphi by fax, please include a letterdetailing your complaint and provide a daytime phone number where you can be reached. If further clarification or additionalinformation is required from Delphi, you may call Delphi at 1.877.GO DELPHI (1.877.463.3574). If warranty service is needed atany time during the warranty period, the purchaser will be required to furnish a sales receipt/proof of purchase indicating thedate of purchase, amount paid, and place of purchase. Customers who fail to provide such proof of purchase will be chargedfor the repair of any Product. How state law relates to the warranty: Some states do not allow limitations on how long impliedwarranties last, or the exclusion or the limitation of incidental or consequential damages. So the above limitations or exclusionsmay not apply to you. This warranty gives you specific legal rights. You may also have other rights that may vary from state tostate. NO PERSON IS AUTHORIZED BY DELPHI TO MODIFY OR ADD TO THIS LIMITED WARRANTY.Product SpecificationsModulation: FM Stereo ModulationFrequencies: 88.1, 88.3, 88.5, 88.7, 107.1, 107.3, 107.5, 107.7 MHzAudio Input: 3.5mm Stereo PlugPower Input: 12V DCPower Output: 6V DCFCC InformationThis device complies with part 15 of the FCC rules and regulations.Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received.Including interference that may cause undesired operation.Audio SpecificationsSignal Format Standard FM Stereo Format, 38KHz subcarrierAudio Range 15Hz - 15KhzSignal-to-Noise Ratio* >60dBTotal Harmonic Distortion 0.3%, Max.Channel Separation 40dB TypicalChannel Balance +/- 2dB* A weightedXM Roady Audio AdaptorQuick GuideU.S. Patent #5,771,441 and other patents pending.Designed by Aerielle Group International, Inc. ©2003.www.aerielle.comMade in China.™Hardware and required subscription for 100-channel basic service sold separately. Premium channel available at additional monthly fee. Other feesand taxes, including a one-time activation fee may apply. All fees and programming subject to change. Subscriptions subject to Customer Agreementincluded with the XM Welcome Kit and available at xmradio.com. Only available in the 48 contiguous United States. ©2003 XM Satellite Radio Inc.Roady™ is a trademark of XM Satellite Radio Inc. All rights reserved. All other trademarks are property of their respective owners.XRAA-Guide.qxd 10/22/2003 5:30 PM Page 1

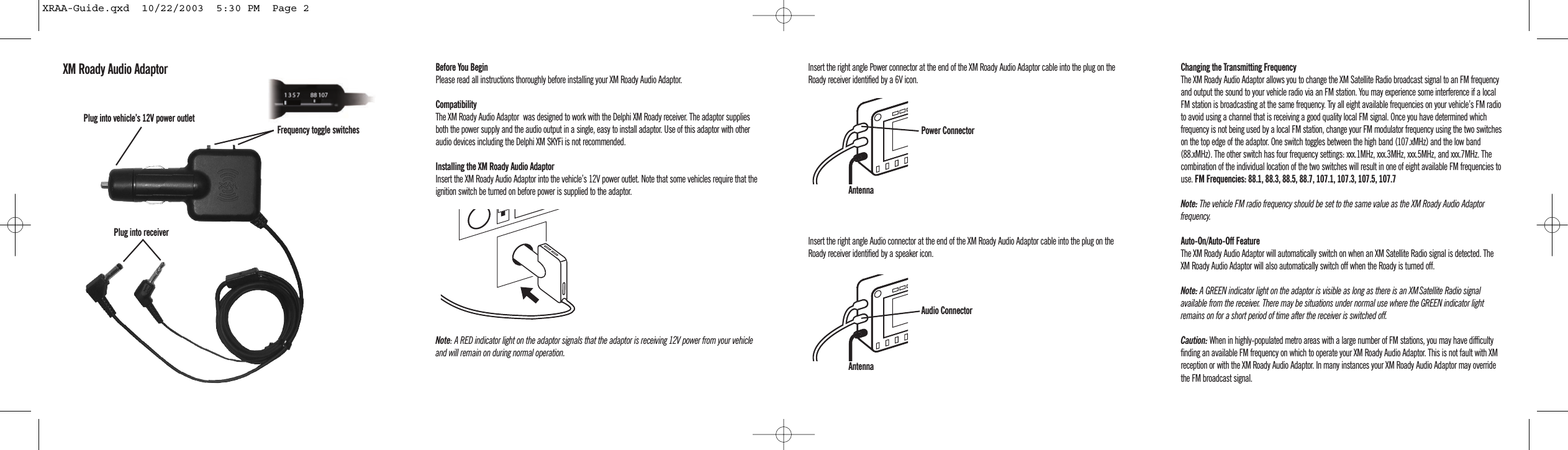

Before You BeginPlease read all instructions thoroughly before installing your XM Roady Audio Adaptor.CompatibilityThe XM Roady Audio Adaptor was designed to work with the Delphi XM Roady receiver. The adaptor suppliesboth the power supply and the audio output in a single, easy to install adaptor. Use of this adaptor with otheraudio devices including the Delphi XM SKYFi is not recommended.Installing the XM Roady Audio AdaptorInsert the XM Roady Audio Adaptor into the vehicle’s 12V power outlet. Note that some vehicles require that theignition switch be turned on before power is supplied to the adaptor.Note: A RED indicator light on the adaptor signals that the adaptor is receiving 12V power from your vehicleand will remain on during normal operation.Insert the right angle Power connector at the end of the XM Roady Audio Adaptor cable into the plug on theRoady receiver identified by a 6V icon. Insert the right angle Audio connector at the end of the XM Roady Audio Adaptor cable into the plug on theRoady receiver identified by a speaker icon.Changing the Transmitting FrequencyThe XM Roady Audio Adaptor allows you to change the XM Satellite Radio broadcast signal to an FM frequencyand output the sound to your vehicle radio via an FM station. You may experience some interference if a localFM station is broadcasting at the same frequency. Try all eight available frequencies on your vehicle’s FM radioto avoid using a channel that is receiving a good quality local FM signal. Once you have determined whichfrequency is not being used by a local FM station, change your FM modulator frequency using the two switcheson the top edge of the adaptor. One switch toggles between the high band (107.xMHz) and the low band(88.xMHz). The other switch has four frequency settings: xxx.1MHz, xxx.3MHz, xxx.5MHz, and xxx.7MHz. Thecombination of the individual location of the two switches will result in one of eight available FM frequencies touse. FM Frequencies: 88.1, 88.3, 88.5, 88.7, 107.1, 107.3, 107.5, 107.7Note: The vehicle FM radio frequency should be set to the same value as the XM Roady Audio Adaptorfrequency. Auto-On/Auto-Off FeatureThe XM Roady Audio Adaptor will automatically switch on when an XM Satellite Radio signal is detected. TheXM Roady Audio Adaptor will also automatically switch off when the Roady is turned off.Note: A GREEN indicator light on the adaptor is visible as long as there is an XMSatellite Radio signalavailable from the receiver. There may be situations under normal use where the GREEN indicator lightremains on for a short period of time after the receiver is switched off.Caution: When in highly-populated metro areas with a large number of FM stations, you may have difficultyfinding an available FM frequency on which to operate your XM Roady Audio Adaptor. This is not fault with XMreception or with the XM Roady Audio Adaptor. In many instances your XM Roady Audio Adaptor may overridethe FM broadcast signal.XM Roady Audio AdaptorPlug into receiverPlug into vehicle’s 12V power outlet Frequency toggle switchesAntennaAntennaPower ConnectorAudio ConnectorXRAA-Guide.qxd 10/22/2003 5:30 PM Page 2
