Users Manual
TREKZ TITANIUM
User Guide
1.
Set up your Trekz Titanium
Charge 2. Pair 3. Connect
Let us take care of you!
Charge the headphones
with the included micro-USB
charging cable. The LED
indicator will turn blue when
charging is complete.
While off, press and hold the power
button for 5 seconds to
enter pairing mode. The LED
indicator will flash blue and red
repeatedly while in discovery.
Enable the Bluetooth®
settings on your device and
select “Trekz Titanium by
AfterShokz”. The LED indicator
will turn blue once connected.
We’ve got your back against damages.
Register your Trekz at bit.ly/RegisterMyTrekz
Multifunction Button
Micro-USB
Charging Port
Microphone 1
Microphone 2
Volume up/Power Buttons
Volume down
LED Indicator
A
B
Multifunction Button (A)
Volume Up/Power Button (B) Volume Down Button (C)
Play/pause music Click once One beep
Skip to next song Double-click while music is playing One beep
Answer/end call Click once One beep
Answer call waiting and put
the current caller on hold
Click once to switch between callers One beep
Answer call waiting and
hang up on current caller
Press and hold for 2 seconds One beep
Reject a call Press and hold for 2 seconds Two beeps
Voice dial Press and hold for 2 seconds “Voice dial”
Redial last number Double-click “Last number redial”
Function Action Prompt/”Audrey Says™”
Power on/off Press and hold the power button for
2 seconds
Four beeps and “welcome
to Trekz Titanium”
Mute Press and hold both buttons for 2
seconds while on a call
“Mute on” or
“mute off”
Change EQ setting Press and hold both buttons for 2
seconds while music is playing
“Equalization changed”
Check battery status Click the volume up or down button
while music is paused
“Battery high, medium, low
(or) charge me”
Adjust volume Click the volume up or down button
to adjust volume
One beep
Function Action Prompt/”Audrey Says™”
C
Part number AS600 Wireless range 33 ft (10m)
Speaker type Bone conduction transducer Battery Rechargeable lithium ion
Frequency response 20Hz~20KHz Continuous play 6 hours
Sensitivity 100 ± 3dB Standby time 10 days
Microphone -40dB ± 3dB Charge time 1.5 hours
Bluetooth® version Bluetooth® v4.1 Weight 1.27 oz (36g)
Compatible pro A2DP, AVRCP, HSP, HFP Warranty 2 years
LED indicatorMuiltipoint pairing
1. Enter pairing mode
2. Press the multifunction button and volume up/power button
for 2 seconds (Audrey Says™ “multipoint enabled”)
3. Audrey Says™ “connected”)
4. Shut down
5. Re-enter pairing mode
6. Pair second device (Audrey Says™ “second device connected”)
7. Turn the device off, then power back on
Enter pairing mode, then press and hold the multifunction button, and both volume buttons simultaneously for 3 seconds.
How to reset your headphones
Solid red Charging
Solid blue Charging complete
Flashes red and blue Pairing mode
Flashes blue Incoming call
Flashes red every 2 minutes Low battery

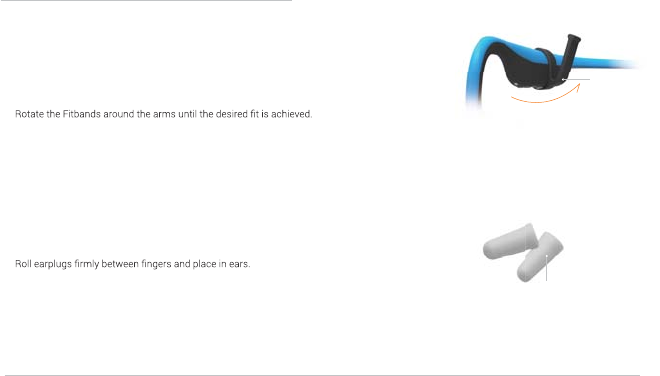

Fitband (D)
Silicon rubber bands provide adjustability to accommodate smaller head sizes.
1. Slide Fitband (R) over the right transducer and along the right arm to rest over the charging port.
2. Slide Fitband (L) over the left transducer and along the left arm to align evenly with the right arm.
3.
Earplugs (E)
Use with headphones in environments where it is safe to block out ambient noise, such as on an
airplane or train.
1.
2. To adjust EQ settings to reduce or enhance bass while wearing earplugs, press and hold volume
up and down buttons simultaneously.
Optional Accessories
D
E
We’re all ears! Got a question? Eager to share an experience?
Send us an email, or give us a call: support@aftershokz.com | (315) 290-3855
To view this user guide in additional languages, visit bit.ly/TrekzUserGuide
• Store the headphones in a cool and dry place. The working temperature should be 0~45°C(32~113°F). Working in cold/hot environments or highly humid
areas may reduce the life of the battery.
• After storing the headphones for an extended period, charge the unit before using it again.
• The headphones are sweat resistant, but are NOT waterproof. DO NOT submerge the headphones in water.
• Listening with headphones at a high volume may affect your hearing and may distort the audio.
• When cleaning the headphones, use a soft dry cloth.
• Do not charge your headphones immediately after exercising, as any sweat or moisture inside the charging port could lead to a circuit burning.
Note:
Storage and maintenance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC caution
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class (B) digital apparatus complies with Canadian ICES-003.
Declaration of Conformity of Industry of Canada
LeprlsentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsde licence.L'exploitation
estautorisleauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoit
acceptertoutbrouillageradiollectriquesubi,mmmesilebrouillageestsusceptibled'encompromettrelefonctionnement.
ThisClassBdigitalapparatuscomplieswithCanadianICES003.
CetappareilnumlriquedelaclasseBestconforme i lanormeNMB003duCanada.
Anychangesormodificationsnotexpresslyapprovedbythegranteeofthisdevicecouldvoidtheuser's authoritytooperatethe
device.
Toutemodificationnonapprouvl explicitementparlefournisseurdelicencedel'appareilpeutentraînerl'annulationdudroitde
l'utilisateur i utiliserl'appareil.
ICRadiationExposureStatement
ThisequipmentcomplieswithCanadaradiationexposurelimitssetforthforuncontrolledenvironments.
Déclarationd'expositionauxradiations:
Leproduitestconformeauxlimitesd'expositionpourlesappareilsportablesRFpourlesEtatsUnisetleCanadaétabliespourun
environnementnoncontrôlé.Leproduitestsûrpourunfonctionnementtelquedécritdanscemanuel.
FCCRFEXPOSURESTATEMENT:
ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement,Thedevicecanbeusedinportableexposurecondition
withoutrestriction.
Duetotheusedenclosurematerial,thedevicesshallonlybeconnectedtoaUSBInterfaceofversion2.0orhigher.
CAUTIONRISKOFEXPLOSIONIFBATTERYISREPLACEDBYANINCORRECTTYPE.DISPOSEOFUSEDBATTERIESACCORDINGTOTHE
INSTRUCTIONS.
Donotusethedevicesintheenvironmentattoohighortoolowtemperature,neverexposetheunderstrongsunshineortoowet
environment.Thesuitabletemperatureforthedevicesis0~+45ć.
EURegulatoryConformance
Hereby,AfterShokz,LLCdeclaresthatthisdeviceisincompliancewiththeessentialrequirementsandotherrelevantprovisions
ofDirective1999/5/EC.
Pleasetakeyourused,unwantedlithiumbatteriestoadesignatedplace.Donotdisposeoftheminarubbishbin.
Soundpressurewarningstatement
For the device that is tested in accordance with EN 609501:2006+A11:2009+A1:2010+A12:2011+A2:2013, it is mandatory to
performaudiotestforEN50332.
This device has been tested to comply with the Sound Pressure Level requirement in the applicable EN 503321 and/or EN
503322standards.Permanenthearinglossmayoccurifearphonesorheadphonesareusedathighvolumeforprolongedperiod
oftime.
Warningstatement:Topreventpossiblehearingdamage,donotlistenathighvolumelevelsforlongperiods.
ThisdeviceisincompliancewiththerequirementsofIDA.
#beopen
Visit us at aftershokz.com
