AirVast Technology WN220 802.11b WLAN USB Stick User Manual 802 11b WLAN USB Stick
AirVast Technology Inc. 802.11b WLAN USB Stick 802 11b WLAN USB Stick
User Manual
8
80
02
2.
.1
11
1b
b
W
WL
LA
AN
N
U
US
SB
B
S
St
ti
ic
ck
k
User Manual
Version 1.0
M061703V10
1
No part of this documentation may be reproduced in any form or by any means or used
to make any derivative work (such as translation, transformation, or adaptation) without
written permission from the copyright owner.
All the other trademarks and registered trademarks are the property of their respective owners.
Statement of Conditions
We may make improvements or changes in the product described in this documentation at any time. The
information regarding to the product in this manual are subject to change without notice.
We assume no responsibility for errors contained herein or for direct, indirect, special, incidental, or
consequential damages with the furnishing, performance, or use of this manual or equipment supplied
with it, even if the suppliers have been advised of the possibility of such damages.
Electronic Emission Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired
operation.
FCC INFORMATION
The Federal Communication Commission Radio Frequency Interference Statement includes the following
paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to overcome the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
The equipment is for home or office use.
R&TTE Compliance Statement
This equipment complies with all the requirements of the Directive 1999/5/EC of the European
parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal
Equipment and the mutual recognition of their conformity(R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000.
IMPORTANT NOTE
FCC RF Radiation Exposure Statement : This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment. This device and its antenna must not be co-located
or operating in conjunction with any other antenna or transmitter.
M061703V10
2
Caution: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
T
Ta
ab
bl
le
e
o
of
f
C
Co
on
nt
te
en
nt
ts
s
1. INTRODUCTION..................................................................................................................................1
1.1 Features...........................................................................................................................................1
1.2 Package Contents ...........................................................................................................................1
1.3 System Requirements.....................................................................................................................2
1.4 The 802.11b Wireless LAN USB Stick............................................................................................2
2. INSTALLATION OF THE 802.11b WIRELESS LAN USB STICK.......................................................3
2.1 Installing the WLAN Driver ..............................................................................................................3
2.2 Installation Notes - Windows XP .....................................................................................................5
2.3 Verifying a Successful Installation...................................................................................................7
3. CONFIGURATION FOR WINDOWS XP .............................................................................................9
To Connect an Available Network via Wireless Zero Configuration .....................................................9
To Configure the Wireless Networks Properties.................................................................................10
To Access to Certain Wireless Network Type.....................................................................................12
4. WLAN PRISM3 IEEE802.11b BASICS................................................................................................14
4.1 Tray Icon........................................................................................................................................14
4.2 Right-Click Menu of the Tray Icon.................................................................................................14
Wireless Radio On.............................................................................................................................15
Wireless Radio Off.............................................................................................................................15
Remove Status Icon ............................................................................................................................15
Wireless Network Status.....................................................................................................................15
Advanced Configuration.....................................................................................................................16
WEP Encryption................................................................................................................................16
Version Information ...........................................................................................................................16
4.3 The Functions of WLAN PRISM3 IEEE802.11b ...........................................................................16
The Status Tab ...................................................................................................................................16
State..............................................................................................................................................17
Current Tx Rate.............................................................................................................................17
Current Channel.............................................................................................................................17
Throughout (bytes/sec)...................................................................................................................17
Link Quality ..................................................................................................................................18
Signal Strength..............................................................................................................................18
The Configuration Tab.......................................................................................................................18
Profile Name .................................................................................................................................18
M061703V10
1
Network Name..............................................................................................................................19
Network Type................................................................................................................................19
Peer-to-Peer Channel.....................................................................................................................19
Transmit Rate ................................................................................................................................19
The Encryption Tab............................................................................................................................19
Encryption (WEP security).............................................................................................................20
Create Key Manually .....................................................................................................................20
Use WEP Key................................................................................................................................21
Create Keys with Passphrase..........................................................................................................21
The About Tab....................................................................................................................................21
Network Driver..............................................................................................................................21
Configuration Utility......................................................................................................................21
NIC Firmware...............................................................................................................................21
APPENDIX A: TROUBLESHOOTING...................................................................................................22
Uninstall WLAN PRISM3 IEEE802.11b and the Stick’s Driver ...........................................................22
The 802.11b WLAN USB Stick Does Not Work Properly ...................................................................24
Upgrade WLAN PRISM3 IEEE802.11b and the Stick’s Driver ...........................................................25
Reset the Country Selection ...............................................................................................................26
L
Li
is
st
t
o
of
f
F
Fi
ig
gu
ur
re
es
s
FIGURE 1-1: 802.11B WIRELESS LAN USB STICK..........................................................................................2

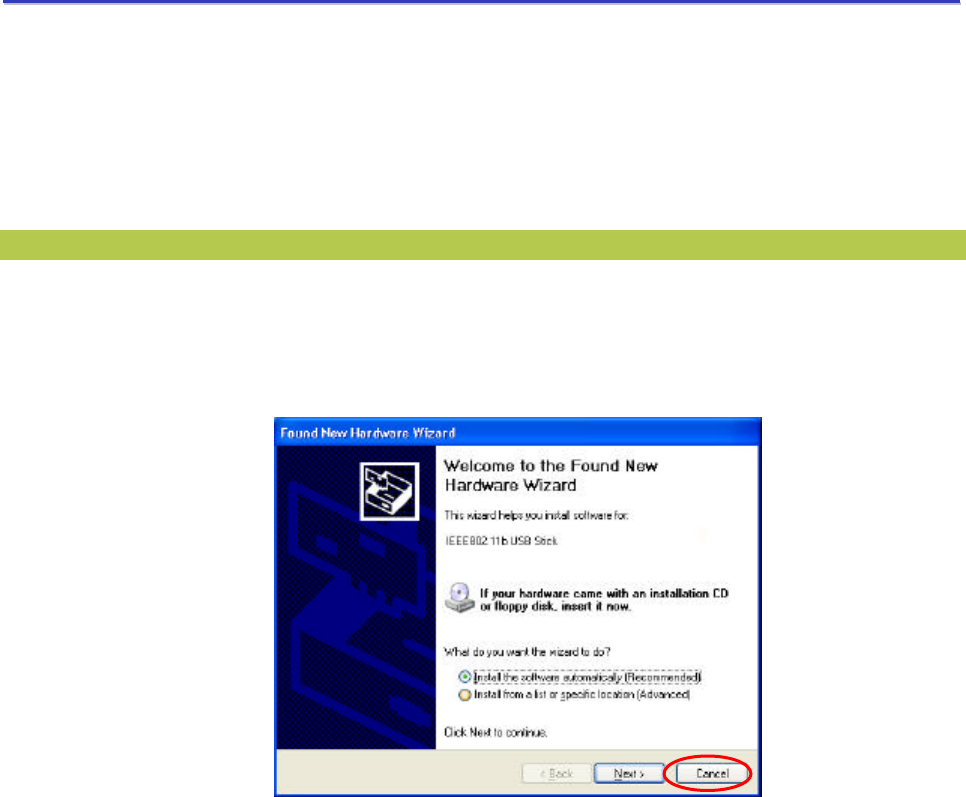

FIGURE 2.1-1: THE FOUND NEW HARDWARE WIZARD DIALOG BOX..............................................................3

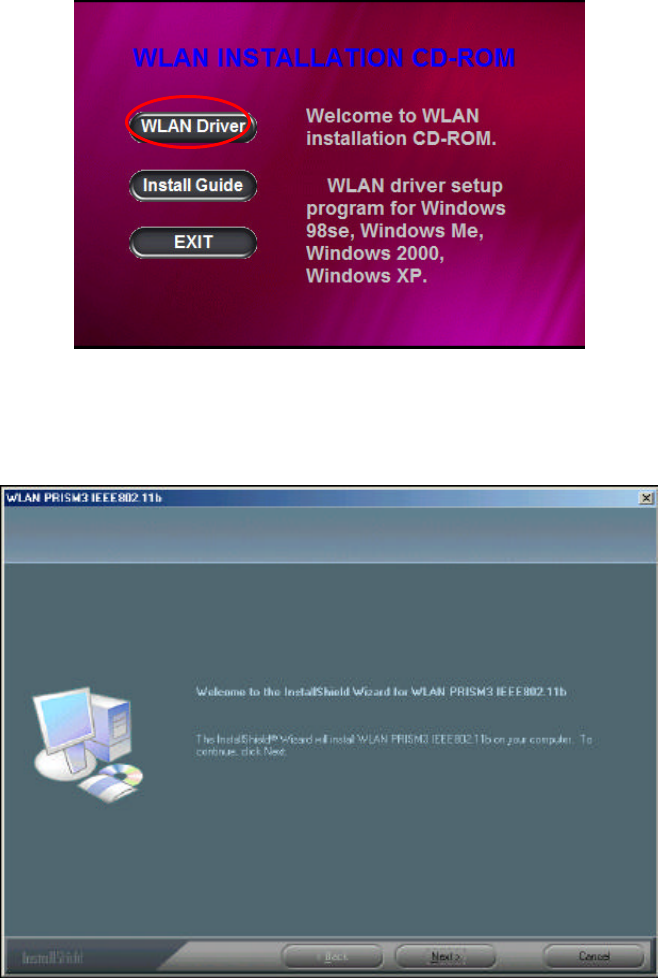

FIGURE 2.1-2: THE STARTUP WINDOW...........................................................................................................4
FIGURE 2.1-3: THE WLAN PRISM3 IEEE802.11B WINDOW........................................................................4

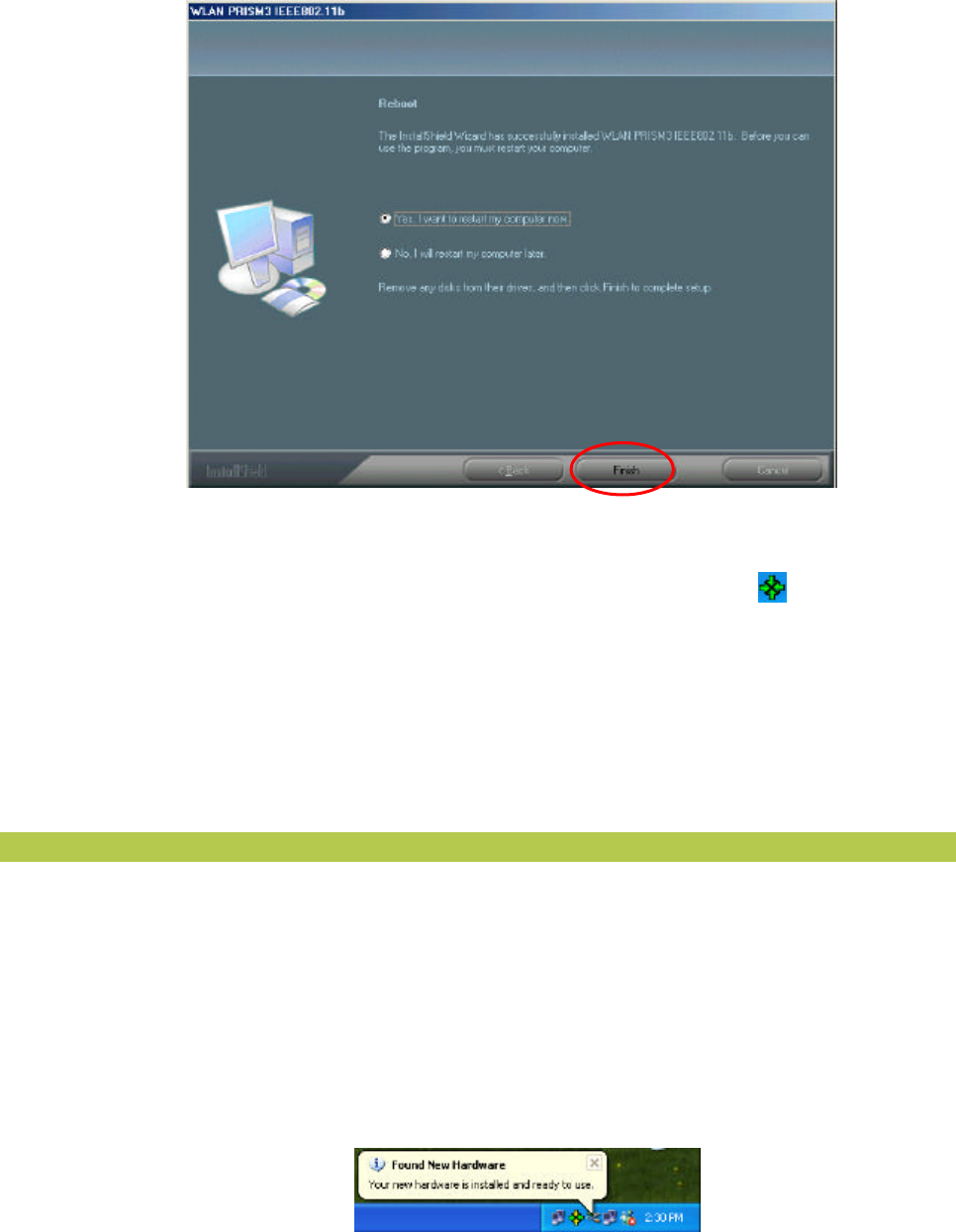

FIGURE 2.1-4: THE REBOOT SCREEN ............................................................................................................5

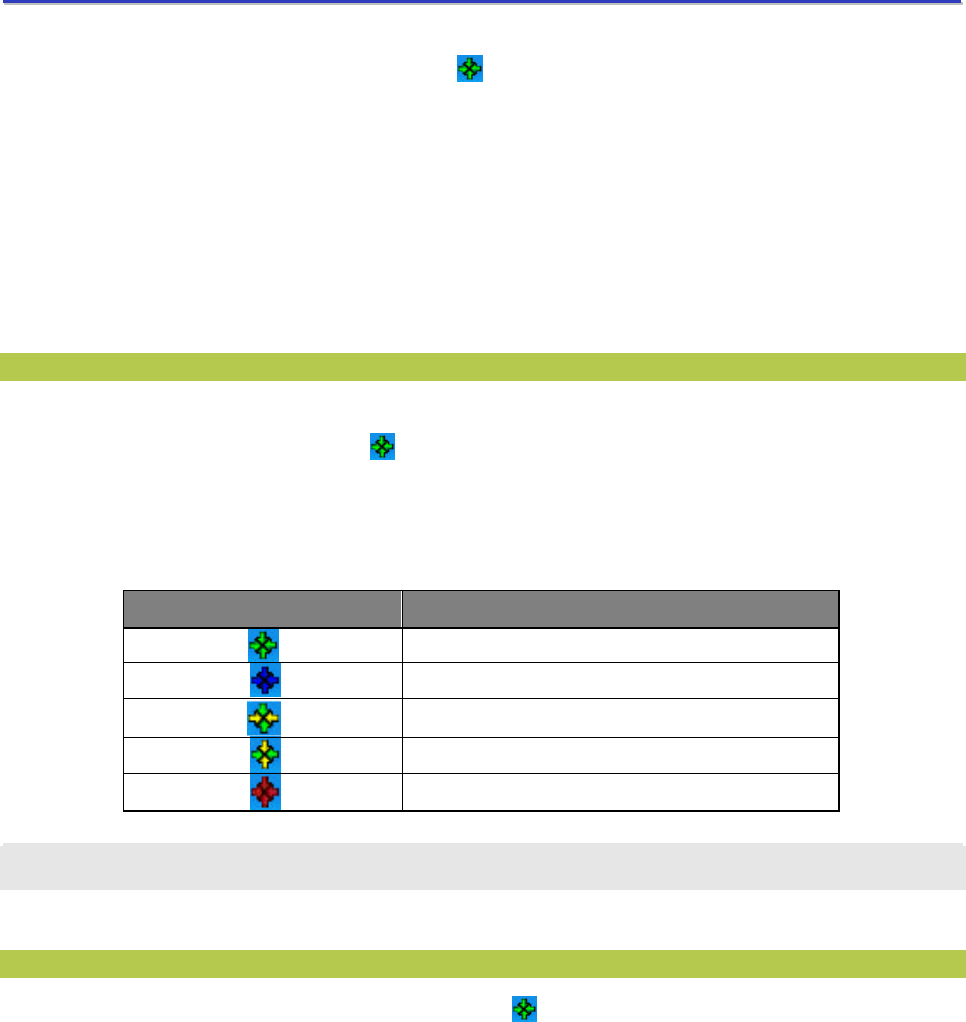

FIGURE 2.2-1: THE WLAN PRISM3 IEEE802.11B TRAY ICON......................................................................5

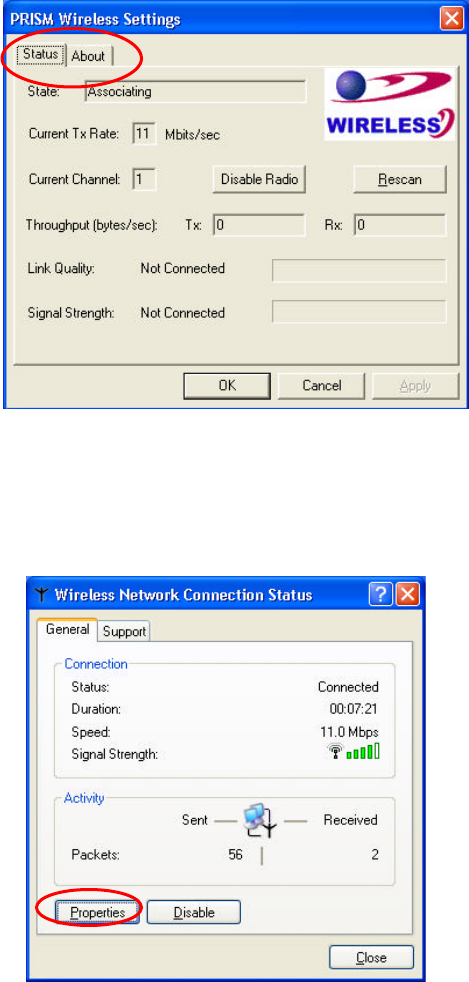

FIGURE 2.2-2: THE PRISM WIRELESS SETTINGS DIALOG BOX.....................................................................6
FIGURE 2.2-3: THE WIRELESS NETWORK CONNECTION STATUS DIALOG BOX ..............................................6
FIGURE 2.2-4: THE WIRELESS NETWORK CONNECTION PROPERTIES DIALOG BOX......................................7

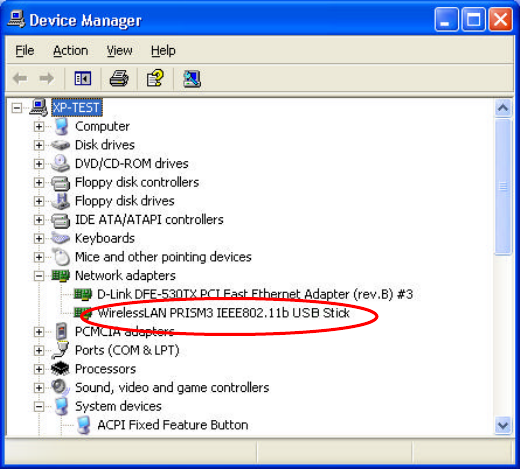

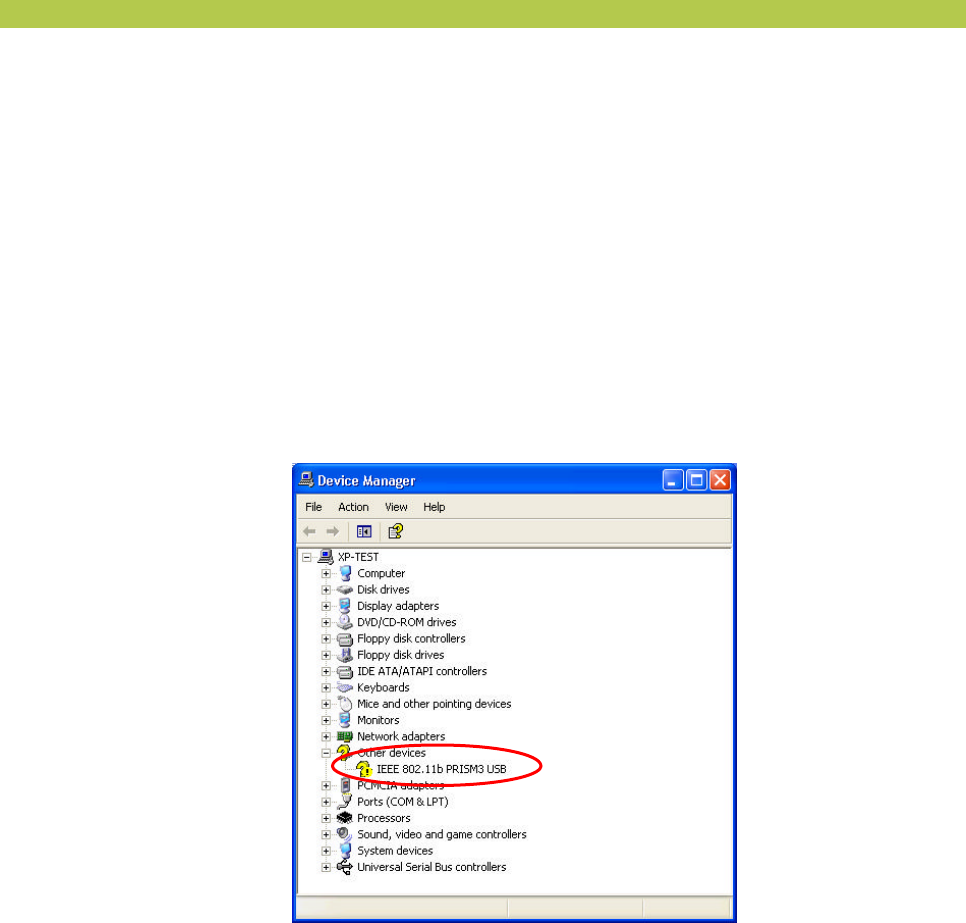

FIGURE 2.3-1: THE DEVICE MANAGER DIALOG BOX.....................................................................................8

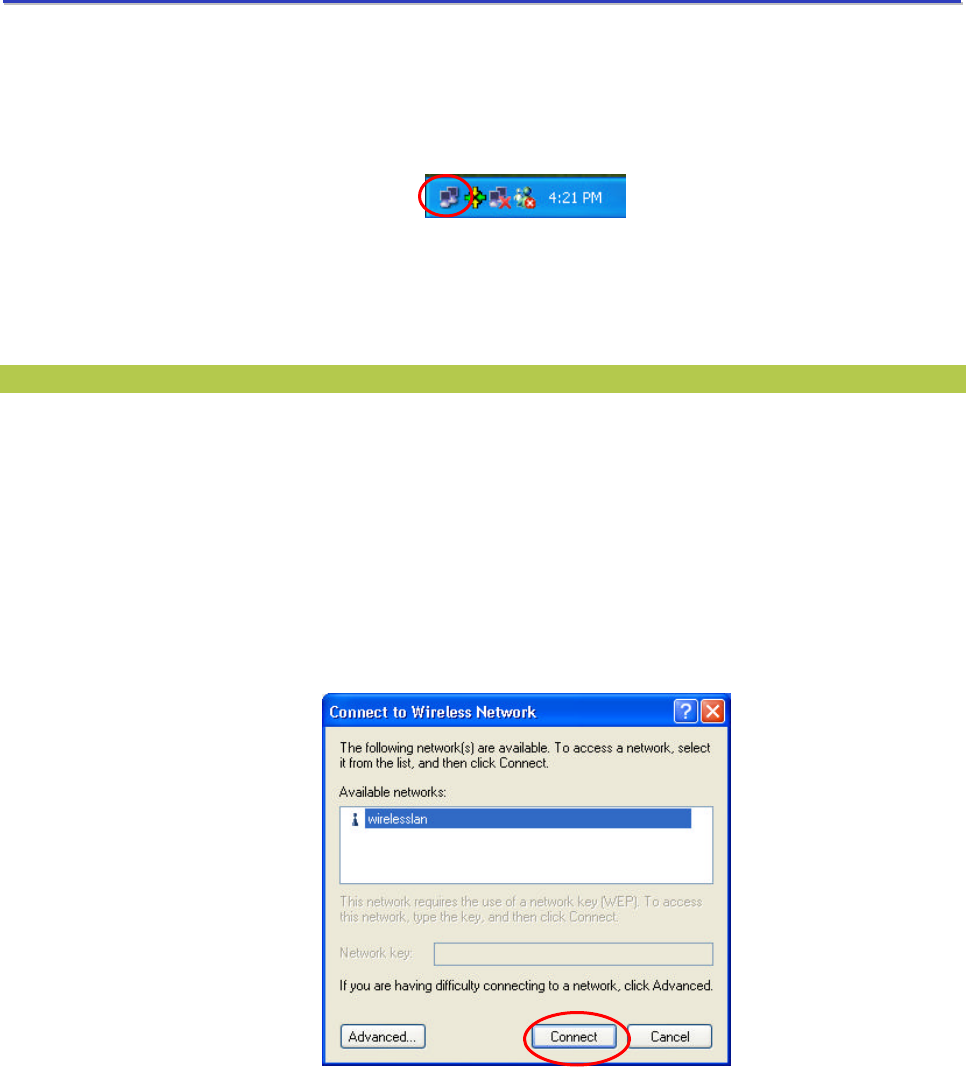

FIGURE 3-1: THE WIRELESS NETWORK CONNECTION ICON .........................................................................9

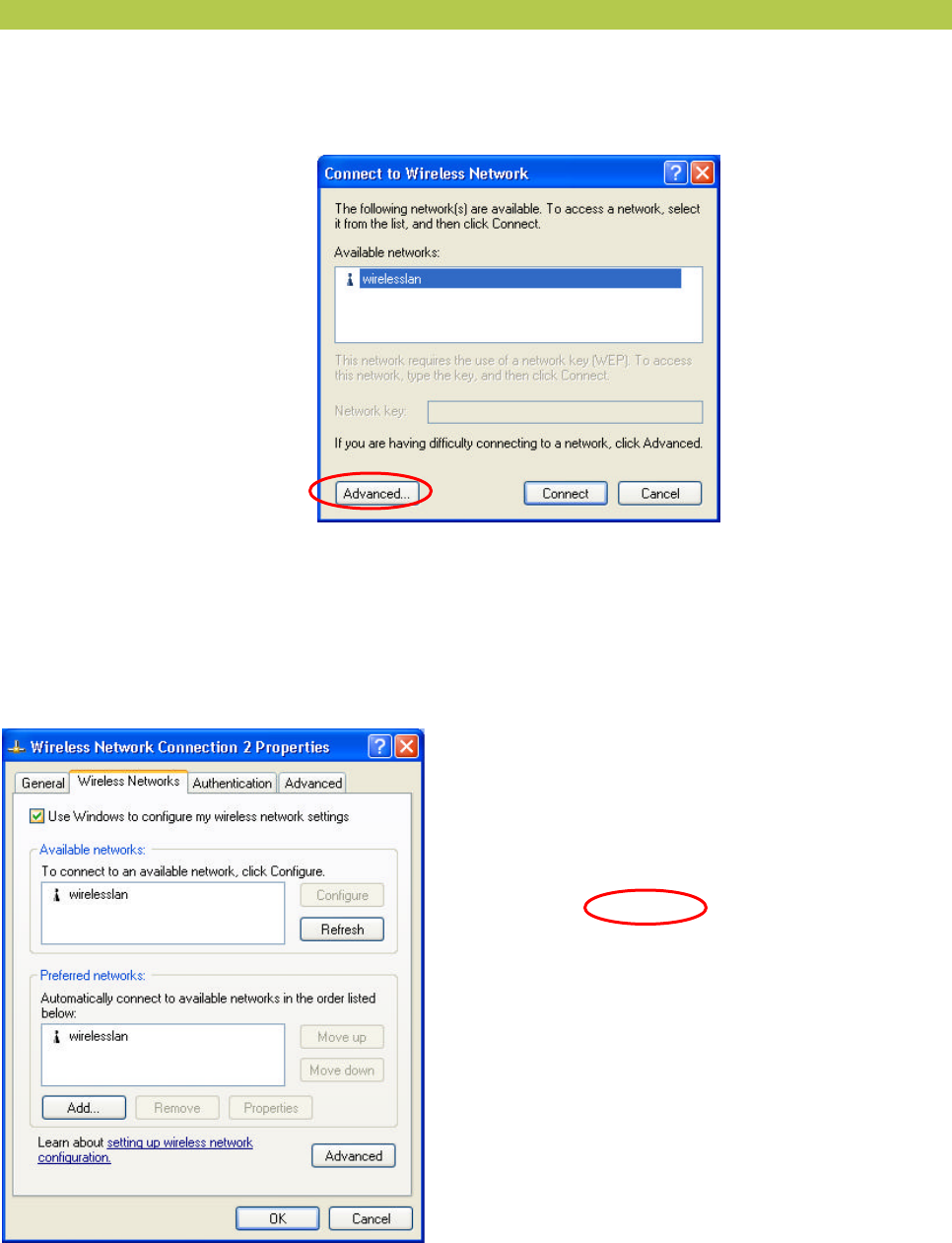

FIGURE 3-2: THE CONNECT TO WIRELESS NETWORK DIALOG BOX..............................................................9
FIGURE 3-3: THE CONNECT TO WIRELESS NETWORK DIALOG BOX............................................................10

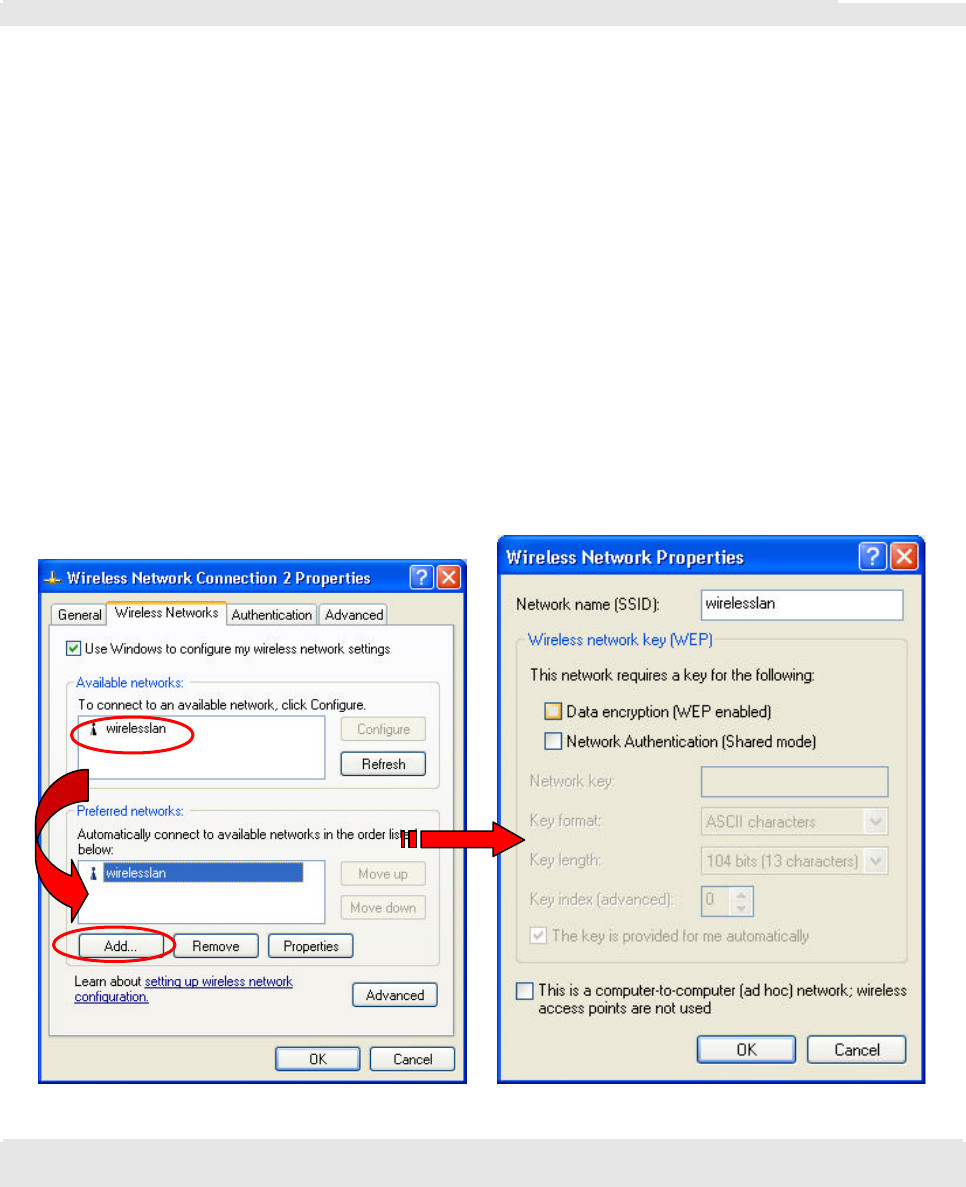

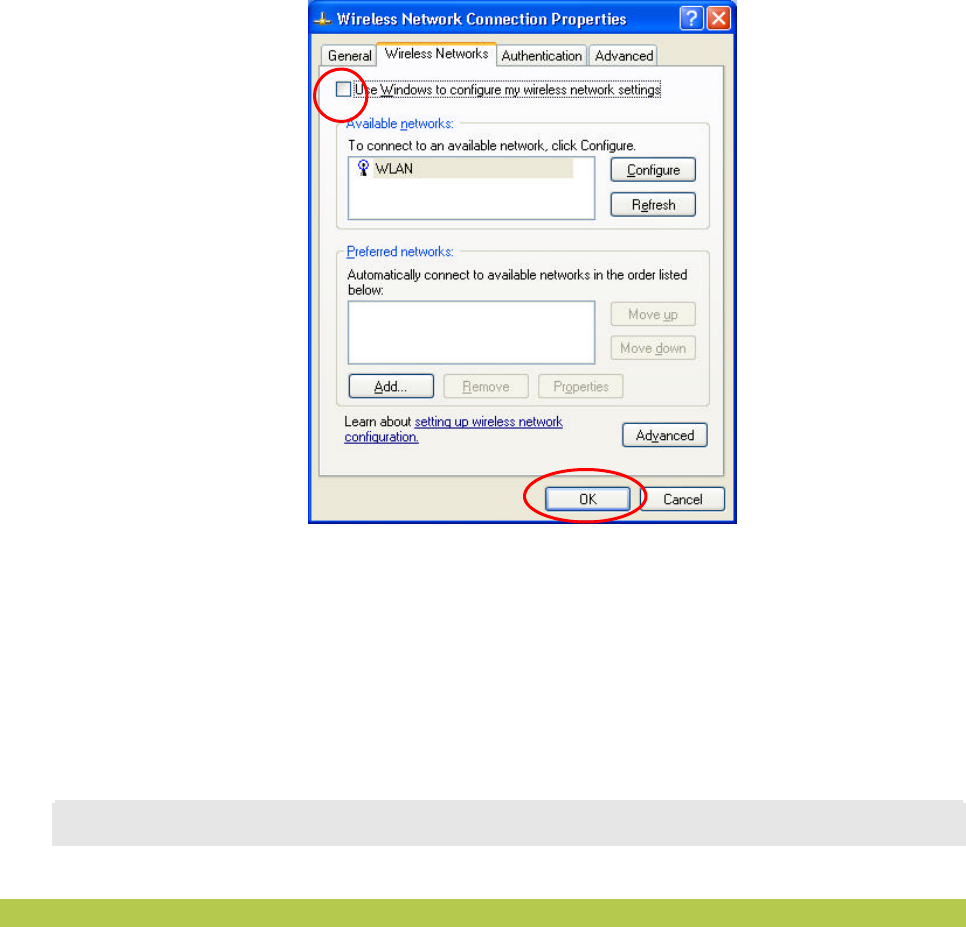

FIGURE 3-4: THE WIRELESS NETWORK CONNECTION PROPERTIES DIALOG BOX.......................................10

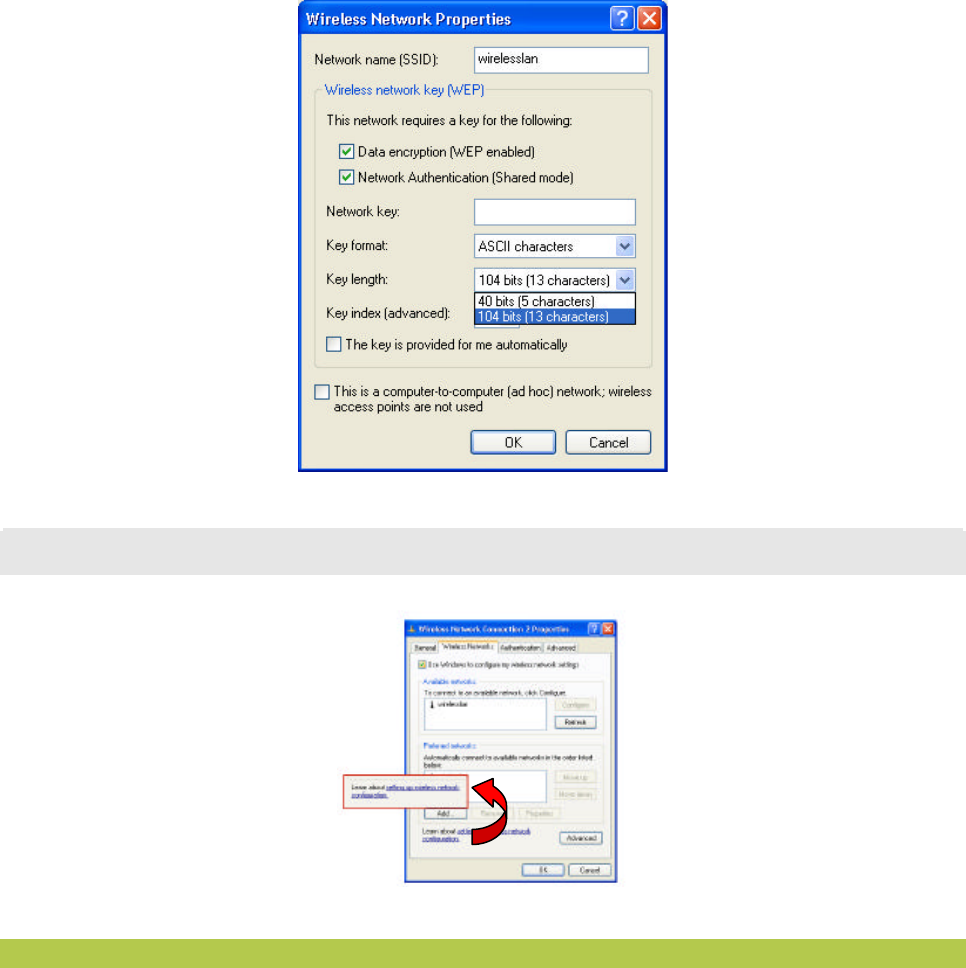

FIGURE 3-5: THE WIRELESS NETWORK PROPERTIES DIALOG BOX............................................................. 11
FIGURE 3-6: ENTER WEP............................................................................................................................12
FIGURE 3-7: SETTING UP WIRELESS NETWORK CONFIGURATION.....................................................................12

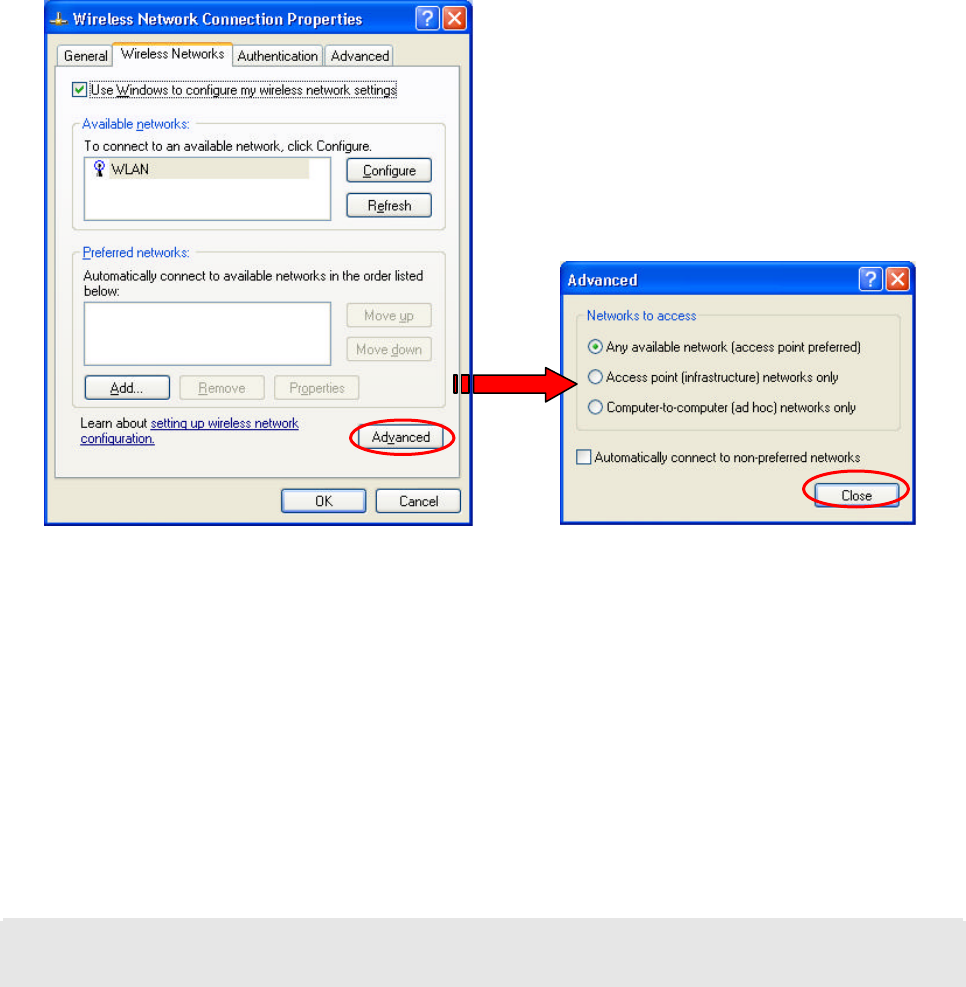

FIGURE 3-8 THE ADVANCED DIALOG BOX:..................................................................................................13

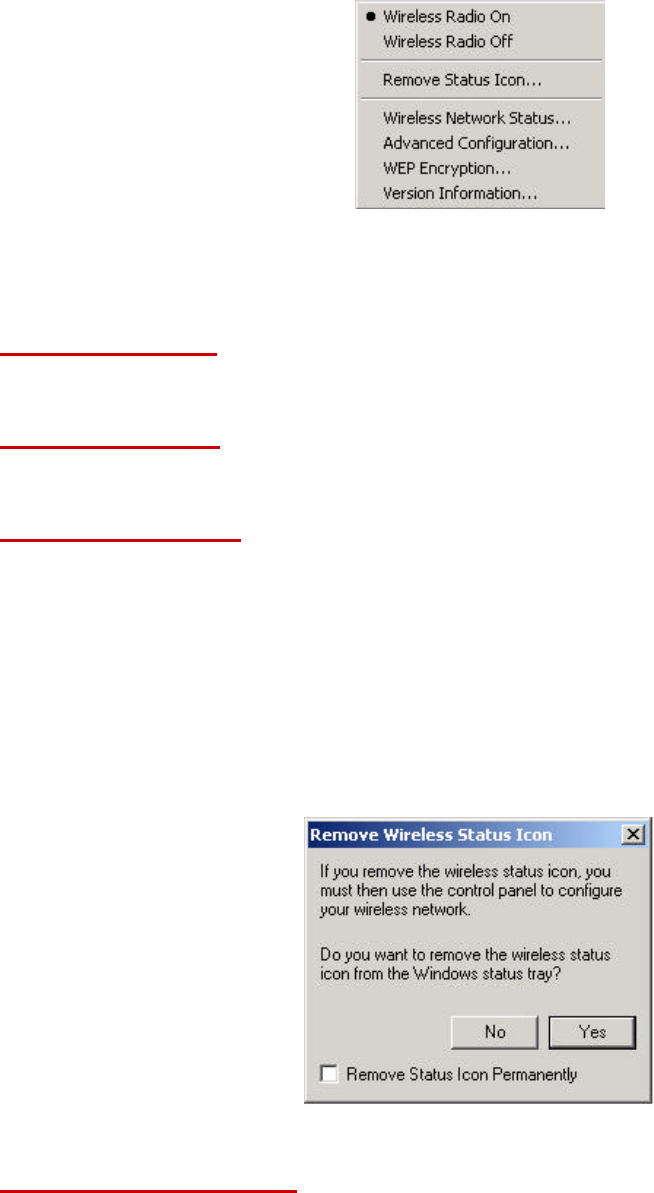

FIGURE 4.2-1: RIGHT-CLICK MENU OF THE TRAY ICON .................................................................................15
FIGURE 4.2-2: THE REMOVE WIRELESS STATUS ICON DIALOG BOX............................................................15
FIGURE 4.3-1: THE PRISM WIRELESS SETTINGS DIALOG BOX...................................................................16

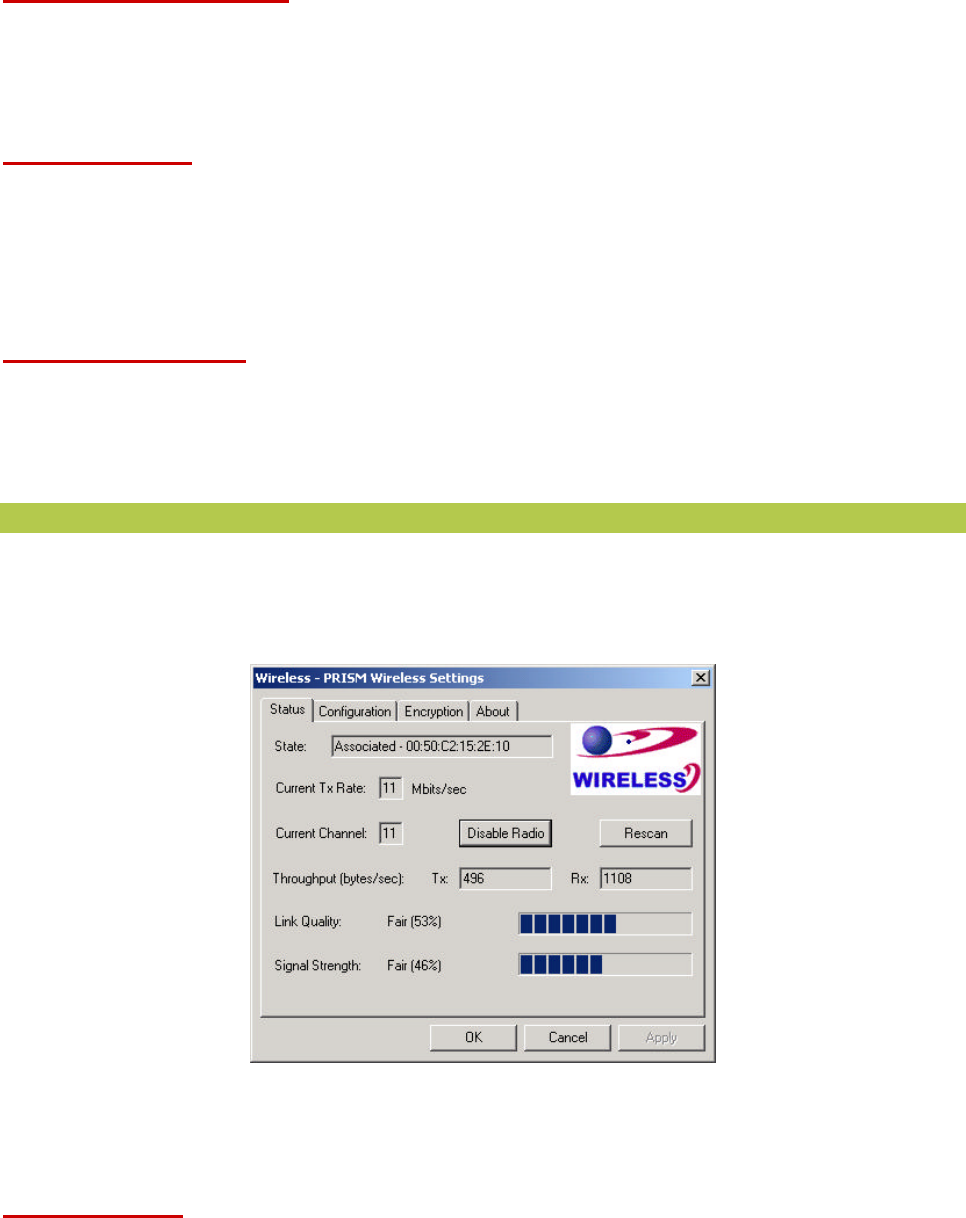

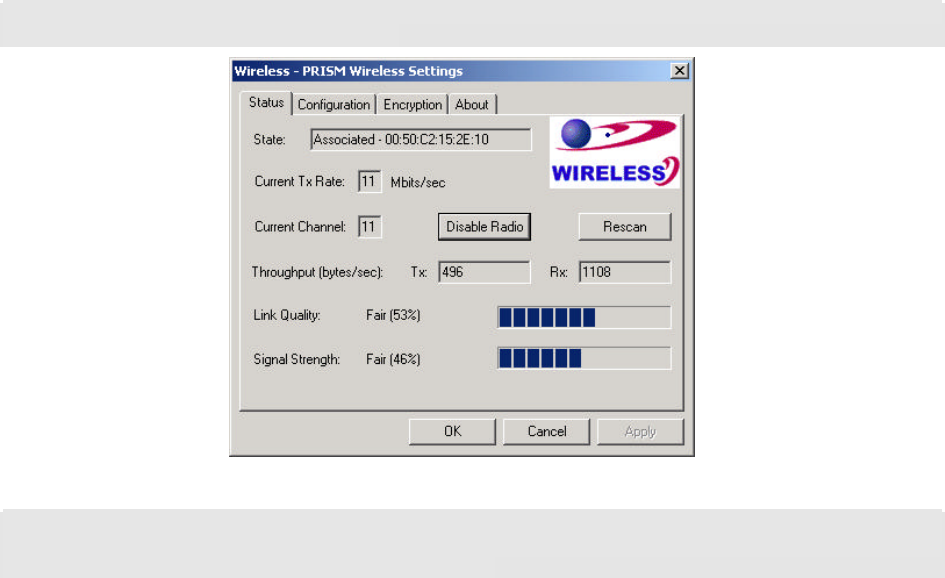

FIGURE 4.3-2: THE STATUS TAB..................................................................................................................17

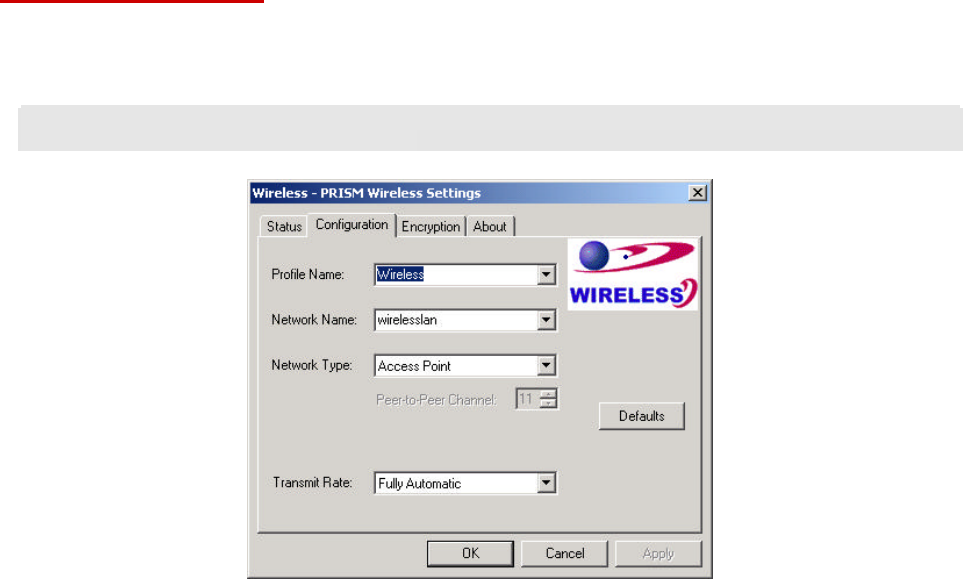

FIGURE 4.3-3: THE CONFIGURAT ION TAB ...................................................................................................18

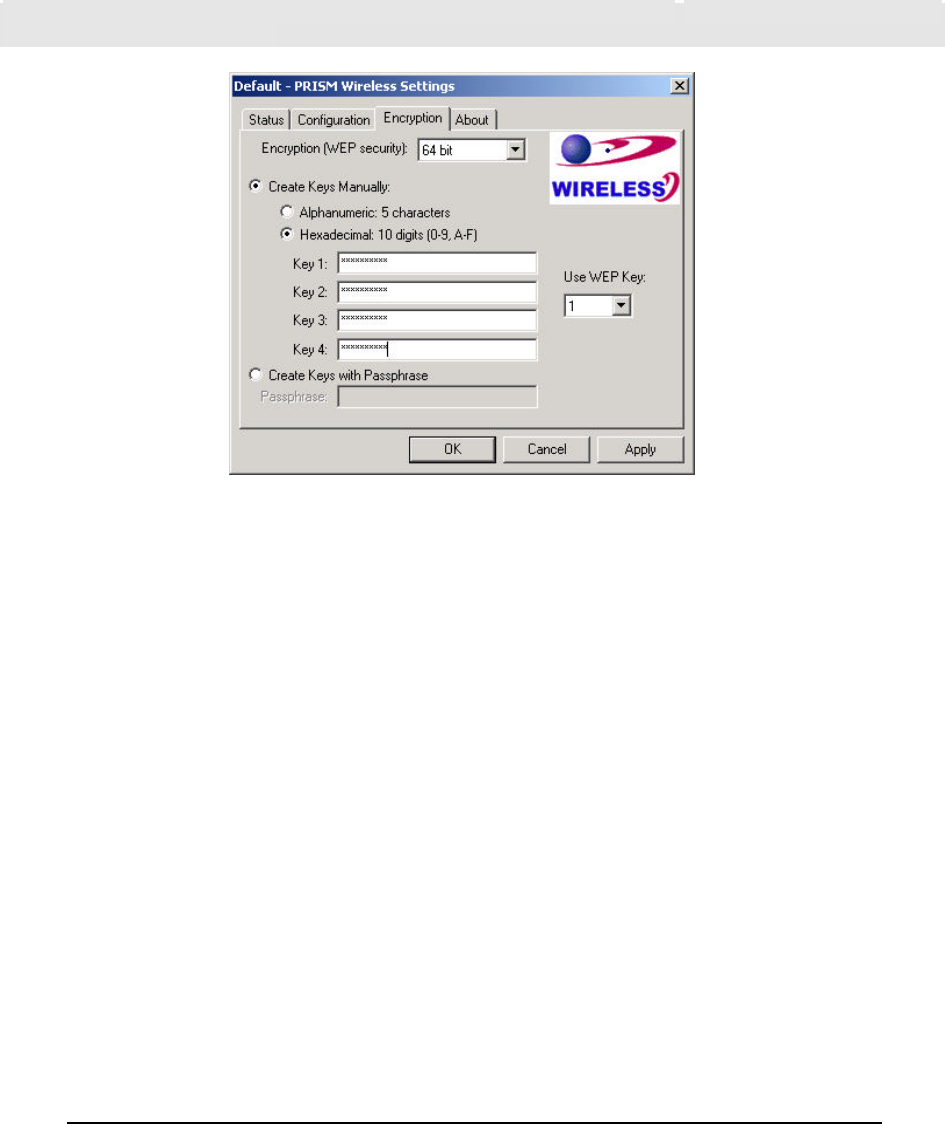

FIGURE 4.3-4: THE ENCRYPTION TAB.........................................................................................................20

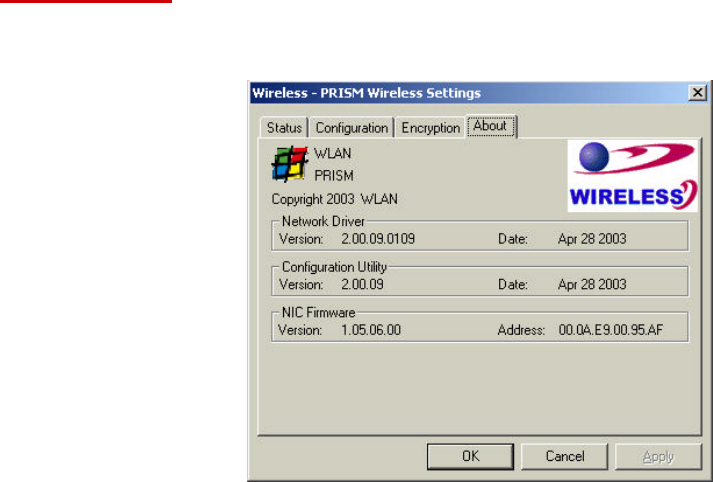

FIGURE 4.3-5: THE ABOUT TAB ..................................................................................................................21
FIGURE 5-1: THE DEVICE MANAGER DIALOG BOX......................................................................................22

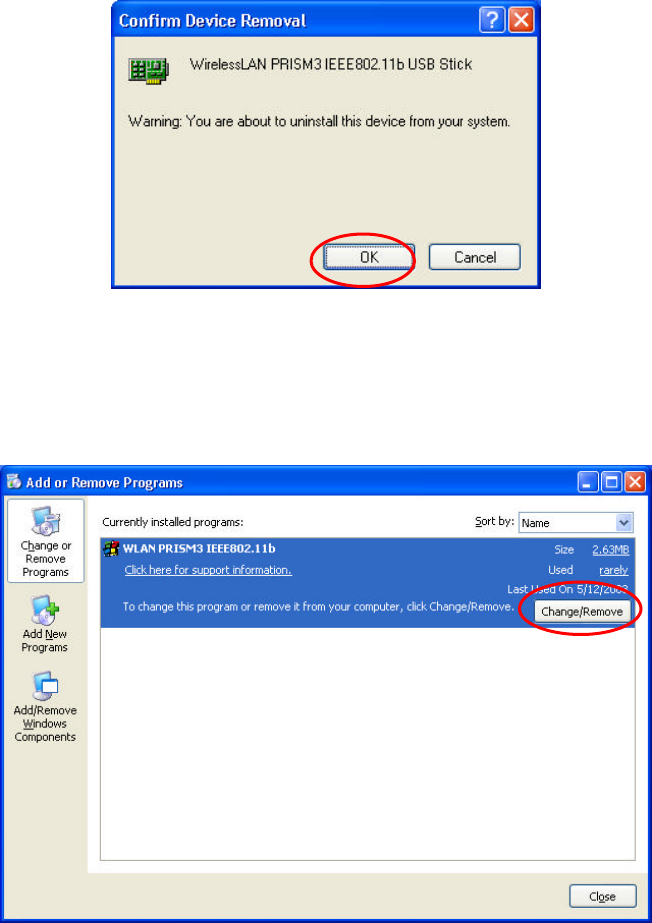

FIGURE 5-2: THE CONFIRM DEVICE REMOVAL MESSAGE BOX....................................................................23
FIGURE 5-3: THE ADD OR REMOVE PROGRAMS DIALOG BOX.....................................................................23

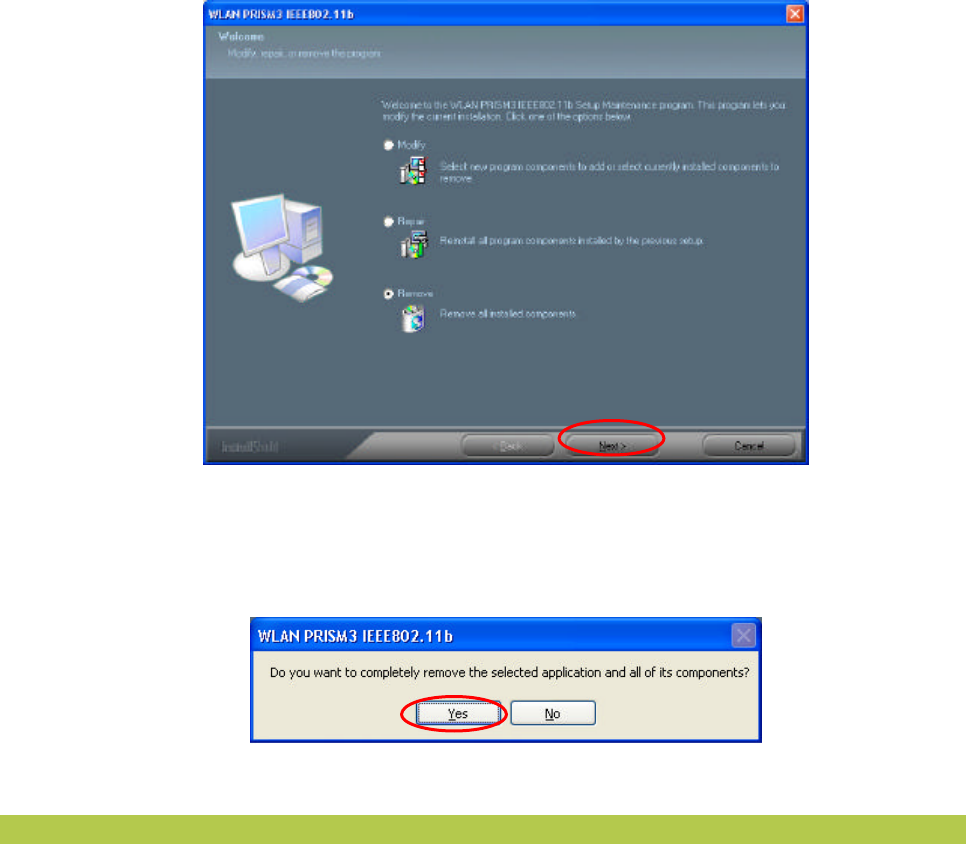

FIGURE 5-4: THE WLAN PRISM3 IEEE802.11B WINDOW.........................................................................24
FIGURE 5-5: THE WLAN PRISM3 IEEE802.11B MESSAGE BOX.................................................................24
FIGURE 5-6: THE DEVICE MANAGER DIALOG BOX......................................................................................25

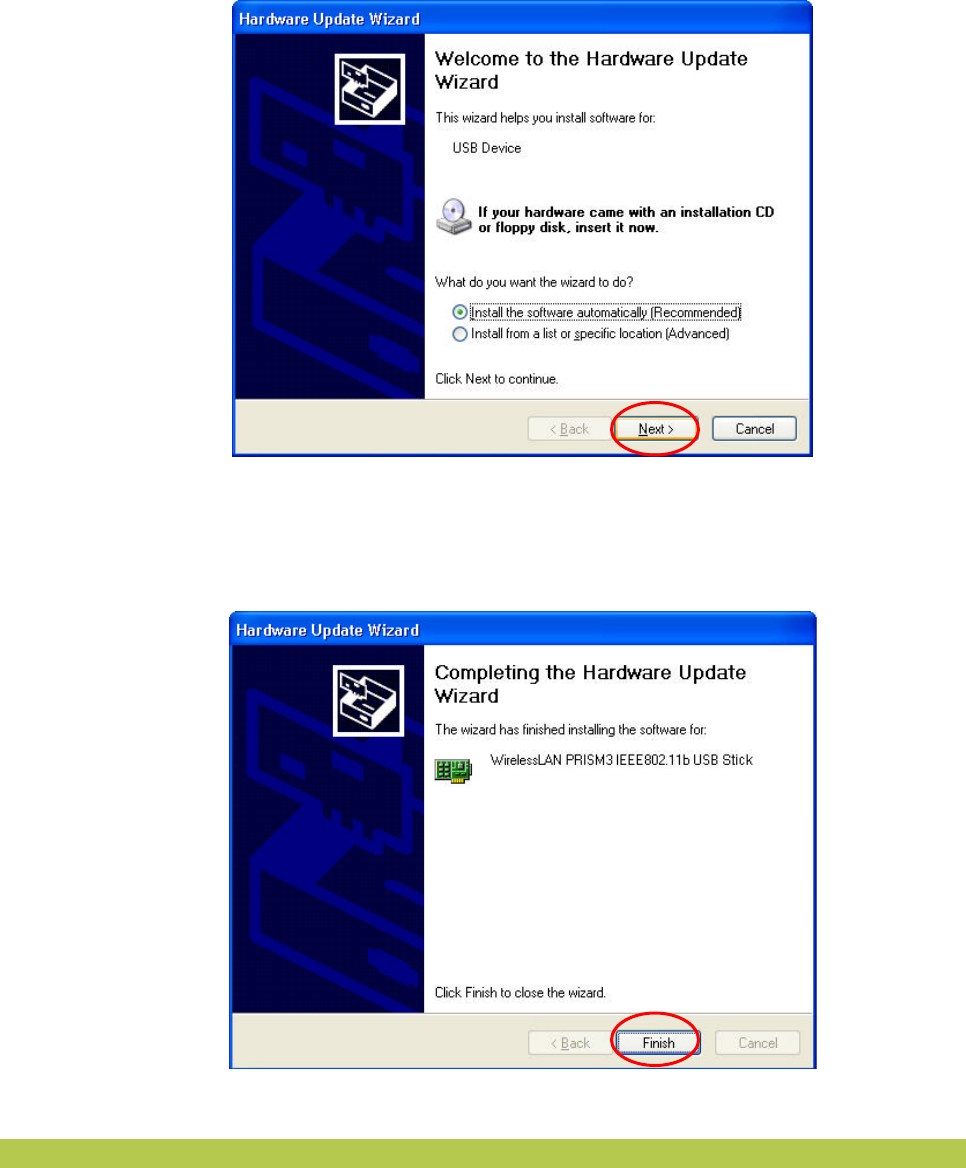

FIGURE 5-7: THE UPGRADE DEVICE DRIVER WIZARD DIALOG BOX............................................................26
FIGURE 5-8: THE COMPLETE SCREEN .........................................................................................................26

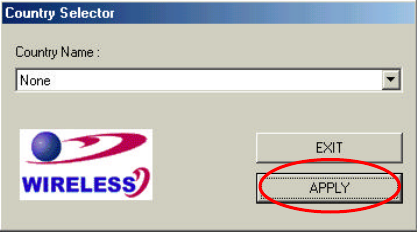

FIGURE 5-9: THE COUNTRY SELECTOR DIALOG BOX ..................................................................................27
M061703V10
1
1
1.
.
I
IN
NT
TR
RO
OD
DU
UC
CT
TI
IO
ON
N
The 802.11b Wireless LAN USB Stick aims to let your desktop computer quickly and seamlessly
communicate with 802.11b (at up to 11 Mbps) networks. Wireless LAN is local area networking without
wires, which uses radio frequencies to transmit and receive data between PC’s or other network
devices. With this wireless LAN USB Stick, surfing on the Internet couldn’t be any easier. Simply insert
the USB Stick into the USB port of your computer, launch the attached friendly-interfaced
program –WLAN PRISM3 IEEE802.11b to configure the USB stick, and then you will have been ready
to experience how the LAN (local area network) can be carried in your palm or pocket. You can operate
the network in either an independent mode or an infrastructure mode. The former, which is also known
as peer-to-peer or ad-hoc network, lets you directly make connection with other wireless-equipped
computers, and the later, the so-called infrastructure network, allows you to communicate with wired
LAN via an access point.
To obtain most benefits your 802.11b Wireless LAN USB Stick provides, please read this manual
carefully before using it.
1.1 Features
With 802.11b Wireless LAN USB Stick, you can
＊ exchange data over the air, which minimizes the need for wired connections
＊ possess the portability and mobility of wireless networking connectivity wherever you are
＊ operate Ad-Hoc or Infrastructure mode
＊ utilize up to 128-bit WEP encryption
＊ enjoy high-speed data transfer rate up to 11 Mbps
＊ employ automatic data rate switching which offers maximum reliability, throughput and
connectivity
＊ monitor and configure the network via the supplied friendly-interfaced application –WLAN
PRISM3 IEEE802.11b
1.2 Package Contents
Before starting installation, please make sure the package you purchased includes the following items:
＊ One 802.11b Wireless LAN USB Stick
＊ One Setup Wizard CD-ROM with User Manual
＊ One Quick Installation Guide
If any of the items listed above is missing or damaged, please contact your distributor.
M061703V10
2
1.3 System Requirements
To properly operate your 802.11b Wireless LAN USB Stick, your computer must meet the following
minimum requirements:
＊ 32 MB RAM or above
＊ A CD-ROM drive
＊ 300 MHz processor or higher
＊ Microsoft Windows 98 Second Edition/Me/2000 or Windows XP
＊ USB Port version 1.1
1.4 The 802.11b Wireless LAN USB Stick
Your 802.11b Wireless LAN USB Stick should be located in the USB port of your computer, and it looks
like the following picture:
Figure 1-1: 802.11b Wireless LAN USB Stick
M061703V10
3
2
2.
.
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
O
OF
F
T
TH
HE
E
8
80
02
2.
.1
11
1b
b
W
WI
IR
RE
EL
LE
ES
SS
S
L
LA
AN
N
U
US
SB
B
S
ST
TI
IC
CK
K
It’s free and easy for you to install your 802.11b Wireless LAN USB Stick and the attached software -
WLAN PRISM3 IEEE802.11b. Simply with a few clicks of the mouse, you will succeed the completion
of installation.
To have the 802.11b WLAN USB Stick operated appropriately, please read and go along with the
instructions below carefully.
2.1 Installing the WLAN Driver
a) Plug your 802.11b WLAN USB Stick into your PC’s USB port.
b) Your system will detect your 802.11b WLAN USB Stick and the Found New Hardware
Wizard dialog box will appear. Choose Cancel to proceed with installing the drivers first.
Figure 2.1-1: The Found New Hardware Wizard Dialog Box
c) Insert the supplied Setup CD into your CD-ROM drive, and the Setup Wizard will run
automatically. If it does not, please manually execute setup.exe.
d) From the prompted startup window, choose WLAN Driver to begin the installation.
M061703V10
4
Figure 2.1-2: The Startup Window
e) Click Next in the WLAN PRISM3 IEEE802.11b window to proceed. The system will start to
copy the drivers found.
Figure 2.1-3: The WLAN PRISM3 IEEE802.11b Window
f) On the Reboot screen, choose Yes, I want to restart my computer now, and then click
Finish to restart the computer.
M061703V10
5
Figure 2.1-4: The Reboot Screen
g) After rebooting, you will find the WLAN PRISM3 IEEE802.11b icon, , appeared in the
system tray. The installation is entirely finished at the moment. Double-click the icon to
launch the application and open the PRISM Wireless Settings dialog box, in which you
may freely arrange your network connection afterwards.
For more details about WLAN PRISM3 IEEE802.11b, please refer to WLAN PRISM3
IEEE802.11b Basics in this manual.
2.2 Installation Notes - Windows XP
If your system is running Windows XP, you shall find that two tabs are contained in the PRISM Wireless
Settings dialog box after you’ve followed the instructions above and successfully installed the drivers.
However, normally, the dialog box should be consisted of four tabs. This is because Windows XP has its
built-in configuration tools – Windows XP Zero Configuration to assist you in networking activities. It is
recommended to utilize the attached WLAN PRISM3 IEEE802.11b to enjoy more benefits it will bring.
Thus, to employ your WLAN PRISM3 IEEE802.11b under Windows XP, please proceed to the next step
to change the default settings of Windows Zero Configuration to WLAN PRISM3 IEEE802.11b.
Figure 2.2-1: The WLAN PRISM3 IEEE802.11b Tray Icon
M061703V10
6
Figure 2.2-2: The PRISM Wireless Settings Dialog Box
a) Right-click the Network Connections icon at the task bar to open the Wireless Network
Connection Status dialog box, and then select Properties.
Figure 2.2-3: The Wireless Network Connection Status Dialog Box
b) Choose the Wireless Networks tab in the Wireless Network Connection Properties
dialog box, and remove the tick from the Use Windows to configure my wireless network
settings checkbox.
M061703V10
7
Figure 2.2-4: The Wireless Network Connection Properties Dialog Box
c) Click OK. Now, you have successfully removed the Windows Zero Configuration.
To monitor and configure the network via WLAN PRISM3 IEEE802.11b, double-click its
tray icon, and you shall find four tabs contained in the popped up PRISM Wireless
Settings dialog box this time. For more information on WLAN PRISM3 IEEE802.11b,
please refer to WLAN PRISM3 IEEE802.11b Basics below.
Note: If you wish to use Windows XP’s built-in configuration tools – Windows XP Zero Configuration,
please refer to the next chapter: Configuration for Windows XP to configure the WLAN USB Stick.
2.3 Verifying a Successful Installation
To confirm that your 802.11b Wireless LAN USB Stick is properly installed, please go along with the
procedures below.
1. Right-click the My Computer desktop icon and choose Properties from the opened menu.
2. In the System Properties dialog box, choose Device Manager if you are under Windows 98
or Me. If you are operating Windows 2000 or XP, click the Hardware tab, and then choose
the Device Manager button.
3. In the opened window, expand Network adapters to find the USB Stick - WirelessLAN
PRISM3 IEEE802.11b USB Stick. Right-click over the item and choose Properties.
4. From the opened dialog box, on the General tab, find the descriptions under the Device
Status pane to learn if the USB Stick is working properly. However, if there’s an error
M061703V10
8
message shown, please choose Uninstall from the opened menu while right-clicking over
the USB Adapter item, to which a red or yellow icon is attached beside, in the Device
Manager dialog box. Then restart your system and go through the installation procedures
again.
The following picture indicates a successful installation of the 802.11b Wireless LAN USB Stick.
Figure 2.3-1: The Device Manager Dialog Box
M061703V10
9
3
3.
.
C
CO
ON
NF
FI
IG
GU
UR
RA
AT
TI
IO
ON
N
F
FO
OR
R
W
WI
IN
ND
DO
OW
WS
S
X
XP
P
As you have already known, Windows XP has its built-in configuration tools – Windows XP Zero
Configuration, to assist you in some basic configurations of wireless network connection. The service
starts right after the completion of the installation of 802.11b WLAN USB Stick, and you will find the
icon automatically appears in your system tray like the following picture shows.
Figure 3-1: The Wireless Network Connection Icon
Please refer to the desired topics below to look for more details about utilizing your 802.11b WLAN
USB Stick via Wireless Zero Configuration.
To Connect an Available Network via Wireless Zero Configuration
1. Double-click the Wireless Network Connection icon.
2. In the opened Connect to Wireless Network dialog box, the currently available networks
are listed in the Available networks field. From the list, choose an item that you intend to
make an association.
3. If the chosen entry requires a WEP encryption key and also automatically provides it, leave
the Network Key field blank and then choose the Connect button to build the connection.
Otherwise, you will need to manually enter the identical key in the Network Key field before
clicking Connect.
Figure 3-2: The Connect to Wireless Network Dialog Box
4. If the connection is established, there will be a pop-up message shown beside the Wireless
Network Connection icon on the system tray. You could obtain the information on the status
of connection from the message.
M061703V10
10
To Configure the Wireless Networks Properties
If you cannot establish a connection with the chosen entry or you wish to configure further wireless
network connection settings, choose the Advanced button in the Connect to Wireless Network
dialogue box.
Figure 3-3: The Connect to Wireless Network Dialog Box
After clicking Advanced, you will enter into the Wireless Networks tab of the Wireless Network
Connection Properties dialog box, in which three other tabs are found, including General,
Authentication, and Advanced. The Wireless Networks tab includes almost the main settings for
the networking connection. Thus, please check the descriptions below to learn more about the tab.
Figure 3-4: The Wireless Network Connection Properties Dialog Box
M061703V10
11
Note: For more detailed information about each tab, please refer to the Windows XP Online-Help.
The Wireless Networks tab is chiefly consisted of two sections: Available networks and Preferred
networks.
¨ Under the Available networks area, all the available access points or Wireless LAN PC Card
equipped computers are displayed. You may wish to click Refresh to update the list. If you
choose any listed item in the field and then click Configure, the Wireless Network Properties
dialog box will appear as Figure 3-5 shows. Check the descriptions below the figure to obtain
more information about the dialog box.
¨ In the Preferred networks area, you could add any displayed networks to the list by clicking over
the intended item from Available networks and then selecting the Add button. After clicking Add,
the Wireless Network Properties dialog box will appear as Figure 3-5 displays. Note that to
delete any item under the Preferred networks area, simply click on it and then select the
Remove button. Additionally, you may adjust the items in the list by clicking the desired item and
then choosing the Move up or Move down button. It is, however, important to realize that
Windows XP will always choose the first one in the list to establish the networking connection.
Figure 3-5: The Wireless Network Properties Dialog Box
Note: Once you choose an item from the Preferred networks list and then click Properties, the Wireless
Network Properties will also be provoked.
¨ In the opened Wireless Network Properties dialog box, edit texts in the Network Name (SSID)
field to identify the chosen network entry in the wireless LAN.
¨ If there’s a need, go to the Wireless network key (WEP) area to set the keys as the associated
M061703V10
12
access point or Wireless LAN PC Card equipped computer requests. To set WEP, select Data
encryption (WEP enabled) and Network Authentication. Then enter the encryption keys for the
network you intend to connect in the Network Key field. Meanwhile, the Key format and Key
length options change the settings according to Network Key string you just typed. Click OK
when you are finished, and you will return to the Wireless Network Connection Properties
dialog box.
Figure 3-6: Enter WEP
Note: For more details of this tab, you may click the link: setting up wireless network configuration at the
bottom of the Wireless networks tab to launch the Windows XP Online-Help.
Figure 3-7: Setting up wireless network configuration
To Access to Certain Wireless Network Type
The default network type of Windows XP Zero Configuration is any available access points (Access
Point mode) or WLAN Card equipped computers (Ad-Hoc mode) within the range at the given time.
However, you may wish to connect to a certain network type sometimes. To change the default settings,
M061703V10
13
click the Advanced button in the Wireless Network Connection Properties dialog box.
Figure 3-8 The Advanced Dialog Box:
The Advanced dialog box provides three options, Any available network, Access point networks
only, and Computer-to-computer networks only. Choose one of them according to your need and
click Close to finish. Then you will find under the Available networks area in the Wireless Network
Connection Properties dialog box, only the specified networks are displayed.
Note: If you wish to use the attached application –WLAN PRISM3 IEEE802.11b of the 802.11b WLAN USB Stick
instead of Windows XP’s Wireless Zero Configuration, please refer to 2.2 Installation Notes –Windows XP in
this manual to change the settings.
M061703V10
14
4
4.
.
W
WL
LA
AN
N
P
PR
RI
IS
SM
M3
3
I
IE
EE
EE
E8
80
02
2.
.1
11
1b
b
B
BA
AS
SI
IC
CS
S
After successfully installing the driver for your 802.11b Wireless LAN USB Stick on your computer, you
may see the WLAN PRISM3 IEEE802.11b icon, , displayed in the system tray. To set configurations
for your USB Stick, double-click the icon to open the PRISM Wireless Settings dialog box, in which
four tabs are contained, including Status, Configuration, Encryption, and About. Each of them
proffers different functions to assist you in configuring the connection to the networks.
In this chapter, three topics are offered: Tray Icon, Right-Click Menu of the Tray Icon, and The
Functions of WLAN PRISM3 IEEE802.11b. Please refer to the preferred topic to obtain more
information and enjoy vast advantages WLAN PRISM3 IEEE802.11b brings.
4.1 Tray Icon
As long as you finish installing WLAN PRISM3 IEEE802.11b on your computer system, you will see
the WLAN PRISM3 IEEE802.11b icon, , shown at the right bottom corner of your screen. When you
move the mouse cursor over it, the information on the current link quality is provided in the tips.
Furthermore, the color of the icon varies with the current state of your network connection. Check the
list below to learn the definition of each color.
Icon Quality
Excellent Link Quality 100%
Data Frame Errors – Check WEP Settings
Fair Link Quality
Poor Link Quality
Radio Off
Note: The blue icon indicates that you might have entered incorrect WEP keys. To solve the problems, choose
the Configuration tab in the PRISM Wireless Settings dialog box to correct the keys for encryption.
4.2 Right-Click Menu of the Tray Icon
Right-clicking the WLAN PRISM3 IEEE802.11b icon, , in the system tray will open a menu as the
following picture:
M061703V10
15
Figure 4.2-1: Right-click Menu of the Tray Icon
Check the descriptions below to obtain detailed information about each command in the menu.
Wireless Radio On
Choose the Wireless Radio On command to receive the radio frequency signal.
Wireless Radio Off
Choosing the Wireless Radio Off command will stop receiving the radio frequency signal.
Remove Status Icon
If you don’t wish to have the WLAN PRISM3 IEEE802.11b icon displayed in the system tray, choose
this command to open the Remove Wireless Status Icon dialog box, and then choose Yes to have
the icon disappeared. The icon will reappear next time when you restart the computer. If you intend to
remove it permanently, put a tick in the checkbox next to the Remove Status Icon Permanently
option. To launch WLAN PRISM3 IEEE802.11b hereafter, click Start on the taskbar, choose Program
from the menu, and then point to Configuration Tool from the submenu of WirelessLAN USB Tools.
Clicking No will undo the removal.
Figure 4.2-2: The Remove Wireless Status Icon Dialog Box
Wireless Network Status
Choose this command to launch the Status tab of the PRISM Wireless Settings dialog box. For more
details about the tab, please refer to The Status Tab in The Functions of WLAN PRISM3
IEEE802.11b section below.
M061703V10
16
Advanced Configuration
Choose this command to launch the Configuration tab of the PRISM Wireless Settings dialog box.
Please refer to The Configuration Tab in The Functions of WLAN PRISM3 IEEE802.11b section
below to gain more information about the tab.
WEP Encryption
Choose this command to launch the Encryption tab of the PRISM Wireless Settings dialog box. This
tab offers you various options to maintain the secure management in a wireless LAN environment. See
the explanations in The Encryption Tab of The Functions of WLAN PRISM3 IEEE802.11b section
below for more details.
Version Information
Choosing this command will launch the About tab of the PRISM Wireless Settings dialog box. The
About tab reveals general information on your USB Stick, including the release version of driver and
the WLAN PRISM3 IEEE802.11b and the USB stick’s MAC Address.
4.3 The Functions of WLAN PRISM3 IEEE802.11b
When you double-click the WLAN PRISM3 IEEE802.11b tray icon, the PRISM Wireless Settings
dialog box will be prompted as the picture shows below. The application is a window-based program,
which is consisted of four tabs, including Status, Configuration, Encryption, and About.
Figure 4.3-1: The PRISM Wireless Settings Dialog Box
Check the desired items below to obtain more details about these tabs.
The Status Tab
In the PRISM Wireless Settings dialog box, click the Status tab to appear the following display. Here
presents the status of your current connection. To close the window, click OK.
M061703V10
17
Note: Choosing the Wireless Network Status command from the right -click menu of WLAN PRISM3
IEEE802.11b tray icon will launch this tab too.
Figure 4.3 -2: The Status Tab
Note: The texts before ”PRISM Wireless Settings” in the caption bar of the dialog box is the profile name of the
current connection. Thus, the caption contexts vary according to the connectivity at the given time. From the
above picture, the associated profile is named “Wireless”.
From the window, the general information on the status of currently connected entry is presented. You
may want to click the Rescan button to reinitiate the scanning process and update the status. Later the
result of scanning will be renewed and displayed in the window. If you wish to stop the networking
connection, click the Disable Radio button to stop scanning. However, if you are already in the
disabled radio mode, you will find the Enable Radio button here instead. Click Enable Radio to regain
the link then.
State
Here displays the MAC Address of the current associated entry, which could be a connected access
point in the Infrastructure mode or computers joining in the Ad-Hoc network.
Current Tx Rate
This feature indicates the transmission rate of the current connection.
Current Channel
Here reveals the current channel operated in the wireless network. Note that the channel number
differs as the radio scans any available channels in the Infrastructure mode.
Throughout (bytes/sec)
This feature indicates the rates of transmitting (Tx) and receiving (Rx) data of your WLAN USB Stick
within a short period of time; thus, the values vary on a time basis.
M061703V10
18
Link Quality
Link Quality is based on the percentage of successfully transmitted or received signal of the
associated access point beacon within a limited period. The higher the percentage, the better the
link quality. The bar graph beside also provides a visual interpretation of the current link quality. It is
noted that the Link Quality and Signal Strength features only apply to the Infrastructure mode.
They are inapplicable in the Ad-Hoc mode since data will be transferred from many different
computers.
Signal Strength
You may learn the received signal strength of the baseband processor of the beacon signal from the
Signal Strength bar beside, and it’s also presented in terms of percentage. As the signal gets
stronger, the signal percentage rate gets higher. It is noted that the Signal Strength and Link
Quality features only apply to the Infrastructure mode. They are inapplicable in the Ad-Hoc mode
since data will be transferred from many different computers.
The Configuration Tab
Click this tab to edit different profiles for different network configurations. When finish changing the
settings, please click Apply to perform the new configuration at last.
Note: Choosing the Advanced Configuration command from the right -click menu of WLAN PRISM3
IEEE802.11b tray icon will launch this tab too.
Figure 4.3-3: The Configuration Tab
Profile Name
Enter texts in the Profile Name field to identify a new profile. After defining the configurations below,
click the Apply button to establish the profile. To switch between any existing profiles, click the arrow
button at the right of the Profile Name field to open the pull-down menu and then select an intended
one from it.
M061703V10
19
Note: You will have at least one profile named ANY, which allows a link with an Access Point or a Wireless
LAN PC Card equipped computer at the given time. When you click the Defaults button under the tab, a profile
of the current connection is created.
Network Name
Network Name , also known as SSID (Service Set Identifier), must be unique to distinguish itself as
a particular wireless network, while all wireless points in this network area share the same SSID.
Type the identical SSID in the Network Name field to associate with access points or stations within
the specified wireless LAN. To change the Network Name, highlight the name in the box, edit a new
SSID, and then click Apply to save the changes.
Network Type
Two network types are offered here: Access Point and Peer-to-Peer. Choose the intended type
from the two options. The Access Point mode, which is also known as the Infrastructure mode,
allows you to communicate with a wired network via an access point. If you attempt to operate this
mode, you must indicate the identical Network Name to make a communication with the intended
access point. On the other hand, the Peer-to-Peer mode provides you with the so-called Ad-Hoc
communication, which means each wireless-equipped computers within a group is able to connect
with each other as an independent wireless LAN without the use of an access point. Each station
within this Ad-Hoc network has to define the same Network Name .
Peer-to-Peer Channel
This command is only available while you are operating the Peer-to-Peer mode, the so-called
Ad-Hoc mode. Specify the operating radio frequency channel from the pull-down menu if you are the
creator of the wireless network. If you are the joiner, just configure the SSID and click Apply. Note
that the available channels differ from country to country, and the channel number must be the same
between the entries/stations within the range, so that each can communicate with each other. While
in the Access Point mode, the channel number would be the same as the associated access point.
Thus, there’s no need to manually set up the value.
Transmit Rate
This command allows you to indicate the rate of transferring the data packet from the associated
access point or any nodes within the range. There are four options for you: Auto 1 or 2 Mb, 5.5 Mb,
11 Mb, and Fully Automatic. Specify the rate from the provided options according to the speed of
your wireless network, or you may simply choose Fully Automatic to set the best available rate
according to the received signal quality and the capabilities of the associated access point or station.
The Encryption Tab
Click the Encryption tab to define the encryption settings for a specific profile. It offers you various
options concerning the so-called WEP (Wired Equivalent Privacy) to maintain the secure management
M061703V10
20
in a wireless LAN environment. See the explanations below for more details, and before making an
activation of any new settings, click Apply. To leave the window, click OK. To undo the new settings,
select the Cancel button.
Note: Choosing the WEP Encryption command from the right-click menu of WLAN PRISM3 IEEE802.11b
tray icon will launch this tab too.
Figure 4.3-4: The Encryption Tab
Encryption (WEP security)
If you choose Disabled from the pull-down list, you will have the wireless LAN USB stick
communicated with all stations within the same networking community without any data encryption.
Otherwise, two key lengths are offered: 64 bit and 128 bit. Specify a preferred one from the two, so
that you may use the identical WEP key to make a communication with the chosen access point.
Create Key Manually
Once you set the Encryption type as 64 bit or 128 bit, you may choose to edit WEP keys manually
or create them via the passphrase of your wireless network. If you choose the Create Key Manually
option, you may directly enter up to 4 WEP keys for use in WEP encryption. To generate the WEP
keys, please define the key entry method as Alphanumeric or Hexadecimal (for hexadecimal
characters, only digits 0-9 and letters A-F are valid). Then edit the texts in the blank fields below,
from Key 1 to Key 4, as the encryption codes. Note that these codes/keys shall be identical between
the wireless nodes within the range and the access point only. Check the table below to find valid
key length of each encryption type:
64 bit 128 bit
Alphanumeric
5 characters 13 characters
Hexadecimal
10 digits 26 digits
M061703V10
21
Use WEP Key
Indicate which WEP key you intend to apply to activate the WEP encryption from the pull-down
menu. Make sure that the intended access point on the wireless network shares the same keys. By
default, Key 1 will be used.
Create Keys with Passphrase
Choose this command when the associated wireless network uses a passphrase to create WEP
keys. Enter the passphrase sting in the Passphrase filed to generate four encryption keys in the
Key fields above. Note that only letters A-F are valid for the Passphrase feature.
After finish configuring the Encryption features, remember to click the Apply button to initiate the new
settings.
The About Tab
This tab reveals general information on your wireless LAN USB Stick, including the following items:
Figure 4.3 -5: The About Tab
Network Driver
Displays the current version and released date of the 802.11b Wireless LAN USB Stick’s driver.
Configuration Utility
Displays the current version and released date of the WLAN PRISM3 IEEE802.11b application.
NIC Firmware
Displays the current NIC card firmware version and the MAC (Media Access Control) address of
your wireless card. It is consisted of 12-digit hexadecimal numbers (48 bits in length) to identify your
computer's physical address on the local area network.
M061703V10
22
A
AP
PP
PE
EN
ND
DI
IX
X
A
A:
:
T
TR
RO
OU
UB
BL
LE
ES
SH
HO
OO
OT
TI
IN
NG
G
This section provides solutions to problems that you might encounter during the installation and
operation of your 802.11b WLAN USB Stick. Please refer to the desired topics below and read the
description to solve your problems.
Uninstall WLAN PRISM3 IEEE802.11b and the Stick’s Driver
Prior to starting the uninstalling, please make sure that WLAN PRISM3 IEEE802.11b is closed, and
then go along with the procedures below to entirely uninstall WLAN PRISM3 IEEE802.11b and the
Stick driver.
1. Right-click the My Computer desktop icon and choose Properties from the opened menu.
2. In the System Properties dialog box, choose Device Manager if you are under Windows 98
or Me. If you are operating Windows 2000 or XP, click the Hardware tab, and then choose
the Device Manager button.
3. In the opened window, expand Network adapters to find the USB Stick - WirelessLAN
PRISM3 IEEE802.11b USB Stick. Right-click over the item and choose Uninstall from the
opened menu.
Figure 5 -1: The Device Manager Dialog Box
4. In the Confirm Device Removal message box, click OK to proceed with the removal of the
hardware.
M061703V10
23
Figure 5 -2: The Confirm Device Removal Message Box
5. Click Start on the taskbar and choose Control Panel from the Settings menu.
6. Select Add or Remove Programs to open the dialog box shown as below.
Figure 5-3: The Add or Remove Programs Dialog Box
7. Click the Change/Remove button under WLAN PRISM3 IEEE802.11b.
8. In the prompted WLAN PRISM3 IEEE802.11b window, choose the Remove option to
uninstall the program. Then click Next.
M061703V10
24
Figure 5-4: The WLAN PRISM3 IEEE802.11b Window
9. After choosing Yes when the following message box appears, the removal is entirely
completed.
Figure 5-5: The WLAN PRISM3 IEEE802.11b Message Box
The 802.11b WLAN USB Stick Does Not Work Properly
If this happens, follow the guidelines below.
1. Right-click the My Computer desktop icon and choose Properties to open the System
Properties dialog box.
2. If you are under Windows 98SE or Me, choose the Device Manager tab, or if your
system is Windows 2000 or XP, click the Hardware tab and then choose the Device
Manager button.
3. In the opened window, find your USB Stick to see if the installation is successful. If you
see a yellow exclamation mark beside the item, please go along with the steps below to
reinstall the drivers.
4. Uninstall the software and hardware drivers from your PC. (Please refer to the previous
topic for details)
5. Restart your computer and repeat the installation procedures as indicated in this
chapter in this manual: Installation of the 802.11b Wireless LAN USB Stick.
M061703V10
25
6. When finished, open the Device Manager window again to verify if the installation is
approved. The yellow exclamation mark shall be removed for this time.
Upgrade WLAN PRISM3 IEEE802.11b and the Stick’s Driver
To upgrade the drivers for WLAN PRISM3 IEEE802.11b and the 802.11b Wireless LAN USB Stick,
follow the procedures below. Please note that the details might be slightly different according to the
Windows system you are using. Here we are taking the example of Windows XP.
1. Click Start on the taskbar and choose Control Panel from the Settings menu.
2. Select System to open the System Properties dialog box, and then under the
Hardware tab, click the Device Manager button to open the Device Manager dialog
box.
3. Double-click the Other devices item in the list to show the IEEE 802.11b PRISM3 USB
icon, which is displayed with a yellow icon beside. Right-click the icon and choose
Update Driver from the opened menu.
Figure 5 -6: The Device Manager Dialog Box
4. In the Hardware Update Wizard dialog box, choose Install the software
automatically [Recommended] and then click Next to continue.
M061703V10
26
Figure 5-7: The Upgrade Device Driver Wizard Dialog Box
5. In a few seconds later, you will see the following dialog box appeared. Click Finish to
end up the upgrade.
Figure 5-8: The Complete Screen
Reset the Country Selection
Since every country or region has a regulatory body that governs the use of radio channels, once you
go abroad with your computer, you may have to reset the country channel for the 802.11b WLAN USB
Stick to retain the Internet connection.
Thus please follow the procedures below to redefine the channel:
M061703V10
27
1. Click Start on the taskbar and choose WirelessLAN USB Tools from the Programs
menu.
2. Select Country Selector to open the Country Selector dialog box.
Figure 5-9: The Country Selector Dialog Box
3. Choose the country you currently stay in from the Country Name drop-down list.
4. Click the APPLY button to activate the new settings.
5. In the prompted message box, click OK to ensure the rearrangement. In a few seconds
later, the resetting will have been done.
