User manual 3
8 Configuring Guest Access
168 Installation and User Guide: Airgo Access Point

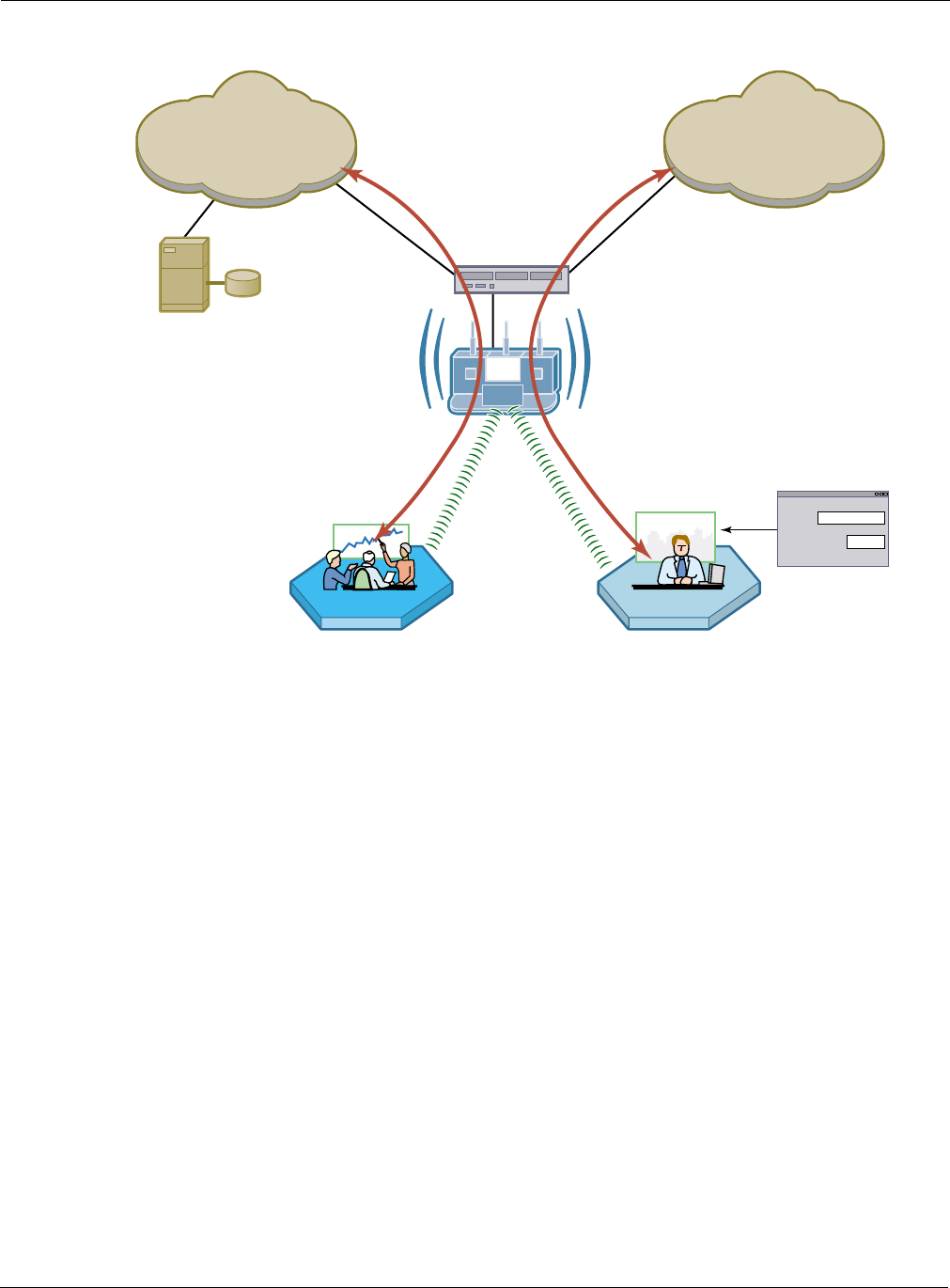

Figure 119 provides a sample illustration of how clients are treated when guest access is
implemented without VLANs. Secure clients are authenticated using WPA-PSK, while guests are
authenticated through the landing page (internal page is shown). Both types of users gain access to
the same network resources; however, only the secure user traffic is encrypted.

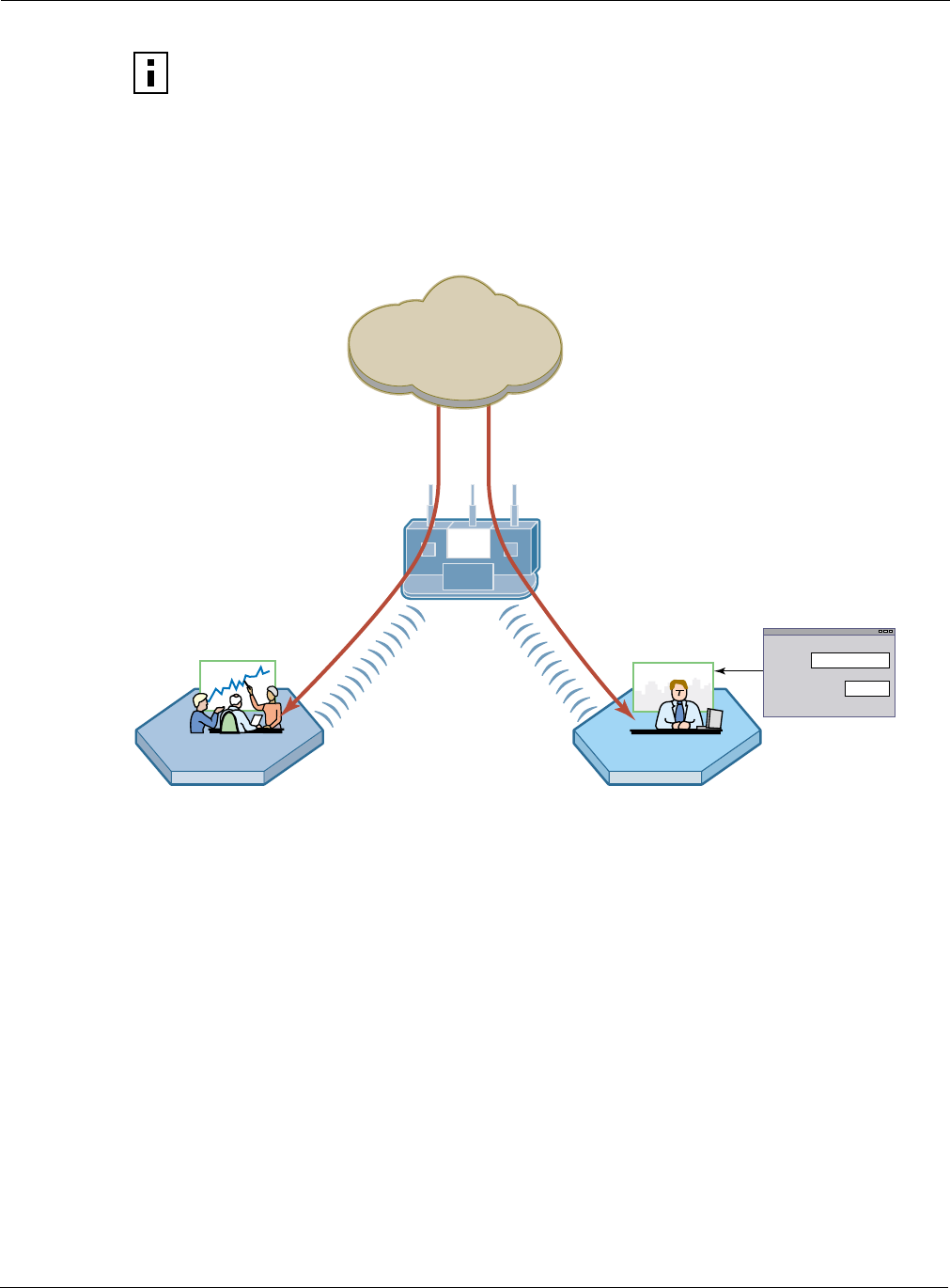

Figure 119: Guest Access Without VLANs
Guest access with VLANs
This option, in which VLANs are used to differentiate between corporate traffic and guest user
traffic, is ideal for businesses that want to provide guest access to visitors. When guest users log in,
they are automatically assigned to the guest VLAN and are prevented from accessing the main
corporate network.
To use VLANs for guest access, the AP must be connected to a VLAN-aware switch, and the
switch must be configured to support the designated VLANs. The VLAN configuration of the
upstream network should make available only those network resources set aside for guest use. This
often means prohibiting guest stations from accessing anything other than the corporate open
subnet or the Internet.
For open guest access, the Open access security option must be configured. This precludes the use
of WEP Security Mode on APs that provide guest access, but does permit use of WPA Security
Mode for non-guests only.
NOTE: If both secured and open access are enabled (mixed-mode of operation) then
some third party clients may not be able to access the network using WPA-PSK. All
clients will be able to connect to the network using the open authentication correctly.
ID
Password
Network
Corp Guest Access
Secure
User Traffic
Is Encrypted
Guest Traffic is
Not Encrypted
Secure Client Authenticates
with Pre-shared Key
A006
4
Guest
Internal Landing Page
Installation and User Guide: Airgo Access Point 169
VLANs and security privileges are assigned to users by way of service profiles defined for user
groups and bound to the network SSID. It is required that the VLAN configuration include DHCP
and DNS services.
Internal Landing Page
The internal landing page is a configurable option within the Airgo AP. The guest password for the
AP can be set using the Guest Access panel, or an automatically generated password can be
configured through the User Management panel in NM Portal. If the automatically generated guest
password is used, then the authentication process for the internal landing page also checks the
password entered by the guest user against the RADIUS authentication service provided in the
security portal. If either password is acceptable, the guest user is authenticated and receives the
privileges specified in the guest service profile. Internal landing pages are compatible with the
VLAN and non-VLAN options.
Figure 120 shows how Acme Works configured guest access with an internal guest landing page. In
this example, the company has two VLANs: Corporate and Guest. Corporate and guest users
belong to the Enterprise and Guest user groups, respectively, with appropriate service profiles
assigned and bound to the SSID. Corporate users are authenticated by way of the enterprise
RADIUS server, while guest users are authenticated by way of an internal landing page configured
in the Airgo AP. After they are authenticated, guest users are place in the Guest VLAN.
I
NOTE: If guest access is configured on a VLAN other than VLAN 1, the DCHP server on the
AP cannot be used to provide IP address service for the guest VLAN. Use an external DHCP
server.
8 Configuring Guest Access
170 Installation and User Guide: Airgo Access Point
Figure 120: Guest Access - Internal Landing Page
RADIUS
Server
A0045D
Corp
VLAN
Corp-VLAN
VLAN Switch
Guest
VLAN
Guest-VLAN
Corp Guest Access
Guest
ID
Password
External Landing Page
Installation and User Guide: Airgo Access Point 171
External Landing Page
An external landing web page can be set up through a corporate web server. The URL for the
landing page must use an IP address rather than a domain name. Regardless of the authentication
process selected for the external page, it is necessary to forward authentication results to the AP
upon completion of successful or unsuccessful guest authentication.1 External landing pages are
compatible with the VLAN and non-VLAN options.

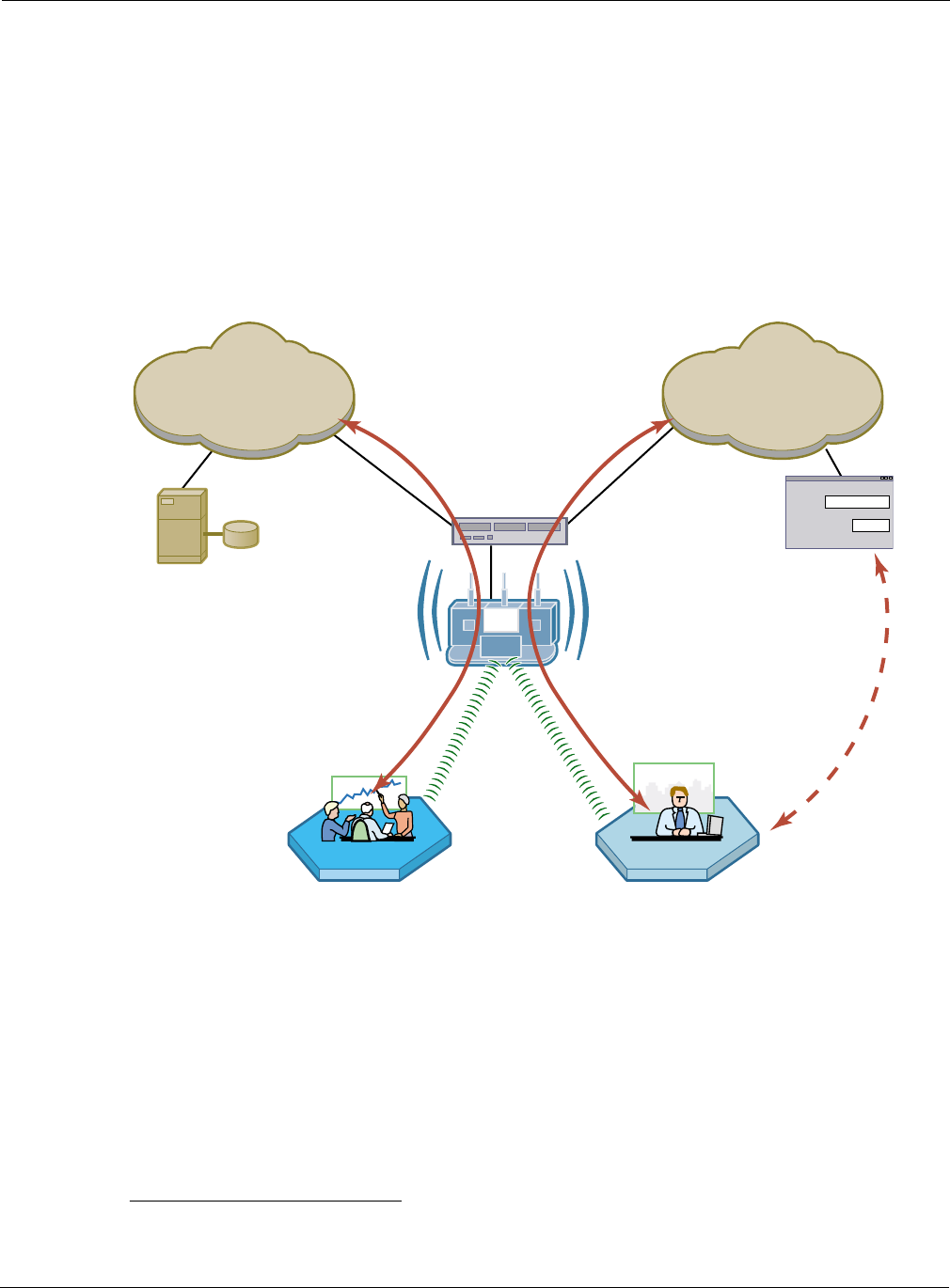

Figure 121 shows a network VLAN configuration with an external guest landing page. The external
landing page is made accessible over the Internet through an external web server. As in the
previous example, authenticated guest users are given access to the guest VLAN.
Figure 121: Guest Access - External Landing Page
1An example external landing page is shipped with the Airgo AP.
RADIUS
Server
A0045B
CorporateVLAN
CorporateVLAN
VLAN Switch
GuestVLAN
GuestVLAN
Corporate Guest
Web
Authentication
Password
Authentication
Results Passed
Back to AP
8 Configuring Guest Access
172 Installation and User Guide: Airgo Access Point
Open Subnet
In an optional open subnet arrangement, shown in Figure 122, unauthenticated guest users are
permitted limited access to an open enterprise subnet specified in the Airgo AP. The enterprise
open subnet must be part of the Guest VLAN. Extended access requires authentication through an
internal or external landing page.

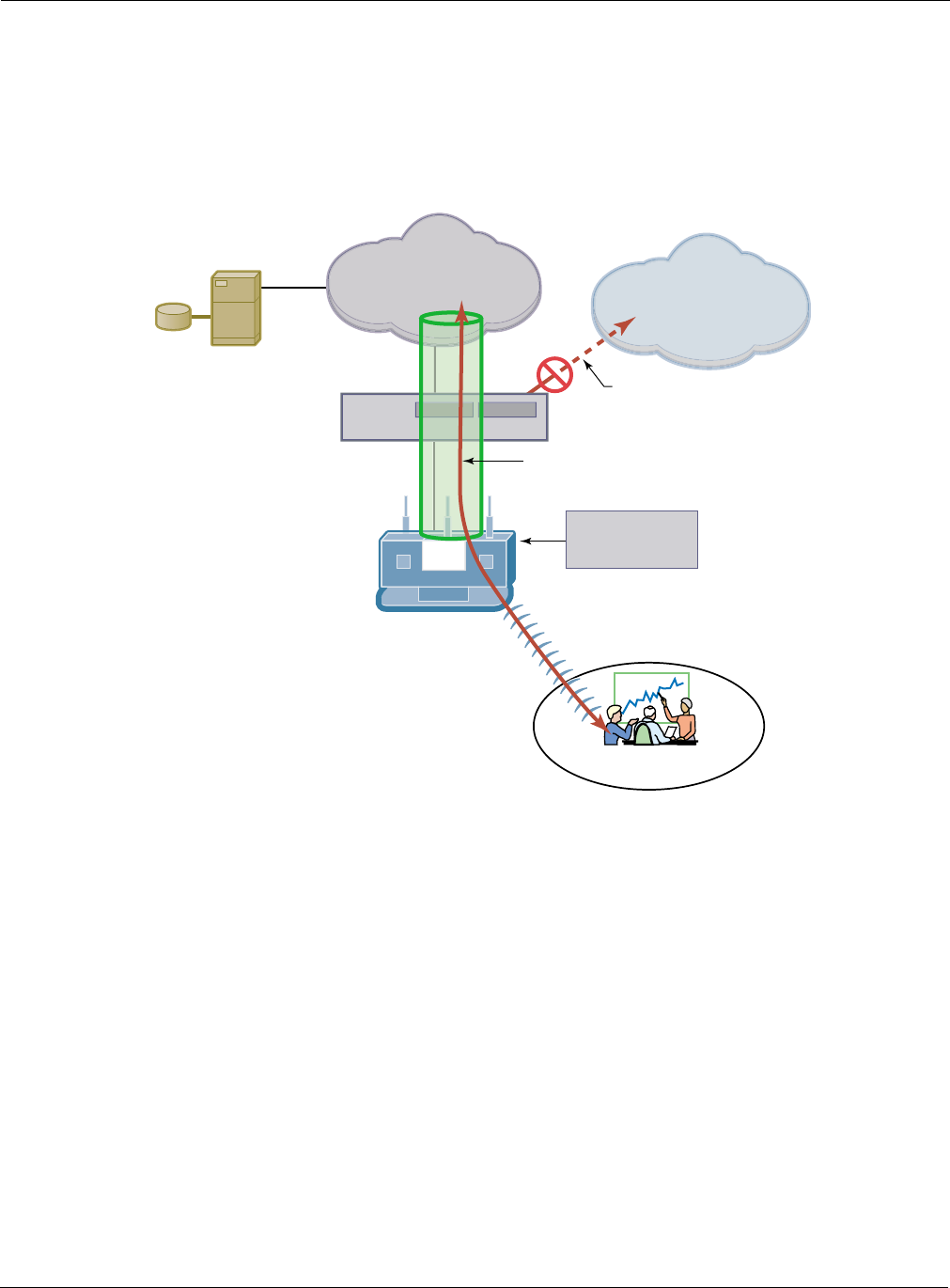

Figure 122: Guest Access - Open Subnet
Guest Access Persistence
If a guest user is temporarily disconnected from the Airgo AP due to loss of association, it may not
be necessary for the user to reauthenticate if the client reassociates to the same AP within one
minute. This is particularly beneficial when using a virtual private network (VPN) with guest
access, wherein the user signs on as a guest and then launches a VPN session to a remote VPN
server. Since the VPN session is tunneled over the guest session, a temporary loss of connectivity
does not require tearing down the VPN session. If loss of association extends beyond one minute, it
is necessary for the guest user to reauthenticate.
Internet
VLAN Switch
Open Subnet
Open Subnet
Address Range
No Direct Internet Access
Until Authenticated
GUEST-VLAN
A0035B
Open Access
Server
User Group = "GUEST"
Configuring Guest Access with VLANs
Installation and User Guide: Airgo Access Point 173
Configuring Guest Access with VLANs
This section describes the complete process of setting up guest access with VLANs. Use the Guest
Access wizard for easy configuration of the major guest access parameters. See “Guest Access
Wizard” on page 53 for instructions on using the Guest Access wizard.
Task Steps
Confirm that Open
access is supported as a
security option.
1Choose Wireless Security from the Security Services menu to open the
Security Mode tab (“Configuring Wireless Security” on page 150).
2Enable WPA security if mixed mode security (encrypted and Open) is
desired. Only WPA can be enabled in conjunction with Open. The WPA
Security mode is for non-guests only.
3Enable Open Access.
4Click Apply.
Create or confirm
existence of a corporate
VLAN. This can be the
default untagged VLAN
or a specially created
VLAN.
1Choose VLAN Configuration from the Networking Services menu to
open the VLAN table (“VLAN Table” on page 112).
2Confirm that the corporate VLAN is listed in the table, or click Add to
create a new VLAN:
aEnter the corporate VLAN name and a numeric VLAN ID in the Add
VLAN entry panel.
bEnter the IP address and maskbits of the captive portal server, or select
the DHCP option. The guest portal must have a valid IP address for the
authentication process to work.
cSelect the eth0 interface, and mark it as tagged. (Only eth0 should be
tagged.)
dClick Add.
Create the guest VLAN. 1Choose VLAN Configuration from the Networking Services menu to
open the VLAN table (“VLAN Table” on page 112).
2Click Add.
3Enter the VLAN name (Guest VLAN) and a numeric VLAN ID in the Add
VLAN entry panel. It is not recommended that you use the default VLAN.
4Enter the IP address and maskbits of the captive portal server, or select the
DHCP option.
5Select the eth0 interface, and mark it as tagged. (Only eth0 should be
tagged.)
6Click Add. For additional information on configuring VLANs, see
“Configuring VLANs” on page 111.
Create or confirm
definition of a corporate
service profile.
1Choose SSID Configuration from the Wireless Services menu to open
the SSID table (“SSIDs and Service Profiles” on page 84).
2Click Profile Table.
3Add a corporate profile or confirm that one exists with the desired WPA
security option and the corporate VLAN specified. Make sure that the
corporate profile is bound to the SSID.
8 Configuring Guest Access
174 Installation and User Guide: Airgo Access Point
Guest access is now configured. When guests attempt to access the network, they are directed to an
external landing page or to a standard user login screen. Upon entering the correct guest password
or server secret code, they are granted access to the guest VLAN. They are also given the COS and
encryption characteristics specified in the guest service profile.
See also “Guest Access Wizard” on page 53.
Guest Access Services Panel
For summary information about guest access, use the Guest Access Configuration panel. The panel
opens to the Guest table (Figure 123), which lists currently defined guest service profiles. If guest
access is enabled, you can also open the Guest table by clicking the Guest Access Enabled link on
Create a guest service
profile which specifies
the guest VLAN and
desired COS and security
options.
1Choose SSID Configuration from the Wireless Services menu to open
the SSID table.
2Select SSID Details (“SSID Details” on page 87).
3Confirm the SSID name, or enter a new SSID name for the Guest Portal,
and then click Apply.
4Click Profile Table to display the current list of service profiles.
5Click Add to create the guest service profile. Select the VLAN ID for the
guest VLAN previously defined. Enter the COS value and make sure that
no-encryption is selected.
6Click Apply.
Add guest access to the
SSID and specify an
internal or external
landing page for guest
users who attempt to
access the network.
1Choose Guest Access Configuration from the Guest Access Services
menu to open the Guest table.
2Click Add.
3Confirm selection of the SSID and guest profile, as defined in the previous
task.
4Select whether the landing page will be internal or external. If external,
enter a URL and an external web server secret code, which is the shared
secret code for communication between the AP and web server.
5Click Apply.
For the internal landing
page, set a guest
password; for an external
landing page use the
RADIUS shared secret
code.
1If Internal is selected as the landing page type, click Security to enter the
guest password.
2Enter and confirm the password, and click Apply.
Set up optional auto-
generation of guest
passwords
1From NM Portal Network Management Explorer window, select User
Management from the Security Portal menu.
2On the Guest User tab (Figure 126), select Yes to enable auto-password
generation.
3Select an interval from the Generate Auto Guest Password pull-down list.
4Click Apply.
NOTE: If static and auto-generated passwords are configured, then a guest
user can enter either password to be authenticated.
Task (continued) Steps
Guest Access Services Panel
Installation and User Guide: Airgo Access Point 175
the SSID Details panel. (The panel is described in “SSID Details” on page 87.) The Guest table
presents the following information:

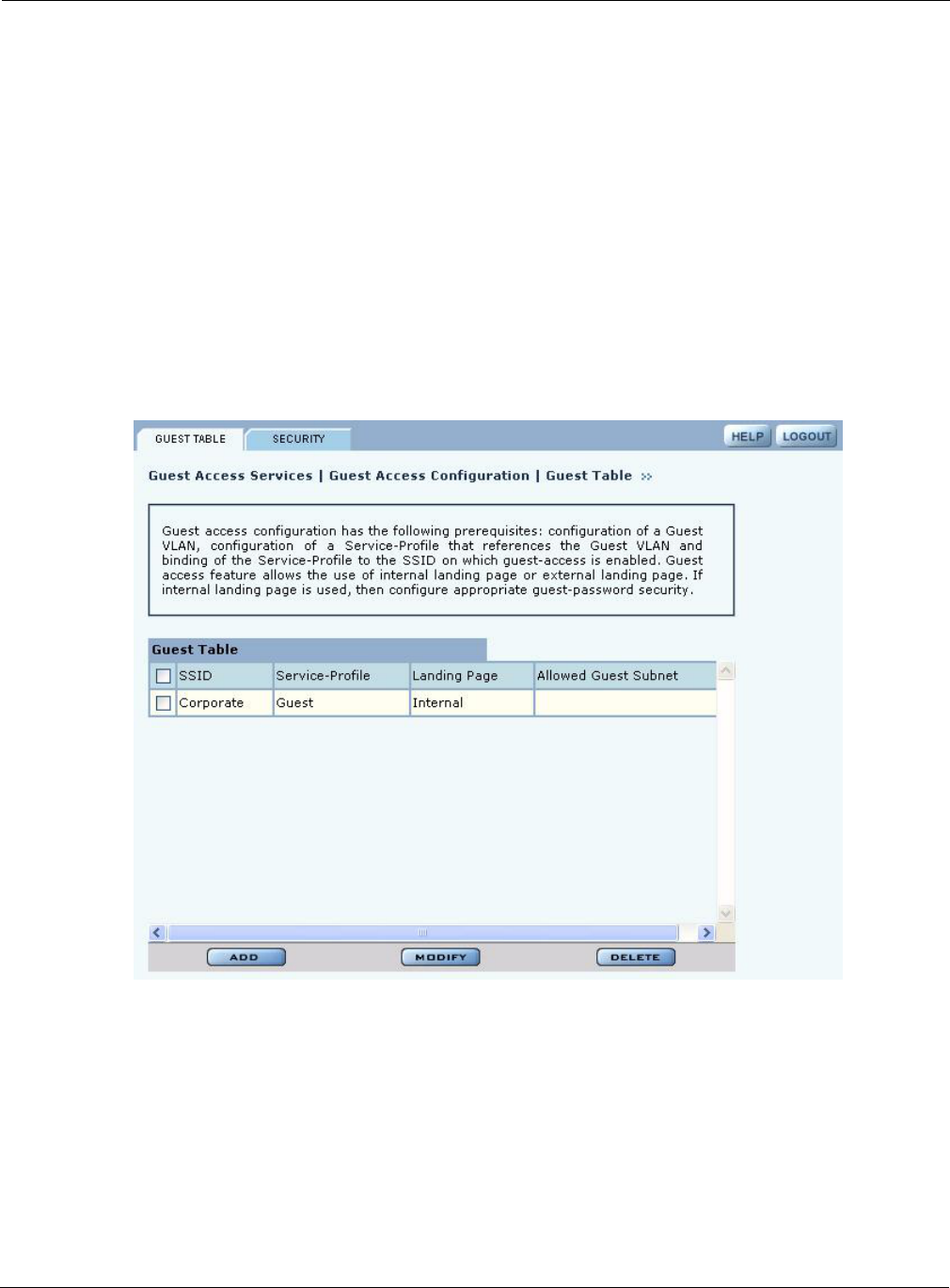

Figure 123: Guest Access Configuration - Guest Table
Field Description
SSID The network to which the guest profile belongs (There can be at most one
guest profile per SSID.)
Service-Profile The name of the guest service profile bound to the SSID.
Landing Page Internal or external page automatically that automatically opens when guest
users attempt to access the network
Allowed Guest Subnet The subnet optionally reserved for unauthenticated guest access (Configuring
an allowed guest subnet can give unauthenticated users access to a limited set
of free services.)
8 Configuring Guest Access
176 Installation and User Guide: Airgo Access Point
Perform the following functions from the Guest Table:

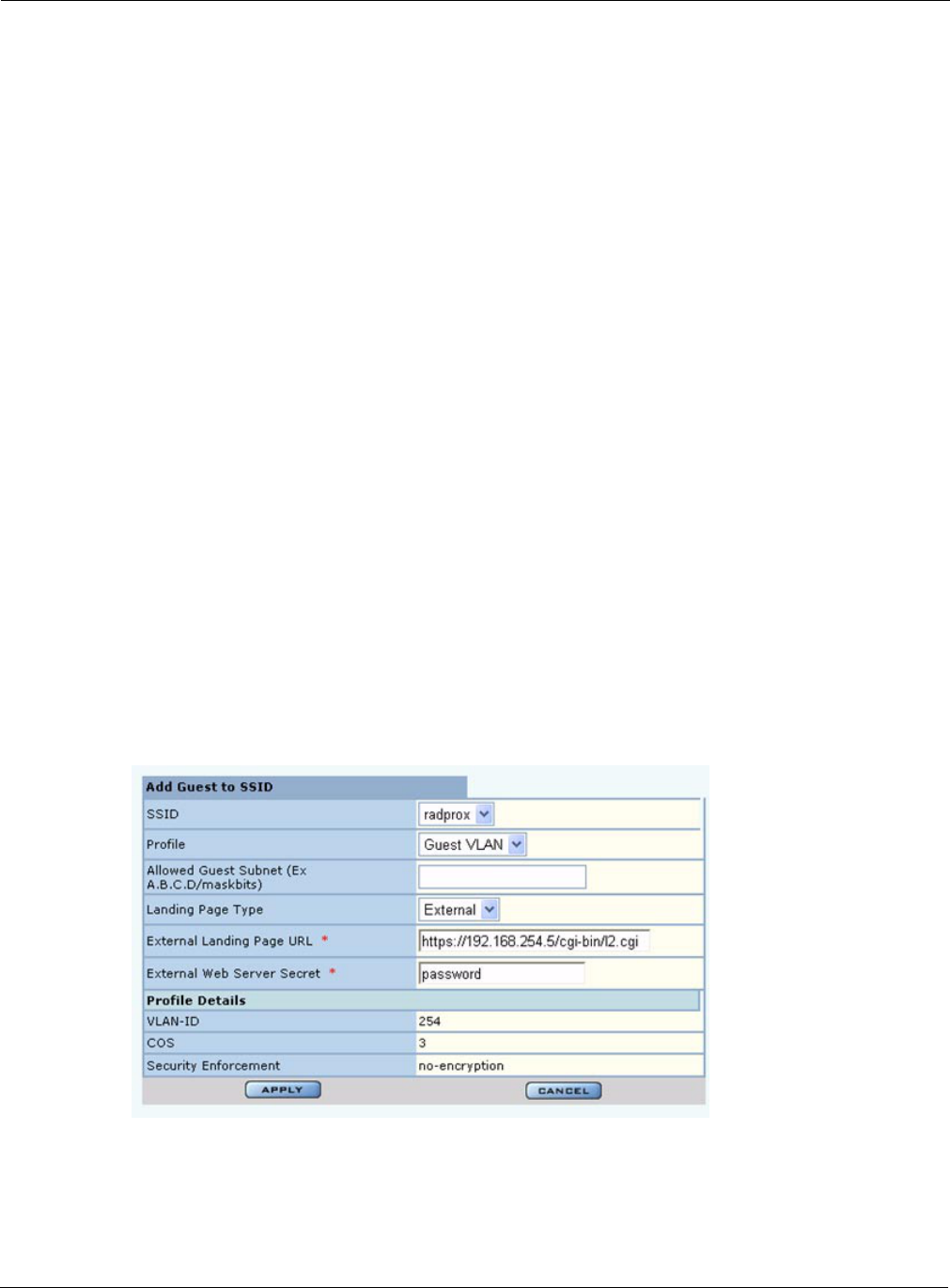

Figure 124: Guest Access Configuration - Add Guest to SSID
Guest Access Security
The Security tab of the Guest Access Configuration panel (Figure 125) provides an interface to set
the guest password for an internal landing page.
Function Description
Add an entry to the
Guest Table
One guest profile can be added for each SSID. If a profile is already assigned
to an SSID and you add a new one, it replaces the previously defined profile.
1Click Add to open the Add Guest to SSID entry panel (Figure 124).
2Select the SSID.
3Select the service profile from the Profile pull-down list. The profile
details are listed at the bottom of the entry panel.
4If desired, enter the address and maskbits for a subnet optionally reserved
for unauthenticated guest access (A.B.C.D/maskbits format)
5Select an internal or external landing page. If the external page is selected,
enter the full IP-based URL and the shared secret code used for
communicating with the RADIUS server.
6Click Apply.
Modify an entry 1Select the entry you wish to modify, and click Modify.
2Confirm the SSID.
3Select the service profile from the Profile pull-down list.
4If desired, enter the address and maskbits for a subnet optionally reserved
for unauthenticated guest access.
5Select an internal or external landing page. If the external page is selected,
enter the full URL and shared secret code for access.
Click Apply.
Delete an entry 6Select the entry and click Delete.
7Click OK to confirm.
Guest Access Services Panel
Installation and User Guide: Airgo Access Point 177
Figure 125: Guest Access Configuration - Security
Auto-Generating Guest Passwords
For optional generation of guest passwords automatically at set intervals, use the Guest User tab
within the security area of NM Portal (Figure 126).
Figure 126: Security Portal - Guest User
8 Configuring Guest Access
178 Installation and User Guide: Airgo Access Point
Installation and User Guide: Airgo Access Point 179
9Managing the Network
This chapter explains how to use the NM Portal features of the Airgo Access Point to manage
multiple APs across the network. It includes the following topics:
•Introduction
•Using NM Portal
•Using the Network Topology Menu
•Managing Rogue Access Points
•Using the NM Services Menu
•Managing Network Faults
•Using the Security Portal Menu
•Using the Mobility Services Menu
Introduction
Network management refers to the coordinated control and supervision of multiple access points
across a network. Network management functions include single-point configuration of multiple
access points, user access control, performance monitoring, and fault management.
A unique network management capability is built into the Airgo Access Point. When configured as
an NM Portal, the Airgo AP can provide network management services for up to five subnetworks.
For small-size to mid-size networks, this eliminates the need for an external network management
application. For mid-size to large-size enterprise networks, NM Portal can manage all the APs at a
specific location or branch, while NMS Pro, offered as a separate product, can supply enterprise-
level network management.
NM Portal supports the following functions:
•Single view to manage the entire network
•AP discovery
•AP enrollment
•Centralized software distribution and policy management
•Integrated security management for users
•Rogue AP control
•Email alerts
•Fault management
•Syslog
•Guest access control
9 Managing the Network
180 Installation and User Guide: Airgo Access Point
Using NM Portal
To use the Airgo AP for NM Portal services, it is necessary to initialize (bootstrap) the unit in NM
Portal mode. Do so when initially configuring the AP, or by resetting the AP to factory defaults
prior to booting. Chapter 3, “Installing the Access Point Using the Configuration Interfaces,”
explains how to initialize an NM Portal and how to reset to factory defaults.
After the AP is initialized as a portal, access NM Portal services from the web interface at any time
by clicking Manage Wireless Network on the menu tree or on the Home panel (“The Home
Panel” on page 40). The NM Portal Network Management Explorer opens in a new browser
window (Figure 127).

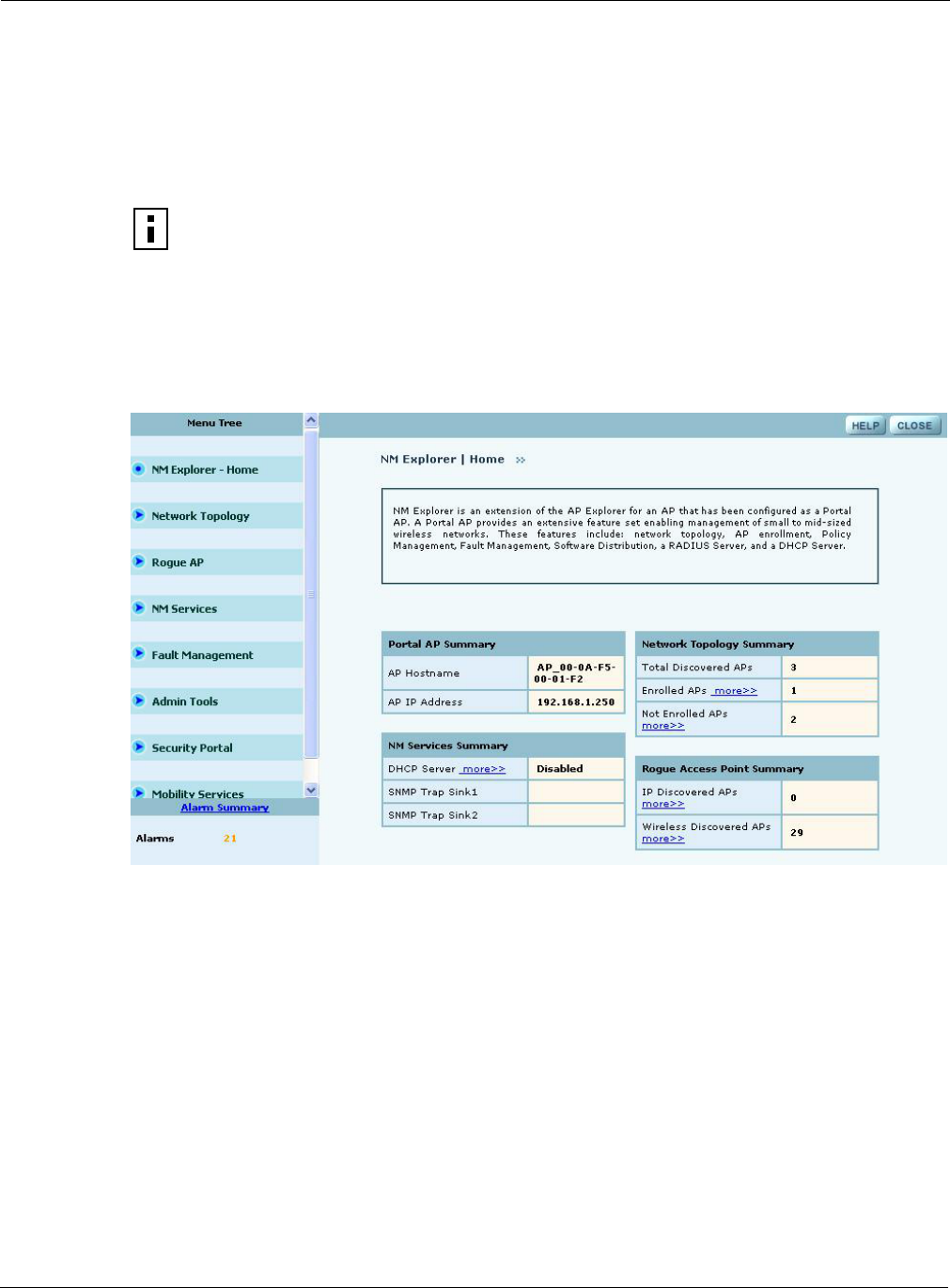

Figure 127: NM Portal Web Interface
This interface is similar to that of the standard Airgo AP web interface. The menu tree on the left
contains a set of menus that provide access to application features. Use the detail panels on the right
to set the configuration and monitor the state of the network. The alarm panel in the lower left
portion of the window shows the number of outstanding critical alarms collected across the network
managed by NM Portal.
Home Panel
The Home panel (Figure 127) contains summary information about the network configuration
together with links to some of the Detail panels. Open the Home panel at any time by selecting
Home from the menu tree.
Menu Tree
The menu tree contains the following menus:
NOTE: Before resetting the AP to factory defaults, make sure to have the original
password that was shipped with the unit available.
Using the Network Topology Menu
Installation and User Guide: Airgo Access Point 181
•Home — Open the Home panel.

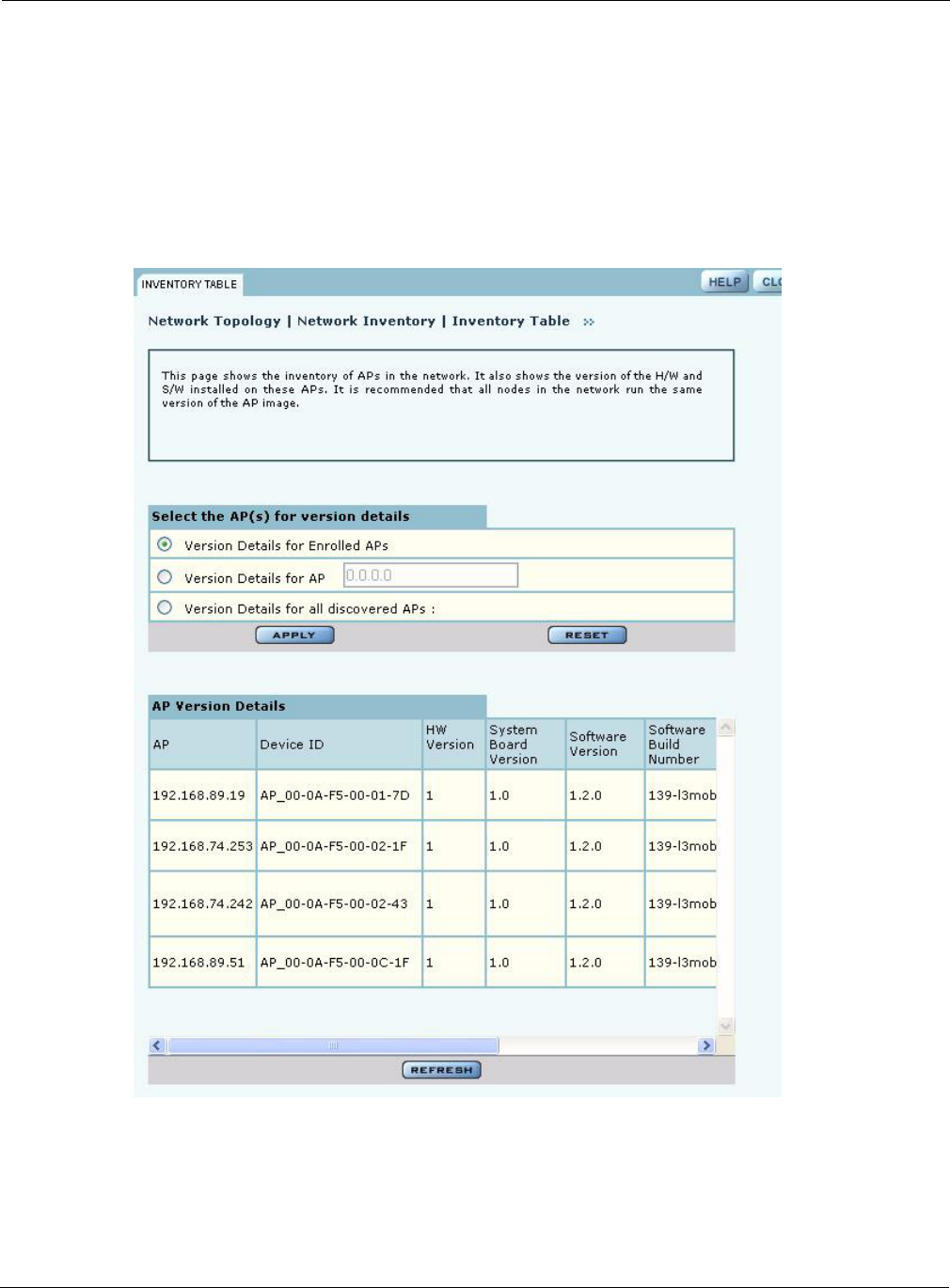

•Network Topology — Manage AP enrollment, wireless backhaul, IP address status, radio
neighbors, and network inventory.

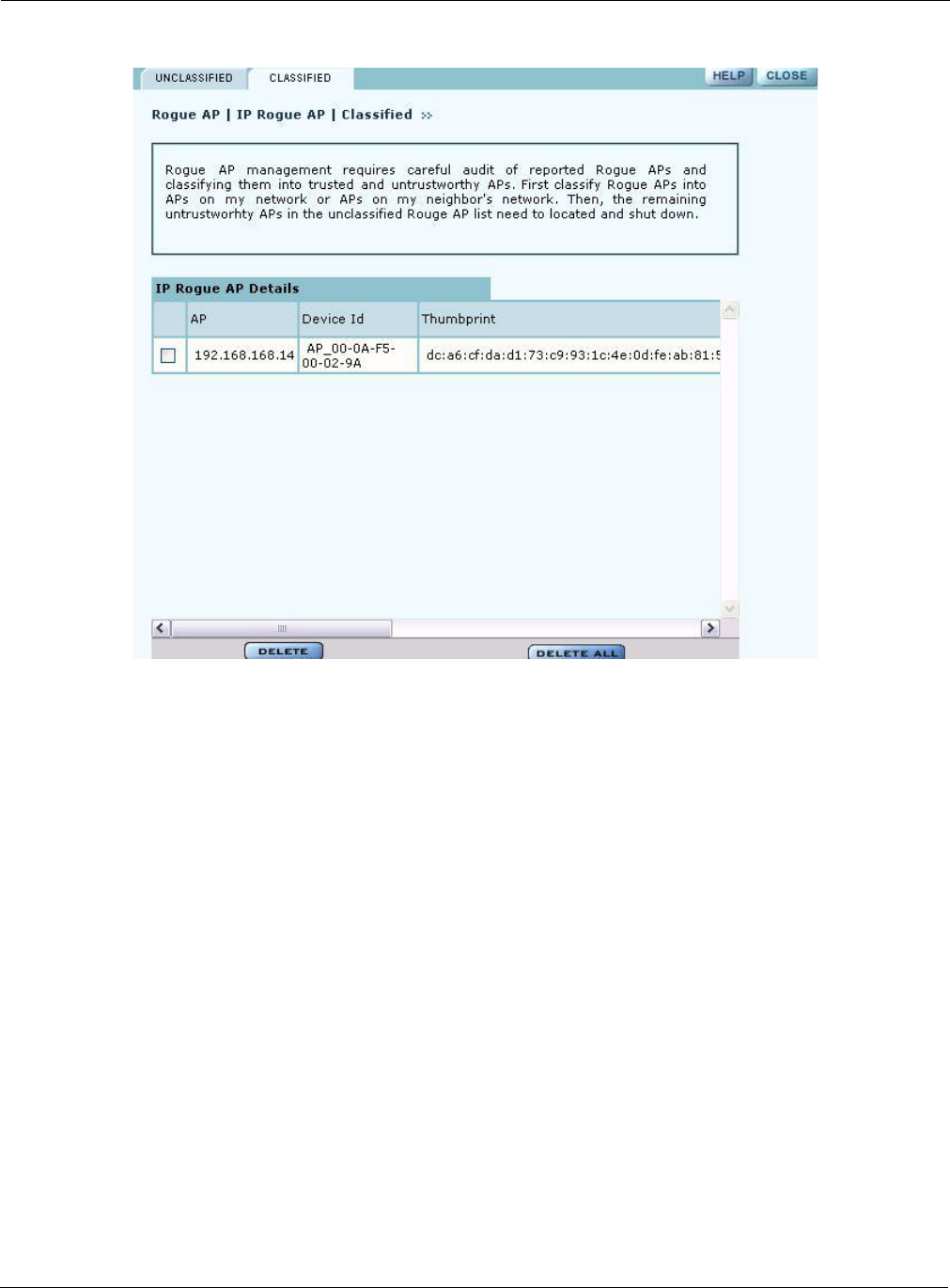

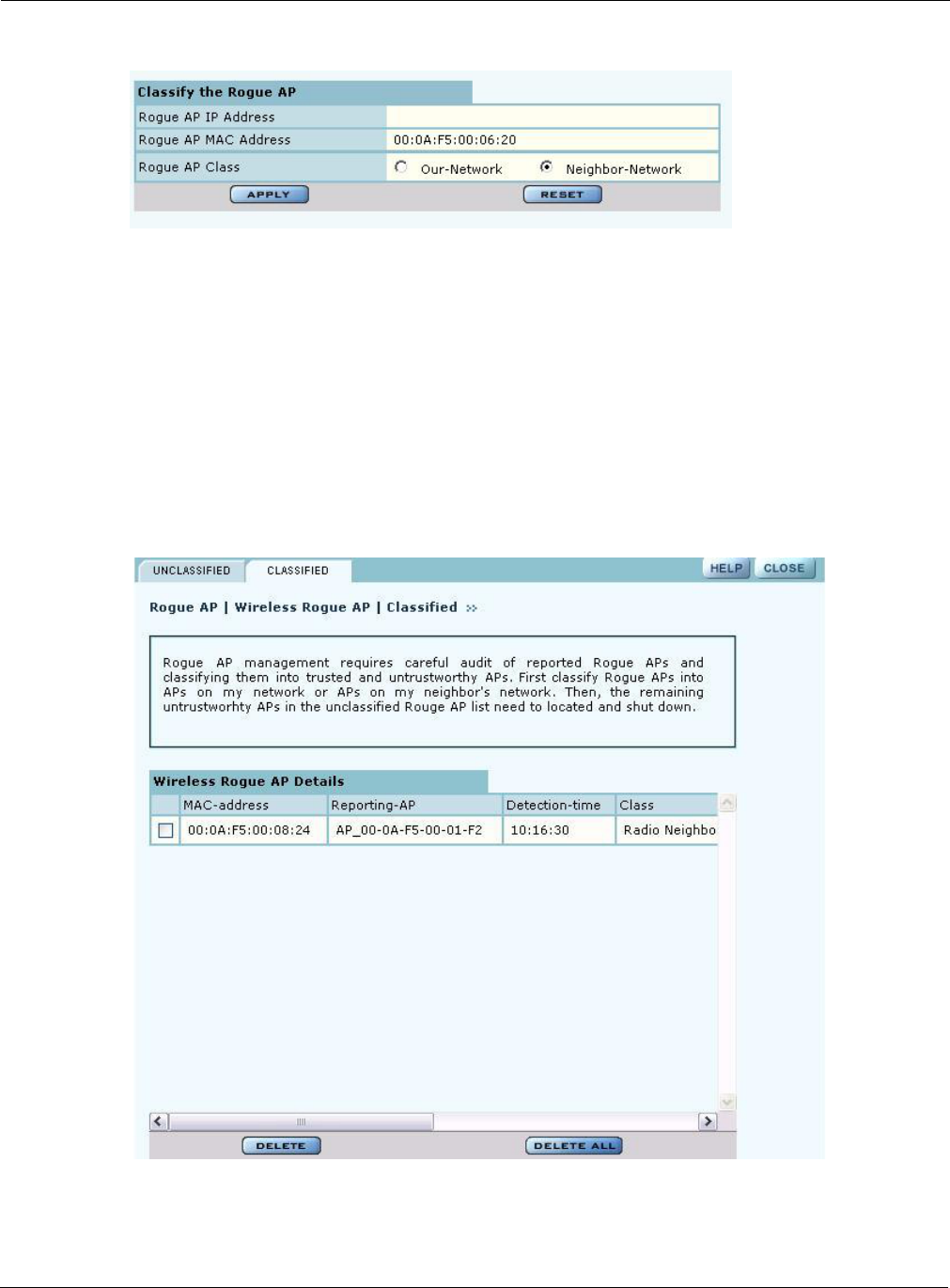

•Rogue AP — Classify and manage rogue APs.

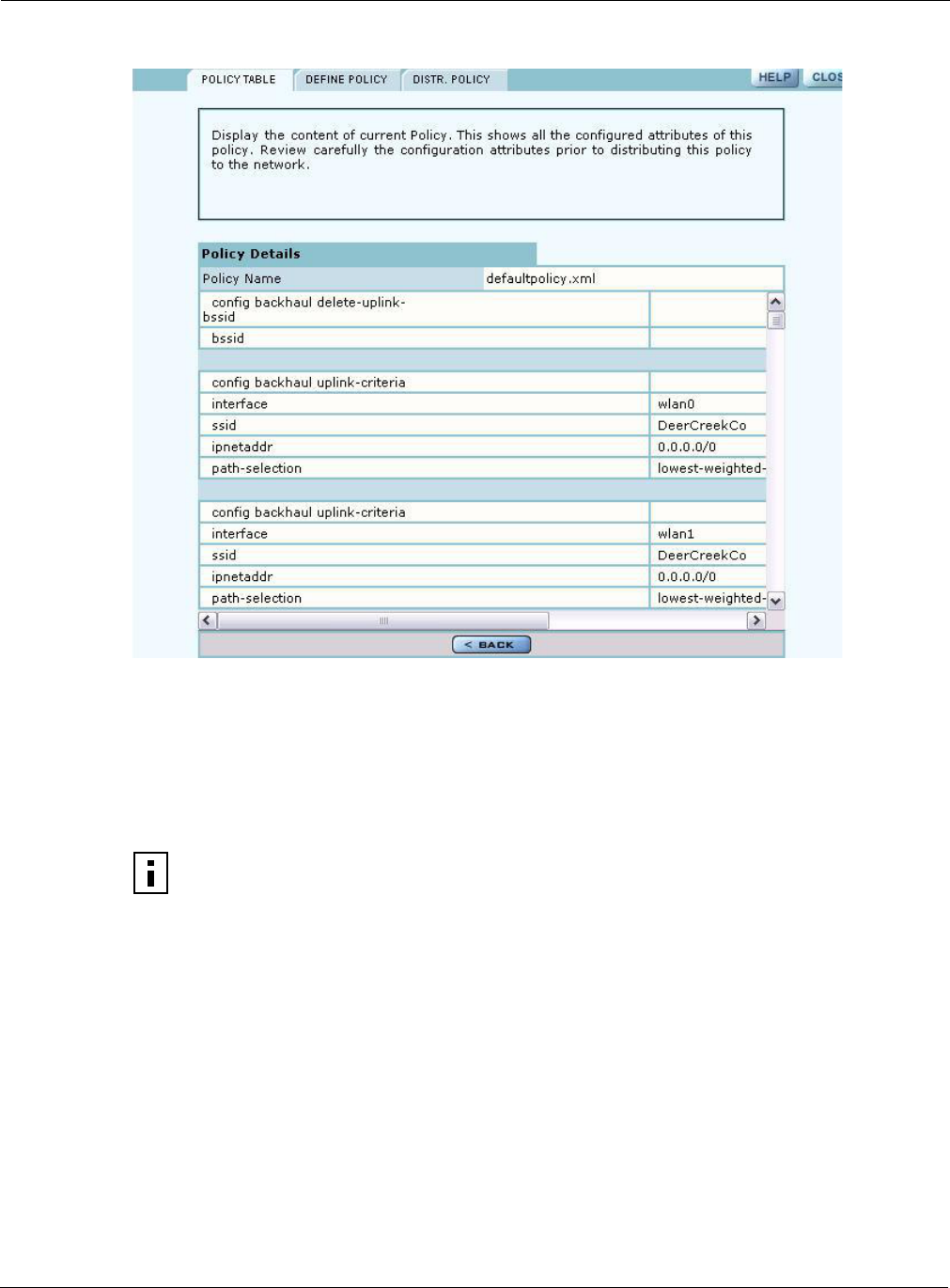

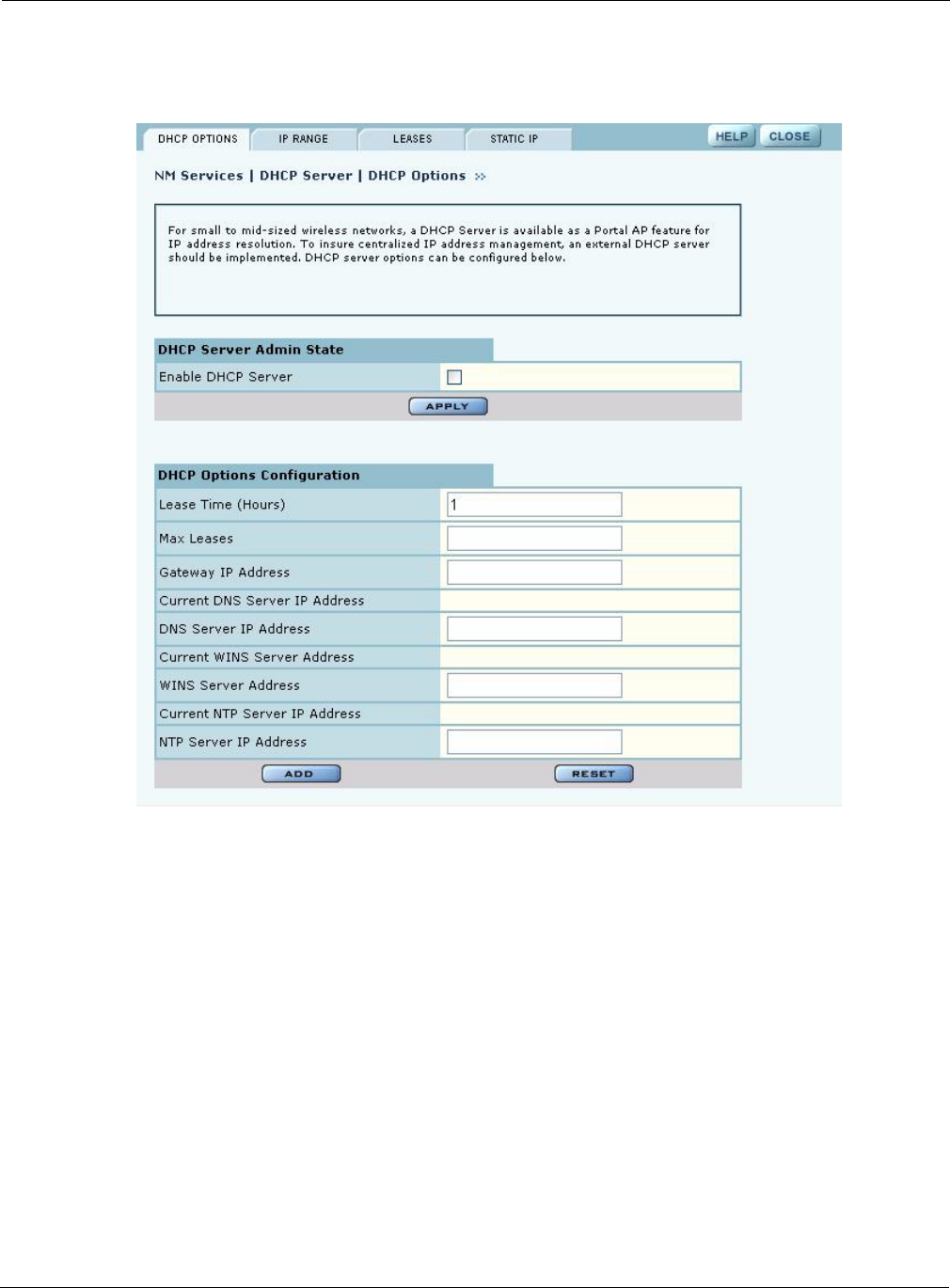

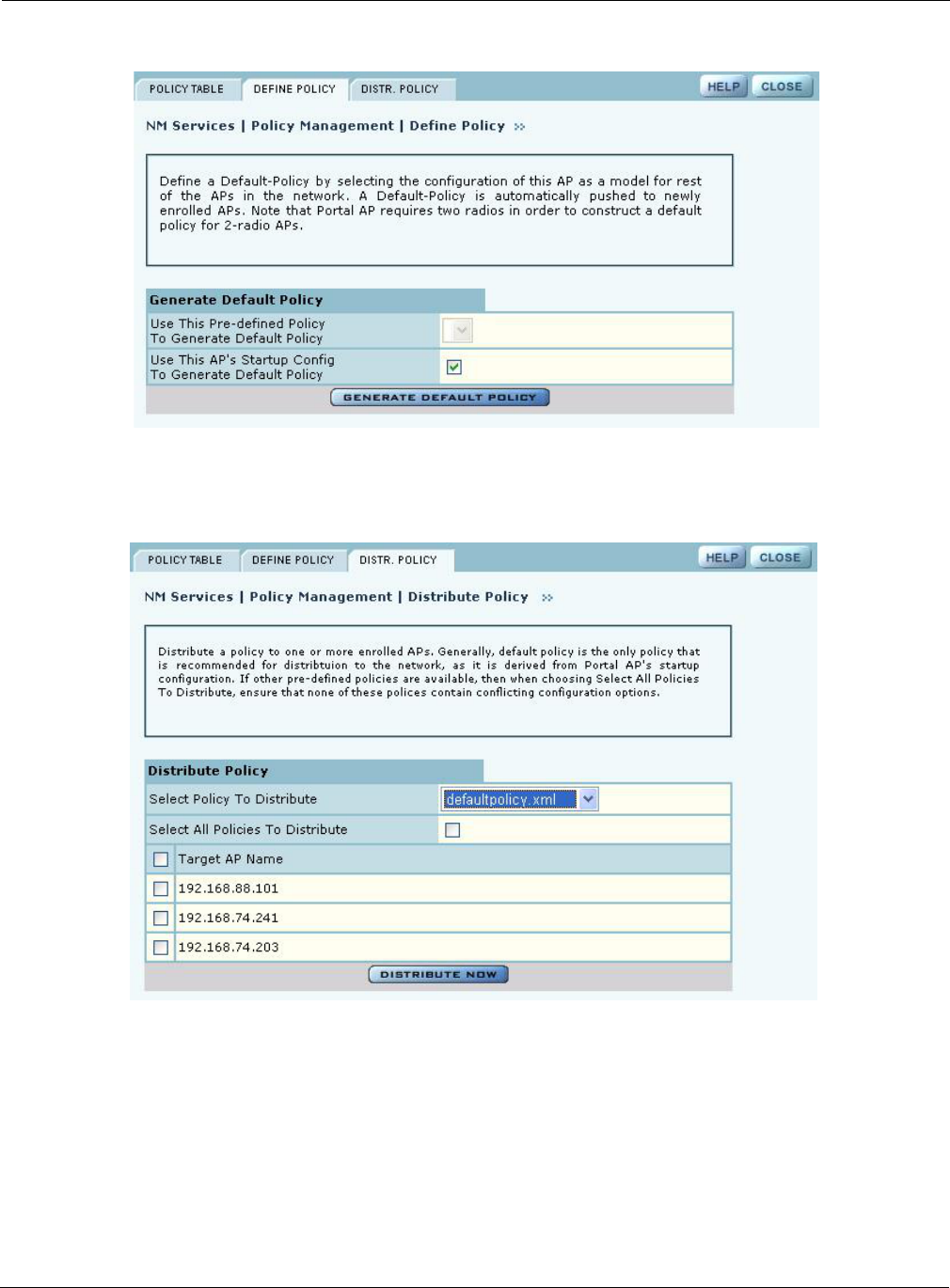

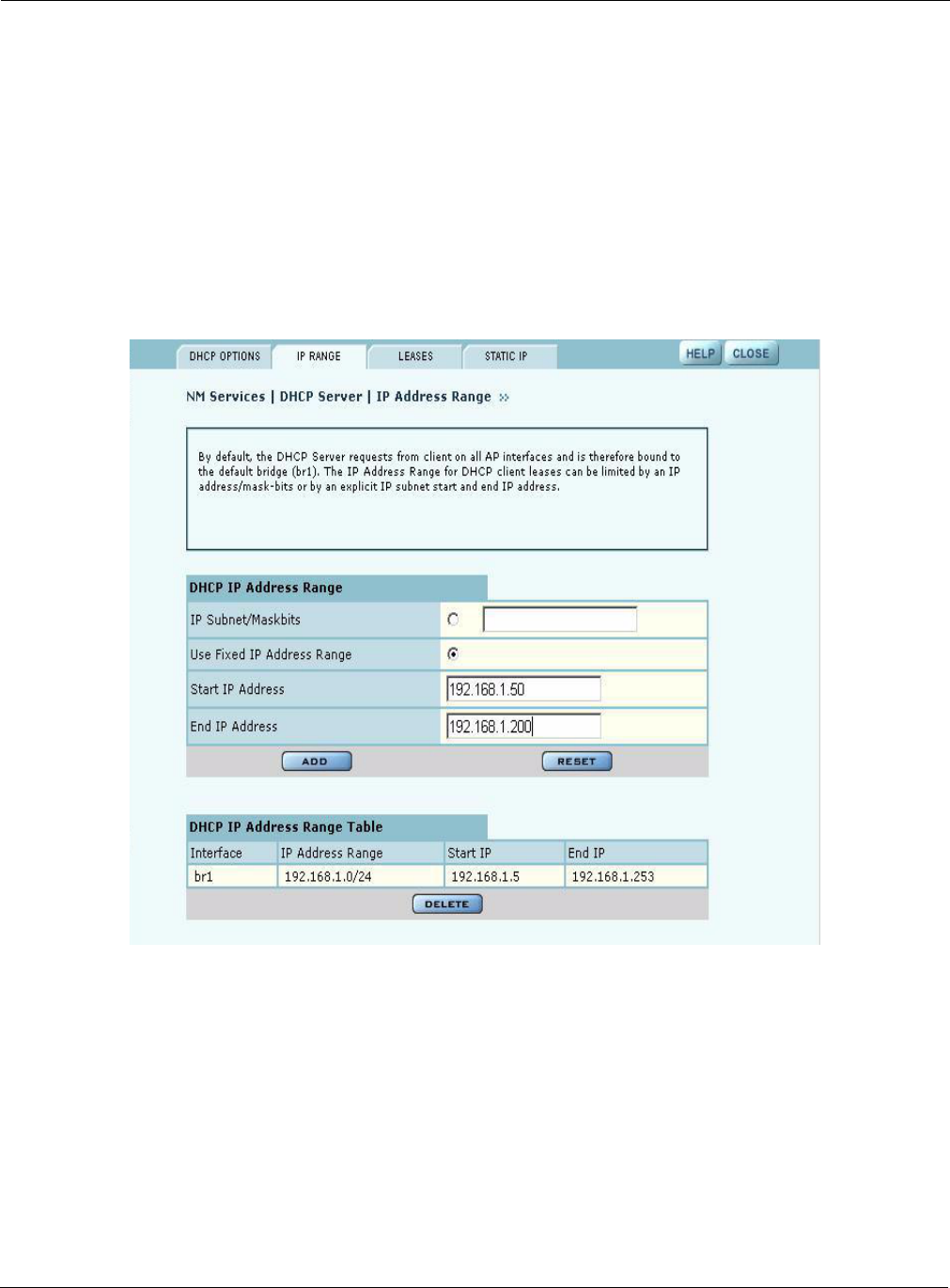

•NM Services — Set up policies, network discovery, DHCP settings, and portal settings.

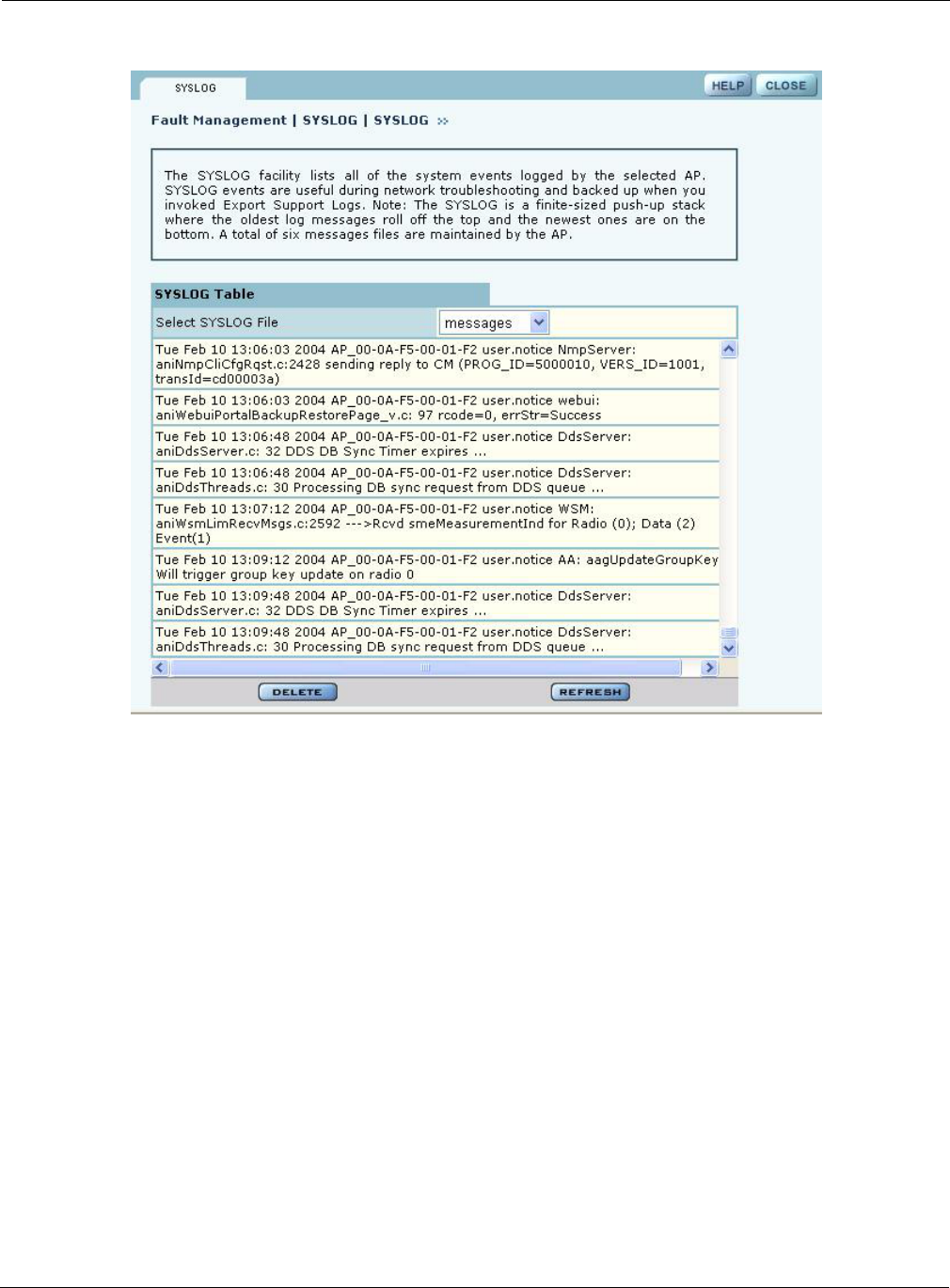

•Fault Management — View alarm logs and syslog events.

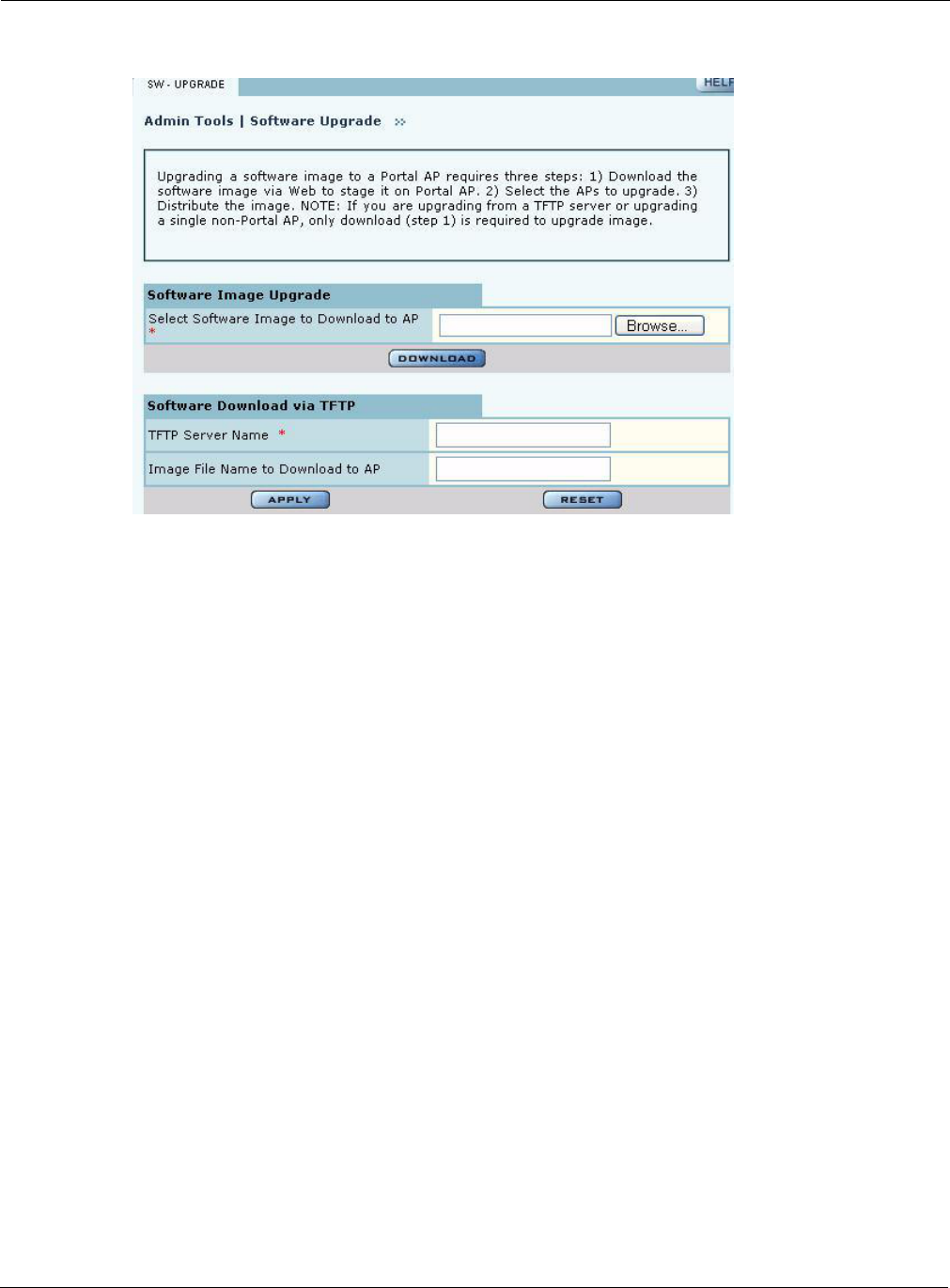

•Admin Tools — Upgrade AP software (see “Upgrading Software” on page 251).
•Security Portal — Add network, administrative, and legacy users, and enable the RADIUS
proxy feature.

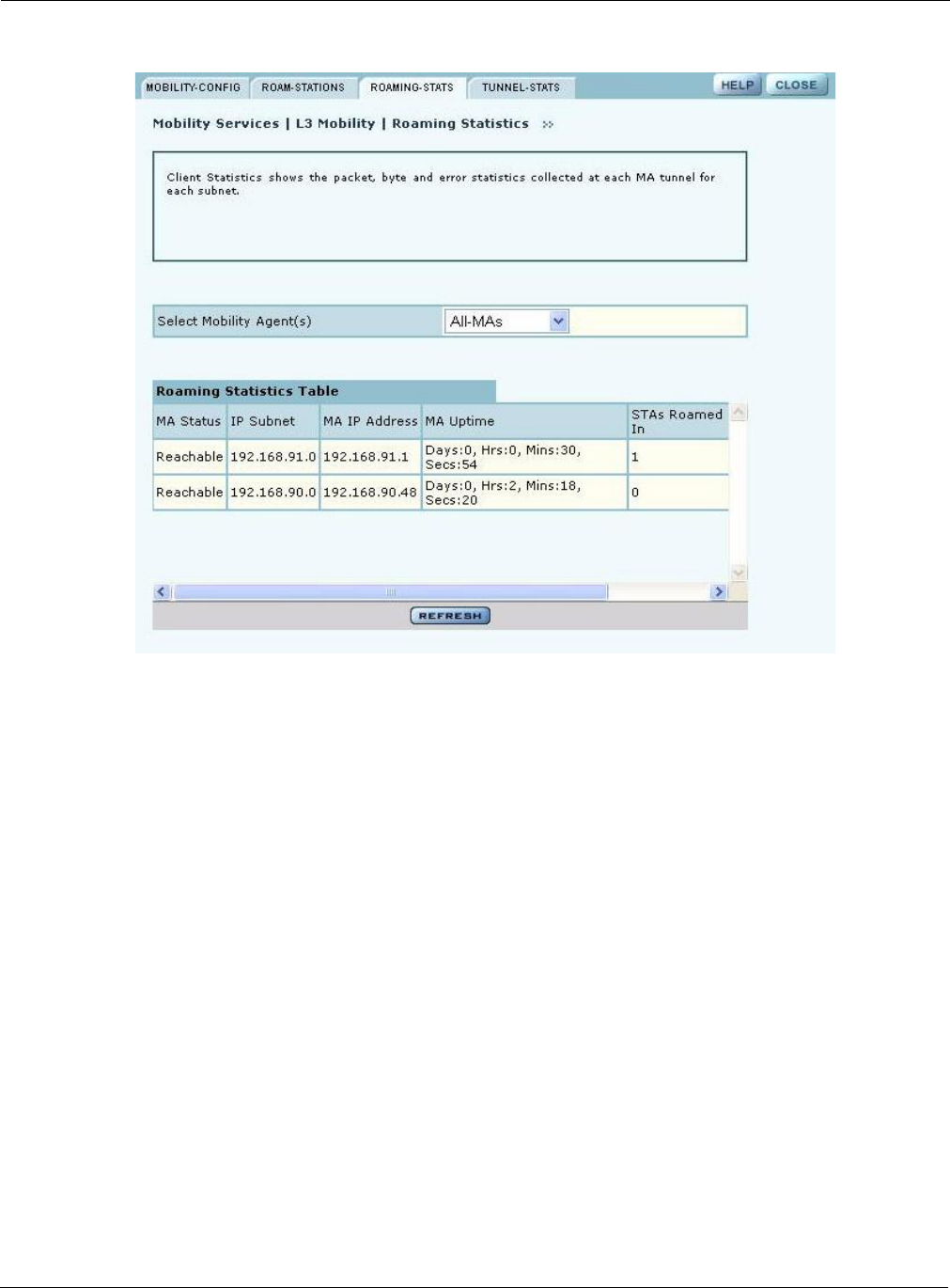

•Mobility Services — Configure and manage Layer-3 mobility services.
Each of these topics is described in this chapter, except Software Upgrade, which is described in
Chapter 10, “Maintaining the Access Point.”
Click the arrow to the left of a menu item to expand the menu.
Using the Network Topology Menu
Use the Network Topology menu items to manage the identification, network status, and
relationship of APs in the network.
Enrolling APs
Network security depends upon mutual trust between the NM Portal and the other managed Airgo
APs. Each access point must trust the identity of the NM Portal AP, and the NM Portal must trust
that each access point is fully authenticated (Figure 128).

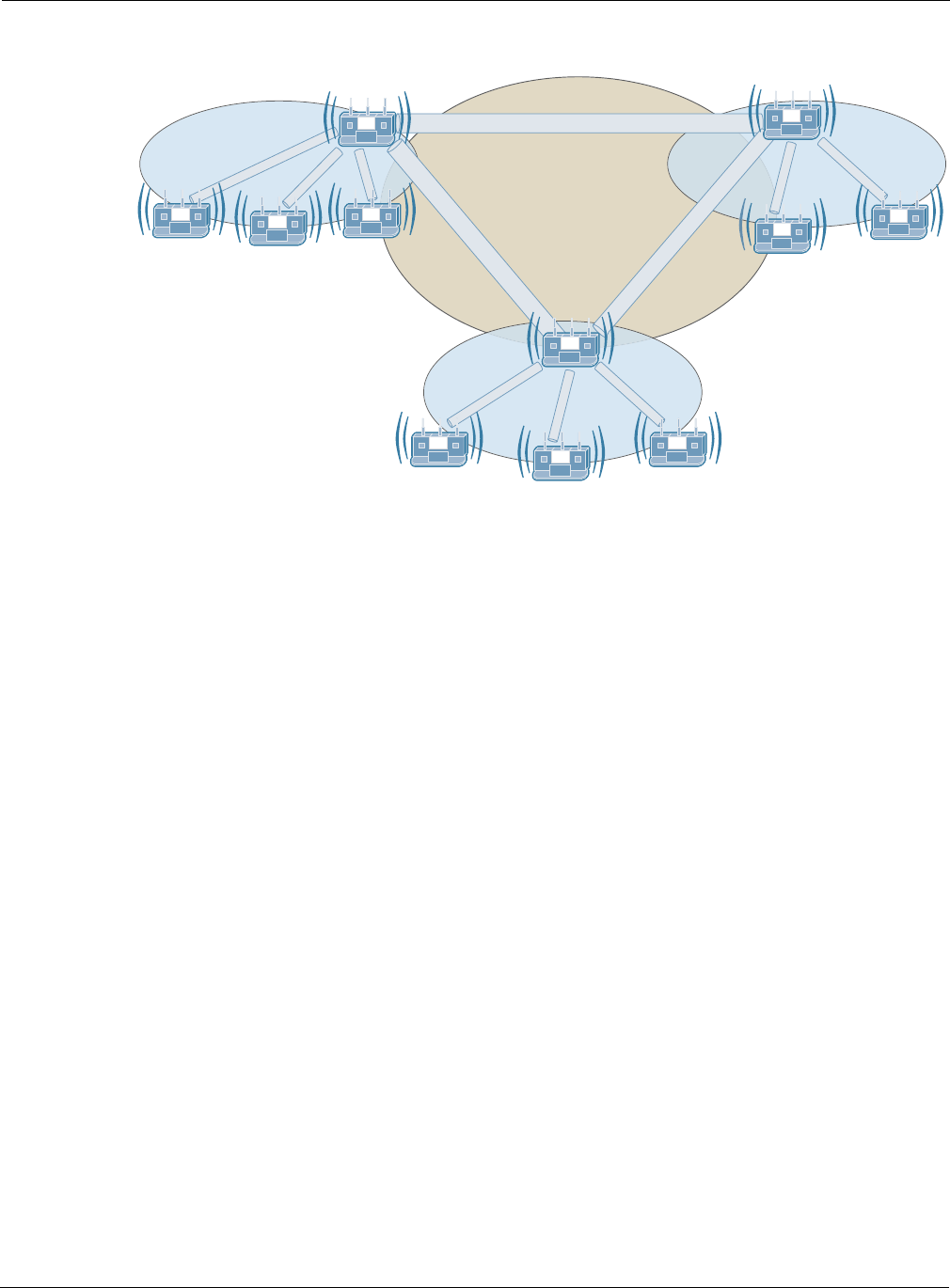

Figure 128: AP Enrollment
Enrollment is the process used to establish this mutual trust. The process consists of several steps:
•NM Portal automatically discovers all the Airgo Access Points and presents those not already
enrolled in a list of unenrolled APs.
•You select a candidate AP to enroll and verify its identity.
•NM Portal and the AP perform a mutual authentication process.
A0028A
NM Portal:
Manage and
Monitor the
Network
Other APs
Enrollment Portal:
Verify AP Identity
9 Managing the Network
182 Installation and User Guide: Airgo Access Point
•Once the authentication is complete, the AP is enrolled. It is not necessary to enroll the AP
again, even if power is lost to the unit.
An NM Portal can discover up to 50 APs across up to five subnets, and can enroll and manage up to
20 APs. To access the enrollment panel, choose AP Enrollment from the Network Topology
menu. The AP Enrollment panel opens to display the list of discovered, but as yet un-enrolled, APs
(see Figure 129).

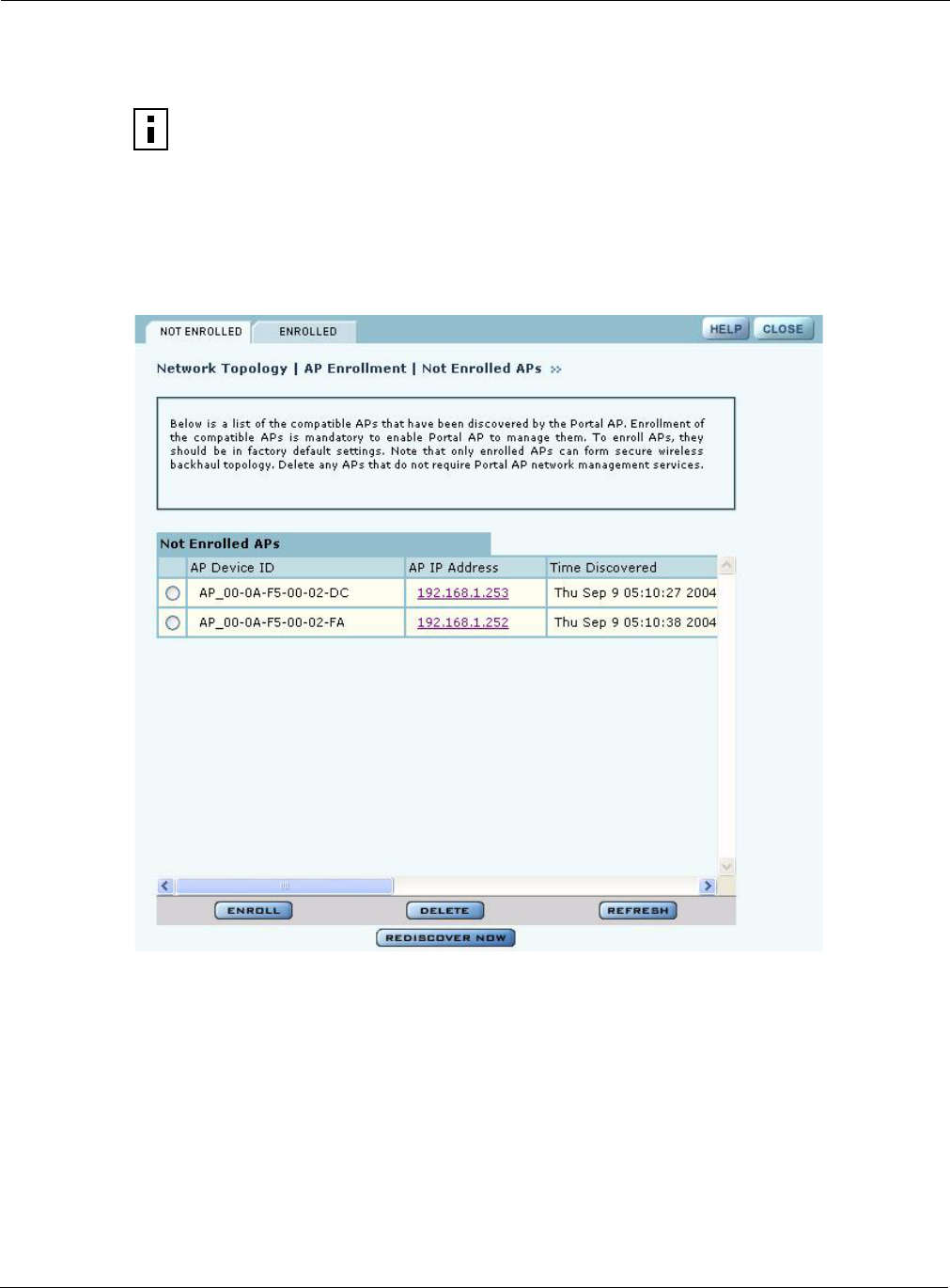

Figure 129: Network Topology - AP Enrollment - Not Enrolled
Perform the following functions from this panel:
NOTE: In order to enroll an AP, it must be in the factory default state. This assures that
enrollment will be based on a known configuration.
Function Description
Enroll an AP 1Select the desired AP, and click Enroll to open the Enroll an AP Entry
panel (Figure 130). If the AP is not in the factory default state, a message is
presented. Click the AP link to open the web interface for the AP and reset
it to the factory default configuration.
2After verifying the information on the panel (Table 15), enter the correct
password, and click Enroll. It takes a couple of minutes to enroll the AP.
Delete an AP Select an AP and click Delete to remove it from the list.
Using the Network Topology Menu
Installation and User Guide: Airgo Access Point 183
Figure 130: Network Topology - AP Enrollment - Enroll an AP Entry Panel
The Enroll an AP panel contains information that uniquely identifies the AP. To verify the identity
of the AP, compare the following information to the information on the paperwork shipped with the
AP:
When an AP is enrolled, it is configured with the enrolling AP’s bootstrap configuration. Refer to
Chapter 3, “Installing the Access Point Using the Configuration Interfaces,” for bootstrap
configuration details.
Enrolled APs
Enrolled APs are listed on the Enrolled tab of the Enrollment panel (Figure 131). The screen should
refresh automatically to reflect new enrollments. If this does not happen, click Refresh.
Refresh Click to update the display.
Rediscover Now Scan the network to discover APs and update the Not Enrolled APs table.
Table 15: AP Enrollment Information
Field Description
AP Device ID Verify the alphanumeric name of the AP. The default is the IP address.
IP Address Verify the IP address of the AP.
Serial Number Verify the AP serial number.
Thumbprint Verify the thumbprint, which uniquely identifies the AP for security purposes.
Password Enter and confirm the company-supplied password.
Security Portal Indicate whether to use the AP as a standby security portal. With a backup
security portal, a copy of the user authentication database remains accessible
even if the NM Portal AP becomes unavailable.
NOTE: If DHCP is used for address assignment for enrolled Airgo APs, the AP
address may change periodically. When that occurs, service is not interrupted, and all
security credentials remain intact.
Function Description
9 Managing the Network
184 Installation and User Guide: Airgo Access Point

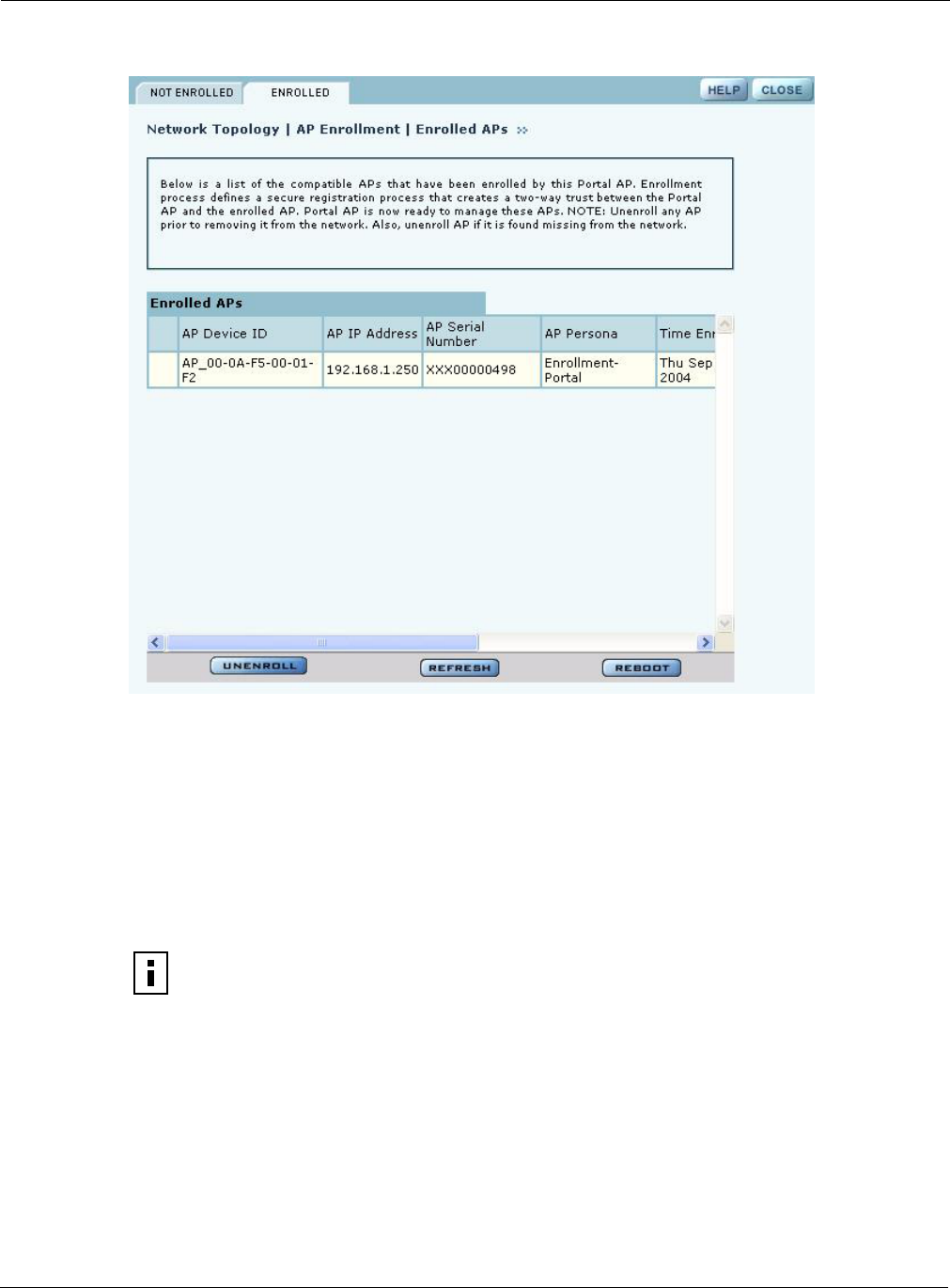

Figure 131: Network Topology - AP Enrollment - Enrolled
Perform the following functions as needed from the Enrolled APs tab:
Viewing Backhaul Topology
Configuring a wireless backhaul extends wireless network coverage while reducing the number of
APs that must be connected to the wired network. Chapter 6, “Configuring a Wireless Backhaul,”
explains how to configure the Airgo AP to be part of a wireless backhaul. Once the wireless
backhaul structure is in place, use the Backhaul Topology panel in NM Portal to view all the
Function Description
Unenroll Remove the AP from the set of enrolled APs.
Refresh Update the screen display to reflect the most recent enrollment changes.
Reboot Reboot the selected AP.
Click the IP address
link for an AP
Access the web interface for the selected AP in a new browser window.
NOTE: When an AP is unenrolled, the mutual trust between the NM Portal and the AP
is destroyed and the unenrolled AP resets to factory defaults. The AP cannot be
configured by NM Portal nor participate in the network (i.e., form a wireless backhaul)
without being enrolled again.
Using the Network Topology Menu
Installation and User Guide: Airgo Access Point 185
backhaul paths defined for the network. Choose Backhaul Topology from the Network Topology
menu to display this information (Figure 132).

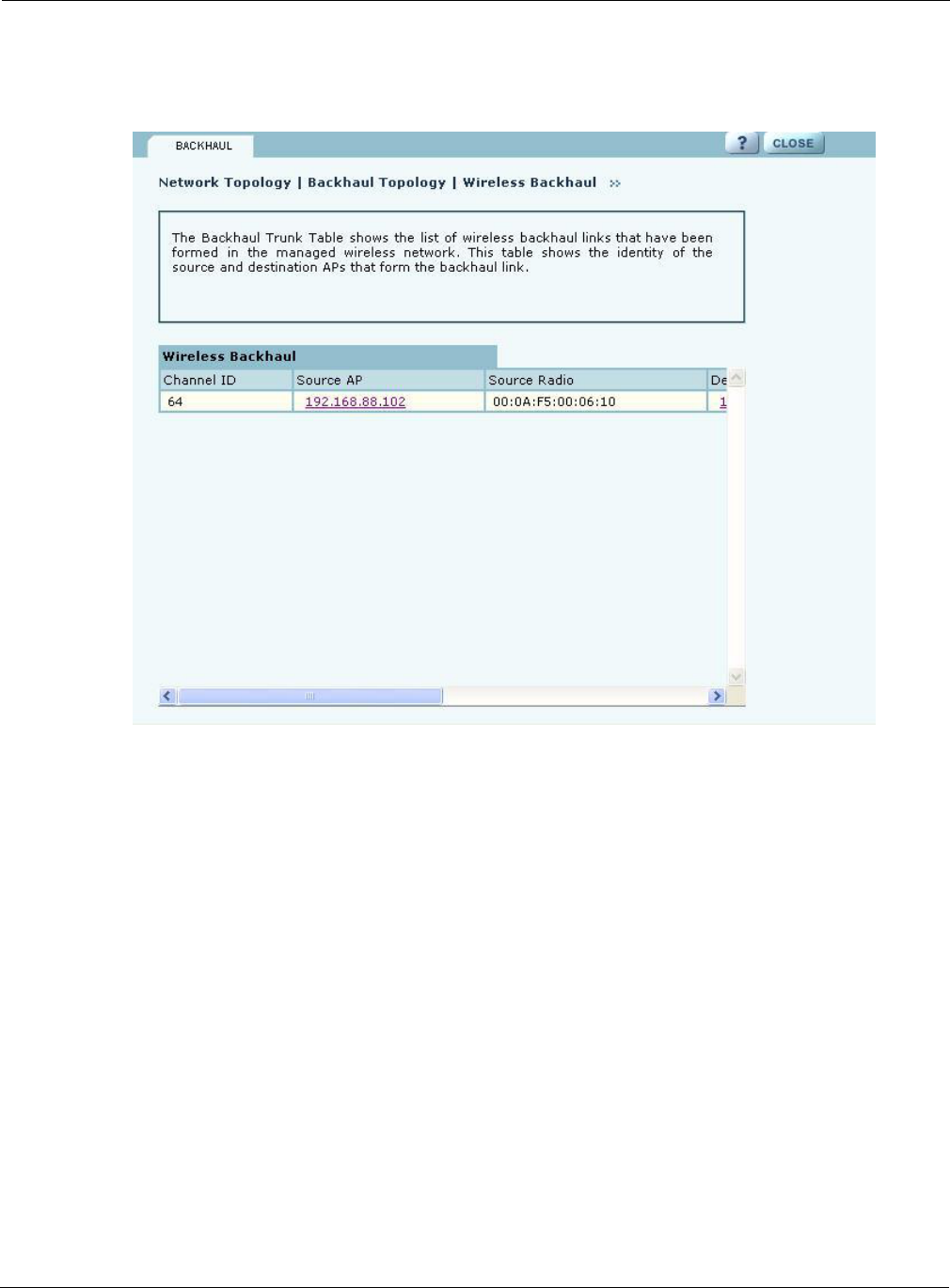

Figure 132: Network Topology - Backhaul Topology
This panel contains the following information for each backhaul link:
Field Description
Channel ID RF channel over which the backhaul traffic travels.
Source AP AP that begins the backhaul trunk. The Source AP link opens the web
interface for the AP in a new browser window
Source Radio MAC address of the radio used for the uplink (wlan0 or wlan1)
Destination AP IP address of the AP that terminates the backhaul trunk.
Destination Radio MAC address of the radio (could be wlan0 or wlan1) that ends the backhaul
trunk
Retrunk Count The number of times a functioning backhaul radio reestablishes a trunk (a new
backhaul can be established to any AP within RF range, as retrunk does not
necessarily mean re-connection to the same AP; if the retrunk count is high,
the network has a high level of instability in its wireless inter-access point
connections)
Rediscover Now button Button that initiates the rediscovery process
9 Managing the Network
186 Installation and User Guide: Airgo Access Point
Viewing IP Topology
The IP Topology panel lists all the APs discovered by NM Portal and the APs that were manually
added to the network topology (see “Configuring Network Discovery” on page 200). Choose IP
Topology from the Network Topology menu to display this information (Figure 133).
Figure 133: Network Topology - IP Topology
The table includes the following information for each AP:
Field Description
Name IP address assigned to the AP
Device ID Unique AP identifier sent during the discovery process and required for AP
enrollment (The device ID is included in the paperwork shipped with the AP.)
Operation State Indication of whether the AP can be reached from the NM Portal AP (The
operation state is updated once every five minutes.)
MAC Address MAC addresses assigned to each of the AP radios (The address of the wlan0
radio is listed first and the wlan1 radio is listed second.)
Auto/Manual Indication of whether the AP was discovered automatically or manually
identified
Using the Network Topology Menu
Installation and User Guide: Airgo Access Point 187
View and check the status of all discovered APs from this panel. To delete an AP from the list,
select the radio button to the left of the listing, and click Delete. Deleting an AP removes it from the
topology database and deletes all the details about its configuration. However, because network
discovery is a continuous process, it is possible for a deleted AP to be rediscovered if it is still part
of the network.
Use the Delete feature when an AP is moved out of the network managed by this NM Portal, so that
the portal no longer needs to track the AP. An enrolled AP must be unenrolled first before deleting
it from the topology.
Displaying Discovered Radios
Every 15 minutes, the NM Portal AP polls all the enrolled APs, which then report on all the
wireless devices they can detect. The results of the polling are presented in the Discovered Radio
table (Figure 134), accessible from the Discovered Radios item under the Network Topology menu
in the menu tree.
Use the Discovered Radios list to characterize the wireless network neighborhood and detect
possible rogue APs.
Portal Services Indication of which portal services are configured on the AP (enrollment and
security). Possible values include:
•Factory Default - AP has not yet been enrolled or bootstrapped.
•Access Point - AP has been enrolled/bootstrapped as an AP.
•NM Portal - AP is enrolled/bootstrapped as NM Portal.
•SEC Portal - AP is enrolled/bootstrapped as a Security Portal.
•NM & SEC Portal - AP is enrolled/bootstrapped as NM Portal and security
portal.
•Enrollment Portal - AP is bootstrapped as an enrollment portal.
Time Discovered Date and time of discovery
Enrollment State Indication of whether the AP is enrolled (authorized) or not (unauthorized)
Thumbprint Unique identifier used for security purposes (The thumbprint is included in
the paperwork shipped with the AP.)
Field Description
9 Managing the Network
188 Installation and User Guide: Airgo Access Point
Figure 134: Network Topology - Discovered Radios
The Discovered Radios table contains the following information for each detected device:
Field Description
MAC Address Address that uniquely identifies the detected device.
IP Address IP address of the detected device, if known.
Reporting AP The enrolled AP that reported the device to the NM Portal AP. If this field is
blank, the AP was reported on a previous scan but not the most recent one.
Time Reported The time of the last scan that detected the AP.
Time Discovered The time of day that the presence of the device was discovered by the
reporting AP.
Class Indication of whether the discovered node is just a Radio Neighbor or a Radio
and IP Neighbor. Radio and IP neighbors are part of the internal network and
are reachable by way of IP addressing.
Signal Strength Strength of the detected signal in dBm.
SSID The SSID of the detected device, if known.
Channel ID The channel on which the signal was detected.
BSS Type Whether the detected device is part of an infrastructure or ad-hoc service set.
Using the Network Topology Menu
Installation and User Guide: Airgo Access Point 189
Displaying Network Inventory
It is recommended that you run the same software and hardware versions on all the APs in the
network. The Inventory Table panel provides a display of hardware and software version
information for selected APs and can be used to monitor the consistency of configurations across
the network.
To open the Inventory Table panel (Figure 135), select Network Inventory from the Network
Topology menu.
Figure 135: Network Topology - Inventory Table
9 Managing the Network
190 Installation and User Guide: Airgo Access Point
Select one of the following sets of APs, and click Apply to display the version information. Click
Reset to return to the previously saved value.
The AP Version table contains the following information for each AP:
Managing Rogue Access Points
A rogue AP is an access point that connects to the wireless network without authorization. In some
cases, the AP may be performing a legitimate function and the appropriate management action is to
classify the AP as “known.” If it is not possible to identify a legitimate role for the AP, then the AP
is considered to be a true rogue. NM Portal provides information to help determine where rogue
APs are physically located and how recently they have accessed the network. With this
information, it may be possible to find and disable them.
Potential rogue AP candidates are identified during discovery. Every 15 minutes, NM Portal scans
the network to discover and identify known Airgo APs. The domain for the discovery process is

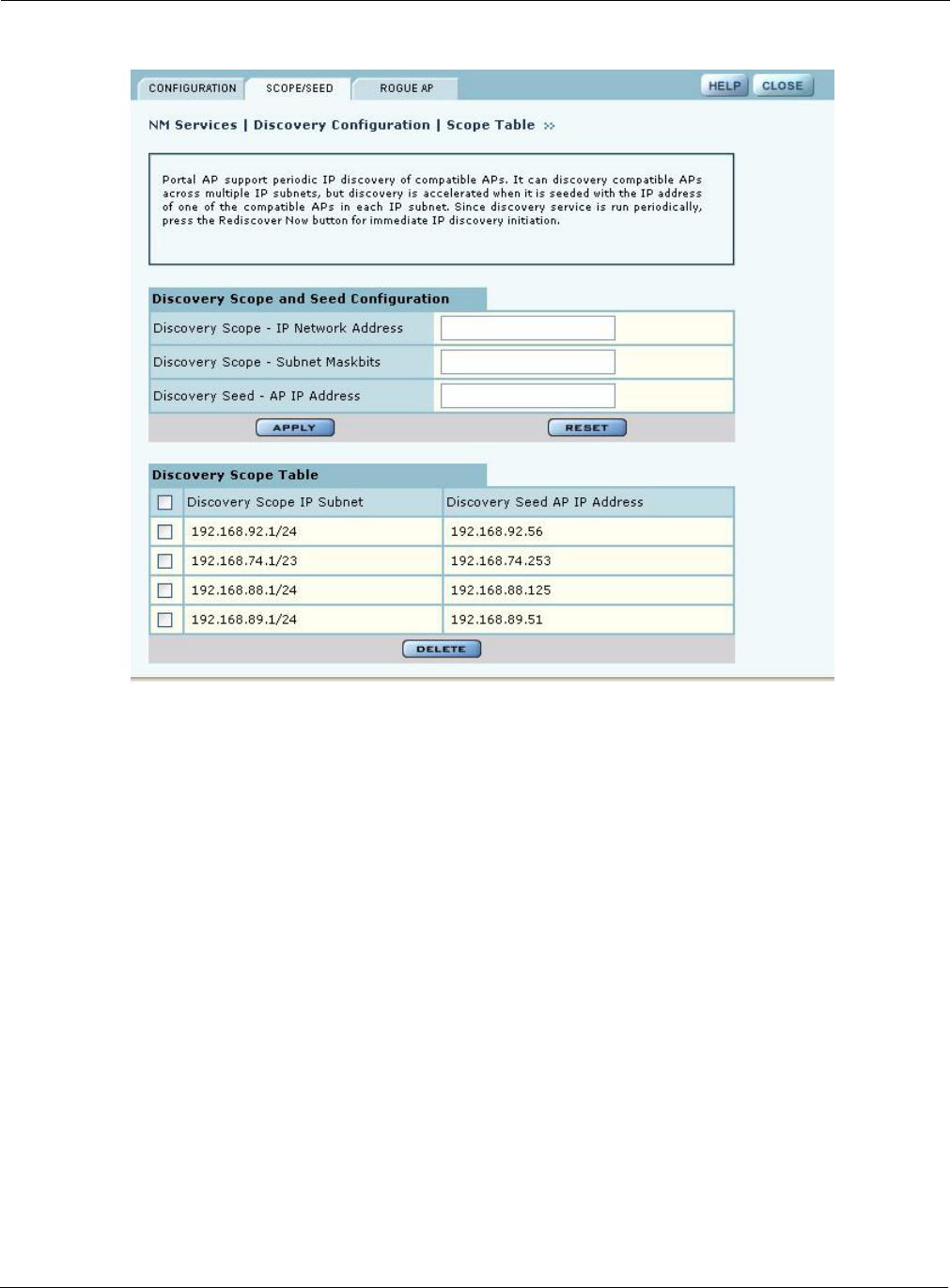

specified in the Discovery Configuration panel (see “Configuring Network Discovery” on
page 200). Discovery can be restricted to specific subnetworks, ranges of IP addresses, or
individual APs. It is also possible to specify whether the discovery is at the IP (Layer-3) or
wireless/MAC level (layer 2).
Wireless discovery is based on the beacon sent by APs within range of the receiving AP. Each AP
collects information about beacons it sees and passes that information to NM Portal. NM Portal
checks the MAC address of the detected AP to see whether it matches that of a known AP. If it does
not match, the detected AP becomes a rogue AP candidate.
Option Description
Version Details for
Enrolled APs
Version information for APs that are enrolled
Version Details for AP Version information for the AP with the entered IP address
Version Details for all
discovered APs
Version information for all APs discovered by NM Portal
Field Description
AP IP address of the AP
Device ID Unique AP identifier sent during the discovery process and required for AP
enrollment
HW Version Release of hardware used in the AP
System Board Version Release of system board hardware used in the AP
Software Version Release of software used in the AP
Software Build Number Sequence number indicating the exact software build used in the AP
Software Build Date Date that the software was compiled
Software Licenses Software licenses that are currently active on the AP

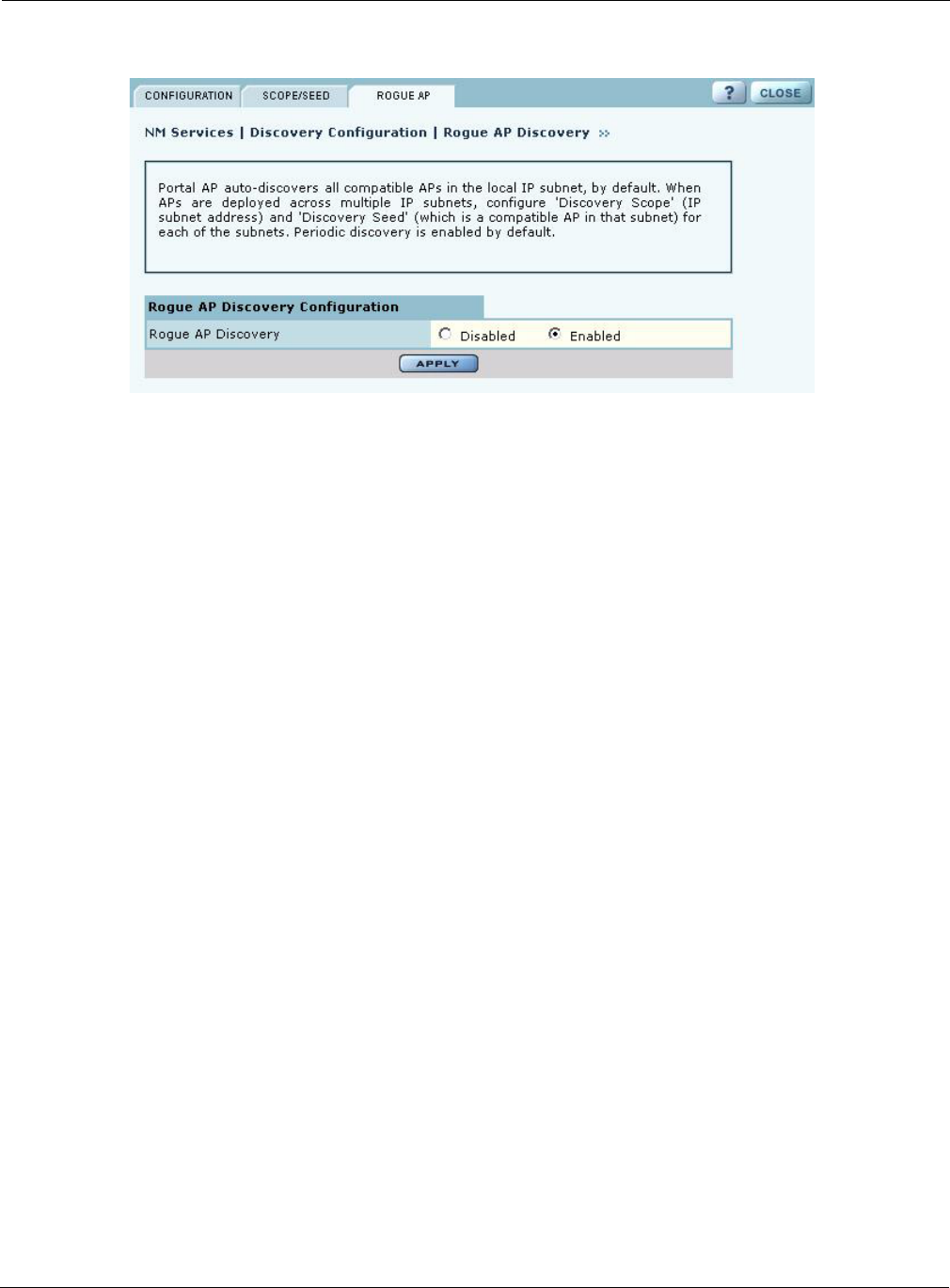

NOTE: Use the Discovery Configuration panel to enable the rogue AP discovery
feature. For instructions, see “Configuring Network Discovery” on page 200.
Managing Rogue Access Points
Installation and User Guide: Airgo Access Point 191
IP level discovery requires that the detecting AP be able to determine the IP address of the
discovered AP through an IP / SNMP connectivity check and establish IP-level communications
with it. NM Portal then performs a series of consistency checks and certification to determine
whether the AP is a recognized part of the network.
After an AP is successfully discovered and authenticated, the system checks to see whether it is
enrolled and places it into the Enrolled or APs to be Enrolled table. For more information on AP
enrollment, see “Enrolling APs” on page 181. A variety of conditions may cause NM Portal to label
an AP as a rogue candidate:
•The AP is not an Airgo AP.
•A problem exists with the AP certificate and the AP cannot be authenticated.
•The AP is a legitimate device on a neighboring network but has been detected through a
wireless scan.
•An unauthorized device attempts to access the network
The objectives of rogue AP management are to determine which APs pose a security risk and to
take action to reduce the risk.
The Rogue AP panels within NM Portal provide an interface to monitor and classify rogue APs.
Use the IP Rogue AP panel to manage potential rogues detected through IP discovery, and use the
Wireless Rogue AP panel to manage potential rogues detected through wireless discovery.
Each panel opens to the Unclassified tab, which lists the candidate rogue APs. From the list, select
individual APs to classify as known in your network or a neighbor’s network. Once classified, the
APs are listed in the IP or Wireless Classified tab.
IP Rogue AP Management
Select IP Rogue AP from the Rogue AP menu to open the table of IP-unclassified APs. This panel
(Figure 136) lists the following information for each unclassified AP:
Field Description
Device ID Unique identifier for the AP
Node Name Name of the AP advertised in the beacon frame
Rejection Reason Failure that prevented the AP from passing authentication
Time Discovered Time of the last IP scan that detected the AP, updated each time the AP is
detected
Thumbprint Factory-generated identifier used for AP enrollment
9 Managing the Network
192 Installation and User Guide: Airgo Access Point

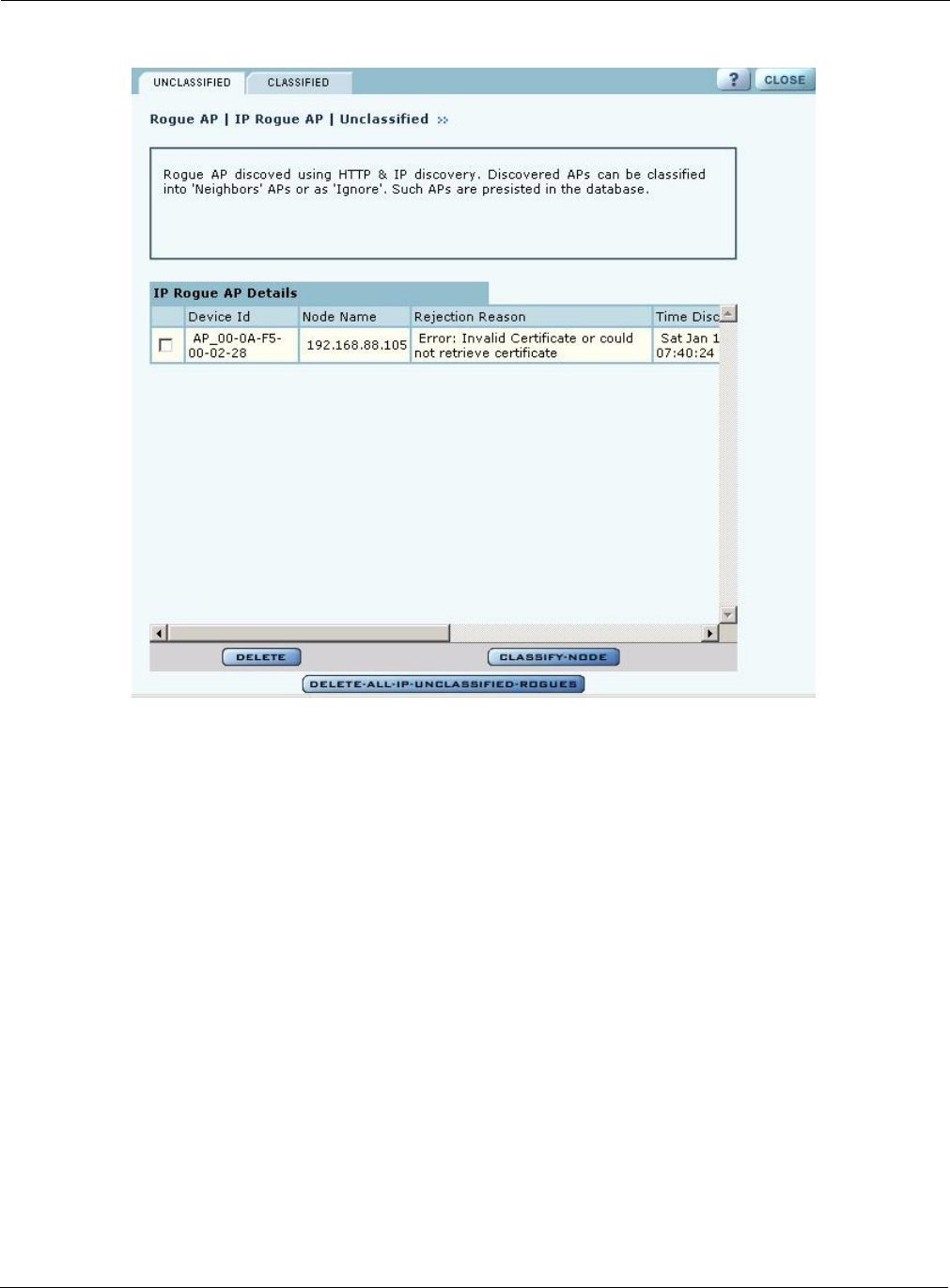

Figure 136: IP Rogue AP - Unclassified
Perform the following functions from this tab:
Function Steps
Classify an AP as
known
1Select the AP from the list. APs are identified by device ID and IP address,
if known.
2Click Classify-Node to open the Classify the Rogue AP panel
(Figure 137).
3Select Our-Network to classify the AP as known within your wireless
network. Select Neighbor-Network to classify the AP as known in a
neighboring network.
4Click Apply.
The AP is now classified. The classification information is retained in the NM
Portal database and presented on the Classified tab (Figure 138). This
information is retained upon AP reboot.
Delete an AP from the
rogue list
Click Delete and click OK to confirm. If an AP is deleted from the list
and then discovered in a subsequent scan, it is added to the list again.
Delete from the list all
APs classified as IP
rogues
Click Delete all IP-Unclassified Rogues, and click OK to confirm.
Managing Rogue Access Points
Installation and User Guide: Airgo Access Point 193

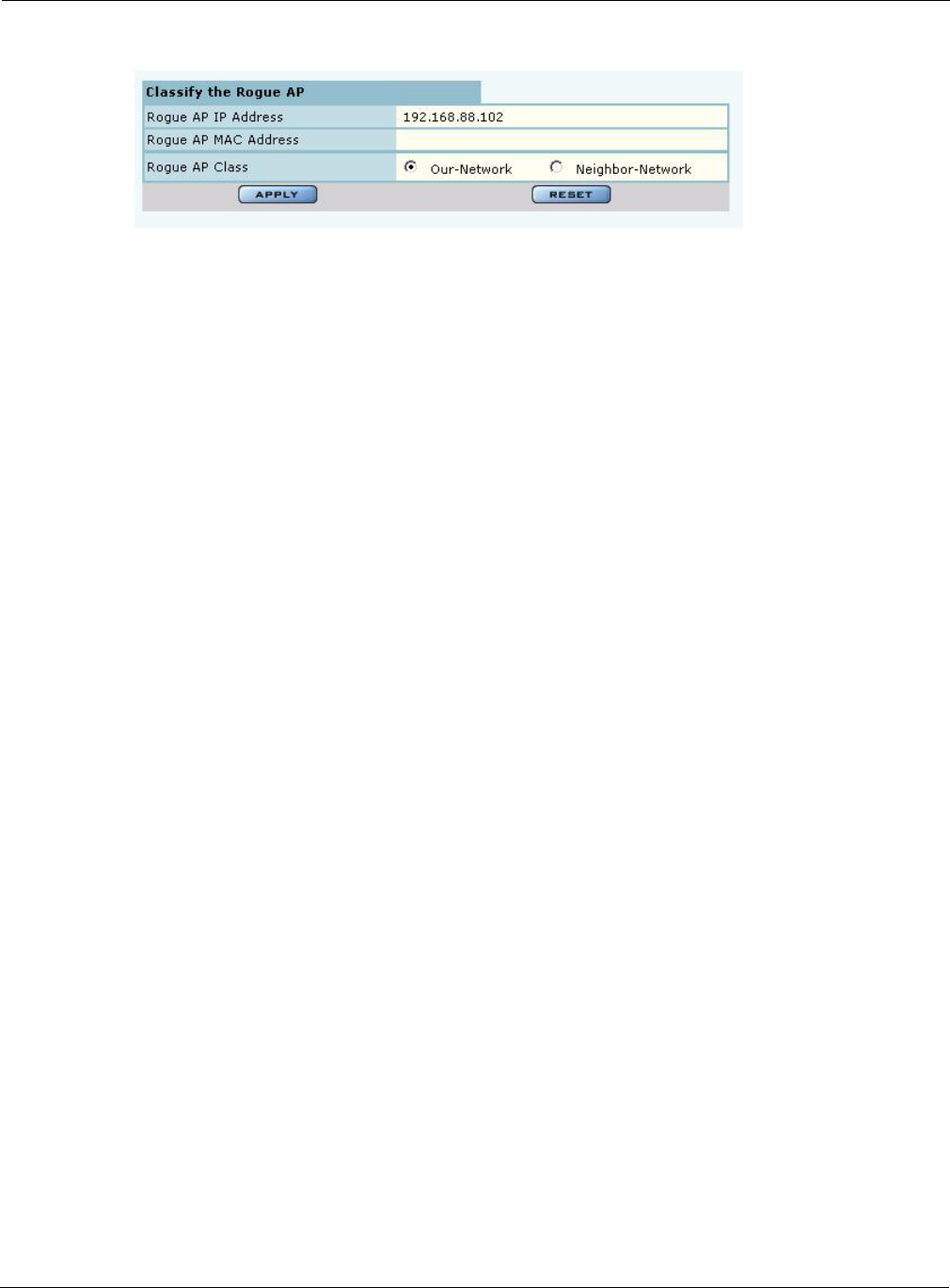

Figure 137: IP Rogue AP - Classify
Classified Tab
The Classified tab (Figure 138) lists all the APs designated as known through IP classification. It
contains the following information for each classified AP:
Field Description
AP Name of the AP, by default, the MAC address
Device ID Unique identifier for the AP
Thumbprint Factory-generated identifier used for AP enrollment
Portal Services Portal services (enrollment, security, NM portal) configured on the AP
Operational State Indicator of whether the AP is currently active
Discovery Method IP or wireless discovery
Time Discovered Time of the last IP scan that detected the AP (updated each time the AP is
detected)
Node State Identifies whether the AP has been classified as a member of Our-Network or
Neighbor-Network
MAC Address MAC address of the AP
9 Managing the Network
194 Installation and User Guide: Airgo Access Point
Figure 138: IP Rogue AP - Classified
Wireless Rogue AP Management
Wireless rogue management differs from IP rogue management in the type of discovery used to
determine whether the AP is authorized to be part of the network. In wireless discovery, each AP
scans the beacons sent by other APs within range and attempts to identify the APs from the
information in the beacon.
Select Wireless Rogue AP from the Rogue AP menu to open the table of unclassified wireless
rogue APs. This panel (Figure 139) lists the following information for each IP rogue:
Field Description
MAC Address MAC address of the unclassified rogue AP
Reporting AP The device ID of the AP or APs that identified the rogue AP (If this field is
empty, the rogue device was detected in a previous scan, but not in the most
recent scan.)
Detection Time Time that the AP was last detected
Class Radio Neighbor or Radio and IP Neighbor
Signal Strength Strength of the beacon (dBm)
BSS Type Infrastructure or ad-hoc (IBSS)
SSID SSID sent in the rogue beacon
Channel ID Radio channel on which the AP was discovered
Managing Rogue Access Points
Installation and User Guide: Airgo Access Point 195

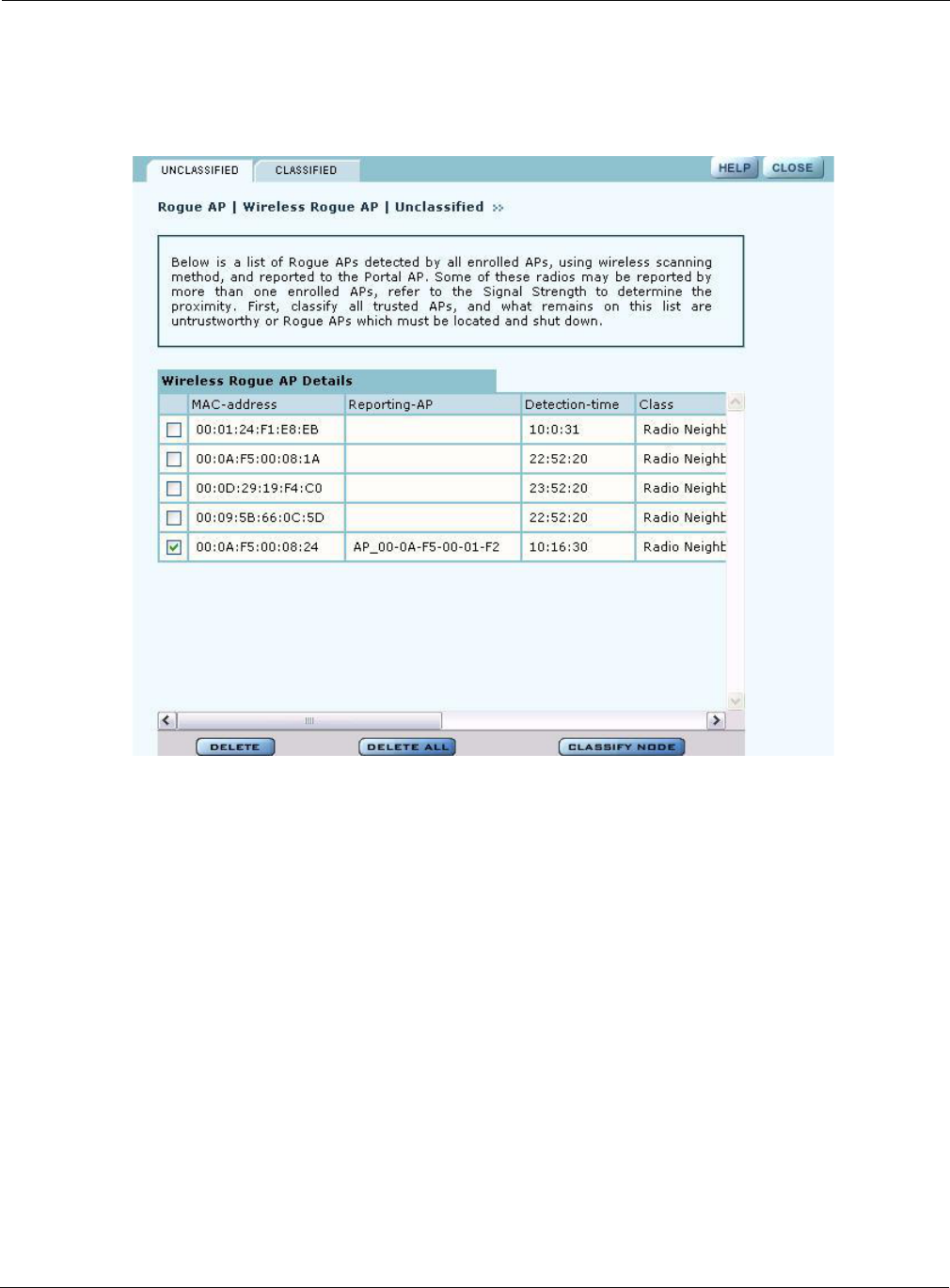

Figure 139: Wireless Rogue AP - Unclassified
Perform the following functions from this tab:
Reporting Time Time of the last wireless scan
Function Steps
Classify an AP as
known
1Select the AP from the list. APs are identified by MAC address.
2Click Classify-Node to open the Classify the Rogue AP panel
(Figure 140).
3Select Our-Network to classify the AP as known within your wireless
network. Select Neighbor-Network to classify the AP as known in a
neighboring network.
4Click Apply.
The AP is now classified. The classification information is retained in the NM
Portal database and presented on the Classified tab (Figure 141). This
information is retained upon AP reboot.
Delete an AP from the
rogue list
Click Delete and click OK to confirm. If an AP is deleted from the list and
then discovered in a subsequent scan, it is added to the list again.
Delete from the list all
APs classified as
wireless rogues
Click Delete All, and click OK to confirm.
Field Description
9 Managing the Network
196 Installation and User Guide: Airgo Access Point
Figure 140: Wireless Rogue AP - Classify
Classified Tab
The Classified tab (Figure 141) lists all the APs designated as known through wireless
classification. It contains the following information for each AP:
Figure 141: Wireless Rogue AP - Classified
Field Description
MAC Address Name of the detected AP; by default, the MAC address
Reporting AP Device ID of the AP that detected this rogue AP
Detection Time Time of the scan that last detected the AP
Class Category used to classify the AP
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 197
Using the NM Services Menu
Use the NM Services menu to define and manage policies, configure parameters for network
discovery, add information about DHCP servers, and add portals at remote locations.
Working with Policies
Policy Management provides tools to keep your network configuration synchronized to a defined
set of rules. Open the Policy Management panel to manage configuration policies for distribution to
the network of enrolled APs. The panel contains the following tabs:
•Policy Table — View existing policies.
•Define Policy — Specify a policy for bootstrapping other APs in the network.
•Distribute Policy — Send a policy to other APs in the network.
Policy Table
The policy table (Figure 142) lists policies that exist on this AP and are available for distribution to
the network of enrolled APs.

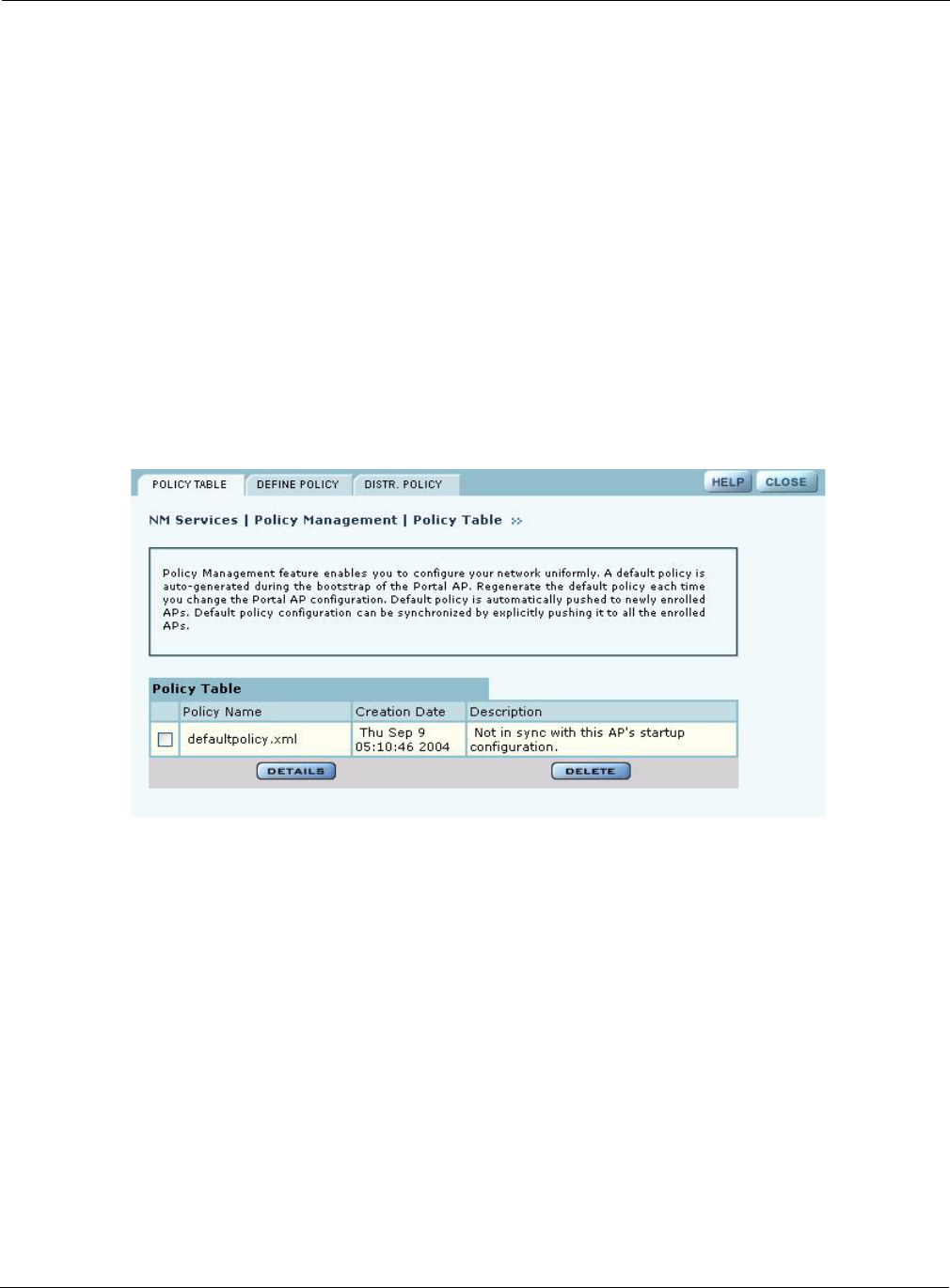

Figure 142: NM Services - Policy Management - Policy Table
To view the details of a policy, select the name in the policy table, and click Details. The policy
table expands to display all the parameters contained in the policy (Figure 143). To return to the
policy table, click Back. To delete a policy, click Delete.
9 Managing the Network
198 Installation and User Guide: Airgo Access Point
Figure 143: NM Services - Policy Management - Policy Table - Details (excerpt)
Define Policy
Define a default policy for bootstrapping other APs in the network by selecting the configuration of
this AP as a model. The default policy is pushed automatically to newly enrolled APs. Use the
Define Policy tab (Figure 144) to choose the default policy.
Perform the following functions from this tab:
NOTE: The NM Portal AP requires two radios in order to construct a default policy for
two-radio APs.
Function Description
Generate a default
policy from a pre-
defined policy
Select a policy from the pull-down list, and click Apply. Not currently
supported.
Use this AP’s start-up
configuration to
generate a default
policy.
Select the checkbox, and click Apply.
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 199
Figure 144: NM Services - Policy Management - Define Policy
Distribute Policy
Use the Distribute Policy tab (Figure 145) to direct how policies are shared across the network.
Figure 145: NM Services - Policy Management - Distribute Policy
Configure the following fields on this tab:
Field Description
Select Policy to
Distribute
Select an existing policy from the pull-down list.
Select All Policies to
Distribute
Select to distribute all the existing policies.
9 Managing the Network
200 Installation and User Guide: Airgo Access Point
Click Distribute Now to send the policies to the designated APs.
Configuring Network Discovery
Use the Network Discovery panel to set up the rules for AP discovery. The panel contains the
following tabs:
•Configuration — Specify discovery parameters.
•Scope/Seed — Restrict discovery to specified subnetworks or IP address ranges.
•Rogue AP — Enable or disable rogue AP discovery.
Configuration
Select Network Discovery from the NM Services menu to open the Configuration panel
(Figure 146).
Figure 146: NM Services - Discovery Configuration
Target AP Name Select the APs to receive the policy or policies, or select Target AP Name to
distribute to all the APs.
Field Description
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 201
Configure the following values on this tab:
Click Apply to implement the changes in each section or Reset to return to previously saved
values.
Use the Start Discovery radio buttons at the bottom of the panel to configure discovery on demand.
Choices are to discover all APs, only those with a connection to the wired network (IP), or only
those that radio neighbors. Click Rediscover Now to rediscover the network on demand.
Scope/Seed
By default, NM Portal automatically discovers all compatible APs in the local IP subnet. When
APs are deployed across multiple subnetworks, specifying the discovery scope and seed IP address
speeds the discovery process. The seed IP address is used as the reference AP for discovery
purposes. The Seed AP is optional. If it is not specified, NM Portal automatically discovers all the
compatible APs in that subnet and identifies a seed AP for itself.
Select the Scope/Seed tab (Figure 146) to configure the scope and seed parameters.
Field Description
Discovery Interval Restrict discovery to a time interval (in minutes). The range is 60-10080
(default is 60 minutes).
NOTE: Based on the default discovery interval, a newly installed AP could
take one to two hours to be discovered. Use Force Rediscovery to speed the
process.
Discovery Limit Restrict discovery to a number of APs. Once this limit is reached, the
discovery process stops. The range is 1-50 (default is 50 APs).
AP IP Address Specify the IP address of an AP that you want to manage but which is not part
of the managed subnetwork specified in the discovery scope.
APs added to the managed network this way are termed “manually added” and
can be managed by NM Portal.
This option is useful if you want to manage just a few APs in a different
subnet without incurring the overhead associated with discovering all the APs
in that subnet.
If an enrolled AP is moved to a different subnet not managed by the NM
Portal, then the Portal will automatically flag that AP as a manually added AP
and will continue to manage that AP.
Discovery Methods Select whether to discover the APs with valid IP address information (IP), or
those identifiable by their radio beacon (Wireless), or those that meet either
criterion.
Force Rediscovery Select to force an immediate rediscovery of all APs. If the discovery process
is already in progress when rediscovery is initiated, then no additional
discovery is re-initiated.
To stop the current discovery process and restart discovery again, use the
Force All option. This is useful if the discovery scope is incorrectly
configured and must be deleted.
9 Managing the Network
202 Installation and User Guide: Airgo Access Point
Figure 147: NM Services - Discovery Configuration - Scope/Seed
Configure the following fields on this tab:
Click Apply to save the selections and add them to the Discovery Scope Table at the bottom of the
panel. To delete an entry from the Discovery Scope table, select the entry and click Delete.
Rogue AP
Use the Rogue AP tab (Figure 146) to enable or disable discovery of rogue access points. The
default is Enabled. Click Apply to save the setting. If enabled, NM Portal automatically scans the
network to detect IP and wireless rogue access points. For more information, see “Managing Rogue
Access Points” on page 190.
Field Description
Discovery Scope - IP
Network Address
Enter the IP address of the subnet that you want to discover.
Discovery Scope -
Subnet Maskbits
Enter the subnet prefix length for the discovery scope.
Discovery Seed Specify a seed IP, which is the first address NM Portal will attempt to
discover in the selected subnetwork.
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 203
Figure 148: NM Services - Discovery Configuration - Rogue AP
Configuring Portals
The Portal Configuration panel lists all the Airgo Access Point portals that your AP has discovered
and permits addition of a standby security portal to ensure that the wireless user authentication
service remains available even if the NM Portal AP temporarily loses its connection. The panel
contains two tabs:
•Portal Table — Add a redundant security portal and synchronize the portal databases.
•Secure Backup — Use https to perform a secure backup of the NM Portal AP configuration.
•Portal Backup — Back up or restore the portal databases and configuration.
9 Managing the Network
204 Installation and User Guide: Airgo Access Point
Portal Table

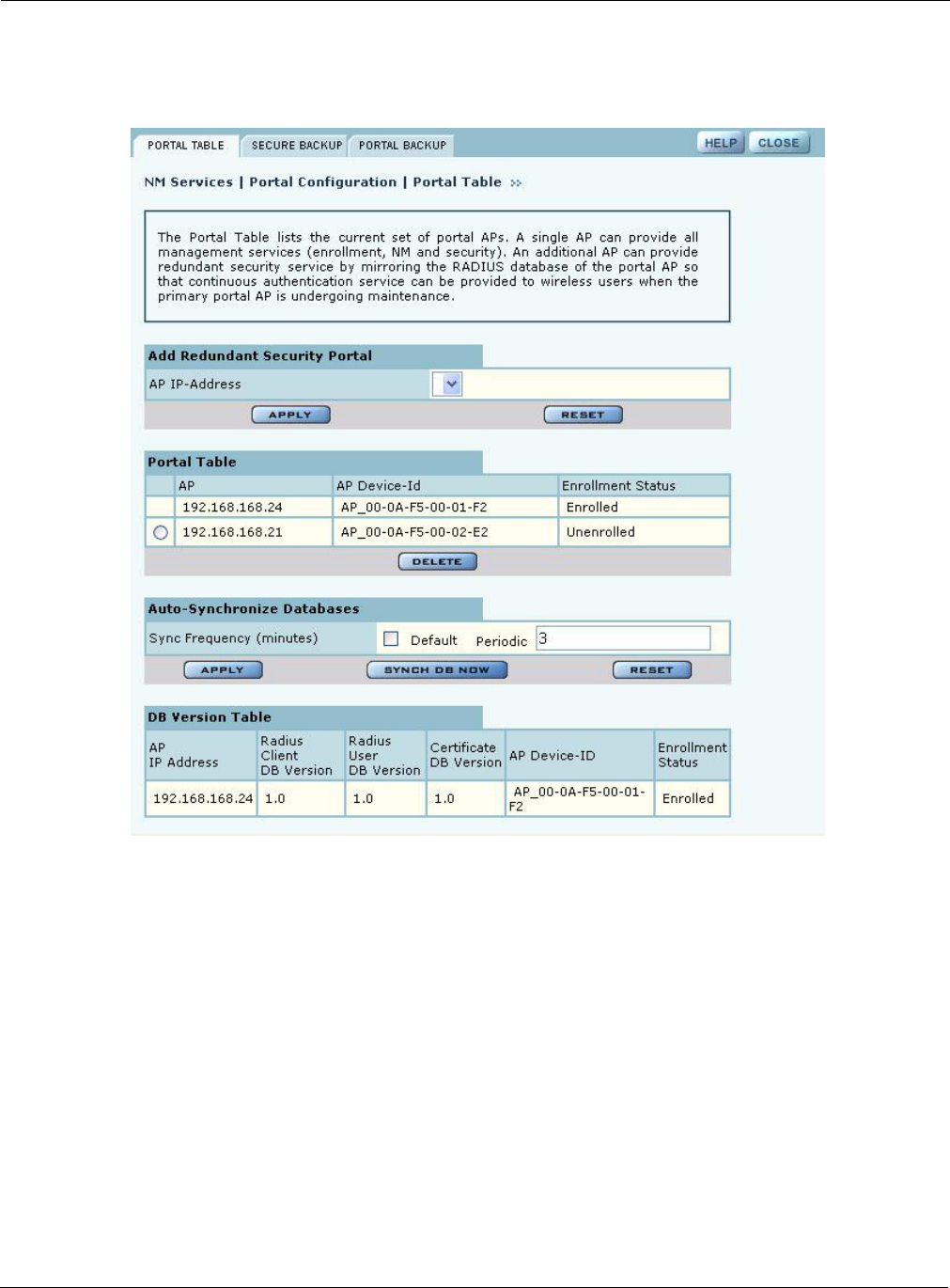

Use the Portal Table (Figure 149) to manage the security portals for the network.
Figure 149: NM Services - Portal Configuration - Portal Table
Perform the following functions on this tab:
Field Description
Add Redundant Security
Portal
Specify the IP address, and click Apply. Only an already-enrolled AP can be
configured to be a redundant security portal.
Portal Table View the list of currently identified NM Portal APs. The listing includes the
IP address of the AP, its device ID, and whether the AP is currently enrolled.
To delete an entry from the table, select the radio button to the left of the
entry, and click Delete.
NOTE: All Portals shown in this table as unenrolled are currently not managed
by this NM Portal but form part of other managed networks. Only Portals
managed by this NM Portal will be shown as Enrolled and or will have a radio
button that deletes the portal.
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 205
Secure Backup
Use the Secure Backup tab (Figure 149) to save the NM Portal database and configuration using the
secure https protocol.
Figure 150: NM Services - Portal Configuration - Secure Backup
Click Save Configuration. When the configuration is generated, a hyperlink is displayed. Right-
click and select Save As to save the configuration locally. After the configuration file is saved,
click Delete to remove the file from the AP. The file takes up space in AP persistent storage, so it is
recommended that you remove it. To restore the configuration, browse to select the file, and then
click Apply to restore the configuration and reboot the AP.
Sync Frequency Select to automatically synchronize the database between the portals. The
sync frequency represents the duration in minutes at which NM Portal cross
checks the portals in the network to make sure their databases are
synchronized with the NM Portal database. Click Apply to save the settings,
or click Reset to return to the default values (autonomous selected, period five
minutes). It is recommended that you accept the default value to make sure
that synchronization takes place.
Portal DB Version Table View current database information for user security. For each enrolled AP, the
table lists the following information:
•AP IP Address — IP address of each portal AP
•RADIUS Client DB Version — Version of the user database resident on
the RADIUS client
•RADIUS User DB Version — Version of the user database for RADIUS
users
•Certificate DB Version — Version of the security certificate for RADIUS
clients
•AP Device-ID — Unique identifier for the AP
•Enrollment Status — Indication of whether the AP is enrolled
Field Description
9 Managing the Network
206 Installation and User Guide: Airgo Access Point

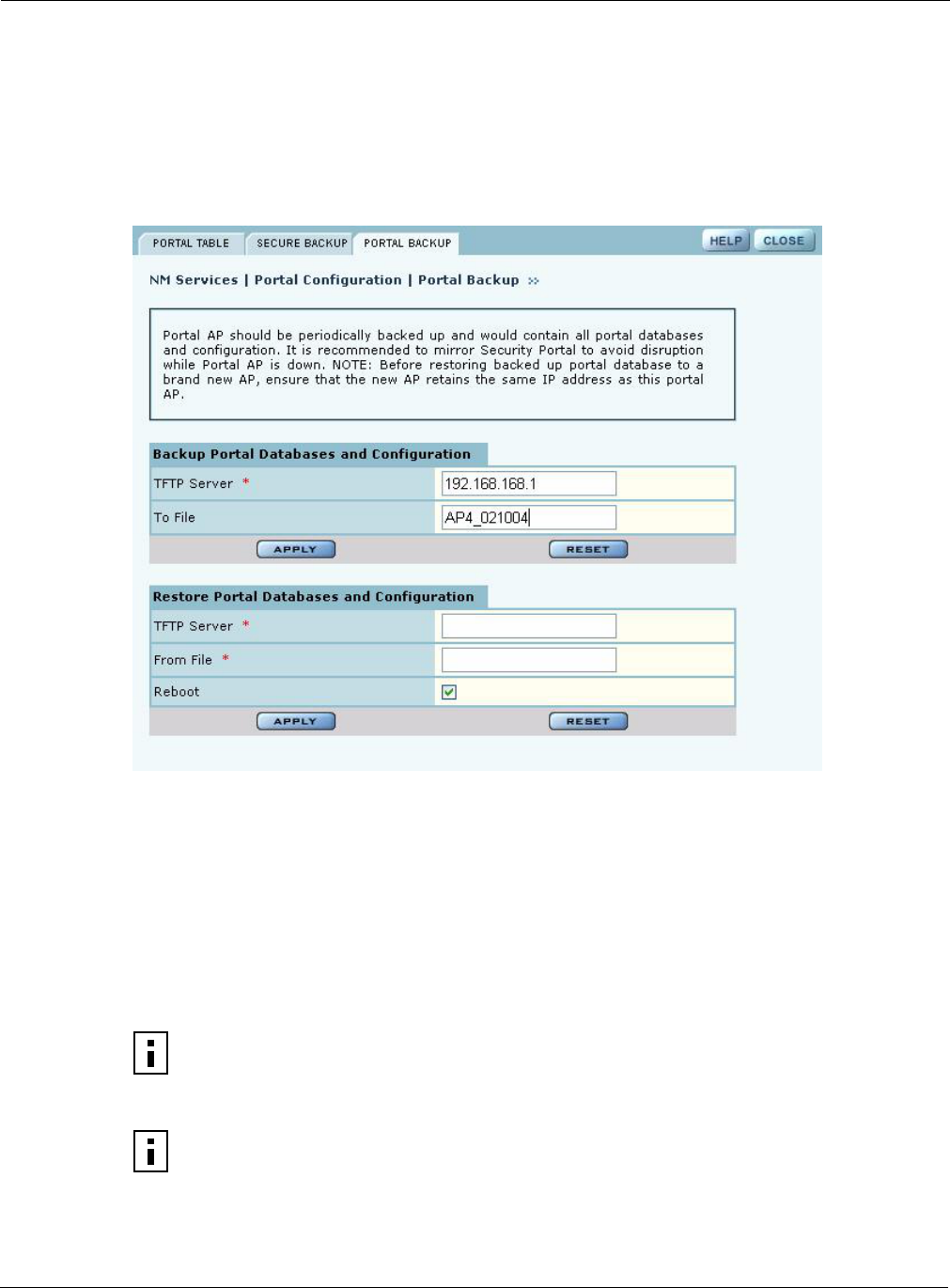

Portal Backup
Use the Portal Backup tab (Figure 151) to back up the portal databases and configuration to a TFTP
server and to restore the configuration from the TFTP server. To back up and restore, enter the
server IP address and specify a backup file name. To restore, enter the same TFTP server address
and file name. If you want to reboot the AP once the configuration file has been copied, select
Reboot. (required)
Figure 151: NM Services - Portal Configuration - Backup/Restore
Configuring the DHCP Server
NM Portal includes an internal DCHP server, which can be activated to support IP address
assignments in the network if a DHCP server is not in place. Choose DHCP from the NM Services
menu to open the DHCP panel. The panel contains the following tabs:
•DHCP Options — Activate and configure the DHCP server.
•IP Range — Enter address information for the DHCP server.

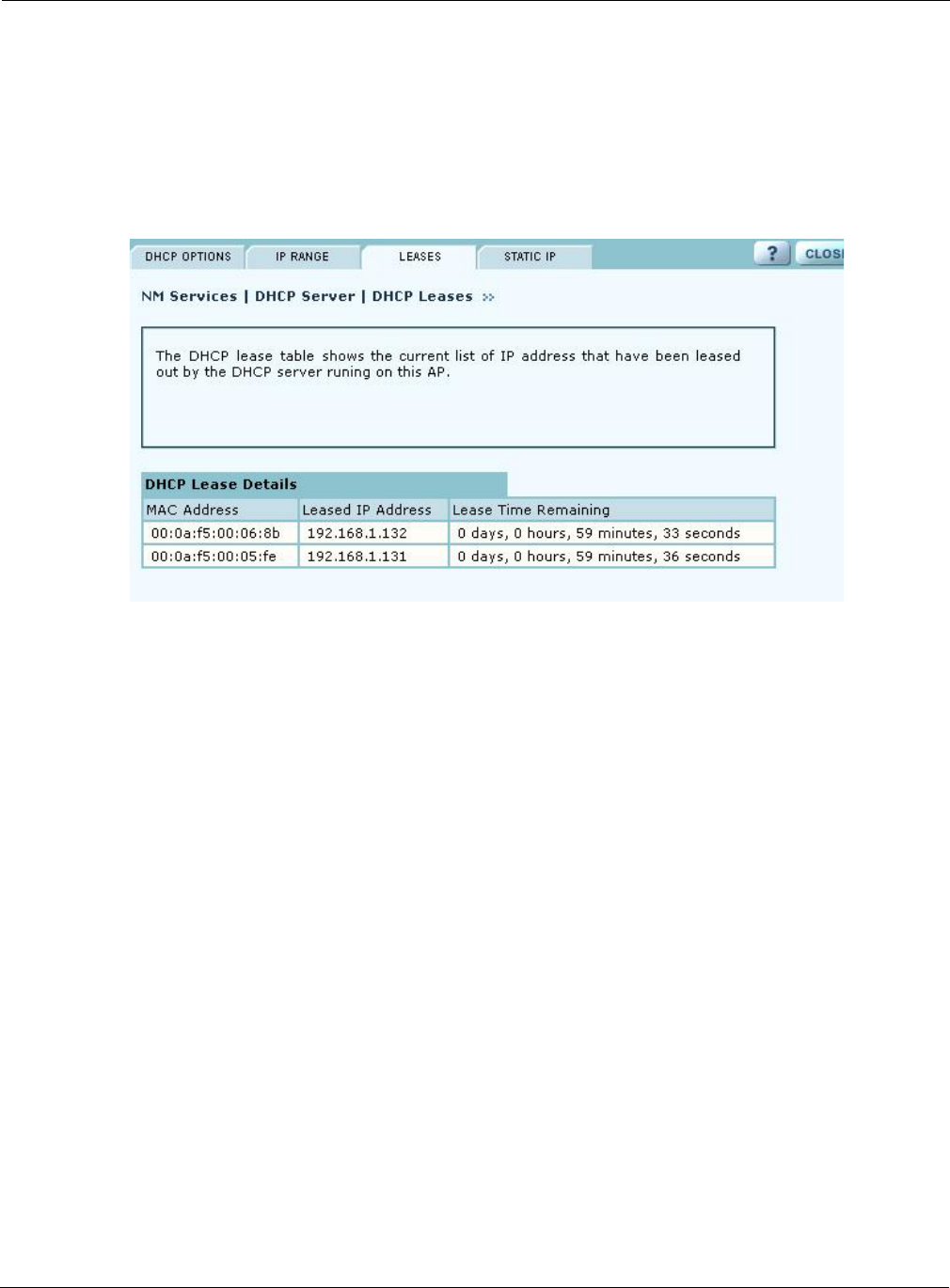

•Leases — View details about the current DHCP leases.

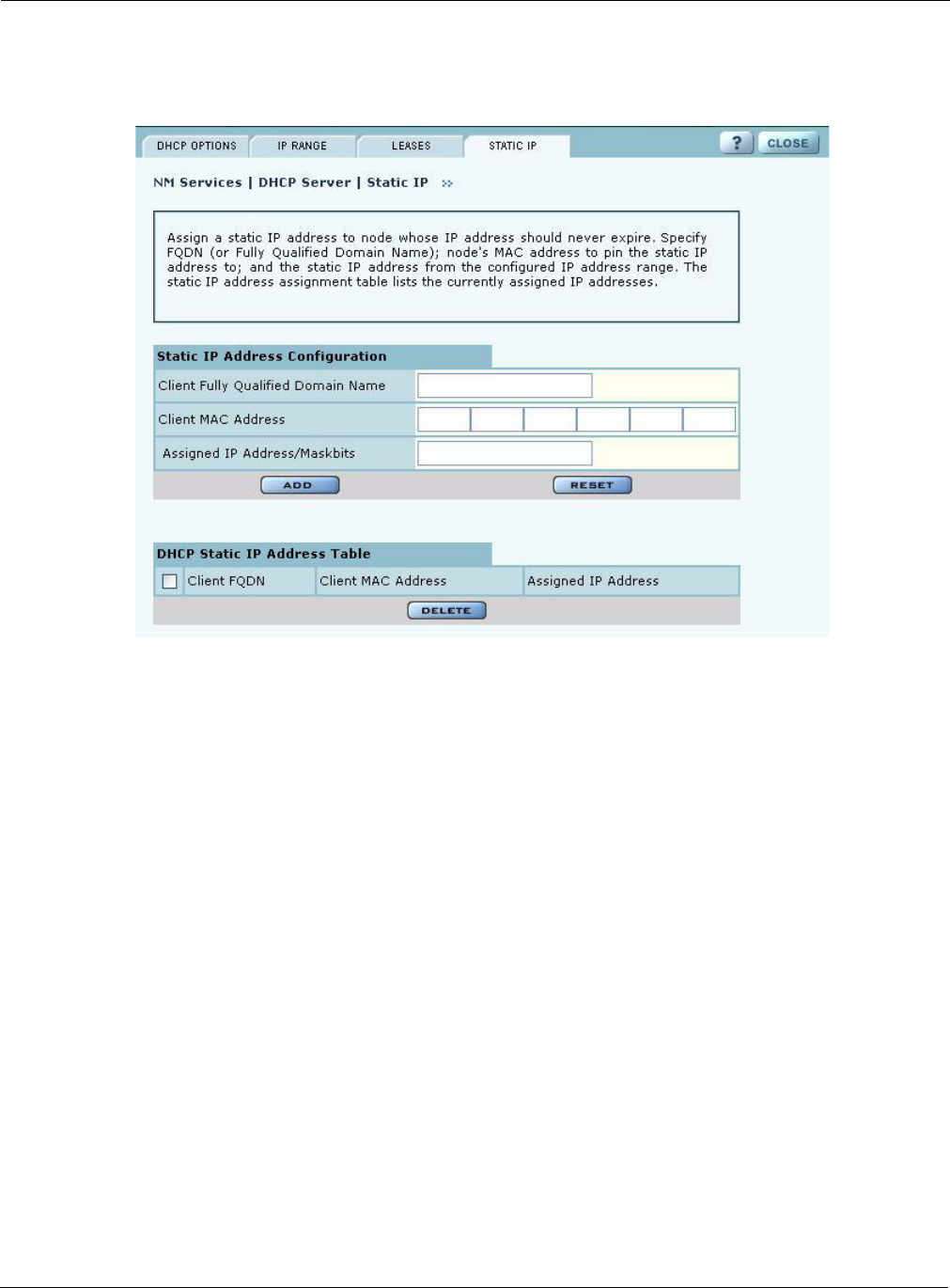

•Static IP — Assign static IP addresses for specific equipment.
NOTE: Use the DHCP panels to support IP address assignments only if a DHCP server
is not already in place on the existing network.
NOTE: The DHCP server on the NM Portal AP is bound to the default VLAN (VLAN
ID 1). It serves address requests only for this VLAN.
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 207
DHCP Options
Select the DHCP Options tab (Figure 152) to activate and configure the DHCP server.
Figure 152: NM Services - DHCP Configuration - DHCP Options
To activate the server, Enable DHCP Server and configure the following information:
Field Description
Lease Time Specify the maximum number of leases that the server should assign. This is
used to restrict the number of IP addresses served even though the IP subnet
served by the DHCP server may be large. The default is one hour.
Max Leases Specify the maximum number of available leases. There is no default.
Gateway IP Address Enter the IP address of the gateway. There is no default.
DNS Server IP Address Enter the IP address of the server or servers that provide domain name
resolution. There is no default. More than one DNS IP address may be
specified (space separated). If the field is left blank, then any previously
configured DNS server addresses will be deleted.
If you delete DNS servers, only those added manually are deleted. DHCP-
assigned DNS servers continue to be available.
WINS Server Enter the IP address of the Windows name server used to map IP addresses to
computer names. There is no default.
9 Managing the Network
208 Installation and User Guide: Airgo Access Point
Click Add to save the configuration information.
IP Range
Select IP Range to configure address ranges for DHCP leases (Figure 153).
Figure 153: NM Services - DHCP Configuration - IP Range
Enter the following information on this panel:
NTP Server Enter the IP address of the server or servers used to synchronize network
clocks. There is no default. More than one NTP IP address may be specified
(space separated).
If you delete NTP servers, only those added manually are deleted. DHCP-
assigned NTP servers continue to be available.
Field Description
Interface Name Confirm the alphanumeric name of the AP interface. The default is br1, which
is the default bridge.
IP Address Range Select a radio button to specify the range of addresses available for
assignment. Choose either of the following:
•IP Subnet/Maskbits — Enter the address and maskbits that define the
subnet to be used for address assignment.
•Use Fixed IP Address Range — Specify a range of IP addresses by
entering starting and ending addresses, with subnet prefix length.
Field Description
Using the NM Services Menu
Installation and User Guide: Airgo Access Point 209
Click Apply to save the address information. Add additional interfaces if desired. The added
interfaces are listed in the DHCP Address Range table at the bottom of the panel. To delete a DHCP
interface, select the interface in the DHCP IP Address Range table, and click Delete.
Leases
The Leases tab (Figure 154) lists each network computer serviced by DHCP and its lease
information.
Figure 154: NM Services - DHCP Configuration - Leases
This table contains the following information:
Field Description
MAC Address Address that uniquely defines the DHCP client
Leased IP Address IP address assigned by the DCHP server
Lease Time Remaining Amount of time remaining on the current DHCP lease (in hours)
9 Managing the Network
210 Installation and User Guide: Airgo Access Point
Static IP
Use the Static IP tab (Figure 155) to reserve static IP addresses for specific nodes.
Figure 155: NM Services - DHCP Configuration - Static IP
Enter the following information on this tab:
Click Add to save the information. The new entry is listed in the table at the bottom of the tab. To
delete an entry, select the name in the DHCP Static IP Table, and click Delete.
Managing Network Faults
NM Portal aggregates alarms from all managed APs. Each AP can store up to 260 alarms locally.
When the number of alarms exceeds this limit, the oldest alarms are deleted as needed. Use the
Fault Management panels to view the system alarms and syslog entries. Alarms are raised as SNMP
Traps, which are forwarded to the SNMP Sink Host (or Primary NMS).
Viewing Alarms
Choose Alarm Summary from the Fault Management menu to view counts and descriptions of
alarms that occur in the network managed by NM Portal.
Field Description
Client Fully Qualified
Domain Name
Enter an alphanumeric name for the node, which is fully qualified by
DNS.
Client MAC Address Enter the MAC address that uniquely identifies the client station.
Assigned IP Address/
Maskbits
Assign the static IP address and maskbits.
Managing Network Faults
Installation and User Guide: Airgo Access Point 211
The Alarm Summary panel contains three tabs:
•Alarm Summary — View counts of system alarms in the managed network.
•Alarm Table — View a detailed list of alarms.
•Filter Table — Select events that should be filtered out of the reported alarm list.
Alarm Summary
The Alarm Summary tab (Figure 156) provides an aggregate count of alarms across the network
managed by NM Portal.
The Alarm Summary tab contains the following information:

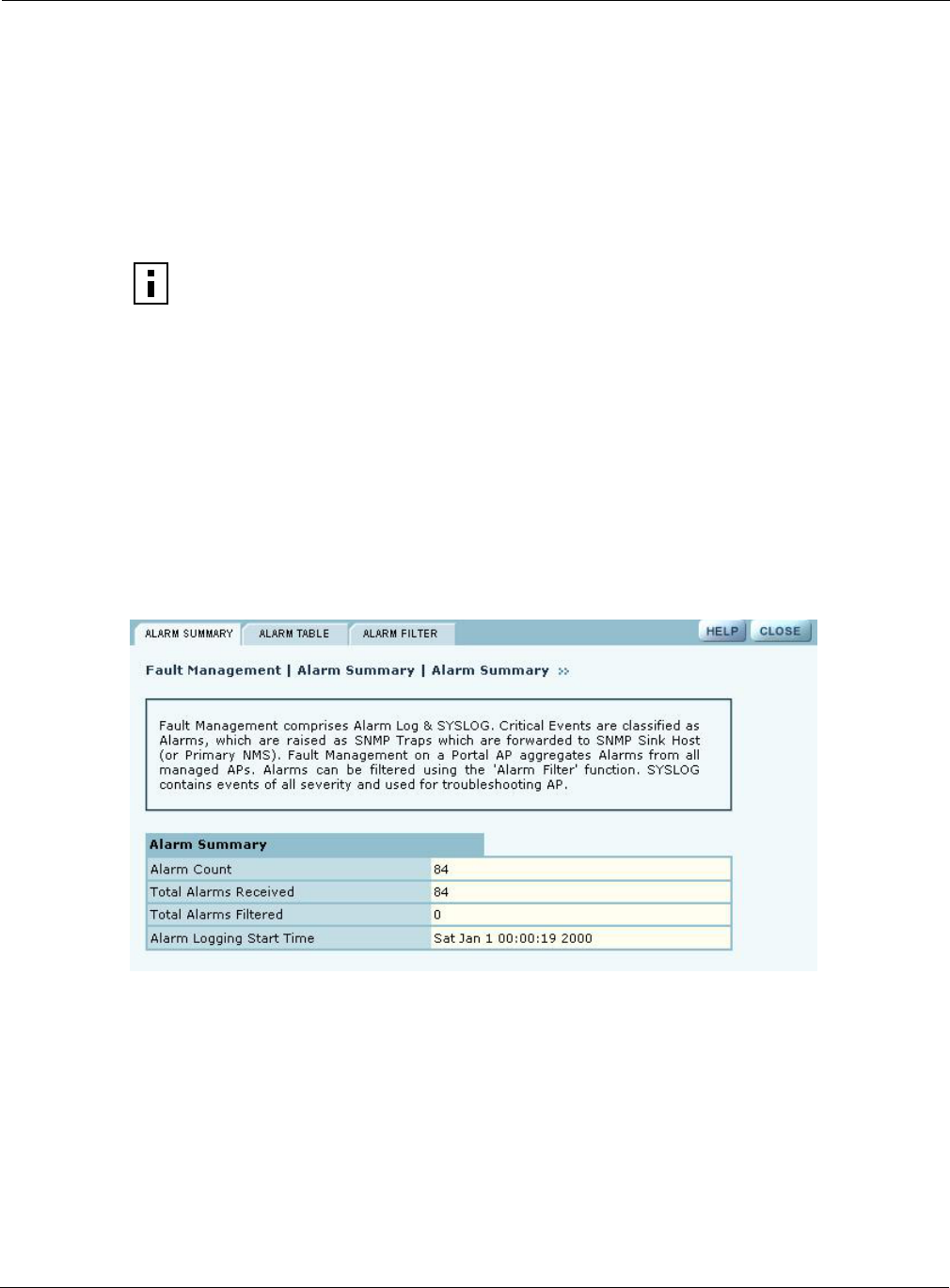

Figure 156: Fault Management - Alarm Summary
Alarm Table
The Alarm Table tab (Figure 157) provides a detailed description of alarms and enables filtering of
the alarm table for easy viewing and searching. A description of all the alarms is provided in “Airgo
Access Point Alarms” on page 214 and additional details are presented in Appendix D, “Alarms.”
The Alarm Table includes the following information:
NOTE: The alarm count in the lower left corner of the Network Management Explorer
window is the same as that given on the Alarm Summary tab. Click the Alarm
Summary hyperlink to open the Alarm Summary tab.
Field Description
Alarm Count Total alarms in the managed network
Total Alarms Received Total alarms from APs other than this AP
Total Alarms Filtered Count of alarms not displayed because they were filtered out
Alarm Logging Start
Time
Time at which the counts began
Field Description
Alarm ID Text description of the specific alarm
9 Managing the Network
212 Installation and User Guide: Airgo Access Point
Alarm From Device ID of the AP that reported the alarm
Description Text description of the event
Log Time Time the alarm occurred and was logged
From Module The subsystem that is the source of the alarm. Modules include:
•Authentication
•Networking
•Distribution
•Configuration
•Wireless
•Discovery
•NM Portal
•SW Download
NOTE: The filtering function on the Alarm Table tab only affects the information
displayed in the Alarm Table at the bottom of the tab. To remove some event types
completely from the alarm list, use the Alarm Filter tab.
Field Description
Managing Network Faults
Installation and User Guide: Airgo Access Point 213

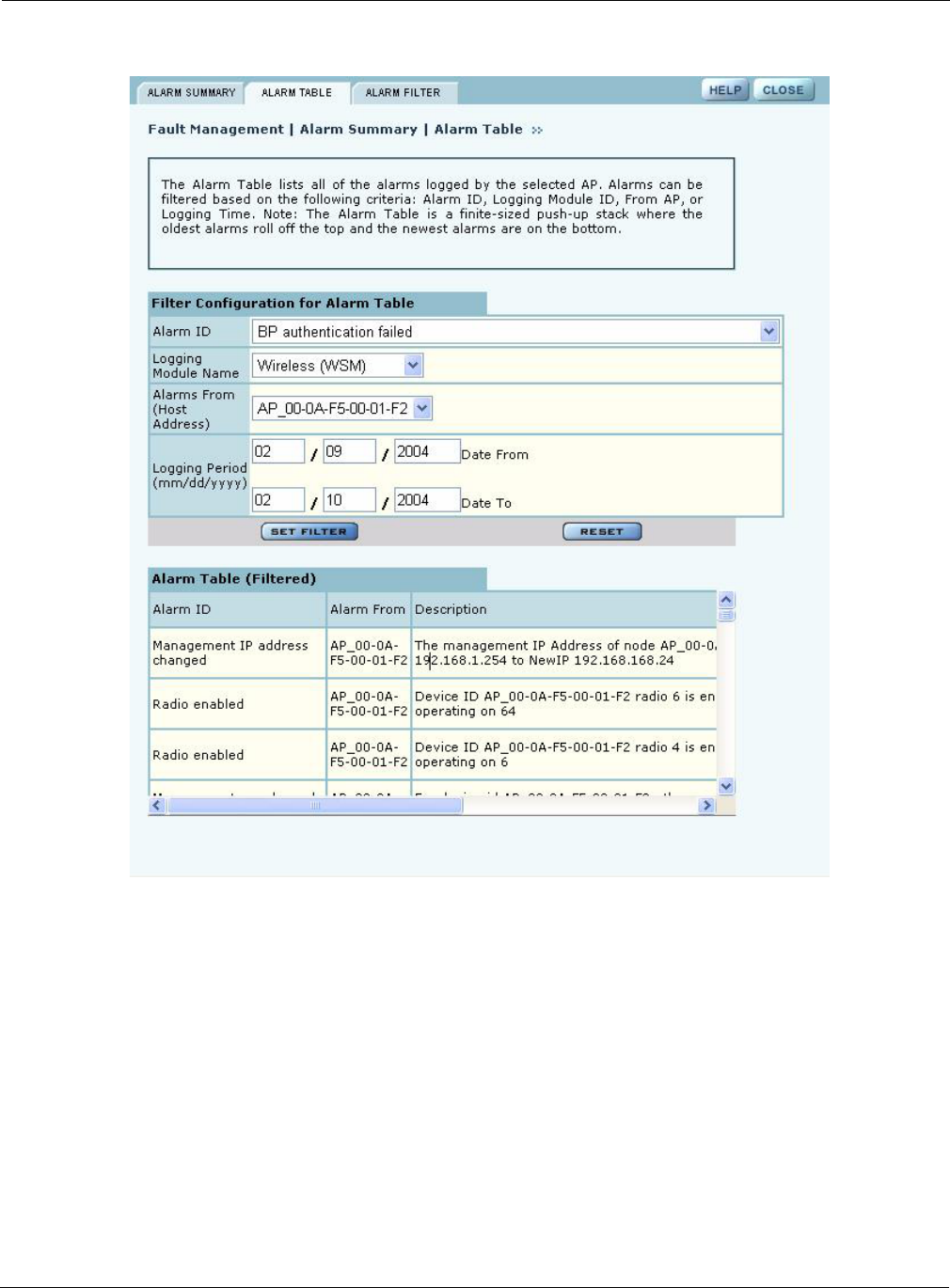

Figure 157: Fault Management - Alarm Summary - Alarm Table
Configure the following fields to define a viewing filter:
Click Set Filter to apply the filter to the alarm table or Reset to clear the selected values.
Field Description
Alarm ID Select an alarm from the list to view only those specific alarms.
Logging Module Name Select from the list to filter all the alarms from a specific system logging
module.
Alarms From (Host
Address)
Select an AP to view only the alarms generated by that AP.
Logging Period Enter a date range to show events during a specific interval of time.
9 Managing the Network
214 Installation and User Guide: Airgo Access Point
Table 16: Airgo Access Point Alarms
Alarm ID Description
Discovered New Node Generated when a new Airgo Access Point is discovered by
NM Portal for the first time.
Node Deleted from Network Generated when a previously-discovered node is deleted from
the system. When the node is deleted, all information about that
node is deleted from NM Portal. If the node’s IP address falls
within the discovery scope, then the node will be rediscovered
and added back to the set of the discovered nodes during the
next discovery scan.
Managed Nodes Limit Exceeded Generated when the number of discovered nodes exceeds the
limit defined in the Discovery Configuration panel,
Configuration tab. See “Configuring Network Discovery” on
page 200). If this alarm occurs, NM Portal ceases to discover or
track any new nodes.
Node Enrolled Generated when an Airgo AP has been successfully enrolled.
Node Un-Enrolled Generated when an Airgo AP has been successfully rejected
(un-enrolled).
Policy Download Successful Generated when a policy is successfully downloaded to an AP.
Policy Download Failed Generated when policy downloaded to an AP is unsuccessful
due to an error in the policy, software version mismatch, or
another error.
Image Download Succeeded. Generated when an image is successfully downloaded and
applied to an AP.
Image Download Failed Generated when image download to an AP is unsuccessful, due
to corrupted images, images of invalid length, or connectivity
failures.
Software Distribution Succeed Generated when an image distribution is completed.
Radio Enabled (BSS Enabled) Generated when an AP radio is enabled. Indicates successful
start of a BSS and includes the channel on which the AP radio
will be operating.
Radio Disabled (BSS Disabled) Generated when an AP is disabled. Disabling can be user
triggered for administrative purposes, caused by radio reset due
to application of wireless configuration parameters, triggered
by hardware, or due to a change in SSID.
BSS Enabling Failed Generated when an attempt to enable an AP radio fails.
Reason codes:
0 – Unspecified reason
1 – System timeout attempting to enable BSS
Frequency Changed Generated when operating frequency is changed for an AP
radio due to user intervention or events such as periodic
dynamic frequency selection (DFS).
Reason Codes:
0 - Triggered due to DFS
1 - User triggered
Managing Network Faults
Installation and User Guide: Airgo Access Point 215
STA Association Failed Generated when an 802.11 client station fails in its attempt to
associate to the AP radio.
Reason Codes:
1 - Invalid parameters received from station in association
request
2 - Only stations are allowed to associate with this AP based on
current configuration
3 - Only backhauls can be formed with this AP based on
current configuration
4 - Max backhaul limit is reached based on the 'Max Trunks'
configuration for AP admission criteria
5 - Max station limit is reached based on the 'Max Stations'
configuration for SSID
6 - SSID received in association request does not match SSID
in AP configuration. This can occur more often when an AP is
not broadcasting SSID in beacon (due to suppressed SSID or
multiple SSIDs being configured) and station is associating to
an AP with a different SSID
7 - Authentication and encryption requested by station does not
match security policy of the AP
8 - Multi Vendor Station indicates that the station is not
allowed to associate based on AP admission criteria
9 - 802.11b stations are not allowed to associate based on AP
admission criteria
10 - Station is not allowed to associate and was transferred to
another AP radio due to load balancing
11 - Station is not allowed to associate because node does not
have network connectivity
STA Associated Generated when a client station succeeds in associating to the
AP radio. The alarm message includes the current associated
stations, type of association, and user ID. The user ID is the
user name if RADIUS authentication is employed; otherwise
the MAC address is used.
STA Disassociated Generated when an 802.11 station is disassociated by the
network or the station.
Reason Codes:
0 - Station initiated disassociation
1 - Station has handed off to another AP
2 - Disassociation triggered due to authentication failure after
ULAP timeout
3 - Disassociation triggered due to user action
Table 16: Airgo Access Point Alarms (continued)
Alarm ID Description
9 Managing the Network
216 Installation and User Guide: Airgo Access Point
WDS Failed Generated when wireless backhaul formation fails. The
message includes the MAC address of the end node. This alarm
can help track losses in network connectivity.
Reason Codes:
0 - System failure
1 - Maximum BP count has been reached (this relevant only for
AP)
2 - Join attempt to the uplink AP failed (BP side only)
WDS Up Generated when a wireless backhaul formation succeeds. The
message includes the MAC address of the end node.
Reason Codes:
0 - Trunk has been established
1 - Trunk has been optimized (re-established based on better
connectivity)
WDS Down This is a notification generated when a wireless backhaul has
gone down. The remote end’s MAC address is provided.
Reason Codes:
0 - System reason (unspecified)
1 - Loss of link (applies to BP side only)
2 - Trunk brought down by uplink AP (applies to BP side only)
3 - User retrunk issued (this can occur due to new backhaul
configuration being applied on BP)
4 - Trunk has reformed with another AP (AP side only)
5 - Trunk brought down by BP (applies to AP side only)
Guest Authentication Succeeded Generated when a guest station is authenticated and indicates
the successful start of a guest access communications session.
The guest user is offered the communications services
specified in the guest profile for the specified SSID.
Guest Authentication Failed Generated when a guest station fails to authenticate.
User Reject by RADIUS Server Generated when user authentication fails. The AP radio and the
RADIUS server that rejected the user are included in the
message.
BP Rejected by RADIUS Server Generated when a security portal has rejected the attempt by a
BP radio to associate to the AP. This may mean that the BP is
not enrolled in the same network as the AP or that the BP was
just enrolled, but the enrollment database has not yet been
synchronized across the network to all security portals.
RADIUS Server Timeout Generated when the RADIUS server fails to respond within the
RADIUS timeout period. The RADIUS server may be
unreachable over the network, or the shared secret for the
RADIUS server is incorrectly configured on the AP. If multiple
RADIUS servers are configured in this authentication zone, the
AP will switch to using the next one in the list.
Table 16: Airgo Access Point Alarms (continued)
Alarm ID Description
Managing Network Faults
Installation and User Guide: Airgo Access Point 217
Management User Login Success Generated when a management user successfully logs in to the
local AP.
Management User Login Failure Generated when a management user fails to log in to the AP.
STA Failed EAPOL MIC Check Generated when the MIC fails during EAPOL key exchange
process. If the authentication type is WPA PSK and the failure
happened during the pairwise key exchange, then the most
likely reason is incorrect configuration of the WPA PSK on the
station. It could also mean that an attacker’s station is
attempting to masquerade as a legal station.
STA Attempting WPA-PSK – No Pre-
shared Key Is Set for SSID
Generated when a client station attempts to perform WPA-
PSK-based authentication on a given SSID, but no WPA pre-
shared key has been configured for that SSID.
Auth Server Improperly Configured on
this SSID
Generated when the AP has determined that a station requires
an authentication server, but none is configured for this SSID.
Authentication servers are needed for EAP-based
authentication and MAC address based ACL lookups.
STA Failed to Send EAPOL-Start Generated when the AP has determined that a client station has
failed to send an EAPOL-Start, possibly indicating incorrect
configuration of the station. The AP expects the station to send
an EAPOL-Start if the authentication type is deemed to be
EAP-based. This can happen when WPA EAP authentication is
negotiated, or when WEP is enabled on the AP and no manual
WEP keys are configured.
RADIUS Sent a Bad Response Generated during authentication when the RADIUS server
sends a bad or unexpected response. This would occur if the
cryptographic signature check failed or an attribute is missing
or badly encoded.
RADIUS Timeout Too Short Generated when the AP receives a late response from the
RADIUS server, generally due to high network latency. The
AP may have attempted multiple retries or may have switched
to another RADIUS server by this time. If this alarm is
generated repeatedly, it may be desirable to increase the
timeout associated with the authentication server.
STA Authentication Did Not Complete
in Time
Generated when the station authentication sequence did not
complete in time.
Upstream AP Is Using an Untrusted
Auth Server
Generated when the local BP determines that the upstream AP
is using an untrustworthy authentication server. This could
mean that the upstream AP is a rogue AP. If the downstream
AP was previously enrolled in another network, it should be
restored and re-enrolled in the new network.
Upstream AP Is Using a Non-portal
Node As Its Auth Server
Generated when the local BP determines that the upstream AP
is using a node that is not a security portal as its authentication
server. The BP is aware of the other node, but does not believe
it is authorized to be a security portal.
Upstream AP Failed MIC Check
During BP Authentication
Generated when the MIC fails during the EAPOL key
exchange process with a BP radio.
Table 16: Airgo Access Point Alarms (continued)
Alarm ID Description
9 Managing the Network
218 Installation and User Guide: Airgo Access Point
Premature EAP-Success Receive Generated when an upstream AP sends an EAP success before
authentication is complete. This may indicate that a rogue AP
is trying to force an AP to join before authentication is
complete.
Profile Not Configured for User-Group Generated when the AP determines that the station is a member
of a group that does not have a service profile defined for this
SSID.
STA Has Failed Security Enforcement
Check
Generated if the station attempts to use an encryption type that
is not allowed in its service profile. The AP can advertise
multiple encryption capabilities, but different stations may be
restricted to different subsets of encryption capabilities based
on their service profiles.
AP Detected Bad TKIP MIC Generated when a bad TKIP MIC is detected on an incoming
frame from a station that is encrypted with a pairwise/unicast
key. All packets received by the AP are always encrypted with
the pairwise/unicast key.
BP Detected Bad TKIP MIC on
Incoming Unicast
Generated when a bad TKIP MIC is detected by a local BP
radio on an incoming frame encrypted with the pairwise/
unicast key.
BP Detected Bad TKIP MIC on
Incoming Multicast/Broadcast
Generated when a bad TKIP MIC is detected by a local BP
radio on an incoming multicast or broadcast packet from the
AP, where the packet is encrypted with the group/multicast/
broadcast key.
STA Detected Bad TKIP MIC on
Incoming Unicast
Generated when a bad TKIP MIC is detected by a station
associated with this AP on an incoming unicast packet from the
AP, where the packet is encrypted with the pairwise/unicast
key.
STA Detected Bad TKIP MIC on
Incoming Multicast/Broadcast
Generated when a bad TKIP MIC is detected by a station
associated with a radio on an incoming multicast or broadcast
packet from the AP, where the packet is encrypted with the
group/multicast/broadcast key.
TKIP Counter-Measures Lockout
Period Started
Generated when a TKIP counter-measures lockout period for
60 seconds is started. Indicates that the AP has determined that
an attempt is underway to compromise the secure operation of
TKIP. This happens if two MIC failures are detected within a
60-second interval. If this happens, the AP disassociates all
stations and prevents new stations from associating for a period
of 60 seconds.
EAP User-ID Timeout Generated when a station fails to send its user-ID in time to
complete its authentication sequence using the specified
authentication type. The two authentication modes that
require the station to send its user-ID are WPA EAP and
legacy 8021.x for dynamic WEP. This alarm may
indicate that a user prompt is not attended to on the client
side.
Table 16: Airgo Access Point Alarms (continued)
Alarm ID Description
Managing Network Faults
Installation and User Guide: Airgo Access Point 219
Alarm Filter
Use the Alarm Filter tab (Figure 158) to eliminate selected events from the alarm displays in the
Alarm Summary and Alarm Table tabs.
Select an event ID from the list, and click Add to include the event type in the list of events that are
not reported. Each added event is included in the Event Filter Table Drop List at the top of the tab.
The table includes the event ID and a description. To remove an event from the list, select the
event, and click Delete.
EAP Response Timeout Generated when a station fails to send an EAP Response in
time to complete its authentication sequence using the specified
authentication type and encryption. The two authentication
modes that require the station to send EAP responses are WPA
EAP and legacy 8021.x for dynamic WEP. This alarm may
mean that a user prompt is not attended to on the client side. It
may also indicate that the client silently rejected an EAP
request sent from the RADIUS server – perhaps because it did
not trust the RADIUS server’s credentials.
EAPOL Key Exchange –Message 2
timeout
Generated when a station fails to send the WPA EAPOL-Key
Pairwise Message #2 in time to complete the pairwise key
exchange.
EAPOL Key Exchange – Message 4
timeout
Generated when a station fails to send the WPA EAPOL-Key
Pairwise Message #4 in time to complete its authentication
sequence with a radio, using the specified authentication type
and encryption.
EAPOL Group 2 Key Exchange
Timeout
Generated when a station fails to send the WPA EAPOL-Key
Group Message #2 in time to complete its authentication
sequence with a radio, using the specified authentication type
and encryption.
Table 16: Airgo Access Point Alarms (continued)
Alarm ID Description
9 Managing the Network
220 Installation and User Guide: Airgo Access Point

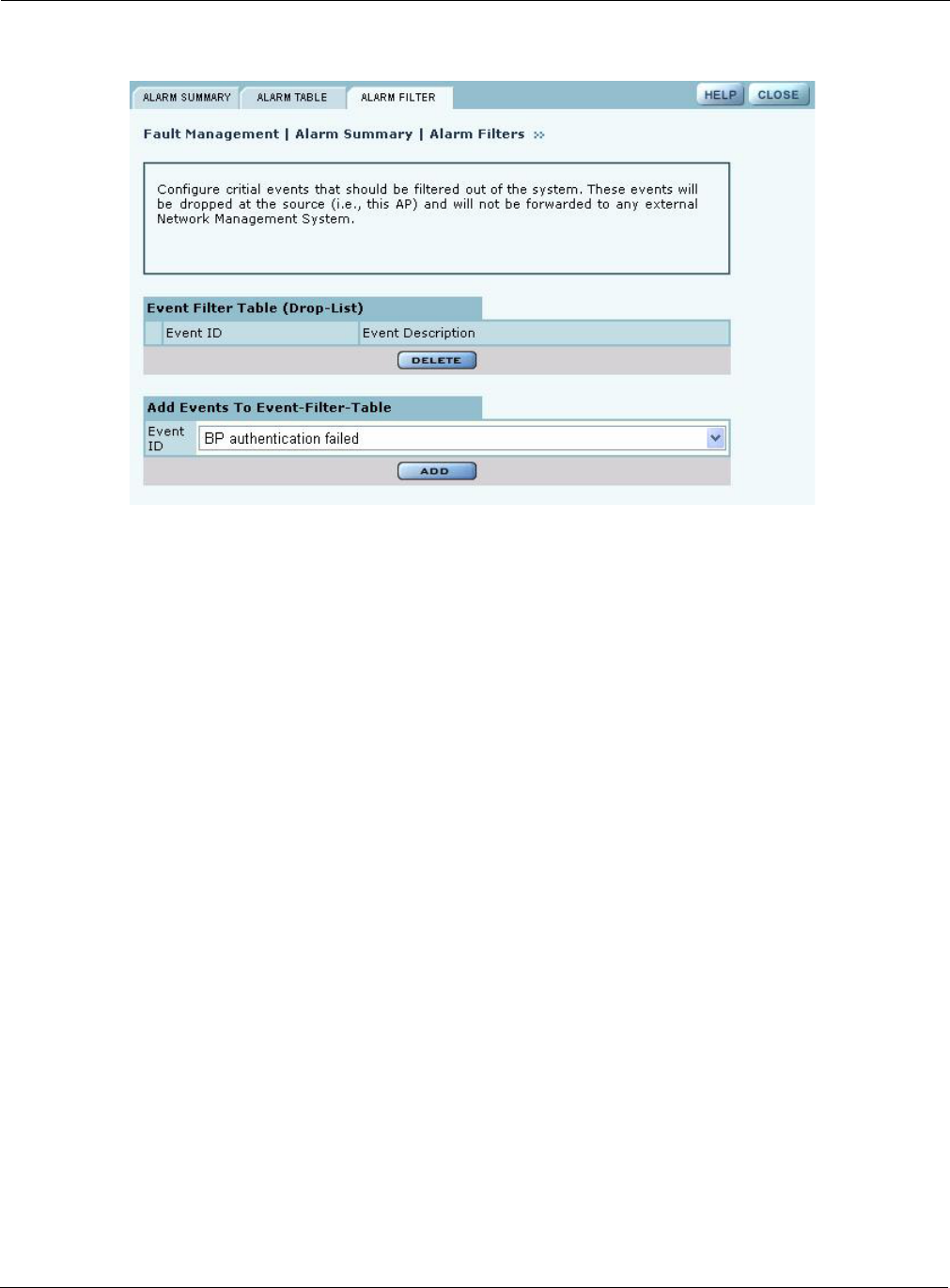

Figure 158: Fault Management - Alarm Summary - Alarm Filter
Viewing the Syslog
Select SYSLOG from the Fault Management menu to view syslog messages used for network
troubleshooting. The most recent messages are in the default message file, Messages, with the
latest messages at the top. To view older messages, select the appropriate message.x file from
the list on the SYSLOG panel (Figure 159). See “Syslog Configuration” on page 241 for
instructions on configuring the syslog message output.
Using the Security Portal Menu
Installation and User Guide: Airgo Access Point 221
Figure 159: Fault Management - SYSLOG
Using the Security Portal Menu
Use the Security Portal menu items to manage user access to the wireless network and to configure
the RADIUS proxy feature.
Managing User Accounts
Choose User Management from the Security Portal menu to manage the authentication of users by
way of the internal RADIUS database on the NM Portal AP. The panel contains the following tabs:
•Wireless Users — Manage users who seek access to the wireless network.
•Admin Users — Manage administrators responsible for the wireless network.
•MAC ACLs — Identify and manage users using the MAC addresses of their computers.
•Guest User — Set up automatic password generation for guest users. For a description of this
tab, see “Configuring Guest Access” on page 167.
Adding Wireless Users
Choose User Management from the Security Portal menu to open the Wireless Users tab, which
contains a list of current network users (Figure 160).
9 Managing the Network
222 Installation and User Guide: Airgo Access Point
Figure 160: Security Portal - User Management - Wireless Users
To add a new user, click Add to open the Add Wireless User entry panel (Figure 161).
Figure 161: Security Portal - User Management - Add Wireless User
Enter the following information:
Click Add to save the user record, Reset to clear the fields on the panel, or Cancel to return to the
Wireless tab without saving the record.
When a wireless user is added to the database a unique certificate is generated for that user. The
certificate must be installed on the user’s PC. This can be done in one of two ways:
Field Description
Login Name Assign a login name for network access (required).
User Group Select a user group as defined in the RADIUS server.
First Name Enter the first name of the user.
Last Name Enter the last name of the user.
Email ID Enter the user’s email address.
Description Enter a text description, if desired.
Client(s)
DNS & DHCP
Server
RADIUS
Server
Access
Point
Access
Point
Access
Point
Enterprise
Network
NMS
Server
Using the Security Portal Menu
Installation and User Guide: Airgo Access Point 223
•Email — If an SMTP server is configured, the certificate is mailed to the user. To install the
emailed certificate on the PC:
aAsk the administrator for the password associated with the certificate. This password is
displayed in the user details page.
bDouble click on the certificate obtained through email. When the certificate installation
wizard asks for the password, supply the previously-obtained password.
•Download — To download the certificate:
aClick the Wireless Users tab to display the list of users.
bClick the login name link for the user, or highlight the checkbox to the left of the Login
Name, and click Details. This opens the View Wireless User panel (Figure 162).
cClick the link entitled Click Here to Download Certificate. A security certificate pop-up
opens with a prompt to open or save the certificate.
dSave the certificate on your local computer.

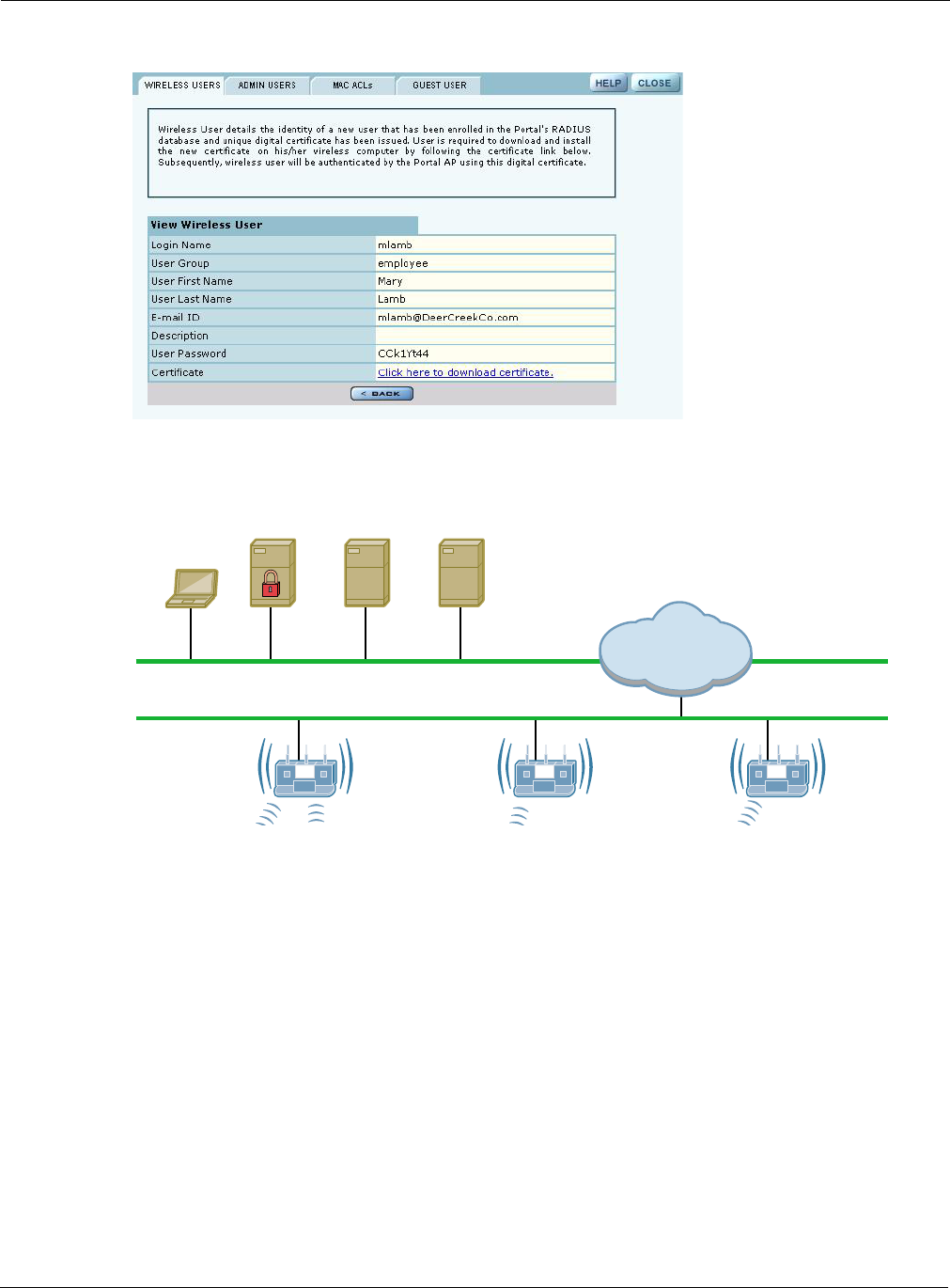

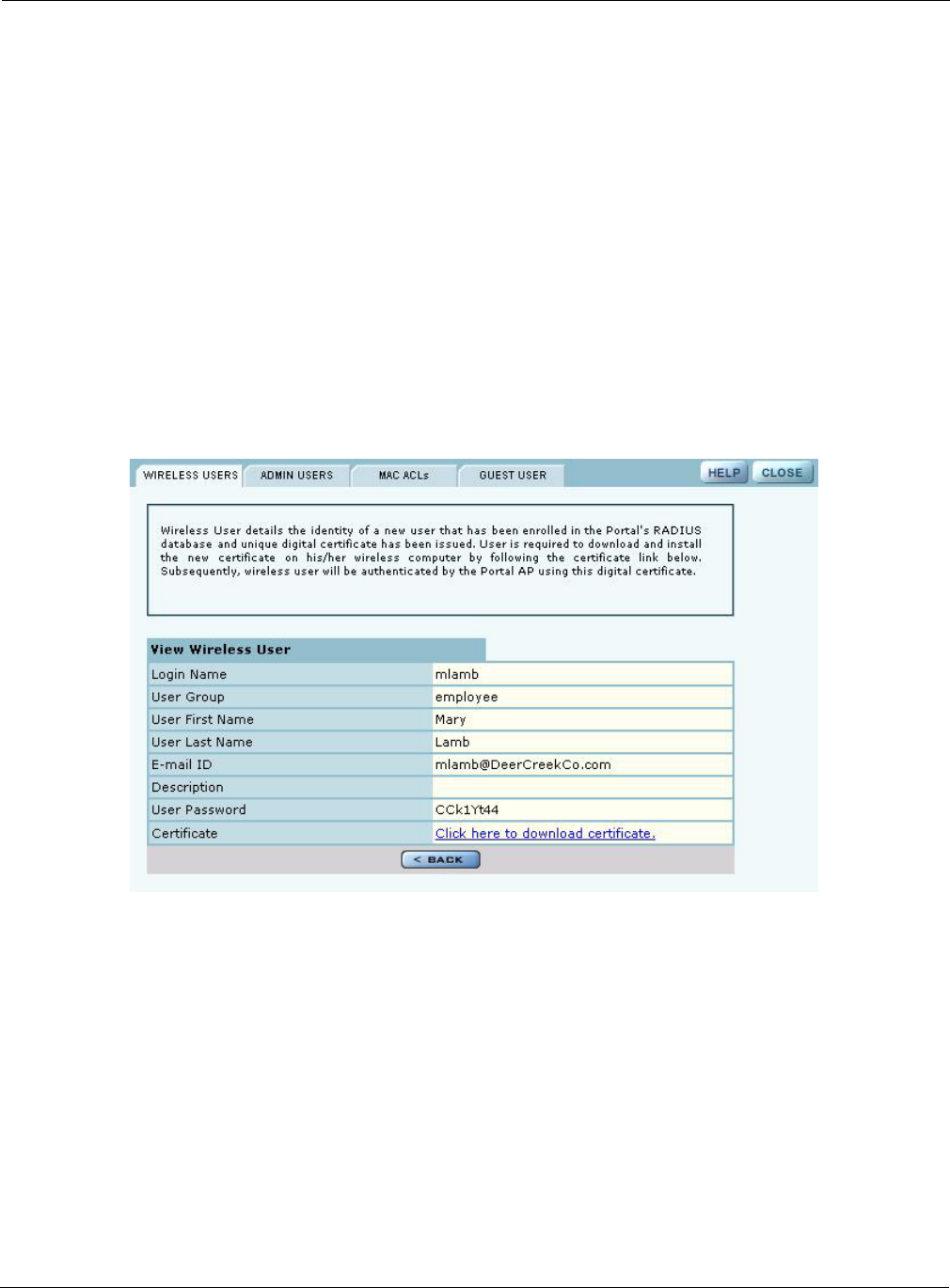

Figure 162: Security Portal - User Management - View Wireless User
Adding Administrative Users
To give designated users access to NM Portal or to the all APs in the network managed by this NM
Portal, open the Admin Users tab (Figure 163).
9 Managing the Network
224 Installation and User Guide: Airgo Access Point

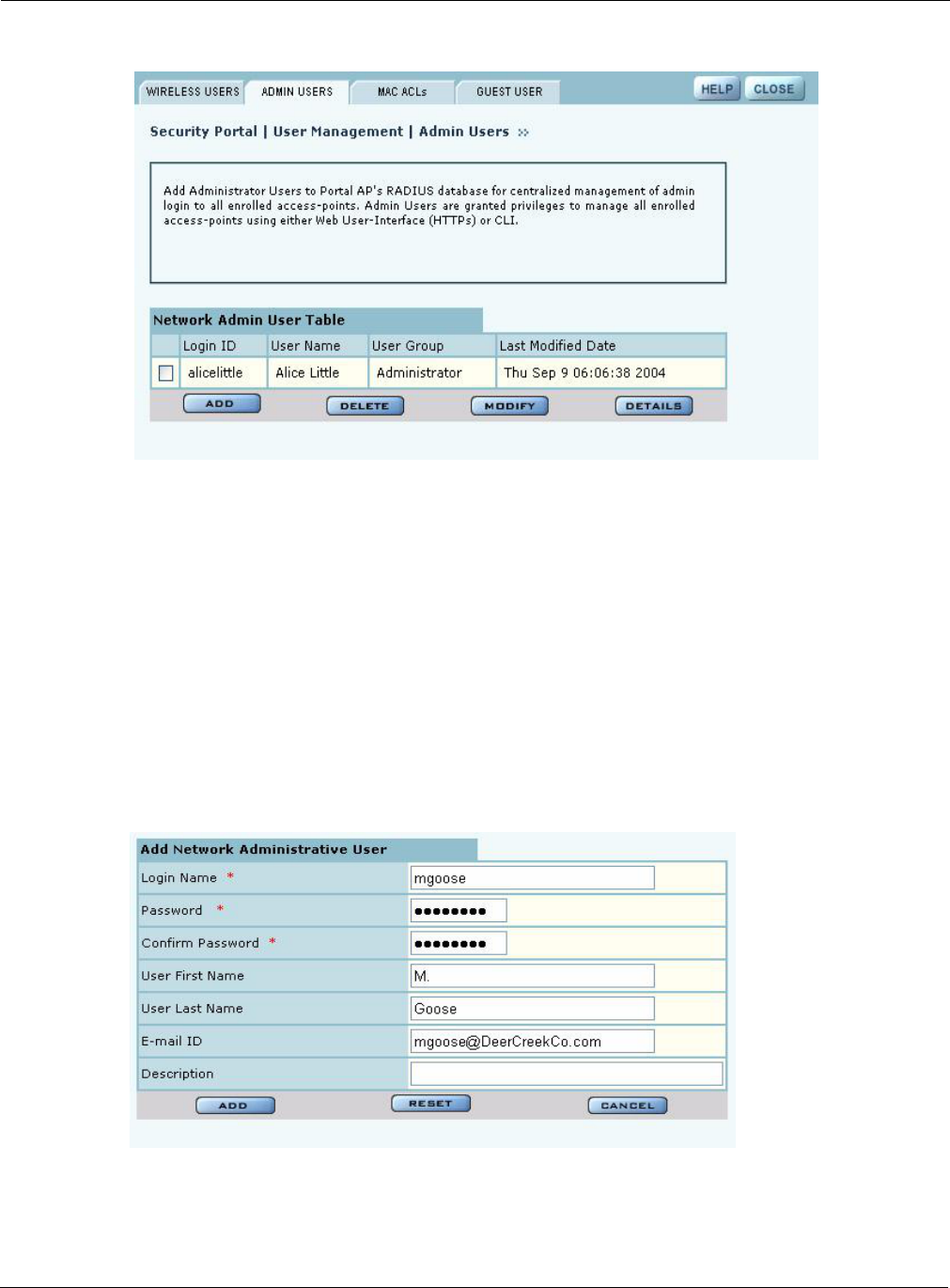

Figure 163: Security Portal - User Management - Admin Users
The tab opens with a list of current administrative users. To add a new user, click Add, and enter
the following information in the Add Administrative User entry panel (Figure 164):
Figure 164: Security Portal - User Management - Add Administrative User
After entering the requested information, click Add.
From the user list, you can also delete an existing user, modify user information, or view the details
in a read-only table.
Field Description
Login Name Assign a login name for network access (required).
Password Enter the password and enter it again in the Confirm Password field
(required).
User First Name Enter the first name of the user.
User Last Name Enter the last name of the user.
Email ID Enter the user’s email address.
Description Enter a text description.
Using the Security Portal Menu
Installation and User Guide: Airgo Access Point 225
Adding MAC-ACL Users
Use the MAC-ACL tab (Figure 165) to identify and authenticate users by the MAC address of the
computer rather than by login. This type of authentication is generally used to accommodate legacy
equipment that does not support user-based authentication. MAC addresses are checked when the
SSID has MAC-ACL enabled and Open access, static WEP keys, or WPA-PSK encryption are
used. For more information on security options, see Chapter 7, “Managing Security.”

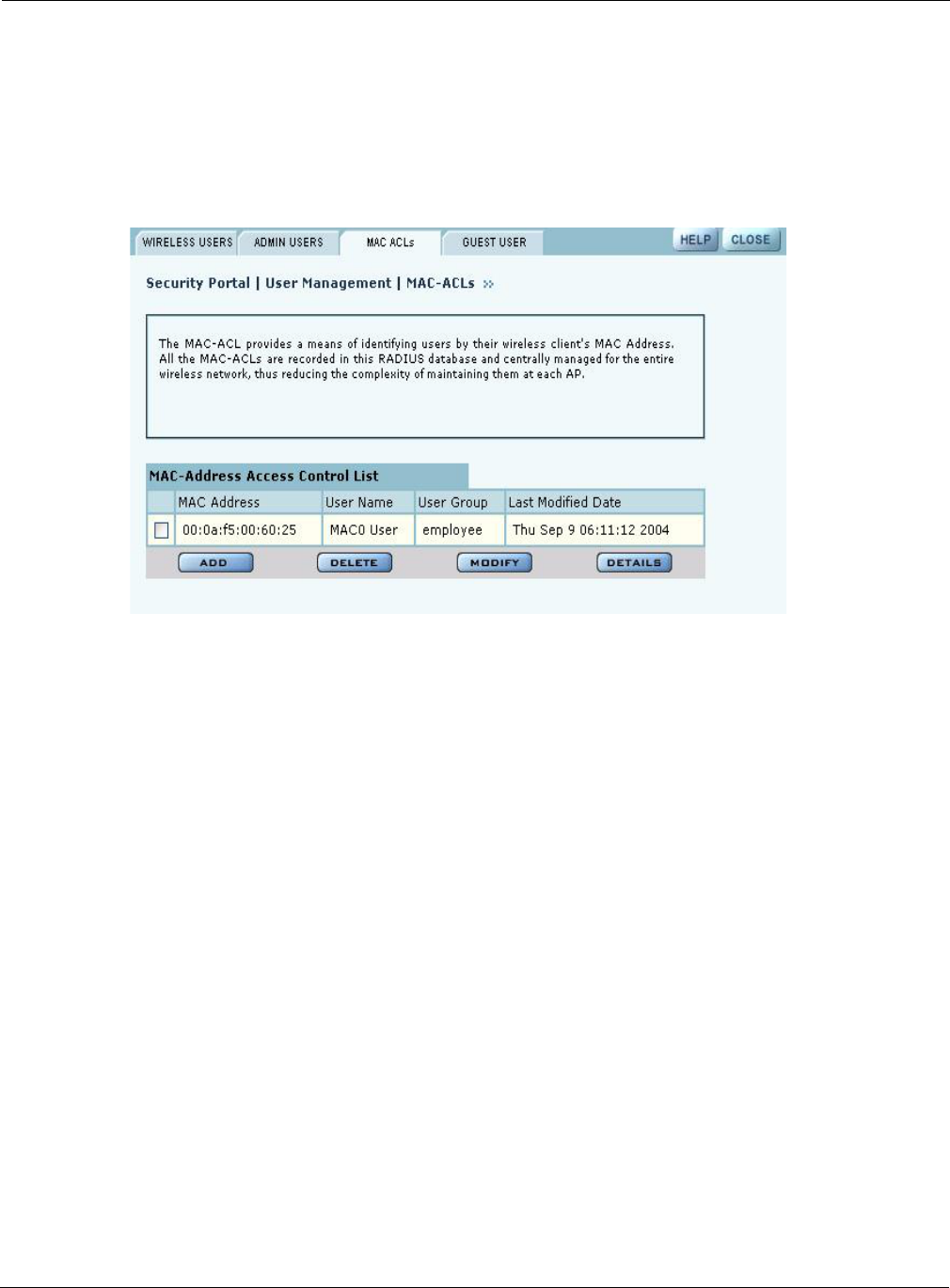

Figure 165: Security Portal - User Management - MAC-ACLs
The tab opens with a list of current MAC-ACL users. To add a new user, click Add and enter the
following information in the Add MAC Address Based User entry panel (Figure 166):
Field Description
MAC Address Enter the MAC address that uniquely identifies the device. Use the tab
key to move between the successive two-character fields. (required)
User Group Select a group from the list or create a new group.
User First Name Enter the first name of the user.
User Last Name Enter the last name of the user.
Email ID Enter the user’s email address.
Description Enter a text description, if desired.
9 Managing the Network
226 Installation and User Guide: Airgo Access Point

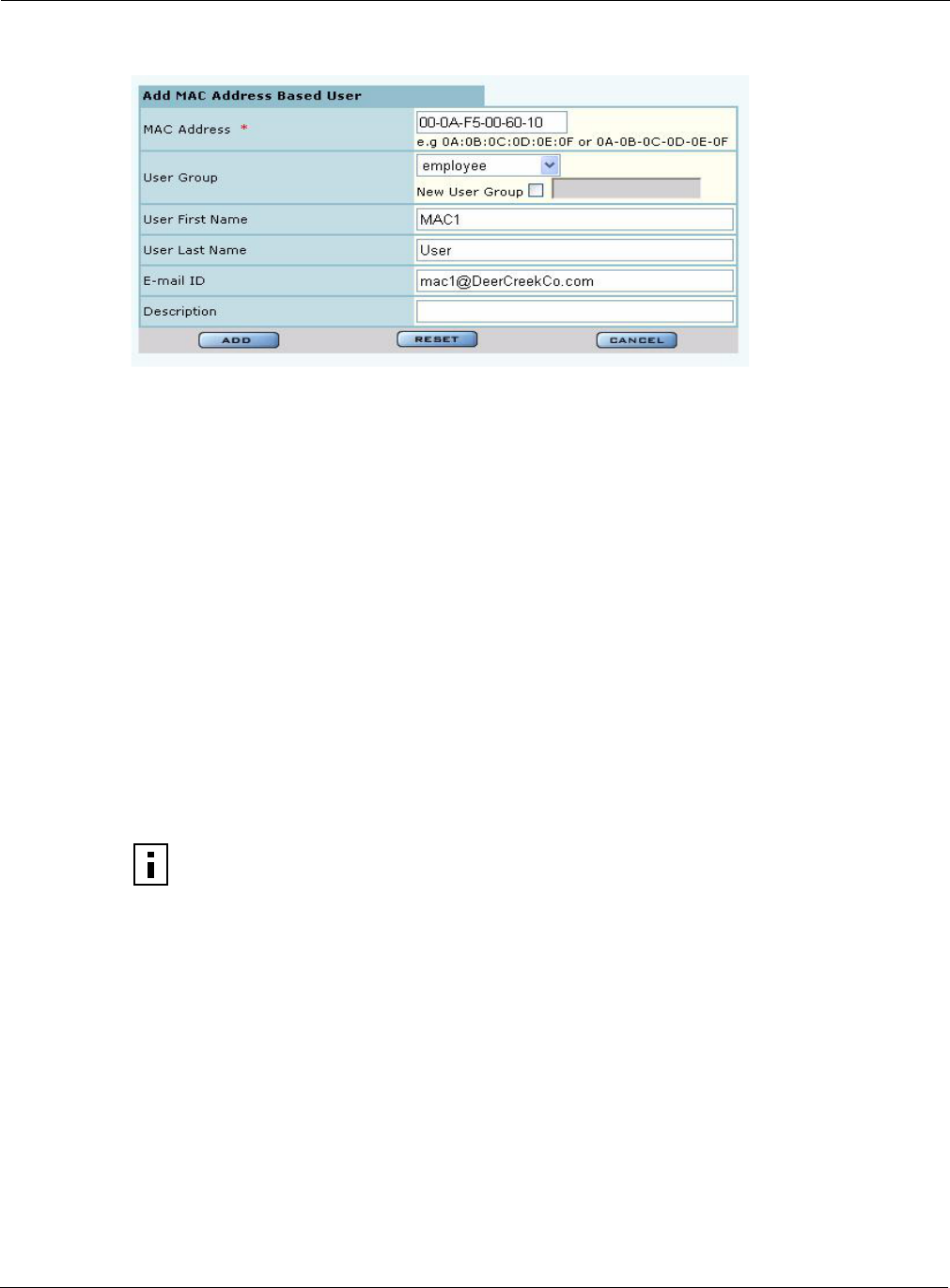

Figure 166: Security Portal - User Management - Add MAC Address User
Click Add after entering the requested information.
From the user list, you can delete an existing MAC-ACL user, modify user information, or view the
details in a read-only table.
Managing Guest User Passwords
For optional generation of guest passwords automatically at set intervals, use the Guest User tab, as
explained in “Guest Access Security” on page 176.
RADIUS Proxy
Radius Proxy is a way of simplifying configuration for the external RADIUS authentication of
wireless clients. When you bootstrap an AP as an NM Portal, RADIUS proxy is enabled
automatically. All APs enrolled by this NM Portal will have Radius Proxy turned on. RADIUS
proxy reduces configuration requirements at the external RADIUS server, as the server must now
establish trust only with the security portal, rather than with all enrolled APs.
RADIUS proxy should only be enabled or disabled from NM Portal. Do not enable RADIUS proxy
on an individual AP if it is not enabled on the NM Portal. Perform changes to the RADIUS proxy
configuration on the NM Portal and then distribute the changes to the other enrolled APs.
When RADIUS proxy is enabled, all RADIUS authentication requests from APs are routed to the
NM Portal. If the NM Portal is not available, then these requests are routed to a backup security
portal.
When RADIUS Proxy is disabled, all APs forward their external RADIUS authentication requests
directly to the configured external RADIUS server or servers. This requires that you enter
configuration information on the RADIUS server or servers for each AP rather than for the NM
Portal and security portals only.
NOTE: It is possible to turn off RADIUS proxy on individual APs. This may be useful
for test purposes. Be aware that this setting will be overturned when a policy is pushed
from the NM Portal.
Using the Security Portal Menu
Installation and User Guide: Airgo Access Point 227
The RADIUS Proxy feature can reduce administrative effort in the following ways:
•It is not necessary to configure each AP with knowledge of each external RADIUS server.
•It is not necessary to configure the external RADIUS server with each AP as a RADIUS client.
•Any normal (non-portal) AP can have its IP address changed at any time.
RADIUS proxy must be enabled or disabled on a network-wide basis. If this is not done the
following may result:
•Loss of external auth-zone information on all APs
•Loss of external auth-server information on non-security portal APs
•Need to reset the SSID and admin auth-zones portal authentication zones for the network to
function properly.
Due to these potential effects, it is important to back up the configuration of all APs prior to
enabling or disabling RADIUS proxy. See “Managing the AP Configuration” on page 245 for
instructions on backing up the AP configurations.
When enabling RADIUS proxy, there are specific configuration requirements for the NM Portal
AP that acts as the enrollment portal, the backup security portal, and other normal (non-portal) APs.
Configuration Requirements for Portal AP (running Enrollment Service)
The following steps are required at NM Portal when enabling RADIUS Proxy:
1Back up Portal AP Configuration (recommended). See “Managing the AP Configuration” on
page 245.
2Configure the external RADIUS server (external authentication servers).
3Enable RADIUS Proxy. See “Configuring RADIUS Proxy” on page 228.
4Generate a default Policy. See “Define Policy” on page 198
5Distribute the default policy to all APs. See “Distribute Policy” on page 199.
If RADIUS proxy is turned off, it is necessary to rebind the authentication zones to the SSIDs. This
can be accomplished from a restored backup configuration. Whenever the proxy state changes or
the external auth server configuration changes, a new default policy must be regenerated and
redistributed to all the enrolled APs.
When you enable RADIUS-proxy, the auth-zone setting is hidden because there are no external
auth-zones being used on this AP. The auth-servers settings shows the list of internal and external
RADIUS servers. You can edit the list of external RADIUS servers used by the proxy on this portal
NOTE: To guard against a single point of failure, it is recommended that you configure
a backup security portal in addition to the working security portal.
NOTE: When RADIUS proxy is enabled, external authentication server information
must NOT be deleted. This information is used by the RADIUS proxy server to proxy
RADIUS authentication requests to these external RADIUS servers. Once RADIUS
proxy is in effect, all future user authentication traffic is redirected to the proxy. In
order to avoid disruption in user authentication, it is strongly recommended to nominate
another AP to be a backup security portal.
9 Managing the Network
228 Installation and User Guide: Airgo Access Point
and distribute the new list to one or more security portals if you generate a new default policy and
distribute it.
For more information on SSIDs, authentication zones, and authentication servers, see “Configuring
Authentication Zones” on page 155.
Configuration Requirements for Backup Security Portal
It is highly recommended that you configure one or more backup security-portals when configuring
RADIUS proxy. Each of the backup security portals must establish trust with the external RADIUS
servers. The synchronization of configured external RADIUS servers from the primary Security-
Portal (usually the NM Portal AP) is automatic, and no special action is required by the user. All
external RADIUS server configuration should be done on the NM Portal AP, not on the backup
security portals.
Configuration Requirements for Normal APs (Non-Portal APs)
Configure RADIUS proxy on normal (non-portal) APs by defining a policy with RADIUS proxy
and then distributing it to the normal APs. This ensures that the correct sequence of configuration
changes are applied to the normal APs when RADIUS proxy is enabled or disabled.
When RADIUS proxy is enabled on a normal AP, all external auth-server information is deleted.
Security is enhanced because the number of global secrets (such as Shared Secret between external
RADIUS server and the AP) maintained on the normal APs is reduced. In addition, all SSID
security is bound to the portal auth-zone (which is a list of security-portals in the network),
permitting normal APs to redirect wireless authentication to security portal APs that take on the
role of sending a proxy request to external RADIUS servers. Similar redirection occurs with
administrator logins. To disable RADIUS-proxy on the normal AP, you must go back to the NM
Portal AP, disable RADIUS proxy, and redistribute the policy to all APs across the network.
When RADIUS-proxy is disabled, then a policy push from the NM Portal AP to the normal APs
restores the external RADIUS server configuration along with the corresponding shared secrets.
Configuring RADIUS Proxy
Use the RADIUS Proxy panel (Figure 167) in the AP web interface to enable the RADIUS proxy
feature. For the full set of steps required to configure RADIUS proxy, see “Configuration
Requirements for Portal AP (running Enrollment Service)” on page 227.
NOTE: It is highly recommended that you make the decision to use RADIUS proxy
when first configuring the network, in order to make the configuration seamless and
less error prone. The RADIUS proxy setting should be made part of the default NM
Portal or NMS Pro policy prior to enrolling other APs. This ensures that all
subsequently configured APs inherit the correct proxy settings when they are enrolled.
Using the Mobility Services Menu
Installation and User Guide: Airgo Access Point 229

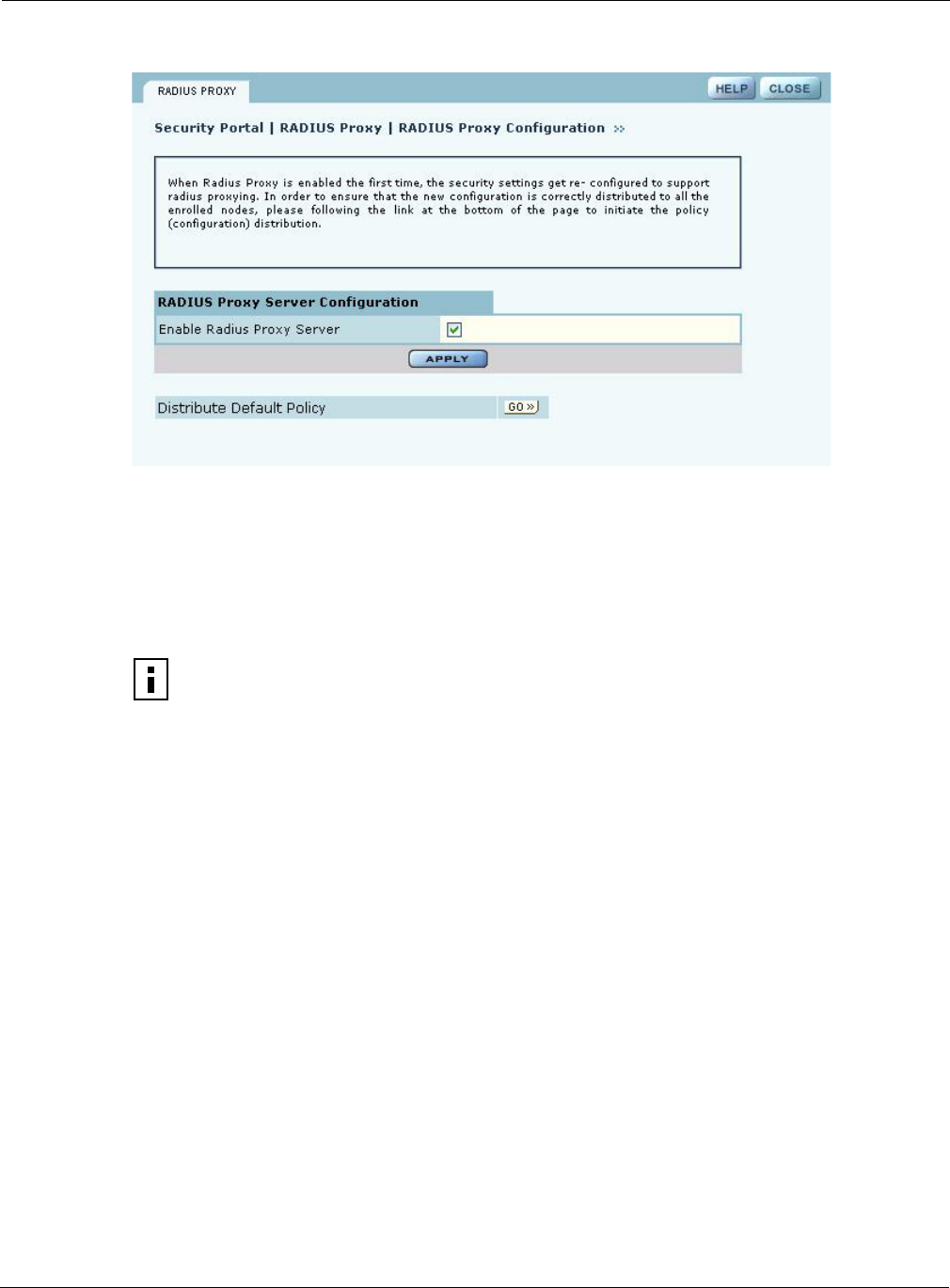

Figure 167: RADIUS Proxy
Configure the following setting on this panel:
Using the Mobility Services Menu
The Layer-3 Mobility feature provides seamless roaming for wireless clients in a wireless network
in which there are multiple subnets in proximity to each other. An example of a network that
requires seamless IP roaming is a multi-story building in which each floor is on a different subnet
and wireless clients need to roam between floors without losing connectivity.
In contrast to Layer-3 roaming, Layer-2 roaming occurs by default when a wireless client roams
between APs on the same subnet. Layer-2 roaming is automatically seamless if IAPP is configured
in the network (see “Configuring Inter Access Point Protocol (IAPP)” on page 95). Across subnets,
Layer-3 mobility is required to avoid the disruption of forced disassociation and reassociation as a
client moves across subnet boundaries. With the Layer-3 Mobility feature, wireless clients move
across subnets without a required IP address change, and application sessions (UPD, TCP, or
HTTP) are uninterrupted.
Layer-3 Mobility is particularly useful in providing Wi-Fi VoIP services. For example, if a Wi-Fi
VoIP phone must change its IP address during a conversation, the call is usually dropped. By
Item Description
Enable RADIUS Proxy
Server
Select the checkbox to enable the RADIUS Proxy server feature, and
click Apply.
NOTE: When RADIUS proxy is enabled, the authentication zone configuration is
deleted. When APs are enrolled into the network, the configuration policy is distributed
to the AP. If RADIUS proxy is turned off, then the authentication zone configuration
must be re-added to the NM Portal and the default policy must be re-generated and
distributed to the managed network to enable authentication services via an external
RADIUS server. Moreover, the external RADIUS server must be re-configured to
accept the individual APs as RADIUS clients.
9 Managing the Network
230 Installation and User Guide: Airgo Access Point
enabling retention of the same IP address, clients can continue their conversations without
interruption.
Layer-3 Mobility requires wireless client reauthentication, and delays can occur for some
authentication methods. For example, if the clients use WPA-EAP for authentication, then Layer-3
roaming still requires clients to be reauthenticated by an external RADIUS server. Delays can occur
while authentication messages are exchanged between the AP and the RADIUS server. However, if
WPA-PSK or WEP methods are used for authentication, the client will be reauthenticated on the
new AP to which it has roamed, thereby avoiding the latency introduced by the external RADIUS
server.
When creating a Layer-3 Mobility zone, all APs should be managed by the same management
domain (NMS Pro or NM Portal). There are two methods of configuring Layer-3 Mobility:
•Layer-3 Mobility Using VLANs (See “Layer-3 Mobility Using VLANs”)
•Layer-3 Mobility Using Tunneling (See “Layer-3 Mobility Using Tunneling”)
Layer-3 Mobility Using VLANs
This approach requires the use of VLANs to enable seamless Layer-3 Mobility. It is suitable for
small networks with a number of subnetworks because traffic from all subnetworks is bridged by
the APs in separate VLANs. Client stations roaming between APs are kept within the same VLAN
and, hence, remain in a single subnet. Layer-3 mobility is supported with interface VLANs and user
VLANs (Figure 168).
Using the Mobility Services Menu
Installation and User Guide: Airgo Access Point 231

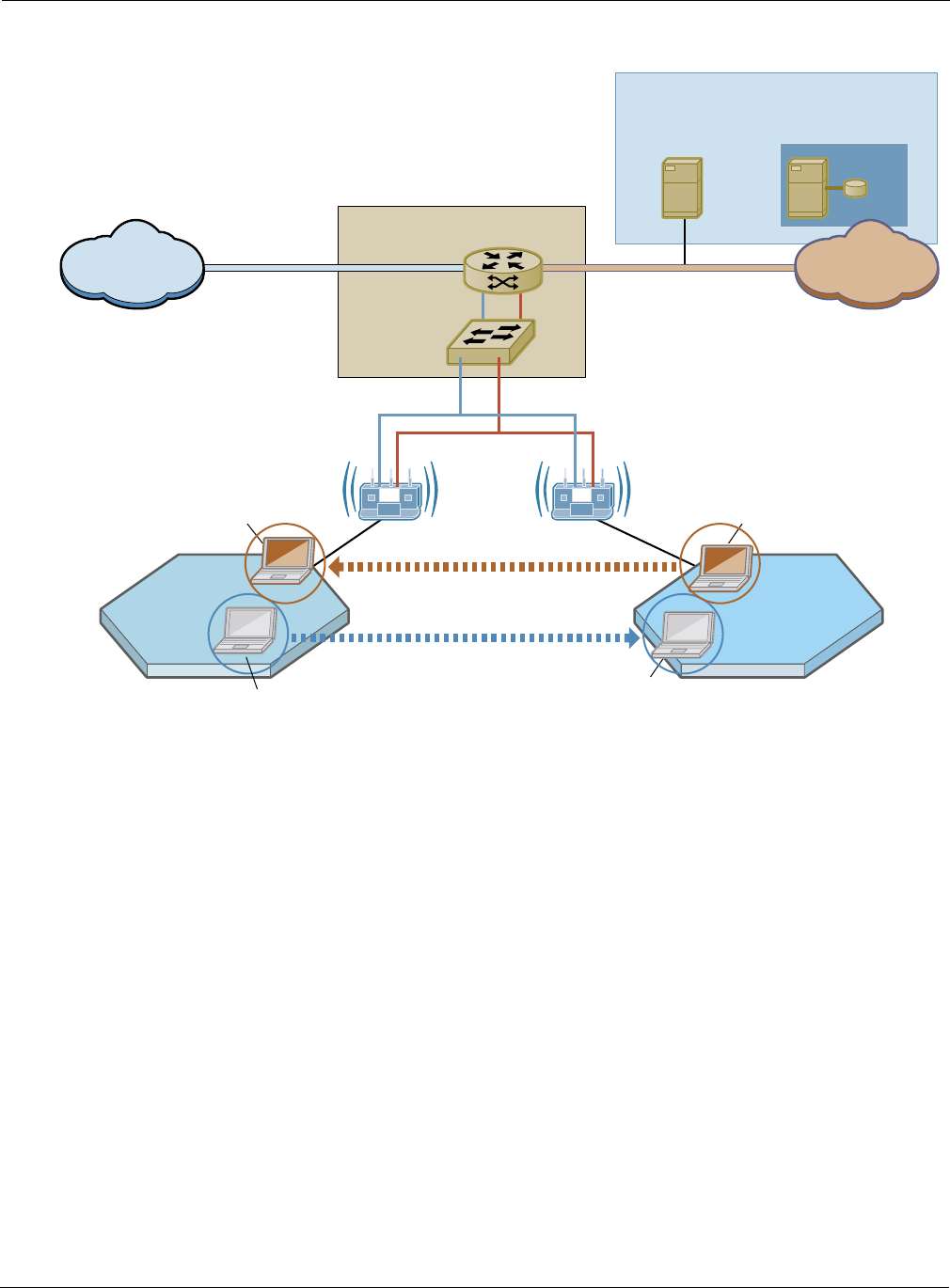

Figure 168: Layer-3 Roaming Using VLANs
Layer-3 Mobility Using Tunneling
To use the tunneling approach for Layer-3 Mobility, it is necessary to have a network with multiple
subnets in wireless proximity. When a client in a subnet moves to another subnet, a handshake
takes place and a tunnel is created between the two APs (Figure 169).
A0060
User-Dir
IP Routerw/DHCP Relay Agent
VLAN Switch
Example: Cisco 3600 Router/Switch
L3 Roaming
STA2: 192.168.90.200/24STA2: 192.168.90.200/24
L3 Roaming
STA1: 192.168.88.100/24
STA1: 192.168.88.100/24
MGMT-VLANCORP-VLAN
192.168.88.0/24
CORP-VLANCORP-VLAN
192.168.90.0/24
MGMT-VLANCORP-VLAN
RADIUS Server
(EAP-TLS or
EAP-PEAP)
DHCP Server
(Serving both
IP subnets)
Admin
Network
Corp
Network
NOC
9 Managing the Network
232 Installation and User Guide: Airgo Access Point

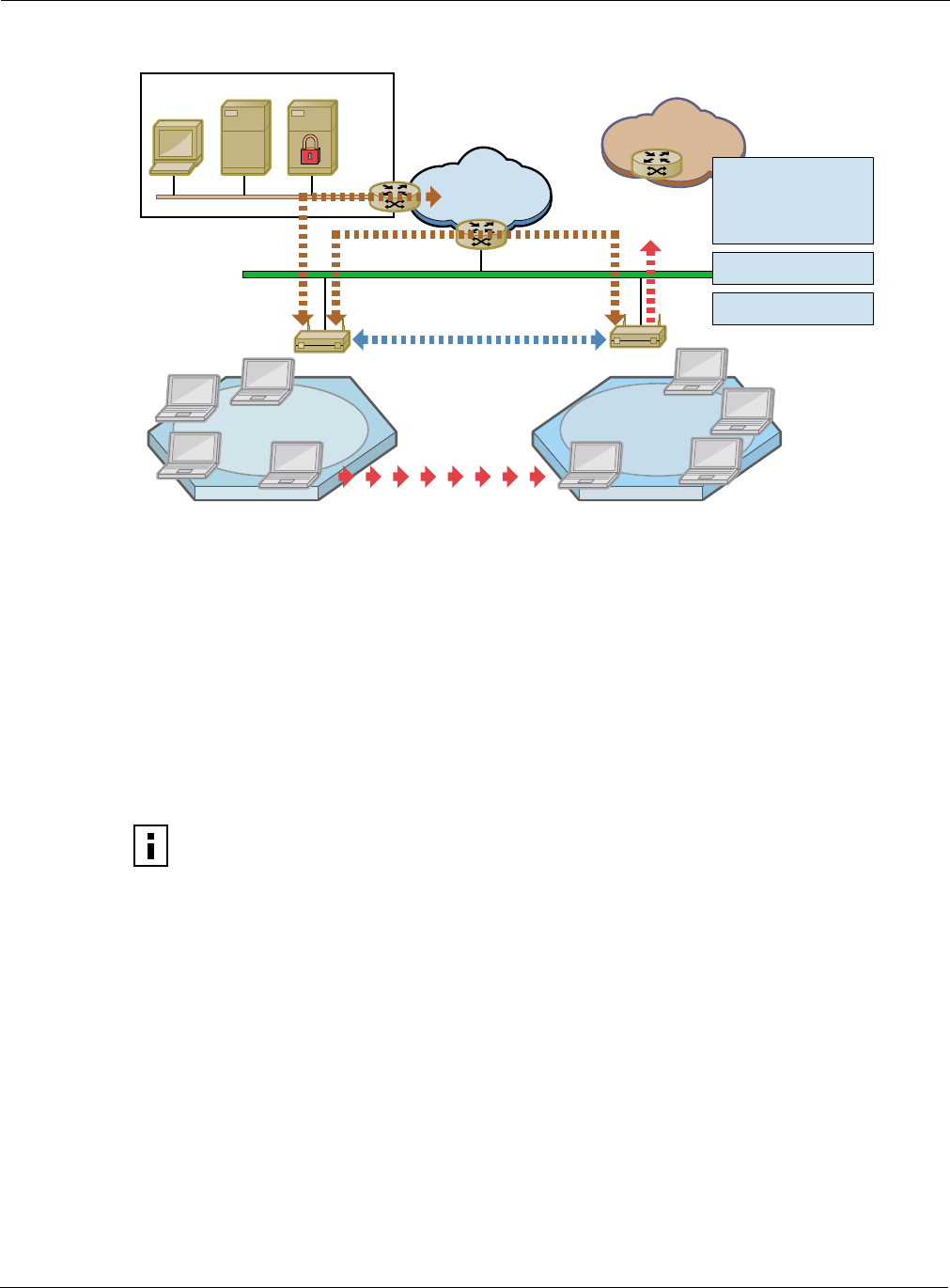

Figure 169: Layer-3 Mobility - Tunnel Approach
The tunneling approach uses mobility agents (MAs) and mobility sub-agents (MSAs). Each MA
configures a tunnel to every other MA in the network, thereby creating a fully meshed tunneled
infrastructure to carry Layer-3 Mobility traffic between these subnetworks. There can only be one
MA per subnet, and it is highly recommended that the AP you designate as MA be directly
connected to the wired network (not a wireless-backhaul AP). All other APs in the subnetwork
automatically assume the role of an MSA and forward their Layer-3 Mobility traffic to the MA in
the same subnet. The MSAs do not need to be configured; they automatically bind to the MA, and it
is the MA’s job to periodically advertise itself to all APs on the subnet (See Figure 170).
NOTE: If the MA is in the process of booting when a client station is already
associated with the MSA, then the station cannot roam successfully on its first attempt.
Subsequent roaming attempts should succeed.
WNI NMS AAA
Corporate
Network
10.1.1.5 10.1.1.5
Internet
10.1.2.x10.1.1.x
Enhanced IAPP
Update Frame
Tunnel Management
• Secure Handoff
• Fast Handoff
• Lookup
A0057
Using the Mobility Services Menu
Installation and User Guide: Airgo Access Point 233
Figure 170: Layer-3 Mobility - Mobility Agents and Sub-Agents
The wired network AP that is selected as an MA must be attached to one of the following:
•Ethernet switch that supports jumbo frames (>1518 bytes). The switches must pass through
tagged VLAN packets.
•VLAN enabled Ethernet switch that supports switching of VLAN tagged frames. Such VLAN
switches do require configuration to support Layer-3 Mobility.
The following restrictions apply to Layer-3 Mobility using tunneling:
•Redundancy: There can be only one AP per subnet designated as the MA. If the designated MA
is not operational, it is necessary to manually configure another MA.
•Maximum number of IP subnets: Layer-3 mobility can be configured with a maximum of 16
subnets.
•Management: All APs involved in a Layer-3 mobility configuration must be managed by the
same network management solution (NM Portal or NMS Pro).
•SSID: All the APs in a Layer-3 mobility configuration must be configured with the same SSID.
Mobility Configuration Tab
Use the Mobility Configuration tab (Figure 171) to enable mobility support and add mobility
agents.
A0061
L3-Mobility Tunnel
MA
MA MA
IP Subnet-Z
IP Subnet-Y
IP Subnet-X
MSA
MSAMSA
MSA
MSA
MSA
MSA MSA
9 Managing the Network
234 Installation and User Guide: Airgo Access Point
Figure 171: Mobility Configuration
This tab contains the following information and settings:
Item Description
Enable L3 Mobility
(Tunneling)
Choose Yes to activate the L3 mobility capability, and click Apply. Click
Reset to return to the previously saved value.
Select Mobility Agent
(Wired AP)
Select an AP and click Add to enroll the AP as a mobility agent.
NOTE: Only one AP in a subnet can be designated as a Mobility Agent.
Mobility Agent Table View the list of currently assigned mobility agents.
To delete an agent:
•Choose the entry and click Delete. Click OK to confirm.
To delete all currently assigned agents:
•Click Delete All. Click OK to confirm.
Using the Mobility Services Menu
Installation and User Guide: Airgo Access Point 235
Roaming Stations Tab
When client stations roam across subnets, the MA and the MSAs in the subnet track their
movement. The Roaming Stations tab (Figure 172) shows the set of stations that have roamed
to the selected subnet.

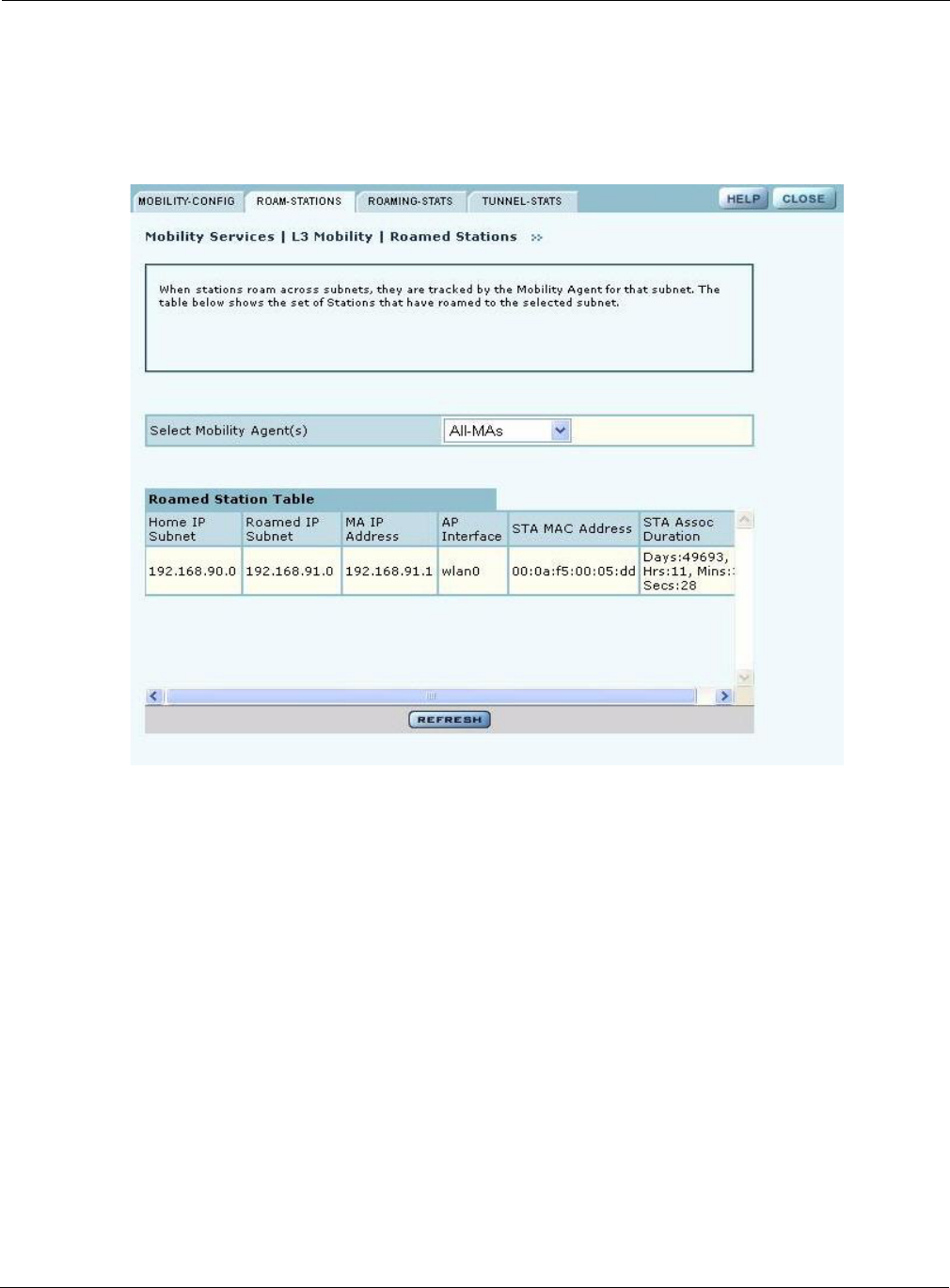

Figure 172: Mobility Configuration - Roaming Stations
The table on this panel contains information for the subnet or subnets indicated by the Mobility
Agent (or all Mobility Agents) selected from the pull-down list. The table lists the following
information for each client station:
Roaming Statistics Tab
The Roaming Statistics tab (Figure 173) displays roaming activity for each MA.
Item Description
Home IP Subnet Subnet in which the client was originally associated
Roamed IP Subnet Subnet to which the client has roamed
MA IP Address IP address of the MA or MSA to which this station is associated
AP Interface Radio interface at the MA or MSA to which the station is associated
STA MAC Address Client’s MAC Address
STA Assoc Duration Length of time in the client has been associated with the MA or MSA
9 Managing the Network
236 Installation and User Guide: Airgo Access Point
Figure 173: Mobility Configuration - Roaming Statistics
The table on this panel contains information for the subnet or subnets indicated by the Mobility
Agent (or all Mobility Agents) selected from the pull-down list. Each row lists the following
information for a client station:
.
Tunneling Statistics Tab
The Tunnel Statistics tab (Figure 174) shows the packet, byte, and error statistics collected at each
MA tunnel for each subnet.
Item Description
MA Status Indication of whether the MA is reachable or not (if not reachable, then
stations that roamed to that subnet are able to tunnel traffic out of that
subnet)
IP Subnet Subnet for which the statistics are being displayed
MA IP Address IP address of the MA in that subnet
MA Uptime Amount of time the MA has been powered up and operational (Days:
Hours: Minutes: Seconds)
STAs Roamed In Sum of the number of stations that have roamed into this subnet as
reported by the MA and MSAs combined
STAs Roamed Out Sum of the number of stations that have roamed out of this subnet to other
subnets as reported by the MA and MSAs in this subnet
Using the Mobility Services Menu
Installation and User Guide: Airgo Access Point 237

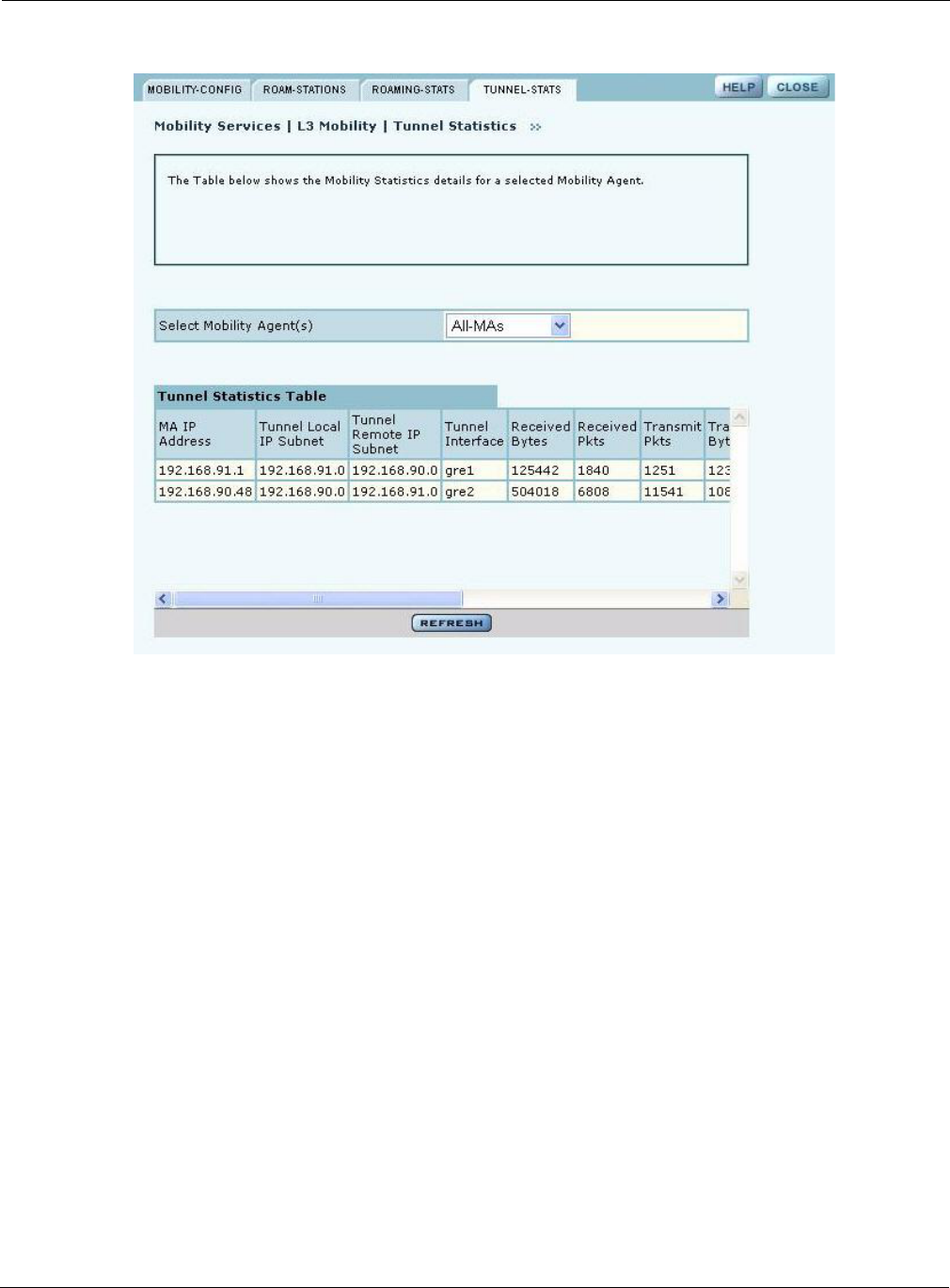

Figure 174: Mobility Configuration - Tunnel Statistics
The following information is presented for each Mobility Agent selected from the pull-down list:
Item Description
MA IP Address IP address of the selected mobility agent
Tunnel Local Subnet Subnet address of the tunnel endpoint terminating on the selected
Mobility Agent
Tunnel Remote Subnet Subnet address of the tunnel endpoint terminating on a remote Mobility
Agent
Tunnel Interface Name of the tunnel connecting the remote and local subnets on the
selected Mobility Agent
Received Bytes Number of bytes received by the tunnel interface on the selected Mobility
Agent
Received Pkts Number of packets received by the tunnel interface on the selected
Mobility Agent
Transmit Pkts Number of packets transmitted by the tunnel interface on the selected
Mobility Agent
Transmit Bytes Number of bytes transmitted through the tunnel interface on the selected
Mobility Agent
Received Multicast Number of multicast packets received through the tunnel interface on the
selected MA
9 Managing the Network
238 Installation and User Guide: Airgo Access Point
Received Error Packets Packets with errors received through the tunnel interface on the selected
MA
Received Drop Packets Number of received packets dropped by the tunnel interface
Misaligned Packets Always equal to 0
FIFO Errors Always equal to 0
Transmit Error Packets Number of packets dropped due to inability to find the route
Transmit Drop Packets Number of packets dropped by the tunnel interface upon transmission due
to system congestion
Item (continued) Description
Installation and User Guide: Airgo Access Point 239
10 Maintaining the Access Point
A variety of tools are available to maintain the Airgo Access Point.
This chapter describes the tools in the following sections:
•Rebooting the AP
•Saving the AP Configuration
•Managing the System Configuration
•Managing the AP Configuration
•Upgrading Software
•Common Problems and Solutions
Rebooting the AP
Choose Save & Reboot AP from the System Services menu to open the Reboot Configuration
panel. To begin the process, click Reboot (Figure 177). The process takes approximately two
minutes, and may take additional time if the AP is currently used for wireless backhaul service.

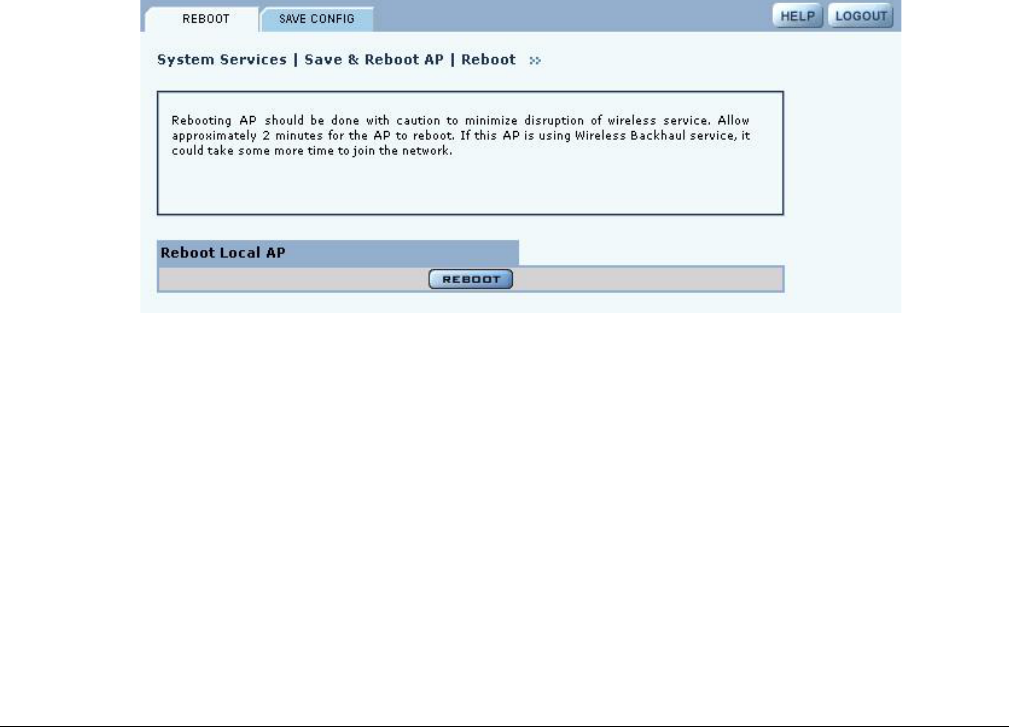

Figure 175: System Configuration - Reboot AP
Saving the AP Configuration
Choose Save & Reboot AP from the System Services menu, and then click Save Config to open
the Save Configuration tab (Figure 177).
To save the current AP configuration, click Save Configuration.
To enable global save, click Apply.
10 Maintaining the Access Point
240 Installation and User Guide: Airgo Access Point

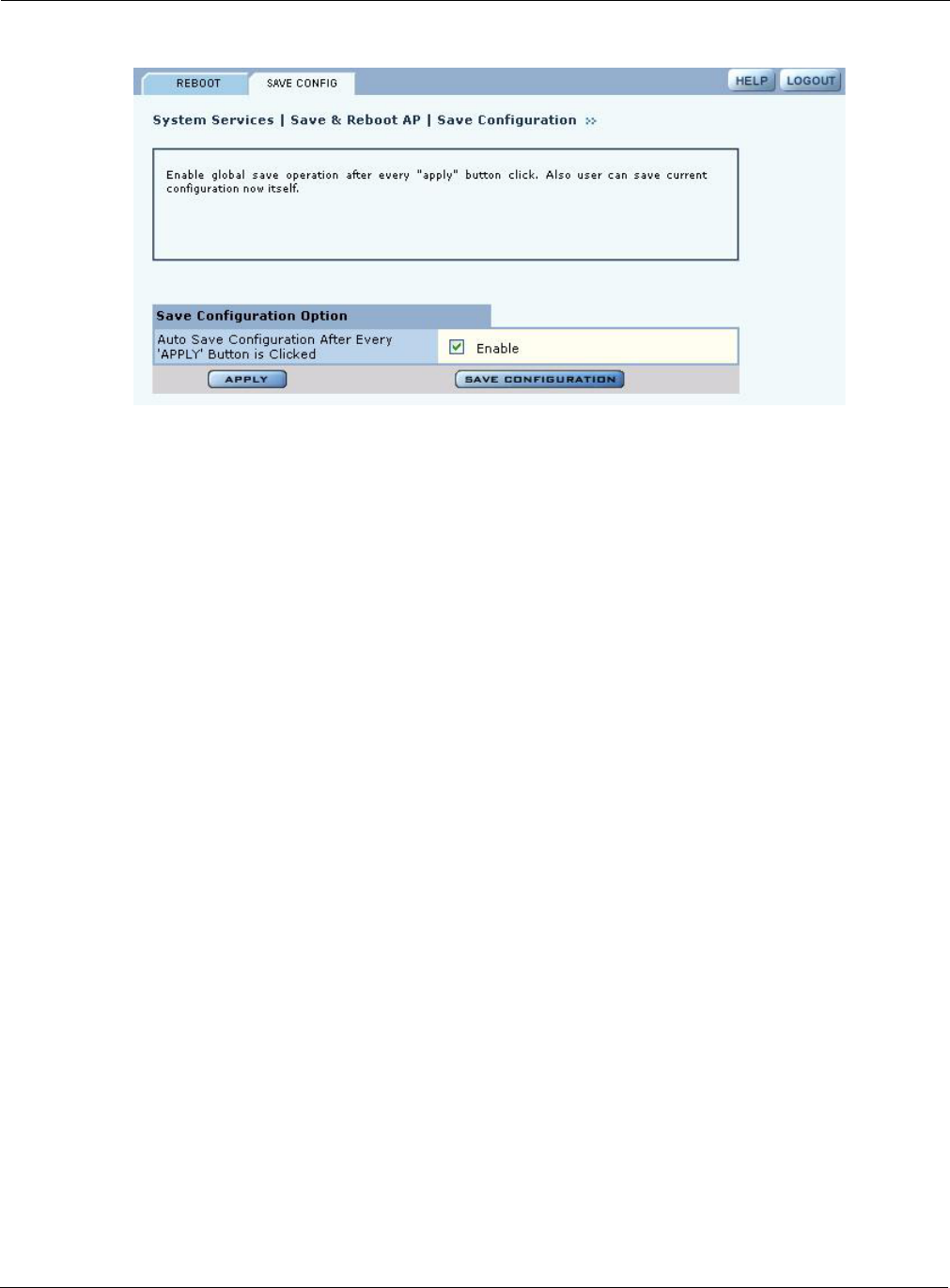

Figure 176: System Configuration - Reboot AP
Managing the System Configuration
Choose System Configuration from the System Services menu to access the network-related
configuration features of the Airgo AP and set up syslog parameters.
The panel includes the following tabs:
•IP Configuration — Configure IP and host settings.
•Syslog Configuration — Set up and view the syslog.
•License Management — Configure additional licenses on the AP.
•NMS Configuration — Specify the entities used for network management, including the NMS
Pro server and NM Portal AP.
•Hardware Options — Enable the real-time clock and buzzer.
IP Configuration
Use the IP Configuration tab (Figure 177) to update the IP and basic system configuration for the
Airgo AP.
Managing the System Configuration
Installation and User Guide: Airgo Access Point 241

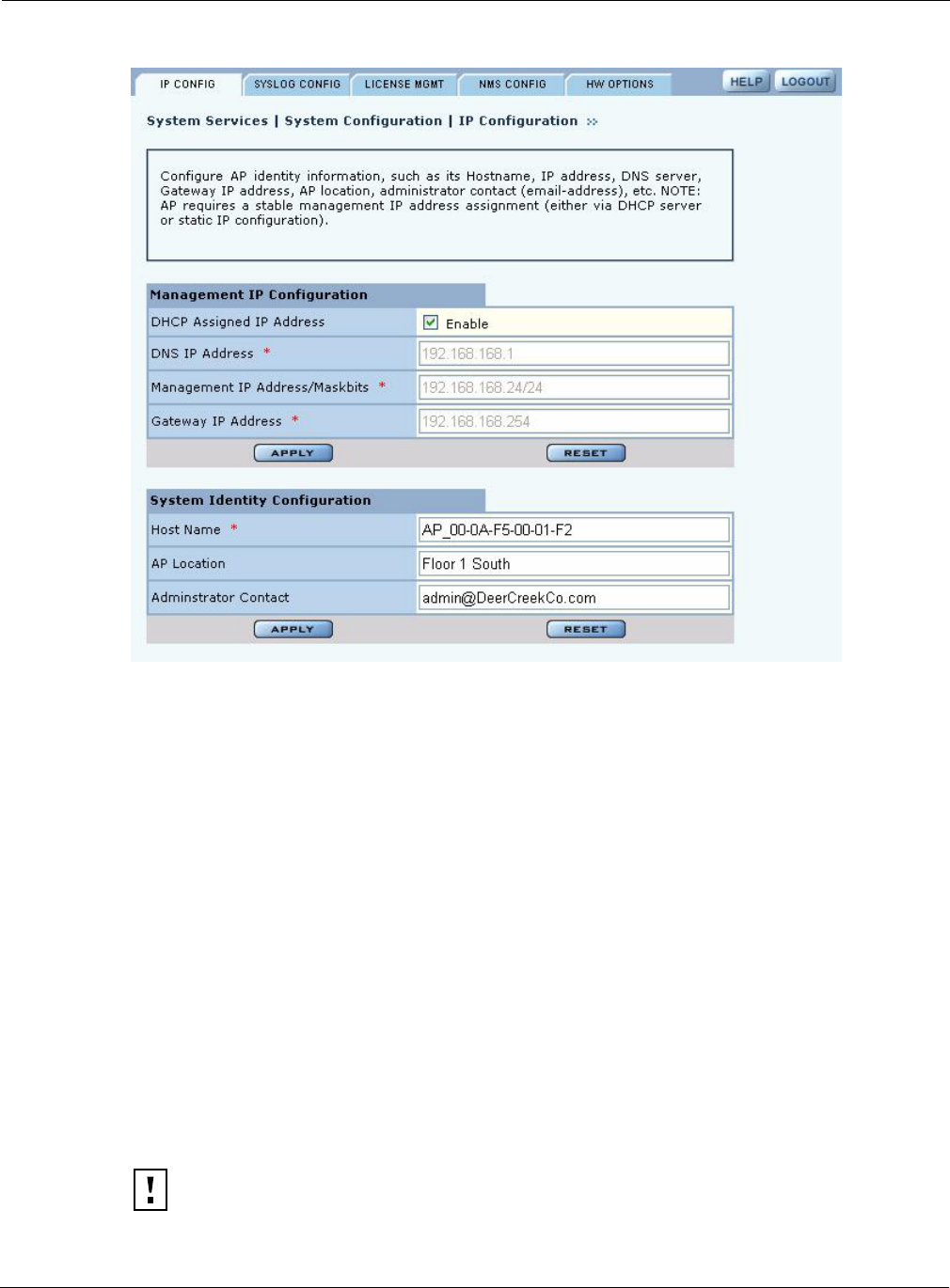

Figure 177: System Configuration - IP Configuration
The tab is divided into two sections. Click Apply after configuring each section, or Reset to return
to the default values. Configure the following fields:
Syslog Configuration
Syslog tracks and records information about network activities for later viewing and analysis.
Field Description
DHCP Assigned IP
Address
Enables the AP to obtain an IP address for the AP from the network
DHCP server.
DNS IP Address Enter the IP address of the DNS server. (required)
Management IP address
/Maskbits
Enter the IP address and subnet prefix of the management server.
(required)
Gateway IP address Enter the IP address of the network gateway. (required)
Host Name Enter a unique name for the AP. The default is the device ID,
which is derived from the MAC address. (required)
AP Location Enter a text description of the physical location of the AP.
Administrator Contact Enter the contact information for the administrator.
CAUTION: Only an authorized administrator should change syslog levels or enable or
disable syslog capabilities. Arbitrary changes to syslog can adversely affect the AP.
10 Maintaining the Access Point
242 Installation and User Guide: Airgo Access Point
The top area of the Syslog panel (Figure 178) provides controls to set the logging level and scope
for a variety of functional areas or modules.

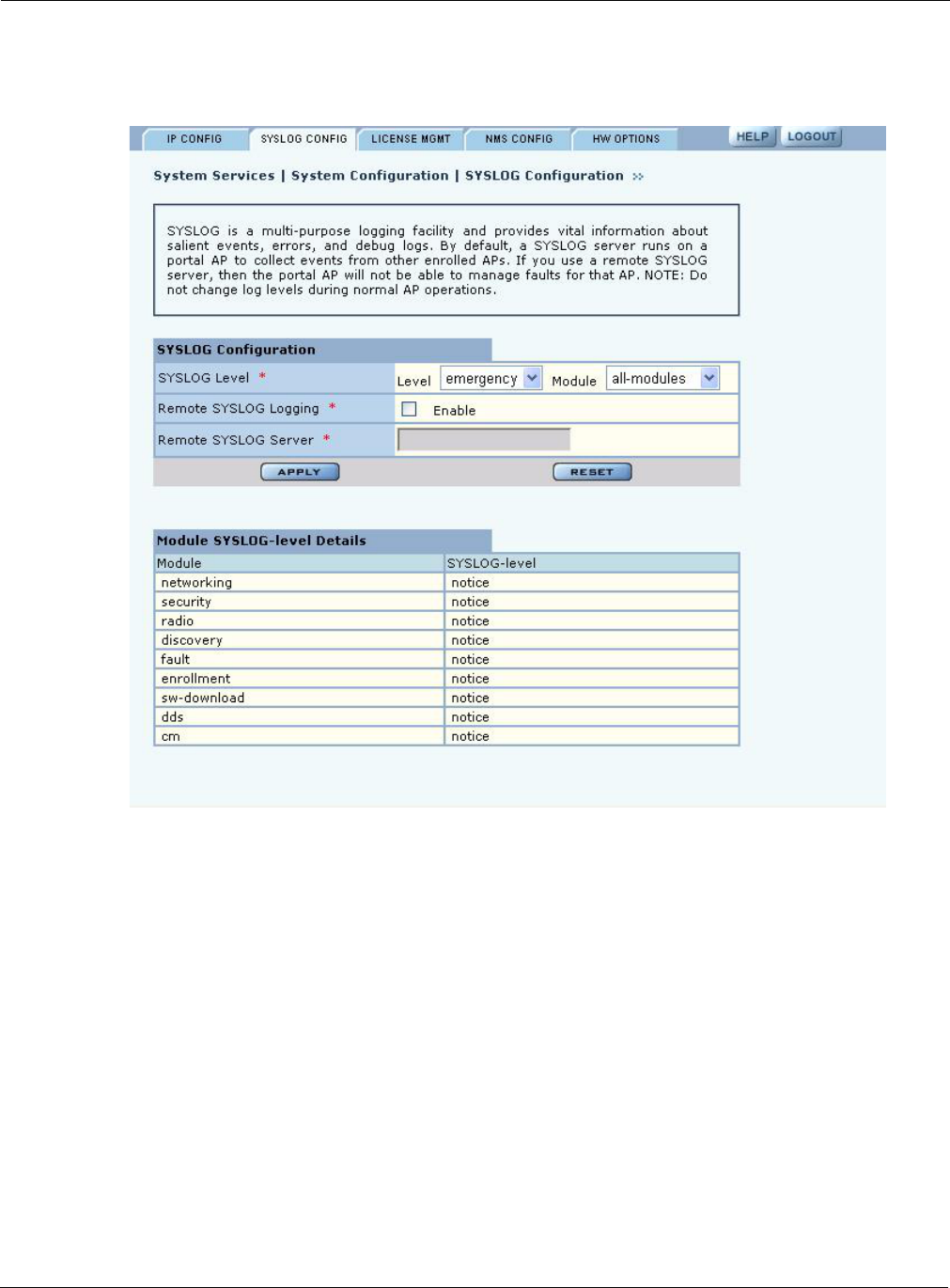

Figure 178: System Configuration - Syslog Configuration
Managing the System Configuration
Installation and User Guide: Airgo Access Point 243
The tab contains the following settings:
License Management
Use the License Management tab (Figure 179) if it is necessary to change the license key for the
AP. Enter or verify the license key for the AP, and click Apply. Click Reset to clear the field.

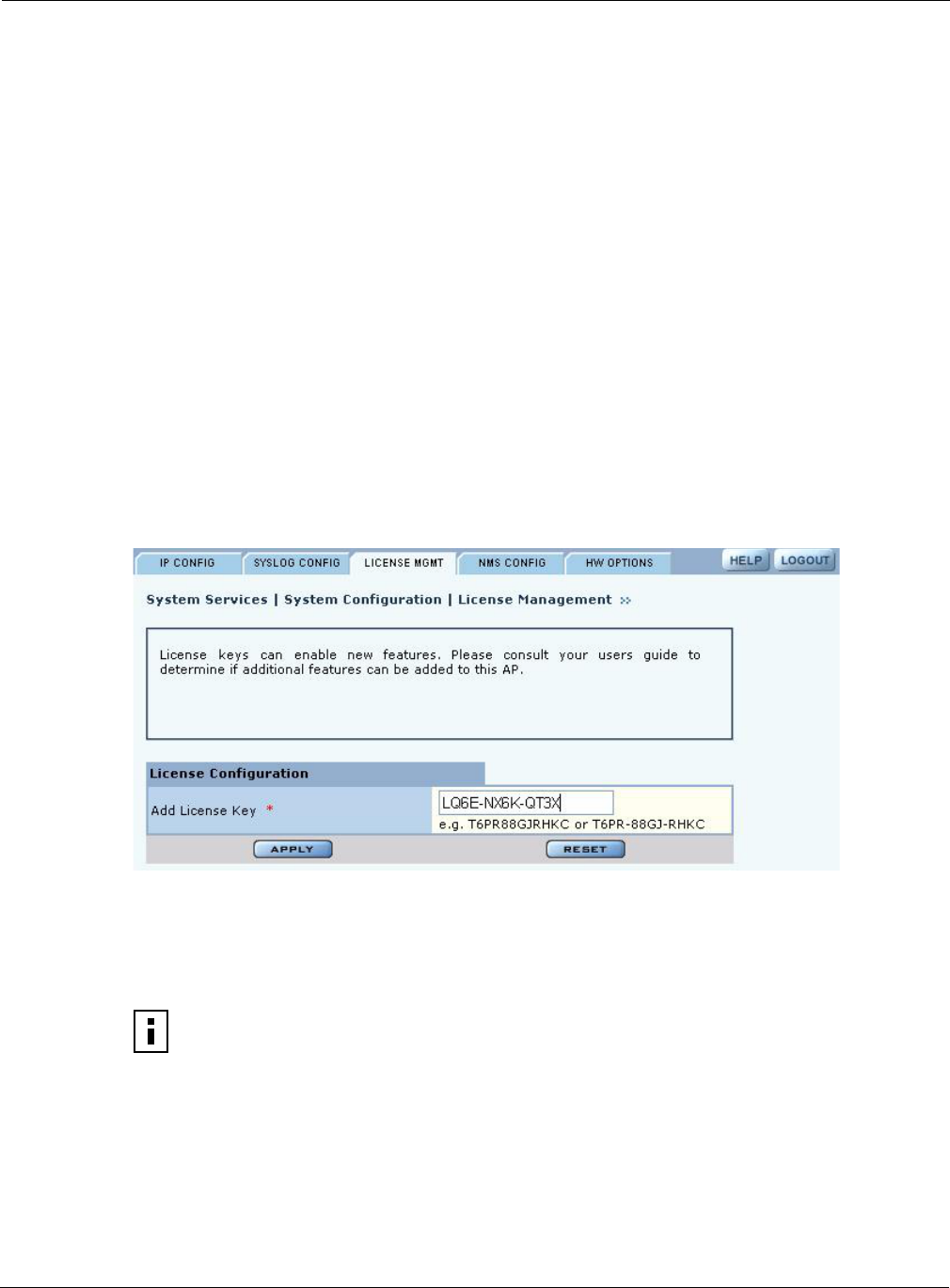

Figure 179: System Configuration - License Management
NMS Configuration
Use the NMS Configuration tab (Figure 180) to identify network management servers and to
determine which network management system will receive fault and event notifications.
Field Description
Syslog Level Select the activity level that triggers a syslog entry. Choose from several
levels (Emergency, Alert, Critical, Error, Warning, Notice, Info, or Debug).
(required)
Syslog-Level Module Select whether to record a specific type of activity, or include all the activities
in the list. (required)
Remote Syslog Logging Indicate whether to enable a remote server to monitor events across the
network.
Remote Syslog Server If the Syslog server is enabled, enter the remote server hostname or IP
address.
Remote Syslog Server
Port
If the Syslog server is enabled, enter the IP address or hostname of the server
port. (optional)
NOTE: If the AP is already enrolled, it is not necessary to modify the settings on this
panel. However, adding IP address does not automatically allow NM Portal or NMS to
manage the AP. The AP must be enrolled to be managed.
10 Maintaining the Access Point
244 Installation and User Guide: Airgo Access Point

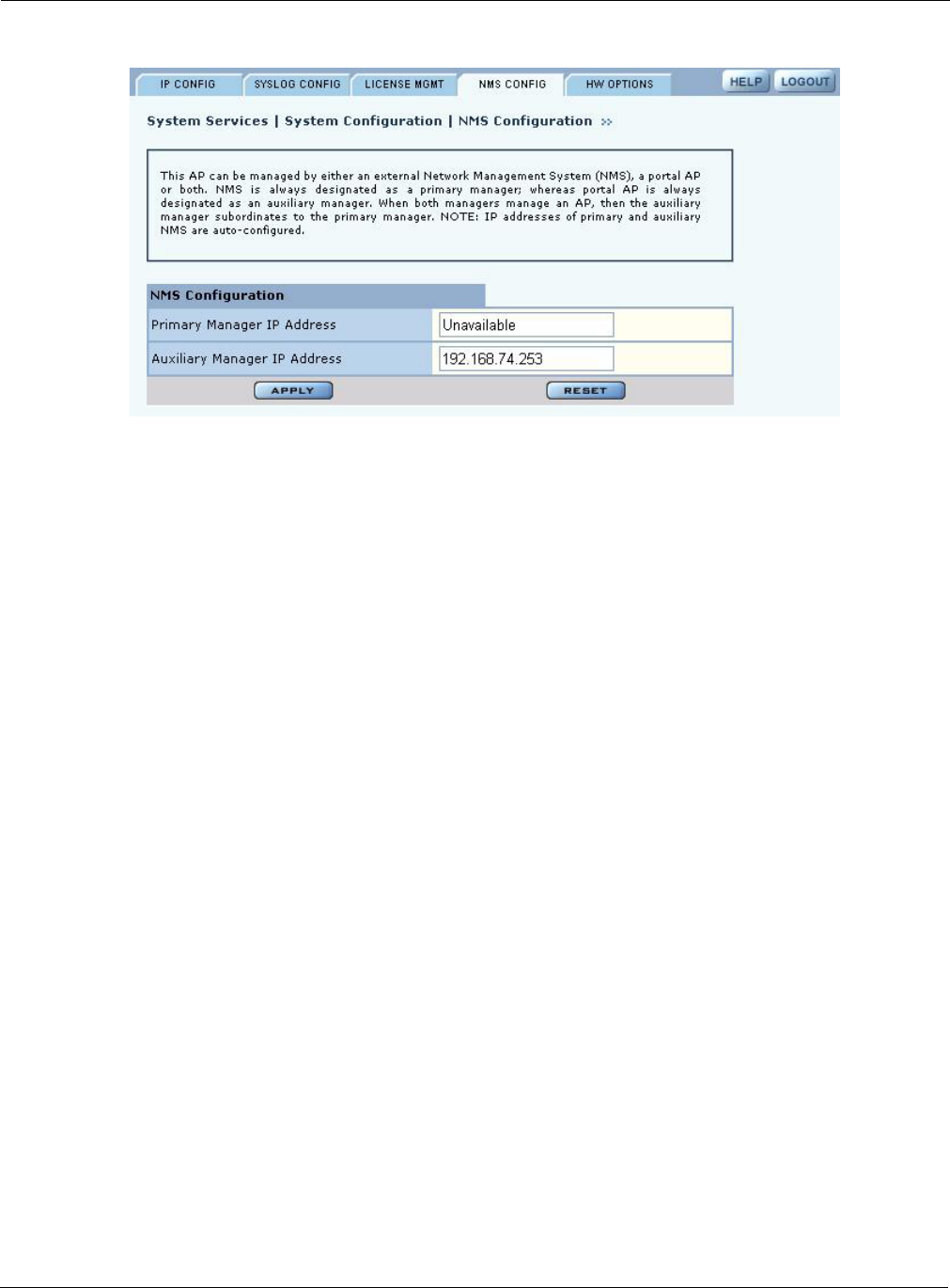

Figure 180: System Configuration - NMS Configuration
Enter the following values to set the NMS configuration:
Click Apply to save the entries or Reset to return to the previously saved values.
Hardware Options
Select HW Options (Figure 181) to set the buzzer and the real-time clock (RTC), which keeps
track of the date and time in the event that the AP loses power. This feature is not required if the AP
is always connected to the Internet.
Field Description
Primary Manager IP
Address
Enter the IP address of the NMS server responsible for managing the AP.
Auxiliary Manager IP
Address
If applicable, enter the IP address of the NM Portal AP used to manage the AP
at the branch location (in conjunction with an NMS Pro server as a primary
manager.
Managing the AP Configuration
Installation and User Guide: Airgo Access Point 245

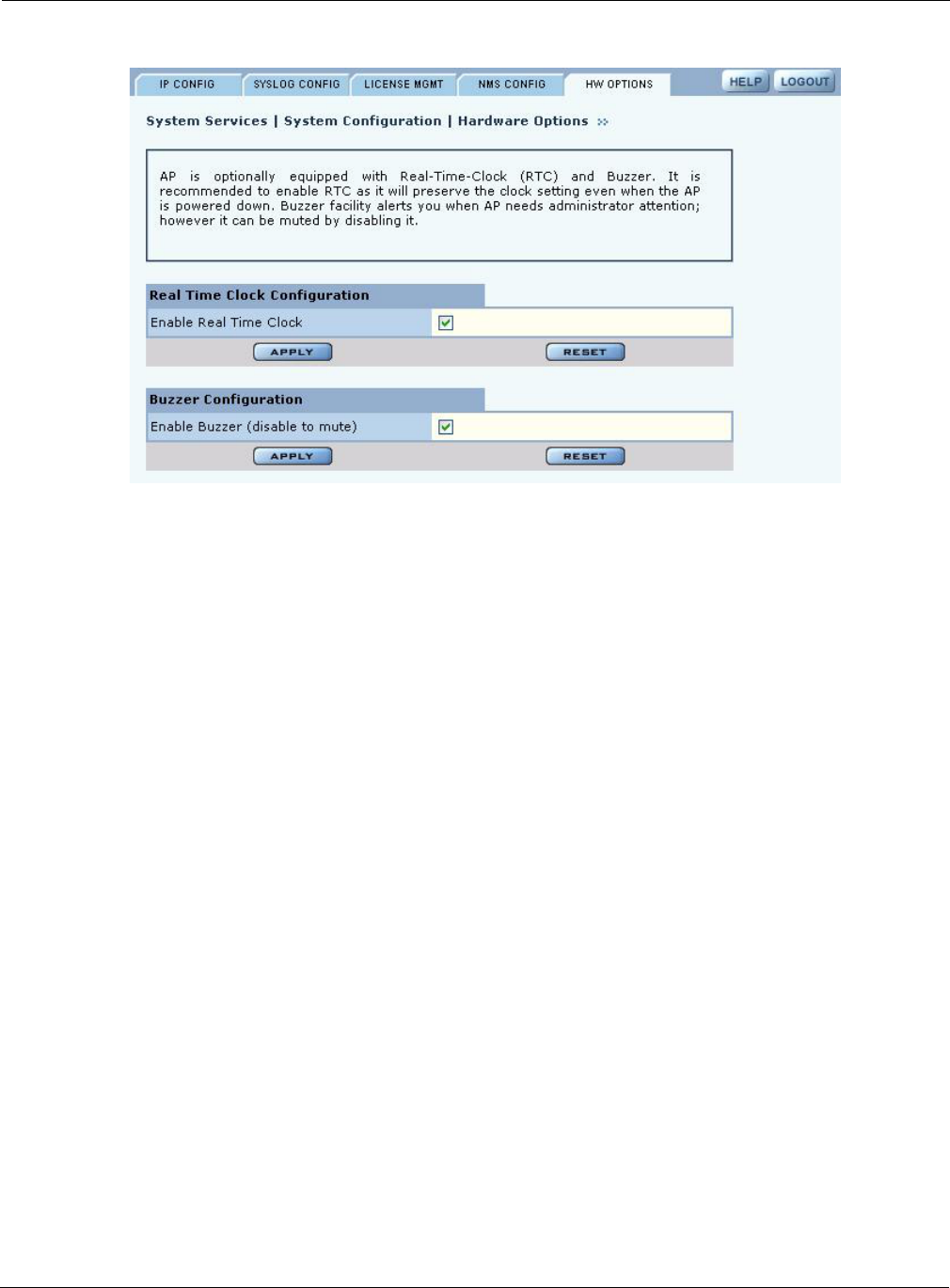

Figure 181: System Configuration - Hardware Options
Select the following parameters on this tab
Click Apply to save the entries or Reset to return to the previously saved values.
Managing the AP Configuration
Choose Configuration Management from the System Services menu to open the Configuration
Management feature panel. The panel contains the following tabs:
•Secure Backup — Use https to perform a secure backup of the AP configuration.
•Configuration Backup — Back up and restore configurations, export log files, and reset the AP
configuration to the factory defaults.
•Configuration Reports — View configuration reports for the AP.
•Reset Configuration — Revert to the factory default configuration, or reset specific subsystems
to default configuration.
Secure Backup
Perform the following functions on the Secure Backup tab (Figure 185):
Field Description
Enable Real Time Clock Use the real-time clock (RTC).
Enable Buzzer Activate the AP buzzer to locate the AP, if necessary.
Task Steps
Back up the AP
configuration using
https
1Click Save Configuration.
2When the configuration is generated, a hyperlink is displayed. Right-click
and select Save As to save the configuration locally.
3After the configuration file is saved, click Delete to remove the file from
the AP. The file takes up space in AP persistent storage, so it is
recommended that you remove it.
10 Maintaining the Access Point
246 Installation and User Guide: Airgo Access Point

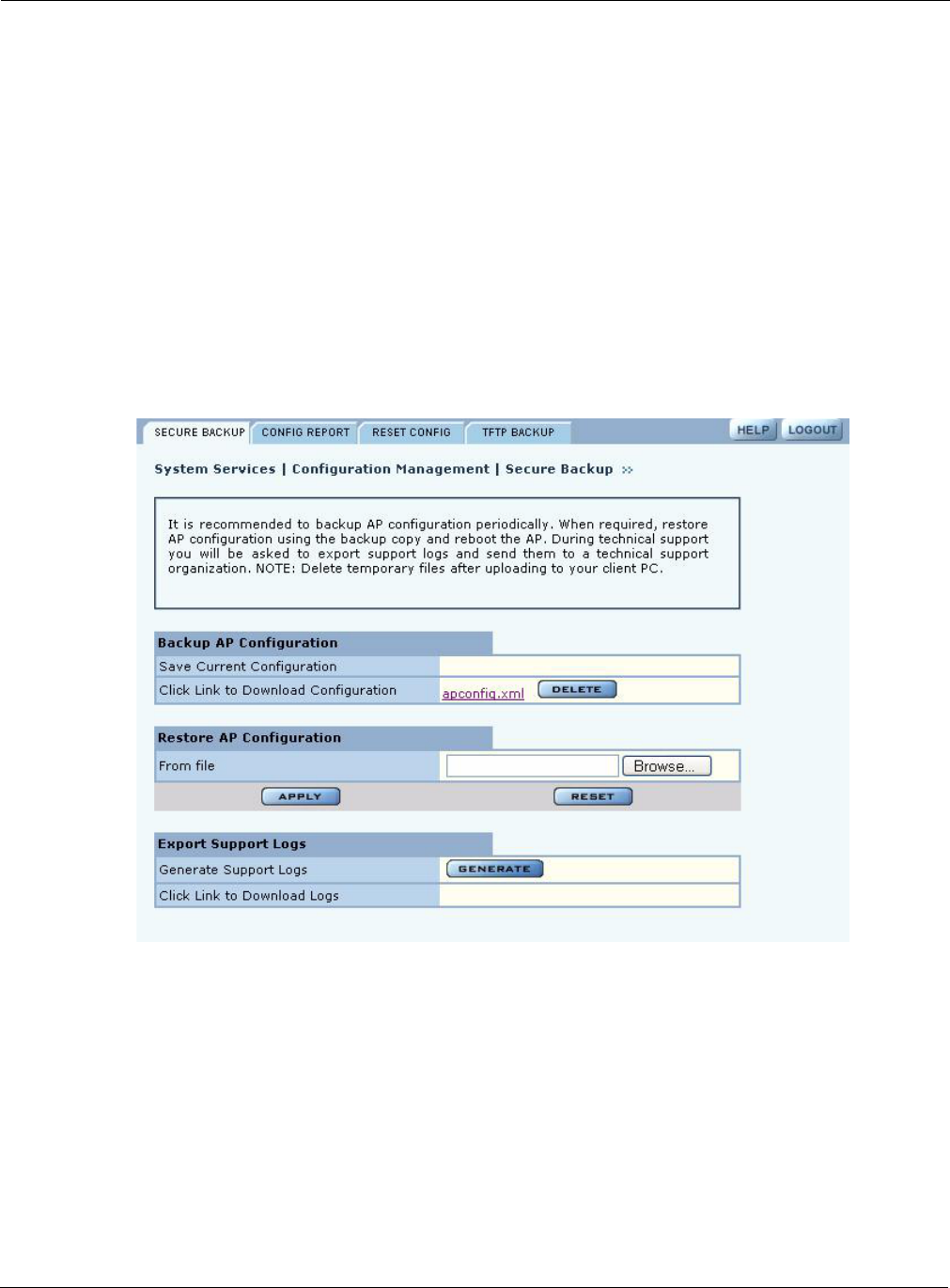

Figure 182: Configuration Management - Secure Backup
Secure Backups with NM Portal
Each NM Portal contains network and security databases in its persistent storage that should be
backed up periodically. Note that the Secure Backup function backs up only the configuration file
of the AP, whereas the secure backup capability in the NM Portal Network Management explorer
allows you to back up the security databases along with the configuration of the AP.
Restore the AP
configuration
1In the Restore Configuration area, click Browse and select the
configuration file.
2Click Apply to restore the configuration and reboot the AP.
NOTE: If the AP has been unenrolled or restored to factory defaults, it is not
possible to reapply the configuration using this method. The AP must be
reenrolled and have a new configuration created.
Generate support logs 1Click Generate Support Logs.
2When the configuration is generated, a hyperlink is displayed. Right-click
and select Save As to save the configuration locally.
3After the support logs file is saved, click Delete to remove the file from the
AP. The file takes up space in AP persistent storage, so it is recommended
that you remove it.
Task Steps
Managing the AP Configuration
Installation and User Guide: Airgo Access Point 247
If an NM Portal AP must be reset to factory defaults on a network with existing enrolled APs,
follow these steps to restore the Portal AP:
Configuration Reports
Select any of the following configuration reports on this tab (Figure 183):
Click Refresh to update the selected report
Condition Action
A backup of the NM
Portal AP exists and the
AP is functional
After resetting the Portal AP to factory defaults, bootstrap the AP as the
NM Portal. Make sure the AP is assigned the same IP address it had
originally. Restore the NM Portal Backup to the same AP. This should
restore the portal to its configured state.
A backup of the NM
Portal AP exists but the
AP is not functional
Use a functioning AP that has been reset to factory defaults and make
sure that this AP obtains the same IP address as the original NM Portal
AP. Bootstrap this AP as NM Portal and restore the portal backup. This
should produce a portal in the original configured state.
A backup of the NM
Portal AP does not exist
1Use an AP that is functional.
2Reset it to factory-defaults.
3Bootstrap it as a Portal AP.
4Reconfigure the Portal AP to the desired settings.
5Generate the Default Policy.
6Reset all other enrolled APs to factory defaults and re-enroll them in
the Portal AP. This would ensure that all re-enrolled APs obtain the
same default policy.
Report Description
startup-config Provides details on the configuration that is stored on the AP flash device and
used each time the AP reboots.
running-config Provides details on the current AP configuration, which may or may not
match the startup configuration.
default-config Lists the factory default settings shipped on the AP.
10 Maintaining the Access Point
248 Installation and User Guide: Airgo Access Point

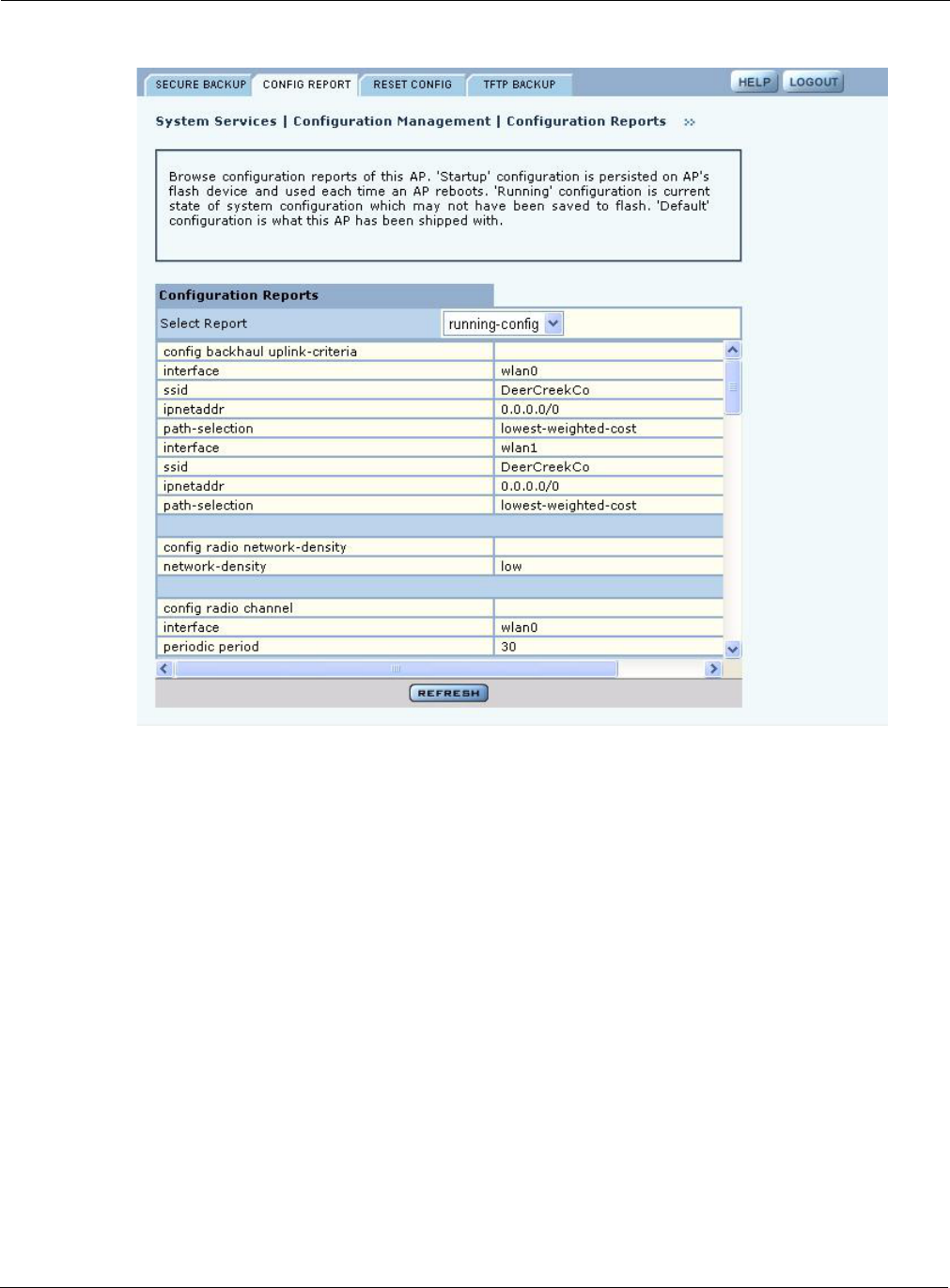

Figure 183: Configuration Management - Configuration Reports
Managing the AP Configuration
Installation and User Guide: Airgo Access Point 249
Reset Configuration
Use the Reset Configuration tab to reset the AP configuration or revert to the defaults for individual
subsystems (Figure 184).

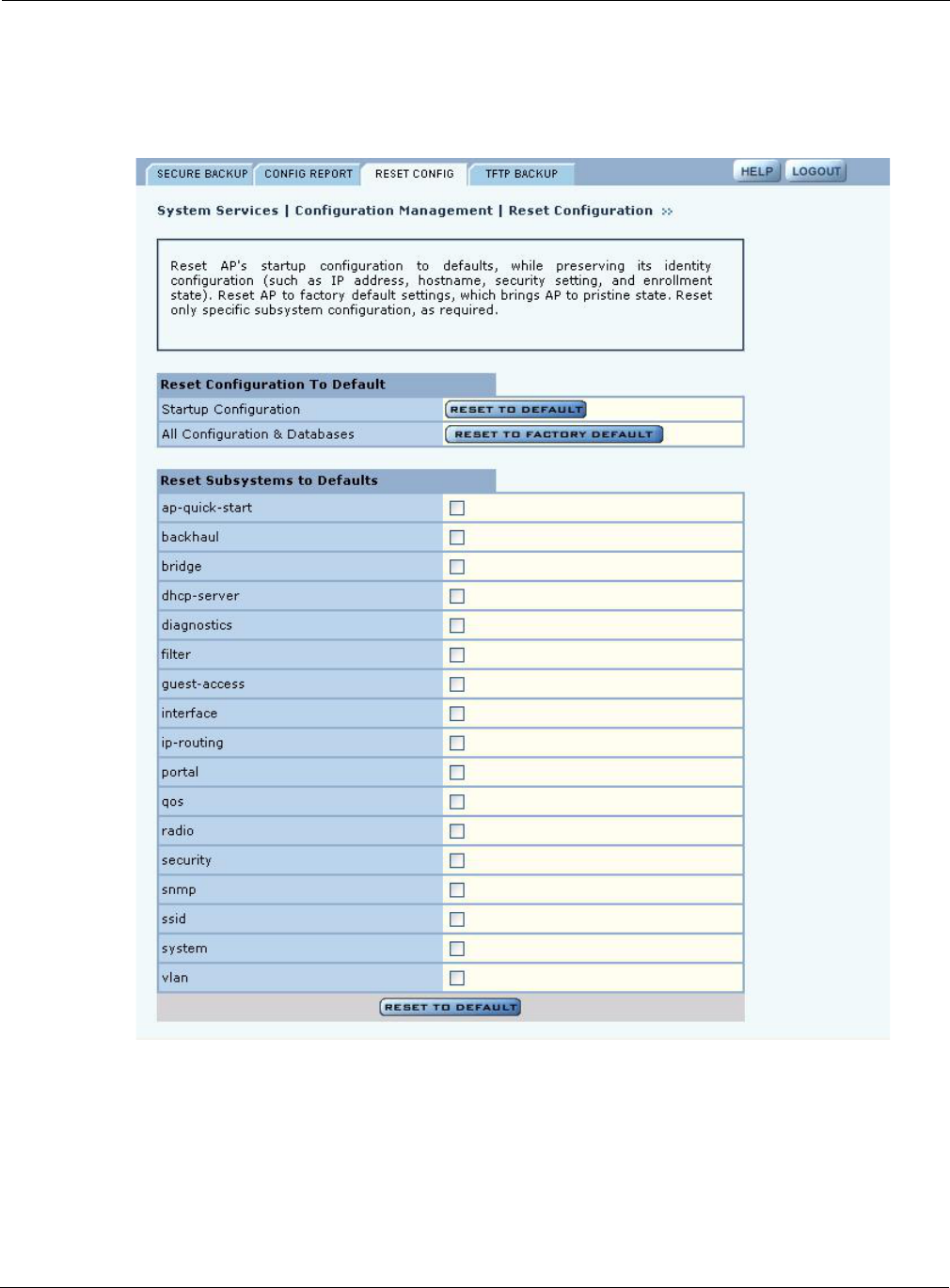

Figure 184: Configuration Management - Reset Configuration
10 Maintaining the Access Point
250 Installation and User Guide: Airgo Access Point
Perform the following functions on this tab:
Click Reset to clear the selections on the tab.
TFTP Backup
Use the TFTP Backup tab (Figure 185) to back up and restore configurations on an external TFTP
server. Perform the following functions on this tab:
The Reset buttons on the panel clear the field entries in the associated section.
Function Description
Reset Configuration to
Default
1Click Reset to Default or Reset to Factory Defaults.
2Click Apply to reboot the AP with the selected configuration.
Reset Subsystems to
Defaults
1Select one or more individual subsystems to reset.
2Click Apply to reboot the AP with the selected defaults.
Task Steps
Save configuration 1Indicate whether to save the AP configuration each time a Save
operation is done.
2Click Apply. Click Save Configuration to save the current settings
on demand.
Back up the
configuration to a TFTP
server
1Enter the IP address of the TFTP server.
2Enter or confirm the configuration file name.
3Click Apply to restore the configuration and reboot the AP.
NOTE: If the AP has been restored to factory defaults, it is not possible to
reapply the configuration using this method. The AP must be reenrolled and a
new configuration created.
Restore the
configuration
1Enter the IP address of the TFTP server.
2Enter or confirm the name of the configuration file.
3Click Apply.
Export support logs 1Enter the IP address of the TFTP server.
2Enter or confirm the name of the log file.
3Click Apply.
NOTE: When you use a TFTP-based software download or restore backed-up
configuration, use caution to select the correct file. If a very large file is chosen for
download, then the TFTP client on the AP may consume all available free memory. If
the correct file is chosen, AP performs a consistency check prior to consuming the file
and saving it in the AP.
Upgrading Software
Installation and User Guide: Airgo Access Point 251

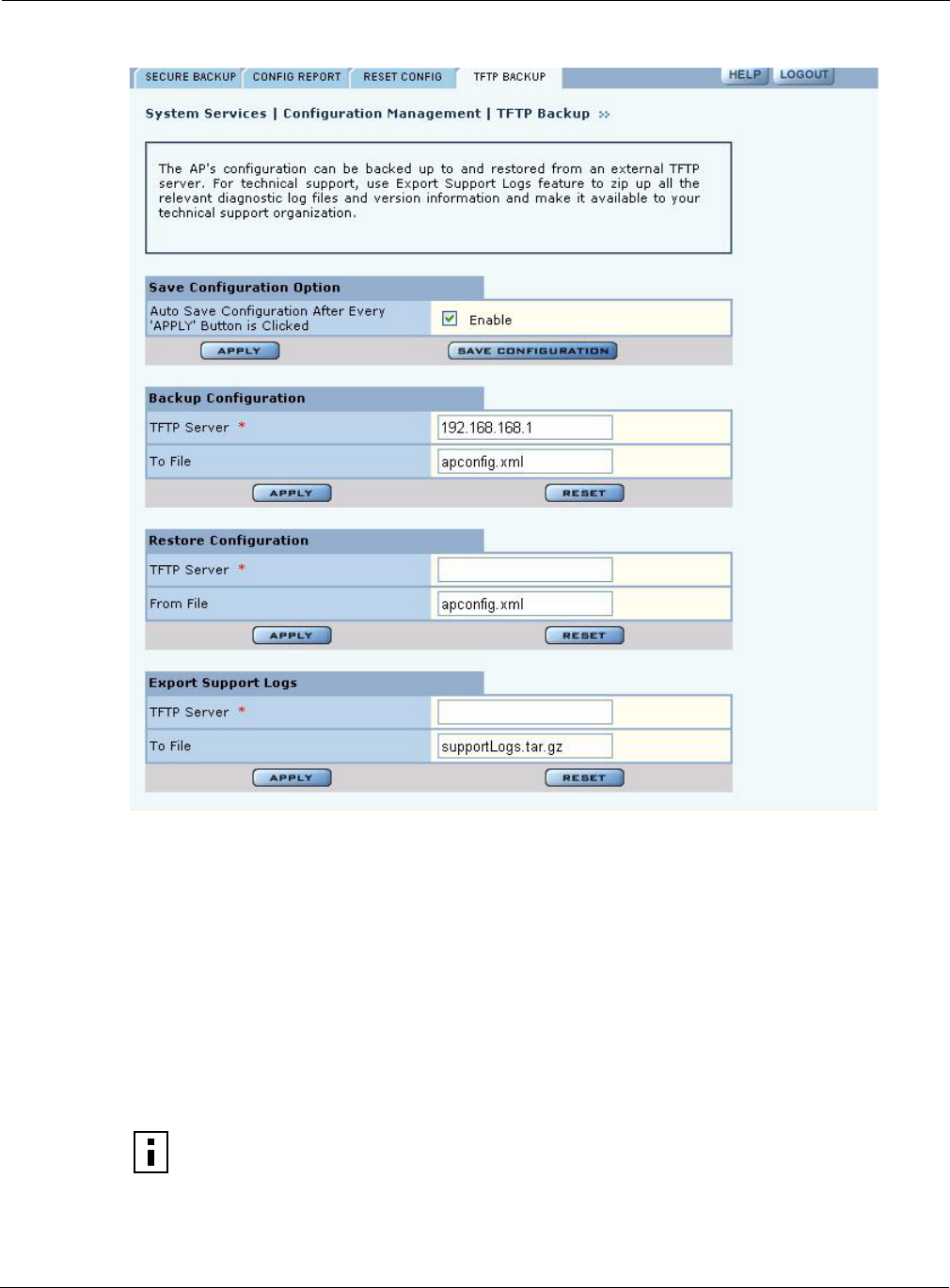

Figure 185: Configuration Management - TFTP Backup
Upgrading Software
From the NM Portal web interface, you can upgrade the software on enrolled APs throughout the
network in one operation. You can also upgrade any individual, non-portal AP from the AP web
interface. The same interface is used for both situations; however, access to the interface is different
for an NM Portal than for a non-portal AP.
•If the AP is an NM Portal, click Manage Wireless Network to open the NM Portal interface,
and then choose Admin Tools > Software Upgrade to open the Software Upgrade panel
(Figure 186).
•If the AP is a non-portal AP, choose Admin Tools > Software Upgrade to open the Software
Upgrade panel.
NOTE: The AP license file is not affected by software upgrades. The existing software
license remains valid after the AP software is upgraded.
10 Maintaining the Access Point
252 Installation and User Guide: Airgo Access Point
Figure 186: Software Upgrade
The Software Upgrade panel offers two upgrade options. The Software Image Upgrade option uses
https to download the software image to the AP. The Software Download via TFTP option uses
TFTP to download the software image. Select only one of these options; it is not possible to use
both methods at the same time.
The software upgrade process for an NM Portal consists of the following three steps:
If you are upgrading a non-portal AP or using TFTP as the download method, then the staging,
selection, and distribution steps happen as a single process that cannot be interrupted once it begins.
If you use the Software Image Upgrade selection in NM Portal, then staging, selection, and
distribution are separate steps that can be monitored and canceled if needed.
Software Image File
The AP software image file conforms to a specific format that uses the filename extension.img.
During download, the filename extension and structure are verified and the download is stopped if
a problem with the file is detected.
Upgrading the AP Software
This section provides information for upgrading AP software using both the TFTP and https
software download options. It is important to perform software upgrades during a scheduled
maintenance window. Upgrading takes approximately four to five minutes per AP, and upgrading
multiple APs from an NM Portal is a serial process. To manage system resources during a software
Step Description
Staging The software image is downloaded to the Airgo AP.
Selection APs are selected for software upgrade.
Distribution The software upgrade image is distributed to the selected APs and installed.
The AP is then rebooted.
Upgrading Software
Installation and User Guide: Airgo Access Point 253
upgrade, the AP shuts down some services (such as CLI sessions) to create temporary memory and
to validate the image prior to writing to AP's flash.
Upgrade Using https Download - Individual Non-Portal AP
To upgrade a non-portal AP using https download:
1Choose Admin Tools > Software Upgrade.
2Browse to select the .img software image file.
3Click Download.
A confirmation dialog appears asking you to confirm the software download.
4Click OK.
The software image is downloaded to the AP, the AP software image is upgraded, and the AP is
automatically rebooted.
Upgrade and Distribution Using https Download - NM Portal AP
To upgrade APs from NM Portal using https download:
1Choose Admin Tools > Software Upgrade.
2Browse to select the .img software image file.
3Click Download.
A confirmation dialog asks you to confirm the software download.
4Click OK.
The system verifies the filename extension and header information. When successful, the
Software Download Status panel opens (Figure 187). Staging is now complete.
5Select the APs to receive the upgrade.
6Click Distribute.
A confirmation dialog asks you to confirm that the upgrade should now begin.
7Click OK.
NOTE: When you distribute software from NM Portal to enrolled APs, the software
distribution retries three times on each of the APs selected. Some management services
on the NM Portal AP are shut down to make room for the new image distribution. The
NM Portal AP runs through entire list of selected APs before it restarts management
services. Therefore, it is best to perform software distribution when it is least disruptive
to the network. Each AP upgrade can take up to two to three minutes.
Since NM Portal restarts services only after distribution is complete, you must explicit
reboot the NM Portal if software distribution is interrupted.
CAUTION: Do not leave the Software Upgrade panel while download is taking place.
If you click on another menu item during download, the download process is canceled.
10 Maintaining the Access Point
254 Installation and User Guide: Airgo Access Point
Figure 187: Software Upgrade - Download Status
The software distribution process begins by sending the software to the first selected AP. As soon
as this AP receives the software, it upgrades its image and reboots automatically. The process then
moves to the next selected AP. After all the APs have been upgraded, the NM Portal AP is
upgraded and rebooted. The administrator must again log in to the NM Portal web interface after an
upgrade and reboot.
Upgrade Using TFTP Download
To upgrade an NM Portal or non-portal AP using TFTP download:
1Choose Software Upgrade from the Admin Tools menu.
2Enter the IP address of the TFTP server.
3Enter the name of the image file on the TFTP server. The default file is
target.ppc.ani.img, under the boot directory of the TFTP server. Relative paths can
be used when specifying the file name.
4Click Apply.
A pop-up message asks for confirmation that you want the upgrade to begin.
5Click OK.
The download process begins. Every 10 seconds the screen is updated with new status
information. If the download is successful, the AP is automatically rebooted with the new
software image. If the download is unsuccessful, an explanatory message is displayed in the
Download Status column.
Upgrading Software
Installation and User Guide: Airgo Access Point 255
Canceling a Distribution
To cancel software distribution at any time, you must click Cancel All. This cancels distribution to
APs that have not yet been upgraded, restarts services that were shut down during the upgrade, and
removes the image file from the AP RAM. Cancellation is performed serially for multiple AP
distributions. Canceling during distribution does not damage the APs. If the distribution on a
remote AP is cancelled, the AP will be automatically rebooted. You can cancel distribution to an
individual AP at any time except when the status is Updating Flash … Error, or Done (Rebooting).
If you leave the Software Upgrade panel before the distribution is complete without clicking the
Cancel All, software distribution continues in the background, but it is not possible to return to the
Distribution Status page.
Download Status
During distribution, the Download State column displays the current status of the distribution
process (see Figure 187).
Status information is automatically updated every 10 seconds. The status information shows clearly
the stage of the distribution process and identifies any problems. Table 17 lists the possible status
values and their meaning.
Status Explanation
Not scheduled This AP has not been scheduled to receive a software update.
Scheduled The update has been ordered for this AP, but has not yet begun.
Canceling A request has been made to cancel the distribution; however, the request is not
complete. For example, this message is displayed if a request has been made
to cancel distribution to an AP waiting its turn in the distribution list.
Canceled Distribution to the AP is canceled.
AP Unreachable The enrolled AP is not reachable for distribution.
Retrying 1, Retrying 2 If communication with the AP is lost during distribution, the process waits for
two minutes and then retries the distribution. Three retries are attempted
before the process stops and an error message is presented. Retrying 1 and
Retrying 2 status represent the first and second retries. Retries may occur, for
example, during upgrade of backhaul APs, if the radio signal is temporarily
lost and retrunking is required.
There is a timeout of two minutes between retries. With a total of three retries,
it can take up to 10 minutes before a distribution on an AP is deemed to be in
error.
The message changes to In Progress .. (XX %) when the retry actually starts.
In Progress .. (XX %) Upgrade is underway on the AP and is XX% complete.
Error All retries have finished and the AP could not be upgraded due to some
internal error.
Unknown An unknown error has occurred.
Image Integrity Error The image has passed the compatibility test but failed the integrity check after
the distribution, but before the flash update.
Updating Flashing ... Image distribution is complete and it is being saved onto the AP's persistent
storage.
10 Maintaining the Access Point
256 Installation and User Guide: Airgo Access Point
When the distribution is complete, the message Software Distribution is Complete is displayed,
regardless of whether the distribution was successful. If a portal AP is not included in the
download, all services are restarted automatically after the distribution.
Image Recovery
During the upgrade process, care is taken to validate the image integrity and compatibility with AP
hardware. If a new image is successfully upgraded but fails to initialize during subsequent reboot,
AP automatically performs a “safe” boot from the backup partition.
Common Problems and Solutions
Table 17 lists common problems that can occur along with recommended solutions.
Done. Rebooting The flashing is complete and the AP is rebooting.
Status Explanation
Table 17: Common Problems and Solutions
Symptom Problem Solution
AP power and Ethernet
Link LEDs are off
Power is off or unconnected Check the power connection to make sure
it is plugged in. Also check the power
outlet. If necessary, plug some other
appliance into the outlet to verify power.
AP power LED is on,
but the Ethernet Link
LED is off
Ethernet cable is unconnected or
unable to access the LAN
Check the Ethernet cable connection
between the AP and network port.
Make sure to use a regular CAT-5
standard Ethernet cable, and not a
crossover cable (usually used for uplinks
between switches and routers). If in
doubt, swap the cable for a known,
working cable.
If the port is non-functional, it may be
necessary to use another working network
port.
Unable to configure the
Access Point through the
web browser interface
Computer is unable to reach the
Access Point over the local area
network (LAN)
Check to make sure the AP power LED is
on.
Check the Ethernet cable connections to
both the computer and to the AP.
Make sure the network adapter in the
computer is working properly.
Check to see whether the IP address is on
the same subnet as the AP. Make sure you
are accessing the AP using https:// and not
http://.
Common Problems and Solutions
Installation and User Guide: Airgo Access Point 257
Poor or lower than
expected signal strength,
as measured by wireless
network adapters
attempting to connect to
the AP
The AP may be poorly placed, or
external antenna may not be
connected properly.
The AP and/or its external antenna should
not be in an obstructed location. Metallic
objects (such as equipment racks) and
some construction materials can block
wireless signals. If this is the case,
reposition the Access Point(s) and/or any
external antennae to be free of these
obstructions.
If using an external antenna, also make
sure it is connected securely to the AP.
Table 17: Common Problems and Solutions (continued)
Symptom Problem Solution
