Airspan Networks H4K700 Base station of LTE fixed cellular sys User Manual AirHarmony 4000 DC Integrated External Duplexers
Airspan Networks Inc Base station of LTE fixed cellular sys AirHarmony 4000 DC Integrated External Duplexers
Users Manual
AirHarmony-4000 DC Installation Guide
Integrated External Duplexers
Part Number: UGD-D01123
System Release: 15.0
Revision: A
Published: August 2016
© Copyright by Airspan Networks Ltd., 2016-2016. All rights reserved worldwide.
Legal Notices
The information contained within this document is proprietary, privileged and intended only for the recipient. As such, the
information is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any
specific agreements protecting Airspan Networks Ltd. rights in the aforesaid information. Neither this document nor the
information contained herein may be published, reproduced, transmitted or disclosed to third parties, in whole or in part,
without the express, prior, written permission of Airspan Networks Ltd. In addition, any use of this document or the
information contained herein for the purposes other than those for which it is disclosed is strictly forbidden.
Airspan Networks Ltd. reserves the right, without prior notice or liability, to make changes in equipment design or
specifications.
Information supplied by Airspan Networks Ltd. is believed in good faith to be accurate and reliable, while every care has
been taken in preparing these documents. However, Airspan Networks Ltd. does not make any representations and gives
no warranties of whatever nature in respect of these documents, including without limitation, the accuracy or
completeness of any information, facts and/or opinions contained therein. No responsibility is assumed by Airspan
Networks Ltd. for the use of the documents nor for the rights of third parties which may be effected in any way by the use
thereof. The provision of these documents (and the documents themselves) does not constitute professional advice of any
kind. Any representation(s) in these documents concerning performance of Airspan Networks Ltd. product(s) are for
informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks
Ltd., its affiliates, directors, employees and agents shall not be held liable for any damages or losses, of any nature
whatsoever, arising from any use of and/or reliance on the documents.
These documents may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in
relation thereto unless specifically undertaken in Airspan Networks Ltd. sales contract or order confirmation. Information
contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have
encountered an error, please notify Airspan Networks Ltd.
Product performance figures quoted within this document are indicative and for information purposes only.
UK WEEE Registration number: WEEE/AB0207WZ. For more information, see WEEE Information for Airspan
Customers and Recyclers.
Acknowledgements
© Intel Corporation http://www.intel.com/
© Microsoft Corporation http://www.microsoft.com
UGD-D01080 Airspan Commercial and Internal Use i
Table of Contents
Document Information ...................................................................................... 1
Abstract ................................................................................................................................. 1
Revision History ..................................................................................................................... 1
Warnings and Cautions ...................................................................................... 2
Human Exposure to Radio Frequencies ................................................................................ 2
Radio Interference ................................................................................................................ 2
Modifications ........................................................................................................................ 2
General .................................................................................................................................. 2
Important Safety Instructions ......................................................................................... 3
Safety ..................................................................................................................................... 3
Warning of Hazardous Voltages ............................................................................................ 3
Adherence to European Directive 1999/5/EC ....................................................................... 4
Warning Symbols .................................................................................................................. 4
Service Information ............................................................................................................... 4
UL Information ...................................................................................................................... 5
Lightning Protection .............................................................................................................. 5
Outdoor Ethernet Cabling ..................................................................................................... 5
DECLARATION OF CONFORMITY ........................................................................................... 6
GPS Compliance .................................................................................................................... 7
Maximum Output TX Total Power ...................................................................... 7
Power Consumption – Supply and Current ........................................................................... 8
Antenna System .................................................................................................................... 9
External Antenna ................................................................................................................... 9
About This Document ...................................................................................... 10
Purpose ............................................................................................................................... 10
Intended Audience .............................................................................................................. 10
Document Conventions ....................................................................................................... 10
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use ii
Document Organization ...................................................................................................... 12
Related Reading .................................................................................................................. 12
Customer Care Help Desk ................................................................................ 13
Airspan Encourages Comments .......................................................................................... 13
1 Introduction ................................................................................................. 14
1.1 AirHarmony-4000 ........................................................................................................ 14
1.2 Deployment ................................................................................................................. 14
1.3 Related AirHarmony 4000 DC INT EXT Variants .......................................................... 16
2 Getting Started ............................................................................................ 17
2.1 Workflow of Installation .............................................................................................. 17
2.2 AirHarmony-4000 DC INT EXT Installation Checklist ................................................... 18
3 Verifying Prerequisites ................................................................................. 18
3.1 Verifying Site Requirements ........................................................................................ 18
3.2 Verify Installation Requirements ................................................................................. 18
3.2.1 Verify the Tools ........................................................................................................... 18
3.2.2 Verify the Parts and Kits .............................................................................................. 19
3.2.3 Power Supply and Current .......................................................................................... 20
3.2.4 Panels .......................................................................................................................... 22
3.2.5 Physical Dimensions .................................................................................................... 23
3.2.6 Environmental ............................................................................................................. 23
4 Installing AirHarmony-4000 DC INT EXT ....................................................... 25
4.1 Connecting the GPS Antenna ...................................................................................... 25
4.2 Pole/Wall Mount Assembly ......................................................................................... 25
4.2.1 Mounting on a Wooden Pole ...................................................................................... 26
4.2.2 Mounting on a Non-Wooden Pole .............................................................................. 28
4.2.3 Mounting on a Wall ..................................................................................................... 29
4.3 Securing AirHarmony-4000 to the Mounting Plate ..................................................... 31
5 AirHarmony-4000 DC INT EXT Connections .................................................. 35
5.1 Grounding .................................................................................................................... 35
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use iii
5.2 Remote Antenna Assembly ......................................................................................... 35
5.2.1 Connecting RF Jumper Cables to External Antenna .................................................... 35
5.2.2 Weather-proofing the Antenna Connections ............................................................. 36
5.3 Cable Connections ....................................................................................................... 36
5.3.1 Copper Ethernet Cable Assembly ................................................................................ 36
Hardware Requirements ........................................................................................................ 36
Assembly Instructions ............................................................................................................. 36
5.4 Fiber Ethernet (SFP) Cable Installation ........................................................................ 37
5.4.1 SFP Cable Connection .................................................................................................. 38
5.5 Connecting the DC Power Cable to AirHarmony-4000 DC INT EXT ............................. 39
5.5.1 Connecting the DC Power Cable to AirHarmony ......................................................... 40
5.5.2 AC/DC Power Converter – Optional ............................................................................ 41
A Job Sheet ..................................................................................................... 42
B Abbreviations ............................................................................................... 43
Figures
Figure 1: AirHarmony-4000 DC INT EXT with Integrated External Duplexers......................................... 9
Figure 2: AirHarmony-4000 DC INT EXT ................................................................................................ 15
Figure 3: Workflow................................................................................................................................ 17

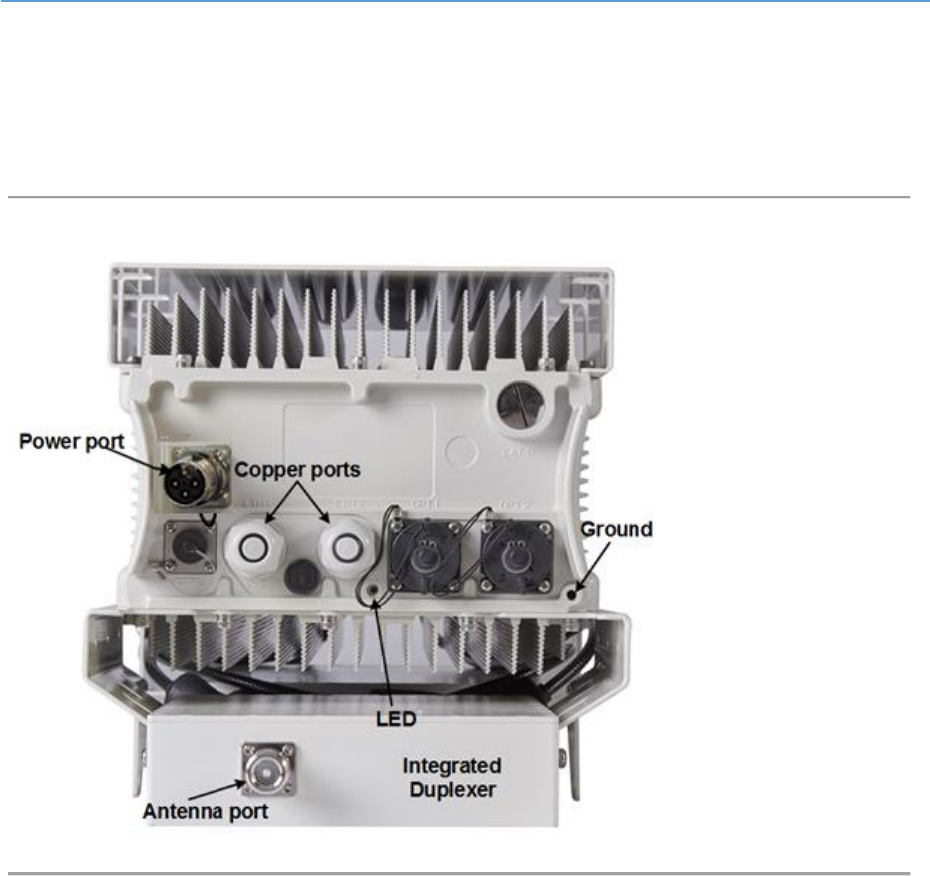

Figure 4: AirHarmony-4000 DC INT EXT Unit, Bottom panel ................................................................ 22
Figure 5: AirHarmony-4000 DC INT EXT Unit, Top panel ...................................................................... 23

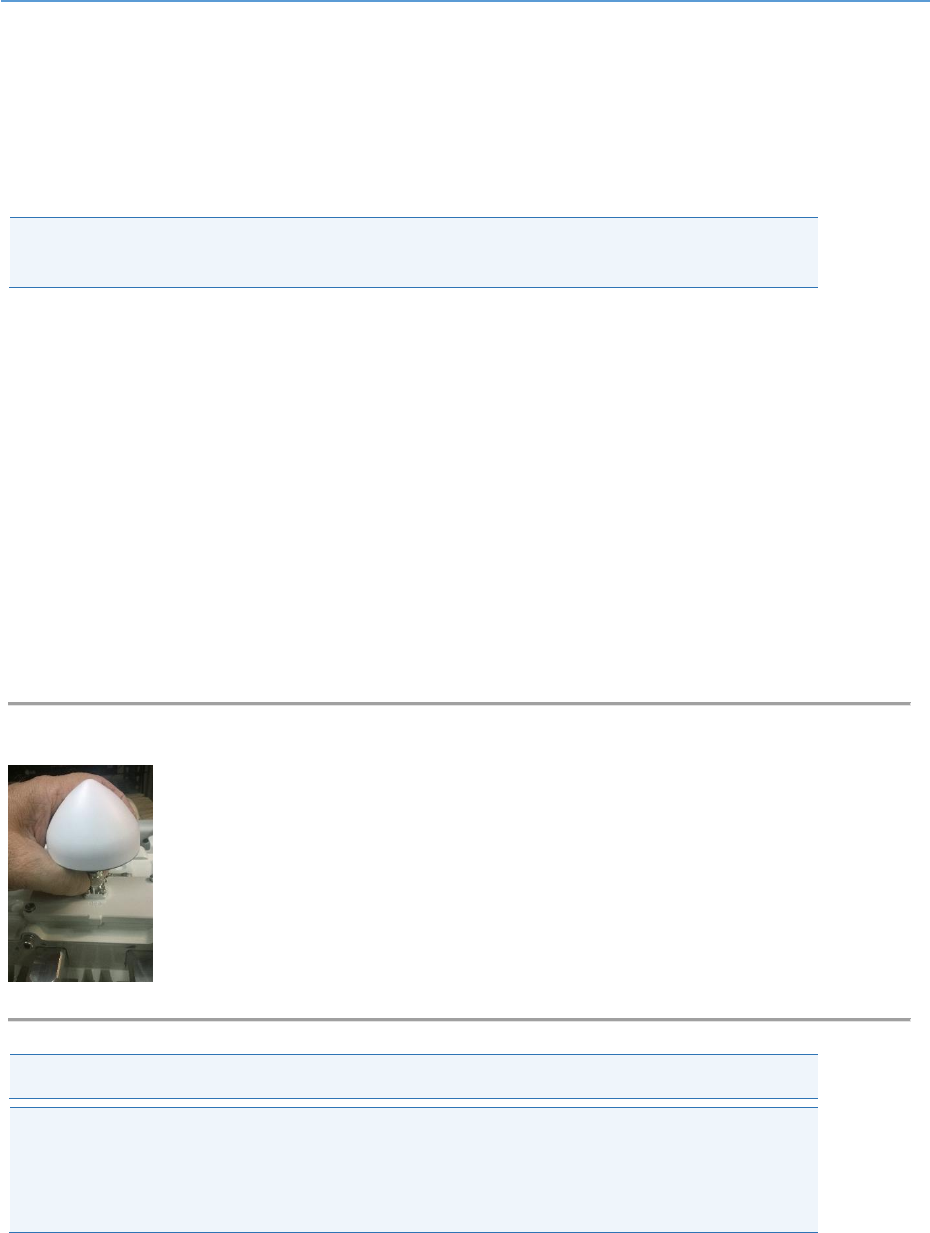

Figure 6: Attaching GPS antenna to unit ............................................................................................... 25

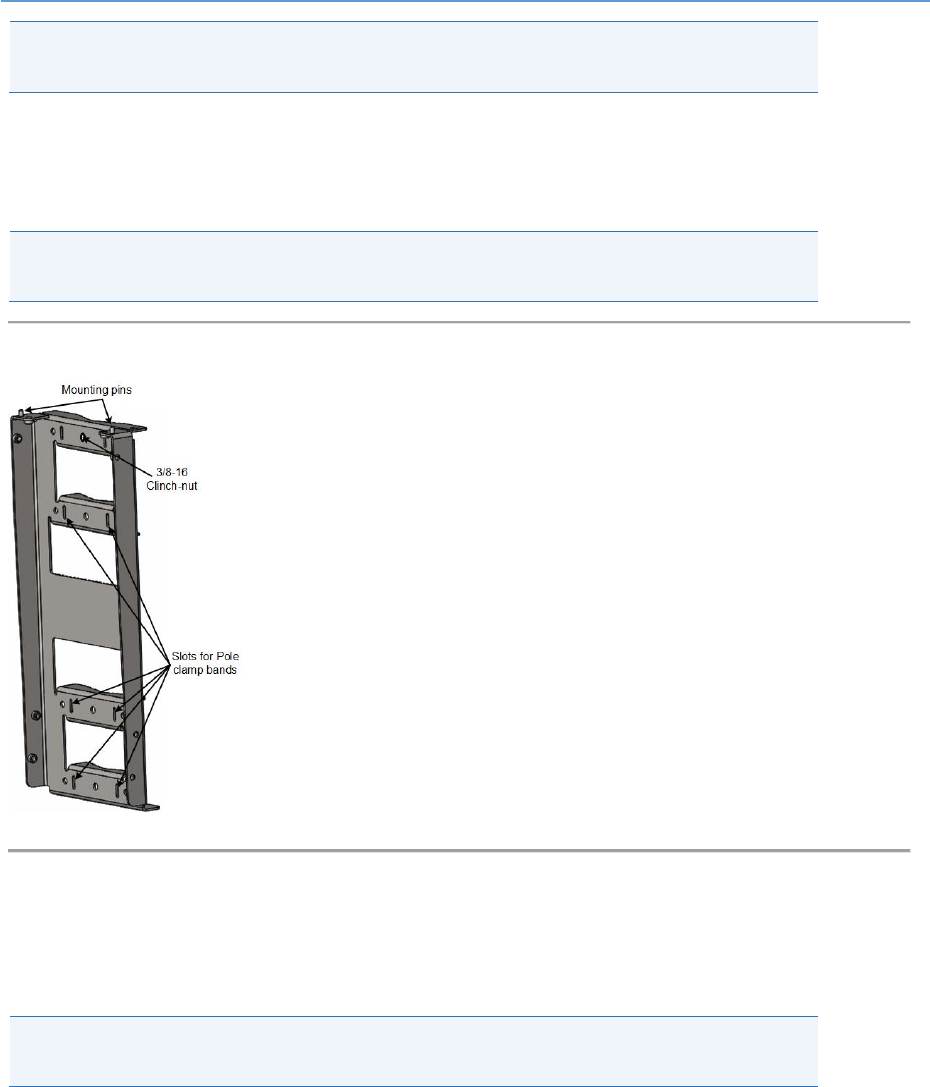

Figure 7: Pole/Wall mounting plate ...................................................................................................... 26

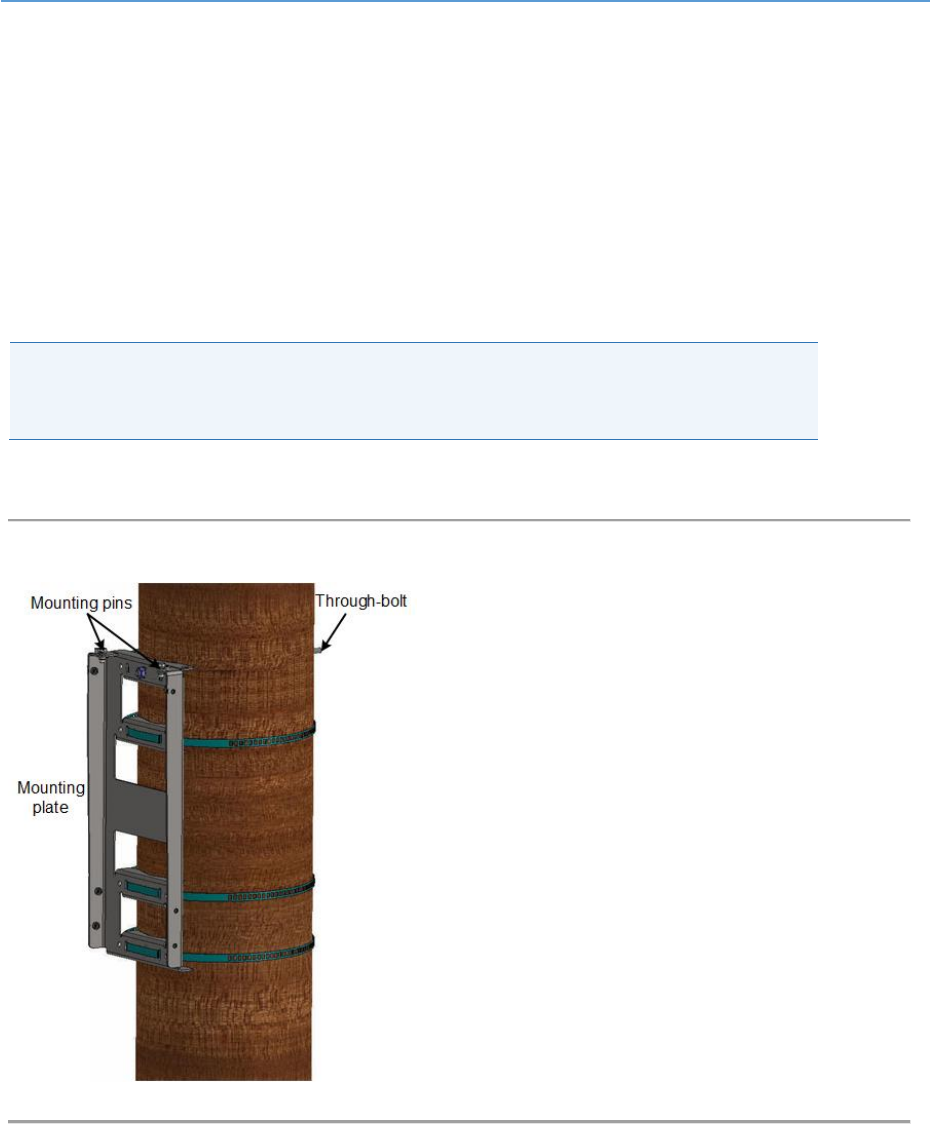

Figure 8: Mounting plate on pole ......................................................................................................... 27
Figure 9: Through-bolt & Mounting plate ............................................................................................. 28
Figure 10: Pole/Wall mounting plate (w/o bolt) ................................................................................... 28
Figure 11: Mounting plate mounted ..................................................................................................... 29

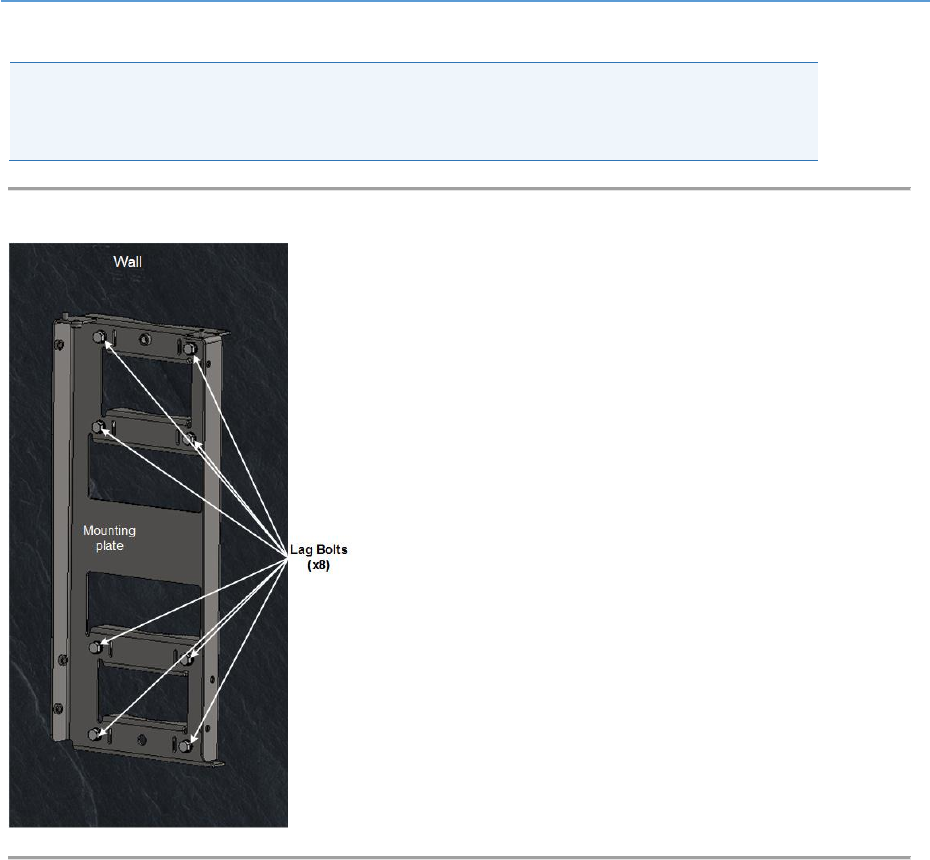

Figure 12: Mounting Plate on Wall ....................................................................................................... 30

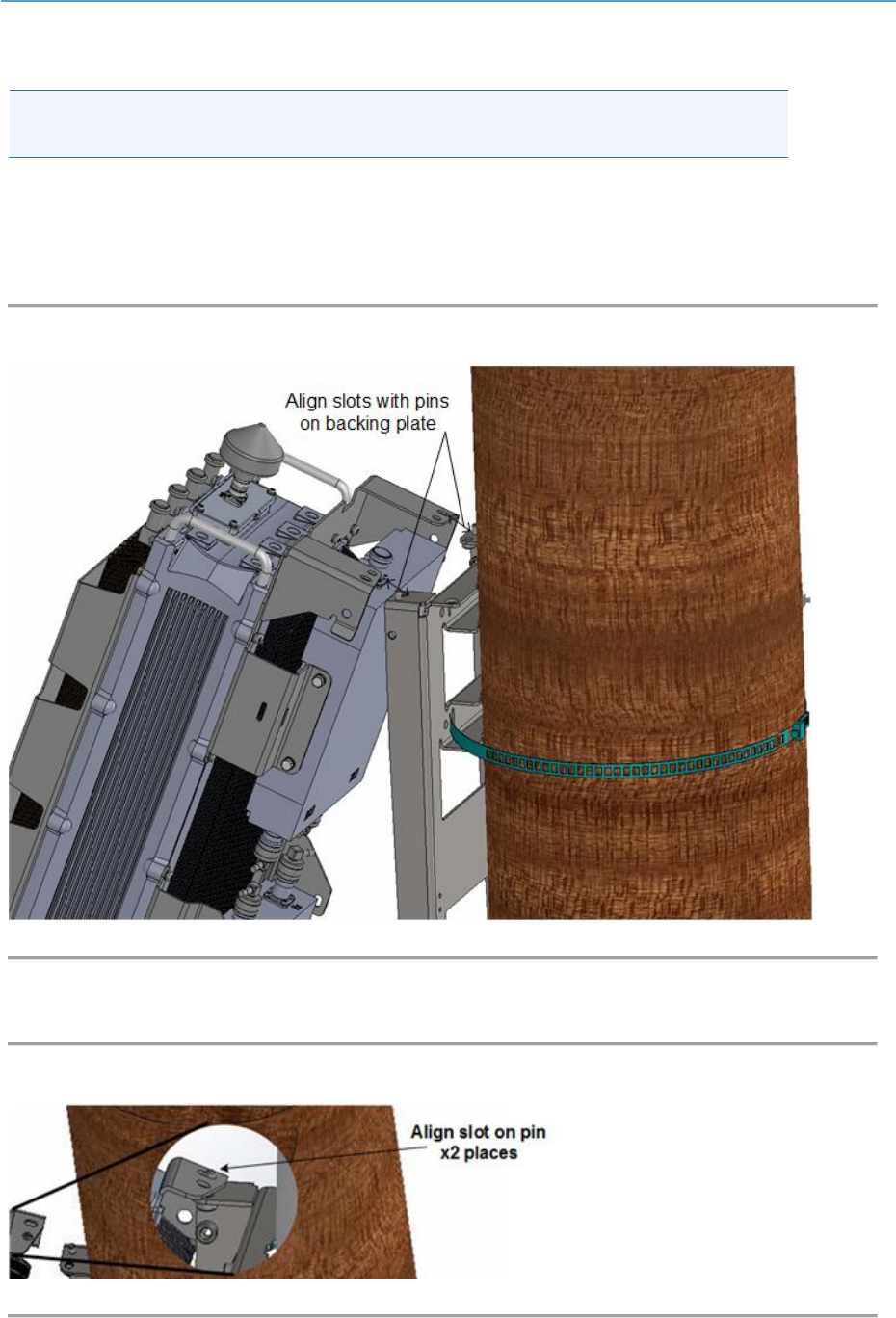

Figure 13: Lift unit and fit the slotted holes unto studs on top of mounting plate .............................. 31
Figure 14: Align Pins .............................................................................................................................. 31

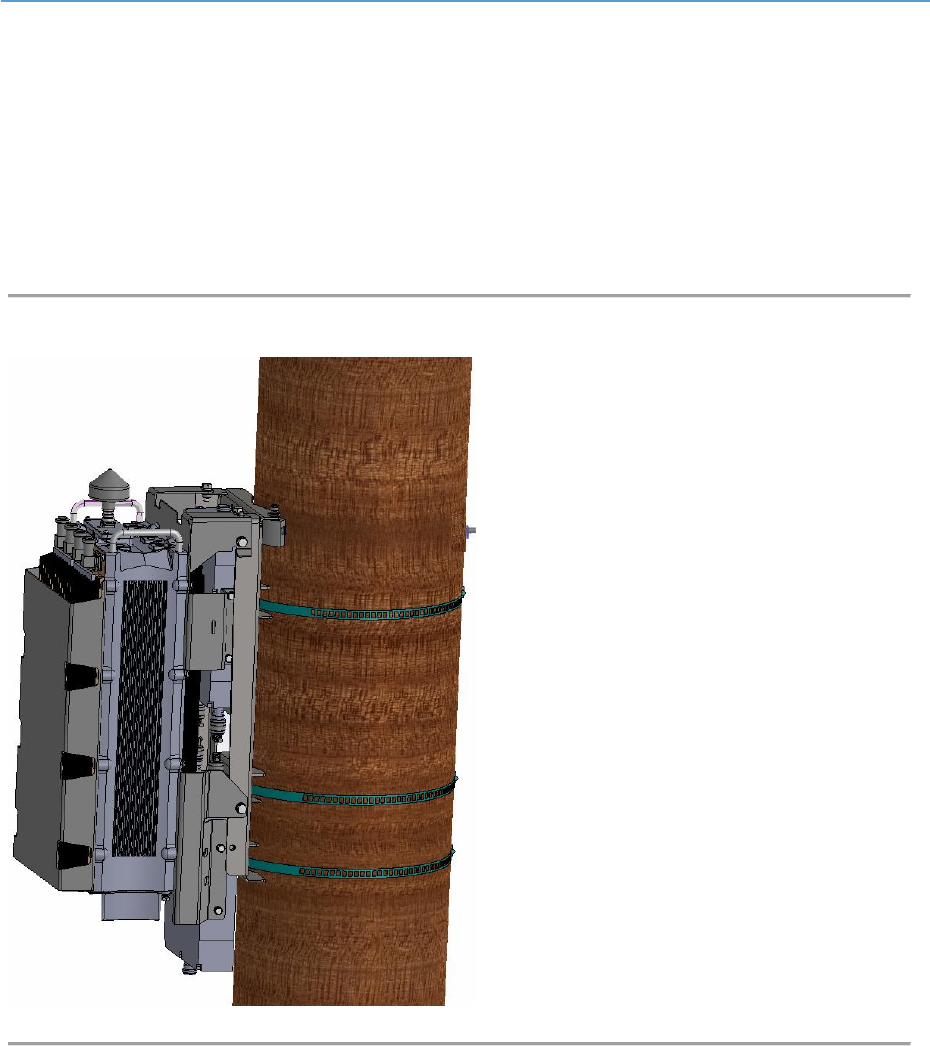

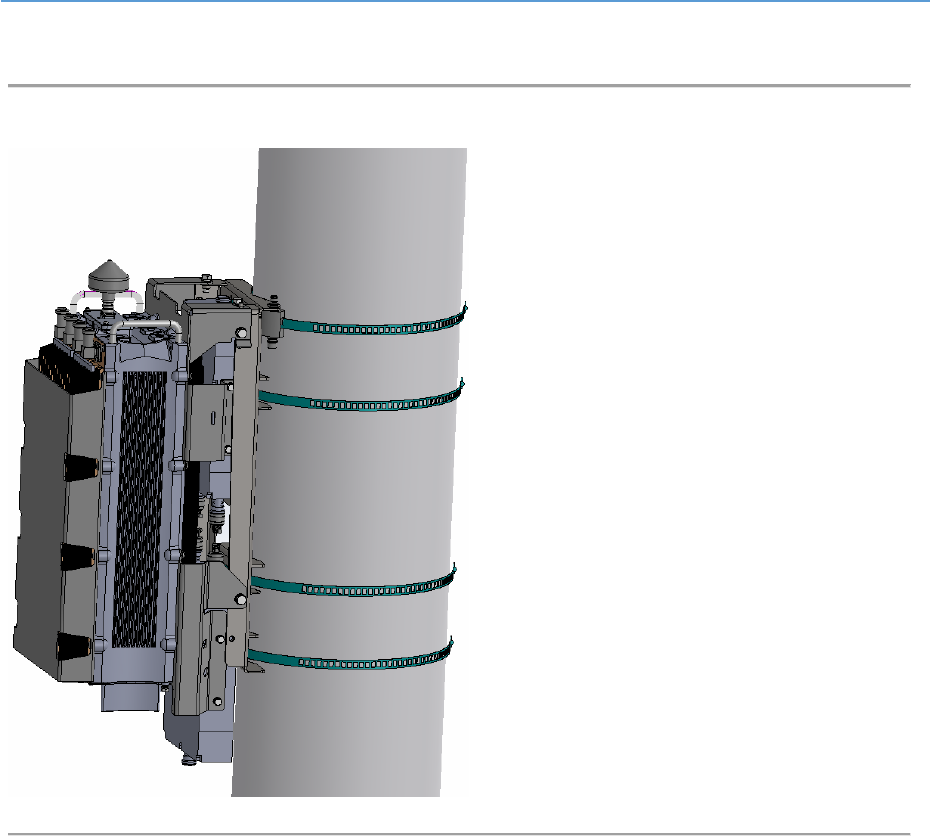

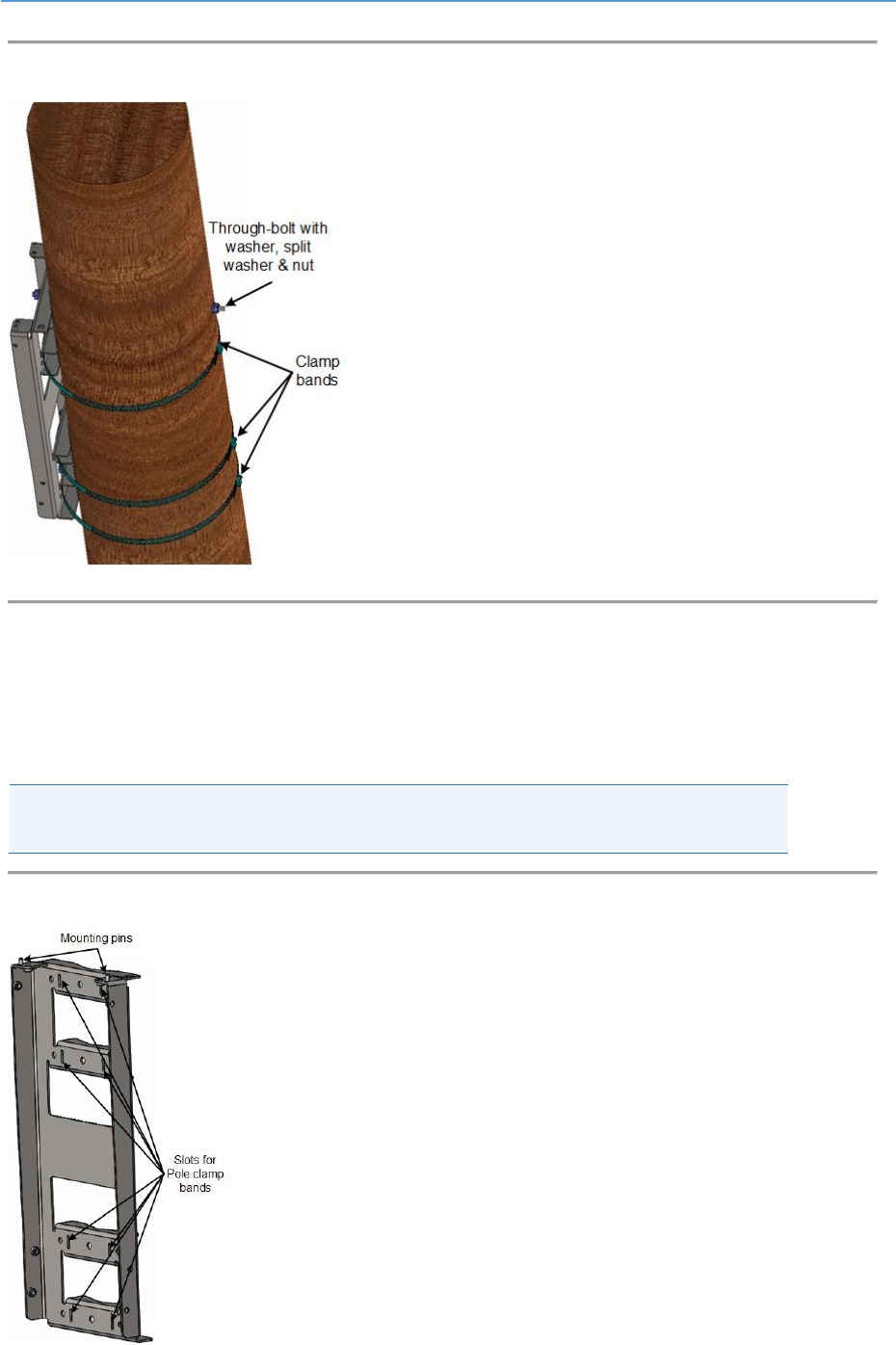

Figure 15: AirHarmony mounted on Wooden Pole .............................................................................. 32
Figure 16: AirHarmony mounted on Concrete Pole ............................................................................. 33
Figure 17: AirHarmony being mounted on a Wall ................................................................................ 34
Figure 18: Grounding ............................................................................................................................ 35
Figure 19: Gland connector - copper .................................................................................................... 36
Figure 20: Ethernet Cable through connector ...................................................................................... 37
Figure 21: LC duplex cable assembly .................................................................................................... 38
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use iv
Figure 22: Cable connector hook up to the board connector .............................................................. 38
Figure 23: Slide on inner housing .......................................................................................................... 39
Figure 24: Slide over and click ............................................................................................................... 39
Figure 35: attaching power cable to AirHarmony ................................................................................. 40

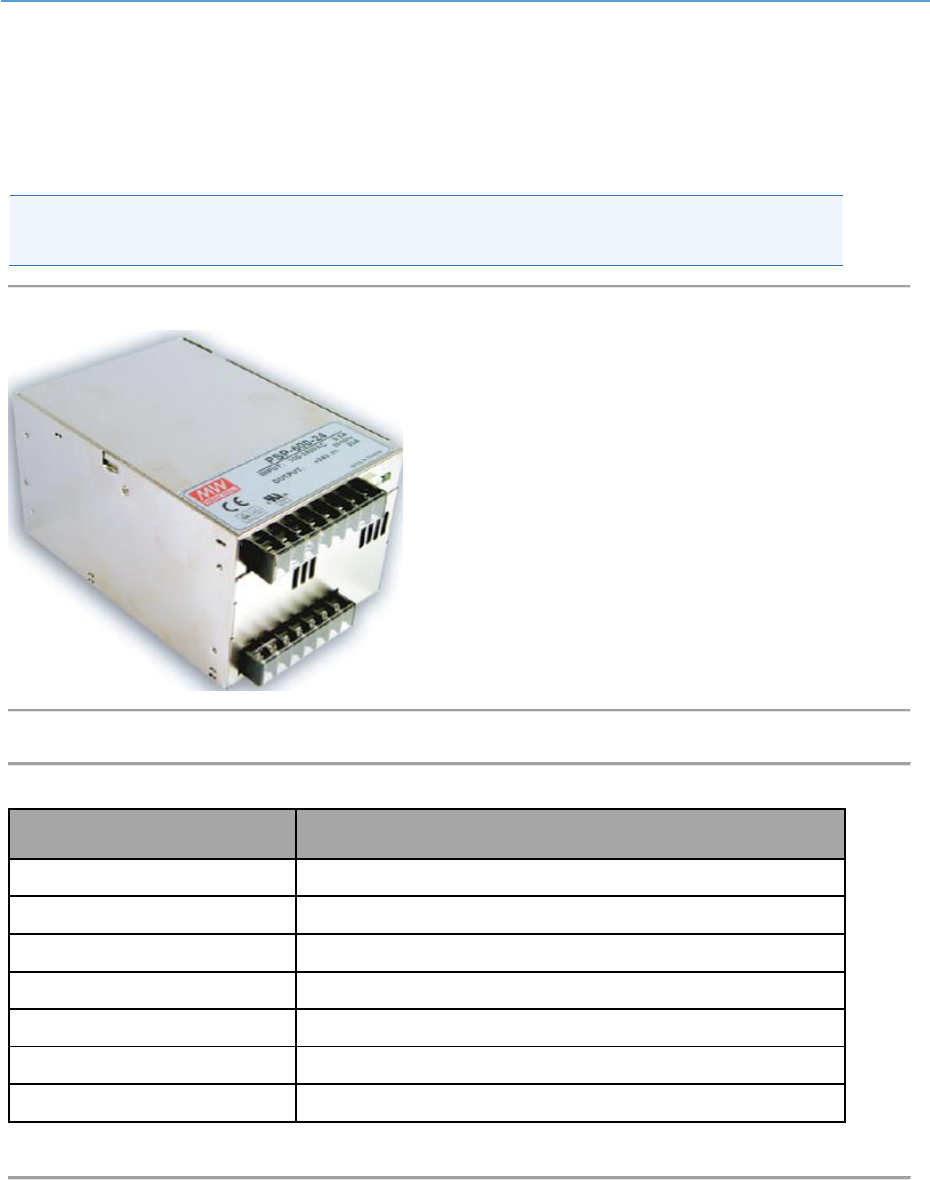

Figure 36: Optional AC/DC Converter ................................................................................................... 41
Tables
Table 1: AirHarmony--4000 DC INT EXT FCC Maximum Output TX Total Power .................................... 7
Table 2: AirHarmony-4000 DC INT EXT ETSI Maximum Output TX Total Power .................................... 7
Table 3: Power Consumption .................................................................................................................. 8
Table 4: Typographic Conventions ........................................................................................................ 10
Table 5. AirHarmony 4000 DC Integrated External Duplexers Variants ............................................... 16
Table 6. Minimum Hardware Requirements ........................................................................................ 18

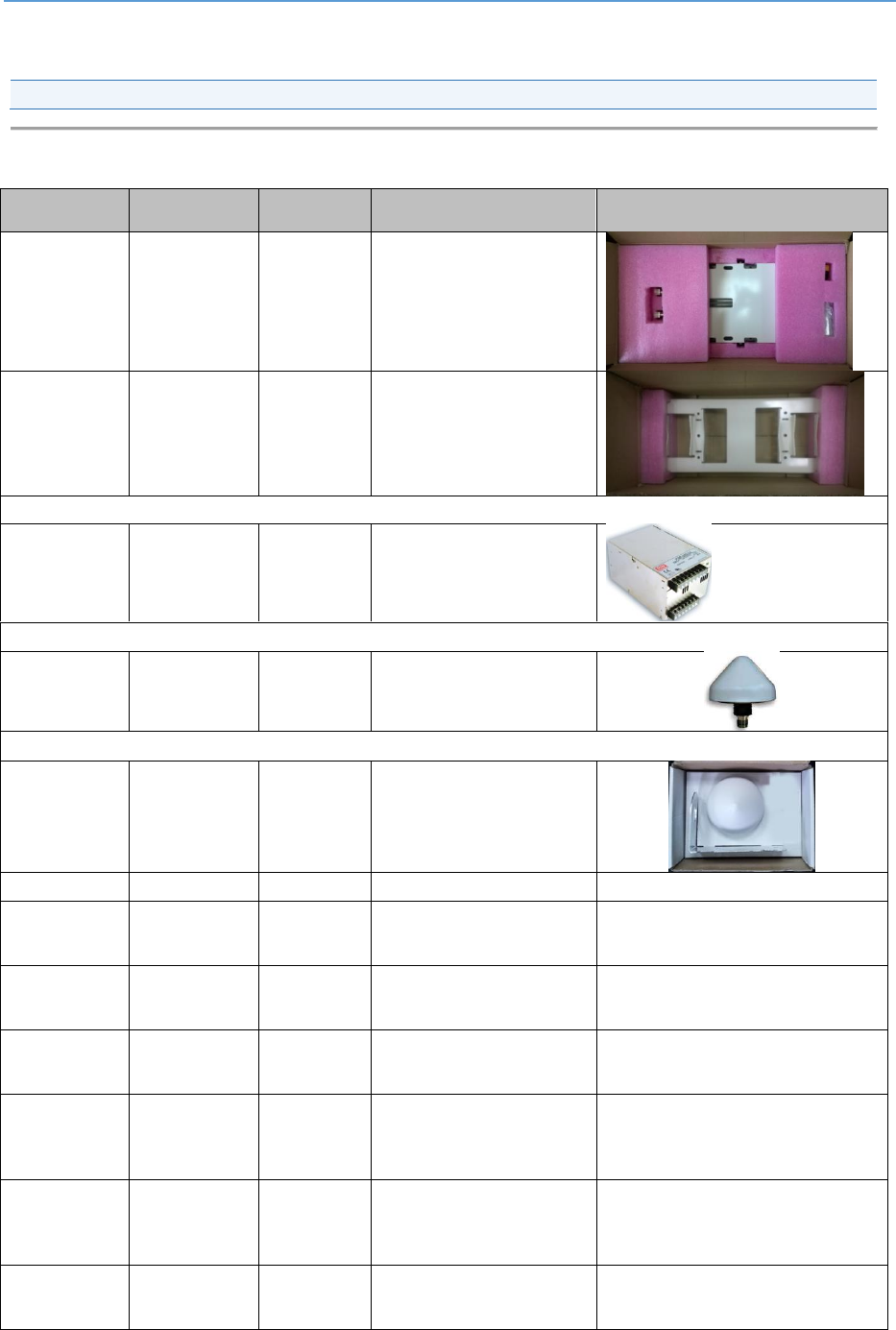

Table 7. Parts & Kits .............................................................................................................................. 19
Table 8. Amperage Draw....................................................................................................................... 21
Table 9: AirHarmony-4000 Physical Dimensions .................................................................................. 23
Table 10: AirHarmony-4000 Environment Compliance ........................................................................ 24
Table 11: Cable Hardware ..................................................................................................................... 36
Table 12: AC/DO Converter Specifications ........................................................................................... 41
Table 13: Job Sheet ............................................................................................................................... 42
AirHarmony-4000 (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 1
Document Information
Abstract
This document details procedures for installing the Airspan’s AirHarmony-4000 DC INT EXT, a Macro-
class eNodeB variant and its place in the Airspan product suite. This document is intended for
qualified personnel with a working knowledge of LTE.
Revision History
Revision Details
Date
Summary of Changes
Rev 0.1 - 0.4
August 2016
Initial document – draft
comments
Rev A
TBD 2016
Published
This document is available at: AirHarmony 4000 DC INT EXT Installation Guide
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 2
Warnings and Cautions
Human Exposure to Radio Frequencies
The AirHarmony-4000 DC INT EXT antennas should be operated from a minimum safe distance of
3.90 m
Radio Interference
The AirHarmony-4000 DC INT EXT generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment on and off, the technician is encouraged to try
to correct the interference by performing one or more of the following measures:
Re-orientate or relocate the unit
Increase separation between the units and/or End Devices
Connect the equipment to an outlet on a circuit different from that to which the power
source is connected
Modifications
Any changes and modifications to this device that are not expressly approved by Airspan Networks
may void the user's authority to operate the equipment.
General
Only qualified personnel should be allowed to install, replace, and service the equipment.
The device cannot be sold retail, to the general public or by mail order. It must be sold to
operators.
Installation must be controlled.
Installation must be performed by licensed professionals.
Installation requires special training. The AirHarmony-4000 DC INT EXT should be installed
ONLY by experienced installation professionals who are familiar with local building and
safety codes and, wherever applicable, are licensed by the appropriate government
regulatory authorities. Failure to do so may void Airspan's product warranty and may expose
the end user or the service provider to legal and financial liabilities. Airspan and its resellers
or distributors are not liable for injury, damage or violation of regulations associated with
the installation of outdoor units or antennas.
The device is to be installed in a Restricted Access Location.
Power provided by PoE output cannot be considered limited power source (LPS) per IEC/UL
60950-1 clause 2.5.
Connection to the PoE port is permitted only by certified electrician according to NEC
requirements.
Connect PoE terminal only to equipment which does NOT require “LPS only” feeding.
Surge Arrestors and Transient Voltage Surge Suppressors installed external to the ITE are
required to comply with the appropriate CEC/NEC requirements.
Equipment connected to the PoE port must have its own fire enclosure.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 3
Important Safety Instructions
Read and Save these instructions
This Installation Guide contains instructions and warnings that should be followed during
installation, and operation.
Failure to follow these instructions could cause bodily injury and/or product failure
Safety
1. Read this guide and follow all operating and safety instructions.
2. Keep all product information for future reference.
3. Static sensitive components inside - do not remove the lid or base: No user serviceable
parts inside.
4. Position the power cord to avoid possible damage, do not overload circuits.
5. Do not place this product on or near a direct heat source, and avoid placing objects on
the terminal.
6. To avoid electrical shock do not install this device during adverse conditions such as rain
or inclement weather.
7. Use only a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Disconnect the
power before cleaning.
8. The units should not be located too near power lines or other electrical power circuits,
where it can come into contact with such power lines or circuits.
9. The radio transceiver must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes.
10. Installation of the AirHarmony-4000 DC INT EXT must be contracted to a professional
installer.
11. The circuit breaker should be easily accessible in case you have to disconnect the device.
12. When installed in the final configuration, the product must comply with the applicable
Safety Standards and regulatory requirements of the country in which it is installed. If
necessary, consult with the appropriate regulatory agencies and inspection authorities
to ensure compliance.
Warning of Hazardous Voltages
On AC installations, hazardous voltages exist. Use caution when verifying or working with AC power.
Remove metal jewelry that could come into contact with AC power.
On DC sections, short-circuiting the low voltage, low impedance circuits can cause severe arcing that
may result in burns or eye damage. Remove rings, watches etc. to avoid shorting DC circuits.
Note: Airspan products do not contain hazardous substances (as defined in UK Control of
Substances Hazardous to Health Regulations 1989 and the Dangerous Substances Regulations
1990). At the end of any Airspan products life cycle, the customer should consult with Airspan to
ensure that the product is disposed of in conformance with the relevant regulatory requirements.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 4
Adherence to European Directive 1999/5/EC
European Council Recommendation 1999/5/EC details basic restrictions and reference levels on
human exposure to electromagnetic fields as advised by the ICNIRP. Adherence to these
recommended restrictions and reference levels should provide a high level of protection as regards
the established health effects that may result from exposure to electromagnetic fields
Airspan equipment is compliant with CE and R&TTE regulations and can be operated in all EU
(European Union) locations listed below:
Country Code
BE
EL
LT
PT
BG
ES
LU
RO
CZ
FR
HU
SI
DK
HR
MT
SK
DE
IT
NL
FI
EE
CY
AT
SE
IE
LV
PL
UK
Warning Symbols
The following symbols may be encountered during installation or troubleshooting. These warning
symbols mean danger. Bodily injury may result if you are not aware of the safety hazards involved in
working with electrical equipment and radio transmitters. Familiarize yourself with standard safety
practices before continuing.
Caution, hot surface
Caution
Electro-Magnetic
Radiation
High Voltage
Service Information
Refer all repairs to qualified service personnel. Do not modify any part of this device, as this will void
the warranty.
Disconnect the power to this product and return it for service if the following conditions apply:
a. The terminal does not function after following the operating instructions outlined in this
manual.
b. The product has been dropped or the housing is damaged.
Locate the serial number of the terminal and record this on your registration card for future
reference. Also record the MAC address, located on the product sticker.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 5
UL Information
- The equipment must be properly grounded according with NEC and other local safety code
requirements.
- Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC which provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of cable entry as is practical.
- AirHarmony-4000 DC is designed to operate in environmental conditions complying with IP66 and
relevant standards.
Lightning Protection
WARNING: The following notes are general recommendations for the system. The wireless
equipment should be installed by a qualified professional installer and must follow local and national
codes for electrical grounding and safety. Failure to meet safety requirements and/or use of non-
standard practices and procedures could result in personal injury and damage to equipment. A direct
lightning strike may cause serious damage even if these guidelines are followed.
All outdoor wireless equipment is susceptible to lightning damage from a direct hit or induced
current from a near strike. Lightning protection and grounding practices in local and national
electrical codes serve to minimize equipment damage, service outages, and serious injury. Reasons
for lightning damage are summarized as:
- Poorly grounded tower/antenna sites that can conduct high lightning strike energy into equipment.
- Lack of properly installed lightning protection equipment that can cause equipment failures from
lightning induced currents.
A lighting protection system provides a means by which the energy may enter earth without passing
through and damaging parts of a structure. A lightning protection system does not prevent lightning
from striking; it provides a means for controlling it and preventing damage by providing a low
resistance path for the discharge of energy to travel safely to ground. Improperly grounded
connections are also a source of noise that can cause sensitive equipment to malfunction.
A good tower grounding system disperses most of the surge energy from a tower strike away from
the building and equipment.
To limit the equipment damage due to a lightning strike, the following practices are recommended
for the wireless system:
- Provide direct grounding from the antenna mounting bracket, the radio and antenna and the
lightning/surge protectors to the same ground point at the base of the tower or a ground bus on the
building. Use the grounding screws on the antenna bracket and the radio and antenna for
terminating the ground wires.
- The circuit ground must be connected to the same grounding system as the eNodeB.
Outdoor Ethernet Cabling
- Ethernet cable connected to should be outdoor grade with UV protection.
- Use shielded out CAT5e (minimum) cabled terminated with metallic RJ45 connectors.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 6
- In order to protect the indoor unit, install surge protection circuits on all copper cables on their
entrance to the building.
- Surge protection circuit must use a minimum 16AWG grounding cable.
DECLARATION OF CONFORMITY
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC
English:
This equipment is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprecheneden Vorgaben der
Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Directiv
1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directive 1999/5/EC.
Greek:
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Airspan ΔΗΛΩΝΕΙ ΟΤΙ Ο ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ
ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes de la Directive
1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn 1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-directiv
1999/5/EC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva 1999/5/EC.
Suomalainen:
Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen muidenkin ehtojen
mukainen.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 7
Svenska:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i
Direktiv 1999/5/EC.
Român:
Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale Directivei
1999/5/CE.
The Declaration of Conformity related to this product can be obtained from PLM@Airspan.com.
GPS Compliance
The GPS is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC."
The GPS complies with the following EMC Common Regulatory Testing standards:
EN55022: Radiated and Conducted Emissions
CISPR 22: Class B
EN 50081-1: Generic Emissions Class B
EN 50082-1: Generic Immunity Class B
EN 61000-4-2: Electrostatic Discharge Immunity
EN 61000-4-3: Radiated RF EM Field Immunity Test
EN 61000-4-4: Electrical Fast Transient/Burst Test
EN 61000-4-6: Conducted Immunity
EN 61000-4-8: Magnetic Field Immunity
Note: A GPS is recommended for synchronizing between LTE sectors.
Note: An optional GPS Lightning/Surge protector is available from Airspan when installing the GPS
antenna in a remote location for lightning prone deployments.
Maximum Output TX Total Power
Table 1: AirHarmony--4000 DC INT EXT FCC Maximum Output TX Total Power
Frequency Band
(MHz)
FCC
TX (dBm) EIRP (dBm)
Antenna Gain
(dBi)
728-746
46.06
59.56
13.5
Table 2: AirHarmony-4000 DC INT EXT ETSI Maximum Output TX Total Power
Frequency Band
(MHz)
ETSI
TX (dBm) EIRP (dBm)
Antenna Gain
(dBi)
729-746
46
59.5
13.5
Caution: Do not set maximum output TX power to higher than local regulations.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 8
Power Consumption – Supply and Current
AirHarmony-4000 DC INT EXT supports direct connection to DC power source.
DC Power Source requirements are:
Operational Voltage Range: -40.5 to -57 VDC Max, 8A Max
Safety approved (certified) according to IEC/EN/UL 60950-1
Transient Voltage: +150V (ETR283)
The use of other power sources may impair safety
AC power feed is also available, using an AC/DC power converter offered by Airspan.
Warning: Power provided by PoE outputs (RJ45 ETH1, ETH2) cannot be considered limited power
source (LPS) per IEC/UL 60950-1 clause 2.5
Table 3: Power Consumption
Duplex
Tx Power
at RF
Port
(dBm)
Band
Power
Source
Nominal
Power
Consumption
(W)
MAX Power
Consumption
with PoE
(Instantaneous)
(W)
MAX Current
with PoE
(Instantaneous)
(A)
PoE Maximum
Power
Consumption
(W)
Power Supply
Requirements
(W)
FDD
2 x 43
B12
DC
TBD
TBD
9
60
400
FDD
2 x 43
B17
DC
TBD
TBD
9
60
400
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 9
Antenna System
AirHarmony-4000 DC INT EXT comes in a range of frequency variants that can be mounted with
different antenna options and formats. A typical installation will have a cross-polar sector or dual
slant antenna connected to the appropriate Integrated External Duplexers of the AirHarmony-4000
DC INT EXT variant unit. Various antennas are designed specifically for AirHarmony-4000 DC INT EXT
deployments; specifications are available from Airspan separately.
External Antenna
The externally mounted antenna should be a dual slant or cross polarized fixed antenna which is
connected via DIN connectors located on the Integrated Duplexers. The antenna should be mounted
to its appropriate mounting facility.

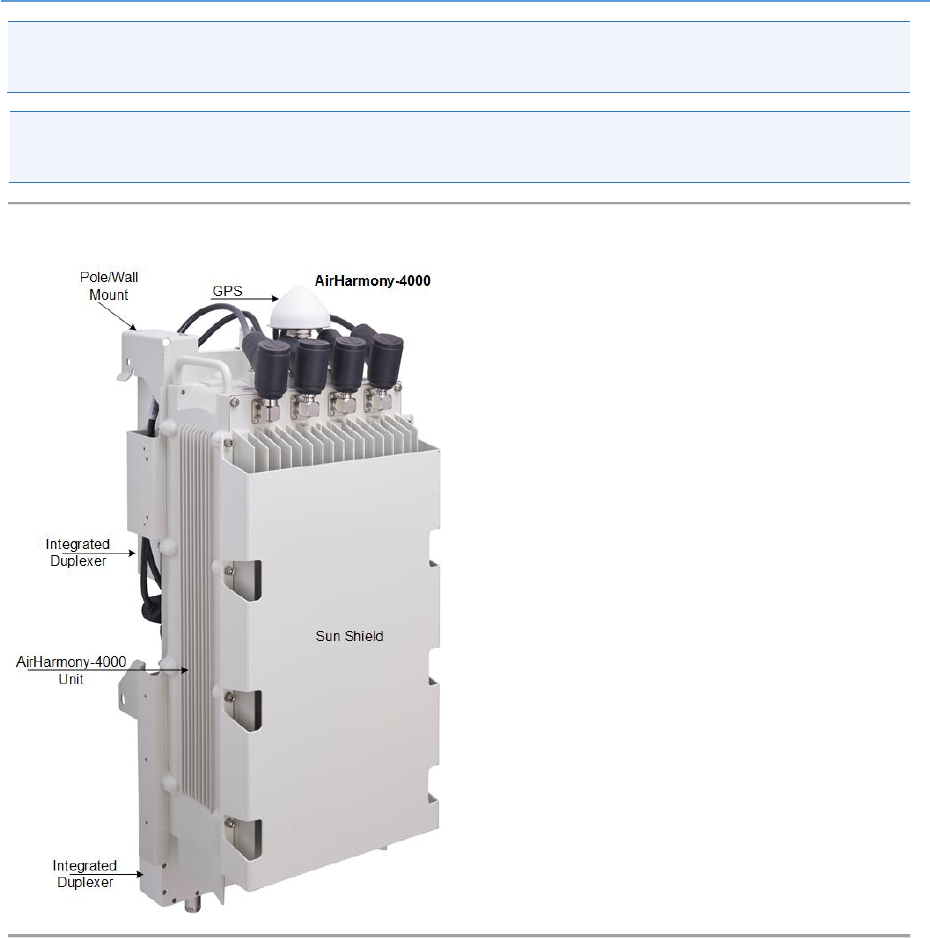

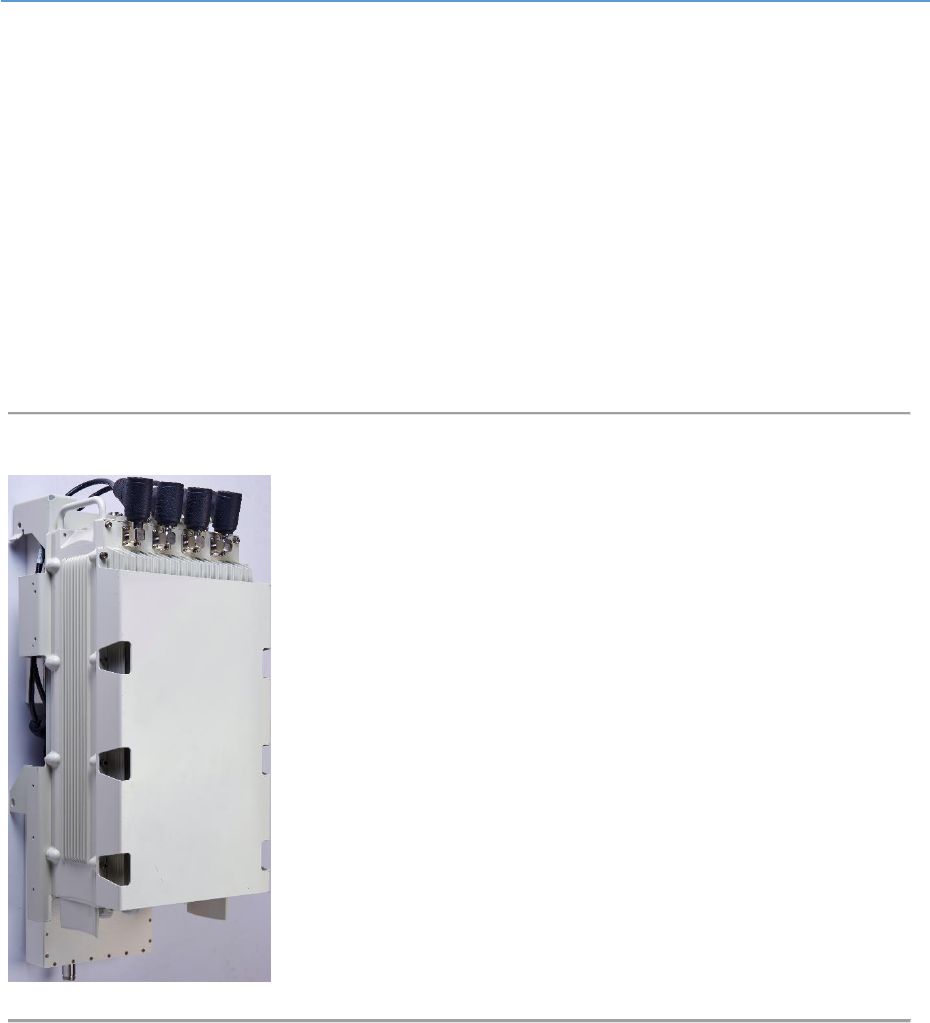

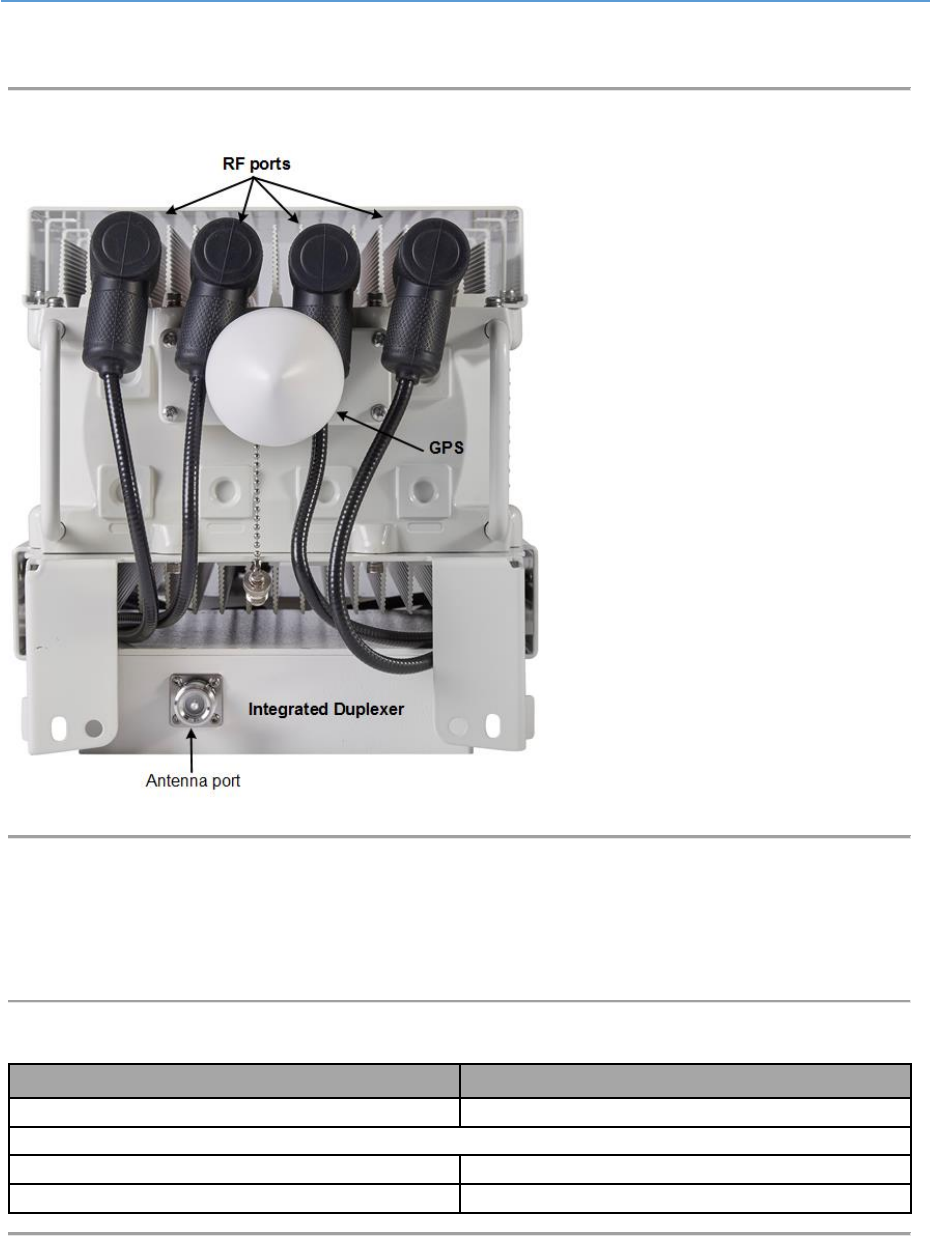

Figure 1: AirHarmony-4000 DC INT EXT with Integrated External Duplexers
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 10
About This Document
Purpose
This guide provides the workflow and step-by-step procedures for installing the Airspan’s
AirHarmony-4000 DC INT EXT Macro-class eNodeB variant. These procedures include:
Verify prerequisites
Mount GPS
Install Mounting bracket
Install the AirHarmony-4000 DC INT EXT
Mount Antenna (external antenna)
Mount iRelay (if applicable)
Connect to External Antenna (if applicable)
Connect and manage cables
Intended Audience
This guide is intended for persons who are responsible for installing the AirHarmony-4000 DC INT
EXT.
These persons should have a working knowledge of the equipment.
AirHarmony can be tightly integrated with Airspan’s iBridge and iRelay transport solutions.
AirHarmony-4000 DC INT EXT supports an integrated PoE interface which powers and connects
either iBridge, iRelay, or a third party WiFi Access Point. This configuration creates a single piece
installation that supports full end to end IPv6 plug and play deployment by just adding power. For
more details please refer to the iBridge and iRelay product specifications.
Document Conventions
This document uses the following typographic conventions.
Table 4: Typographic Conventions
Convention
Element
Blue underlined text
Cross-reference links.
Bold text
Keyboard buttons and GUI elements.
Command
Command names or phrases.
Computer output
Text displayed by the computer.
Hyperlinks
Website and e-mail addresses.
Danger
Signifies a hazardous situation—if not avoided—will cause
death or serious injury. Describes how to avoid it.
Warning
Signifies a hazardous situation—if not avoided—can cause
death or serious personal injury. Describes how to avoid it.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 11
Convention
Element
Caution
Signifies a hazardous situation—if not avoided—can void
the product warranty, and cause property damage.
Describes how to avoid it.
Important
Provides necessary information to explain a task.
Note
Provides additional information.
Tip
Provides helpful hints.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 12
Document Organization
Chapter
Contents
Introduction
Provides a comprehensive overview of AirHarmony-4000 DC INT EXT
and its installation.
Getting Started
Provides workflows for initial install and workflow.
Verifying Prerequisites
Lists the hardware, software, and client requirements for
installation.
AirHarmony-4000 Installation
Describes how to install AirHarmony-4000 DC INT EXT.
GPS Installation
Describes how to install the GPS antenna.
Connect and Manage Cables
Describes how to connect the cables.
Job Sheet
Provides information that aids users in performing the installation.
Abbreviations
Lists the abbreviations used in this document and their expansions.
Related Reading
The following documents contain related information:
AirHarmony-4000 Hardware Product Specification
Airspan LTE Commissioning Manual
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 13
Customer Care Help Desk
Airspan’s Customer Care Help Desk offers prompt and efficient customer support services.
Note: To avail Airspan’s Customer Care Help Desk support, you must be a registered user and must
have a valid support contract. To register, click here and fill the Registration form.
To create and update issue logs, send e-mails to Customer Care Help Desk. Once you submit your
issue, the system generates a new issue and sends an issue number for your reference. The system
uses this issue number to categorize and store e-mails under the appropriate issue.
To help Customer Care Help Desk identify your issue, include the issue number and your Customer
Care Helpdesk account details in all further communications.
Main Operations
Airspan Communications Ltd.
Capital Point
33 Bath Road
Slough, Berkshire
SL1 3UF, United Kingdom
Tel: +44-1895-467-100
Worldwide Headquarters
Airspan Networks Inc.
777, Yamato Road, Suite 105
Boca Raton, FL 3341-4408, USA
Tel: +1 561 893 8670
Airspan Encourages Comments
Airspan welcomes any feedback and suggestions that help to improve the quality of the
documentation. Send your feedback to documentfeedback@airspan.com.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 14
1 Introduction
This section provides a descriptive overview of the Airspan’s AirHarmony-4000 with Integrated
External Duplexers a Macro-class eNodeB variant and its place in the Airspan product suite.
This document is intended for readers with LTE working knowledge.
All information in this document is for general information only, and is subject for change without
notice.
1.1 AirHarmony-4000
AirHarmony-4000 is part of Airspan’s carrier-class LTE Advanced small cell eNodeB family.
AirHarmony-4000 is a Macro-class product that supports 3GPP’s Long Term Evolution (LTE) eNodeB
specifications, providing high-speed data, mobility, Voice over LTE, and broadcast/multicast services
in order to meet the demands of the LTE Mobile Carriers.
AirHarmony-4000 is a compact, easy to install Macro-class eNodeB, allowing an operator to deploy
LTE broadband services using existing infrastructure or Street Furniture (e.g. street lamps, power
poles, building rooftop or sides etc…)
AirHarmony-4000 employs Software Defined Radio (SDR) technology, together with two transmit
and receive paths for each sector and a GPS antenna and receiver – all in a highly integrated,
physically small and light, All-Outdoor package, targeted to blend seamlessly into the urban
environment. This compact outdoor product minimizes physical footprint, power consumption and
operator OPEX.
AirHarmony-4000 is a 2T2R solution that enables a flexible deployment scenarios, but can achieve
higher coverage and throughput by combing multiple eNodeBs enabling the support of 4T4R, 4T8R,
and 8T8R.
AirHarmony-4000 implements 2 x 20W transmitters (2 x 43 dBm) and fully supports the standard LTE
(Uu/S1/X2) interfaces.
All Airspan eNodeB products, including AirHarmony-4000, are interoperable with a rich portfolio of
3rd party end user devices, including many handsets, indoor UEs, outdoor UEs and USB dongles from
several ODMs, using various chipsets. For an updated of interoperability list, please contact your
nearest Airspan Sales Representative.
Additionally, AirHarmony can be tightly integrated with Airspan’s iBridge and iRelay transport
solutions. AirHarmony-4000 supports an integrated PoE interface which powers and connects either
iBridge, iRelay, or a third party Wi-Fi Access Point. This configuration creates a single installation that
fully supports end to end IPv6 plug and play deployment by just adding power. For more details
please refer to the iBridge and iRelay product specifications.
Note: For management please refer to the Airspan LTE Commissioning Manual as well as Netspan.
1.2 Deployment
A highly flexible and scalable 4G Base Station, the AirHarmony-4000 DC INT EXT is capable of
supporting LTE profiles across multiple frequency bands.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 15
Note: AirHarmony-4000 must be properly grounded (16AWG minimum) according to NEC and
other local safety code requirements.
Warning: Required - circuit breaker for AC power source -16A for EU installation and 20A for US
installation. Minimum – 10A.
Figure 2: AirHarmony-4000 DC INT EXT
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 16
1.3 Related AirHarmony 4000 DC INT EXT Variants
This document is related to AirHarmony 4000 DC power with integrated external duplexes variants.
The following table lists the relevant variants:
Table 5. AirHarmony 4000 DC Integrated External Duplexers Variants
Band
Product
Code
Description
DL Freq.
(MHz)
UL Freq.
(MHz)
Duplex
Mode
Max Channel
BW (MHz)
Dual
Carrier
Tx/Rx
Conf.
Tx Power
Per
Channel
(dBm)
12/17
HAR40-CN-
U12-B06DP
AirHarmony 4000 700 MHz
(B12/B17), Connectorized w
Int. Ext. Duplexers, 2x Fiber
+ 2x Copper, PoE, DC
729-746
699-716
FDD
15
No
2x2
43
28H
HAR40-CN-
U28H-B06DP
AirHarmony 4000 738-
748 / 793-803MHz (B28),
Connectorized w External
Duplexers, 2x Fiber + 2x
Copper, PoE, DC
793-803
738-748
FDD
10
No
2x2
43
28
HAR40-CN-
U28-B06DP
AirHarmony 4000 703-
748 / 758-803MHz (B28),
Connectorized w External
Duplexers, 2x Fiber + 2x
Copper, PoE, DC
758-803
703-748
FDD
20
No
2x2
43
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 17
2 Getting Started
2.1 Workflow of Installation

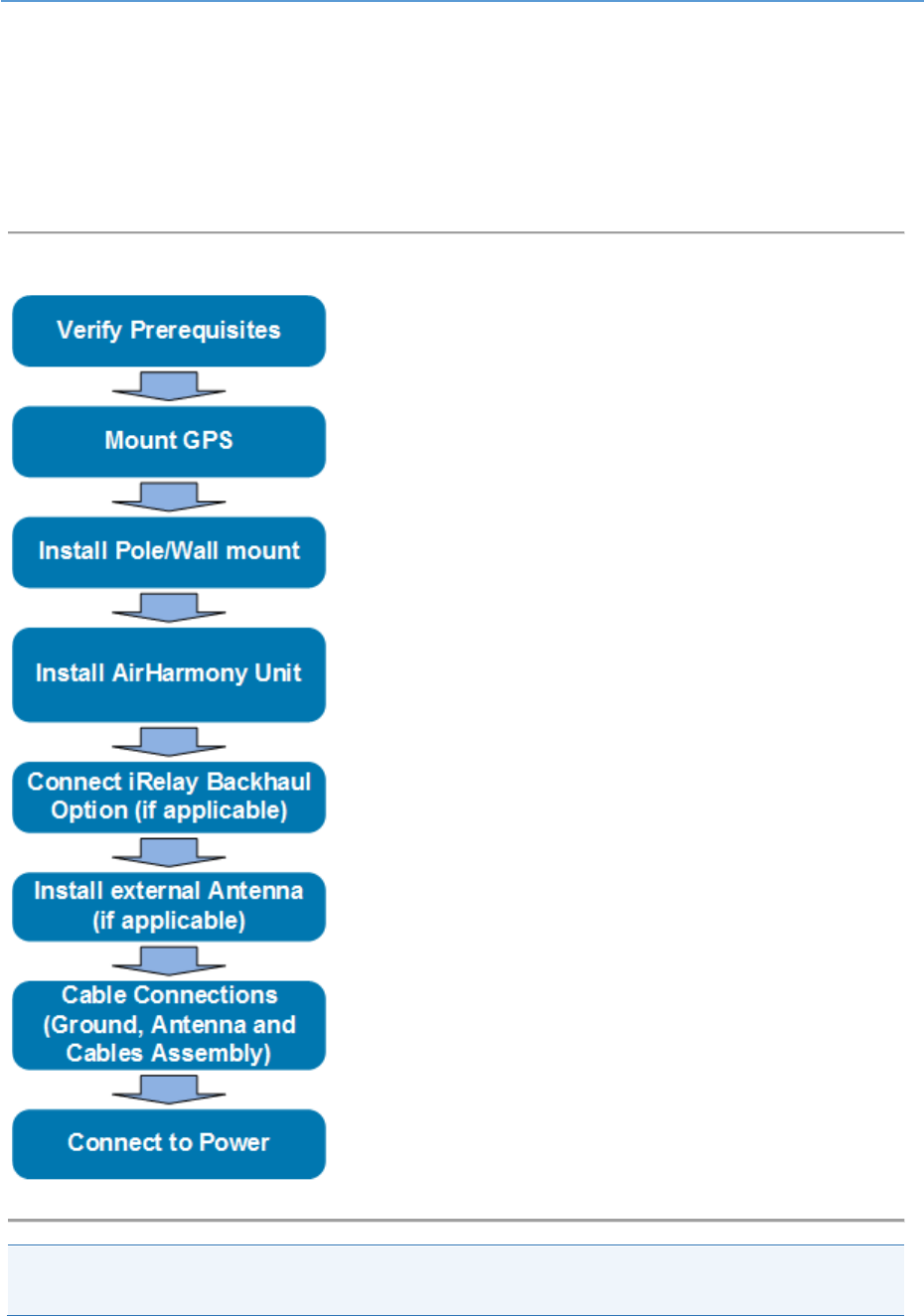

The Workflow to install the AirHarmony-4000 DC INT EXT is displayed in the following diagram:
Figure 3: Workflow
Caution: Antennas must be connected and attached before AirHarmony-4000 DC INT EXT is
powered on.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 18
2.2 AirHarmony-4000 DC INT EXT Installation Checklist
Plan the installation of the AirHarmony-4000 DC INT EXT by using the Installation Checklist, which
you can find as a removable job aid in Appendix A for this guide.
3 Verifying Prerequisites
Prior to installing the AirHarmony-4000 DC INT EXT, verify the required safety, power, tools, parts
and components. This chapter includes the hardware, software, and client requirements for
installation.
Important: Set up requirements for the installation is detailed in the Job Sheet, see Appendix_A.
3.1 Verifying Site Requirements
To set up the AirHarmony-4000 DC INT EXT, an IP connection to a Netspan server is required.
3.2 Verify Installation Requirements
3.2.1 Verify the Tools
Table 6. Minimum Hardware Requirements
Tool
Use
#13 wrench
for securing the M8 Hex Head bolts on the
Pole/wall mount
Small flat blade screw driver (insulated
shaft recommended)
For AC power cable preparation
pliers
For AC power cable preparation
Knife
For AC cable preparation
Small side cutters
For AC power cable preparation
Wire strippers
For AC power cable preparation
1/2” Socket Wrench
For 5/16” Hex head (Lag) bolts when wall mounting
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 19
3.2.2 Verify the Parts and Kits
Note: Verify your order and requirements to ensure the correct unit type is being installed.
Table 7. Parts & Kits
Installation Kit /
Part
Part No.
Airspan
N0.
Consisting of:
AirHarmony
4000 700 MHz
(B12/B17),
Connectorized
HAR40-CN-
U12-B06 DP
998-53-126
AirHarmony 4000 700 MHz
(B12/B17), Connectorized w
Int. Ext. Duplexers, 2x Fiber +
2x Copper, PoE, DC
AirHarmony
4000 universal
wall & pole
mounting kit
HAR40-U-PMK-
1
903-03-257
Pole/wall mount bracket
Screws for connecting
the unit
Optional AC / DC Power Converter – Available from Airspan
AC/DC Indoor
power
converter
AC-DC-IDU-
Air4G-W24
133-00-061
AC/DC Power Converter for
AirHarmony-4000 DC
GPS Antenna
GPS Antenna
GPS-ANT-3
350-05-009
GPS Antenna with built-in
high, interference rejection
Or
GPS Antenna
Kit
GPS-HAR-KIT-1
N/A
AirHarmony GPS Kit
(including antenna, bracket,
80cm cable and surge
protection kit)
DC Cables
Type-IC DC
Power Cable -
10m
PWR-10-INST-2
N/A
Type-IC DC Power Cable
Type-IC DC
Power Cable -
15m
PWR-15-INST-2
N/A
Type-IC DC Power Cable
Type-IC DC
Power Cable -
30m
PWR-30-INST-2
N/A
Type-IC DC Power Cable
Type-IC DC
Power Cable -
50m - special
order
PWR-50-INST-2
N/A
Type-IC DC Power Cable
Type-IC DC
Power Cable -
75m - special
order
PWR-75-INST-2
N/A
Type-IC DC Power Cable
Type-IC DC
Power Cable -
10m
PWR-10-INST-2
N/A
Type-IC DC Power Cable
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 20
Installation Kit /
Part
Part No.
Airspan
N0.
Consisting of:
Full AXS SM Fiber Cable
Full AXS SM
Fiber Cable
5m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-5-LC-
SM-1
686-00-016
Full AXS SM
Fiber Cable
7.5m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-7.5-LC-
SM-1
686-00-017
Full AXS SM
Fiber Cable
15m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-15-LC-
SM-1
686-00-015
Full AXS SM
Fiber Cable
30m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-30-LC-
SM-1
686-00-009
Full AXS SM
Fiber Cable
50m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-50-LC-
SM-1
686-00-010
Full AXS SM
Fiber Cable
75m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-75-LC-
SM-1
686-00-011
Full AXS SM
Fiber Cable
100m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-100-LC-
SM-1
686-00-012
Full AXS SM
Fiber Cable
150m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-150-LC-
SM-1
686-00-013
Full AXS SM
Fiber Cable
200m, Outdoor
LC/DPX to LC,
IP67
FIB-FA-200-LC-
SM-1
686-00-014
3.2.3 Power Supply and Current
AirHarmony-4000 DC INT EXT supports direct connection to AC power source:
Operational Voltage Range: 100VAC~240VAC, 47Hz~63Hz
Warning: Power provided by PoE outputs (RJ45 ETH1, ETH2) cannot be considered limited power
source (LPS) per IEC/UL 60950-1 clause 2.5
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 21
Table 8. Amperage Draw
Duplex
Tx Power at RF Port (dBm)
Maximum Power Consumption (W)
TDD-FC1
2 x 43
265
FDD
2 x 43
340
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 22
3.2.4 Panels
The following figures display the AirHarmony-4000 DC INT EXT bottom and top panels.
The following displays the AirHarmony-4000 DC INT EXT’s bottom panel.
Figure 4: AirHarmony-4000 DC INT EXT Unit, Bottom panel
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 23
The following displays the AirHarmony-4000 DC INT EXT’s top panel.
Figure 5: AirHarmony-4000 DC INT EXT Unit, Top panel
3.2.5 Physical Dimensions
AirHarmony-4000 DC INT EXT is in an all outdoor enclosure.
Table 9: AirHarmony-4000 Physical Dimensions
Variant
Dimensions (H x W x D)
AirHarmony-4000 DC
631 x 236 x 267 mm / 24.8 x 9.3 x 10.5 inch
Weight
Main Unit (with integrated external duplexers)
27 Kg / 59.52 Lbs.
Universal mounting bracket
3 Kg / 6.6 Lbs.
3.2.6 Environmental
AirHarmony-4000 DC INT EXT meets the following environmental requirements:
GR-63 Storage and Transportation
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 24
ETSI EN 300-019-1-4 Operational (non-weather protected equipment)
ETSI EN 300-019-1-1 Storage (weather protected, non-temperature controlled locations)
ETSI EN 300-019-1-2 Transportation
Table 10: AirHarmony-4000 Environment Compliance
Type
Details
Standard Compliance
Operating temperature
-40°C to 55°C / -40°F to 131°F
ETSI 300 019 1-4
Operating humidity
5% - 100% non-condensing
ETSI 300 019 1-4
Storage temperature
-40°C to 70°C
N/A
Storage humidity
5% - 100% non-condensing
ETSI 300 019 1-4
Rain and dust ingress
protection
IP66
N/A
Operational altitude
70-106 kPa as well as:
From -60m to 1800m @ 40C
From 1800m to 4000m @ 30C
ETSI 300 019 1-4
Solar radiation
1120 W/m2
ETSI 300 019 1-4
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 25
4 Installing AirHarmony-4000 DC INT EXT
Install the AirHarmony-4000 DC INT EXT eNodeB by pole/wall mount. AirHarmony-4000 DC INT EXT
is mounted on a pole or wall in close proximity to its external antenna (connectorized variant).
Remove the AirHarmony-4000 from its packaging in preparation for mounting.
Caution: Proper local rigging and hoisting practices should be followed when installing
the AirHarmony-4000 on pole or wall.
4.1 Connecting the GPS Antenna
Prior to installation of the AirHarmony the GPS antenna should be connected and after it is
recommended that the connection should be weather-proofed.
The following describes the connection of the GPS antenna which is installed directly to the top of
the unit.
1. Remove the protective dust cap from the GPS antenna jack prior to mounting on the
AirHarmony-4000 DC INT EXT.
2. Align the GPS jack with the plug on the top panel on the AirHarmony-4000 DC INT EXT.
3. Attach the GPS antenna to the TNC connector on the unit.
Figure 6: Attaching GPS antenna to unit
Caution: Take care not to over tighten so as not to damage the threads.
Note: It is good practice to weather-proof all the antenna connections. This is done with
a layer of self-amalgamating tape followed by an over layer of PVC tape. The weather-
proofing the GPS connection is best done at this stage to give easier access to the
connections.
4.2 Pole/Wall Mount Assembly
Install the AirHarmony-4000 DC INT EXT eNodeB by pole/wall mount. AirHarmony-4000 DC INT EXT
is mounted on a pole or wall in close proximity to its external antenna (connectorized variant).
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 26
Caution: Proper local rigging and hoisting practices should be followed when installing
the AirHarmony-4000.
4.2.1 Mounting on a Wooden Pole
The following images show the pole mount assembly on a wooden pole.
Caution: Take care to install the Pole/Wall mounting plate in the correct orientation.
Verify that the mounting pins are facing upwards as shown below.
Figure 7: Pole/Wall mounting plate
1. Select the location on the pole to mount the AirHarmony-4000. You can attach the
AirHarmony-4000 to any pole from 1-7/8 to 16 inches (47.6 to 406.4 mm) in diameter.
2. Determine where to position the mounting plate on the pole and mark where to drill for
insertion of the 3/8-16 through-bolt.
Note: Threaded rod and necessary hardware are not supplied by Airspan and are the
responsibility of the installer.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 27
3. Drill a minimum 7/16” hole to accept the 3/8-16 threaded rod.
4. Thread the 3/8-16 threaded rod into the provided clinch-nut attached on the Pole/Wall
mounting plate.
5. Holding the mounting plate (with the attached threaded rod) pass the 3/8-16 threaded rod
through the drilled hole in the pole.
6. Install on the exposed thread that protrudes from pole a flat washer, split washer, and
then a 3/8”-16 hex nut and tighten.
7. Insert the clamp bands by passing them through the slots in the mounting plate, in three
(3) places.
Note: The clamp bands are not supplied by Airspan and are the responsibility of the
installer. Clamp bands should not be wider than 15.5 mm in order to fit in the slots on
the mounting plate.
8. Tighten the clamp bands with large flat screwdriver.

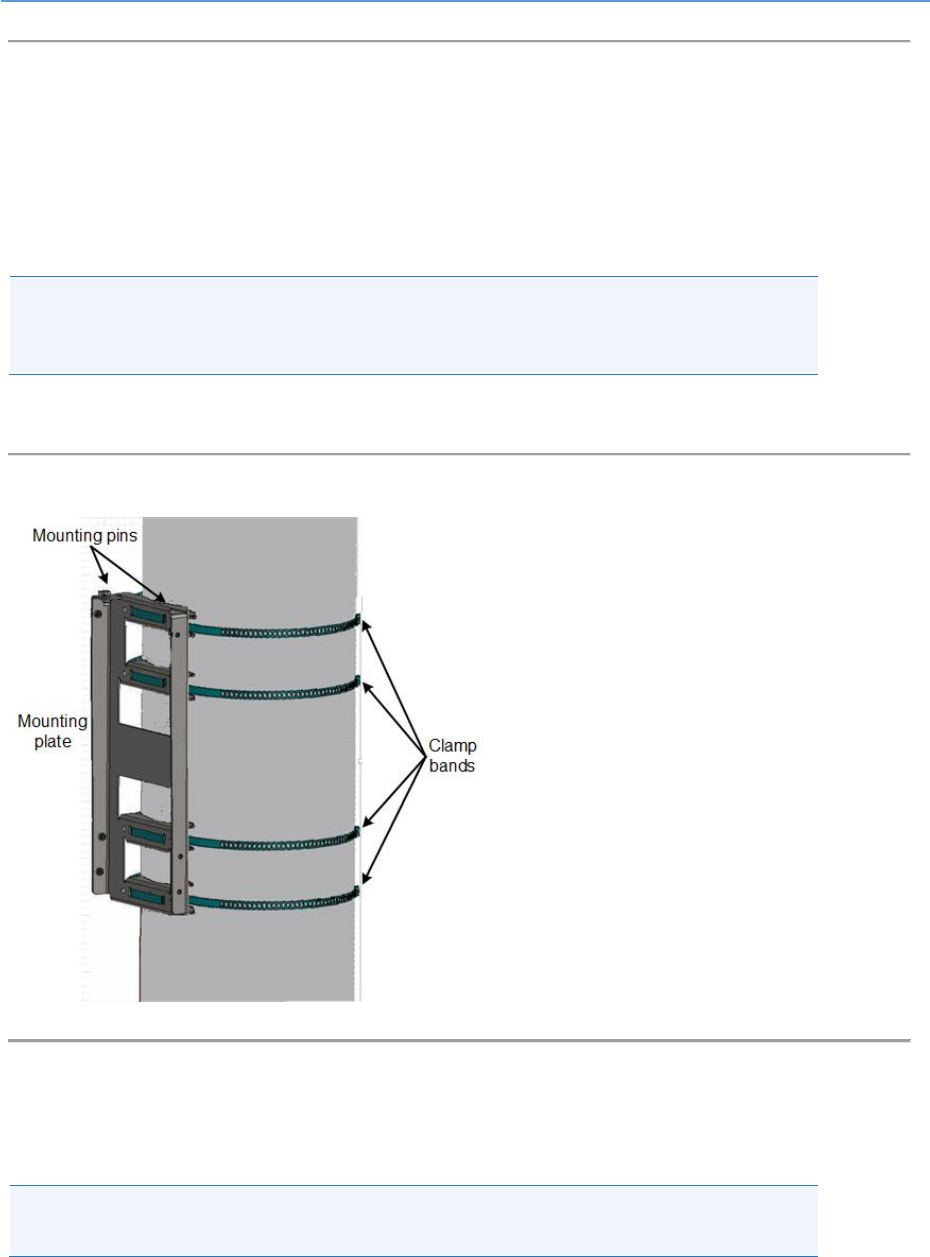

Figure 8: Mounting plate on pole
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 28
Figure 9: Through-bolt & Mounting plate
Mounting plate is installed and ready for AirHarmony-4000 mounting.
4.2.2 Mounting on a Non-Wooden Pole
The following images show the pole mount assembly on a non-wooden pole.
Caution: Take care to install the Pole/Wall mounting plate in the correct orientation.
Verify that the mounting pins are facing upwards as shown below.
Figure 10: Pole/Wall mounting plate (w/o bolt)
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 29
1. Select the location on the pole to mount the AirHarmony-4000. You can attach the
AirHarmony-4000 to any pole from 1-7/8 to 16 inches (47.6 to 406.4 mm) in diameter.
2. Insert the clamp straps through the slots in the mounting plate passing them through
the pole clamps.
3. Insert the clamp bands by passing them through the slots in the mounting plate, in four
(4) places.
Note: The clamp bands are not supplied by Airspan and are the responsibility of the
installer. Clamp bands should not be wider than 15.5 mm in order to fit in the slots on
the mounting plate.
4. Tighten the clamp bands with large flat screwdriver.
Figure 11: Mounting plate mounted
4.2.3 Mounting on a Wall
The following images show the wall mount assembly.
Caution: Take care to install the Pole/Wall mounting plate in the correct orientation.
Verify that the mounting pins are facing upwards as shown below.
1. Position mounting plate against the wall with mounting pins facing up. Be sure to
position the wall mounting plate straight with level mounting to ensure the unit sits
evenly.
2. Mark the wall through the holes on the wall mount at the required height.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 30
3. Attach the mounting plate to the wall using Lag bolts (x8 recommended).
Note: Lag bolts (x8) and necessary hardware are not supplied by Airspan and are the
responsibility of the installer. Recommended minimum 5/16 x 4” dia. (8mm x 100mm)
with appropriate plugs according to field conditions.
Figure 12: Mounting Plate on Wall
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 31
4.3 Securing AirHarmony-4000 to the Mounting Plate
Caution: Proper local rigging and hoisting practices should be followed when installing
the AirHarmony-4000 on pole or wall.
To mount AirHarmony-4000 to the mounting plate, perform the following:
1. Lift up the AirHarmony-4000 unit and hook the slotted holes onto the mounting pins
(studs) on the top of the mounting plate.
Figure 13: Lift unit and fit the slotted holes unto studs on top of mounting plate
The following displays a close up of the Pin (stud) alignment.
Figure 14: Align Pins
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 32
2. Lean the bottom of the unit into the mounting plate until the six (6) holes are aligned
with the six (6) M8 clinch-nuts on the mounting plate. There are two (2) on the top, near
the mounting pins and two (2) on either side of the mounting plate for a total of six (6) .
3. Once aligned insert the supplied M8x20 Hex head bolt with a split washer and a flat
washer into each clinch-nut.
4. Check and tighten all six (6) M8x20 Hex head bolts.
The following displays the AirHarmony-4000 mounted on a wooden pole.
Figure 15: AirHarmony mounted on Wooden Pole
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 33
The following displays the AirHarmony-4000 mounted on a concrete pole.
Figure 16: AirHarmony mounted on Concrete Pole
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 34
The following displays the AirHarmony-4000 being mounted on a wall.

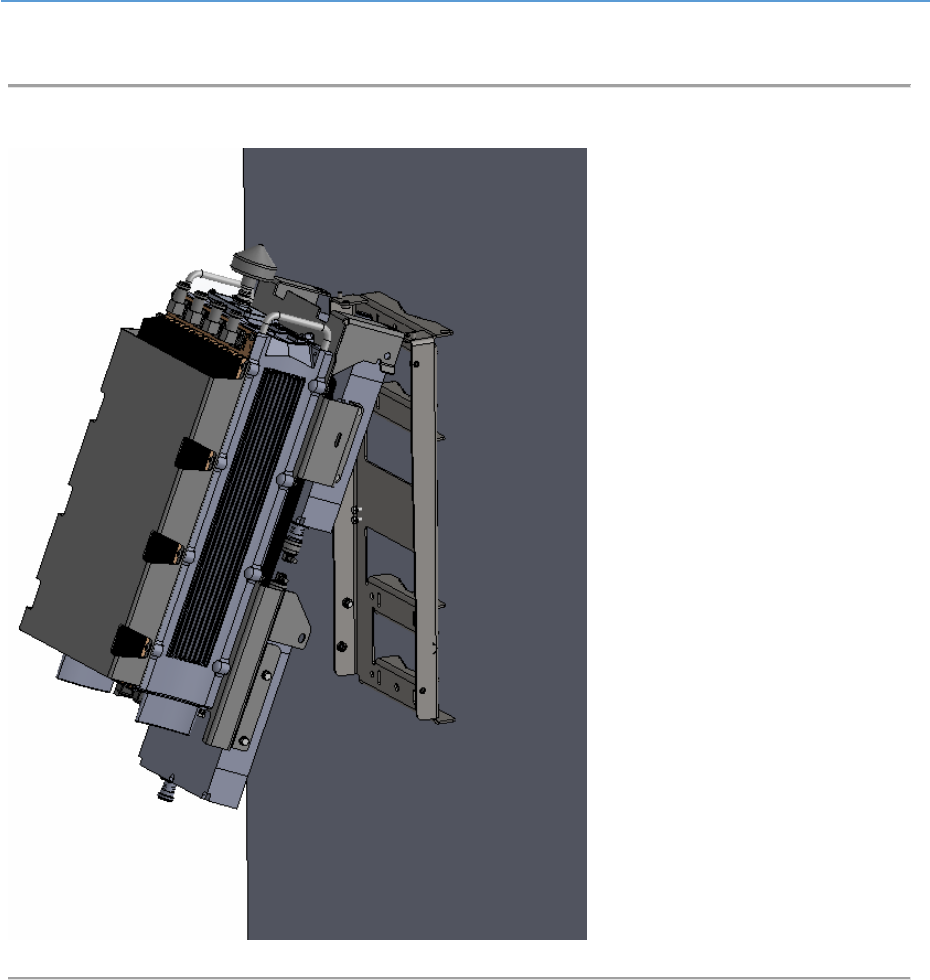

Figure 17: AirHarmony being mounted on a Wall
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 35
5 AirHarmony-4000 DC INT EXT Connections
This section describes Grounding procedure, cable preparation and connections and external
antenna assembly.
5.1 Grounding
The AirHarmony-4000 DC INT EXT requires a secure ground connection. The ground cable should be
connected with a grounding screw fitted with a flat washer and lock washer to the bottom of the
chassis clearly marked with the universal ground symbol as shown below. The grounding screw (M6
x 16) is pre-installed during assembly.

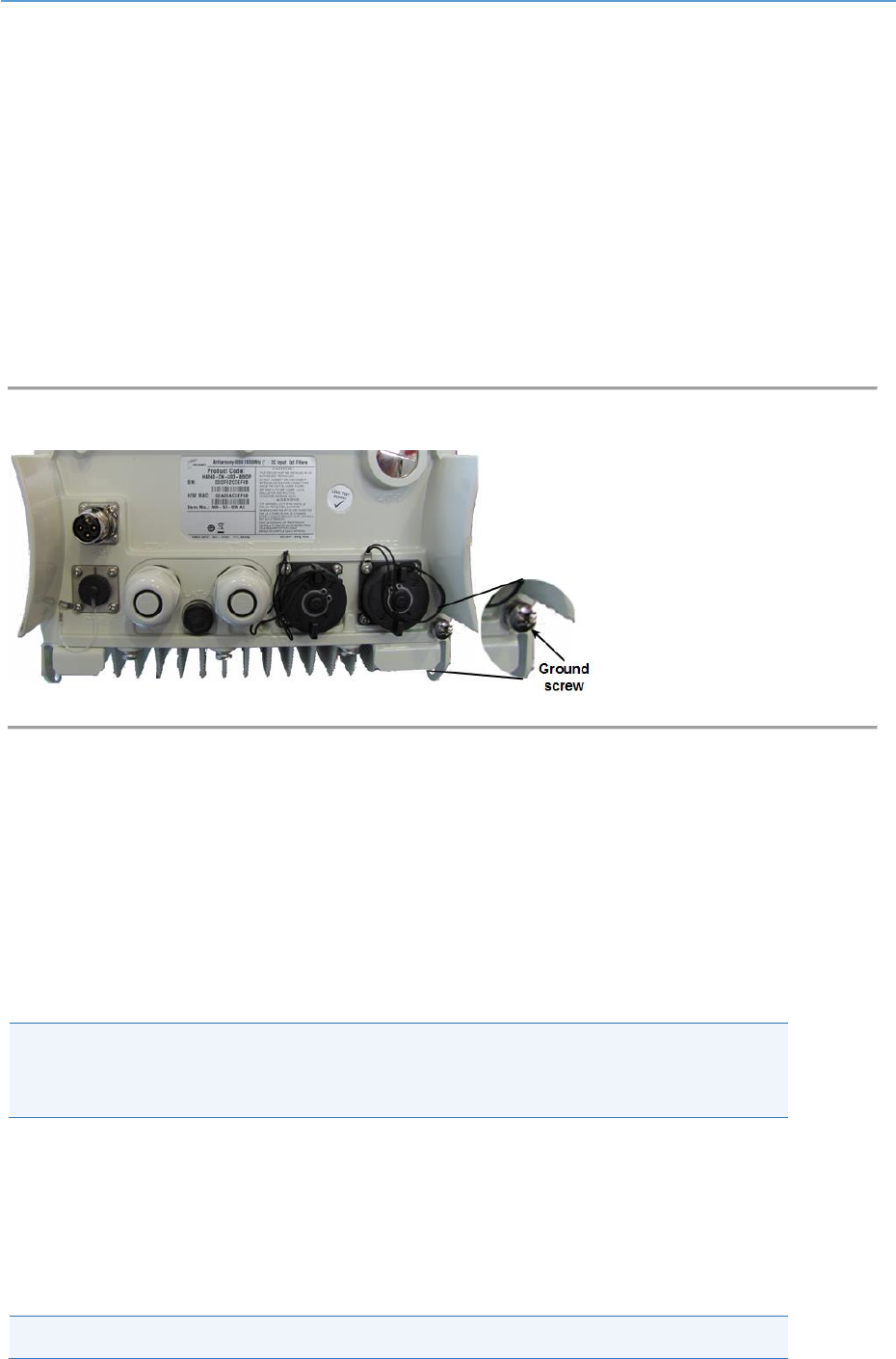

Figure 18: Grounding
The cable should be grounded and bonded according to international or local standards.
5.2 Remote Antenna Assembly
The AirHarmony-4000 DC INT EXT unit is be used with a remotely attached antenna.
For installation of a remotely mounted antenna follow the antenna manufacturer’s instructions and
connect the antenna to the AirHarmony-4000 Integrated External Duplexers’ RF connectors (female
DIN 4.1/9.5 connector) using the appropriate cables with a male DIN 4.1/9.5 connector.
Caution: Take care not over tighten the RF connector. The connector nut should be
tightened to a nominal torque of no more than 2.0 Nm (1.47 lb-ft). RF failures can result
when the RF connector is over-tightened.
5.2.1 Connecting RF Jumper Cables to External Antenna
The following describes how to connect the antenna cables to the Integrated Duplexers.
1. Attach, connect and secure the RF cable between the external antenna and the
appropriate RF connection on the top of the Integrated Duplexers.
Caution: Antennas must be connected and attached before AirHarmony is powered on.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 36
Caution: Power down AirHarmony prior to disconnecting antenna.
2. Weather-proof the RF connections.
Note: The above is also applicable for replacement assembly.
5.2.2 Weather-proofing the Antenna Connections
Weather-proofing of all the connections is required. This is done with a layer of self-amalgamating
tape followed by an over layer of PVC tape. The weather-proofing is best done at this stage to give
easier access to the connections.
Note: Weather-proofing is best done at the assembly stage to give easier access to the
connections. Weather-proofing is to be done to all RF connectors.
Verify the RF connectors are completely weather-proof.
5.3 Cable Connections
Note: The following images are for illustration purposes only. The actual tools or
hardware may differ according to manufacturer.
5.3.1 Copper Ethernet Cable Assembly
The following demonstrates the recommended assembly instructions, hardware and tool
requirements for the proper Ethernet cable assembly of the Ethernet Category 5e (enhanced)
(CAT5e) cable used by Airspan products.
The Ethernet cable is connected using a standard RJ45 connector protected by a harsh environment
protective casing.
Hardware Requirements
The following are the cable and connectors available from Airspan.
Table 11: Cable Hardware
Airspan Part Number
Description
CAT5e-STP-305M-R
CAT5e Ethernet Cable, 305M (1000ft), STP, Reel
RJ45-ETH-SHLD-CONN
RJ45 Ethernet Connector, Shielded
Assembly Instructions
The Copper Ethernet cable is connected to the AirHarmony-1000 using a Gland connector assembled
on the bottom panel of the unit, as shown below.

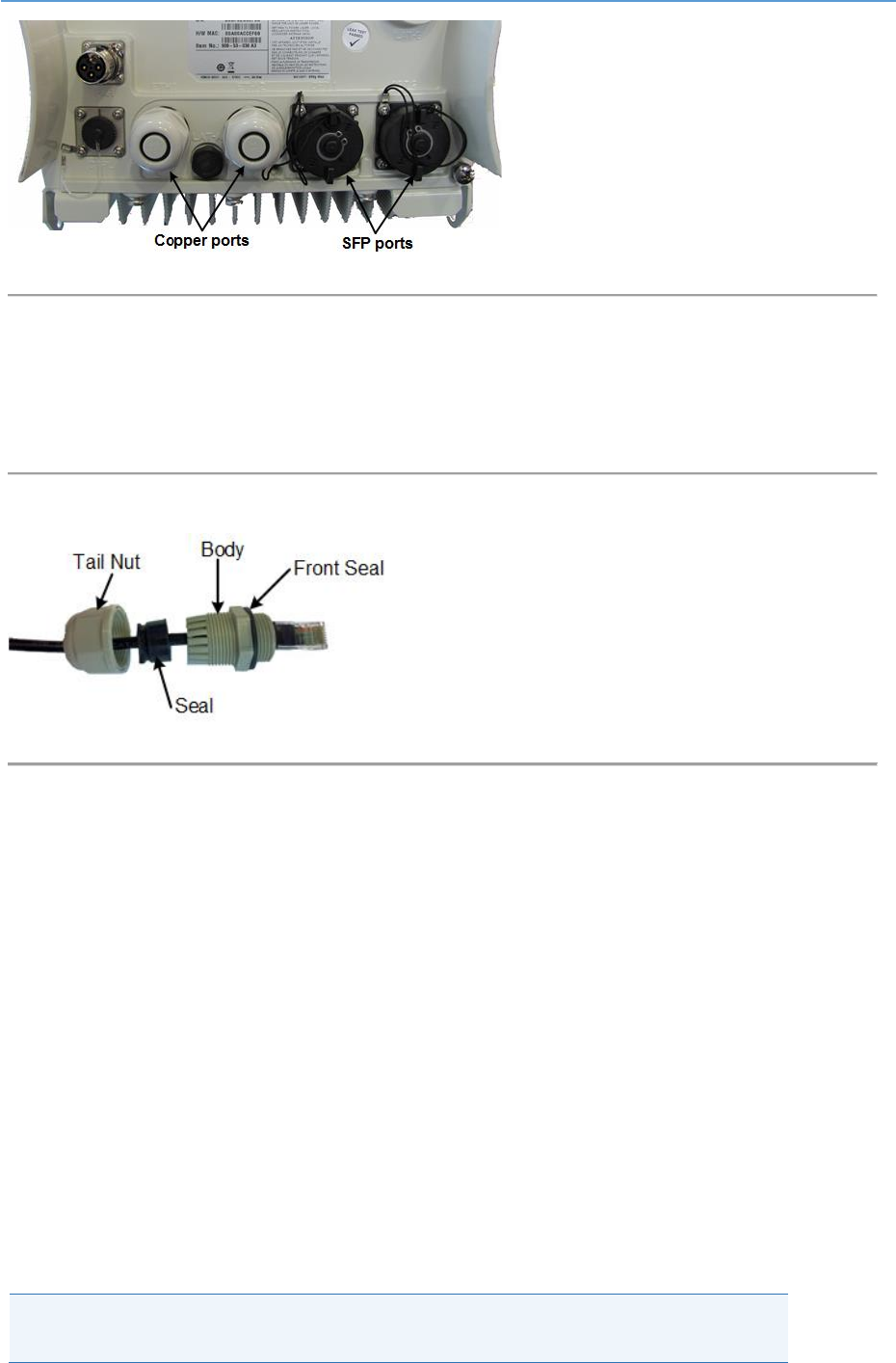

Figure 19: Gland connector - copper
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 37
1. Remove the Gland connector by unscrewing the body from the AirHarmony-1000, using
the (supplied) Gland wrench.
2. Pass the prepared Ethernet cable through the tail nut, gland seal, body and front seal of
the connector casing as shown below. Do not tighten the tail nut.
Figure 20: Ethernet Cable through connector
3. Seat the RJ45 connector plug securely into the body cavity of the AirHarmony-4000 DC
INT EXT.
4. Tighten the Gland body into to the threaded hole on the bottom of the AirHarmony-
4000 DC INT EXT.
5. Tighten the tail nut on to the body using the included Gland wrench, forcing the seal
compress around the cable.
6. Once the connector is properly installed, the cable should be positioned and secured to
minimize stress on the cable.
5.4 Fiber Ethernet (SFP) Cable Installation
The Fiber Ethernet Small form-factor pluggable transceiver (SFP) must be connected to the
AirHarmony -4000 using an outdoor fiber cable. The optical connection enables a one-hand
installation of the connector. This enables the users to easily remove and replace the SFP transceiver
module which eliminates the need to open the unit and expose its contents to hazardous weather
conditions.
Note: Airspan recommends using the Finisar - FTLF1318P3BTL 1000BASE-LX which has
been tested and approved by Airspan. Available from Airspan if required.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 38
5.4.1 SFP Cable Connection

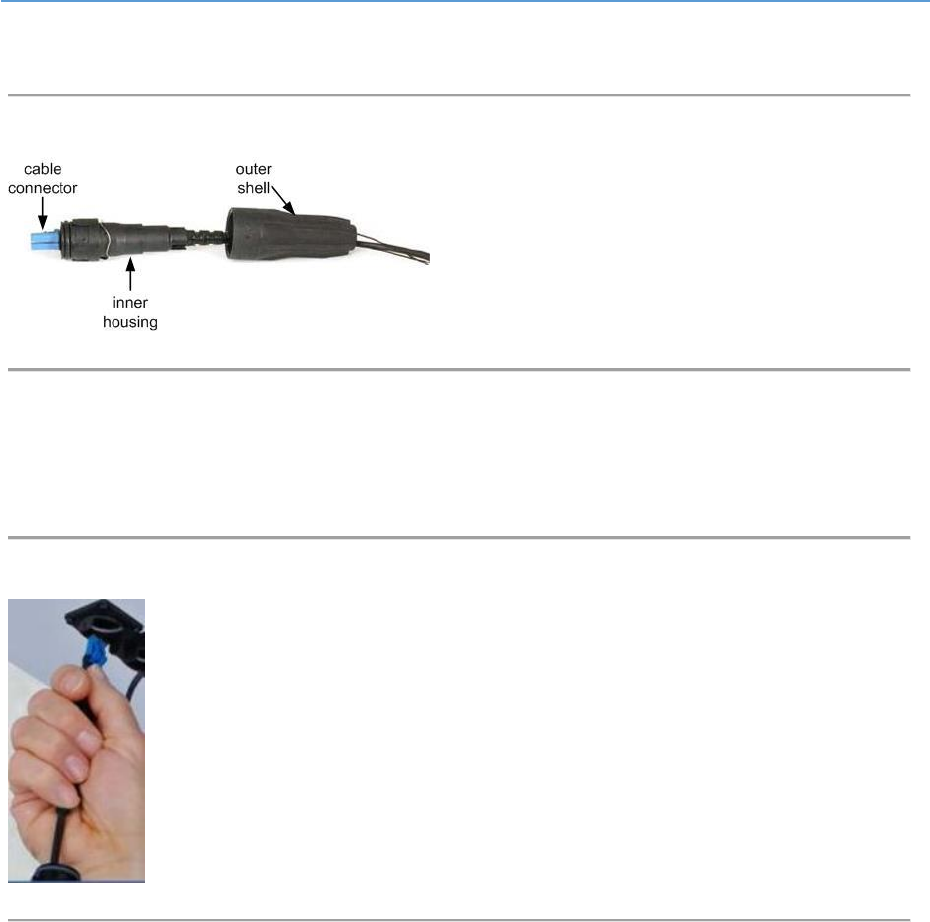

Figure 21: LC duplex cable assembly
1. Remove the protective dust cap from the connector housing assembled on the unit.
2. Line up the SFP transceiver module with the port and slide it into the port.
3. Connect the cable connector onto the board connector.
Figure 22: Cable connector hook up to the board connector
4. Verify that the locking latch on the cable connector is engaged on the board connector.
5. Slide the inner housing and ground shield (if present) over the cable and over the
molding.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 39

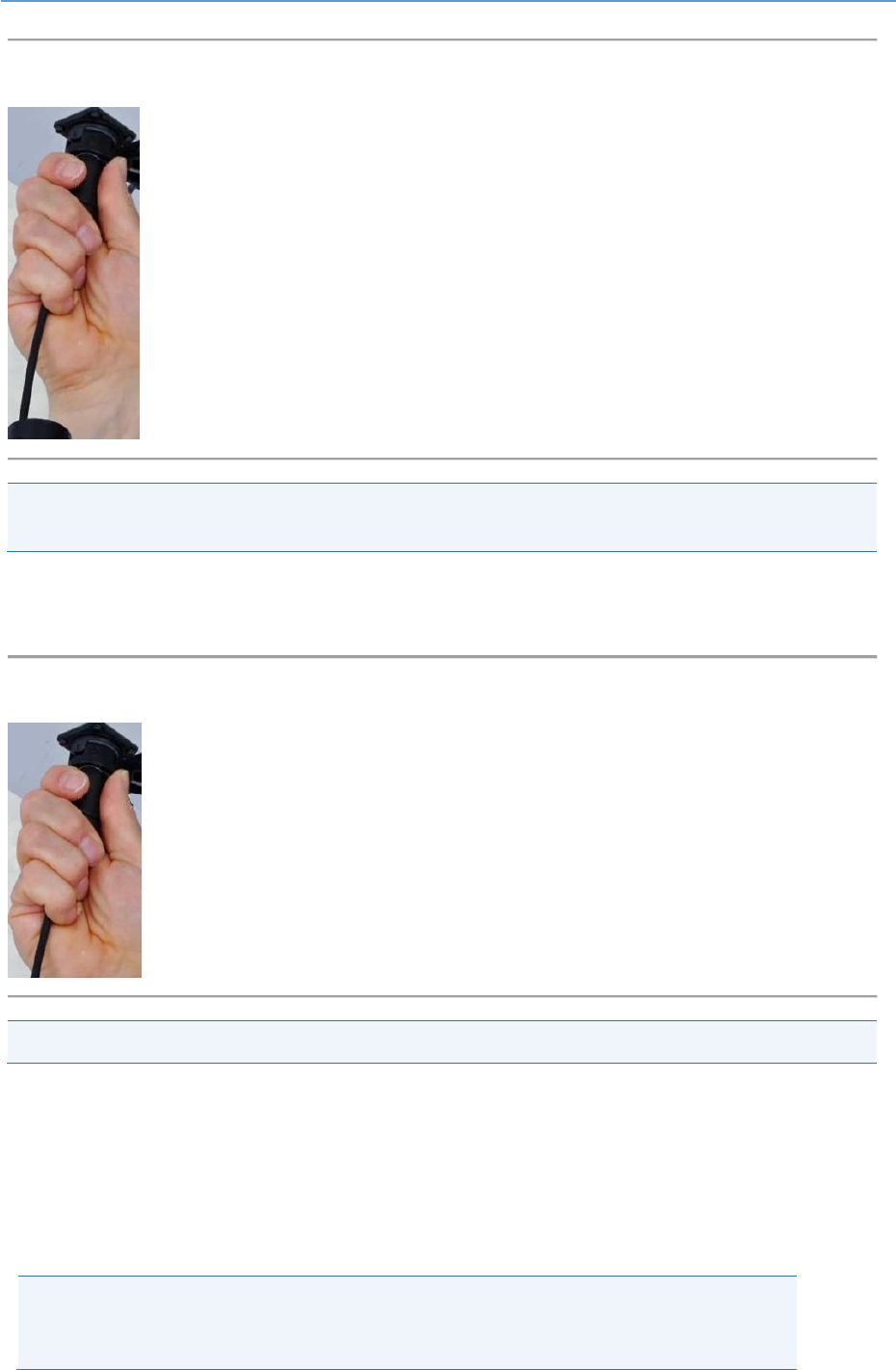

Figure 23: Slide on inner housing
Note: Check that there no space between the inner housing and mounting flange. Check and
remove any debris that might interfere with the connection.
6. Slide the outer shell over the inner housing and turn the outer bayonet shell 1/4 turn
clockwise, until it clicks into place.
Figure 24: Slide over and click
Note: The shell should be hand tightened only. Do NOT use tools to tighten the shell.
Once the connector is properly installed, the cable should be positioned and secured to minimize
stress on the cable and connector.
5.5 Connecting the DC Power Cable to AirHarmony-4000 DC
INT EXT
Danger: Hazardous voltage! Before working, ensure that the power is removed from the
power connection cables. When the system is powered on, do not touch the power
terminals.
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 40
Tip: It is good practice to label both ends of the cable to identify which AirHarmony-4000
DC unit it is connected to.
Tip: It is good practice to leave a spare loop of cable (approximately 0.5m). This will allow
for easier wiring and will allow the cable to be re-terminated if necessary in the future.
The power cable is connected to the AirHarmony-4000 DC connector (marked PWR) on the bottom
panel of the unit.
5.5.1 Connecting the DC Power Cable to AirHarmony
7. Plan the position of the DC power cable run from the AirHarmony unit to the power supply
unit. The DC power cable is offered in various lengths, to fit different deployments.
8. Uncoil the cable and secure the connector just below the AirHarmony unit.
Note: When securing the cable make sure there is no tension on the connector so that it is easy to
disconnect and re-connect for future maintenance actions.
Caution: The internal plastic parts of the mating connector are keyed. Take care to align these by
visual inspection or by gently rotating the connector body until the key way sections align and the
pins go in before tightening the locking ring.
9. Position the pins correctly, the connector is secured to the unit with a locking ring that is
screwed into place. Use firm hand pressure only, the connector has a built in sealing ring.

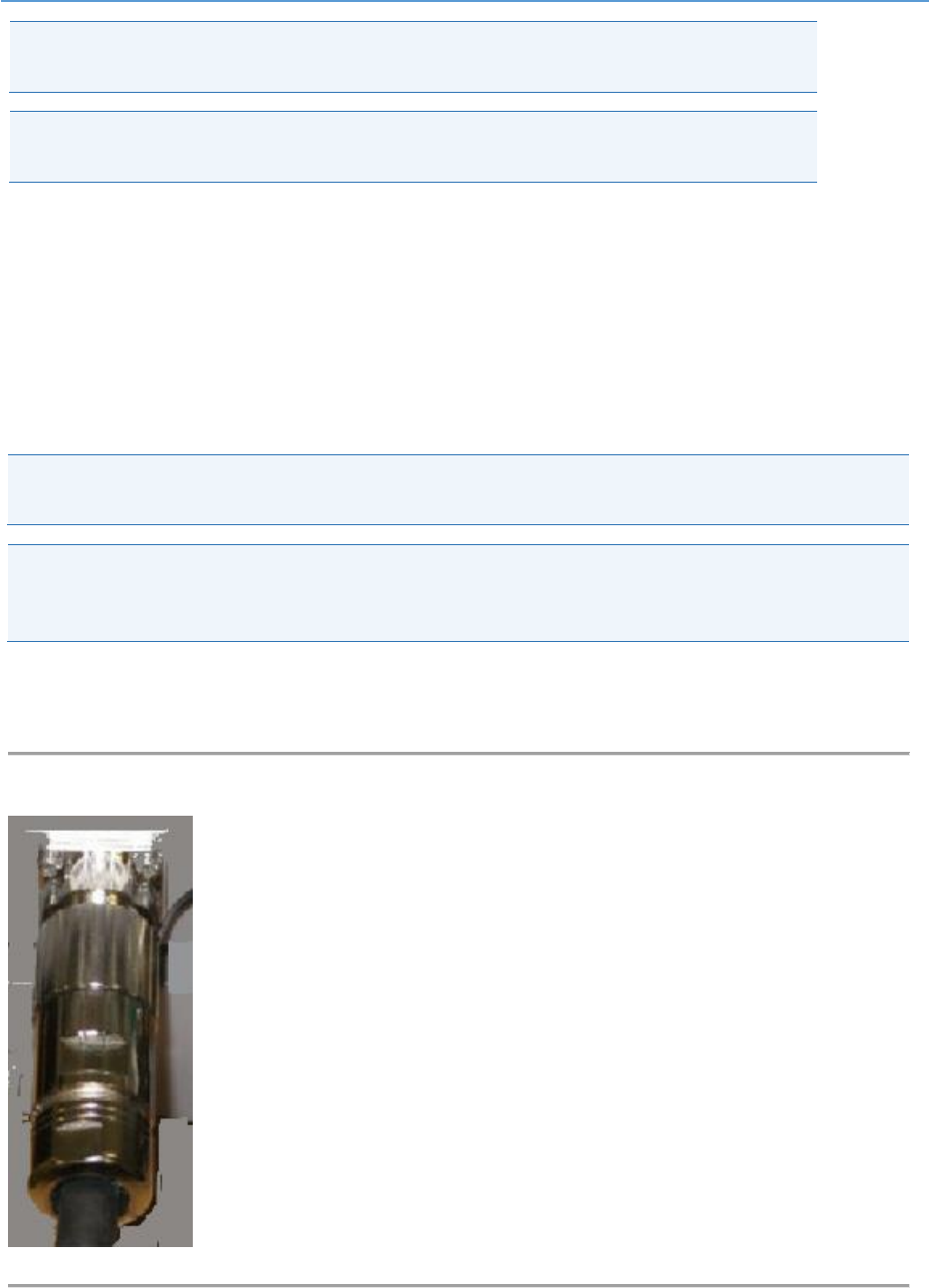

Figure 25: attaching power cable to AirHarmony
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 41
5.5.2 AC/DC Power Converter – Optional
This section provides a description of the external AC/DC Power converter – Optional, available from
Airspan.
The third-party external AC/DC Power Converter is an optional unit that connects to the
AirHarmony-4000 DC in the event there is no -48VDC availability at the site.
Note: Airspan recommends using the AC/DC Power Converter for the AirHarmony-4000 DC.
Available from Airspan if required.
Figure 26: Optional AC/DC Converter
AC/DC Power Converter
Table 12: AC/DO Converter Specifications
Model Type DC
Details
DC Voltage
48V
Rated Current
12.5A
Currebt Range
0 ~ 12.5A
Rated Power
600W
Voltage Adj. Range
41 ~ 56V
Safety Standards
UL60950-1, TUV EN60950-1 approved
EMI Conduction & Radiation
Compliance to EN55022 (CISPR22) Class B
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 42
A Job Sheet
This job sheet enables the users to keep track of their installation. It covers all the prerequisites
required for accomplishing the AirHarmony-4000 DC INT EXT installation.
Table 13: Job Sheet
Site Requirements
Pole or wall for installation identified
Position on pole or wall identified
Pole access restrictions (highway regulations, other services on pole, power pole)
Method of reaching pole positions (ladders, Elevated work platform)
AC main fuse block available for AC/DC converter (where needed)
Configuration programming details known
Point of connection for Ethernet (if applicable)
All equipment items available at the installation site:
● Main AirHarmony-4000 DC unit
● GPS Antenna
● Mounting bracket, through-bolt and pole clamps, or bolts if wall mount
● Copper Ethernet or SFP cable assembly
● Weather-proofing of the connections with a layer of self-amalgamating tape
followed by an over layer of PVC tape.
Tool Requirements
(For further information, see Verify the Tools.)
Large flat screw driver
Small flat blade screw driver (insulated shaft recommended)
Medium Philips head screw driver
13 mm wrench
Knife
pliers
Small side cutters
Wire strippers
Required Ancillary Equipment
Laptop PC for initial configuration
Cable for temporary connection of the laptop
Other installed materials
Cable ties
Labels (good to have)
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 43
B Abbreviations
Term
Expansion
3GPP
3rd Generation Partnership Project, responsible for LTE
ABS
Almost Blank Subframes
ACS
Adjacent Channel Selectivity is a measurement of a receiver's ability to process a desired
signal while rejecting a strong signal in an adjacent frequency channel. ACS is defined as the
ratio of the receiver filter attenuation on the assigned channel frequency to the receiver
filter attenuation on the adjacent channel frequency.
AWGN
Additive White Gaussian Noise is a channel model in which the only impairment to
communication is a linear addition of white noise with a constant spectral density and a
Gaussian distribution of amplitude.
BER
Bit Error Rate
CN
Core Network
CP
Cyclic Prefix
CTC
Convolution Turbo Code is a high-performance forward error correction (FEC) code
dB
Decibel. A logarithmic unit used to describe a ratio (such as power ratio in radio
telecommunications)
dBm
An abbreviation for the power ratio in decibels (dB) of the measured power referenced to
one milliwatt (mW). It is used as a convenient measure of absolute power because of its
capability to express both very large and very small values in a short form.
eNodeB
Evolved Node B, is the element in E-UTRAN of LTE.
ESP
Encapsulating Security Payloads (ESP) provide confidentiality, data-origin authentication,
connectionless integrity, an anti-replay service (a form of partial sequence integrity), and
limited traffic-flow confidentiality
E-UTRAN
Evolved UMTS Terrestrial Radio Access Network, is the air interface of 3GPP's Long Term
Evolution.
EVM/RCE
The Error Vector Magnitude or EVM (sometimes also called Receive Constellation Error or
RCE) is a measure used to quantify the performance of a digital radio transmitter or receiver.
It is measured in dB or percentage (%) – the lower the better.
FDD
Frequency-Division Duplexing. A transceiver mode where the transmitter and receiver
operate at different carrier frequencies.
GNSS
Global Navigation Satellite System is a term used to describe a satellite navigation system
with global coverage. There are currently two fully operational GNSSs – the US GPS and the
Russian GLONASS
GTP-U
GPRS Tunneling Protocol for User data is a relatively simple IP based tunneling protocol
which permits many tunnels between each set of end points
HPBW
Half Power BandWidth is the angular separation in an antenna, in which the magnitude of
the radiation pattern decreases by 50% (or -3 dB) from the peak of the main beam
ICS
In-channel selectivity is a measure of the receiver’s ability to receive a wanted signal at its
assigned Resource Block locations in the presence of an interfering signal
IPSec
Internet Protocol Security is a protocol suite for securing Internet Protocol (IP)
communications by authenticating and encrypting each IP packet of a communication
session
LED
Light Emitting Diode
LTE
Long Term Evolution
MAC
Medium Access Controller – responsible for several functions such Error Correction, Packet
(De)Multiplexing, etc…
MBSFN
Multicast-Broadcast Single Frequency Network is an LTE feature designed to deliver services
such as Mobile TV using the LTE infrastructure, and is expected to be a competitor to DVB-H-
based TV broadcast
AirHarmony-4000 DC (Integrated External Duplexers) Installation Guide
UGD-D01123 Airspan Commercial and Internal Use 44
Term
Expansion
MCS
Modulation and Coding Scheme
MME
Mobility Management Entity is the key control-node for the LTE access-network. It is
responsible, among other things for idle mode UE tracking and paging procedure including
retransmissions
MTBF
Mean Time Between Failures
OFDMA
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of OFDM
digital modulation scheme, used for eNodeB transmissions to UEs
PDCP
Packet Data Convergence Protocol. A Sub-Layer in LTE responsible for IP Header
(De)Compression, etc…
PDU
Protocol Data Unit
PTP
Precision Time Protocol is used to synchronize clocks throughout a network. In this
document, PTP is referring to IEEE1588-2008 protocol
RB
Resource Block
RLC
Radio Link Control. A Sub-Layer in LTE responsible for Ack/Nack, error correction, packet
reordering, etc…
ROHS
Restriction Of Hazardous Substances
RRM
Radio Resource Management is used to cover all functions that are related to the
assignment and sharing of radio resources among UEs
S-GW
Serving Gateway. A Core entity in the LTE EPC architecture responsible for routing and
forwarding user data packets, while also acting as the mobility anchor for the user plane
during inter-eNodeB handovers and as the anchor for mobility between LTE and other 3GPP
technologies
SBA
Switched Beam Antenna
SC-FDMA
Single-Carrier FDMA is a frequency-division multiple access scheme, dealing with the
assignment of multiple users to a shared communication resource. Used in LTE for UE
transmissions to the eNodeB
SCTP
Stream Control Transmission Protocol is a reliable transport layer protocol, ensuring in-
sequence transport of messages with congestion control like TCP
SDR
Software Defined Radio
TDD
Time-Division Duplexing. A transceiver mode where the transmitter and receiver operate on
the same carrier frequency
UE
User Equipment. The end user in LTE
WEEE
Waste Electrical and Electronic Equipment
