PRODUCT OVERVIEW
The Model 2GIG-XCVR3-GC3 Transceiver Adapter is designed to be used
with the 2GIG GC3 Security & Automation panel. The Transceiver Adapter
is a single frequency device. It receives and transmits 900MHz signals to and
from the Alarm.com Image Sensor (2GIG-IMAGE2-GC3).
To use an Alarm.com Image Sensor with the GC3 panel, the Transceiver
Adapter must be wired into the control panel.
PRODUCT COMPATIBILITY
The 2GIG GC3 panel must be running rmware version 3.0.1 or later to
function with the Transceiver Adapter. To check the current version number
of the rmware, go to the home screen of the GC3 panel and navigate to
System Info and Usage > System Info.
If the GC3 panel is running a rmware version earlier than 3.0.1, you
should contact Technical Support for assistance in performing an over-the-
air or local rmware upgrade.
INSTALLATION INSTRUCTIONS
1. Disconnect Power (Do Not Proceed Until this Step is Complete)
a. Unplug the AC power supply.
b. Remove the back cover from the control panel and disconnect
the backup battery cable.

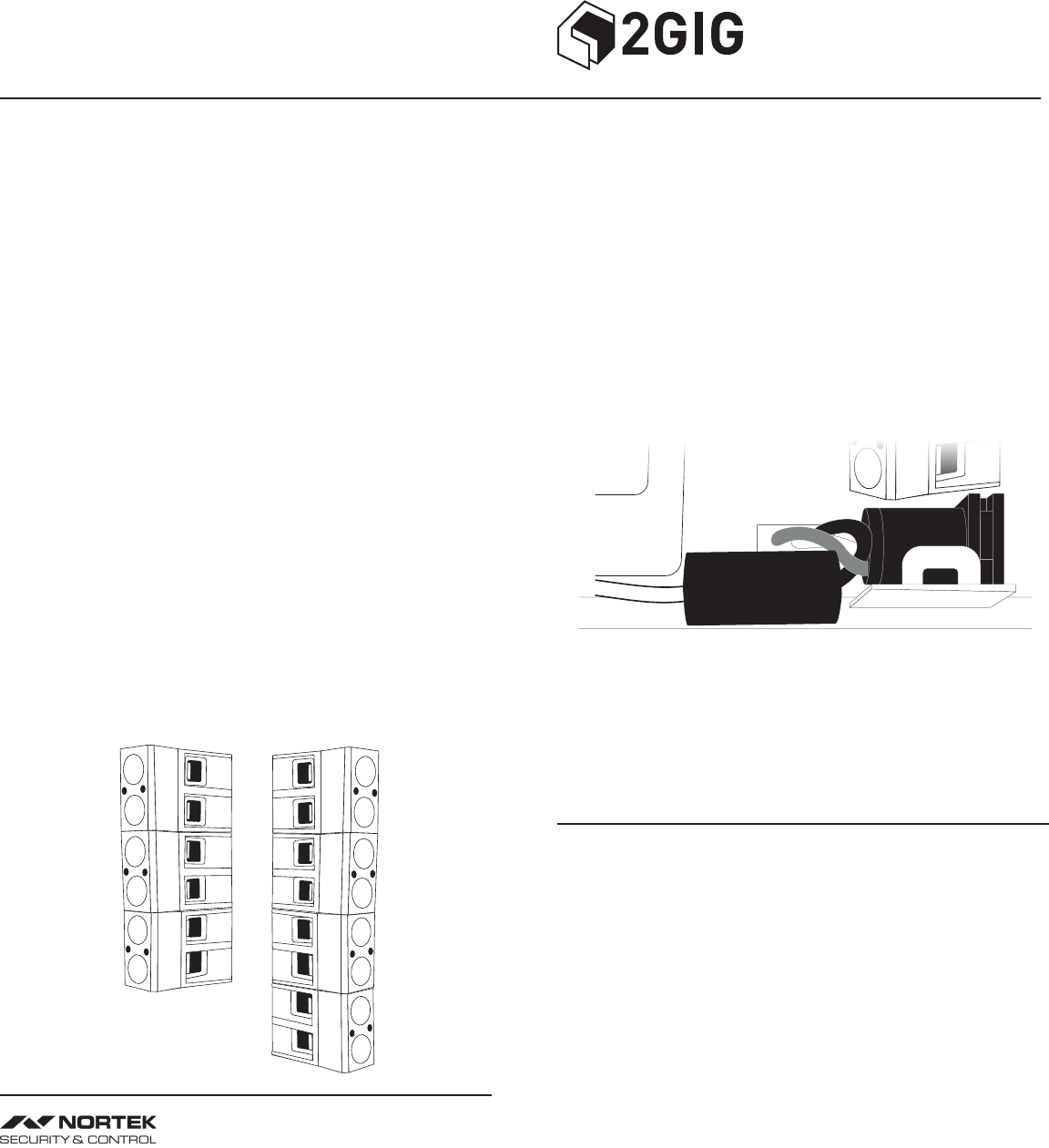

2. Wire the Transceiver Adapter to the GC3 Panel
Red: Smoke + Black: Common (GND) Green: RX White: TX
SKU: 2GIG-XCVR3-GC3
900 MHz Transceiver Adapter
Transceiver Adapter for the
Alarm.com Image Sensor
3. Insert the Transceiver Adapter into the Wall
Insert the Transceiver Adapter into the wall or as far away from the GC3
panel as possible. This ensures optimum signal strength.
4. Ensure Cellular Radio is Installed
Make sure the cell radio is fully inserted into the cell slot and the cell door
is securely closed.
5. Reconnect Power
a. After the Transceiver Adapter has been installed, re-connect the
backup battery cable.
b. Reattach the back cover to the GC3 panel and plug in the AC
power supply.
TROUBLESHOOTING
If you are unable to successfully add an Image Sensor to an Alarm.com
customer account, follow the recommendations below and try again:
• Ensure the GC3 panel is running the required rmware
• Double check that the Transceiver Adapter has been wired
correctly to the GC3 panel
Limited Warranty
This Nortek Security & Control product is warranted against defects in material and workmanship of two (2) years. This
warranty extends only to wholesale customers who buy direct from Nortek Security & Control LLC or through Nortek
Security & Control LLC’s normal distribution channels. Nortek Security & Control LLC does not warrant this product to
consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are
no obligations or liabilities on the part of Nortek Security & Control LLC for consequential damages arising out of or in
connection with use or performance of this product or other indirect damages with respect to loss of property, revenue,
or prot, or cost of removal, installation, or reinstallation. All implied warranties for functionality, are valid only until the
warranty expires. This Nortek Security & Control LLC Warranty all other warranties expressed or implied. All products
returned for warranty service require a Return Authorization Number (RA#). Contact Returns at 1-855-546-3351 for an
RA# and other important details.
FCC Regulations
Changes or modications not expressly approved by the manufacturer could void the user’s authority to operate the
equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit
dierent from that which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference. (2) This device must accept any interference received, including interference that
may cause undesired operation.
IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
CONTAINS FCC ID: YL6-143XCVR200;
IC: 9111A-143XCVR200; M/N: ADC-XCVR200
2GIG
Nortek Security & Control LLC
1950 Camino Vida Roble, Suite 150
Carlsbad, CA 92008-6517 USA
For technical support in the USA and Canada:
Dial 85502GIG-TECH (855-244-4832)
Email 2gigtechsupport@nortek.com
Visit www.2GIG.com
For technical support outside of the USA and Canada:
Contact your regional distributor
Visit www.nortekcontrol.com for a list of distributors in your region
Smoke -
Smoke +
OCL2
OCL1
RX
TX
PWR +
PWR -
GND
BELL +
BELL -
Zone1
Zone2
GND
