Alcatel-Lucent 9363

Metro Cell - Indoor V2 2100MHz and 1900/850MHz

Installation and commissioning

401-387-097

Issue 1

May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

<附件>

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Not to be used or disclosed except in accordance with applicable agreements.

Use pursuant to applicable agreements

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Contents
About this document
Purpose ............................................................................................................................................................................................ viivii
Reason for revision ..................................................................................................................................................................... viivii
New in this release ...................................................................................................................................................................... viivii
Intended audience ....................................................................................................................................................................... viivii
Supported systems ...................................................................................................................................................................... viivii
How to use this document ....................................................................................................................................................... viiiviii
Safety information ..................................................................................................................................................................... viiiviii
Prerequisites ................................................................................................................................................................................. viiiviii
Conventions used ....................................................................................................................................................................... viiiviii
Related information ................................................................................................................................................................... viiiviii
Document support ........................................................................................................................................................................ ixix
Technical support .......................................................................................................................................................................... ixix
How to order ................................................................................................................................................................................... ixix
How to comment ........................................................................................................................................................................... ixix
1Safety statements
Overview ...................................................................................................................................................................................... 1-11-1
Structure of safety statements ............................................................................................................................................... 1-21-2
Safety ........................................................................................................................................................................................... 1-41-4
Safety - specific hazards ......................................................................................................................................................... 1-51-5
Product safety ............................................................................................................................................................................. 1-81-8
2Product overview
Overview ...................................................................................................................................................................................... 2-12-1
....................................................................................................................................................................................................................................
Alcatel-Lucent 9363 MC
401-387-097
Issue 1 May 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements iii

Functional description ............................................................................................................................................................. 2-22-2
Physical description ................................................................................................................................................................. 2-52-5
3Metro Cell installation and commissioning
Overview ...................................................................................................................................................................................... 3-13-1
Pre-installation information .................................................................................................................................................. 3-23-2
To mount the hardware to a wall or ceiling ..................................................................................................................... 3-43-4
Metro Cell - Indoor cabling .................................................................................................................................................. 3-83-8
Metro Cell - Indoor commissioning process ................................................................................................................ 3-143-14
Post installation activities and checks ............................................................................................................................. 3-153-15
4Product specifications
Overview ...................................................................................................................................................................................... 4-14-1
Environmental and regulatory specifications ................................................................................................................. 4-24-2
AMetro Cell - Indoor wall mount spacer
Overview ..................................................................................................................................................................................... A-1A-1
Wall mount spacer ................................................................................................................................................................... A-2A-2
BProduct conformance statements
Overview ..................................................................................................................................................................................... B-1B-1
European Union ........................................................................................................................................................................ B-2B-2
United States .............................................................................................................................................................................. B-6B-6
Glossary
Index
Contents
....................................................................................................................................................................................................................................
....................................................................................................................................................................................................................................
iv Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements
Alcatel-Lucent 9363 MC
401-387-097
Issue 1 May 2011

List of figures

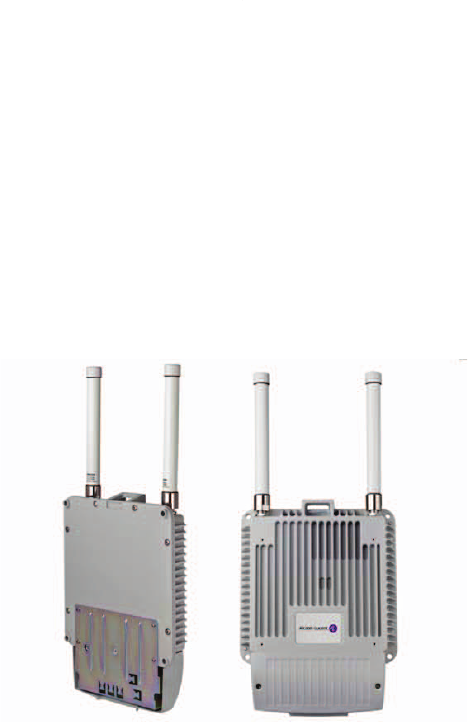

2-1 Alcatel-Lucent 9363 Metro Cell - Indoor ........................................................................................................ 2-22-2

2-2 Alcatel-Lucent 9363 Metro Cell - Indoor (2100 MHz variant) ................................................................ 2-52-5

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements v

About this documentAbout this document

Purpose

The purpose of this document is to provide hardware installation instructions for the

Alcatel-Lucent 9363 Metro Cell - Indoor V2 2100MHz. and 1900/850MHz.

Procedures are provided for product handling, placement, grounding, powering on and

off, and cabling.

Reason for revision

The reissue reasons are:

Issue number Issue Date Reason for reissue

1 May 2011 Standard issue

New in this release

New features:

•None

Other changes:

•None

Intended audience

The audience for this document is Installation personnel.

Supported systems

This document applies to the Alcatel-Lucent 9363 Metro Cell - Indoor V2 2100MHz and

1900/850MHz

...................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements vii

How to use this document

Start with the first chapter and work through the manual to the end. Once you have done

this, you will have carried out the hardware installation completely and in the proper

sequence.

Prior to installing the product, the installer should be familiar with the safety precautions,

warnings, and product conformance statements.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

Prerequisites

None

Conventions used

Vocabulary conventions

None

Typographical conventions

None

Related information

For information on subjects related to the content of this document, refer to the

documents listed in the following table:

Refer to this document At this location For more information on

Alcatel-Lucent W-CDMA

System - Safety Guide,

401-382-880

http://support.alcatel-lucent.

com.

Safety guidelines and the

catalog of hazard statements

that appear in the

Alcatel-Lucent W-CDMA

customer documents.

Alcatel-Lucent 9364 Metro

Cell Indoor and Outdoor

Troubleshooting,

401-387-076

http://support.alcatel-lucent.

com.

Troubleshooting procedures

for the Metro Cell Indoor

Standard for Installation of

Lightning Protection Systems,

NFPA

Lightning protection systems

About this document

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Refer to this document At this location For more information on

Recommended Practices on

Surge Voltages in Low

Voltage AC Power Circuits,

IEEE C62.41 (Latest Edition)

Power

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

one of the following telephone numbers:

•1-888-582-3688 (for the United States)

•1-317-377-8618 (for all other countries)

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

How to order

To order Alcatel-Lucent documents, contact your local sales representative or use Online

Customer Support (OLCS) (http://support.alcatel-lucent.com).

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/enus/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements ix

About this document

....................................................................................................................................................................................................................................

xAlcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

11Safety statements

Overview

Purpose

This chapter provides general information on the structure of safety instructions and

summarizes general safety requirements.

General safety and residual risk

The equipment has been developed in line with state-of-the-art technology and conforms

with current national and international safety requirements.

The equipment is considered safe during normal operation when safe working practices

are complied with. However, hazards may arise if procedures are not followed correctly

or safe working practices are not complied with.

Contents

Structure of safety statements 1-2

Safety 1-4

Safety - specific hazards 1-5

Product safety 1-8

...................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-1

Structure of safety statements

Overview

Safety statements describe the safety risks relevant while performing tasks on

Alcatel-Lucent products during deployment and/or use. Failure to avoid the hazards may

have serious consequences.

General structure

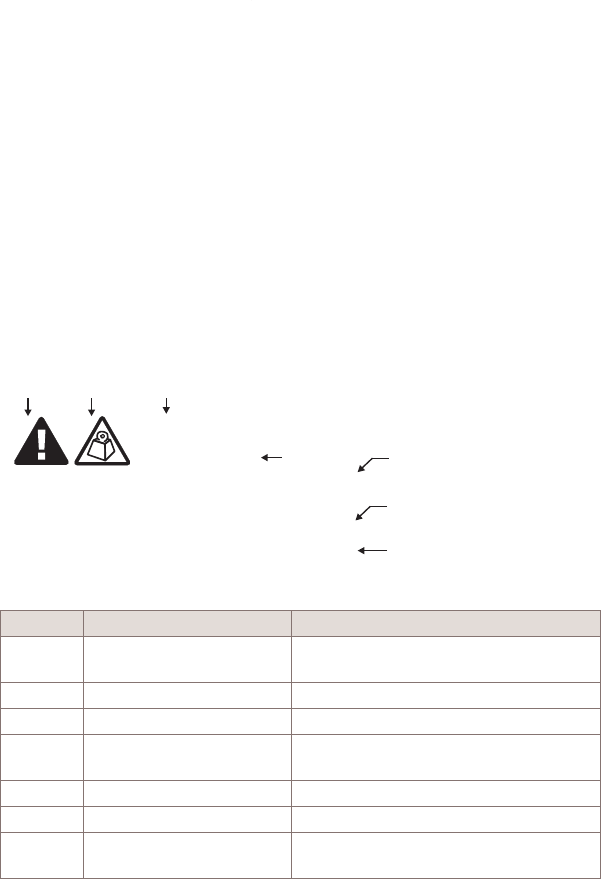

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

BC D

EF

G

H

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-3

Safety

General precautions for installation procedures

WARNING

Failure to observe these safety precautions may result in personal

injury or damage to equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by

trained personnel only.

•The equipment must be provided with a readily accessible disconnect device

as part of site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment.

Never operate the equipment with grounding/bonding conductor

disconnected.

•Install only equipment identified in the product's installation manual. Use of

other equipment may result in an improper connection which could lead to

fire or injury.

•Use caution when installing or modifying telecommunications lines.

•The product has multiple power inputs. Before servicing, Disconnect all

inputs to reduce the risk of energy hazards.

•For continued protection against risk of fire, all fuses used in this product

must be replaced only with fuses of the same type and rating.

•Never install telecommunications wiring during a lightning storm.

•Never install telecommunications connections in wet locations.

•Never touch uninsulated wiring or terminals carrying direct current or

ringing current, and never leave this wiring exposed. Protect and tape

uninsulated wiring and terminals to avoid risk of fire, electrical shock, and

injury to personnel.

•Never spill liquids of any kind on the product.

•To reduce the risk of an electrical shock, do not disassemble the product.

Opening and removing covers and/or circuit boards may expose you to

dangerous voltages or other risks. Incorrect reassembly can cause electrical

shock when the unit is subsequently used.

Safety statements Safety

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Safety - specific hazards

DANGER

Electric-shock hazard

Working in severe weather can result in personal injury or death and damage to the

equipment.

Never install or perform maintenance during severe weather (high winds, lightning,

blizzards, hurricane etc.).

DANGER

Noxious-substance hazard

Use of unspecified cleaning agents can result in personal injury.

Use only specified cleaning agents. Never use flammable solvents.

Always ensure there is adequate ventilation in the work area and wear the appropriate

personal protective equipment.

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 + A1 or EN 60215) may install or service the installation.

WARNING

Electric-shock hazard

The power supply lines to the network element are energized. Contact with parts carrying

voltage can cause health problems, possibly including death, even hours after the event.

Open and lockout the load disconnect switch in the distribution box to completely

de-energize the network element.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-5

WARNING

Electric-shock hazard

This product may be connected to an AC main power supply and may contain an internal

battery supply. Disconnecting one power source may not de-energize the system, and can

lead to serious injury.

Disconnect and lock out the AC main power supply, if present, and the internal battery

supply, if present, before servicing the equipment.

NOTICE

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges.

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic working clothes (for example, coat made of 100%

cotton).

•Wear the grounded wrist strap.

•Wear shoes with conductive soles on a conductive floor surface or conductive work

mat.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

packaging before removing, unpacking, or packing a module.

•Hold the module only by the grip without touching the connection pins, tracks, or

components.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

NOTICE

Condensation

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

NOTICE

Tools

Tools left in the working area can cause short circuits during operation which can lead to

the destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

CAUTION

Hot-surface hazard

Touching a hot heater may cause burns.

Do not touch the heaters.

Before touching the units wait until they have cooled down, wear safety gloves and

clothes.

NOTICE

Corrosive-substance hazard

Cleaning plastic containers and lids with abrasive and aggressive cleaning agents may

cause permanent damage.

Do not use solvents, paraffin, abrasive or aggressive cleaning fluids, abrasive or

aggressive antiseptic agents or abrasive or aggressive materials.

NOTICE

Service-disruption hazard

Cleaning with water or a high-pressure cleaner will damage the components in the

cabinet.

The washing down of the equipment or cabinet with water or a high-pressure cleaner is

not permitted.

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-7

Product safety

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the cabinet, its internal

assemblies or included within this document. Informational and cautionary labels may

appear near the item they address or may be grouped in a single location on the

equipment. Warnings are typically adjacent to the hazard that is noted on the label. The

instructions, cautions and warnings found on these labels must be understood and

observed by all personnel involved with the equipment installation and maintenance.

Safety statements Product safety

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

22Product overview

Overview

Purpose

This chapter provides an overview of the Alcatel-Lucent 9363 Metro Cell - Indoor.

Contents

Functional description 2-2

Physical description 2-5

...................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-1

Functional description

General description

The 9360 Small Cell solution has been developed to handle the increased demand of

solutions to efficiently address the residential fixed and mobile market.

The Alcatel-Lucent 9363 Metro Cell - Indoor is a public area wireless access node that

collapses the traditional 3G Node B and RNC functions into a single small unit.

Product deployment

The product can be deployed by mobile operators to provide a transparent indoor capacity

layer to complement the macro cell “umbrella” coverage layer. In the case of private

locations, such as coffee shops or restaurants, the Metro Cell may be privately owned and

may be deployed by building owners or local governments but remain controlled by the

operator using their spectrum resources.

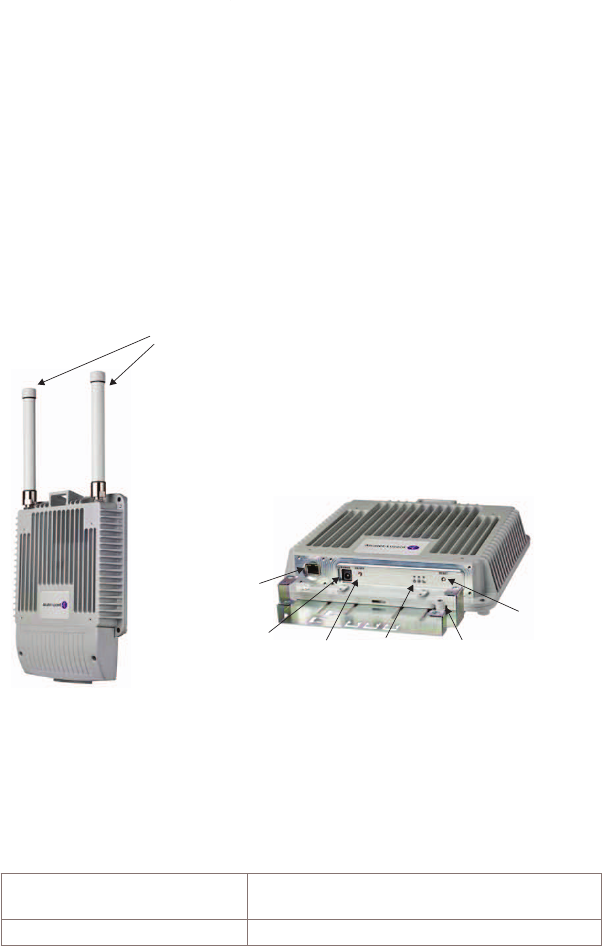

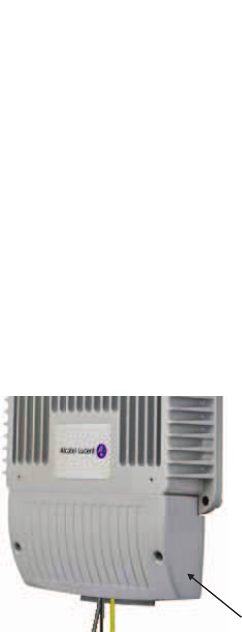

Figure 2-1 Alcatel-Lucent 9363 Metro Cell - Indoor

Front view

Back view

Product overview Functional description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

V2 product description

Two variants of the Metro Cell - Indoor exist:

•2100 MHz

•1900/850 MHz

Metro Cell - Indoor 2100 MHz

This table lists the characteristics of the 2100 MHz variant.

Metro

Cell

Indoor

Features

Frequency Power User

capacity

Characteristics

V2 Frequency Band:

2100 MHz

3G Sniffer

Frequency band:

900/2100 MHz

2G Sniffer

Frequency bands:

900/1800 MHz

Power can be

suppled via:

•The router or a

PoE+ injector

•48V DC power

adaptor

Power consumption

is maximum 25W

and typically 20W

Supports up

to 32 users

with full

speed HSPA

(14.4 Mbps

L1 HSDPA

bearer and

5.7 Mbps

L1 HSUPA

bearer)

Supports Rx space

diversity

Maximum transmit

power of 250 mW at

antenna connector

(enabling wider cell

coverage)

Temperature range: -5

to +45 0C

Wall mounted or false

ceiling installation

options, vertically or

horizontally

Product overview Functional description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-3

Metro Cell 1900/850 MHz

This table lists the characteristics of the 1900/850 MHz variant.

Metro

Cell

Indoor

Features

Frequency Power User

capacity

Characteristics

V2 Frequency Band:

1900 and 850

MHz

3G Sniffer

Frequency band:

1900/850 MHz

2G Sniffer

Frequency bands:

1900/850 MHz

Power can be

suppled via:

•The router or a

PoE+ injector

•48V DC power

adaptor

Power consumption

is maximum 25W

and typically 20W

Supports up

to 32 users

with full

speed HSPA

(14.4 Mbps

L1 HSDPA

bearer and

5.7 Mbps

L1 HSUPA

bearer)

Supports Rx space

diversity

Assisted GPS

capability for

localization of the unit

Maximum transmit

power of 250 mW at

antenna connector

(enabling wider cell

coverage)

Temperature range: -5

to +45 0C

Wall mounted or false

ceiling installation

options, vertically or

horizontally

Installation options

The Alcatel-Lucent 9363 Metro Cell - Indoor is designed to be used indoors can be

installed using the following options:

•wall mounted

•in a false ceiling

Product overview Functional description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Physical description

Product overview

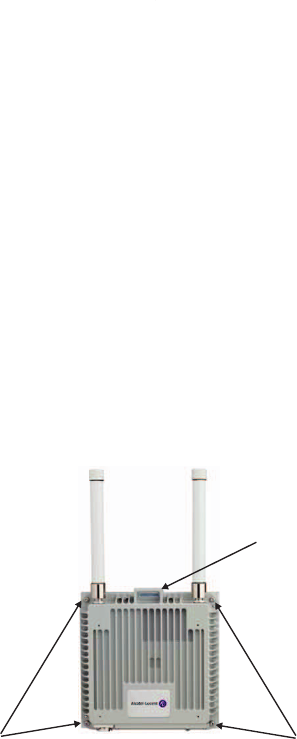

The Alcatel-Lucent 9363 Metro Cell - Indoor is housed in an Alcatel-Lucent generic

metallic case with a pair of antenna connectors located at the top of the device for

external antennas, as shown below:

Note: The Alcatel-Lucent 9363 Metro Cell - Indoor 1900/850 MHz variant will have

a second Ethernet port and additional LEDs.

Physical data

The physical characteristics of the Metro Cell - Indoor (without the power supply unit)

are:

Dimensions (Height x Width x

Depth)

241 x 241 x 53 mm (9.48 x 9.48 x 2.08 in)

Weight <2.0 Kg (<4.4 lb)

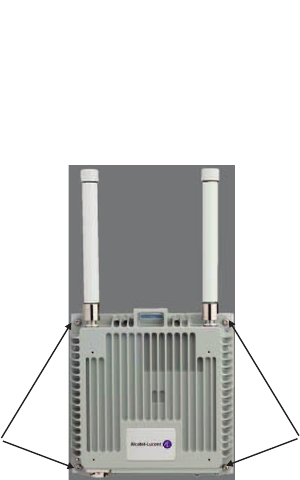

Figure 2-2 Alcatel-Lucent 9363 Metro Cell - Indoor (2100 MHz variant)

Antenna

RJ45 (PoE)

Port 1

Grounding

point

Reset

button

LEDs

Power jack

connector On/Off

Product overview Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-5

Connectors

Connectors provided are:

Connection location Description

At the top of the unit Two external antenna connectors, type N

At the bottom of the unit 1 Ethernet connector for backhaul connection: 10/100 Base T

RJ45 connector. This connector is connected to a PoE+

capable router or a PoE+ power injector in order to supply

power.

Power Supply jack connector. When the AC/DC power

adaptor is used to supply the power (in this case the PoE+

capable router is not used)

A ground connector.

1 Ethernet connector for connectivity to other devices

(1900/850 MHz variant only)

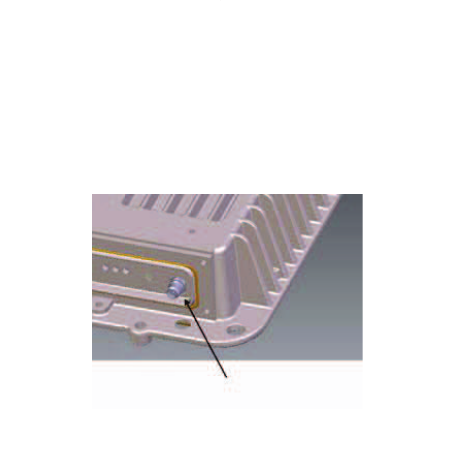

SMA connector for external GPS antenna (1900/850 MHz

variant only)

Power supply

The Metro Cell - Indoor can be powered via:

•48V PoE+ (if supported). When the router is not 48V PoE+ capable, a power injector

must be added to supply power.

•External 48V DC power adaptor can be used (in this case power injector is not used).

Antenna

The Metro Cell - Indoor has two external RF antenna connectors, type N, located on the

top the device. The pair of antennas provide TX/RX and sniffing, and enable Rx diversity

capability on the Metro Cell - Indoor.

Debug interface

A number of LEDs and a reset button are hidden behind a removable cover for debugging

purposes.

Product overview Physical description

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Three LEDs provide status indication for:

•Power

•System

•Phone (Device)

The Alcatel-Lucent 9363 Metro Cell - Indoor 1900/850 MHz variant will have additional

LEDs providing status indication for:

•GPS

•Second Ethernet port

Additional LEDs for Ethernet connectivity status are available at the Ethernet Port.

Product labelling

A product label provides the following information:

•Model name

•Part number

•serial number

•MAC address

•CE Approval marking (2100 MHz variant) / FCC Approval marking (1900/850 MHz

variant)

•Environmental marking (WEEE/ROHS) applicable to the device.

Product configuration

Metro Cell 2100 MHz

The Metro Cell - Indoor V2 2100 MHz product is delivered with the following base

items:

•Metro Cell - Indoor unit

•Ceiling/wall mounting kit

•Power supply 48V DC (with country specific power cord)

•Ethernet cable, 2 meters

Note: Metro Cell - Indoor unit can be supplied with or without a USIM card reader

(for authentication purposes).

Metro Cell 1900/850 MHz

The Metro Cell - Indoor V2 1900/850 MHz product is delivered with the following base

items:

•Metro Cell - Indoor unit

•Ceiling/wall mounting kit

•Power supply 48V DC (with country specific power cord)

Product overview Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-7

•Ethernet cable, 3 meters

•External active GPS antenna with cable

Note: Metro Cell - Indoor unit can be supplied with or without a USIM card reader

(for authentication purposes).

Metro Cell - Indoor ancillary items

In addition to the base items the V2 Metro Cell - Indoor 2100 MHz and 1900/850 MHz

can be configured with the following variable and ancillary items:

•Antenna:

– +2dBi Omnidirectional or +4dBi Omnidirectional

– +2dBi ceiling or +4dBi ceiling

•PoE+ injector

•A pair of RF jumpers (2 meters)

•Spare Power Supply, 48V DC

Product overview Physical description

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

33Metro Cell installation and
commissioning
Overview
Purpose
This chapter provides the installation and commissioning procedures for the
Alcatel-Lucent 9363 Metro Cell - Indoor.
Contents
Pre-installation information 3-2
To mount the hardware to a wall or ceiling 3-4
Metro Cell - Indoor cabling 3-8
Metro Cell - Indoor commissioning process 3-14
Post installation activities and checks 3-15
...................................................................................................................................................................................................................................
Alcatel-Lucent 9363 MC
401-387-097
Issue 1 May 2011
Alcatel-Lucent – Proprietary
Use pursuant to applicable agreements 3-1

Pre-installation information

Product delivery contents

The V2 Metro Cell - Indoor is provided in a standard paper box. The contents are as

follows:

Metro Cell - Indoor 2100 MHz model

•The V2 Metro Cell - Indoor access point

•Power supply, 48V DC with country specific AC power cord

•Ethernet cable, 2 meters

•Wall or ceiling mounting kit (excluding collar kit)

Metro Cell - Indoor 1900 and 850 MHz model

The V2 Metro Cell - Indoor is provided in a standard paper box. The contents are as

follows:

•The V2 Metro Cell - Indoor access point

•Power supply, 48V DC with country specific AC power cord

•Ethernet cable, 3 meters

•Wall or ceiling mounting kit (excluding collar kit)

•External active GPS antenna with 25 feet (7.62m) of cable

Variable parts and ancillary items

In addition to the standard delivered parts the following variable and ancillary items are

available:

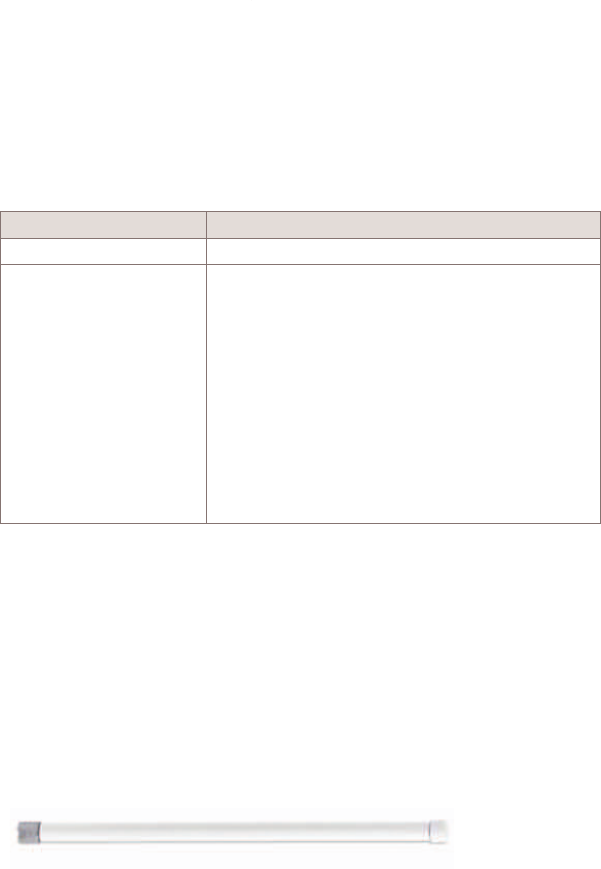

•Antennas:

– 2dBi omni directional antenna

– 4dBi omni directional antenna

– 2dBi ceiling antenna

– 4dBi ceiling antenna

•RF jumper, 2 meters

•A PoE+ power injector, with user guide

•Spare power supply, 48V DC

Metro Cell installation and commissioning Pre-installation information

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Device placement

The V2 Metro Cell - Indoor emits a radio signal similar to a Wi-Fi router. The quality of

coverage achieved therefore depends upon where the device is placed. For best results it

should be located:

•In a central place within the public space

•As high as possible, for example, high shelving, wall mounted

To improve coverage, avoid installing near the following:

•Other radio transmitters

•Other metallic devices or objects

•Windows

Installation tools required

The following is a list of the tools that may be used during installation:

•Drill and assorted drill bits

•Pliers

•Adjustable spanners

•Screwdrivers (power and/or manual):

– Phillips (flat blade)

– Torx, T-10, T-20

•Crimping tool (for RJ45 cable)

•Measuring tape

•Marker, to mark wall mounting holes

•Vacuum cleaner or equivalent (required for clearing debris from wall mounting holes)

•Spirit level

Metro Cell installation and commissioning Pre-installation information

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-3

To mount the hardware to a wall or ceiling

Purpose

This topic describes the procedures to be followed when installing the Metro Cell - Indoor

onto a solid concrete wall or in a false ceiling.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage.

Before installation begins you should ensure the following are in place:

•Internet service is available.

•The Ethernet cable has been routed and is in place.

•The Ground cable has been routed and is in place.

•Site specific fixing materials (screws, washers, wall plugs) for wall or ceiling

mounting the Metro Cell - Indoor.

Wall or ceiling mounting

Important! The Metro Cell - Indoor weighs less than 2kg and can be easily mounted

on any flat, sturdy wall or ceiling in a vertical or horizontal position.

However, various building materials and construction methods dictate that the device

be fastened to the wall or ceiling with appropriate mounting hardware. It is the

responsibility of the customer to provide any necessary support material and

structures to ensure that the installation will be in compliance with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all local

codes.

Before you begin

Note: Record the 11 digit serial number before mounting the Metro Cell - Indoor.

Wall mount installation

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Metro Cell installation and commissioning To mount the hardware to a wall or ceiling

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

To mount the device onto a wall or ceiling, perform the following steps.

...................................................................................................................................................................................................

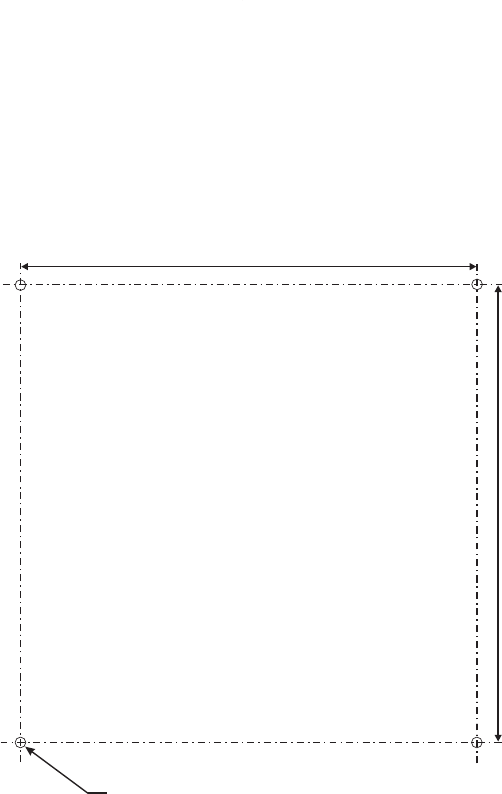

1At the selected installation location, mark the points on the wall or ceiling for the four

fixing holes using the template in Appendix A, “Metro Cell - Indoor wall mount spacer”

as a guide.

Check the horizontal position with a spirit level.

...................................................................................................................................................................................................

2Drill holes at the marked points and, if mounting on a wall, insert wall plugs into the

fixing holes.

...................................................................................................................................................................................................

3Using the lifting point on the device align the bolt holes on the Metro Cell with the wall

or ceiling bolt holes:

...................................................................................................................................................................................................

4Attach the device to the wall or ceiling using appropriate screw fixings.

Note: Depending on the wall or ceiling the device must be mounted to, different

screw fixings might be needed. After site survey these mounting accessories must be

procured locally.

Bolt holes

(8mm)

Bolt holes

(8mm)

Lifting point

Metro Cell installation and commissioning To mount the hardware to a wall or ceiling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-5

Device attach

points

Device attach

points

Metro Cell installation and commissioning To mount the hardware to a wall or ceiling

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the Metro Cell - Indoor to the wall or ceiling, the cables must be

connected. Continue with, “Metro Cell - Indoor cabling” (p. 3-8).

Metro Cell installation and commissioning To mount the hardware to a wall or ceiling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-7

Metro Cell - Indoor cabling

Purpose

This topic describes the procedures to be followed when connecting the Metro Cell -

Indoor cables.

Power supply options

Power can be supplied to the Metro - Cell using two different methods.

Power over Ethernet (PoE)

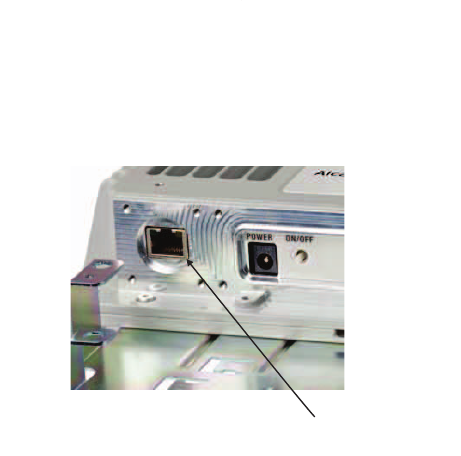

Power can be supplied to the Metro Cell - Indoor using 48V PoE+ (Power over Ethernet)

via the Ethernet cable connection. The Ethernet cable has to be connected to a PoE+

capable router.

If no PoE+ capable router is available, a 48V DC Power Injector must be installed

between the router and the Metro Cell - Indoor.

For installation instructions, refer to the user guide located in the Power Injector box,

document number 06-0062-056.

External AC/DC power adaptor

When power is suppled using an external power adaptor, the Power Injector is not used.

If an external AC/DC power adaptor is used the power adaptor cord connects to the power

supply jack on the Metro Cell - Indoor.

Before you begin

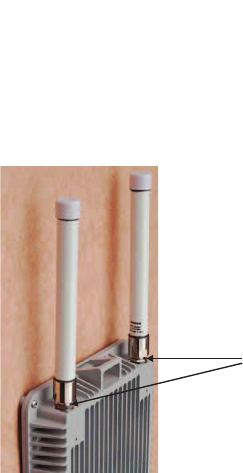

Connect the pair of omnidirectional antennas to the antenna connectors on the device.

Important! Alcatel-Lucent recommends that the antenna connection nuts are torqued

to between 0,7 N.m minimum and 1,1 N.m maximum in order to avoid a potential

loose connection.

Metro Cell installation and commissioning Metro Cell - Indoor cabling

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Connect the ground cable

Note: The grounding of the device depends on customer, country and site

requirements, therefore these should be checked beforehand.

The Metro Cell Indoor must be grounded with a 16 mm² ground cable (Type

NYY-1x16mm² or similar) to a grounding system. The grounding cable and cable lug

are not included in delivery and must be locally supplied.

To attach the ground cable perform the following steps.

...................................................................................................................................................................................................

1Route the ground cable from the ground system to the Metro Cell - Indoor.

...................................................................................................................................................................................................

2At the Metro Cell - Indoor cut the cable to a proper length, strip the cable end and crimp a

ground lug, with a hole suitable for an M6 screw, on the end of the cable.

Clean the contact surface area and use antioxidant to avoid oxidation.

...................................................................................................................................................................................................

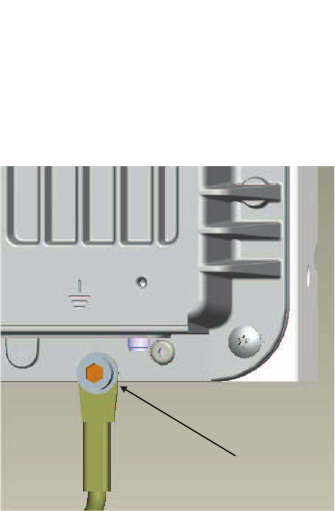

3Connect the ground cable to the grounding point on the Metro Cell - Indoor.

Antenna

Connectors

(N female)

Metro Cell installation and commissioning Metro Cell - Indoor cabling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-9

...................................................................................................................................................................................................

4Finally, secure grounding cable to the wall or ceiling.

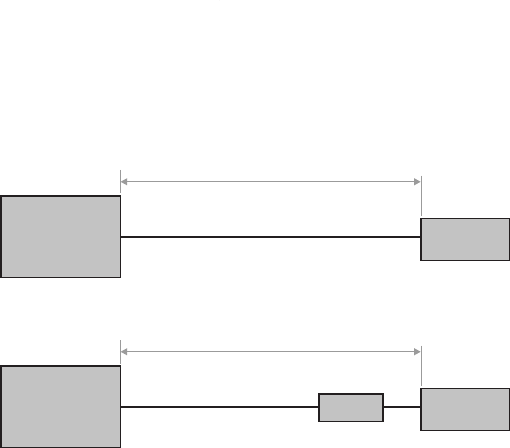

Ethernet cable lengths

The following diagram outlines the maximum cable length of the Metro Cell - Indoor

Ethernet cable connection.

Grounding

Point

Metro Cell installation and commissioning Metro Cell - Indoor cabling

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

END OF STEPS

...................................................................................................................................................................................................

Connect the Ethernet cable

To attach the Ethernet cable perform the following steps.

...................................................................................................................................................................................................

1Route the supplied Ethernet cable from the Metro Cell - Indoor to the Router/48V PoE+

injector.

Note: 48V PoE+ injector is not used when power is supplied via an external power

adaptor.

...................................................................................................................................................................................................

2Plug one end of the Ethernet cable into the Ethernet connection port on the device.

Metro Cell - Indoor DSL Router with

PoE+ function

Ethernet Cable

Total cable length 100m max

Metro Cell - Indoor DSL Router with

PoE+ function

Ethernet Cable

Total cable length 100m max

PoE+ Power

Injector

Metro Cell installation and commissioning Metro Cell - Indoor cabling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-11

...................................................................................................................................................................................................

3At the Router/PoE+ injector cut the cable to the required length and crimp the supplied

RJ45 connector onto the end of the cable.

...................................................................................................................................................................................................

4Connect the Ethernet cable to the Router/PoE+ injector.

...................................................................................................................................................................................................

5Finally, secure Ethernet cable to the wall or ceiling.

A-GPS antenna cable connection (1900/850 MHz only)

The Alcatel-Lucent 9363 Metro Cell - Indoor 1900/850 MHz has Assisted GPS capability

for localization of the unit.

1 SMA connector is provided for the connection of an external GPS antenna.

Ethernet cable

connection point

Metro Cell installation and commissioning Metro Cell - Indoor cabling

....................................................................................................................................................................................................................................

3-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

END OF STEPS

...................................................................................................................................................................................................

How to continue

After antenna and cable connections are completed continue with “To commission the

Metro Cell - Indoor”.

GPS antenna

connector (SMA)

Metro Cell installation and commissioning Metro Cell - Indoor cabling

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-13

Metro Cell - Indoor commissioning process

Purpose

This section describes the 9363 Metro Cell - Indoor commissioning process. The 9363

Metro Cell - Indoor is self commissioning in the case of single device deployments.

Where multiple device deployments occur the operator may compliment zero-touch

commissioning with appropriate cell planning.

Troubleshooting

If any problems occur during the commissioning process refer to the following document:

•Alcatel -Lucent Metro Cell - Indoor and Outdoor Troubleshooting, 401-387-076.

Commissioning process

The following steps outline the zero-touch commissioning process.

...................................................................................................................................................................................................

1Power on the 9363 Metro Cell - Indoor. After 1-3 seconds the power supply status

indicator will light up and the Ethernet port status indicator will flash green.

...................................................................................................................................................................................................

2After approximately 2 minutes the 9363 Metro Cell - Indoor will initialize and establish

connectivity. During this operation the System status indicator will blink slowly.

...................................................................................................................................................................................................

3After the device has established a network connection the 9363 Metro Cell - Indoor will

automatically update it's software. This process takes approximately 15 minutes. During

this operation both the System and Phone (device) indicators will blink.

...................................................................................................................................................................................................

4Once the software update has completed the 9363 Metro Cell - Indoor will carry out an

automatic reboot. During reboot the Power and System indicators will be on.

...................................................................................................................................................................................................

5After rebooting the device will automatically auto-configure itself. During this operation

the System status indicator will blink slowly.

...................................................................................................................................................................................................

6When the device is ready for use the Power, System and Phone (device) status indicators

will all be ON.

Metro Cell installation and commissioning Metro Cell - Indoor commissioning process

....................................................................................................................................................................................................................................

3-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

END OF STEPS

...................................................................................................................................................................................................

Post installation activities and checks

Connection cover attachment

Once the 9363 Metro Cell Indoor is commissioned and ready for use attach the

connection cover:

...................................................................................................................................................................................................

1Check all cable connections are secure and correctly routed.

...................................................................................................................................................................................................

2Using the supplied cover screws, attache the connection cover to the device:

Connection cover

Metro Cell installation and commissioning Post installation activities and checks

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-15

END OF STEPS

...................................................................................................................................................................................................

Final installation checks

Before leaving the installation site, check the following:

...................................................................................................................................................................................................

1Secure all cables along their routes.

...................................................................................................................................................................................................

2Verify that all the exterior conduit and cable connections are secure.

...................................................................................................................................................................................................

3Inspect the site for loose tools, materials, and parts. Remove all such loose tools,

materials, and parts.

Metro Cell installation and commissioning Post installation activities and checks

....................................................................................................................................................................................................................................

3-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

END OF STEPS

...................................................................................................................................................................................................

44Product specifications

Overview

Purpose

This chapter details the Alcatel-Lucent 9363 Metro Cell - Indoor product environmental

specifications.

Contents

Environmental and regulatory specifications 4-2

...................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-1

Environmental and regulatory specifications

Overview

The 9363 Metro Cell Indoor conforms to 3GPP Release 8, including TS 25.101, TS

25.113, TS 45.005-1 and TS 25.104 on radio transmission and reception.

The solution meets the basic requirements of Directive 1999/5/EC on telecommunications

terminal equipment, regarding electromagnetic interference and also safety and health.

The Metro Cell - Indoor 2100 MHz is CE certified and is compliant with RoHS and

WEEE.

The Metro Cell - Indoor 1900 and 850 MHz are UL and FCC certified. It complies with

FCC part 15, Class B.

The Metro Cell Indoor 1900 and 850 MHz meets the OOBE requirements for the US as

defined in 47CFR24.238 for 1900 MHz systems and in 47CFR22.917 for 800 MHz

systems.

The Metro Cell - Indoor complies with the standards listed in the following sections.

Environmental operating conditions

The Metro Cell - Indoor is compliant with the following environmental operating

standards:

•ETS300 019 class 3.1E (temperature range: -5° C to +45° C)

Health, safety, and environmental standards

The Metro Cell - Indoor is compliant with the following health, safety, and environmental

standards:

•IEC 60950 (International)

•IEC 60950-1

•EN 50383

•EN 50384 (2100 MHz only)

•EN 50385

•Directive 1999/519/EC On the limitation of exposure of the general public to

electromagnetic fields (0 Hz to 300 GHz)

•Directive 2002/95/EC RoHS6

•Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE)

•UL 60950, UL 1310, UL 60950, UL 758 (1900/850 MHz only)

•ETS 300 753 class 4.1 (Acoustic) (1900/850 MHz only)

Product specifications Environmental and regulatory specifications

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

EMC (Electromagnetic compatibility)

The Metro Cell - Indoor product complies with the following EMC emission and

immunity requirements:

•ETSI EN 301 489-1

•ETSI EN 301 489-23

•ETSI EN 301 908-1

•ETSI EN 301 908-3

•EN 55022 class 6 / CISPR22 Class A, with EN 55024 / CISPR 24 and OET-65

•RTTE Directive 1999/5/EC

•FCC part 15 Class B (1900/850 MHz only)

The Metro Cell - Indoor product complies with the following standards:

•3GPP TS 25.113 Rel 8

Surge immunity

The Metro Cell Indoor tolerates an AC surge, as specified in EN 61000-4-5, Test Level 3.

The Metro Cell Indoor tolerates Electrical Fast Transients on the AC mains, as specified

in EN 61000-4-4, Test Level 3.

For the 1900/850 MHz model only, all cables uses UL 758 (Appliance Wiring Material)

verified materials

Product specifications Environmental and regulatory specifications

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-3

Appendix A: Metro Cell - Indoor

wall mount spacer

Overview

Purpose

This section details the hole spacing to be drilled when the Metro Cell - Indoor is

mounted onto a wall or flat surface.

Contents

Wall mount spacer A-2

...................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-1

Wall mount spacer

Spacer template

1

2

34

218mm

Not to scale

Wall drill position for screws

(Note: Use screws suitable for a 8mm bolt hole)

Max tightening torque: 3 Nm

Washer (serial large) are advised

Metro Cell - Indoor wall mount spacer Wall mount spacer

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Appendix B: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the Alcatel-Lucent

Metro Cell - Indoor equipment.

The statements that are required are determined primarily by national or multinational

regulations. However, in some regions, contract terms determine which statements are

required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Contents

European Union B-2

United States B-6

...................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-1

European Union

Introduction

The statements that follow are the product conformance statements that apply to the

Alcatel-Lucent Metro Cell Access Point equipment when deployed in the European

Union.

Declaration of Conformity for radio and telecommunication terminal equipment

under the scope of Directive 1999/5/EC.

Hereby, Alcatel-Lucent declares that the equipment documented in this publication is in

compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC.

The technical documentation as required by the Conformity Assessment procedure is kept

at the Alcatel-Lucent location which is responsible for this product. For more information

please contact your local Alcatel-Lucent Customer Service Organization.

CE marking

This product has been CE-marked in accordance with the following European Directives:

•1999/05/EC Radio and Telecommunication Terminal Equipment (R&TTE)

EMC compliance

The equipment complies with the following EMC specifications:

Standard reference Title

EN 301 489 V1.8.1/-23 V1.3.1 Electromagnetic Compatibility (Article 3.1(b)

of the R&TTE Directive)

EN 55022:2006/A1:2007 Class B EMC Directive (2004/108/EC)

EN 55024:1998/A1:2001/A2:2003 EMC Directive (2004/108/EC)

Product conformance statements European Union

....................................................................................................................................................................................................................................

B-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Radio spectrum compliance

The equipment complies with the following radio spectrum specifications:

Standard reference Title

EN 301 908-1/-3 V3.2.1 Radio Frequency Spectrum usage (Article 3.2

of the R&TTE Directive)

Product safety

The equipment complies with the following product safety specifications:

Standard reference Title

EN 60950-1:2006+A11:2009 Safety (Article 3.1(a) of the R&TTE Directive)

EN 50385:2002 Health (Article 3.1(a) of the R&TTE Directive)

EN 50383:2002 Health (Article 3.1(a) of the R&TTE Directive)

Antenna exposure

Antenna attachment for the Alcatel-Lucent Metro Cell Access Point equipment shall be

performed in accordance with all applicable manufacturer's recommendations, and

national laws and regulations. To ensure correct antenna installation, the antenna installer

shall perform all necessary calculations and/or field measurements to evaluate compliance

with applicable national laws or regulations regarding exposure to electromagnetic fields.

The supplier of radio equipment, the supplier of antenna equipment and the integrator and

builder of the site must provide sufficient information so that the limits of the exclusion

zones can be determined. Any changes to the antenna or other equipment in the transmit

path may require re-evaluation of the exposures to electromagnetic fields.

Pursuant to

•European Council Recommendation 1999/519/EC, “On the limitation of exposure of

the general public to electromagnetic fields”

•ICNIRP (International Commission on Non-Ionising Radiation Protection),

“Guidelines for limiting exposure to time-varying electric, magnetic, and

electromagnetic fields”

All installations must be evaluated against the Reference Levels, and if necessary

exclusion zones for public and installation workers defined.

Product conformance statements European Union

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-3

The following information on Alcatel-Lucent supplied equipment is available from

customer representatives:

•Output power and antenna characteristic, if the product is equipped with an integral

antenna

•A detailed description of at least one typical normal configuration, including antenna

system (feeders, connectors, combiners, antennas, etc.), if the product is intended to

be used with external antennas

•Limit distances for general public and occupational exposure. If the product is

intended for use with external antennas, limit distances shall be given for the given

typical system configurations.

•Information on how to specify exposure levels and limit distances for any optional

system configuration not specified in detail

•Information on how to install the equipment/system or the external antennas in order

to ensure that the separation between the radiating antenna and general public are

exceeding the maximum allowed distances

Information on the methodology used for the determination of RF safety compliance

distances and exclusion zones, and the results of the compliance evaluation shall be

available for inspection by officials of the governing authorities.

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established. For more information

regarding collection and recovery of packaging and packaging waste within specific

jurisdictions, contact the Alcatel-Lucent Environment, Health and Safety organization.

Recycling / take-back / disposal of products and batteries

In compliance with Waste Electrical and Electronic Equipment Directive (WEEE

Directive) 2002/96/EC 01/2003, amended by WEEE Directive 2003/108/EC 12/2003,

electronic products and batteries bearing or referencing the symbols shown below shall be

collected and treated at the end of their useful life, in compliance with applicable

European Union and other local legislation. They shall not be disposed of as part of

unsorted municipal waste. Due to materials that may be contained in the product and

batteries, such as heavy metals, the environment and human health may be negatively

impacted as a result of inappropriate disposal.

Note 1: For electronic products put on the market in the European Union, a solid bar

under the crossed-out wheeled bin indicates that the product was put on the market after

13 August 2005.

Product conformance statements European Union

....................................................................................................................................................................................................................................

B-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Note 2: For batteries put on the market in the European Union, a chemical symbol Hg

(mercury), Cd (cadmium), or Pb (lead), or a combination of those symbols, beneath the

cross-out wheeled bin indicates that the battery contains the corresponding heavy metals.

Moreover, in compliance with legal requirements and contractual agreements, where

applicable, Alcatel-Lucent will offer to provide for the collection and treatment of

Alcatel-Lucent products bearing the logo at the end of their useful life, or products

displaced by Alcatel-Lucent equipment offers.

For information regarding take-back of equipment by Alcatel-Lucent, or for more

information regarding the requirements for recycling/disposal of a product, please contact

your Alcatel-Lucent account manager. Visit the Alcatel-Lucent Take-Back

(http://www.alcatel-lucent.com/product_takeback) web page, or contact Alcatel-Lucent

Takeback Support at (mailto:takeback@alcatel-lucent.com). For technical information on

product treatment, consult the Alcatel-Lucent Recycling Information (http://www.

alcatel-lucent.com/product_recycling) web page.

Material content compliance

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003

on the restriction of the use of certain hazardous substances in electrical and electronic

equipment (RoHS Directive) restricts the use of lead, mercury, cadmium, hexavalent

chromium, and certain flame retardants in electrical and electronic equipment. This

Directive applies to electrical and electronic products placed on the EU market after 1

July 2006, with various exemptions, including an exemption for lead solder in network

infrastructure equipment. Alcatel-Lucent products shipped to the EU after 1 July 2006

comply with the EU RoHS Directive.

Product conformance statements European Union

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-5

United States

Introduction

The statements that follow are the product conformance statements that apply to the

Alcatel-Lucent Metro Cell Access Point equipment when deployed in the United States.

Federal Communications Commission

Important! Changes or modifications not expressly approved by Alcatel-Lucent, Inc.

could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

FCC Part 15 Class B

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

•Consult the dealer or an experienced radio/TV technician for help.

Product conformance statements United States

....................................................................................................................................................................................................................................

B-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

FCC Part 68

This equipment complies with Part 68 of the FCC rules and the requirements adopted by

the ACTA. On this equipment is a label that contains, among other information, a product

identifier in the format of AAAEQ##TXXXX. If requested, this number must be provided

to the telephone company.

USOC

FIC

SOC

REN

The T1 network interface on this equipment is hardwired to a punchdown block, which

meets the FCC specifications.

If this equipment causes harm to the telephone network, the telephone company will

notify you in advance that temporary discontinuance of service may be required.

However, if advance notice is not practical, the telephone company will notify the

customer as soon as possible. Also, you will be advised of your right to file a complaint

with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or

procedures that could affect the operation of the equipment. If this happens, the telephone

company will provide advance notice in order for you to make necessary modifications to

maintain uninterrupted service.

FCC regulations prohibit the connection of customer-provided equipment to central office

implemented systems. Connection to party lines is subject to tariffs; users should contact

their state public utility commission, public service commission, or corporation

commission for information.

If the equipment is causing harm to the telephone network, the telephone company may

request that you disconnect the equipment until the problem is resolved.

If trouble is experienced with this equipment repair or warranty information may be

obtained by contacting:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

RF approval

This equipment complies with Part 2, Subpart J - Equipment Authorization Procedures, of

the FCC Rules.

This device complies with Part 22 – Public Mobile Services, Subpart H – Cellular

Radiotelephone Services.

Product conformance statements United States

....................................................................................................................................................................................................................................

Alcatel-Lucent 9363 MC

401-387-097

Issue 1 May 2011

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-7

This equipment complies with Part 24 - Personal Communications Services, Subpart E -

Broadband PCS.

This equipment complies with Part 27 – Miscellaneous Wireless Communications

Services.

This equipment complies with Part 90 – Private Land Mobile Radio Services.

Product safety conformance

The Alcatel-Lucent Metro Cell Access Point equipment is Safety Certified ITE by CSA

International.

This Certification is marked on the equipment main nameplate label. Should the local

Authority Having Jurisdiction (AHJ) require prior or additional verification of this

Certification, a Product Certificate of Compliance can be obtained from the specific

Certification Body by the Business/Product Unit Applicant for the product or by

contacting:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

Any modifications to this equipment are not permitted without review and official written

authorization from the specific Certification Body. Unauthorized changes may violate the

Product Safety Certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

Indoor applications

This equipment is intended for installation in restricted access locations where access is

controlled or where access can only be gained by service personnel with a key or tool.

Access to this equipment is restricted to qualified service personnel only.

Antenna exposure

Antenna installations for the Alcatel-Lucent Metro Cell Access Point equipment shall be
