Allied Telesis K K MWS2533AP IEEE 802.a/b/g/n/ac Managed Wireless Access Point User Manual at002418a
Allied Telesis K.K. IEEE 802.a/b/g/n/ac Managed Wireless Access Point at002418a
Users Manual
613-002418 Rev. A
MWS Series
SIMULTANEOUS DUAL BAND WIRELESS ACCESS POINT
AT-MWS600AP
AT-MWS1750AP
AT-MWS2533AP
Installation Guide
Copyright 2017 Allied Telesis, Inc.
All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names,
logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document without prior
written notice. The information provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be liable for
any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related
to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the
possibility of such damages.
3
Electrical Safety and Emissions
Standards
This product meets the following standards:
Federal Communications Commission Interference Statement
Declaration of Conformity
Manufacturer Name: Allied Telesis, Inc.
Declares that the product: Simultaneous dual band wireless access point
Model Number: AT-MWS2533AP
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment
Avertissement
Avertissement de la FCC: Les changements ou modifications non expressément approuvés
par la partie responsable de la conformité pourraient annuler l'autorité de l'utilisateur à utilizer
cet équipement.
4
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The band from 5600-5650MHz will be disabled by the software during the manufacturing and
cannot be changed by the end user. This device meets all the other requirements specified in
Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 25cm
between the radiator & your body.
Europe - EU Declaration of Conformity
This device complies with Directive 2014/53/EU issued by the Commission of the European
Community.
Radiation Explore Statement
This equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Operating Frequencies and Maximum Transmission Power Levels
The operating frequencies and maximum transmission power levels for wireless devices
operated in the EU are listed below:
This device is restricted to indoor use only when operating in the 5150 to 5350MHz frequency
range.
AT-MWS2533AP AT-MWS1750AP AT-MWS600AP
2412-2472MHz 19.92 dBm 19.88 dBm 19.42 dBm
5180-5240MHz 22.97 dBm 22.96 dBm 22.40 dBm
5260-5320MHz 22.90 dBm 22.85 dBm 22.24 dBm
5520-5700MHz 29.89 dBm 29.88 dBm 29.65 dBm
5
Importer:
Allied Telesis International BV
Incheonweg 7, 1437 EK Rozenburg
Note
Contact Allied Telesis for the EU conformity statement. To contact Allied Telesis, visit the
website at www.alliedtelesis.com/contact.
European Union Restriction of the Use of Certain Hazardous
Substances (RoHS) in Electrical and Electronic Equipment
This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the
Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied
Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring
incoming materials, and maintaining manufacturing process controls.
Safety and Electromagnetic Emissions Certificates
Standard Compliance
RoHs compliant
European Union RoHS (Directive 2011/65/EU of the European Parliament and of the Council
of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and
electronic equipment.)
Certificates
CE
RCM
Wi-Fi CERTIFIED
Electromagnetic Interference (EMI)
EN 55032 Class B
CISPR 55032
Electromagnetic Compatibility (EMC)
EN 301 489-1
EN 301 489-17
Electromagnetic Susceptibility (EMS)
EN 61000-3-2
6
EN 61000-3-3
IEC 61000-4-2:2008
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
Safety
EN 60950-1
UL 60950-1, 2nd Edition
CAN/CSA-C22.2 No. 60950-1-07, 2nd Edition
Translated Safety Statements
Important: The indicates that a translation of the safety statement is available in a PDF
document titled Translated Safety Statements on the Allied Telesis website at
www.alliedtelesis.com/support.
7
Contents
Preface ..............................................................................................................................................................9
Safety Symbols Used in this Document..................................................................................................... 10
Contacting Allied Telesis............................................................................................................................ 11
Chapter 1: Product Description ...................................................................................................................13
Overview .................................................................................................................................................... 14
AT-MWS600AP and AT-MWS1750AP Models ................................................................................... 14
AT-MWS2533AP Model ...................................................................................................................... 15
Features..................................................................................................................................................... 16
Hardware Features.............................................................................................................................. 16
Management Features ........................................................................................................................ 17
LAN Port..................................................................................................................................................... 18
Power over Ethernet Plus (PoE+)........................................................................................................ 18
Connector Type ................................................................................................................................... 18
Speed .................................................................................................................................................. 18
Duplex Mode ....................................................................................................................................... 18
Automatic MDIX Detection .................................................................................................................. 19

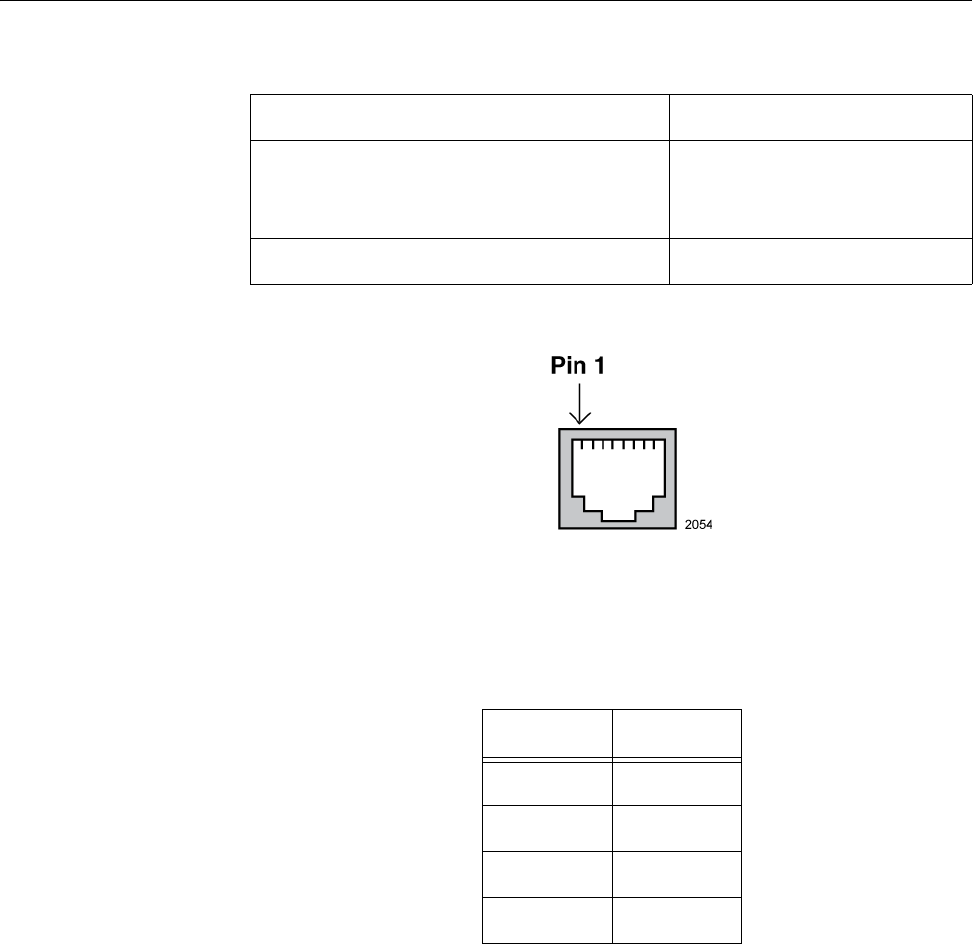

Port Pinouts ......................................................................................................................................... 19
Redundant Power Supply .......................................................................................................................... 20
AT-MWS600AP and
AT-MWS1750AP Power Supplies .................................................................................................................... 20
AT-MWS2533AP Power Supply .......................................................................................................... 20
LEDs .......................................................................................................................................................... 22
LEDs for
AT-MWS600AP and
AT-MWS1750AP Models.................................................................................................................................. 22
AT-MWS2533AP ................................................................................................................................. 23
Cable Specifications................................................................................................................................... 25
Cable Requirements............................................................................................................................ 25
Maximum Distance .............................................................................................................................. 25
Chapter 2: Installing the AT-MWS2533AP Access Point ...........................................................................27
Reviewing Safety Precautions ................................................................................................................... 28
Unpacking the AT-MWS2533AP Access Point .......................................................................................... 30

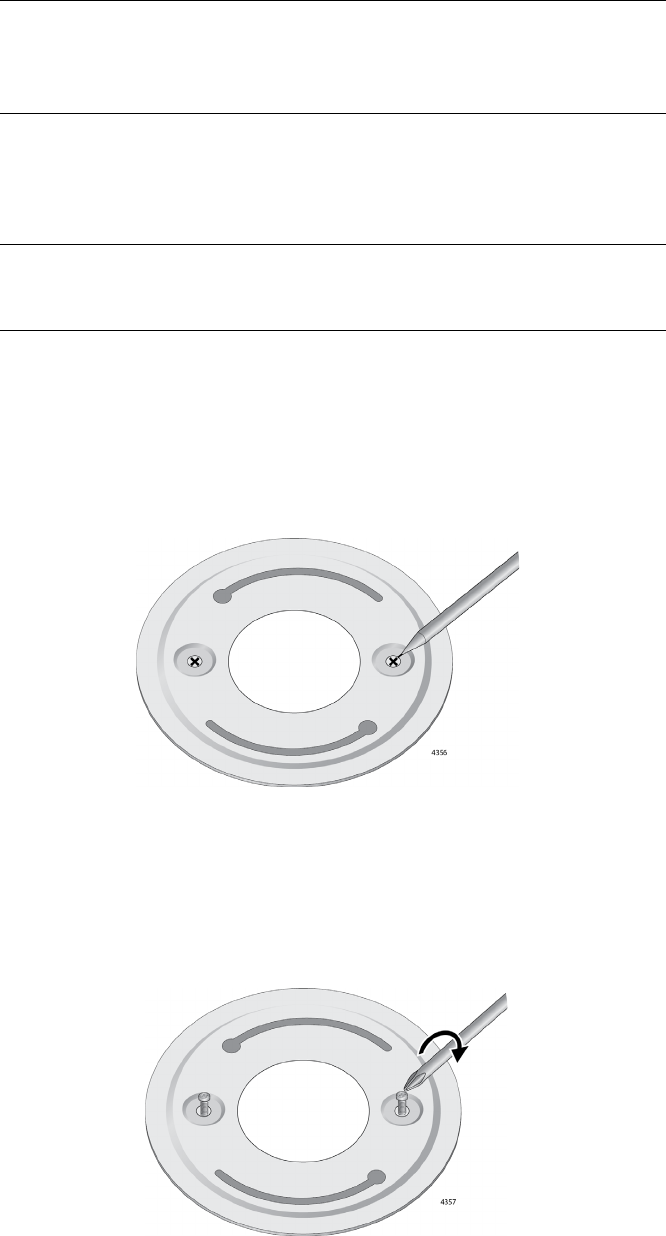

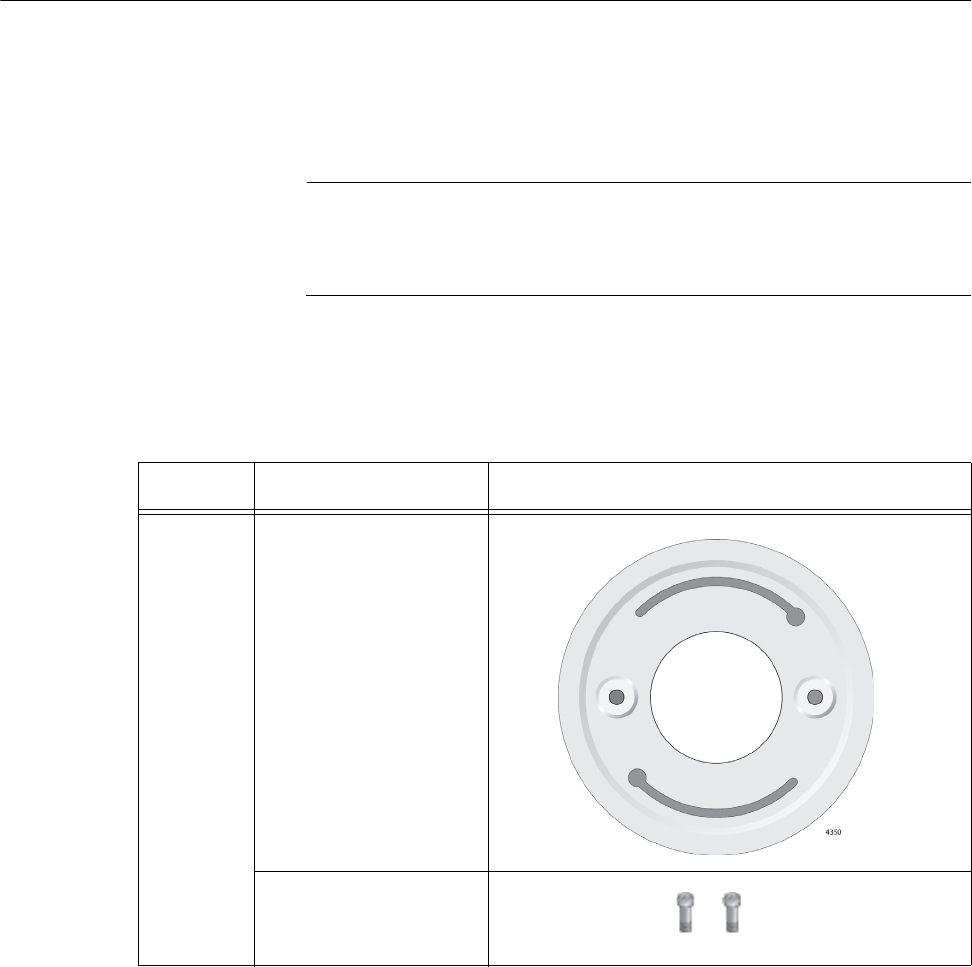

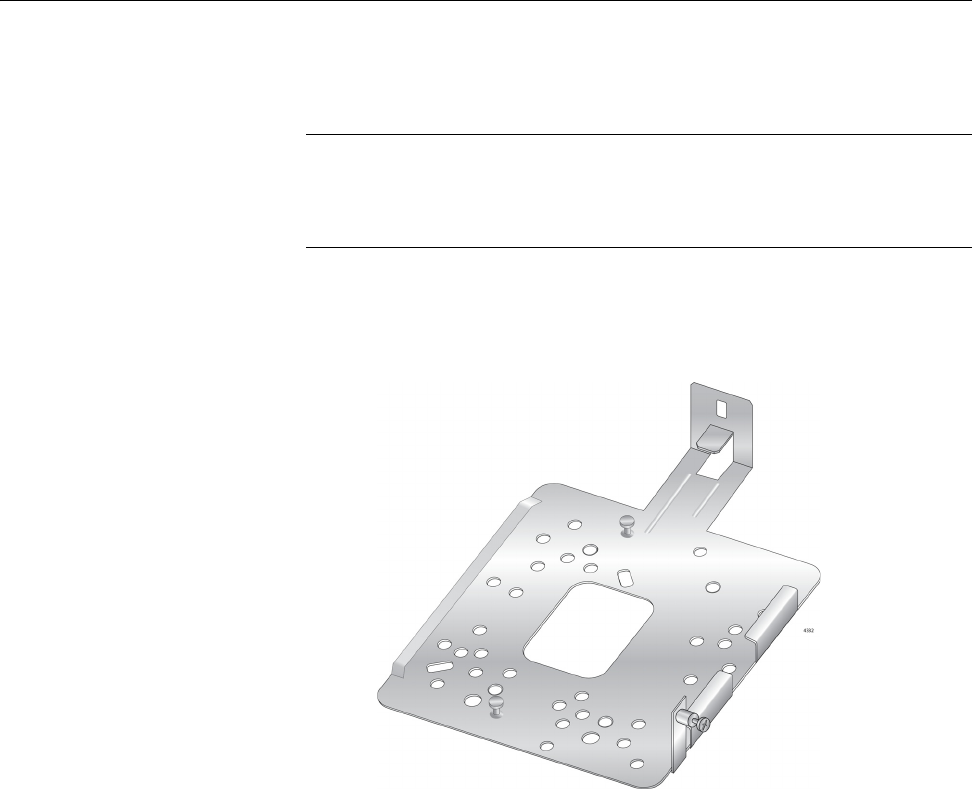

Unpacking the AT-BRKT-MWS01 Mounting Base Plate............................................................................ 31

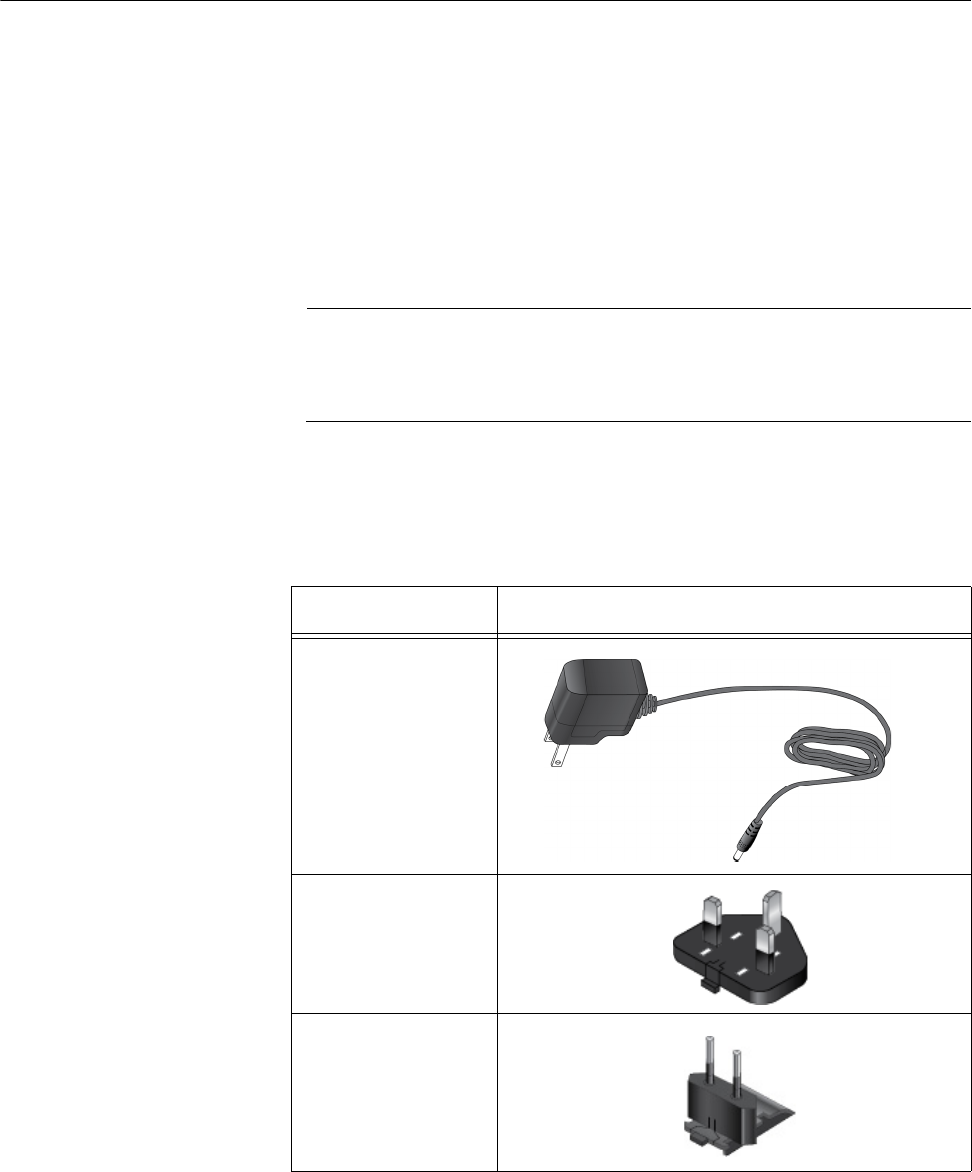

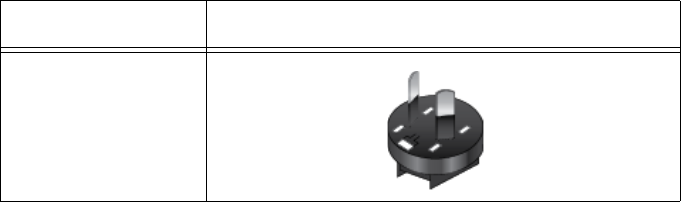

Unpacking the AT-MWS0091 AC Adapter Kit............................................................................................ 32

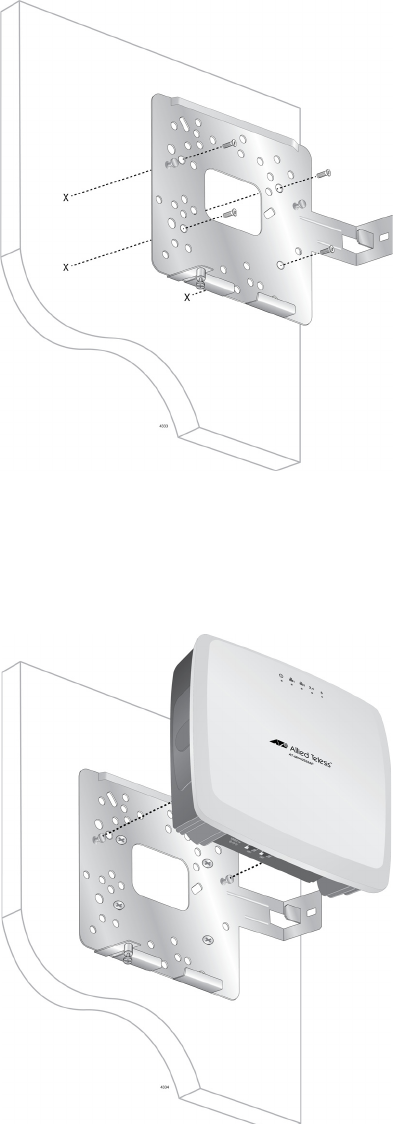

Installing the Access Point on a Celling or Wall ......................................................................................... 34
Guidelines for Installing the Device on a Celling or Wall ..................................................................... 34
What to Prepare for the Installation ..................................................................................................... 35
Installing the Access Point on the Celling or Wall ............................................................................... 35

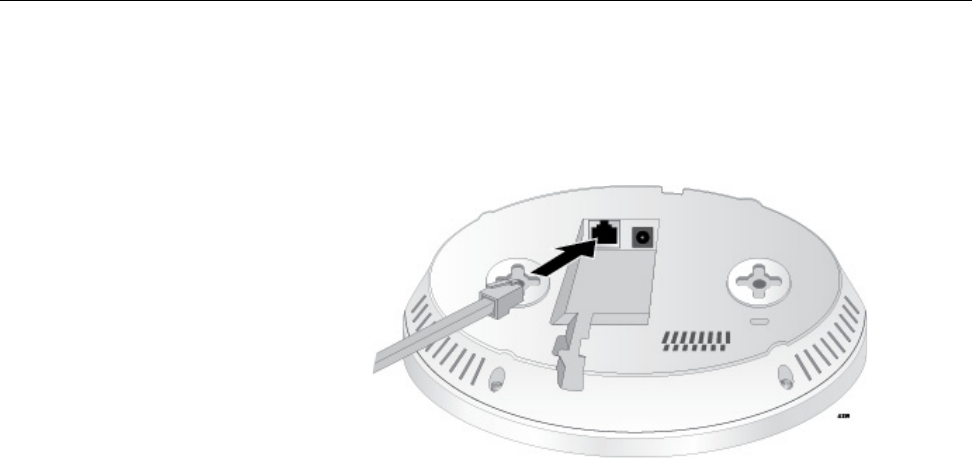

Connecting the Access Point with the Ethernet Cable............................................................................... 38
Connecting the AC Adapter ....................................................................................................................... 39

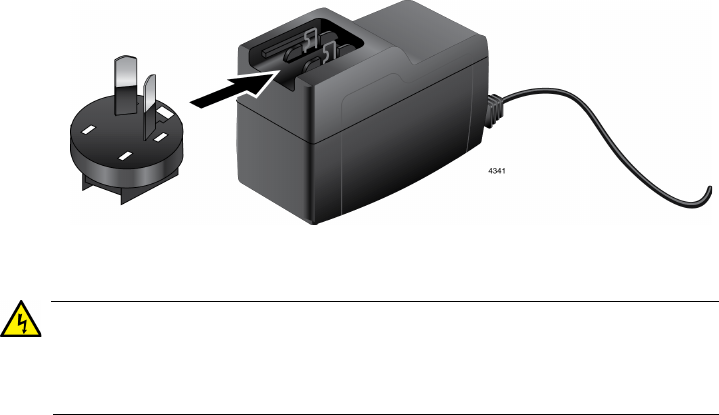

Assembling the AT-MWS0091 AC Adapter ............................................................................................... 40
Chapter 3: Installing the AT-MWS600AP or AT-MWS1750AP Access Point ............................................43
Unpacking the AT-MWS600AP or AT-MWS1750AP Access Point ........................................................... 44
Contents
8
Installing the Access Point..........................................................................................................................46
Guidelines for Installing the AT-MWS600AP or AT-MWS1750AP Access Point ................................. 46
Hard-Surface Ceiling and Wall Installation........................................................................................... 47

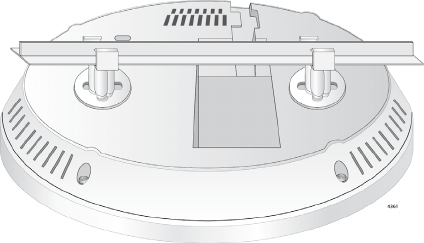

Ceiling T-Rail Installation ..................................................................................................................... 50
Connecting the Access Point with the Ethernet Cable ...............................................................................53
Connecting the AC Adapter........................................................................................................................54
Appendix A: Technical Specifications ........................................................................................................ 55
Physical Specifications ...............................................................................................................................55
Environmental Specifications ..................................................................................................................... 55
Power Specifications ..................................................................................................................................56
LAN Port .....................................................................................................................................................57
9
Preface
This guide contains the hardware installation instructions for the MWS
Series Wireless Access Points. The models included in this manual are:
AT-MWS600AP
AT-MWS1750AP
AT-MWS2533AP
This preface contains the following sections:
“Safety Symbols Used in this Document” on page 10
“Contacting Allied Telesis” on page 11
Preface
10
Safety Symbols Used in this Document
This document uses the following conventions.
Note
Notes provide additional information.
Caution
Cautions inform you that performing or omitting a specific action
may result in equipment damage or loss of data.
Warning
Warnings inform you that performing or omitting a specific action
may result in bodily injury.
MWS Series Access Point Installation Guide
11
Contacting Allied Telesis
If you need assistance with this product, you may contact Allied Telesis
technical support by going to the Support & Services section of the Allied
Telesis web site at www.alliedtelesis.com/support. You can find links for
the following services on this page:
24/7 Online Support — Enter our interactive support center to
search for answers to your product questions in our knowledge
database, check support tickets, learn about Return Merchandise
Authorizations (RMAs), and contact Allied Telesis technical
experts.
USA and EMEA phone support — Select the phone number that
best fits your location and customer type.
Hardware warranty information — Learn about Allied Telesis
warranties and register your product online.
Replacement Services — Submit an RMA request via our
interactive support center.
Documentation — View the most recent installation and user
guides, software release notes, white papers, and data sheets for
your products.
Software Downloads — Download the latest software releases for
your managed products.
For sales or corporate information, go to www.alliedtelesis.com/
purchase.
Preface
12
13
Chapter 1
Product Description
This chapter describes the hardware components of the MWS series
wireless access point. This chapter contains the following sections:
“Overview” on page 14
“Features” on page 16
“LAN Port” on page 18
“Redundant Power Supply” on page 20
“LEDs” on page 22
“Cable Specifications” on page 25
Chapter 1: Product Description
14
Overview
The MWS series access point is designed to accommodate
traffic-intensive applications such as multimedia streaming. The access
point is equipped with one or two PoE+ capable LAN ports. With the power
supply unit with the DC jack, the PoE+ LAN port provides a redundant
power supply system to help uninterrupted operations. This device can be
mounted on a ceiling or wall.

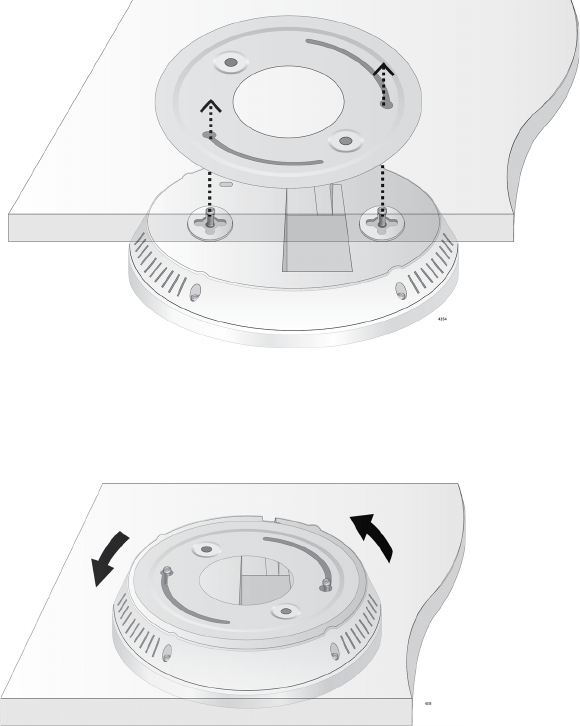

The MWS series access point can be installed on a ceiling, wall, or
tabletop. In addition, the AT-MWS600AT and AT-MWS1750AP models
can be installed on a ceiling T-rail.
AT-MWS600AP
and
AT-MWS1750AP
Models
The AT-MWS600AP and AT-MWS1750AP models are dual band access
points with one PoE+ LAN port, which can drain power from the connected
PoE+ switch. Both models share the physical design and size. See
Figure 1.

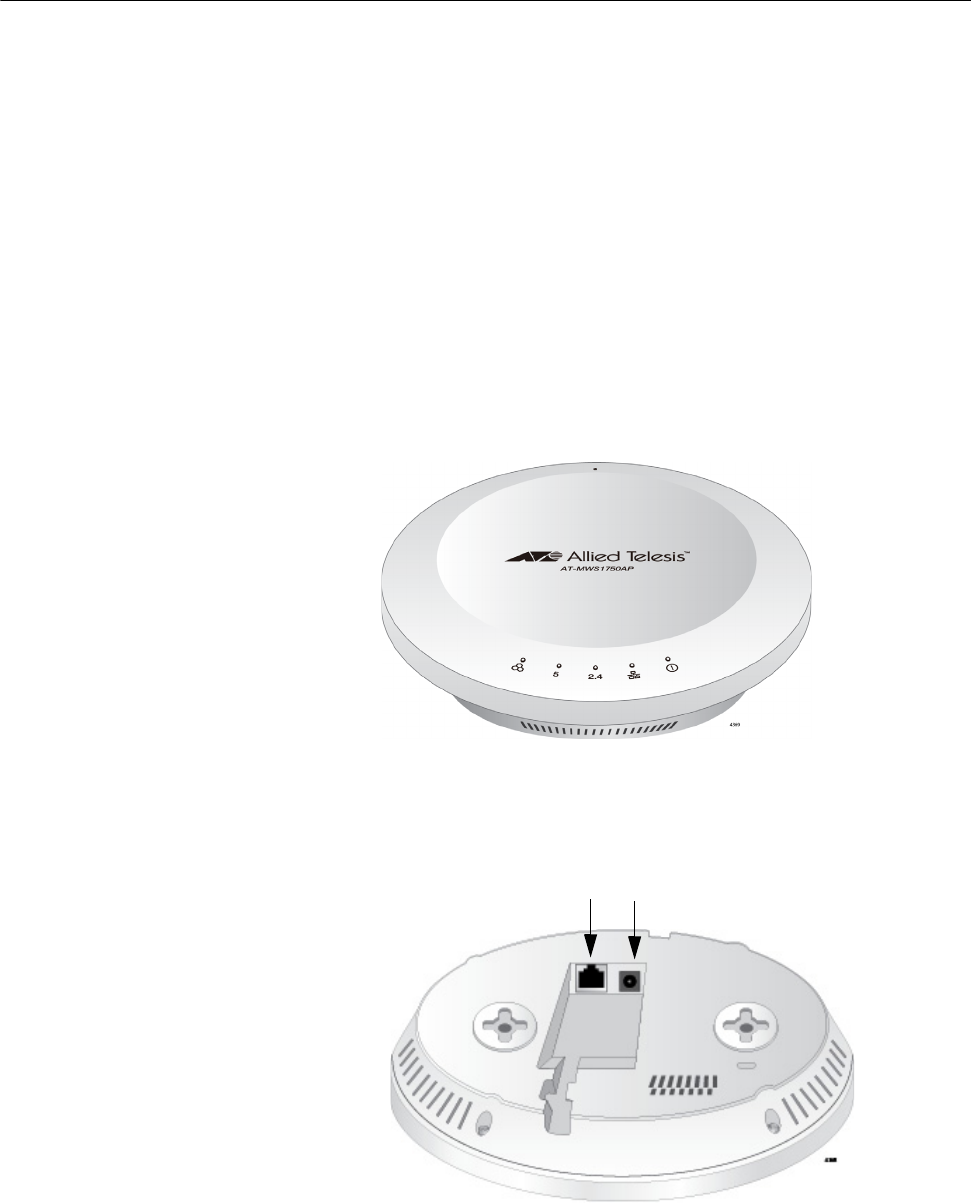

Figure 1. Top View of the AT-MWS1750AP Model
The bottom view of the AT-MWS600AP and AT-MWS1750AP models is
illustrated in Figure 2.
Figure 2. Bottom View of the AT-MWS600AP and 1750AP Models
LAN Port DC Jack
MWS Series Access Point Installation Guide
15
AT-MWS2533AP
Model
The AT-MWS2533AP model is a dual band access point with two PoE+
LAN ports, which can drain power from the connected PoE+ switch. The
access point is illustrated in Figure 3.
Figure 3. The Top Panel of the AT-MWS2533AP Model

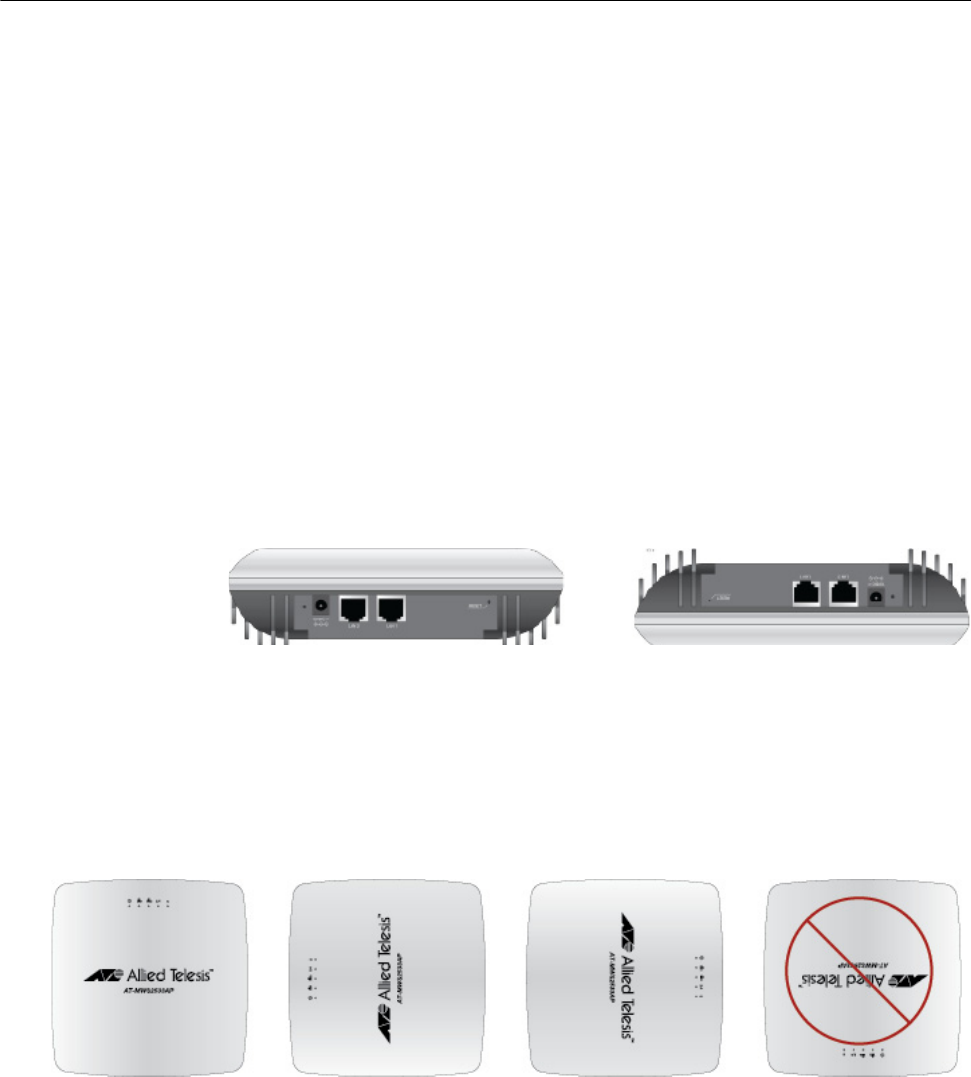

The front side of the AT-MWS2533AP model is illustrated in Figure 4.
Figure 4. The Front Side View of the AT-MWS2533AP Model
The right side of the AT-MWS2533AP model is illustrated in Figure 5.
Figure 5. The Right Side View of the AT-MWS2533AP Model
LAN Ports
DC Jack Reset button
Kensington key hole
Chapter 1: Product Description
16
Features
This section lists the main features of the MWS series access points.
Hardware
Features
The hardware features for the MWS series access points are listed here:
Dual radio: 2.4 GHz and 5 GHz
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), and IEEE
802.3ab (1000Base-T) compliance on the Ethernet port
Ceiling, Wall, or table top installation
Reset button to revert to the factory default settings
AT-MWS600AP
The features specific to the AT-MWS600AP are listed here:
One 10/100/1000Base-T Ethernet port with IEEE802.3at PoE+
2.4GHz 802.11b/g/n (2x2 MIMO) support
5GHz 802.11a/n (2x2 MIMO) support
Maximum capacity 2.4 GHz: 300Mbps
Maximum capacity 5 GHz: 300Mbps
Ceiling T-rail installation
AT-MWS1750AP
The features specific to the AT-MWS1750AP are listed here:
One 10/100/1000Base-T Ethernet port with IEEE802.3at PoE+
2.4GHz 802.11b/g/n (3x3 MIMO) support
5GHz 802.11a/n/ac (3x3 MIMO) support
Maximum capacity 2.4 GHz: 450Mbps
Maximum capacity 5 GHz: 1.3Gbps
Ceiling T-rail installation
AT-MWS2533AP
The features specific to the AT-MWS2533AP are listed here:
Two 10/100/1000Base-T Ethernet ports with IEEE802.3at PoE+
2.4GHz 802.11b/g/n (4x4 MIMO) support
5GHz 802.11a/n/ac (4x4 MIMO) support
MWS Series Access Point Installation Guide
17
Maximum capacity 2.4 GHz: 800Mbps
(when using 256QAM modulation scheme)
Maximum capacity 5 GHz: 1.7Gbps
Kensington lock support
Management
Features
The features to manage the access point are listed here:
Standalone
SNMPv1/v2c/v3
CLI
SSH
HTTPS
Email alert
Syslog notification
Chapter 1: Product Description
18
LAN Port
The AT-MWS600AP and AT-MWS1750AP models are equipped with one
PoE+ LAN port; The AT-MWS2533AP model is equipped with two PoE+

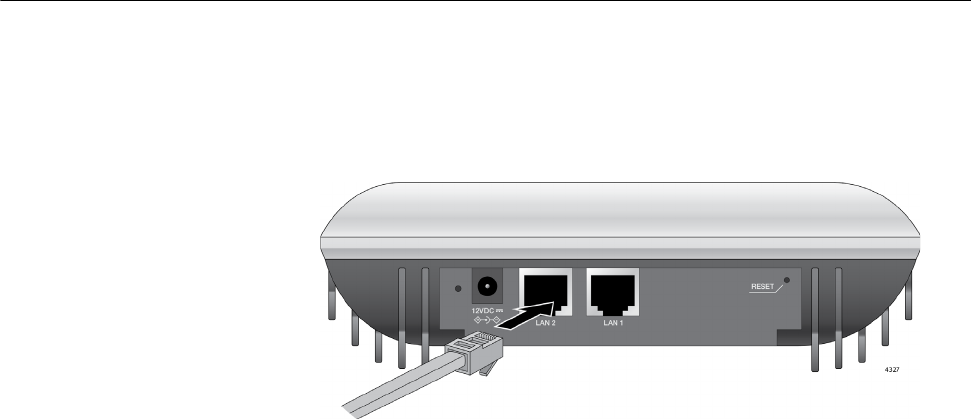

LAN ports. The LAN port connects the access point to your Local Area
Network (LAN), typically through an Ethernet switch. Together with the
power supply unit, the LAN port provides a redundant power system. For
more information, see “Redundant Power Supply” on page 20.
Power over
Ethernet Plus
(PoE+)
The MWS series access point supports Power over Ethernet Plus (PoE+)
on the LAN port(s). The access point is a PoE+ class 4 powered device
and its maximum power consumption is shown below:
AT-MWS2533AP model: 21 watts
AT-MWS600AP and AT-MWS1750AP models: 11 watts
When the port is connected to a PoE+ Ethernet switch, the access point
receives its power over the network cable that carries the network traffic.
Connector Type The LAN port has an eight-pin RJ45 connector. The port uses four pins at
10 or 100 Mbps and all eight pins at 1000 Mbps. The pin assignments are
listed in “LAN Port” on page 57.
Speed The LAN port can operate at 10, 100, or 1000 Mbps. The speed is set
automatically with Auto-Negotiation. You cannot disable Auto-Negotiation
on the port.
Note
The LAN port should be connected to a network device that also
adjusts its speed with Auto-Negotiation. If the network device does
not support Auto-Negotiation, the LAN port operates at 10 Mbps,
which may reduce network performance.
Duplex Mode The LAN port can operate in either half- or full-duplex mode at 10 or 100
Mbps, and full-duplex mode at 1000 Mbps. The port is IEEE
802.3u-compliant and uses Auto-Negotiation to set the duplex mode. (You
cannot disable Auto-Negotiation on the port.)
Note
The LAN port should be connected to a network device that also
sets its duplex mode with Auto-Negotiation. If the network device
does not support Auto-Negotiation, the LAN port operates at
half-duplex mode. This may result in a duplex mode mismatch if the
network device is operating at full duplex.
MWS Series Access Point Installation Guide
19
Automatic MDIX
Detection
The 10/100/1000 Mbps twisted-pair port is IEEE 802.3ab compliant and
features automatic MDIX detection when operating at 10 or 100 Mbps.
(Automatic MDIX detection does not apply to 1000 Mbps.) This feature
automatically configures the port to MDI or MDI-X depending on the wiring
configuration of the port on the Ethernet switch.
You may not disable automatic MDIX detection. For automatic MDIX
detection to work properly, it must also be present on the Ethernet switch.
The LAN port defaults to MDIX if it is connected to a network device that
does not support automatic MDIX detection.
Port Pinouts Refer to Table 13 on page 57 for the port pinouts of the LAN port when it is
operating at 10 or 100 Mbps in the MDI configuration and Table 14 on
page 58 for the MDI-X configuration. Refer to Table 15 on page 58 for the
port pinouts when the port is operating at 1000 Mbps.
Chapter 1: Product Description
20
Redundant Power Supply
The MWS series access point offers a redundant power supply system. In

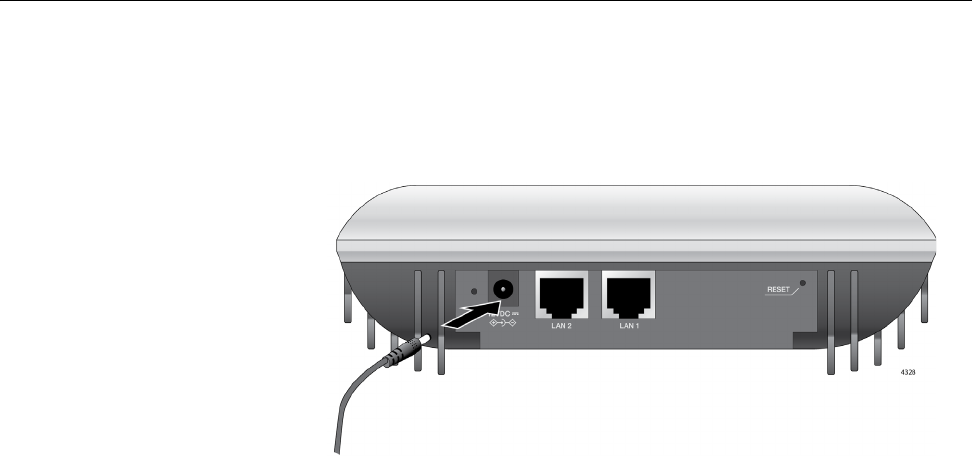

addition to the power supply through the DC jack, the access point has
one or two PoE+ capable LAN ports. When the power supply unit on the
access point fails, it switches to the PoE+ port to drain power.
AT-MWS600AP
and
AT-MWS1750AP
Power Supplies
The AT-MWS600AP and AT-MWS1750AP access points are equipped
with one PoE+ capable LAN port. The access points can drain power
through the DC jack. When power from the DC jack is not available, the
access point drains power through the LAN port. Table 1 shows where the
AT-MWS600AP and AT-MWS1750AP access points drain power.
AT-MWS2533AP
Power Supply
The AT-MWS2533AP access point is equipped with two PoE+ capable
LAN ports. The model can drain power through the DC jack. When power
from the DC jack is not available, it drains through the LAN2 port; when
power is not available through the DC jack or LAN2 port, it drains through
the LAN1 port. Table 2 shows where the AT-MWS2533AP model drains
power.
Table 1. Power Source for the AT-MWS600AP and AT-MWS1750AP
Models
Case
Power Supply
Where the Access Point drains power
DC Jack LAN
1On On
The access point drains power through the
DC jack. The LAN port is standby.
2On-
The access point drains power through the
DC jack. No redundancy.
3-On
The access point drains power through the
LAN port. No redundancy.
Table 2. Power Source for the AT-MWS2533AP Model
Case
Power Supply
Where the Access Point drains power
DC Jack LAN1 LAN2
1On OnOn
The access point drains power through the DC
jack. The both LAN ports are standby.
2OnOn -
The access point drains power through the DC
jack. LAN1 is standby.
MWS Series Access Point Installation Guide
21
3On-On
The access point drains power through the DC
jack. LAN2 is standby.
4On--
The access point drains power through the DC
jack. No redundancy.
5--On
The access point drains power through the
LAN2 port. No redundancy.
6-On The access point drains power through the
LAN1 port. No redundancy.
8-OnOn
The access point drains power through the
LAN2 port. LAN1 is standby.
Table 2. Power Source for the AT-MWS2533AP Model (Continued)
Case
Power Supply
Where the Access Point drains power
DC Jack LAN1 LAN2
Chapter 1: Product Description
22
LEDs
The LEDs on the top panel of the MWS series access point display status
information.
LEDs for
AT-MWS600AP
and
AT-MWS1750AP
Models
The LEDs for theAT-MWS600AP and AT-MWS1750AP access points
display status information as shown in Table 3.
Table 3. LEDs for theAT-MWS600AP and AT-MWS1750AP Access Points
LED State Description
Power Orange The access power is powered ON and
operating normally.
Off The access point is not receiving
power.
LAN Blue A valid link is established on the port.
Blinking Blue Data is being transmitted/received.
Off No link is established.
2.4GHz Wi-Fi Blue The 2.4GHz Wi-Fi interface is enabled.
Blinking Blue Data is being transmitted/received at
the 2.4GHz frequency band.
Off The 2.4GHz Wi-Fi interface is
disabled.
5 GHz Wi-Fi Green The 5GHz Wi-Fi interface is enabled.
Blinking Green Data is being transmitted/received at
the 5GHz frequency band.
Off The 5GHz Wi-Fi interface is disabled.
Not supported.
MWS Series Access Point Installation Guide
23
AT-MWS2533AP The LEDs for the AT-MWS2533AP model display status information as
shown in Table 4.
Table 4. LEDs for the AT-MWS2533AP Access Point
LED State Description
Power Green The access point is powered ON and
operating normally.
Blinking Green The access point is rebooting or
software is upgrading.
Off The access point is not receiving
power.
Blinking Amber The configuration has being reset to
the factory default settings.
LAN 1 Green A valid link is established on the port
at 1000Mbps.
Blinking Green Data is being transmitted/received at
1000Mbps.
Amber A valid link is established on the port
at 10Mbps or 100Mbps.
Blinking Amber Data is being transmitted/received at
10 Mbps or 100Mbps.
Off No link is established.
LAN 2 Green A valid link is established on the port
at 1000Mbps.
Blinking Green Data is being transmitted/received at
1000Mbps.
Amber A valid link is established on the port
at 10Mbps or 100Mbps.
Blinking Amber Data is being transmitted/received at
10 Mbps or 100Mbps.
Off No link is established.
2.4GHz Wi-Fi Green The 2.4GHz Wi-Fi interface is
enabled.
Blinking Green Data is being transmitted/received at
the 2.4GHz frequency band.
Off The 2.4GHz Wi-Fi interface is
disabled.
Chapter 1: Product Description
24
5GHz Wi-Fi Green The 5GHz Wi-Fi interface is enabled.
Blinking Green Data is being transmitted/received at
the 5GHz frequency band.
Off The 5GHz Wi-Fi interface is disabled.
Table 4. LEDs for the AT-MWS2533AP Access Point (Continued)
LED State Description
MWS Series Access Point Installation Guide
25
Cable Specifications
To connect the MWS series access point to your LAN, you must provide
cables. Here are cable requirements and options.
Cable
Requirements
The cable requirements for the LAN port are listed in Table 5.
Maximum
Distance
The LAN port has a maximum operating distance of 100 meters (328 feet).
Table 5. Twisted Pair Cable for the LAN Port
Cable Type
10Mbps 100Mbps 1000Mbps
PoE+ PoE+ PoE+
Standard TIA/EIA 568-A-compliant
Category 5 shielded or unshielded
cabling with 100 ohm impedance and
100 MHz frequency.
Yes Yes No
Standard TIA/EIA 568-B-compliant
Enhanced Category 5 (Cat 5e) shielded
or unshielded cabling with 100 ohm
impedance and 100 MHz frequency.
Yes Yes Yes
Standard TIA/EIA 568-B-compliant
Category 6 or 6a shielded cabling.
Yes Yes Yes
Chapter 1: Product Description
26
27
Chapter 2
Installing the AT-MWS2533AP Access
Point
This chapter describes how to install the AT-MWS2533AP access point. It
contains the following sections:
“Reviewing Safety Precautions” on page 28
“Unpacking the AT-MWS2533AP Access Point” on page 30
“Unpacking the AT-BRKT-MWS01 Mounting Base Plate” on page 31
“Unpacking the AT-MWS0091 AC Adapter Kit” on page 32
“Installing the Access Point on a Celling or Wall” on page 34
“Connecting the Access Point with the Ethernet Cable” on page 38
“Connecting the AC Adapter” on page 39
“Assembling the AT-MWS0091 AC Adapter” on page 40
Note
To install theAT-MWS600AP or AT-MWS1750AP access point, see
“Installing the AT-MWS600AP or AT-MWS1750AP Access Point” on
page 43.
Chapter 2: Installing the AT-MWS2533AP Access Point
28
Reviewing Safety Precautions
Please review the following safety precautions before you begin to install
the access point.
Note
The indicates that a translation of the safety statement is
available in a PDF document titled Translated Safety Statements on
the Allied Telesis website at www.alliedtelesis.com/support.
Warning
To prevent electric shock, do not remove the cover. No user-
serviceable parts inside. This unit contains hazardous voltages and
should only be opened by a trained and qualified technician. To
avoid the possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the LAN cables.
E1
Warning
Do not work on equipment or cables during periods of lightning
activity. E2
Note
All Countries: Install product in accordance with local and National
Electrical Codes. E8
Note
You should verify that your PoE network adheres to the standards of
a separated extra-low voltage (SELV) circuit before using the PoE
feature on the wireless access point.
Warning
Only trained and qualified personnel are allowed to install or to
replace this equipment. E14
MWS Series Access Point Installation Guide
29
Warning
This equipment shall be installed in a Restricted Access location.
E45
Warning
Hot Surface, Do Not Touch! - The finned surface on the back of the
chassis is a heat sink and can become dangerously hot when the
unit is operating. E114
Warning
To prevent electric shock, slide the AC power plug into the AC/DC
power adapter before plugging into the AC power wall receptacles.
E116
The following warning applies only to the AT-MWS1750AP model:
Warning
Operating Temperature. This product is designed for a maximum
ambient temperature of 40 degrees C. E7
The following warning applies only to the AT-MWS2533AP model:
Warning
Operating Temperature. This product is designed for a maximum
ambient temperature of 50°C E57
Chapter 2: Installing the AT-MWS2533AP Access Point
30
Unpacking the AT-MWS2533AP Access Point
To unpack the AT-MWS2533AP access point, perform the following
procedure:
1. Remove the AT-MWS2533AP access point from the shipping box.
2. Save the packaging material in a safe location.
You must use the original shipping material if you need to return the
unit to Allied Telesis.
Note
To install the AT-MWS2533AP access point on a ceiling or wall, you
must purchase the AT-BRKT-MWS01 mounting base plate
separately.
Note
To build a redundant power supply system with the power s from the
DC jack, you must purchase the AT-MWS0091 AC adapter kits
separately.
MWS Series Access Point Installation Guide
31
Unpacking the AT-BRKT-MWS01 Mounting Base Plate
To unpack the AT-BRKT-MWS01 mounting base palate, perform the
following procedure:
Note
The AT-BRKT-MWS01 mounting base plate is not included in the
AT-MWS2533AP access point package. You must purchase the
mounting base plate separately.
1. Remove the AT-BRKT-MWS01 mounting base palate from the
shipping box and verify the product. See Figure 6.
Figure 6. AT-BRKT-MWS01 Mounting Base Plate
2. Save the packaging material in a safe location.
You must use the original shipping material if you need to return the
unit to Allied Telesis.
Chapter 2: Installing the AT-MWS2533AP Access Point
32
Unpacking the AT-MWS0091 AC Adapter Kit
The AT-MWS0091 AC adapter, which features an interchangeable AC
plug, was built with the AC plug for USA when shipped from the factory.
You can change the AC plug to another AC plug for Europe, UK, or
Australia.
To unpack the AT-MWS0091 AC adapter kit, perform the following
procedure:
1. Remove all components from the shipping box.
Note
Store the packaging material in a safe location. You must use the
original shipping material if you need to return the unit to Allied
Telesis.
2. Verify that all components listed in Table 6 are included in your
shipping boxes shown in Table 6.
Table 6. Components in the Shipping Box
Name Component
AC adapter and
plug for USA
(APD2-US)
Plug for UK
(APD2-UK)
Plug for Europe
(APD2-EU)
MWS Series Access Point Installation Guide
33
3. If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
Plug for Australia
(APD2-AU)
Table 6. Components in the Shipping Box
Name Component
Chapter 2: Installing the AT-MWS2533AP Access Point
34
Installing the Access Point on a Celling or Wall
The AT-MWS2533AP access point can be mounted on a celling or wall.
Guidelines for
Installing the
Device on a
Celling or Wall
Review the following guidelines before installing the access point on a
ceiling or wall:
You must provide the four self-tapping screws that secure the
mounting base plate to the ceiling or wall.
The ceiling or wall mounting surface must be of proper material to
accommodate the self-tapping screws, strong enough to support
the weight of the equipment and cables.
Connect the Ethernet cable to the access point before installing the
access point on the ceiling or wall if connecting the Ethernet cable
will be difficult after the access point is installed.
The AT-MWS2533AP access point can be installed on a ceiling or
tabletop. See Figure 7.

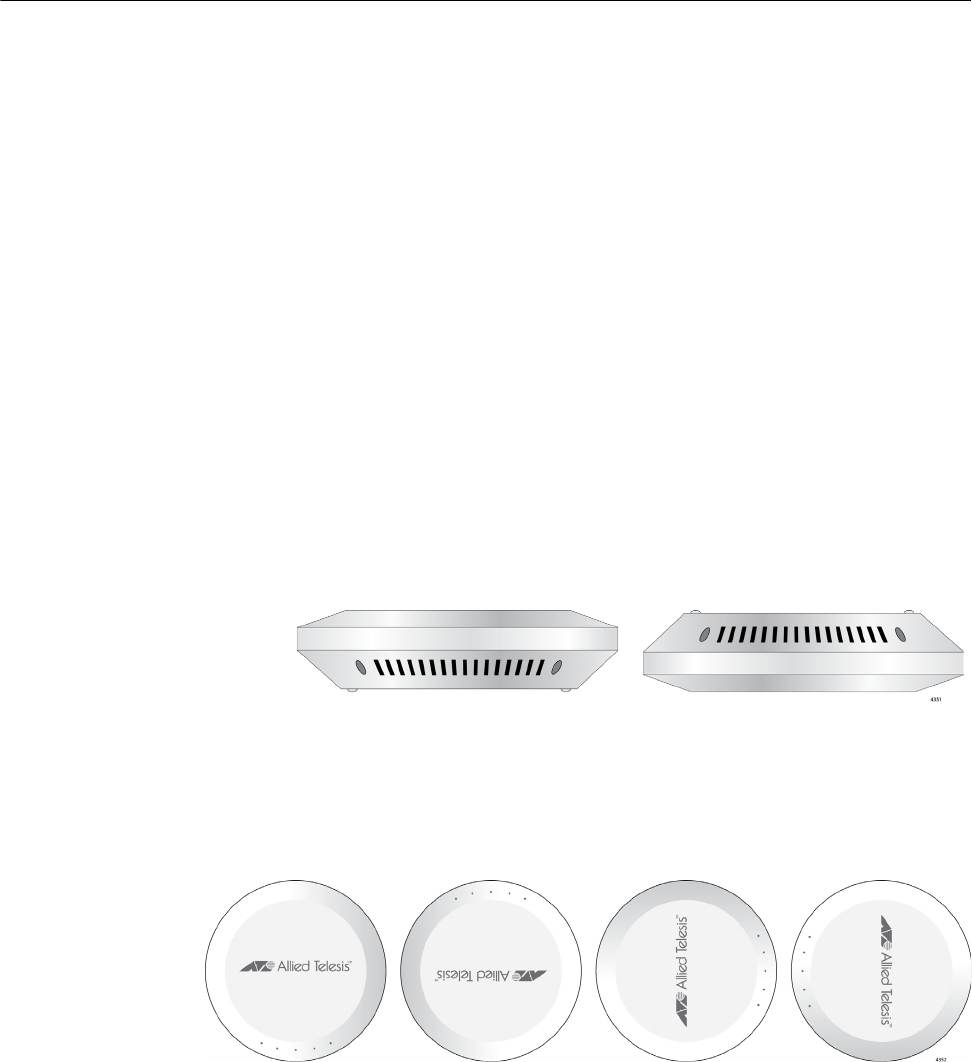

Figure 7. Correct Ceiling or Tabletop Installation
The AT-MWS2533AP access point can be mounted on the wall;
however, installing the access point with the LAN ports facing up is
not allowed. See Figure 8 for correct and incorrect wall installation
orientations.
Figure 8. Correct and Incorrect Wall Installation
Correct Tabletop Installation Correct Ceiling Installation
Correct Correct Correct Incorrect
MWS Series Access Point Installation Guide
35
What to Prepare
for the
Installation
You need the following items to install the access point on a ceiling or wall:
AT-MWS2533AP access point
AT-BRKT-MWS01 Mounting base plate
Four screws for a celling or wall
Phillips-head screwdriver
Pencil
Note
Screws for the ceiling or wall, a Phillip-head screwdriver and pencil
are not included in the shipping box.
Installing the
Access Point on
the Celling or
Wall
To install the access point on the celling or wall, perform the following
procedure:
Note
Attaching the access point to the mounting base plate may not be
easy once the mounting base plate is installed on a ceiling or wall.
Practice Step 5 to Step 7 before installing the mounting base plate
on a ceiling or wall.
1. Review “Guidelines for Installing the Device on a Celling or Wall” on
page 34.
2. Using the mounting base plate as a template, mark the four holes with
a pencil.
3. Pre-drill the marked locations on the ceiling or wall.
4. Install the mounting base plate on the ceiling or wall as shown in
Figure 9 on page 36.
Chapter 2: Installing the AT-MWS2533AP Access Point
36
Figure 9. Installing the Mounting Base Plate on the Ceiling or Wall

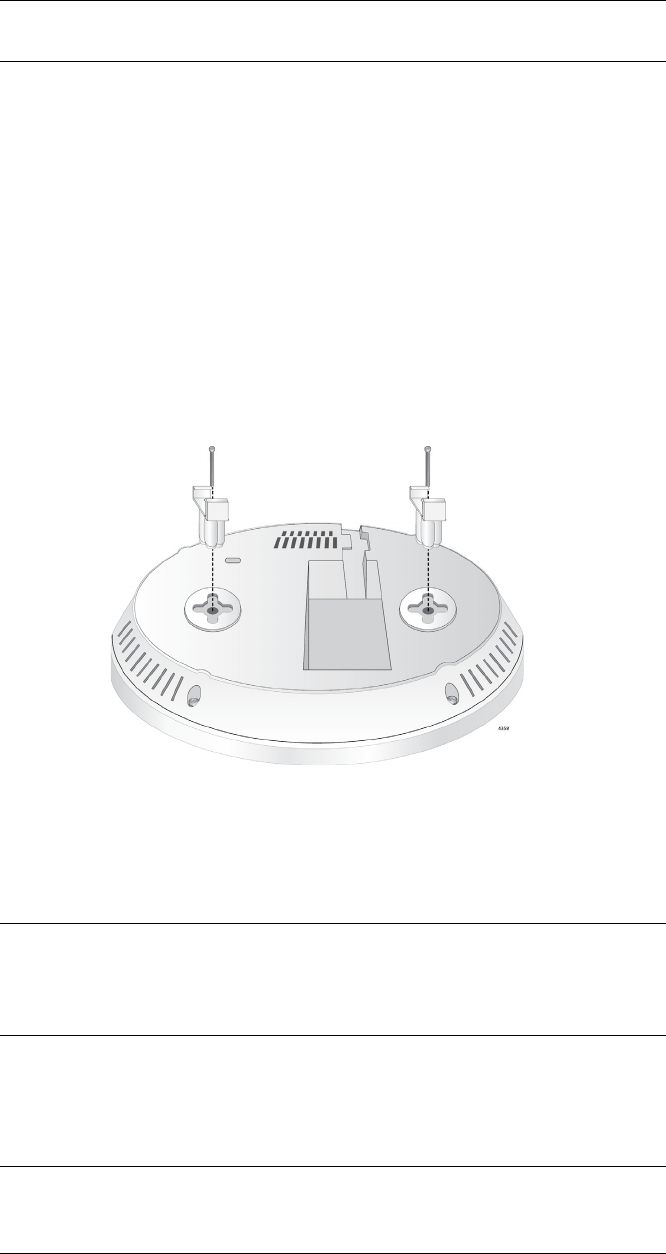

5. Insert the two pins on the mounting base plate into the circles of the
keyhole slots, as shown in Figure 10.
Figure 10. Aligning the Access Point with the Mounting Base Plate
6. Slide the access point to lock the necks of the mounting base plate
pins in the slots, as shown in Figure 11 on page 37.
MWS Series Access Point Installation Guide
37

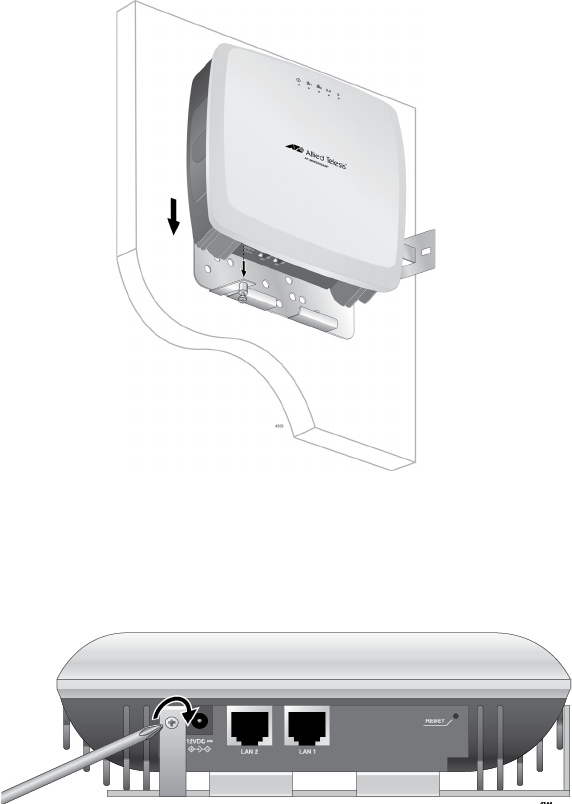

Figure 11. Sliding the Access Point to Secure the Mounting Base Plate
7. Fasten the captive screw on the mounting base plate to secure the
access point.
Figure 12. Fastening the Captive Screw to Secure the Access Point
Chapter 2: Installing the AT-MWS2533AP Access Point
38
Connecting the Access Point with the Ethernet Cable
To connect the access point with the Ethernet cable, perform the following
procedure:
1. Connect the RJ-45 plug into the LAN port as shown in Figure 13.
Figure 13. Connecting the LAN Cable
2. Connect the other RJ-45 plug to the PoE+ switch.
MWS Series Access Point Installation Guide
39
Connecting the AC Adapter
To connect the AC adapter, perform the following procedure:
1. Connect the AC adapter into the DC jack on the access point as shown
in Figure 14.
Figure 14. Connecting the LAN Cable and Attaching the Sealing Nut
2. Connect the other end of the AC adapter to wall power outlet.
Chapter 2: Installing the AT-MWS2533AP Access Point
40
Assembling the AT-MWS0091 AC Adapter
The AT-MWS0091 AC adapter is shipped with the AC plug for USA
attached. When the AC socket on your wall is other than the USA type,
you can change it to another AC plug for Europe, UK, or Australia.
To change the AC plug on the AT-MWS0091 AC adapter, perform the
following procedure:
1. Select one from the optional AC plugs. See Table 6 on page 32.
2. While pressing the release tab with your thumb, slide the AC plug as
shown in Figure 15.
Figure 15. Detaching the AC Plug from the AC Adapter
3. Remove the AC plug from the AC adapter as shown in Figure 16.
Figure 16. Removing the AC Plug from the AC Adapter
4. Attach the AC plug that you selected to the AC adapter in shown in
Figure 17 on page 41.
MWS Series Access Point Installation Guide
41
Figure 17. Attaching the AC Plug to the AC Adapter
Warning
To prevent electric shock, slide the AC power plug into the AC/DC
power adapter before plugging into the AC power wall receptacles.
E116
Chapter 2: Installing the AT-MWS2533AP Access Point
42
43
Chapter 3
Installing the AT-MWS600AP or
AT-MWS1750AP Access Point
This chapter describes how to install the AT-MWS600AP or
AT-MWS1750AP access point. It contains the following sections:
“Unpacking the AT-MWS600AP or AT-MWS1750AP Access Point” on
page 44
“Installing the Access Point” on page 46
“Connecting the Access Point with the Ethernet Cable” on page 53
“Connecting the AC Adapter” on page 54
Note
To install the AT-MWS2533AP access point, see “Installing the
AT-MWS2533AP Access Point” on page 27.
Chapter 3: Installing the AT-MWS600AP or AT-MWS1750AP Access Point
44
Unpacking the AT-MWS600AP or AT-MWS1750AP Access Point
To unpack the AT-MWS600AP or AT-MWS1750AP access point, perform
the following procedure:
1. Remove all components from the shipping boxes.
Note
Store the packaging material in a safe location. You must use the
original shipping material if you need to return the unit to Allied
Telesis.
2. Verify that all components listed in Table 7 are included in your
shipping boxes.
Table 7. Components in the Shipping Boxes
Name Component
Mounting
base kit
1 x Mounting base
2 x Screw for the
mounting base
(M2.6 9.8mm)
MWS Series Access Point Installation Guide
45
3. If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
Rail clip
kit
2 x Narrow rail clip
2 x Wide rail clip
2 x Spacer
2 x Short screw to
attach a rail clip
without the spacer or
attach to the access
point directly
2 x Long screw to
attach a rail clip with
the spacer
Table 7. Components in the Shipping Boxes (Continued)
Name Component
Chapter 3: Installing the AT-MWS600AP or AT-MWS1750AP Access Point
46
Installing the Access Point
The AT-MWS600AP and AT-MWS1750AP access points can be mounted
on a table, wall, hard-surface celling, or ceiling rail.
Guidelines for
Installing the
AT-MWS600AP
or
AT-MWS1750AP
Access Point
Review the following guidelines before installing the access point:
The ceiling or wall mounting surface must be of proper material to
accommodate the screws, strong enough to support the weight of
the access point and cables.
The ceiling rail must be strong enough to support the weight of the
access point and cables.
Ensure the cables are long enough to connect to the places you
planned before installing the access point. Once the access point
is installed, it may be difficult to change the cables.
Connect the Ethernet cable and power code to the access point
before installing the access point on the ceiling or wall. Connecting
the Ethernet cable and power code may be difficult after the
access point is installed.
The access points can be installed on a table and ceiling. See
Figure 18 for correct orientations.
Figure 18. Correct Orientation on a Tabletop and Ceiling
The access point must be mounted on the wall in the orientations
shown in Figure 19. In other orientations, the access point cannot
have a proper air flow.
Figure 19. Correct Orientations on a Wall
The access point can be attached to installed on two types of
suspended ceiling T-rails. Select one of the ceiling grip clips in the
shipping box for your ceiling rail.
MWS Series Access Point Installation Guide
47
Hard-Surface
Ceiling and Wall
Installation
This section explains how to install the access point on the hard-surface
ceiling or wall.
What to Prepare for the Hard-Surface Ceiling or Wall Installation
You need the following items to install the access point on a ceiling or wall:
AT-MWS600AP or AT-MWS1750AP access point
Two screws to attach to the access point directly
Mounting base
Two screws for the mounting base
Phillips-head screwdriver
Pencil
Note
A Phillip-head screwdriver and pencil are not included in the
shipping box.
Installing the Access Point on the Hard-Surface Celling or Wall
To install the access point on the hard-surface celling or wall, perform the
following procedure:
Note
Attaching the access point to the mounting base may not be easy
once the mounting base is installed on the hard-surface ceiling or
wall. Practice Step 12 and Step 13 before installing the mounting
base on a hard-surface ceiling or wall.
1. Read “Reviewing Safety Precautions” on page 28.
2. Review “Guidelines for Installing the AT-MWS600AP or
AT-MWS1750AP Access Point” on page 46.
Chapter 3: Installing the AT-MWS600AP or AT-MWS1750AP Access Point
48
3. Attach the two screws to the access point. as shown in Figure 20.
Figure 20. Attaching the Screws to the Access Point
4. Apply the mounting base to the access point and adjust the height of
the screws where the access point can be turned to be secured to the
mounting base as shown in Figure 21.
Figure 21. Adjusting the Screws on the Access Point
5. Remove the mounting base from the access point. See Figure 22.
Figure 22. The Access Point with Two Screws Attached
6. Connect an Ethernet cable. See “Connecting the Access Point with the
Ethernet Cable” on page 53.
MWS Series Access Point Installation Guide
49
Note
Ensure the cable is long enough to connect the access point to the
place where you planned. Once the access point is installed, it may
be difficult to change the cable.
7. If you plan to use the AC adapter, connect it. See “Connecting the AC
Adapter” on page 54.
Note
Ensure the power outlet is in the reach. Once the access point is
installed, it may be difficult to change the location.
8. If you are installing the access point on the wall, ensure that the
orientation of the mounting base is correct.
9. Using the mounting base as a template, mark the two holes with a
pencil where you want to install the access point. See Figure 23.
Figure 23. Marking the Mounting Base Holes
10. Pre-drill the marked locations on the hard-surface ceiling or wall.
11. Install the mounting base on the hard-surface ceiling or wall as shown
in Figure 24.
Figure 24. Installing the Mounting Base on a Hard-Surface Ceiling or Wall
Chapter 3: Installing the AT-MWS600AP or AT-MWS1750AP Access Point
50
12. Insert the two screws on the access point to the holes on the mounting
base, as shown in Figure 25.
Figure 25. Installing the Access Point onto a Ceiling or Wall
13. Turn the access point until it is securely seated. See Figure 26.
Figure 26. Turning the Access Point to Secure to the Mounting Base
Ceiling T-Rail
Installation
To install the access point on the ceiling T-rail, perform the following
procedure:
What to Prepare for the Rail Installation
You need the following items to install the access point on a ceiling or wall:
AT-MWS600AP or AT-MWS1750AP access point
Two rail clips, either narrow rail clips or wide rail clips
Two spacers
Two long screws for the rail clip with the spacer
Phillips-head screwdriver
MWS Series Access Point Installation Guide
51
Note
A Phillip-head screwdriver is not included in the shipping box.
Installing the Access Point on the Ceiling T-Rail
To install the access point on the celling T-rail, perform the following
procedure:
1. Read “Reviewing Safety Precautions” on page 28.
2. Review “Guidelines for Installing the AT-MWS600AP or
AT-MWS1750AP Access Point” on page 46.
3. Attach two rail clips and the spacers to the access point using the long
screws as shown in Figure 27.
Figure 27. Attaching the Rail Clips and Spacers to the Access Point
4. Connect an Ethernet cable. See “Connecting the Access Point with the
Ethernet Cable” on page 53.
Note
Ensure the cable is long enough to connect the access point to the
place where you planned. Once the access point is installed, it may
be difficult to change the cable.
5. If you plan to use the AC adapter, connect it. See “Connecting the AC
Adapter” on page 54.
Note
Ensure the power outlet is in the reach. Once the access point is
installed, it may be difficult to change the location.
MWS Series Access Point Installation Guide
53
Connecting the Access Point with the Ethernet Cable
To connect the access point with the Ethernet cable, perform the following
procedure:
1. Connect the RJ-45 plug into the LAN port as shown in Figure 29.
Figure 29. Connecting the LAN Cable
2. Connect the other RJ-45 plug to the PoE+ switch.
Chapter 3: Installing the AT-MWS600AP or AT-MWS1750AP Access Point
54
Connecting the AC Adapter
To connect the AC adapter, perform the following procedure:
1. Connect the AC adapter into the DC jack on the access point as
shown in Figure 30.

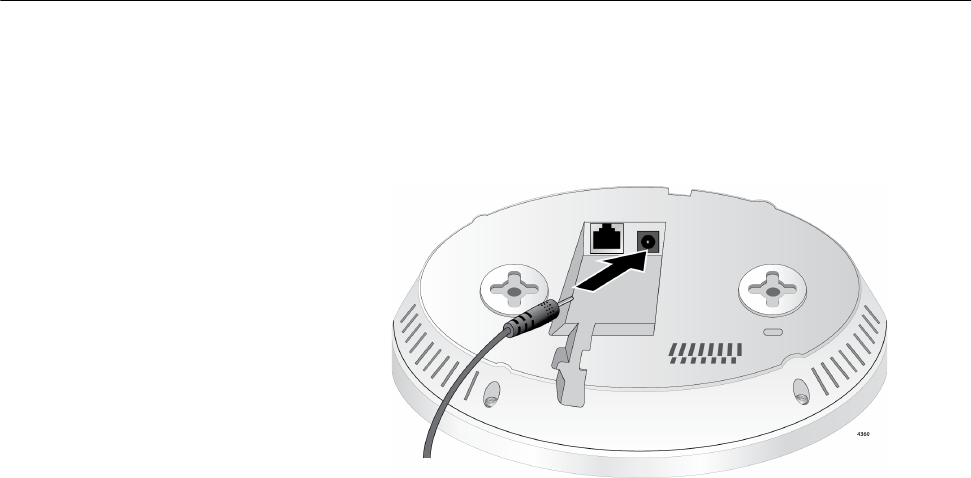

Figure 30. Connecting the AC Adapter
2. Connect the other end of the AC adapter to wall power outlet.
55
Appendix A
Technical Specifications
This appendix contains the following sections:
“Physical Specifications”
“Environmental Specifications”
“Power Specifications” on page 56
“LAN Port” on page 57
Physical Specifications
Environmental Specifications
AT-MWS2533AP
Table 8. Product Dimensions
Model Dimensions Weight
AT-MWS600AP 161 mm x 161 mm x38
(6.3 in. x 6.3in. x 1.5in.)
280g (0.62 lb.)
AT-MWS1750AP 161 mm x 161 mm x38
(6.3 in. x 6.3in. x 1.5in.)
340g (0.75 lb.)
AT-MWS2533AP 215 mm x 215 mm x 56 mm
(8.5 in. x 8.5 in. x 2.2 in.)
1.6kg (3.5 lb.)
Power adapter N/A 130g (0.29 lb.)
Table 9. Environmental Specifications
Operating Temperature of the
Access Point
0° C to 50° C (32° F to 122° F)
Operating Temperature of the AC
adapter
0° C to 45° C (32° F to 113° F)
Storage Temperature -40° C to 70° C (-40° F to 158° F)
Operating Humidity 5% to 90% non-condensing
Appendix A: Technical Specifications
56
AT-MWS600AP and AT-MWS1750AP
Power Specifications
Maximum Power Consumptions
Storage Humidity 5% to 95% non-condensing
Table 10. Environmental Specifications
Operating Temperature of the
Access Point
0° C to 40° C (32° F to 104° F)
Storage Temperature -20° C to 60° C (-4° F to 140° F)
Operating Humidity 10% to 80% non-condensing
Storage Humidity 10% to 95% non-condensing
Table 9. Environmental Specifications
Table 11. Maximum Power Consumptions
Model Max Power Consumption
AT-MWS2533AP 21 watts
AT-MWS600AP
AT-MWS1750AP
11 watts
Draft 1 with FCC for 2533 on September 15, 2017
MWS Series Access Point Installation Guide
57
LAN Port
Figure 31 illustrates the pin layout of the LAN port.
Figure 31. Pin Layout for the RJ45 Connector on the LAN Port
Table 13 lists the pin signals when the port is operating in the MDI
configuration at 10 or 100 Mbps.
Table 12. LAN Port Specifications
Connector RJ45
Standards IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
PoE standard IEEE 802.3at (class 4)
Table 13. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1TX+
2TX-
3RX+
6RX-
Draft 1 with FCC for 2533 on September 15, 2017
Appendix A: Technical Specifications
58
Table 14 lists the pin signals for the MDI-X configuration at 10 or 100
Mbps.
Table 15 lists the pin signals when the LAN port is operating at 1000
Mbps.
Table 14. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1RX+
2RX-
3TX+
6TX-
Table 15. 1000Base-T Connector Pinouts
Pin Pair Signal
1 1 TX and RX
2 1 TX and RX-
32TX and RX+
43TX and RX+
5 3 TX and RX-
6 2 TX and RX-
74TX and RX+
8 4 TX and RX-
Draft 1 with FCC for 2533 on September 15, 2017
