User manual
613-001863 Rev. A
AT-TQ3600
Enterprise-class Wireless Access Point
with IEEE802.11a/b/g/n Dual Radio
Installation Guide
Review Draft - January 24, 2014
Copyright 2014 Allied Telesis, Inc.
All rights reserved.
This product includes software licensed under the BSD License. As such, the following language applies for those
portions of the software licensed under the BSD License:
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of Allied Telesis, Inc. nor the names of the respective companies above may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) [dates as appropriate to package] by The Regents of the University of California - All rights reserved.
Copyright (c) 2000-2003 by Intel Corporation - All rights reserved. Copyright (c) 1997-2003, 2004 by Thomas E. Dickey
<dickey@invisible-island.net> - All rights reserved. Copyright (c) 2001-2009 by Brandon Long (ClearSilver is now
licensed under the New BSD License.) Copyright (c) 1984-2000 by Carnegie Mellon University - All rights reserved.
Copyright (c) 2002,2003 by Matt Johnston - All rights reserved. Copyright (c) 1995 by Tatu Ylonen <ylo@cs.hut.fi> - All
rights reserved. Copyright 1997-2003 by Simon Tatham. Portions copyright by Robert de Bath, Joris van Rantwijk,
Delian Delchev, Andreas Schultz, Jeroen Massar, Wez Furlong, Nicolas Barry, Justin Bradford, and CORE SDI S.A.
Copyright (c) 1989, 1991 by Free Software Foundation, Inc. (GNU General Public License, Version 2, June 1991).
Copyright (c) 2002-2005 by Jouni Malinen <jkmaline@cc.hut.fi> and contributors. Copyright (c) 1991, 1999 by Free
Software Foundation, Inc. (GNU Lesser General Public License, Version 2.1, February 1999). Copyright (c) 1998-2002
by Daniel Veillard - All rights reserved. Copyright (c) 1998-2004 by The OpenSSL Project - All rights reserved.
Copyright (c) 1995-1998 by Eric Young (eay@cryptsoft.com) - All rights reserved.
This product also includes software licensed under the GNU General Public License available from:
http://www.gnu.org/licenses/gpl2.html
Allied Telesis is committed to meeting the requirements of the open source licenses including the GNU General Public
License (GPL) and will make all required source code available.
If you would like a copy of the GPL source code contained in this product, please send us a request by registered mail
including a check for US$15 to cover production and shipping costs, and a CD with the GPL code will be mailed to you.
GPL Code Request
Allied Telesis Labs (Ltd)
PO Box 8011
Christchurch, New Zealand
No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names,
company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective
owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document
without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied
Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited
to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has
been advised of, known, or should have known, the possibility of such damages.
Review Draft - January 24, 2014
3
Electrical Safety and Emissions Standards
This product meets the following standards.
Federal Communications Commission Interference Statement
Declaration of Conformity
Manufacturer Name: Allied Telesis, Inc.
Declares that the product: Wireless access point with PoE powered device function
Model Numbers: AT-TQ3600; AT-TQ3600-01
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to indoor
environment. The band from 5600-5650MHz will be disabled by the software during the
manufacturing and cannot be changed by the end user. This device meets all the other
requirements specified in Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 21cm
between the radiator & your body.
Review Draft - January 24, 2014
4
Note
For additional regulatory statements, refer to Appendix B, ”Regulatory Statements” on page
63.
Safety and Electromagnetic Emissions Certificates
European Union Restriction of the Use of Certain Hazardous Substances
(RoHS) in Electrical and Electronic Equipment
This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use
of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis
ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming
materials, and maintaining manufacturing process controls.
Standard
Compliance
RoHs compliant
European Union RoHS (Directive 2011/65/EU of the European Parliament
and of the Council of 8 June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.)
Certificates CE
EAC
FCC/IC
KC
RCM
SRMC
Wi-Fi CERTIFIED
Electromagnetic
Compatibility (EMC)
EN 301 489-1
EN 301 489-17
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
AS/NZS CISPR 22
FCC 47 CFR Part 15, Subpart B
ICES-003
Medical (EMC) EN 60601-1-2
Review Draft - January 24, 2014
5
Radio Equipment EN 300 328
EN 301 893
AS/NZS 4268
FCC 47 CFR Part 15, Subpart C
FCC 47 CFR Part 15, Subpart E
FCC part 2
RSS210
RSS-Gen
RSS-102
Safety EN 60950-1
IEC 60950-1
TUV-T
UL 60950-1
UL 2043 (For AT-TQ3600-01 only)
Suitable for use in environmental air space in accordance with Section
300-22(C) of the National Electrical Code, and Sections 2-128, 12-
010(3), and 12-100 of the Canadian Electrical Code Part 1, CSA C22.1.
Review Draft - January 24, 2014
6
Translated Safety Statements
Important: The indicates that a translation of the safety statement is available in a PDF
document titled “Translated Safety Statements” on the Allied Telesis website at
www.alliedtelesis.com/support/documentation. To view all the current documentation for the
product, select the model number from the Product pull-down menu or enter the model name in the
Search field.
Review Draft - January 24, 2014
7
Preface ............................................................................................................................................................13
Safety Symbols Used in this Document ...........................................................................................................14
Contacting Allied Telesis ..................................................................................................................................15
Chapter 1: Overview ......................................................................................................................................17
Features ...........................................................................................................................................................18
Front and Rear Panels .....................................................................................................................................19
LAN Port ...........................................................................................................................................................21
Power over Ethernet ..................................................................................................................................21
Connector Type..........................................................................................................................................21
Speed.........................................................................................................................................................21
Duplex Mode..............................................................................................................................................21
Maximum Distance.....................................................................................................................................21
Cable Requirements ..................................................................................................................................21
Automatic MDIX Detection.........................................................................................................................22

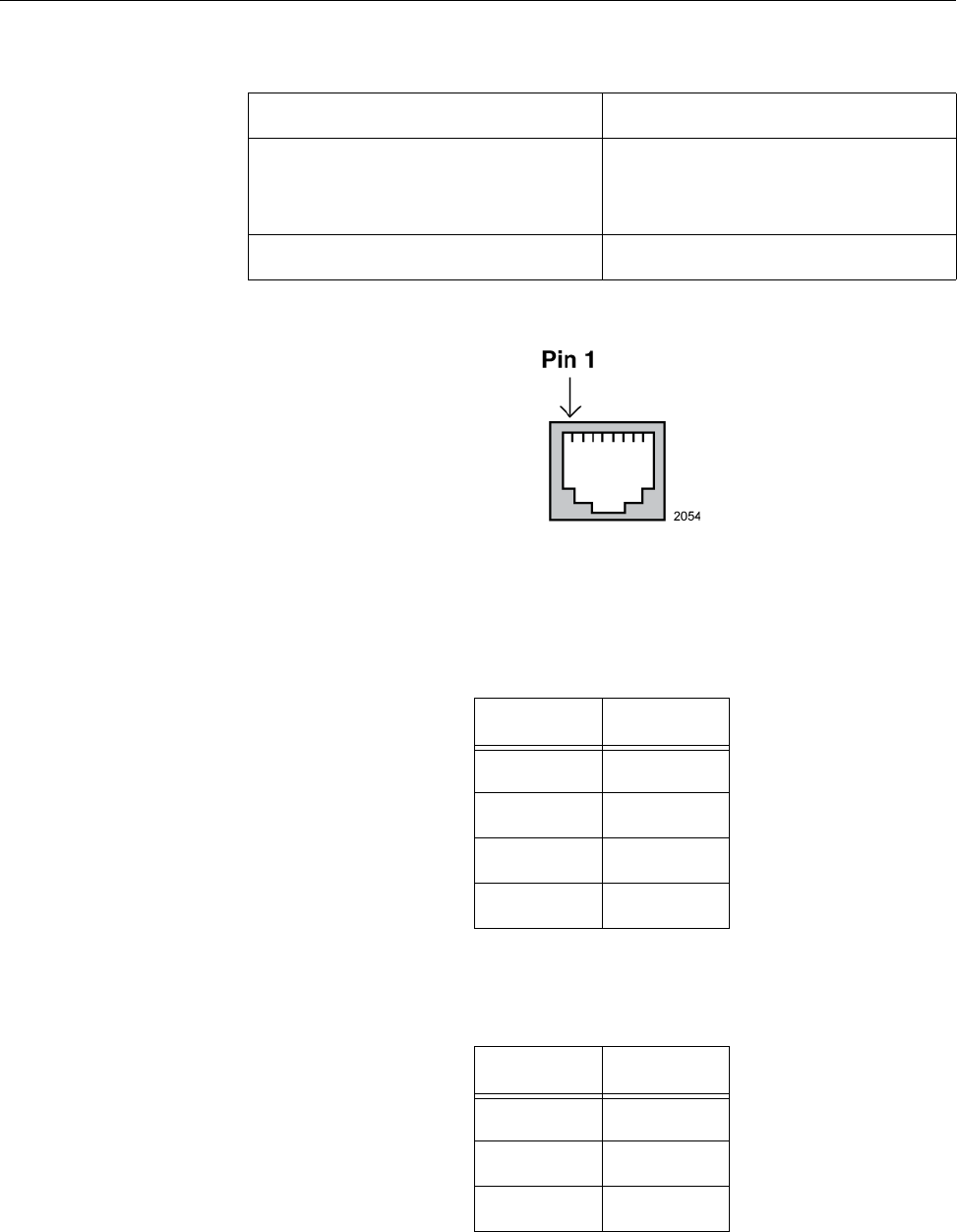

Port Pinouts................................................................................................................................................22
LEDs.................................................................................................................................................................23
Reset Button.....................................................................................................................................................24
Chapter 2: Installing the Access Point ........................................................................................................25
Reviewing Safety Precautions..........................................................................................................................26
Unpacking the AT-TQ3600 Access Point .........................................................................................................28
Installing the Access Point on a Table..............................................................................................................29

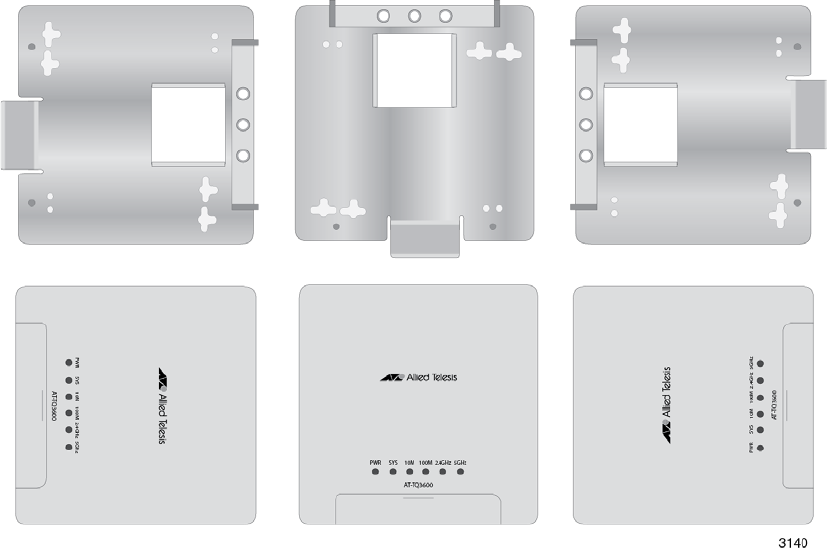

Installing the Access Point on a Wall or Ceiling ...............................................................................................33
Guidelines ..................................................................................................................................................33

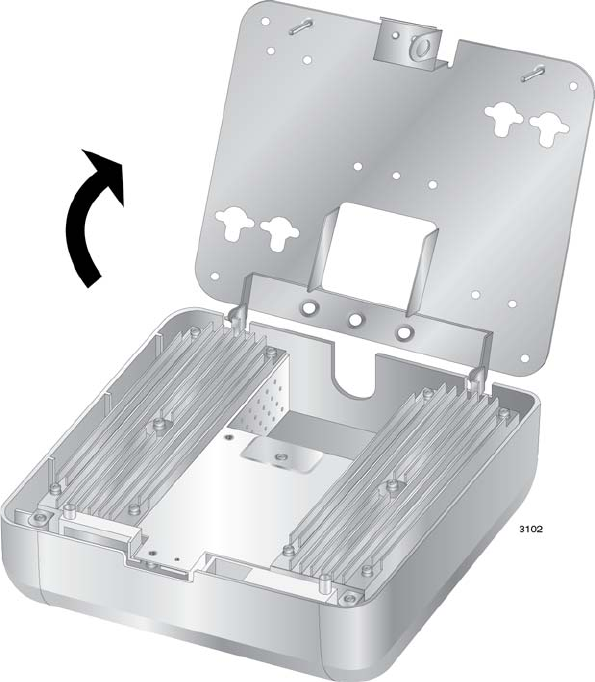

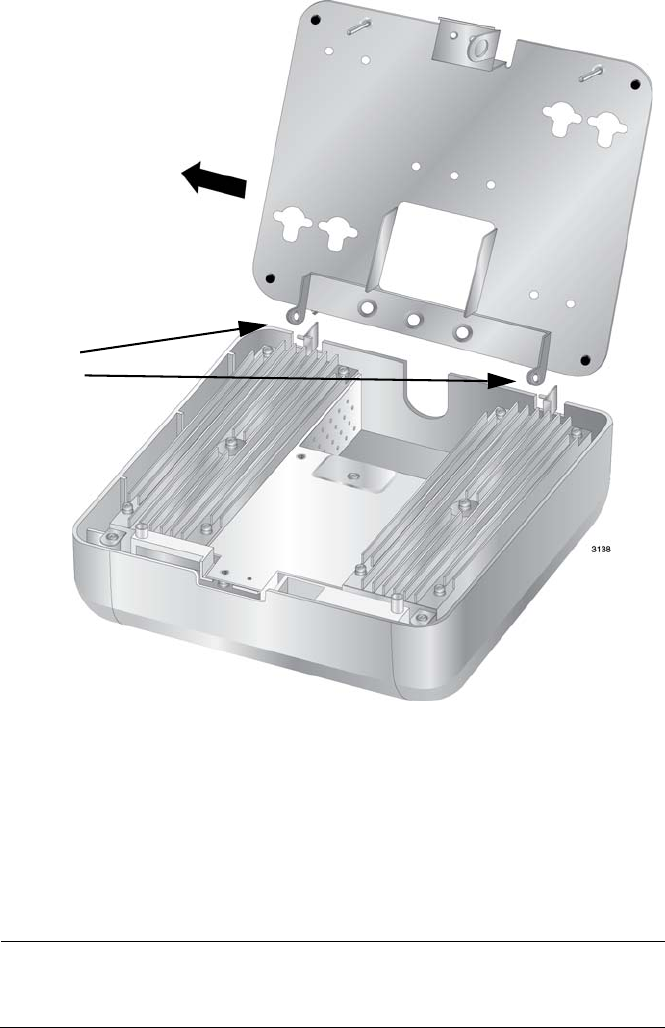

Removing the Bottom Panel from the Access Point ..................................................................................37

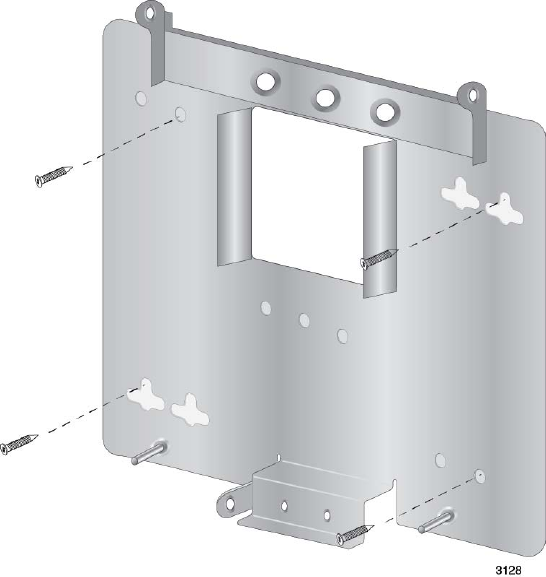

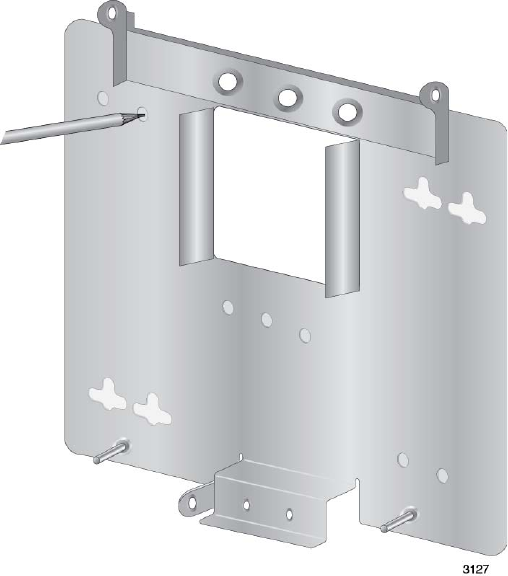

Installing the Bottom Panel on a Wall or Ceiling ........................................................................................40

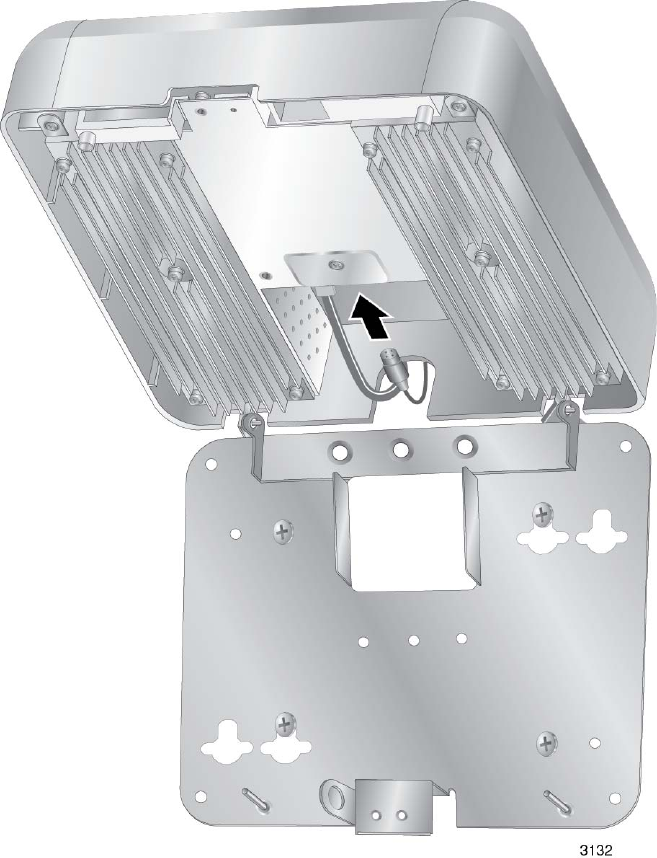

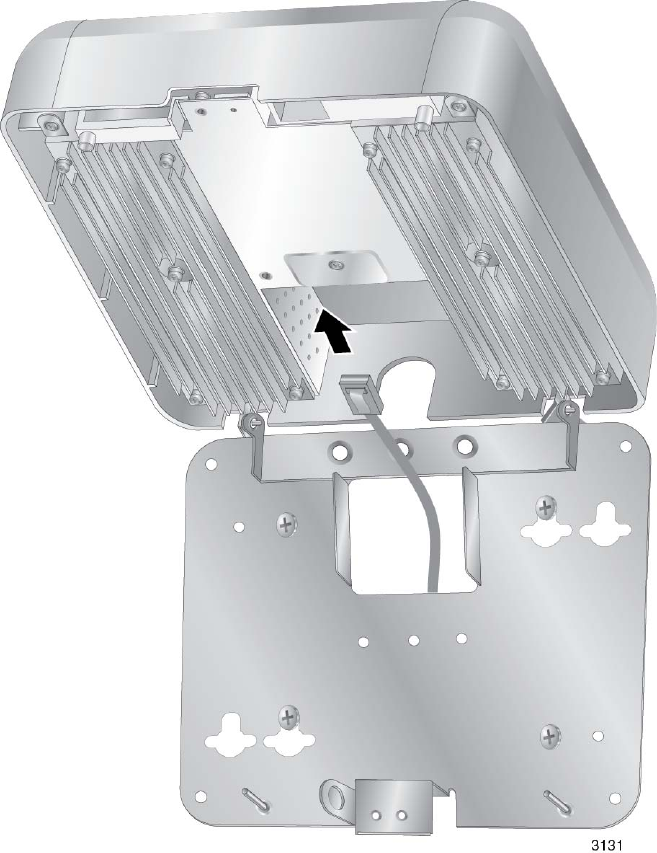

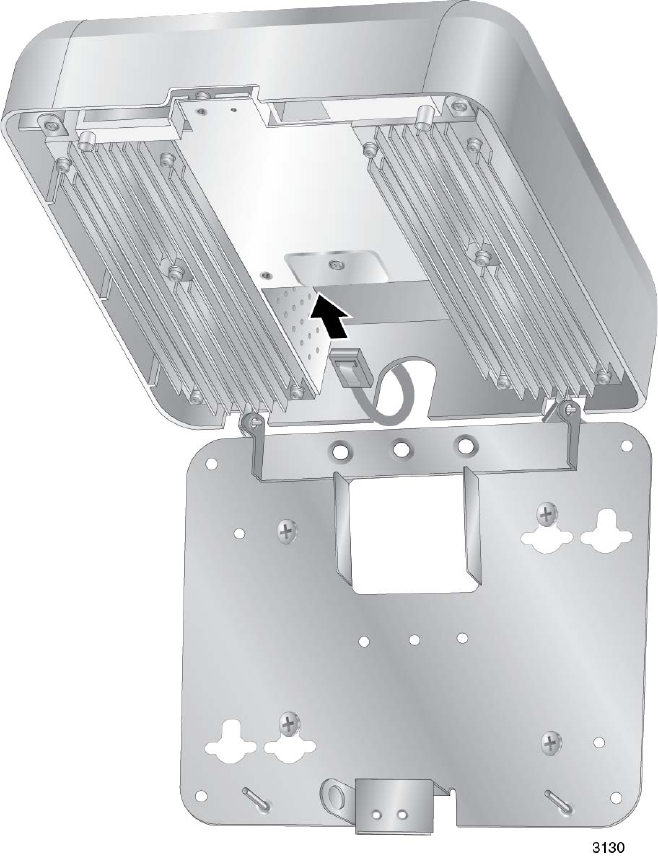

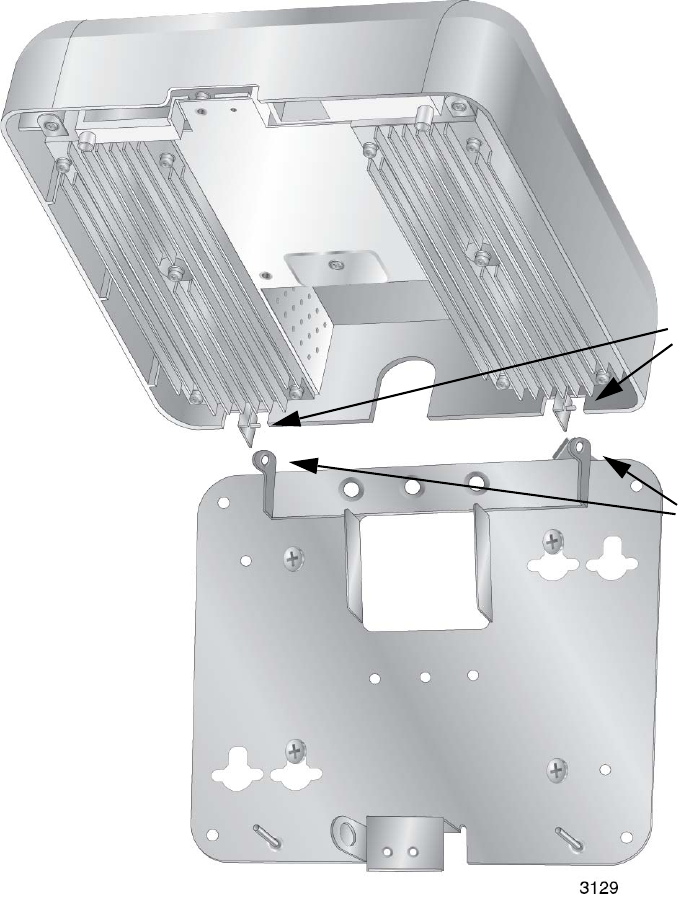

Installing the Access Point on the Bottom Panel........................................................................................42
Installing Anti-theft Devices ..............................................................................................................................50
Starting the Initial Management Session on the Access Point .........................................................................51
Starting the Initial Management Session with a Direct Connection............................................................52
Starting the Initial Management Session without a DHCP Server .............................................................53
Starting the Initial Management Session with a DHCP Server ..................................................................53
Setting the Country Setting...............................................................................................................................55
Appendix A: Technical Specifications ........................................................................................................57
Physical Specifications .....................................................................................................................................57
Environmental Specifications ...........................................................................................................................57
Power Specifications ........................................................................................................................................58
LAN Port ...........................................................................................................................................................59
Safety and Electromagnetic Emissions Certifications ......................................................................................61
Appendix B: Regulatory Statements ...........................................................................................................63
Federal Communication Commission Interference Statement .........................................................................64
Industry Canada Statement..............................................................................................................................66
Europe - EU Declaration of Conformity ............................................................................................................68
Contents
Review Draft - January 24, 2014
Contents
8
Review Draft - January 24, 2014
9
Figures

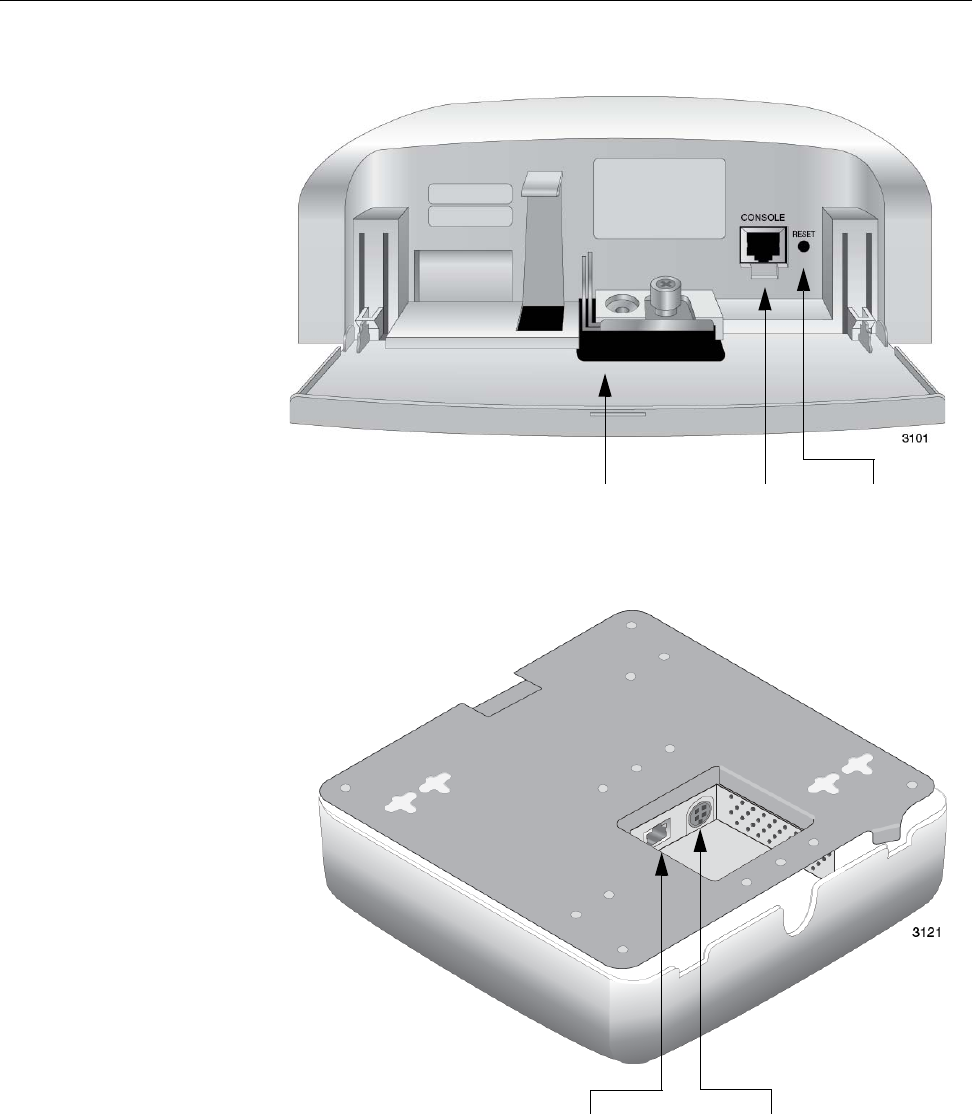

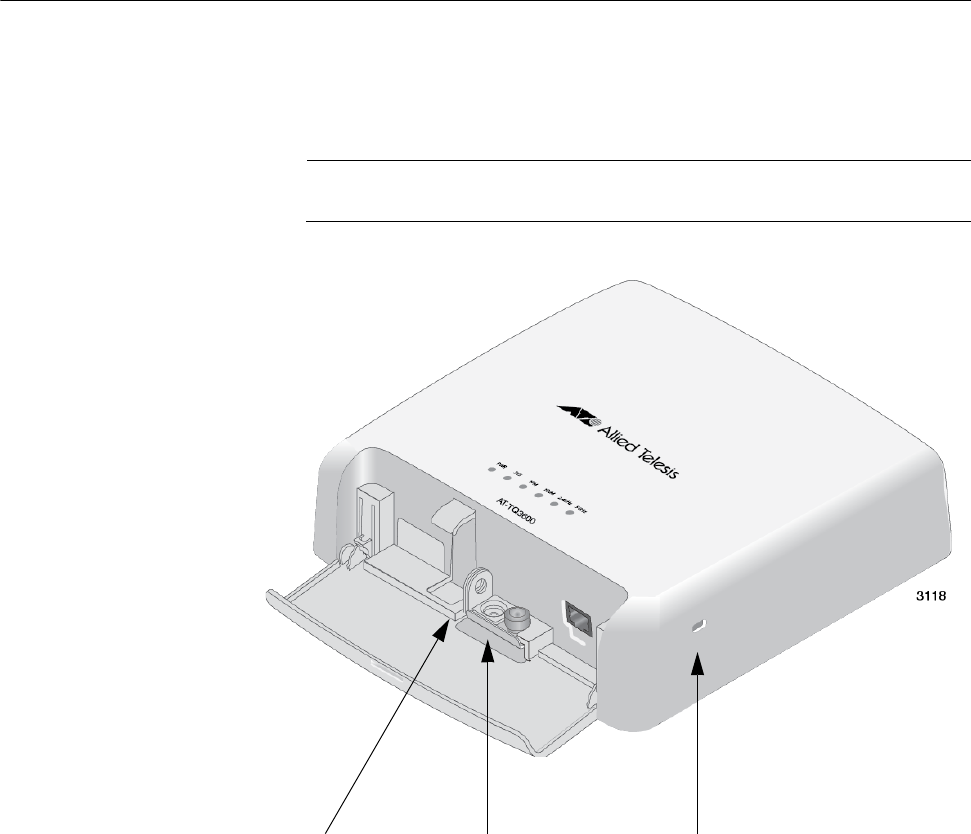

Figure 1: Components on the Front and Rear Panels..................................................................................... 19

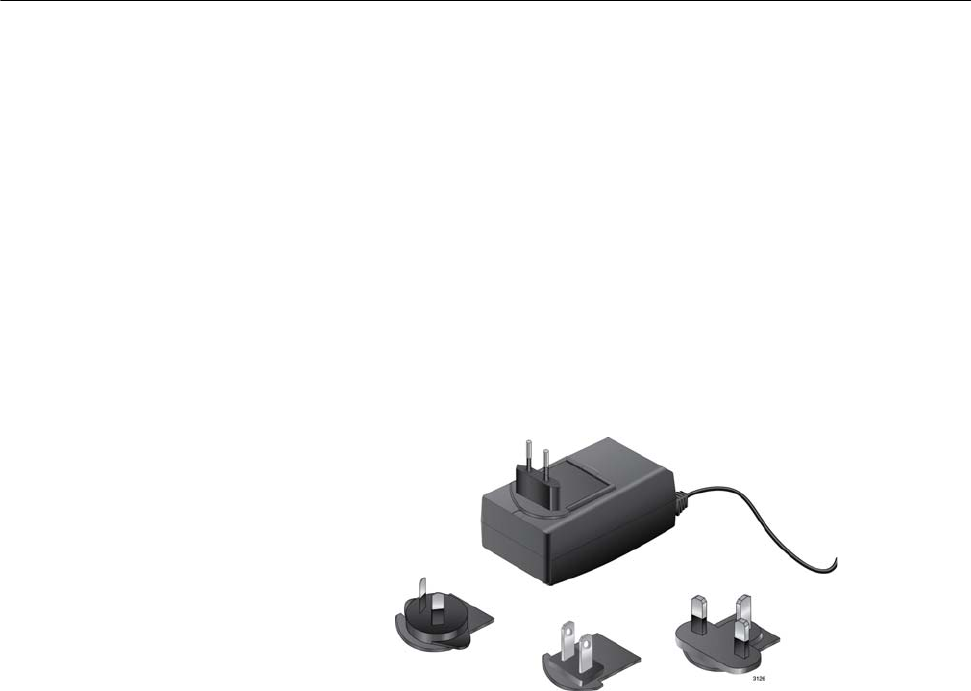

Figure 2: AT-TQ0091 AC/DC Power Adapter.................................................................................................. 28

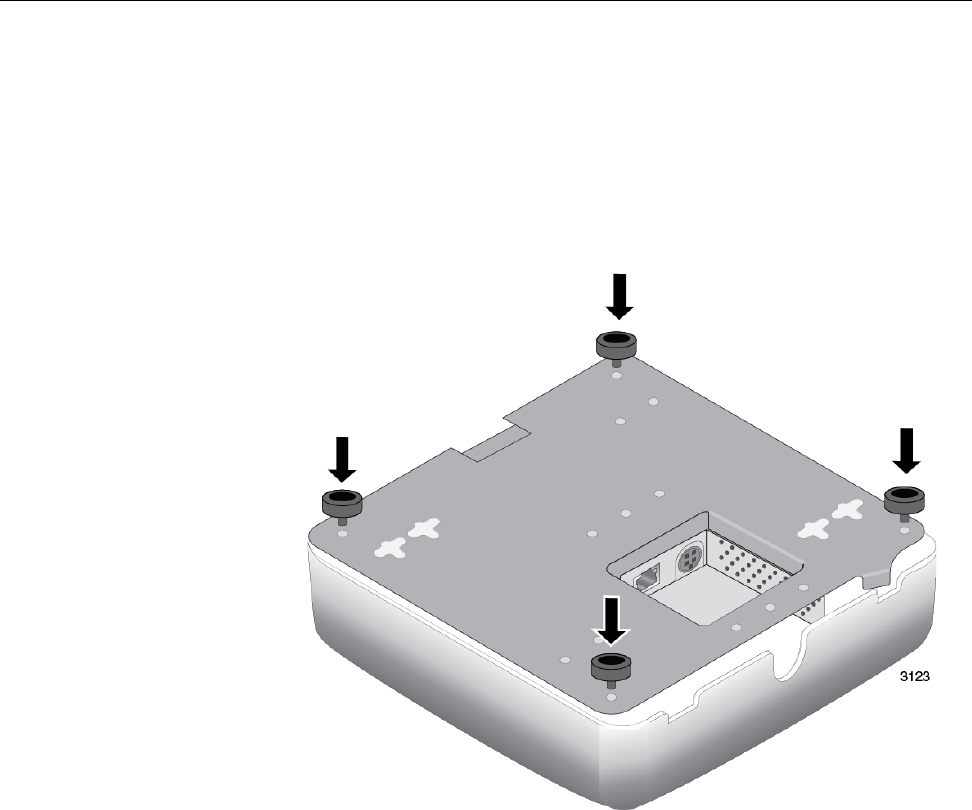

Figure 3: Installing the Rubber Feet ................................................................................................................ 29

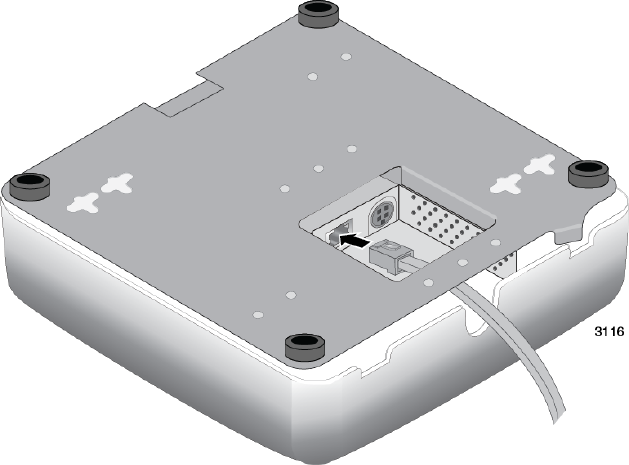

Figure 4: Connecting the Network Cable for Table or Desktop Installation..................................................... 30

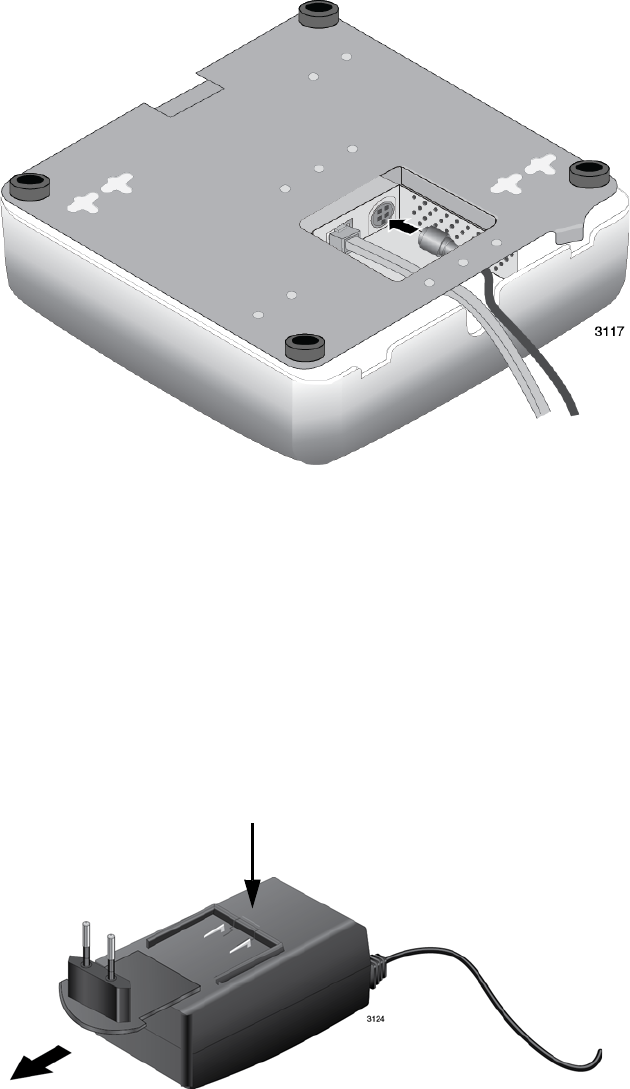

Figure 5: Connecting the Power Cable from the AT-TQ0091 AC/DC Adapter................................................ 31

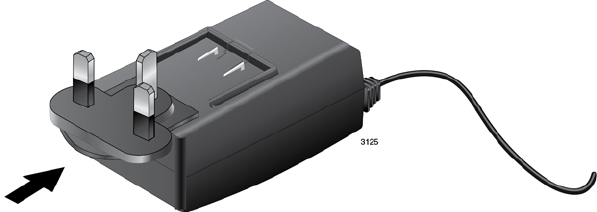

Figure 6: Removing an AC Plug from the AT-TQ0091 AC/DC Power Adapter ............................................... 31
Figure 7: Installing an AC Plug on the AT-TQ0091 AC/DC Power Adapter .................................................... 32
Figure 8: Ventilation Slot ................................................................................................................................. 33
Figure 9: Wall Orientations .............................................................................................................................. 34

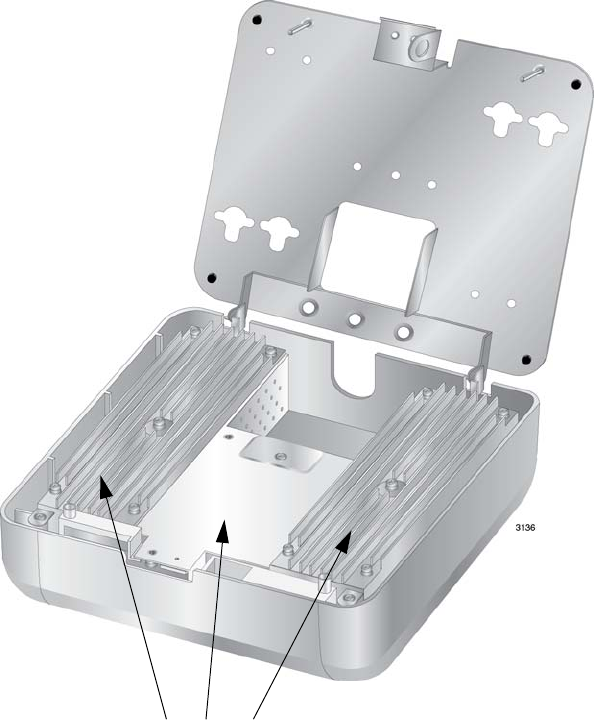

Figure 10: Heat Sinks ...................................................................................................................................... 35
Figure 11: Screw Holes on the Bottom Panel of the AT-TQ3600 Bracket....................................................... 36
Figure 12: Hole Dimensions ............................................................................................................................ 36

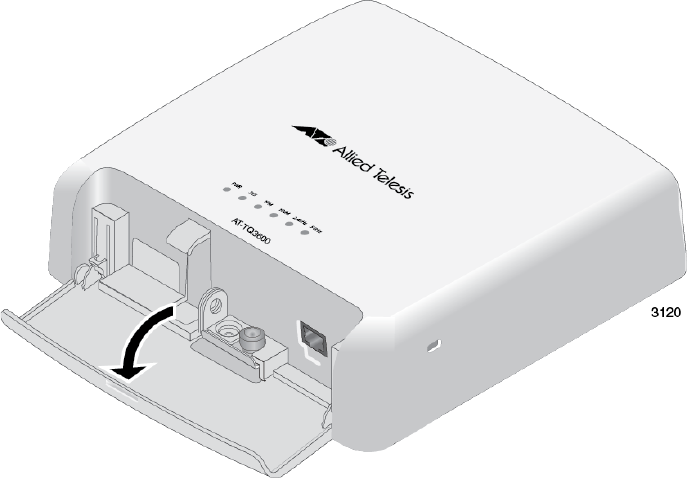

Figure 13: Opening Front Panel ...................................................................................................................... 37

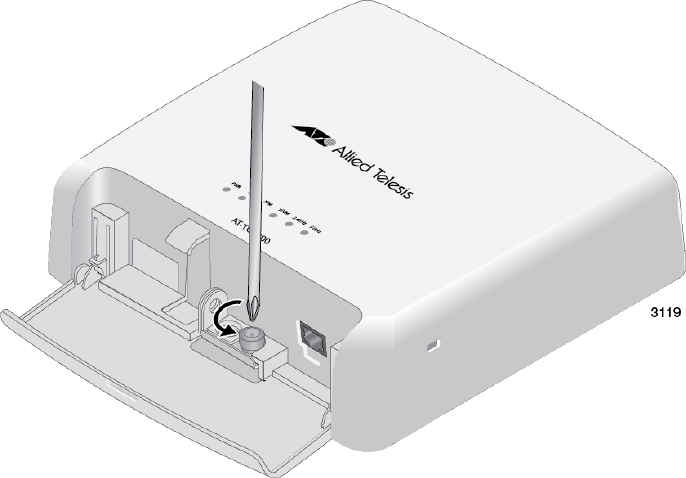

Figure 14: Loosening the Captive Screw......................................................................................................... 38
Figure 15: Opening the Bottom Panel ............................................................................................................. 39
Figure 16: Removing the Bottom Panel from the Wireless Access Point........................................................ 40
Figure 17: Marking the Locations of the Bottom Panel Holes on the Wall or Ceiling ...................................... 41
Figure 18: Attaching the Bottom Panel to the Wall or Ceiling.......................................................................... 42
Figure 19: Installing the Access Point on the Bottom Panel............................................................................ 43
Figure 20: Connecting the Network Cable that is External to the Wall............................................................ 44
Figure 21: Attaching the Network Cable through the Wall Opening ................................................................ 45
Figure 22: Connecting the DC Cable from the AT-TQ0091 Power Adapter.................................................... 46
Figure 23: Closing the Access Point over the Bottom Panel ........................................................................... 47

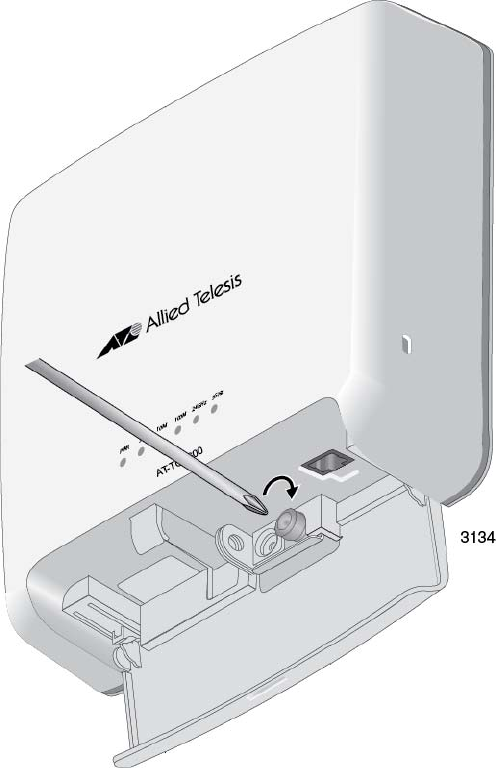

Figure 24: Tightening the Captive Screw ........................................................................................................ 48
Figure 25: Holes for Anti-theft Devices............................................................................................................ 50
Figure 26: Logon Window................................................................................................................................ 52
Figure 27: Modify Wireless Settings Window .................................................................................................. 55
Figure 28: Pin Numbers for the RJ-45 Connector on the LAN Port................................................................. 59
Review Draft - January 24, 2014
List of Figures
10
Review Draft - January 24, 2014
11
Table 1. Components on the Front and Rear Panels ..................................................................................... 20
Table 2. Twisted Pair Cable for the LAN Port ................................................................................................. 22
Table 3. LEDs on the AT-TQ3600 Access Point ............................................................................................ 23
Table 4. AT-TQ3600 Physical Specifications ................................................................................................. 57
Table 5. Environmental Specifications ........................................................................................................... 57
Table 6. AT-TQ3600 Maximum Power Consumption ..................................................................................... 58
Table 7. AT-TQ0091 Power Adapter .............................................................................................................. 58
Table 8. LAN Port Specifications .................................................................................................................... 59
Table 9. MDI Pin Signals (10Base-T or 100Base-TX) .................................................................................... 59
Table 10. MDI-X Pin Signals (10Base-T or 100Base-TX) .............................................................................. 59
Table 11. 1000Base-T Connector Pinouts ..................................................................................................... 60
Tables
Review Draft - January 24, 2014
List of Tables
12
Review Draft - January 24, 2014
Preface
14
Safety Symbols Used in this Document
This document uses the following conventions.
Note
Notes provide additional information.
Caution
Cautions inform you that performing or omitting a specific action
may result in equipment damage or loss of data.
Warning
Warnings inform you that performing or omitting a specific action
may result in bodily injury.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
15
Contacting Allied Telesis
If you need assistance with this product, you may contact Allied Telesis
technical support by going to the Support & Services section of the Allied
Telesis web site at www.alliedtelesis.com/support. You can find links for
the following services on this page:
24/7 Online Support — Enter our interactive support center to
search for answers to your product questions in our knowledge
database, to check support tickets, to learn about RMAs, and to
contact Allied Telesis technical experts.
USA and EMEA phone support — Select the phone number that
best fits your location and customer type.
Hardware warranty information — Learn about Allied Telesis
warranties and register your product online.
Replacement Services — Submit a Return Merchandise
Authorization (RMA) request via our interactive support center.
Documentation — View the most recent installation and user
guides, software release notes, white papers, and data sheets for
your products.
Software Downloads — Download the latest software releases for
your managed products.
For sales or corporate information, go to www.alliedtelesis.com/
purchase.
Review Draft - January 24, 2014
Preface
16
Review Draft - January 24, 2014
17
Chapter 1
Overview
This chapter describes the hardware components of the AT-TQ3600
Wireless Access Point. This chapter contains the following sections:
“Features” on page 18
“Front and Rear Panels” on page 19
“LAN Port” on page 21
“LEDs” on page 23
“Reset Button” on page 24
Review Draft - January 24, 2014
Chapter 1: Overview
18
Features
The main features of the product are listed here:
Independent 2.4 and 5 GHz radios
IEEE 802.11a/b/g
IEEE 802.11n 3x3:3 MIMO with internal antennas
Data rate of 450 Mbps for the 2.4 GHz radio
Data rate of 450 Mbps for the 5 GHz radio
Wireless Distribution System (WDS) bridges
Access point clustering
Rogue access point detection
Multiple SSIDs
One 10/100/1000Base-T Ethernet port with Auto-Negotiation, auto
MDI/MDIX, and IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), and IEEE
802.3ab (1000Base-T) compliance on the Ethernet port
MAC address filtering for wireless access security
Broadcast and multicast rate limiting
Virtual access points for multiple broadcast domains
DHCP client
RADIUS accounting with external RADIUS server
Network Time Protocol (NTP) client
Domain name server (DNS) client
IEEE 802.1x authentication
WPA-Personal and WPA-Enterprise with WPA, WPA2, TKIP, and
CCMP (AES) authentication and encryption
Static WEP encryption
HTTP and HTTPS web browser management
SNMPv1 and v2c management
Quality of Service
Event log
Syslog client
Table, wall, or ceiling installation
Review Draft - January 24, 2014
Chapter 1: Overview
20
The components are listed in Table 1.
Table 1. Components on the Front and Rear Panels
Field Description
Holes for anti-theft devices Holes for a padlock and Torx screw. For
information, refer to “Installing Anti-theft
Devices” on page 50
Console Port The Console Port is for manufacturing
purposes only.
Reset Button The Reset button returns the parameter
settings on the access point to their
default settings. For information, refer to
“Reset Button” on page 24.
LAN Port The LAN port connects the access point
to your wired network. It supports PoE. If
you connect the port to an Ethernet switch
that supports PoE, you do not have to use
the AC/DC adapter to power the device.
For information, refer to “LAN Port” on
page 21
DC Power Connector This connector is for the AT-TQ0091
Power Adapter. The access point can be
powered with PoE on the LAN port or the
power adapter. The AT-TQ0091 Power
Adapter does not come with the access
point. It has to be ordered separately from
Allied Telesis.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
21
LAN Port
The LAN port is used to connect the device to your Local Area Network
(LAN), typically through an Ethernet switch.
Power over
Ethernet
The AT-TQ3600 Access Point supports Power over Ethernet on the LAN
port. The unit is a PoE class 3 powered device with a maximum power
consumption of 11.4 watts. When the port is connected to an PoE Ethernet
switch, the unit receives its power over the network cable that carries the
network traffic. If you use the PoE feature, you do not need to use the AC/
DC power adapter that comes with the access point.
Connector Type The LAN port has an 8-pin RJ-45 connector. The port uses four pins at 10
or 100 Mbps and all eight pins at 1000 Mbps. The pin assignments are
listed in “LAN Port” on page 59.
Speed The port can operate at 10, 100, or 1000 Mbps. The speed is set
automatically with Auto-Negotiation. You cannot disable Auto-Negotiation.
Note
The LAN port should be connected to a network device that also
adjusts its speed with Auto-Negotiation. If the network device does
not support Auto-Negotiation, the LAN port operates at 10 Mbps,
which may reduce network performance.
Duplex Mode The LAN port can operate in either half- or full-duplex mode at 10 or 100
Mbps, and full-duplex mode at 1000 Mbps. The port is IEEE 802.3u-
compliant and uses Auto-Negotiation to set the duplex mode. You cannot
disable Auto-Negotiation on the port.
Note
The LAN port should be connected to a network device that also
sets its duplex mode with Auto-Negotiation. If the network device
does not support Auto-Negotiation, the LAN port operates at half-
duplex mode. This may result in a duplex mode mismatch if the
network device is operating at full duplex.
Maximum
Distance
The port has a maximum operating distance of 100 meters (328 feet).
Cable
Requirements
The cable requirements for the LAN port are listed in Table 2 on page 22.
Review Draft - January 24, 2014
Chapter 1: Overview
22
Automatic MDIX
Detection
The 10/100/1000 Mbps twisted-pair port is IEEE 802.3ab compliant and
features automatic MDIX detection when operating at 10 or 100 Mbps.
(Automatic MDIX detection does not apply to 1000 Mbps.) This feature
automatically configures the port to MDI or MDI-X depending on the wiring
configuration of the port on the Ethernet switch.
You may not disable automatic MDIX detection. For automatic MDIX
detection to work properly, it must also be present on the Ethernet switch.
The LAN port defaults to MDIX if it is connected to a network device that
does not support automatic MDIX detection.
Port Pinouts Refer to Table 9 on page 59 for the port pinouts of the LAN port when it is
operating at 10 or 100 Mbps in the MDI configuration and Table 10 on
page 59 for the MDI-X configuration. Refer to Table 11 on page 60 for the
port pinouts when the port is operating at 1000 Mbps.
Table 2. Twisted Pair Cable for the LAN Port
Cable Type
10Mbps 100Mbps 1000Mbps
Non-
PoE PoE Non-
PoE PoE Non-
PoE PoE
Standard TIA/EIA 568-
B-compliant Category 3
shielded or unshielded
cabling with 100 ohm
impedance and a
frequency of 16 MHz.
YesNoNoNoNoNo
Standard TIA/EIA 568-
A-compliant Category 5
shielded or unshielded
cabling with 100 ohm
impedance and a
frequency of 100 MHz.
Yes Yes Yes Yes No No
Standard TIA/EIA 568-
B-compliant Enhanced
Category 5 (Cat 5e)
shielded or unshielded
cabling with 100 ohm
impedance and a
frequency of 100 MHz.
Yes Yes Yes Yes Yes Yes
Standard TIA/EIA 568-
B-compliant Category 6
or 6a shielded cabling.
Yes Yes Yes Yes Yes Yes
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
23
LEDs
The LEDs on the AT-TQ3600 Access Point are described in Table 3.
Note
You may turn off the LEDs with the management software.
Table 3. LEDs on the AT-TQ3600 Access Point
LED State Description
PWR Solid Green The unit is receiving DC power that is
within the normal operating range.
Off The power supply is not receiving power
from either the AC/DC power adapter or a
PoE Ethernet switch.
SYS Amber The access point is loading its firmware.
Off The unit is operating normally.
10M and
100M
10M: On
100M: Off
The Ethernet port is operating at 10 Mbps.
10M: Off
100M: On
The Ethernet port is operating at 100
Mbps.
10M: On
100M: On
The Ethernet port is operating at 1000
Mbps.
2.4GHz Green The 2.4GHz radio is sending and receiving
radio waves.
5GHz Green The 5GHz radio is sending and receiving
radio waves.
Review Draft - January 24, 2014
Chapter 1: Overview
24
Reset Button
The Reset button on the front panel is used to return the parameter
settings of the unit to their default values. You might use the button if you
want to discard the current configuration of the device or because you
forgot the password to the manager account and cannot manage the unit.
You may disable the button using the management software. If the unit is
installed in a non-secure area, you might want to disable the button to
prevent unauthorized individuals from pressing it and potentially disrupting
the operations of your wireless network.
The Reset button is recessed to prevent it from being accidentally
pressed. To press the button, use a pointed object, such as the end of a
straightened paperclip. Hold the button for five seconds and release. The
access point resets and loads its default configuration in a process that
takes one minute to complete. In its default configuration, the access point
attempts to contact a DHCP server from its LAN port for its IP address
configuration. If it receives a response, it configures its IP address
according to the settings from the DHCP server. If it does not receive a
response, it uses the default address 192.168.1.230 and subnet mask
255.255.255.0. For instructions on how to start a management session
when the access point is at its default configuration, refer to “Starting the
Initial Management Session on the Access Point” on page 51.
Review Draft - January 24, 2014
25
Chapter 2
Installing the Access Point
This chapter describes how to install the AT-TQ3600 Wireless Access
Point. This chapter contains the following sections:
“Reviewing Safety Precautions” on page 26
“Unpacking the AT-TQ3600 Access Point” on page 28
“Installing the Access Point on a Table” on page 29
“Installing the Access Point on a Wall or Ceiling” on page 33
“Installing Anti-theft Devices” on page 50
“Starting the Initial Management Session on the Access Point” on
page 51
“Setting the Country Setting” on page 55
Note
The non-US model of this product has a country code setting that
must be set during the initial management session of the unit. The
setting ensures that the unit operates in compliance with the laws
and regulations of your country or region.
For the US model the country code is preset and cannot be
changed. Per FCC regulations, the country code setting for all WiFi
products marketed in the US must be fixed to US operational
channels only.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
26
Reviewing Safety Precautions
Please review the following safety precautions before you begin to install
the access point.
Note
The indicates that a translation of the safety statement is
available for viewing in the “Translated Safety Statements”
document on our web site at
http://www.alliedtelesis.com/support.
Warning
To prevent electric shock, do not remove the cover. No user-
serviceable parts inside. This unit contains hazardous voltages and
should only be opened by a trained and qualified technician. To
avoid the possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the LAN cables.
E1
Warning
Do not work on equipment or cables during periods of lightning
activity. E2
Warning
Power cord is used as a disconnection device. To de-energize
equipment, disconnect the power cord. E3
Note
Pluggable Equipment. The socket outlet shall be installed near the
equipment and shall be easily accessible. E5
Caution
Air vents must not be blocked and must have free access to the
room ambient air for cooling. E6
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
27
Warning
Operating Temperature. This product is designed for a maximum
ambient temperature of 40° degrees C with the AC/DC adapter and
45° degrees C with Power over Ethernet.
Warning
Do not touch the heat sinks inside the access point. Refer to Figure
10 on page 35.
Warning
To reduce the risk of electric shock, the PoE ports on this product
must not connect to cabling that is routed outside the building where
this device is located. E40
Warning
This equipment is intended for indoor use only.
Warning
Do not touch the captive screw on the front panel when the wireless
access point is operating because it can reach a high temperature.
Note
All Countries: Install product in accordance with local and National
Electrical Codes. E8
Note
This product is not approved for use in a computer room as defined
in the Standard for Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
Note
If you are not using PoE to power to the unit, use only an approved
AC/DC adapter.
Note
You should verify that your PoE network adheres to the standards of
a SELV (separated extra-low voltage) circuit before using the PoE
feature on the wireless access point.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
28
Unpacking the AT-TQ3600 Access Point
As you unpack the access point, check the shipping container for the
components the following items:
One AT-TQ3600 Wireless Access Point
One AT-TQ3600 Wireless Access Point Quick Install Guide
Four rubber feet
If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
If you are not using the PoE feature on the LAN port of the access point to
power the device, you need to separately order the AT-TQ0091 AC/DC
Power Adapter. The adapter comes with four regional AC plugs. (One of
the AC plugs comes pre-installed on the adapter.) Refer to Figure 2.
Figure 2. AT-TQ0091 AC/DC Power Adapter
Do one of the following:
To install the unit on a table, go to “Installing the Access Point on a
Table” on page 29.
To install the unit in a wall or ceiling, go to “Installing the Access
Point on a Wall or Ceiling” on page 33
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
29
Installing the Access Point on a Table
To install the access point on a table, perform the following procedure:
1. Place the access point upside down on the table or desk selected for
the device.
2. Install the rubber feet that come with the wireless access point to the
bottom panel. Refer to Figure 3.
Figure 3. Installing the Rubber Feet
3. Route a network cable through the notch in the cover and under the
bottom panel, and connect it to the LAN port on the access point. Refer
to Figure 4. The specifications of the cable are listed in Table 2 on
page 22.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
30
Figure 4. Connecting the Network Cable for Table or Desktop Installation
4. If you have not already done so, connect the other end of the network
cable to a port on an Ethernet switch.
5. Do one of the following:
If the access point is to be powered with the AT-TQ0091 AC/DC Power
Adapter, continue with this procedure to attach the power adapter.
If the access point is to be powered with the PoE feature on the LAN
Port, turn the access point right side up. The installation procedure is
complete. Go to “Installing Anti-theft Devices” on page 50 or “Starting
the Initial Management Session on the Access Point” on page 51.
6. Route the DC power cable from the AT-TQ0091 AC/DC Power
Adapter through the notch in the cover and under the bottom panel,
and connect it to the DC-IN connector on the access point. Refer to
Figure 5 on page 31.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
31
Figure 5. Connecting the Power Cable from the AT-TQ0091 AC/DC
Adapter
7. Turn the access point right side up on the table.
8. Check the AC plug on the AC/DC Power Adapter to see if it is the
correct plug for your region. If it is not the correct plug, remove it by
pushing down on the release tab and sliding it from the slot on the
adapter. Refer to Figure 6.
Figure 6. Removing an AC Plug from the AT-TQ0091 AC/DC Power
Adapter
9. Slide the correct AC plug for your region into the slot on the adapter
until it clicks into place. Refer to Figure 7 on page 32.
Release Tab
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
32
Figure 7. Installing an AC Plug on the AT-TQ0091 AC/DC Power Adapter
10. Connect the AC plug on the power cord to an appropriate AC power
source. Refer to Table 7 on page 58 for the power specifications of the
power adapter.
After installing the access point on the table, go to “Installing Anti-theft
Devices” on page 50 or “Starting the Initial Management Session on the
Access Point” on page 51.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
33
Installing the Access Point on a Wall or Ceiling
This procedure contains the following sections.
“Guidelines” on page 33
“Removing the Bottom Panel from the Access Point” on page 37
“Installing the Bottom Panel on a Wall or Ceiling” on page 40
“Installing the Access Point on the Bottom Panel” on page 42
Guidelines Please review the following guidelines before installing the access point on
a wall or ceiling:
The selected location must not block the ventilation slot around the
base of the unit. Refer to Figure 8.
Figure 8. Ventilation Slot
You should verify that the wall or ceiling material is strong enough to
support the weight of the access point.
You have to provide the four screws and, if required for your
installation, the wall anchors that are to be used to secure the bottom
panel to the wall or ceiling.
You may install the access point on a wall in the three orientations
shown in Figure 9 on page 34.
Ventilation Slot
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
34
Figure 9. Wall Orientations
You may not install the access point upside down on a wall.
The location must have an AC power source if you are using the AT-
TQ0091 Power Adapter.
If the LAN cable is external to the wall, you must route the cable
through the notch in the rear panel of the cover. If the cable is internal
to the wall, you may route it either through the notch in the cover or
through the hole in the bottom panel.
You must not route the LAN cable inside the access point such that it
touches the heat sinks because that could damage the unit. Refer to
Figure 10 on page 35.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
35
Figure 10. Heat Sinks
The bottom panel has eight screw holes. Refer to Figure 11 on page
36. The holes are grouped in pairs. The unit should be secured to the
wall or ceiling with a minimum of four screws. You may use either
screw hole in a pair when choosing the holes.
Heat Sinks
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
37

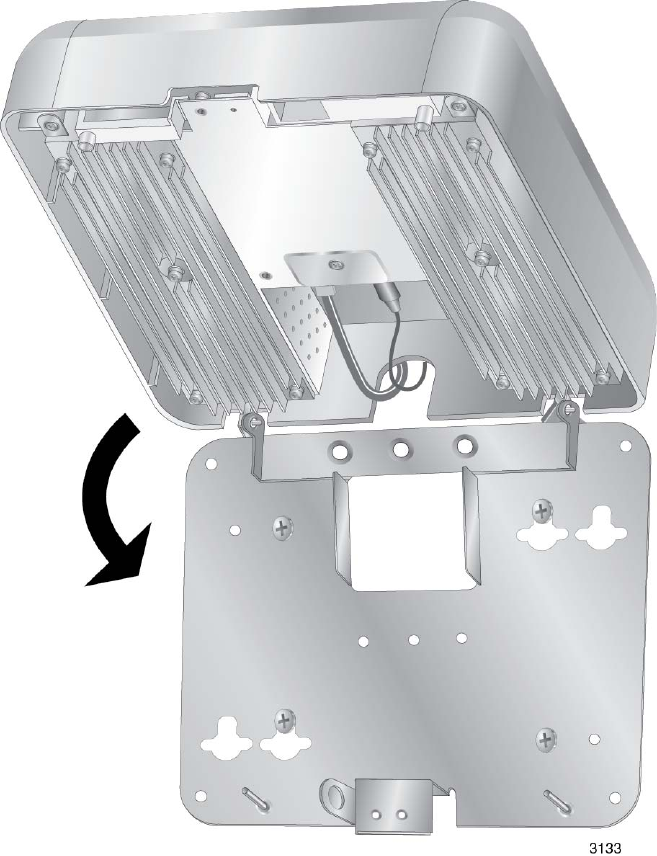

Removing the
Bottom Panel
from the Access
Point
To remove the bottom panel from the access point, preform the following
procedure:
1. Place the access point on a table or desk.
2. Open the front panel. Refer to Figure 13.
Figure 13. Opening Front Panel
3. Use a #2 Phillips-head screwdriver to loosen the captive screw that
secures the bottom panel to the wireless access point. Refer to Figure
14 on page 38.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
40
Figure 16. Removing the Bottom Panel from the Wireless Access Point
You may now perform “Installing the Bottom Panel on a Wall or Ceiling” on
page 40.
Installing the
Bottom Panel on
a Wall or Ceiling
To install the bottom panel on a wall or ceiling, perform the following
procedure:
Note
If you are using wall anchors, start with step 1. If you are not using
wall anchors, start with step 4.
1. To install wall anchors, hold the bottom panel at the selected wall or
ceiling location and with a pencil or pen mark the locations of the four
screw holes that are to be used to secure the panel. Refer to Figure 17
on page 41.
Pin Hinges
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
41
Figure 17. Marking the Locations of the Bottom Panel Holes on the Wall or
Ceiling
2. If necessary, predrill the holes for the anchors.
3. Install the wall anchors.
4. Have someone hold the bottom panel at the selected wall or ceiling
location while you secure it to with four self-tapping screws (not
provided with the access point). Refer to Figure 18 on page 42.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
42
Figure 18. Attaching the Bottom Panel to the Wall or Ceiling
You may now perform “Installing the Access Point on the Bottom Panel”
on page 42.
Installing the
Access Point on
the Bottom Panel
To install the access point on the bottom panel on a wall or ceiling,
perform the following procedure:
1. Carefully lift the access point and slide the pin hinges into the holes on
the bottom panel. Refer to Figure 19 on page 43.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
43
Figure 19. Installing the Access Point on the Bottom Panel
2. If the LAN cable is external to the wall or ceiling, route it through the
notch in the cover and connect it to the LAN port. Refer to Figure 20 on
page 44.
Pin Hinges
Holes
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
44
Figure 20. Connecting the Network Cable that is External to the Wall
3. If the network cable comes through a wall opening, route the cable
either through the notch in the cover, as shown in Figure 20 or through
the hole in the bottom panel, as shown in Figure 21 on page 45, and
connect it to the LAN port on the access point.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
45
Figure 21. Attaching the Network Cable through the Wall Opening
4. If the access point is to be powered with the AT-TQ0091 Power
Adapter, route the DC cable from the adapter through the notch in the
cover and connect it to the DC-IN port on the access point. Refer to
Figure 22 on page 46.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
47
Figure 23. Closing the Access Point over the Bottom Panel
6. Open the front panel and use a #2 Phillips-head screwdriver to tighten
the captive screw to secure the access point to the bottom panel. Refer
to Figure 24 on page 48.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
48
Figure 24. Tightening the Captive Screw
7. Close the front panel.
8. If you have not already done so, connect the network cable from the
wireless access point to a port on an Ethernet switch.
9. Do one of the following:
If the access point is using PoE, the installation is complete. Go to
“Installing Anti-theft Devices” on page 50 or “Starting the Initial
Management Session on the Access Point” on page 51.
If the access point is using the AT-TQ0091 AC/DC Power Adapter,
perform the rest of this procedure to check and, if necessary, change
the AC plug on the adapter.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
49
10. Check the AC plug on the AT-TQ0091 AC/DC Power Adapter to see if
it is the correct plug for your region. If it is not the correct plug, remove
it by pushing down on the release tab and sliding it from the slot on the
adapter. Refer to Figure 6 on page 31.
11. Slide the correct plug for your region into the slot on the adapter until it
clicks into place. Refer to Figure 7 on page 32.
12. Connect the adapter to an appropriate AC power source. Refer to
Table 7 on page 58 for the power specifications of the power adapter.
After installing the access point on a wall or ceiling, go to “Installing Anti-
theft Devices” on page 50 or “Starting the Initial Management Session on
the Access Point” on page 51.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
50
Installing Anti-theft Devices
The access point has holes for anti-theft devices. Refer to Figure 25. You
may want to install one or more anti-theft devices if the access point is
installed in a non-secure area.
Note
Anti-theft devices are not available from Allied Telesis.
Figure 25. Holes for Anti-theft Devices
A padlock or Torx screw can be used to secure the access point to the
bottom panel when it is installed on a wall or ceiling. A Kensington lock
can be used to secure the device when it is installed on a wall, ceiling, or
table.
Kensington
Lock
Torx or similar screw
(M3 x 4mm)
Padlock
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
51
Starting the Initial Management Session on the Access Point
When you power on the access point for the first time, it queries the subnet
on the LAN port for a DHCP server. If a DHCP server responds to its
query, the unit uses the IP address the server assigns to it. If there is no
DHCP server, the access point uses the default IP address 192.168.1.230.
There are a several ways to start the initial management session on the
access point. One way is to establish a direct connection between your
computer and the unit by connecting an Ethernet cable to the Ethernet port
on the computer and the LAN port on the access point. This procedure
requires changing the IP address on your computer to make it a member
of the same subnet as the default IP address on the access point. You
might perform this procedure if your network does not have a DHCP
server and you want to configure the access point before connecting it to
your network.
The initial management session may also be performed while the device is
connected to your network. However, If your network does not have a
DHCP server, you still have to change the IP address of your computer to
match the subnet of the default address of the access point. Furthermore,
if your network is divided into virtual LANs (VLANs), you have to be sure to
connect the access point and your computer to ports on an Ethernet
switch that are members of the same VLAN.
If your network has a DHCP server, use the IP address the server assigns
it to start the management session.
The instructions for starting the initial management session are found in
the following sections:
“Starting the Initial Management Session with a Direct Connection” on
page 52
“Starting the Initial Management Session without a DHCP Server” on
page 53
“Starting the Initial Management Session with a DHCP Server” on
page 53
Note
The initial management session of the access point has to be
conducted through the LAN port because the default setting for the
radios is off.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
52
Starting the
Initial
Management
Session with a
Direct
Connection
To start the management session with a direct Ethernet connection
between your computer and the access point, perform the following
procedure:
Note
If the unit is using PoE for power and you did not order an AC/DC
adapter with the unit, you cannot perform this procedure because it
requires removing the network cable from the LAN port. Instead,
perform one of the other procedures in this section to start the initial
management session.
1. Connect one end of a network cable to the LAN port on the access
point and the other end to the Ethernet network port on your computer.
(This requires removing the network cable that you connected to the
LAN port earlier in these instructions.)
2. Change the IP address on your computer to 192.168.1.n, where n is a
number from 1 to 254, but not 230. Refer to the documentation that
accompanies your computer for instructions on how to set the IP
address.
3. Set the subnet mask on your computer to 255.255.255.0.
4. Power on the access point.
5. Start the web browser on your computer.
6. Enter the IP address 192.168.1.230 in the URL field of the browser.
You should now see the logon window, shown in Figure 26.
Figure 26. Logon Window
7. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
53
Starting the
Initial
Management
Session without a
DHCP Server
This procedure explains how to start the initial management session on
the access point when the LAN port is connected to an Ethernet switch on
a network that does not have a DHCP server. To start the management
session, perform the following procedure:
1. If your network has VLANs, check to be sure that your computer and
the access point are connected to ports on the Ethernet switch that are
members of the same VLAN. This might require accessing the
management software on the switch and listing the VLANS and their
port assignments. For example, if the access point is connected to a
port that is a member of the Sales VLAN, your computer must be
connected to a port that is also a member of that VLAN. If your network
is small and does not have VLANs or routers, you may connect your
computer to any port on the Ethernet switch.
2. Change the IP address on your computer to 192.168.1.n, where n is a
number from 1 to 254, but not 230. Refer to the documentation that
accompanies your computer for instructions on how to set the IP
address.
3. Set the subnet mask on your computer to 255.255.255.0.
4. Power on the access point.
5. Start the web browser on your computer.
6. Enter the IP address 192.168.1.230 in the URL field of the browser.
You should now see the logon window, shown in Figure 26 on page 52.
7. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
Starting the
Initial
Management
Session with a
DHCP Server
This procedure explains how to start the initial management session on
the access point when the LAN port is connected to a network that has a
DHCP server. This procedure assumes that you have already configured
the DHCP server to assign the access point all the necessary
configuration information (e.g., IP address and default gateway) for your
network. To start the management session, perform the following
procedure:
1. Power on the access point.
2. Start the web browser on your computer.
3. Enter the IP address of the access point in the URL field of the
browser. This is the IP address assigned to the unit by the DHCP
server. If you do not know the address, refer to the DHCP server.
4. You should now see the logon window in Figure 26 on page 52.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
54
5. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
55
Setting the Country Setting
You should set the country setting during the initial management session
of the access point to ensure that the device operates in compliance with
the codes and regulations of your region or country.
Note
The non-US model of this product has a country code setting that
must be set during the initial management session of the unit. The
setting ensures that the unit operates in compliance with the laws
and regulations of your country or region.
For the US model the country code is preset and cannot be
changed. Per FCC regulations, the country code setting for all WiFi
products marketed in the US must be fixed to US operational
channels only.
To set the country setting, perform the following procedure:
1. Select Wireless Settings from the Manage menu.
The access point displays the Modify wireless settings window, shown
in Figure 27.
Figure 27. Modify Wireless Settings Window
2. Select the Country pull-down menu and select your country or region.
Review Draft - January 24, 2014
Chapter 2: Installing the Access Point
56
Note
If the Country pull-down menu is deactivated and cannot be
changed, the country parameter was set when the unit was
manufactured. If the setting is not correct for your country or region,
contact your Allied Telesis sales representative for assistance.
The access point displays a confirmation prompt.
3. Click OK to change the country setting or Cancel to cancel the
procedure.
If you click OK, the access point changes the country setting and
disables both radios on the access point.
This procedure does not require clicking the Update button.
You must now reboot the access point. The new country setting is not
active until the unit is rebooted. To reboot the unit, either power off and
on the unit or continue with these steps:
4. From the Maintenance menu, select Configuration.
5. Click the Reboot button in the To Reboot the Access Point section of
the “Manage the Access Point’s Configuration” window.
6. When the access point displays a confirmation prompt, click OK to
reboot the unit or Cancel to cancel the procedure.
7. To resume managing the unit, wait for it to complete initializing its
management software and then start a new management session.
For more instructions on how to configure the features of the access
point, refer to the AT-TQ3600 Wireless Access Point User’s Guide.
Review Draft - January 24, 2014
57
Appendix A
Technical Specifications
Physical Specifications
Environmental Specifications
Table 4. AT-TQ3600 Physical Specifications
Dimensions (W x D x H) 200.0 mm x 200.0 mm x 66.0 mm
(7.9 in. x 7.9 in. x 2.6 in.)
Weight 1.2 kg (2.6 lb.)
Table 5. Environmental Specifications
Operating Temperature of the
Access Point When Using PoE
0° C to 45° C (32° F to 113° F)
Operating Temperature of the
Access Point When Using the AC/
DC Adapter
0° C to 40° C (32° F to 104° F)
Storage Temperature -20° C to 70° C (-4° F to 158° F)
Operating Humidity 5% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Review Draft - January 24, 2014
Appendix A: Technical Specifications
58
Power Specifications
Table 6. AT-TQ3600 Maximum Power Consumption
AT-TQ3600 12 watts
Table 7. AT-TQ0091 Power Adapter
Input Range 100~240 Vac
Input Frequency 47-63 Hz
Input Power Consumption (no load) <0.3W max.
Output Voltage +12 VDC
Output Current 2A max.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
59
LAN Port
Figure 28 illustrates the pin layout of the LAN port.
Figure 28. Pin Numbers for the RJ-45 Connector on the LAN Port
Table 9 lists the pin signals when the port is operating in the MDI
configuration at 10 or 100 Mbps.
Table 10 lists the pin signals for the MDI-X configuration at 10 or 100
Mbps.
Table 8. LAN Port Specifications
Connector RJ-45
Standards IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
PoE standard IEEE 802.3af (class 3)
Table 9. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1TX+
2TX-
3RX+
6RX-
Table 10. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1RX+
2RX-
3TX+
Review Draft - January 24, 2014
Appendix A: Technical Specifications
60
Table 11 lists the pin signals when the LAN port is operating at 1000
Mbps.
6TX-
Table 11. 1000Base-T Connector Pinouts
Pin Pair Signal
1 1 TX and RX+
2 1 TX and RX-
3 2 TX and RX+
4 3 TX and RX+
5 3 TX and RX-
6 2 TX and RX-
7 4 TX and RX+
8 4 TX and RX-
Table 10. MDI-X Pin Signals (10Base-T or 100Base-TX) (Continued)
Pin Signal
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
61
Safety and Electromagnetic Emissions Certifications
Safety and Electromagnetic Emissions Certificates:
Standard
Compliance
RoHs compliant
European Union RoHS (Directive 2011/65/EU of
the European Parliament and of the Council of 8
June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic
equipment.)
Certificates CE
EAC
FCC/IC
KC
RCM
SRMC
Wi-Fi CERTIFIED
Electromagnetic
Compatibility (EMC)
EN 301 489-1
EN 301 489-17
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
AS/NZS CISPR 22
FCC 47 CFR Part 15, Subpart B
ICES-003
Medical (EMC) EN 60601-1-2
Radio Equipment EN 300 328
EN 301 893
AS/NZS 4268
FCC 47 CFR Part 15, Subpart C
FCC 47 CFR Part 15, Subpart E
FCC part 2
RSS210
RSS-Gen
RSS-102
Review Draft - January 24, 2014
Appendix A: Technical Specifications
62
Safety EN 60950-1
IEC 60950-1
TUV-T
UL 60950-1
UL 2043 (For AT-TQ3600-01 only)
Suitable for use in environmental air space in
accordance with Section 300-22(C) of the
National Electrical Code, and Sections 2-128,
12-010(3), and 12-100 of the Canadian
Electrical Code Part 1, CSA C22.1.
Review Draft - January 24, 2014
Appendix B: Regulatory Statements
64
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it
is restricted to indoor environment. The band from 5600-5650MHz will be
disabled by the software during the manufacturing and cannot be changed
by the end user. This device meets all the other requirements specified in
Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 21cm between the radiator & your body.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
65
Country Code Selection (WiFi Devices)
Note
The non-US model of this product has a country code setting that
must be set during the initial management session of the unit. The
setting ensures that the unit operates in compliance with the laws
and regulations of your country or region.
For the US model the country code is preset and cannot be
changed. Per FCC regulations, the country code setting for all WiFi
products marketed in the US must be fixed to US operational
channels only.
Review Draft - January 24, 2014
Appendix B: Regulatory Statements
66
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada
applicable aux appareils radio exempts de licence. Son fonctionnement
est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003
du Canada.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-
5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-
5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point
and non point-to-point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-
5850 MHz and that these radars could cause interference and/or damage
to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des
instructions précises sur les restrictions susmentionnées, notamment:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont
réservés uniquement pour une utilisation à l’intérieur afin de réduire les
risques de brouillage préjudiciable aux systèmes de satellites mobiles
utilisant les mêmes canaux;
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
67
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les
bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite
de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la
bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée
pour l’exploitation point à point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs
de radars de haute puissance sont désignés utilisateurs principaux (c.-à-
d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850
MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 21cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements
IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 21 cm de distance entre la source
de rayonnement et votre corps.
Review Draft - January 24, 2014
Appendix B: Regulatory Statements
68
Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE
Directive 1999/5/EC. The following test methods have been applied in
order to prove presumption of conformity with the essential requirements
of the R&TTE Directive 1999/5/EC:
EN60950-1
Safety of Information Technology Equipment
EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband Transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive,
EN 301 893
Broadband Radio Access Networks (BRAN); 5 GHz high performance
RLAN; Harmonized EN covering essential requirements of article 3.2
of the R&TTE Directive
EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment
and services; Part 1: Common technical requirements.
EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment
and services; Part 17: Specific conditions for 2,4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment
This device is a 5GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France
and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 - 2483.5 MHz. For detailed information the
end-user should contact the national spectrum authority in France.
Review Draft - January 24, 2014
AT-TQ3600 Wireless Access Point Installation Guide
69
Česky
[Czech]
Allied Telesis tímto prohlašuje, že tento wireless access
point je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Allied Telesis erklærer herved, at
følgende udstyr wireless access point overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/
5/EF.
Deutsch
[German]
Hiermit erklärt Allied Telesis, dass sich das Gerät
wireless access point in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Allied Telesis seadme wireless
access point vastavust direktiivi 1999/5/EÜ põhinõuetele
ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, Allied Telesis, declares that this wireless access
point is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Allied Telesis declara que el
wireless access point cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables
o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Allied Telesis ΔΗΛΩΝΕΙ ΟΤΙ
wireless access point ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Allied Telesis déclare que l'appareil
wireless access point est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano
[Italian]
Con la presente Allied Telesis dichiara che questo
wireless access point è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo Allied Telesis deklarē, ka wireless access point
atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Review Draft - January 24, 2014
Appendix B: Regulatory Statements
70
Lietuvių
[Lithuanian]
Šiuo Allied Telesis deklaruoja, kad šis wireless access
point atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Allied Telesis dat het toestel wireless
access point in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti
[Maltese]
Hawnhekk, Allied Telesis, jiddikjara li dan wireless
access point jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, Allied Telesis nyilatkozom, hogy a wireless
access point megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Polski
[Polish]
Niniejszym Allied Telesis oświadcza, że wireless access
point jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português
[Portuguese
]
Allied Telesis declara que este wireless access point
está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Allied Telesis izjavlja, da je ta wireless access point v
skladu z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky
[Slovak]
Allied Telesis týmto vyhlasuje, že wireless access point
spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Allied Telesis vakuuttaa täten että wireless access point
tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar Allied Telesis att denna wireless access
point står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
Review Draft - January 24, 2014
