Allied Telesis Switch At X510 28Gpx Users Manual Series Installation Guide For Stand Alone Switches

AT-X510-28GTX to the manual a4015afc-0755-481c-bacc-4274fd79603e

2015-02-02

: Allied-Telesis Allied-Telesis-Allied-Telesis-Switch-At-X510-28Gpx-Users-Manual-414318 allied-telesis-allied-telesis-switch-at-x510-28gpx-users-manual-414318 allied-telesis pdf

Open the PDF directly: View PDF .
Page Count: 90

Contents
Figures
Tables
Preface
- Document Conventions
- Contacting Allied Telesis
Chapter 1
Overview
Chapter 2
Beginning the Installation
Chapter 3
Installing the Switch on a Table or in an Equipment Rack
- Installing the Switch on a Table or Desktop
- Installing the Switch in an Equipment Rack
Chapter 4
Cabling the Networking Ports
- Cabling the Twisted Pair Ports
- Installing SFP and SFP+ Transceivers
  - Installing SFP Modules in the AT-x510-28GSX Switch
  - Installing SFP and SFP+ Modules
Chapter 5
Powering On the Switch
Chapter 6
Troubleshooting
Appendix A
Technical Specifications

613-001764 Rev. B

x510 Series

Gigabit Ethernet Switches

AT-x510-28GTX

AT-x510-28GPX

AT-x510-28GSX

AT-x510-52GTX

AT-x510-52GPX

Installation Guide for Stand-alone

Switches

Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names,

logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.

Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document without prior

written notice. The information provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be liable for

any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related

to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the

possibility of such damages.

Electrical Safety and Emissions Standards

This product meets the following standards.

RFI Emissions: FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A,

C-TICK, CE

EMC (Immunity): EN55024

Electrical Safety: EN60950-1 (TUV), UL 60950-1 (CULUS)

U.S. Federal Communications Commission

Radiated Energy

Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15

of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with this instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void your right to operate

this equipment.

Industry Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Warning: In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

Laser Safety EN60825

Translated Safety Statements

Important: Safety statements that have the  symbol are translated into multiple languages in the

Translated Safety Statements document at www.alliedtelesis.com/support.

Preface .............................................................................................................................................................................. 11

Document Conventions .......................................................................................................................................................12

Contacting Allied Telesis .....................................................................................................................................................13

Chapter 1: Overview ........................................................................................................................................................ 15

Features ..............................................................................................................................................................................16

x510 Models .................................................................................................................................................................16

10/100/1000 Mbps Twisted Pair Ports .........................................................................................................................16

Power Over Ethernet....................................................................................................................................................16

SFP Slots .....................................................................................................................................................................16

SFP+ Slots ...................................................................................................................................................................17

Stacking Slots...............................................................................................................................................................17

LEDs.............................................................................................................................................................................18

Installation Options.......................................................................................................................................................18

MAC Address Table .....................................................................................................................................................18

Management Software and Interfaces .........................................................................................................................18

Management Methods..................................................................................................................................................18

Front and Back Panels ........................................................................................................................................................19

Management Panel .............................................................................................................................................................22

10/100/1000Base-T Twisted Pair Ports ...............................................................................................................................23

Speed ...........................................................................................................................................................................23

Duplex Mode ................................................................................................................................................................23

Wiring Configuration.....................................................................................................................................................23

Maximum Distance.......................................................................................................................................................24

Cable Requirements.....................................................................................................................................................24

Port Pinouts..................................................................................................................................................................24

Power Over Ethernet ...........................................................................................................................................................25

PoE Standards .............................................................................................................................................................25

Powered Device Classes .............................................................................................................................................25

Cable Requirements.....................................................................................................................................................26

Power Budget...............................................................................................................................................................27

Port Prioritization ..........................................................................................................................................................28

Wiring Implementation..................................................................................................................................................29

SFP+ Slots...........................................................................................................................................................................30

Stacking SFP+ Slots............................................................................................................................................................31

eco-friendly Button...............................................................................................................................................................32

LEDs....................................................................................................................................................................................33

LEDs for the Twisted Pair Ports ...................................................................................................................................33

LEDs for the SFP Slots ................................................................................................................................................36

LEDs for the SFP+ Slots ..............................................................................................................................................37

LEDs for the Stacking Slots..........................................................................................................................................38

Switch ID LED ..............................................................................................................................................................38

USB Port..............................................................................................................................................................................41

Console Port........................................................................................................................................................................42

Power Supplies....................................................................................................................................................................43

Chapter 2: Beginning the Installation ............................................................................................................................ 45

Reviewing Safety Precautions.............................................................................................................................................46

Choosing a Site for the Switch ............................................................................................................................................50

Unpacking the Switch ..........................................................................................................................................................51

Contents

Chapter 3: Installing the Switch on a Table or in an Equipment Rack ....................................................................... 53

Installing the Switch on a Table or Desktop........................................................................................................................ 54

Installing the Switch in an Equipment Rack ........................................................................................................................ 55

Chapter 4: Cabling the Networking Ports ...................................................................................................................... 59

Cabling the Twisted Pair Ports............................................................................................................................................ 60

Installing SFP and SFP+ Transceivers ............................................................................................................................... 62

Installing SFP Modules in the AT-x510-28GSX Switch ............................................................................................... 63

Installing SFP and SFP+ Modules............................................................................................................................... 66

Chapter 5: Powering On the Switch ............................................................................................................................... 69

Powering On the Switch...................................................................................................................................................... 70

Monitoring the Initialization Processes ........................................................................................................................ 71

Configuring the Switch for Stand-alone Operations............................................................................................................ 74

Starting a Local Management Session........................................................................................................................ 74

Disabling VCStack....................................................................................................................................................... 76

Confirming the Status of the VCStack Feature............................................................................................................ 78

Specifying Ports in the Command Line Interface for Stand-alone Switches....................................................................... 80

Chapter 6: Troubleshooting ............................................................................................................................................ 81

Appendix A: Technical Specifications ........................................................................................................................... 85

Physical Specifications ....................................................................................................................................................... 85

Environmental Specifications.............................................................................................................................................. 86

Power Specifications........................................................................................................................................................... 86

Certifications ....................................................................................................................................................................... 87

RJ-45 Twisted Pair Port Pinouts......................................................................................................................................... 87

RJ-45 Style Serial Console Port Pinouts ............................................................................................................................ 88

Figure 1: Front Panels of the AT-x510-28GTX and AT-x510-28GPX Switches ...................................................................19

Figure 2: Front Panels of the AT-x510-28GSX, AT-x510-52GTX, and AT-x510-52GPX Switches......................................20

Figure 3: Back Panel of the AT-x510-28GTX, AT-x510-52GTX, and AT-x510-28GSX Switches ........................................21

Figure 4: Back Panel of the AT-x510-28GPX and AT-x510-52GPX Switches .....................................................................21

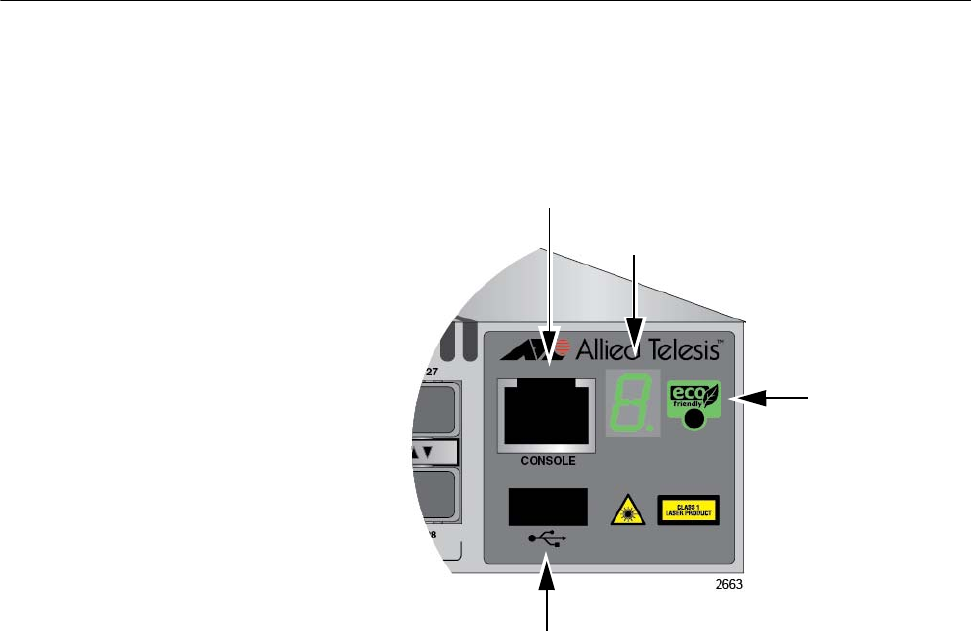

Figure 5: x510 Series Management Panel ...........................................................................................................................22

Figure 6: LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GTX and AT-x510-52GTX Switches.........................33

Figure 7: LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GPX and AT-x510-52GPX Switches ........................35

Figure 8: SFP Slot LEDs on the AT-x510-28GSX Switch.....................................................................................................36

Figure 9: SFP+ Slot LEDs ....................................................................................................................................................37

Figure 10: Switch ID LED .....................................................................................................................................................39

Figure 11: Switch ID LED .....................................................................................................................................................39

Figure 12: Switch ID LEDs in the Low Power Mode.............................................................................................................40

Figure 13: Components of the x510 Series Switches...........................................................................................................51

Figure 14: Turning the Switch Upside Down ........................................................................................................................55

Figure 15: Removing the Rubber Feet .................................................................................................................................55

Figure 16: Attaching the Equipment Rack Brackets .............................................................................................................56

Figure 17: Attaching the Equipment Rack Brackets (Continued) .........................................................................................57

Figure 18: Mounting the Switch in an Equipment Rack ........................................................................................................57

Figure 19: Removing the Dust Plug from an SFP Slot .........................................................................................................63

Figure 20: Installing an SFP Transceiver..............................................................................................................................64

Figure 21: Removing the Dust Cover from an SFP Transceiver ..........................................................................................64

Figure 22: Positioning the SFP Handle in the Upright Position ............................................................................................65

Figure 23: Connecting a Fiber Optic Cable to an SFP Transceiver......................................................................................65

Figure 24: Removing the Dust Plug from an SFP+ Slot .......................................................................................................66

Figure 25: Installing an SFP or SFP+ Transceiver ...............................................................................................................67

Figure 26: Removing the Dust Cover from an SFP or SFP+ Transceiver ............................................................................67

Figure 27: Positioning the SFP or SFP+ Handle in the Upright Position ..............................................................................68

Figure 28: Connecting a Fiber Optic Cable to an SFP or SFP+ Transceiver .......................................................................68

Figure 29: Plugging in the AC Power Cord...........................................................................................................................70

Figure 30: Switch Initialization Messages.............................................................................................................................71

Figure 31: Switch Initialization Messages (Continued) .........................................................................................................72

Figure 32: Switch Initialization Messages (Continued) .........................................................................................................73

Figure 33: Connecting the Management Cable to the Console Port ....................................................................................75

Figure 34: User Exec Mode Prompt .....................................................................................................................................76

Figure 35: SHOW STACK Command...................................................................................................................................76

Figure 36: Moving to the Global Configuration Mode ...........................................................................................................77

Figure 37: Confirmation Prompt for the NO STACK ENABLE Command ............................................................................77

Figure 38: Returning to the Privileged Exec Mode ...............................................................................................................77

Figure 39: Saving the Changes with the WRITE Command.................................................................................................78

Figure 40: Status of a Stacking Slot When VCStack is Disabled .........................................................................................79

Figure 41: Status of a Stacking Slot When VCStack is Enabled ..........................................................................................79

Figure 42: PORT Parameter in the Command Line Interface...............................................................................................80

Figure 43: RJ-45 Socket Pin Layout (Front View) ................................................................................................................87

Figures

Tables

Table 1: Twisted Pair Cable for the 10/100/1000Base-T Ports ...........................................................................................24

Table 2: IEEE Powered Device Classes ..............................................................................................................................26

Table 3: Twisted Pair Cable Requirements for the 10/100/1000Base-T Ports at 10 or 100Mbps .......................................26

Table 4: Twisted Pair Cable Requirements for the 10/100/1000Base-T Ports at 1000Mbps ..............................................27

Table 5: Stacking Transceivers ...........................................................................................................................................31

Table 6: LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GTX and AT-x510-52GTX Switches .........................34

Table 7: LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GPX and AT-x510-52GPX Switches .........................35

Table 8: SFP Slot LEDs on the AT-x510-28GSX Switch .....................................................................................................37

Table 9: SFP+ Slot LEDs .....................................................................................................................................................38

Table 10: Stacking Slot LEDs ..............................................................................................................................................38

Table 11: Product Dimensions .............................................................................................................................................85

Table 12: Product Weights ..................................................................................................................................................85

Table 13: Ventilation Requirements .....................................................................................................................................85

Table 14: Environmental Specifications ...............................................................................................................................86

Table 15: Maximum Power Consumption ............................................................................................................................86

Table 16: Input Voltages ......................................................................................................................................................86

Table 17: Product Certifications ...........................................................................................................................................87

Table 18: Pin Signals for 10 and 100 Mbps .........................................................................................................................87

Table 19: Pin Signals for 1000 Mbps ...................................................................................................................................88

Table 20: RJ-45 Style Serial Console Port Pin Signals .......................................................................................................88

Tables

Preface

This guide contains the installation instructions for the x510 Series of

Layer 2+ and Basic Layer 3, Gigabit Ethernet switches. This preface

contains the following sections:

“Document Conventions” on page 12

“Contacting Allied Telesis” on page 13

Note

This guide explains how to install the switches as stand-alone units.

For instructions on how to install them in a stack configuration with

Virtual Chassis Stacking (VCStack™), refer to the x510 Series

Installation Guide for Virtual Chassis Stacking.

Preface

Document Conventions

This document uses the following conventions:

Note

Notes provide additional information.

Caution

Cautions inform you that performing or omitting a specific action

may result in equipment damage or loss of data.

Warning

Warnings inform you that performing or omitting a specific action

may result in bodily injury.

x510 Series Installation Guide for Stand-alone Switches

Contacting Allied Telesis

If you need assistance with this product, you may contact Allied Telesis

technical support by going to the Support & Services section of the Allied

Telesis web site at www.alliedtelesis.com/support. You can find links for

the following services on this page:

24/7 Online Support — Enter our interactive support center to

search for answers to your product questions in our knowledge

database, to check support tickets, to learn about RMAs, and to

contact Allied Telesis technical experts.

USA and EMEA phone support — Select the phone number that

best fits your location and customer type.

Hardware warranty information — Learn about Allied Telesis

warranties and register your product online.

Replacement Services — Submit a Return Merchandise

Authorization (RMA) request via our interactive support center.

Documentation — View the most recent installation and user

guides, software release notes, white papers, and data sheets for

your products.

Software Downloads — Download the latest software releases for

your managed products.

For sales or corporate information, go to www.alliedtelesis.com/

purchase and select your region.

Preface

Chapter 1

Overview

This chapter contains the following sections:

“Features” on page 16

“Front and Back Panels” on page 19

“Management Panel” on page 22

“10/100/1000Base-T Twisted Pair Ports” on page 23

“Power Over Ethernet” on page 25

“SFP+ Slots” on page 30

“Stacking SFP+ Slots” on page 31

“eco-friendly Button” on page 32

“LEDs” on page 33

“USB Port” on page 41

“Console Port” on page 42

“Power Supplies” on page 43

Note

This guide explains how to install the switches as stand-alone units.

For instructions on how to install them in a stack configuration with

Virtual Chassis Stacking (VCStack™), refer to the x510 Series

Installation Guide for Virtual Chassis Stacking.

Chapter 1: Overview

Features

Here are the switches and their features:

x510 Models Here are the x510 Series switches:

AT-x510-28GTX

AT-x510-28GPX

AT-x510-52GTX

AT-x510-52GPX

10/100/1000

Mbps Twisted

Pair Ports

Here are the basic features of the 10/100/1000 Mbps twisted pair ports:

24 or 48 ports per switch

10Base-T, 100Base-TX, and 1000Base-T compliant

IEEE 802.3u Auto-Negotiation compliant

Auto-MDI/MDIX

100 meters (328 feet) maximum operating distance

IEEE 802.3x flow control in 10/100Base-TX full-duplex mode

IEEE 802.3x backpressure in 10/100Base-TX half-duplex mode

IEEE 802.3ab 1000Base-T

Jumbo frames up to 13KB

RJ-45 connectors

Power Over

Ethernet

Here are the basic features of Power over Ethernet (PoE) on the twisted

pair ports on the AT-x510-28GPX and AT-x510-52GPX Switches:

Supported on ports 1 to 24 on the AT-x510-28GPX Switch and

ports 1 to 48 on the AT-x510-52GPX Switch

Supports PoE (15.4 watts maximum) and PoE+ (30 watts

maximum) powered devices

Supports powered device classes 0 to 4

Maximum power budget of 370 watts

Port prioritization

Mode A wiring

SFP Slots Here are the basic features of the SFP slots on the AT-x510-28GSX

Switch:

Supports 100Base-FX and 1000Base-SX/LX SFP transceivers

x510 Series Installation Guide for Stand-alone Switches

Supports single-port BiDi 1000Base-LX SFP transceivers

Supports 1000Base-ZX SFP transceivers

Supports 10/100/1000Base-T twisted pair transceivers

Note

SFP transceivers must be purchased separately. For a list of

supported transceivers, contact your Allied Telesis distributor or

reseller.

SFP+ Slots Here are the basic features of the four SFP+ slots on the switches:

Supports 10Gbps, 10GBase-SR/LR fiber optic transceivers

Supports 10Gbps AT-SP10TW direct connect twinax cables with

SFP+ transceiver-style connectors

Supports 1000Base-SX/LX SFP transceivers

Supports single-port BiDi 1000Base-LX SFP transceivers

Supports 1000Base-ZX SFP transceivers

Note

The SFP+ slots do not support 100Mbps 100Base-FX transceivers.

Note

SFP and SFP+ transceivers must be purchased separately. For a

list of supported transceivers, contact your Allied Telesis distributor

or reseller.

Note

SFP+ slots 27 and 28 on the 28-port switches and slots 51 and 52

on the 52-port switches are initially configured as stacking slots for

the VCStack feature. If you intend to use the switch as a stand-alone

unit, you must disable the VCStack feature before you can use the

slots with standard SFP or SFP+ transceivers. The configuration

instructions are provided later in this guide, in “Configuring the

Switch for Stand-alone Operations” on page 74.

Stacking Slots Two of the SFP+ slots can be used to create a VCStack of up to four

switches. The slots support these stacking transceivers when the switch is

in the stacking mode:

AT-StackXS/1.0 Twisted Pair Transceiver - 1 meter

AT-StackOP/0.3 Fiber Optic Transceiver - 300 meters

AT-StackOP/9.0 Fiber Optic Transceiver - 9 kilometers

Chapter 1: Overview

LEDs Here are the port LEDs:

Link/activity and duplex mode LEDs for the twisted pair ports on

non-PoE switches

Link/activity and PoE status LEDs for the twisted pair ports on PoE

switches

Link/activity LEDs for SFP and SFP+ slots

Stack ID number LED

eco-friendly button turns off the LEDs to conserve electricity

Installation

Options

Here are the installation options for the switches:

19-inch equipment rack

Desk or tabletop

MAC Address

Table

Here are the basic features of the MAC address tables of the switches:

Storage capacity of 16,000 dynamic MAC address entries

Storage capacity of 256 static MAC address entries

Automatic learning and aging

Management

Software and

Interfaces

Here are the management software and interfaces:

AlliedWare Plus Management Software

Command line interface

Web browser interface

Management

Methods

Here are the methods for managing the switches:

Local management through the Console port

Remote Telnet and Secure Shell management

Remote HTTP and HTTPS web browser management

SNMPv1, v2c, and v3

x510 Series Installation Guide for Stand-alone Switches

Front and Back Panels

The front panels of the x510 Series switches are shown in Figure 1 and

Figure 2 on page 20.

Figure 1. Front Panels of the AT-x510-28GTX and AT-x510-28GPX

Switches

AT-x510-28GPX

AT-x510-28GTX

10/100/1000Base-T Ports

SFP+ Slots

Management

Panel

SFP+ or

Stacking Slots

SFP+ Slots

Management

Panel

SFP+ or

Stacking Slots

10/100/1000Base-T Ports

with PoE

Chapter 1: Overview

Figure 2. Front Panels of the AT-x510-28GSX, AT-x510-52GTX, and AT-

x510-52GPX Switches

AT-x510-52GPX

AT-x510-52GTX

SFP+ Slots

Management

Panel

SFP+ or

Stacking Slots

10/100/1000Base-T Ports

SFP+ Slots

Management

Panel

SFP+ or

Stacking Slots

10/100/1000Base-T Ports

with PoE

AT-x510-28GSX

10/100/1000Base-T and 100/1000Base-FX

SFP+ Slots

Management

Panel

SFP+ or

Stacking Slots

Transceiver Slots

x510 Series Installation Guide for Stand-alone Switches

Figure 3 shows the back panel of the AT-x510-28GTX, AT-x510-52GTX,

and AT-x510-28GSX Switches.

Figure 3. Back Panel of the AT-x510-28GTX, AT-x510-52GTX, and AT-

x510-28GSX Switches

Figure 4 shows the back panel of the AT-x510-28GPX and AT-x510-

52GPX Switches.

Figure 4. Back Panel of the AT-x510-28GPX and AT-x510-52GPX

Switches

AC Power

Connector

AC Power

Connector

(Power Supply 2) (Power Supply 1)

AC Power

Connector

AC Power

Connector

(Power Supply 2) (Power Supply 1)

Chapter 1: Overview

Management Panel

Figure 5 identifies the components in the management panels on the x510

Series switches.

Figure 5. x510 Series Management Panel

Console

eco-friendly

Button

Switch

Port

ID LED

Management

USB Port

x510 Series Installation Guide for Stand-alone Switches

10/100/1000Base-T Twisted Pair Ports

The switches have 24 or 48 10/100/1000Base-T ports.

Speed The ports can operate at 10, 100, or 1000 Mbps. The speeds may be set

manually using the management software or automatically with Auto-

Negotiation (IEEE 802.3u), the default setting.

Note

The ports must be set to Auto-Negotiation to function at 1000 Mbps

and are not compatible with devices that are not IEEE 802.3u

compliant.

Duplex Mode The twisted pair ports can operate in either half- or full-duplex mode. The

duplex mode of a port, like port speed, may be set manually using the

management software or automatically with Auto-Negotiation (IEEE

802.3u), the default setting.

The speed and duplex mode settings of a port may be set independently

of each other. For example, a port may be configured such that its speed

is set manually while its duplex mode is established through Auto-

Negotiation.

Note

A switch port should not use Auto-Negotiation to set its duplex mode

if it is connected to a network device that does not support Auto-

Negotiation for 10 or 100 Mbps operation and has a fixed duplex

mode of full-duplex. Otherwise, a duplex-mode mismatch may occur

in which a switch port and a network device operate at different

duplex modes. The duplex modes of switch ports that are connected

to network devices that do not support Auto-Negotiation should be

set manually through the management software.

Wiring

Configuration

The wiring configuration of a port operating at 10 or 100 Mbps can be MDI

or MDI-X. The wiring configurations of a switch port and a network device

connected with straight-through twisted pair cabling have to be opposite,

such that one device is using MDI and the other MDI-X. For instance, a

switch port has to be set to MDI-X if it is connected to a network device set

to MDI.

You may set the wiring configurations of the ports manually or let the

switch configure them automatically with auto-MDI/MDI-X (IEEE 802.3ab-

compliant). This feature enables the switch to automatically negotiate with

network devices to establish their proper settings.

Chapter 1: Overview

The MDI and MDI-X settings do not apply when ports are operating at

1000 Mbps.

Maximum

Distance

The ports have a maximum operating distance of 100 meters (328 feet).

Cable

Requirements

The cable requirements of the ports are given in Table 1.

Note

For the cable requirements for the ports on the AT-x510-28GPX and

AT-x510-52GPX Switches for PoE devices, refer to Table 3 on

page 26.

Port Pinouts Refer to Table 18 on page 87 and Table 19 on page 88 for the port pinouts

of the 10/100/1000Base-T twisted pair ports.

Table 1. Twisted Pair Cable for the 10/100/1000Base-T Ports

Cable Type 10Mbps 100Mbps 1000Mbps

Standard TIA/EIA 568-B-

compliant Category 3 shielded

or unshielded cabling with 100

ohm impedance and a

frequency of 16 MHz.

Yes Yes No

Standard TIA/EIA 568-A-

compliant Category 5 or TIA/

EIA 568-B-compliant Enhanced

Category 5 (Cat 5e) shielded or

unshielded cabling with 100

ohm impedance and a

frequency of 100 MHz.

Yes Yes Yes

Standard TIA/EIA 568-B-

compliant Category 6 or 6a

shielded cabling.

Yes Yes Yes

x510 Series Installation Guide for Stand-alone Switches

Power Over Ethernet

The AT-x510-28GPX and AT-x510-52GPX Switches feature Power over

Ethernet (PoE) on the 10/100/1000Base-T ports. PoE is used to supply

power to network devices over the same twisted pair cables that carry the

network traffic.

The main advantage of PoE is that it can make it easier to install a

network. The selection of a location for a network device is often limited by

whether there is a power source nearby. This often limits equipment

placement or requires the added time and cost of having additional

electrical sources installed. But with PoE, you can install PoE-compatible

devices wherever they are needed without having to worry about whether

there are power sources nearby.

A device that provides PoE to other network devices is referred to as

power sourcing equipment (PSE). The AT-x510-28GPX and AT-x510-

52GPX Switches act as PSE units by adding DC power to the network

cable, thus functioning as a central power source for other network

devices.

Devices that receive their power from a PSE are called powered devices

(PD). Examples include wireless access points, IP telephones, webcams,

and even other Ethernet switches.

The switch automatically determines whether or not a device connected to

a port is a powered device. Ports that are connected to network nodes that

are not powered devices (that is, devices that receive their power from

another power source) function as regular Ethernet ports, without PoE.

The PoE feature remains activated on the ports but no power is delivered

to the devices.

PoE Standards The AT-x510-28GPX and AT-x510-52GPX Switches support these PoE

standards:

PoE (IEEE 802.3af): This standard provides up to 15.4 watts at the

switch port to support powered devices that require up to 12.95

watts.

PoE+ (IEEE 802.3at): This standard provides up to 30.0 watts at

the switch port to support powered devices that require up to 25.5

watts.

Powered Device

Classes

Powered devices are grouped into the five classes listed in Table 2 on

page 26. The classes are based on the amount of power the devices

require. The switches support all five classes.

Chapter 1: Overview

Cable

Requirements

The cable requirements for ports operating at 10 or 100Mbps are given in

Table 3.

Table 2. IEEE Powered Device Classes

Class

Maximum Power

Output from a Switch

Port

PD Power Range

0 15.4W 0.44W to 12.95W

1 4.0W 0.44W to 3.84W

2 7.0W 3.84W to 6.49W

3 15.4W 6.49W to 12.95W

4 30.0W 12.95W to 25.5W

Table 3. Twisted Pair Cable Requirements for the 10/100/1000Base-T Ports at 10 or 100Mbps

Cable Type

10Mbps 100Mbps

Non-

PoE PoE PoE+ Non-

PoE PoE PoE+

Standard TIA/EIA 568-B-

compliant Category 3 shielded

or unshielded cabling with 100

ohm impedance and a

frequency of 16 MHz.

Yes Yes No Yes Yes No

Standard TIA/EIA 568-A-

compliant Category 5 shielded

or unshielded cabling with 100

ohm impedance and a

frequency of 100 MHz.

Yes Yes No Yes Yes No

Standard TIA/EIA 568-B-

compliant Enhanced Category

5 (Cat 5e) shielded or

unshielded cabling with 100

ohm impedance and a

frequency of 100 MHz.

Yes Yes Yes Yes Yes Yes

Standard TIA/EIA 568-B-

compliant Category 6 or 6a

shielded cabling.

Yes Yes Yes Yes Yes Yes

x510 Series Installation Guide for Stand-alone Switches

The cable requirements for ports operating at 1000Mbps are given in

Table 4.

Power Budget The AT-x510-28GPX and AT-x510-52GPX Switches have a power budget

of 370 watts. This is the maximum amount of power the switches can

provide at one time to the powered devices.

The AT-x510-28GPX and AT-x510-52GPX Switches have two power

supplies. Each power supply is responsible for providing 185 watts, or half,

of the power budget. Both power supplies must be connected to AC power

sources for the switch to provide the full 370 watts. The power budget is

reduced to 185 watts if only one power supply is connected to a power

source.

The power requirements of the PoE devices determine the maximum

number of devices the switch can support at one time. So long as the total

power requirements of the powered devices is less than the power budget

of the switch, the switch can supply power to all the devices. But if the total

power requirements exceed the power budget, the switch denies power to

one or more ports using a mechanism referred to as port prioritization.

To determine whether the power requirements of the PoE devices you

plan to connect to the switch exceed its power budget, refer to their

documentation for their power requirements and add the requirements

together. The switch should be able to power all of the devices

Table 4. Twisted Pair Cable Requirements for the 10/100/1000Base-T

Ports at 1000Mbps

Cable Type

1000Mbps

Non-

PoE PoE PoE+

Standard TIA/EIA 568-B-compliant

Category 3 shielded or unshielded

cabling with 100 ohm impedance and a

frequency of 16 MHz.

No No No

Standard TIA/EIA 568-A-compliant

Category 5 shielded or unshielded

cabling with 100 ohm impedance and a

frequency of 100 MHz.

Yes Yes No

Standard TIA/EIA 568-B-compliant

Enhanced Category 5 (Cat 5e) shielded

or unshielded cabling with 100 ohm

impedance and a frequency of 100 MHz.

Yes Yes Yes

Standard TIA/EIA 568-B-compliant

Category 6 or 6a shielded cabling.

Yes Yes Yes

Chapter 1: Overview

simultaneously as long as the total is below its power budget. If the total

exceeds the available power budget, you should consider reducing the

number of PoE devices so that all of the devices receive power.

Otherwise, the switch powers a subset of the devices, based on port

prioritization.

The switch can handle different power requirements on different ports.

This enables you to connect different classes of PoE equipment to the

ports on the switch.

Port

Prioritization

If the power requirements of the powered devices exceed the switch’s

power budget, the switch denies power to some ports based on a system

called port prioritization. You may use this mechanism to ensure that

powered devices critical to the operations of your network are given

preferential treatment by the switch in the distribution of power should the

demands of the devices exceed the available capacity.

There are three priority levels:

Critical

High

Low

Ports set to the Critical level, the highest priority level, are guaranteed

power before any of the ports assigned to the other two priority levels.

Ports assigned to the other priority levels receive power only if all the

Critical ports are receiving power. Ports that are connected to your most

critical powered devices should be assigned to this level. If there is not

enough power to support all the ports set to the Critical priority level,

power is provided to the ports based on port number, in ascending order.

The High level is the second highest level. Ports set to this level receive

power only if all the ports set to the Critical level are already receiving

power. If there is not enough power to support all of the ports set to the

High priority level, power is provided to the ports based on port number, in

ascending order.

The lowest priority level is Low. This is the default setting. Ports set to this

level only receive power if all of the ports assigned to the other two levels

are already receiving power. As with the other levels, if there is not enough

power to support all of the ports set to the Low priority level, power is

provided to the ports based on port number, in ascending order.

Power allocation is dynamic. Ports supplying power to powered devices

may cease power transmission if the switch’s power budget is at

maximum usage and new powered devices, connected to ports with

higher priorities, become active.

You can use port prioritization on dual power supply PoE switches to

protect your important networking devices from loss of power should one

x510 Series Installation Guide for Stand-alone Switches

of the power supplies fail or lose power. If you limit the power requirements

of the critical devices connected to a switch to less than 185 watts, the

PoE power provided by a single power supply, a switch will have sufficient

power to support the critical devices even if it has only one functional

power supply.

Wiring

Implementation

The IEEE 802.3af standard defines two methods for the delivery of DC

power over twisted pair cable by a PSE, such as the switch, to PDs. These

methods, known as modes A and B, identify the wires within the cable that

carry the DC power from the PSE to a PD.

Twisted pair cabling typically consists of eight wires. With 10Base-T and

100Base-TX devices, the wires connected to pins 1, 2, 3, and 6 on the RJ-

45 connectors carry the network traffic while the wires connected to pins 4,

5, 7, and 8 are unused. With 1000Base-T devices, all eight wires are used

to carry network data.

It takes four wires to deliver DC power to a PD. With Mode A, the power is

delivered on pins 1, 2, 3, and 6. These are the same pins in 10Base-T and

100Base-TX devices that carry the network data. With mode B, the power

is provided over the spare wires.

The ports on the AT-x510-28GPX and AT-x510-52GPX Switches deliver

the power using pins 1, 2, 3, and 6, which corresponds to mode A in the

IEEE 802.3af standard. Powered devices that comply with the IEEE

802.3af standard are required to support both power delivery methods.

Legacy devices that do not comply with the standard will work with the

switch if they are powered on pins 1, 2, 3, and 6.

Chapter 1: Overview

SFP+ Slots

The switches have four SFP+ slots that support the following types of SFP

1000Mbps and SFP+ 10Gbps transceivers:

1000Base-SX/LX SFP transceivers

Single-port BiDi 1000Base-LX SFP transceivers

1000Base-ZX SFP transceivers

10Gbps, 10GBase-SR/LR fiber optic transceivers

10Gbps AT-SP10TW direct connect twinax cables with SFP+

transceiver-style connectors

You may use the transceivers to connect switches to other network

devices over large distances, build high-speed backbone networks

between network devices, or connect high-speed devices, such as

servers, to your network.

The switches support a variety of short and long distance SFP and SFP+

modules. For a list of supported SFP modules, contact your Allied Telesis

representative or visit our web site.

Note

SFP+ slots 27 and 28 on the AT-x510-28GTX and AT-x510-28GPX

Switches and slots 51 and 52 on the AT-x510-52GTX and AT-x510-

52GPX Switches are initially configured as stacking slots for the

VCStack feature. If you intend to use the switch as a stand-alone

unit, you must disable the VCStack feature before you can use the

slots with standard SFP or SFP+ transceivers. The configuration

instructions are provided later in this guide, in “Configuring the

Switch for Stand-alone Operations” on page 74.

x510 Series Installation Guide for Stand-alone Switches

Stacking SFP+ Slots

Two of the four SFP+ slots on the front panel of the switch can be used

with special stacking transceivers to create a VCStack of up to four

switches. The switches of a VCStack act as a single virtual unit. They

synchronize their actions so that switching operations, like spanning tree

protocols, virtual LANs, and static port trunks, span across all the units and

ports. The two main advantages of stacks are:

You can manage multiple units simultaneously, which can simplify

network management.

You have more flexibility in how you configure some of the

features. For instance, a static port trunk on a stand-alone switch

has to consist of ports from the same switch. In contrast, a static

trunk on a stack may consist of ports from different switches in the

same stack.

The slots for the stacking transceivers are SFP+ slots 27 and 28 on the 28-

port switches and slots 51 and 52 on the 52-port switches.

The stacking transceivers are listed in Table 5.

Note

This guide explains how to install the devices as stand-alone units.

For instructions on how to install the switches in a stack, refer to the

x510 Series Installation Guide for Virtual Chassis Stacking.

Table 5. Stacking Transceivers

Transceiver Model Cable Type Distance

AT-StackXS/1.0 Twisted pair 1 meter

AT-StackOP/0.3 Fiber optic 300 meters

AT-StackOP/9.0 Fiber optic 9 kilometers

Chapter 1: Overview

eco-friendly Button

The eco-friendly button on the front panel of the switch is used to toggle

the port LEDs on or off. You might turn off the LEDs to conserve electricity

when you are not monitoring the device. You can also toggle the LEDs

with the ECOFRIENDLY LED and NO ECOFRIENDLY LED commands in

the Global Configuration mode of the command line interface. The switch

is said to be operating in a low power mode when the LEDs are turned off.

Operating the switch in the low power mode with the LEDs turned off does

not interfere with the network operations of the device.

The management software on the switch has a command that blinks the

LEDs so that you can quickly and easily identify a specific unit among the

devices in an equipment rack. It is the FINDME command. The command

works on the switch even if you turned off the LEDs with the eco-friendly

button or NO ECOFRIENDLY LED command.

The Switch ID LED is always on, but it displays different information

depending on whether the LEDs are on or off. When the LEDs are on, the

ID LED displays the ID number of the switch. When the switch is operating

in the low power mode with the LEDs off, the ID LED indicates whether the

switch is a stand-alone unit or the master or member switch of a VCStack,

as detailed in Figure 12 on page 40.

Note

Before checking or troubleshooting the network connections to the

ports on the switch, you should always check to be sure that the

LEDs are on by either pressing the eco-friendly button or issuing the

ECOFRIENDLY LED and NO ECOFRIENDLY LED commands in

the Global Configuration mode of the command line interface.

x510 Series Installation Guide for Stand-alone Switches

LEDs

Here are descriptions of the LEDs.

LEDs for the

Twisted Pair

Ports

The twisted pair ports on the AT-x510-28GTX and AT-x510-52GTX

Switches have two LEDs that display link, activity and duplex mode

information. The LEDs are shown in Figure 6.

Figure 6. LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GTX

and AT-x510-52GTX Switches

The LEDs are described in Table 6 on page 34.

Link/Activity

LED

Duplex Mode

LED

Duplex Mode

LED

Link/Activity

LED

Chapter 1: Overview

The twisted pair ports on the AT-x510-28GPX and AT-x510-52GPX

Switches have two LEDs that display link, activity and PoE information.

The LEDs are shown in Figure 7 on page 35.

Note

The duplex mode information for the ports on the AT-x510-28GPX

and AT-x510-52GPX Switches can be viewed with the management

software.

Table 6. LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GTX

and AT-x510-52GTX Switches

LED State Description

Link/

Activity

LED

Solid Green A port has established a 1000 Mbps link to

a network device.

Flashing

Green

A port is transmitting or receiving data at

1000 Mbps.

Solid Amber A port has established a 10 or 100 Mbps

link to a network device.

Flashing

Amber

A port is transmitting or receiving data at 10

or 100 Mbps.

Off A port has not established a link with

another network device or the LEDs are

turned off. To turn on the LEDs, use the

eco-friendly button.

Duplex

Mode

LED

Green A port is operating in full duplex mode.

Amber A port is operating in half-duplex mode at 10

or 100 Mbps. (Half-duplex mode does not

apply to 1000 Mbps operation.)

Flashing

Amber

Collisions are occurring on a port operating

at 10 or 100 Mbps.

x510 Series Installation Guide for Stand-alone Switches

Figure 7. LEDs for the 10/100/1000Base-T Ports on the AT-x510-28GPX

and AT-x510-52GPX Switches

The LEDs are described in Table 7.

Table 7. LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GPX

and AT-x510-52GPX Switches

LED State Description

Link/

Activity

LED

Solid Green A port has established a 1000 Mbps link to

a network device.

Flashing

Green

A port is transmitting or receiving data at

1000 Mbps.

Solid Amber A port has established a 10 or 100 Mbps

link to a network device.

Flashing

Amber

A port is transmitting or receiving data at 10

or 100 Mbps.

Off A port has not established a link with

another network device or the LEDs are

turned off. To turn on the LEDs, use the

eco-friendly button.

Link/Activity

LED

PoE

LED

PoE

LED

Link/Activity

LED

Chapter 1: Overview

LEDs for the SFP

Slots

The LEDs for the SFP slots on the AT-x510-28GSX Switch are located

between the slots, as shown in Figure 9. Each SFP slot has one LED. The

left-hand LED is for the top slot and the right-hand LED is for the bottom

slot.

Figure 8. SFP Slot LEDs on the AT-x510-28GSX Switch

PoE Green The switch is detecting a powered device

(PD) on the port and is delivering power to

it.

Solid Amber The switch has shutdown PoE+ on the port

because of a fault condition.

Flashing

Amber

The switch is detecting a PD on the port but

is not delivering power to it because the

maximum power budget has been reached.

Off This LED state can result from the following

conditions:

The port is not connected to a PD.

The PD is powered off.

The port is disabled in the

management software.

PoE is disabled on the port.

The LEDs on the Ethernet line cards

are turned off. To turn on the LEDs,

use the eco-friendly button.

Table 7. LEDs on the 10/100/1000Base-T Ports on the AT-x510-28GPX

and AT-x510-52GPX Switches (Continued)

LED State Description

SFP Slot LEDs

x510 Series Installation Guide for Stand-alone Switches

The LEDs are described in Table 8.

LEDs for the

SFP+ Slots

The LEDs for the SFP+ slots are located between the slots, as shown in

Figure 9. Each SFP+ slot has one LED. The left-hand LED is for the top

slot and the right-hand LED is for the bottom slot.

Figure 9. SFP+ Slot LEDs

The LEDs are described in Table 9 on page 38.

Table 8. SFP Slot LEDs on the AT-x510-28GSX Switch

LED State Description

Link/Activity Off The slot is empty, the SFP transceiver

has not established a link to a network

device, or the LEDs are turned off. To turn

on the LEDs, use the eco-friendly button.

Solid green The SFP transceiver has established a

link at 10 Mbps, 1000 Mbps or 10 Gbps to

a network device.

Flashing

green

The SFP transceiver is receiving or

transmitting packets to a network device.

SFP Slot LEDs

Chapter 1: Overview

LEDs for the

Stacking Slots

SFP+ slots 27 and 28 on the 28-port switches and slots 51 and 52 on the

52-port switches may be used as stacking slots to build a VCStack of up to

four switches. For background information, refer to the x510 Series

Installation Guide for Virtual Chassis Stacking. Table 10 defines the LED

states when the slots contain stacking transceivers.

Switch ID LED The Switch ID LED, shown in Figure 10 on page 39, displays the ID

number of the switch. A stand-alone switch has the ID number 0. Switches

in a VCStack have the numbers 1 to 4. Chapter 5, “Powering On the

Switch” on page 69 has the procedure for verifying and, if necessary,

changing the ID number of the switch.

Table 9. SFP+ Slot LEDs

LED State Description

Link/Activity Off The slot is empty, the SFP or SFP+

transceiver has not established a link to a

network device, or the LEDs are turned

off. To turn on the LEDs, use the eco-

friendly button.

Solid green The SFP or SFP+ transceiver has

established a link at 1000 Mbps or 10

Gbps to a network device.

Flashing

green

The SFP+ transceiver is receiving or

transmitting packets to a network device

at 10 Gbps. (The LED does not flash for

activity at 1000 Mbps.).

Table 10. Stacking Slot LEDs

LED State Description

Link/Activity Off The slot is empty, the stacking transceiver

has not established a link to a network

device, or the LEDs are turned off. To turn

on the LEDs, use the eco-friendly button.

Solid green The stacking transceiver has established

a 10 Gbps link to another switch in the

stack.

Flashing

green

The stacking transceiver is receiving or

transmitting packets.

x510 Series Installation Guide for Stand-alone Switches

Figure 10. Switch ID LED

The states of the LED when the switch is not operating in the low power

mode are shown in Figure 11.

Figure 11. Switch ID LED

The switch displays the letter “F” for fault on the ID LED if it encounters

one of the following problems:

A cooling fan has failed.

One of the power supplies has failed.

The internal temperature of the switch has exceeded the normal

operating range and the switch may shut down.

Switch ID LED

The switch is booting up.

The switch has encountered a fault condition.

The switch is operating as a stand-alone unit, with the ID

number 0.

The switch has an ID number of 1 to 4 as part of a VCStack.

The dot in the lower right corner flashes when the switch

accesses USB memory.

Chapter 1: Overview

Note

You can use the SHOW SYSTEM ENVIRONMENT command in the

command line interface to identify the source of the problem.

The states of the LED when the switch is operating in the low power mode

are shown in Figure 12.

Figure 12. Switch ID LEDs in the Low Power Mode

The switch is the master switch of a VCStack.

The switch is operating as a stand-alone unit.

The switch is a member switch of a VCStack.

x510 Series Installation Guide for Stand-alone Switches

USB Port

The management panel has a USB port. You may use the port to store

configuration files on flash drives and to restore configuration files to

switches whose settings have been lost or corrupted, or to quickly

configure replacement units. You may also use the port and flash drives to

update the management firmware on the switches.

The port is USB2.0 compatible.

Chapter 1: Overview

Console Port

The Console port is used to establish a management session with the

switch to configure its features and parameter settings. This type of

management uses serial RS-232 and is commonly referred to as local or

out-of-band management because it is not conducted over your network.

To perform local management, you must be at the location of the switch

and must use the management cable included with the switch.

To establish a local management session with the switch, connect a

terminal or a personal computer with a terminal emulation program to the

Console port, which has an RJ-45 style (8P8C) connector, using the

provided management cable. The cable has RJ-45 RJ-style (8P8C) and

DB-9 (D-sub 9-pin) connectors.

The Console port is set to the following specifications:

Default baud rate: 9600 bps (Range is 9600 to 115200 bps)

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

Note

These settings are for a DEC VT100 or ANSI terminal, or an

equivalent terminal emulation program.

x510 Series Installation Guide for Stand-alone Switches

Power Supplies

The x510 Series switches have two AC power supplies with separate AC

connectors on the back panels. The power supplies, which are not field-

replaceable, provide a switch with power redundancy and protect against

interruptions to network operations in the event one of the power supplies

loses power or fails. Power redundancy is available only when both AC

connectors on a switch are connected to power sources.

The AT-x510-28GPX and AT-x510-52GPX Switches have a PoE budget

of 370 watts when both power supplies are active and 185 watts when only

one power supply is active. For further information, refer to “Power

Budget” on page 27.

Refer to “Technical Specifications” on page 85 for the input voltage range.

Warning

Power cord is used as a disconnection device. To de-energize

equipment, disconnect the power cord.  E3

Warning

This unit might have more than one power cord. To reduce the risk of

electric shock, disconnect all power cords before servicing the unit.

 E30

Note

The switches are powered on or off by connecting or disconnecting

the power cords.

Chapter 1: Overview

Chapter 2

Beginning the Installation

The chapter contains the following sections:

“Reviewing Safety Precautions” on page 46

“Choosing a Site for the Switch” on page 50

“Unpacking the Switch” on page 51

Chapter 2: Beginning the Installation

Reviewing Safety Precautions

Please review the following safety precautions before beginning the

installation procedure.

Note

Safety statements that have the  symbol are translated into

multiple languages in the Translated Safety Statements document at

www.alliedtelesis.com/support.

Warning

Class 1 Laser product.  L1

Warning

Do not stare into the laser beam.  L2

Warning

Do not look directly at the fiber optic cable ends or inspect the cable

ends with an optical lens.  L6

Warning

To prevent electric shock, do not remove the cover. No user-

serviceable parts inside. This unit contains hazardous voltages and

should only be opened by a trained and qualified technician. To

avoid the possibility of electric shock, disconnect electric power to

the product before connecting or disconnecting the LAN cables. 

Warning

Do not work on equipment or cables during periods of lightning

activity.  E2

Warning

Power cord is used as a disconnection device. To de-energize

equipment, disconnect the power cord.  E3

x510 Series Installation Guide for Stand-alone Switches

Warning

Class I Equipment. This equipment must be earthed. The power

plug must be connected to a properly wired earth ground socket

outlet. An improperly wired socket outlet could place hazardous

voltages on accessible metal parts.  E4

Note

Pluggable Equipment. The socket outlet shall be installed near the

equipment and shall be easily accessible.  E5

Caution

Air vents must not be blocked and must have free access to the

room ambient air for cooling.  E6

Warning

Operating Temperatures. All the switches are designed for a

maximum ambient temperature of 45° degrees C.

Note

All Countries: Install product in accordance with local and National

Electrical Codes.  E8

Warning

Only trained and qualified personnel are allowed to install or replace

this equipment.  E14

Caution

Circuit Overloading: Consideration should be given to the

connection of the equipment to the supply circuit and the effect that

overloading of circuits might have on overcurrent protection and

supply wiring. Appropriate consideration of equipment nameplate

ratings should be used when addressing this concern.  E21

Chapter 2: Beginning the Installation

Caution

Risk of explosion if battery is replaced by an incorrect type. Replace

only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the

manufacturer’s instructions.

Attention: Le remplacement de la batterie par une batterie de type

incorrect peut provoquer un danger d’explosion. La remplacer

uniquement par une batterie du même type ou de type équivalent

recommandée par le constructeur. Les batteries doivent être

éliminées conformément aux instructions du constructeur.  E22

Warning

Mounting of the equipment in the rack should be such that a

hazardous condition is not created due to uneven mechanical

loading.  E25

Note

Use dedicated power circuits or power conditioners to supply

reliable electrical power to the device.  E27

Warning

This unit might have more than one power cord. To reduce the risk

of electric shock, disconnect all power cords before servicing the

unit.  E30

Note

If installed in a closed or multi-unit rack assembly, the operating

ambient temperature of the rack environment may be greater than

the room ambient temperature. Therefore, consideration should be

given to installing the equipment in an environment compatible with

the manufacturer’s maximum rated ambient temperature (Tmra). 

E35

Caution

Installation of the equipment in a rack should be such that the

amount of air flow required for safe operation of the equipment is not

compromised.  E36

x510 Series Installation Guide for Stand-alone Switches

Warning

Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than

direct connections to the branch circuits (e.g., use of power strips).

 E37

Warning

To reduce the risk of electric shock, the PoE ports on this product

must not connect to cabling that is routed outside the building where

this device is located.  E40

Caution

The unit does not contain serviceable components. Please return

damaged units for servicing.  E42

Warning

When you remove an SFP module from this product, the case

temperature of the SFP may exceed 40° C (158° F). Exercise

caution when handling with unprotected hands.  E43

Chapter 2: Beginning the Installation

Choosing a Site for the Switch

Observe these requirements when planning the installation of the switch.

If you plan to install the switch in an equipment rack, check to be

sure that the rack is safely secured so that it will not tip over.

Devices in a rack should be installed starting at the bottom, with

the heavier devices near the bottom of the rack.

If you plan to install the switch on a table, check to be sure that the

table is level and stable.

The power outlet should be located near the switch and be easily

accessible.

The site should allow for easy access to the ports on the front of

the switch, so that you can easily connect and disconnect cables,

and view the port LEDs.

The site should allow for adequate air flow around the unit and

through the cooling vents on the front and rear panels. (The

ventilation direction in units that have a cooling fan is from front to

back, with the fan on the back panel drawing the air out of the unit.)

The site should not expose the switch to moisture or water.

The site should be a dust-free environment.

The site should include dedicated power circuits or power

conditioners to supply reliable electrical power to the network

devices.

Do not install the switch in a wiring or utility box because it will

overheat and fail from inadequate airflow.

Warning

Switches should not be stacked on top of one another on a table or

desktop because that could present a personal safety hazard if you

need to move or replace switches.

x510 Series Installation Guide for Stand-alone Switches

Unpacking the Switch

Figure 13 lists the items that come with the switch. If any item is missing or

damaged, contact your Allied Telesis sales representative for assistance.

Figure 13. Components of the x510 Series Switches

Note

You should retain the original packaging material in the event you

need to return the unit to Allied Telesis.

Two rack mounting brackets

One 2 m (6.6 ft) local management cable with

RJ-45 (8P8C) and DB-9 (D-sub 9-pin)

connectors.

Eight bracket screws

Two regional AC power cords

Chapter 2: Beginning the Installation

Chapter 3

Installing the Switch on a Table or in an

Equipment Rack

The procedures in this chapter are:

“Installing the Switch on a Table or Desktop” on page 54

“Installing the Switch in an Equipment Rack” on page 55

Chapter 3: Installing the Switch on a Table or in an Equipment Rack

Installing the Switch on a Table or Desktop

You may install the switch on a table or desktop. Here are the guidelines

to selecting a site:

The table should be level and stable.

The power outlet should be located near the switch and be easily

accessible.

The site should allow for easy access to the ports on the front of

the switch, so that you can easily connect and disconnect cables,

and view the port LEDs.

The site should allow for adequate air flow around the unit and

through the cooling vents on the front and rear panels. (The

ventilation direction in units that have a cooling fan is from front to

back, with the fans on the back panels drawing the air out of the

units.)

The site should not expose the switch to moisture or water.

The site should be a dust-free environment.

The site should include dedicated power circuits or power

conditioners to supply reliable electrical power to the network

devices.

The rubber feet on the bottom of the switch should be left on for

table or desktop installation.

Warning

Do not stack switches on top of one another on a table or desktop

because that could present a personal safety hazard if you need to

move or replace switches.

After placing the switch on the table or desktop, go to Chapter 4, “Cabling

the Networking Ports” on page 59 to connect the network cables to the

ports on the switch.

x510 Series Installation Guide for Stand-alone Switches

Installing the Switch in an Equipment Rack

This procedure requires the following items:

Eight bracket screws (included with the switch)

Two equipment rack brackets (included with the switch)

Flat-head screwdriver (not provided)

Cross-head screwdriver (not provided)

Four standard equipment rack screws (not provided)

Installation guidelines may be found in “Choosing a Site for the Switch” on

page 50. Here is the procedure for installing the switch in a 19-inch

equipment rack.

Caution

The chassis may be heavy and awkward to lift. Allied Telesis

recommends that you get assistance when mounting the chassis in

an equipment rack.  E28

1. Place the unit upside down on a level, secure surface.

Figure 14. Turning the Switch Upside Down

2. Using a flat-head screwdriver, pry the rubber feet from the bottom of

the switch. Refer to Figure 15.

Figure 15. Removing the Rubber Feet

Chapter 3: Installing the Switch on a Table or in an Equipment Rack

3. Turn the switch over.

4. Attach the two rack mount brackets to the sides of the switch using the

eight bracket screws included with the unit. Figure 16 and Figure 17 on

page 57 illustrate the four possible bracket positions.

Figure 16. Attaching the Equipment Rack Brackets

x510 Series Installation Guide for Stand-alone Switches

Figure 17. Attaching the Equipment Rack Brackets (Continued)

5. While another person holds the switch in the equipment rack, secure it

using standard equipment rack screws (not provided), as shown in

Figure 18.

Figure 18. Mounting the Switch in an Equipment Rack

Go to Chapter 4, “Cabling the Networking Ports” on page 59, to connect

the network cables to the ports on the switch.

Chapter 3: Installing the Switch on a Table or in an Equipment Rack

Chapter 4

Cabling the Networking Ports

This chapter contains the following procedures:

“Cabling the Twisted Pair Ports” on page 60

“Installing SFP and SFP+ Transceivers” on page 62

Chapter 4: Cabling the Networking Ports

Cabling the Twisted Pair Ports

Here are the guidelines to cabling the 10/100/1000Base-T twisted pair

ports:

The cable specifications for the 10/100/1000Base-T twisted pair

ports are listed in Table 1 on page 24.

The connectors on the cables should fit snugly into the ports, and

the tabs should lock the connectors into place.

The default setting for the wiring configurations of the ports is auto-

MDI/MDI-X. The default setting is appropriate for switch ports that

are connected to 10/100Base-TX network devices that also

support auto-MDI/MDI-X.

The default auto-MDI/MDI-X setting is not appropriate for switch

ports that are connected to 10/100Base-TX network devices that

do not support auto-MDI/MDI-X and have a fixed wiring

configuration. For switch ports connected to those types of network

devices, you should disable auto-MDI/MDI-X and set the wiring

configurations manually.

The appropriate MDI/MDI-X setting for a switch port connected to a

10/100Base-TX network device with a fixed wiring configuration

depends on the setting of the network device and whether the

switch and network device are connected with straight-through or

crossover cable. If you are using straight-through twisted pair

cable, the wiring configurations of a port on the switch and a port

on a network device must be opposite each other, such that one

port uses MDI and the other MDI-X. For example, if a network

device has a fixed wiring configuration of MDI, you must disable

auto-MDI/MDI-X on the corresponding switch port and manually

set it to MDI-X. If you are using crossover twisted pair cable, the

wiring configurations of a port on the switch and a port on a

network device must be the same.

The default speed setting for the ports is Auto-Negotiation. This

setting is appropriate for ports connected to network devices that

also support Aut-Negotiation.

The default speed setting of Auto-Negotiation is not appropriate for

ports connected to 10/100Base-TX network devices that do not

support Auto-Negotiation and have fixed speeds. For those switch

ports, you should disable Auto-Negotiation and set the port’s

speed manually to match the speeds of the network devices.

The 10/100/1000Base-T ports must be set to Auto-Negotiation, the

default setting, to operate at 1000Mbps.

The default duplex mode setting for the ports is Auto-Negotiation.

This setting is appropriate for ports connected to network devices

that also support Auto-Negotiation for duplex modes.

x510 Series Installation Guide for Stand-alone Switches

The default duplex mode setting of Auto-Negotiation is not

appropriate for ports connected to network devices that do not

support Auto-Negotiation and have a fixed duplex mode. You

should disable Auto-Negotiation on those ports and set their duplex

modes manually to avoid the possibility of duplex mode

mismatches. A switch port using Auto-Negotiation defaults to half-

duplex if it detects that the end node is not using Auto-Negotiation,

which can result in a mismatch if the end node is operating at a

fixed duplex mode of full-duplex.

Do not attach cables to ports of static or LACP port trunks until

after you have configured the trunks on the switch. Otherwise, the

ports will form network loops that can adversely affect network

performance.

Chapter 4: Cabling the Networking Ports

Installing SFP and SFP+ Transceivers

This section contains guidelines and procedures for installing SFP and

SFP+ transceivers. The installation procedures are listed here:

“Installing SFP Modules in the AT-x510-28GSX Switch” on page 63

“Installing SFP and SFP+ Modules” on page 66

Here are general installation guidelines for SFP and SFP+ transceivers:

SFP and SFP+ transceivers are hot-swappable. You may install

them while the chassis is powered on.

Your Allied Telesis sales representative can provide you with a list

of supported transceivers for the units.

The operational specifications and fiber optic cable requirements

of the transceivers are provided in the documents included with the

devices.

You should install a transceiver before connecting the fiber optic

cable.

Fiber optic transceivers are dust sensitive. Always keep the plug in

the optical bores when a fiber optic cable is not installed, or when

you store the transceiver. When you do remove the plug, keep it

for future use.

Unnecessary removal and insertion of a transceiver can lead to

premature failure.

Warning

A transceiver can be damaged by static electricity. Be sure to

observe all standard electrostatic discharge (ESD) precautions,

such as wearing an antistatic wrist strap, to avoid damaging the

device.

Note

SFP+ slots 27 and 28 on the 28-port switches and slots 51 and 52

on the 52-port switches are initially configured as stacking slots for

the VCStack feature. If you intend to use the switch as a stand-alone

unit, you must disable the VCStack feature before you can use the

slots with standard SFP or SFP+ transceivers. For instructions, refer

to Chapter 5, “Powering On the Switch” on page 69.

x510 Series Installation Guide for Stand-alone Switches

Installing SFP

Modules in the

AT-x510-28GSX

Switch

To install SFP transceivers in slots 1 to 24 of the AT-x510-28GSX Switch,

perform the following procedure:

1. Remove the dust plug from a transceiver slot on the switch. Refer to

Figure 19.

Figure 19. Removing the Dust Plug from an SFP Slot

2. Remove the transceiver from its shipping container and store the

packaging material in a safe location.

3. If you are installing the transceiver in a top slot, position the transceiver

with the Allied Telesis label facing up. If you are installing the

transceiver in a bottom slot, position the transceiver with the label

facing down.

4. Slide the transceiver into the slot until it clicks into place, as shown in

Figure 20 on page 64.

Chapter 4: Cabling the Networking Ports

Figure 20. Installing an SFP Transceiver

Note

If you are ready to attach the fiber optic cable to the transceiver,

continue with the next step. Otherwise, repeat steps 1 to 4 to install

the remaining SFP transceivers in the switch.

5. Remove the dust cover from the transceiver, as shown in Figure 21.

Figure 21. Removing the Dust Cover from an SFP Transceiver

6. Verify the position of the handle on the SFP transceiver. If the

transceiver is in a top slot, the handle should be in the upright position,

as shown in Figure 22 on page 65. If the transceiver is in a bottom slot,

the handle should be in the down position.

x510 Series Installation Guide for Stand-alone Switches

Figure 22. Positioning the SFP Handle in the Upright Position

7. Connect the fiber optic cable to the transceiver, as shown in Figure 23.

The connector on the cable should fit snugly into the port, and the tab

should lock the connector into place.

Figure 23. Connecting a Fiber Optic Cable to an SFP Transceiver

8. Repeat this procedure to install additional transceivers.

SFP Handle

Chapter 4: Cabling the Networking Ports

Installing SFP

and SFP+

Modules

To install SFP and SFP+ transceivers in slots 27 and 28 of the 28-port

switches and slots 51 and 52 of the 52-port switches, perform the following

procedure:

1. Remove the dust plug from a transceiver slot on the switch. Refer to

Figure 24 on page 66.

Figure 24. Removing the Dust Plug from an SFP+ Slot

2. Remove the transceiver from its shipping container and store the

packaging material in a safe location.

3. If you are installing the transceiver in a top slot, position the

transceiver with the Allied Telesis label facing up. If you are installing

the transceiver in a bottom slot, position the transceiver with the label

facing down.

4. Slide the transceiver into the slot until it clicks into place, as shown in

Figure 25 on page 67.

x510 Series Installation Guide for Stand-alone Switches

Figure 25. Installing an SFP or SFP+ Transceiver

Note

If you are ready to attach the fiber optic cable to the transceiver,

continue with the next step. Otherwise, repeat steps 1 to 4 to install

the remaining SFP or SFP+ transceivers in the switch.

5. Remove the dust cover from the transceiver, as shown in Figure 26.

Figure 26. Removing the Dust Cover from an SFP or SFP+ Transceiver

Chapter 4: Cabling the Networking Ports

6. Verify the position of the handle on the SFP transceiver. If the

transceiver is in a top slot, the handle should be in the upright position,

as shown in Figure 27. If the transceiver is in a bottom slot, the handle

should be in the down position.

Figure 27. Positioning the SFP or SFP+ Handle in the Upright Position

7. Connect the fiber optic cable to the transceiver, as shown in Figure 28.

The connector on the cable should fit snugly into the port, and the tab

should lock the connector into place.

Figure 28. Connecting a Fiber Optic Cable to an SFP or SFP+ Transceiver

8. Repeat this procedure to install additional transceivers.

SFP Handle

Chapter 5

Powering On the Switch

This chapter contains the following procedures:

“Powering On the Switch” on page 70

“Configuring the Switch for Stand-alone Operations” on page 74

“Specifying Ports in the Command Line Interface for Stand-alone

Switches” on page 80

Chapter 5: Powering On the Switch

Powering On the Switch

To power on the switch, connect the power cords to the connectors on the

back panels and to the appropriate power sources. All the models have

two power supplies with separate connectors.

Figure 29. Plugging in the AC Power Cord

Consider the following items as you power on the switch:

Connecting the two power cords to power sources that are on

different circuits will provide power redundancy to the switch in the

event a circuit fails.

Refer to “Power Specifications” on page 86 for the power

specifications of the switches.

Warning

Power cord is used as a disconnection device. To de-energize

equipment, disconnect the power cord.  E3

Note

Pluggable Equipment. The socket outlet shall be installed near the

equipment and shall be easily accessible.  E5

x510 Series Installation Guide for Stand-alone Switches

Monitoring the

Initialization

Processes

It takes about thirty seconds for the switch to initialize its management

software programs and features, and load the default configuration. You

may monitor the progress of the initialization process by watching the

switch ID LED. It displays the number “8” for about the first 15 seconds

and then displays the number “1.”

You may also monitor the bootup sequence by connecting a terminal or

computer that has a terminal emulator program, to the Console port on the

master switch. You will see the messages in Figure 30 here to Figure 32

on page 73.

Figure 30. Switch Initialization Messages

Bootloader 2.0.11 loaded

Press <Ctrl+B> for the Boot Menu

Reading filesystem...

Loading flash:x510-5.4.2a-20120727-1.rel...

Verifying release... OK

Booting...

Starting base/first... [ OK ]

Mounting virtual filesystems... [ OK ]

______________ ____

/\ \ / /______\

/ \ \_ __/ /| ______ |

/ \ | | / | ______ |

/ \ \ / / \ ____ /

/______/\____\ \/ /____________/

Allied Telesis Inc.

AlliedWare Plus (TM) v5.4.2A

Current release filename: x510-5.4.2a-20120727-1.rel

Original release filename: x510-5.4.2A-20120727-1.rel

Built: Fri Jul 27 04:11:42 NZST 2012 by: maker@maker04-build

Mounting static filesystems... [ OK ]

Checking flash filesystem... [ OK ]

Mounting flash filesystem... [ OK ]

Checking NVS filesystem... [ OK ]

Mounting NVS filesystem... [ OK ]

Starting base/dbus... [ OK ]

Starting base/syslog... [ OK ]

Chapter 5: Powering On the Switch

Figure 31. Switch Initialization Messages (Continued)

Starting base/loopback... [ OK ]

Starting base/poe_done... [ OK ]

Starting base/sysctl... [ OK ]

Received event poefw.done

Starting base/portmapper... [ OK ]

Received event syslog.done

Starting base/reboot-stability... [ OK ]

Starting base/autofs-card... [ OK ]

Checking system reboot stability... [ OK ]

Starting base/cron... [ OK ]

Starting base/appmond... [ OK ]

Starting hardware/openhpi... [ OK ]

Starting hardware/timeout... [ OK ]

Starting base/inet... [ OK ]

Starting base/modules... [ OK ]

Received event modules.done

Received event board.inserted

Received event hardware.done

Starting network/startup... [ OK ]

Starting network/stackd... [ OK ]

Starting network/election.timeout... [ OK ]

Received event network.enabled

Initializing HA processes:

openhpid, hostd, cntrd, nsm, auth, epsr, hsl

imiproxyd, irdpd, lldpd, loopprot, mstp, ospf6d, ripd

ripngd, rmon, sflowd, udldd, vrrpd, bgpd, imi

lacp, ospfd, pdmd, pimd

Received event network.initialized

03:44:11 awplus-1 VCS[826]: No neighboring members found, unit may be in a

stand alone configuration

03:44:11 awplus-1 VCS[826]: Startup speed can be improved by adding 'no stack

enable' to configuration

Received event vcs.elected-master

03:44:11 awplus-1 VCS[826]: Member 1 (0015.774f.ed30) has become the Active

Master

x510 Series Installation Guide for Stand-alone Switches

Figure 32. Switch Initialization Messages (Continued)

After the switch has initialized its management software, go to

“Configuring the Switch for Stand-alone Operations” on page 74 to confirm

its ID number.

Assigning Active Workload to HA processes:

hsl, nsm, rmond, sflowd, vrrpd, irdpd, lacpd

lldpd, loopprotd, mstpd, authd, epsrd, imi, imiproxyd

Received event network.activated

Loading default configuration

Warning: flash:/default.cfg does not exist, loading factory defaults.

done!

Received event network.configured

awplus login:

Chapter 5: Powering On the Switch

Configuring the Switch for Stand-alone Operations

After the switch has initialized its management software, examine the

switch ID LED on the front panel and do one of the following:

If the LED is displaying “0,” the installation procedure is complete.

The switch is now ready for network operations as a stand-alone

unit. Refer to the Software Reference for x510 Series Switches,

AlliedWare Plus Operating System, for instructions on how to

configure the operating parameters.

If the LED is displaying a number other than “0,” perform the

following procedures to disable the VCStack feature.

You can disable the VCStack feature from a local management session of

the switch using the Console port. To start a local management session,

go to “Starting a Local Management Session,” next.

Caution

You have to reset the switch to disable the VCStack feature. Some

network traffic may be lost if the device is already connected to a live

network.

Note

The initial management session of the switch must be from the

Console port.

Starting a Local

Management

Session

This procedure requires a terminal or a terminal emulator program and

the management cable that comes with the switch. To start a local

management session on the switch, perform the following procedure:

1. Connect the RJ-45 connector on the management cable to the

Console port on the front panel of the switch, as shown in Figure 33 on

page 75.

x510 Series Installation Guide for Stand-alone Switches

Figure 33. Connecting the Management Cable to the Console Port

2. Connect the other end of the cable to an RS-232 port on a terminal or

PC with a terminal emulator program.

3. Configure the terminal or terminal emulator program as follows:

Baud rate: 9600 bps (The baud rate of the Console Port is

adjustable from 1200 to 115200 bps. The default is 9600 bps.)

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

Note

The port settings are for a DEC VT100 or ANSI terminal, or an

equivalent terminal emulator program.

4. Press Enter.

You are prompted for a user name and password.

5. When prompted for a user name, go to “Disabling VCStack” on

page 76.

Chapter 5: Powering On the Switch

Disabling

VCStack

To disable the VCStack feature to use the switch as stand-alone unit,

perform the following procedure:

Caution

Disabling the VCStack feature requires resetting the switch. If the

switch is already connected to a live network, some network traffic

may be lost.

1. When prompted, enter a user name and password to log on the

switch. If this is the initial management session of the switch, enter

“manager” as the user name and “friend” as the password. The user

name and password are case sensitive.

The local management session starts when the User Exec mode

prompt, shown in Figure 34. is displayed.

Figure 34. User Exec Mode Prompt

Note

The User Exec mode is the first level in the command mode

interface. For complete information on the modes and commands,

refer to the Software Reference for x510 Series Switches,

AlliedWare Plus Operating System from www.alliedtelesis.com.

2. Enter the SHOW STACK command to display the status of the

VCStack feature. Figure 35 is an example of the command.

Figure 35. SHOW STACK Command

3. Review the following items:

If the Operational Status is “Stacking Hardware Disabled,” the

VCStack feature is already disabled on the switch and the SFP+

stacking slots may be used with regular SFP or SFP+ transceivers.

awplus>

awplus> show stack

Virtual Chassis Stacking summary information

ID Pending ID MAC address Priority Status Role

1 - 0015:774f:ed30 128 Ready Active Master

Operational Status Standalone Unit

Stack MAC address 0015:774f:ed30

awplus(config)#

x510 Series Installation Guide for Stand-alone Switches

If the Operational Status is “Standalone Unit,” as shown in Figure

35 on page 76, the VCStack feature is active on the unit. You must

disable it by performing the steps in the rest of this procedure

before you can use the SFP+ stacking slots with regular SFP or

SFP+ transceivers. The reason the status says “standalone” is

because the switch considers itself a stack of one switch.

4. Move to the Global Configuration mode by entering the ENABLE and

CONFIGURE TERMINAL commands, as shown in Figure 36.

Figure 36. Moving to the Global Configuration Mode

5. To. disable the VCStack feature on the switch, enter the NO STACK

ENABLE command, which has this format:

no stack

enable

The ID parameter is the ID number of the switch, displayed on the ID

LED. Replace the parameter with whatever number is on the ID LED.

For example, if the ID number of the switch is 1, the default value,

enter the command as follows:

awplus(config)# no stack 1 enable

This confirmation prompt in Figure 37 is displayed.

Figure 37. Confirmation Prompt for the NO STACK ENABLE Command

6. Type Y to disable VCStack on the switch or N to cancel the procedure.

7. Enter the EXIT command to return to the Privileged Exec mode, as

shown in Figure 38.

Figure 38. Returning to the Privileged Exec Mode

8. Enter the WRITE command to save your change in the configuration

file. The switch displays the confirmation prompt in Figure 39 on page

78.

awplus> enable

awplus# configure terminal

Enter configuration commands, one per line. End with CNTL/Z

awplus(config)#

Warning; This will disable the stacking hardware on member-1.

Are you sure you want to continue? (y/n):

awplus(config)# exit

awplus#

Chapter 5: Powering On the Switch

Figure 39. Saving the Changes with the WRITE Command

9. Enter the REBOOT command to reboot the switch.

10. At the confirmation prompt, type “Y” for yes.

11. Wait for the switch to initialize its management software and

afterwards examine the Switch ID LED. The switch is ready for normal

network operations as a stand-alone unit when its ID number is “0.”

Refer to the Software Reference for x510 Series Switches, AlliedWare

Plus Operating System, for instructions on how to configure the

operating parameters. If the number is not “0,” repeat this procedure.

Confirming the

Status of the

VCStack Feature

Another way to confirm that VCStack is disabled on the switch is by

displaying the status of the last two SFP+ slots on the switch. These are

slots 27 and 28 on the 28-port switches and slots 51 and 52 on the 52-port

switches. If VCStack is disabled, you should be able to display the status

of the slots even when they do not have transceivers. If VCStack is not

disabled, the switch displays a message that it cannot find the slots. To

view the status of the stacking slots, perform this procedure:

1. Start a management session on the switch. For directions, refer to

“Configuring the Switch for Stand-alone Operations” on page 74.

2. Log on to the switch. The default user name is “manager” and the

password is “friend”.

3. From either the User Exec mode or Privileged Exec mode, enter the

SHOW INTERFACE command to display the status of one of the last

two SFP+ slots on the switch. For example, for the AT-x510-28GTX

Switch, enter this command to view the status of slot 27:

show interface port1.0.27

4. For the AT-x510-52GTX Switch, enter this command to view the status

of slot 51:

show interface port1.0.51

If VCStack is disabled, the switch displays the status of the designated

slot. An example is shown in Figure 40 on page 79.

awplus# write

Building configuration ...

[OK]

awplus#

x510 Series Installation Guide for Stand-alone Switches

Figure 40. Status of a Stacking Slot When VCStack is Disabled

The switch displays the message in Figure 41 if VCStack is not

disabled, in which case you need to disable it by performing the

commands in “Disabling VCStack” on page 76.

Figure 41. Status of a Stacking Slot When VCStack is Enabled

awplus>show interface port1.0.51

Interface port1.0.51

Scope: both

Link is DOWN, administrative state is UP

Thrash-limiting

Status Not Detected, Action learn-disable, Timeout 1(s)

Hardware is Ethernet, address is 0015.774f.ed30

index 5051 metric 1 mru 1500

configured duplex auto, configured speed auto, configured polarity auto

<UP,BROADCAST,MULTICAST>

SNMP link-status traps: Disabled

input packets 0, bytes 0, dropped 0, multicast packets 0

output packets 0, bytes 0, multicast packets 0 broadcast packets 0

Time since last state change: 0 days 00:42:49

awplus# show interface port1.0.51

%Can’t find interface port1.0.51

awplus#

Chapter 5: Powering On the Switch

Specifying Ports in the Command Line Interface for Stand-alone

Switches

The command line interface in the management software on the switch

has a parameter that you use to specify the individual ports. The

parameter is the PORT parameter and Figure 42 shows its format.

Figure 42. PORT Parameter in the Command Line Interface

The first number is the switch’s ID number. The ID number for stand-alone

switches is not the value 0 displayed on the Switch ID LEDs. Rather, it is

1. Be sure to enter 1, not 0, as the ID number in the PORT parameter

when configuring ports on stand-alone switches.

The module ID value is used with multi-module products. This value does

not apply to the x510 Series switches and should always be 0.

The third value is a port number on the switch. You may specify only one

port number in a PORT parameter, but you may specify more than one

PORT parameter in many commands where the parameter is supported.

Here is an example of the PORT parameter on a stand-alone switch. It

uses the INTERFACE command to enter the Port Interface mode for ports

15 and 17:

awplus> enable

awplus# configure terminal

awplus(config)# interface port1.0.15,port1.0.17

For instructions on the command line interface and the PORT parameter,

refer to the Software Reference for x510 Series Switches, AlliedWare Plus

Operating System.

port1

Module ID

Port Number

Stack ID

Chapter 6

Troubleshooting

This chapter contains suggestions on how to troubleshoot the switch if a

problem occurs.

Note

For further assistance, please contact Allied Telesis Technical

Support at www.alliedtelesis.com/support.

Problem 1: The Switch ID LED on the front of the switch is off.

Solutions: The unit is not receiving power. Try the following:

Verify that the power cord is securely connected to the power

source and to the AC connector on the back panel of the switch.

Verify that the power outlet has power by connecting another

device to it.

Try connecting the unit to another power source.

Try a different power cord.

Verify that the voltage from the power source is within the required

levels for your region.

Problem 2: All of the port LEDs are off even though the ports are

connected to active network devices.

Solution: The switch may be operating in the low power mode. To toggle

on the LEDs, press the eco-friendly button on the front panel of the switch.

You may also toggle the LEDs off and on with the ECOFRIENDLY LED

and NO ECOFRIENDLY LED commands in the command line interface.

Problem 3: A twisted pair port on the switch is connected to a network

device but the port’s LINK/ACT LED is off.

Solutions: The port is unable to establish a link to a network device. Try

the following:

Verify that the port is connected to the correct twisted pair cable.

This is to eliminate the possibility that the port is connected to the

wrong network device.

Verify that the network device connected to the twisted pair port is

powered on and is operating properly.

Chapter 6: Troubleshooting

Try connecting another network device to the twisted pair port with

a different cable. If the twisted pair port is able to establish a link,

then the problem is with the cable or the other network device.

Verify that the twisted pair cable does not exceed 100 meters (328

feet).

Verify that you are using the appropriate category of twisted pair

cable. The cable types are listed in Table 1 on page 24 for the 10/

100/1000Base-T ports.

Note

A 1000Base connection may require five to ten seconds to establish

a link.

Problem 4: The LINK/ACT LED for an SFP or SFP+ transceiver is off.

Solutions: The fiber optic port on the transceiver is unable to establish a

link to a network device. Try the following:

Verify that the remote network device connected to the fiber optic

port is operating properly.

Verify that the fiber optic cable is securely connected to the port on

the SFP or SFP+ module and to the port on the remote network

device.

Check that the transceiver is fully inserted in the slot.

If you are using SFP+ slots 27 or 28 on the 28-port switches or

slots 51 and 52 on the 52-port switches, check that VCStack is

disabled on the switch. The VCStack feature has to be disabled

before you can use these slots for regular SFP or SFP+

transceivers. For instructions, refer to “Configuring the Switch for

Stand-alone Operations” on page 74

Verify that the operating specifications of the fiber optic ports on

the transceiver and remote network device are compatible.

Verify that the correct type of fiber optic cabling is being used.

Verify that the port is connected to the correct fiber optic cable.

This is to eliminate the possibility that the port is connected to the

wrong remote network device.

Try connecting another network device to the fiber optic port using

a different cable. If the port is able to establish a link, then the

problem is with the cable or with the other network device.

Use the switch’s management software to verify that the port is

enabled.

If the remote network device is a managed device, use its

management firmware to determine whether its port is enabled.

x510 Series Installation Guide for Stand-alone Switches

Test the attenuation of both directions on the fiber optic cable with

a fiber optic tester to determine whether the optical signal is too

weak (sensitivity) or too strong (maximum input power).

Problem 5: Network performance between a twisted pair port on the

switch and a network device is slow.

Solution: There might be a duplex mode mismatch between the port and

the network device. This can occur when a twisted pair port using Auto-

Negotiation is connected to a remote device that has a fixed speed of 10

or 100 Mbps and a fixed duplex mode of full duplex. If this is the cause of

the problem, adjust the duplex mode of the port on the network device or

switch so that both ports are using the same duplex mode. You can use

either the LEDs or management software on the switch to determine the

duplex mode settings of the ports. The LEDs are described in Table 6 on

page 34.

Problem 6: The switch functions intermittently.

Solutions: Check the system hardware status through the management

software:

Use the SHOW SYSTEM ENVIRONMENT command in the

Privileged Exec mode to verify that the input voltage from the

power source to the switch is stable and within the approved

operating range. The unit will shutdown if the input voltage

fluctuates above or below the approved operating range.

Use the SHOW SYSTEM ENVIRONMENT command in the

Privileged Exec mode to verify that the fan is operating correctly.

Verify that the location of the switch allows for adequate airflow.

The unit will shutdown if it is in danger of overheating.

Problem 7: The Switch ID LED on the front of the switch is flashing the

letter “F.”

Solutions: One or more of the following problems has occurred:

A cooling fan has failed.

One of the power supplies has failed.

The input voltage on one or both of the power supplies is outside

the normal operating range.

The internal temperature of the switch has exceeded the normal

operating range and the switch may shut down.

Contact your Allied Telesis sales representative for assistance.

Chapter 6: Troubleshooting

Problem 8: The AT-x510-28GPX or AT-x510-52GPX Switch is not

providing power to a PoE device.

Solutions: Try the following:

Review the PD’s documentation to confirm that the device

supports Mode A of the IEEE 802.3at standard. Mode A is one of

two modes that define the connector pins that deliver the power

from the port on the line card to the PD. In Mode A, the power is

carried on pins 1, 2, 3, and 6 on the RJ-45 port, the same pins that

carry the network traffic. The second mode, Mode B, defines pins

4, 5, 7, and 8 as the power carriers. The AT-x510-28GPX and AT-

x510-52GPX Switches do not support Mode B. Most powered

devices are designed to accept power by either mode, but some

legacy devices may only support one mode. This can be verified

by reviewing the device’s documentation or data sheet. Legacy

devices that only support Mode B will not work with the switches.

Check that the device’s power requirements do not exceed 30 W.

This can be verified by reviewing the device’s documentation or

data sheet.

Verify that you are using the appropriate category of twisted-pair

cable by referring to Table 3 on page 26.

Use the management software on the switch to determine whether

PoE is enabled on the port. The default setting for PoE is enabled.

Use the management software on the switch to determine whether

the PoE power setting for the port has been reduced to a value

below the power requirements of the device.

Try connecting the device to a different port on the switch.

Appendix A

Technical Specifications

Physical Specifications

Dimensions (H x W x D)

Weights

Ventilation

Table 11. Product Dimensions

AT-x510-28GTX 4.4 cm x 44.0 cm x 32.3 cm

(1.7 in. x 17.3 in. x 12.7 in.)

AT-x510-28GPX 4.4 cm x 44.0 cm x 39.8 cm

(1.7 in. x 17.3 in. x 15.7 in.)

AT-x510-28GSX 4.4 cm x 44.0 cm x 32.3 cm

(1.7 in. x 17.3 in. x 12.7 in.)

AT-x510-52GTX 4.4 cm x 44.0 cm x 32.3 cm

(1.7 in. x 17.3 in. x 12.7 in.)

AT-x510-52GPX 4.4 cm x 44.0 cm x 40.0 cm

(1.7 in. x 17.3 in. x 15.7 in.)

Table 12. Product Weights

AT-x510-28GTX 4.3 kg (9.5 lb.)

AT-x510-28GPX 5.8 kg (12.8 lb.)

AT-x510-28GSX 4.8 kg (10.6 lb.)

AT-x510-52GTX 5.2 kg (11.5 lb.)

AT-x510-52GPX 6.2 kg (13.7 lb.)

Table 13. Ventilation Requirements

Recommended Minimum

Ventilation on All Sides

10 cm (4.0 in)

Appendix A: Technical Specifications

Environmental Specifications

Power Specifications

Maximum Power Consumption

Input Voltages

Table 14. Environmental Specifications

Operating Temperature 0° C to 45° C (32° F to 113° F)

Storage Temperature -25° C to 70° C (-13° F to 158° F)

Operating Humidity 5% to 90% noncondensing

Storage Humidity 5% to 95% noncondensing

Maximum Operating Altitude 3,000 m (9,842 ft)

Maximum Nonoperating Altitude 4,000 m (13,100 ft)

Table 15. Maximum Power Consumption

AT-x510-28GTX 40 watts per input

AT-x510-28GPX 210 watts per input

AT-x510-28GSX 40 watts per input

AT-x510-52GTX 70 watts per input

AT-x510-52GPX 270 watts per input

Table 16. Input Voltages

AT-x510-28GTX AC model: 100-240 VAC, 1.0A

maximum, 50/60 Hz per input

AT-x510-28GPX AC model: 100-240 VAC, 3.0A

maximum, 50/60 Hz per input

AT-x510-28GSX AC model: 100-240 VAC, 1.0A

maximum, 50/60 Hz per input

AT-x510-52GTX AC model: 100-240 VAC, 1.0A

maximum, 50/60 Hz per input

x510 Series Installation Guide for Stand-alone Switches

Certifications

RJ-45 Twisted Pair Port Pinouts

Figure 43 illustrates the pin layout of the RJ-45 connectors and ports.

Figure 43. RJ-45 Socket Pin Layout (Front View)

Table 18 lists the pin signals for 10 and 100 Mbps.

AT-x510-52GPX AC model: 100-240 VAC, 3.0A

maximum, 50/60 Hz per input

Table 16. Input Voltages (Continued)

Table 17. Product Certifications

EMI (Emissions) FCC Class A, EN55022 Class A,

EN61000-3-2, EN61000-3-3, VCCI

Class A, CISPR Class A, C-TICK,

EMC (Immunity) EN55024

Electrical and Laser Safety EN60950-1 (TUV), UL 60950-1

(CULUS), EN60825

Compliance Marks CE, CULUS, TUV, C-Tick

Table 18. Pin Signals for 10 and 100 Mbps

Pin MDI Signal MDI-X Signal

1TX+ RX+

2TX- RX-

Appendix A: Technical Specifications

Table 19 lists the pin signals when a port operating at 1000 Mbps.

RJ-45 Style Serial Console Port Pinouts

Table 20 lists the pin signals of the RJ-45 style serial Console port.

3RX+ TX+

4 Not used Not used

5 Not used Not used

6RX- TX-

7 Not used Not used

8 Not used Not used

Table 19. Pin Signals for 1000 Mbps

Pinout Pair

1Pair 1 +

2Pair 1 -

3Pair 2 +

4Pair 3 +

5Pair 3 -

6Pair 2 -

7Pair 4 +

8Pair 4 -

Table 18. Pin Signals for 10 and 100 Mbps (Continued)

Pin MDI Signal MDI-X Signal

Table 20. RJ-45 Style Serial Console Port Pin Signals

Pin Signal

1 Looped to pin 8.

2 Looped to pin 7.

x510 Series Installation Guide for Stand-alone Switches

3 Transmit Data

4 Ground

5 Ground

6 Receive Data

7 Looped to pin 2.

8 Looped to pin 1.

Table 20. RJ-45 Style Serial Console Port Pin Signals (Continued)

Pin Signal

Appendix A: Technical Specifications
