Yanzi Climate Product Brief Doc No: 890-07055 Ver: 02 Date: 2015-09-02

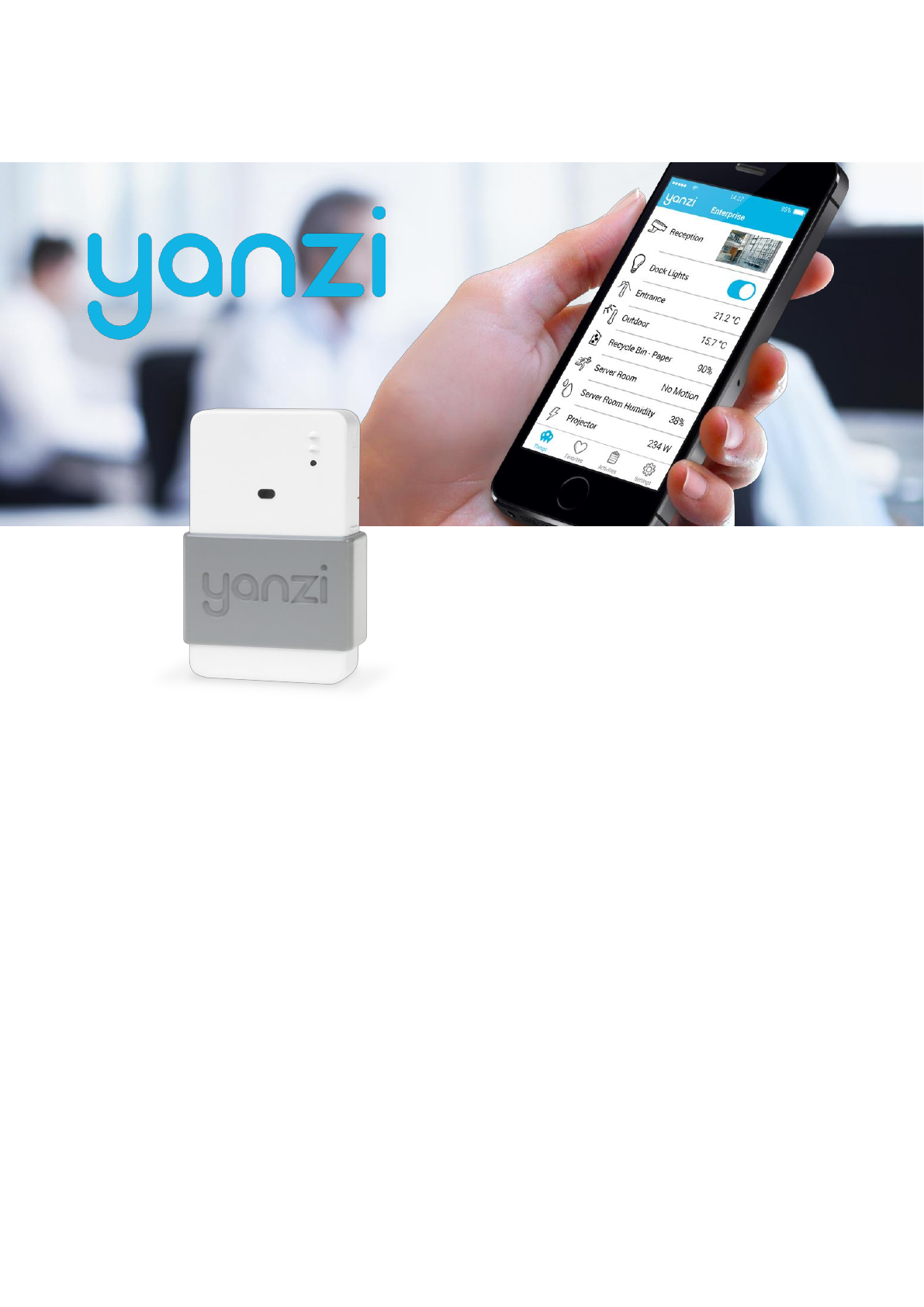

Yanzi Climate
Yanzi Climate measures temperature and humidity indoor
or outdoor. Yanzi Climate can be used as frost alarm in
cirital places, for humidity monitoring in server rooms, for
fridge monitoring in stores, or to measure outdoor
temperature on a remote Location.
Set a threshold to receive notifications over Cirrus API,
SMS, or push notice if temperature or humidity limits are
breached or keep track of temperature/humidity variations.
Yanzi Climate connects wirelessly to Yanzi Gateway or
Yanzi IoT Access Point in a secure way through Yanzi's
“Zero-Touch configuration” and it can be immediately
accessed through the Cirrus API or the Yanzi App.
Product Brief Yanzi Smart Building Solution
Yanzi Networks reserve the right to change this specification at any time without notice. Disclaimer: Yanzi Networks can not guarantee that this specification is 100% correct.
Yanzi Climate Product Brief Doc No: 890-07055 Ver: 02 Date: 2015-09-02
Highlights
● Simple to install - single tap encryption
setup
● Provides temperature and relative
humidity
● Easily mounted on walls or standing
on a shelf
For instructions and information about safety, warranty, and recycling, please visit
www.yanzinetworks.com
Getting started
Two steps to get started
1. Plug in batteries
2. Accept over Cirrus or in Yanzi App
You are now ready to interact with your
Yanzi Climate
Specifications
Measurement Range
● Humidity 0% to 100% RH
● Temperature -30°C to +60°C
Measurement Accuracy
● Humidity ±5% (20-80% RH)
● Temperature ±0.5°C (-10°C to +60°C)
±1°C (-30°C to -10°C)
Power
● 4 pcs of 1.5V AA Lithium Li-Fe or
4 pcs of 1.5V AA Alkaline batteries
● Battery lifetime expectancy up to 10 years*
Wireless Performance:
● IEEE 802.15.4 2.4GHz IPv6 Sensor
Network supporting Mesh Technology
● Wireless Output Power
3dBm - 8dBm (~2 - 6.3mW)
● Wireless Range 5-25m indoor,
50 - 100m Line of Sight (Indicative)
● Omnidirectional internal antenna,
0.5dBi peak gain
● ECC/AES encryption. High security with
unique encryption keys for each Yanzi
Climate - automatically installed at setup
Environmental Requirements
● Operating Requirements -30°C to +60°C,
0 - 100% RH(non-condensing)
Indoor and protected outdoor
● Storage Requirements 0°C to +50°C,
20 - 80% RH(non-condensing)
● IP42 protection
Designed for vertical mounting
when outdoors
External Buttons
● Status (press to show status on LED)
● Reset (press and hold for >20 s)
Dimensions
● 96 x 62 x 29 mm
* To ensure long battery life, Lithium batteries are required,
especially in conditions with temperatures below 0°C
Ordering Information
SWTH1-1230 Yanzi Climate
Doc No: 864-02049, Rev 1
Caution:
This device complies with Part 15 of the FCC. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
