Altiostar Networks, Inc. PCS band LTE Remote Radio Head Specsheet

Contents

Specsheet

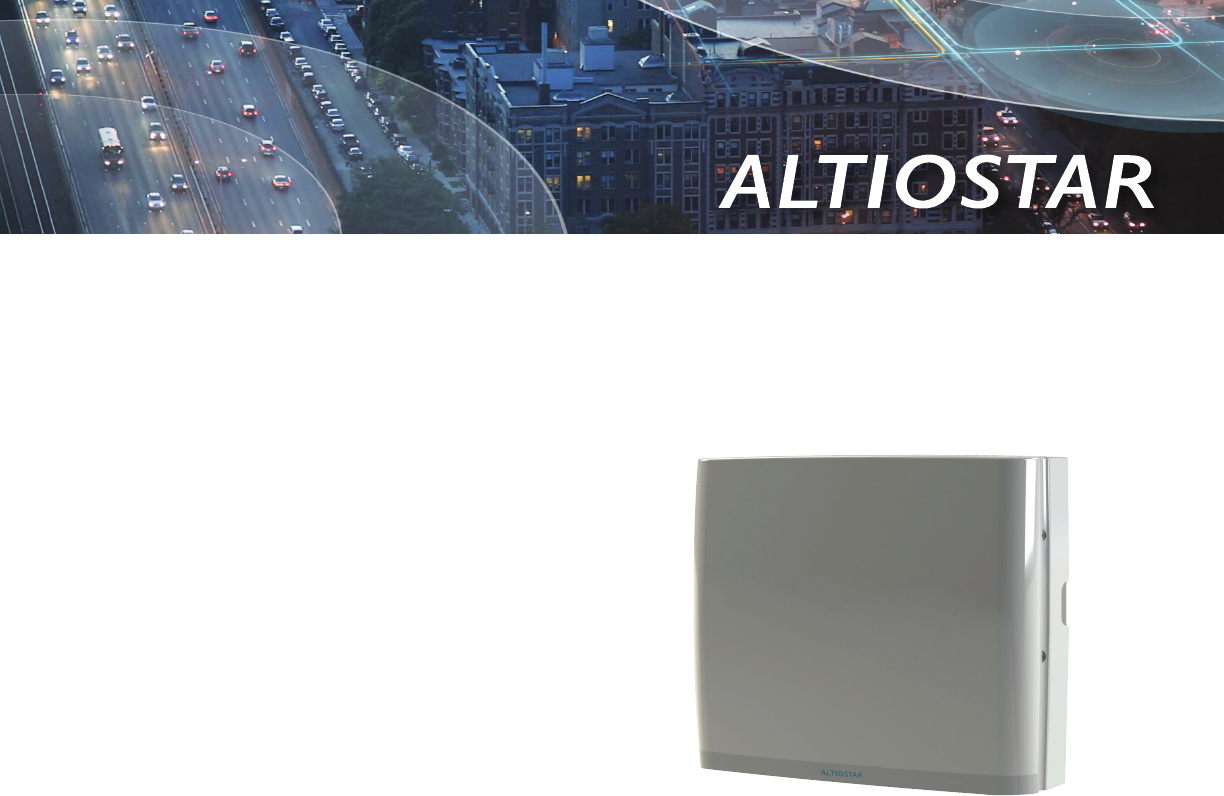

The iRM4451 Intelligent Macrocell Remote Radio Head
(iRRH) is an energy-efficient radio system using lead-
ing-edge multicore processors. It is designed with a
robust, convection-cooled (fanless), IP65 housing for
use in all outdoor environments. In conjunction with
the Altiostar virtual baseband unit (vBBU), the iRM4451
provides a complete intelligent C-RAN solution.
The iRM4451 is capable of providing Macrocellular
(3GPP Wide Area base station) coverage capability with
four transmitters and four receivers (4T4R), and a total
combined transmit power of up to 120W across its RF
ports (four x 30W, or 51dBm). It also supports a lower
power mode with 80W (four x 20 W, or 49 dBm).
The radio transceiver is based on a wideband transceiver
design permitting rapid development of new products
and bands. The design is configured through software
to support all key LTE channel bandwidths, starting
from 5 MHz to 20 MHz. The product incorporates highly
flexible and adaptive DPD and CFR algorithms that
provide excellent linearity and EVM performance. The
receivers offer diversity or MIMO reception with a high
linearity, low noise figure design, that exceeds the 3GPP
requirements.
The iRM4451 has dual, direct-access, IP67 rated fiber
ports. These ports provide data and communications
between the iRRH and the vBBU.
For system synchronization and timing, the Macrocell
iRRH has an onboard GPS receiver. It also has IEEE
1588v2 capabilities that support scenarios where access
to clear sky for GPS is restricted or where IEEE 1588v2 is
the preferred synchronization method.
iRM4451 - Intelligent Macrocellular Remote Radio Head (iRRH)
iRM4451 Product Description:
This datasheet describes products in development by Altiostar Networks, Inc. Information may be subject to change.
iRM4451
Summary of the iRM4451 features & benefits:
• Highly flexible and adaptive DPD and CFR algorithms,
for excellent transmitter linearity, EVM performance, and
frequency accuracy
• 30W per RF path in a 4T4R configuration
• Low Power PA biasing to operate at 20W per path with
highest achievable efficiency
• Factory configurable Signal Processing Module (SPM)
to support advanced processing requirements on a
per-customer or per-deployment basis
• Can be remotely located from the server hosting
the vBBU, using readily available wired or wireless
Ethernet-based transport (certain delay and bandwidth
requirements must be met)
• Use of low phase-noise architecture with a high stability
Phase Locked Loop (PLL) and high linearity through the
RF chain providing minimal distortion of transmitted
signals
• Remote management and control capability for
configuration, diagnostics, troubleshooting, etc.
• Integrated with Self Organizing Network (SON) solution
to reduce truck rolls and associated manual configura-
tion costs
• QoS, interference, channel-aware Weighted
Proportionally Fair (WPF) scheduler for improved
spectral efficiency
For more information, contact:
Email: info@altiostar.com
Phone: +1-855-709-0701
200 Ames Pond Dr.
Tewksbury, MA 01876, USA
© Copyright 2015, Altiostar Networks, Inc. All rights reserved. Information and product specication subject to change without notice. Altiostar Networks, Inc. assumes no responsibility
for inaccuracies contained herein. Altiostar Networks, Inc., Altiostar, and the Altiostar logo are registered trademarks of Altiostar Networks, Inc. All other trademarks are the property of
their respective owners.
Technical Specifications:
Frequency Band(s):
Duplex Mode: FDD
TRx Configuration: 4T4R
Number of Carriers: 1 (Multi-Carrier Software Upgrade - TBD)
Max. RF Output Power: 120 W (4 x 30 W)
Max IBW: 45 MHz (25 MHz OBW)
Channel Configurations: 5, 10, 15, 20 MHz
Timing & Synchronization: GPS and 1588v2
Dimensions (H×W×D):
Volume: <39 L
Weight: 75 lbs (34.2 kg)
(Excludes Brackets, Solar Cover)
Mounting Options: Wall / Mast
Power Supply: −48 VDC
Consumption (Typ.): 600 W
External Interfaces:
RF Connector: 50 Ω 7/16 DIN (Female)
Data (Fiber): Q-XCO Connector (Ethernet x 2)
Power Input: Tyco CPC Series 5
GPS: SMA (Female)
AISG/RET: 8-pin IEC 60130-9 (Female)
Operating Temperature: −40° to 131°F
(−40° to 55°C )
IP Rating: IP65
Cooling: Fanless Convection
MTBF: > 10 years
iRM-44510200
PCS
(3GPP Band 2)
UL 1850–1910 MHz
DL 1930–1990 MHz
iRM-44510700
2.6 GHz
(3GPP Band 7)
UL 2500–2570 MHz
DL 2620–2690 MHz
iRM-44510300
1800 MHz
(3GPP Band 3)
UL 1710–1785 MHz
DL 1805–1880 MHz
iRM-4451E400
AWS-1 & AWS-3
(3GPP Band 4 + AWS-3)
UL 1710–1780 MHz
DL 2110–2180 MHz
iRM-44510400
AWS
(3GPP Band 4)
UL 1710–1755 MHz
DL 2110–2155 MHz
Radio Module:
17.7 in × 21.1 in × 6.1 in
(450 mm × 535 mm × 156 mm)
SPM (Delta to Radio Module):
13.8 in × 6.0 in × 0.9 in
(350 mm × 153 mm × 24 mm)
