User manual rev1

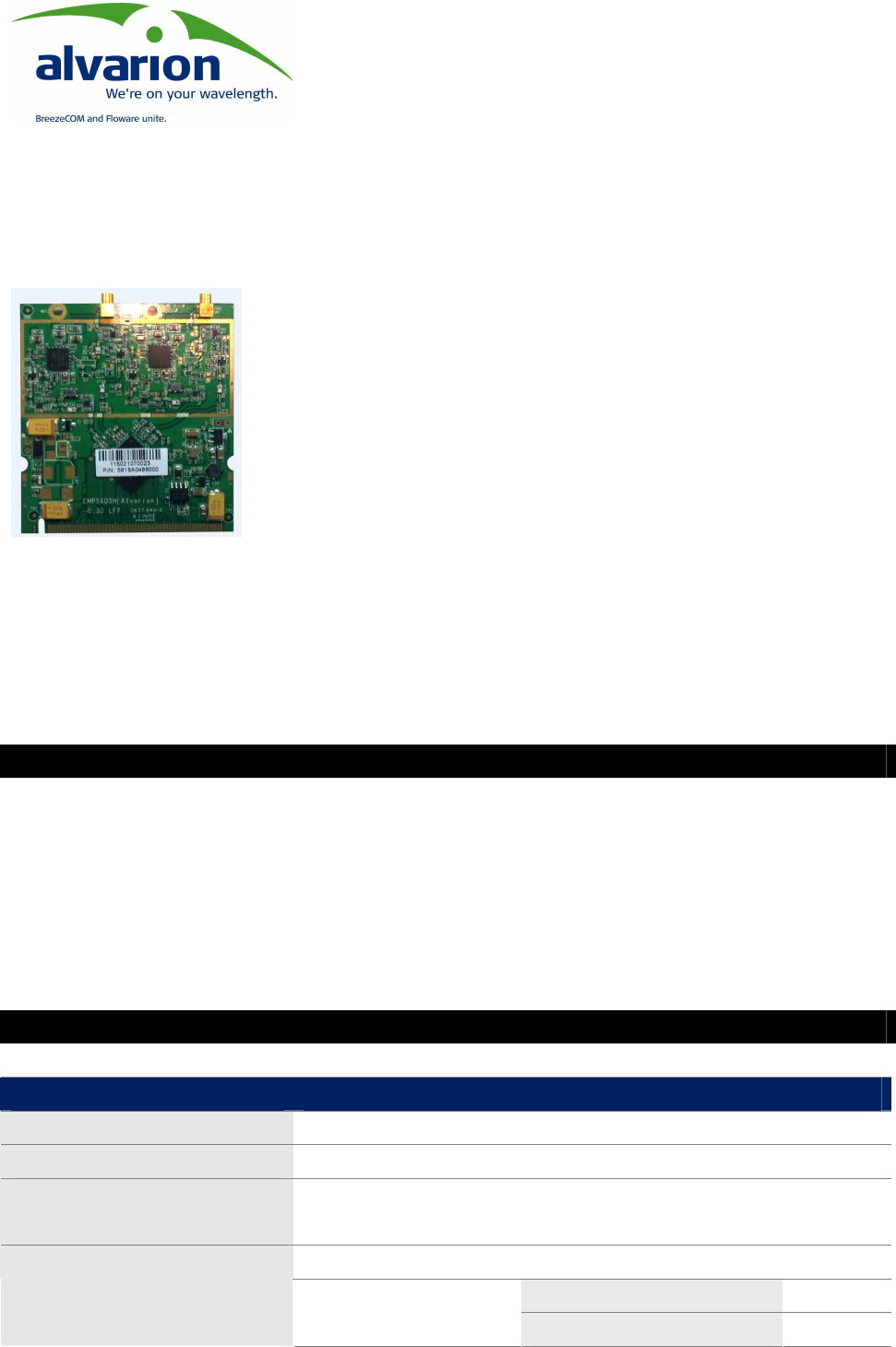

EMP5605H (ALVARION)
High Power 5GHz 11n Mini-PCI Adapter
5GHz IEEE802.11a/n 2T2R 300Mbps High Performance
Alvarion Ltd
21A HaBarzel Street
Tel Aviv 69710 ISRAEL
Tel: + 972-3-6456262
Fax: + 972-3-6456290
www.alvarion.com
Package Contents
1 x MiniPCI Adapter (EMP5605H
(ALVARION))
Alvarion miniPCI series radio modules perform extreme high
power and economize the power consumption on the system
platform. EMP5605H (ALVARION) is an 802.11a/n WiFi 2x2 mini-PCI
module designed specifically for integration to maximum
performance ratio. EMP5605H (ALVARION) delivers the ultimate
wireless triple play experience for video, voice, and data
transmission in the home, for the business, and on the road.
With enhanced features on the ESD protection, industrial-based
operating temperature, economized system power
consumption, industrial-best sensitivity than normal module,
MMCX connectors, and stable heating protection design, makes
the module is easily to integrate into a wide range of any
platform.
Features
Industrial-best sensitivity -90dBm@6Mbps, -72dBm@54Mbps, -89dBm@MCS0/MCS8,
-70dBm@MCS7/MCS15
Supports IEEE 802.11a/802.11n Compatible among multiple wifi networks
Enables bandwidth up to 300Mbps Fast throughput for 802.11a and 802.11n
2T2R design architecture Higher and greater reliable throughputs over range
MMCX antenna connector Two MMCX connectors
Specification
Hardware Specification
Standard WECA(WiFi & WiFi5 Compliance), IEEE802.11a/n, RoHS
Chipset Atheros AR9220
Physical Interface 32-bit Mini-PCI Type III A
2 x MMCX Connector
Power Requirements External DC power in supported, Voltage=5V
Continuous Tx@802.11a <1.7A
Current Consumption Information
Tx Current Consumption
Continuous Tx@802.11n <2A
EMP5605H (ALVARION)
High Power 5GHz 11n Mini-PCI Adapter
5GHz IEEE802.11a/n 2T2R 300Mbps High Performance
Alvarion Ltd
21A HaBarzel Street
Tel Aviv 69710 ISRAEL
Tel: + 972-3-6456262
Fax: + 972-3-6456290
www.alvarion.com
Rx Current Consumption Continuous Rx <600mA
Card on Current Data Communicating with AP
<450mA
Sleep Current Sleep Mode <100mA
RF Specification
Frequency Band 802.11a
5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz, 5.725~5.825GHz
Data rate 300 Mbps
Receive Sensitivity (Typical) 802.11n(20MHz)
-89dBm @ MCS0/MCS8
-70dBm @ MCS7/MCS15
802.11n(40MHz)
-86dBm @ MCS0/MCS8
-68dBm @ MCS7/MCS15
802.11a
-90dBm @ 6Mbps
-72dBm @ 54Mbps
Available transmit power
( with external 5V power )
802.11n ( ±
±±
± 2dBm )
26dBm @ MCS0~1/MCS8~9
25dBm @ MCS2~3/MCS10~11
24dBm @ MCS4/MCS12
23dBm @ MCS5/MCS13
23dBm @ MCS6/MCS14
21dBm @ MCS7/MCS15
802.11a( ±
±±
± 2dBm )
26dBm @ 6~24Mbps
25dBm @ 36Mbps
24dBm @ 48Mbps
23dBm @ 54Mbps
Software Specification
Security WPA, WPA2, 64/128 bits WEP, TKIP and AES
Hardware-base IEEE 802.11i encryption engine
Environment & Mechanical
Temperature Range -30°C to 80°C
Humidity (non-condensing) 0%～95% typical
Dimensions 66mm (L) x 59.5mm (W) x 5mm (H)
Weight 16g
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is
restricted to indoor environment. The band from 5600-5650MHz will be
disabled by the software during the manufacturing and cannot be changed by
the end user. This device meets all the other requirements specified in Part
15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 165cm between the radiator & your body.
This device is intended only for OEM integrators under the following
conditions:
1) Due to the facts that this module has high built-in output power and with a high
gain direction antenna, the module can be used in a professional installed end
product only. The final product must be professional installed to make sure that
165 cm can be maintained between the antenna and users, and
2) The professional installer shall make sure that the all antennas are fully exposure
to the outside radar signal(s) source with no obstruction in between them for
proper DFS operation. Also, if extra length of cable is needed for the antenna
installation then a proper amplifier must be added to the path for compensating the
cable loss. Otherwise the DFS detection sensitivity will be impaired. The improper
installation of the antenna may reduce the antenna sensitivity and invalided the
certification.
3) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 3 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 165cm may be maintained between the antenna and
users. The final end product must be labeled in a visible area with the following:
“Contains FCC ID:
LKT-BULTRA-5”. The grantee's FCC ID can be used only
when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable
aux appareils radio exempts de licence. Son fonctionnement est sujet aux
deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris
un brouillage susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 165cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec un minimum de 165cm de distance entre la source de
rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions:
(For module device use)
1) Due to the facts that this module has high built-in output power and with a high
gain direction antenna, the module can be used in a professional installed end
product only. The final product must be professional installed to make sure that
165 cm can be maintained between the antenna and users, and
2) The professional installer shall make sure that the all antennas are fully exposure
to the outside radar signal(s) source with no obstruction in between them for
proper DFS operation. Also, if extra length of cable is needed for the antenna
installation then a proper amplifier must be added to the path for compensating the
cable loss. Otherwise the DFS detection sensitivity will be impaired. The improper
installation of the antenna may reduce the antenna sensitivity and invalided the
certification.
3) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 3 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the Canada
authorization is no longer considered valid and the IC ID can not be used on
the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour
certaines configurations d'ordinateur portable ou de certaines co-localisation
avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme
valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces
circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y
compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 165cm may be maintained between the antenna
and users. The final end product must be labeled in a visible area with the
following: “Contains IC:: 2514A-BULTRA5”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un
dispositif où l'antenne peut être installée de telle sorte qu'une distance de
165cm peut être maintenue entre l'antenne et les utilisateurs. Le produit final
doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient
des IC: 2514A-BULTRA5".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module.
The end user manual shall include all required regulatory information/warning
as show in this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à
l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF
dans le manuel de l'utilisateur du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations
réglementaires requises et avertissements comme indiqué dans ce manuel.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350
MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825
MHz shall comply with the e.i.r.p. limits specified for point-to-point and non
point-to-point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850
MHz and that these radars could cause interference and/or damage to LE-LAN
devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des
instructions précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5
250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5
725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour
l’exploitation point à point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de
radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils
ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to be installed by a
qualified personal who has RF and related rule knowledge. The general user
shall not attempt to install or change the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be
kept 165cm from nearby person in normal operation condition to meet
regulatory RF exposure requirement.
3. External antenna
Use only the antennas which have been approved by the applicant. The
non-approved antenna(s) may produce unwanted spurious or excessive RF
transmitting power which may lead to the violation of FCC/IC limit and is
prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final
output power does not exceed the limit set force in relevant rules. The violation
of the rule could lead to serious federal penalty.
Instructions d'installation professionnelle
1. Installation
Ce produit est destine a un usage specifique et doit etre installe par un
personnel qualifie maitrisant les radiofrequences et les regles s'y rapportant.
L'installation et les reglages ne doivent pas etre modifies par l'utilisateur
final.
2. Emplacement d'installation
En usage normal, afin de respecter les exigences reglementaires
concernant l'exposition aux radiofrequences, ce produit doit etre installe de
facon a respecter une distance de 165cm entre l'antenne emettrice et les
personnes.
3. Antenn externe.
Utiliser uniiquement les antennes approuvees par le fabricant. L'utilisation
d'autres antennes peut conduire a un niveau de rayonnement essentiel ou
non essentiel depassant les niveaux limites definis par FCC/IC, ce qui est
interdit.
4. Procedure d'installation
Consulter le manuel d'utilisation.
5. Avertissement
Choisir avec soin la position d'installation et s'assurer que la puissance de
sortie ne depasse pas les limites en vigueur. La violation de cette regle peut
conduire a de serieuses penalites federales.
