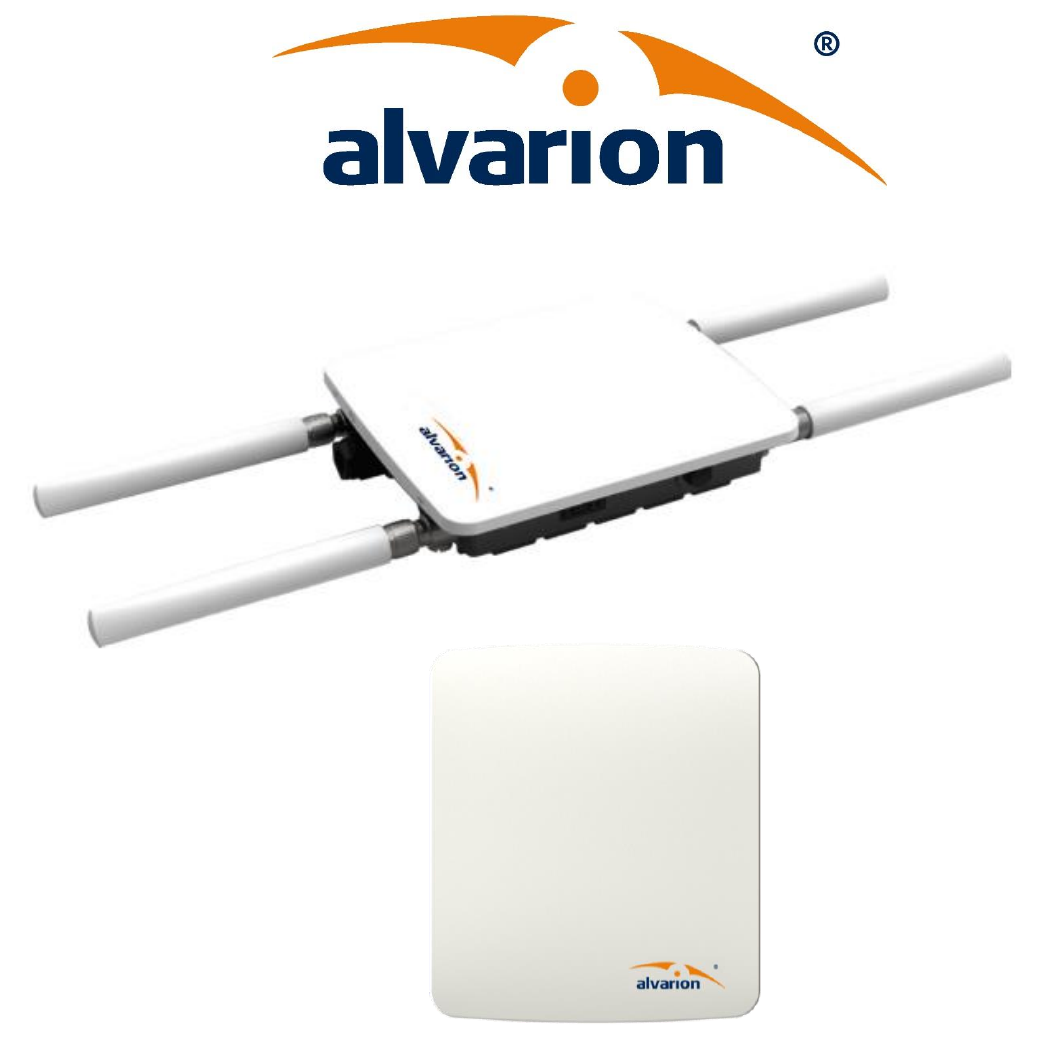

WBSAC-2450
QUICK INSTALLATION GUIDE
![](/img.php?id=2863517&img=bg2.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 2 DOC00182-00 rev-B
Package Content
WBSac-2450 access point
Wall Mount Base
Pole Mount Bracket
Pole mounting steel band
Wall mounting bots X 4
Mounting screws X 8
5GHz Omni antennas X 2 (for –O products only)
2.4GHz Omni antennas X 2 (for –O products only)
POE adapter
Grounding screw and cables
Additional Equipment Required
Shielded Ethernet cable (outdoor shielded CAT5e/6 4-pair data cable, with RJ45 shielded plugs)
Note: Maximum cable length: 100 meters
Lightning protection – use only the devices recommended by Alvarion
1”-2.5” diameter pole (on which to mount the unit in case of pole installation)
Tilting Kit (can be ordered separately when required)
Important Information
Warnings
The WBSac access point must be used only with Alvarion-approved components and the antennas
provided as part of the original package.
Only experienced installation professionals who are familiar with local building and safety codes and
are licensed, wherever applicable, by the appropriate government regulatory authorities, should install
outdoor units and antennas. This device requires Professional Installation for compliance with FCC
Requirements. (Please refer to page 11 for Installation Instructions).
Modifying the operating frequency or enhancing the transmit output power through the use of external
amplifiers or other equipment is illegal.
Note: Certain versions of this device (those with –US extension in their product name) comply
with part 15 of the FCC Rules. In these cases, operation is subject to the following two conditions:
This device may not cause harmful interference
This device must accept any interference received, including such interference that may cause
unrequired operating effects.
![](/img.php?id=2863517&img=bg3.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 3 DOC00182-00 rev-B

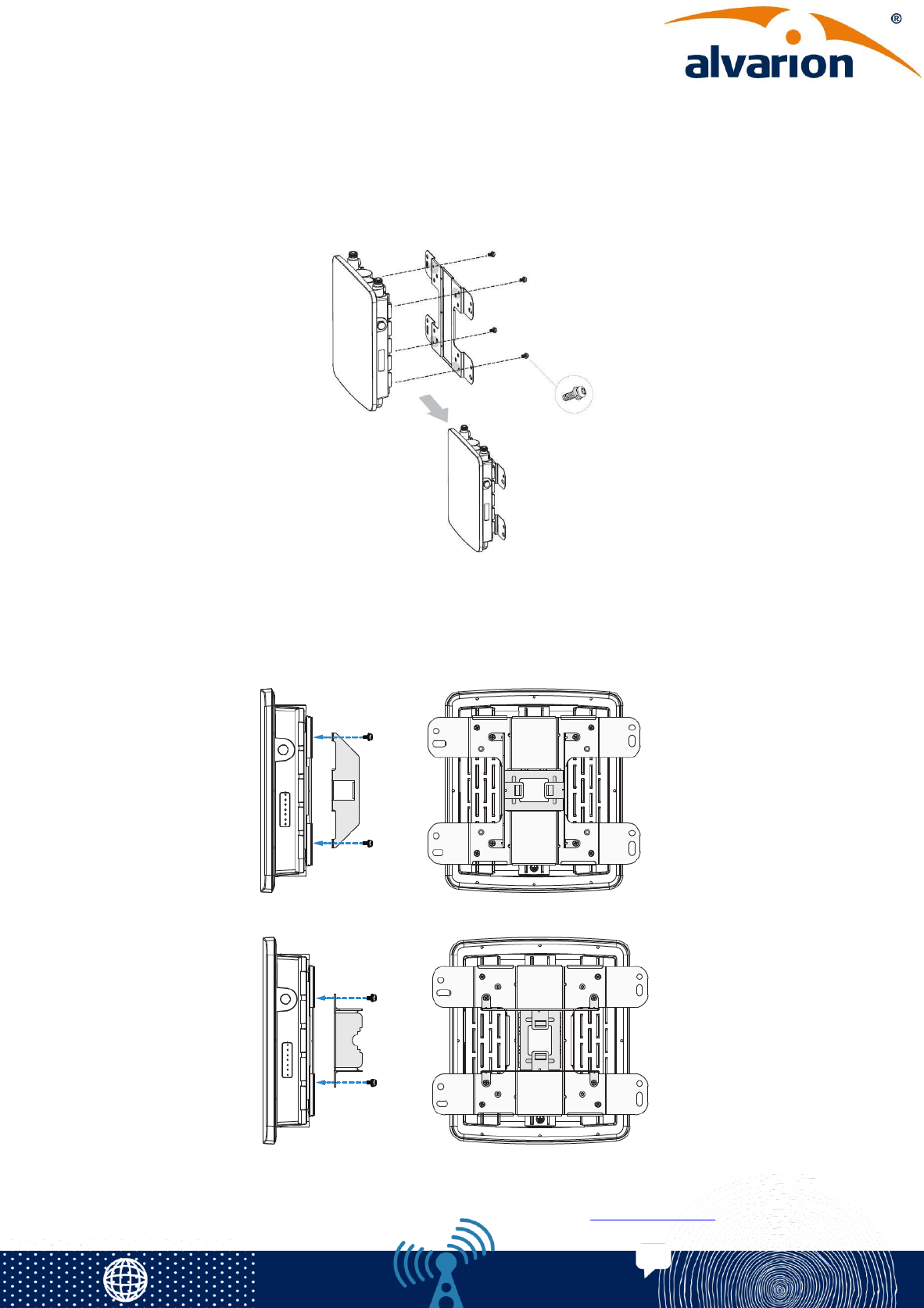

Mounting
WBSac-2450 units support both pole and wall mounting, as shown in the following illustrations.
As the first step of each installation, attach the wall mount base to the back of the unit using 4 of provided
mounting screws
Pole Installation
1. Attach the pole mount bracket to the wall mount base using additional 4 provided mounting screws.
The pole mount bracket can be attached either vertically
or horizontally
![](/img.php?id=2863517&img=bg4.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 4 DOC00182-00 rev-B
2. Insert the provided steel band through the slots of the pole mount bracket, loop it around the pole and
tighten the band screw with appropriate screw driver to ensure that the unit is firmly in place.
Note: For best performance of WBSac-2450 unit with integrated sector antennas, the recommendation is
to install using a horizontal pole mount, as it offers a wider range of directional adjustment. When
installing such unit on a vertical pole - tilting kit may be required.
Tilting kit is an optional accessory giving the ability to tilt the device up to 30°, to achieve better coverage
Wall Installation
1. Mark the location of the mounting holes on the wall surface using wall mount base.
2. Drill a 37 mm deep, 8 mm hole in the markings and hammer the bolts into the openings.
3. Attach the unit and base assembly to the wall using the provided wall mounting bolts and tighten
them.
![](/img.php?id=2863517&img=bg5.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 5 DOC00182-00 rev-B
Grounding
Use provided ground screw to attached grounding
cable to the device.
Warning: You must always install an external
grounding wire, as shown below. Ensure that you
have completed grounding before you connect power
to the WBSac unit

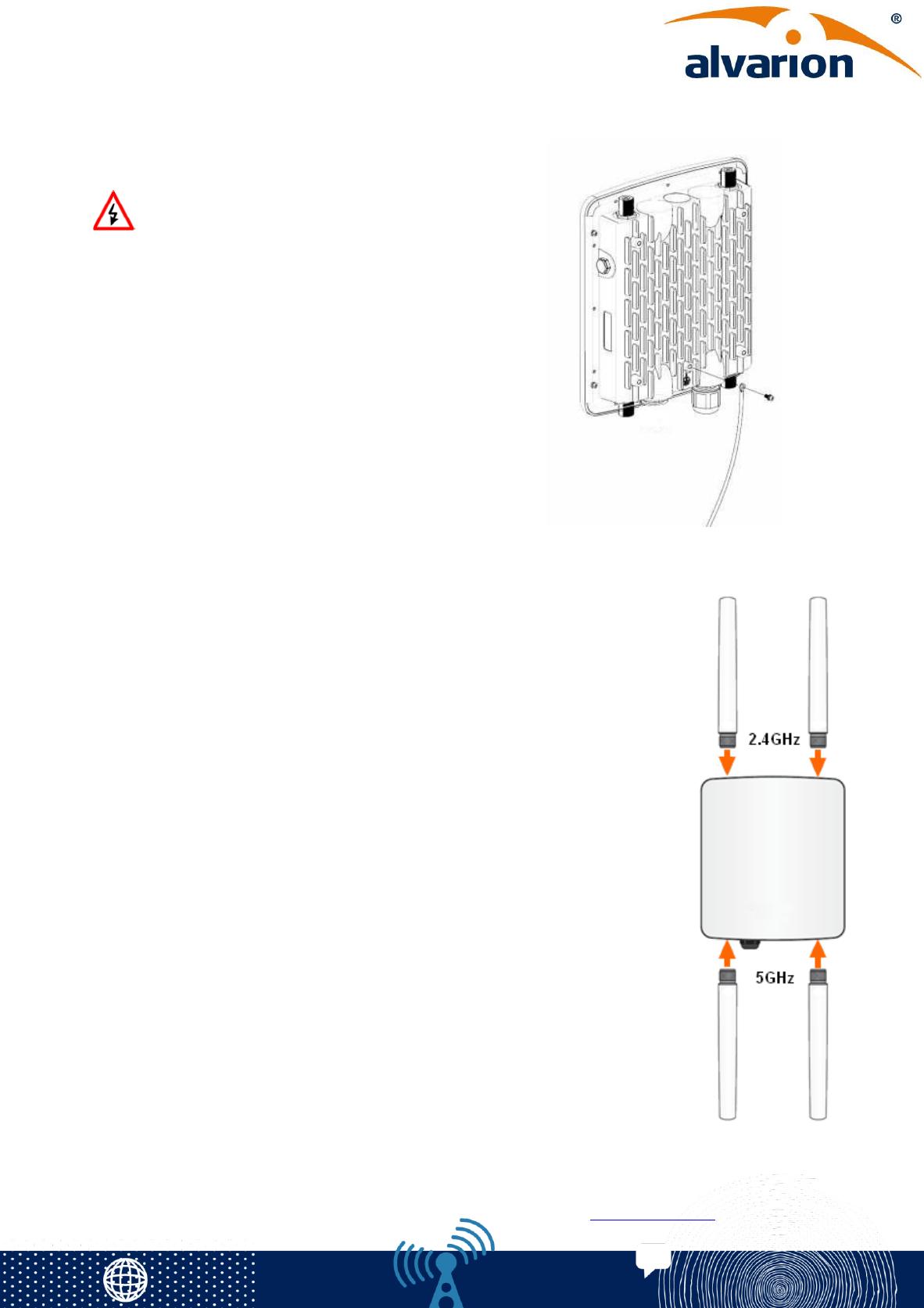

Connecting the antennas
This section refers to Omni products (-O) only.
Each provided antenna is labeled to show its operating band.
1. Assemble 2.4GHz antennas on the top of the device.
2. Assemble 5GHz antennas on the bottom of the device (near the
waterproof POE connector).
3. All the antennas should be tightened by hand.
![](/img.php?id=2863517&img=bg6.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 6 DOC00182-00 rev-B
Connecting Power and DATA to the WBSac base station
Warning: Before applying power to the device,
ensure that all the antennas are connected
1. Connect one end of the Ethernet cable into the LAN
port (PoE) of the Access Point (see sealing gland
installation chapter bellow) and the other end to the
"PoE" port on the PoE injector.
2. Connect the PoE injector in to an electrical outlet
using the supplied cable.
3. Connect the second Ethernet cable into the "LAN"
port of the PoE injector and the other end to the
Ethernet port on the network device.

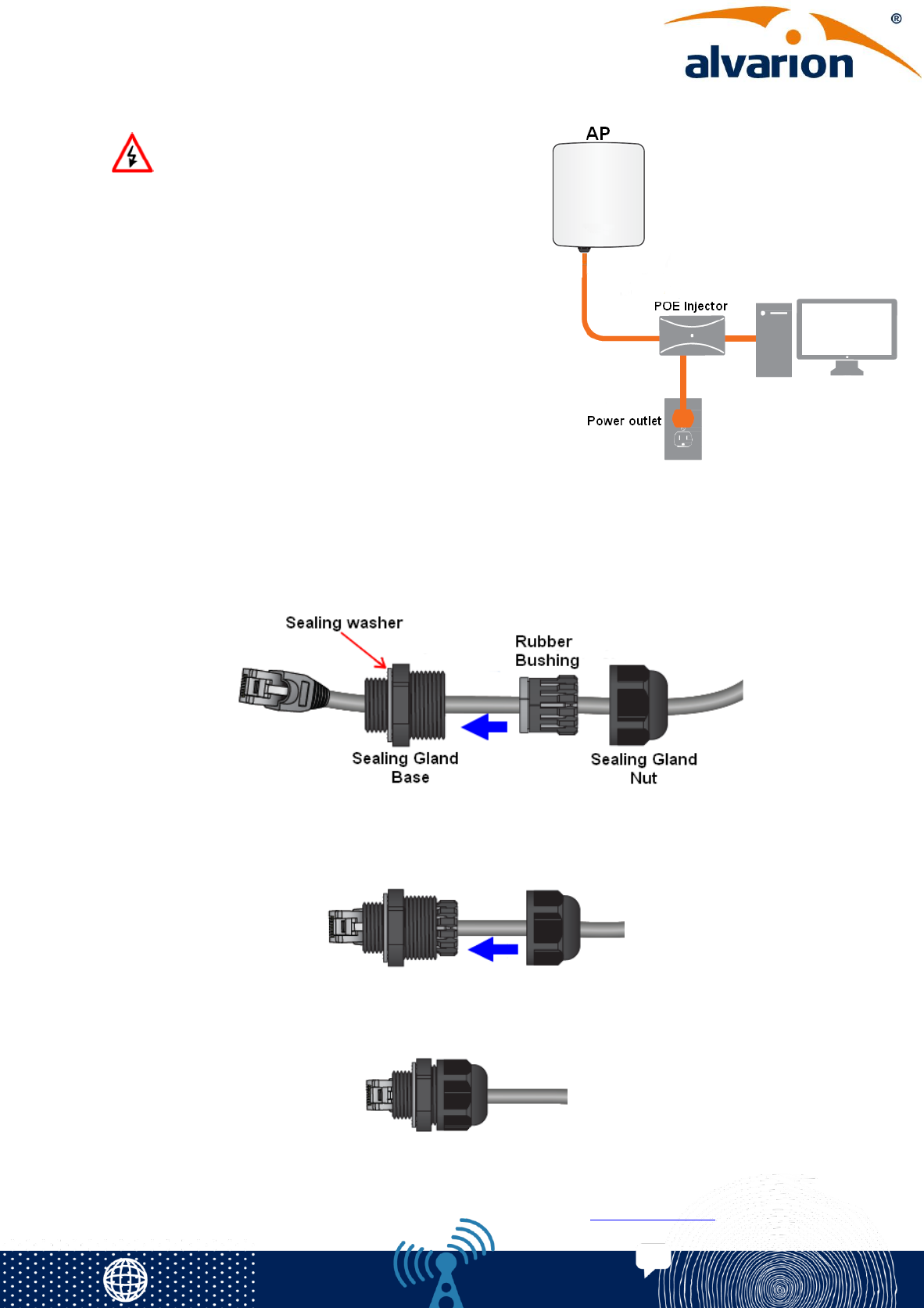

Sealing gland installation
1. Unscrew sealing gland nut, pull out the rubber bushing and thread Ethernet cable through the
sealing plug components.
2. Insert RJ45 plug into POE port on the device, check that sealing washer is in place and install
sealing gland base. Tighten sealing gland base to ensure proper sealing.
3. Slide the rubber bushing into sealing gland base
4. Close the sealing gland nut and tighten it until the rubber bushing is compressed, making
Ethernet cable sealed.
![](/img.php?id=2863517&img=bg7.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 7 DOC00182-00 rev-B
Safety instructions and information
Please ensure that you read and understand the following safety information. Ensure that you carefully
read and follow all instructions in this manual, and heed all warnings.
Warnings
It is illegal to modify the construction of this product. Modifying the operating frequency or
enhancing the transmit output power through the use of external amplifiers or other
equipment is specifically disallowed by the "Telecommunications Act”.
There is a risk of personal injury or death if the WBSac antennas are close to electric power
lines.
By nature of the outdoor installation, you may be exposed to hazardous environments and
high voltage. Use extreme caution when installing the system.
Servicing is required when the apparatus has been damaged in any way. All servicing should
be referred to qualified service personnel only.
The base station must be properly grounded.
Warnings
Do not open the unit – risk of electric shock.
Any change or modification not expressly described in this manual or approved by the
manufacturer could void your authority to operate this equipment.
WBSac should only be installed using the antennas that were provided as part of the original
package.
A minimum distance of 40cm should be kept from the WBSac antenna when the system is in
operation.
To maintain Overvoltage (Installation) Category II, install a suitable surge suppressor device
in the branch circuit to limit expected transients to Overvoltage Category II values. The limits
are based on IEC60664 and are also located in Table 2H of UL60950 (for mains 110V, the
transient rating is 1500V).
![](/img.php?id=2863517&img=bg8.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 8 DOC00182-00 rev-B
Lightning Protection
The following procedure describes how to correctly ensure that your device is
protected against lightning.
For the best protection, two instances of the lightning protection device should be used. Use
lightning protectors that are recommended by Alvarion.
1. Position one of the lightning protection devices as close to the building entrance as
possible and connect it to the grounding bar of the building.
2. Position the second lightning protection device as close to the base station as possible
and connect it to the tower/pole ground plate using a short 10 AWG cable.
3. Ensure that the tower/pole has a lightning rod connected to the earth with a down-
conductor.
Note: Use only shielded CAT5e/6 cables for the POE connection.
4. Ensure that the cable shield is firmly connected (soldered) to the RJ45 plug shield. Non-
shielded cables or non-shielded RJ45 plugs will not provide any grounding points or
protect from static discharge or lightning strike
Note: Lightning damage is not covered under the Alvarion Warranty.
When correctly installed, the recommendations on this page offer you the best protection
from the harmful effects of lightning. However, 100% protection is neither implied nor
possible.

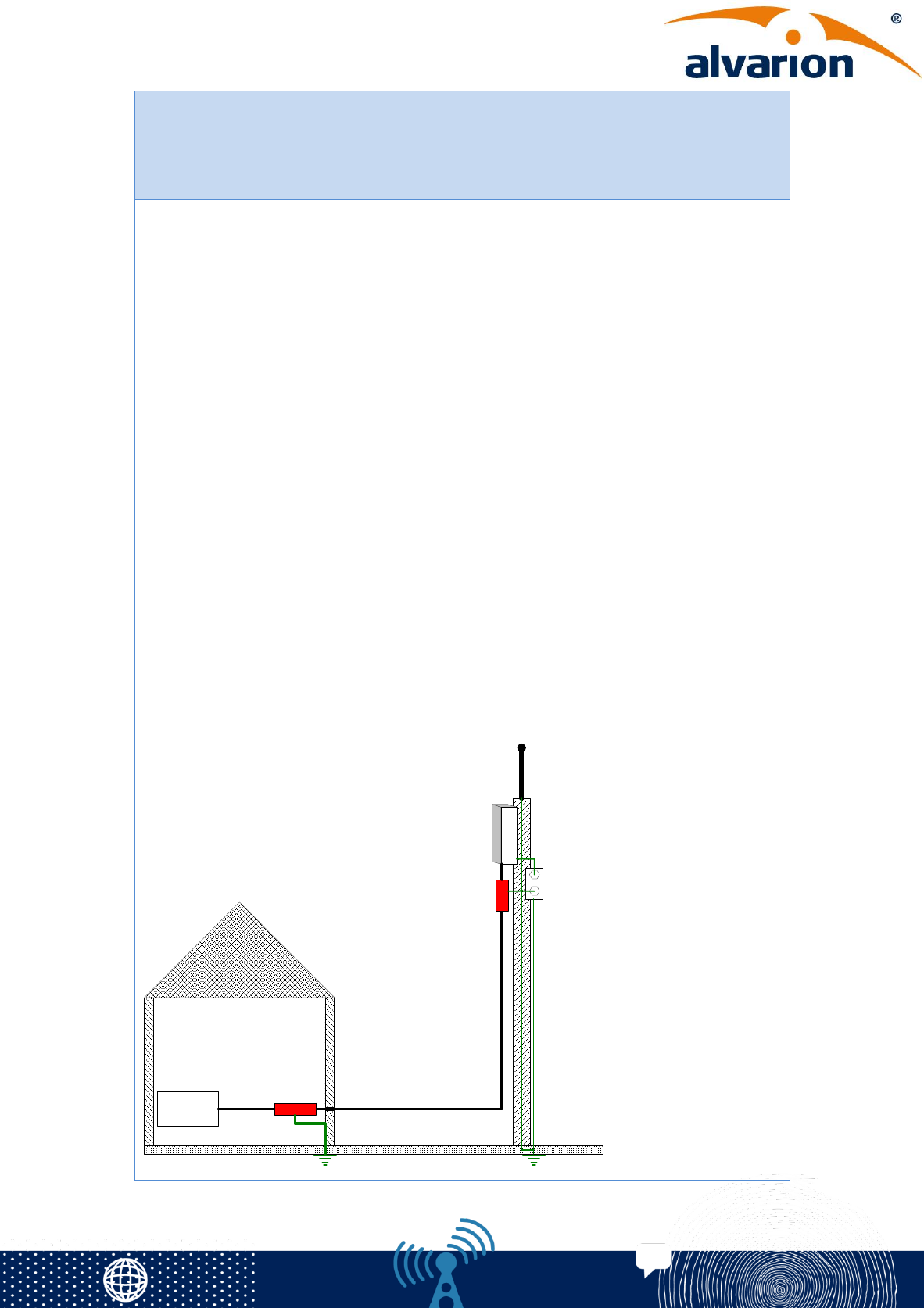

Lightning Protection Connection Diagram
POE Injector
POE cable enters
building wall through
conduit
Lightning
protector
Lightning
protector
A
P
Ground plate
Installation
tower/pole
Lightning Rod
![](/img.php?id=2863517&img=bg9.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 9 DOC00182-00 rev-B
Configuring WBSac Using a Browser
1. In an internet browser, enter the Management IP address of the WBSac unit in the URL navigation
field. (Default: http://192.168.1.1, currently supported browsers: Microsoft Internet Explorer, Chrome
and Mozilla Firefox.)
2. A log-in screen is displayed. Enter admin in the User Name field, and also enter admin in the
password field.
3. Set DHCP server IP address
4. Set Arena controller IP address ( in case using Arena controller)
5. Refer to WBSac-2450 User Manual for a full setup configuration
![](/img.php?id=2863517&img=bga.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 10 DOC00182-00 rev-B
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 27cm between the radiator &
your body.
![](/img.php?id=2863517&img=bgb.png)
For further information, please contact Alvarion Technical Support at: support@alvarion.com
Page | 11 DOC00182-00 rev-B
FCC- Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to be installed by a qualified personal who
has RF and related rule knowledge. The general user shall not attempt to install or change the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be kept 27cm from nearby
person in normal operation condition to meet regulatory RF exposure requirement.
3. External antenna
Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may
produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC
limit and is prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final output power does not
exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal
penalty.
When professional installer will set work frequency in the GUI to be within UNII-1 band – the software
will automatically apply EIRP limit of 21dBm to comply with FCC requirements of Part 15.407(a)(1)(i)
Antenna information:
2.4G: Dipole antenna with 4.6dBi, N-Type for outdoor use.
Manufacturer / Model: Senao Networks Inc. / 5718A0136300
5G: Dipole antenna with 6.03dBi, N-Type for outdoor use.
Manufacturer / Model: Senao Networks Inc. / 5718A0137300
