Amazon com Services 1459 3G Module User Manual and OEM installation manual
Gradys LLC 3G Module and OEM installation manual
User Manual and OEM installation manual
X1-Device User Manual/Specification
HSDPA/WCDMA/EDGE/GPRS Data Module
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE2OF13 REV
&RQWHQWV
5HYLVLRQ+LVWRU\
2YHUYLHZ
5HFHLYH6SHFLILFDWLRQV «««««
2.1 WCDMA/HSDPA ««
2.2 GSM / GPRS
7UDQVPLW6SHFLILFDWLRQV «««««««««««««««««««««««««
3.1 WCDMA/HSDPA ««««««««««««««««««««««««««
3.2 GPRS / EDGE ««««««««««««««««««««««««««
%DVHEDQG««««««««««««««««««««««««««««
3,1'HVFULSWLRQV««««««««««««««««««««««««««««««««
3,1&+$5$&7(5,67,&6
6.1 Power Management «««««««««««««««««««««««
6.2 SIM Card Detection «««««««««««««««««««««««
6.3 UART «««««««««««««««««««««««
6.4 USB «««««««««««««««««««««««
6.5 Host Wake & Interrupts
«««««««««««««««««««««««
0HFKDQLFDO,QWHUIDFH
7.1 SUPPLIER PART «««««««««««««««««««««««
7.2 SUPPLIER PART – Complementary Part #1 (0.7mm stacking height) «««««

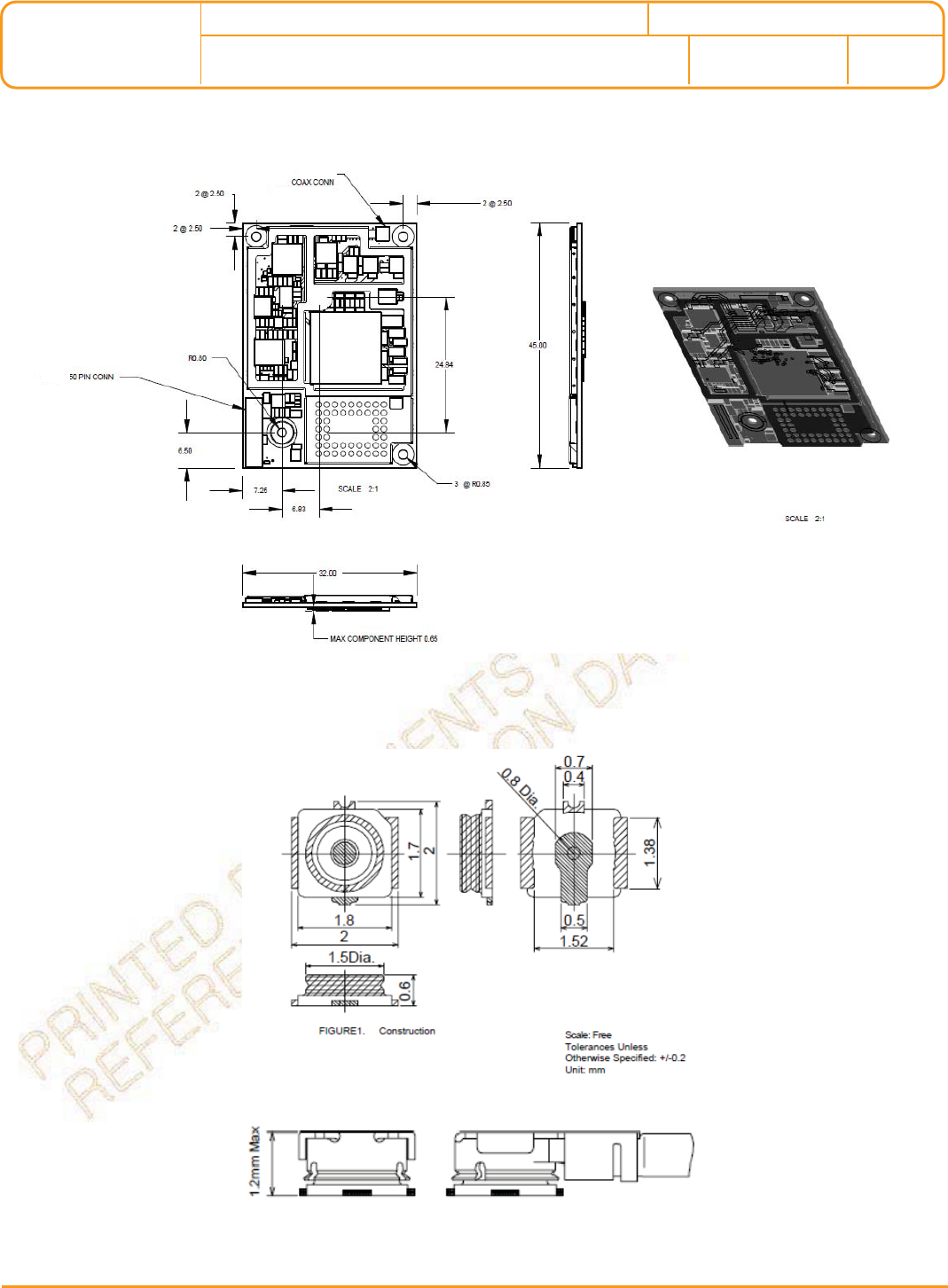

7.3 Mechanical Drawings «««««««««««««««««««««««
5)&RQQHFWRU6XSSOLHU3DUW ««««««
2(0,QVWDOODWLRQ,QVWUXFWLRQ
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE3OF13 REV
5(9,6,21+,6725<
5(9 (&2 &+$1*('(6&5,37,21 $33529('%< '$7(
1.0 Initial release 09/08/10
Notes (unless otherwise specified):
1. All parts and materials must be ROHS compliant.
29(59,(:
zThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
zThis device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
zThe antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
zChanges or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
zThis device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall
not be less than 20cm (8 inches) during normal operation.
Maximum antenna gain allowed for use with this device is +2 dBi.
When the module is installed in the host device, the FCC ID label must be visible through a window on the final
device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be
placed on the outside of the final device that contains the following text: &RQWDLQV7;)&&,';(
FCC Regulations:
RF Exposure Information:
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE4OF13 REV
*(1(5$/63(&,),&$7,216
3$5$0(7(56 '(6&5,37,216
External Access WCDMA 850/1900/2100
GSM 850/900/1800/1900, GPRS/EDGE
Protocols 3GPP TS 34.121 (WCDMA / HSDPA), 3GPP TS 51.010-1 (GSM/GPRS)
Max Data Rate
HSDPA r5 3.6Mbps Down / 384 Kbps Up
WCDMA 384 Kbps
GPRS Multi slot class 10 – 48Kbps (Down / Up)
EDGE 384 Kbps @ MSC9 (Down / Up)
RX / TX Frequency Interval
WCDMA / HSDPA 850 45 MHz
WCDMA / HSDPA 1900 80 MHz
WCDMA / HSDPA 2100 190 MHz
GPRS / EDGE 850 45 MHz
GPRS / EDGE 900 45 MHz
GPRS / EDGE 1800 95 MHz
GPRS / EDGE 1900 80 MHz
Max Output Power
WCDMA / HSDPA 23dBm (Power class: 3)
GPRS 850 / 900 33dBm (Power class: 4)
GPRS 1800 / 1900 30dBm (Power class: 1)
EDGE 850 / 900 27dBm (Power class: E2)
EDGE 1800 / 1900 26dBm (Power class: E2)
Operating Voltage VBATT 3.4V ~ 4.2V
Current Consumption
Rock Bottom [Sleep] 0.75mA (Typical), 1.0mA (Max)
WCDMA standby 0.64s 1.28s 2.56s 5.12s
3.37mA 2.27mA 1.71mA 1.36mA
GPRS standby 0.471s 1.177s
2.98mA 1.69mA
Peak Current 1.8A
Operating Temperature Range -10°C ~ +60°C
Storage Temperature Range -30°C ~ +80°C
Frequency Stability
WCDMA / HSDPA 800 ±80Hz
WCDMA / HSDPA 2100 ±170Hz
GSM / GPRS ±0.1ppm
Physical Dimensions 45.00 x 32.00 x 2.63mm
Weight 0.2656 oz
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE5OF13 REV
5(&(,9(63(&,),&$7,216
:&'0$+6'3$
3$5$0(7(56 '(6&5,37,216
Frequency Range
WCDMA 2100 Down: 2110 ~ 2170 MHz
WCDMA 1900 Down: 1930 ~ 1990 MHz
WCDMA 850 Down: 869 ~ 894 MHz
Reference Sensitivity Level
WCDMA 2100 -106.7dBm
WCDMA 1900 -104.7dBm
WCDMA 850 -104.7dBm
Adjacent Channel
Selectivity
WCDMA 2100 -92.7dBm
33dB @ ±5MHz
WCDMA 1900 -90.7dBm
WCDMA 850 -90.7dBm
Intermoduation
WCDMA 2100 -103.7dBm
-46dBm ±10MHz, ±20MHz WCDMA 1900 -101.7dBm
WCDMA 850 -101.7dBm
Spurious Response
WCDMA 2100 -103.7dBm
-44dBm WCDMA 1900 -101.7dBm
WCDMA 850 -101.7dBm
In-Band Blocking
WCDMA 2100 -103.7dBm
-56dBm @ ±10MHz, -44dBm @ ±10MHz WCDMA 1900 -101.7dBm
WCDMA 850 -101.7dBm
Peak throughput HSDPA 3.6Mbps
*60*356
3$5$0(7(56 '(6&5,37,216
Frequency Range
GPRS / EDGE 850 Down: 869 ~ 894 MHz
GPRS / EDGE 900 Down: 925 ~ 960 MHz
GPRS / EDGE 1800 Down: 1805 ~ 1880 MHz
GPRS / EDGE 1900 Down: 1930 ~ 1990 MHz
Minimum Input level for
Reference Performance
GPRS 850/900/1800/1900
Type of Channel Propagation Condition:
BLER < 10%, Static
PDTCH/CS-1 -102dBm
PDTCH/CS-2 -102dBm
PDTCH/CS-3 -102dBm
PDTCH/CS-4 -102dBm
PDTCH/CS-5 -99dBm
EDGE 850/900/1800/1900
PDTCH/MCS-5 -98dBm
PDTCH/MCS-6 -96dBm
PDTCH/MCS-7 -93dBm
PDTCH/MCS-8 -90.5dBm
PDTCH/MCS-9 -86dBm
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE6OF13 REV
75$160,763(&,),&$7,216
:&'0$+6'3$
3$5$0(7(56 '(6&5,37,216
Frequency Range
WCDMA 2100 Up: 1920 ~ 1980 MHz
WCDMA 1900 Up: 1850 ~ 1910 MHz
WCDMA 850 Up: 824 ~ 849 MHz
Max Output Power 20.3 ~ 25.7dBm (Power Class III)
Min Output Power Below -50dBm
Spectrum Emission Mask
Below -35dBc 2.5 ~ 3.5 MHz Offset 30KHz
Below -35dBc 3.5 ~ 7.5 MHz Offset 1MHz
Below -39dBc 7.5 ~ 8.5 MHz Offset 1MHz
Below -49dBc 8.5 ~ 12.5 MHz Offset 1MHz
Occupied Bandwidth Below 5MHz
ACLR ±5MHz 33dB, ±10MHz 43dB
*356('*(
3$5$0(7(56 '(6&5,37,216
Frequency Range
GPRS / EDGE 850 Up: 824 ~ 849 MHz
GPRS / EDGE 900 Up: 880 ~ 915 MHz
GPRS / EDGE 1800 Up: 1710 ~ 1785 MHz
GPRS / EDGE 1900 Up: 1850 ~ 1910 MHz
Frequency error GPRS / EDGE ±0.1ppm
Phase error GPRS Peak phase error Below 20°
RMS phase error Below 5°
Modulation
accuracy EDGE Peak EVM Less than 5%
RMS EVM Less than 30%
Transmitter
output power
GPRS / EDGE 850 / 900
Power Level Output Power (dBm) Tolerance (dBm)
5 33
6 31 ±3
7 29 ±3
8 27 ±3
9 25 ±3
10 23 ±3
11 21 ±3
12 19 ±3
13 17 ±3
14 15 ±3
15 13 ±3
16 11 ±5
GPRS / EDGE 1800 / 1900
Power Level Output Power (dBm) Tolerance (dBm)
0 30 ±2
1 28 ±3
2 26 ±3
3 24 ±3
4 22 ±3
5 20 ±3
6 18 ±3
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE7OF13 REV
7 16 ±3
8 14 ±3
9 12 ±4
10 10 ±4
11 8 ±4
12 6 ±4
13 4 ±4
14 2 ±5
15 0 ±5
ORFS @
Spectrum due to
modulation
GSM / GPRS 850 / 900
Power (dBm) Frequency offset (KHz)
±400 ±600 ±1200 ±1800
33 -19 -21 -21 -24
31 -21 -23 -23 -26
29 -23 -25 -25 -28
27 -23 -26 -27 -30
25 -23 -26 -29 -32
23 -23 -26 -31 -34
20 -23 -26 -32 -36
ORFS @
Spectrum due to
switching
transient
GSM / GPRS 1800 / 1900
Power (dBm)
Frequency offset (KHz)
±400 ±600 ±1200 ±1800
30 -22 -24 -24 -27
28
-23 -25 -26 -29
26 -23 -26 -28 -31
24 -23 -26 -30 -33
22 -23 -26 -31 -35
21 -23 -26 -32 -36
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE8OF13 REV
%$6(%$1'
Processors
xRISC CPU @ 230 MHz
xDSP @ 115 MHz
Memory
xMultichip Package (MCP) contains both RAM & Flash
x1GB NAND Flash
x256MB (16MB x 16) DDR @ 92MHz
Connectivity
xFull Speed USB
xUART
xJTAG (Debug Port)
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE9OF13 REV
3,1'(6&5,37,216
3,1 1DPH 'HVFULSWLRQ 3,1 1DPH 'HVFULSWLRQ
1 GND Ground 2 VBAT Battery
3 GND Ground 4 VBAT Battery
5 GND Ground 6 VBAT Battery
7 GND Ground 8 VBAT Battery
9 GND Ground 10 VBAT Battery
11 GND Ground 12 VBAT Battery
13 GND Ground 14 VBAT Battery
15 GND Ground 16 VBAT Battery
17 GND Ground 18 VBAT Battery
19 NC No Connect 20 NC No Connect
21 PS_HOLD Power Supply Hold Up 22 UART_RXD Serial Receive
23 SIM_DETECT SIM card presence 24 UART_TXD Serial Transmit
25 GPIO2 Spare GPIO 26 UART_RTS Flow Control
27 GPIO3 Spare GPIO 28 UART_CTS Flow Control
29 GND Ground 30 JTAG_TDI Test Data In
31 USB_DM USB Data - 32 JTAG_TDO Test Data Out
33 USB_DP USB Data + 34 JTAG_TMS Test Mode Select
35 GND Ground 36 JTAG_TCK Test Clock
37 USB_EN USB Enable 38 JTAG_RTCK Return Clock
39 HOST_WAKE Host wake-up event 40 JTAG_TRST Test Reset +
41 H_M_INT Host to Modem Interrupt 42 JTAG_RESET_N Test Reset -
43 M_H_INT Modem to Host Interrupt 44 UIM_DATA SIM DATA
45 VBATT_EN Modem Power Enable 46 UIM_CLK SIM Clock
47 VREG_MSME 1.8V (Linear) 48 UIM_RESET SIM Reset
49 POWER_ON_OFF Modem ON/OFF 50 VREG_USIM SIM Voltage
51 GND Ground 52 GND Ground
53 GND Ground 54 GND Ground
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE10OF13 REV
3,1&+$5$&7(5,67,&6
3RZHU0DQDJHPHQW
3,1 1DPH 'LUHFWLRQ 9ROWDJH 'HVFULSWLRQ
21 PS_HOLD Modem Æ Host 1.8V Drive to 1.8V and hold for JTAG debug mode
49 POWER_ON_OFF
Host Æ Modem 1.8V Pulling this pin LOW and holding for 500ms toggles power
ON/OFF.
37 USB_EN Host Æ Modem 1.8V Enable/Disable USB PHY
45 VBATT_EN Host Æ Modem 1.8V Drive low to disconnect modem from the main battery
POWER_ON_OFF application note:
POWER_ON_OFF should be driven open collector on the host board.
6,0&DUG'HWHFWLRQ
3,1 1DPH 'LUHFWLRQ 9ROWDJH 'HVFULSWLRQ
23 SIM_DETECT Host Æ Modem 1.8V Software drives this pin HIGH. Hardware should pull it LOW
when a SIM Card is inserted.
8$57
3,1 1DPH 'LUHFWLRQ 9ROWDJH 'HVFULSWLRQ
22 UART_RXD Host Æ Modem 1.8V Receive Data
24 UART_TXD Modem Æ Host 1.8V Transmit Data
26 UART_RTS Reserve Reserve
28 UART_CTS Reserve Reserve
86%
3,1 1DPH 'LUHFWLRQ 9ROWDJH 'HVFULSWLRQ
31 USB_DM Bidirectional 1.8V USB Data -
33 USB_DP Bidirectional 1.8V USB Data +
DEVICE supportsfull-speed USB only. The UART operates at 115,200 Baud with no Flow Control.
+RVW:DNH,QWHUUXSWV
3,1 1DPH 'LUHFWLRQ 9ROWDJH 'HVFULSWLRQ
39 HOST_WAKE Modem Æ Host 2.6V Signals the host device to wake from sleep mode when a TPH
event has occurred.
41 H_M_INT Host Æ Modem 1.8V Host to Modem Interrupt
43 M_H_INT Modem Æ Host 1.8V Modem to Host Interrupt
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE11OF13 REV

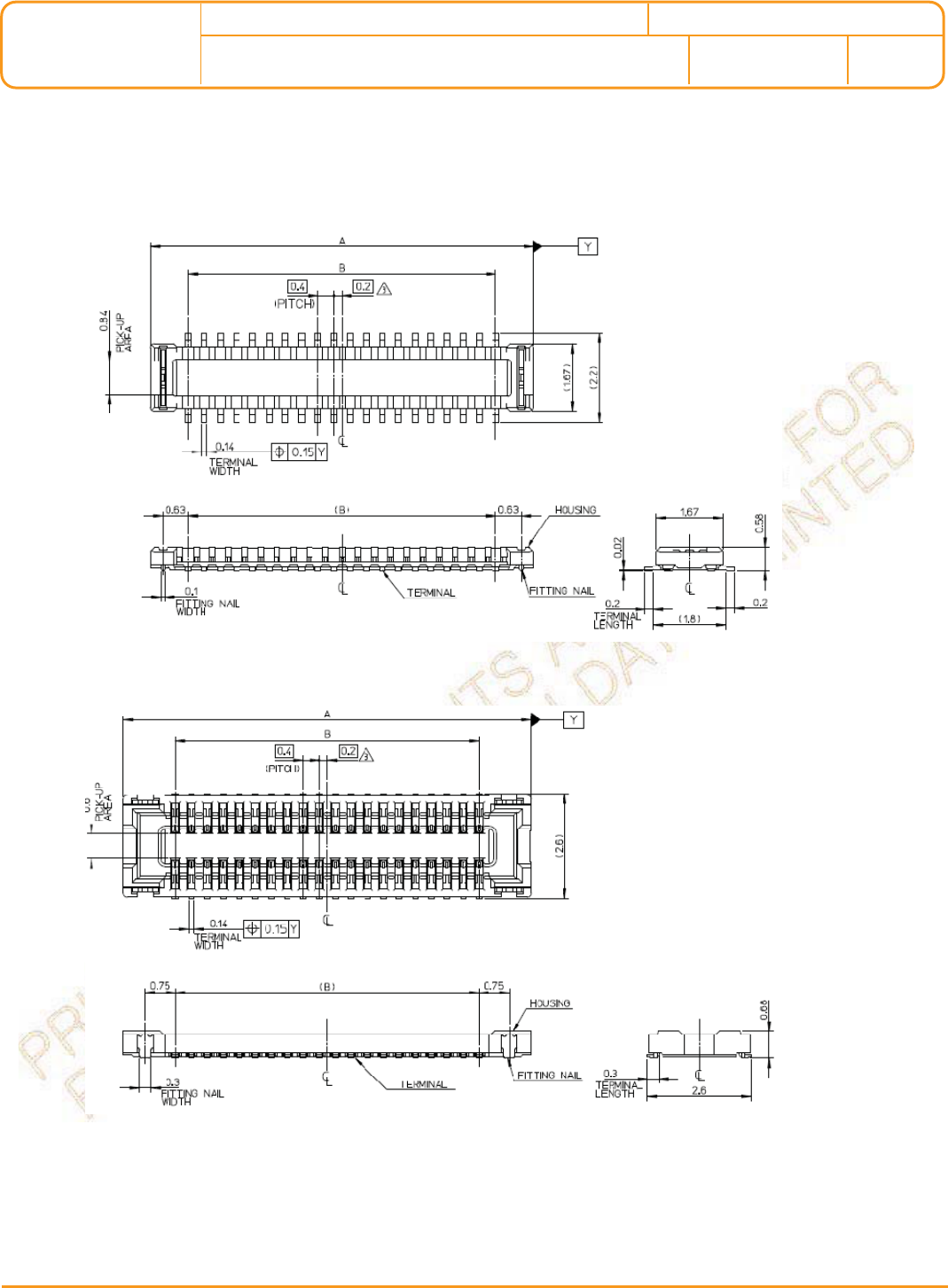

0(&+$1,&$/,17(5)$&(
6833/,(53DUW
6833/,(53DUW±&RPSOHPHQWDU\3DUWPPVWDFNLQJKHLJKW
USER MANUAL / SPECIFICATION PN:63
TITLE:;'(9,&( PAGE12OF13 REV
0(&+$1,&$/'5$:,1*6
5)&211(&7256XSSOLHU3DUW
OEM Installation Instruction
This 3G Module has been authorized for mobile operation in North America. End
user installation is not allowed. This module must be installed at factory by
the host integrator and should not provide any instruction to the user on how to
remove or install the module.
This 3G module is approved to be used as a mobile device per FCC section 2.1091
and the antenna must be positioned in the host to provide at least 20 cm
separation distance from user and nearby person.
The following conditions must be met:
1. Maintain at least a 20 cm separation between the antenna and the user’s body.
2. To comply with FCC regulations limiting both maximum RF output power and human
exposure to RF radiation, maximum antenna gain (including cable loss) must not
exceed 4dBi for Cellular and PCS band.
3. This 3G module must not be co-located or jointly operated with any other
transmitter or antenna within the host device.
4. A label with the following statements must be attached to the host end product
if the FCC ID label is not visible at the time of purchasing:
Contains TX FCC ID: X8E-1459.
5. The host end product must include a user manual that clearly defines operating
requirements and conditions that must be observed to ensure compliance with
current FCC/IC RF exposure guidelines.
6. The host end product must also pass the FCC Part 15 unintentional emission
testing requirement and be properly authorized per FCC Part 15.
For portable devices, a separate approval is required to satisfy the SAR
requirements of FCC Part 2.1093.
