Installation Manual
User Manual/Specification
LTE/HSPA+/WCDMA/EDGE/GPRS
Data
Modu
l
e
3RN13
07/28/2012
USER MANUAL/SPECIFICATION July 28, 2012
1
REVISION HISTORY
REV
ECO
CHANGE
DESCRIPTION
APPROVED BY
DATE
1.0
Initial release
07/28/12
1. GENERAL SPECIFICATIONS OF MODULE.
PARAMETERS
EXPLAINATIONS
Air Interfaces
WCDMA Band I, II, V, VIII
GPRS / EDGE 850, 900, 1800, 1900
LTE Band IV, XVII
Protocols
LTE: Rel 8, Cat 3
WCDMA / HSDPA / HSUPA: Rel 7
GSM / GPRS / EDGE : Rel 6
Max Data Rate
LTE
100 Mbps Down (64QAM) / 50 Mbps Up (16QAM)
HSDPA Cat 14
21.1 Mbps Down
HSUPA Cat 6
5.76 Mbps Up
WCDMA
384 Kbps Down / Up
GPRS
Multi slot class 10, CS-4 80 Kbps Down / 20 Kbps Up
EDGE
MCS-9, 236.8 Kbps Down / 59.2 Kbps Up
RX / TX Frequency Interval
LTE Band IV
400 MHz
LTE Band XVII
30 MHz
WCDMA / HSPA 850
45 MHz
WCDMA / HSPA 1900
80 MHz
WCDMA / HSPA 2100
190 MHz
WCDMA / HSPA 900
45 MHz
GPRS / EDGE 850
45 MHz
GPRS / EDGE 900
45 MHz
GPRS / EDGE 1800
95 MHz
GPRS / EDGE 1900
80 MHz
Max Output Power
(single slot)
LTE Band IV
24 dBm (Power class 3)
LTE Band XVII
23 dBm (Power class 3)
WCDMA / HSPA
23 dBm (Power class: 3)
GPRS 850 / 900
32 dBm (Power class: 4)
GPRS 1800 / 1900
29.5 dBm (Power class: 1)
EDGE 850 / 900
26.5 dBm (Power class: E2)
EDGE 1800 / 1900
25.5 dBm (Power class: E2)
Operating Voltage
VBATT 3.4V ~ 4.2V
Sleep / Off Current
Off Leakage
5uA
Rock Bottom [Sleep]
2mA
Standby Current
(single cell, no neighbors)
LTE standby
128 Frames
5.15mA
WCDMA standby
64 Frames
128 Frames
256 Frames
512 Frames
5.51mA
4.15mA
3.05mA
2.90mA
GPRS standby
MFRMS = 2
5.8mA
Peak Current
2.0A max, 600µs, 12.5 % Duty Cycle
Operating Temperature Range
-10°C ~ +55°C
Storage Temperature Range
-30°C ~ +80°C
USER MANUAL/SPECIFICATION July 28, 2012
2
PARAMETERS
EXPLAINATIONS
Frequency Stability
WCDMA / HSDPA 800
±0.1ppm
WCDMA / HSDPA 900
±0.1ppm
WCDMA / HSDPA 1800
±0.1ppm
WCDMA / HSDPA 1900
±0.1ppm
WCDMA / HSDPA 2100
±0.1ppm
LTE Band IV
±0.1ppm
LTE Band XVII
±0.1ppm
GSM / GPRS
±0.1ppm
Physical
Dimensions
1
48.00 x 28.00 x 2.1 mm
Weight
6.9g
2. TRANSMIT SPECIFICATIONS.
(A) LTE
PARAMETERS
EXPLAINATIONS
Frequency Range
Band IV
[AWS] Up: 1710 ~ 1755 MHz
Band XVII
[700] Up: 704 ~ 716 MHz
Max Output Power
23dBm ±2 dBm
Min Output Power
Below -40dBm
Error Vector Magnitude
17.5%
QPSK or BPSK
12.5%
16QAM
ACLR1
30dB
1.4, 3, 5, 10, 15, 20 MHz bandwidth
ACLR2
33dB
1.4, 3, 5, 10, 15, 20 MHz bandwidth
(B) WCDMA/HSDPA
PARAMETERS
EXPLAINATIONS
Frequency Range
2100 (Band I)
Up: 1920 ~ 1980 MHz
1900 (Band II)
Up: 1850 ~ 1910 MHz
850 (Band V)
Up: 824 ~ 849 MHz
900 (Band VIII)
Up: 880 ~ 915 MHz
Max Output Power
24dBm +1/-3 dBm
Min Output Power
Below -50dBm
Spectrum Emission Mask
Below -35 dBc
2.5 – 3.5 MHz
Offset 30KHz
Below -35 dBc
3.5 – 7.5 MHz
Offset 1MHz
Below -39 dBc
7.5 – 8.5 MHz
Offset 1MHz
Below -49 dBc
8.5 – 12.5 MHz
Offset 1MHz
Occupied Bandwidth
Below 5MHz
ACLR
±5MHz 33dB, ±10MHz 43dB
USER MANUAL/SPECIFICATION July 28, 2012
3
(C) GPRS / EDGE
PARAMETERS
EXPLAINATIONS
Frequency Range
GPRS / EDGE 850
Up: 824 ~ 849 MHz
GPRS / EDGE 900
Up: 880 ~ 915 MHz
GPRS / EDGE 1800
Up: 1710 ~ 1785 MHz
GPRS / EDGE 1900
Up: 1850 ~ 1910 MHz
Transmitter output
power
Band
Power Level
Output Power (dBm)
Tolerance (dB)
GPRS 850 / 900
5
33
±2
6
31
±3
7
29
±3
GPRS / EDGE / 850 / 900
8
27
±3 (GPRS), ±2 (EDGE)
9
25
±3
10
23
±3
11
21
±3
12
19
±3
13
17
±3
14
15
±3
15
13
±3
16
11
±5
17
9
±5
18
7
±5
19
5
±5
Band
Power Level
Output Power (dBm)
Tolerance (dB)
GPRS 1800 / 1900
0
30
±2
1
28
±3
GPRS / EDGE / 1800 / 1900
2
26
±3 (GPRS), ±2 (EDGE)
3
24
±3
4
22
±3
5
20
±3
6
18
±3
7
16
±3
8
14
±3
9
12
±4
10
10
±4
11
8
±4
12
6
±4
13
4
±4
14
2
±5
15
0
±5
ORFS @ Spectrum
due to modulation
GSM / GPRS 850 / 900
Power (dBm)
Frequency offset (KHz)
±400
±600
±1200
±1800
33
-19
-21
-21
-24
31
-21
-23
-23
-26
29
-23
-25
-25
-28
27
-23
-26
-27
-30
25
-23
-26
-29
-32
23
-23
-26
-31
-34
≤20
-23
-26
-32
-36
USER MANUAL/SPECIFICATION July 28, 2012
4
PARAMETERS
EXPLAINATIONS
ORFS @ Spectrum
due to switching
transient
GSM / GPRS 1800 / 1900
Power (dBm)
Frequency offset (KHz)
±400
±600
±1200
±1800
30
-22
-24
-24
-27
28
-23
-25
-26
-29
26
-23
-26
-28
-31
24
-23
-26
-30
-33
22
-23
-26
-31
-35
≤20
-23
-26
-32
-36
3. RECEIVE SPECIFICATIONS.
(A) LTE
PARAMETERS
EXPLAINATIONS
Frequency Range
Band IV
[AWS] Down: 2110 ~ 2155 MHz
Band XVII
[700] Down: 734 ~ 746 MHz
Reference Sensitivity
Level
Band IV
BW (MHz)
Reference Sensitivity (dBm)
Modulation
5
-100
QPSK
10
-97
QPSK
Band XVII
BW (MHz)
Reference Level (dBm)
Modulation
5
-97
QPSK
10
-94
QPSK
Adjacent Channel
Selectivity
BW (MHz)
Adjacent Channel Selectivity (dB)
5
33 dB
10
33 dB
(B) WCDMA/HSDPA
PARAMETERS
EXPLAINATIONS
Frequency Range
Band I
[2100] Down: 2110 ~ 2170 MHz
Band II
[1900] Down: 1930 ~ 1990 MHz
Band V
[850] Down: 869 ~ 894 MHz
Band VIII
[900] Down: 925 ~ 960 MHz
Reference Sensitivity Level
WCDMA Band I
-106.7 dBm
WCDMA Band II
-104.7 dBm
WCDMA Band V
-104.7 dBm
WCDMA Band VIII
-103.7 dBm
Adjacent Channel Selectivity
Band I
-92.7 dBm
-52dBm @ ±5MHz
Band II
-90.7 dBm
Band V
-90.7 dBm
Band VIII
-89.7 dBm
Intermodulation
Band I
-103.7 dBm
-46dBm ±10MHz, ±20MHz
Band II
-101.7 dBm
Band V
-101.7 dBm
Band VIII
-100.7 dBm
Spurious Response
Band I
-103.7 dBm
-44 dBm
Band II
-101.7 dBm
Band V
-101.7 dBm
Band VIII
-100.7 dBm
In-Band Blocking
Band I
-103.7 dBm
-56 dBm @ ±10MHz, -44 dBm @
±15MHz
Band II
-101.7 dBm
USER MANUAL/SPECIFICATION July 28, 2012
5
PARAMETERS
EXPLAINATIONS
Band V
-101.7 dBm
Band VIII
-100.7 dBm
Peak throughput
HSDPA
21Mbps
Category 6
(C) GSM / GPRS
PARAMETERS
EXPLAINATIONS
Frequency Range
GPRS / EDGE 850
Down: 869 ~ 894 MHz
GPRS / EDGE 900
Down: 925 ~ 960 MHz
GPRS / EDGE 1800
Down: 1805 ~ 1880 MHz
GPRS / EDGE 1900
Down: 1930 ~ 1990 MHz
Minimum Input level for Reference
Performance
GPRS 850/900/1800/1900
Type of Channel
Propagation Condition: BLER < 10%,
Static
PDTCH/CS-1
-104 dBm
PDTCH/CS-2
-104 dBm
PDTCH/CS-3
-104 dBm
PDTCH/CS-4
-101 dBm
EDGE 850/900/1800/1900
PDTCH/MCS-5
-98 dBm
PDTCH/MCS-6
-96 dBm
PDTCH/MCS-7
-93 dBm
PDTCH/MCS-8
-90.5 dBm
PDTCH/MCS-9
-86 dBm
USER MANUAL/SPECIFICATION July 28, 2012
6

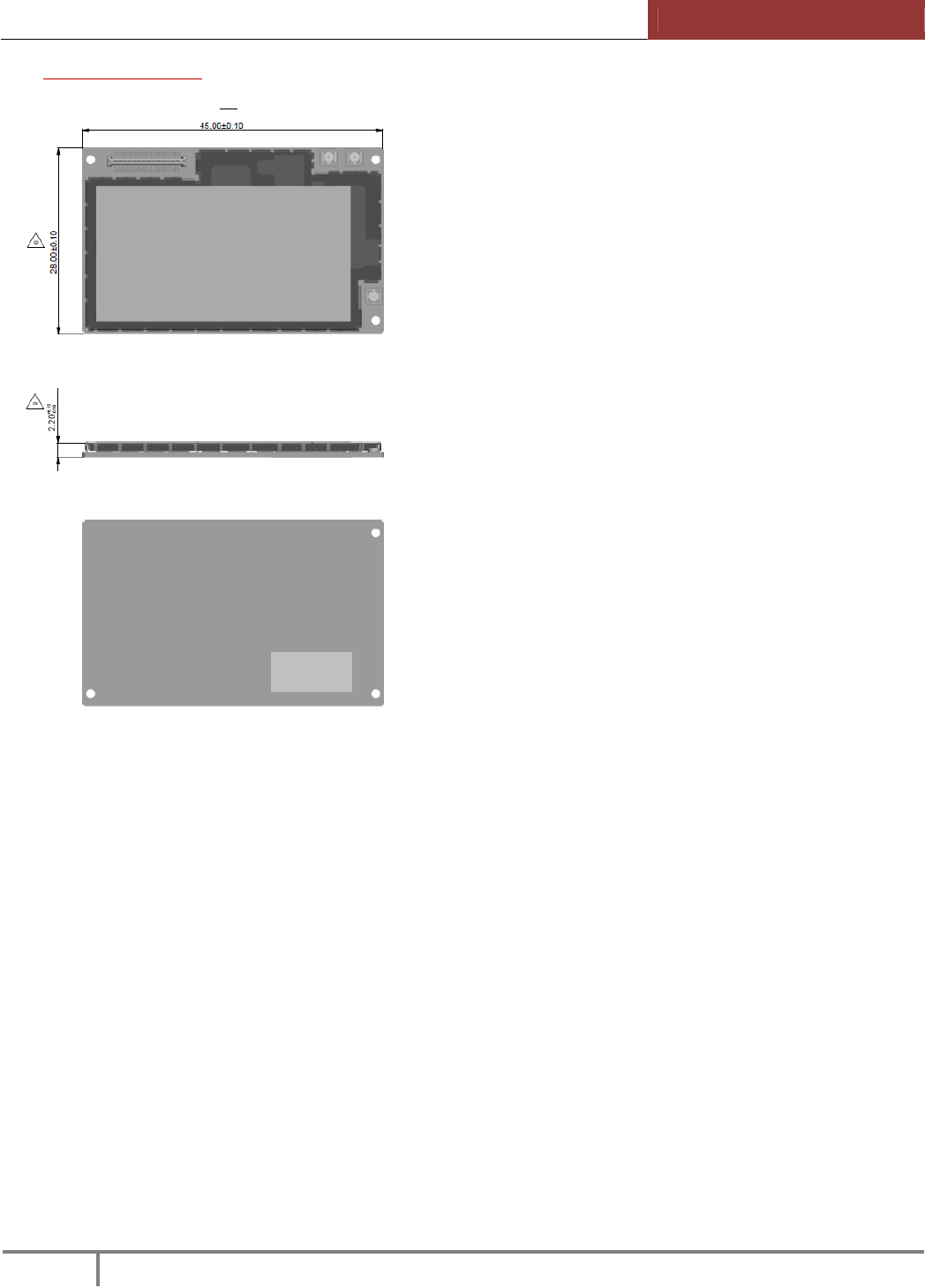

4. MECHANICAL DIMENSIONS.
USER MANUAL/SPECIFICATION July 28, 2012
7
5. CONNECTORS.
5.1 Supplier Part – Header (50 contacts) on module
A = 11.9mm, B = 9.6mm, C =11.2mm, D = 13.4mm
5.2 Supplier Part – Socket (50 contacts) on Host device (1.5mm stacking height)
A = 12.7mm, B = 9.6mm, C = 11.5mm, E = 1.45mm
USER MANUAL/SPECIFICATION July 28, 2012
8

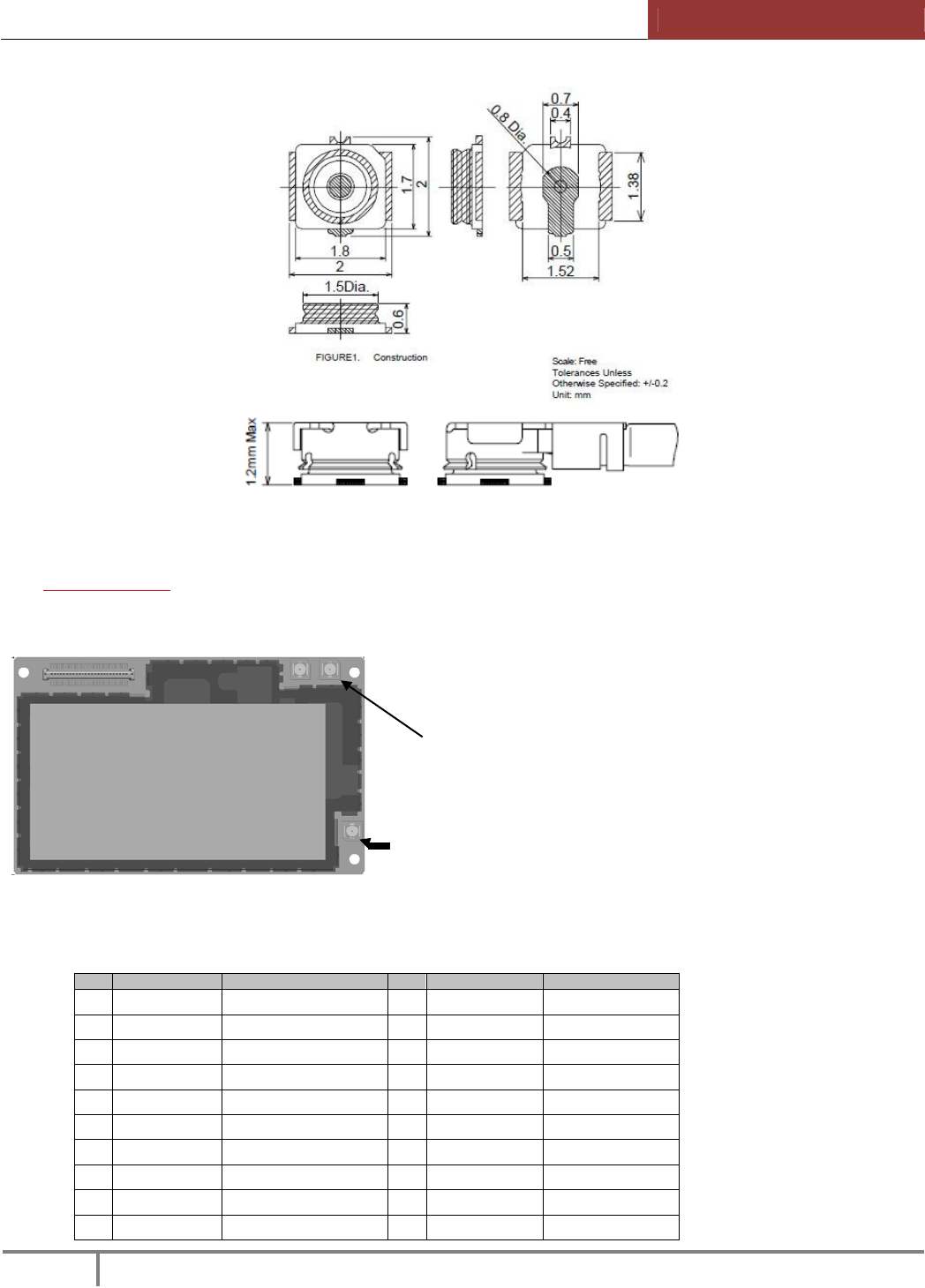

5.3 RF CONNECTOR Supplier Part
6. MODULE INTERFACES.
6.1 RF Ports
J2 DIVERSITY RF CONNECTOR
J3 PRIMARY RF CONNECTOR
6.2 PIN Descriptions
PIN
Name
Description
PIN
Name
Description
1
GND
Ground
2
VBAT
Battery
3
GND
Ground
4
VBAT
Battery
5
GND
Ground
6
VBAT
Battery
7
GND
Ground
8
VBAT
Battery
9
GND
Ground
10
VBAT
Battery
11
GND
Ground
12
VBAT
Battery
13
GND
Ground
14
VBAT
Battery
15
GND
Ground
16
VBAT
Battery
17
GND
Ground
18
VBAT
Battery
19
RSVD
Reserved
20
RSVD
Reserved
USER MANUAL/SPECIFICATION July 28, 2012
9
PIN
Name
Description
PIN
Name
Description
21
PS_HOLD
Power Supply Hold Up
22
UART_RX_AP
Serial Receive
23
GPIO1
GPIO 1
24
UART_TX_AP
Serial Transmit
25
FW_RDY
Firmware Ready
26
JTAG_TDI
JTAG Data In
27
SIM_PRST_N
SIM card detect
28
JTAG_TDO
JTAG Data Out
29
GND
Ground
30
JTAG_TMS
JTAG Select
31
USB_DN
USB Data -
32
JTAG_TCK
JTAG Clock
33
USB_DP
USB Data +
34
JTAG_RTCK
JTAG Return Clock
35
GND
Ground
36
JTAG_TRST_N
JTAG Test Reset
37
USB_EN
USB Enable
38
JTAG_SRST_N
JTAG System Reset
39
HOSTWAKE
HOSTWAKE
40
RSVD
Reserved
41
I2C_CLK_HMI
Host to Modem Interrupt
I2C Clock
42
GSM_TX
GSM Blanking signal
43
I2C_DATA_HMI
Modem to Host Interrupt
I2C Data
44
UICC_DATA
SIM DATA
45
RESTIN_N
Hard Reset
46
UICC_CLK
SIM Clock
47
GPIO2
GPIO 2
48
UICC_RST
SIM Reset
49
PWR_ON_OFF
Modem ON/OFF
50
VREG_SIM_2P85
SIM Voltage
6.3 Factory Test Points
Testpoint
Name
Testpoint
Name
TP1
VBAT
TP10
GND
TP2
VBAT
TP11
GND
TP3
VBAT
TP12
GND
TP4
VBAT
TP13
GND
TP5
UART_TX_AP
TP7
USB_EN
TP6
UART_RX_AP
TP14
USB_DN
TP20
PS_HOLD
TP15
USB_DP
TP27
PMIC_GPIO3
TP8
UICC_CLK
TP19
PWR_ON_OFF
TP9
UICC_RST
T17
RESETIN_N
TP16
UICC_DATA
TP18
VREG_SIM_2P85
6.4 Signal Description
(A) Power Management
PIN
Name
Direction
Voltage
Description
21
PS_HOLD
Modem Host
1.8V
Connect to 1.8V(VREG_MSME) to enable JTAG debug mode
49
PWR_ON_OFF
Host Modem
1.8V
Pulling LOW for 500ms toggles power ON/OFF. Must be driven open
collector (has internal pull up).
37
USB_EN
Host Modem
1.8V /
3.3V
Enable/Disable USB PHY. Enable only during USB data transfer to
minimize power consumption.
45
RESETIN_N
Host Modem
1.8V
Active Low, Hard reset. Resets PMIC when asserted.
25
FW_READY
Modem Host
1.8V
Pin goes HIGH when the module has competed boot sequence.
USER MANUAL/SPECIFICATION July 28, 2012
10

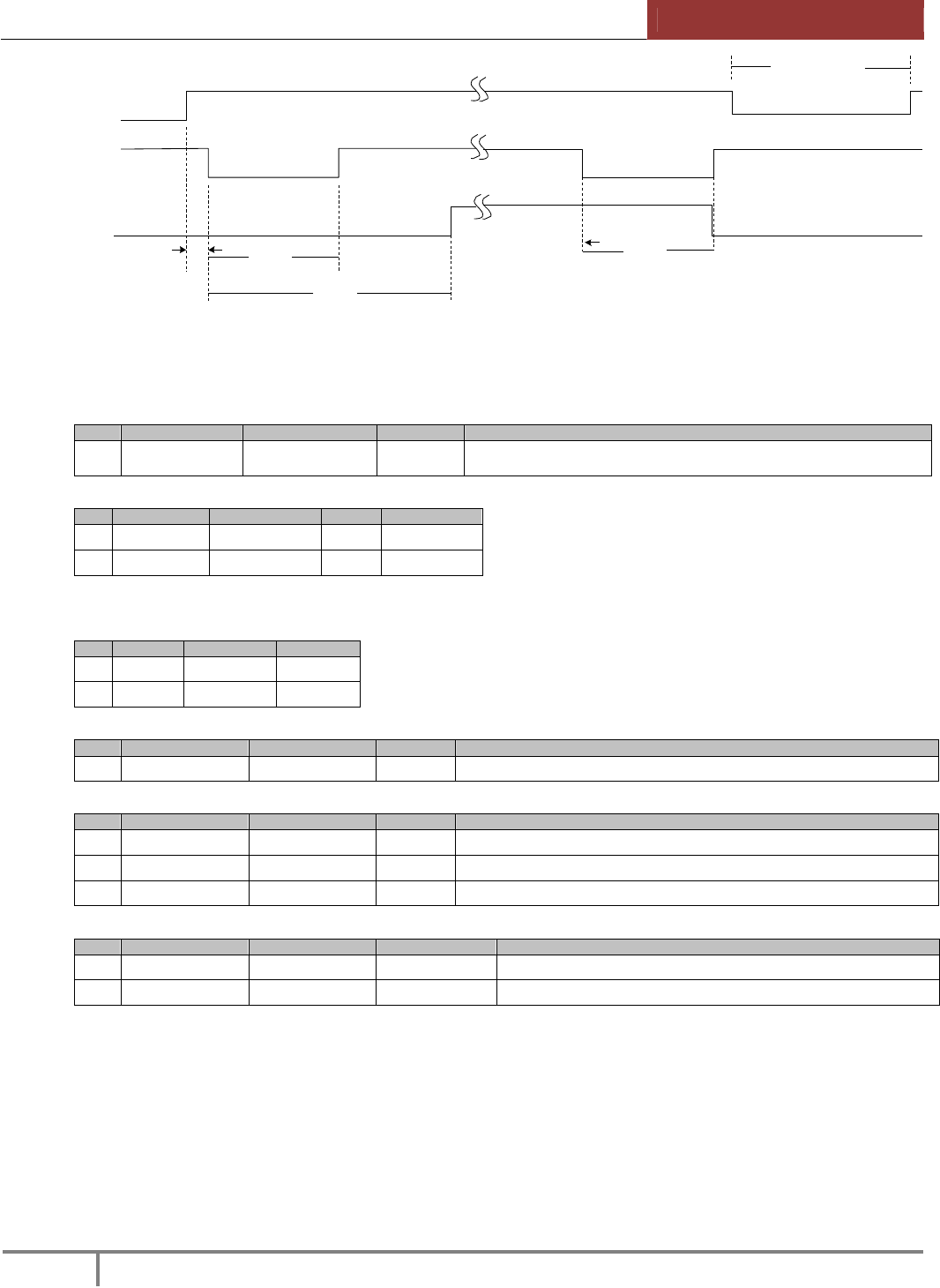

Power on sequence Shut down sequence 1 s
min
for hard
reset
RESETIN_N
PWR_ON_OFF
FW_READY
20
ms
min
500
ms
min
500
ms
min
TBD
s
max
Figure 1 - Power ON/OFF
Sequence
(B) SIM Card Detection
PIN
Name
Direction
Voltage
Description
23
SIM_PRST_N
Host -> Modem
1.8V
Host Device MCU pulls this signal to high when SIM card is present. Low
when the SIM card is absent.
(C) UART
PIN
Name
Direction
Voltage
Description
22
UART_RX_AP
Host Modem
1.8V
Receive Data
24
UART_TX_AP
Modem Host
1.8V
Transmit Data
The UART operates at 115,200 Baud with no Flow Control.
(D) USB
PIN
Name
Direction
Description
31
USB_DM
Bidirectional
USB Data -
33
USB_DP
Bidirectional
USB Data +
(E) GSM Blanking
PIN
Name
Direction
Voltage
Description
42
GSM_TX
Modem Host
1.8V
Logic High during GSM transmits.
(F) Host Wake & Interrupts
PIN
Name
Direction
Voltage
Description
41
HMI
Host Modem
1.8V
Host to Modem Interrupt
43
MHI
Modem Host
1.8V
Modem to Host Interrupt
39
HOSTWAKE
Modem Host
1.8V
Modem wake Host signal
(G) Spare GPIO
PIN
Name
Direction
Voltage
Description
23
GPIO 1
Bidirectional
1.8V / 2.85V
Spare GPIO
47
GPIO 2
Bidirectional
1.8V
Spare GPIO
Notes (unless otherwise specified):
1. All parts and materials must be ROHS compliant and Halogen Free.
2. The module’s RF specifications are complaint with 3GPP
3. All specifications under normal temperature, normal voltage conditions
USER MANUAL/SPECIFICATION July 28, 2012
11
1. OVERVIEW
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not
be less than 20cm (8 inches) during normal operation.
Maximum antenna gain allowed for use with this device is +2 dBi.
When the module is installed in the host device, the FCC ID label must be visible through a window on the final
device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be
placed on the outside of the final device that contains the following text:
“Contains FCC ID:
CO2-2105”
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions
above are met, further transmitter test will not be required.
USER MANUAL/SPECIFICATION July 28, 2012
12
However, the OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations
or co -location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID
cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-
evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm
may be maintained between the antenna and users. The final end product must be labeled in a visible area with
the following: “Contains FCC ID: CO2-2105”. The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove
this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
