Amazon com Services 2539 Analog Adapter User Manual FCCx

Rocco's Tacos LLC Analog Adapter FCCx

User Manual_QSG

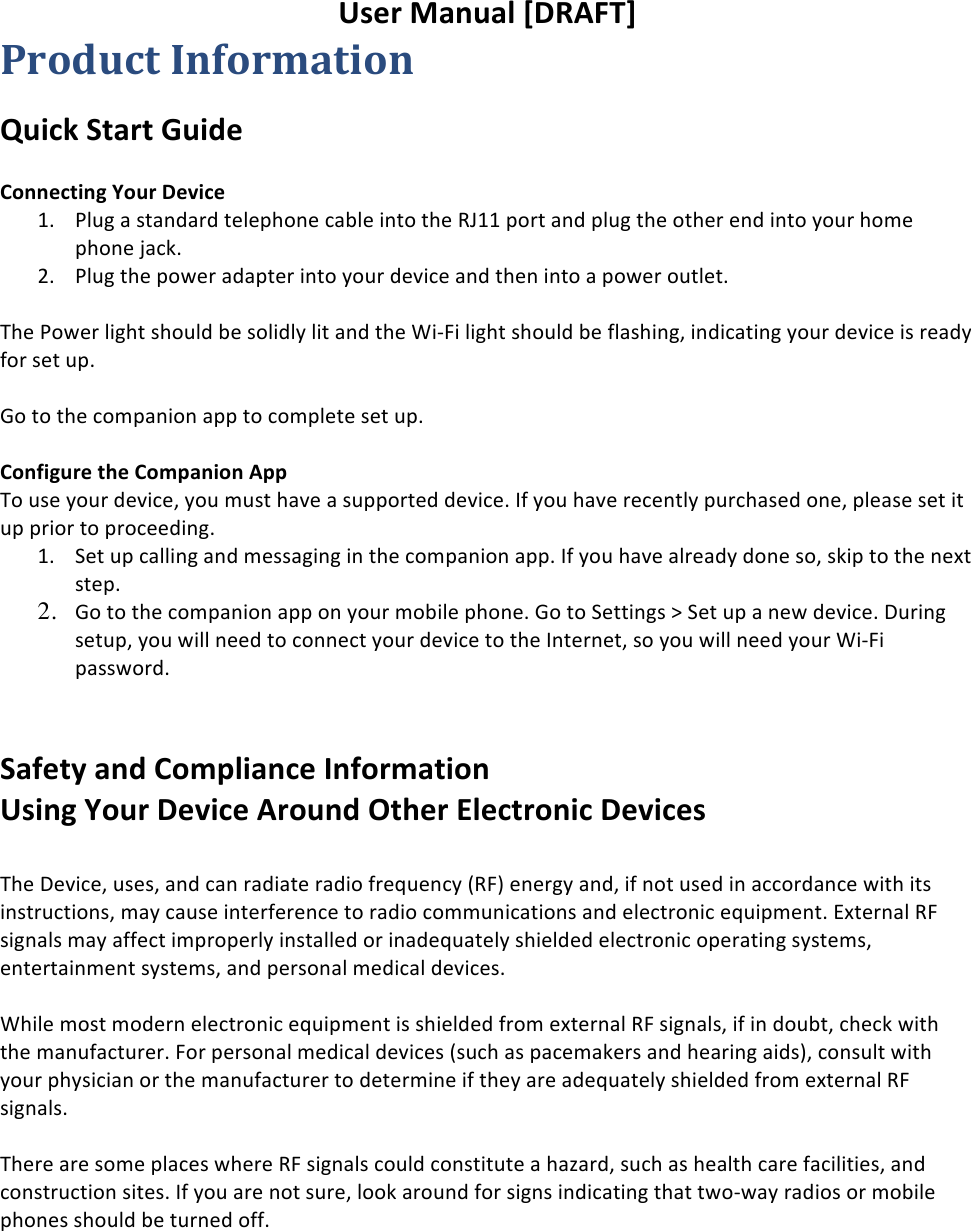

!!User%Manual%[DRAFT]%Product(Information Quick%Start%Guide%!Connecting%Your%Device%1. Plug!a!standard!telephone!cable!into!the!RJ11!port!and!plug!the!other!end!into!your!home!phone!jack.!2. Plug!the!power!adapter!into!your!device!and!then!into!a!power!outlet.!!The!Power!light!should!be!solidly!lit!and!the!Wi-Fi!light!should!be!flashing,!indicating!your!device!is!ready!for!set!up.!!Go!to!the!companion!app!to!complete!set!up.!!Configure%the%Companion%App%To!use!your!device,!you!must!have!a!supported!device.!If!you!have!recently!purchased!one,!please!set!it!up!prior!to!proceeding.!1. Set!up!calling!and!messaging!in!the!companion!app.!If!you!have!already!done!so,!skip!to!the!next!step.!2. Go!to!the!companion!app!on!your!mobile!phone.!Go!to!Settings!>!Set!up!a!new!device.!During!setup,!you!will!need!to!connect!your!device!to!the!Internet,!so!you!will!need!your!Wi-Fi!password. %Safety%and%Compliance%Information%Using%Your%Device%Around%Other%Electronic%Devices%%The!Device,!uses,!and!can!radiate!radio!frequency!(RF)!energy!and,!if!not!used!in!accordance!with!its!instructions,!may!cause!interference!to!radio!communications!and!electronic!equipment.!External!RF!signals!may!affect!improperly!installed!or!inadequately!shielded!electronic!operating!systems,!entertainment!systems,!and!personal!medical!devices.!!!While!most!modern!electronic!equipment!is!shielded!from!external!RF!signals,!if!in!doubt,!check!with!the!manufacturer.!For!personal!medical!devices!(such!as!pacemakers!and!hearing!aids),!consult!with!your!physician!or!the!manufacturer!to!determine!if!they!are!adequately!shielded!from!external!RF!signals.!!There!are!some!places!where!RF!signals!could!constitute!a!hazard,!such!as!health!care!facilities,!and!construction!sites.!If!you!are!not!sure,!look!around!for!signs!indicating!that!two-way!radios!or!mobile!phones!should!be!turned!off.!%%

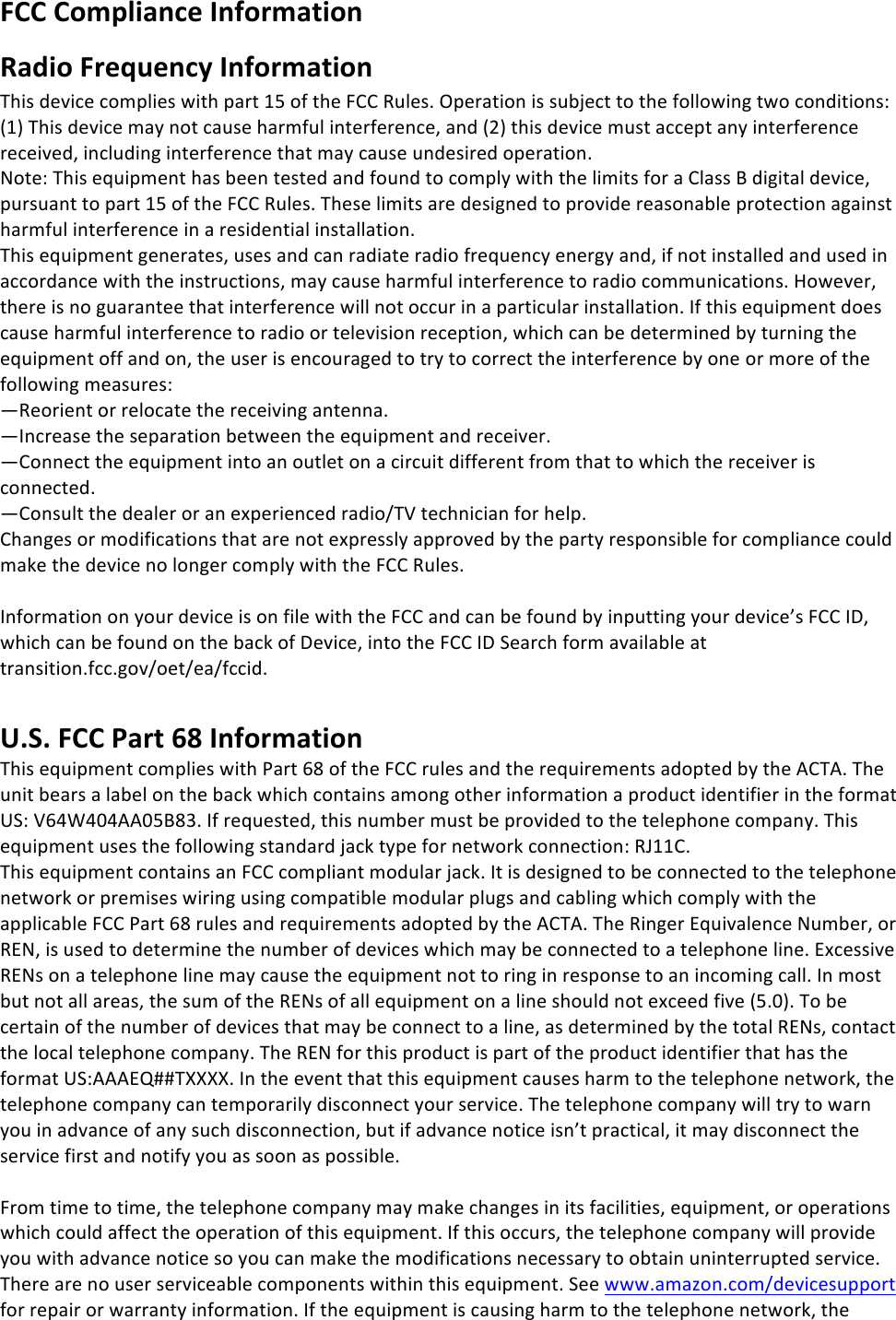

!!FCC%Compliance%Information%!Radio%Frequency%Information%%This!device!complies!with!part!15!of!the!FCC!Rules.!Operation!is!subject!to!the!following!two!conditions:!(1)!This!device!may!not!cause!harmful!interference,!and!(2)!this!device!must!accept!any!interference!received,!including!interference!that!may!cause!undesired!operation.!!Note:!This!equipment!has!been!tested!and!found!to!comply!with!the!limits!for!a!Class!B!digital!device,!pursuant!to!part!15!of!the!FCC!Rules.!These!limits!are!designed!to!provide!reasonable!protection!against!harmful!interference!in!a!residential!installation.!!This!equipment!generates,!uses!and!can!radiate!radio!frequency!energy!and,!if!not!installed!and!used!in!accordance!with!the!instructions,!may!cause!harmful!interference!to!radio!communications.!However,!there!is!no!guarantee!that!interference!will!not!occur!in!a!particular!installation.!If!this!equipment!does!cause!harmful!interference!to!radio!or!television!reception,!which!can!be!determined!by!turning!the!equipment!off!and!on,!the!user!is!encouraged!to!try!to!correct!the!interference!by!one!or!more!of!the!following!measures:!—Reorient!or!relocate!the!receiving!antenna.!—Increase!the!separation!between!the!equipment!and!receiver.!—Connect!the!equipment!into!an!outlet!on!a!circuit!different!from!that!to!which!the!receiver!is!connected.!—Consult!the!dealer!or!an!experienced!radio/TV!technician!for!help.!Changes!or!modifications!that!are!not!expressly!approved!by!the!party!responsible!for!compliance!could!make!the!device!no!longer!comply!with!the!FCC!Rules.!!!Information!on!your!device!is!on!file!with!the!FCC!and!can!be!found!by!inputting!your!device’s!FCC!ID,!which!can!be!found!on!the!back!of!Device,!into!the!FCC!ID!Search!form!available!at!transition.fcc.gov/oet/ea/fccid.!%U.S.%FCC%Part%68%Information!This!equipment!complies!with!Part!68!of!the!FCC!rules!and!the!requirements!adopted!by!the!ACTA.!The!unit!bears!a!label!on!the!back!which!contains!among!other!information!a!product!identifier!in!the!format!US:!V64W404AA05B83.!If!requested,!this!number!must!be!provided!to!the!telephone!company.!This!equipment!uses!the!following!standard!jack!type!for!network!connection:!RJ11C.!!This!equipment!contains!an!FCC!compliant!modular!jack.!It!is!designed!to!be!connected!to!the!telephone!network!or!premises!wiring!using!compatible!modular!plugs!and!cabling!which!comply!with!the!applicable!FCC!Part!68!rules!and!requirements!adopted!by!the!ACTA.!The!Ringer!Equivalence!Number,!or!REN,!is!used!to!determine!the!number!of!devices!which!may!be!connected!to!a!telephone!line.!Excessive!RENs!on!a!telephone!line!may!cause!the!equipment!not!to!ring!in!response!to!an!incoming!call.!In!most!but!not!all!areas,!the!sum!of!the!RENs!of!all!equipment!on!a!line!should!not!exceed!five!(5.0).!To!be!certain!of!the!number!of!devices!that!may!be!connect!to!a!line,!as!determined!by!the!total!RENs,!contact!the!local!telephone!company.!The!REN!for!this!product!is!part!of!the!product!identifier!that!has!the!format!US:AAAEQ##TXXXX.!In!the!event!that!this!equipment!causes!harm!to!the!telephone!network,!the!telephone!company!can!temporarily!disconnect!your!service.!The!telephone!company!will!try!to!warn!you!in!advance!of!any!such!disconnection,!but!if!advance!notice!isn’t!practical,!it!may!disconnect!the!service!first!and!notify!you!as!soon!as!possible.!!From!time!to!time,!the!telephone!company!may!make!changes!in!its!facilities,!equipment,!or!operations!which!could!affect!the!operation!of!this!equipment.!If!this!occurs,!the!telephone!company!will!provide!you!with!advance!notice!so!you!can!make!the!modifications!necessary!to!obtain!uninterrupted!service.!There!are!no!user!serviceable!components!within!this!equipment.!See!www.amazon.com/devicesupport!for!repair!or!warranty!information.!If!the!equipment!is!causing!harm!to!the!telephone!network,!the!

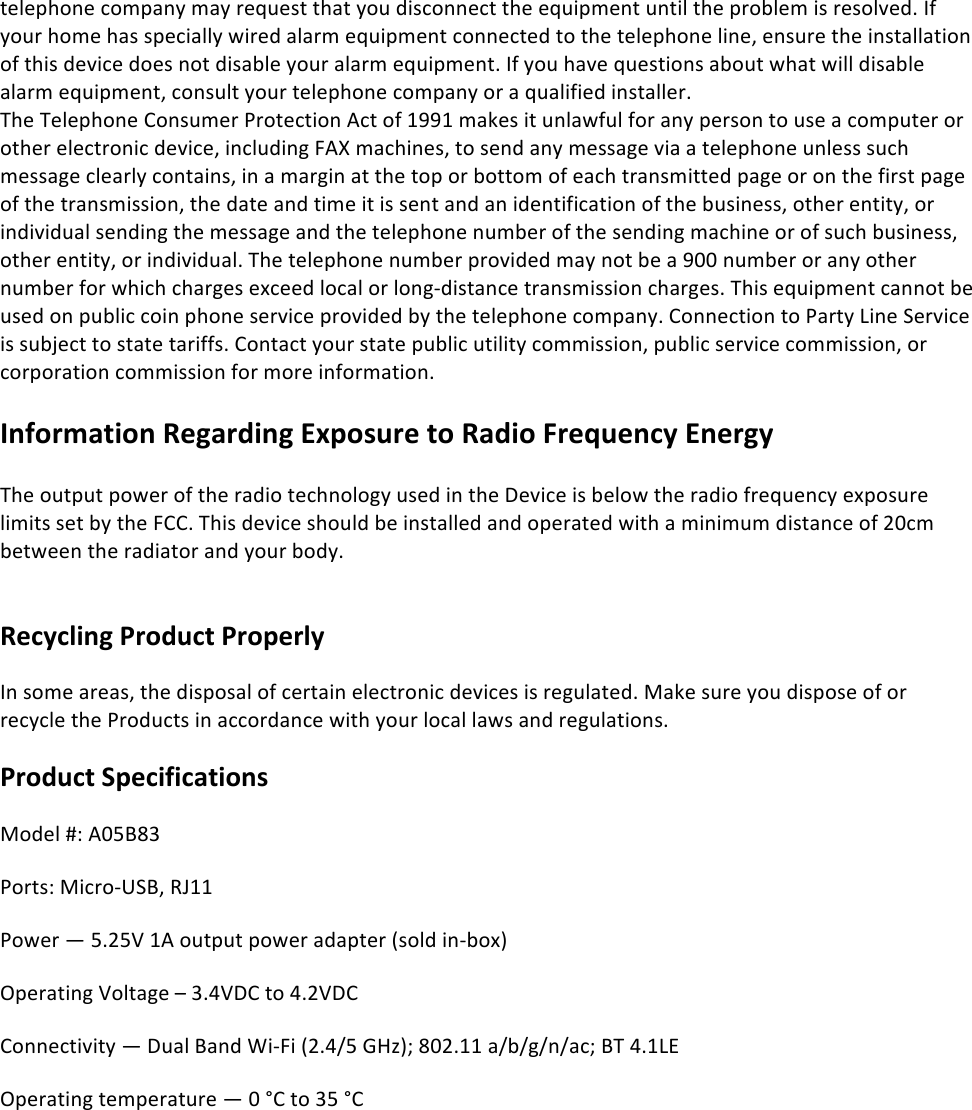

!!telephone!company!may!request!that!you!disconnect!the!equipment!until!the!problem!is!resolved.!If!your!home!has!specially!wired!alarm!equipment!connected!to!the!telephone!line,!ensure!the!installation!of!this!device!does!not!disable!your!alarm!equipment.!If!you!have!questions!about!what!will!disable!alarm!equipment,!consult!your!telephone!company!or!a!qualified!installer.!!The!Telephone!Consumer!Protection!Act!of!1991!makes!it!unlawful!for!any!person!to!use!a!computer!or!other!electronic!device,!including!FAX!machines,!to!send!any!message!via!a!telephone!unless!such!message!clearly!contains,!in!a!margin!at!the!top!or!bottom!of!each!transmitted!page!or!on!the!first!page!of!the!transmission,!the!date!and!time!it!is!sent!and!an!identification!of!the!business,!other!entity,!or!individual!sending!the!message!and!the!telephone!number!of!the!sending!machine!or!of!such!business,!other!entity,!or!individual.!The!telephone!number!provided!may!not!be!a!900!number!or!any!other!number!for!which!charges!exceed!local!or!long-distance!transmission!charges.!This!equipment!cannot!be!used!on!public!coin!phone!service!provided!by!the!telephone!company.!Connection!to!Party!Line!Service!is!subject!to!state!tariffs.!Contact!your!state!public!utility!commission,!public!service!commission,!or!corporation!commission!for!more!information.!!Information%Regarding%Exposure%to%Radio%Frequency%Energy% The!output!power!of!the!radio!technology!used!in!the!Device!is!below!the!radio!frequency!exposure!limits!set!by!the!FCC.!This!device!should!be!installed!and!operated!with!a!minimum!distance!of!20cm!between!the!radiator!and!your!body.!!Recycling%Product%Properly%In!some!areas,!the!disposal!of!certain!electronic!devices!is!regulated.!Make!sure!you!dispose!of!or!recycle!the!Products!in!accordance!with!your!local!laws!and!regulations.! Product%Specifications%%Model!#:!A05B83!Ports:!Micro-USB,!RJ11!Power!—!5.25V!1A!output!power!adapter!(sold!in-box)!Operating!Voltage!–!3.4VDC!to!4.2VDC!Connectivity!—!Dual!Band!Wi-Fi!(2.4/5!GHz);!802.11!a/b/g/n/ac;!BT!4.1LE!Operating!temperature!—!0!°C!to!35!°C!
