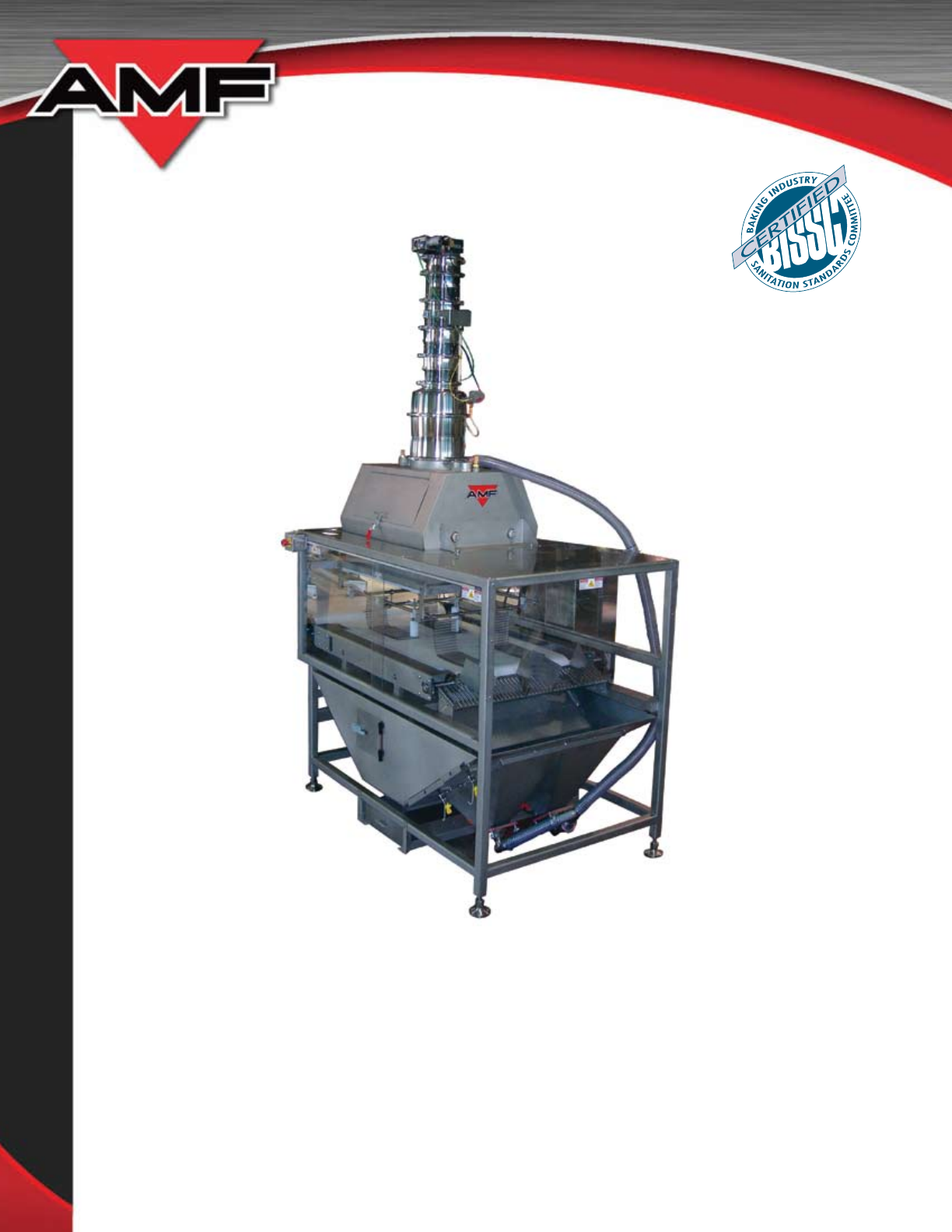

FLOUR APPLICATION AND
RECYCLING SYSTEM
• DesignedforUniformFlouringofaRoundedDoughballtoPrevent
StickingandOptimizeDownstreamOperations
• ProvidesaUniqueFlourContainmentandRecyclingSystemto
MaintainaCleanOperatingEnvironmentandMaximizeFlourUsage
Efciency
• DesignedforUseWithAMFExtrusionDividersandBeltRounders
FLOUR APPLICATION AND
RECYCLING SYSTEM
FEATURES & BENEFITS
MECHANICAL FEATURES
• Simple,openaccessdesignforeasyoperation
-SlidingLexanpanelsandslideoutcatchpans
• Allstainlesssteelframeandcatchpans
-Easytoclean
• Efcient,highvolumereclaimsystem
-Vacuumpumpdesignedtocompletelyclearreclaimhopperduringcontinuousoperation
• Highcapacityreclaimourhopperforcontinuousoperation
• Availableindualandtriplechannelcongurations
• Singlebeltwithdirectdriveforlowmaintenance
• Screenandgratesinreclaimhopper
-Doughballsandtailingseasilyseparatedfromour
-Easytoremoveandclean
• Venturivacuumbased,highefciencyourreclaim
• Easyoperatoraccesstoclearhopperwithoutshuttingdown
thesystem
• Adjustabledoughballturnersandcurlingchainsforcomplete
ouringofdoughball
• Pneumaticpulsesiftersforsimpleoperationandlow
maintenance
-Easytoadjustforoptimumourdistribution
• Elevateddischargegratetodropoutexcessour
• Catchpancollectsourfromundertake-awayconveyors
• Reclaimhopperwithaquietelectricvibratorsystem
MECHANICAL OPTIONS
• Autolloptionformakeupour(customertosupplyourreceivers)
Reclaim Hopper
Vacuum Flour Reclaim
Stainless Steel Discharge Grate
Doughball Turner
& Curling Chains
Pneumatic Pulse Sifters
Model Maximum
Speed(ppm)
DoughBall
SizeRange
ApproximateShipping
Weight
SingleChannel 130 9oz.to54oz.
(255gto1531g) 1,600lb.(726kg)
DualChannel 260 9oz.to54oz.
(255gto1531g) 1,600lb.(726kg)
TripleChannel 390 9oz.to54oz.
(255gto1531g) 1,800lb.(816kg)
ElectricalRequirements:
ApproximateMainPower:7.5KVA
ControlPower:24VDC/120VAC
AirRequirements:25SCFM@87PSIG(ReclaimUnit)
25SCFM@87PSIG(PneumaticSifter)
ApproximateDimensions:
160”Lx80”Wx75”H(4064mmx2032mmx1905mm)
SPECIFICATIONS
ELECTRICAL FEATURES
• ControlsintegratedintoADDbreaddividerenclosure
-Quickdisconnectplugsforsimpleinstallation
-Variablespeeddriveforbelt
-PLCcontrolforoursystem
• AllenBradleypushbuttonsfor
-Emergencystop
• Highandlowlevelproxsensorsinourreservoir
Single Channel Flouring and Outfeed Conveyor
for Use With Cone Rounder
Europe Ofce:
West Park Ring Road
Leeds LS16 6QQ
England
Tel: 44-1132-787110
Fax: 44-1132-741415
sales-europe@amfbakery.com
1-800-BAKERS-1
www.amfbakery.com
FOR MORE INFORMATION PLEASE CALL YOUR ACCOUNT MANAGER OR
AMF’s focus on continuous improvement may result
in changes to machinery specications without notice. 10/2008
Asia Ofce:
Room 801 A-Building
Thunis Dev. Building
No. 11 Hui Xin East St.
Chaoyang District
Beijing, China 100029
Tel: 86-10-64823613
Fax: 86-10-64934259
sales-asia@amfbakery.com
Headquarters:
2115 W. Laburnum Ave.
Richmond, Virginia 23227
Tel: 1-800-225-3771
or 1-804-355-7961
Fax: 1-804-342-9724
sales@amfbakery.com

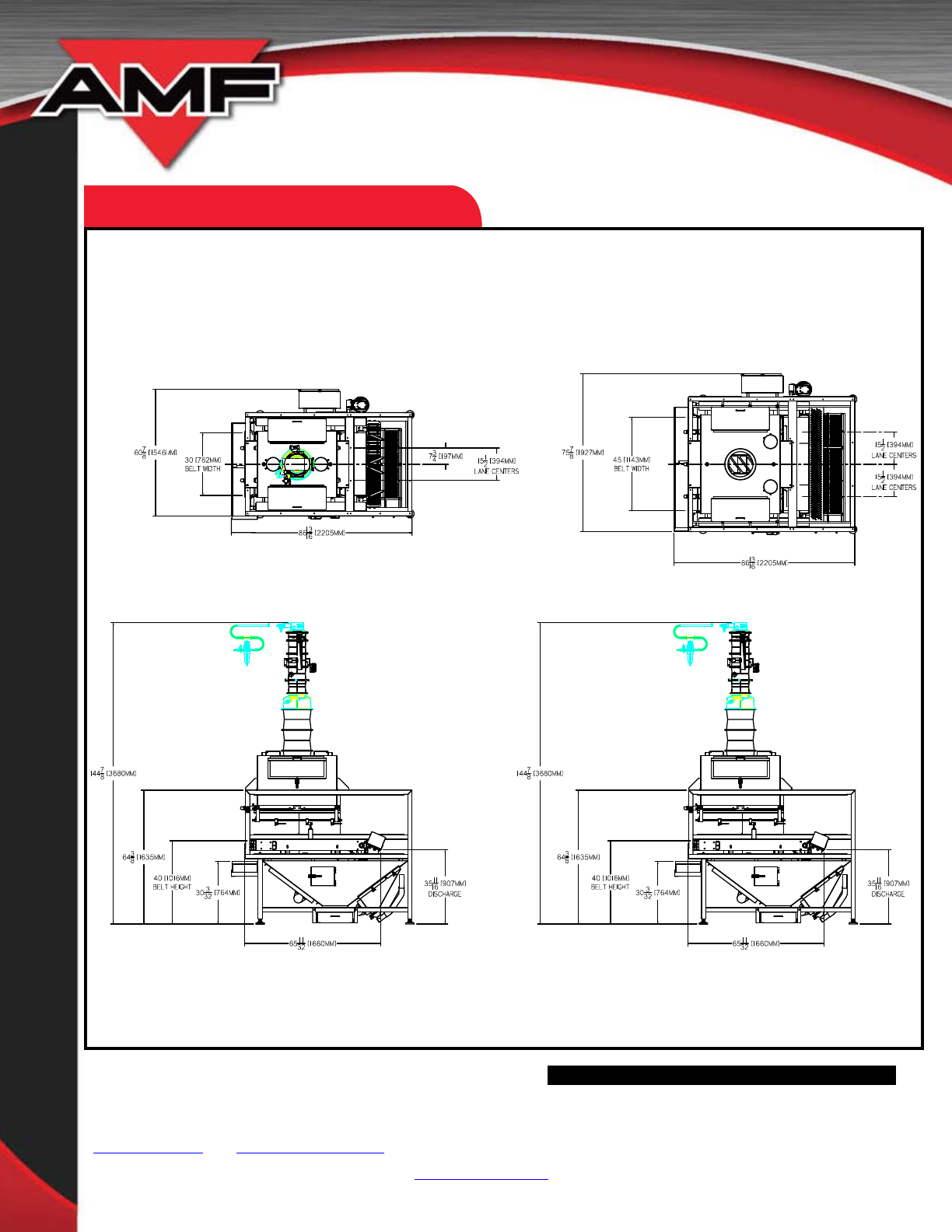

FLOUR APPLICATION AND
RECYCLING SYSTEM
DIMENSIONAL DRAWING
Single Channel and
Dual Channel
Flouring Belt
Triple Channel
Flouring Belt
