• Stainless steel construction

• 100 + pieces per minutes

• Reliable performance

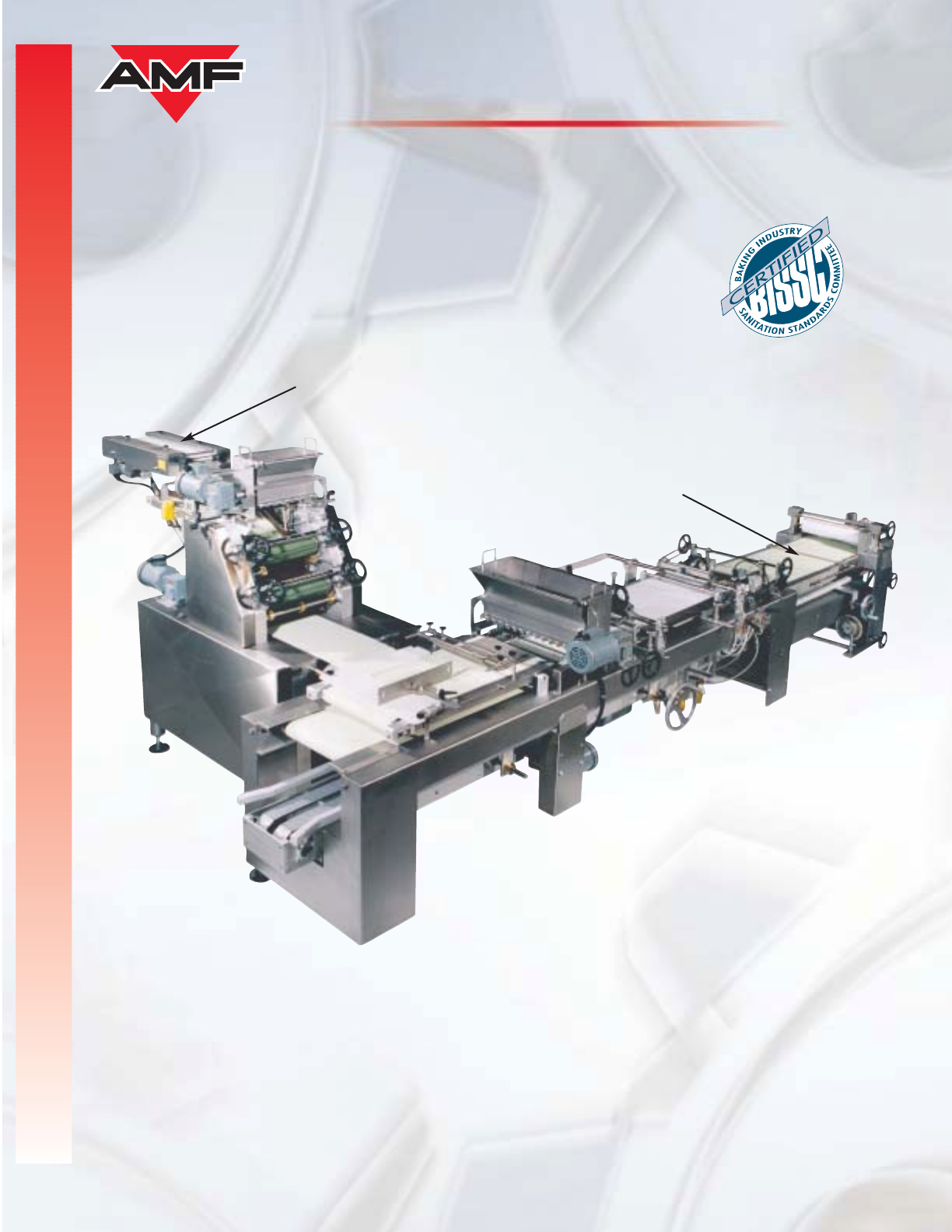

SUPER ‘’S’’

CROSS GRAIN

SHEETER/MOULDER/PANNER

Shown with optional

Dough Spacer

Shown with optional

Handtwist Table

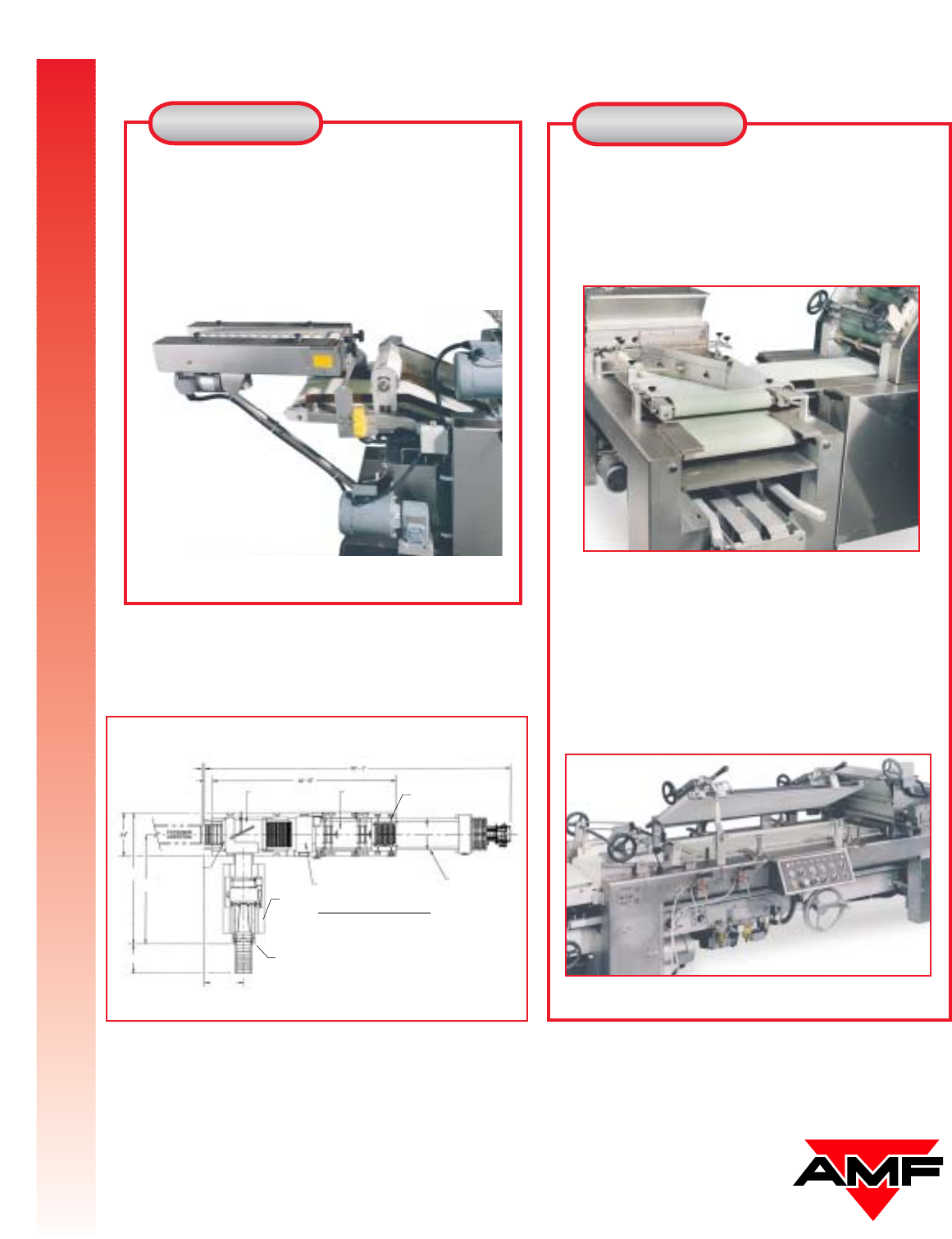

SUPER ‘’S’’ CROSS GRAIN SHEETER/MOULDER/PANNER

Sheeter Section

• Stainless steel construction.

•Slanted infeed conveyor with Teflon®

coated dough guides.

•Adjustable flattener roll.

•Removable D.C. variable speed stainless steel flour

sifter with automatic cut-off. (optional A.C.)

Shown with optional new larger dough spacer.

Moulder Section

• High speed transfer conveyor.

•Fully adjustable plow and curling mat.

•Smooth high speed transfer of product.

•Delrin transfer plate *Super “S” users have confirmed

speeds of 120 LPM for prolonged periods of time.

Above shown with high speed transfer conveyor.

• Stainless steel motorized pressure board.

•Air operated lifting device

(optional shown left) permits:

- Rapid change over of dough guides.

- Easier access for sanitation and maintenance

purposes.

•Easily adjustable pan guides.

FLOUR SIFTER 28"

30-1/2"

MOULDER PANNER

MAKE-UP BELT HAND TWIST TABLE

HAND TWIST TABLE

TRANSFER BELT

2" CLEARANCE

PANNER

SHEETER

NEW LARGER DOUGH SPACER

7'-2"

8'-7"

22-3/4"

24-1/4"

6-1/4"

• STAINLESS STEEL CONSTRUCTION

• EQUIPMENT MEETS OSHA REQUIREMENTS

• WORKING RANGE: 6 OZ. TO 36 OZ. / 7" TO 19"

RH MACHINE SHOWN

•Stainless steel frame and table.

•Polytek SP93F (20" wide) conveyor belt.

•Mechanical variable speed 3/4 H.P. TEFC motor with

reducer 10:1.

•Adjustable flattener roll with bakery roller compound

#747 sleeve.

•Driven U.H.M.W. panning rollers.

•Adjustable dough dropping mechanism.

•Magnetic pan indexer is A.C. driven 1-1/2 H.P. TEFC

motor with Horton clutch and brake.

•A.C. drive on twist table belt (optional).

• Magnetic pan indexer (belt type)

- Center magna rail design.

- Adjustable mold sensor.

- Motor SEW Eurodrive 3/4 H.P. with brake.

•Magnetic pan indexer (chain type)

- Replaceable magnet plates.

- Horton clutch and brake.

- Adjustable mold sensor.

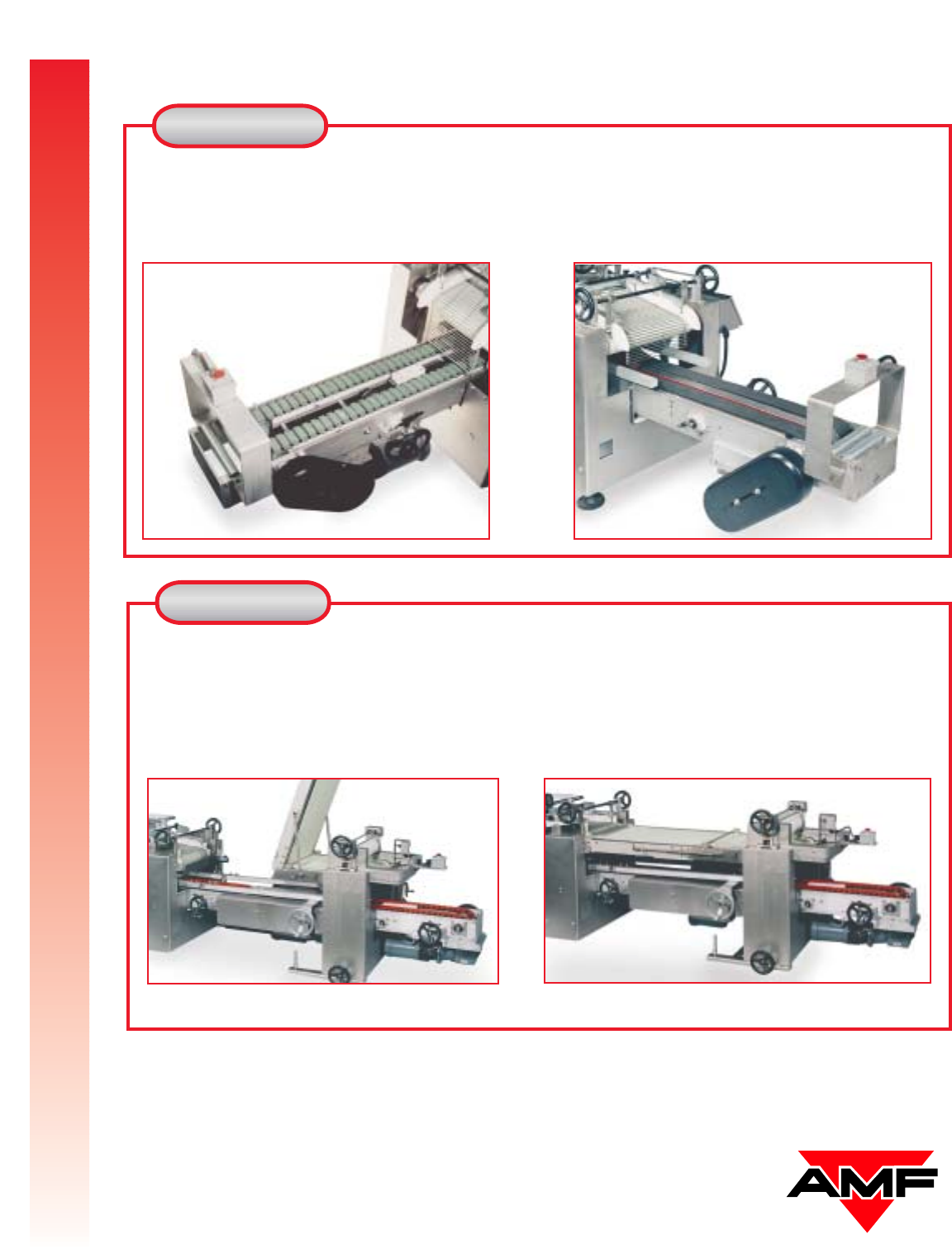

Optional hand twist table shown (not in operating position). Optional hand twist table shown (in operating position).

SUPER ‘’S’’ CROSS GRAIN SHEETER/MOULDER/PANNER

Hand twist table

OR

Pan indexers

Moulder / Panner

section

•Special transfer conveyor with Delrin transfer plate,

fully adjustable stainless steel plow and curling mat.

•D.C. variable speed removable flour sifter.

•Motorized pressure board, adjustable at both ends,

with floating action (19" wide).

•U.H.M.W. adjustable dough guides with stainless

steel backing and numeric graduation.

•Polytech SP93F moulder make-up belt (20" wide 168

FPM).

•Adjustable pan guides.

•Dual strand plastic table-top pan conveyor.

• Magnetic pan indexer.

•Stainless steel sliding catch pan.

SUPER ‘’S’’ CROSS GRAIN SHEETER/MOULDER/PANNER

For more information please call

your Account Manager or 1-800-BAKERS-1.

Headquarters

AMF Bakery Systems

2115 West Laburnum Avenue

Richmond, Virginia 23227

1-800-225-3771 or 804-355-7961

FAX: 1-804-342-9724

www.amfbakery.com sales@amfbakery.com

European operation

West Park Ring Road

Leeds LS16 6QQ England

Tel.: 1132-787110

Fax: 1132-741415

06/2001

22-N-AA

AMF’s continuing engineering is constantly improving product performance. Consequently machinery specifications are subject to change without notice.

•Special slanted infeed conveyor with Teflon® coated

dough guides and adjustable flattener roller

(Elev. 61'' ± 1''). Infeed conveyor speed 160 FPM.

•D.C. variable speed, removable st. st. flour siflers with

automatic cut-off.

•Adjustable top and bottom sheeting rolls are 17 » wide.

•Baker Teflon® coated sheeting roll scrappers.

•Sheeting rolls 17'' wide adjustable.

•Top sheeting roll is grooved to prevent dough

hesitation.

•Sheeting rolls driven by a 2 H.P. motor.

- Top: 320 RPM

- Bottom: 400 RPM

•Sheeter belt 14" wide SP93F polytek endless.

- Mechanical variable speed

- Elevation 38" ± 1''

•Sheeting rolls guard (Lexan®) with safety switches.

•Stainless steel removable panels with safety switches.

•Adjustable legs.

•Stainless steel sliding catch pan.

•Pressure board with air operated lifting device.

•Third set of sheeting rollers for high speed

performance and specialty doughs.

• Complete set of inserts style adjustable U.H.M.W.

dough guides (1/2", 3/4", 1", 1-1/4").

• A.C. inverters on the following:

- Sheeting rolls

- Sheeter belt (speed 295 to 700 FPM)

- Transfer belt (speed 113 to 342 FPM)

- Moulder make-up belt (speed 84 FPM to 252 FPM)

- Pan conveyor:

- Table-top (60 to 180 FPM)

- Magnetic (80 FPM)

- Flour sifters

•Remote, combined master control panel for

2 or 3 moulders.

• Nema 4 remote control panel mounted under moulder

frame with the following:

- Allen Bradley starters

- D.C. controls for flour dusters

- Main disconnect switch

- Relays, terminal block, wiring

• Nema 4 operator panel mounted to moulder frame with

the following:

- Allen Bradley push-buttons and alarm

message display

- Potentiometers for flour sifters

- Safeties

- Emergency stop

•CAD electrical drawings.

Sheeter Section

Electrical

Specifications

Options
