HD-SDI RX
WIRELESS MODULE – FALCON RX
AMN36254
USER GUIDE 1.0
Version 0.1
Important Notice
Version 1.0
AMIMON Confidential 2
Important Notice
AMIMON Ltd. reserves the right to make corrections, modifications, enhancements, improvements, and other changes to its products and
services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before
placing orders and should verify that such information is current and complete. All products are sold subject to AMIMON's terms and conditions
of sale supplied at the time of order acknowledgment.
AMIMON warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with AMIMON's
standard warranty. Testing and other quality control techniques are used to the extent AMIMON deems necessary to support this warranty.
Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.
AMIMON assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using AMIMON components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
AMIMON does not warrant or represent that any license, either express or implied, is granted under any AMIMON patent right, copyright, mask
work right, or other AMIMON intellectual property right relating to any combination, machine, or process in which AMIMON products or services
are used. Information published by AMIMON regarding third-party products or services does not constitute a license from AMIMON to use such
products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents
or other intellectual property of the third party, or a license from AMIMON under the patents or other intellectual property of AMIMON.
Reproduction of information in AMIMON data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. AMIMON is not responsible or liable for such altered documentation.
Resale of AMIMON products or services with statements different from or beyond the parameters stated by AMIMON for that product or service
voids all express and any implied warranties for the associated AMIMON product or service and is an unfair and deceptive business practice.
AMIMON is not responsible or liable for any such statements.
All company and brand products and service names are trademarks or registered trademarks of their respective holders.
Contact Us
US Office
2350 Mission College Blvd.
Suite 500
Santa Clara, CA 95054
Tel: +1 650 641 7178
Israeli Headquarters
2 Maskit St.
Building D, 2nd Floor
P.O.Box 12618
Herzlia 46733, Israel
Tel: +972-9-962-9222
Fax: +972-9-956-5467
contact@amimon.com
Japan Office
FS Building 9F.
1-14-9 Higashi-Gotanda Shinagawa-ku
Tokyo 141-0022,
Japan
TEL +81-3-3444-4305
contact.japan@amimon.com
Revision History
Version 1.0
AMIMON Confidential 3
Revision History
Version
Date
Description
1.0
February 17,2013
Initial Release
Table of Contents
Version 1.0
AMIMON Confidential 4
Table of Contents
Important Notice ............................................................................................... 2
Revision History ................................................................................................ 3
Table of Contents .............................................................................................. 4
List of Figures .................................................................................................... 5
List of Tables ..................................................................................................... 5
Chapter 1 6
Introduction ....................................................................................................... 6
Chapter 2 7
Overview 7
2.1 AMN36254 WHDI Sink (RX): ........................................................................................................................ 7
2.1.1 AMN36254 - General Guidelines (Rx) .............................................................................................. 7
2.1.2 LEDs .................................................................................................................................................. 8
2.1.3 On/Off switch ...................................................................................................................................... 9
2.1.4 Boot button ......................................................................................................................................... 9
2.1.5 Reset button ....................................................................................................................................... 9
2.1.6 Input Voltage connector ..................................................................................................................... 9
2.1.7 Microcontroller .................................................................................................................................. 10
2.1.8 IR blaster .......................................................................................................................................... 10
2.1.9 USB .................................................................................................................................................. 10
2.1.10 External On/Off switch connector .................................................................................................... 11
2.1.11 I2C connector ................................................................................................................................... 11
2.2 Antennas ...................................................................................................................................................... 11
2.3 Block Diagram ............................................................................................................................................. 11
Chapter 3 12
FCC Caution ..................................................................................................... 12
List of Figures
Version 1.0
AMIMON Confidential 5
List of Figures
Figure 1 – Rx AMN36254 .......................................................................................................................................... 7
Figure 2 – Block Diagram ........................................................................................................................................ 11
List of Tables
Table 1: Technical Specifications ............................................................................................................................... 6
Table 2: Receiver Specifications................................................................................................................................ 6
Version 2.4
AMIMON Confidential 6
Chapter 1
Introduction
The AMN36254 is wireless A/V receiver board, which works at the 5GHz unlicensed band.
It is are based on AMIMON's WHDI Professional chipset that consist of the AMN2220_A4W baseband receiver
and the MAXIM 2850 ICs, presents the ultimate solution for HD-SDI receiver of the WHDI system. The perfect
HD/SD video, audio quality, the high robustness and the invisible latency of the wireless system are unmatched
by any other wireless technology and presents a true alternative to cable. The WHDI system transmits
uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as:
lip-sync, large buffers and other burdens like retransmissions or error propagation.
System Technical Specifications:
Video Resolution:
1080p/50, 1080p/60, 1080/59.94i, 1080/50i, 1080/29.97p, 1080/23.98p, , 720/59.94p, 720/50p, 525i/59.94, 625i/50, 1080/24p,
1080/24PsF, 1080/23.98PsF,1080/25PsF
Frequencies:
Non-DFS Frequencies:
5.15 ~ 5.25 GHz
5.725~5.825 GHz
DFS Frequencies:
5.25 ~ 5.35 GHz
5.47 ~ 5.725 GHz
Video Interface:
Two SDI outputs over 75 Ohm BNC.
Environment:
Operational - 0:40° C, 10%~90% humidity
Storage - 0:55° C, 10%~90% humidity
Range:
Up to 50 meter line of sight.
Audio:
Over SDI
Table 1: Technical Specifications
Receiver Specifications:
Receiver AMN36254
Video Interface:
SDI splitter
Option to connect external connector board
Antenna:
4 receiving +1 transmitting/ receiving
Voltage:
7-17 V
Size:
(L)130mm x (W)106mm x (H )13mm
User interface:
3 LEDs indicating Power, Video lock and
Network lock
USB connector for software update
Reset button
Table 2: Receiver Specifications
Overview
Version 1.0
AMIMON Confidential 7
Chapter 2
Overview
2.1 AMN36254 WHDI Sink (RX):
The AMN36254 WHDI Sink is designed to be at the receiver end of the WHDI downstream. The
AMN36254 receives wireless downstream transmission, demodulates it and regenerates the video,
audio and control content transmitted by the AMN35254 WHDI source. The receiver works at the
5GHz unlicensed band.
2.1.1 AMN36254 - General Guidelines (Rx)
1
1
4
3
2
5
11
12
13
14
15
16
17
18
19
20
21
22
23
6
7
8
9
25
24
GND
VDD
10

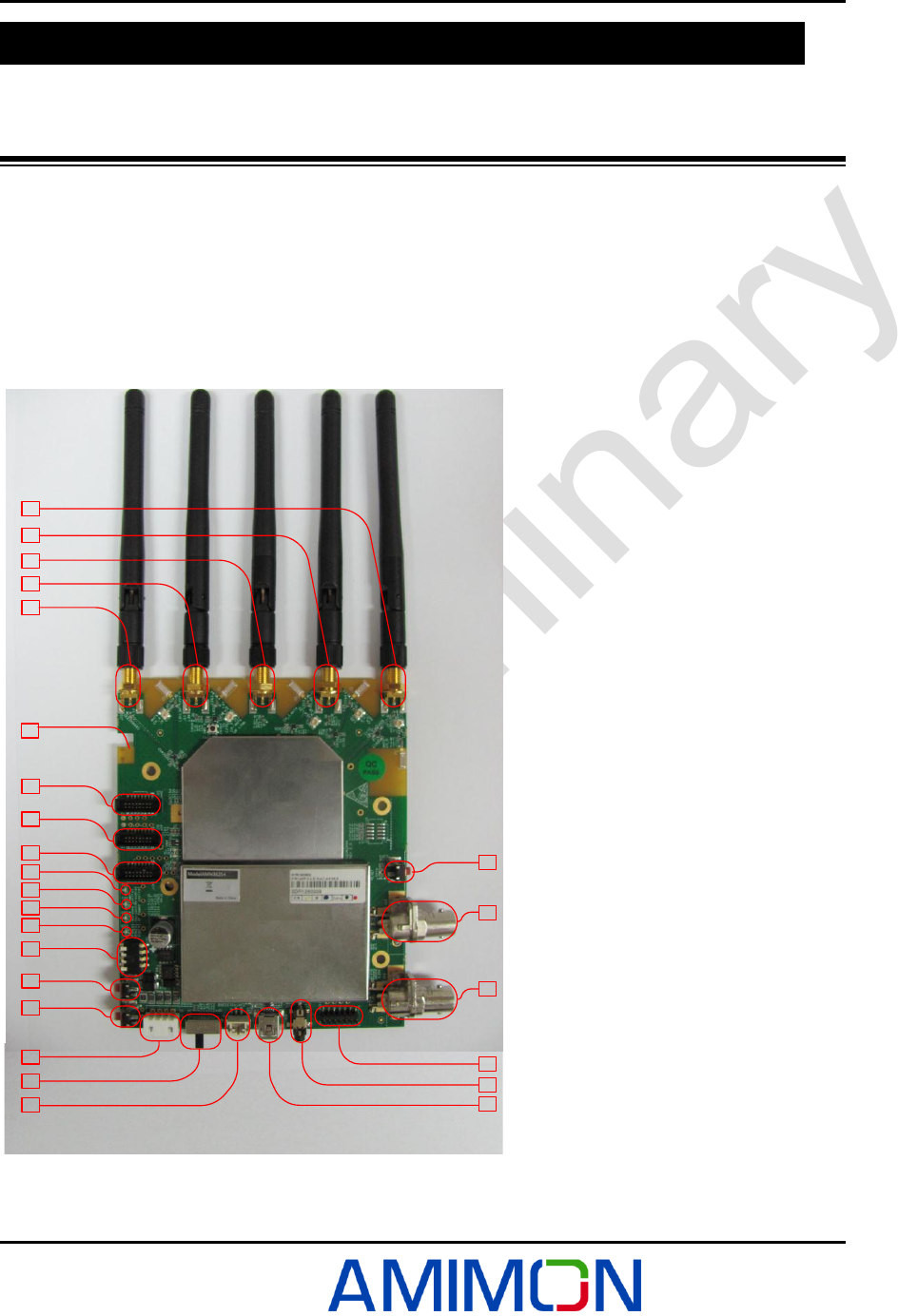

Figure 1 – Rx AMN36254
Overview
Version 1.0
AMIMON Confidential 8
01- Down link antenna CH#0
16- LED #2
02- Down link antenna CH#1
17- LED #1
03- Down link antenna CH#2
18- DIP Switch
04- Down link /UPLINK antenna CH#3
19- TBD
05- Down link antenna #4
20- Boot Button
06- Reset Button
21- Input Voltage connector 7-17v
07- HD-SDI output1
22- ON/OFF Switch
08- HD-SDI output2
23- External On/Off switch connector
09- FPGA JTAG port
24- USB
10- DFS antenna (located on PS)
25- IR
11- MAC DEBUG Port
12- APP DEBUG Port
13- Interface connector
14- LED #4
15- LED #3
2.1.2 LEDs
1- Power- the LED is ON when the power is applied and the ON/OFF switch is ON
2- Video Lock (Gennum lock)
3- Network (blink while searching, solid on when connected to Tx)
4- Unused.
Overview
Version 1.0
AMIMON Confidential 9
2.1.3 On/Off switch

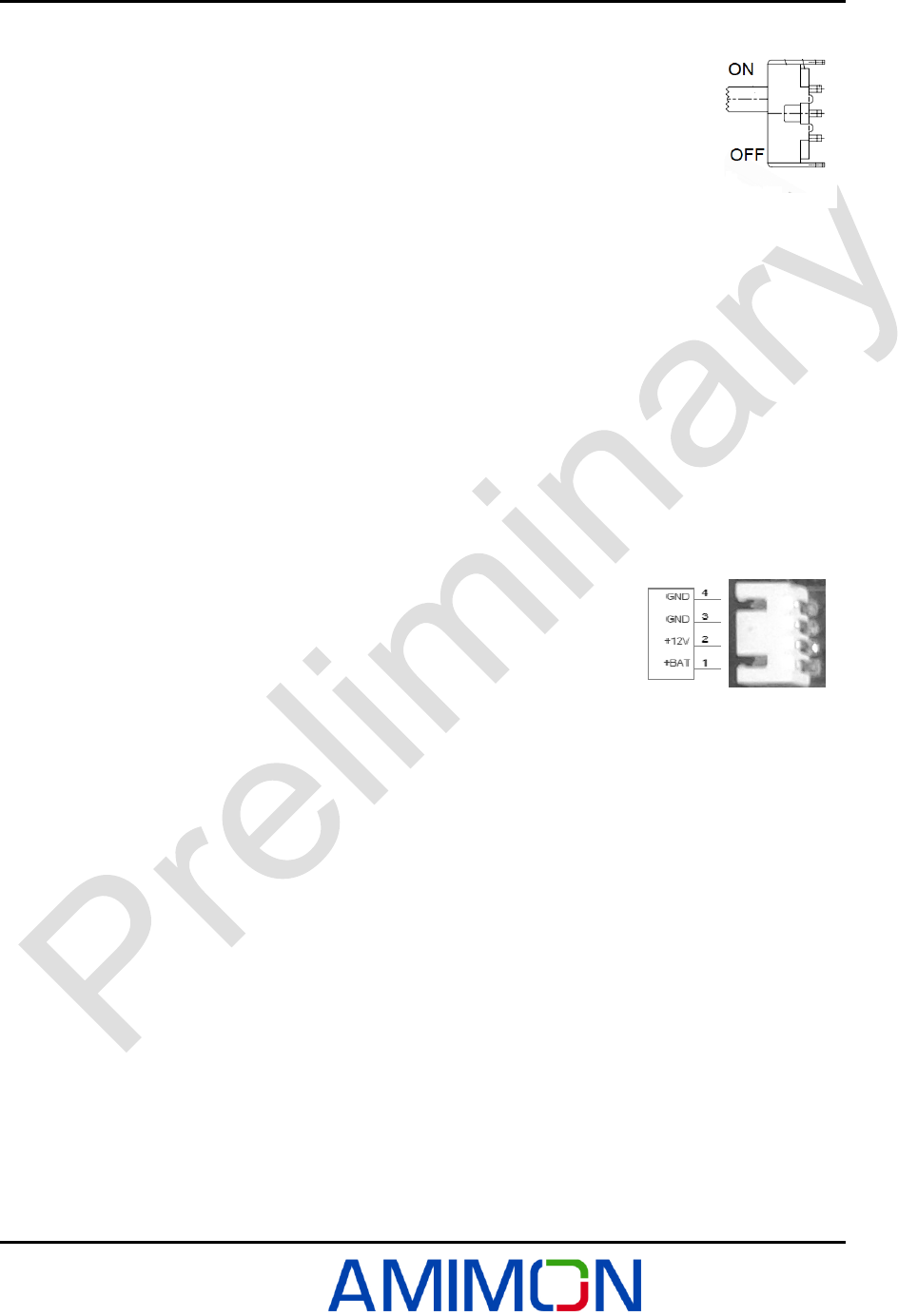

System has a main switch that turns on and off.
The system is active when the switch is near J1 (voltage input
connector)
2.1.4 Boot button
Boot mode is a technical mode. In order to operate this mode you should hold "Boot
button" for 5 seconds, when the system wakes up and then press momentary and
simultaneously the "Reset button".
2.1.5 Reset button
The "Reset button" clears the dynamic memory and reboots the system.
2.1.6 Input Voltage connector
Input voltage connector contains 4 pins,
1: +BAT.
2: Power supply.
3: GND.
4: GND.
Overview
Version 1.0
AMIMON Confidential 10
2.1.7 Microcontroller
The connectivity line, ARM-based, 32-bit STM32F103 chip is used as the AMN36254
microcontroller. It includes the following:
128 KB Flash Memory
USB Interface device with Mini-B connector
IR Blaster
UART
JTAG
SPI to Baseband and SPI
Power Jack
3 LEDs indicators – power, video lock and network lock
Software reset Push Buttons
Reset Button
3 DIP Switches
USB for software update
Hidden button for registration
Hidden button for Reset
IR option with micro jack connector to place the IR outside the box
2.1.8 IR blaster

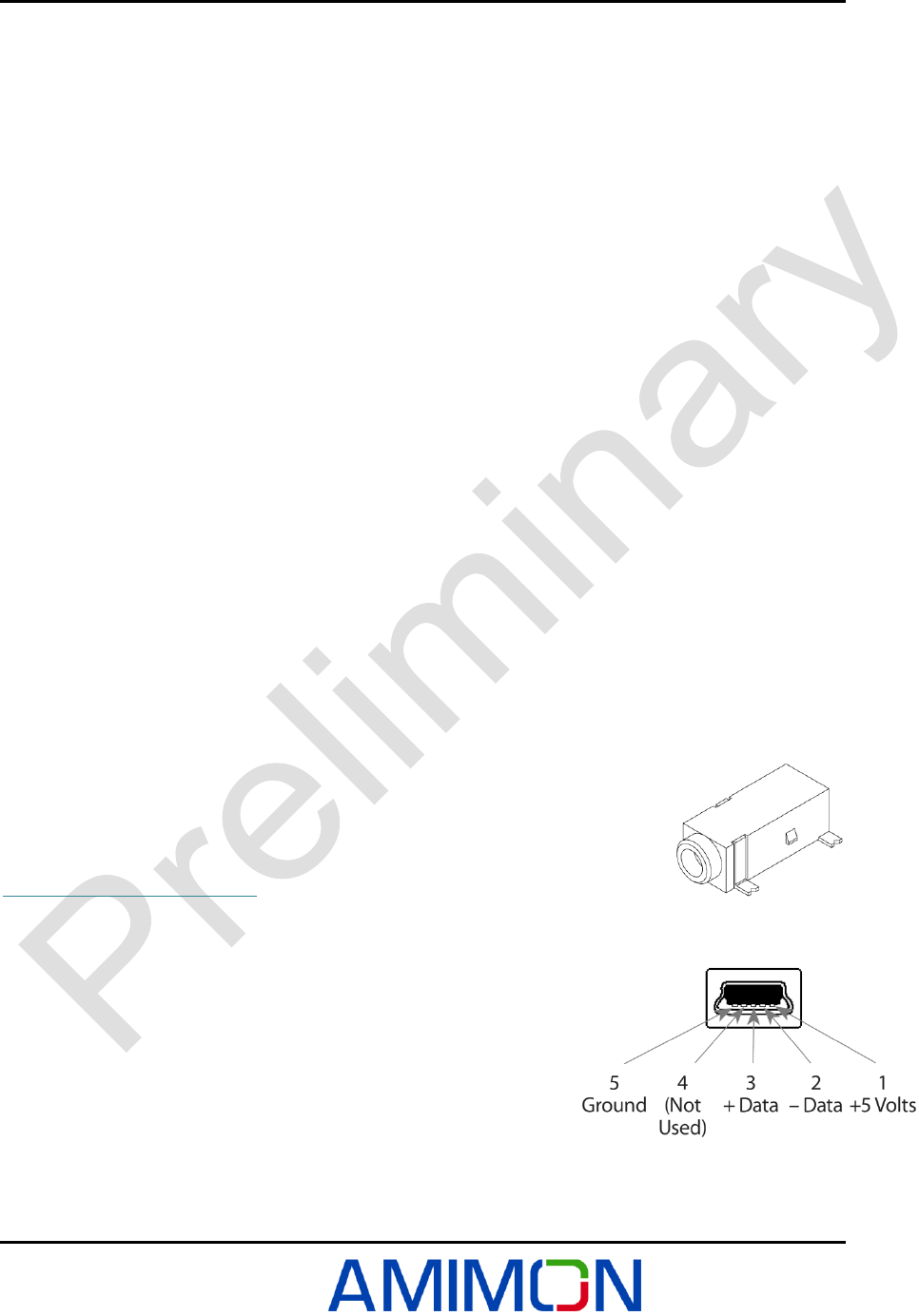

AMN35254 support PWM interface to IR blaster via audio 2.5mm jack, for
mechanical dimensions of the audio jack follow the datasheet
http://www.cui.com/pdffiles/SJ-2523-SMT.pdf , Silk number: U47.
2.1.9 USB
There is a USB connector on board that is connected to the application
uC.
This will be used for software upgrade through WHDI monitor.
USB type: USB mini-B connector, Silk number J15.
Overview
Version 1.0
AMIMON Confidential 11
2.1.10 External On/Off switch connector
This connector is used for external On/Off switch, Pin 1 is VDD, Pin 2 is
Power Enable.
2.1.11 I2C connector
I2C Host interface connector is used for transferring I2C protocol message between
the host chip (Micro Controller STM32F103) and the slave component.
Pin-1: 3.3v, Pin–2: SCL Pin–3: SDA Pin-4: GND
2.2 Antennas
This module is authorized to be used only with the RP-SMA external antennas with 5dBi gain or less.
The module also use 2dBi chip antenna for reception only.
2.3 Block Diagram

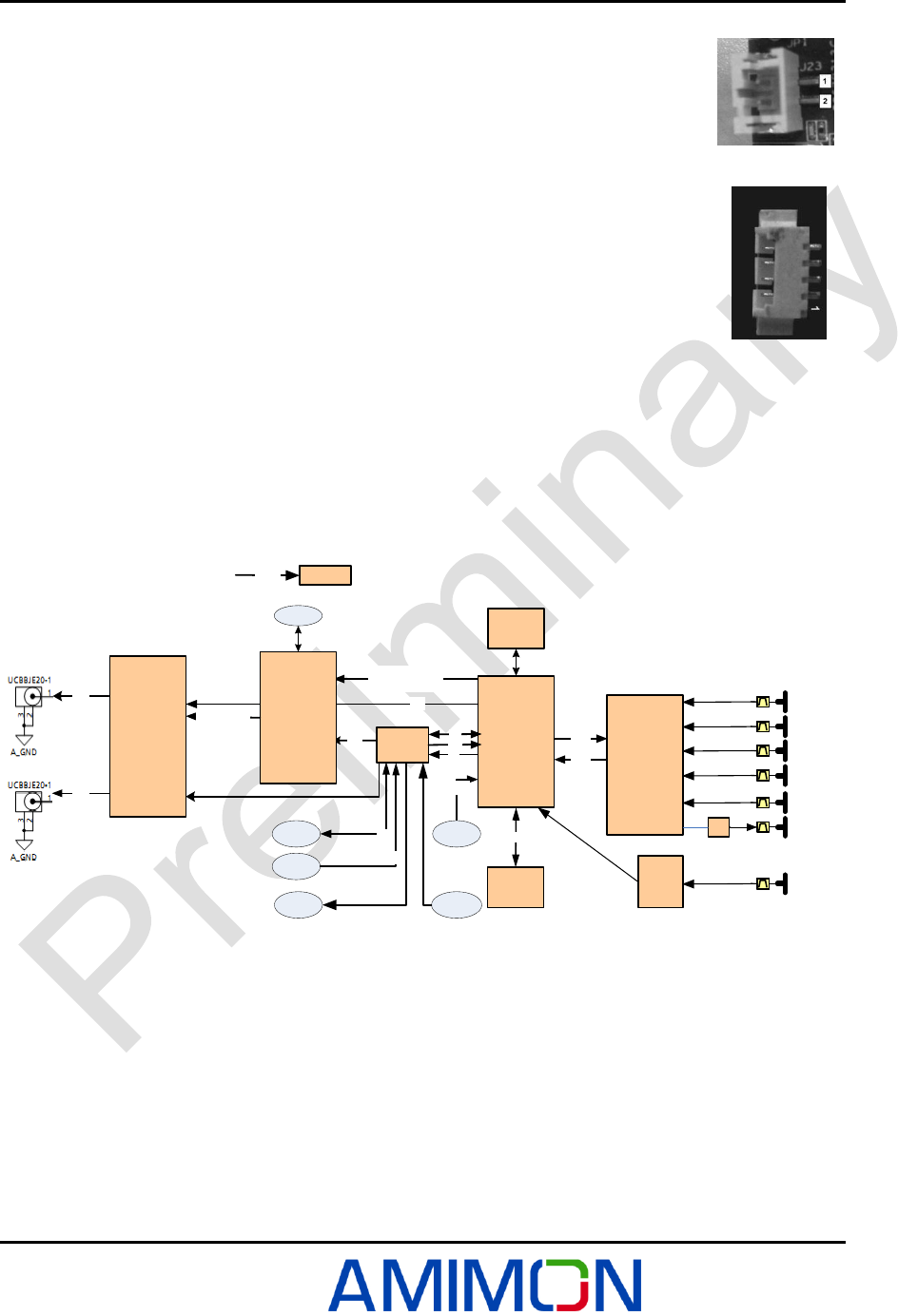

Figure 2 – Block Diagram
AMN 2220
(BB Rx)
Flash
SPI
Maxim 2851
(RFIC Rx)
DLI/Q
ULI/Q
PA
DDR
Airoha
7230
USB
Power
7-17V
YCbCr[29:0]
HS,VS,DE,DCLK
UART
APP
UART
I2S
MAC
UART
USB
STM32F103
UART
SPI
RST RST
INT
Master Slave
FPGA
2972
YCbCr[19:0]
SDI
SPI, CFG
JTAG
SDI
ButtonsLEDs
FCC Caution
Version 1.0
AMIMON Confidential 12
Chapter 3
FCC Caution
Any changes or modifications not expressly approved by the responsible party could void the user's authority to operate
this equipment.
Notice:
This module in its final integration requires the end-product to continue to comply with DFS requirements.
A class II permissive change may be required for operation not already described in the FCC Grant filing.
OEM Labeling Requirements
Notice: The OEM of final integrator must ensure that FCC labeling requirements are met.
For a host using this module, if (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is
marketed so that end users do not have straightforward commonly used methods for access to remove the module so that
the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module should be used,
with the following contents: Contains FCC ID:VQSAMN36254.
The host OEM user manual must also contain clear instructions on how end users can find and/or access the module and
the FCC ID.
The applicable usage is to be used as a wireless device, connected to the back of a professional camera and transmitting live
video, coming from BNC connectors
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radi-ate radio frequency energy and, if not in-stalled and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
The antenna used for transmission must be installed to provide a separation distance of at least 20cm fro m all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
