Amjeon Precision Optics OPTICAM CMOS Camera User Manual K9173 OptiCAM II
Amjeon Precision Optics Co., Ltd. CMOS Camera K9173 OptiCAM II
Users Manual
OptiCAM™ RJ45 CMOS Camera
®
165 Eileen Way, Syosset, New York 11791
OptiCAM™ Introduction
OptiCAM™ is a high-resolution security camera
capable of transmitting 60 frame per second video
through standard Category 5 cable using RJ45
connectors.
OptiCAM™ uses a high quality CMOS image
sensor, and its compact size enables it to be
mounted on table, wall, or ceiling. All signal and
power is carried by one cable, with no external
power supply required – making for fast and
convenient installation.
Important Safeguards and Warnings
Prior to installation and use of this product,
observe the following safeguards and warnings:
Only operate this unit in accordance with these
instructions!
Always observe proper polarity, and be sure to
use a regulated 12VDC power source! Failure
to observe power specifications will void the
factory warranty.
Do not attempt to service the product, as there
are no user-serviceable parts inside. Refer
servicing to qualified service personnel.
Refer to the instructions for installation and
removing camera components.
Handle OptiCAM™ with care. Improper
handling or storage could damage the camera.
Do not expose OptiCAM™ to moisture, or try to
operate it in wet areas. Should OptiCAM™a
become wet, immediately turn power off and
refer servicing to qualified personnel.
Never face OptiCAM™ towards the sun, even
when not in use! Use caution when operating in
the vicinity of spotlights or other bright lights
and light reflecting objects.
Do not operate OptiCAM™ beyond its
temperature, humidity or power supply ratings.
Use the camera under conditions where
temperatures are within –5°C to +45°C, and
relative humidity is below 80% (non
condensing).
ADEMCO reserves the right to change details and
specifications without prior notice.
Selecting Mounting Location
OptiCAM™ may be mounted on tabletop, wall or
ceiling. Choose a location that:
Provides the desired coverage area,
Can be reached with a RJ-45 connection, and
Does not exceed environmental ranges.

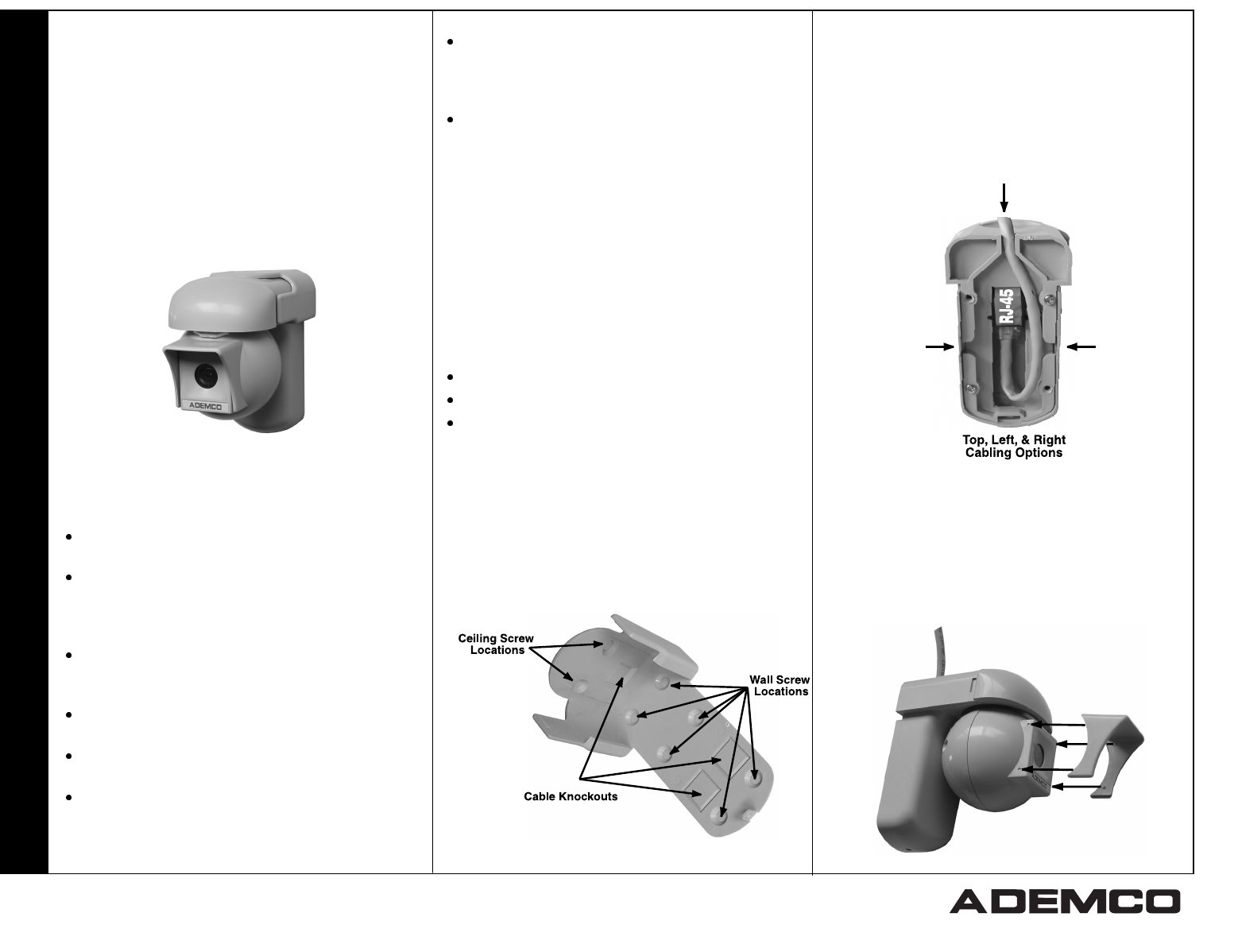

Installation
To install the camera:
1. Separate the bracket from the camera body.
2. Select the desired cable routing (left, right,
top, or back). If using top or back wiring,
punch out the appropriate knockout on the
bracket, then route the cable through the
bracket.
3. Select the appropriate mounting screw
holes, then secure the bracket to the
mounting surface.
4. Connect the RJ-45 connector to the socket
on the rear of the camera body as shown.
5. If using left or right cabling, remove the
appropriate knockout on the camera body
and route the cable.
6. Snap the camera body into the bracket and
adjust for proper coverage area.
Sun Shield Installation
If desired, snap the Sun Shield (supplied) over
the lens to prevent unwanted glare from
entering OptiCAM™.
OptiCAM™ RJ45 CMOS Camera
¬.l
®
K9173 9/02 165 Eileen Way, Syosset, New York 11791
OptiCAM™ Specifications
Signal Format NTSC
Scanning System 2:1 Interlacing
Scanning Freq. H: 15.734 kHz
V: 59.94 Hz
Image Sensor 1/3 Inch CMOS
Number of Pixels 510 x 492
Image Area 4.69 x 3.54 mm
White Balance Automatic
Exposure Automatic
Gamma Correction 0.5
Signal/Noise Ratio Over 40 dB
Auto Elect. Exposure 1/60 ~1/5000 sec
Min. Illumination < 3 lux @f1.4
Fixed Pattern Noise < 0.03% Vp-p
Sensitivity < 0.3 lux /f1.2 (3000K)
Video Output Composite: 1.0Vp-p/75
ohm
Lens Type 3.6 mm normal type
(V36092IG4)
Supply Voltage DC +12V (+/- 20%)
Operating Current < 300mW
Operating Temperature 0
°
– 40
°
C
Storage Temperature -40
°
– 125
°
C
Operating Humidity < RH 80%
Dimensions 32 x 32 mm
OptiCAM™ Lens Specifications
Sensing Area (inches) 1/3 inch
Full Field Angle 92°
Optical Distortion -28.24%
TV distortion -13.97%
Focal Length 3.6 mm
Back focal length 6.26 mm
Flange back length 5.96 mm
f/# f2.0
Iris Fixed
Focus Extension 50 cm ~
Diameter (Thread) M12 x 0.5 pitch
Length 15.13 mm
Lens Construction 5 elements
OptiCAM™ Cable Specification
RJ45 (External System)
1 +12VDC Blue/White
2 +12VDC Blue
3 Audio (not used) NC
4 Gnd Brown
5 Video Orange
6 Gnd Brown/White
7 NC NC
8 NC NC
OptiCAM™ Limited Warranty
Alarm Device Manufacturing Company, a Division of Pittway
Corporation, and its divisions, subsidiaries and affiliates
("Seller"), 165 Eileen Way, Syosset, New York 11791,
warrants its products to be in conformance with its own plans
and specifications and to be free from defects in materials and
workmanship under normal use and service for 36 months
from date of manufacture unless the installation instructions or
catalog sets forth a shorter period, in which case the shorter
period shall apply. Seller's obligation shall be limited to
repairing or replacing, at its option, free of charge for materials
or labor, any product which is proved not in compliance with
Seller's specifications or proves defective in materials or
workmanship under normal use and service. Seller shall have
no obligation under this Limited Warranty or otherwise if the
product is altered or improperly repaired or serviced by
anyone other than Ademco factory service. For warranty
service, return product transportation prepaid, to ADEMCO
Factory Service, 170 Michael Drive, Syosset, New York
11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED,
OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR OTHERWISE, WHICH
EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. IN NO CASE SHALL SELLER BE LIABLE TO
ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY
OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE
LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN
NEGLIGENCE OR FAULT.
