Amtek System AIRT710UMPC Ultra Mobile PC User Manual T700 Final 031006
Amtek System Co., Ltd. Ultra Mobile PC T700 Final 031006
Manual
i
ii
Intentionally Left Blank
iii
Preface
©
©Copyright 2006
All Rights Reserved.
The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does not
represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability
to use the product or documentation, even if advised of the possibility
of such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by
any mechanical, electronic, or other means in any form without prior
written permission of the manufacturer.
Safety Notices
1. Please read these safety instructions carefully.
2. All precautions and warnings on the equipment should be carefully
noted.
3. Please disconnect the computer from the AC outlet before cleaning.
4. Never pour any liquids into any openings or directly onto the
computer unit. This could result in fire or electrical shock.
iv
5. Ensure the voltage range of the power outlet is between 100V and
240V before connecting the computer unit. Exceeding the
maximum rated voltage may cause damage to the AC adapter or to
the computer. This could result in fire or electrical shock.
6. Do not leave this equipment in a non-temperature controlled
environment; storage temperatures below 4°C (39°F) or above
35°C (95°F) may damage the unit.
To reduce the risk of an electric shock,
which could cause personal injury, please follow all safety notices.
The symbols shown are used in your documentation and on your
equipment to indicate safety hazards.
Lithium batteries can be dangerous.
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Under no circumstances should the user
attempt to disassemble the power supply. The power supply has
no user-replaceable parts. Inside the power supply are hazardous
voltages that can cause serious personal injury. A defective power
supply must be returned to your dealer.
v
Safety Notices for the Power Cord
This equipment has a 2 or 3-wire power cord. Replace the power cord
if it becomes damaged. Contact your dealer for an exact replacement.
In the U.S.A. and Canada, the power cord must be a UL-listed
detachable power cord (in Canada, CSA-certified).
2-wire cord SPT-2 18AWG
3-wire cord SVT or SJT, 18 AWG, 3-conductor
Provided with a molded-on cord connector body at the other end. The
cord length must not exceed 3 meters.
Outside the U.S.A. and Canada, the plug must be rated for 250 VAC,
2.5 amp minimum, and must display an international agency approval
marking. The cord must be suitable for use in the end-user’s country.
Consult your dealer or the local electrical authorities if you are unsure
of the type of power cord to use in your country. Voltage changes occur
automatically in the power supply.
Notice of EMC Compliance
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
vi
This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instruction manual
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
h Reorient or relocate the receiving antenna.
h Increase the separation between the equipment and receiver.
h Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
h Consult the dealer or an experienced technician for help.
Use only shielded I/O cables to connect I/O devices to this equipment.
You are cautioned the changes or modifications not expressly approved
by the party responsible for compliance could void your authority to
use the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device will not cause
harmful interference, and (2) this device must accept any interference it
receive including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
vii
Canadian EMI Compliance Statement
This Class B digital apparatus meets all requirements of the Canadian
Interference - Causing Equipment Regulations.
European Union CE Marking Declaration
This product has been tested and found to comply with the EMC
requirement subject to the EU directive for CE marking.
Laser Compliance Statement for CD-ROM, DVD-ROM,
CD-RW and DVD/CD-RW Combo Drives
The CD-ROM, DVD-ROM, CD-RW and DVD/CD-RW Combo drive
for this computer are laser products. The classification label of the drive
is located on the bottom of the drive. Below is a sample of the
classification label;
viii
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LOUKAN 1 LASERLAITE
APPAREIL A LASER DE CLASSE 1
KLASS 1 LASER APPARAT
The drive is certified in the USA to comply with the requirements of
the Department of Health and Human Services 21 Code of Federal
Regulations (DHHS 21 CFR) Subchapter J. for Class 1 laser products.
In other countries the drive is certified to comply with the requirements
of EN60825.
Do not open the drive. There are no
user-serviceable parts or components inside. Use of controls,
adjustments and operation of procedures other than those
specified, may result in hazardous exposure to radiation. Class I
(1) laser products are not considered hazardous. The drive has an
internal, Class I (1), 0.5-milliwatt, aluminum gallium-arsenide laser
that operates at a wavelength of 760 to 810 nanometers. The
design of the laser system and the drive ensures that there is no
exposure to laser radiation above a Class I (1) level during normal
operation, user maintenance or servicing.
ix
Table of Contents
Chapter 1: Before You Start................................................. 1
What to do Before You Work on your Computer .....................1
Chapter 2: Introduction........................................................ 3
Introducing your Computer........................................................3
Unpacking the Computer ............................................................3

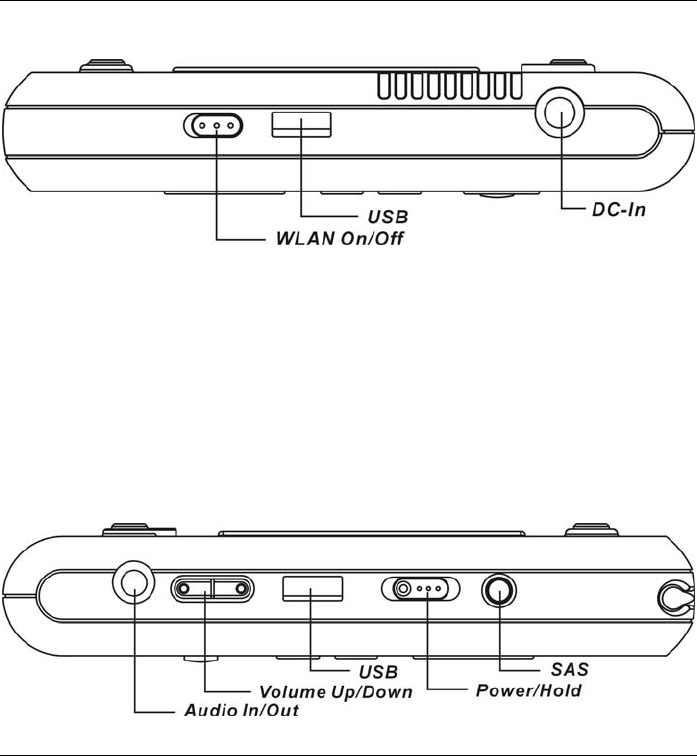

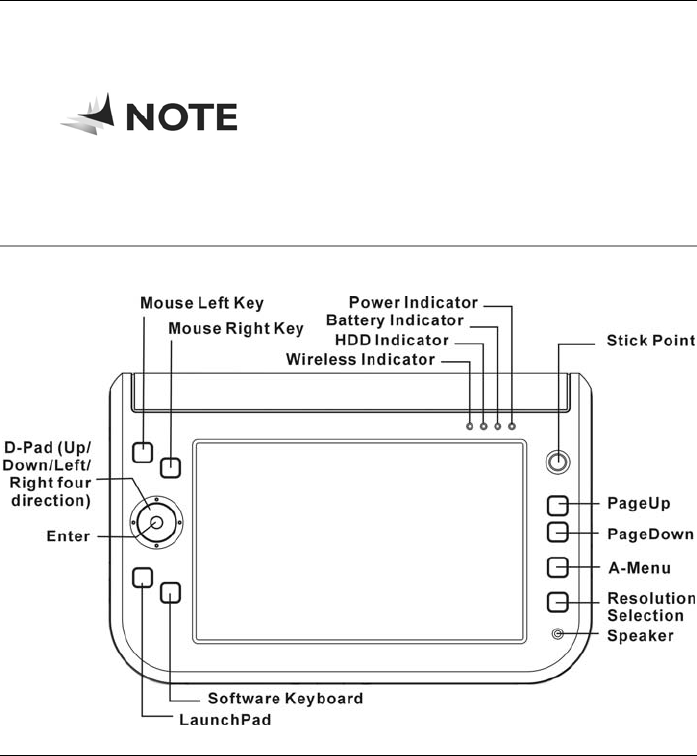

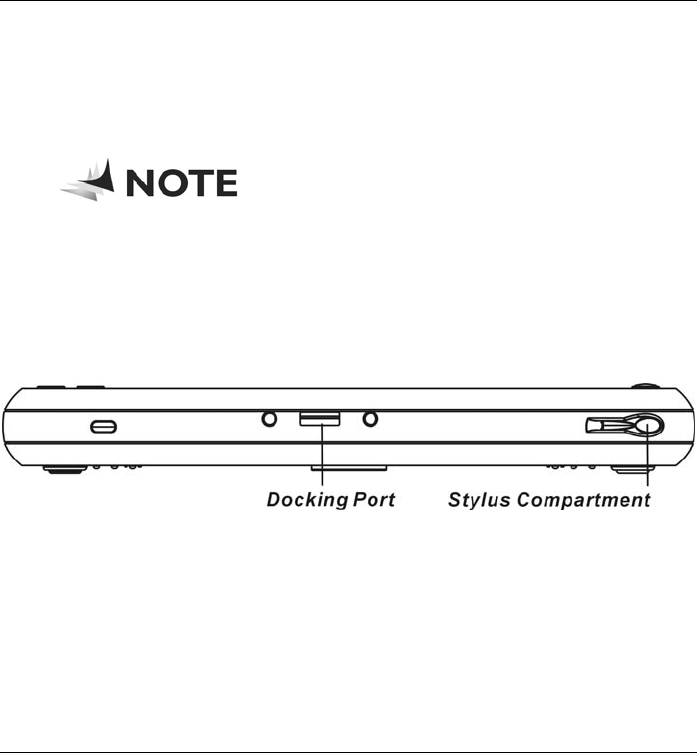

Getting to Know Your Computer ...............................................4
Chapter 3: Getting Started................................................. 13
Setting Up the Computer...........................................................13

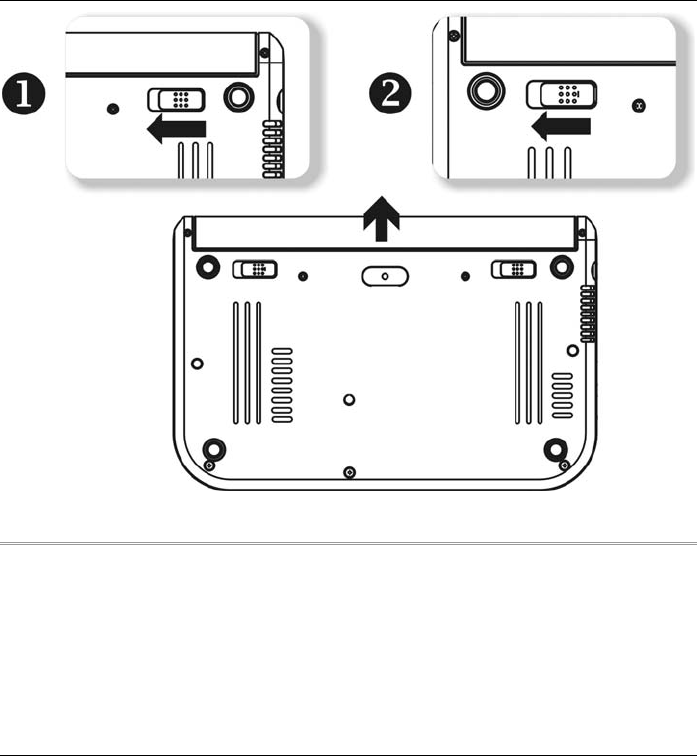

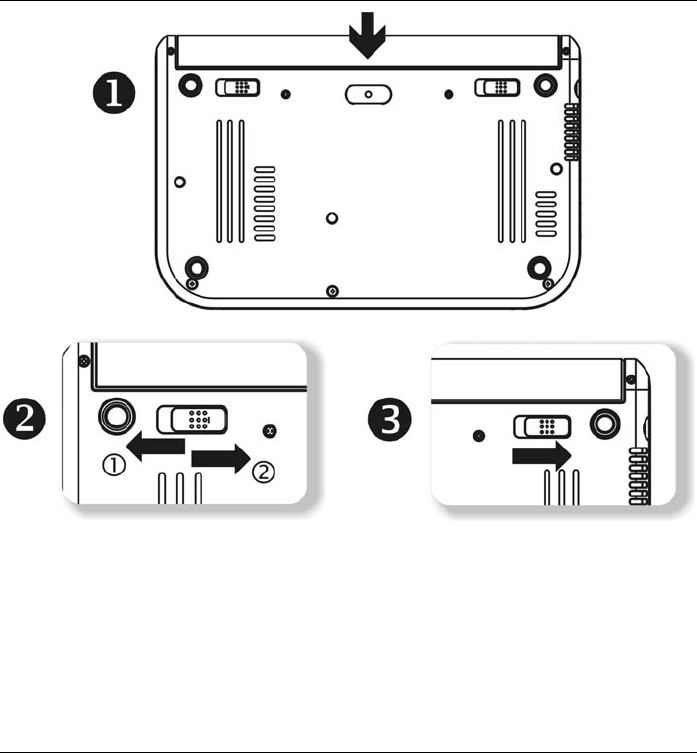

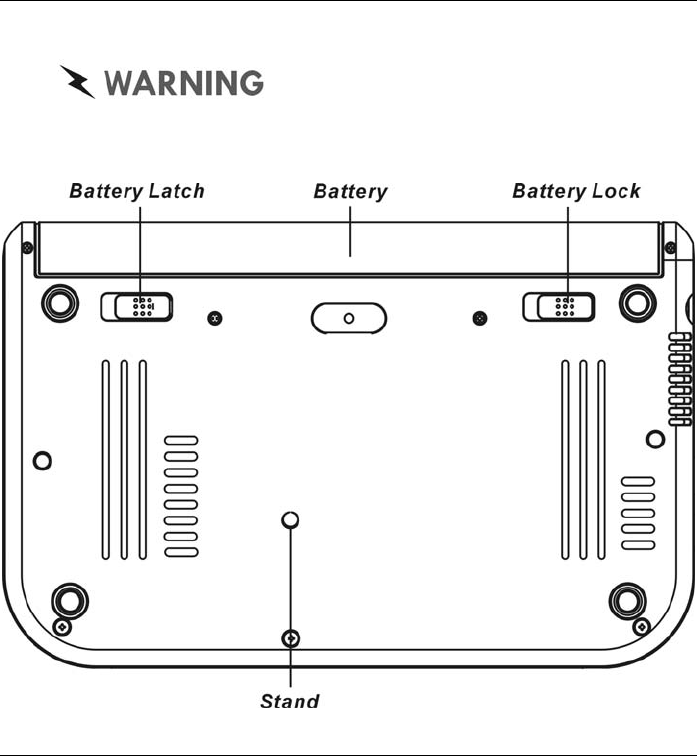

Inserting and Removing the Battery Pack ...............................13
Connecting the Computer to an External Power Source ........16
Operating on Battery Power .....................................................17

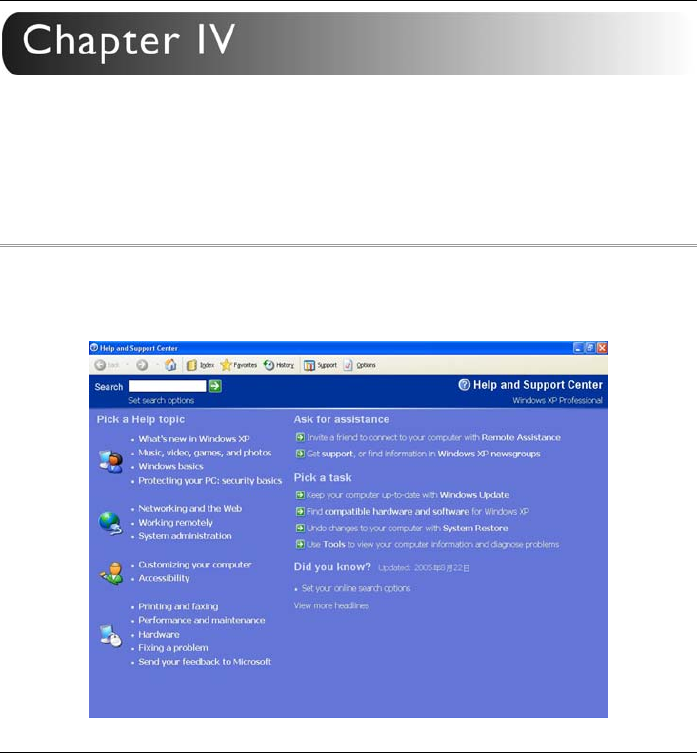

Chapter 4: Exploring Windows.......................................... 19
Using the Windows ....................................................................19
Control Panel .............................................................................22

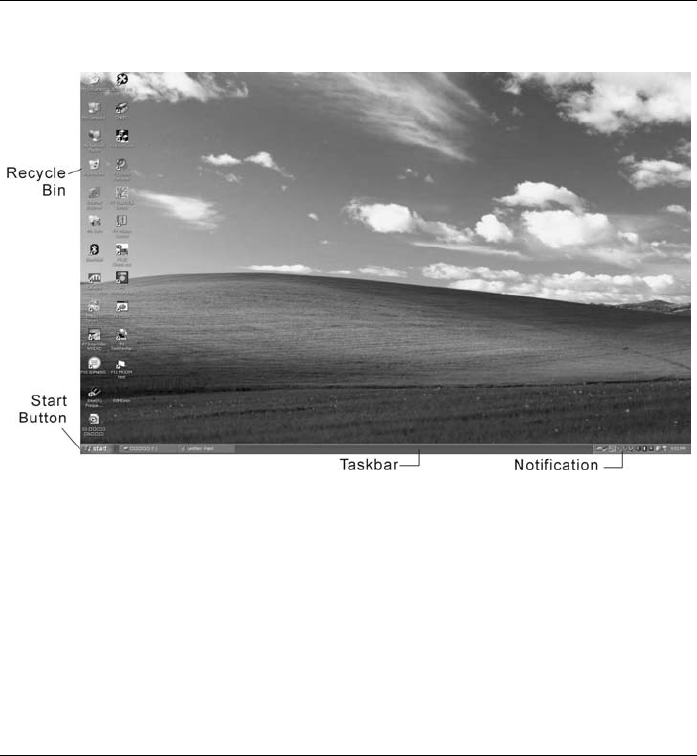

Desktop icons..............................................................................23

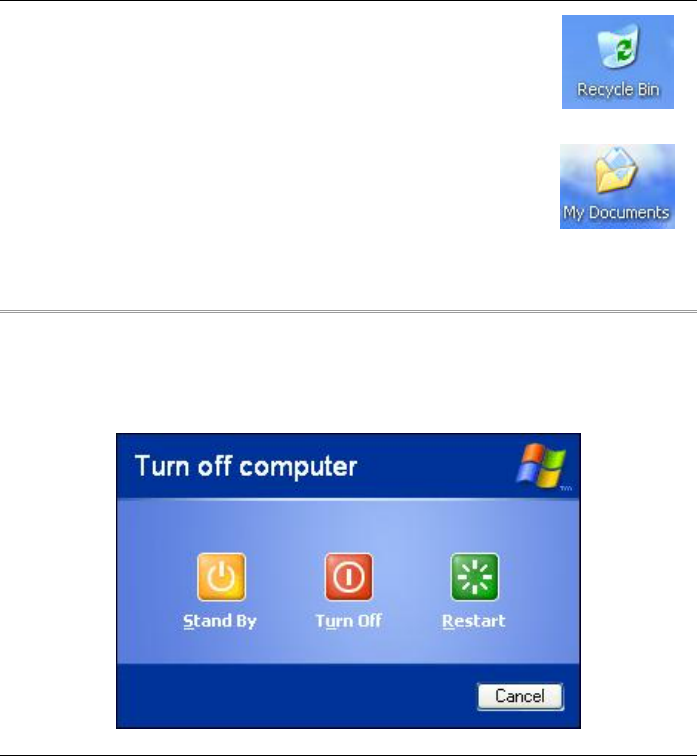

Turning off Your Computer......................................................24
Chapter 5: Using the Computer......................................... 27

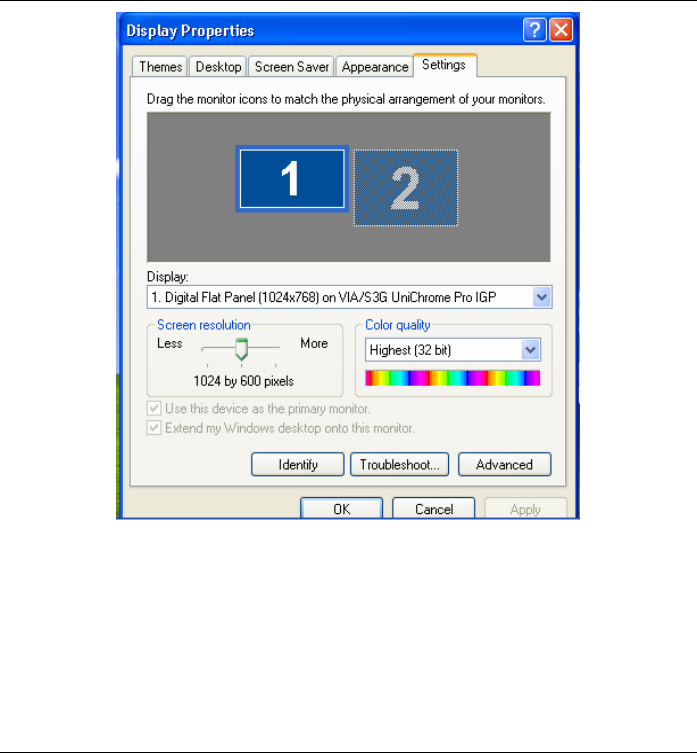

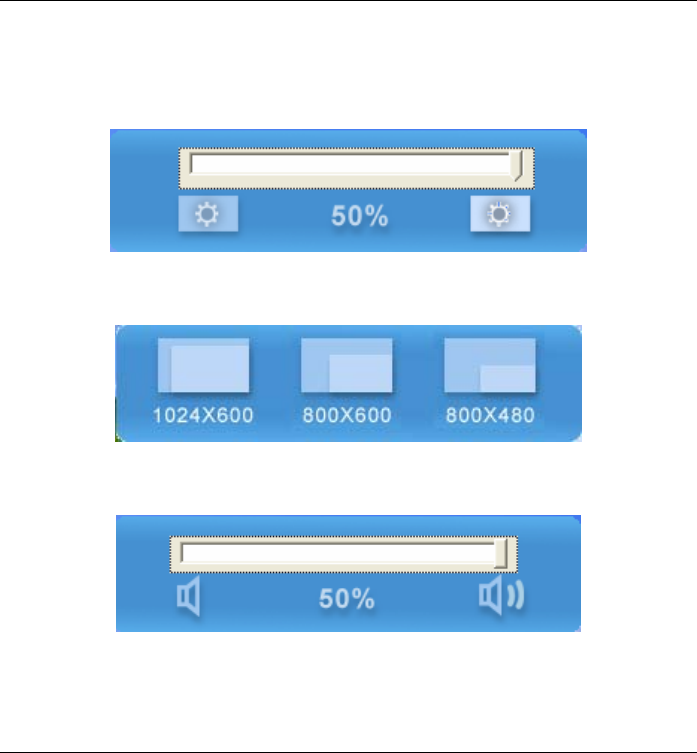

Adjusting the Screen Display....................................................27
x
The Battery Power System ........................................................28
Using the A-Menu......................................................................30

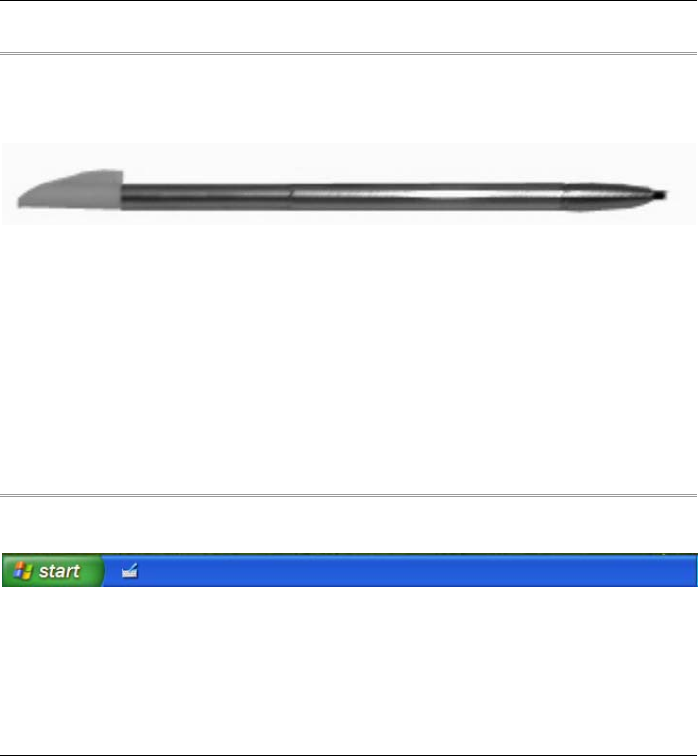

Entering Information with the Stylus.......................................32

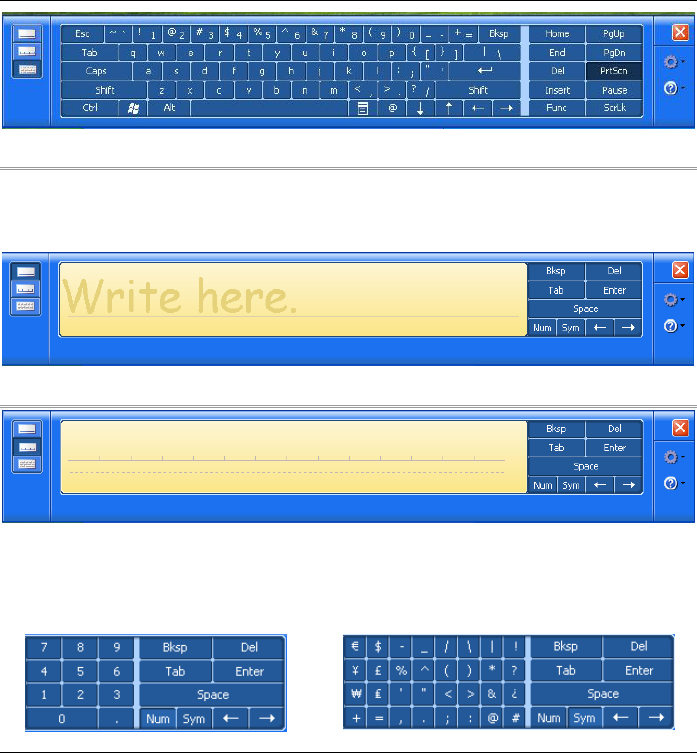

Using the OnScreen Keypad......................................................32
Writing pad ................................................................................33
Character pad ............................................................................33

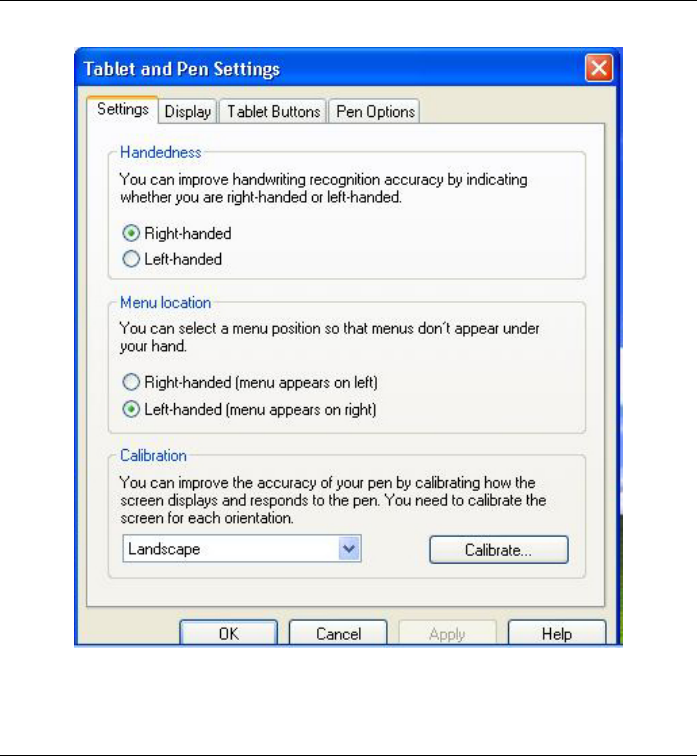

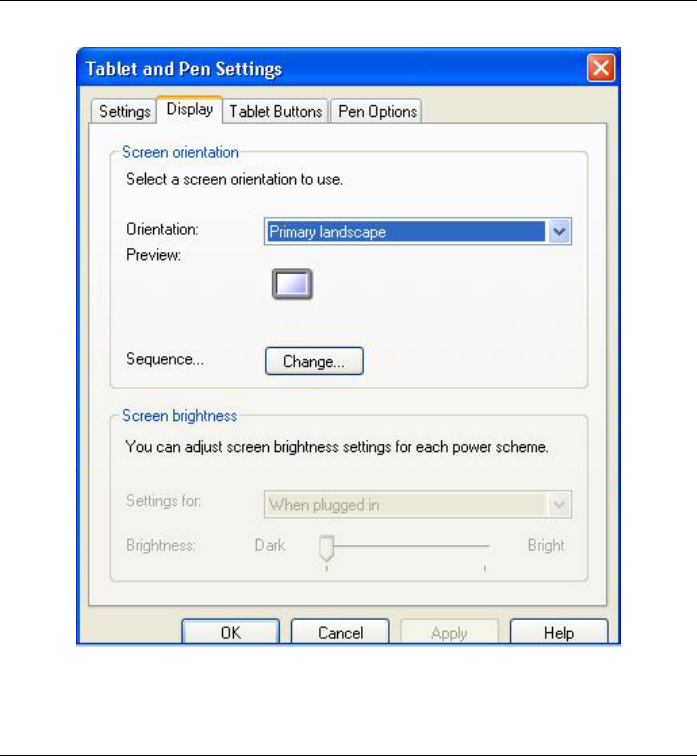

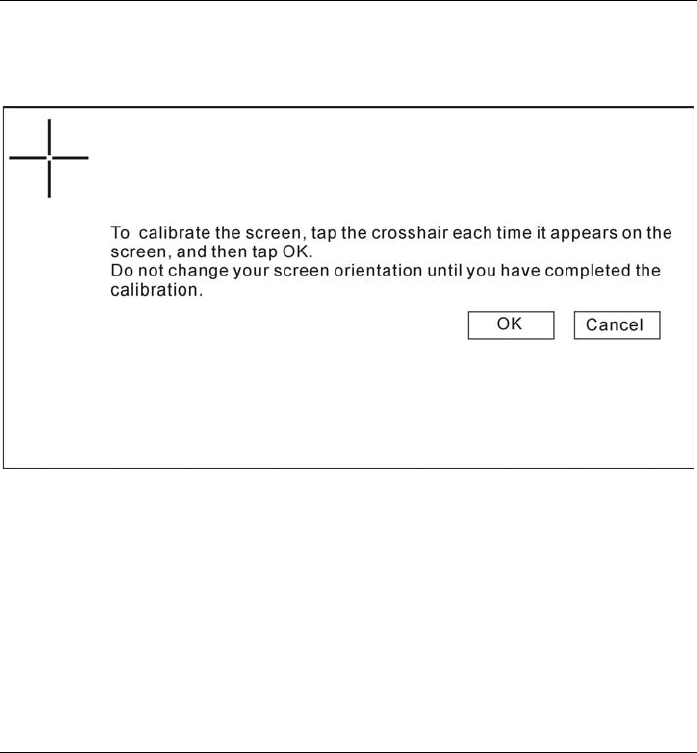

Stylus Setting..............................................................................35

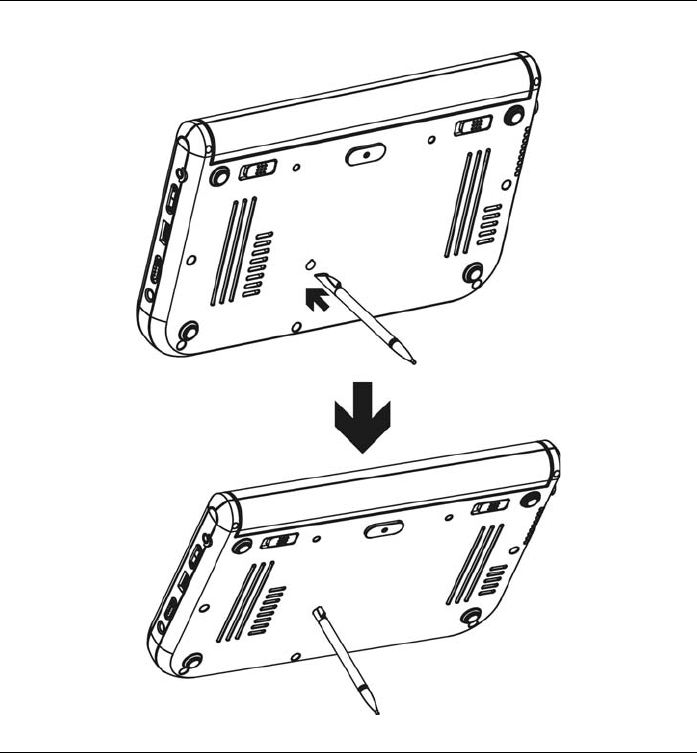

Using the Stand ..........................................................................42
Chapter 6: Performing Desktop Operations on Your
Computer............................................................................ 45
Audio...........................................................................................45
Connecting Peripheral Devices .................................................46
Chapter 7: Software Utilities.............................................. 47
Using the Support CD................................................................47

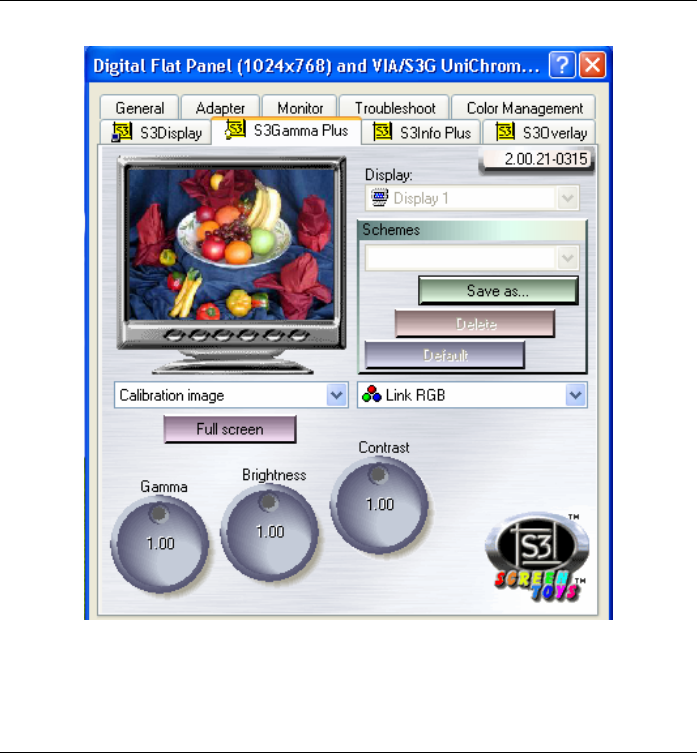

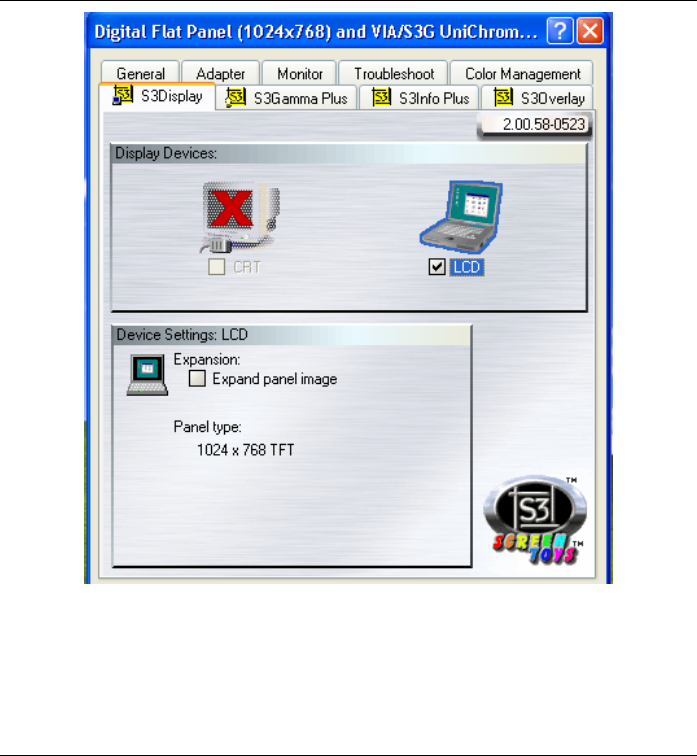

VGA Utility ................................................................................48
Chapter 8: Troubleshooting............................................... 53
General Hardware Problems / Possible Cause and Solution ..53
Contacting Your Dealer.............................................................57

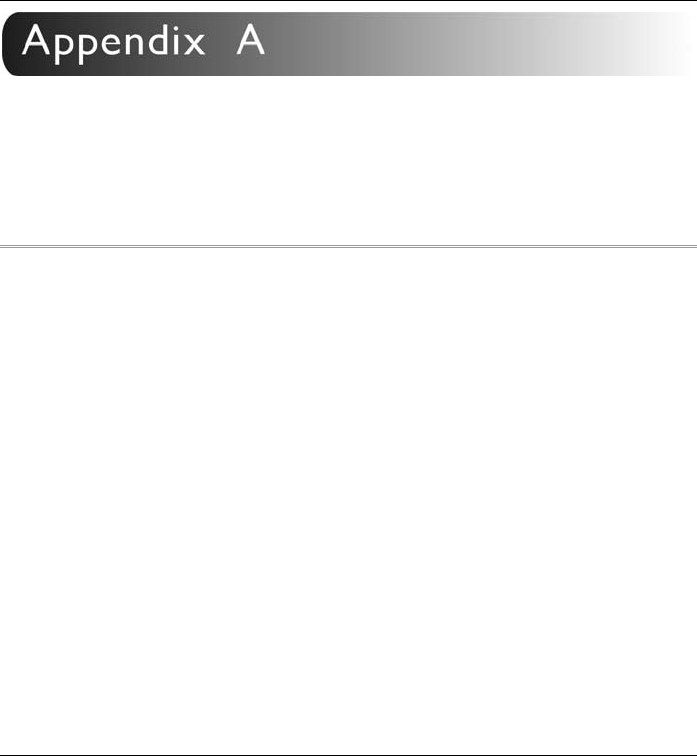

Appendix A: Specifications ............................................... 59
Detailed Specifications...............................................................59
1
Before You Start
This manual will help you get the most from your computer. If you are
a less experienced user, you should read through the manual carefully
before using your computer.
What to do Before You Work on your Computer
Let your Computer acclimatize itself
Rapid changes in temperature such as those from the cold outdoors to a
warm office would not be suitable for your system.
Do not power up your system immediately if
it has been exposed to hot or cold conditions. Instead, allow the
system to adjust gradually to room temperature over a three to
four hour period.
Placement of your Computer
Choose a suitable place for your system that’s not too hot, too cold, too
dark, or too bright. Glare can make it difficult to read the screen.
2
h Allow sufficient air circulation around the computer when you are
working indoors
h Try to keep the system components from being destroyed if it is
over heated
h Do not block the ventilation opening
h Do not place your computer in direct sunlight
Suitable place to work
Your computer will run well under most conditions but avoid extreme
temperatures and humidity levels.
There are some things you can tolerate that the computer can’t – things
like static electricity, dust, water, steam and oil.
A lithium-ion battery pack is included for
those who are frequent travelers. When you are running your
computer on battery power for the first time, remove the battery
from the package, install it into the system and recharge the
battery to fully prepare for service.
3
Introduction
Introducing your Computer
Your computer features the latest advances in portable computing
technology. The computer modular design provides maximum
expandability without compromising portability.
Unpacking the Computer
The computer comes securely packaged in a shipping carton. Please
contact your dealer if you find that anything is missing or damaged
after examining the contents. The shipping carton should contain the
following items:
h AC Adapter with Power Cord Set
h Stereo Head Phone/MIC
h User’s Manual
h Utility CD’s ( Support Disc)

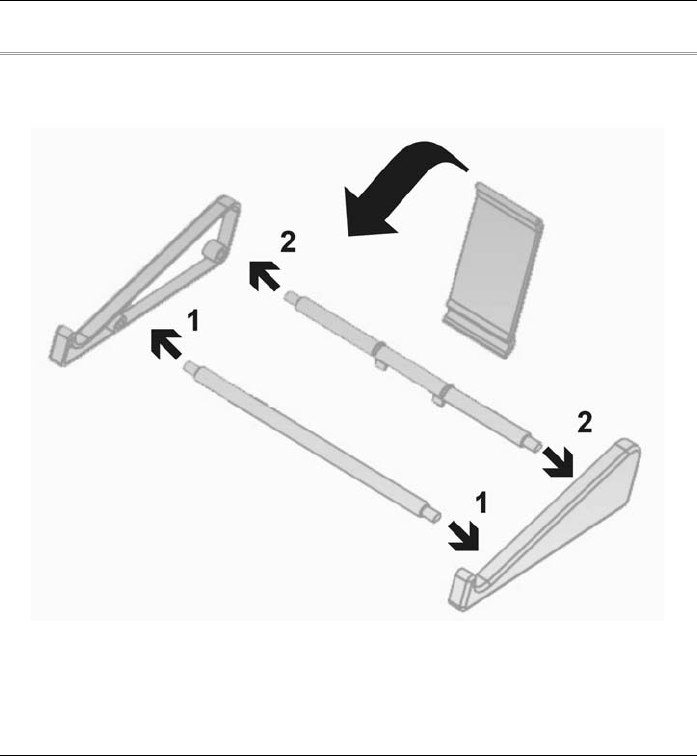

h A Stand
h A Clean Cloth
h Gift Box
4
Do not throw the packaging materials away. You may need them later
if you have to ship the computer.
Because of different configurations, some of
the features mentioned in this manual might not be included on
your computer or may differ slightly.

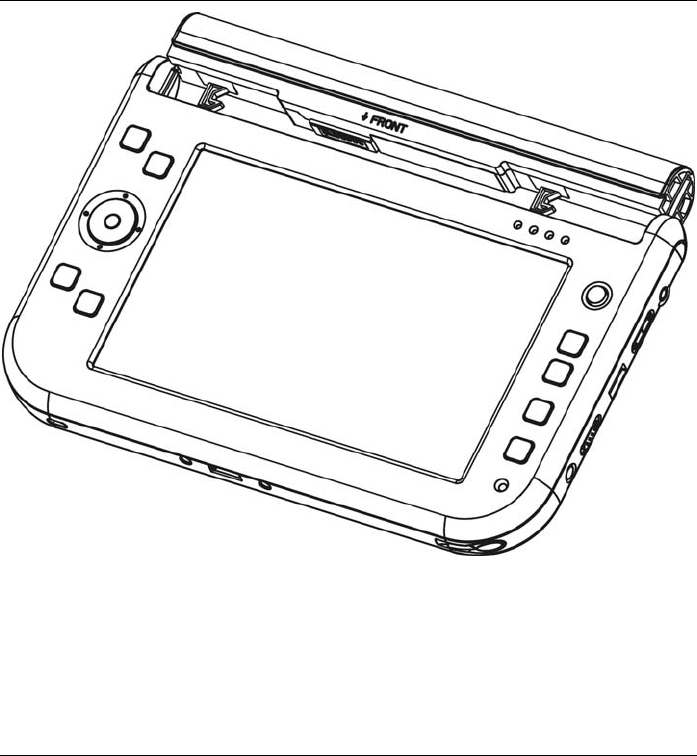

Getting to Know Your Computer
Top View
5
Mouse Left/Right Key
This is equivalent to the left and right key on an average mouse that
you are using.

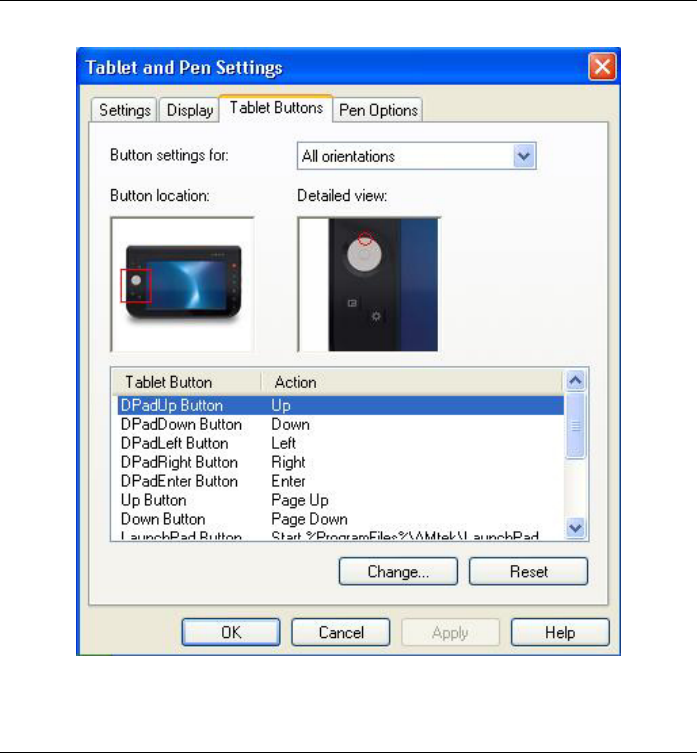

D-Pad (4 Direction + Enter)
h [↑]/[↓] Buttons
Press on the [↑]/[↓] buttons to scroll down on the item
vertically that you wish to execute or run.
h [←] [→] Buttons
Press on the [→] or [←] buttons to scroll down on the item
horizontally that you wish to execute or run.
h Enter Button
This button operates the same as when you are using the enter
key on the keyboard.
LaunchPad
You can select the program you want to start when you press this
tablet button.

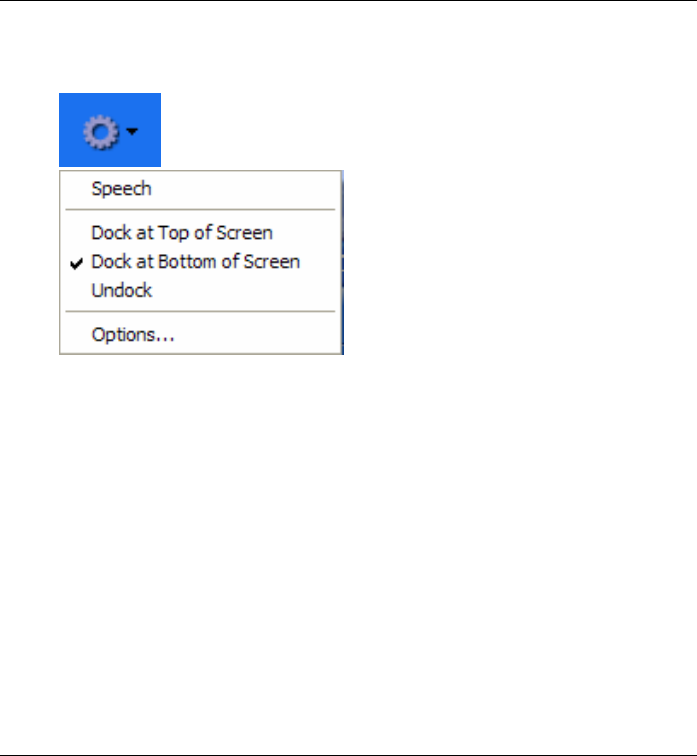

Software Keyboard
Press this button to open the onscreen keyboard and use the stylus
to tap and select the major function that you usually use on the
keyboard.
Power On indicator
This LED icon represents the status when you are using the
computer by using the adapter.
y Green light indicates it is in On status
6
y Blinking indicates it is in standby mode.
Battery Indicator
This LED icon indicates the present status of your battery.
y LED in Amber color indicates is in charging status.
y LED in Green color indicates it is in full status operates with
DC.
y LED turn off indicates without DC plug in
HDD Accessing
This LED icon indicates that the computer is accessing the hard disk
drive. The LED will blink in amber color to indicate this status.
Wireless Status
This LED icon indicates your computer is in wireless status. The
LED will lit in amber to indicate this status.
Stick Point
This is equivalent to the touchpad on an ordinary notebook
computer.
PageUp
Press this button to go up the page when you are scrolling on the
window screen.
PageDown
Press this button to go down the page when you are scrolling on the
window screen.
7

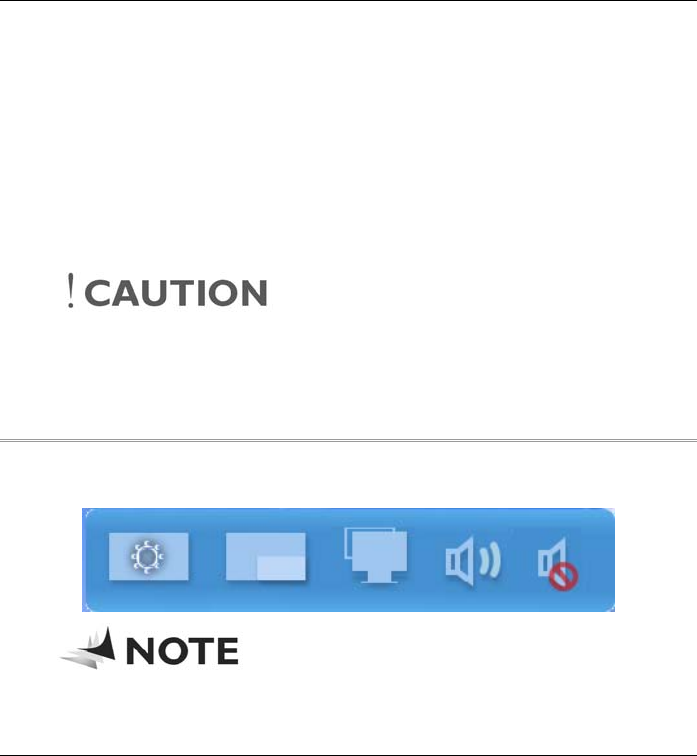

A-Menu
Use this key to enable the A-Menu display function.
Resolution Selection
Press this button to adjust the resolution of your screen.
Please refer to Chapter V on the topic of
“Using the A-Menu” for more detailed on information on how to
adjust these functions.
Speaker
This will serve as sound output for the system.
The Front View
Docking Port
Use this port to connect to the system docking station.
Stylus Compartment
Secures the Stylus to the system.
8
The Left View
WLAN On/Off
Slide this latch to open or close the WLAN.
USB Port
Your computer includes two Universal Serial Bus (USB) 2.0 ports.
USB2.0 is the latest development in Plug and Play technology.
DC IN Jack
Plug the AC adapter into this jack.
The Right View
9
Audio In/Out
This jack is used to input stereo sound from other devices, such as
a radio or tape recorder, into your computer. You can also use this
as an output source by connecting a speaker.
Volume Up/Down
Slide this latch to increase or decrease the volume.
USB Port
Your computer includes two Universal Serial Bus (USB) 2.0 ports.
USB2.0 is the latest development in Plug and Play technology.
Power/Hold Switch
Slide and release the power switch for 1 to 2 seconds will turn on
the computer (the LED will lit to indicate its present status). You can
also slide this switch to resume normal status when the computer is
in suspend mode.
Secure Attention Sequence(SAS)
A computer without an attached keyboard must support an SAS
hardware mechanism to generate the SAS which also known as
“CTRL-ALT-DEL” or “CAD”.
10
The Bottom Panel
We recommend you to be extra careful
on not to press when you handle the bottom panel of your
computer.
11
Battery Release Latch
Use this latch to release the battery from its bay.
Battery
Your computer comes equipped with a factory-installed battery pack
module. After the battery runs down, the module can be removed
and replaced with a charged battery.
Battery Lock
Use this latch to lock the battery permanently.
Stand
Insert the tip of the Stylus will serve as the stand for this computer.
12
Intentionally Left Blank
13
Getting Started
Setting Up the Computer
h Remove the computer from its package.
h Insert the battery pack into the computer so the pack can start
charging.
h Connect the computer to an external power source. Turn on the
computer.
Inserting and Removing the Battery Pack
Inserting the Battery Pack
Before inserting the battery, be sure the
front side of the battery is facing the top side of the system as
shown in the illustration.
14
h Turn over the computer and place it on a solid, flat surface.
h Align the battery into the battery compartment X.
h Slide the battery latch into the direction of the arrow Y (from left
c to right d) as shown in the illustration.
h Again, slide the battery lock into the direction of the arrow Z as
shown in the illustration.
15
Removing the Battery Pack
h Slide the battery lock into the direction of the arrow n as shown
in the illustration.
h Again, slide the battery latch into the direction of the arrow o as
shown in the illustration.
h Push the battery away from its compartment p.
16
Connecting the Computer to an External Power Source
To connect the computer to an external AC power source using the AC
adapter:
h Plug the AC adapter cable into the AC power connector on the
computer.
h Plug one end of the power cord into an electrical outlet and the
other end into the AC adapter.
17
To prevent damage to your computer,
please do not use inferior extension cords. An AC adapter comes
with your computer. Never use a different kind of adapter to
power the computer or other electrical devices.
Whenever possible, keep the AC adapter plugged into the computer and
an electrical outlet to recharge the battery.
Don’t try to reset your computer while
the hard disk is in use as it may result in the loss or destruction of
your data.
Operating on Battery Power
Your computer comes with a rechargeable battery pack that lets you
operate the computer without an external power source.
When the battery pack is fully charged, you can operate the computer
for approximately 2.2 hours/26Wh pack under typical condition.
Charging the Battery Pack
The installed battery pack charges automatically whenever the
computer is connected to the AC adapter and an external power source.
The first time you use the battery, be sure to fully discharge the battery
and recharge it until it is fully charged.
18
Intentionally Left Blank
19
Exploring Windows
Using the Windows
Help Windows
For Windows XP help, click Start ÎHelp and Support icon will open
the dialog box.
20
Desktop
Desktop vary on the software installed in your computer.
Recycle Bin
Deleted files will be stored here and can be recovered in case you want
to do so then saving it back to your system. Delete the files if you are
sure by clicking your mouse and select the “Empty Recycle Bin”.
21

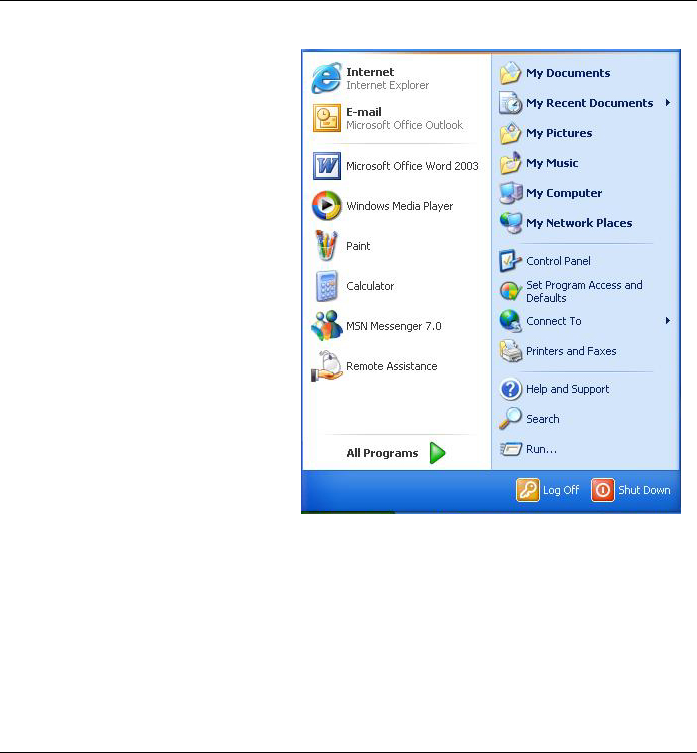

Start Button
The Start button show
different programs you
most frequently used.
Log Off will enable the
current user to log off
and allows a new user
to log on.
Turn Off Computer
allows you to shut
down, restart, and
Stand by modes for
power saving purposes.
Taskbar
To add or remove toolbars from the taskbar: right click an empty spot
on the taskbar, select Toolbars Î choose the toolbar you want to
add.
22

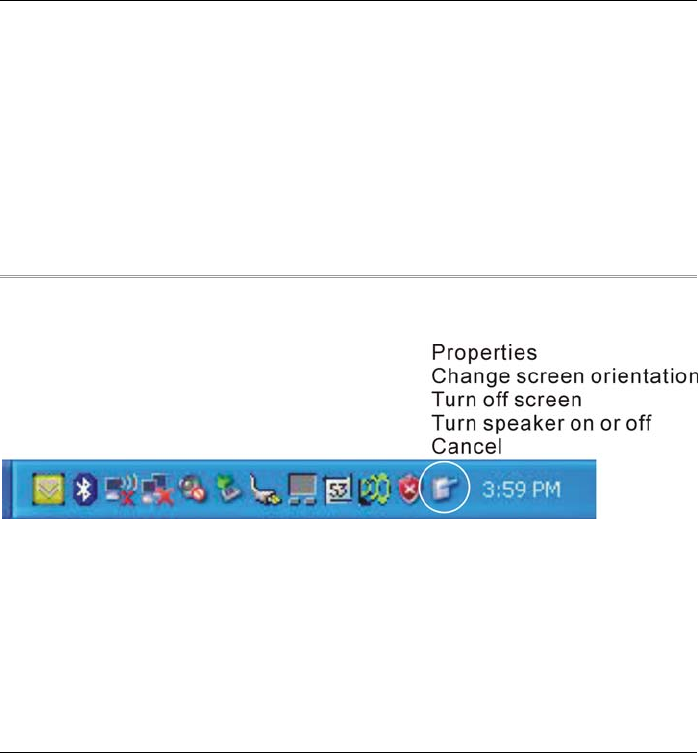

Notification
Quick access to some programs are usually appeared here represented
by its respective icons.
For you to see the
hidden icons, simply
click the icon.

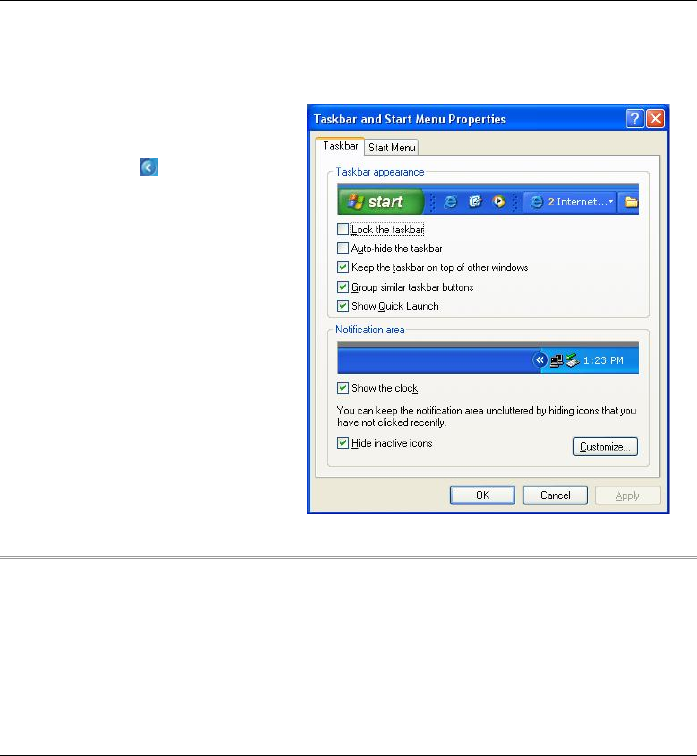

To prevent Windows
XP from hiding icons:
From an empty spot on
the Taskbar, right click
your mouse and select
the Properties, remove
the checked mark on the
Hide inactive icons.

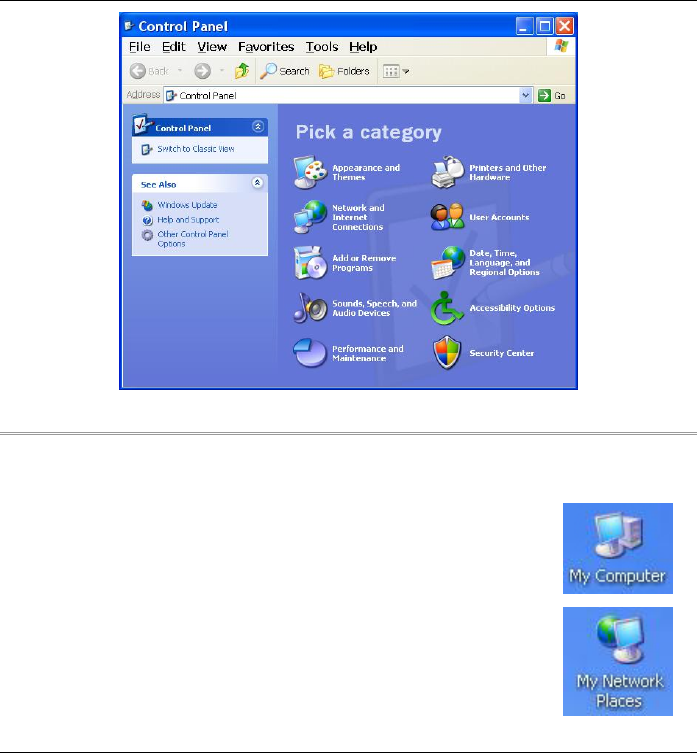

Control Panel
This is where the area that enables you to change on how your
Windows looks and works.
Click Start Î Control Panel dialog box. There are two interfaces –
Classic View or Category View.
23
Desktop icons
Desktop icons give you easy access to your favorite programs and files.
Double left-click an icon to open it.
My Computer
Quick access your hard drives, CD/DVD drives,
memory cards, your documents and more.
My Network
You can access other computers, printers and
shared files on your home network from here.
24
Recycle Bin
When you delete a file it is sent to the Recycle Bin.
You can also retrieve the files that you deleted
provided you haven’t emptied the Recycle Bin.
My Documents
This icon gives you quick access to your My
Documents folder. This contains all your personal
files, music and photos.
Turning off Your Computer
When you finished working on your notebook it is recommended that
you turn it off correctly. This will help your computer to run smoothly.
In order to turn off your computer correctly, click Start then turn off.
Several options will then appear on the screen:
25
h Shut down – this option will close the Windows XP and turn off
your computer.
h Standby – this option will let your computer enter the power
saving sleep mode. To return to your work, move the mouse,
press a key of your keyboard, or press the power button of the
computer.
h Hibernate – if you choose this option Windows will take a snap
shot of your current work and save it to memory, then it will turn
off. The next time you turn on your computer will returned back
to this saved condition.
h Restart – this option will let you close Windows and restart your
computer. This is convenient in case a crash occurs for you to
reset your computer or your computer is running slowly.
26
Intentionally Left Blank
27
Using the Computer
Adjusting the Screen Display
External CRT Display
You can connect an external monitor through the USB port. Four
configurations are available:
Please refer to the “VGA Utility” section in
Chapter 6.
The Computer’s Hot Key Controls
The computer provides you with special hot keys to execute all the
major functions that you like to run on your computer.
h Power Switch – Slide this button for 1-2 seconds to power on or
enter the suspend/resume mode. Slide this button for more than 4
seconds to power off the system.
h SAS Button – Press this button to implement the “Ctrl-Alt-Del”
function.
28
h A-Menu Button - Press this button to implement the “A-Menu”
function.
The Battery Power System
Before using the computer on battery power for the first time,
disconnect the power adapter and check the battery status icon on the
Windows Toolbar to make sure the battery is fully charged.
Preparing the Battery Pack for Use
Before using the battery pack for the first time, the Smart Battery IC
within the battery pack should be calibrated in order to get accurate
reporting of the remaining battery life status.
To calibrate the battery pack, follow the instructions below:
h Turn the computer off. Connect the AC adapter and let the battery
fully recharge. When the battery charge LED turns from orange to
green, the battery is fully charged.
h Turn On the computer and let the battery run down until the
battery is low-low and you hear continuous warning beeps. The
system will automatically enter the Suspend mode. You can now
connect the AC adapter.
h The battery pack is now properly calibrated.
In general, using the battery until the low battery warning indicator
appears and fully recharging the battery each time (full
discharge/charge cycle) will ensure the accuracy of the battery status
gauge.
29
Automatic Battery Pack Charging Function
You can automatically charge the battery pack by using the AC Adapter.
The charge time is almost two hours when
the computer power is turned off.
Battery Status
Windows XP has an applet in the Control Panel that will display an
icon in the Windows taskbar indicating when the computer is running
on battery power or is attached to the AC adapter.
This applet also displays a meter that indicates how much charge
is remaining in the battery.
Battery Low Warning
A beep sound will be heard once to alert you on battery low status.
When the battery power reaches the “Battery Very Low” status the
beeping sound will be heard every second.
Your battery now has 1 ~ 2 minutes of battery charge left. You must
save your data or connect AC power immediately; otherwise, you may
lose your data.
h Beeping accelerates - Battery Very Low: Indicates that there are 1
to 2 minutes of battery charge left. Save your work and turn off the
computer or connect the AC adapter.
30
When there is only one minute of battery charge left, the computer will
suspend to the HDD and power off. Connect AC power and resume
your work.
Small Battery for the Real Time Clock
There is a small built-in battery pack that supplies power to the system
in order to maintain certain system information while the power is off.
If the computer is left without a power source for long period of time,
this battery will be exhausted and system information will be lost.
To avoid damage, only use replacement
batteries recommended by System provider. To prevent the loss
of data when the system loses power, do not remove the battery
pack while the power is on.
Using the A-Menu
Press the “Menu” button located on the side of the Tablet PC to display
the “A-Menu” window dialog box.
Some of the most popular functions can be
accessed from this menu.
31
Adjusting the Brightness
The brightness can be adjusted using the selection provided by the A-
Menu. Choose “Back Light control” to adjust the brightness of your
screen.
Adjusting the Screen Resolution
The screen resolution can be adjusted using this adjustment.
Adjusting the Volume
You can also adjust the volume of your system using this application.
32
Entering Information with the Stylus
Stylus
Hold the stylus as if you were writing with a standard pen or pencil.
The stylus is a sophisticated, high-quality electronic instrument that can
be damaged if used improperly. Things to follow to protect your stylus:
h Do not gesture with the stylus, use it as a pointer, or tap it on
surfaces other than the Tablet PC screen.
h Do not try to store the stylus with the tip down (as you would
normally do with a pen) that it might distort the internal
mechanism. To avoid any damage to the stylus, store it only in the
stylus holder when you are not using it.
Using the OnScreen Keypad
Press on the “Keyboard” icon to display the screen keyboard on your
screen in case you would make an input to the system.
On Screen Sofware Keyboard
The keyboard in Input Panel. Use it the same way that you would use a
standard keyboard.
33
Writing pad
A pad that you use to write text that is converted into typed text. You
write on lines in the writing pad the same way you write on a lined
piece of paper.
Character pad
A pad that converts your handwriting into text so that it can be inserted
into a program. You use the character pad to write on letter at a time.
To enhance your writing capability, click on the “Num” or “Sym” to
display the on screen “Numeric” or “Symbol” keys respectively.
34
To make a selection on how it will be proper for the software keyboard
to illustrate on your display, a special function is design to solve all
these problem.
Press on this icon to display the selection item for
the software keyboard to appear on the screen.
Speech
By using a microphone, you can speak to your tablet computer either to
dictate or give commands.
Dock at Top of Screen
Let the software keyboard to appear at the top of the screen.
Dock at Bottom of Screen
Let the software keyboard to appear at the bottom of the screen.
Undock
Closed down the software keyboard.
Options
h General – Provides you which action to be taken when opening
the Input Panel
35
h Settings – Lets you select the option on how the insert button to
appear on your display
h Character Pad – Lets you select on the ink thickness of the text
and the spaces between them
h Writing Pad – Lets you select on the thickness of the text and the
spaces between every written lines
h Speech – Sounds provide useful validation during speech
recognition
Stylus Setting
This setting lets you adjust the Stylus on how you operate on the
computer.
Click on the “Properties” to open the “Tablet and Pen Setting”.
36
Settings
You can select on the “Handedness” and “Menu Location” according to
your preferences.
37
If your cursor pointer does not function well, you can select the
“Calibrate” function.
To calibrate on the Stylus, click on the “Calibrate” button.
38
Displays
This setting will enable you to adjust the screen orientation.
39
Tablet Buttons
This function enables you to adjust on the buttons of your computer.
40

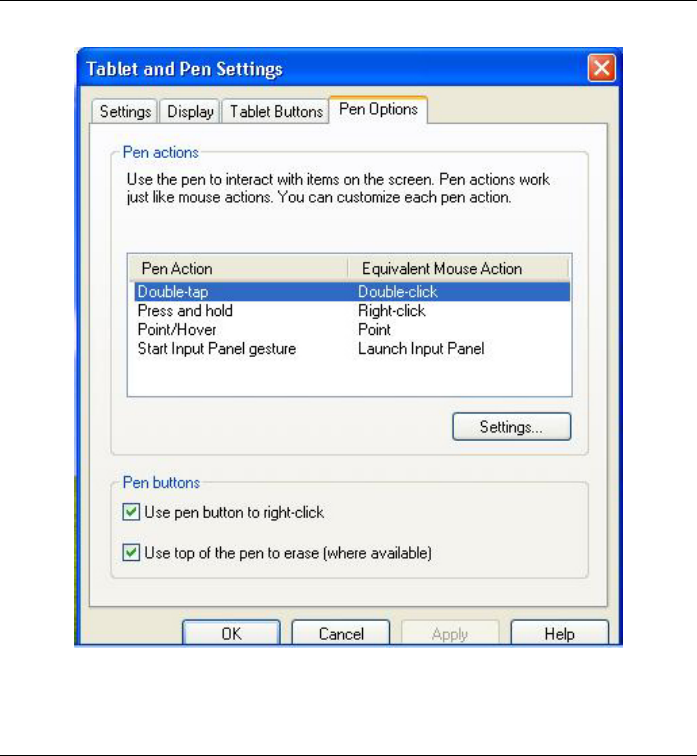

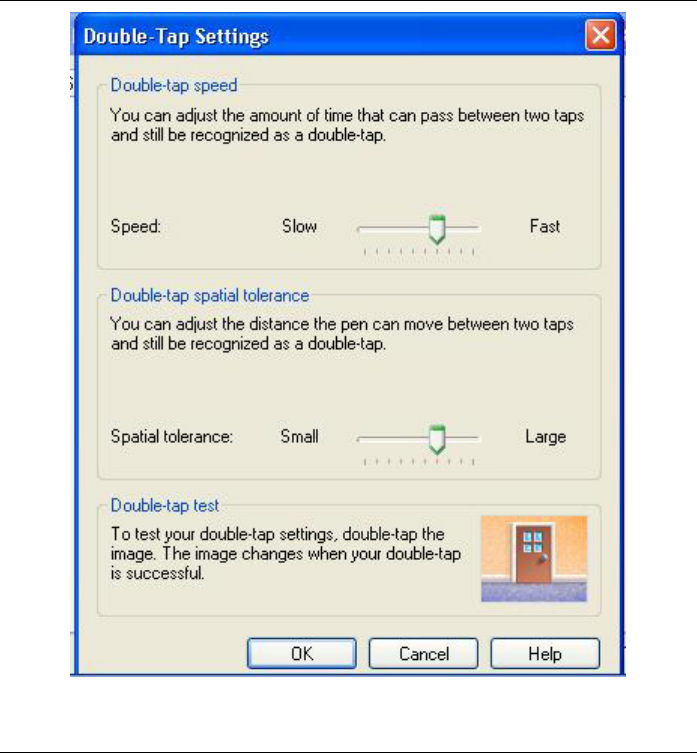

Pen Options
Use this function to adjust on how your Stylus would interact the
moment you tap on the screen.
41
42
Using the Stand
Your computer includes a stand which will serve as a support when you
are working on a clear viewing angle.
43
You can also use the stylus as your stand as shown in the illustration.
44
45
Performing Desktop Operations
on Your Computer
This chapter will discuss some of the major functions that are typical of
a desktop system.
Audio
Multimedia Sound System
Your computer is equipped with internal stereo speakers, a microphone
and input audio ports for external audio devices.
Audio Software
Your computer comes equipped with an integrated sound system
capable of providing you with quality audio sound through the built-in
speakers or through external speakers connected via the system ports.
Audio Volume Control
The volume can be adjusted using the adjustment provided by A-Menu.
Choose the “Volume” control to adjust the volume of the system.
46
Playing Audio Files
Your computer can play audio files stored in MIDI, WAVE or MP3 file
formats. Check the Help and Support Center in Windows for
information on the functions of the Media Player.
External Speakers and Microphone
The sound system is capable of providing high-quality sound to
external speakers and receiving and of processing sounds from an
external microphone or external sound source.
Connecting Peripheral Devices
Connecting USB Devices - USB devices are Plug & Play; simply plug
the USB device into any USB port on the computer to use it. There are
some exceptions; the OS will not support some devices.
47
Software Utilities
This chapter deals with installing the drivers and utilities essential to
the operation or improvement of some of the computer’s subsystems.
Using the Support CD
The Support CD contains the drivers and utilities necessary for the
proper operation of the computer based what you need to install
according to your choice of operating system.
Drivers and utilities from Support CD are
already installed on your computer. Only use it to reinstall the
software.
48
Driver Operating System Support
• VGA
• Audio
• A-Menu
• Chipset
• Wireless Bluetooth
• Point device
• Touch Digitizer
• AMTEK Life Style Button
Windows XP Tablet PC Edition
Windows XP Home Edition
Windows XP Professional
Driver Installation
Drivers can be installed using the AutoRun installation.
VGA Utility
After you have restarted Windows, open the “Control Panel” and
double click on the “Display” icon. From the “Display Properties”
window, select the “Settings” tab and click on the “Advanced” tab to
enter the "Digital Flat Panel (1024x768) on VIA/S3G UniChrome
Pro IGP" window.
49
h Select “Advanced”
S3Display
This applies to the display that you prefer to use.
¾ Select the "CRT" if you want the picture to display only on the
external monitor screen.
¾ Select "LCD" if you want the picture to display only on the Tablet
PC’s screen.
50
51
S3Gamma Plus
52

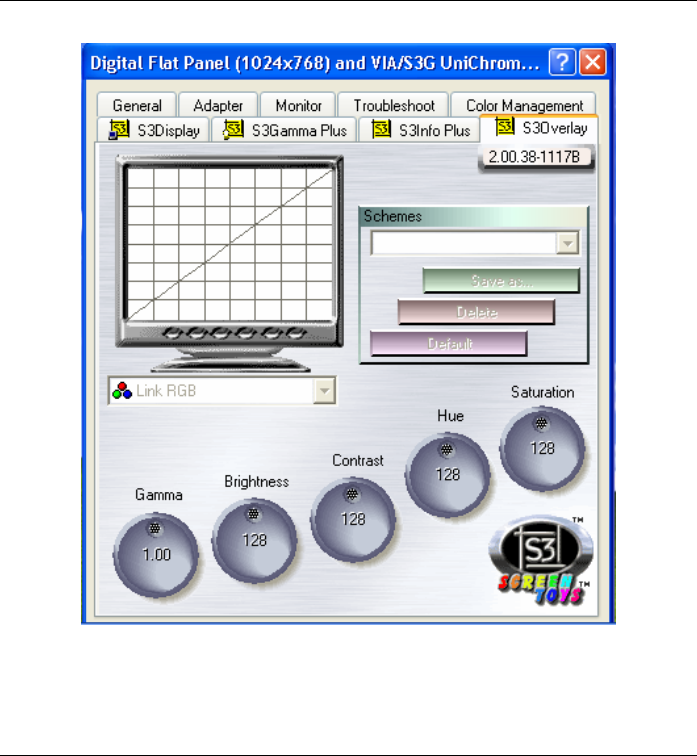

S3Overlay
53
Troubleshooting
This chapter describes locating and solving problems that you may
encounter while using your computer.
General Hardware Problems / Possible Cause and Solution
A few common hardware problems and suggested solutions are
presented in the table below:
Antenna Problem/Solution
Problem Possible Cause Solution
The internal wireless
local area network
(LAN) is not functioning.
The antennas are
obstructed Try to prevent the
antennas from being
obstructed and be sure
the computer access
point is quite near you.
Audio Problems/Solutions
Problem Possible Cause Solution
No sound can be heard. Either the volume is
muted or turned down. Use the Microsoft
Windows volume
control icon at the lower
righthand corner of the
display to adjust the
volume.
54
Battery Problems/Solutions
Problem Possible Cause Solution
Beeping sound. The computer battery is
low and Hibernation is
disabled.
Connect the computer
to an external power
source immediately.
The battery pack is
warm after charging. This is a normal
condition. No action is required.
No power is connected
to the computer. Check the power
source.
The battery is fully
charged. Refer to the battery icon
located at the lower
righthand corner of your
screen if you are
operating on battery.
Battery pack was
exposed to a high
temperature.
Let the battery pack
reach room temperature
before use.
The battery LED
indicator does not light
when the battery is
charging or if it is not
charging.
The battery pack is
nearing the end of its
life.
Replace the battery
pack.
Battery charge guage
not accurately
displaying the charge
remaining
Battery pack requires
calibration. Calibrate the battery
pack.
55
Internet Problems/Solutions
Problem Possible Cause Solution
The computer is unable
to connect to the
Internet.
Account for Internet
service provider (ISP) is
not properly configured.
Ask for your ISP
assistance.
Network Problem/Solution
Problem Possible Cause Solution
The system does not
connect to the network The settings are not
correctly set. Contact your network
administrator.
Power Problems/Solutions
Problem Possible Cause Solution
The computer is
connected to an
external power source
but does not turn on
even though the battery
pack is connected.
The battery pack may
be defective. Replace the battery
pack.
The Power/Standby
light is off and the
system turns off when it
is left unattended.
The system initiated
Hibernation mode Press the Power button.
The system will not turn
on after it turns off
when left unattended.
The system initiated
Hibernation because it
is in critical low-battery
condition.
Connect the computer
to an external power
source.
56
Screen Problem/Solutions
Problem Possible Cause Solution
The screen is blank. Standby or Hibernate
has initiated. Exit Standby or
Hibernate.
External monitor display
is selected Switch to the computer.
(Refer to “Software
Utilities” searction of
Chapter 6.
USB Problem/Solutions
Problem Possible Cause Solution
The external device
does not work when
connected to the USB
connector.
The external device is
not receiving power. Ensure that the external
device is plugged into
an electrical outlet.
The external device is
defective. Try connecting the
external device to
another computer to
determine if it operates
properly.
System Not Resuming Operation
If the system will not resume operation after system operation has been
suspended, check the following possible causes:
The battery may either be defective, or discharge to a critically low
level. To correct this problem, connect an external power supply such
as AC adapter.
Display Screen is Blank or Difficult to Read
If the system is blank or unreadable, please confirm the system is
running (this can be seen on the Power icon if it is lit).
57
The brightness control may be set too low, change the brightness by
using on the brightness control at the right side of the system.
Tablet PC is Not Responding to the Stylus
If the Tablet PC does not respond to the stylus, connect an external
keyboard to the system to see if it responds to keyboard commands. If
the system does not respond to a keyboard, the application or system
may have crashed, and it may be necessary to reboot the system. If the
system responds to a keyboard but not to a stylus, contact your local
dealer for further assistance.
The computer is unable to connect to the Internet.
Account for Internet service provider (ISP) is not properly configured.
Ask for your ISP assistance.
Beeping sound.
Connect the computer to an external power source immediately.
If the cursor is not in position with the stylus
Please make sure you have made the calibration.
Contacting Your Dealer
If you still have a problem after reading the preceding section, the next
step is to contact your dealer.
Your dealer can determine if the problem is something that requires the
computer to be taken to the shop. Before you call your dealer, however,
please have the following information available:
58
h How is your computer configured? Your dealer needs to know
what peripheral devices you are using.
h What messages, if any, are on the screen?
h What software were you running at the time?
h What have you done already to try to solve the problem? If you
have overlooked a step, your dealer may be able to solve the
problem over the phone.
59
Specifications
Detailed Specifications
CPU
h VIA C7M NaNo Processor 1.0GHz (BGA onboard)
chipsets
h Core Logic: North Bridge: VIA VN800
h South Bridge: VT8237R
VGA
h Integrated on VN800
Audio
h VT1618 (AC97)
Memory
h 1x SODIMM Slot DDR2, 1GB (Default : 256MB)
BIOS
h Phoenix BIOS includes System & Video
h Supports S3 and S4 power status
60
h Password Protection
Modular Battery Bay
h Re-chargeable 26W Lithium Ion Battery Pack (Cylindrical Cell,
2400mAh)
Mass Storage
h 1.8” Format Supported, 5mm height or
2.5” Format Supported, 9.5mm height
Video
h VIA VN800
h ZOOM function for 800*600 as default, 800*480, 1024*600, 7”
800*480 TFT
Audio
h AC97 Codec
h Built in 1W Speaker *1
h Stereo Head Phone / MIC Jack (Combo; diameter is 3.5mm)
Other I/O Devices
h USB Interface Wireless 802.11b/g
h USB Bluetooth Module build in
h 4 wire Resistive touch screen (at least 80% transparency)
h Stick Point
I/O Ports
h 1 x DC-IN Jack
61
h 1 x Stereo Headphone / MIC Combo Jack
h 2 x 4-pin USB 2.0 Port
h 1 x Stylus (Bottom side, 91/120mm)
h 1 x 36pins Cradle Connector (1*USB2.0, DB-15, 10/100 Ethernet,
Power, Audio In, Audio Out)
LED Indicator
h Power On indicator (ON : Green, Standby : Blinking)
h Battery Indicator (Charging : Amber, Full w/ DC : Green, Full w/o
DC : OFF)
h HDD Accessing (Blinking in Amber)
h Wireless Status (ON : Amber)
Power System
h Miniature Size Adapter
h 19V, 3.42A, AC 100-240 Volt, 65W
• LSE 0335A1965
• E.P.S F10653-A
h 1 Removable Battery Pack
h Li-Ion (Cylindrical)-3S1P
h Smart Charger
h Support for ACPI
h PC-2001 compliant
62
Physical / Mechanical
h 228*146*25.1mm
h 850g
Accessory Kit
h AC Adapter with Power Cord Set
h Stereo Head Phone / MIC (Combo; 3.5mm)
h User’s Manual
h Utility CD’s ( Support Disc)
h A Stand
h A Clean Cloth
h Gift Box
Options
h 256MB / 512MB / 1GB SODIMM
h 30-80GB HDD
Regulatory Approval (minimal)
h FCC, FCC ID, CE (EU), VCCI (JP), BSMI (TW), CCC, SRRC,
TELEC (JP), DGT
h TUV, UL, CB Report
