OWNER’S MANUALLED LCD TV / LCD TV Please read this manual carefully before operatingyour set and retain it for future reference.www.lg.com

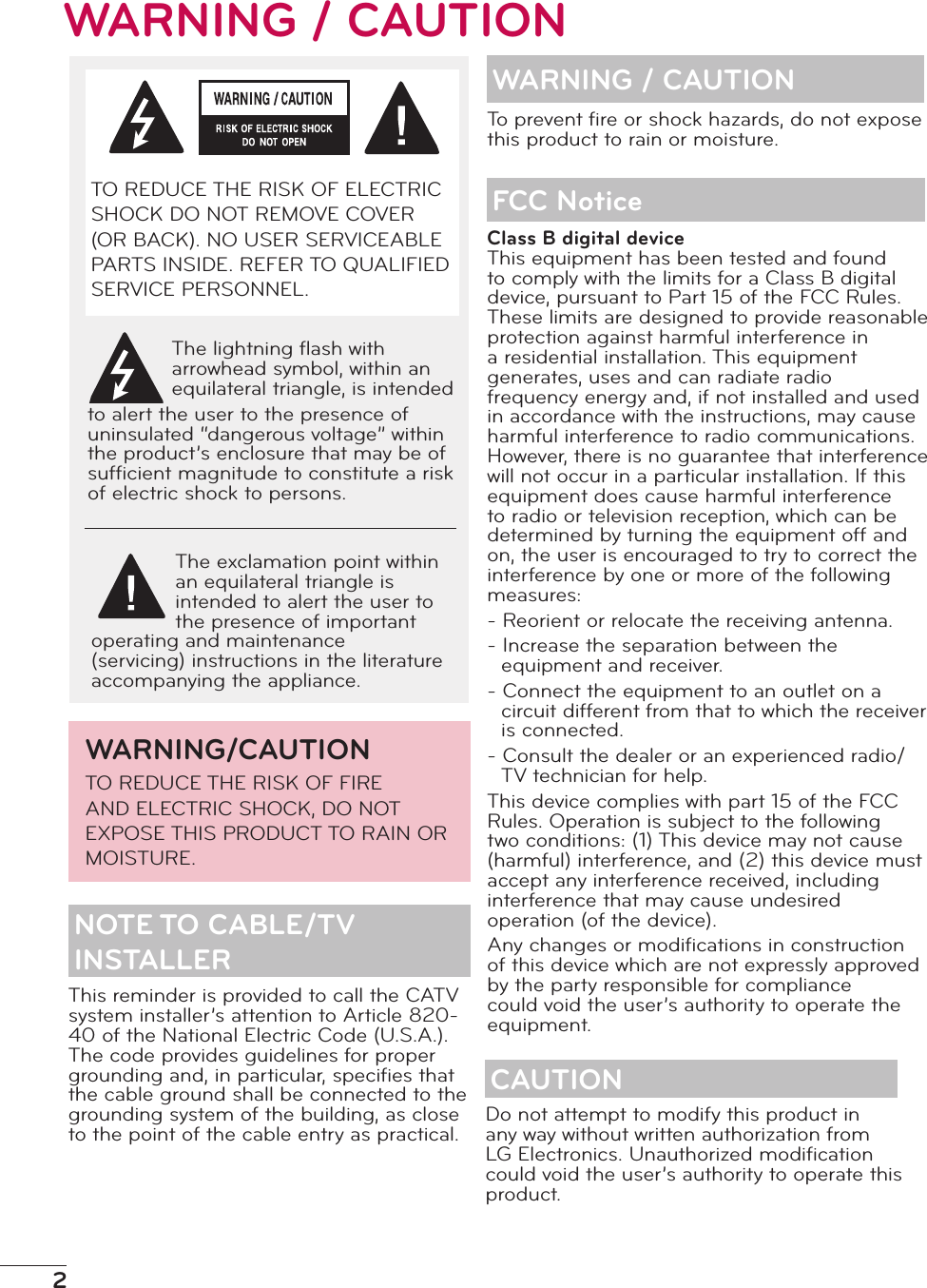

2WARNING / CAUTIONThis reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.WARNING / CAUTIONClass B digital deviceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause (harmful) interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (of the device).Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC NoticeTo prevent fire or shock hazards, do not expose this product to rain or moisture.CAUTIONDo not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.WARNING/CAUTIONTO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.NOTE TO CABLE/TV INSTALLER

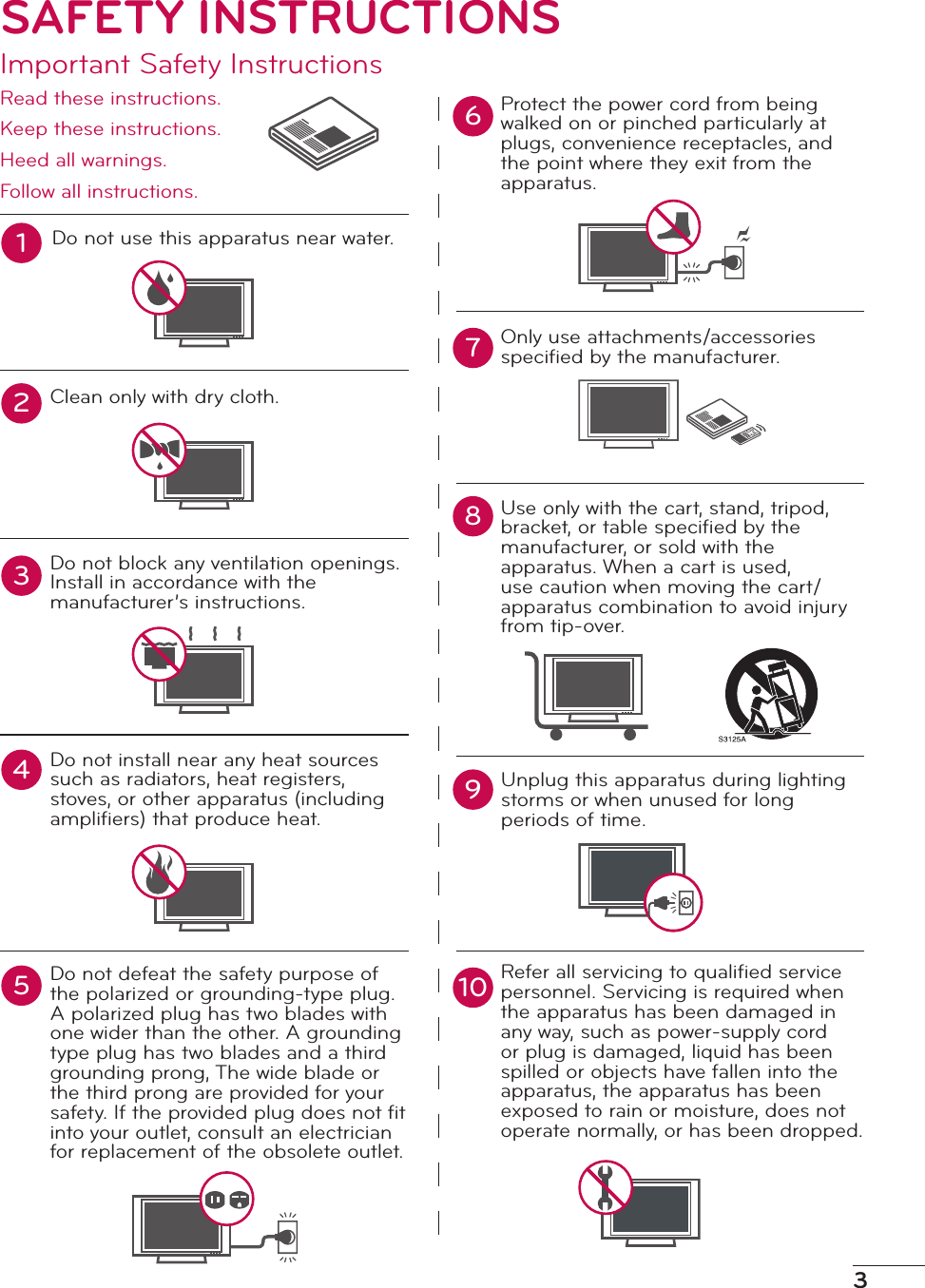

3SAFETY INSTRUCTIONSImportant Safety InstructionsRead these instructions.Keep these instructions.Heed all warnings.Follow all instructions.Do not use this apparatus near water.Clean only with dry cloth.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.Only use attachments/accessories specified by the manufacturer.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.Unplug this apparatus during lighting storms or when unused for long periods of time.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.12345678910

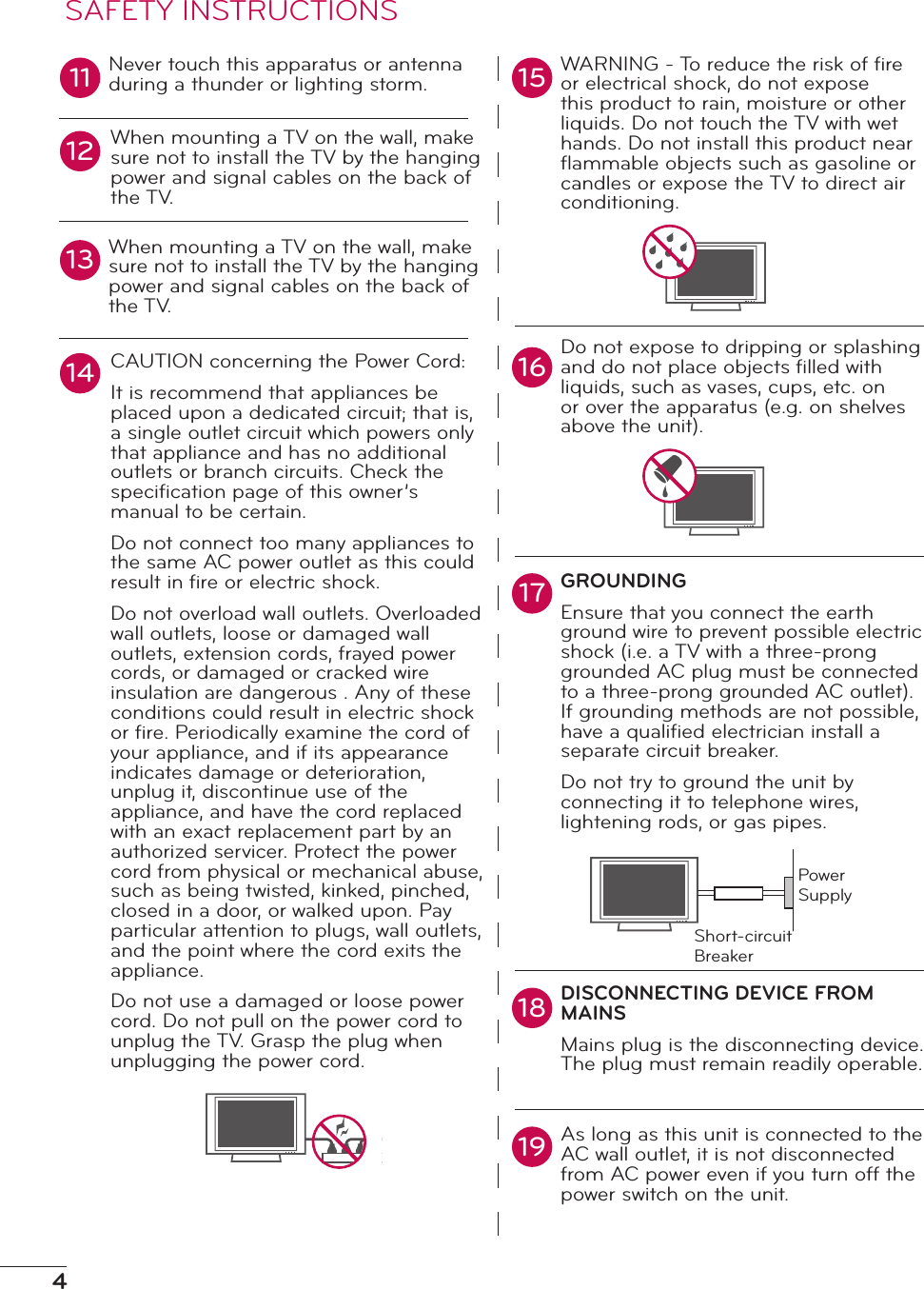

4Never touch this apparatus or antenna during a thunder or lighting storm.When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.CAUTION concerning the Power Cord:It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain.Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock.Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous . Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.Do not use a damaged or loose power cord. Do not pull on the power cord to unplug the TV. Grasp the plug when unplugging the power cord.WARNING - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles or expose the TV to direct air conditioning.Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).GROUNDINGEnsure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.DISCONNECTING DEVICE FROM MAINSMains plug is the disconnecting device. The plug must remain readily operable.As long as this unit is connected to the AC wall outlet, it is not disconnected from AC power even if you turn off the power switch on the unit.11 1516121314171819SAFETY INSTRUCTIONSPower SupplyShort-circuit Breaker

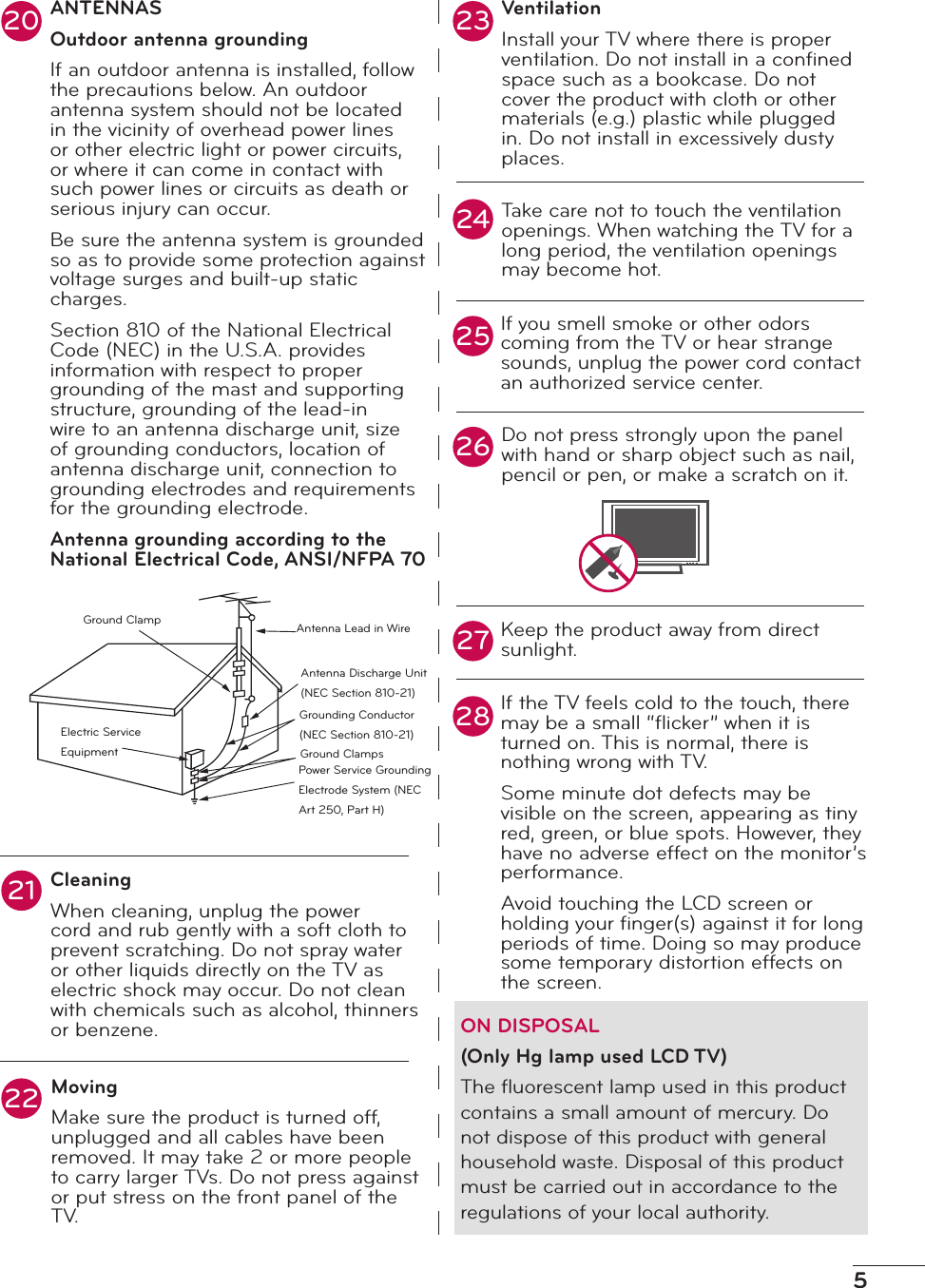

5ANTENNASOutdoor antenna groundingIf an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.Antenna grounding according to the National Electrical Code, ANSI/NFPA 70CleaningWhen cleaning, unplug the power cord and rub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene.MovingMake sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press against or put stress on the front panel of the T V.VentilationInstall your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places.Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot.If you smell smoke or other odors coming from the TV or hear strange sounds, unplug the power cord contact an authorized service center.Do not press strongly upon the panel with hand or sharp object such as nail, pencil or pen, or make a scratch on it.Keep the product away from direct sunlight.If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV.Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor’s performance.Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.ON DISPOSAL(Only Hg lamp used LCD TV)The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.202123242622252728Ground ClampElectric Service EquipmentAntenna Lead in WireAntenna Discharge Unit (NEC Section 810-21)Grounding Conductor (NEC Section 810-21)Ground ClampsPower Service Grounding Electrode System (NEC Art 250, Part H)

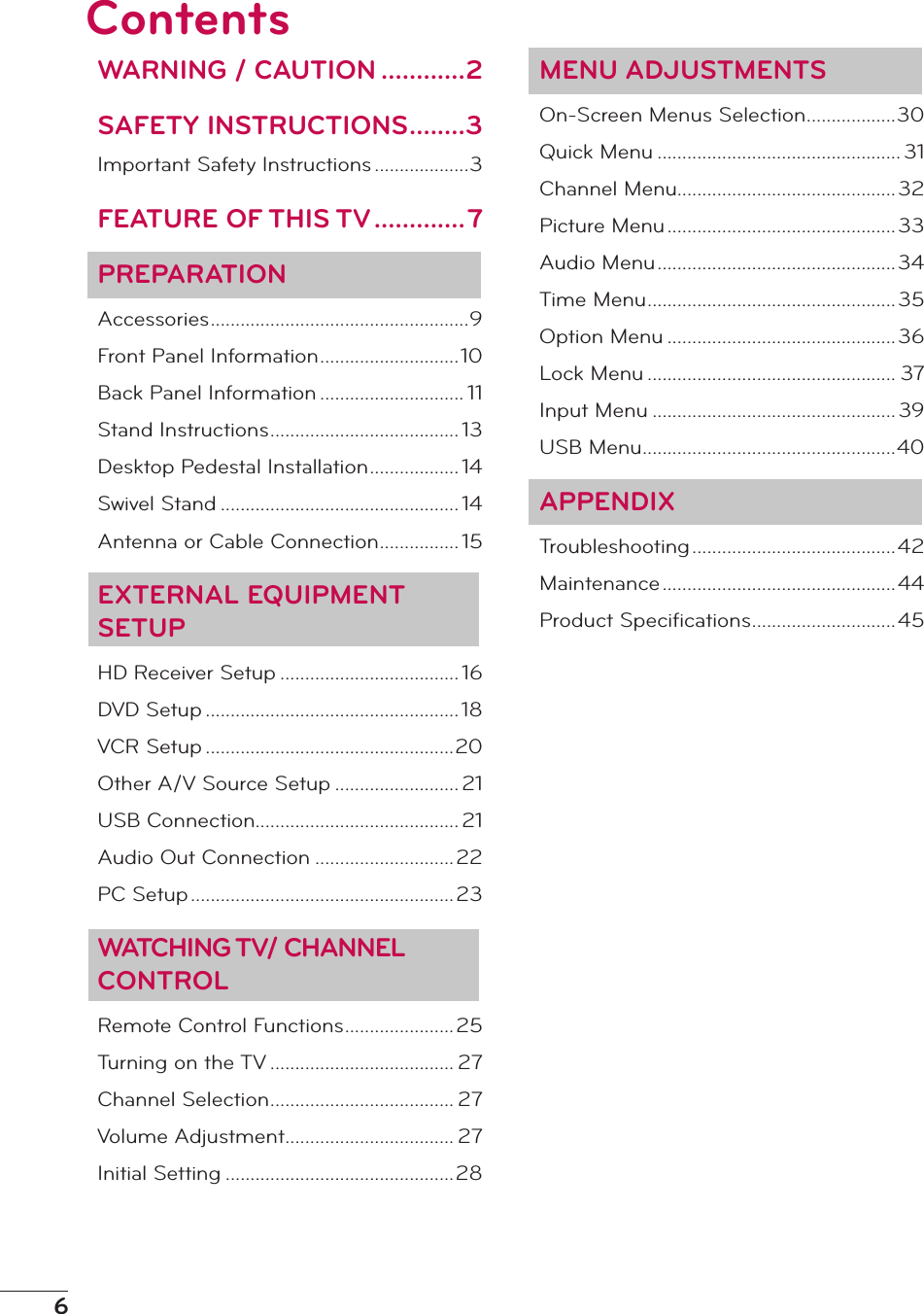

6ContentsWARNING / CAUTION ............2SAFETY INSTRUCTIONS ........3Important Safety Instructions ...................3FEATURE OF THIS TV .............7PREPARATIONAccessories ....................................................9Front Panel Information ............................10Back Panel Information ............................. 11Stand Instructions ...................................... 13Desktop Pedestal Installation ..................14Swivel Stand ................................................ 14Antenna or Cable Connection ................ 15EXTERNAL EQUIPMENT SETUPHD Receiver Setup .................................... 16DVD Setup ................................................... 18VCR Setup ..................................................20Other A/V Source Setup ......................... 21USB Connection......................................... 21Audio Out Connection ............................22PC Setup .....................................................23WATCHING TV/ CHANNEL CONTROLRemote Control Functions ......................25Turning on the TV ..................................... 27Channel Selection ..................................... 27Volume Adjustment .................................. 27Initial Setting ..............................................28MENU ADJUSTMENTSOn-Screen Menus Selection ..................30Quick Menu .................................................31Channel Menu............................................32Picture Menu ..............................................33Audio Menu ................................................34Time Menu ..................................................35Option Menu ..............................................36Lock Menu .................................................. 37Input Menu .................................................39USB Menu ...................................................40APPENDIXTroubleshooting .........................................42Maintenance ...............................................44Product Specifications .............................45

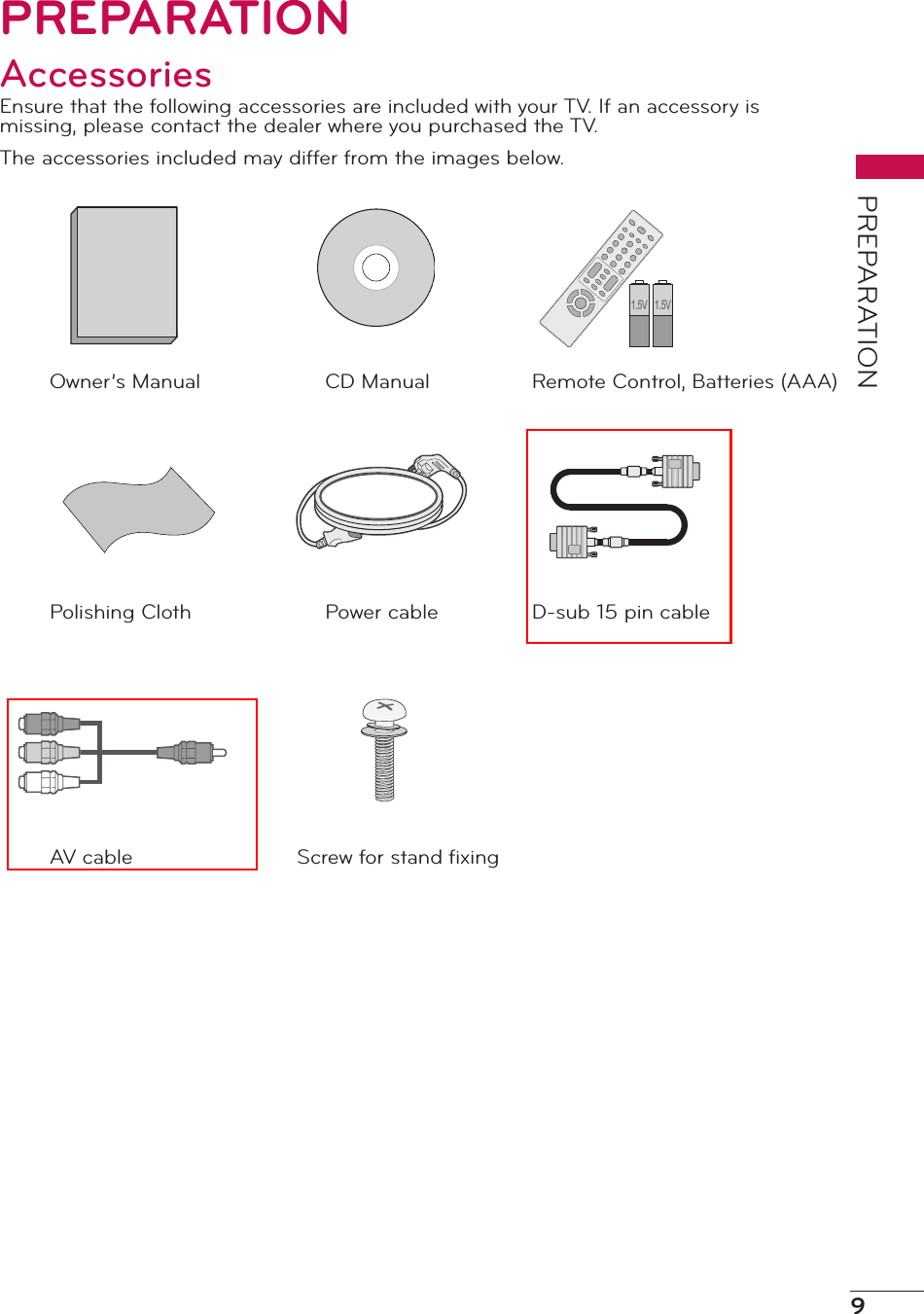

9PREPARATIONPREPARATIONAccessoriesEnsure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.The accessories included may differ from the images below.Remote Control, Batteries (AAA)1.5V 1.5VCD ManualOwner’s ManualD-sub 15 pin cablePower cablePolishing ClothScrew for stand fixingAV cable

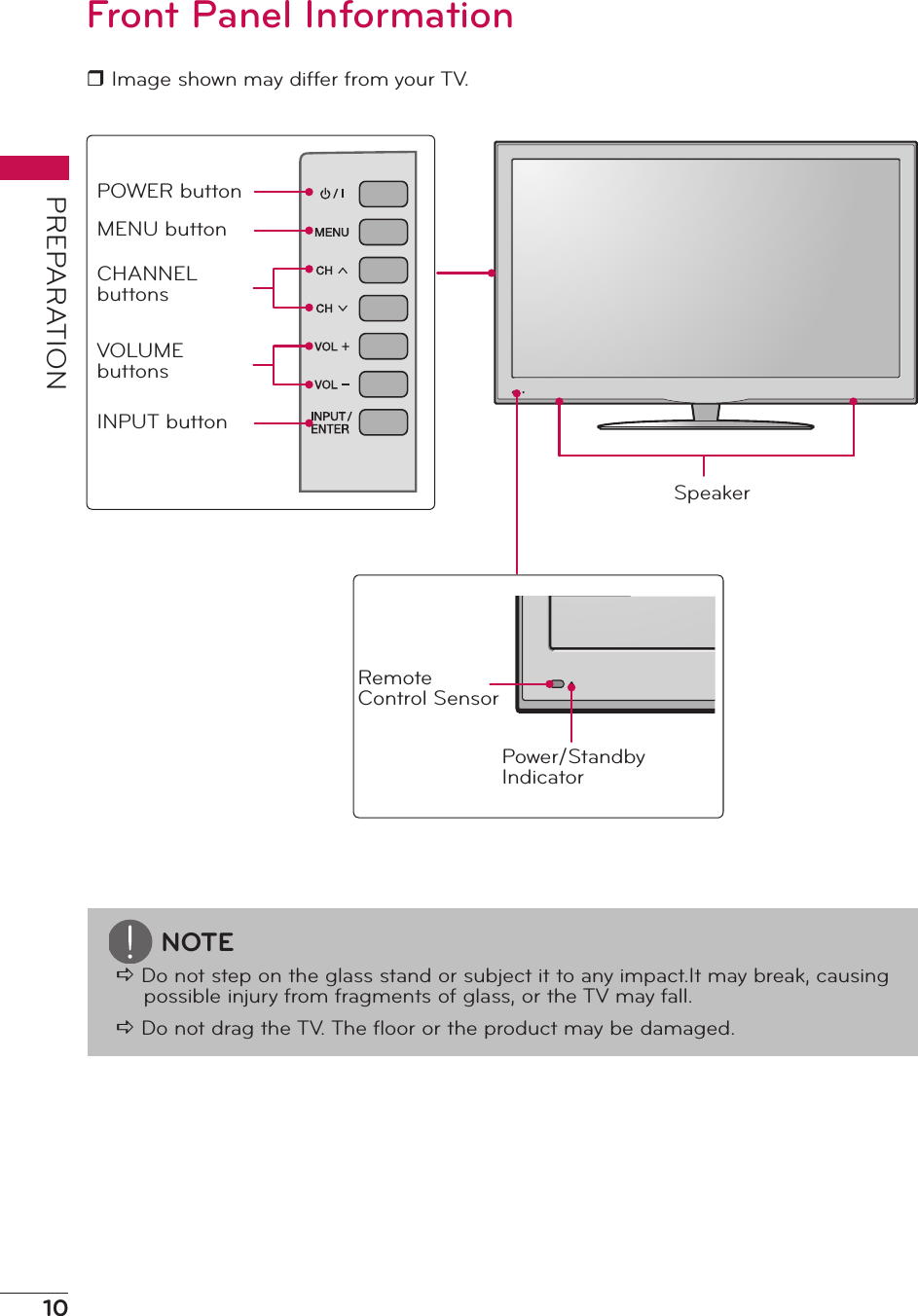

10PREPARATIONFront Panel Informationr Image shown may differ from your TV.Remote Control SensorPower/Standby IndicatorSpeakerPOWER buttonMENU buttonCHANNEL buttonsVOLUME buttonsINPUT buttonNOTEa Do not step on the glass stand or subject it to any impact.It may break, causing possible injury from fragments of glass, or the TV may fall.a Do not drag the TV. The floor or the product may be damaged.

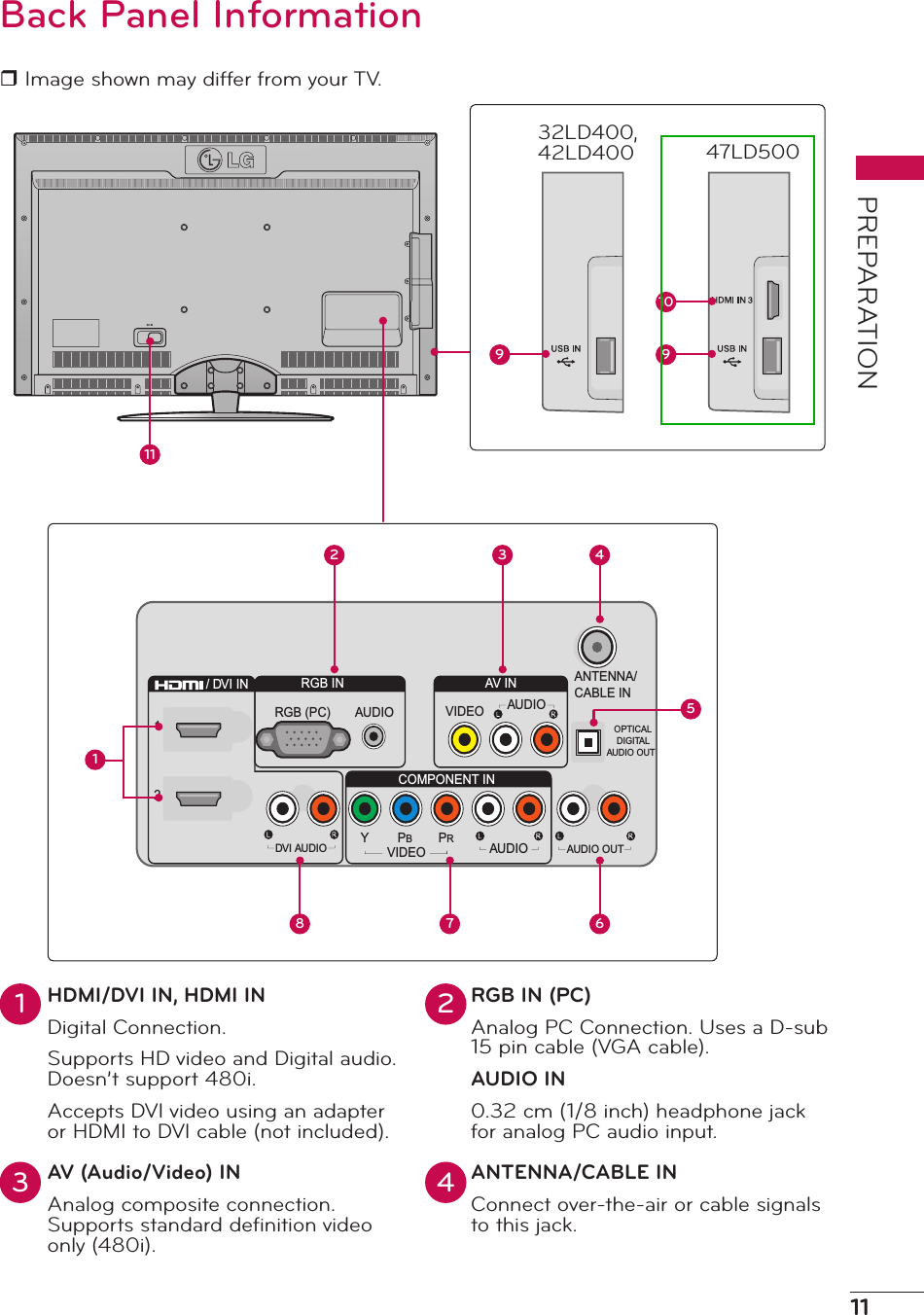

11PREPARATIONAC INBack Panel Informationr Image shown may differ from your TV.ANTENNA/CABLE INVIDEOAV INRGB INCOMPONENT INPRPBYOPTICALDIGITALAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDVI AUDIO9 91012 3 451167847LD50032LD400, 42LD400HDMI/DVI IN, HDMI INDigital Connection.Supports HD video and Digital audio. Doesn’t support 480i.Accepts DVI video using an adapter or HDMI to DVI cable (not included).RGB IN (PC)Analog PC Connection. Uses a D-sub 15 pin cable (VGA cable).AUDIO IN0.32 cm (1/8 inch) headphone jack for analog PC audio input.AV (Audio/Video) INAnalog composite connection. Supports standard definition video only (480i).ANTENNA/CABLE INConnect over-the-air or cable signals to this jack.1 23 4

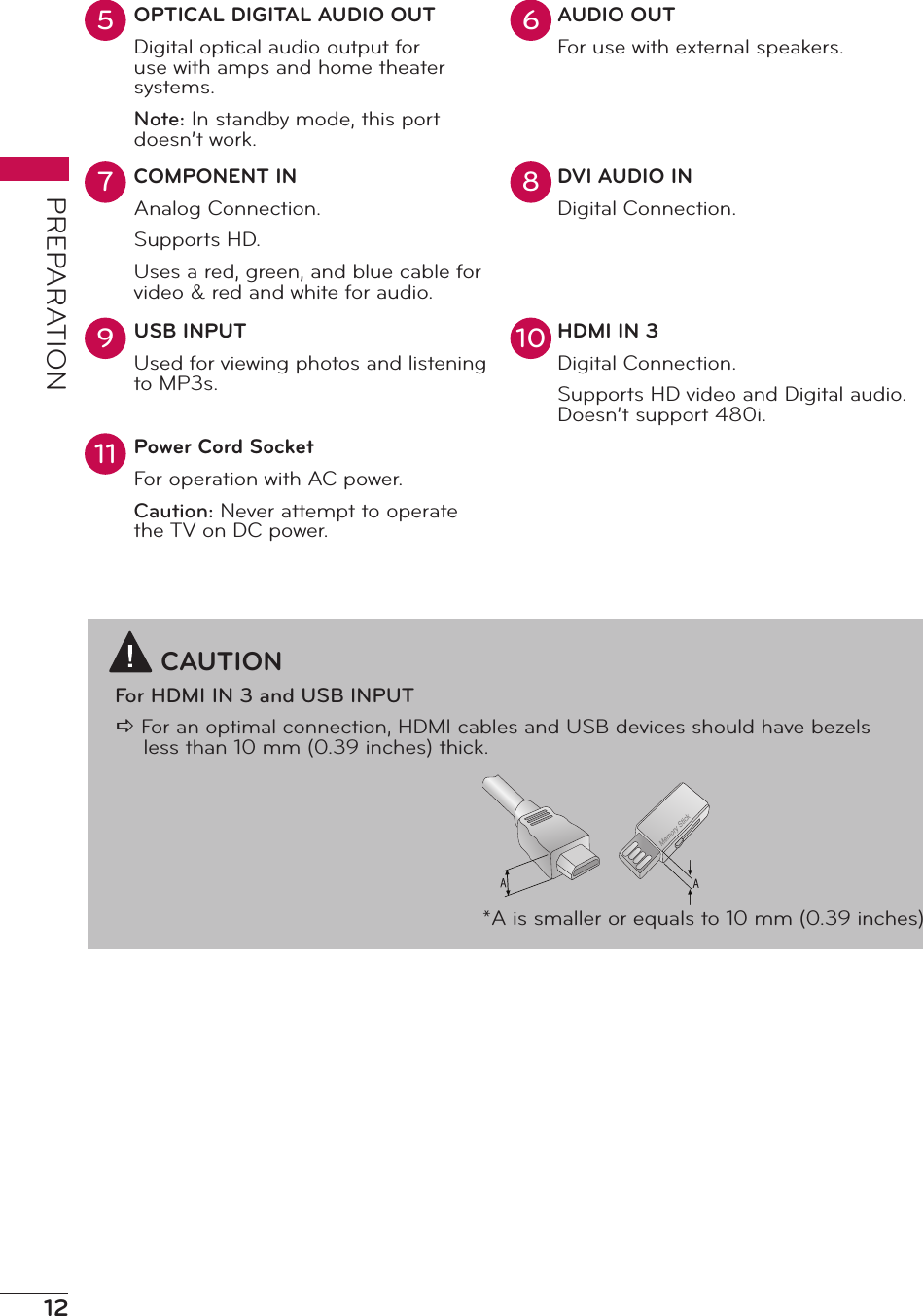

12PREPARATIONOPTICAL DIGITAL AUDIO OUTDigital optical audio output for use with amps and home theater systems.Note: In standby mode, this port doesn’t work.AUDIO OUTFor use with external speakers.COMPONENT INAnalog Connection.Supports HD.Uses a red, green, and blue cable for video & red and white for audio.DVI AUDIO INDigital Connection.USB INPUTUsed for viewing photos and listening to MP3s.HDMI IN 3Digital Connection.Supports HD video and Digital audio. Doesn’t support 480i.Power Cord SocketFor operation with AC power.Caution: Never attempt to operate the TV on DC power.5 67 89 1011CAUTIONFor HDMI IN 3 and USB INPUTa For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick. *A is smaller or equals to 10 mm (0.39 inches)

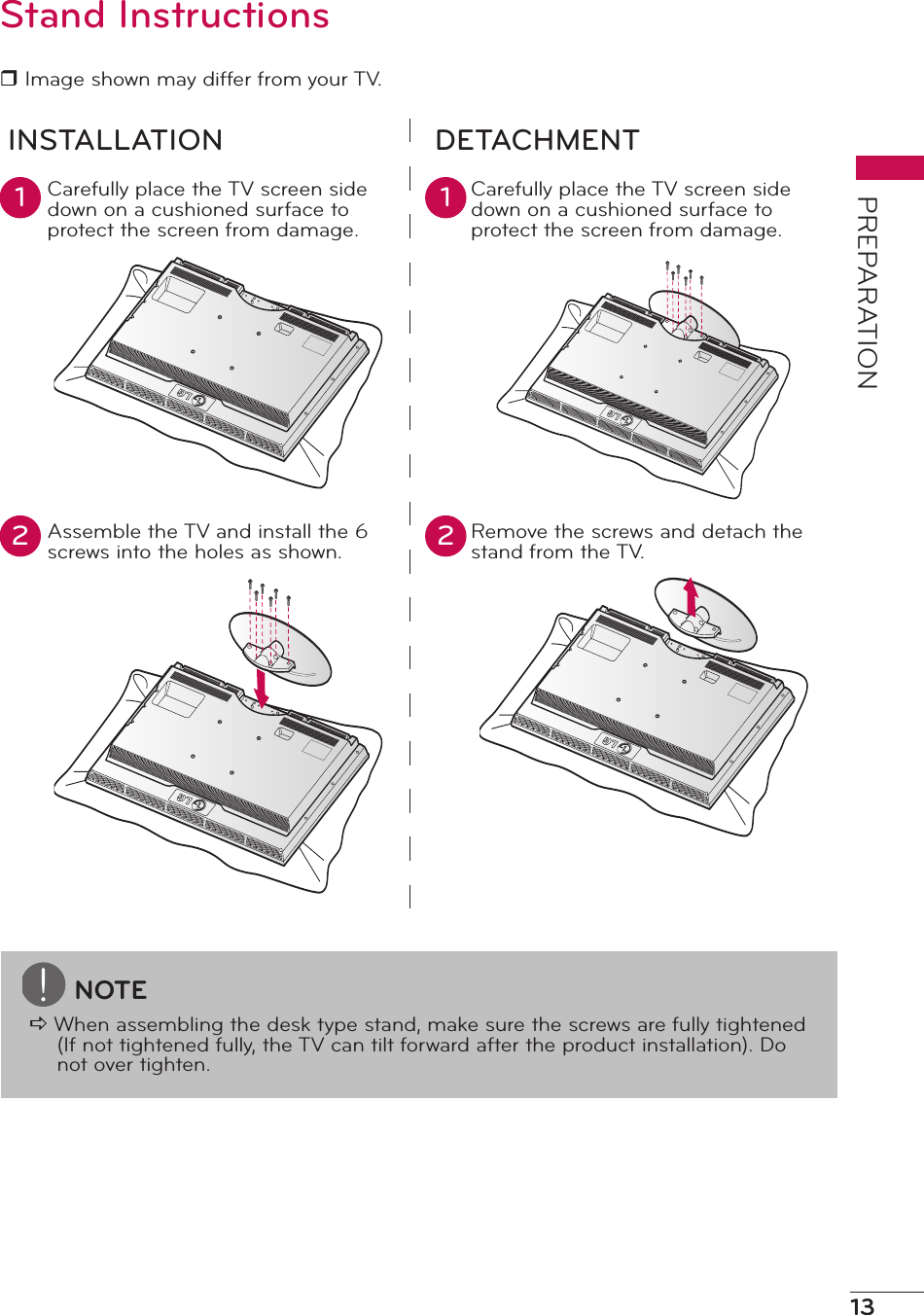

13PREPARATIONStand Instructionsr Image shown may differ from your TV.INSTALLATION DETACHMENTCarefully place the TV screen side down on a cushioned surface to protect the screen from damage. Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.Assemble the TV and install the 6 screws into the holes as shown.Remove the screws and detach the stand from the TV.1 12 2NOTEa When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

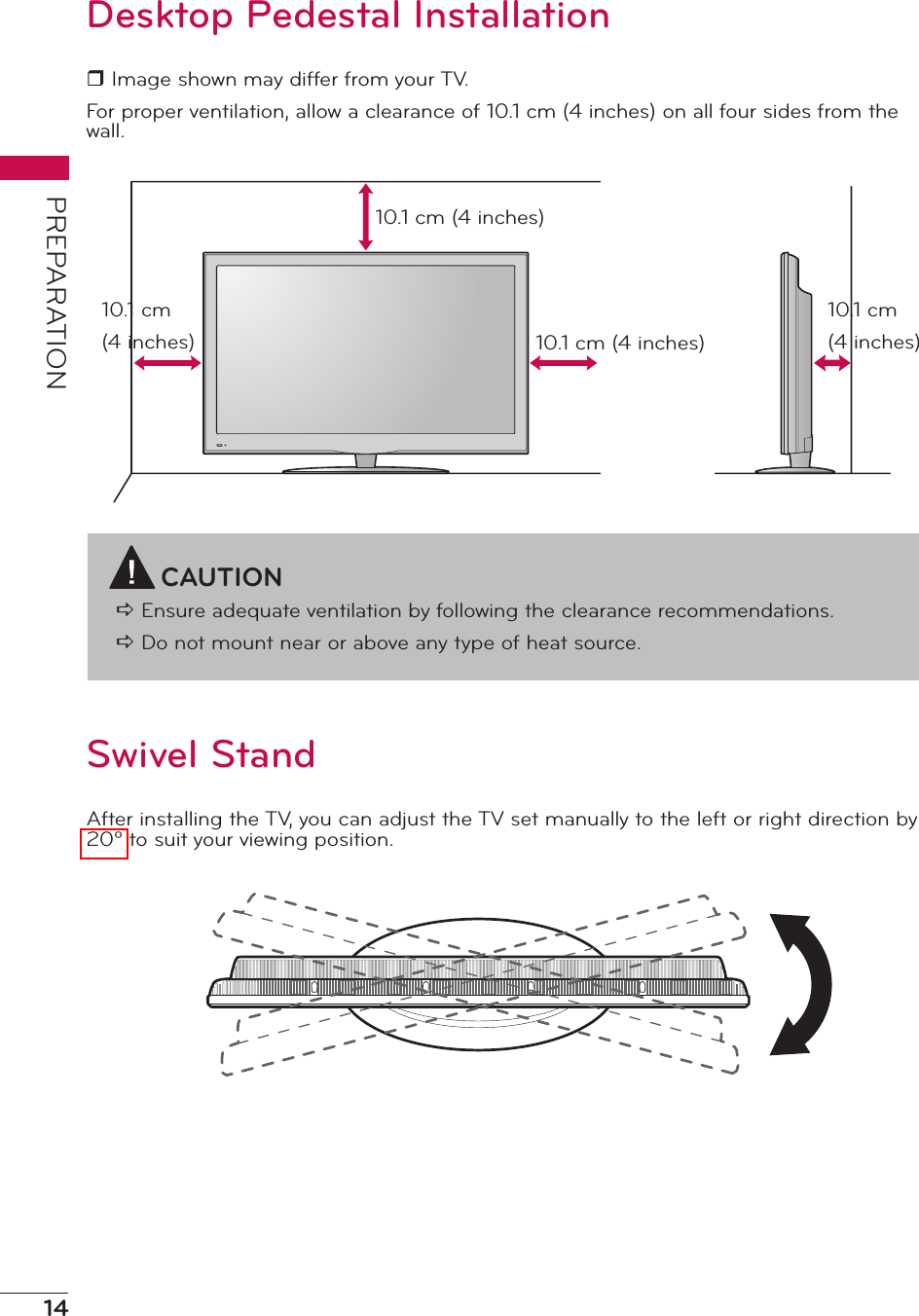

14PREPARATIONDesktop Pedestal Installationr Image shown may differ from your TV.For proper ventilation, allow a clearance of 10.1 cm (4 inches) on all four sides from the wall.CAUTIONa Ensure adequate ventilation by following the clearance recommendations.a Do not mount near or above any type of heat source.10.1 cm (4 inches)10.1 cm (4 inches)10.1 cm (4 inches)10.1 cm (4 inches)Swivel StandAfter installing the TV, you can adjust the TV set manually to the left or right direction by 20º to suit your viewing position.

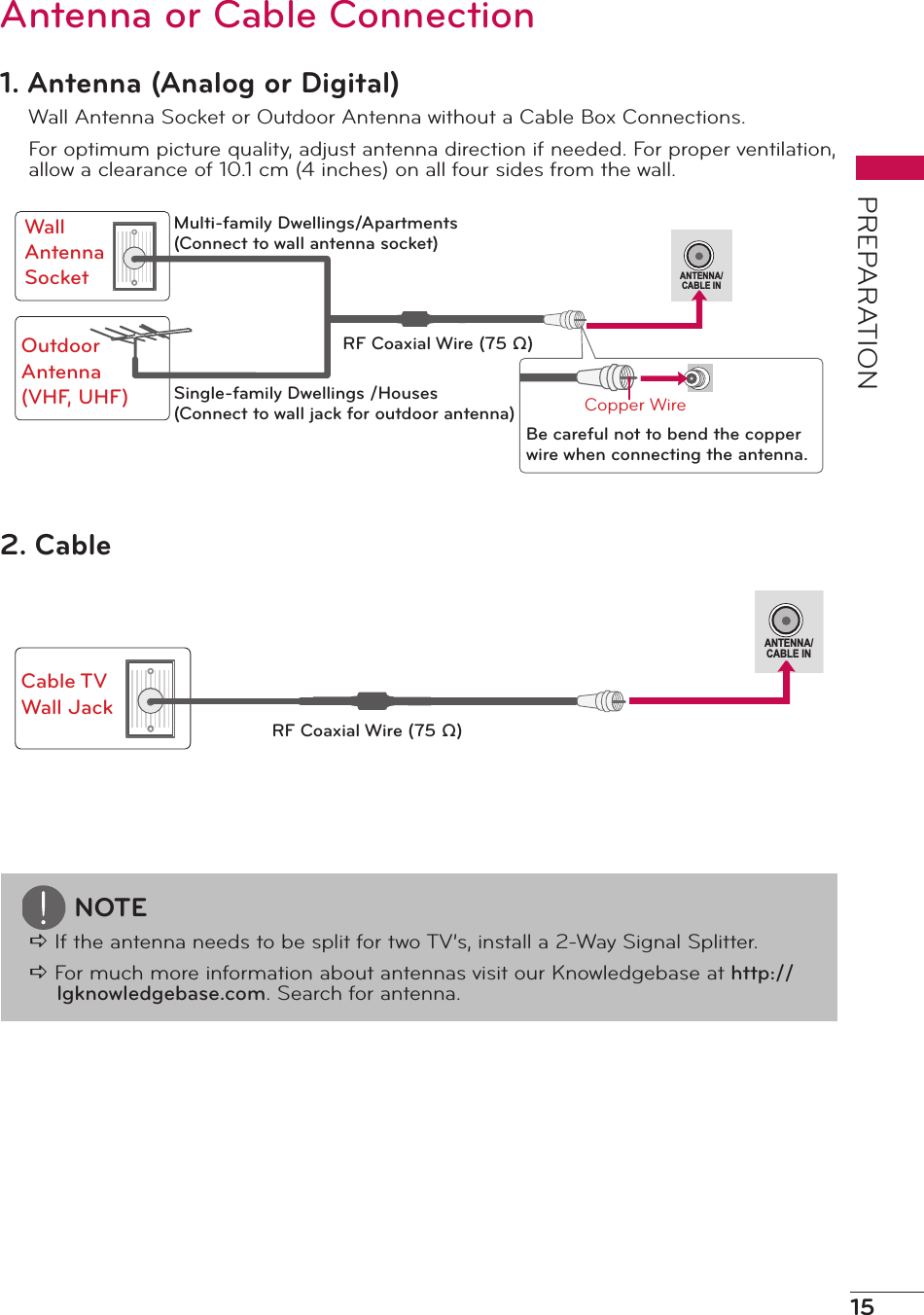

15PREPARATIONANTENNA/CABLE INAntenna or Cable Connection1. Antenna (Analog or Digital)Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.For optimum picture quality, adjust antenna direction if needed. For proper ventilation, allow a clearance of 10.1 cm (4 inches) on all four sides from the wall.ANTENNA/CABLE IN2. CableNOTEa If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.a For much more information about antennas visit our Knowledgebase at http://lgknowledgebase.com. Search for antenna.Wall Antenna SocketOutdoor Antenna (VHF, UHF)Cable TV Wall JackCopper WireSingle-family Dwellings /Houses(Connect to wall jack for outdoor antenna)Multi-family Dwellings/Apartments(Connect to wall antenna socket)RF Coaxial Wire (75 Ω)RF Coaxial Wire (75 Ω)Be careful not to bend the copper wire when connecting the antenna.

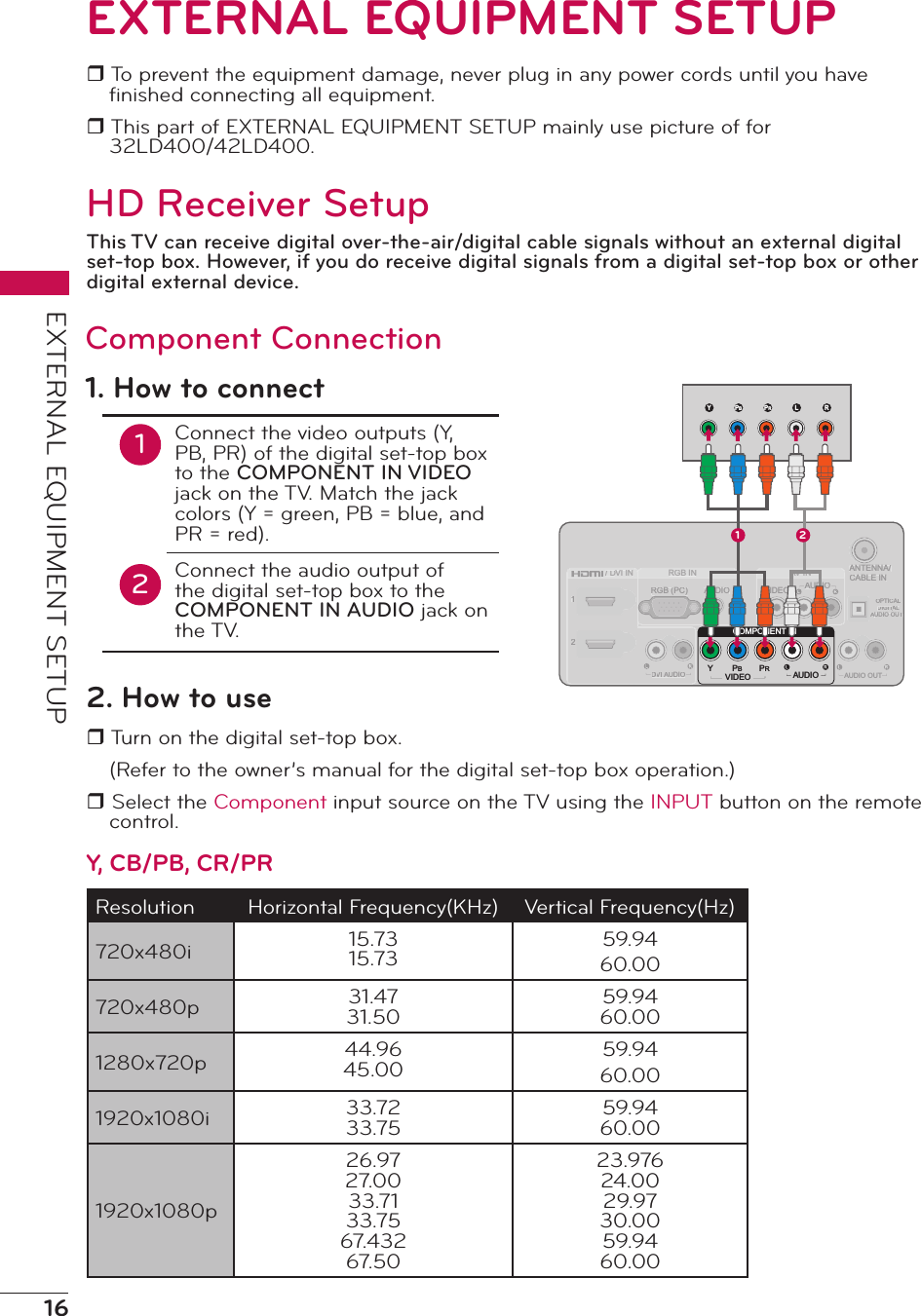

16EXTERNAL EQUIPMENT SETUPEXTERNAL EQUIPMENT SETUPHD Receiver SetupThis TV can receive digital over-the-air/digital cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device.r To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.r This part of EXTERNAL EQUIPMENT SETUP mainly use picture of for 32LD400/42LD400.ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOCOMPONENT INPRPBYAUDIOVIDEOY L RPBPR1 2Component Connection1. How to connect12Connect the video outputs (Y, PB, PR) of the digital set-top box to the COMPONENT IN VIDEO jack on the TV. Match the jack colors (Y = green, PB = blue, and PR = red).Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jack on the TV.2. How to user Turn on the digital set-top box.(Refer to the owner’s manual for the digital set-top box operation.)r Select the Component input source on the TV using the INPUT button on the remote control.Y, CB/PB, CR/PRResolution Horizontal Frequency(KHz) Vertical Frequency(Hz)720x480i 15.7315.7359.9460.00720x480p 31.4731.5059.9460.001280x720p 44.9645.0059.9460.001920x1080i 33.7233.7559.9460.001920x1080p26.9727.0033.7133.7567.4 3 267. 5 023.97624.0029.9730.0059.9460.00

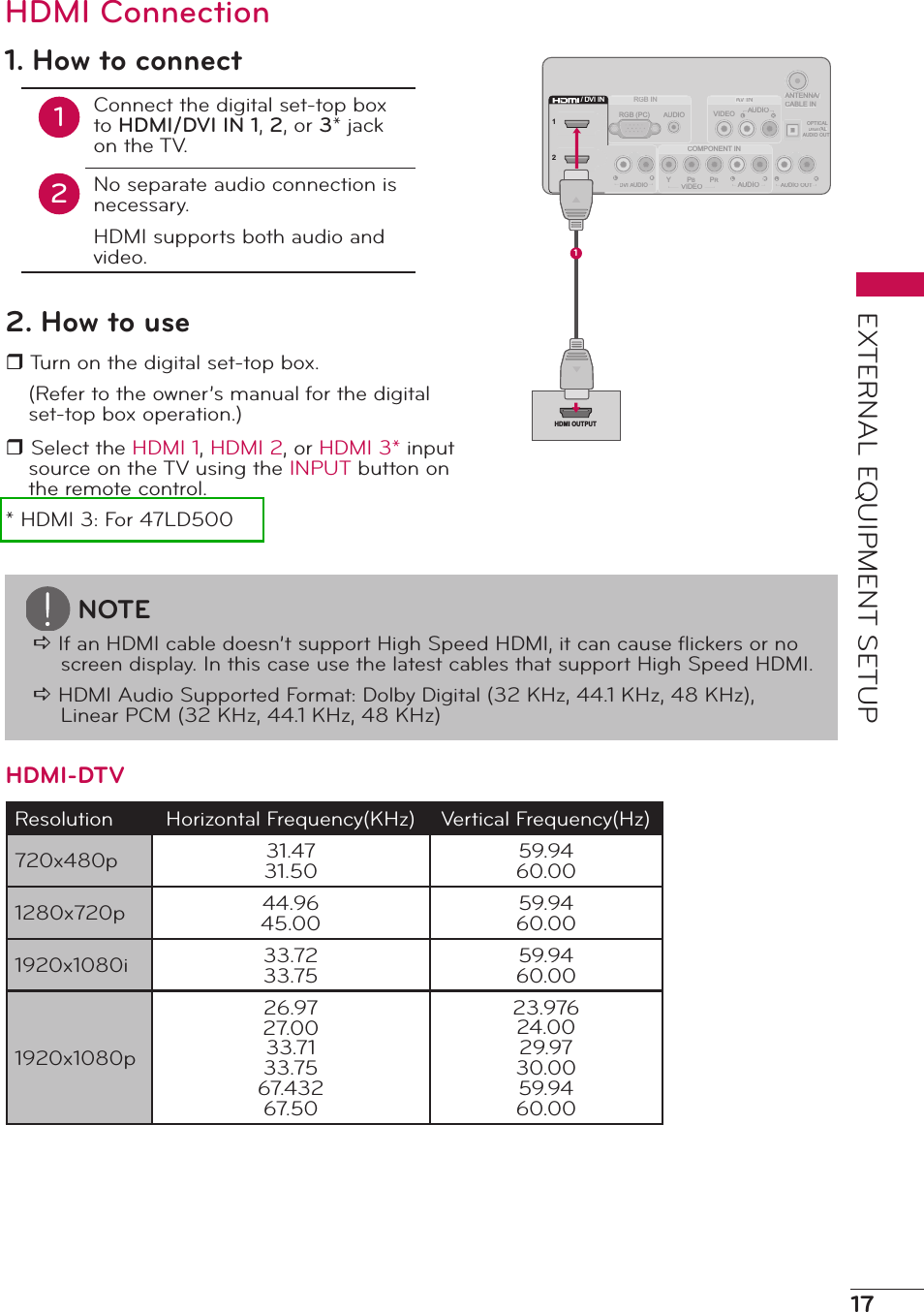

17EXTERNAL EQUIPMENT SETUPANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIO12/ DV I INHDMI OUTPUT1HDMI Connection1. How to connect12Connect the digital set-top box to HDMI/DVI IN 1, 2, or 3* jack on the TV.No separate audio connection is necessary.HDMI supports both audio and video.2. How to user Turn on the digital set-top box.(Refer to the owner’s manual for the digital set-top box operation.)r Select the HDMI 1, HDMI 2, or HDMI 3* input source on the TV using the INPUT button on the remote control.* HDMI 3: For 47LD500HDMI-DTV Resolution Horizontal Frequency(KHz) Vertical Frequency(Hz)720x480p 31.4731.5059.9460.001280x720p 44.9645.0059.9460.001920x1080i 33.7233.7559.9460.001920x1080p26.9727.0033.7133.7567.4 3 267. 5 023.97624.0029.9730.0059.9460.00NOTEa If an HDMI cable doesn’t support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.a HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1 KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)

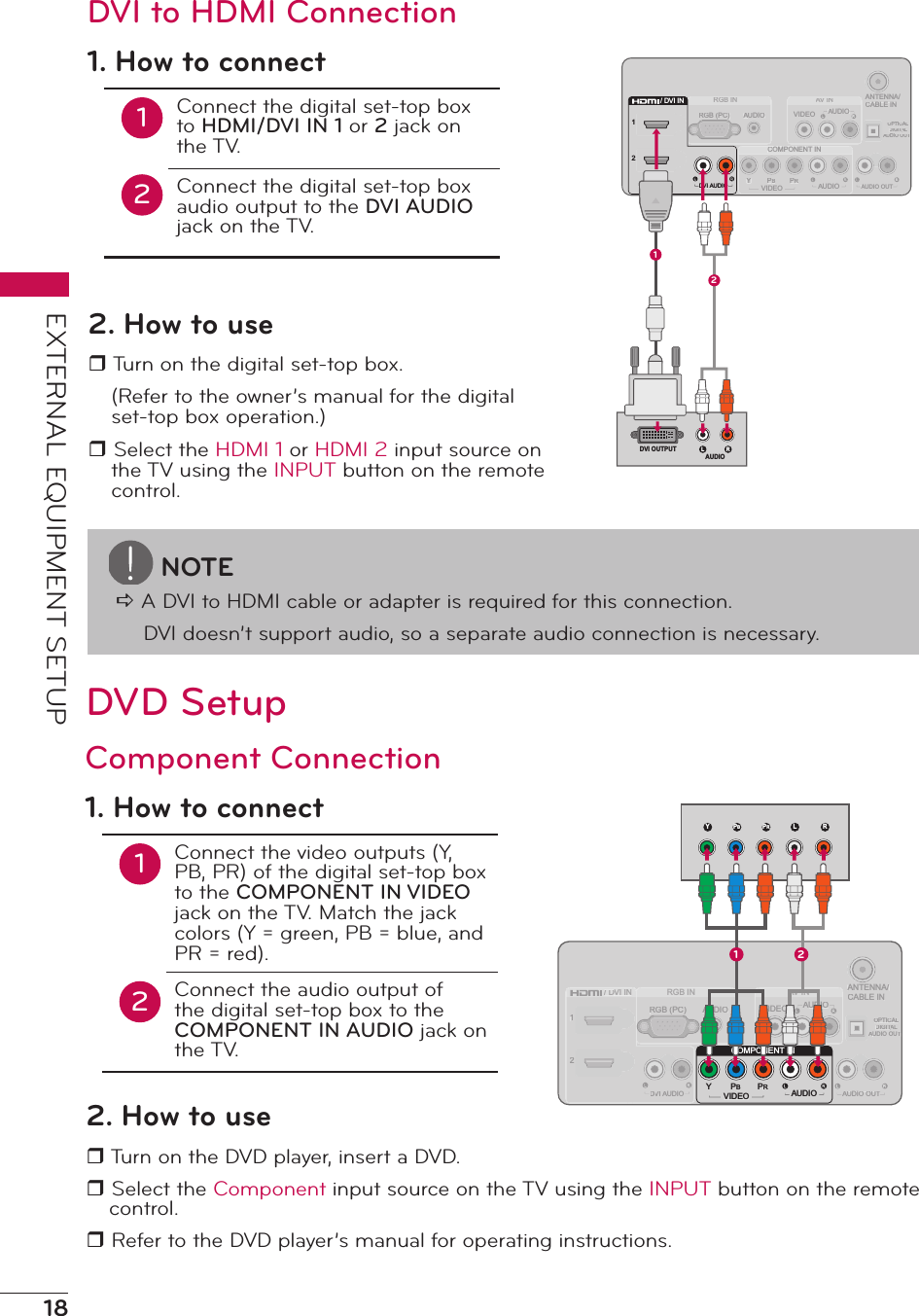

18EXTERNAL EQUIPMENT SETUPANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIO12/ DV I INDV I AUDIO1L RDVI OUTPUTAUDIO2DVI to HDMI Connection1. How to connect12Connect the digital set-top box to HDMI/DVI IN 1 or 2 jack on the TV.Connect the digital set-top box audio output to the DVI AUDIO jack on the TV.2. How to user Turn on the digital set-top box.(Refer to the owner’s manual for the digital set-top box operation.)r Select the HDMI 1 or HDMI 2 input source on the TV using the INPUT button on the remote control.NOTEa A DVI to HDMI cable or adapter is required for this connection.DVI doesn’t support audio, so a separate audio connection is necessary.DVD SetupANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOCOMPONENT INPRPBYAUDIOVIDEOY L RPBPR1 2Component Connection1. How to connect12Connect the video outputs (Y, PB, PR) of the digital set-top box to the COMPONENT IN VIDEO jack on the TV. Match the jack colors (Y = green, PB = blue, and PR = red).Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jack on the TV.2. How to user Turn on the DVD player, insert a DVD.r Select the Component input source on the TV using the INPUT button on the remote control.r Refer to the DVD player’s manual for operating instructions.
19EXTERNAL EQUIPMENT SETUPANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOVIDEOAV INAUDIOL RVIDEOAUDIO1Composite (RCA) Connection1. How to connect1Connect the AUDIO/VIDEO jacks between TV and DVD. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)2. How to user Turn on the DVD player, insert a DVD.r Select the AV input source on the TV using the INPUT button on the remote control.r Refer to the DVD player’s manual for operating instructions.HDMI ConnectionANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIO12/ DV I INHDMI OUTPUT11. How to connect12Connect the digital set-top box to HDMI/DVI IN 1, 2, or 3* jack on the TV.No separate audio connection is necessary.HDMI supports both audio and video.2. How to user Select the HDMI 1, HDMI 2, or HDMI 3* input source on the TV using the INPUT button on the remote control.r Refer to the DVD player’s manual for operating instructions.* HDMI 3: For 47LD500NOTEa If an HDMI cable doesn’t support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.a HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1 KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)

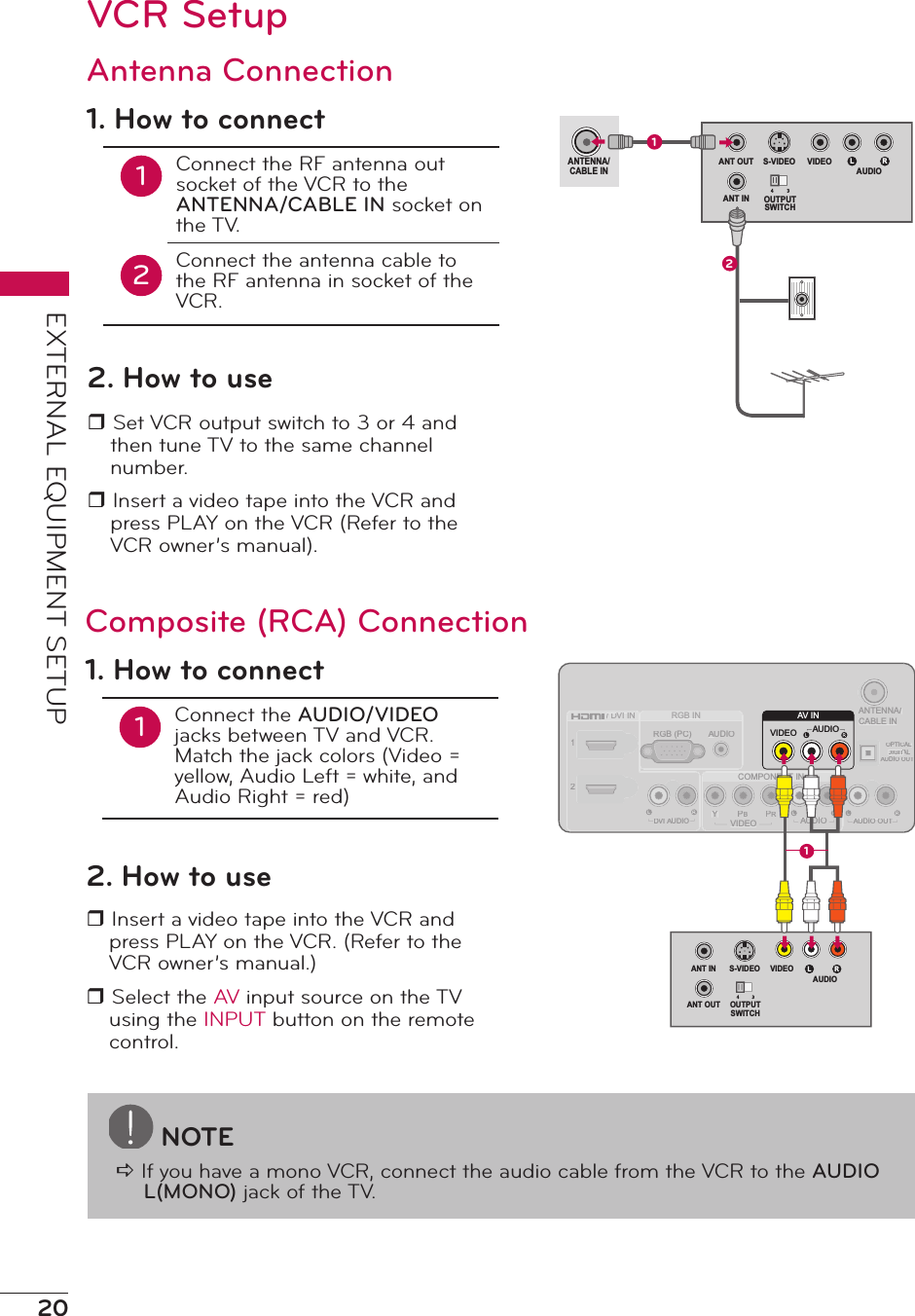

20EXTERNAL EQUIPMENT SETUPVCR SetupANTENNA/CABLE INL RS-VIDEOVIDEOAUDIOOUTPUTSWITCHANT INANT OUT12Antenna Connection1. How to connect12Connect the RF antenna out socket of the VCR to the ANTENNA/CABLE IN socket on the TV.Connect the antenna cable to the RF antenna in socket of the VCR.2. How to user Set VCR output switch to 3 or 4 and then tune TV to the same channel number.r Insert a video tape into the VCR and press PLAY on the VCR (Refer to the VCR owner’s manual).ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOVIDEOAV INAUDIOS-VIDEOOUTPUTSWITCHANT INANT OUTL RVIDEOAUDIO1Composite (RCA) Connection1. How to connect1Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)2. How to user Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)r Select the AV input source on the TV using the INPUT button on the remote control.NOTEa If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L(MONO) jack of the TV.

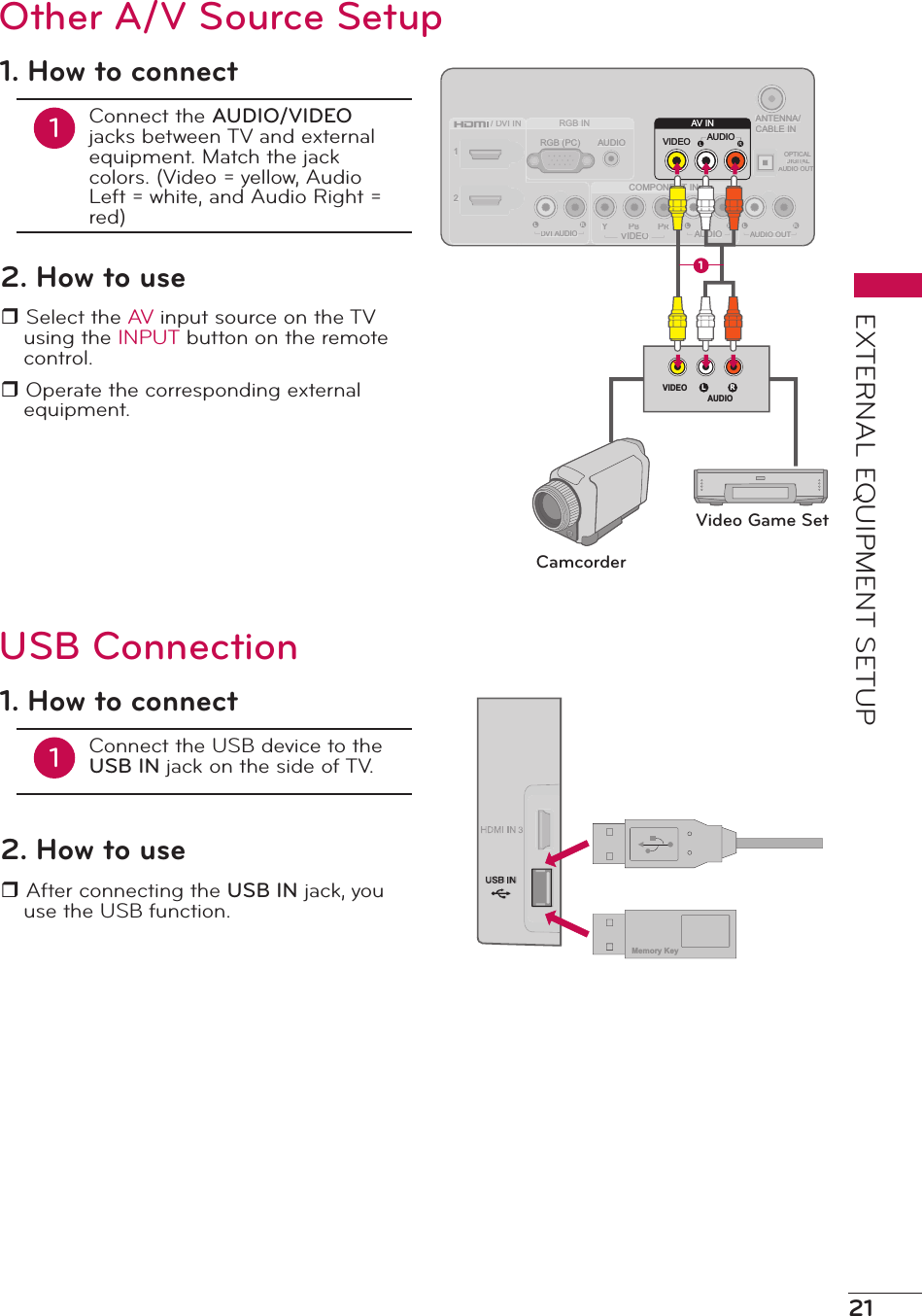

21EXTERNAL EQUIPMENT SETUPANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOVIDEOAV INAUDIOL RVIDEOAUDIO11. How to connect1Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors. (Video = yellow, Audio Left = white, and Audio Right = red)2. How to user Select the AV input source on the TV using the INPUT button on the remote control.r Operate the corresponding external equipment.Other A/V Source SetupCamcorderVideo Game SetMemory Key1. How to connect1Connect the USB device to the USB IN jack on the side of TV.2. How to user After connecting the USB IN jack, you use the USB function.USB Connection

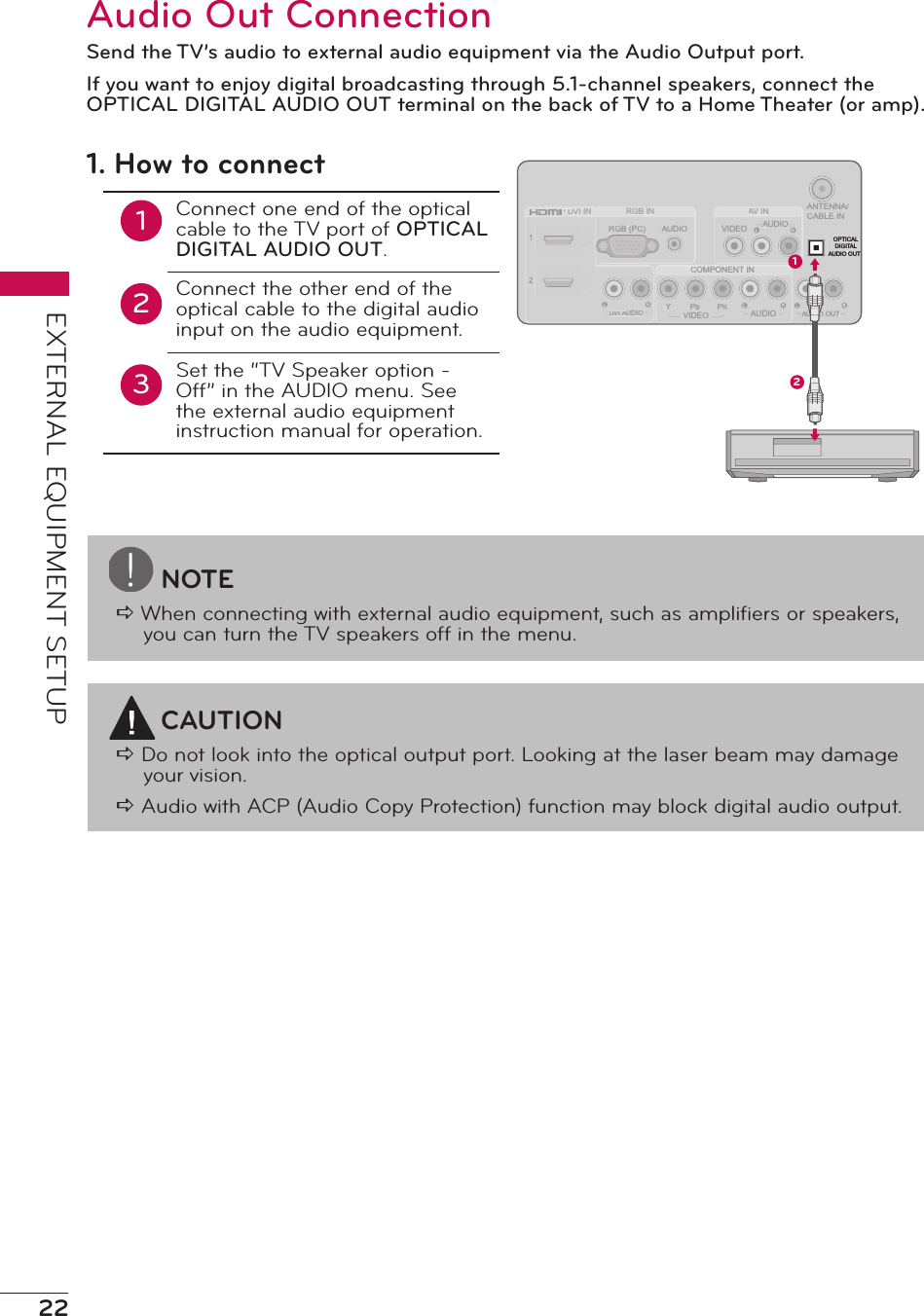

22EXTERNAL EQUIPMENT SETUPNOTEa When connecting with external audio equipment, such as amplifiers or speakers, you can turn the TV speakers off in the menu.Audio Out ConnectionSend the TV’s audio to external audio equipment via the Audio Output port.If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO OUT terminal on the back of TV to a Home Theater (or amp).ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOOPTICALDIGITA LAUDIO OUT121. How to connect12Connect one end of the optical cable to the TV port of OPTICAL DIGITAL AUDIO OUT.Connect the other end of the optical cable to the digital audio input on the audio equipment.Set the “TV Speaker option - Off” in the AUDIO menu. See the external audio equipment instruction manual for operation.3CAUTIONa Do not look into the optical output port. Looking at the laser beam may damage your vision.a Audio with ACP (Audio Copy Protection) function may block digital audio output.

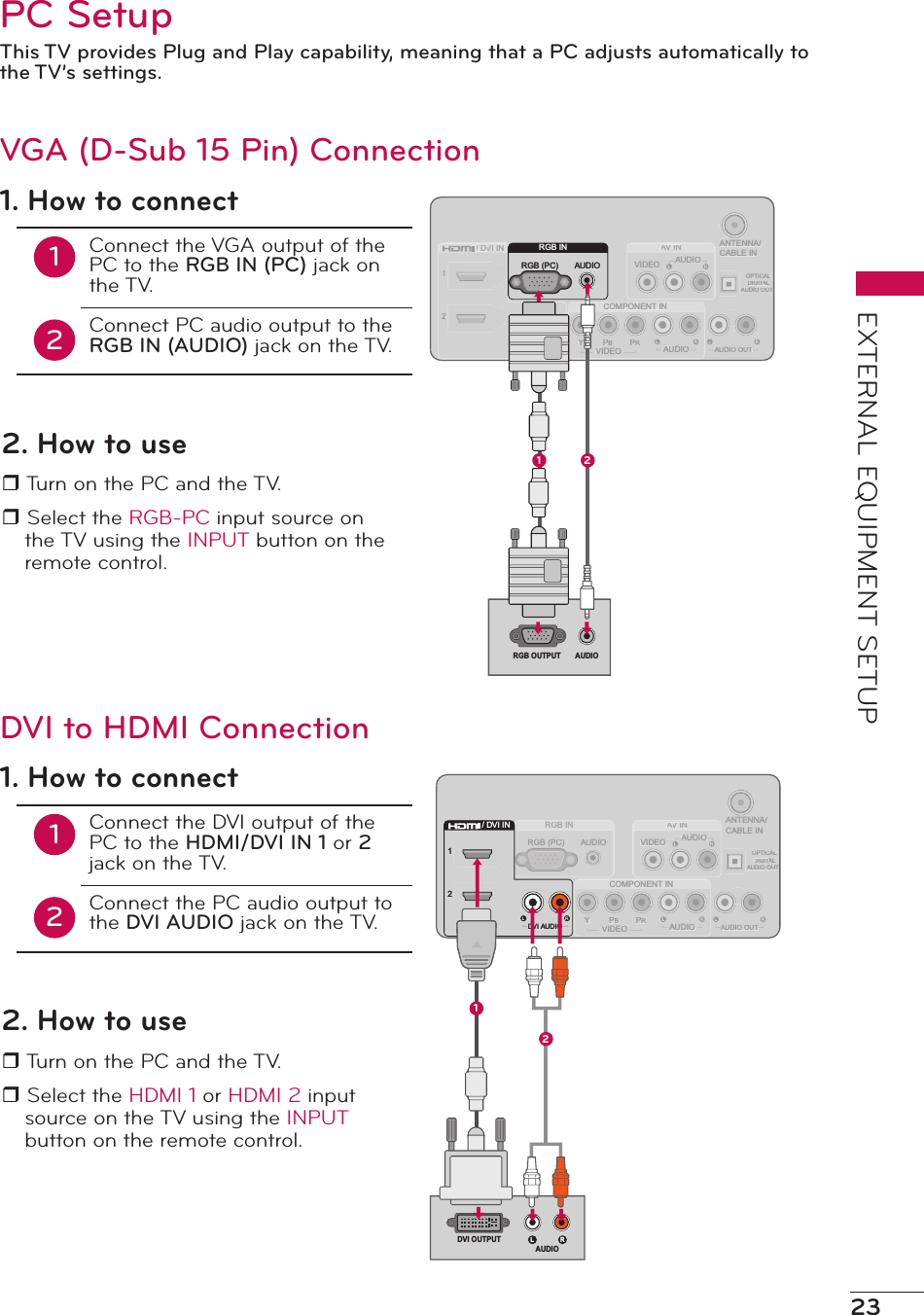

23EXTERNAL EQUIPMENT SETUPPC SetupThis TV provides Plug and Play capability, meaning that a PC adjusts automatically to the TV’s settings.ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIORGB INAUDIORGB (PC)RGB OUTPUT AUDIO1 21. How to connect12Connect the VGA output of the PC to the RGB IN (PC) jack on the TV.Connect PC audio output to the RGB IN (AUDIO) jack on the TV.2. How to user Turn on the PC and the TV.r Select the RGB-PC input source on the TV using the INPUT button on the remote control.VGA (D-Sub 15 Pin) ConnectionANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIO12/ DVI INDVI AUDIO1L RDVI OUTPUTAUDIO21. How to connect12Connect the DVI output of the PC to the HDMI/DVI IN 1 or 2 jack on the TV.Connect the PC audio output to the DVI AUDIO jack on the TV.2. How to user Turn on the PC and the TV.r Select the HDMI 1 or HDMI 2 input source on the TV using the INPUT button on the remote control.DVI to HDMI Connection

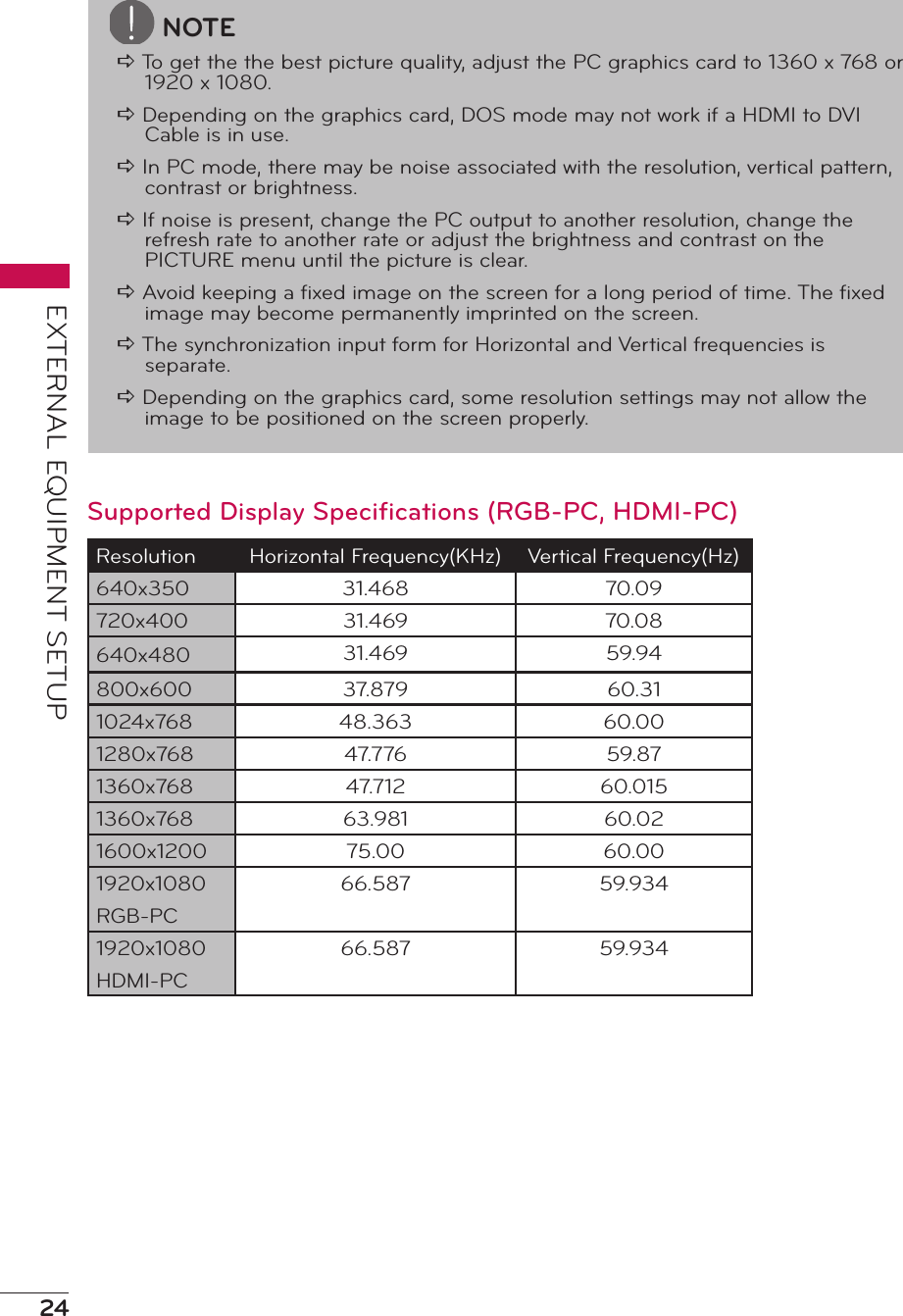

24EXTERNAL EQUIPMENT SETUPNOTEa To get the the best picture quality, adjust the PC graphics card to 1360 x 768 or 1920 x 1080.a Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.a In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness.a If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.a Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the screen.a The synchronization input form for Horizontal and Vertical frequencies is separate.a Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.Supported Display Specifications (RGB-PC, HDMI-PC)Resolution Horizontal Frequency(KHz) Vertical Frequency(Hz)640x350 31.468 70.09720x400 31.469 70.08640x480 31.469 59.94800x600 37.879 60.311024x768 48.363 60.001280x768 47.776 59.871360x768 47.71 2 60.0151360x768 63.981 60.021600x1200 75.00 60.001920x1080RGB-PC66.587 59.9341920x1080HDMI-PC66.587 59.934

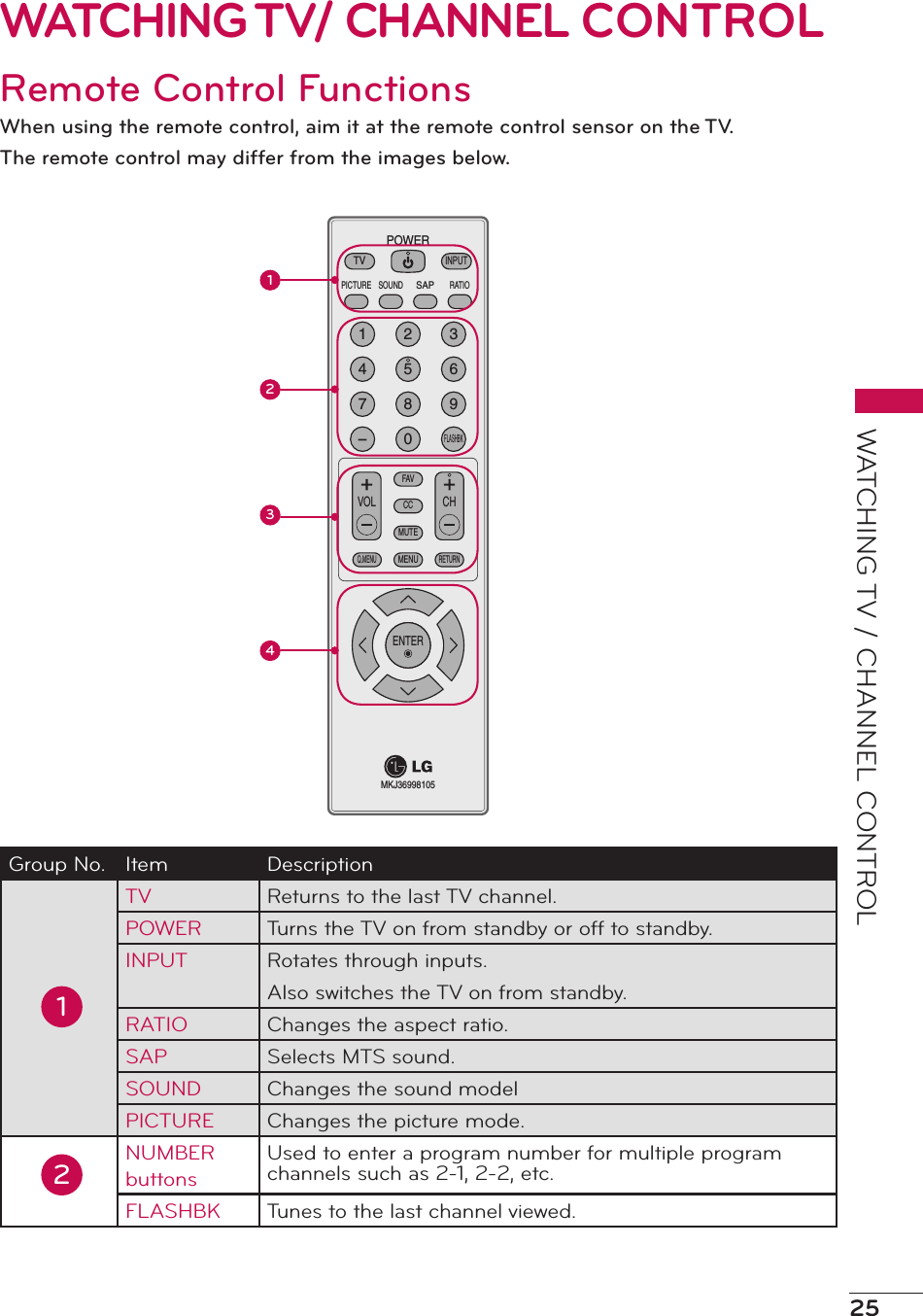

25WATCHING TV / CHANNEL CONTROLWATCHING TV/ CHANNEL CONTROLRemote Control FunctionsWhen using the remote control, aim it at the remote control sensor on the TV.The remote control may differ from the images below.PICTURE SOUNDSAPRATIOTVINPUTPOWERFAVCCMUTEMENURETURNQ.MENUVOL CH1 2 34 5 67 8 9-0FLASHBKENTERMKJ36998105Group No. Item DescriptionTV Returns to the last TV channel.POWER Turns the TV on from standby or off to standby.INPUT Rotates through inputs.Also switches the TV on from standby.RATIO Changes the aspect ratio.SAP Selects MTS sound.SOUND Changes the sound modelPICTURE Changes the picture mode.NUMBER buttons Used to enter a program number for multiple program channels such as 2-1, 2-2, etc.FLASHBK Tunes to the last channel viewed.112234

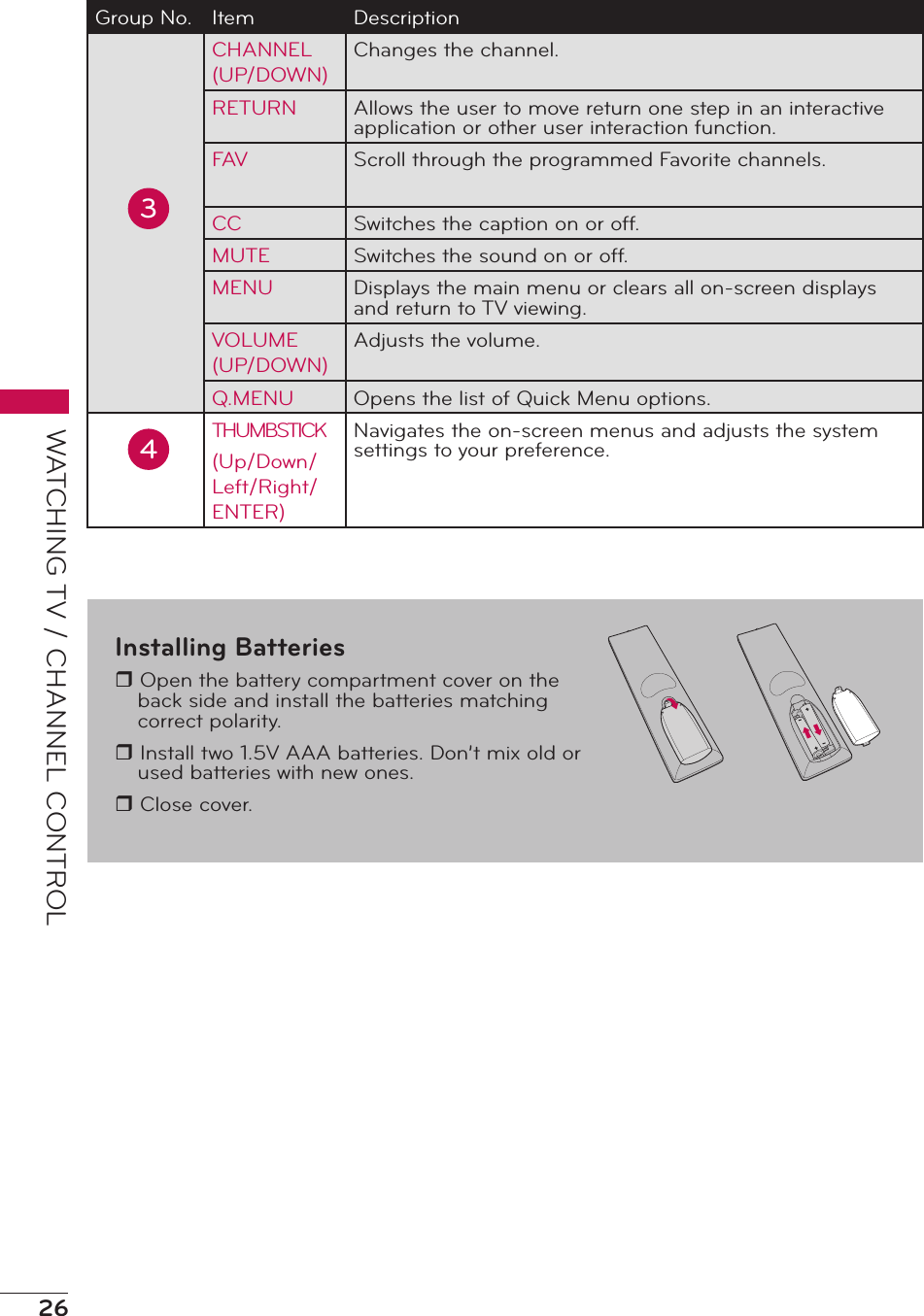

26WATCHING TV / CHANNEL CONTROLInstalling Batteriesr Open the battery compartment cover on the back side and install the batteries matching correct polarity.r Install two 1.5V AAA batteries. Don’t mix old or used batteries with new ones.r Close cover.Group No. Item DescriptionCHANNEL (UP/DOWN)Changes the channel.RETURN Allows the user to move return one step in an interactive application or other user interaction function.FAV Scroll through the programmed Favorite channels.CC Switches the caption on or off.MUTE Switches the sound on or off.MENU Displays the main menu or clears all on-screen displays and return to TV viewing.VOLUME (UP/DOWN)Adjusts the volume.Q.MENU Opens the list of Quick Menu options.THUMBSTICK(Up/Down/Left/Right/ENTER)Navigates the on-screen menus and adjusts the system settings to your preference.34

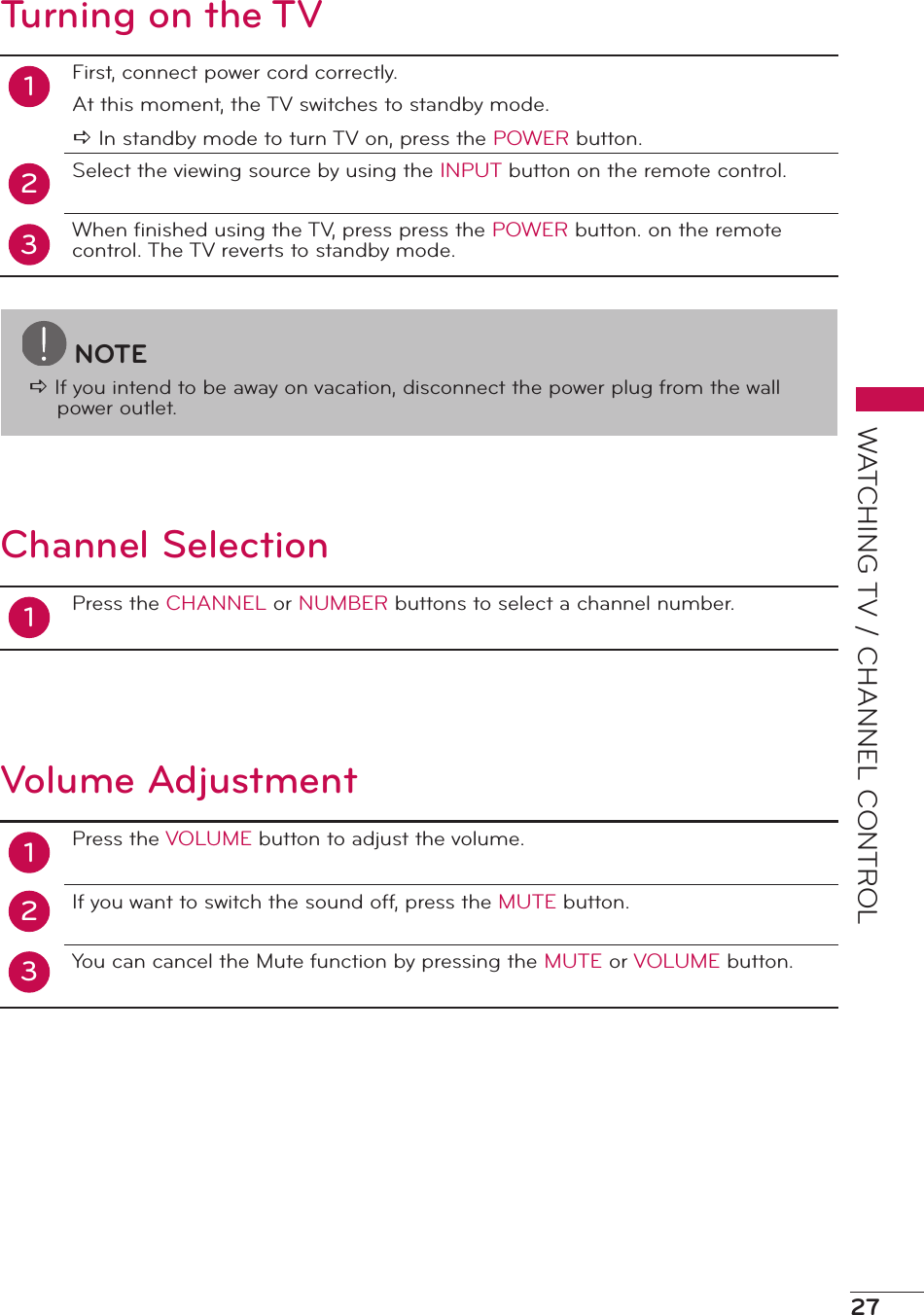

27WATCHING TV / CHANNEL CONTROLTurning on the TV12First, connect power cord correctly.At this moment, the TV switches to standby mode.a In standby mode to turn TV on, press the POWER button.Select the viewing source by using the INPUT button on the remote control.When finished using the TV, press press the POWER button. on the remote control. The TV reverts to standby mode.3Channel Selection1Press the CHANNEL or NUMBER buttons to select a channel number.Volume Adjustment12Press the VOLUME button to adjust the volume.If you want to switch the sound off, press the MUTE button.You can cancel the Mute function by pressing the MUTE or VOLUME button.3NOTEa If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

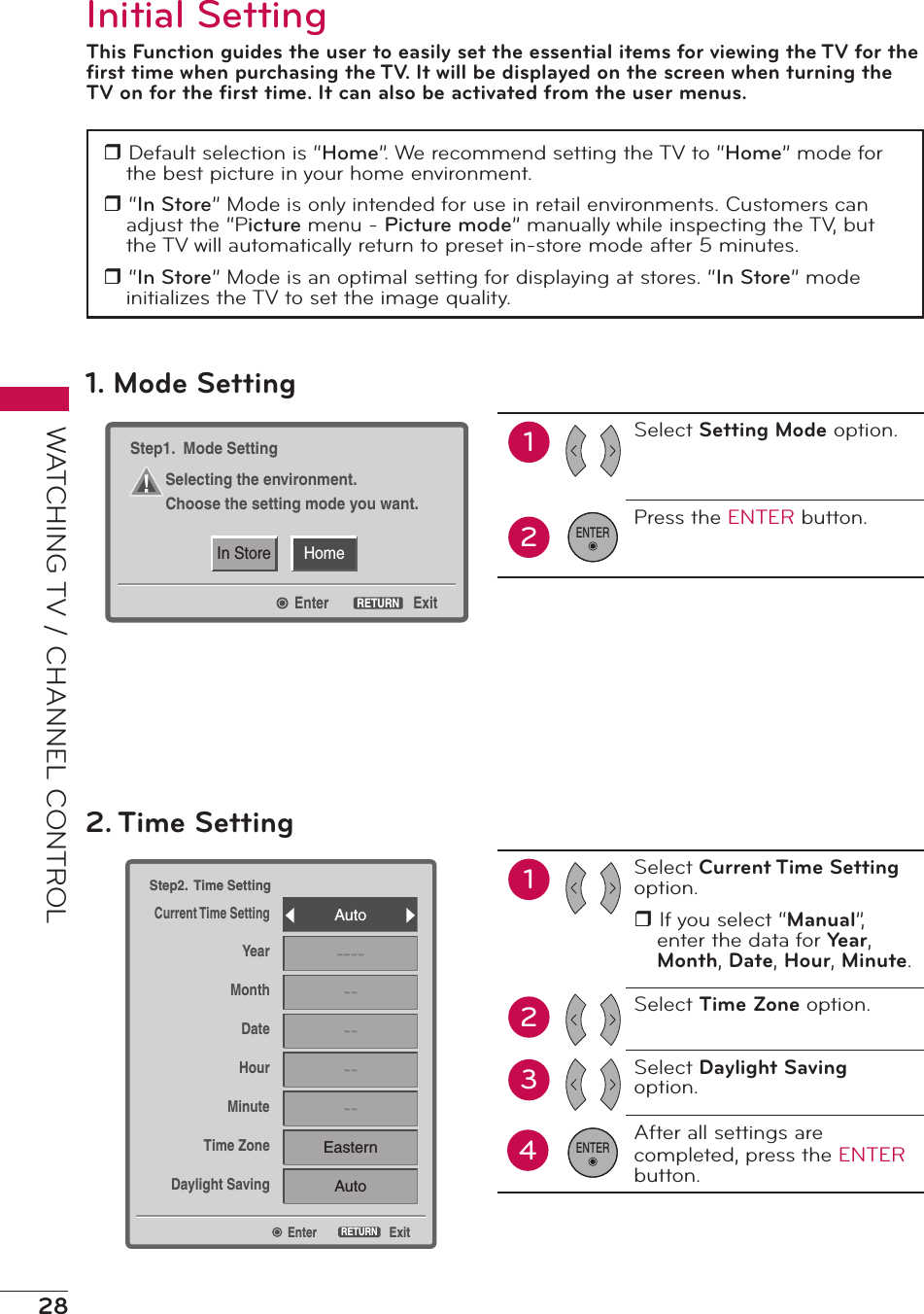

28WATCHING TV / CHANNEL CONTROLInitial SettingThis Function guides the user to easily set the essential items for viewing the TV for the first time when purchasing the TV. It will be displayed on the screen when turning the TV on for the first time. It can also be activated from the user menus.r Default selection is “Home”. We recommend setting the TV to “Home” mode for the best picture in your home environment.r “In Store” Mode is only intended for use in retail environments. Customers can adjust the “Picture menu - Picture mode” manually while inspecting the TV, but the TV will automatically return to preset in-store mode after 5 minutes.r “In Store” Mode is an optimal setting for displaying at stores. “In Store” mode initializes the TV to set the image quality.EnterStep2. Time SettingCurrent Time SettingYearMonthDateHourMinuteTime ZoneDaylight SavingExitRETURNAuto------------EasternAuto2. Time Setting12Select Current Time Setting option.r If you select “Manual”, enter the data for Year, Month, Date, Hour, Minute.Select Time Zone option.Select Daylight Saving option.After all settings are completed, press the ENTER button.34ENTERHomeIn StoreEnterStep1. Mode SettingSelecting the environment.Choose the setting mode you want.ExitRETURN1. Mode Setting12Select Setting Mode option.Press the ENTER button.ENTER

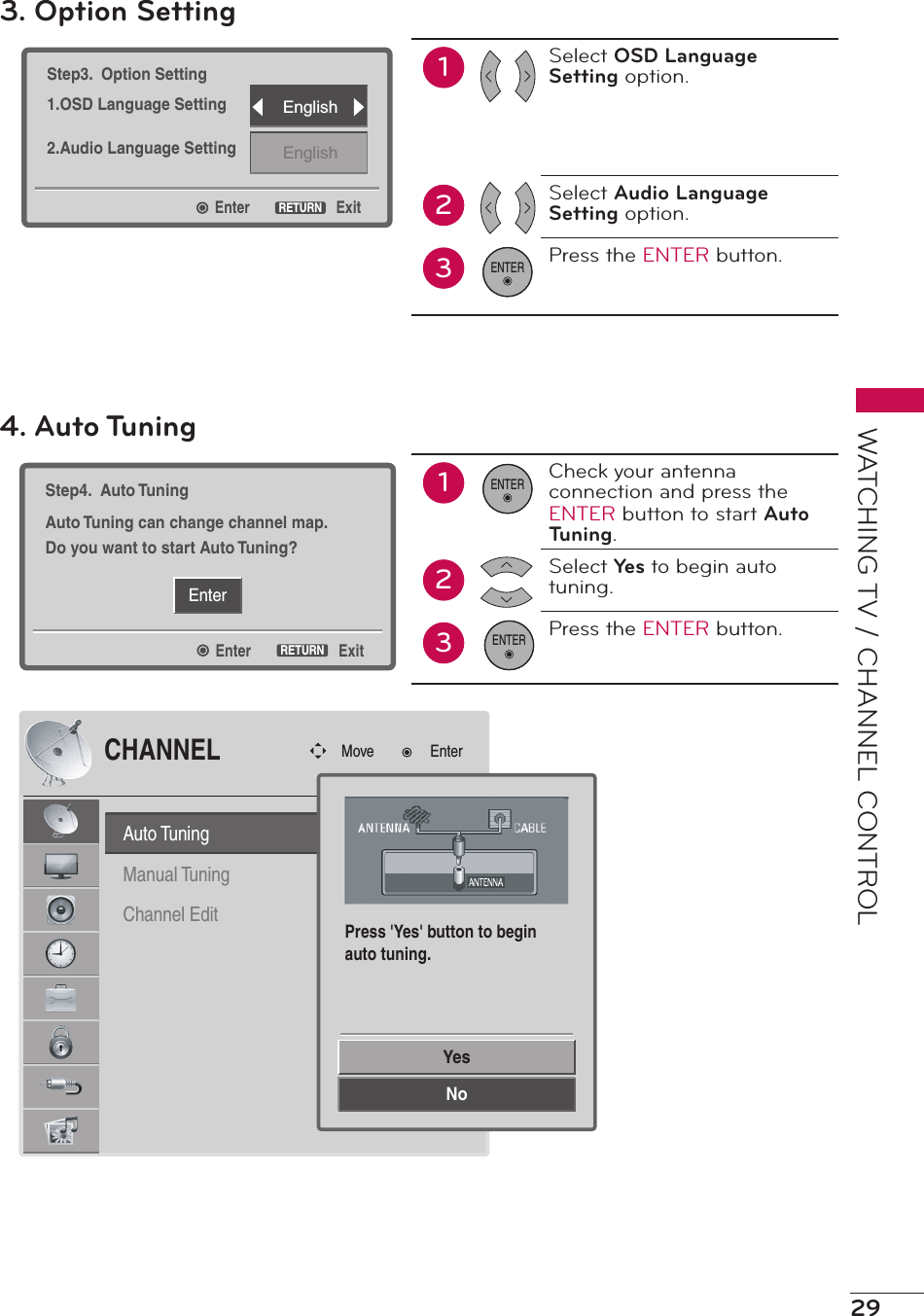

29WATCHING TV / CHANNEL CONTROLEnterStep3. Option Setting1.OSD Language Setting2.Audio Language SettingExitRETURNEnglishEnglish3. Option Setting12Select OSD Language Setting option.Select Audio Language Setting option.Press the ENTER button.3ENTEREnterEnterStep4. Auto TuningAuto Tuning can change channel map.Do you want to start Auto Tuning?ExitRETURN4. Auto Tuning12Check your antenna connection and press the ENTER button to start Auto Tuning.Select Yes to begin auto tuning.Press the ENTER button.3ENTERENTERAuto TuningManual TuningChannel EditCHANNELMove EnterYesNoPress 'Yes' button to beginauto tuning.

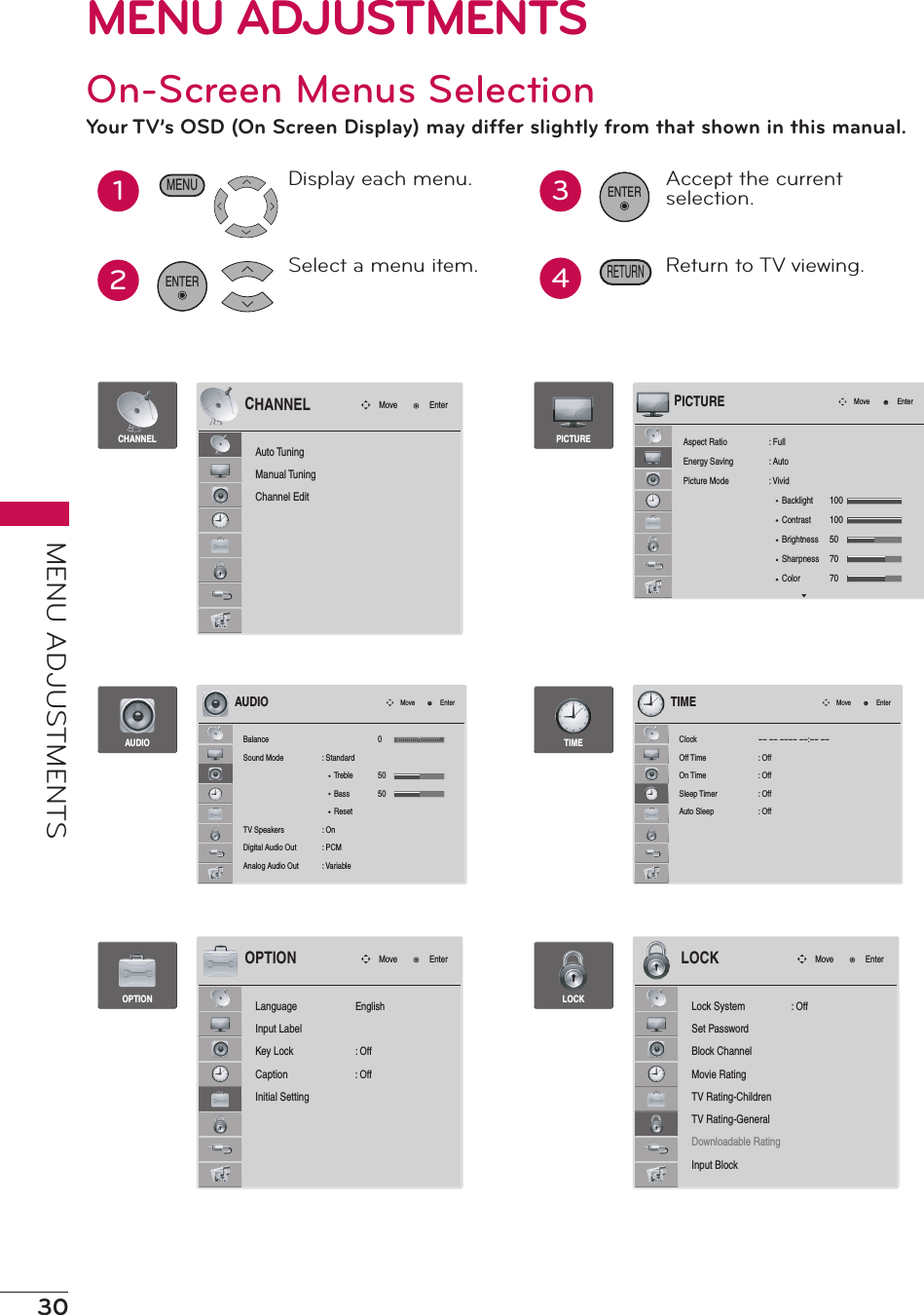

30MENU ADJUSTMENTSOn-Screen Menus SelectionYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.12Display each menu.Select a menu item.ENTER34Accept the current selection.Return to TV viewing.ENTERRETURNMENUAuto TuningManual TuningChannel EditMove EnterCHANNELCHANNELBalanceSound ModeTV SpeakersDigital Audio OutAnalog Audio Out: StandardT r ebleBassReset: On: PCM: V a riable05050AUDIOMove EnterLRAUDIOOPTIONLanguageInput LabelKey LockCaptionInitial SettingMove EnterOPTIONEnglish: Off: OffAspect RatioEnergy SavingPicture Mode: Full: Auto: VividBacklightContrastBrightnessSharpnessColor100100507070PICTUREMove EnterPICTUREClockOff TimeOn TimeSleep TimerAuto Sleep-- -- ---- --:-- --: Off: Off: Off: OffTIMEMove EnterTIMELOCKLock SystemSet PasswordBlock ChannelMovie RatingTV Rating-ChildrenTV Rating-GeneralDownloadable RatingInput BlockMove EnterLOCK: OffMENU ADJUSTMENTS

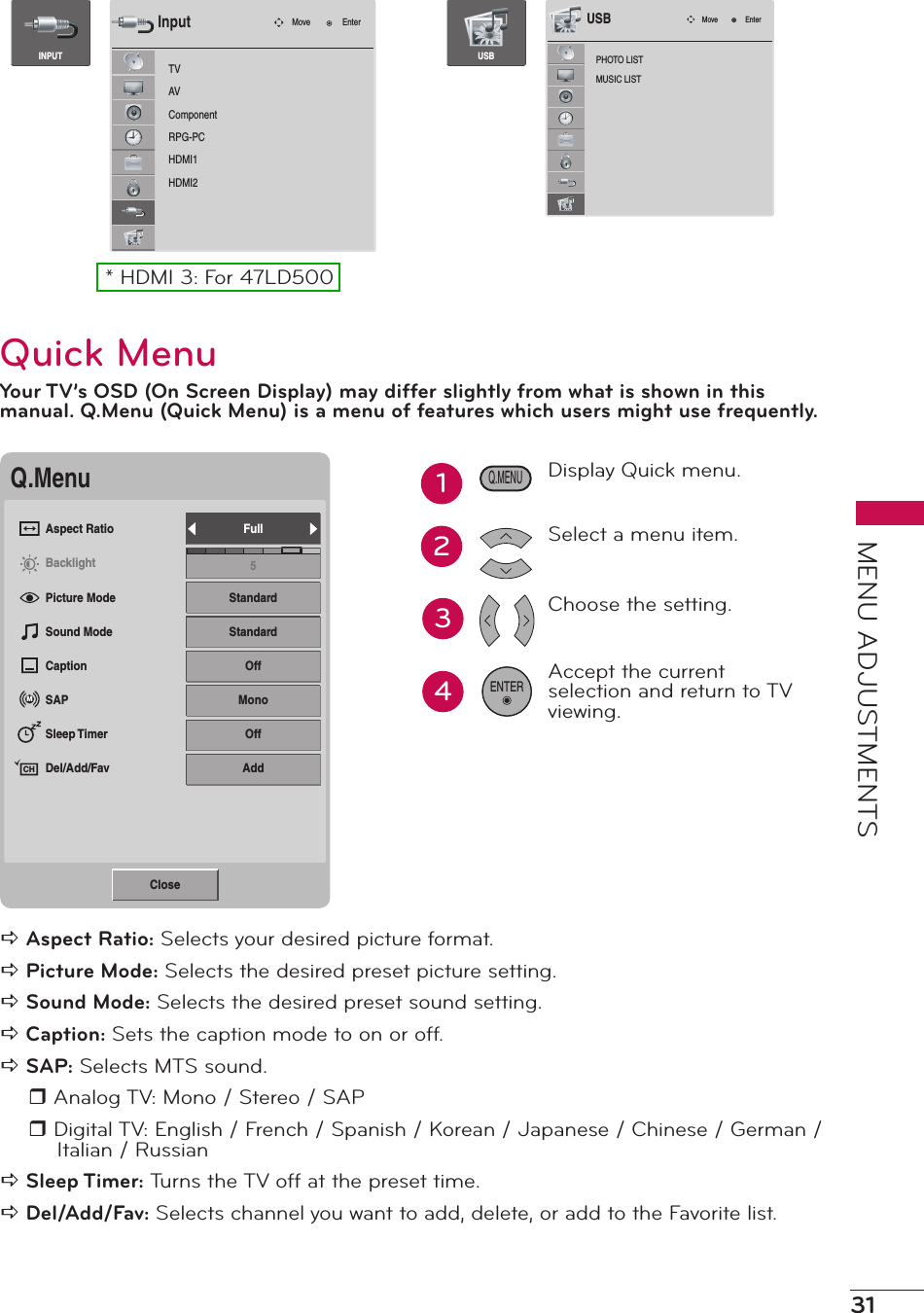

31MENU ADJUSTMENTSTVAVComponentRPG-PCHDMI1HDMI2Move EnterInputINPUTPHOTO LISTMUSIC LISTMove EnterUSBUSB* HDMI 3: For 47LD500Quick MenuYour TV’s OSD (On Screen Display) may differ slightly from what is shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently.Q.MenuAspect RatioBacklightPicture ModeSound ModeCaptionSAPSleep TimerDel/Add/FavFull5StandardStandardOffMonoOffAddMCHClosea Aspect Ratio: Selects your desired picture format.a Picture Mode: Selects the desired preset picture setting.a Sound Mode: Selects the desired preset sound setting.a Caption: Sets the caption mode to on or off.a SAP: Selects MTS sound.r Analog TV: Mono / Stereo / SAPr Digital TV: English / French / Spanish / Korean / Japanese / Chinese / German / Italian / Russiana Sleep Timer: Turns the TV off at the preset time.a Del/Add/Fav: Selects channel you want to add, delete, or add to the Favorite list.34Display Quick menu.Select a menu item.Choose the setting.Accept the current selection and return to TV viewing.ENTERQ.MENU12

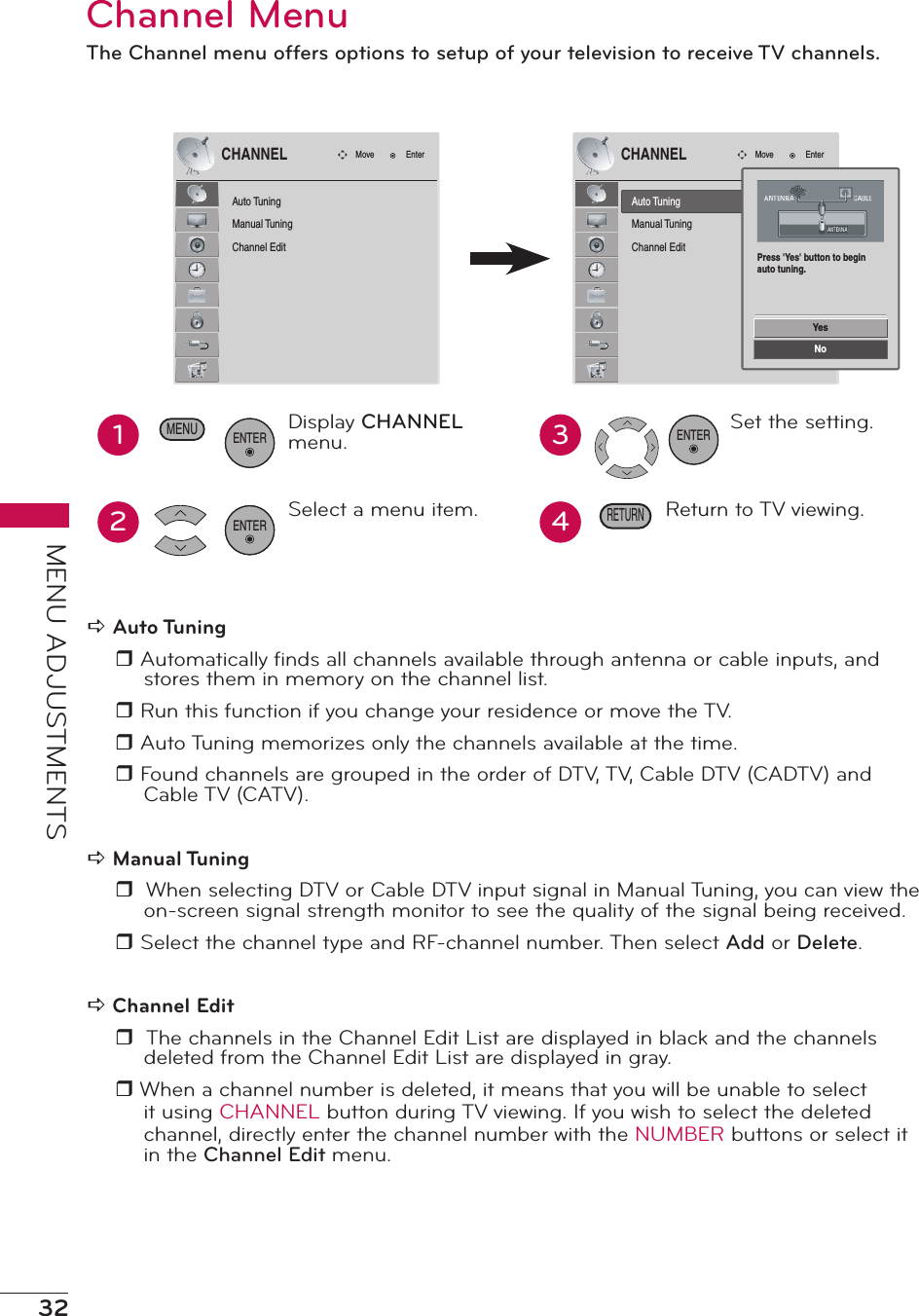

32MENU ADJUSTMENTSChannel MenuThe Channel menu offers options to setup of your television to receive TV channels.Auto TuningManual TuningChannel EditMove EnterCHANNELAuto TuningManual TuningChannel EditCHANNELMove EnterYe sNoPress 'Yes' button to beginauto tuning.12Display CHANNEL menu.Select a menu item.ENTER34Set the setting.Return to TV viewing.ENTERRETURNMENUENTERa Auto Tuning r Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list. r Run this function if you change your residence or move the TV. r Auto Tuning memorizes only the channels available at the time.r Found channels are grouped in the order of DTV, TV, Cable DTV (CADTV) and Cable TV (CATV).a Manual Tuningr When selecting DTV or Cable DTV input signal in Manual Tuning, you can view the on-screen signal strength monitor to see the quality of the signal being received. r Select the channel type and RF-channel number. Then select Add or Delete. a Channel Editr The channels in the Channel Edit List are displayed in black and the channels deleted from the Channel Edit List are displayed in gray.r When a channel number is deleted, it means that you will be unable to select it using CHANNEL button during TV viewing. If you wish to select the deleted channel, directly enter the channel number with the NUMBER buttons or select it in the Channel Edit menu.

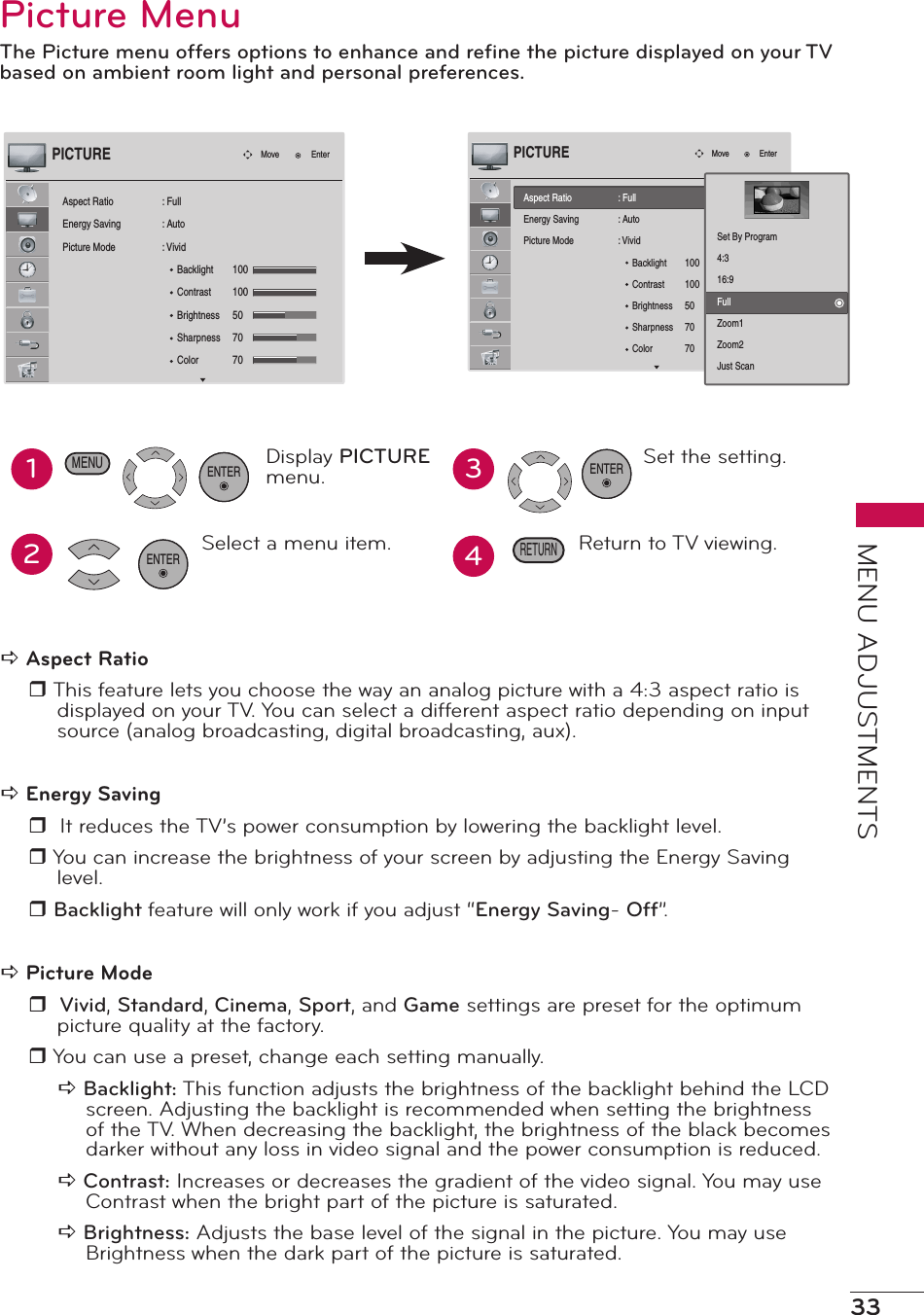

33MENU ADJUSTMENTSPicture MenuThe Picture menu offers options to enhance and refine the picture displayed on your TV based on ambient room light and personal preferences.Aspect RatioEnergy SavingPicture Mode: Full: Auto: VividBacklightContrastBrightnessSharpnessColor100100507070PICTUREMove EnterAspect RatioEnergy SavingPicture Mode: Full: Auto: VividBacklightContrastBrightnessSharpnessColor100100507070PICTUREMove EnterSet By Program4:316:9FullZoom1Zoom2Just Scan12Display PICTURE menu.Select a menu item.ENTER34Set the setting.Return to TV viewing.ENTERRETURNMENUENTERa Aspect Ratio r This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. You can select a different aspect ratio depending on input source (analog broadcasting, digital broadcasting, aux).a Energy Savingr It reduces the TV’s power consumption by lowering the backlight level.r You can increase the brightness of your screen by adjusting the Energy Saving level.r Backlight feature will only work if you adjust “Energy Saving- Off”.a Picture Moder Vivid, Standard, Cinema, Sport, and Game settings are preset for the optimum picture quality at the factory. r You can use a preset, change each setting manually.a Backlight: This function adjusts the brightness of the backlight behind the LCD screen. Adjusting the backlight is recommended when setting the brightness of the TV. When decreasing the backlight, the brightness of the black becomes darker without any loss in video signal and the power consumption is reduced.a Contrast: Increases or decreases the gradient of the video signal. You may use Contrast when the bright part of the picture is saturated.a Brightness: Adjusts the base level of the signal in the picture. You may use Brightness when the dark part of the picture is saturated.
34MENU ADJUSTMENTSa Sharpness: Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.a Color: Adjusts intensity of all colors.a Tint: Adjusts the balance between red and green levels.a Advanced Control: Allows you to adjust some of the advanced features of your LG display such as Color Temperature, Fresh Contrast, Fresh Color, Noise Reduction, Gamma, Black Level, and Real Cinema settings.a Reset: Returns to factory default settings.Audio MenuThe Audio menu offers options to enhance and refine the sound setting on your TV based on personal preferences.BalanceSound ModeTV SpeakersDigital Audio OutAnalog Audio Out: StandardTr ebleBassReset: On: PCM: Va riable05050AUDIOMove EnterLRBalanceSound ModeTV SpeakersDigital Audio OutAnalog Audio Out: StandardTr ebleBassReset: On: PCM: Va riable05050AUDIOMove EnterLRBalance :0CloseLR12Display AUDIO menu.Select a menu item.ENTER34Set the setting.Return to TV viewing.RETURNMENUENTERa Balance r Adjusts the left/right sound of speaker to suit your taste and room situations.a Sound Moder Standard, Music, Cinema, Sport, and Game are preset for optimum sound quality at the factory.a Treble: Adjusts the high frequency intensity setting.a Bass: Adjusts the low frequency intensity setting.a Reset: Returns to factory default settings.a TV Speakersr If you wish to use an external Hi-Fi system, turn off the TV’s internal speakers.ENTER

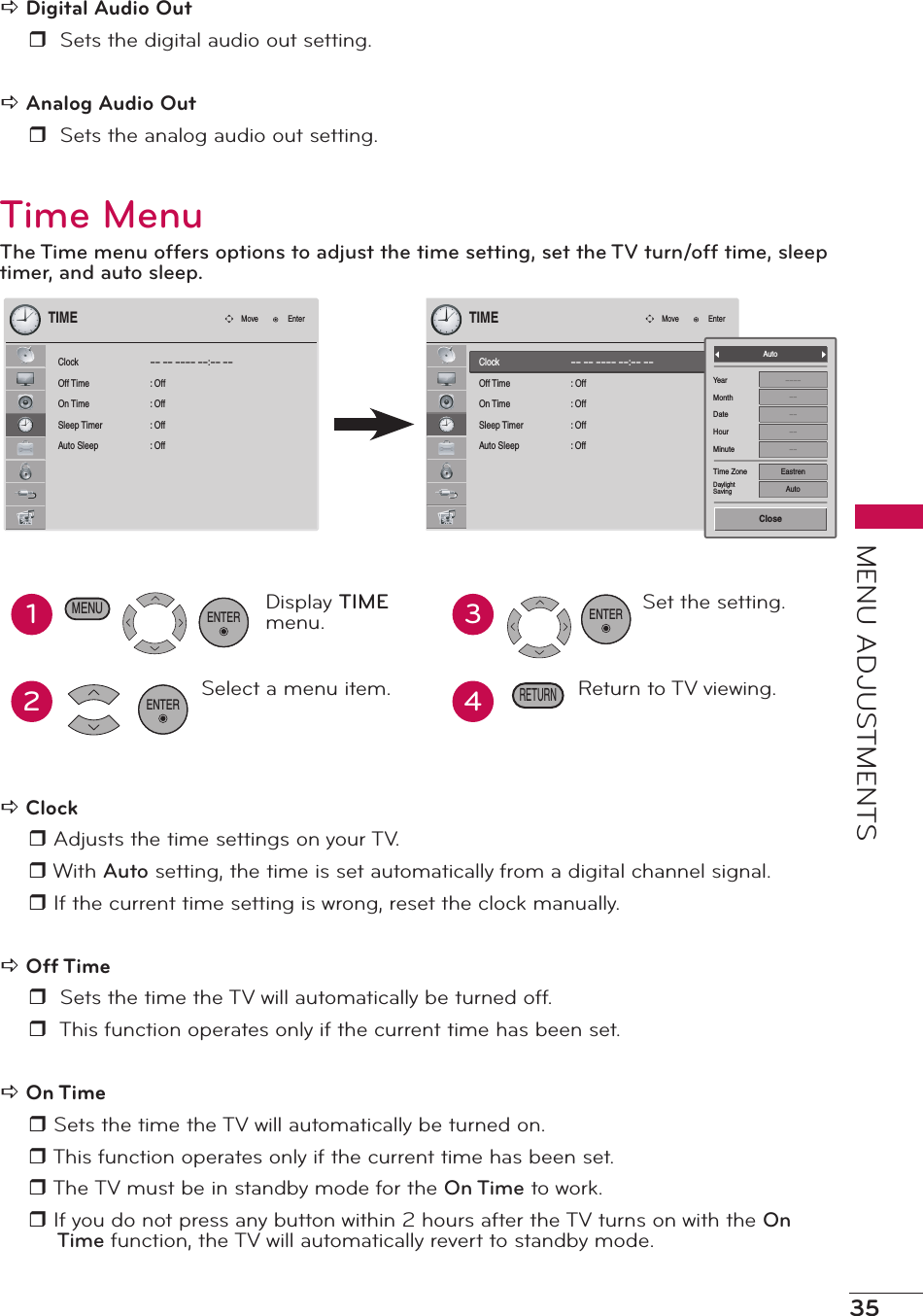

35MENU ADJUSTMENTSa Digital Audio Outr Sets the digital audio out setting.a Analog Audio Outr Sets the analog audio out setting.Time MenuThe Time menu offers options to adjust the time setting, set the TV turn/off time, sleep timer, and auto sleep.ClockOff TimeOn TimeSleep TimerAuto Sleep-- -- ---- --:-- --: Off: Off: Off: OffTIMEMove EnterClockOff TimeOn TimeSleep TimerAuto Sleep-- -- ---- --:-- --: Off: Off: Off: OffTIMEMove EnterYearMonthDateHourMinuteTime ZoneDaylightSaving------------EastrenAutoAutoClose12Display TIME menu.Select a menu item.ENTER34Set the setting.Return to TV viewing.ENTERRETURNMENUENTERa Clock r Adjusts the time settings on your TV.r With Auto setting, the time is set automatically from a digital channel signal. r If the current time setting is wrong, reset the clock manually.a Off Timer Sets the time the TV will automatically be turned off.r This function operates only if the current time has been set.a On Timer Sets the time the TV will automatically be turned on.r This function operates only if the current time has been set. r The TV must be in standby mode for the On Time to work.r If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV will automatically revert to standby mode.

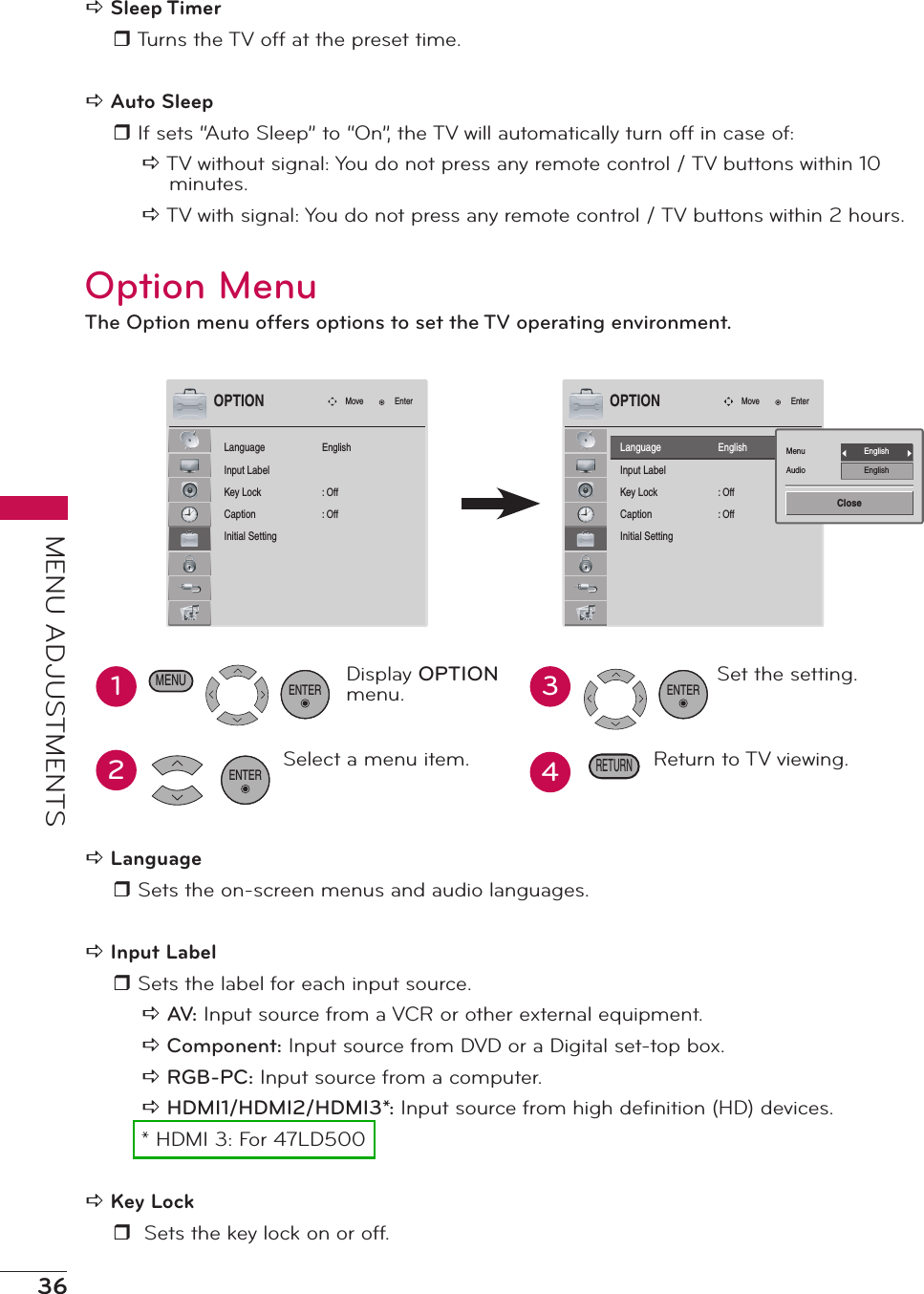

36MENU ADJUSTMENTSa Sleep Timerr Turns the TV off at the preset time.a Auto Sleepr If sets “Auto Sleep” to “On”, the TV will automatically turn off in case of:a TV without signal: You do not press any remote control / TV buttons within 10 minutes.a TV with signal: You do not press any remote control / TV buttons within 2 hours.Option MenuThe Option menu offers options to set the TV operating environment.LanguageInput LabelKey LockCaptionInitial SettingMove EnterOPTIONEnglish: Off: OffLanguageInput LabelKey LockCaptionInitial SettingMove EnterOPTIONEnglish: Off: OffMenuAudioEnglishEnglishClose12Display OPTION menu.Select a menu item.ENTER34Set the setting.Return to TV viewing.RETURNMENUENTERa Language r Sets the on-screen menus and audio languages.a Input Labelr Sets the label for each input source.a AV: Input source from a VCR or other external equipment. a Component: Input source from DVD or a Digital set-top box. a RGB-PC: Input source from a computer. a HDMI1/HDMI2/HDMI3*: Input source from high definition (HD) devices.* HDMI 3: For 47LD500a Key Lockr Sets the key lock on or off.ENTER

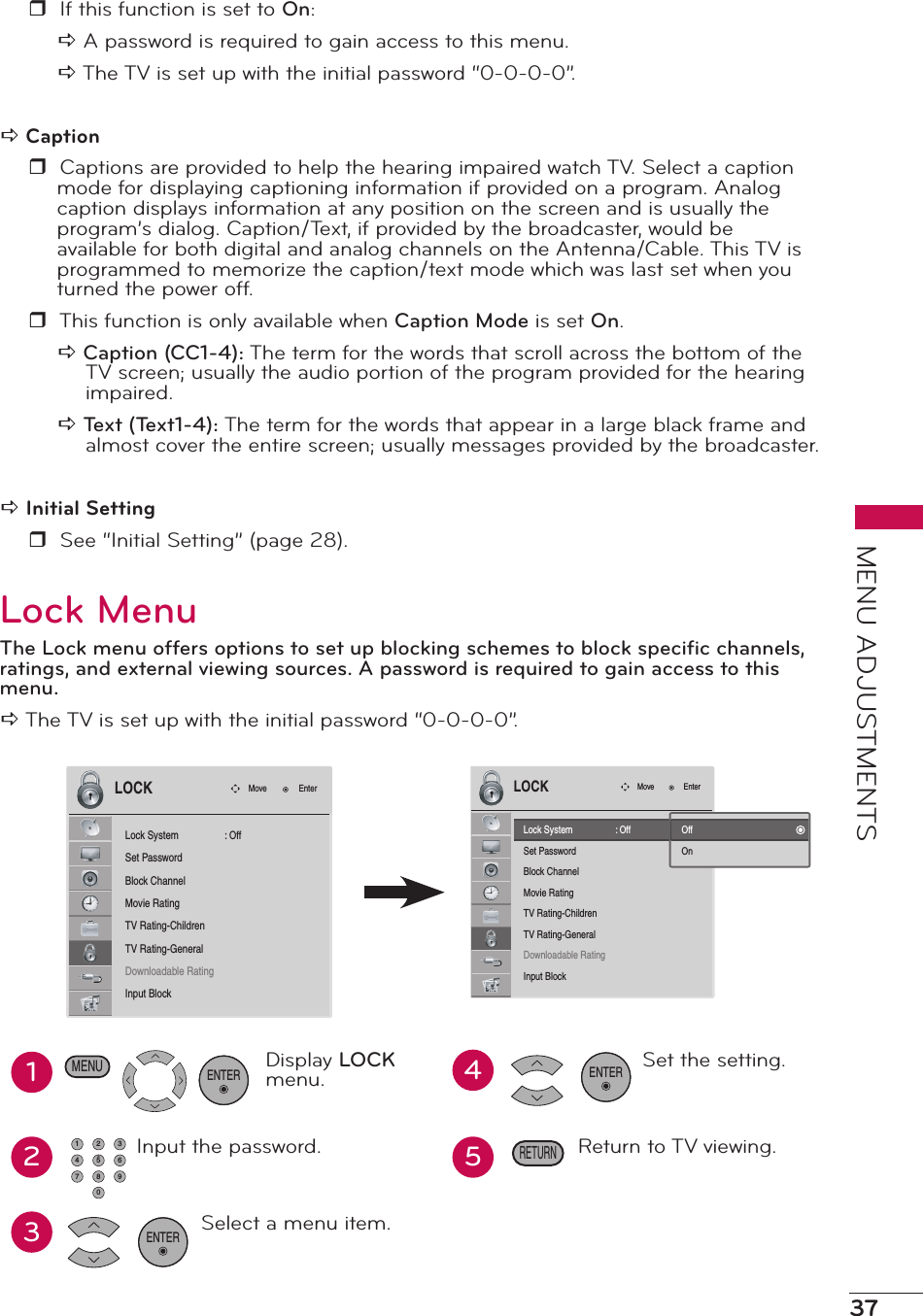

37MENU ADJUSTMENTSr If this function is set to On:a A password is required to gain access to this menu.a The TV is set up with the initial password “0-0-0-0”.a Captionr Captions are provided to help the hearing impaired watch TV. Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program’s dialog. Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode which was last set when you turned the power off. r This function is only available when Caption Mode is set On.a Caption (CC1-4): The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.a Text (Text1-4): The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.a Initial Settingr See “Initial Setting” (page 28).Lock MenuThe Lock menu offers options to set up blocking schemes to block specific channels, ratings, and external viewing sources. A password is required to gain access to this menu.a The TV is set up with the initial password “0-0-0-0”.Lock SystemSet PasswordBlock ChannelMovie RatingTV Rating-ChildrenTV Rating-GeneralDownloadable RatingInput BlockMove EnterLOCK: OffLock SystemSet PasswordBlock ChannelMovie RatingTV Rating-ChildrenTV Rating-GeneralDownloadable RatingInput BlockMove EnterLOCK: Off OffOn12Display LOCK menu.Input the password.Select a menu item.ENTER45Set the setting.Return to TV viewing.ENTERRETURNMENU1 2 34 5 67 8 903ENTER

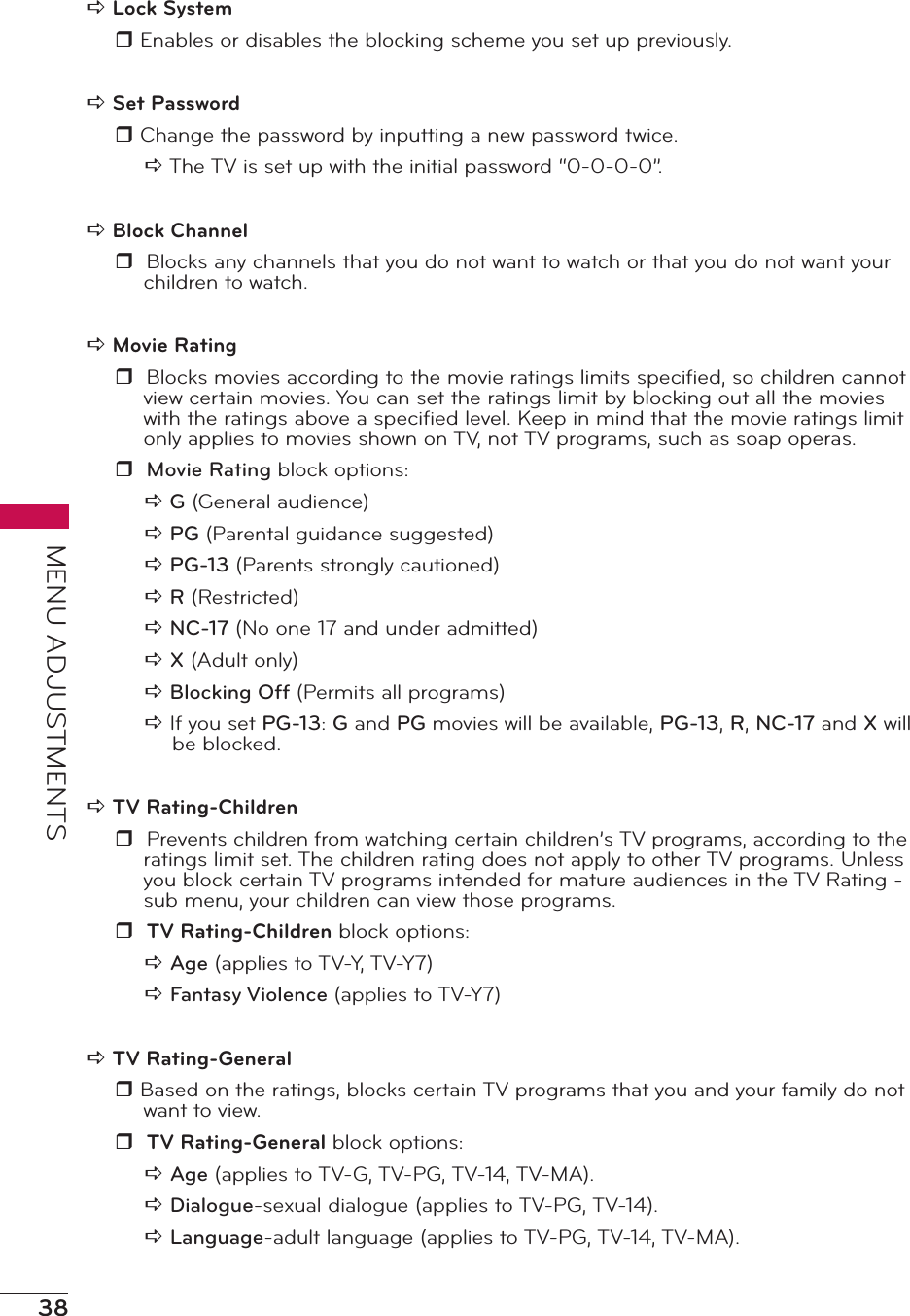

38MENU ADJUSTMENTSa Lock System r Enables or disables the blocking scheme you set up previously.a Set Passwordr Change the password by inputting a new password twice.a The TV is set up with the initial password “0-0-0-0”.a Block Channelr Blocks any channels that you do not want to watch or that you do not want your children to watch.a Movie Ratingr Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.r Movie Rating block options:a G (General audience)a PG (Parental guidance suggested)a PG-13 (Parents strongly cautioned)a R (Restricted)a NC-17 (No one 17 and under admitted)a X (Adult only)a Blocking Off (Permits all programs)a If you set PG-13: G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.a TV Rating-Childrenr Prevents children from watching certain children’s TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.r TV Rating-Children block options:a Age (applies to TV-Y, TV-Y7)a Fantasy Violence (applies to TV-Y7)a TV Rating-Generalr Based on the ratings, blocks certain TV programs that you and your family do not want to view.r TV Rating-General block options:a Age (applies to TV-G, TV-PG, TV-14, TV-MA).a Dialogue-sexual dialogue (applies to TV-PG, TV-14).a Language-adult language (applies to TV-PG, TV-14, TV-MA).

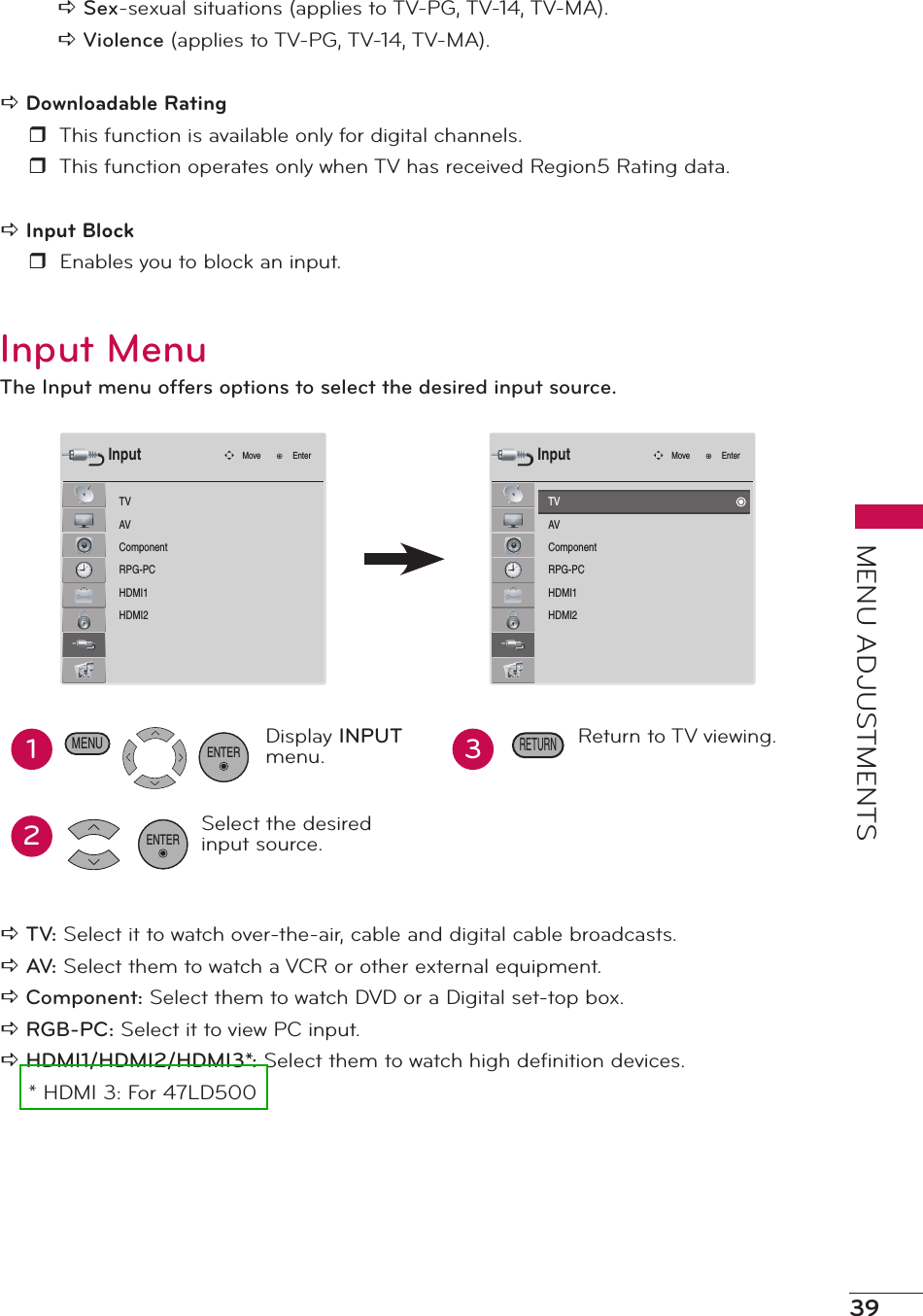

39MENU ADJUSTMENTSa Sex-sexual situations (applies to TV-PG, TV-14, TV-MA).a Violence (applies to TV-PG, TV-14, TV-MA).a Downloadable Ratingr This function is available only for digital channels.r This function operates only when TV has received Region5 Rating data.a Input Blockr Enables you to block an input.Input MenuThe Input menu offers options to select the desired input source.TVAVComponentRPG-PCHDMI1HDMI2Move EnterInput12Display INPUT menu.Select the desired input source.ENTER3Return to TV viewing.RETURNMENUENTERa TV: Select it to watch over-the-air, cable and digital cable broadcasts.a AV: Select them to watch a VCR or other external equipment.a Component: Select them to watch DVD or a Digital set-top box.a RGB-PC: Select it to view PC input.a HDMI1/HDMI2/HDMI3*: Select them to watch high definition devices.* HDMI 3: For 47LD500TVAVComponentRPG-PCHDMI1HDMI2Move EnterInput

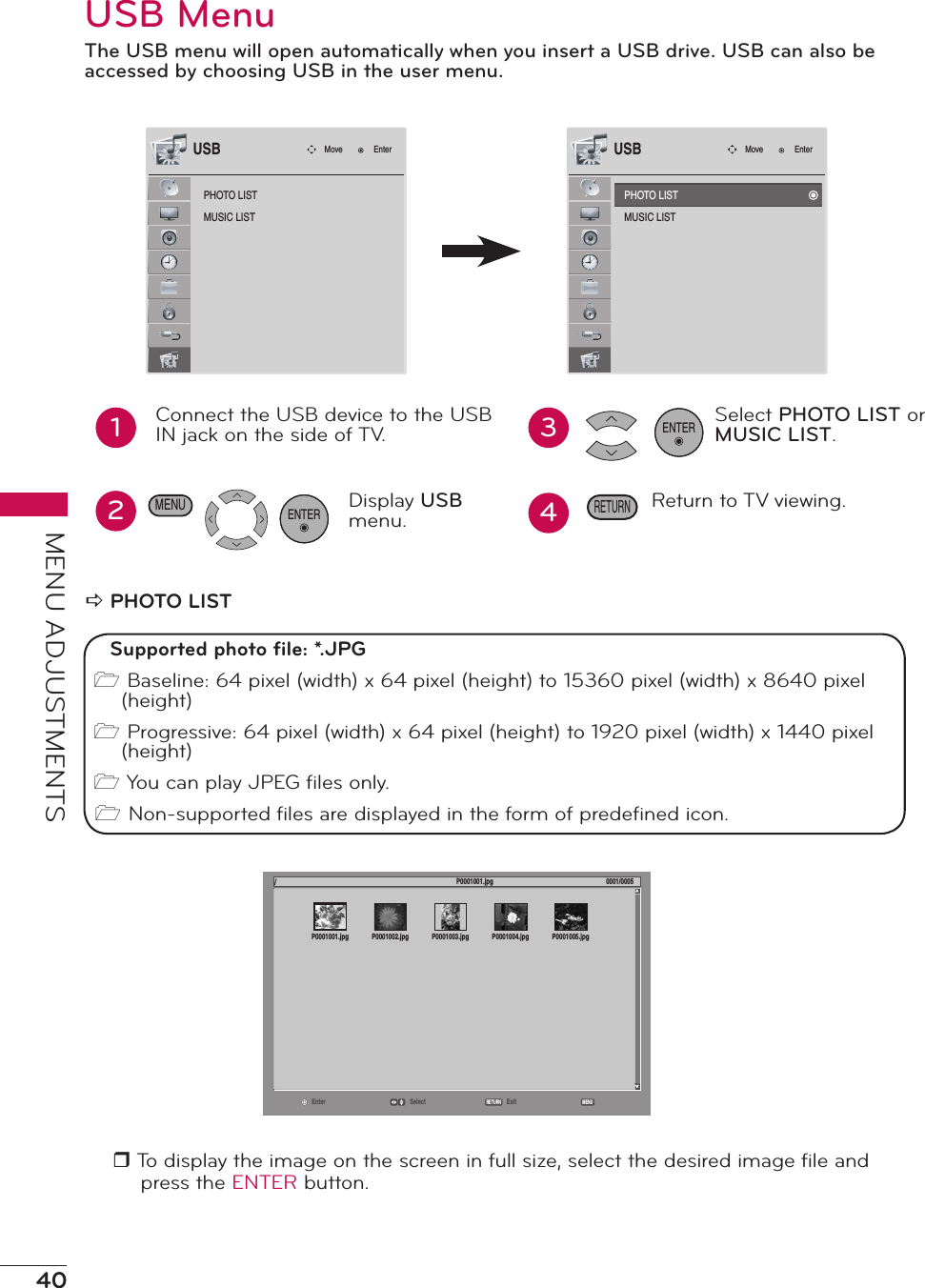

40MENU ADJUSTMENTSUSB MenuThe USB menu will open automatically when you insert a USB drive. USB can also be accessed by choosing USB in the user menu.PHOTO LISTMUSIC LISTMove EnterUSB12Connect the USB device to the USB IN jack on the side of TV.. Display USB menu.ENTER34Select PHOTO LIST or MUSIC LIST.Return to TV viewing.ENTERRETURNMENUa PHOTO LISTr To display the image on the screen in full size, select the desired image file and press the ENTER button.PHOTO LISTMUSIC LISTMove EnterUSBSupported photo file: *.JPG1 Baseline: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)1 Progressive: 64 pixel (width) x 64 pixel (height) to 1920 pixel (width) x 1440 pixel (height)1 You can play JPEG files only.1 Non-supported files are displayed in the form of predefined icon.Enter Select ExitRETURN MENU/P0001001.jpg 0001/0005P0001001.jpg P0001002.jpg P0001003.jpg P0001004.jpg P0001005.jpg

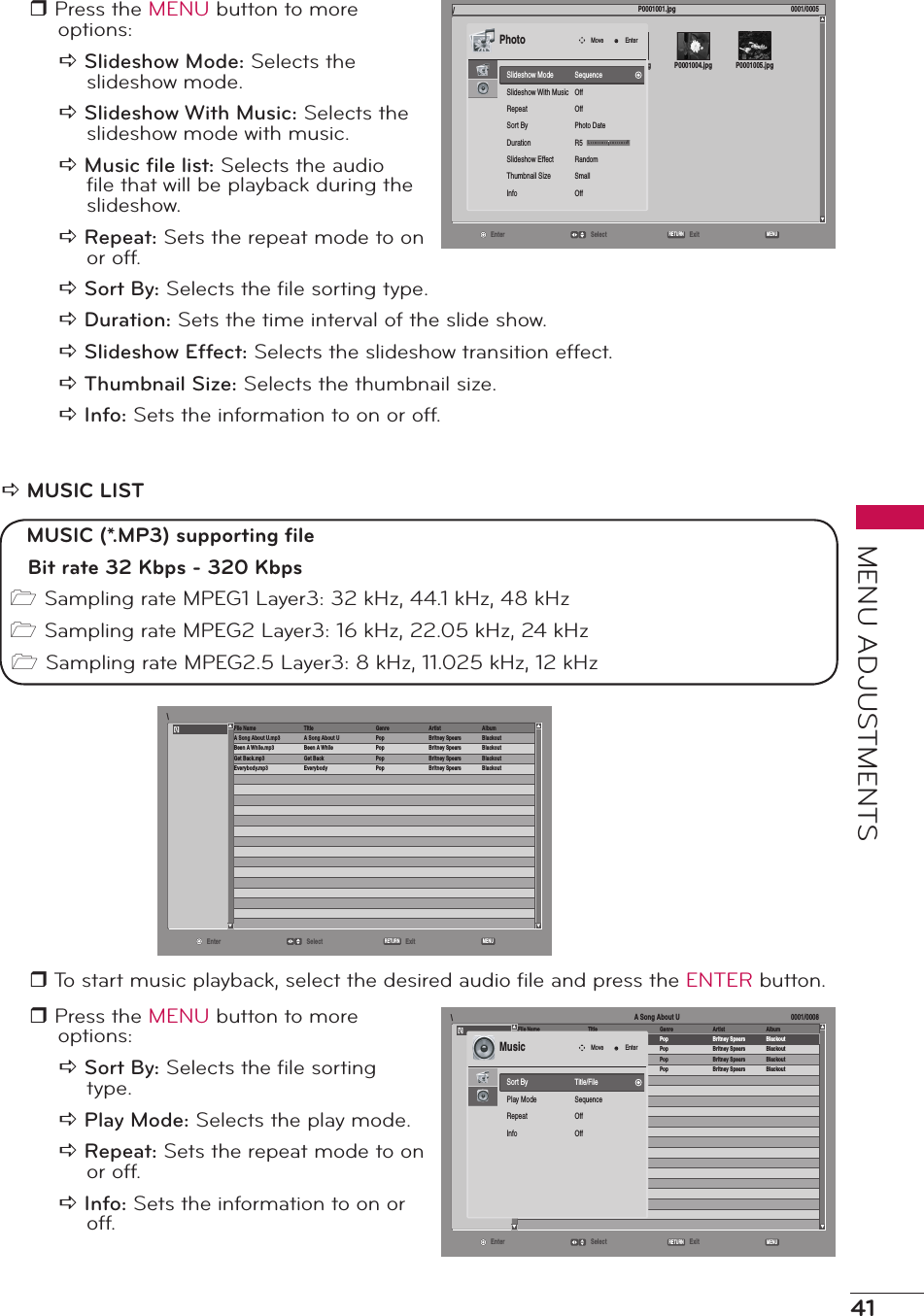

41MENU ADJUSTMENTSEnter Select ExitRETURN MENU/P0001001.jpg 0001/0005P0001001.jpg P0001002.jpg P0001003.jpg P0001004.jpg P0001005.jpgSlideshow ModeSlideshow With MusicRepeatSort ByDurationSlideshow EffectThumbnail SizeInfoMoveEnterPhotoSequenceOffOffPhoto DateR5RandomSmallOffLRa MUSIC LISTr To start music playback, select the desired audio file and press the ENTER button.Enter Select ExitRETURN MENUFile Name[\]\Title GenreArtistAlbumA Song About U.mp3A Song About UPop Britney SpearsBlackoutBeen A While.mp3 Been A While PopBritney SpearsBlackoutGet Back.mp3 Get Back PopBritney SpearsBlackoutEverybody.mp3 EverybodyPop Britney SpearsBlackoutr Press the MENU button to more options:a Slideshow Mode: Selects the slideshow mode.a Slideshow With Music: Selects the slideshow mode with music.a Music file list: Selects the audio file that will be playback during the slideshow.a Repeat: Sets the repeat mode to on or off.a Sort By: Selects the file sorting type.a Duration: Sets the time interval of the slide show.a Slideshow Effect: Selects the slideshow transition effect.a Thumbnail Size: Selects the thumbnail size.a Info: Sets the information to on or off.Enter Select ExitRETURN MENUFile Name[\]\Title GenreArtistAlbumA Song About U.mp3A Song About UPop Britney SpearsBlackoutBeen A While.mp3 Been A While PopBritney SpearsBlackoutGet Back.mp3 Get Back PopBritney SpearsBlackoutEverybody.mp3 EverybodyPop Britney SpearsBlackoutA Song About U 0001/0008Sort ByPlay ModeRepeatInfoMoveEnterMusicTitle/FileSequenceOffOffMUSIC (*.MP3) supporting file Bit rate 32 Kbps - 320 Kbps1 Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz1 Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz1 Sampling rate MPEG2.5 Layer3: 8 kHz, 11.025 kHz, 12 kHzr Press the MENU button to more options:a Sort By: Selects the file sorting type.a Play Mode: Selects the play mode.a Repeat: Sets the repeat mode to on or off.a Info: Sets the information to on or off.

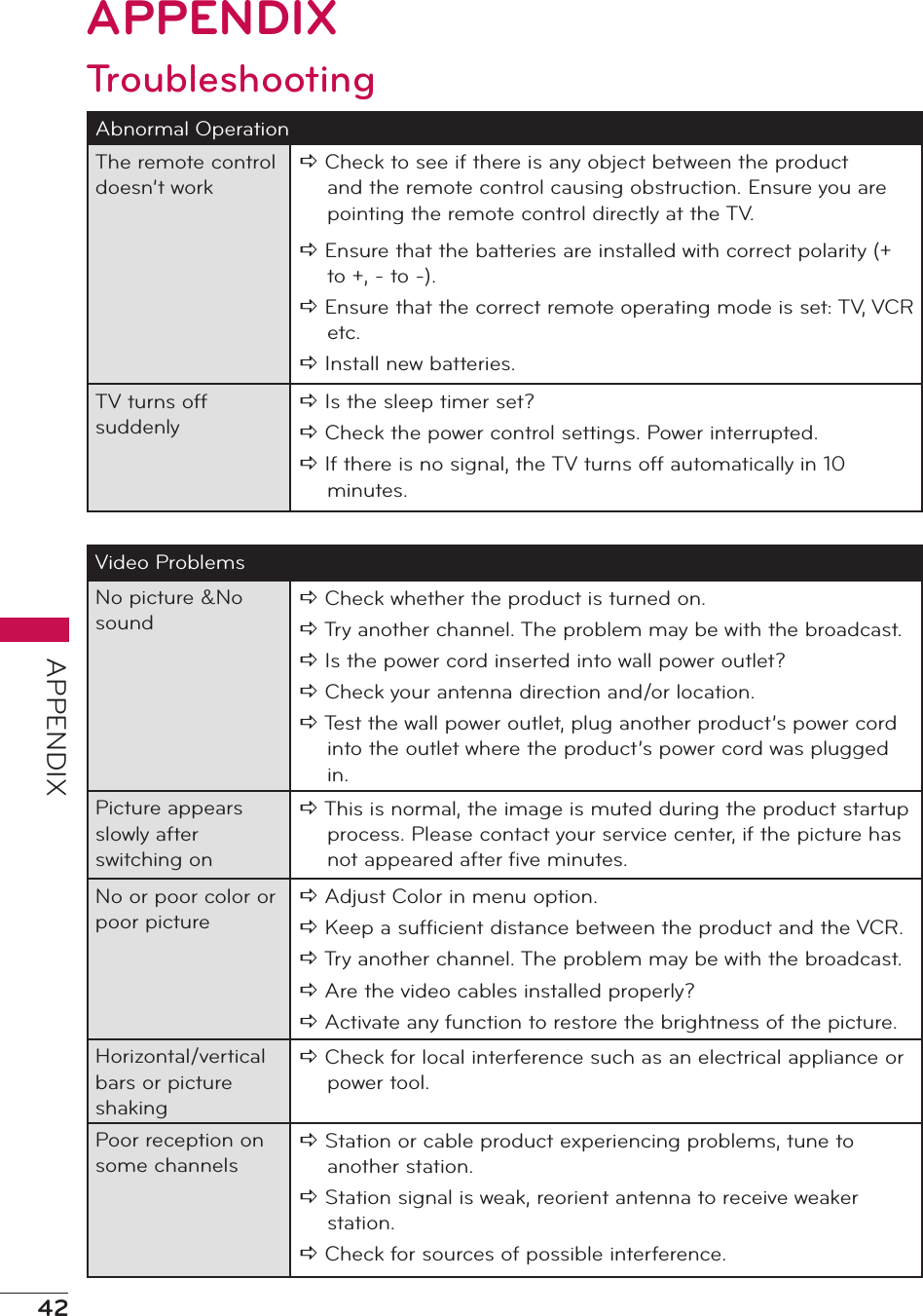

42APPENDIXAPPENDIXTroubleshootingAbnormal OperationThe remote control doesn’t worka Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.a Ensure that the batteries are installed with correct polarity (+ to +, - to -).a Ensure that the correct remote operating mode is set: TV, VCR etc.a Install new batteries.TV turns off suddenlya Is the sleep timer set?a Check the power control settings. Power interrupted.a If there is no signal, the TV turns off automatically in 10 minutes.Video ProblemsNo picture &No sounda Check whether the product is turned on.a Try another channel. The problem may be with the broadcast.a Is the power cord inserted into wall power outlet?a Check your antenna direction and/or location.a Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in.Picture appears slowly after switching ona This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.No or poor color or poor picturea Adjust Color in menu option.a Keep a sufficient distance between the product and the VCR.a Try another channel. The problem may be with the broadcast.a Are the video cables installed properly?a Activate any function to restore the brightness of the picture.Horizontal/vertical bars or picture shakinga Check for local interference such as an electrical appliance or power tool.Poor reception on some channelsa Station or cable product experiencing problems, tune to another station.a Station signal is weak, reorient antenna to receive weaker station.a Check for sources of possible interference.

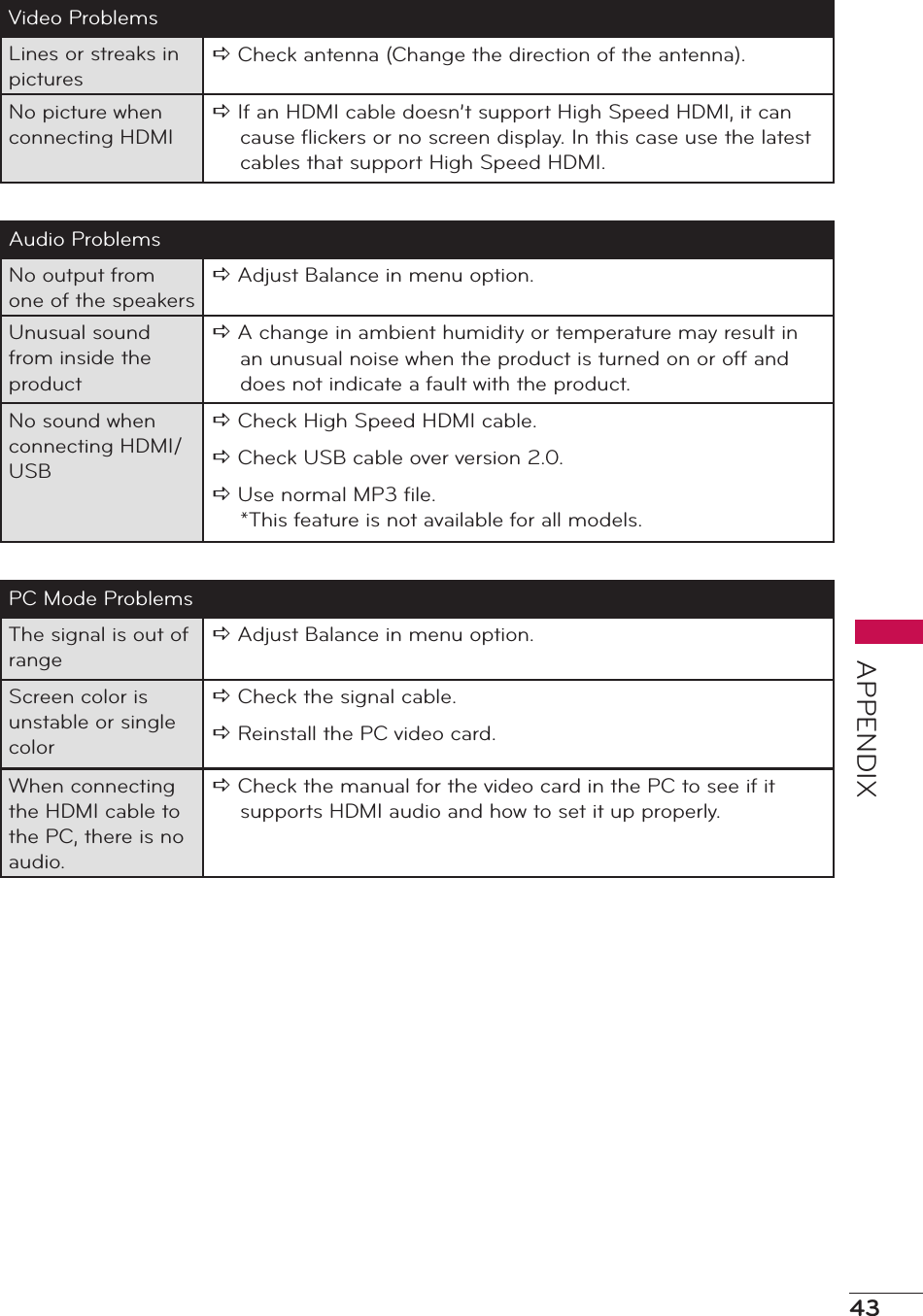

43APPENDIXVideo ProblemsLines or streaks in picturesa Check antenna (Change the direction of the antenna).No picture when connecting HDMIa If an HDMI cable doesn’t support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.Audio ProblemsNo output from one of the speakersa Adjust Balance in menu option.Unusual sound from inside the producta A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.No sound when connecting HDMI/USBa Check High Speed HDMI cable.a Check USB cable over version 2.0.a Use normal MP3 file. *This feature is not available for all models.PC Mode ProblemsThe signal is out of rangea Adjust Balance in menu option.Screen color is unstable or single colora Check the signal cable.a Reinstall the PC video card.When connecting the HDMI cable to the PC, there is no audio.a Check the manual for the video card in the PC to see if it supports HDMI audio and how to set it up properly.

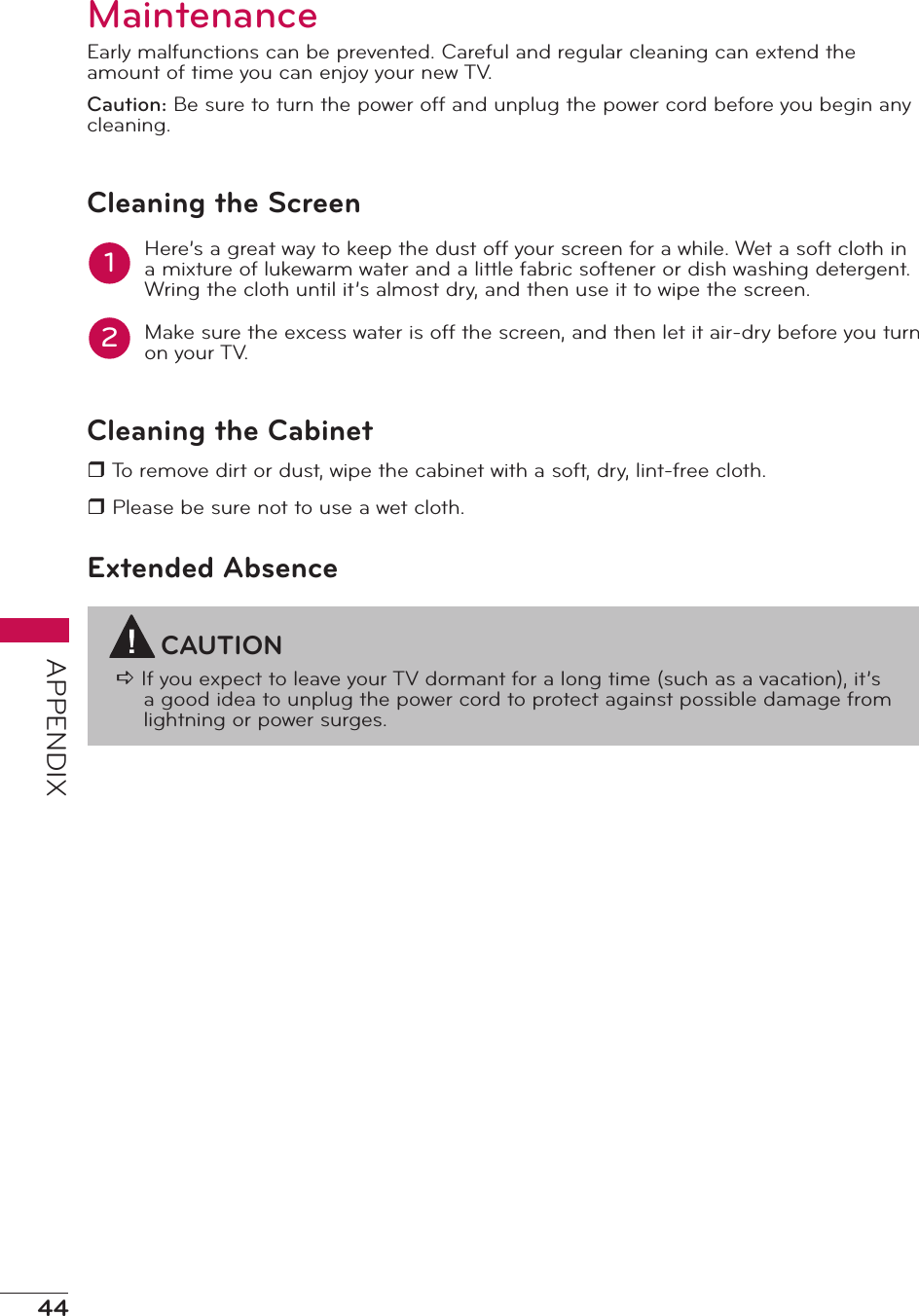

44APPENDIXMaintenanceEarly malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.Cleaning the ScreenHere’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.Cleaning the Cabinetr To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.r Please be sure not to use a wet cloth.Extended AbsenceCAUTIONa If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.12

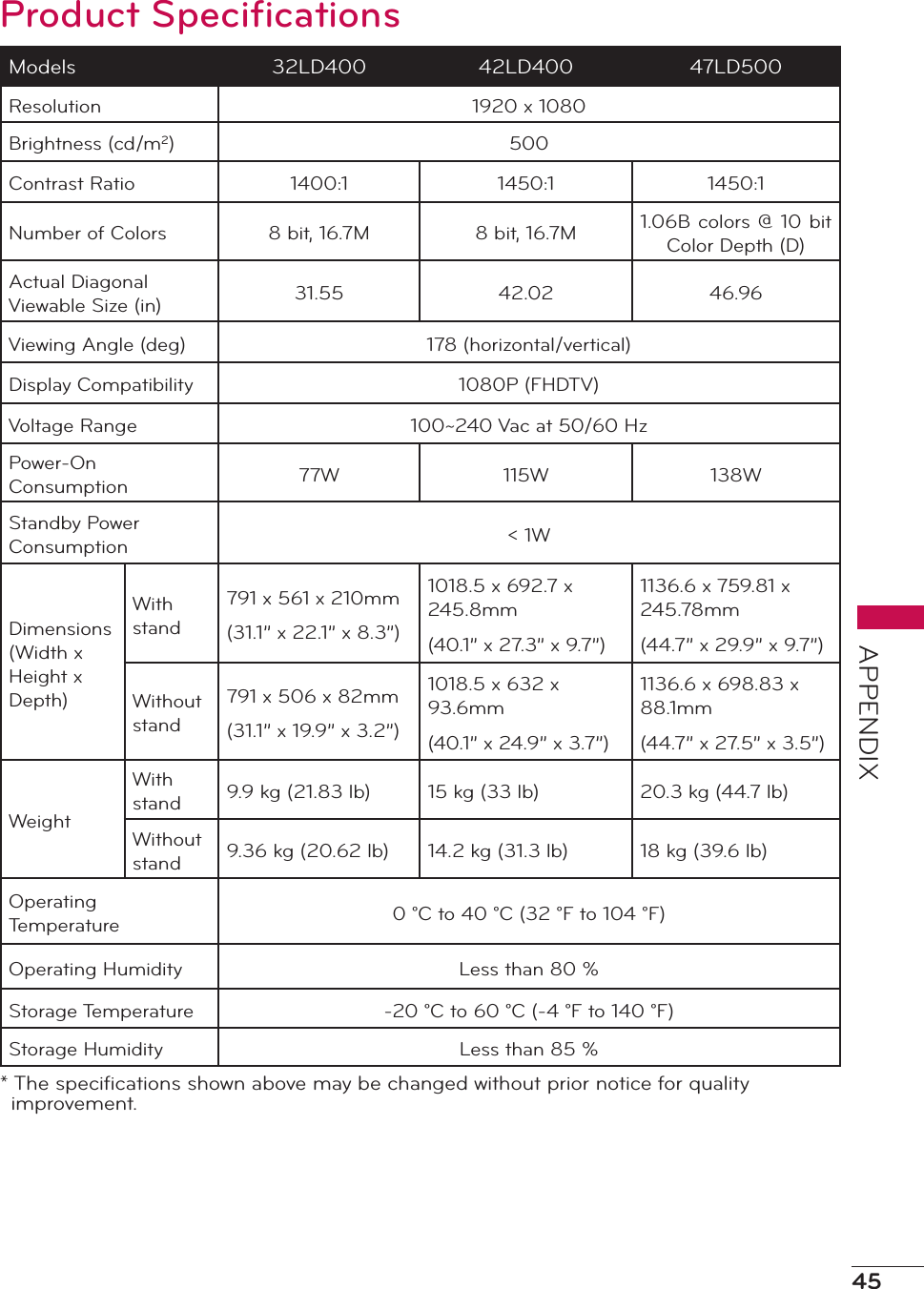

45APPENDIXProduct SpecificationsModels 32LD400 42LD400 47LD500Resolution 1920 x 1080Brightness (cd/m2) 500Contrast Ratio 1400:1 1450:1 1450:1Number of Colors 8 bit, 16.7M 8 bit, 16.7M 1.06B colors @ 10 bit Color Depth (D)Actual Diagonal Viewable Size (in) 31.55 42.02 46.96Viewing Angle (deg) 178 (horizontal/vertical)Display Compatibility 1080P (FHDTV)Voltage Range 100~240 Vac at 50/60 HzPower-On Consumption 77W 115W 138WStandby Power Consumption < 1WDimensions (Width x Height x Depth)With stand791 x 561 x 210mm(31.1” x 22.1” x 8.3”)1018.5 x 692.7 x 245.8mm(40.1” x 27.3” x 9.7”)1136.6 x 759.81 x 245.78mm(44.7” x 29.9” x 9.7”)Without stand791 x 506 x 82mm(31.1” x 19.9” x 3.2”)1018.5 x 632 x 93.6mm(40.1” x 24.9” x 3.7”)1136.6 x 698.83 x 88.1mm(44.7” x 27.5” x 3.5”)WeightWith stand 9.9 kg (21.83 lb) 15 kg (33 lb) 20.3 kg (44.7 lb)Without stand 9.36 kg (20.62 lb) 14.2 kg (31.3 lb) 18 kg (39.6 lb)Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)Operating Humidity Less than 80 %Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)Storage Humidity Less than 85 %* The specifications shown above may be changed without prior notice for quality improvement.
