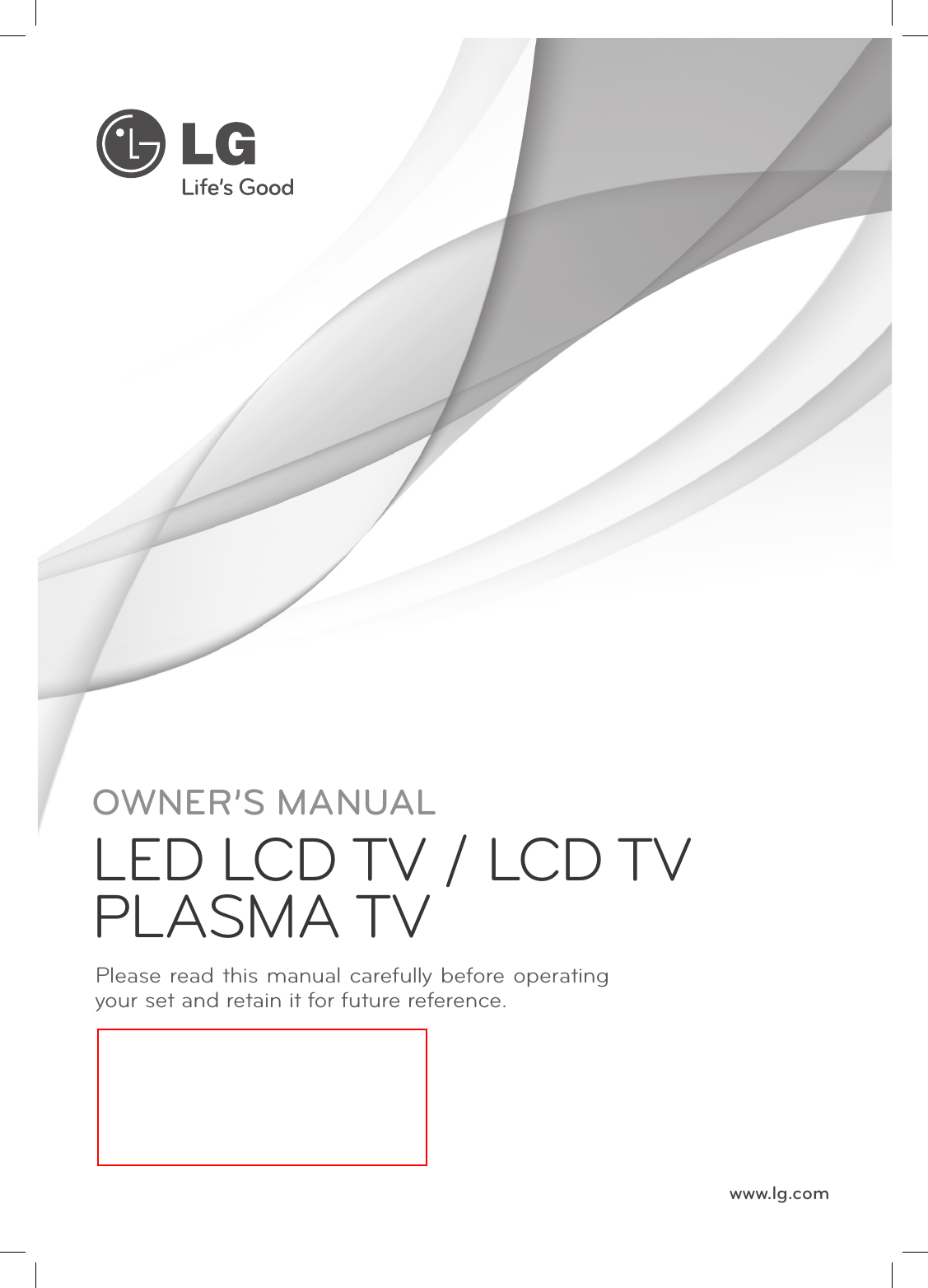

OWNER’S MANUALLED LCD TV / LCD TV PLASMA TVPlease read this manual carefully before operating your set and retain it for future reference.www.lg.com

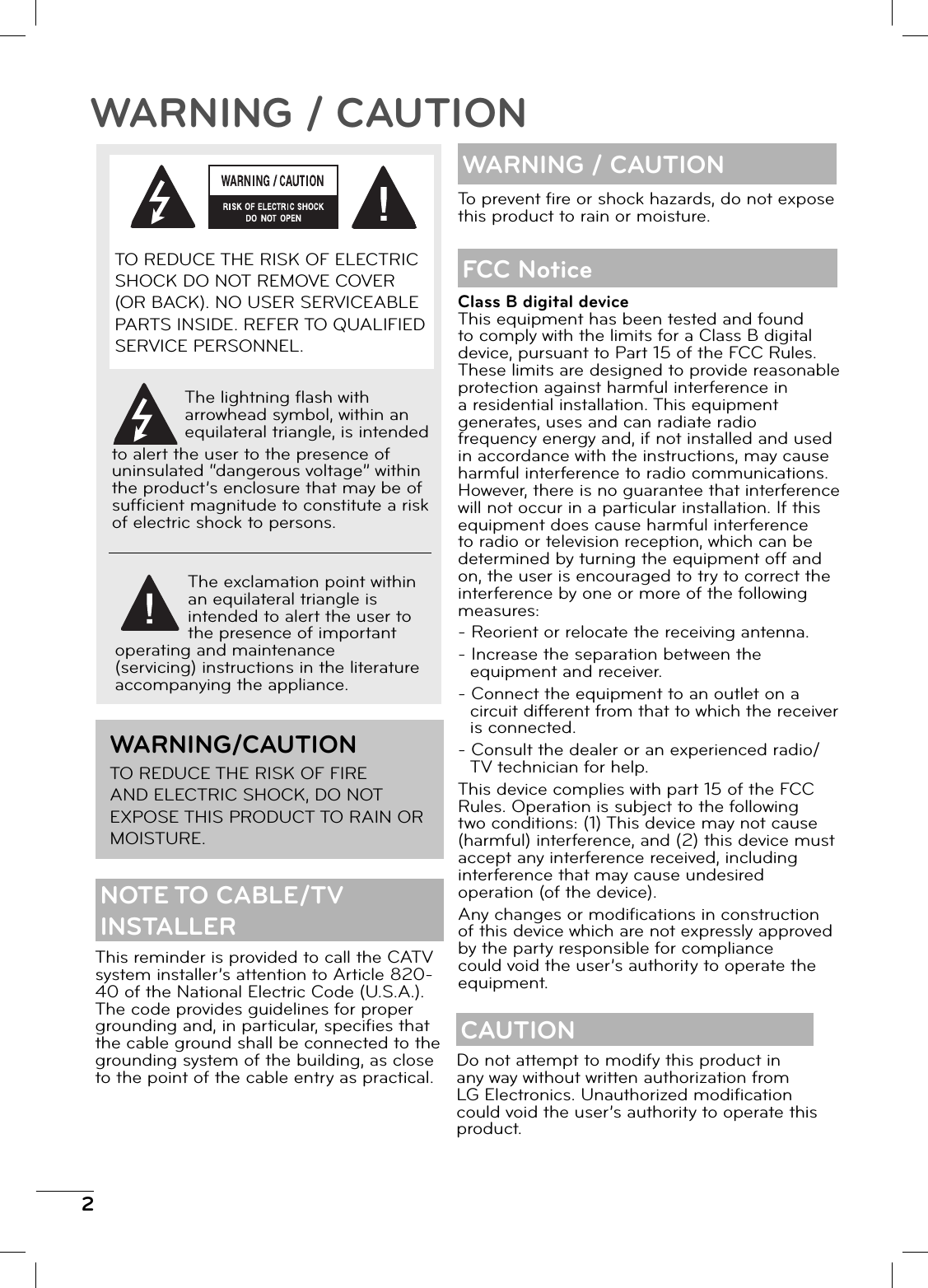

2WARNING / CAUTIONThis reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifi es that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.WARNING / CAUTIONClass B digital deviceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause (harmful) interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (of the device).Any changes or modifi cations in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC NoticeTo prevent fi re or shock hazards, do not expose this product to rain or moisture.CAUTIONDo not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modifi cation could void the user’s authority to operate this product.TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.The lightning fl ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.WARNING/CAUTIONTO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.NOTE TO CABLE/TV INSTALLER

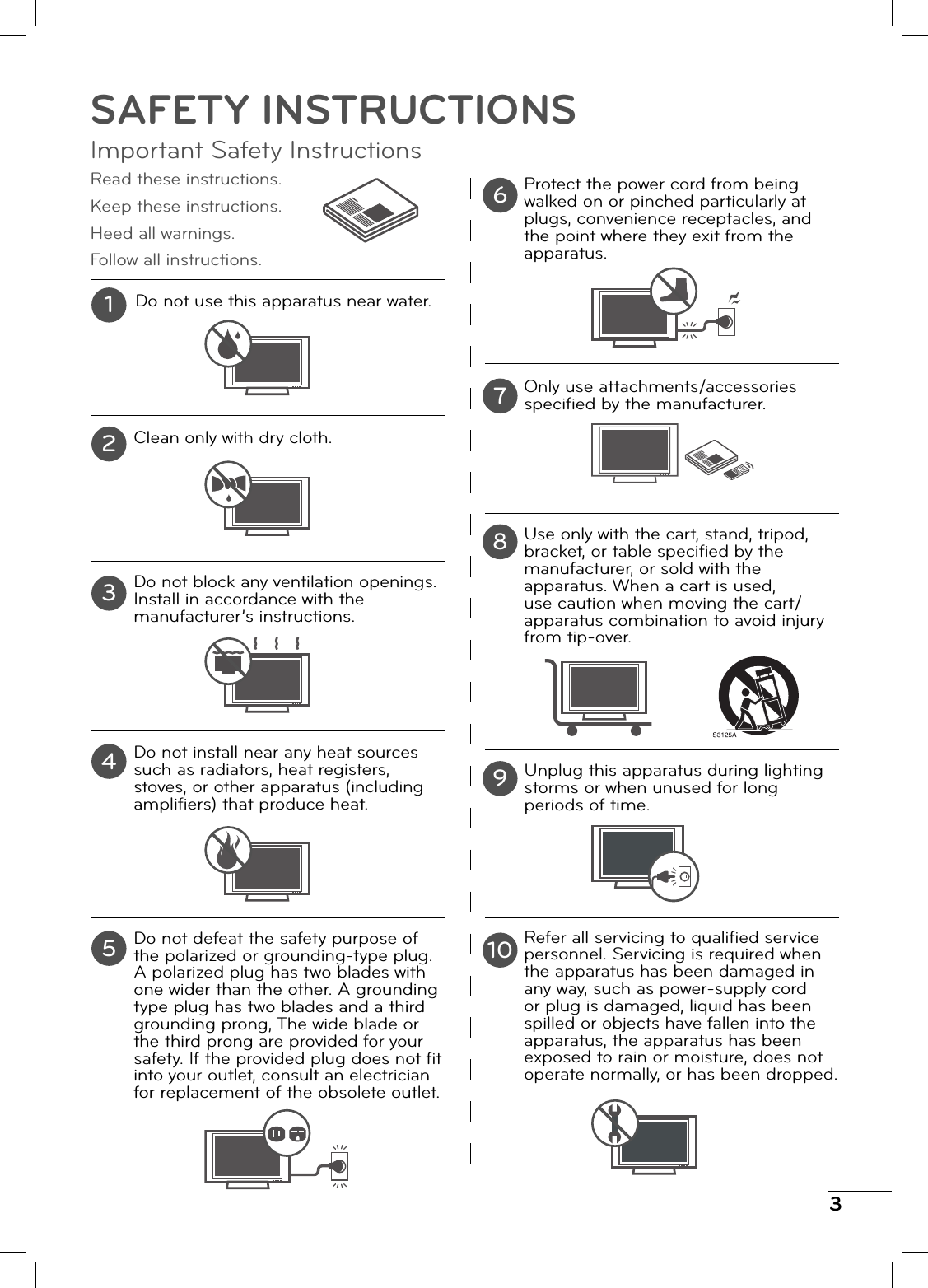

3SAFETY INSTRUCTIONSImportant Safety InstructionsRead these instructions.Keep these instructions.Heed all warnings.Follow all instructions.Do not use this apparatus near water.Clean only with dry cloth.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.Only use attachments/accessories specifi ed by the manufacturer.Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.Unplug this apparatus during lighting storms or when unused for long periods of time.Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.12345678910

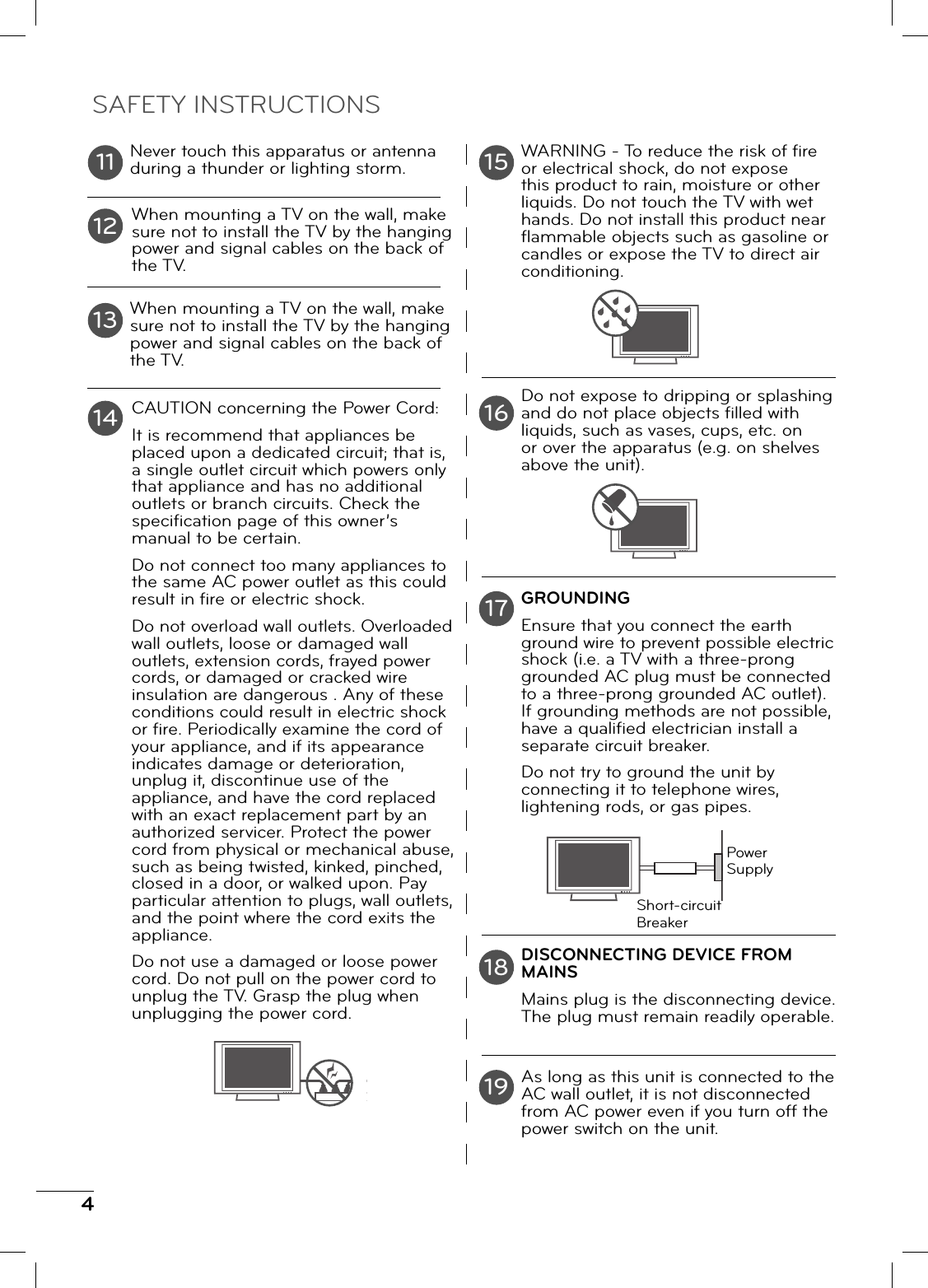

4Never touch this apparatus or antenna during a thunder or lighting storm.When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.CAUTION concerning the Power Cord:It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specifi cation page of this owner’s manual to be certain.Do not connect too many appliances to the same AC power outlet as this could result in fi re or electric shock.Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous . Any of these conditions could result in electric shock or fi re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.Do not use a damaged or loose power cord. Do not pull on the power cord to unplug the TV. Grasp the plug when unplugging the power cord.WARNING - To reduce the risk of fi re or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near fl ammable objects such as gasoline or candles or expose the TV to direct air conditioning.Do not expose to dripping or splashing and do not place objects fi lled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).GROUNDINGEnsure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualifi ed electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.DISCONNECTING DEVICE FROM MAINSMains plug is the disconnecting device. The plug must remain readily operable.As long as this unit is connected to the AC wall outlet, it is not disconnected from AC power even if you turn off the power switch on the unit.11 1516121314171819SAFETY INSTRUCTIONSPower SupplyShort-circuit Breaker

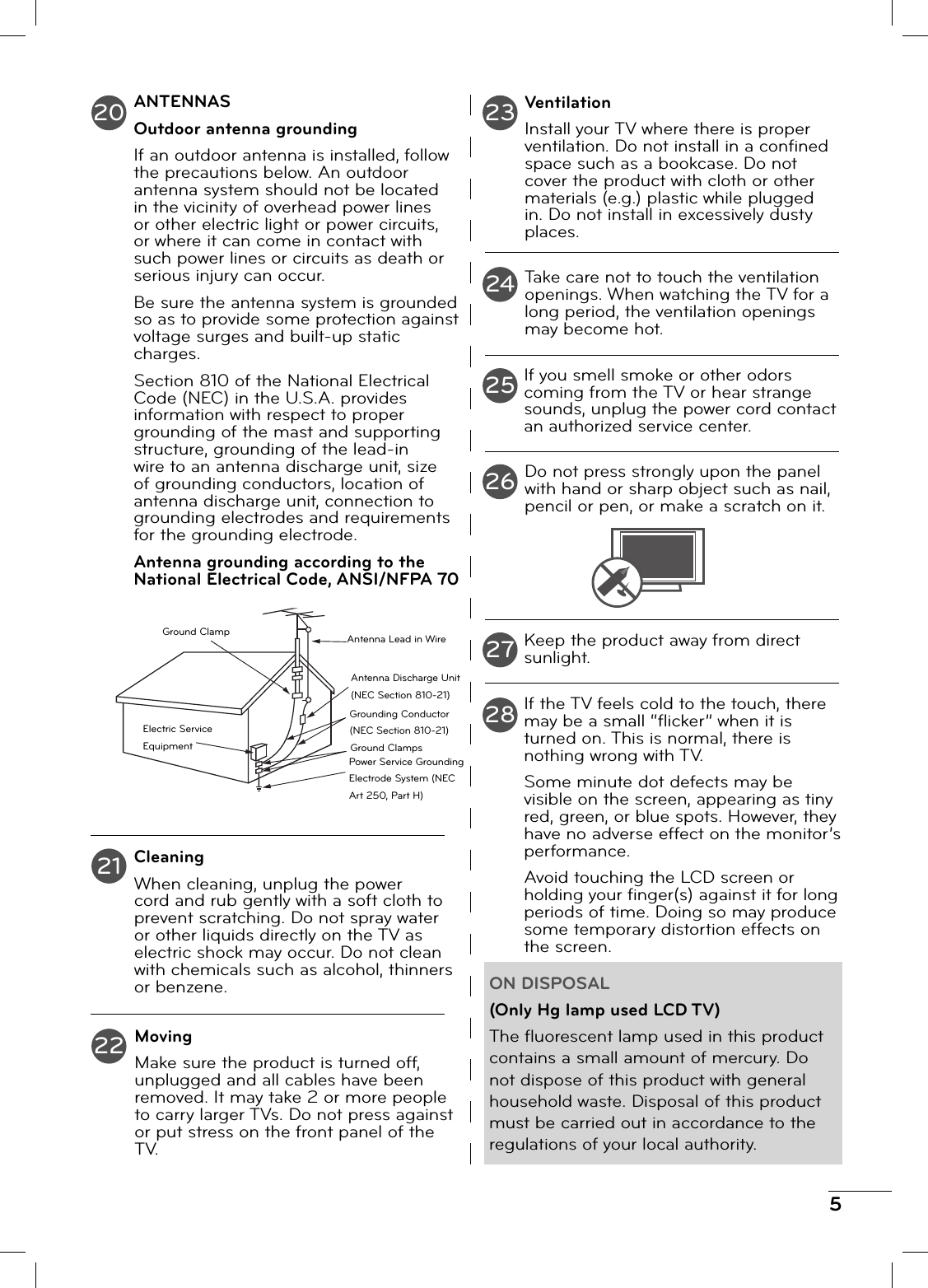

5ANTENNASOutdoor antenna groundingIf an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.Antenna grounding according to the National Electrical Code, ANSI/NFPA 70CleaningWhen cleaning, unplug the power cord and rub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene.MovingMake sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press against or put stress on the front panel of the TV.VentilationInstall your TV where there is proper ventilation. Do not install in a confi ned space such as a bookcase. Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places.Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot.If you smell smoke or other odors coming from the TV or hear strange sounds, unplug the power cord contact an authorized service center.Do not press strongly upon the panel with hand or sharp object such as nail, pencil or pen, or make a scratch on it.Keep the product away from direct sunlight.If the TV feels cold to the touch, there may be a small “fl icker” when it is turned on. This is normal, there is nothing wrong with TV.Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor’s performance.Avoid touching the LCD screen or holding your fi nger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.ON DISPOSAL(Only Hg lamp used LCD TV)The fl uorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.202123242622252728Ground ClampElectric Service EquipmentAntenna Lead in WireAntenna Discharge Unit (NEC Section 810-21)Grounding Conductor (NEC Section 810-21)Ground ClampsPower Service Grounding Electrode System (NEC Art 250, Part H)

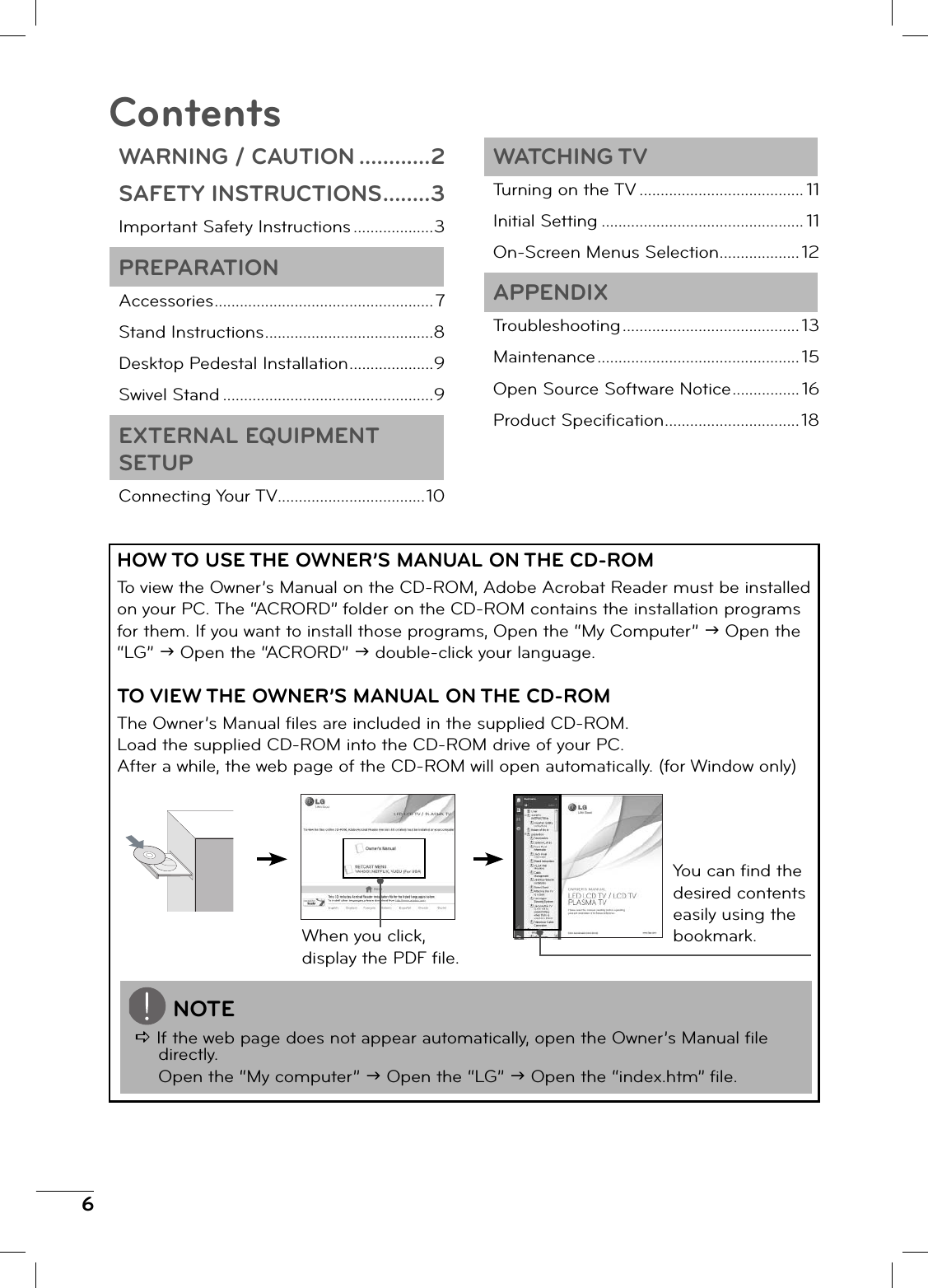

6HOW TO USE THE OWNER’S MANUAL ON THE CD-ROMTo view the Owner’s Manual on the CD-ROM, Adobe Acrobat Reader must be installed on your PC. The “ACRORD” folder on the CD-ROM contains the installation programs for them. If you want to install those programs, Open the “My Computer” J Open the “LG” J Open the “ACRORD” J double-click your language.TO VIEW THE OWNER’S MANUAL ON THE CD-ROMThe Owner’s Manual fi les are included in the supplied CD-ROM.Load the supplied CD-ROM into the CD-ROM drive of your PC.After a while, the web page of the CD-ROM will open automatically. (for Window only)When you click, display the PDF fi le.You can fi nd the desired contents easily using the bookmark.NOTED If the web page does not appear automatically, open the Owner’s Manual fi le directly. Open the “My computer” J Open the “LG” J Open the “index.htm” fi le.ContentsWARNING / CAUTION ............2SAFETY INSTRUCTIONS ........3Important Safety Instructions ...................3PREPARATIONAccessories ....................................................7Stand Instructions ........................................8Desktop Pedestal Installation ....................9Swivel Stand ..................................................9EXTERNAL EQUIPMENT SETUPConnecting Your TV ...................................10WATCHING TVTurning on the TV ....................................... 11Initial Setting ................................................ 11On-Screen Menus Selection ................... 12APPENDIXTroubleshooting .......................................... 13Maintenance ................................................ 15Open Source Software Notice ................ 16Product Specifi cation ................................18
7PREPARATIONAccessoriesEnsure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.The accessories included may differ from the images below.Remote Control, Batteries (AAA)1.5V 1.5VCD ManualOwner’s ManualD-sub 15 pin cablePower cablePolishing ClothScrew for stand fi xingAV cable

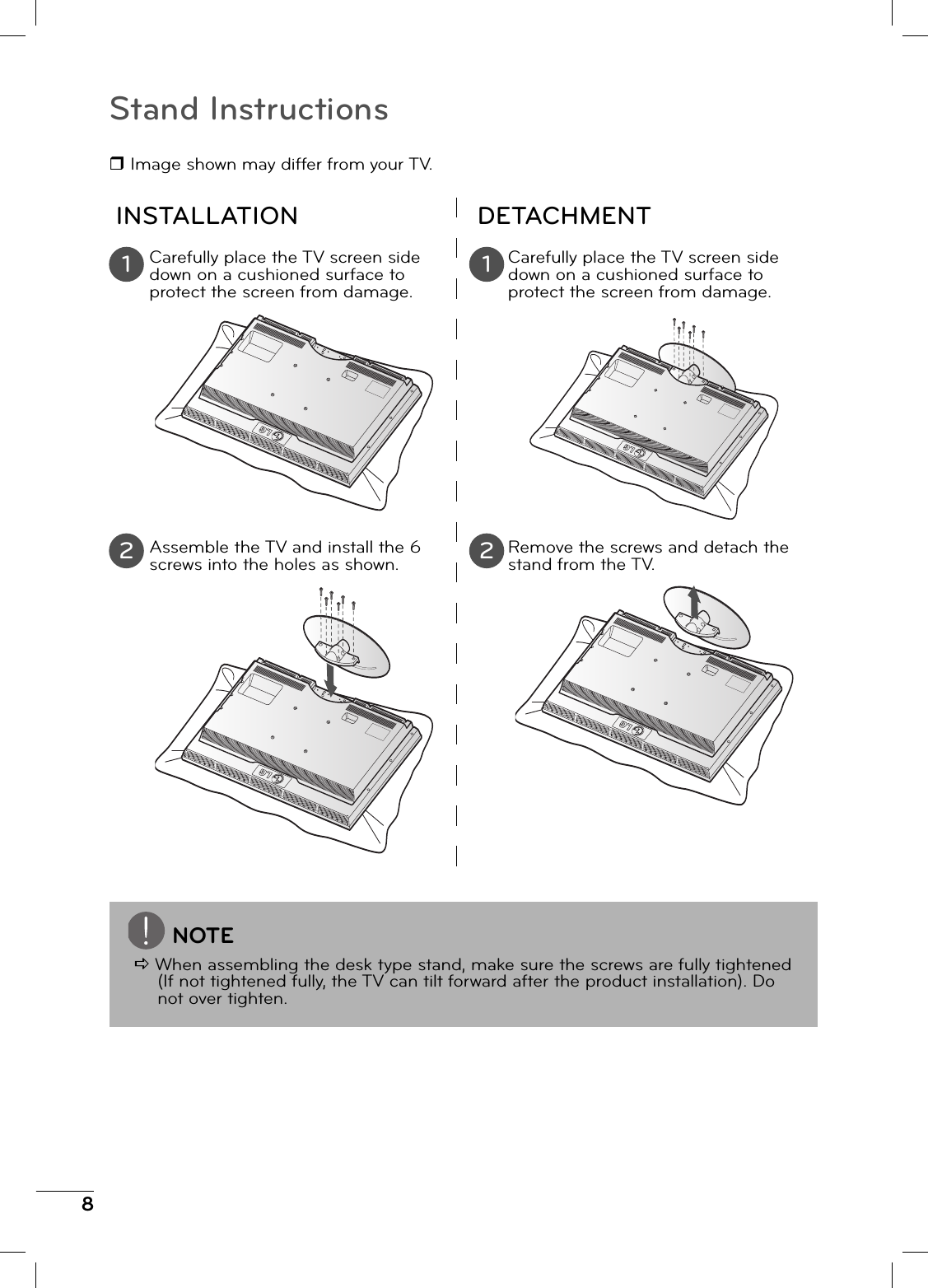

8Stand Instructions Image shown may differ from your TV.INSTALLATION DETACHMENTCarefully place the TV screen side down on a cushioned surface to protect the screen from damage. Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.Assemble the TV and install the 6 screws into the holes as shown.Remove the screws and detach the stand from the TV.1 12 2NOTED When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

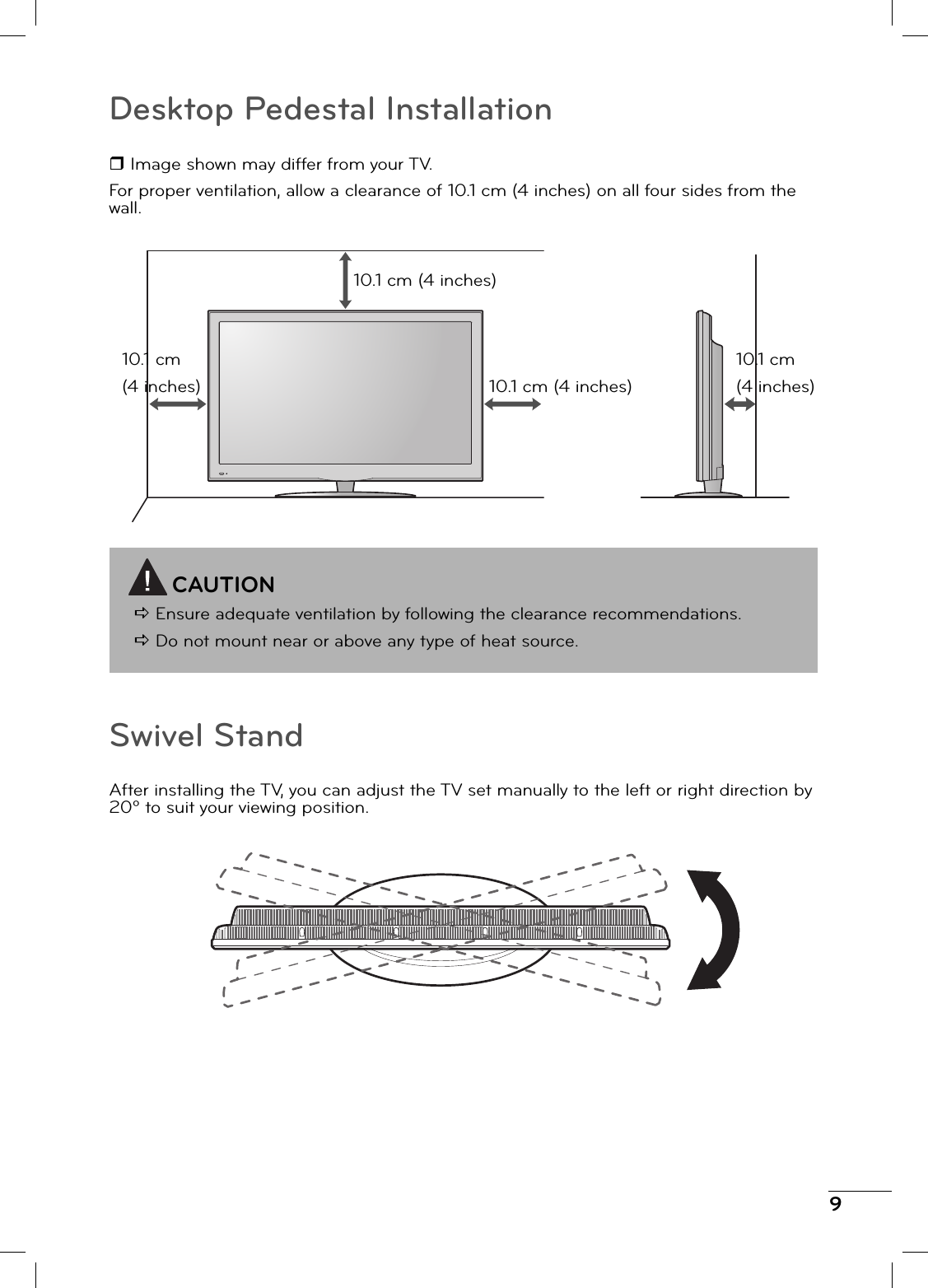

9Desktop Pedestal Installation Image shown may differ from your TV.For proper ventilation, allow a clearance of 10.1 cm (4 inches) on all four sides from the wall.CAUTIOND Ensure adequate ventilation by following the clearance recommendations.D Do not mount near or above any type of heat source.10.1 cm (4 inches)10.1 cm (4 inches)10.1 cm (4 inches)10.1 cm (4 inches)Swivel StandAfter installing the TV, you can adjust the TV set manually to the left or right direction by 20º to suit your viewing position.

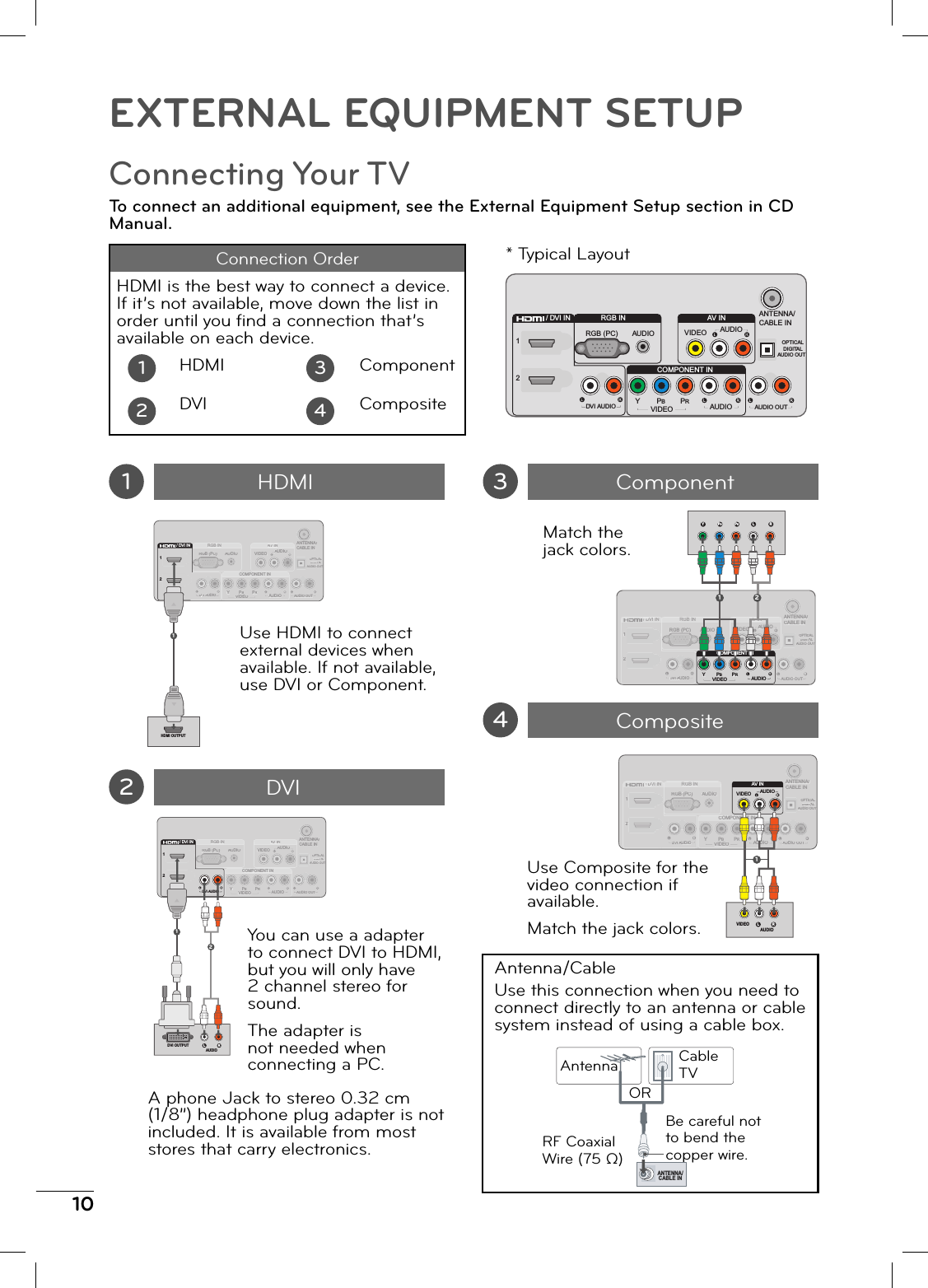

10EXTERNAL EQUIPMENT SETUPConnecting Your TVTo connect an additional equipment, see the External Equipment Setup section in CD Manual.Connection OrderHDMI is the best way to connect a device. If it’s not available, move down the list in order until you fi nd a connection that’s available on each device.HDMI ComponentDVI CompositeANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOCOMPONENT INPRPBYAUDIOVIDEOY L RPBPR1 21ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIO12/ DVI INHDMI OUTPUT1ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIO12/ DVI INDVI AUDIO1L RDVI OUTPUTAUDIO2ANTENNA/CABLE INVIDEOAV INAARGB INCOMPONENT INPRPBYOPTICALDIGITALTTAUDIO OUTAUDIOAUDIOAUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDDDVI ADDUDIOVIDEOAV INAUDIOL RVIDEOAUDIO1Use HDMI to connect external devices when available. If not available, use DVI or Component.Match the jack colors.Use Composite for the video connection if available.Match the jack colors.Antenna/CableUse this connection when you need to connect directly to an antenna or cable system instead of using a cable box.Antenna Cable TVORBe careful not to bend the copper wire.ANTENNA/CABLE INVIDEOAV INRGB INCOMPONENT INPRPBYOPTICALDIGITALAUDIO OUTAUDIOAUDIO AUDIO OUTAUDIORGB (PC)12VIDEO/ DVI INDVI AUDIO1234HDMI2DVIYou can use a adapter to connect DVI to HDMI, but you will only have 2 channel stereo for sound.The adapter is not needed when connecting a PC.A phone Jack to stereo 0.32 cm (1/8”) headphone plug adapter is not included. It is available from most stores that carry electronics.3Component4CompositeANTENNA/CABLE IN* Typical LayoutRF Coaxial Wire (75 Ω)

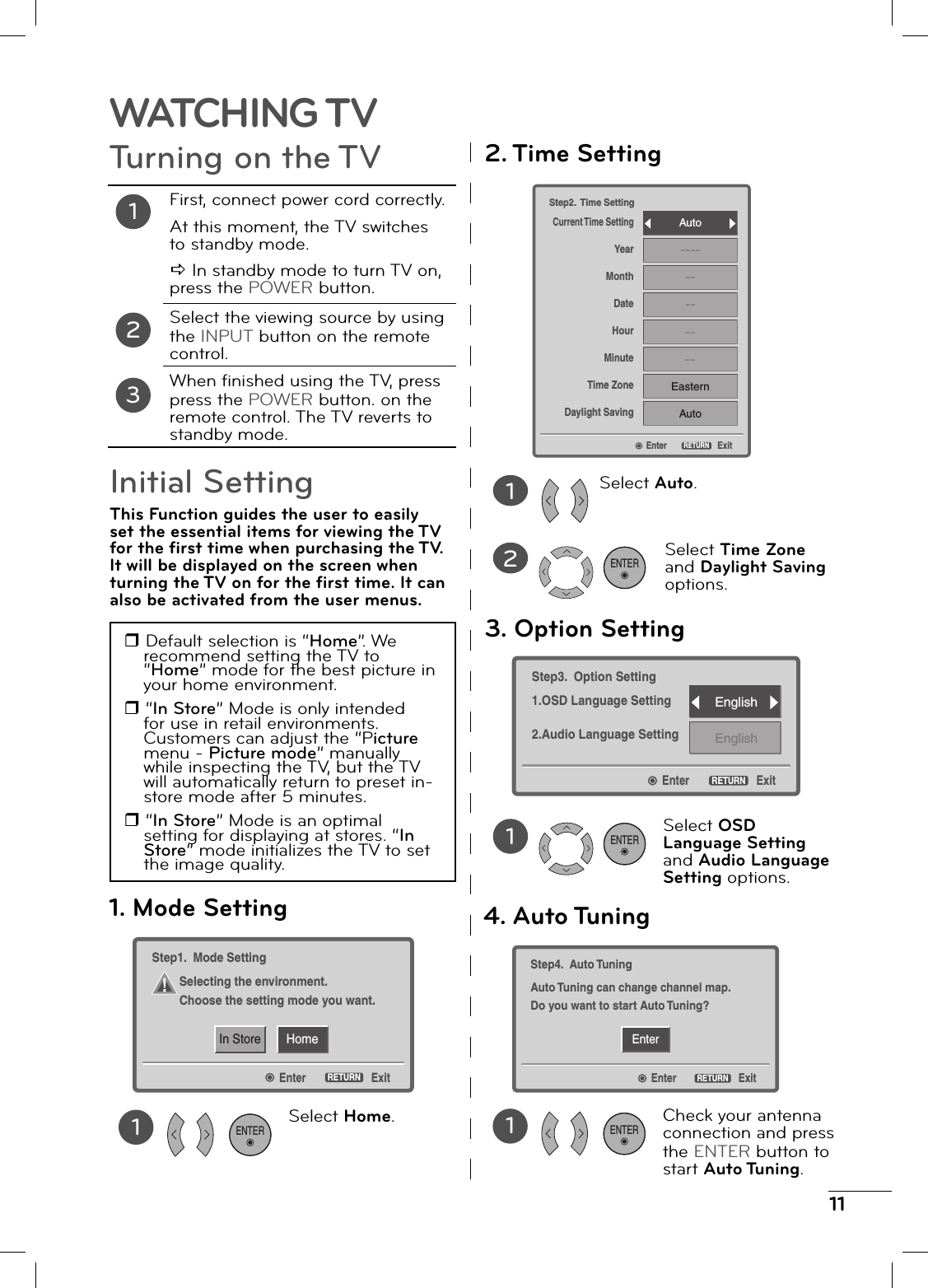

11WATCHING TVTurning on the TV12First, connect power cord correctly.At this moment, the TV switches to standby mode.D In standby mode to turn TV on, press the POWER button.Select the viewing source by using the INPUT button on the remote control.When fi nished using the TV, press press the POWER button. on the remote control. The TV reverts to standby mode.3Initial SettingThis Function guides the user to easily set the essential items for viewing the TV for the fi rst time when purchasing the TV. It will be displayed on the screen when turning the TV on for the fi rst time. It can also be activated from the user menus. Default selection is “Home”. W e recommend setting the TV to “Home” mode for the best picture in your home environment. “In Store” Mode is only intended for use in retail environments. Customers can adjust the “Picture menu - Picture mode” manually while inspecting the TV, but the TV will automatically return to preset in-store mode after 5 minutes. “In Store” Mode is an optimal setting for displaying at stores. “In Store” mode initializes the TV to set the image quality.HomeIn StoreEnterStep1. Mode SettingSelecting the environment.Choose the setting mode you want.ExitRETURN1. Mode Setting1Select Home.ENTEREnterStep2. Time SettingCurrent Time SettingYearMonthDateHourMinuteTime ZoneDaylight SavingExitRETURNAuto------------EasternAuto2. Time Setting12Select Auto.Select Time Zone and Daylight Saving options.EnterStep3. Option Setting1.OSD Language Setting2.Audio Language SettingExitRETURNEnglishEnglish3. Option Setting1Select OSD Language Setting and Audio Language Setting options.ENTEREnterEnterStep4. Auto TuningAuto Tuning can change channel map.Do you want to start Auto Tuning?ExitRETURN4. Auto Tuning1Check your antenna connection and press the ENTER button to start Auto Tuning.ENTERENTER

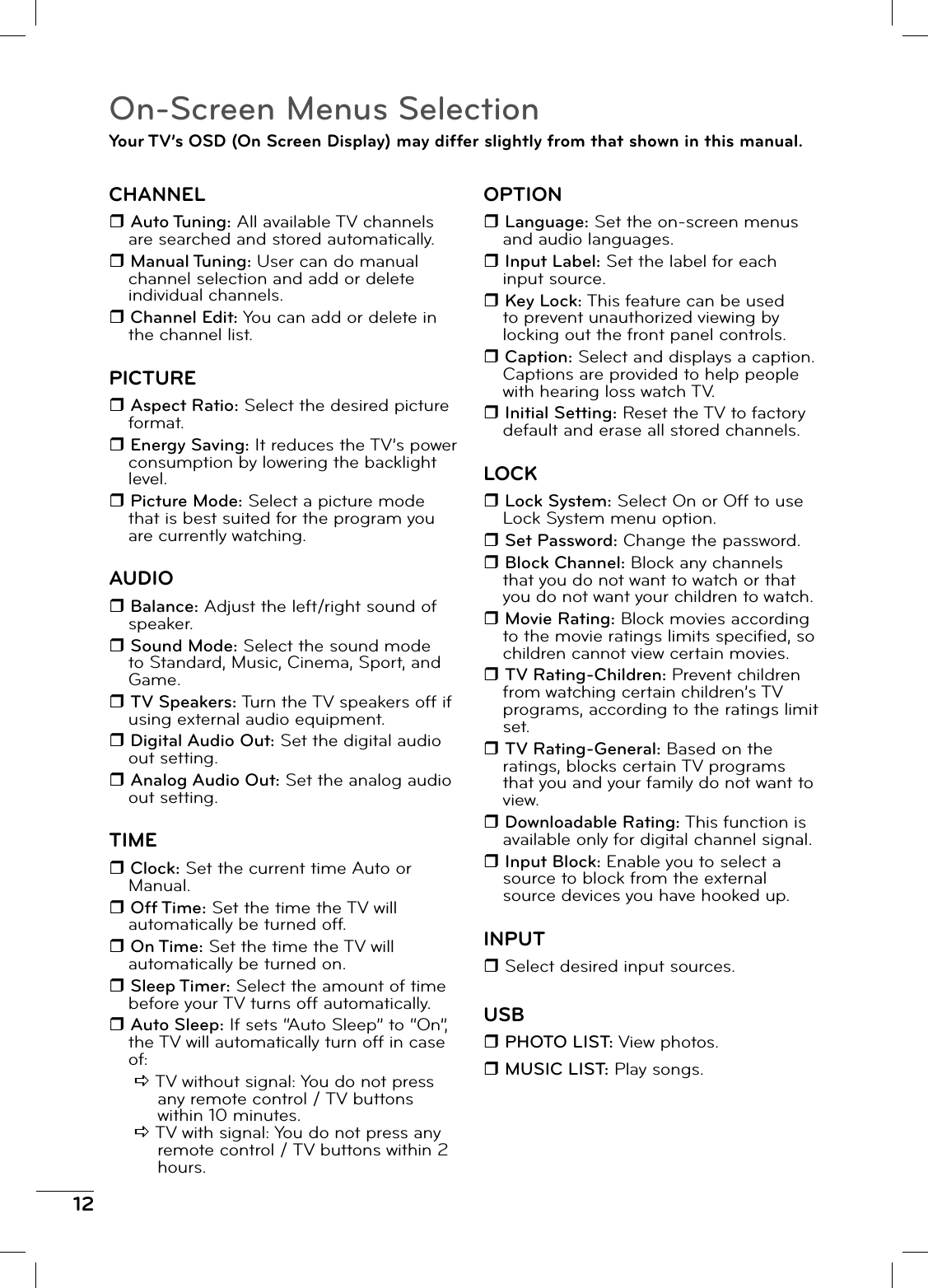

12On-Screen Menus SelectionYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.CHANNEL Auto Tuning: All available TV channels are searched and stored automatically. Manual Tuning: User can do manual channel selection and add or delete individual channels. Channel Edit: You can add or delete in the channel list.PICTURE Aspect Ratio: Select the desired picture format. Energy Saving: It reduces the TV’s power consumption by lowering the backlight level. Picture Mode: Select a picture mode that is best suited for the program you are currently watching. AUDIO Balance: Adjust the left/right sound of speaker. Sound Mode: Select the sound mode to Standard, Music, Cinema, Sport, and Game. TV Speakers: Turn the TV speakers off if using external audio equipment. Digital Audio Out: Set the digital audio out setting. Analog Audio Out: Set the analog audio out setting.TIME Clock: Set the current time Auto or Manual. Off Time: Set the time the TV will automatically be turned off. On Time: Set the time the TV will automatically be turned on. Sleep Timer: Select the amount of time before your TV turns off automatically. Auto Sleep: If sets “Auto Sleep” to “On”, the TV will automatically turn off in case of:D TV without signal: You do not press any remote control / TV buttons within 10 minutes.D TV with signal: You do not press any remote control / TV buttons within 2 hours.OPTION Language: Set the on-screen menus and audio languages. Input Label: Set the label for each input source. Key Lock: This feature can be used to prevent unauthorized viewing by locking out the front panel controls. Caption: Select and displays a caption. Captions are provided to help people with hearing loss watch TV. Initial Setting: Reset the TV to factory default and erase all stored channels.LOCK Lock System: Select On or Off to use Lock System menu option. Set Password: Change the password. Block Channel: Block any channels that you do not want to watch or that you do not want your children to watch. Movie Rating: Block movies according to the movie ratings limits specifi ed, so children cannot view certain movies. TV Rating-Children: Prevent children from watching certain children’s TV programs, according to the ratings limit set. TV Rating-General: Based on the ratings, blocks certain TV programs that you and your family do not want to view. Downloadable Rating: This function is available only for digital channel signal. Input Block: Enable you to select a source to block from the external source devices you have hooked up.INPUT Select desired input sources.USB PHOTO LIST: View photos. MUSIC LIST: Play songs.

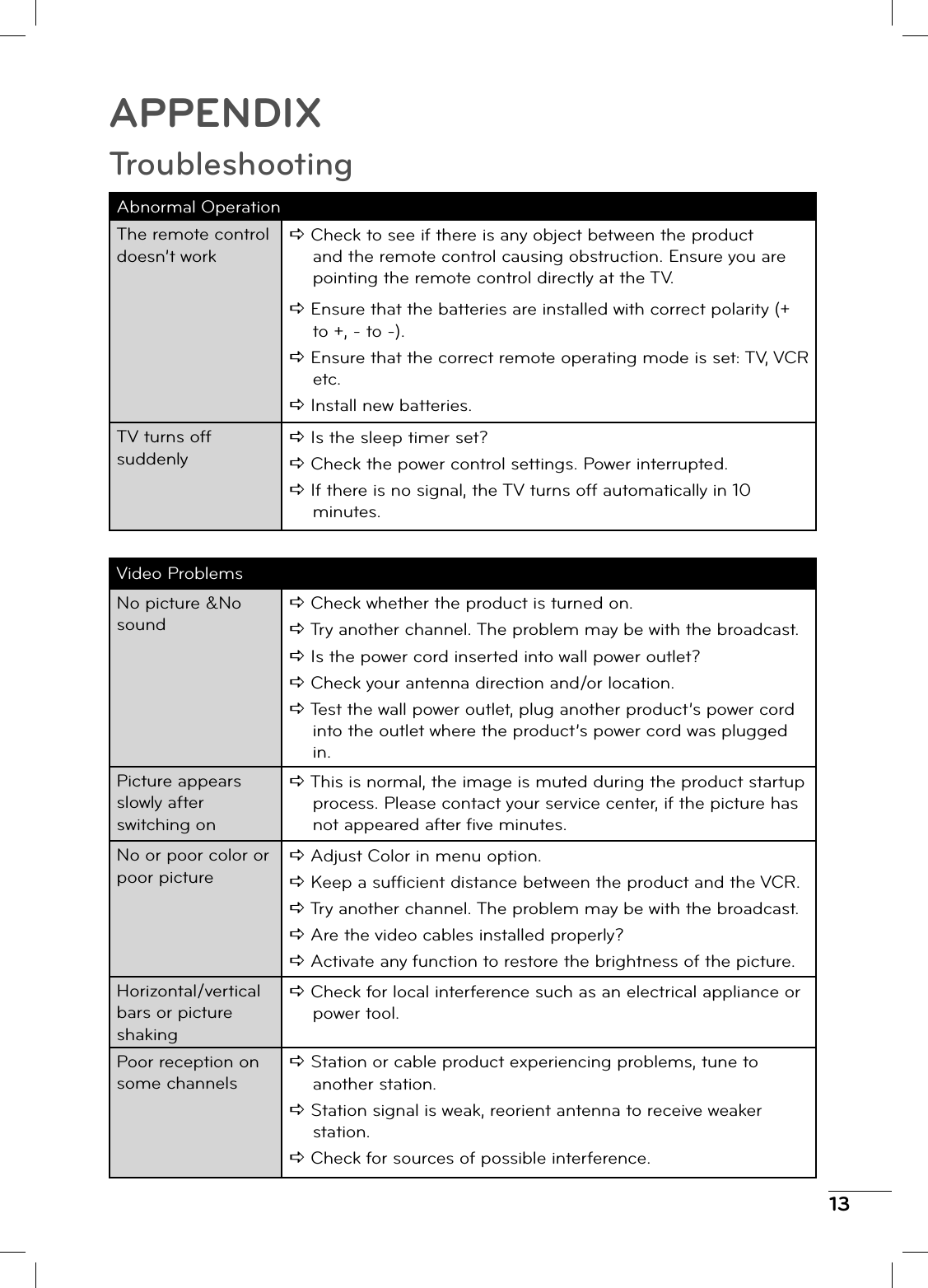

13APPENDIXTroubleshootingAbnormal OperationThe remote control doesn’t workD Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.D Ensure that the batteries are installed with correct polarity (+ to +, - to -).D Ensure that the correct remote operating mode is set: TV, VCR etc.D Install new batteries.TV turns off suddenlyD Is the sleep timer set?D Check the power control settings. Power interrupted.D If there is no signal, the TV turns off automatically in 10 minutes.Video ProblemsNo picture &No soundD Check whether the product is turned on.D Try another channel. The problem may be with the broadcast.D Is the power cord inserted into wall power outlet?D Check your antenna direction and/or location.D Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in.Picture appears slowly after switching onD This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after fi ve minutes.No or poor color or poor pictureD Adjust Color in menu option.D Keep a suffi cient distance between the product and the VCR.D Try another channel. The problem may be with the broadcast.D Are the video cables installed properly?D Activate any function to restore the brightness of the picture.Horizontal/vertical bars or picture shakingD Check for local interference such as an electrical appliance or power tool.Poor reception on some channelsD Station or cable product experiencing problems, tune to another station.D Station signal is weak, reorient antenna to receive weaker station.D Check for sources of possible interference.

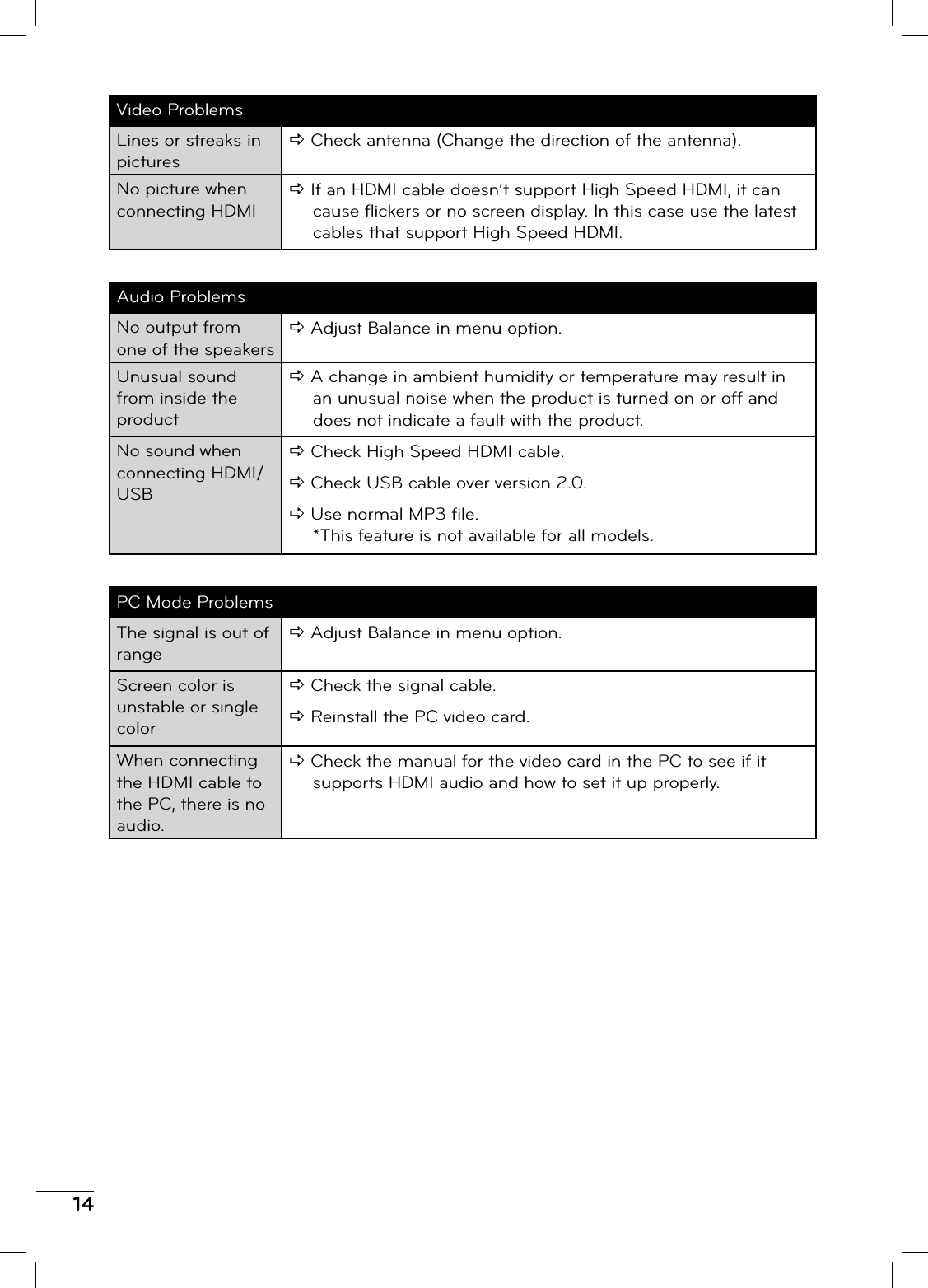

14Video ProblemsLines or streaks in picturesD Check antenna (Change the direction of the antenna).No picture when connecting HDMID If an HDMI cable doesn’t support High Speed HDMI, it can cause fl ickers or no screen display. In this case use the latest cables that support High Speed HDMI.Audio ProblemsNo output from one of the speakersD Adjust Balance in menu option.Unusual sound from inside the productD A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.No sound when connecting HDMI/USBD Check High Speed HDMI cable.D Check USB cable over version 2.0.D Use normal MP3 fi le. *This feature is not available for all models.PC Mode ProblemsThe signal is out of rangeD Adjust Balance in menu option.Screen color is unstable or single colorD Check the signal cable.D Reinstall the PC video card.When connecting the HDMI cable to the PC, there is no audio.D Check the manual for the video card in the PC to see if it supports HDMI audio and how to set it up properly.

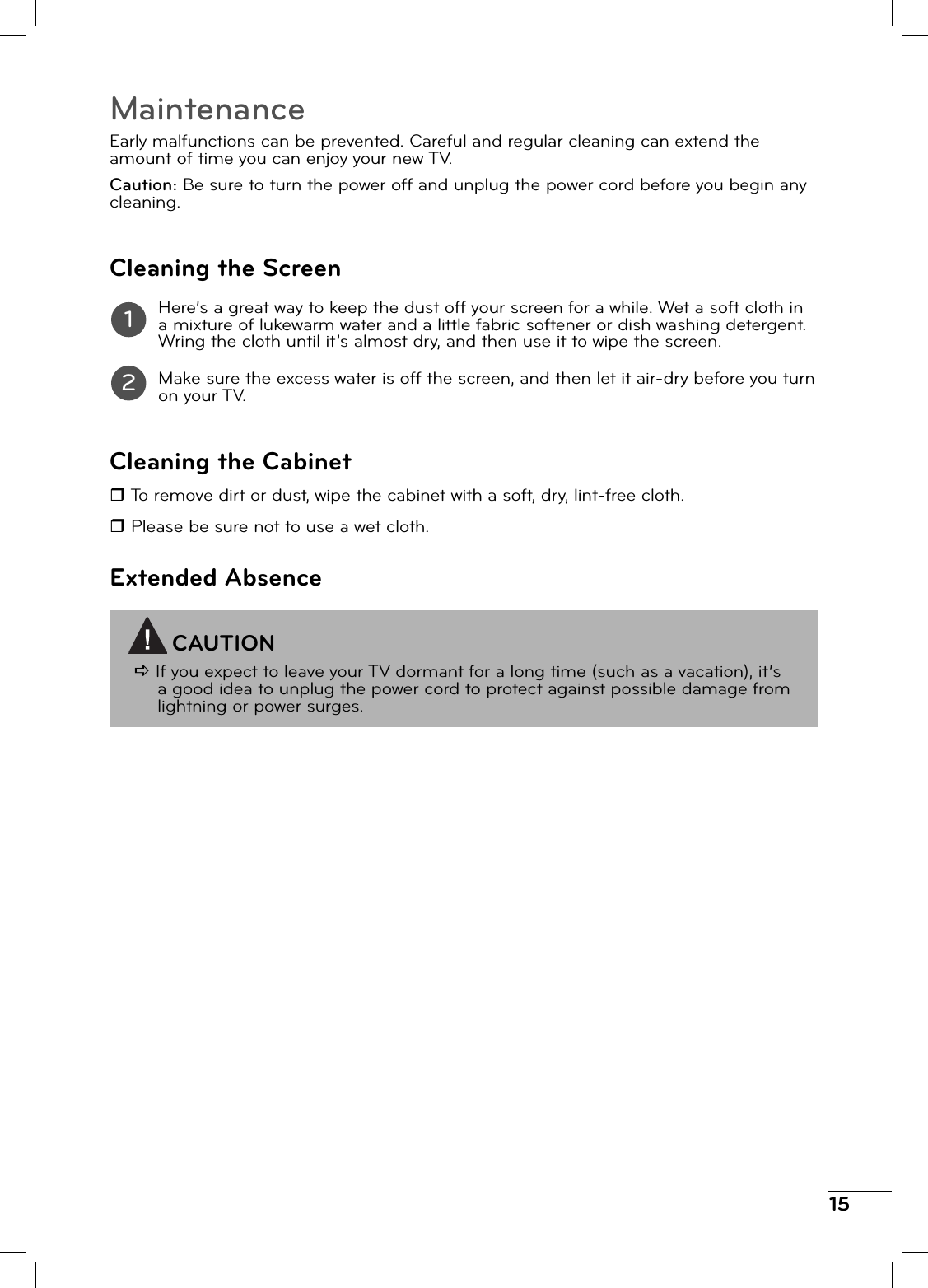

15MaintenanceEarly malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.Cleaning the ScreenHere’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.Cleaning the Cabinet To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.Extended AbsenceCAUTIOND If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.12
16Open Source Software NoticeThe following GPL executables and LGPL, MPL libraries used in this product are subject to the GPL2.0/LGPL2.1/MPL1.1 License Agreements:GPL EXECUTABLES:Linux kernel 2.6, busybox, e2fsprogs, jfsutils, lzo, msdl-1.1, mtd-utils, ntpclient, procps, udhcpcLGPL LIBRARIES:Atk, cairo, directFB, ffmpeg, glib, GnuTLS, gtk+, iconv, libintl, libgcrypt, libgpg-error, libsoup, libusb, pango, uClibc, webkitMPL LIBRARIES:Nanox, spidermonkeyLG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics :opensource@lge.comThis offer is valid for a period of three (3) years from the date of the distribution of this product by LG ElectronicsYou can obtain a copy of the GPL, LGPL, MPL licenses on the CD-ROM provided with this product.Also you can obtain the translation of GPL, LGPL licenses fromhttp://www.gnu.org/licenses/old-licenses/gpl-2.0-translations.html,http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.This product includes other open source software.Z boost C++: software developed by http://www.boost.org distributed under the Boost Software License, Version 1.0Z c-ares : copyright © 1998 by the Massachusetts Institute of TechnologyZ expat:- copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper- copyright © 2001-2007 Expat maintainers.Z fontconfi g: copyright © 2001, 2003 Keith PackardZ freetype: copyright © 2003 The FreeType Project (www.freetype.org).Z ICU: copyright © 1995-2008 International Business Machines Corporation and others.Z libcurl: copyright © 1996 - 2008, Daniel Stenberg.Z libjpeg: This software is based in part on the work of the Independent JPEG Group copyright © 1991 – 1998, Thomas G. Lane.Z libmng: copyright © 2000-2007 Gerard Juyn, Glenn Randers-PehrsonZ libpng: copyright © 1998-2008 Glenn Randers-PehrsonZ libupnp: copyright © 2000-2003 Intel CorporationZ libxml2 : copyright © 1998-2003 Daniel Veillard

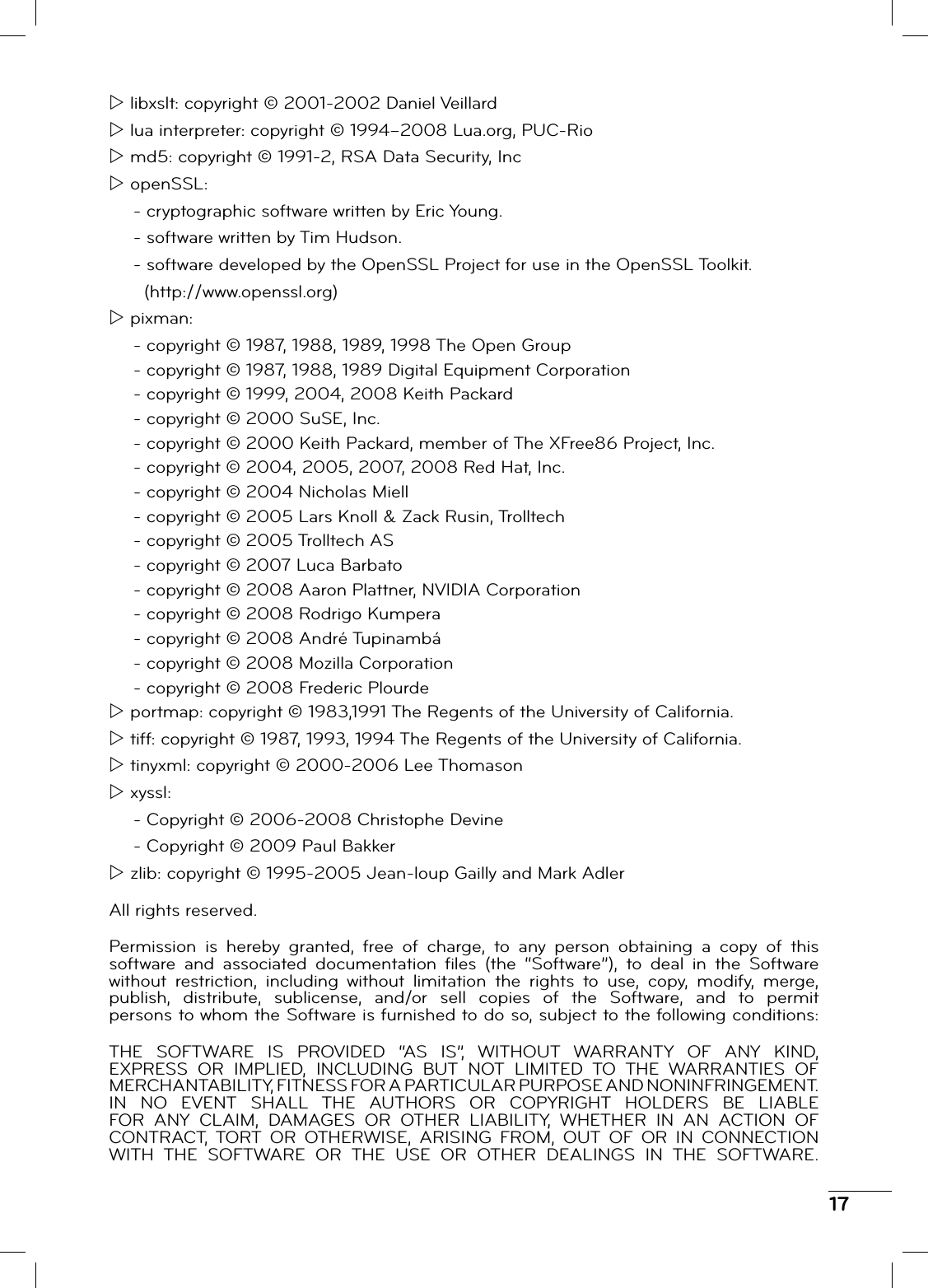

17Z libxslt: copyright © 2001-2002 Daniel VeillardZ lua interpreter: copyright © 1994–2008 Lua.org, PUC-RioZ md5: copyright © 1991-2, RSA Data Security, IncZ openSSL:- cryptographic software written by Eric Young.- software written by Tim Hudson.- software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)Z pixman:- copyright © 1987, 1988, 1989, 1998 The Open Group- copyright © 1987, 1988, 1989 Digital Equipment Corporation- copyright © 1999, 2004, 2008 Keith Packard- copyright © 2000 SuSE, Inc.- copyright © 2000 Keith Packard, member of The XFree86 Project, Inc.- copyright © 2004, 2005, 2007, 2008 Red Hat, Inc.- copyright © 2004 Nicholas Miell- copyright © 2005 Lars Knoll & Zack Rusin, Trolltech- copyright © 2005 Trolltech AS- copyright © 2007 Luca Barbato- copyright © 2008 Aaron Plattner, NVIDIA Corporation- copyright © 2008 Rodrigo Kumpera- copyright © 2008 André Tupinambá- copyright © 2008 Mozilla Corporation- copyright © 2008 Frederic PlourdeZ portmap: copyright © 1983,1991 The Regents of the University of California.Z tiff: copyright © 1987, 1993, 1994 The Regents of the University of California.Z tinyxml: copyright © 2000-2006 Lee ThomasonZ xyssl:- Copyright © 2006-2008 Christophe Devine- Copyright © 2009 Paul BakkerZ zlib: copyright © 1995-2005 Jean-loup Gailly and Mark AdlerAll rights reserved.Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation fi les (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

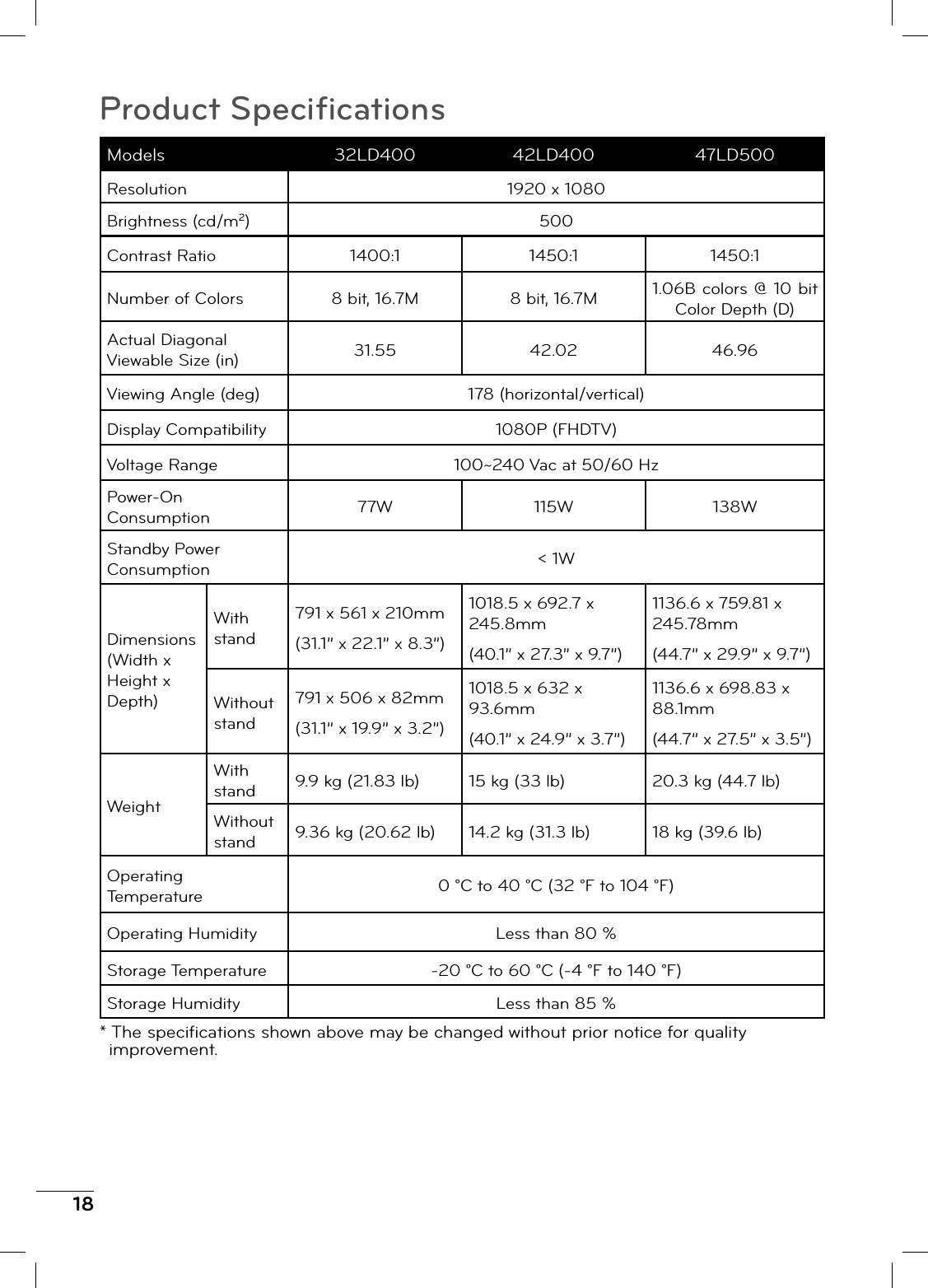

18Product Specifi cationsModels 32LD400 42LD400 47LD500Resolution 1920 x 1080Brightness (cd/m2)500Contrast Ratio 1400:1 1450:1 1450:1Number of Colors 8 bit, 16.7M 8 bit, 16.7M 1.06B colors @ 10 bit Color Depth (D)Actual Diagonal Viewable Size (in) 31.55 42.02 46.96Viewing Angle (deg) 178 (horizontal/vertical)Display Compatibility 1080P (FHDTV)Voltage Range 100~240 Vac at 50/60 HzPower-On Consumption 77W 115W 138WStandby Power Consumption < 1WDimensions (Width x Height x Depth)With stand791 x 561 x 210mm(31.1” x 22.1” x 8.3”)1018.5 x 692.7 x 245.8mm(40.1” x 27.3” x 9.7”)1136.6 x 759.81 x 245.78mm(44.7” x 29.9” x 9.7”)Without stand791 x 506 x 82mm(31.1” x 19.9” x 3.2”)1018.5 x 632 x 93.6mm(40.1” x 24.9” x 3.7”)1136.6 x 698.83 x 88.1mm(44.7” x 27.5” x 3.5”)WeightWith stand 9.9 kg (21.83 lb) 15 kg (33 lb) 20.3 kg (44.7 lb)Without stand 9.36 kg (20.62 lb) 14.2 kg (31.3 lb) 18 kg (39.6 lb)Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)Operating Humidity Less than 80 %Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)Storage Humidity Less than 85 %* The specifi cations shown above may be changed without prior notice for quality improvement.

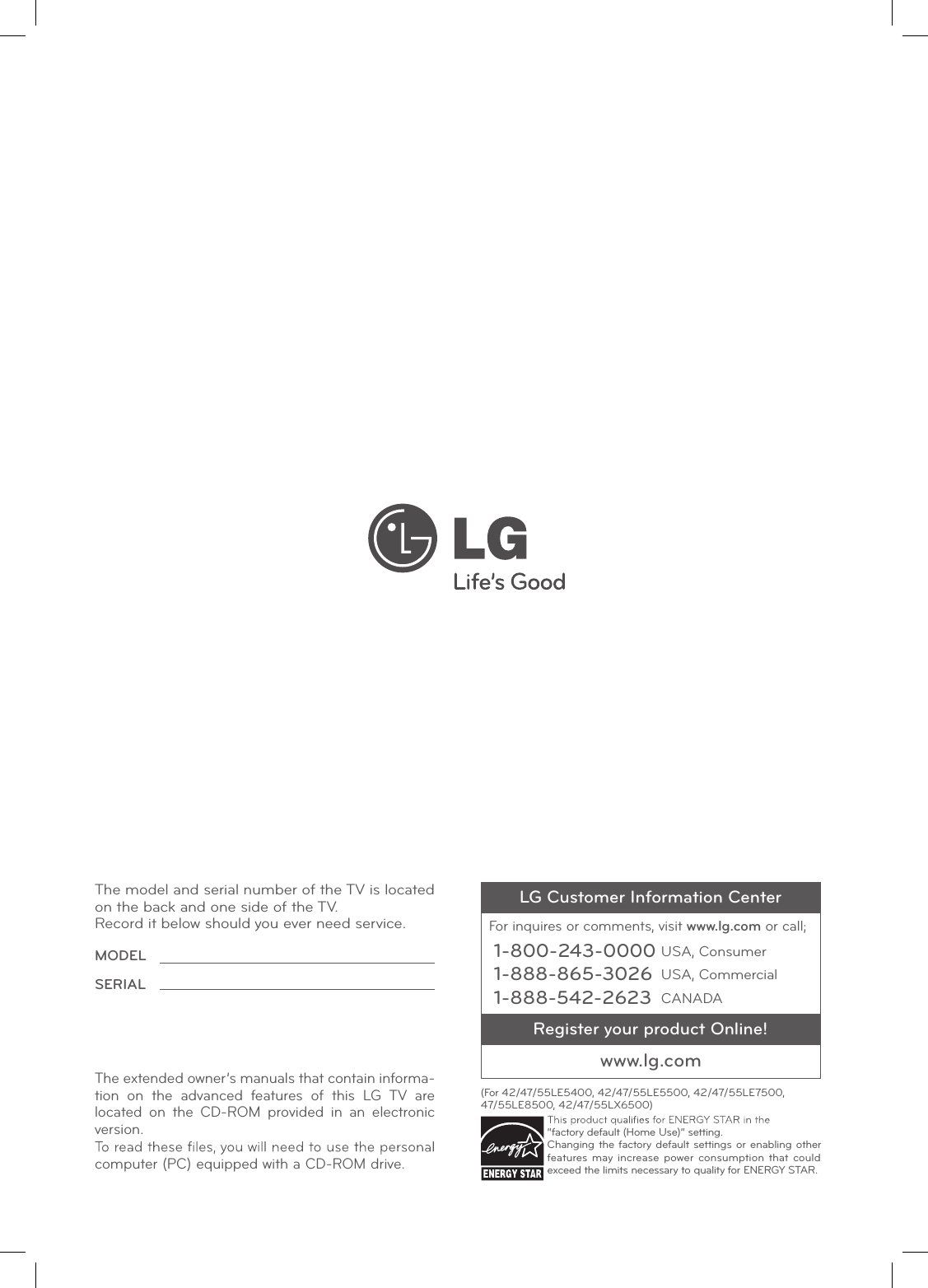

The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service.MODELSERIAL“factory default (Home Use)” setting.Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.(For 42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500, 42/47/55LX6500)The extended owner’s manuals that contain informa-tion on the advanced features of this LG TV are located on the CD-ROM provided in an electronic version.computer (PC) equipped with a CD-ROM drive.www.lg.com1-800-243-00001-888-865-30261-888-542-2623USA, ConsumerUSA, CommercialCANADAFor inquires or comments, visit www.lg.com or call;LG Customer Information CenterRegister your product Online!
