Operation/Reference Guide
Touch Panels

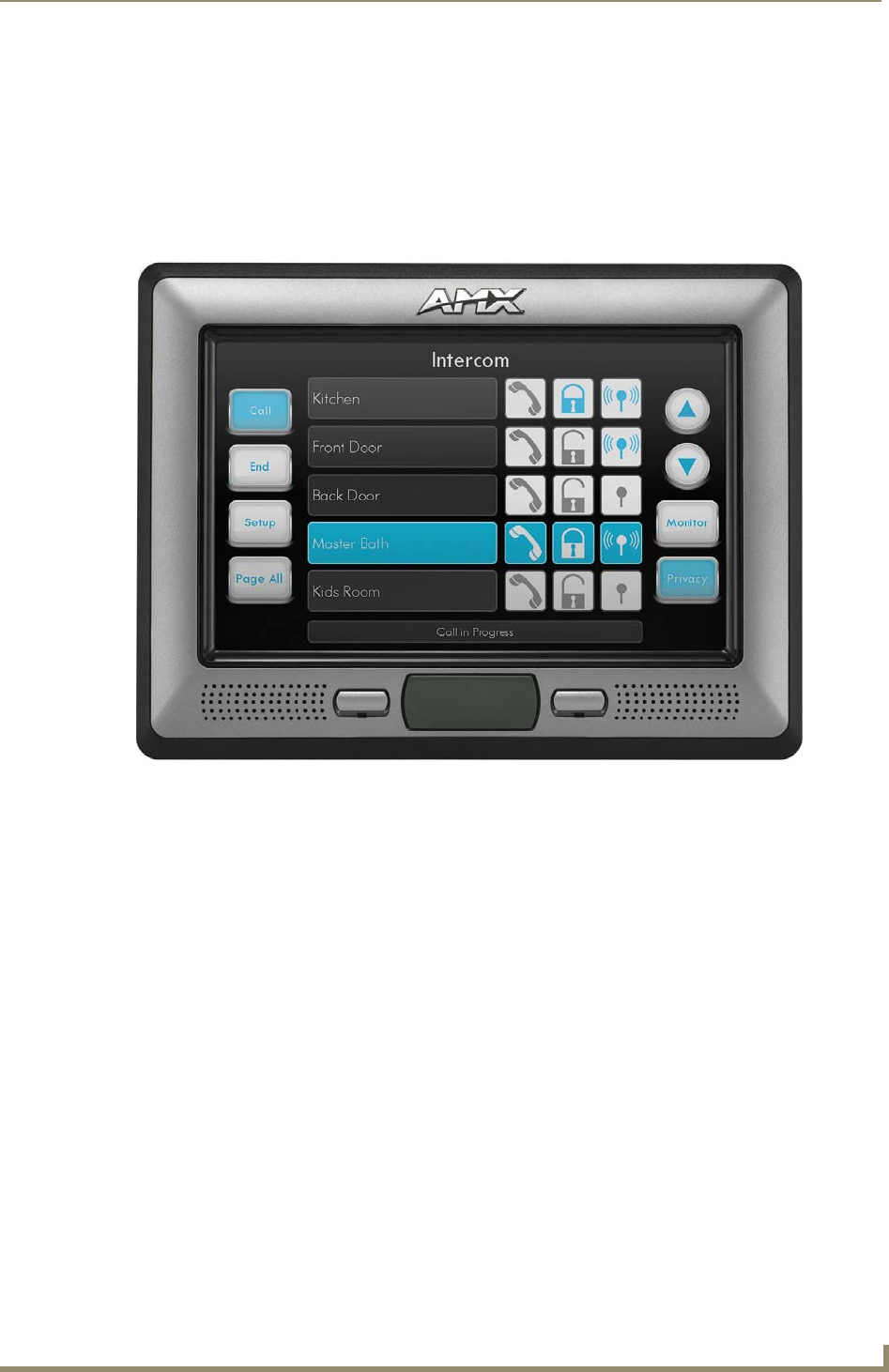

NXD-700Vi
7" Modero® Wall/Flush Mount
Touch Panel with Intercom
Last Revised: 4/1/2011
AMX Limited Warranty and Disclaimer
This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which
include AMX Dealers, Distributors, VIP’s or other AMX authorized entity.
AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of
purchase, with the following exceptions:
Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay compo-
nents are warranted for a period of one (1) year.
Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.
AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long
as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly con-
nected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combi-
nations of dimmers, lamps and ballasts or transformers.
AMX software is warranted for a period of ninety (90) days.
Batteries and incandescent lamps are not covered under the warranty.
AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in
materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the
date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited
Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it
within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The
life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty
applies to products in their original installation only. If a product is moved to a different installation, the Limited Lifetime Warranty
will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty.
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX
RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After
the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will
be refused. AMX is not responsible for products returned without a valid RMA number.
AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost
savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Autho-
rized Partner for a third party.
This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or
improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earth-
quake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts,
sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence.
This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including
negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by
any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the
possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.
Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of inci-
dental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not
apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state.
The owner is advised to consult applicable state laws for full determination of rights.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX
EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT
MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED
BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRAN-
TIES, PRICES, AND POLICIES WITHOUT NOTICE.
AMX Software License and Warranty Agreement
LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this
License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the
AMX Software. The AMX Software consists of generally available programming and development software, product documenta-
tion, sample applications, tools and utilities, and miscellaneous technical information. Please refer to the README.TXT file on
the compact disc or download for further information regarding the components of the AMX Software. The AMX Software is sub-
ject to restrictions on distribution described in this License Agreement. AMX Dealer, Distributor, VIP or other AMX authorized
entity shall not, and shall not permit any other person to, disclose, display, loan, publish, transfer (whether by sale, assignment,
exchange, gift, operation of law or otherwise), license, sublicense, copy, or otherwise disseminate the AMX Software. Licensee
may not reverse engineer, decompile, or disassemble the AMX Software.
ACKNOWLEDGEMENT. You hereby acknowledge that you are an authorized AMX dealer, distributor, VIP or other AMX autho-
rized entity in good standing and have the right to enter into and be bound by the terms of this Agreement.
INTELLECTUAL PROPERTY. The AMX Software is owned by AMX and is protected by United States copyright laws, patent
laws, international treaty provisions, and/or state of Texas trade secret laws. Licensee may make copies of the AMX Software
solely for backup or archival purposes. Licensee may not copy the written materials accompanying the AMX Software.
TERMINATION. AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REA-
SON UPON WRITTEN NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or
destroy all originals and copies of the AMX Software to AMX and certify in writing that all originals and copies have been
returned or destroyed.
PRE-RELEASE CODE. Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRE-
RELEASE CODE and such code may not be at the level of performance, compatibility and functionality of the GA code. The
PRE-RELEASE CODE may not operate correctly and may be substantially modified prior to final release or certain features may
not be generally released. AMX is not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS
PROVIDED "AS IS" WITH NO WARRANTIES.
LIMITED WARRANTY. AMX warrants that the AMX Software (other than pre-release code) will perform substantially in accor-
dance with the accompanying written materials for a period of ninety (90) days from the date of receipt. AMX DISCLAIMS ALL
OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE AMX SOFTWARE. THIS LIM-
ITED WARRANTY GIVES LICENSEE SPECIFIC LEGAL RIGHTS. Any supplements or updates to the AMX SOFTWARE,
including without limitation, any (if any) service packs or hot fixes provided to Licensee after the expiration of the ninety (90) day
Limited Warranty period are not covered by any warranty or condition, express, implied or statutory.
LICENSEE REMEDIES. AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Soft-
ware that does not meet AMX's Limited Warranty and which is returned to AMX in accordance with AMX's current return policy.
This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication. Any replace-
ment AMX Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer.
Outside the United States, these remedies may not available. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO
EVENT SHALL AMX BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES
FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS AMX SOFTWARE, EVEN IF AMX HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES/COUNTRIES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITA-
TION MAY NOT APPLY TO LICENSEE.
U.S. GOVERNMENT RESTRICTED RIGHTS. The AMX Software is provided with RESTRICTED RIGHTS. Use, duplication, or
disclosure by the Government is subject to restrictions as set forth in subparagraph ©(1)(ii) of The Rights in Technical Data and
Computer Software clause at DFARS 252.227-7013 or subparagraphs ©(1) and (2) of the Commercial Computer Software
Restricted Rights at 48 CFR 52.227-19, as applicable.
SOFTWARE AND OTHER MATERIALS FROM AMX.COM MAY BE SUBJECT TO EXPORT CONTROL. The United States
Export Control laws prohibit the export of certain technical data and software to certain territories. No software from this Site may
be downloaded or exported (i) into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran, Syria, or any other coun-
try to which the United States has embargoed goods; or (ii) anyone on the United States Treasury Department's list of Specially
Designated Nationals or the U.S. Commerce Department's Table of Deny Orders. AMX does not authorize the downloading or
exporting of any software or technical data from this site to any jurisdiction prohibited by the United States Export Laws.
This Agreement replaces and supersedes all previous AMX Software License Agreements and is governed by the laws of
the State of Texas, and all disputes will be resolved in the courts in Collin County, Texas, USA. For any questions concern-
ing this Agreement, or to contact AMX for any reason, please write: AMX License and Warranty Department, 3000 Research
Drive, Richardson, TX 75082.
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received; including interference
that may cause undesired operation.
Federal Communications Commission (FCC)
Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This
equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed an operated with a minimum distance of 20 centimeters between the radiator and your body.
Table of Contents
i
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Table of Contents
Introduction ........................................................................................................1
Common Application....................................................................................................... 1
Features .......................................................................................................................... 1
NXD-700Vi Specifications ......................................................................................... 4
NXD-700Vi Panels - Connector Layout ..................................................................... 7
NXA-AVB/ETHERNET Breakout Box ...................................................................9
Product Specifications ............................................................................................. 9
Installing the NXA-AVB/ETHERNET ........................................................................ 10
Wiring the NXA-AVB/ETHERNET Connectors And Cables...................................... 11
Wiring the NXA-AVB/ETHERNET for Unbalanced Audio ........................................ 12
Wiring the NXA-AVB/ETHERNET for Balanced Audio ............................................ 12
NXD-700Vi Touch Panel Accessories ................................................................13
Overview ................................................................................................................ 13
NXA-WC80211B/CF 802.11b Wireless Card (FG2255-03) ...................................... 13
NXA-WC80211GCF 802.11g Wireless Card (FG2255-07) ....................................... 14
NXA-CFSP Compact Flash (FG2116-7x) ............................................................19
Overview ................................................................................................................ 19
Installation and Upgrade of the Internal NXD Components .............................21
Overview ................................................................................................................ 21
Step 1: Remove the existing NXD Outer Housing .................................................. 21
Step 2: Install the new Compact Flash Memory card .............................................. 22
Step 3: Close and Re-secure the NXD Panel Enclosure........................................... 23
Installation ........................................................................................................25
Overview ................................................................................................................ 25
Installing the No-Button Trim Ring ......................................................................... 25
Installing the Button Trim Ring ............................................................................... 26
Pre-Wall Installation of the Conduit Box ................................................................. 28
Installation of an NXD Touch Panel......................................................................... 29
Installing the NXD panel within a Conduit Box ............................................................. 29
Installing the NXD into drywall using Expansion Clips .................................................. 30
Installing the NXD into a Flat Surface using #4 screws ................................................. 33
Installing an NXD-700Vi into an (optional) Rack Mount Kit (NXA-RK7) ......................... 34
Wiring Guidelines for the NXD-700Vi Panels.......................................................... 35
Preparing Captive Wires ............................................................................................... 35
Wiring a Power Connection........................................................................................... 36
Audio/Video Port: Connections and Wiring............................................................ 36
ii NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Table of Contents
Ethernet/RJ-45 Port: Connections and Wiring ........................................................ 37
USB Port: Connecting and Using Input Devices ...................................................... 37
Panel Calibration ..............................................................................................39
Overview ................................................................................................................ 39
Calibrating the Modero Panel................................................................................. 39
Testing your Calibration ................................................................................................ 40
If Calibration Is Not Working......................................................................................... 40
Configuring Communication .............................................................................41
Overview ................................................................................................................ 41
Modero Setup and System Settings ....................................................................... 41
Accessing the Setup and Protected Setup Pages.......................................................... 41
Setting the Panel’s Device Number............................................................................... 42
Wireless Settings Page - Wireless Access Overview ............................................... 42
Hot Swapping................................................................................................................ 42
Configuring a Wireless Network Access ................................................................. 43
Step 1: Configure the Panel’s Wireless IP Settings ................................................. 43
Wireless communication using a DHCP Address ........................................................... 43
Wireless communication using a Static IP Address........................................................ 44
Using the Site Survey tool ............................................................................................. 44
Step 2: Configure the Card’s Wireless Security Settings ........................................ 46
Configuring the Modero’s wireless card for unsecured access to a WAP200G ............. 46
Configuring the Modero’s wireless card for secured access to a WAP200G ................. 48
Automatically set SSID .................................................................................................. 48
Manually set SSID.......................................................................................................... 49
Configuring Multiple Wireless Moderos To Communicate To a Target WAP200G ....... 52
Step 3: Choose a Master Connection Mode ........................................................... 52
USB................................................................................................................................ 52
Prepare your PC for USB communication with the panel .............................................. 53
Configure the panel for USB communication ................................................................ 53

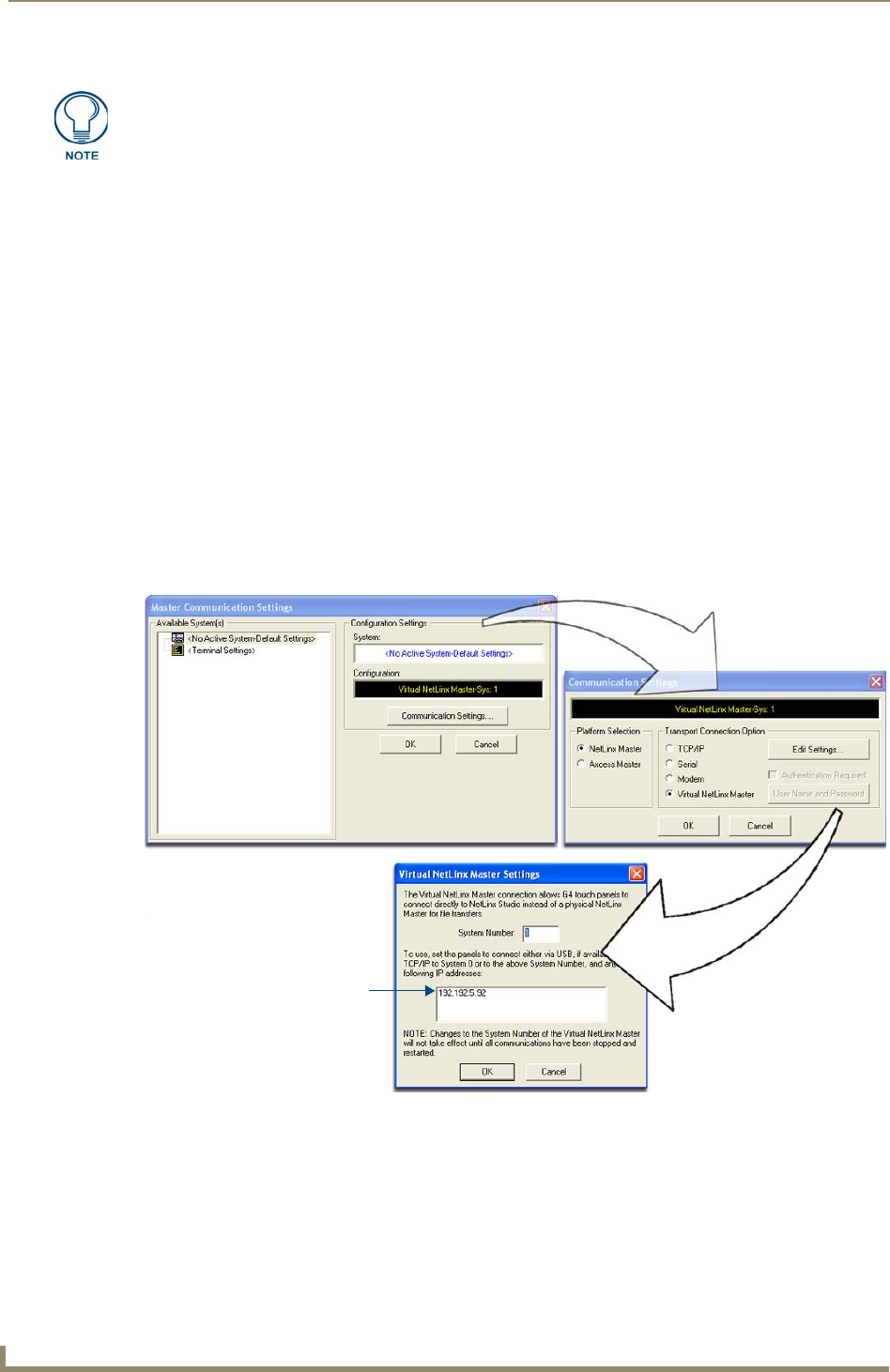

Configure a Virtual NetLinx Master using NetLinx Studio............................................. 54
Ethernet ........................................................................................................................ 55
Master Connection to a Virtual Master via Ethernet ..................................................... 56
Using G4 Web Control to Interact with a G4 Panel ................................................ 58
Using your NetLinx Master to control the G4 panel ............................................... 59
Upgrading Modero Firmware ...........................................................................63
Overview ................................................................................................................ 63
Upgrading the Modero Firmware via the USB port ................................................ 63
Step 1: Configure the panel for a USB Connection Type .............................................. 63
Step 2: Prepare NetLinx Studio for communication via the USB port ........................... 64
Table of Contents
iii
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Step 3: Confirm and Upgrade the firmware via the USB port....................................... 65
Upgrading the Modero Firmware via Ethernet (IP Address)................................... 67
Step 1: Prepare the Master for communication via an IP .............................................. 67
Step 2: Prepare the Panel For Communication Via an IP............................................... 68
Step 3: Verify and Upgrade the Panel Firmware Via an IP ............................................ 68
Firmware Pages and Descriptions ....................................................................71
Setup Navigation Buttons....................................................................................... 71
Protected Setup Page ................................................................................................... 71
Setup Page ............................................................................................................. 72
Information ............................................................................................................. 73
Project Information Page .............................................................................................. 74
Panel Information Page ................................................................................................. 75
Time & Date Settings Page ........................................................................................... 77
Audio Settings Page...................................................................................................... 78
Panel Sounds Information Popup Window .................................................................... 80
Supported sampling rates for WAV .............................................................................. 80
Video Settings Page...................................................................................................... 81
Protected Setup Navigation Buttons ...................................................................... 83
Protected Setup Page............................................................................................. 84
System Settings Page.................................................................................................... 86
Wireless Settings Page.................................................................................................. 88
Secondary Connection Page ......................................................................................... 91
Wireless Security Page .................................................................................................. 91
Open (Clear Text) Settings............................................................................................ 92
Static WEP Settings....................................................................................................... 93
WPA-PSK Settings......................................................................................................... 95
EAP-LEAP Settings ........................................................................................................ 97
EAP-FAST Settings ........................................................................................................ 98
EAP-PEAP Settings...................................................................................................... 100
EAP-TTLS Settings....................................................................................................... 102
EAP-TLS Settings......................................................................................................... 104
Client certificate configuration.................................................................................... 106
Calibration Page.......................................................................................................... 107
G4 Web Control Page ................................................................................................. 108
Sensor Setup ............................................................................................................... 110
Making the Most of the Automated Brightness Control Feature (DIM Mode) ............ 112
Other Settings ...................................................................................................... 113
Image Caching Page.................................................................................................... 114
Setting the image cache.............................................................................................. 116
Clearing the image cache............................................................................................ 116
iv NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Table of Contents
Checking image cache status ...................................................................................... 116
Password Setup Page.................................................................................................. 116
SIP Settings Page ........................................................................................................ 117
Tools ..................................................................................................................... 119
Panel Logs Page .......................................................................................................... 119
Checking the Panel Connection Logs .......................................................................... 120
Refreshing the Panel Connections Log ........................................................................ 120
Clearing the Panel Connections Log............................................................................ 120
Panel Statistics Page ................................................................................................... 120
Checking the Panel Statistics....................................................................................... 122
Refreshing the Panel Statistics .................................................................................... 122
Clearing the Panel Statistics ........................................................................................ 122
Connection Utility Page............................................................................................... 122
Using the Connection Utility........................................................................................ 124
EAP Security & Server Certificates .................................................................125
Overview .............................................................................................................. 125
Full Duplex Intercom ......................................................................................127
Overview .............................................................................................................. 127
Incorporating an intercom capable panel into your NetLinx
system................................................................................................................ 127
Panel Intercom Configuration ............................................................................... 127
Setup........................................................................................................................... 127
Setting the Intercom Session Timeout......................................................................... 128
Setting Intercom Auto Answer .................................................................................... 128
Advanced Setup .......................................................................................................... 128
Allowing a panel to be monitored............................................................................... 129
Allowing a panel to monitor........................................................................................ 129
Naming a panel ........................................................................................................... 129
Sample Intercom Page .......................................................................................... 130
Answering an incoming call ......................................................................................... 132
Creating Intercom Pages ...................................................................................... 133
Programming ..................................................................................................135
Overview .............................................................................................................. 135
Button Assignments ............................................................................................. 135
Page Commands ................................................................................................... 135
@APG...................................................................................................................................... 135
@CPG...................................................................................................................................... 135
@DPG...................................................................................................................................... 136
@PDR ...................................................................................................................................... 136
@PHE ...................................................................................................................................... 136
@PHP ...................................................................................................................................... 136
Table of Contents
v
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
@PHT....................................................................................................................................... 136
@PPA....................................................................................................................................... 137
@PPF ....................................................................................................................................... 137
@PPG....................................................................................................................................... 137
@PPK ....................................................................................................................................... 137
@PPM ...................................................................................................................................... 138
@PPN....................................................................................................................................... 138
@PPT ....................................................................................................................................... 138
@PPX ....................................................................................................................................... 138
@PSE ....................................................................................................................................... 139
@PSP ....................................................................................................................................... 139
@PST ....................................................................................................................................... 139
PAGE....................................................................................................................................... 139
PPOF ....................................................................................................................................... 140
PPOG....................................................................................................................................... 140
PPON ...................................................................................................................................... 140
Programming Numbers......................................................................................... 141
RGB Triplets And Names For Basic 88 Colors ............................................................ 141
Font Styles and ID Numbers ....................................................................................... 143
Border Styles and Programming Numbers.................................................................. 143
"^" Button Commands ......................................................................................... 146
^ANI........................................................................................................................................ 146
^APF ....................................................................................................................................... 146
^BAT ....................................................................................................................................... 146
^BAU....................................................................................................................................... 147
^BCB ....................................................................................................................................... 147
^BCF ....................................................................................................................................... 147
^BCT ....................................................................................................................................... 148
^BDO ...................................................................................................................................... 148
^BFB........................................................................................................................................ 148
^BIM........................................................................................................................................ 149
^BLN ....................................................................................................................................... 149
^BMC ...................................................................................................................................... 149
^BMF....................................................................................................................................... 150
^BMI........................................................................................................................................ 152
^BML....................................................................................................................................... 152
^BMP ...................................................................................................................................... 152
^BNC....................................................................................................................................... 152
^BNN ...................................................................................................................................... 152
^BNP....................................................................................................................................... 153
^BNT ....................................................................................................................................... 153
^BOP....................................................................................................................................... 153
^BOR....................................................................................................................................... 154
^BOS....................................................................................................................................... 154
^BPP........................................................................................................................................ 154
^BRD ....................................................................................................................................... 154
^BSF........................................................................................................................................ 155
^BSM....................................................................................................................................... 155
vi NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Table of Contents
^BSO ...................................................................................................................................... 155
^BSP ....................................................................................................................................... 155
^BVL ....................................................................................................................................... 156
^BVN ...................................................................................................................................... 156
^BVP....................................................................................................................................... 156
^BVT ....................................................................................................................................... 156
^BWW..................................................................................................................................... 156
^CPF ....................................................................................................................................... 157
^DPF....................................................................................................................................... 157
^ENA ...................................................................................................................................... 157
^FON...................................................................................................................................... 157
^GDI ....................................................................................................................................... 158
^GIV........................................................................................................................................ 158
^GLH ...................................................................................................................................... 158
^GLL ....................................................................................................................................... 158
^GRD ...................................................................................................................................... 158
^GRU ...................................................................................................................................... 159
^GSC ...................................................................................................................................... 159
^GSN ...................................................................................................................................... 159
^ICO ....................................................................................................................................... 160
^JSB........................................................................................................................................ 160
^JSI......................................................................................................................................... 160
^JST........................................................................................................................................ 161
^MBT ...................................................................................................................................... 161
^MDC ..................................................................................................................................... 161
^SHO ...................................................................................................................................... 161
^SKT ....................................................................................................................................... 162
^TEC ....................................................................................................................................... 162
^TEF ....................................................................................................................................... 162
^TXT ....................................................................................................................................... 162
Text Effects Names............................................................................................... 163
^UNI ....................................................................................................................................... 163
Button Query Commands ..................................................................................... 164
?BCB ....................................................................................................................................... 165
?BCF ....................................................................................................................................... 165
?BCT ....................................................................................................................................... 166
?BMP ...................................................................................................................................... 166
?BOP....................................................................................................................................... 167
?BRD ....................................................................................................................................... 167
?BWW ..................................................................................................................................... 168
?FON ...................................................................................................................................... 168
?ICO........................................................................................................................................ 169
?JSB ........................................................................................................................................ 169
?JSI ......................................................................................................................................... 170
?JST ........................................................................................................................................ 170
?TEC........................................................................................................................................ 171
?TEF........................................................................................................................................ 171
Panel Runtime Operations .................................................................................... 172
ABEEP..................................................................................................................................... 172
Table of Contents
vii
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
ADBEEP................................................................................................................................... 172
?TXT ........................................................................................................................................ 172
@AKB ...................................................................................................................................... 173
AKEYB ..................................................................................................................................... 173
AKEYP ..................................................................................................................................... 173
AKEYR ..................................................................................................................................... 173
@AKP....................................................................................................................................... 173
@AKR ...................................................................................................................................... 174
BEEP........................................................................................................................................ 174
BRIT......................................................................................................................................... 174
@BRT ....................................................................................................................................... 174
DBEEP ..................................................................................................................................... 174
@EKP ....................................................................................................................................... 174
PKEYP ..................................................................................................................................... 175
@PKP ....................................................................................................................................... 175
SETUP...................................................................................................................................... 175
SHUTDOWN............................................................................................................................ 175
SLEEP ...................................................................................................................................... 175
@SOU ...................................................................................................................................... 175
@SSL........................................................................................................................................ 176
@SST........................................................................................................................................ 176
@SWK...................................................................................................................................... 176
@TKP ....................................................................................................................................... 176
^TNC....................................................................................................................................... 176
TPAGEON ............................................................................................................................... 176
Input Commands................................................................................................... 177
^CAL ....................................................................................................................................... 177
^KPS........................................................................................................................................ 177
TPAGEOFF .............................................................................................................................. 177
@VKB....................................................................................................................................... 177
WAKE ...................................................................................................................................... 177
^MBT....................................................................................................................................... 178
^MDC...................................................................................................................................... 178
^MPS....................................................................................................................................... 178
^TPS........................................................................................................................................ 178
^VKS ....................................................................................................................................... 178
Embedded Codes ................................................................................................. 179
Panel Setup Commands ........................................................................................ 180
CLOCK..................................................................................................................................... 180
^CFE........................................................................................................................................ 180
^CPR ....................................................................................................................................... 180
^CFS........................................................................................................................................ 180
^CFSM..................................................................................................................................... 181
^CEX ....................................................................................................................................... 181
^DLD ....................................................................................................................................... 181
@PWD ..................................................................................................................................... 181
^PWD...................................................................................................................................... 181
Dynamic Image Commands................................................................................... 182
viii NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Table of Contents
^BBR....................................................................................................................................... 182
^RAF....................................................................................................................................... 182
^RFR ....................................................................................................................................... 182
@RPP....................................................................................................................................... 182
^RAF, ^RMF - Embedded Codes ................................................................................ 183
^RMF ...................................................................................................................................... 183
^RSR ....................................................................................................................................... 183
Escape Sequences ....................................................................................................... 184
$DV......................................................................................................................................... 184
$SY.......................................................................................................................................... 184
$IP........................................................................................................................................... 184
$HN ........................................................................................................................................ 184
$MC ........................................................................................................................................ 184
$ID .......................................................................................................................................... 184
$PX ......................................................................................................................................... 184
$PY ......................................................................................................................................... 184
$ST.......................................................................................................................................... 184
$AC......................................................................................................................................... 184
$AP ......................................................................................................................................... 184
$CC ......................................................................................................................................... 184
$CP ......................................................................................................................................... 184
$LC.......................................................................................................................................... 184
$LP.......................................................................................................................................... 184
$BX ......................................................................................................................................... 184
$BY ......................................................................................................................................... 184
$BN......................................................................................................................................... 184
Intercom Commands ............................................................................................. 185
^ICE ........................................................................................................................................ 185
^ICM ....................................................................................................................................... 185
^ICM-MUTEMIC ...................................................................................................................... 185
SIP Commands ...................................................................................................... 186
^PHN-AUTOANSWER............................................................................................................. 186
^PHN-CALL............................................................................................................................. 186
^ICS ........................................................................................................................................ 186
^MODEL? ............................................................................................................................... 186
^PHN-INCOMING ................................................................................................................... 187
^PHN-LINESTATE ................................................................................................................... 187
^PHN-MSGWAITING .............................................................................................................. 187
^PHN-PRIVACY....................................................................................................................... 187
^PHN-REDIAL ......................................................................................................................... 187
^PHN-ANSWER ...................................................................................................................... 188
^PHN-AUTOANSWER............................................................................................................. 188
?PHN-AUTOANSWER ............................................................................................................. 188
^PHN-CALL............................................................................................................................. 188
^PHN-DECLINE....................................................................................................................... 188
^PHN-DTMF ........................................................................................................................... 188
^PHN-TRANSFERRED ............................................................................................................. 188
^PHN-HANGUP ...................................................................................................................... 189
^PHN-HOLD ........................................................................................................................... 189
Table of Contents
ix
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
?PHN-LINESTATE .................................................................................................................... 189
^PHN-PRIVACY ....................................................................................................................... 189
?PHN-PRIVACY........................................................................................................................ 189
^PHN-REDIAL.......................................................................................................................... 189
^PHN-TRANSFER .................................................................................................................... 189
^PHN-SETUP-DOMAIN ........................................................................................................... 190
^PHN-SETUP-ENABLE............................................................................................................. 190
^PHN-SETUP-PASSWORD....................................................................................................... 190
^PHN-SETUP-PORT ................................................................................................................. 190
^PHN-SETUP-PROXYADDR ..................................................................................................... 190
^PHN-SETUP-STUNADDR ....................................................................................................... 190
^PHN-SETUP-USERNAME ....................................................................................................... 190
Appendix A: Text Formatting .........................................................................191
Text Formatting Codes for Bargraphs/Joysticks................................................... 191
Text Area Input Masking....................................................................................... 192
Input mask character types ......................................................................................... 192
Input mask ranges ....................................................................................................... 193
Input mask next field characters ................................................................................. 193
Input mask operations................................................................................................. 193
Input mask literals ....................................................................................................... 193
Input mask output examples ....................................................................................... 194
URL Resources ...................................................................................................... 194
Special escape sequences ........................................................................................... 195
Appendix B - Wireless Technology .................................................................197
Overview of Wireless Technology......................................................................... 197
Terminology.......................................................................................................... 198
EAP Authentication............................................................................................... 201
EAP characteristics ...................................................................................................... 201
EAP communication overview ..................................................................................... 202
AMX Certificate Upload Utility ............................................................................. 203
Configuring your G4 Touch Panel for USB Communication .................................. 203
Step 1: Setup the Panel and PC for USB Communication ........................................... 203
Step 2: Confirm the Installation of the USB Driver on the PC ..................................... 204
How to Upload a Certificate File .......................................................................... 205
Appendix C: Troubleshooting ........................................................................207
x NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Table of Contents
Introduction
1
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Introduction
The NXD-700Vi is an incredibly versatile user interface, combining a sleek, compact size, Wall/Flush Mount
flexibility and the ability to create a high quality digital home/office intercom network or to make/receive
digital local, long distance and international telephone calls. Simply add the AMX SIP Communications
Gateway (FG2182-0x) for calls that sound incredibly clear.
Common Application
At just 7 inches in size, the NXD-700Vi is perfect for wall/flush mount control of a variety of devices in
bedrooms, bathrooms, kitchens, podiums and other surface mount locations.
Features
-7" active-matrix TFT with 16:9 Aspect Ratio
-Screen Resolution (HV): 800 x 480 pixels with Anti-glare Overlay
-Display colors: 256 K (18 bit color depth)
-Intercom with VoIP technology
-Full duplex audio built-in speaker and microphone
-G.711 telephone-voice-quality sound (70 dB SPL @ 1 meter)
-Supports analog stereo audio, Composite Video and S-Video
-Composite/S-Video inputs via NXA-AVB/Ethernet Breakout Box
-64 MB SDRAM / 512 MB Compact Flash Memory or more
-802.11g WiFi for two-way network communications (optional)
-Two bezels included: with and without tactile buttons
-Motion Sensor and Light sensor
FIG. 1 NXD-700Vi
Introduction
2NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
These Color Video (CV) panels display NTSC/PAL/SECAM video formats within variable sized windows.
They include a built-in microphone, speaker, audio/headphone connector, and six NetLinx programmable
pushbuttons (available on NXD models only when mounted with included Button Trim Ring).
Each panel is sold only as part of a kit which includes both a panel and an NXA-AVB/ETHERNET Audio/
Video Breakout Box (FG2254-10). This box facilitates the installation and distribution of video (either
Composite or S-Video), data (via Ethernet), and audio to Modero touch panels located up to 200 feet (60.96 m)
from the breakout box. NXD-700Vi panels are ideally suited for displaying full motion video and audio with
overlay graphics for applications with demanding visual requirements.
Key features common to both panels include:
-NXD-700Vi panels are based on the latest display technology and support AMX's 4th generation
(G4) graphics which provide higher brightness, richer colors, and deeper contrast. The new G4
graphics technology is supported by the latest AMX TPDesign4 Touch Panel Design program
(version 2.6 or higher).
-NXD-700Vi panels display eye-catching images and full-motion video on a large 16:9 image
format, while providing a wide 100-degree top-to-bottom viewing angle.
-NXD-700Vi panels feature a front panel light sensor, motion sensor, IR receiver and a Sleep/Setup
Access combo button.
-NXD-700Vi panels support AMX Computer Control, which enables remote viewing and control of
any networked computer directly from the panel. This gives the user the ability to launch digital
music from a PC, cruise the Internet, check and respond to E-mail, open software files, and launch
applications. Anything you can do on your PC can be accomplished through these panels.
-The wireless solution includes an NXA-WC80211GCF internal Wi-Fi card (FG2255-07) that
allows the NXD-700Vi to communicate with a NetLinx Master via a standard 802.11g Wireless
Access Point.
-NXD-700Vi panels feature programmable firmware that can be upgraded via either the Ethernet
port, wireless interface card, or the mini-USB port.
NXD-700Vi Widescreen Video Touch Panel Kit
NXD-700Vi
(FG2258-04K)
7" Widescreen Color Video Wall Mount Touch Panel Kit (with buttons)
(includes both an NXD panel and an NXA-AVB/ETHERNET A/V Breakout Box).
The NXD-700Vi panel (FG2258-04) is shipped, by default with a Trim Ring containing
buttons, but the end user can later install the included Trim Ring without button
openings.
Introduction
3
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
The NXD-700Vi comes with a standard silver bezel (FIG. 1), but the device is also available with the optional
Mystique-style bezel (FIG. 3). The NXXD-700Vi may be ordered with the bezel already installed, or the bezel
may be purchased separately to update the device to the latest Mystique style.
FIG. 2 NXD-700Vi (front views)
FIG. 3 NXD-700Vi with optional black Mystique-style bezel
Mystique Style Bezels
Bezel Part Number
NXD-700Vi 7" Modero Wall/Flush Mount Touch Panel with White Mystique-Style Bezel FG2258-08K
NXD-700Vi 7" Modero Wall/Flush Mount Touch Panel with Black Mystique-Style Bezel FG2258-07K
NXA-BEZ700-WH, White Bezel FG2258-49
NXA-BEZ700-BL, Black Bezel FG2258-48
Sleep button
Programmable pushbutton/LED
Programmable pushbutton/LED
Speaker
Microphone
Sleep button
Microphone Speaker
Trim ring - 60-2258-26Trim ring - 60-2258-25
Introduction
4NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXD-700Vi Specifications
The following table outlines the specifications for the 7" Widescreen Modero panels.
Product Specifications
Dimensions (HWD): NXA-RK7: metal rack-mount with black matte finish:
(4 RU - rack units high)
6.97" x 19.0" x 0.50" (17.70 cm x 48.26 cm x 1.27 cm)
NXD-700Vi (with faceplate): 5.93" x 7.87" x 3.28"
(15.06 cm x 20.00 cm x 8.33 cm)
CB-TP7 Conduit/Wallbox (optional): 5.47" x 7.23" x 3.40"
(13.90 cm x 18.40 cm x 8.64 cm)
Power Requirements
(stand-alone NXD-700Vi): Constant current draw: 1.1 A @ 12 VDC (stand-alone)
Startup current draw: 1.6 A @ 12 VDC (stand-alone)
Memory (factory default): 64 MB SDRAM
128 MB Compact Flash (upgradeable to 1 GB - factory programmed)
Weight (stand-alone): NXD-700Vi: 4.12 lbs (1.87 kg)
Certifications: FCC Part 15 Class B and CE
• IEC60950
Panel LCD Parameters: Aspect ratio: 16 x 9
Brightness (luminance): 350 cd/m2
Channel transparency: 8-bit Alpha blending
Contrast ratio: 200:1
Display colors: 256 thousand colors (18-bit color depth)
Dot/pixel pitch: 0.19 mm
Panel type: TFT Color Active-Matrix
Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
Video format: NTSC, PAL, and SECAM
Viewing angles (100° total viewing angle):
Vertical: + 50° (up from center) and - 50° (down from center)
Active Screen Area: 6.00" x 3.60" (15.24cm x 9.14cm)
IR Reception Angle: Horizontal: + 50° (left and right from center)
Vertical: + 30° (up and down from center)
Supported Audio Sample
Rates: 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz,
11025Hz, and 8000Hz.
Front Panel Components:
Light sensor: Photosensitive light detector for automatic adjustment of the panel brightness
(a dim room results in a dimmer LCD display, and a bright room results in a
brighter LCD display).
Note: The light sensor can be adjusted via the Sensor Setup page (page 110).
Motion sensor (PIR): Proximity Infrared Detector to wake the panel when the panel is approached.
Activation range: + 45° (left and right from center) and + 20° (up and down
from center).
Note: This sensor can be adjusted via the Sensor Setup page (see page 110).
IR Receiver: IR reception: 38 KHz IR frequency.
The IR receiver is located beneath the translucent Front Setup button. When
an IR code is detected it is sent to the NetLinx Master as a push on the
appropriate AMX IR channel.
IR receivers and transmitters on G4 panels share the device address number
of the panel.
Introduction
5
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Product Specifications (Cont.)
Side Panel Components:
Front setup access button: Provides both access to the Setup and Calibration page and toggles the
panel between a "sleep" or "wake" state.
- When wired, "sleep" status means the backlight is Off.
- When battery operated, wireless "sleep" status means the touch panel
base is either Off or "suspended".
Microphone: Used for intercom applications
(requires the NXA-AVB/ETHERNET Breakout Box for analog
communication)
Speaker: Single 2 watt speaker
LEDs 2 blue LEDs (support On and Off)
- Both the LEDs and pushbuttons are only available when using the default
Button Trim Ring on the NXD panel.
Buttons 2 programmable pushbuttons
Mini-USB connector: 5-pin Mini-USB connector used for programming, firmware update, and touch
panel file transfer between the PC and the target panel.
Note: When connecting the panel to PC using a CC-USB (or compatible)
cable, be sure to power the panel On before attempting to connect the USB
cable from the PC to the mini-USB port on the panel.
Stereo Output connector: Stereo output through a 3.5mm mini-jack (for use with external speakers or
headphones).
Ethernet 10/100 port: RJ-45 port for 10/100 Mbps communication. The Ethernet port automatically
negotiates the connection speed (10 Mbps or 100 Mbps), and whether to use
half duplex or full duplex mode.
NXD-700Vi panels communicate with the NetLinx Master using the ICSP
protocol over Ethernet.
Ethernet 10/100 LEDs: LEDs show communication activity and connection information:
A-activity - Yellow LED lights when receiving or transmitting Ethernet data
packets.
L-link - Green LED lights when the Ethernet cables are connected and
terminated correctly.
USB connector: Type-A USB port can connect an external keyboard or mouse device for use
with Virtual PC applications.
Note: External USB input devices (keyboard or mouse) must be plugged into
the rear/side USB connector before the unit is powered-up. The panel will not
detect these USB input devices until the unit cycles power.
Audio/Video connector: RJ-45 connector for communication of differential audio/video signals
to/from the touch panel (panel type dependant). This connector receives
Composite video, Stereo (left/right) audio, and microphone audio.
Video is received via the NXA-AVB/ETHERNET Breakout Box. Configuring
video windows for playback is done using TPDesign4.
In-bound audio (from the breakout box) gets directed to the speakers.
Out-bound audio is sent from the on-board microphone (on the
front-panel). Selecting audio files for playback is configured through
TPDesign4.
PWR connector: 2-pin 3.5 mm mini-Phoenix connector.
Button Assignments: Button assignments can only be adjusted in TPD4 and not on the panels.
Button channel range: 1 - 4000 button push and feedback (per address port)
Button variable text range: 1 - 4000 (per address port)
Button states range: 1 - 256 (General Button; 1 = Off State, 2 = On State)
Level range: 1 - 600 (default level value 0-255, can be set up to 1-65535)
Address port range: 1 - 100
Introduction
6NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Product Specifications (Cont.)
Operating / Storage
Environment: Operating Temperature: 0° C (32° F) to 40° C (104° F)
Operating Humidity: 20% - 85% RH
Storage Temperature: -20° C (-4° F) to 60° C (140° F)
Storage Humidity: 5% - 85% RH
Included Accessories: Installation Kit for 7" NXD panels (KA2258-02) includes:
- 2-pin 3.5 mm mini-Phoenix connector (41-5025)
- Three Drywall clips (62-5924-05) and #6 - sheet metal screws
- Four Phillips-head screws (#4-40 x 0.250 Black)
NXA-AVB/ETHERNET Breakout Box (FG2254-10): Provides video/audio
distribution to the A/V panel over CAT5 cable (up to 200’/60.96m) and
accepts either Composite or S-Video.
- Although the NXD-700Vi is only sold as part of a KIT configuration, the
breakout box can be purchased as a separate accessory.
Trim Ring with button openings (60-2258-26)
Trim Ring without button openings (60-2258-25)
Other AMX Equipment: •CB-TP7 (FG035-10)
- 7" metallic conduit box for Wall Mount installations.
CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965)
NXA-RK7 (FG2904-53)
- RackMount kit for 7" Wall Mount touch panels (NXD panels only).
Kit includes eight #10-32 screws and washers.
NXA-WC80211GCF Wireless Upgrade Kit (FG2255-07)
- AMX 802.11G Compact Flash provides wireless Ethernet support
Upgrade Compact Flash (factory programmed with firmware):
NXA-700CF256M, 256 MB COMPACT FLASH CARD (FG2116-73)
NXA-700CF512M, 512 MB COMPACT FLASH CARD (FG2116-74)
NXA-700CF1G, 1 G COMPACT FLASH CARD (FG2116-75)
It is recommended that firmware KIT files only be transferred over a direct USB or
Ethernet connection and only when the panel is connected to a power supply. If
battery power or wireless connection fails during a firmware upgrade, the panel flash
file system may become corrupted.
Introduction
7
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXD-700Vi Panels - Connector Layout
FIG. 4 shows the layout of the connectors (located on the rear of the base on the NXT and on the left side panel
of the NXD panels).
FIG. 4 Connector layout on the NXD-700Vi touch panels
PROGRAM ETHERNET
10/100
A L 12VDC
AUDIO / VIDEO
MOUSE
KEYBOARD / PWR
Audio-Video from
Ethernet (CAT5)
Power
Keyboard/Mouse
Mini-USB
NXA-AVB/ETHERNET (CAT5)
(Program)
(USB)
Stereo Output
NXD-700Vi - connectors located
on left side panel
Introduction
8NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-AVB/ETHERNET Breakout Box
9
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-AVB/ETHERNET Breakout Box
The NXA-AVB/ETHERNET Breakout Box (FIG. 5) is included as part of the NXD-700Vi Kit configuration
(panel and box) but can be purchased as a separate accessory. This box facilitates the installation and
distribution of video, data, and audio to Modero touch panels located up to 200 feet (60.96 m) from the AVB
box. This unit accepts either Composite or S-Video from standard video devices.
This breakout box can be mounted on either a horizontal flat surface or within an equipment rack
(by using an optional AC-RK Rack Kit).
Product Specifications
FIG. 5 NXA-AVB/ETHERNET Breakout Box (front and rear views)
NXA-AVB/ETHERNET Product Specifications
Dimensions (HWD): 1.50" x 5.55" x 4.88" (3.81 cm x 14.10 cm x 12.40 cm)
Width when attached to mounting ears: 6.65" (16.89 cm)
Power Consumption: 50mA (with audio/video input)
23mA (with no audio/video)
Routed through NXA-AVB/Ethernet using a 12 VDC-compliant power supply
Certifications: FCC Part 15 Class B, CE, and EN60950
Features: Accepts either Composite or S-Video (video-capable panels only)
Provides audio distribution to the non-video touch panels over a CAT5 cable
(up to 200 ft.)
Provides video/audio distribution to the video-capable touch panels over
CAT5 cable up to 200 ft.(60.9 m)
Availability: This unit is included with CV5, CV7, CV10, NXD-700Vi, NXD-1000V,i and
1200V-Series Kit configurations
Front Components: 2-pin 3.5 mm Phoenix connector for power to the touch panel
Green LED provides an indication of power status
RJ-45 connector provides Ethernet signals to the touch panel
RJ-45 connector provides differential audio and video signals to the touch
panel (panel type dependant)
Rear Components: 6-pin 3.5 mm Phoenix connector for in-bound (left/right channel) audio
4-pin 3.5 mm Phoenix connector for out-bound (from microphone) audio
BNC connector (female) for Composite or Chroma (for video-capable
panels only)
BNC connector (female) for luminance (for video-capable panels only)
RJ-45 connector for Ethernet input from the control system
2-pin 3.5 mm Phoenix connector for in-bound power
NXA-AVB/ETHERNET Breakout Box
10 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Installing the NXA-AVB/ETHERNET
A 12 VDC-compliant power supply can indirectly provide power to a Modero panel by routing power through
the NXA-AVB/ETHERNET Breakout Box. FIG. 6 shows a sample wiring configuration using both an indirect
or direct power connection for a video-capable Modero panel.
A 12 VDC-compliant power supply can also directly provide power through the unit to a target Modero panel.
FIG. 7 shows a sample wiring configuration for a non-video capable Modero panel.
Use a standard CAT5 Ethernet cable to provide both communication and 10/100 network connectivity between
the panel, NXA-AVB/ETHERNET, NetLinx Master, and the network.
NXA-AVB/ETHERNET Product Specifications (Cont.)
Included Accessories: Two 2-pin Phoenix connectors (41-5025)
4-pin Phoenix connector (41-5047)
6-pin Phoenix connector (41-5063)
Rack Mount Kit (KA2250-40) with mounting bracket (62-2254-02)
Other AMX Equipment: AC-RK Accessory RackMount Kit (FG515)
Modero Table Top Cable (CA2250-50)
FIG. 6 Sample wiring configuration on video-capable panels using this breakout box
FIG. 7 Sample wiring configuration using non-video capable Modero panels
NXD/T Video-capable
Ethernet In
12 VDC power
(RJ-45)
Video In
(BNC)
Mic Out
(4-pin captive-wire)
Audio In
(6-pin captive-wire)
NXA-AVB/ETHERNET
Power
supplied via
NXA-AVB box
Audio/Video
(CAT5)
Line Level out
(to amplifier
or VOL card)
Touch Panels
or
Direct
Connect
Breakout Box
Ethernet
(rear)
(front)
(CAT5)
supply
Indirect
Connect
12 VDC power
supply
Direct
connect
NXD/T Non-video capable
Ethernet
(CAT5)
Touch Panels
12 VDC power
Audio (CAT5)
between the
NXA-AVB/ETHERNET
Breakout Box
supply
The breakout box unit can be mounted on either a horizontal flat surface or into an
equipment rack (by removing the front screws and attaching it to an optional AC-RK).
The power supply being used on the NXA-AVB/ETHERNET is dependant on the
power requirements of the target touch panel.
NXA-AVB/ETHERNET Breakout Box
11
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Wiring the NXA-AVB/ETHERNET Connectors And Cables
The inputs and outputs on the breakout box are separated into front and rear connectors. The rear connectors
are used to input external signals. The front connectors are used to communicate signals between the NXA-
AVB/ETHERNET and a target Modero panel. FIG. 8 provides a layout of the wiring connection both into and
from the breakout box.
The rear-panel wiring connections are described below (from left to right):
FIG. 8 NXA-AVB/ETHERNET Breakout Box connector wiring diagram
AUDIO IN: 6-pin mini-Phoenix connector, divided into left and right audio channels. Each
channel is divided into GND, IN+, and IN- terminal cable connectors
(2 sets of 3 for each channel).
An example of this cable is to strip the ends of 2 RCA audio cables and insert
them into their respective locations on the Audio In port.
Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio
signal can be connected to this input.
MIC OUT: 4-pin mini-Phoenix connector, divided into GND, OUT-, and OUT+ terminal
connectors.
An example of this cable is to strip the terminal ends of a 3.5mm mini-jack and
insert them into their respective locations on the Mic Out port. This signal can
be fed as a Line Level In to either an amplifier or an AMX VOL card.
Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal
can be connected to this output.
Video In BNCs: Feeds either Composite/S-Video Luma or S-Video Chroma signals into the
NXA-AVB/ETHERNET. This feed is then redirected out to a Modero panel
through the front Audio/Video CAT5 port.
•ETHERNET: RJ-45 connector routes data to the G4 touch panel through the front Ethernet
port. These connections use a standard CAT5 Ethernet cable to provide
communication between the target touch panel, breakout box, and NetLinx
Master.
•PWR: 2-pin mini-Phoenix connector that connects to a 12 VDC-compliant power
supply. This port can be used to provide power to a Modero panel by sending it
through the NXA-AVB/ETHERNET (rear power connector through to the front
power connector).
NXA-AVB/ETHERNET
Breakout Box
Ethernet
(RJ-45)
Audio In - Left Channel
(6-pin captive wire)
Audio In - Right Channel
(6-pin captive wire)
GND
In (-)
In (+)
GND
In (-)
In (+)
GND(-)
Out (-)
Out (+)
Microphone Out
(4-pin captive wire)
12 VDC power
Ethernet Out
(CAT5)
Audio/Video
(CAT5)
Power to
touch panel
F
R
O
N
T
R
E
A
R
supply
Comp/Y (BNC)
C (BNC)
NXA-AVB/ETHERNET Breakout Box
12 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Wiring the NXA-AVB/ETHERNET for Unbalanced Audio
Most domestic audio equipment has unbalanced audio inputs and outputs. This means that the audio output
(left, right, or mono) appears on a single wire, and is referenced to "0 V" or "Ground". Typical connectors used
are RCA "phono" connectors, DIN plugs/sockets, and 0.25" (6.3mm) or 3.5mm jack plugs/sockets.
Unbalanced audio is adequate for most domestic environments and for line-level signals in a typical broadcast
studio. Problems may occur if the signals are carried over long distances, especially if the source and
destination have separate main supplies. Use the following wiring drawing (FIG. 9) to configure an
unbalanced audio connection.
When using unbalanced audio for the AUDIO IN connector (FIG. 9), the "-" and the "GND" terminals should
be connected together and then connected to the GND of the unbalance audio signal. When connecting to an
unbalanced audio input from the MIC OUT connector (FIG. 9), wire the "+" terminal to the signal input, and
the "GND" terminal to the signal ground.
Wiring the NXA-AVB/ETHERNET for Balanced Audio
Professional audio equipment will often use balanced audio inputs and outputs, usually on 3-pin "XLR"
connectors. A balanced audio signal consists of a pair of wires carrying the audio signal in anti-phase with
each other (if one wire carries a positive voltage, the other carries an equal and opposite negative voltage).
The advantage of balanced audio over unbalanced audio is its ability to reject external interference added as
the signal is carried over the wire. The receiving equipment takes the voltage difference between the two wires
as the input signal. Interference will usually get added to both wires equally, and so gets cancelled by the
receiving equipment.
The 3 wires used in a typical XLR lead are often referred to as Ground, Live (Hot) and Return (Cold). "Live"
and "Return" carry the "in-phase" and "out-of-phase" versions of the audio respectively. The pins of the XLR
plug/socket are as follows:
When connecting the MIC OUT connector to a balanced audio input (FIG. 10), use all three audio terminals
(+, -, and GND), then connect the "+" terminal to the "live" signal, the "-" terminal to the "return" signal, and
the "GND" terminal to the ground signal.
FIG. 9 Wiring the rear AUDIO IN and MIC OUT for use with Unbalanced Audio
X = Ground
L = Live (Hot)
R = Return (Cold)
FIG. 10 Wiring the rear MIC OUT connector for use with Balanced Audio
Unbalanced IN
GND
IN-
IN+
GND
IN-
IN+
Left Channel
Right Channel
(Jumper IN- to GND)
Unbalanced OUT
GND
OUT-
OUT+
Microphone
Unbalanced IN
(Jumper IN- to GND)
AUDIO IN
MIC OUT
Balanced OUT
GND
OUT-
OUT+
Ground signal
Return signal
Line signal
NXD-700Vi Touch Panel Accessories
13
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXD-700Vi Touch Panel Accessories
Overview
The following section outlines and describes the other AMX equipment available for these touch panels.
NXA-WC80211B/CF 802.11b Wireless Card (FG2255-03)
These touch panels can connect to a wireless network using an optional AMX 802.11b Wireless Interface Card
shown in FIG. 1. This internal card is field-upgradeable within both models of panels.
The NXA-WC80211B/CF Wireless Interface Card works with compatible 802.11b Wireless Access Points
such as the NXA-WAP200G. Please follow your particular Wireless Access Point’s instruction manual for the
correct procedures to setup either a secured or unsecured connection. The following table lists the
specifications for the wireless interface card.
FIG. 1 NXA-WC80211B/CF Wireless Interface Card (WIC)
This unit is certified and available for use in the United States (FCC), Canada (IC),
Europe (CE) and Japan (TELEC).
802.11b Wireless Interface Card Product Specifications
Dimensions (HWD): 2.07" x 1.68" x 0.21" (52.56 mm x 42.80 mm x 5.57 mm)
Weight: 13.61 grams (0.030 lbs)
Description: 2.4 GHz Direct Sequence Spread Spectrum (DSSS) 802.11b 11M wireless PC
card with detachable Antenna.
Features: Wired Equivalent Privacy (WEP) 64-bit and 128-bit data encryption
Diversity Antenna Connectors automatically select the best available signal
Supports infrastructure (communications to wired networks via Access Points),
and roaming (standard IEEE 802.11b compliant)
Antenna: 2, Ceramic (Diversity Supported)
Certifications: FCC (United States)
IC (Canada)
CE (Europe)
TELEC (Japan)
Host Interface: Compact Flash Type I
Interoperability: Interoperable with Wi-Fi (WECA) certified products
LED Indicators: Power / Link activity
Modulation: DSSS, DBSK, DQSK, CCK
Network Standard: IEEE 802.11b
Number of Channels: •14
Operating Voltage: 5 / 3.3 V
NXD-700Vi Touch Panel Accessories
14 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-WC80211GCF 802.11g Wireless Card (FG2255-07)
These panels can also connect to a wireless network using the (optional) 802.11g Wi-Fi CF card. This internal
WIC (FIG. 2) can be purchased separately as a Wi-Fi upgrade kit from AMX.
This interface card (FG2255-07) is a 2.4 GHz Wi-Fi LAN CF Card which upgrades a Modero panel’s wireless
RF capabilities from 802.11b to 802.11g. This card also provides the end-user with several new methods of
wireless encryption and data security such as WPA and WPA2. In addition to being backwards compatible
with 802.11b networks, this card is installable within all current MVP,
NXD-700Vi, NXD-10000Vi, CV7, and CV10 panels. To fully utilize these newer wireless security features,
this card must be used in tandem with the latest Modero firmware upgrade available at www.amx.com.
802.11b Wireless Interface Card Product Specifications (Cont.)
Operating Channels: 11 Channels (USA, Canada)
13 Channels (Europe)
14 Channels (Japan)
4 Channels (France)
Operating Environment: Temperature: 0°C ~ 70°C (non-operating) and -15 ~ 80°C (storage)
Humidity (non-condensing): 5% ~ 95% RH
Power Consumption: TX power consumption: < 265 mA
RX power consumption: < 165 mA
Sleep Mode: 2 mA - 15 mA
Radio Data Rate: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps, Auto Rate
Receive Sensitivity: @PER < 8%
11 Mbps: -83 dBm (max)
5.5 Mbps: -86 dBm (max)
2 Mbps: -89 dBm (max)
1 Mbps: -92 dBm (max)
RF Output Power: 15 dBm +/- 1 dBm
Channels 1 - 11 (North America)
Security: WEP 64,128 bit, WPA/TKIP
Wireless Restrictions: In R&TTE countries, such as France, the 802.11g frequency band is restricted to
2454 - 2483.5 MHz (2.4 - 2.4835 GHz) and a max power output of
100 mW EIRP outdoor.
It is recommended that any upgrade of internal equipment be done simultaneously in
order to reduce the risk of damage to internal components.
FIG. 2 NXA-WC80211GCF 802.11g wireless card
PIFA antenna with metal plate
NXD-700Vi Touch Panel Accessories
15
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
This card works with compatible 802.11b/g Wireless Access Points such as the NXA-WAP200G (which uses a
default SSID of AMX). Please follow your particular Wireless Access Point’s instruction manual for the correct
procedures to setup either a secured or unsecured connection. The following table lists the specifications for
the NXA-WC80211GCF.
This upgrade kit requires that pre-existing panels first be removed from their current location (surface, wall or
docking station) before an installer can access the internal circuit boards and upgrade a
pre-existing 802.11b wireless CF card.
Only MVP panels require the use of a cardboard cutout (Mounting Template) to properly position the metal
antenna plate onto the inner surface of the unit’s rear plastic housing
NXD-700Vi, NXD-1000Vi, CV7, and CV10 panels only require locating the Compact Flash’s metal cover
plate on the main circuit board and then adhering the terminal antenna connector to that location using the
included double-sided adhesive tape.
The procedures for upgrading a CF card on an MVP is identical for both MVP-7500 and MVP-8400 panels.
The procedures for upgrading/installing the new CF card are also similar across all referenced NXT panels and
NXD panels as a group (differences arise from their housing).
If the CF metal cover plate is not present over the wireless card slot on a NXD-700Vi,
NXD-1000Vi, CV7, or CV10 panel, you can use the adhesive tape to secure the
terminal antenna to the surface of the new card (atop the product label).
NXA-WC80211GCF Specifications
Dimensions (HWD): 0.22" x 1.68" x 2.40" (5.6 mm x 42.80 mm x 61.0 mm)
Weight: 19.50 grams (0.043 lbs)
Description: Wireless LAN Compact Flash Card with external PIFA antenna.
Features enterprise-class security such as WPA and WPA2 security.
Features: Compact Flash Type I form factor
Enhanced range and throughput
Features wireless security such as: WPA, WPA2 and WEP
• Field-installable
Incorporates DSSS and OFDM radio technology
Operates at ISM frequency bands of 2.4 GHz, while providing data transfer
speeds of up to 54Mbps.
Support for IEEE 802.11b and 802.11g
Supports Advanced Encryption Standard (AES) 64-bit and 128-bit data
encryption, along with an Re4 encryption cipher (64/128-bit)
Supports authentication methods such as: EAP-FAST, EAP-LEAP, EAP-PEAP,
EAP-TLS, and EAP-TTLS
Supports Wired Equivalent Privacy (WEP) 64-bit and 128-bit data encryption
(known to the on-board firmware as Static WEP)
Antenna Type: External PIFA antenna (factory-installed)
Bus Interface: Compact Flash Type I
Certifications: FCC Part 15 Class B, CE, IC, TELEC, and Wi-Fi
Media Access Control
Techniques: Using 802.11b DSSS communication:
DBPSK @ 1 Mbps
DQPSK @ 2 Mbps
CCK @ 5.5 Mbps
Using 802.11g OFDM communication:
BPSK @ 6 and 9 Mbps
QPSK @ 12 and 18 Mbps
16-QAM @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
NXD-700Vi Touch Panel Accessories
16 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-WC80211GCF Specifications (Cont.)
Network Architecture: Infrastructure mode (Client-to-Access Point)
Operating Channels: Using 802.11b & g communication:
- 04: (Ch 10 - 13) - France
- 11: (Ch 1 - 11) - North America
- 13: (Ch 1 - 13) - Europe ETSI
- 13: (Ch 1 - 13) - Japan (802.11g)
- 14: (Ch 1 - 14) - Japan (802.11b)
Note: To alter the card’s default country code (North America), please
contact an AMX Technical Support representative for detailed procedures and
information.
Operating Environment: Temperature: 0°C ~ 45°C (32°F to 113°F) (operating) and
-20°C ~ 70°C (-4°F to 158°F) (storage)
Humidity: (non-condensing) 5% ~ 90% RH (operating) and
(non-condensing) 5% ~ 95% RH (storage)
Operating Voltage: 3.3V + 5% I/O supply voltage
Power Consumption: @ 802.11b communication:
- RX: 270 mA
- TX: 435 mA
- Standby: 240 mA
@ 802.11g communication:
- RX: 270 mA
- TX: 460 mA
- Standby: 240 mA
Radio Data Rate: 802.11g compliant: 1, 2, 5.5, 11 (DSSS/CCK); 6, 9, 12, 18, 24, 36, 48, and 54
(OFDM) Mbps data rates
Radio Technology: Using 802.11b communication: DSSS (Direct Sequence Spread Spectrum)/CCK
(Complementary Code Keying)
Using 802.11g communication: DSSS/CCK, OFDM (Orthogonal Frequency
Division Multiplexing
Receiver Sensitivity: Using 802.11b communication @ FER<8%:
1 Mbps: -94 dBm (max)
2 Mbps: -93 dBm (max)
5.5 Mbps: -92 dBm (max)
11 Mbps: -90 dBm (max)
Using 802.11g communication @ PER <10%:
6 Mbps: -87 dBm (max)
9 Mbps: -86 dBm (max)
12 Mbps: -86 dBm (max)
18 Mbps: -84 dBm (max)
24 Mbps: -82 dBm (max)
36 Mbps: -78 dBm (max)
48 Mbps: -74 dBm (max)
54 Mbps: -72 dBm (max)
RF Frequency Ranges: Using 802.11b & g communication:
Europe ETSI: 2.412 ~ 2.472 GHz
France: 2.457 ~ 2.472 GHz
Japan (802.11b): 2.412 ~ 2.484 GHz
Japan (802.11g): 2.412 ~ 2.472 GHz
North America: 2.412 ~ 2.462 GHz
Standard Conformance: IEEE 802.11b
IEEE 802.11g
IEEE 802.11e
IEEE 802.11i
Wi-Fi (WPA and WPA2)
NXD-700Vi Touch Panel Accessories
17
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-WC80211GCF Specifications (Cont.)
Transmit Output Power: 802.11b communication: 12 +-1 dBm (1, 2, 5.5, 11 Mbps)
802.11g communication: 12 +-1 dBm (6, 9, 12, 18, 24, 36, 48, and 54 Mbps)
Wireless LAN Security: • EAP-FAST
• EAP-LEAP
• EAP-PEAP
•EAP-TLS
•EAP-TTLS
WEP 64 & 128
•WPA-PSK
Touch Panel
Compatibility: MVP-7500 (FG5965-01)
MVP-8400 (FG5965-02)
•NXD-700Vi (FG2258-04)
NXD-1000Vi (FGXXXXX)
•NXD-CV10 (FG2259-02)
NXT-CV10 (FG2259-01/03)
•NXD-CV7 (FG2258-02)
NXT-CV7 (FG2258-01)
Included Accessories: Double-sided adhesive tape
Mounting Template cutout (62-2255-04)
NXA-WC80211GCF Installation Guide
Two Alcohol cleaning pads
Wireless CF card with wireless antenna
Other AMX Equipment: NXA-WAP250G Modero Wireless Access Point (FG2255-50)
Upgrade Compact Flash memory (factory programmed with firmware):
NXA-CFSP128M - 128 MB compact flash card (FG2116-36)
NXA-CFSP256M - 256 MB compact flash card (FG2116-37)
NXA-CFSP512M - 512 MB compact flash card (FG2116-38)
NXA-CFSP1GB - 1 GB compact flash card (FG2116-39)
NXD-700Vi Touch Panel Accessories
18 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-CFSP Compact Flash (FG2116-7x)
19
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
NXA-CFSP Compact Flash (FG2116-7x)
Overview
Every NXD-700Vi Modero panel is shipped with a 128 MB Compact Flash card (NXA-CFSP).
The NXA-CFSP Compact Flash card is factory programmed with specific panel firmware and can be upgraded
to several sizes, up to 1GB:
Upgrading the Compact Flash card in both panel types involves opening the panel enclosure/outer housing to
access the internal circuit board, removing the existing card, replacing it, and then resecuring the panel
enclosure, as described in the following section.
If possible, upgrade the panel’s internal components (Compact Flash or wireless
interface cards) prior to installing or using the panel.
Optional Compact Flash Upgrades
NXA-700CF256M, 256 MB COMPACT FLASH CARD (FG2116-73)
NXA-700CF512M, 512 MB COMPACT FLASH CARD (FG2116-74)
NXA-700CF1G, 1 G COMPACT FLASH CARD (FG2116-75)
NXA-CFSP Compact Flash (FG2116-7x)
20 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Installation and Upgrade of the Internal NXD Components
21
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Installation and Upgrade of the Internal NXD
Components
Overview
Upgrading the cards within the Wall Mount panel involves removing the rear plastic outer housing (back box),
removing the existing card, replacing it, and then placing the back box back onto the NXD panel, as described
in the following sections.
Step 1: Remove the existing NXD Outer Housing
1. Carefully detach all connectors from the side of the touch panel and remove the Faceplate from the front
of the panel.
2. Place the LCD facedown on a soft cloth to expose the under-side of the unit (FIG. 3). This step helps
prevent scratching of the LCD.
3. Firmly press down on both connector overlay release latches (located in front of the connectors). Pressing
down releases the connector overlay from atop the connectors.
4. Gently slide the connector overlay away from the back box housing.
5. Unscrew the outer housing (back box) by using a grounded Phillips-head screwdriver to remove the two
sets of pan-head Housing Screws, located on both sides of the housing (FIG. 3).
FIG. 3 Location of the attachment screws and connector overlay release latches on an NXD back box
Unscrew these
four pan-head
Two (2) connector
housing screws
to remove the
back box
overlay release latches
(2 per side)
The overlay connector must first be released before the rear back box can be
removed from the NXD-CV7/NXD-700Vi panel.
Installation and Upgrade of the Internal NXD Components
22 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
6. Carefully lift-off the back box housing and angle it over to the side of the unit where the wires are
connected to the circuit board.
7. Gently lay the back box to one side of the unit. This exposes the internal circuit board (FIG. 4). Take care
not to place undue strain on the speaker cables.
Step 2: Install the new Compact Flash Memory card
1. Discharge any static electricity from your body by touching a grounded metal object and then locate the
existing 128 MB Compact Flash card on the main board (FIG. 5).
2. Insert the tip of a grounded flat-head screwdriver into one of the card removal grooves (located on either
side of the existing card), and gently pry the card out of the slot (FIG. 6). Repeat this process on the
opposite card removal groove. This alternating action causes the card to "wiggle" away from the on-board
connector pins.
3. Grip the old card by its sides and then carefully pull it out of the slot.
4. Remove the new CF memory card from it’s anti-static bag.
5. Grip the sides of the new CF memory card and firmly insert it into slot opening (with the arrow facing
towards the pins) until the contact pins are completely inside the flash card and it is then securely attached
to the pin sockets.
FIG. 4 Location of the wireless CF card connector on main board
FIG. 5 Location and orientation of the card slots
Wireless CF card
(Slot #2 is located
on the top slot)
Connector Overlay must first be
removed from the side of the NXD
Compact Flash
Memory Card (Slot 1) Wireless CF Card
(Slot 2)
Card removal grooves
Card Removal Grooves
Installation and Upgrade of the Internal NXD Components
23
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
6. To complete the upgrade process, either upgrade the remaining wireless card (Step 3) or close and re-
secure the enclosure using the procedures in Step 3: Close and Re-secure the NXD Panel
Enclosure section on page 23.
Step 3: Close and Re-secure the NXD Panel Enclosure
1. Gently place the outer housing back onto the panel and align the four pan-head Housing Screws holes
along the edges of the outer housing.
2. Insert and secure the four pan-head Housing Screws back into their pre-drilled holes by using a grounded
Phillips-head screwdriver.
3. Slip the connector overlay back into the connector opening by inserting the top of the overlay into the
connector opening in an upwards direction.
4. Align the connectors to their respective locations and secure the overlay by pushing it towards the
connectors until the overlay securely snaps back into the overlay release latches.
5. Re-install the faceplate back onto the panel. Refer to the Installing the Button Trim Ring section on
page 26 for more detailed faceplate installation information.
FIG. 6 Removing/installing a Compact Flash Memory card
Card removal
grooves
Insert with arrow
facing towards the pins
On-board Compact
Flash connector (with pins)
Connector opening
Any new internal card upgrade is detected by the panel only after power is cycled.
Installation and Upgrade of the Internal NXD Components
24 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Installation
25
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Installation
Overview
NXD-700Vi panels are installed into either a pre-wall surface (using a CB-TP7 conduit/wallbox) or a solid
surface (using either solid surface or drywall screws).
Installing the No-Button Trim Ring
The NXD-700Vi panel is shipped from AMX with the default Button Trim Ring already installed. The unit is
also shipped with an included Trim Ring containing no button openings (a No-Button Trim Ring) that allows
you, if desired, to change the default configuration of the NXD panel Faceplate to that with no-button
openings. In order to install this included No-Button Trim Ring, you must first remove the factory-installed
default Button Trim Ring, the six small buttons, and associated two clear light pipes.
1. The Faceplate is secured to the panel with plastic latches. To remove the Faceplate, simply pull it away
from the panel by gently tugging it outwards until the entire Faceplate comes away from the panel.
2. Turn the Faceplate over to expose the inside surface and view the Trim Ring latches (FIG. 7).
3. In a single motion, press down and then outwards on the three Trim Ring latches located along the top of
the internal surface of the Faceplate to begin removing the Button Trim Ring. Removing the Internal
Faceplate from the panel exposes the pushbuttons and light pipes along the inside of the Internal
Faceplate.
4. Gently tug along the edges of the Button Trim Ring and work your way around the edges to remove it
from the Faceplate (FIG. 7).
It is recommended that if you are planning on upgrading your flash memory, you do
so before beginning any panel installations.
FIG. 7 Removing the default Button Trim Ring
Default Button Trim Ring
Trim
(with button openings)
B
Faceplate
NXD-700Vi Panel/enclosure
Ring
Latches
Button latch
Light Pipe latch
(black)
Button and Light Pipe removal
(showing the internal surface of Faceplate)
(outside surface shown)
Installation
26 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
5. From along the internal surface of the Faceplate, remove the six buttons by gently bending each Button
latch up and pulling the button outwards.
6. Remove the pair of clear light pipe strips by bending the two black light pipe latches inwards and pulling
out the strip.
7. Grasp the No-Button Trim Ring on both sides and fit it into the groove along the outside surface of the
Faceplate (made available by the removal of the previous Trim Ring).
8. Gently insert the Trim Ring latches into their corresponding openings on the outer surface of the internal
Faceplate (FIG. 8).
9. Firmly press down around the No-Button Trim Ring until all of the latches are securely inserted into their
openings on the Faceplate, and the No-Button Trim Ring is securely fastened. Verify the
No-Button Trim Ring is firmly inserted onto the Faceplate and that there are no gaps between this Trim
Ring and the outer surface of the Faceplate.
10. Place the Faceplate back onto the main NXD-700Vi unit. Make sure to align the Microphone, Light, and
PIR Motion sensor locations on the main unit to their respective openings on the Faceplate assembly.
Installing the Button Trim Ring
The outer No-Button Trim Ring is secured to the Faceplate with plastic latches. In order to re-install the Button
Trim Ring back onto an NXD panel which has had the default Button Trim Ring features removed; you must
first remove the No-Button Trim Ring:
1. To remove the Faceplate, simply pull it away from the panel by gently tugging it outwards until the entire
Faceplate comes away from the panel.
2. Turn the Faceplate over to expose the inside surface and view the Trim Ring latches.
3. In a single motion, press down and then outwards on the three Trim Ring latches located along the top of
the internal surface of the Faceplate to begin removing the Trim Ring. Removing the Internal Faceplate
from the panel exposes the pushbuttons openings left from an earlier removal of the pushbuttons and
LEDs.
4. Gently tug along the edges of the No-Button Trim Ring and work your way around the edges to remove it
from the Faceplate (FIG. 9).
FIG. 8 Inserting the No-Button Trim Ring
No-Button Trim Ring
Faceplate (outer surface shown)
Hollow button openings
Installation
27
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
5. From along the internal surface of the Faceplate, install the six buttons by firmly inserting them into the
button openings until the Button latch secures the button in place (FIG. 9).
6. Install the pair of clear light pipe strips by pushing light pipes over the two black light pipe latches.
7. Grasp the Button Trim Ring on both sides and fit it into the groove along the outside surface of the
Faceplate (made available by the removal of the previous Trim Ring).
8. Gently insert the Button Trim Ring latches into their corresponding openings on the outer surface of the
internal Faceplate (FIG. 10).
9. Firmly press down around the Button Trim Ring until all of the latches are securely inserted into their
openings on the Faceplate, and the Button Trim Ring is securely fastened. Verify the Button Trim Ring is
firmly inserted onto the Faceplate and that there are no gaps between this Trim Ring and the outer surface
of the Faceplate.
10. Place the Faceplate back onto the main NXD-700Vi unit. Make sure to align the Microphone, Light, and
PIR Motion sensor locations on the main unit to their respective openings on the Faceplate assembly.
FIG. 9 Removing the No-Button Trim Ring
FIG. 10 Inserting the Button Trim RIng
No-Button Trim Ring
Trim
Faceplate
NXD-700Vi Panel/enclosure
Ring
Latches
(outside surface shown)
Button latch
Light Pipe latch
(black)
Button and Light Pipe removal
(showing the internal surface of Faceplate)
Button openings
Button Trim Ring
Faceplate (outer surface shown)
Installation
28 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Pre-Wall Installation of the Conduit Box
Wall Mount panels (NXDs) are contained within an outer housing (back box). This back box is not removed
when installing the NXD into a Conduit Box (CB-TP7). The back box is only removed to gain access for the
replacement of the internal components.
The CB-TP7 is an optional metallic box that is secured onto a stud/beam in a pre-wall setting (where no walls
are present). Installation procedures and configurations can vary depending on the installation environment.
This section describes the installation procedures for the most common installation scenario. The most
important thing to remember when mounting this conduit box is that the NXD-700Vi Mounting Tabs must lie
flush against the outside of the sheetrock (FIG. 11).
-Refer to SP-2258-02 for detailed installation dimensions.
-It is recommended that you cut out the surface slightly smaller than what is outlined in the
installation drawings so that you can make any necessary cutout adjustments.
-The wiring knockouts on the left side will be used for the NXD-700Vi Wall Mount panel
connectors, so always secure the conduit box to the stud using the Stud Mounting Holes on the
right side of the box.
1. Rest the right Stud Mounting tabs onto the stud (keeping the knockouts on the left). Be sure to leave
enough of a gap between the stud and NXD Mounting tabs to accommodate the installation of the
drywall or sheetrock after the conduit box has been mounted. Ultimately, the Mounting Tabs
should lie flush against the outside of the sheetrock.
2. Fasten the CB-TP7 conduit box to the stud through the holes on the right Stud Mounting tabs (FIG. 11),
using either nails or screws.
3. Remove the wiring knockouts from the left side of the conduit box (CB-TP7) (FIG. 11) to accommodate
the cables being threaded through to the NXD touch panel.
INSTALLER: LEAVE A GAP BETWEEN THE STUD AND CONDUIT BOX
MOUNTING TABS TO ACCOMMODATE THE DRYWALL or SHEETROCK.
This gap allows the installation of the drywall or sheetrock after the CB-TP7 Conduit
Box has been installed.
FIG. 11 CB-TP7 conduit box components
Stud
Stud Mounting tabs
Drywall or sheetrock
Wiring
knockouts
(must be
located on
left side)
NXD Mounting tabs
(should lie flush against
the outside of the wall)
Remember that when mounting this conduit box, the NXD mounting tabs must lie
flush against the outside of the sheetrock.
Installation
29
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
4. Thread the incoming power, RJ-45 audio/video, Ethernet, and USB wiring through the knockouts (use of
the left wiring knockouts are recommended with this installation).
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
5. Install the drywall/sheetrock before inserting the main NXD unit into the CB-TP7.
Installation of an NXD Touch Panel
The NXD-700Vi can be installed either directly into the (optional) CB-TP7 or other solid surface environment
using the two different mounting options: drywall clips or solid surface screws. The following sections
describe mounting the touch panel directly into a pre-wall conduit box, a solid surface or drywall, and optional
NXA-RK7 Rack Mount Kit.
Installing the NXD panel within a Conduit Box
The conduit box must be mounted prior to continuing this section. Refer to the procedures in the
Pre-Wall Installation of the Conduit Box section on page 28 for detailed pre-wall installation instructions.
Verify that all necessary cables have been threaded through the knockouts on the left of the conduit box and the
connections have been tested prior to installation of the NXD-700Vi.
1. Remove the Faceplate/bezel (A in FIG. 12) from the main NXD unit (B in FIG. 12) by gripping the
faceplate and pulling with gentle outward force.
2. Verify the incoming power, RJ-45 audio/video, Ethernet, and USB cables have been properly threaded
through the wiring knockouts on the left of the conduit box. Leave enough slack in the wiring to
accommodate any re-positioning of the panel.
3. Connect all data and power wiring connectors to their corresponding locations along the side of the (un-
powered) NXD touch panel.
-Verify that the terminal end of the power cable is not connected to a power source before plugging
in the 2-pin power connector.
-The USB connectors can be from either a USB extension cable, or a wireless USB RF transmitter.
4. Test the incoming wiring by connecting the panel connections to their terminal locations and applying
power. Verify that the panel is receiving power and functioning properly to prevent repetition of the
installation.
FIG. 12 NXD-700Vi panel installation into a CB-TP7 (pre-wall construction)
B - Main NXD unit consists of
C - Optional CB-TP7
#4-40 Mounting Screws
(four - included)
secure the NXD to
Stud
the touch panel and back box housing
conduit/wallbox
A - Faceplate/Trim Ring
default Faceplate comes with buttons
the Conduit Box
Mounting Tab
Installation
30 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
5. Disconnect the terminal end of the power cable from the connected power supply.
6. Carefully slide the main NXD-700Vi unit (B in FIG. 12) into the conduit box, so that all Mounting Tabs
lie flush against the conduit box (C in FIG. 12).
7. Insert and secure four #4-40 Mounting Screws (included) into their corresponding holes located along the
sides of the NXD.
8. Place the Faceplate/Trim Ring assembly (A in FIG. 12) back onto the main NXD unit
(B in FIG. 12). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their
respective openings on the front faceplate/bezel.
9. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective
locations (outside the conduit box) on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or
NetLinx Master.
10. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.
Installing the NXD into drywall using Expansion Clips
Expansion clips are mounted through the three oval holes located along the rim of the NXD-700Vi. As the
screw is tightened, the clip bends toward the insertion hole and into the wall. This bending creates a "grip" on
the wall by either pressing onto the wall or by securing the drywall between the housing and the drywall clip.
The most important thing to remember when mounting the NXD is that the outer frame (Mounting Tabs) must
be installed flush against the mounting surface.
-Refer to SP-2258-01 for detailed installation dimensions (reproduced in FIG. 13).
-It is recommended that you cutout the surface slightly smaller than what is outlined in the
installation drawings so that you can make any necessary cutout adjustments.
1. Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.
2. Cut out the surface for the NXD Wall Mount unit using the dimensions shown in FIG. 13. Be sure to cut
out the three notches along the sides to accommodate the three corresponding drywall expansion clips
(included).
Don’t disconnect the connectors from the touch panel. The unit must be installed with
the attached connectors before being inserted into the conduit box.
Installation
31
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
3. Remove the Faceplate/bezel (A in FIG. 14) from the main NXD unit (B in FIG. 14) by gripping the
faceplate and pulling with gentle outward force.
4. Thread the incoming power, RJ-45, Ethernet, USB, and any optional audio/video wiring (from their
terminal locations) through the surface opening. Leave enough slack in the wiring to accommodate any
re-positioning of the panel.
5. Connect all data and power wiring connectors to their corresponding locations along the left side of the
(un-powered) NXD touch panel.
-Verify that the terminal end of the power cable is not connected to a power source before plugging
in the 2-pin power connector.
-The USB connectors can be from a either a USB extension cable, or a wireless USB RF transmitter.
6. Test the incoming wiring by attaching the panel connections to their terminal locations and applying
power. Verify the panel is receiving power and functioning properly to prevent repetition of the
installation.
7. Disconnect the terminal end of the power cable from the connected power supply.
FIG. 13 NXD-700Vi Wall Mount panel dimensions using expansion clips
Installation
32 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
8. Install the three sets of drywall screws and expansion clips into the three oval notch locations along both
sides of the main unit (B in FIG. 14).
9. Carefully insert the main unit (with expansion clips) into the cutout until the Mounting Tabs on the NXD
unit lie flush against the wall.
10. Tighten all three drywall clip sets (screws and clips) until the entire Mounting Tab is securely fastened
and flush against the wall.
11. Place the Faceplate/Trim Ring assembly (A in FIG. 14) back onto the main NXD unit
(B in FIG. 14). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their
respective openings on the front faceplate/bezel.
12. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective
locations on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.
13. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.
FIG. 14 Wall Mount panel (NXD) installation configuration for drywall surfaces
B - Main NXD unit consists of
Install the 3 included
drywall clip sets
into these locations
the touch panel and back box
3 notches are
required to
accommodate the
three expansion
clips (included)
A - Faceplate
/Trim Ring
Mounting Tab
Drywall Clip (3)
Don’t disconnect the connectors from the touch panel. The unit must be installed with
the attached connectors before being inserted into the drywall.
The drywall clip set must be re-ordered from AMX if the drywall clip is bent
accidentally during an installation or removed during a re-installation.
Installation
33
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Installing the NXD into a Flat Surface using #4 screws
Mounting screws (#4-40, included) are secured through two sets of circular holes located at the left and right
sides of the NXD-700Vi. The most important thing to remember when mounting the NXD Wall Mount is
that the outer frame (Mounting Tabs) must be installed flush against the mounting surface.
-Refer to SP-2258-01 for detailed installation dimensions (reproduced in FIG. 15).
-It is recommended that you cutout the surface slightly smaller than what is outlined in the
installation drawings so that you can make any necessary cutout adjustments.
1. Prepare the area by removing any screws or nails from the surface before beginning the cutout process.
2. Cut out the surface for the NXD Wall Mount unit using the dimensions shown in FIG. 15.
3. Remove the Faceplate/bezel (A in FIG. 16) from the main NXD unit (B in FIG. 16) by gripping the
faceplate and pulling with gentle outward force.
4. Thread the incoming power, RJ-45, Ethernet, USB, and any optional audio/video wiring (from their
terminal sources) through the surface opening. Leave enough slack in the wiring to accommodate any re-
positioning of the panel.
5. Connect all data and power wiring connectors to their corresponding locations along the left side of the
(un-powered) NXD touch panel.
-Verify that the terminal end of the power cable is not connected to a power source before plugging
in the 2-pin power connector.
-The USB connectors can be from a either a USB extension cable, or a wireless USB RF transmitter.
6. Test the incoming wiring by connecting the panel connections to their terminal locations and applying
power. Verify that the panel is receiving power and functioning properly before finalizing the installation.
FIG. 15 NXD-700Vi Wall Mount panel dimensions using #4-40 mounting screws
Installation
34 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
7. Disconnect the terminal end of the power cable from the power supply.
8. Carefully slide the main unit into the cutout until the Mounting Tabs of the NXD-700Vi unit lie flush
against the wall.
9. Insert and secure four #4-40 Mounting Screws (included) into their corresponding holes located along the
sides of the NXD-700Vi (using a grounded Phillips-head screwdriver) until the unit is secure and flush
against the wall (FIG. 16).
10. Place the Faceplate/Trim Ring assembly (A in FIG. 16) back onto the main unit (B in FIG. 16). Make sure
to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front
bezel/faceplate.
11. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective
locations on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.
12. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.
Installing an NXD-700Vi into an (optional) Rack Mount Kit (NXA-RK7)
The NXA-RK7 is a 19" (48.3 cm) wide metal rack-mount (with black matte finish) measuring 4 rack units
high.
1. Remove the Faceplate/Trim Ring assembly from the main NXD-700Vi unit.
2. Thread the incoming power, RJ-45 audio/video, Ethernet, and USB wiring (from their terminal sources)
through the surface opening, leaving enough slack in the wiring to accommodate any re-positioning of the
panel.
3. Connect all data and power wiring connectors to their corresponding locations along the left side of the
(un-powered) NXD touch panel.
-Verify that the terminal end of the power cable is not connected to the a power supply before
plugging in the 2-pin power connector.
-The USB connectors can be from a either a USB extension cable, or a wireless USB RF transmitter.
FIG. 16 Wall Mount panel installation configuration for flat surfaces
B - Main NXD-700Vi unit
Install the four #4-40 Mounting Screws
Flat installation surface
Mounting Tab
Attachment is done
along the edges
of the cutout
(included) into these four holes
Don’t disconnect the connectors from the touch panel. The unit must be installed with
the necessary connectors before being inserted into the solid surface.
Installation
35
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
4. Test the incoming wiring by connecting the panel connections to their terminal locations and applying
power. Verify that the panel is receiving power and functioning properly to prevent repetition of the
installation.
5. Disconnect the terminal end of the power cable from the connected power supply.
6. Carefully insert the NXD-700Vi panel into the NXA-RK7.
7. Secure the panel to the NXA-RK7 mount by first inserting and then tightening the four #4-40 screws.
8. Insert the NXA-RK7 (with connected NXD unit) into the equipment rack, making sure to align the screw
holes along the sides on the NXA-RK7 with the holes in the equipment rack.
9. Use a grounded Phillips-head screwdriver to secure the NXA-RK7 to the equipment rack using
#10-32 screws (included).
10. Place the Faceplate/Trim Ring assembly back onto the main NXD unit. Make sure to align the
Microphone, Light, and PIR Motion sensor locations to their respective openings on the front faceplate/
bezel.
11. Reconnect the terminal RJ-45 audio/video, Ethernet, and USB wiring to their respective terminal
locations on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.
12. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.
Wiring Guidelines for the NXD-700Vi Panels
NXD-700Vi panels use a 12 VDC-compliant power supply to provide power to the panel via the 2-pin
3.5 mm mini-Phoenix PWR connector. Use the previously provided power requirement information to
determine the power draw.
The incoming PWR and GND wires from the power supply must be connected to the corresponding locations
within the PWR connector.
Preparing Captive Wires
You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires.
1. Strip 0.25 inch (6.35 mm) of insulation off all wires.
2. Insert each wire into the appropriate opening on the connector (according to the wiring diagrams and
connector types described in this section).
3. Tighten the screws to secure the wire in the connector. Do not tighten the screws excessively; doing so
may strip the threads and damage the connector.
Don’t disconnect the connectors from the touch panel. The unit must be installed with
the necessary connectors before being inserted into the equipment rack.
These units should only have one source of incoming power. Using more than one
source of power to the touch panel can result in damage to the internal components
and a possible burn out.
Apply power to the panels only after installation is complete.
Never pre-tin wires for compression-type connections.
Installation
36 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Wiring a Power Connection
To use the 2-pin 3.5 mm mini-Phoenix connector with a 12 VDC-compliant power supply, the incoming PWR
and GND wires from the external source must be connected to their corresponding locations on the connector
(FIG. 17).
1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm mini-Phoenix cable. Match the
wiring locations of the +/- on both the power supply and the terminal connector.
2. Tighten the clamp to secure the two wires. Do not tighten the screws excessively; doing so may strip the
threads and damage the connector.
3. Verify the connection of the 2-pin 3.5 mm mini-Phoenix to the external 12 VDC-compliant power supply.
Audio/Video Port: Connections and Wiring
The following table shows the signal and pinout/pairing information used on the RJ-45 Audio and Video
connections.
FIG. 17 NetLinx power connector wiring diagram
Audio/Video RJ-45 Pinout Information
Pin Wire Color Function Polarity
1 Orange/White Right Audio In +
2 Orange Right Audio In -
3 Green/White Video In -
4 Blue Mic Out -
5 White/Blue Mic Out +
6 Green Video In +
7 White/Brown Left Audio In +
8 Brown Left Audio In -
PWR +
GND -
To the Touch Panel
Power Supply
TIA 568B
1
2
3
4
5
6
7
8
1 2 3 4 5 6 7 8
RJ-45 connector - pin configurations
(female) (male)
Installation
37
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Ethernet/RJ-45 Port: Connections and Wiring
FIG. 18 describes the blink activity for the Ethernet 10/100 Base-T RJ-45 connector and cable. The Ethernet
cable is connected to the rear of Table Top and side of the Wall Mount panels.
The following table lists the pinouts, signals, and pairing associated with the Ethernet connector.
FIG. 19 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable.
USB Port: Connecting and Using Input Devices
The NXD-700Vi panel can have up to two USB-capable input devices connected for use on its different
firmware and TPD4 panel pages. These input devices can consist of a keyboard or mouse.
1. Insert the input device USB connectors into the appropriate USB connector on the panel.
2. Press the on-screen Reboot button from the Protected Setup page to save any changes and restart the
panel.
3. After the panel splash-screen disappears:
FIG. 18 Ethernet connector (showing communication and connection LEDs)
Ethernet RJ-45 Pinouts and Signals
Pin Signals Connections Pairing Color
1 TX + 1 --------- 1 1 --------- 2 Orange-White
2 TX - 2 --------- 2 Orange
3 RX + 3 --------- 3 3 --------- 6 Green-White
4 no connection 4 --------- 4 Blue
5 no connection 5 --------- 5 4 --------- 5 Blue-White
6 RX - 6 --------- 6 Green
7 no connection 7 --------- 7 7 --------- 8 Brown-White
8 no connection 8 --------- 8 Brown
FIG. 19 RJ-45 wiring diagram
ETHERNET
10/100
A L
A - Activity LED (yellow)
lights when receiving or
transmitting Ethernet
data packets
L - Link LED (green) lights when
the Ethernet cables are connected
and terminated correctly.
12 3 45 6 78
12 3 45 6 78
USB-connected input devices are not detected and recognized by the panel until
power is cycled to the unit.
A mini-USB connection is only detected after it is installed onto an active
panel. Connection to a previously powered panel, allows the PC to detect the
panel and assign an appropriate USB driver.
Installation
38 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
-If a USB mouse has been connected, a mouse cursor appears on the panel screen and its location
corresponds to the mouse cursor position sent by the external USB mouse.
-If a USB keyboard has been connected, only on-screen keyboards and keypads will reflect any
external keystrokes sent from the external USB keyboard.
Panel Calibration
39
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Panel Calibration
Overview
This section outlines the steps for calibrating the touch panel. It is recommended that you calibrate the panel
before its initial use and after completing a firmware download.
Modero panels are factory setup with specific demo touch panel pages. The first splash screen that appears
indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch
panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 20).
Calibrating the Modero Panel
1. Press and hold the grey Front Setup Access button (FIG. 21) for 6 seconds to pass-over the Setup page
and access the Calibration setup page (FIG. 22).
2. Press the crosshairs (on the Calibration page) to set the calibration points on the LCD (FIG. 22).
3. After the "Calibration Successful.." message appears, press anywhere on the screen to continue and
return to the Setup page.
FIG. 20 AMX splash screen and initial Panel Page
FIG. 21 Location of Front Setup Access button
AMX Splash Screen
(appears during power-up) Initial Panel Page
(AMX Logo Page)
Front Setup
Access button (grey)
3 second press/hold:
Opens the Setup page
6 second press/hold:
Opens the Calibration page
Single press puts
the panel to sleep
Panel Calibration
40 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Testing your Calibration
1. Press and hold down the on-screen Calibration button for 6 seconds to enter the Calibration Test page
(FIG. 23).
2. Press anywhere on this page to confirm the on-screen crosshairs match your touch points.
3. If the crosshairs do not appear directly below your LCD touch points, press the Back button and
recalibrate the panel using the above steps.
Peel the protective plastic film from the LCD.
4. Exit this Calibration Test page by pressing the Back button to return to the Protected Setup page.
If Calibration Is Not Working
Cycling power to the panel should provide a baseline calibration for the particular touch panel. Re-calibrate
the panel.
FIG. 22 Touch Panel Calibration Screens
The request to touch the crosshairs
is the first on-screen message
Calibration successful is the second
on-screen message that appears
On-screen crosshairs used for
calibration of the touch device
after the calibration process is
completed
If the calibration was improperly set and you cannot return to the Calibration
page (through the panel’s firmware); you can then access this firmware page via
G4 WebControl where you can navigate to the Protected Setup page and press the
Calibrate button through your VNC window.
This action causes the panel to go to the Calibration page seen above, where you
can physically recalibrate the actual touch panel again using the above procedures.
FIG. 23 Calibration Test page
On-screen crosshairs is used to
verify a proper calibration of the
panel
If the protective plastic film on the LCD is not removed, the panel may not respond
properly to touch points on the LCD nor allow proper screen calibration.
Configuring Communication
41
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Configuring Communication
Overview
Communication between the Modero panel and the Master is done using either USB or ETHERNET (DHCP
or Static IP). Ethernet communication can be achieved through either a direct connection (Ethernet) or
through the use of the optional NXA-WC802.11GCF wireless CF card.
Modero Setup and System Settings
AMX Modero panels feature on-board Setup pages. Use the options in the Setup pages to access panel
information and make various configuration changes.
Accessing the Setup and Protected Setup Pages
1. Press the grey Front Setup Access button for 3 seconds to open the Setup page (FIG. 24).
2. Press the Protected Setup button. This invokes a keypad for entry of the password to allow access to the
Protected Setup page. Enter 1988 (the default password), and press Done to proceed.
Before commencing, verify you are using the latest NetLinx Master and Modero panel
firmware. Verify you are using the latest versions of AMX’s NetLinx Studio and
TPDesign4 programs.
USB input devices must be plugged into the rear or side USB connectors before the
G4 panel is powered-up. The panel will not detect a USB connection of this type until
after the unit cycles power.
FIG. 24 Setup page
Battery Base button doesn’t appear
until NXT is connected to a BASE/1
Connection Status
Red Connection Status icon -
Green Connection Status icon -
indicates no connection
indicates communication
to a Master
to a Master
Clearing Password #5, from the initial Password Setup page, removes the need for
you to enter the default password before accessing the Protected Setup page.
Configuring Communication
42 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Setting the Panel’s Device Number
In the Protected Setup page:
1. Press the Device Number field to open the Device Number keypad (FIG. 25).
Enter a unique Device Number assignment for the panel, and press Done to return to the Protected
Setup page. The Device Number range is 1 - 32000, the default is 10001.
2. Press Reboot to reboot the panel, and apply the new Device Number.
Wireless Settings Page - Wireless Access Overview
Hot Swapping
Hot swapping is not an issue on these panels as the card is installed within the unit and cannot be removed
without first removing the housing.
In the case of DHCP, there must be a DHCP server accessible before the fields are populated.
Before selecting Ethernet as the Master Connection Type you must setup the parameters of the wireless card.
The Wireless Access Point communication parameters must match those of the pre-installed wireless CF
card inside the panel.
The panels allow users to connect to a wireless network through their use of the pre-installed AMX 802.11g
wireless interface card to communicate with a Wireless Access Point (WAP) such as the
NXA-WAP200G). The WAP communication parameters must match those of the pre-installed wireless
interface card installed within the panel. This internal card transmits data wirelessly using the 802.11x signals
at 2.4 GHz. For a more detailed explanation of the new security and encryption technology, refer to the section
of the document entitled: Appendix B - Wireless Technology section on page 197.
For more information on utilizing the AMX Certificate Upload Utility in conjunction with the EAP security,
refer to the section of the document entitled: Appendix B - Wireless Technology section on page 197.
FIG. 25 Protected Setup page
If the SSID (Network Name) and WEP fields have not previously been configured, the
Wireless Settings page will not work until the panel is rebooted.
Configuring Communication
43
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Configuring a Wireless Network Access
When working with a wireless card, the first step is to configure wireless communication parameters within
the Wireless Settings page. This page only configures the card to communicate to a target WAP (such as the
NXA-WAP200G), it is still necessary to tell the panel which Master it should be communicating with.
This "pointing to a Master" is done via the System Settings page where you configure the IP Address, System
Number and Username/Password information assigned to the target Master.
Step 1: Configure the Panel’s Wireless IP Settings
The first step to successfully setting up your internal wireless card is to configure the IP Settings section on the
Wireless Settings page. The section configures the communication parameters from the panel to the web.
Wireless communication using a DHCP Address
In the Protected Setup page:
1. Select Wireless Settings. Wireless communication is set within the IP Settings section of this page
(FIG. 26).
2. Toggle the DHCP/Static field (from the IP Settings section) until the choice cycles to DHCP. This action
causes all fields in the IP Settings section (other than Host Name) to be greyed-out.
Do not alter any of these remaining greyed-out fields in the IP Settings section. Once the panel is rebooted,
these values are obtained by the unit and displayed in the DNS fields after power-up.
3. Press the optional Host Name field to open a Keyboard and enter the Host Name information.
4. Press Done after you are finished assigning the alpha-numeric string of the host name.
5. Do not alter any of these remaining greyed-out fields in the IP Settings section. Once the panel is
rebooted, these values are obtained by the unit and displayed in the DNS fields after power-up.
6. Setup the security and communication parameters between the wireless card and the target WAP by
configuring the Wireless Settings section on this page. Refer to Step 2: Configure the Card’s Wireless
DHCP will register the unique MAC Address (factory assigned) on the panel and
once the communication setup process is complete, assign IP Address, Subnet
Mask, and Gateway values from the DHCP Server.
FIG. 26 Wireless Settings page (IP Settings section)
Modero
connection
IP info.
Wireless Access Point
Site Survey Button
This information can be found in either the Workspace - System name > Define
Device section of your code (that defines the properties for your panel), or in the
Device Addressing/Network Addresses section of the Tools > NetLinx Diagnostics
dialog.
Configuring Communication
44 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Security Settings section on page 46 for detailed procedures to setup either a secure or unsecure
connection.
Wireless communication using a Static IP Address
In the Protected Setup page:
1. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.
Wireless communication is set within the IP Settings section of this page (FIG. 26).
2. Toggle the DHCP/Static field (from the IP Settings section) until the choice cycles to Static.
The IP Address, Subnet Mask, and Gateway fields then become user-editable (red).
3. Press the IP Address field to open a Keyboard and enter the Static IP Address (provided by your System
Administrator).
4. Press Done after you are finished entering the IP information.
5. Repeat the same process for the Subnet Mask and Gateway fields.
6. Press the optional Host Name field to open the Keyboard and enter the Host Name information.
7. Press Done after you are finished assigning the alpha-numeric string of the host name.
8. Press the Primary DNS field to open a Keyboard, enter the Primary DNS Address (provided by your
System Administrator) and press Done when compete. Repeat this process for the Secondary DNS field.
9. Press the Domain field to open a Keyboard, enter the resolvable domain Address (this is provided by your
System Administrator and equates to a unique Internet name for the panel), and press Done when
complete.
10. Setup the security and communication parameters between the wireless card and the target WAP by
configuring the Wireless Settings section on this page. Refer to the following section for detailed
procedures to setup either a secure or unsecure connection.
Using the Site Survey tool
This tool allows a user to "sniff-out" all transmitting Wireless Access Points within the detection range of the
internal NXA-WC80211GCF. Once pressed, the panel displays the Site Survey page which contains categories
such as:
-Network Name (SSID) - Wireless Access Point names
-Channel (RF) - Channel currently being used by the WAP (Wireless Access Point)
-Security Type (if detectable - such as WEP, OPEN and UNKNOWN) - security protocol enabled
on the WAP
-Signal Strength - None, Poor, Fair, Good, Very Good, and Excellent
-MAC Address - Unique identification of the transmitting Access Point
In the Protected Setup page:
1. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.
2. Navigate to the Access Point MAC Address section of this page and press the on-screen
Site Survey button. This action launches the Site Survey page which displays a listing of all detected
WAPs in the communication range of the internal card.
-The card scans its environment every four seconds and adds any new WAPs found to the list. Every
scan cycle updates the signal strength field.
-Access points are tracked by MAC Address.
-If the WAP’s SSID is set as a blank, then N/A is displayed within the SSID field.
-If the WAP’s SSID is hidden (not broadcast) it will not show up on the site survey screen but
it can still be configured via the SSID field on the specified security mode screen.
Check with your System Administrator for a pre-reserved Static IP Address assigned
to the panel. This address must be obtained before Static assignment of the panel
continues.
Configuring Communication
45
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
-If a WAP is displayed in the list is not detected for 10 scans in a row it is then removed from
the screen. In this way, a user can walk around a building and see access points come and go
as they move in and out of range.
3. Sort the information provided on this page by pressing on a column name and toggling the direction of
the adjacent arrow.
-Up arrow - indicates that the information is being sorted in a Ascending order.
-SSID (A to Z), Channel (1 to 14), Security (Unknown to WEP), Signal (None to Excellent).
The firmware considers the following to be the security order from least secure to most
secure: Open, WEP, WPA, WPA2, and Unknown.
-Down arrow - indicates that the information is being sorted in a Descending order.
-SSID (Z to A), Channel (11 to 6), Security (WEP to Unknown), Signal (Excellent to None)
4. Select a desired Access Point by touching the corresponding row. The up arrow and down arrow will be
grayed out if there are ten or less access points detected. If there are more, then they will be enabled as
appropriate so that the user can scroll through the list.
5. With the desired WAP selected and highlighted, click the Connect button to be directed to the selected
security mode’s Settings page with the SSID field filled in. You can then either Cancel the operation or
fill in any necessary information fields and then click Save.
If you select an Open, WEP, and WPA-PSK Access Point and then click Connect, you will be flipped to the
corresponding Settings page. For any other security mode, if you click Connect you will only return to the
previous page without any information being pre-filled out for you.
-In an Open security mode, when a target WAP is selected and the connect to, the SSID name of the
selected WAP is saved for the open security mode.
-In a Static WEP security mode, when a WEP Access Point is selected and then connected to, the
user is then redirected back to the Static WEP security screen where the SSID field is already filled
out and the user is only required to enter in the remaining WEP key settings.
-A similar process occurs for WPA-PSK access points. For any other case, the firmware switches
back to the previous page and security and connection parameters must be entered in as normal.
FIG. 27 Site Survey page
Indicates a selected AP
Indicates the currently
active column and the order
in which the data is being sorted -
(Descending order shown)
If the panel detects more than 10 WAPs, the Up/Down arrows at the far right side of
the page become active (blue) and allow the user to scroll through the list of entries.
Configuring Communication
46 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Step 2: Configure the Card’s Wireless Security Settings
The second step to successfully setting up your wireless card is to configure the Wireless Settings section of
the Wireless Settings page. This section configures both the communication and security parameters from the
internal wireless card to the WAP. The procedures outlined within the following sections use an 802.11g card
to configure a common security configuration to a target WAP.
Refer to either the Wireless Settings Page section on page 88 or the Appendix B - Wireless Technology section
on page 197 for more information on the other security methods.
Once you have set up the wireless card parameters, you must configure the communication parameters for the
target Master; see Step 3: Choose a Master Connection Mode section on page 52.
Configuring the Modero’s wireless card for unsecured access to a WAP200G
In the Protected Setup page:
1. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.
2. Enter the SSID information by either:
-Automatically having it filled in by pressing the Site Survey button and from the Site Survey page,
choosing an Open WAP from within the Site Survey page and then pressing the Connect button.
-Manually entering the SSID information into their appropriate fields by following steps 7
thru 9.
FIG. 28 Wireless Settings page (showing a sample unsecured configuration)
FIG. 29 Site Survey of available WAPS (Unsecured WAP shown selected)
Panel
connection
IP info.
Wireless
card security settings
Select an OPEN
(unsecured) WAP
Connecting to the
WAP begins the
communication
Configuring Communication
47
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
3. From within the Wireless Security section, press the Open (Clear Text) button to open the Open (Clear
Text) Settings dialog (FIG. 30). An Open security method does not utilize any encryption methodology
but does require that an SSID (alpha-numeric) be entered. Using this method causes network packets to
be sent out as unencrypted text.
4. Press the red SSID field (FIG. 30) to display an on-screen Network Name (SSID) keyboard.
5. In this keyboard, enter the SSID name used on your target Wireless Access Point (case sensitive).
-The card should be given the SSID used by the target WAP. If this field is left blank, the unit will
attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their
assigned SSID value.
-One of the most common problems associated with connection to a WAP arise because the SSID
was not entered properly. You must maintain the same case when entering the SSID information.
ABC is not the same as Abc.
6. Click Done when you’ve completed typing in the information.
7. From the Open (Clear Text) Settings page (FIG. 30), press the Save button to incorporate your new
information into the panel and begin the communication process.
8. Verify the fields in the IP Settings section have been properly configured. Refer to Step 1: Configure the
Panel’s Wireless IP Settings section on page 43 for detailed information.
9. Press the Back button to return to the Protected Setup page and press the on-screen Reboot button to both
save any changes and restart the panel. Remember that you will need to navigate to the System Settings
page and configure the connection to a target Master.
10. After the panel restarts, return to the Wireless Settings page’s RF Link Info section and verify the Link
Quality and Signal Strength:
-The descriptions are: None, Poor, Fair, Good, Very Good, and Excellent (FIG. 28).
FIG. 30 Wireless Settings page - Open (Clear Text) security method
Required Information:
- SSID (Network Name used by the Target WAP)
By default, this field displays the
SSID - AMX
The signal strength field should provide some descriptive text regarding the strength
of the connection to a Wireless Access Point. If there is no signal or no IP Address
displayed; configuration of your network could be required.
Configuring Communication
48 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Configuring the Modero’s wireless card for secured access to a WAP200G
After logging into the WAP200G, the default Status page appears within the web browser. These
read-only values are "pulled" from some of the other user-configurable Configuration Utility pages. By
default, wireless Modero panels are configured for unsecured communication to a Wireless Access Point. To
properly setup both the WAP200G and panel for secure communication, you must first prepare the Modero
panel and then use the information given to fill out the fields within the WAP’s
browser-based Basic Wireless Configuration page.
Since the code key generator on Modero panels use the same key generation formula, all panels will generate
identical keys for the same Passphrase. The generators used on WAPs will not produce the same key as the
Modero generator even if you use the same Passphrase. For this reason, we recommend FIRST creating the
Current Key on the Modero and then entering that information into the appropriate NXA-WAP200G
fields.
Automatically set SSID
In the Protected Setup page:
1. Select Wireless Settings.
2. Press the Site Survey button.
3. Select a WEP secured WAP from within the Site Survey page, and press the Connect button.
4. Write down the SSID name, Current Key string value, and panel MAC Address information so you can
later enter it into the appropriate WAP dialog fields in order to "sync-up" the secure connection. These
values must be identically reproduced on the target WAP.
FIG. 31 Site Survey of available WAPs (Secured WAP shown selected)
Select a target
WAP with the
desired level of
security
Connecting to the
WAP begins the
communication
Configuring Communication
49
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Manually set SSID
In the Protected Setup page:
1. Select Wireless Settings.
2. Locate the Wireless Security section (FIG. 32).
3. Press the Static WEP button to open the Static WEP Settings dialog (FIG. 33).
4. Press the SSID field and from the Network Name (SSID) keyboard, enter the SSID name you are using on
your target Wireless Access Point (case sensitive), and press Done when finished.
-The card should be given the SSID used by the target WAP. If this field is left blank, the unit will
attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their
assigned SSID value.
-One of the most common problems associated with connection to a WAP arise because the SSID
was not entered properly. You must maintain the same case when entering this information. ABC is
not the same as Abc.
-The alpha-numeric string is by default AMX but can later be changed to any 32-character entry.
This string must be duplicated within the Network Name (SSID) field on the WAP.
FIG. 32 Wireless Settings page
802.11g wireless card
You must first take down the SSID name, Current Key string value, and panel MAC
Address information so you can later enter it into the appropriate WAP dialog fields in
order to "sync-up" the secure connection. These values must be identically
reproduced on the target WAP.
FIG. 33 Wireless Settings page - Static WEP security method
Required Information:
- SSID (Network Name used by the Target WAP)
- Encryption Method
- Passphrase
- WEP Key assignment
- Authentication Method
Configuring Communication
50 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
-As an example, if you use TECHPUBS as your SSID, you must match this word and the case
within both the Network Name (SSID) field on the touch panel’s Network Name SSID field and on
the WAP’s Basic Wireless Configuration page.
5. Toggle the Encryption field (FIG. 33) until it reads either: 64 Bit Key Size or 128 Bit Key Size.
The 64/128 selection reflects the bit-level of encryption security. This WEP encryption level must match
the encryption level being used on the WAP.
6. Toggle the Default Key field until the you’ve chosen a WEP Key value (from 1- 4) that matches what
you’ll be using on your target WAP200G. This value MUST MATCH on both devices.
- These WEP Key identifier values must match for both devices.
7. With the proper WEP Key value displayed, press the Generate button to launch the WEP Passphrase
keyboard.
If you are wanting to have your target WAP (other than an NXA-WAP200G) generate the Current Key
- Do not press the Generate button and continue with Step 13.
-This keyboard allows you to enter a Passphrase (such as AMXPanel) and then AUTOMATICALLY
generate a WEP key which is compatible only among all Modero panels.
8. Within this on-screen WEP Passphrase keyboard (FIG. 34), enter a character string or word (such as
AMXPanel) and press Done when you have finished.
WEP will not work unless the same Default Key is set on both the panel and the
Wireless Access Point.
For example: if you have your Wireless Access Point set to default key 4 (which
was 01:02:03:04:05), you must set the panel’s key 4 to 01:02:03:04:05.
The code key generator on Modero panels use the same key generation formula.
Therefore, this same Passphrase generates identical keys when done on any
Modero because they all use the same Modero-specific generator. The Passphrase
generator is case sensitive.
FIG. 34 WEP Passphrase Keyboard
Configuring Communication
51
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
-As an example, enter the word AMXPanel using a 128-bit hex digit encryption. After pressing
Done, the on-screen Current Key field displays a long string of characters (separated by colons)
which represents the encryption key equivalent to the word AMXPanel.
-This series of hex digits (26 hex digits for a 128-bit encryption key) should be entered as the
Current Key into both the WAP and onto other communicating Modero panels by using the
WEP Key dialog (FIG. 35).
9. Write down this Current Key string value for later entry into your WAP’s WEP Key field (typically
entered without colons) and into other communicating panel’s Current Key field (FIG. 35).
10. If you are entering a Current Key generated either by your target WAP or another Modero panel,
within the WEP Keys section, touch the Key # button to launch the WEP Key # keyboard (FIG. 35), enter
the characters and press Done when finished.
-This Key value corresponds to the Default WEP Key number used on the Wireless Access Point and
selected in the Default Key field described in the previous step.
11. The remaining Current Key and Authentication fields are greyed-out and cannot be altered by the user.
12. Verify the fields within the IP Settings section have been properly configured. Refer to Step 1: Configure
the Panel’s Wireless IP Settings section on page 43 for detailed information.
13. Press the Back button to navigate to the Protected Setup page and press the on-screen Reboot button to
both save any changes and restart the panel. Remember that you will need to navigate to the System
Settings page and configure the connection to a target Master.
14. After the panel restarts, return to the Wireless Settings page to verify the Link Quality and Signal
Strength:
-The descriptions are: None, Poor, Fair, Good, Very Good, and Excellent.
Refer to the NXA-WAP200G Instruction Manual for more detailed setup and configuration procedures.
FIG. 35 WEP Key # Keyboard
If your target Wireless Access Point does not support passphrase key generation and
has previously been setup with a manually entered WEP KEY, you must manually
enter that same WEP key on your panel.
The signal strength field provides some descriptive text regarding the strength of the
connection to a Wireless Access Point. If there is no signal or no IP Address
displayed; configuration of your network could be required.
Configuring Communication
52 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Configuring Multiple Wireless Moderos To Communicate To a Target WAP200G
1. For each communicating touch panel, complete all of the steps outlined within the previous Configuring
the Modero’s wireless card for secured access to a WAP200G section on page 48.
2. Navigate back to the Wireless Settings page on each panel.
3. Verify that all communicating Modero panels are using the same SSID, encryption level, Default Key #,
and an identical Current Key value.
-As an example, all panels should be set to Default Key #1 and be using aa:bb:cc..as the Current
Key string value. This same Key value and Current Key string should be used on the target WAP.
4. Repeat steps 1 - 3 on each panel. Using the same passphrase, generates the same key for all
communicating Modero panels.
Step 3: Choose a Master Connection Mode
The panel requires you establish the type of connection you want made between it and your master.
In the Protected Setup page:
1. Select System Settings.
2. Select Type to toggle between the Master Connection Types USB and Ethernet.
-A USB connection is a direct connection from the panel’s mini-USB port to a corresponding USB
port on the PC (acting as a Virtual Master).
-A Wireless Ethernet connection involves indirect communication from the panel to a Master via a
wireless connection to the network.
USB
NetLinx Studio can be setup to run a Virtual Master where the PC acts as the Master by supplying its own IP
Address for communication to the panel. For a PC to establish a USB connection with a Modero panel, it must
have the AMX USBLAN driver installed.
It is recommended that firmware KIT files only be transferred over a direct connection
and only when the panel is connected to a power supply. If battery power or wireless
connection fails during a firmware upgrade, the panel flash file system may become
corrupted.
FIG. 36 System Settings page
The AMX USBLAN driver is included with both NetLinx Studio2 and TPDesign4, and
can also be downloaded as a stand-alone application from www.amx.com.
Configuring Communication
53
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Prepare your PC for USB communication with the panel
If you haven’t already done so, download and install the latest versions of NetLinx Studio2 and TPDesign4
(from www.amx.com), and restart your PC.
Configure the panel for USB communication
The first time the panel is connected to the PC it is detected as a new USB hardware device, and the correct
(panel-specific) USBLAN driver must be associated to it manually. Each time thereafter, the panel is
recognized as a unique USBLAN device, and the association to the driver is handled automatically.
1. Connect the PS4.4 power connector to the panel (or docking station if the panel is already installed) to
supply power.
2. Press and hold the two lower external pushbuttons on either side of the panel simultaneously for 3
seconds to access the Setup page.
3. In the Protected Settings page, select System Settings to open the System Settings page (FIG. 37).
4. Toggle the blue Type field (from the Master Connection section) until the choice cycles to USB.
Refer to the System Settings Page section on page 86 for information about the fields on this page.
5. Press the Back button to return to the Protected Setup page.
6. Press Reboot to save changes and restart the panel.
7. When the panel powers up and displays the first panel page, insert the mini-USB connector into the
Program Port on the panel.
It may take a minute for the panel to detect the new connection and send a signal to the PC
(indicated by a green System Connection icon).
The first time the panel is recognized by the PC as a new USB device, a USB driver installation
popup window (FIG. 38) is displayed. This window notifies you that the panel has been detected as
a USB device, and the appropriate USB driver is being installed to establish communication with
the panel. It also indicates that the AMX USBLAN driver does not contain a Microsoft® digital
signature.
FIG. 37 System Settings page - USB Connection
Configuring Communication
54 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
8. Click Yes to proceed with the driver installation.
Once the installation is complete, the panel and PC are ready to communicate via USB.
9. Navigate back to the System Settings page.
Configure a Virtual NetLinx Master using NetLinx Studio
A Virtual NetLinx Master (VNM) is used when the target panel is not connected to a physical NetLinx Master.
In this situation, the PC takes on the functions of a Master via a Virtual NetLinx Master. This connection is
made by either using the PC’s Ethernet Address (via TCP/IP using a known PC’s IP Address as the Master) or
using a direct mini-USB connection to communicate directly to the panel.
Before beginning:
1. Verify the panel has been configured to communicate via USB within the System Settings page and that
the USB driver has been properly configured. Refer to the previous section for more information.
2. In NetLinx Studio, select Settings > Master Communication Settings, from the Main menu to open the
Master Communication Settings dialog (FIG. 39).
FIG. 38 USB driver installation popup window
FIG. 39 Assigning Communication Settings for a Virtual Master
(not needed as this is a direct
USB connection)
IP Address of computer
Configuring Communication
55
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
3. Click the Communications Settings button to open the Communications Settings dialog.
4. Click the NetLinx Master radio button (from the Platform Selection section).
5. Click the Virtual Master radio button (from the Transport Connection Option section).
6. Click the Edit Settings button to open the Virtual NetLinx Master Settings dialog (FIG. 39).
7. Enter the System number (default is 1).
8. Click OK to close all open dialogs and save your settings.
9. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System.
10. Right-click on Empty Device Tree/System and select Refresh System to re-populate the list.
The panel will not appear as a device below the virtual system number (in the Online Tree tab) until
both the system number (default = 1) is entered into the Master Connection section of the System
Settings page and the panel is restarted.
-The Connection status turns green after a few seconds to indicate an active USB connection to the
PC (Virtual Master).
-If the System Connection icon does not turn green, check the USP connection and communication
settings and refresh the system.
Ethernet
1. When using Ethernet, press the listed Mode to toggle through the available connection modes:
2. Select the Master Port Number to open the keypad and change this value. The default setting for the port
is 1319.
3. Set your Master Port and select Done.
If you have enabled password security on your master you need to set the username and password within the
device.
4. Select the blank field Username to open the keyboard.
5. Set your Username and select Done.
6. Select the blank field Password to open the keyboard.
7. Set your Password and select Done.
8. Press the Back button to return to the Protected Setup page.
9. Press the Reboot button to reboot device and confirm changes.
Connection Modes
Mode Description Procedures
Auto The device connects to the first master that
responds. This setting requires you set the
System Number.
Setting the System Number:
1. Select the System Number to open the keypad.
2. Set your System Number select Done.
URL The device connects to the specific IP of a
master via a TCP connection. This setting
requires you set the Master’s IP.
Setting the Master IP:
1. Select the Master IP number to the keyboard.
2. Set your Master IP and select Done.
Listen The device "listens" for the master to initiate
contact. This setting requires you provide the
master with the device’s IP.
Confirm device IP is on the Master URL list. You
can set the Host Name on the device and use it to
locate the device on the master. Host Name is
particularly useful in the DHCP scenario where the
IP address can change.
Configuring Communication
56 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Master Connection to a Virtual Master via Ethernet
Before beginning:
1. Verify the panel has been configured to communicate with the Wireless Access Point and verify the signal
strength quality bargraph is On.
2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx
Studio 2 > NetLinx Studio 2).
3. Select Settings > Master Communication Settings, from the Main menu to open the Master
Communication Settings dialog (FIG. 40).
4. Click the Communications Settings button to open the Communications Settings dialog.
5. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are
working as a NetLinx Master.
6. Click on the Virtual Master radio box (from the Transport Connection Option section) to indicate you
are wanting to configure the PC to communicate with a panel. Everything else such as the Authentication
is greyed-out because you are not going through the Master’s UI.
7. Click the Edit Settings button (on the Communications Settings dialog) to open the Virtual NetLinx
Master Settings dialog (FIG. 40).
8. From within this dialog enter the System number (default is 1) and note the IP Address of the target PC
being used as the Virtual Master. This IP Address can also be obtained by following these procedures:
-On your PC, click Start > Run to open the Run dialog.
-Enter cmd into the Open field and click OK to open the command DOS prompt.
-From the C:\> command line, enter ipconfig to display the IP Address of the PC. This information
is entered into the Master IP/URL field on the panel.
9. Click OK three times to close the open dialogs, save your settings, and return to the main NetLinx Studio
application.
10. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System. The
default System value is one.
11. Right-click on the Empty Device Tree/System entry and select Refresh System to re-populate the list.
12. Connect the terminal end of the PS4.4 power cable to the 12 VDC power connector on the side of the
stand-alone touch panel.
When configuring your panel to communicate with a Virtual Master (on your PC) via
wireless Ethernet, the Master IP/URL field must be configured to match the IP
Address of the PC and make sure to use the Virtual System value assigned to the
Virtual Master within NetLinx Studio.
FIG. 40 Assigning Communication Settings and TCP/IP Settings for a Virtual Master
Enter this IP
into the
Master IP/URL
field on the
System Settings
page IP Addresses of computer
(also obtained by using the
Start > Run > cmd command)
Configuring Communication
57
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
13. After the panel powers-up, press and hold the two lower buttons on both sides of the display (for 3
seconds) to continue with the setup process and proceed to the Setup page.
14. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page
(FIG. 41).
15. Press the blue Type field (from the Master Connection section) until the choice cycles to the word
Ethernet.
16. Press the Mode field until the choice cycles to the word URL.
-By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this
value directly from the communicating target Master (virtual or not). A Virtual Master system
value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or
IREdit.
17. Press the Master IP/URL field to open a Keyboard and enter the IP Address of the PC used as the Virtual
Master.
18. Click Done to accept the new value and return to the System Settings page.
19. Do not alter the Master Port Number value (this is the default value used by NetLinx).
20. Press the Back button to open the Protected Setup page.
21. Press the on-screen Reboot button to both save any changes and restart the panel.
FIG. 41 Sample System Settings page (for Virtual Master communication)
Enter the IP Address
information of the PC
used as a Virtual
Master
The System Number is
assigned to the Master
within the AMX
software application
(these must match)
When using a Virtual Master,
there is no need to enter a
username and/or password
Configuring Communication
58 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Using G4 Web Control to Interact with a G4 Panel
The G4 Web Control feature allows you to use a PC to interact with a G4 enabled panel via the web. This
feature works in tandem with the new browser-capable NetLinx Security firmware update (build 300 or
higher). G4 Web Control is only available with the latest Modero panel firmware.
Refer to the G4 Web Control Page section on page 108 for more detailed field information.
1. Press and hold the two lower buttons on both sides of the display for 3 seconds to open the Setup page.
2. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup
page and display an on-screen keypad.
3. Enter 1988 into the Keypad’s password field (1988 is the default password).
4. Press Done when finished.
5. Press the G4 WebControl button to open the G4 Web Control page (FIG. 42).
6. Press the Enable/Enabled button until it toggles to Enabled (light blue color).
7. The Network Interface Select field is read-only and displays the method of communication to the web.
-Wireless is used when a wireless card is detected within the internal card slot. This method
provides an indirect communication to the web via a pre-configured Wireless Access Point.
8. Press the Web Control Name field to open the Web Name keyboard.
9. From the Web Name keyboard, enter a unique alpha-numeric string to identify this panel. This
information is used by the NetLinx Security Web Server to display on-screen links to the panel. The on-
screen links use the IP Address of the panel and not the name for communication (FIG. 43).
10. Press Done after you are finished assigning the alpha-numeric string for the Web Control name.
11. Press the Web Control Password field to open the Web Password keyboard.
Verify your NetLinx Master (ME260/64 or NI-Series) has been installed with the latest
firmware KIT file from www.amx.com. Refer to your NetLinx Master instruction
manual for more detailed information on the use of the new web-based NetLinx
Security.
Clearing Password #5, from the initial Password Setup page, removes the need for
you to enter the default password before accessing the Protected Setup page.
FIG. 42 G4 Web Control page
The Network Interface Select field is read-only and defaulted to Wireless (since
there is no Ethernet cable connection).
Configuring Communication
59
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
12. From the Web Password keyboard, enter a unique alpha-numeric string to be assigned as the G4
Authentication session password associated with VNC web access of this panel.
13. Press Done after you are finished assigning the alpha-numeric string for the Web Control password.
14. Press the Web Control Port field to open the Web Port Number keypad.
15. Within the keypad, enter a unique numeric value to be assigned to the port the VNC Web Server is
running on. The default value is 5900.
16. Press Done when you are finished entering the value. The remaining fields within the G4 Web Control
Settings section of this page are read-only and cannot be altered.
17. Press the Up/Down arrows on either sides of the G4 Web Control Timeout field to increase or decrease
the amount of time the panel can remain idle (no cursor movements) before the session is closed and the
user is disconnected.
18. Press the Back button to open the Protected Setup page.
19. Press the on-screen Reboot button to save any changes and restart the panel.
Using your NetLinx Master to control the G4 panel
Refer to your particular NetLinx Master’s instruction manual for detailed information on how to download the
latest firmware from www.amx.com. This firmware build enables SSL certificate identification and
encryption, HTTPS communication, ICSP data encryption, and disables the ability to alter the Master security
properties via a TELNET session.
Once the Master’s IP Address has been set through NetLinx Studio version 2.x or higher:
1. Launch your web browser.
2. Enter the IP Address of the target Master (ex: http://198.198.99.99) into the web browser’s Address field.
3. Press the Enter key on your keyboard to begin the communication process between the target Master and
your computer.
-Initially, the Master Security option is disabled (from within the System Security page) and no
username and password is required for access or configuration.
-Both HTTP and HTTPS Ports are enabled by default (via the Manage System > Server page).
FIG. 43 Sample relationship between G4 Web Control and Mange WebControl Connections window
Verify your NetLinx Masters IP Address and System Number have been properly
entered into the Master Connection section of the System Settings page.
In order to fully utilize the SSL encryption, your web browser should incorporate the an encryption
feature. This encryption level is displayed as a Cipher strength.
Configuring Communication
60 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
-If the Master has been previously configured for secured communication, click OK to accept the
AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the
fields within the Login dialog.
4. Click OK to enter the information and proceed to the Master’s Manage WebControl Connections
window.
5. This Manage WebControl Connections page (FIG. 44) is accessed by clicking on the Manage
connections link (within the Web Control section within the Navigation frame). Once activated, this page
displays links to G4 panels running the latest G4 Web Control feature (previously setup and activated on
the panel).
6. Click on the G4 panel name link associated with the target panel. A secondary web browser window
appears on the screen (FIG. 45).
7. Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl
application on your computer. This application contains the necessary Active X and VNC client
applications necessary to properly view and control the panel pages from your computer.
FIG. 44 Manage WebControl Connections page (populated with compatible panels)
FIG. 45 Web Control VNC installation and Password entry screens
Compatible
devices field
G4 panels
Compression
Options
(showing G4
WebControl links)
The G4 Web Control application is sent by the panel to the computer that is used for
communication. Once the application is installed, this popup will no longer appear.
This popup will only appear if you are connecting to the target panel using a different
computer.
Configuring Communication
61
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
8. In some cases, you might get a Connection Details dialog (FIG. 46) requesting a VNC Server IP Address.
This is the IP Address not the IP of the Master but of the target touch panel. Depending on which method
of communication you are using, it can be found in either the:
-Wired Ethernet - System Settings > IP Settings section within the IP Address field.
-Wireless - Wireless Settings > IP Settings section within the IP Address field.
-If you do not get this field continue to step 9.
9. If a WebControl password was setup on the G4 WebControl page, a G4 Authentication Session password
dialog box appears on the screen within the secondary browser window.
10. Enter the Web Control session password into the Session Password field (FIG. 46). This password was
previously entered into the Web Control Password field within the G4 Web Control page on the panel.
11. Click OK to send the password to the panel and begin the session. A confirmation message appears
stating "Please wait, Initial screen loading..".
The secondary window then becomes populated with the same G4 page being displayed on the target G4
panel. A small circle appears within the on-screen G4 panel page and corresponds to the location of the mouse
cursor. A left-mouse click on the computer-displayed panel page equates to an actual touch on the target G4
panel page.
FIG. 46 Connection Details dialog
IP Address of touch panel
- obtained from IP Settings section of
the Wireless Settings page
Configuring Communication
62 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Upgrading Modero Firmware
63
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom

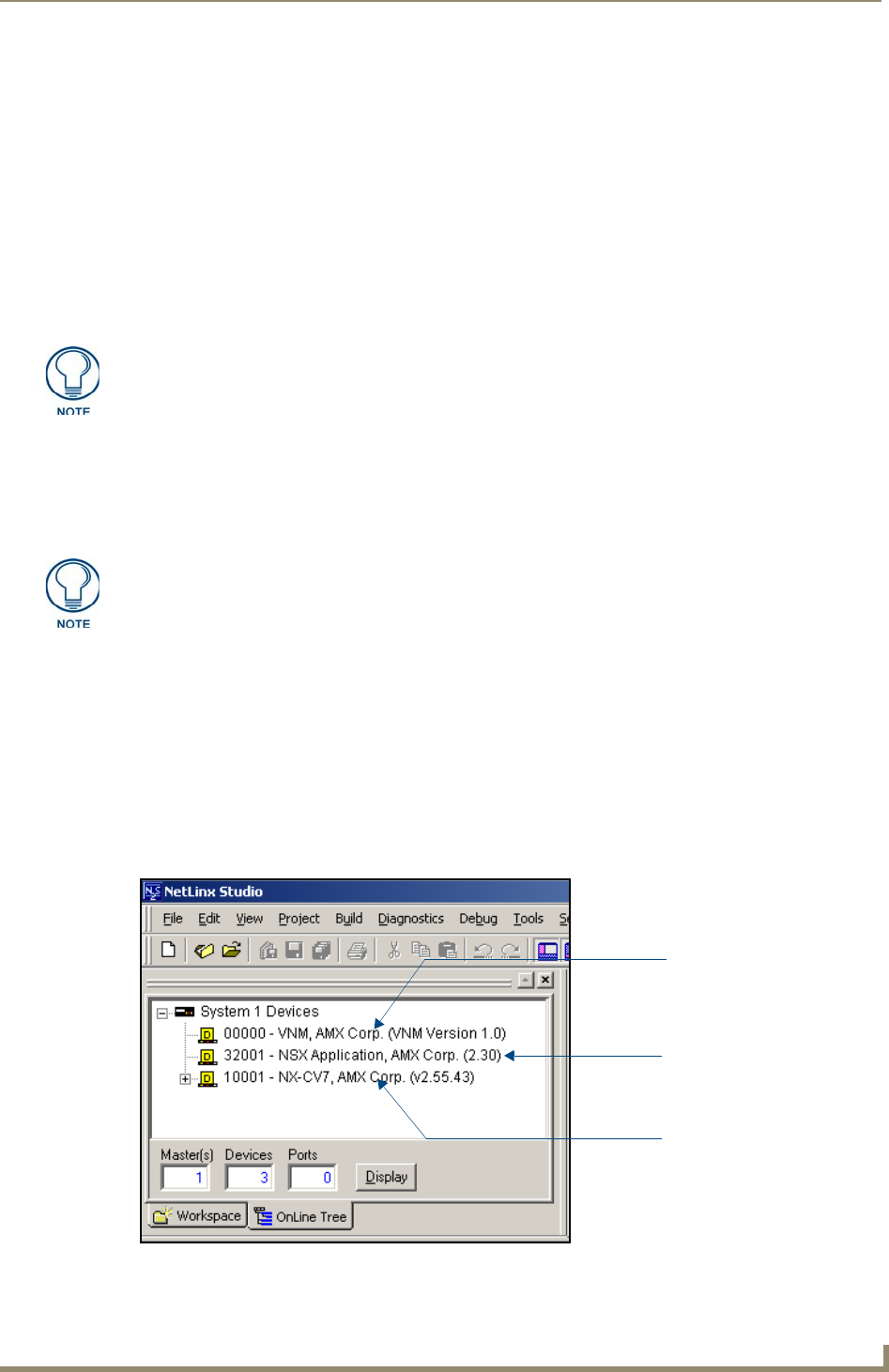

Upgrading Modero Firmware
Overview
Before beginning the Upgrade process:
-Setup and configure your NetLinx Master. Refer to the your particular NetLinx Master Instruction
Manual for detailed setup procedures.
-Calibrate and prepare the communication pages on the Modero panel for use. Refer to the Panel
Calibration section on page 39.
-Refer to the NetLinx Studio version 2.x Help file for more information on uploading files via
Ethernet.
-Configure your panel for either direct connect or wireless communication. Refer to the Configuring
Communication section on page 41 for more information.
The process of updating firmware involves the use of a communicating NetLinx Master. The required steps for
updating firmware to a Modero panel are virtually identical to those necessary for updating Kit files to a
NetLinx Master (except the target device is a panel instead of a Master). Refer to either your Master’s
literature or Studio 2.x Help file for those procedures.
Upgrading the Modero Firmware via the USB port
Before beginning with this section, verify your panel is both powered and the Type-A USB connector is
securely inserted into the PC’s USB port. The panel must be powered-on before connecting the
mini-USB connector to the panel.
Step 1: Configure the panel for a USB Connection Type
1. After the installation of the USB driver has been completed; confirm the proper installation of the large
Type-A USB connector to the PC's USB port, and restart your machine.
2. After the panel powers-up, press and hold the grey Front Setup Access button (for 3 seconds) to continue
with the setup process and proceed to the Setup page.
3. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page.
4. Toggle the blue Type field (from the Master Connection section) until the choice cycles to USB.
The latest NXD-700Vi firmware kit file is now panel-specific.
Only NXD-700Vi firmware should be loaded onto this specific panel type.
This new firmware also provides both backwards compatibility with the previous
802.11b cards and new security protocols for the new 802.11g wireless CF card.
It is recommended that firmware Kit files only be transferred over a direct Ethernet
connection and only when the panel is connected to a power supply.
If battery power or wireless connection fails during a firmware upgrade, the panel
flash file system may become corrupted.
A touch panel which is not using a valid username and password will not be able to
communicate with a secured Master. If you are updating the firmware on or through a
panel which is not using a username or password field, you must first remove the
Master Security feature to establish an unsecured connection.
Establishing a USB connection between the PC and the panel, prior to installing the
USB Driver will cause a failure in the USB driver installation.
Upgrading Modero Firmware
64 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
5. Press the Back button on the touch panel to return to the Protected Setup page.
6. Press the on-screen Reboot button to both save any changes and restart the panel. Remember that the
panel’s connection type must be set to USB prior to rebooting the panel and prior to inserting the USB
connector.
7. ONLY AFTER the unit displays the first panel page, THEN insert the mini-USB connector into the
Program Port on the panel. It may take a minute for the panel to detect the new connection and send a
signal to the PC (indicated by a green System Connection icon).
-If a few minutes have gone by and the System Connection icon still does not turn green, complete
the procedures in the following section to setup the Virtual Master and refresh the System from the
Online Tree. This action sends out a request to the panel to respond and completes the
communication (turning the System Connection icon green).
8. Navigate back to the System Settings page.
Step 2: Prepare NetLinx Studio for communication via the USB port
1. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx
Studio 2 > NetLinx Studio 2).
2. Select Settings > Master Communication Settings, from the Main menu to open the Master
Communication Settings dialog (FIG. 47).
3. Click the Communications Settings button to open the Communications Settings dialog.
4. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are
working as a NetLinx Master.
5. Click on the Virtual Master radio box (from the Transport Connection Option section) to indicate you
are wanting to configure the PC to communicate directly with a panel. Everything else such as the
Authentication is greyed-out because you are not going through the Master’s UI.
ALL fields are then greyed-out and read-only, but still display any previous network
information.
FIG. 47 Assigning Communication Settings for a Virtual Master
IP Address of computer
(not needed as this is a
direct USB connection)
Upgrading Modero Firmware
65
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
6. Click the Edit Settings button (on the Communications Settings dialog) to open the Virtual NetLinx
Master Settings dialog (FIG. 47).
7. From within this dialog enter the System number (default is 1).
8. Click OK three times to close the open dialogs, save your settings, and return to the main NetLinx Studio
application.
9. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System. The
default System value is one.
10. Right-click on the Empty Device Tree/System entry and select Refresh System to re-populate the list.
The panel will not appear as a device below the virtual system number (in the Online Tree tab) until
both the system number used in step 7 for the Virtual NetLinx Master (VNM) is entered into the Master
Connection section of the System Settings page and the panel is restarted.
Step 3: Confirm and Upgrade the firmware via the USB port
Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication
between the mini-USB Program port on the touch panel and the PC. This method of communication is used to
transfer firmware Kit files and TPD4 touch panel files.
1. Verify this direct USB connection (Type-A on the panel to mini-USB on the panel) is configured properly
using the steps outlined in the previous two sections.
2. With the panel already configured for USB communication and the Virtual Master setup within NetLinx
Studio, its now time to verify the panel is ready to receive files.
3. After the Communication Verification dialog window verifies active communication between the Virtual
Master and the panel, click the OnLine Tree tab in the Workspace window (FIG. 48) to view the devices
on the Virtual System. The default System value is one.
4. Right-click on the System entry (FIG. 48) and select Refresh System to re-populate the list.
Verify the panel appears in the OnLine Tree tab of the Workspace window.
The default Modero panel value is 10001.
If the G4 panel does not appear, refer to the Appendix C: Troubleshooting section on
page 207 for more information.
A mini-USB connection is only detected after it is installed onto an active panel.
Connection to a previously powered panel which then reboots, allows the PC to
detect the panel and assign an appropriate USB driver.
FIG. 48 NetLinx Workspace window (showing the panel connection via a Virtual NetLinx Master)
Virtual Master
firmware version and
device number
Modero panel firmware
version and device number
NetLinx Studio
version number
Upgrading Modero Firmware
66 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
5. If the panel firmware being used is not current, download the latest Kit file by first logging in to
www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section
of the web page locate your Modero panel.
6. Click on the desired Kit file link and after you’ve accepted the Licensing Agreement, verify you have
downloaded the Modero Kit file to a known location.
7. From within Studio, select Tools > Firmware Transfers > Send to NetLinx Device from the Main menu
to open the Send to NetLinx Device dialog (B in FIG. 49). Verify the panel’s System and Device number
values match those values listed within the System folder in the OnLine Tree tab of the Workspace
window (A in FIG. 49).
8. Select the panels Kit file from the Files section.
9. Enter the Device value associated with the panel and the System number associated with the Master
(listed in the OnLine Tree tab of the Workspace window). The Port field is greyed-out.
10. Click the Reboot Device checkbox. This causes the touch panel to reboot after the firmware update
process is complete. The reboot of the panel can take up 30 seconds after the firmware process has
finished.
11. Click Send to begin the transfer. The file transfer progress is indicated on the bottom-right of the dialog
(B in FIG. 49).
12. As the panel is rebooting, temporarily unplug the USB connector on the panel until the panel has
completely restarted.
13. Once the first panel page has been displayed, reconnect the USB connector to the panel.
14. Right-click the associated System number and select Refresh System. This causes a refresh of all project
systems, establishes a new connection to the Master, and populates the System list with devices on your
particular system.
15. Confirm the panel has been properly updated to the correct firmware version.
The latest NXD-700Vi firmware kit file is now panel-specific.
Only NXD-700Vi firmware should be loaded onto this specific panel type.
This new firmware also provides both backwards compatibility with the previous
802.11b cards and new security protocols for the new 802.11g wireless CF card.
FIG. 49 Using USB for a Virtual Master transfer
AB
Upgrading Modero Firmware
67
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Upgrading the Modero Firmware via Ethernet (IP Address)
Before beginning with this section, verify that your panel is powered and connected to the NetLinx Master
through an Ethernet connection (direct or wireless).
Step 1: Prepare the Master for communication via an IP
1. Obtain the IP Address of the NetLinx Master from your System Administrator. If you do not have an IP
Address for the Master, refer to your particular Master’s instruction manual for more information on
obtaining this IP Address using NetLinx Studio 2.x.
-From the Online Tree tab of the Workspace window, select the NetLinx Master.
-Follow steps outlined in either the Obtaining or Assigning the Master’s IP Address sections from
your particular NetLinx Master instruction manual to use an address.
-Note the IP Address and Gateway information.
2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx
Studio 2 > NetLinx Studio 2).
3. Select Settings > Master Communication Settings from the Main menu to open the Master
Communication Settings dialog (FIG. 50).
4. Click the Communications Settings button to open the Communications Settings dialog.
5. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate you are
working with a NetLinx Master (such as the NXC-ME260/64 or NI-Series of Integrated Controllers).
6. Click on the TCP/IP radio button (from the Transport Connection Option section) to indicate you are
connecting to the Master through an IP Address.
7. Click the Edit Settings button (on the Communications Settings dialog) to open the TCP/IP Settings
dialog (FIG. 50). This dialog contains a series of previously entered IP Address/URLs and their
associated names, all of which are stored within Studio and are user-editable.
8. Click the New button to open the New TCP/IP Settings dialog where you can enter both a previously
obtained DHCP or Static IP Address and an associated description for the connection into their respective
fields.
FIG. 50 Assigning Master Communication Settings and TCP/IP Settings
Upgrading Modero Firmware
68 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
9. Place a checkmark within the Automatically Ping the Master Controller to ensure availability radio box
to make sure the Master is initially responding online before establishing full communication.
10. Click OK to close the current New TCP/IP Settings dialog and return to the previous TCP/IP Settings
dialog where you must locate your new entry within the List of Addresses section.
11. Click the Select button to make that the currently used IP Address communication parameter.
12. Click OK to return to the Communications Settings dialog and place a checkmark within the
Authentication Required radio box if your Master has been previously secured with a username/password.
13. Click on the Authentication Required radio box (if the Master is secured) and then press the User Name
and Password button to open the Master Controller User Name and Password dialog.
14. Within this dialog, you must enter a previously configured username and password (with sufficient rights)
before being able to successfully connect to the Master.
15. Click OK to save your newly entered information and return to the previous Communication Settings
dialog where you must click OK again to begin the communication process to your Master.
16. Click Ye s to interrupt the current communication from the Master and apply the new settings.
17. Click Reboot (from the Tools > Reboot the Master Controller dialog) and wait for the System Master to
reboot. The STATUS and OUTPUT LEDs should begin to alternately blink during the incorporation. Wait
until the STATUS LED is the only LED to blink.
18. Press Done once until the Master Reboot Status field reads *Reboot of System Complete*.
19. Click the OnLine Tree tab in the Workspace window to view the devices on the System.
The default System value is one (1).
20. Right-click the associated System number and select Refresh System. This establishes a new connection
to the specified System and populates the list with devices on that system. The communication method is
then highlighted in green on the bottom of the NetLinx Studio window.
Step 2: Prepare the Panel For Communication Via an IP
1. Press the blue Type field (from the Master Connection section) until the choice cycles to the word
Ethernet.
2. Press the blue Mode field until the choice cycles to the word URL.
-By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this
value directly from the communicating target Master (virtual or not). A Virtual Master system
value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or
IREdit.
3. Press the red Master IP/URL field to open a Keyboard and enter the NetLinx Master’s IP Address
(obtained from the Diagnostics - Networking Address dialog of the NetLinx Studio application).
4. Click Done to accept the new value and return to the System Configuration page.
5. Do not alter the Master Port Number value (this is the default value used by NetLinx).
6. Press the Back button to return to the Protected Setup page and press the on-screen Reboot button to
restart the panel and save any changes.
Step 3: Verify and Upgrade the Panel Firmware Via an IP
1. Click the OnLine Tree tab in the Workspace window to view the devices on the System.
The default System value is one.
2. Right-click the associated System number (from the Workspace window) and select Refresh System to
detect of all devices on the current system, establish a new connection to the Master, and refresh the
System list with devices on that system.
3. After the Communication Verification dialog window verifies active communication between the PC and
the Master, verify the panel appears in the OnLine Tree tab of the Workspace window (see FIG. 48 on
page 65). The default Modero panel value is 10001.
If you are currently connected to the assigned Master, a popup asks whether you
would want to temporarily stop communication to the Master and apply the new
settings.
Upgrading Modero Firmware
69
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
4. If the panel firmware being used is not current, download the latest Kit file by first logging in to
www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section
of the web page locate your Modero panel.
5. Click on the desired Kit file link and after you’ve accepted the Licensing Agreement, verify you have
downloaded the Modero Kit file to a known location.
6. From within Studio, select Tools > Firmware Transfers > Send to NetLinx Device from the Main menu
to open the Send to NetLinx Device dialog (FIG. 51). Verify the panel’s System and Device number
values match those values listed within the System folder in the OnLine Tree tab of the Workspace
window.
Select the panels Kit file from the Files section (FIG. 51).
7. Enter the Device value associated with the panel and the System number associated with the Master
(listed in the OnLine Tree tab of the Workspace window). The Port field is greyed-out.
8. Click the Reboot Device checkbox. This causes the touch panel to reboot after the firmware update
process is complete. The reboot of the panel can take up 30 seconds after the firmware process has
finished.
9. Click Send to begin the transfer. The file transfer progress is indicated on the bottom-right of the dialog
(FIG. 51).
10. Click Close (after the panel reboots) to return to the main program.
11. Right-click the associated System number and select Refresh System. This causes a refresh of all project
systems, establishes a new connection to the Master, and populates the System list with devices on your
particular system.
12. Confirm the panel has been properly updated to the correct firmware version.
The latest NXD-700Vi firmware kit file is now panel-specific.
Only NXD-700Vi firmware should be loaded onto this specific panel type.
This new firmware also provides both backwards compatibility with the previous
802.11b cards and new security protocols for the new 802.11g wireless CF card.
FIG. 51 Send to NetLinx Device dialog (showing Modero firmware update via IP)
Selected Firmware file
Description field
Device and System values
must match the System and Device values
listed in the Workspace window
Firmware download
status
for selected Kit file
Upgrading Modero Firmware
70 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Firmware Pages and Descriptions
71
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Firmware Pages and Descriptions
This section describes each firmware page and their specific functional elements.
Setup Navigation Buttons
These Setup Navigation Buttons (FIG. 52) appear on the left of the panel screen when the Setup page is
currently active.
Protected Setup Page
This button opens the Protected Setup page which centers around the properties used by the panel to properly
communicate with the NetLinx Master. Refer to both the Protected Setup Navigation Buttons section on
page 83 and the Protected Setup Page section on page 71 for more detailed information.
FIG. 52 Setup Navigation Buttons
Press to access the Protected Setup page for panel calibration and to access
security release passwords and connection settings.
Press to access the Information menu and select either Project Information or
Panel Information.
Closes the Setup page
Press to access the Time & Date Settings page, where you can alter the time and
date settings on the Master.
Press the Audio button to access the Audio Settings page, where you can
alter the audio parameters on the Modero panel.
Press the Video button to access the Video Settings page, where
you can set the video properties for incoming video.
This button only appears on Color Video (CV) capable touch panels.
Firmware Pages and Descriptions
72 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Setup Page
This page (FIG. 53) centers around basic Modero panel properties such as: Connection Status of the panel,
Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness.
The elements of the Setup page are described in the table below:
FIG. 53 Setup page
Setup Page Elements
Exit: Returns you to the Main touch panel page. In this case, the previous page is the
default Main page.
Connection Status icon: This visual display of the connection status allows the user to have a current
update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Connection Status: Displays whether the panel is communicating externally, the encryption status
of the communicating Master, what connection type is being used (Ethernet or
USB), and what System the panel is a part of.
This visual display of the connection status is also reflected at the upper-right of
each firmware page. This allows the user to have a current visual update of the
panel’s connection status regardless of what page is currently active.
When a connection is established, the message displayed is either:
"Connected via Ethernet " or "Connected via USB ".
If no connection can be established by the Modero panel, it will continue to try
and establish a connection while displaying: "Attempting via ...".
The word "Encrypted" appears only when an encrypted connection is
established with a target Master.
The panel must be rebooted before incorporating any panel communication
changes and detecting any active Ethernet connections.
The Ethernet connection is not detected until after a reboot.
Display Timeout: Sets the length of time the panel can remain idle before activating the sleep
mode. When the device goes into sleep mode, the LCD is powered-down.
Press the UP/DN buttons to increase/decrease the time until the panel
times out. Range = 0 - 240 minutes.
Use this button to set the timeout value to zero and disable the sleep mode.
Note: Display timeout values affect battery performance. Small timeout values
increase the life of the battery charge. Greater timeout values may require
more frequent battery charging.
Connection Status
Red Connection Status icon -
Green Connection Status icon -
indicates no connection
indicates communication
to a Master
to a Master
Firmware Pages and Descriptions
73
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Information
The Information button provides a menu to select either the Project Information Page section on page 74 or
the Panel Information Page section on page 75. Select either option to access that page.
Setup Page Elements (Cont.)
Inactivity Page Flip
Timeout: Sets the number of minutes of inactivity before the panel automatically flips to a
pre-selected touch panel page. When the device goes into this inactivity mode,
the LCD does not power-down.
Press the UP/DN buttons to increase/decrease the time the panel can remain
inactive before it flips to the preset page. Range = 0 - 240 minutes.
Use this button to set the timeout value to zero and disable the inactivity page
flip mode.
The touch panel page used for the Inactivity page flip is shown within a small
Inactivity Page field.
Panel Brightness: Sets the display brightness level of the panel.
Press the UP/DN buttons to adjust the brightness level. Range = 0 - 100.
The on-screen bargraph can be dragged to adjust the Brightness level which
is then reflected as a corresponding numeric value within the Panel
Brightness field.
FIG. 54 Information menu
Firmware Pages and Descriptions
74 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Project Information Page
The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the
selected Modero panel (FIG. 55). Refer to the TPDesign4 Touch Panel Program instruction manual for more
detailed program information.
The elements of the Project Information page are described in the table below:
FIG. 55 Project Information page (showing the TPD4 project properties tabs)
Project Information Page Elements
Back: Returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
File Name: Displays the name of the TPDesign4 project file downloaded to the panel.
Designer ID: Displays the designer information.
File Revision: Displays the revision number of the file.
Dealer ID: Displays the dealer ID number (unique to every dealer and entered in TPD4).
Job Name: Displays the job name.
Sales Order: Displays the sales order information.
Purchase Order: Displays the purchase order information.
AMX IR 38k Assigned Port: Displays the AMX 38 kHz IR channel port used by the IR receiver on the panel.
This information is pulled by the panel from AMX IR Receivers section of the
TPD4 Project Properties > IR Emitters & Receivers tab.
For IR reception, this is the port that reports a push on for the corresponding
IR code.
IR receivers and transmitters on G4 panels share the device address number
of the panel.
Firmware Pages and Descriptions
75
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Panel Information Page
The Panel Information page (FIG. 56) centers around Modero panel properties such as: resolution used, on-
board memory, firmware, address/channel information, and string information.
The elements of the Panel Information page are described in the table below:
Project Information Page Elements (Cont.)
AMX IR 455k
Assigned Port: Displays the AMX 455 kHz IR channel port used by the IR receiver on the
panel.
This information is pulled by the panel from AMX IR Receivers section of the
TPD4 Project Properties > IR Emitters & Receivers tab.
For IR reception, this is the port that reports a push on for the corresponding
IR code.
IR receivers and transmitters on G4 panels share the device address number
of the panel.
NOTE: This feature is unavailable in NXD-700Vi panels sold after January 1,
2011.
Build Number: Displays the build number information of the TPD4 software used to create the
project file.
Creation Date: Displays the project creation date.
Revision Date: Displays the last revision date for the project.
Last Save Date: Displays the last date the project was saved.
Blink Rate: Displays the feedback blink rate (10th of second).
Job Comments: Displays any comments associated to the job. These comments are taken from
the TPD4 project file.
FIG. 56 Panel Information page (takes its’ information from the touch panel)
Panel Information Page Elements
Back: Returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Panel Type: Displays the model of the Modero panel being used.
Firmware Pages and Descriptions
76 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Panel Information Page Elements (Cont.)
Firmware Version: Displays the G4 firmware version being used by the panel.
Verify you have the latest version from www.amx.com.
Setup Port: Displays the setup port information/value being used by the panel.
High Port: Displays the high port (port count) value for the panel.
High Address: Displays the high address (address count) value for the panel.
High Channel: Displays the high channel (channel count) value for the panel.
High Level: Displays the high level (level count) value being used by the panel.
Serial Number: Displays the specific serial number value assigned to the panel.
Setup Pages Version: Displays the type and version of the Setup pages being used by the panel.
Screen Width: Displays the pixel width being used to display the incoming video signal on the
Modero panel.
Maximum available screen width on a NXD-700Vi Modero panel is 800 pixels.
Screen Height: Displays the pixel height being used to display the incoming video signal on the
Modero panel.
Maximum available screen height on a NXD-700Vi Modero panel is 480
pixels.
Screen Refresh Rate: Displays the video refresh rate applied to the incoming video signal from the
panel. Default rate is 60.
Screen Rotation: Displays the degree of rotation applied to the on-screen image.
Power Up Pages: Displays the first touch panel page assigned for display after the device is
powered-up.
This information is taken from the TPD4 project file.
Most projects begin with a Main page.
Start Up String: Displays the start-up string.
Wake Up String: Displays the wake up string used after an activation from a timeout.
Sleep String: Displays the sleep string used during a panel’s sleep mode.
File System: Displays the amount of Compact Flash memory available on the Modero panel.
RAM: Displays the available RAM (or Extended Memory module) on the Modero
panel.
Firmware Pages and Descriptions
77
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Time & Date Settings Page
The options on the Time & Date Settings page (FIG. 57) allow you to set and adjust time and date information
on the NetLinx Master. If the time and/or date on the Master is modified, all connected devices will be updated
to reflect the new information.
Features on this page include:
FIG. 57 Time and Date Settings page
Touch panels do not have an on-board clock. The only way to modify a panel’s time
without altering the Master is via NetLinx Code.
Time & Date Settings Page
Back: Saves all changes and returns to the previous page.
Connection Status icon: The icon in the upper-right corner of each Setup page provides a constant visual
indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Time Date Refresh/Set: This section provides two options:
The Get Time/Date button retrieves Time and Date information from the Master.
The Set Time/Date button sets the Master to retain and save any time/date
modifications made on the panel.
Time Display fields: These fields display the time in three formats: STANDARD, STANDARD AM/PM,
and 24 HOUR.
Date Display fields: These fields display the calendar date information in several different formats.
Set Date/Time: Use the UP/DN arrow buttons to adjust the Master’s calendar date and time. The
blue icon indicates which field is currently selected (see FIG. 57).
Year range = 2000 - 2037
Month range = 1 - 12
Day range = 1 - 31
Hour = 24-hour military
Minute range = 0 - 59
Second range = 0 - 59
Firmware Pages and Descriptions
78 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Audio Settings Page
The Audio Settings page (accessed by pressing the Audio button on the Setup page) allows you to adjust the
master volume parameters and default panel sounds on the panel. The page includes two tabs for analog
(FIG. 58) and intercom (FIG. 59) sound levels.
The elements of the Audio Settings page are described in the table below:
FIG. 58 Audio Settings page (Analog tab)
FIG. 59 Audio Settings page (Intercom tab)
Audio Settings Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Firmware Pages and Descriptions
79
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Environmental acoustics, personal voice level and ambient noise are all deciding factors when setting your
mic, intercom and panel sound levels. Consider your environment when adjusting intercom and sound levels
and use caution so as not to damage the speaker.
Audio Settings Page Elements (Cont.)
Master Volume: This section allows you to alter the current master volume level:
Use the UP/DN buttons to adjust the volume level (range = 0 - 100).
The Master Volume bargraph indicates the current volume level.
Default = 50
The Mute button toggles the Mute feature.
Default Panel Sounds: Sets the Modero panel to play various sounds.
Activating the Button Hit button plays a default sound when you touch an
active button.
Activating the Button Miss button plays a default sound when you touch a
non-active button or any area outside of the active button
The Play Test Sound button plays a test WAV/MP3 file over the panel’s
internal speakers.
The Information button opens the Panel Sounds Information popup window
(FIG. 60).
Digital Audio Level: This section allows you to adjust the current sound level on the internal panel
speaker:
Use the UP/DN buttons to adjust the volume output on the internal speakers
(range = 0 - 100).
The Internal Sound Level bargraph indicates the current sound level.
Default = 50
The Mute button mutes the volume.
Analog:
Line In Level: Allows you to adjust the current Line-In volume level (being received from the
communicating breakout box).
Use the UP/DN buttons to adjust the Line-In volume level (range = 0 - 100).
The Line-In Level bargraph indicates the current Line-In level.
The Mute button mutes the Line-In volume.
Mic Out Level: Allows you to adjust the current Microphone volume level (being received from
the communicating breakout box).
Use the UP/DN buttons to adjust the Microphone volume level
(range = 0 - 100).
The Mic Out Level bargraph indicates the current Mic Out level.
Intercom:
Mic Level: Adjusts the volume level on the panel’s microphone
Use the UP/DN buttons to adjust the microphone level (range = 0 - 100)
The Mic Out Level bargraph indicates the current Mic Out level
Default = 40
Intercom Volume: Sets the volume level for intercom calls
Use the UP/DN buttons to adjust the Line-In volume level (range = 0 - 100)
The Line-In Level bargraph indicates the current Line-In level
The Mute button mutes the Line-In volume
Default = 40
Firmware Pages and Descriptions
80 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Panel Sounds Information Popup Window
Clicking the Information button in the Default Panel Sounds section opens the Panel Sounds Information
popup window (FIG. 60). Click the Close button to return to the Audio Settings page.
Supported sampling rates for WAV
The following is a listing of supported sampling rates associated for WAV files played on NXD-700Vi panels.
Some WAV files currently played on Modero's may not work on these panels. The supported sampling rates
for WAV files are:
FIG. 60 Panel Sounds Information popup window
Supported WAV Sampling Rates
48000 Hz 16000 Hz
44100 Hz 12000 Hz
32000 Hz 11025 Hz
24000 Hz 8000 Hz
22050 Hz
Firmware Pages and Descriptions
81
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Video Settings Page
The Video Settings page (FIG. 61) (accessed by pressing the Video button on the Setup page) sets the Video
properties of the incoming video signal from an NXA-AVB/ETHERNET Breakout Box.
The elements of the Video Settings page are described in the table below:
FIG. 61 Video Settings page (showing default values)
Video Settings Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Settings: The Default Settings button sets the video settings to their default values
(indicated in this table).
The Undo Changes button disregards any changes made on the page since
the last settings were saved.
The Save Settings button saves any changes made to this page.
Video: The Black & White button toggles the Black & White display mode.
Default = Off.
The Sharpness button toggles the Interpolate (Sharpness) feature.
Default = Off.
•The Interlace button toggles the Interlacing feature.
Default = On.
Status: Displays whether or not a video-sync signal is detected.
Format: Allows you to press this blue field and cycle through a choice of available video
formats (NTSC, PAL, SECAM, or Auto detect).
Default = Auto.
Brightness: Use the UP/DN buttons to alter the brightness level of the incoming signal.
Range = 0 - 255, default = 128.
Contrast: Use the UP/DN buttons to alter the contrast level of the incoming signal.
Range = 0 - 255, default = 128.
Saturation: Use the UP/DN buttons to alter the color saturation level of the incoming signal.
Range = 0 - 255, default = 128.
Firmware Pages and Descriptions
82 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Video Settings Page Elements (Cont.)
Hue: Use the UP/DN buttons to alter the hue level of the incoming signal.
Range = 0 - 255, default = 128.
Firmware Pages and Descriptions
83
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Protected Setup Navigation Buttons
The Protected Setup Navigation Buttons (FIG. 62) appear on the left of the panel screen when the Protected
Setup page is currently active.
FIG. 62 Protected Setup Navigation Buttons
Press to access the System Settings page, where you can configure
communication settings for the NetLinx Master and the panel.
Press to access the G4 Web Control page, where you can enable or disable remote
Press to access the Tools menu and select either Panel Logs, Panel Statistics or
Press to access the Calibration page, where you can calibrate the panel.
display and control of the panel via a web-enabled PC running a VNC client.
Connection Utility.
Press to access the Other Settings menu and select either Cache,
Passwords, or SIP Settings.
Press the Sensors button to access the Sensors Setup page, where you can
modify/monitor both the light and motion sensor settings.
Press to access the Wireless Settings page, where
you can setup the wireless connection parameters used by the internal
NXA-WC80211GCF wireless interface card.
Firmware Pages and Descriptions
84 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Protected Setup Page
The Protected Setup page (FIG. 63) centers around the properties used by the panel to properly communicate
with the NetLinx Master. Enter the factory default password (1988) into the password keypad to access this
page for the first time.
The elements of the Protected Setup page are described in the table below:
FIG. 63 Protected Setup page - showing default values
Protected Setup Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Device Information: Opens keypads used to set and display the current device number and device
name.
Press the Synchronize Panel Names button to allow of the Device Name
and the G4 Web Control Name (FIG. 65).
Options: Allows you to select various touch panel features:
The Function Show button enables the display of the channel port and
channel code in the top left corner of the button, the level port and level code
in the bottom left corner, and the address port and address code in the
bottom right corner (see FIG. 66 for an example of the function locations).
Use the Page Tracking button to toggle page tracking. When enabled, the
touch panel sends page data back to the NetLinx Master, or vice versa
depending on the touch panel settings.
Use the Telnet button to enable or disable the telnet server on the panel. This
feature focuses on direct telnet communication to the panel.
Use the Front Button Setup Access button to activate the grey Front Setup
Access button (located below the LCD) to access the firmware pages.
- Default condition is On.
- Press and hold this grey button for 3 seconds to access the Setup page.
- Press and hold this grey button for 6 seconds to access the Calibration
page.
Reboot Panel: Pressing this button causes the panel to restart after saving any changes.
Firmware Pages and Descriptions
85
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Protected Setup Page Elements (Cont.)
System Recovery: Allows you to either reset the touch panel to factory default settings and/or wipe
out all existing touch panel pages:
The Reset System Settings button allows a user to wipe out all current
configuration parameters on the touch panel (such as IP Addresses, Device
Number assignments, Passwords, and other presets).
- Pressing this button launches a Confirmation dialog (FIG. 64) which asks
you to confirm your selection.
- This dialog is configured with a delay timer that does not enable the YES
button for 5 seconds. This delay provides an additional amount of time for
the user to confirm their decision.
The Remove User Pages button allows you remove all current TPD4 touch
panel pages currently on the panel (including the pre-installed AMX Demo
pages).
- Pressing this button launches a Confirmation dialog (FIG. 64) which asks
you to confirm your selection.
- This dialog is configured with a delay timer that does not enable the YES
button for 5 seconds. This delay provides an additional amount of time for
the user to confirm their decision.
FIG. 64 Protected Setup page-System Recovery confirmation dialog
FIG. 65 Protected Setup page - Device Name change confirmation dialog
You have a wait time of 5 seconds
before the YES option is enabled.
Firmware Pages and Descriptions
86 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
System Settings Page
The System Settings page (FIG. 67) sets the Secondary DNS Address information with its corresponding IP
communication parameters, NetLinx Master communication settings, and reads the device number assigned to
the Modero panel.
The elements of the System Settings page are described in the table below:
FIG. 66 Button/slider Function Show example
FIG. 67 System Settings page showing default values (reads and assigns values to the panel and Master)
System Settings Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Channel Code
3,132
2,8 3,50
Channel Port
Level Port Address Port
Address Code
Channel Code
BUTTON
IP Settings section
Master Connection section
(NetLinx Master properties)
Master Connection features do not take
effect until the panel is rebooted
Red fields are user-editable
Blue fields cycle through choices
Grey fields are read-only
Firmware Pages and Descriptions
87
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
System Settings Page Elements (Cont.)
IP Settings: Sets the IP communication values for the panel and contains:
DHCP/Static Sets the panel to either DHCP or Static communication modes.
DHCP (Dynamic Host Configuration Protocol) assigns IP Addresses from
client stations logging onto a TCP/IP network via a DHCP server.
Static IP is a permanent IP Address that is assigned to a node in a TCP/IP
network.
IP Address Sets the secondary IP Address assigned to the panel.
Subnet Mask Sets a subnetwork address to the panel.
Subnetwork mask is the technique used by the IP protocol to filter messages
into a particular network segment (Subnet).
Gateway Sets a gateway value to the panel.
Gateway is a computer that either performs protocol conversion between
different types of networks/applications or acts as a go-between two or more
networks that use the same protocols.
Host Name Sets the host name of the panel.
Primary DNS Sets the address of the primary DNS server used for host name lookups.
DNS (Domain Name System) is software that lets users locate computers on
a local network or the Internet (TCP/IP network) by host and domain. The
DNS server maintains a database of host names for its’ domain and their
corresponding IP Addresses.
Secondary DNS Sets a secondary DNS value to the panel.
Domain Sets the unique name on the Internet to the panel for DNS look-up.
The panel belongs to the DNS domain.
Ethernet Mode Sets the speed of the Ethernet connection to the panel.
Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or
100 Full Duplex.
MAC Address Displays a read-only field that is factory set by AMX for the built-in Ethernet
interface.
Master Connection: Sets the NetLinx Master communication values:
Type Sets the NetLinx Master to communicate with the panel via either USB or
Ethernet. This is based on the cable connection from the rear.
ICSNet is not a supported option on this panel.
Ethernet is a CAT-5 cable (10/100Base T terminated in an RJ-45 connector)
used to network computers together and is used in most LAN (local area
networks). This description is also used to refer to both wired and wireless
communication.
USB option cannot be used on Modero panels which are not equipped with a
rear USB port.
Mode Cycles between the different connection modes (URL, Listen, and Auto)
(ETHERNET Only - disabled when USB is selected)
URL - In this mode, enter the IP/URL, Master Port Number, and
username/password (if used) on the Master.
- The System Number field is read-only because the panel obtains this
information from the communicating Master.
Listen - In this mode, add the Modero panel address into the URL List in
NetLinx Studio and set the connection mode to Listen. This mode allows the
Modero touch panel to "listen" for the Master’s communication signals.
- The System Number and Master IP/URL fields are red-only.
Auto - In this mode, enter the System Number and a username/password
(if applicable). This mode is used when both the panel and the NetLinx
Master are on the same Subnet and the Master has its UDP feature enabled.
- Master IP/URL field is read-only.
Firmware Pages and Descriptions
88 NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Refer to the Step 3: Choose a Master Connection Mode section on page 52 for more detailed information on
using the System Settings page.
Wireless Settings Page
Use the options on the Wireless Settings page (FIG. 68) to configure communication settings for the wireless
CF card (802.11g), and read the device number assigned to the panel.
Features on this page include:
System Settings Page Elements (Cont.)
Master Connection (Cont.):
System Number Allows you to enter a system number. Default value is 0 (zero).
(ETHERNET Only - disabled when USB is selected)
Master IP/URL Sets the Master IP or URL of the NetLinx Master.
(ETHERNET Only - disabled when USB is selected)
Master Port Number Allows you to enter the port number used with the NetLinx Master.
Default value is 1319. (ETHERNET Only - disabled when USB is selected)
Username/Password If the target Master has been previously secured, enter the alpha-numeric string
(into each field) assigned to a pre-configured user profile on the Master.
This profile should have the pre-defined level of access/configuration rights.
FIG. 68 Wireless Settings page (reads from and assigns values to the WAP)
Wireless Settings Page
Back: Saves all changes and returns to the previous page.
Connection Status icon: The icon in the upper-right corner of each Setup page provides a constant
visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Firmware Pages and Descriptions
89
NXD-700Vi 7" Modero® Wall/Flush Mount Touch Panel with Intercom
Wireless Settings Page (Cont.)
IP Settings: Sets the IP communication values for the panel:
DHCP/STATIC Sets the panel to either DHCP or Static communication modes.
DHCP - a temporary IP Addresses is assigned to the panel by a DHCP
server.
Static IP is a permanent IP Address assigned to the panel. If Static IP is
selected, the other IP Settings fields are enabled (below).
IP Address Enter the secondary IP address for this panel.
Subnet Mask Enter the subnetwork address for this panel.
Gateway Enter the gateway address for this panel.
Host Name Enter the host name for this panel.
Primary DNS Enter the address of the primary DNS server used by this panel for host name
lookups.
Secondary DNS Enter the secondary DNS address for this panel.
Domain Enter a unique name to the panel for DNS look-up.
MAC Address This unique address identifies the wireless Ethernet card in the panel (read-
only).
Access Point MAC
Address: This unique address identifies the Wireless Access Point (WAP) used by this
panel for wireless communication (read-only).
Site Survey button: Launches the Site Survey page. The options on this page
allow you to detect (“sniff-out”) all WAPs transmitting within range of the
panel’s NXA-WC80211GCF Wi-Fi card
