Andersen CB000106370 Intrusion Detector-400-DH Sensor User Manual
Andersen Corporation Intrusion Detector-400-DH Sensor Users Manual
Andersen >
Users Manual
9135005 BA-0 2 Revised 03/04/16
9135005 BA-01 Revised 02/23/15
VeriLock® Security Sensor Lock Application
VeriLock® Security Sensor Lock Application
▶Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation.
Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad.
▶Check with your local building code ofcial to identify and conrm compliance with local building code requirements.
Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.
Thank you for choosing Andersen. / Gracias por elegir Andersen.
“Andersen” and all other marks where denoted are trademarks of Andersen Corporation and its subsidiary. © 2016 Andersen Corporation. All rights reserved.
“Andersen” y todas las demás marcas que aparezcan son marcas registradas de Andersen Corporation y su subsidiaria © 2016 Andersen Corporation. Todos los derechos reservados.
for Andersen® 400 Series Tilt-Wash, 400 Series Woodwright, and Renewal by Andersen Double-Hung Windows
for Andersen® 400 Series Tilt-Wash, 400 Series Woodwright, and Renewal by Andersen Double-Hung Windows

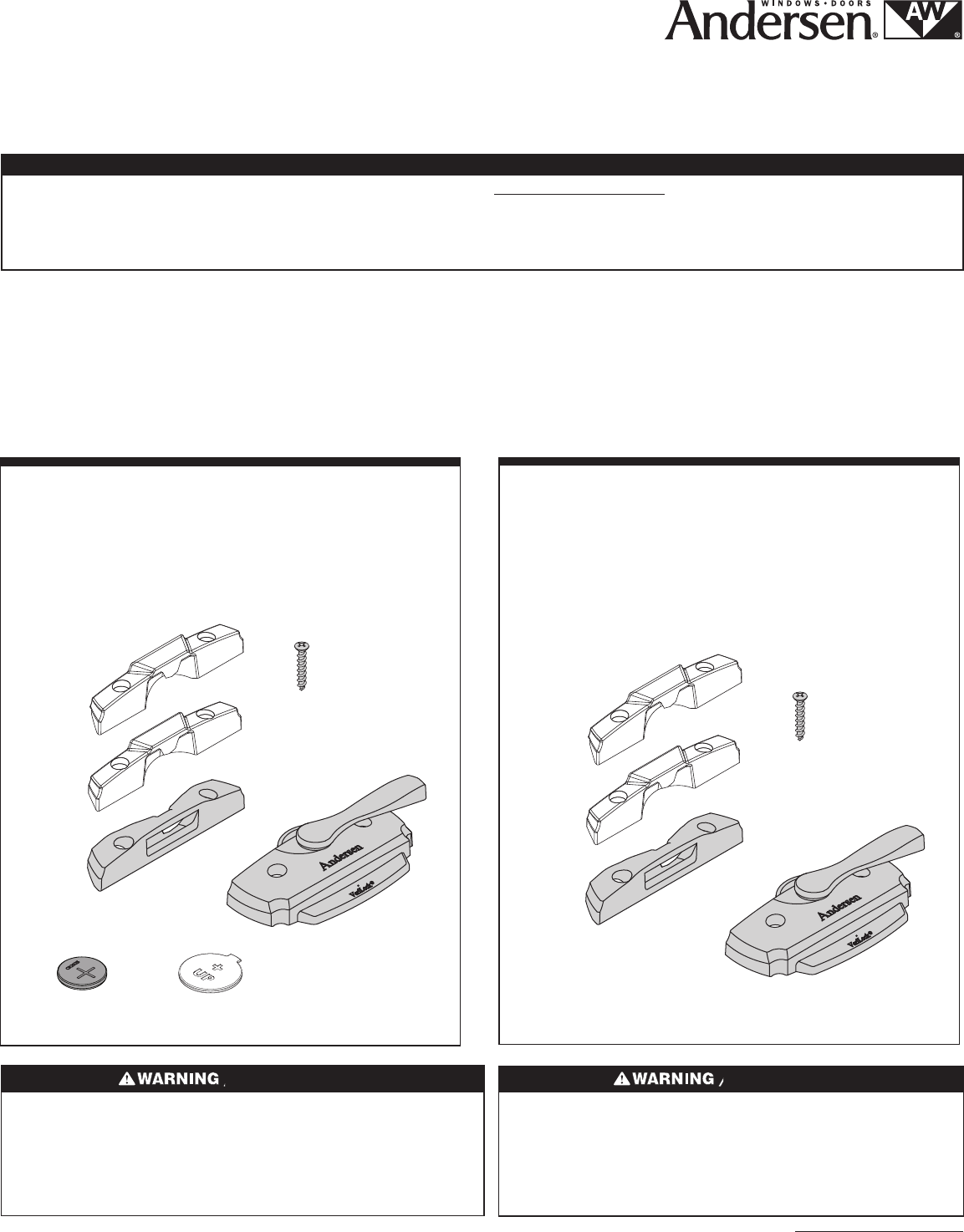

Parts Included / Partes Incluidas
(1) VeriLock Lock / VeriLock Cerrojo
(1) Keeper / Keeper
(4) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched)
(1) CR-2025 Battery / CR-2025 Battery
(1) Battery Cap / Battery Cap
Tools Needed
Herramientas Necesarias
∙Safety Glasses /Lentes de seguridad
∙Phillips Screwdriver /Destornillador Phillips
Use caution when working at elevated heights and around unit openings.
Follow manufacturers’ instructions for ladders and/or scaffolding. Failure
to do so may result in injury or death.
Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de
la unidad. Siga las instrucciones del fabricante para el uso de escaleras
y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.
Follow manufacturers’ instructions for hand or power tools. Always
wear safety glasses. Failure to do so may result in injury and/or
product damage.
Siga las instrucciones del fabricante para el uso de herramientas
eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo
hiciera, podrían producirse lesiones y/o daños al producto.
Keeper
Pestillo
VeriLock Lock
VeriLock Lock
#8 x 1" Screw
Tornillo No. 8 x 1"
400 Series
Woodwright
400 Series
Woodwright
Renewal by
Andersen
400 Series
Tilt-Wash
400 Series
Tilt-Wash
CR-2025 Battery
CR-2025 Battery
Battery Cap
Battery Cap
Or/ Or
Or/ Or
Additional Parts Required for Units with Two Locks
Additional Parts Required for Units with Two Locks
(1) Dummy VeriLock Lock / Dummy VeriLock Lock
(3) Keeper / Keeper
(4) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched)
Keeper
Pestillo
Dummy VeriLock Lock
Dummy VeriLock Lock
#8 x 1" Screw
Tornillo No. 8 x 1"
400 Series
Woodwright
400 Series
Woodwright
Renewal by
Andersen
400 Series
Tilt-Wash
400 Series
Tilt-Wash
For questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.
Please leave this guide with building owner.
Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.
Deje esta guía con el dueño de la construcción.
2
9135005

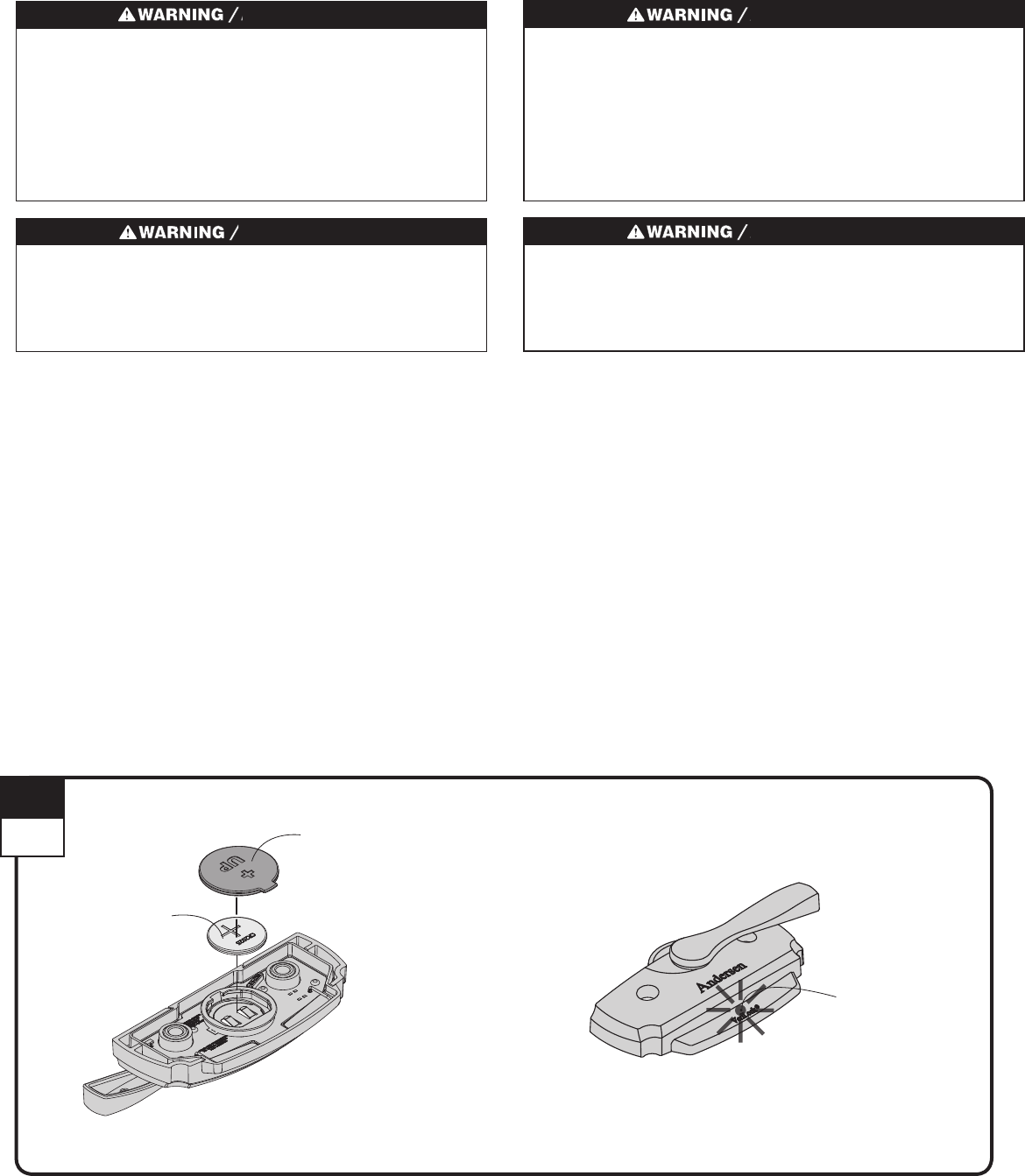

Insert battery into VeriLock lock (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly.
Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.
Insert battery into VeriLock lock (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly.
Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.
1
Interior Battery Cap
Battery Cap
Battery
Battery VeriLock Lock
VeriLock Lock
Batteries carry the risk of re, explosion and burns. Do not recharge,
disassemble, heat above 212 degrees F (100 degrees C) or
incinerate. Dispose of used batteries promptly and properly. Keep
away from children.
Les piles représentent un risque d’incendie, d’explosion et de
brûlures. Ne pas recharger, démonter, chauffer à une température
excédant 100degrés C (212degrésF) ou incinérer. Éliminer les piles
rapidement et de manière appropriée. Garder à l’écart des enfants.
Magnets are small parts and, if swallowed, could pose a choking
hazard to young children.
Los imanes son partes pequeñas que, en caso de ingesta, pueden
representar un riesgo de asxia para niños pequeños.
Magnetic eld can be harmful to implanted medical device wearers.
Keep magnets away from devices.
Magnetic eld can be harmful to implanted medical device wearers.
Keep magnets away from devices.
Batteries are small parts and, if swallowed, could pose a choking
hazard to young children.
Las baterías son partes pequeñas que, en caso de ingesta, pueden
representar un riesgo de asxia para niños pequeños.
Indicator Light
Indicator Light
(top view)
(top view)
(bottom view)
(bottom view)
3
9135005
5
Interior
NOTE: VeriLock lock
can be installed on
the right or left side
of units with two
locks.
NOTE: VeriLock lock
can be installed on
the right or left side
of units with two
locks. VeriLock Lock
VeriLock Lock
6
Interior
For Units with Two Locks Only
For Units with Two Locks Only
Position dummy VeriLock lock on opposite side and fasten using #8 x 1" color matched screws
provided. Do not over tighten.
Position dummy VeriLock lock on opposite side and fasten using #8 x 1" color matched screws
provided. Do not over tighten.
Dummy VeriLock Lock
Dummy VeriLock Lock
Position VeriLock lock over existing holes and fasten using #8 x 1"
color matched screws provided. Do not over tighten.
Position VeriLock lock over existing holes and fasten using #8 x 1"
color matched screws provided. Do not over tighten.
#8 x 1" Screw
Tornillo No. 8 x 1"
#8 x 1" Screw
Tornillo No. 8 x 1"
Position new keeper(s) over existing holes and fasten using #8 x 1"
color matched screws provided. Do not over tighten.
Position new keeper(s) over existing holes and fasten using #8 x 1"
color matched screws provided. Do not over tighten.
4
Interior
400 Series
Tilt-Wash
Double-Hung
shown.
400 Series
Tilt-Wash
Double-Hung
shown.
Keeper
Keeper
#8 x 1" Screw
Tornillo No. 8 x 1"

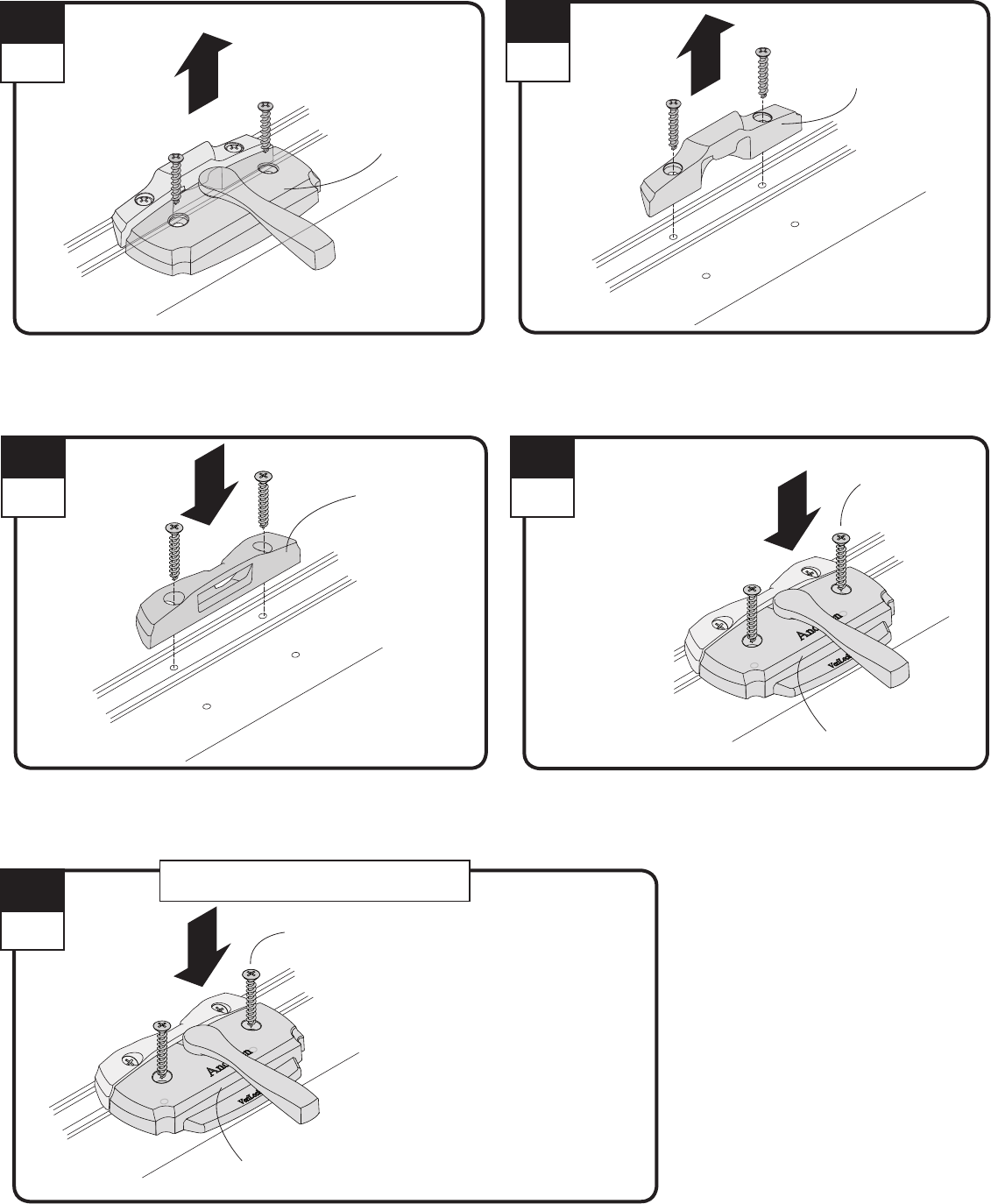

Remove existing lock(s).
Remove existing lock(s).
2
Interior
Lock
Lock
Remove existing keeper(s).
Remove existing keeper(s).
3
Interior Keeper
Keeper
4
9135005
▶Procedure is complete.
Procedure is complete.
Refer to monitoring system of your choice for sensor enrollment.
Refer to monitoring system of your choice for sensor enrollment.
For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock® user guide.
For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock® user guide.

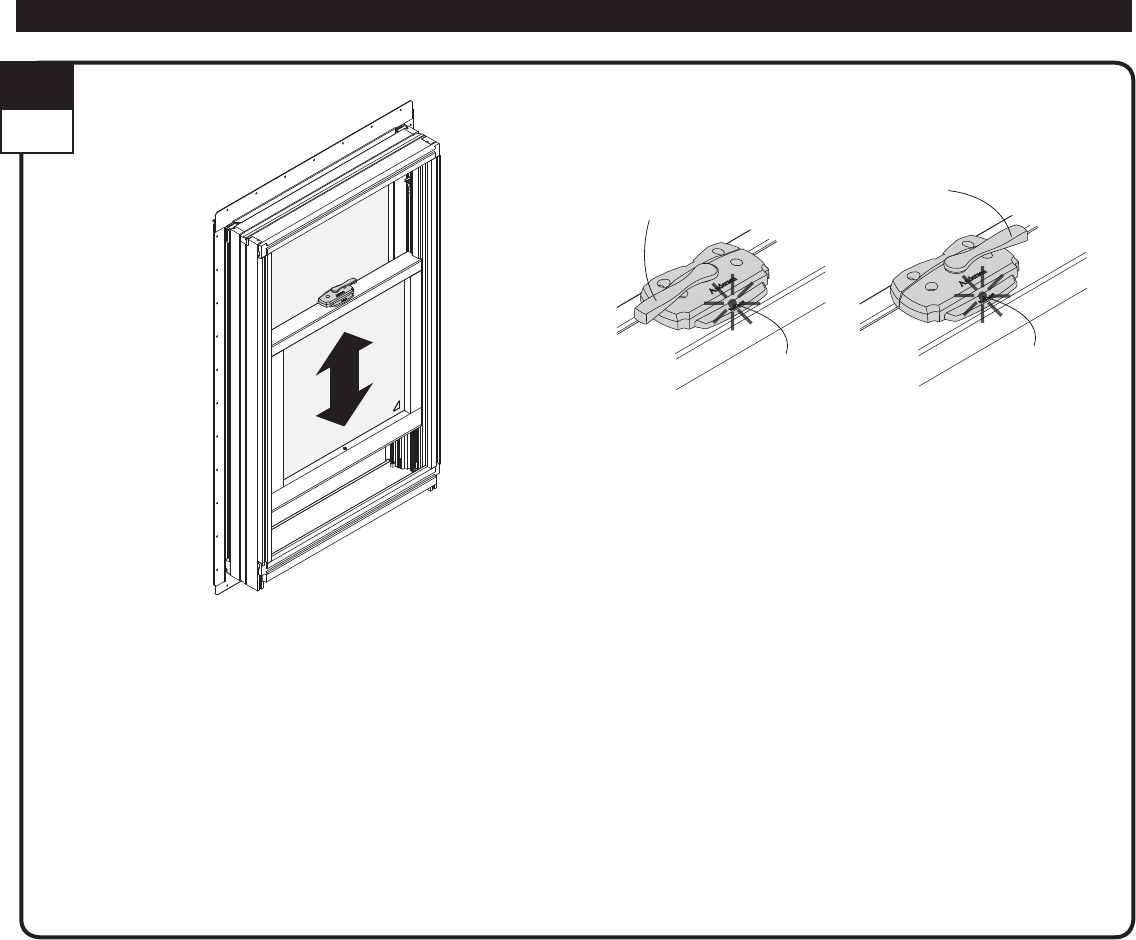

1. Raise lower sash. Indicator light will illuminate for one (1) second.
2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second.
3. Lock window. Indicator light will illuminate for one (1) second.
4. Unlock window. Indicator light will illuminate for one (1) second.
1. Raise lower sash. Indicator light will illuminate for one (1) second.
2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second.
3. Lock window. Indicator light will illuminate for one (1) second.
4. Unlock window. Indicator light will illuminate for one (1) second.
Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application.
Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application.
Verify VeriLock Sensor Function / Verify VeriLock Sensor Function
7
Interior
Locked
Locked Unlocked
Unlocked
Indicator Light
Indicator Light
Indicator Light
Indicator Light
5
9135005
Federal Communications Commission (FCC)
Part 15 Statement
This device complies with FCC Rules Part 15. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference. (2) This device must accept any
interference that may be received, including interference that
may cause undesired operation.
Industry Canada (IC) RSS Statement
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device
must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1)
I'appareil ne doit pas produire de brouillage; (2) I'utilisateur de
I'appareil doit accepter tout brouillage radioélectrique subi,
méme si le brouillage est susceptible d'en compromettre le
fonctionnement.
Changes or modifications not expressly approved by Andersen
may void the user's authority to operate the equipment.
Regulatory Statements / Normas reglamentarias
