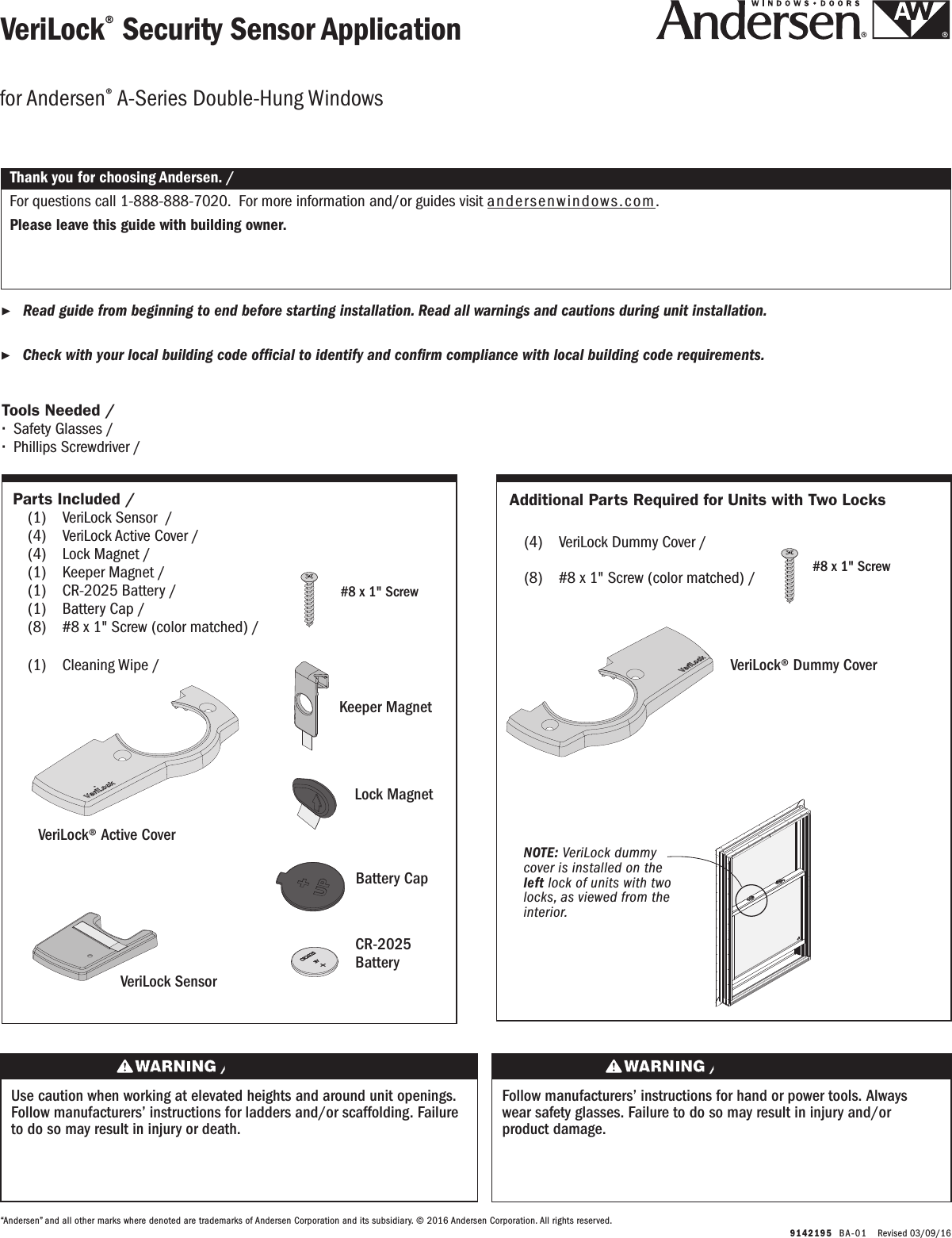

9142195 BA-0 1 Revised 03/09/16VeriLock® Security Sensor ApplicationVeriLock® Security Sensor Application ▶Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation. Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad. ▶Check with your local building code ofcial to identify and conrm compliance with local building code requirements. Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.Thank you for choosing Andersen. / Gracias por elegir Andersen.For questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.Please leave this guide with building owner.Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.Deje esta guía con el dueño de la construcción.“Andersen” and all other marks where denoted are trademarks of Andersen Corporation and its subsidiary. © 2016 Andersen Corporation. All rights reserved.“Andersen” y todas las demás marcas que aparezcan son marcas registradas de Andersen Corporation y su subsidiaria © 2016 Andersen Corporation. Todos los derechos reservados.for Andersen® A-Series Double-Hung Windowsfor Andersen® A-Series Double-Hung Windows Parts Included / Partes Incluidas (1) VeriLock Sensor / VeriLock Sensor (4) VeriLock Active Cover / VeriLock Active Cover (4) Lock Magnet / Lock Magnet (1) Keeper Magnet / Keeper Magnet (1) CR-2025 Battery / CR-2025 Battery (1) Battery Cap / Battery Cap (8) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched) (1) Cleaning Wipe / Cleaning WipeTools Needed / Herramientas Necesarias ∙Safety Glasses / Lentes de seguridad ∙Phillips Screwdriver /Destornillador PhillipsUse caution when working at elevated heights and around unit openings. Follow manufacturers’ instructions for ladders and/or scaffolding. Failure to do so may result in injury or death.Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de la unidad. Siga las instrucciones del fabricante para el uso de escaleras y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.Follow manufacturers’ instructions for hand or power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.Siga las instrucciones del fabricante para el uso de herramientas eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo hiciera, podrían producirse lesiones y/o daños al producto.VeriLock SensorVeriLock SensorVeriLock® Active CoverVeriLock® Active CoverCR-2025 BatteryCR-2025 BatteryBattery CapBattery CapKeeper MagnetKeeper MagnetLock MagnetLock MagnetAdditional Parts Required for Units with Two LocksAdditional Parts Required for Units with Two Locks (4) VeriLock Dummy Cover / VeriLock Dummy Cover (8) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched)#8 x 1" Screw Tornillo No. 8 x 1"VeriLock® Dummy CoverVeriLock® Dummy Cover#8 x 1" Screw Tornillo No. 8 x 1"NOTE: VeriLock dummy cover is installed on the left lock of units with two locks, as viewed from the interior.NOTE: VeriLock dummy cover is installed on the left lock of units with two locks, as viewed from the interior.

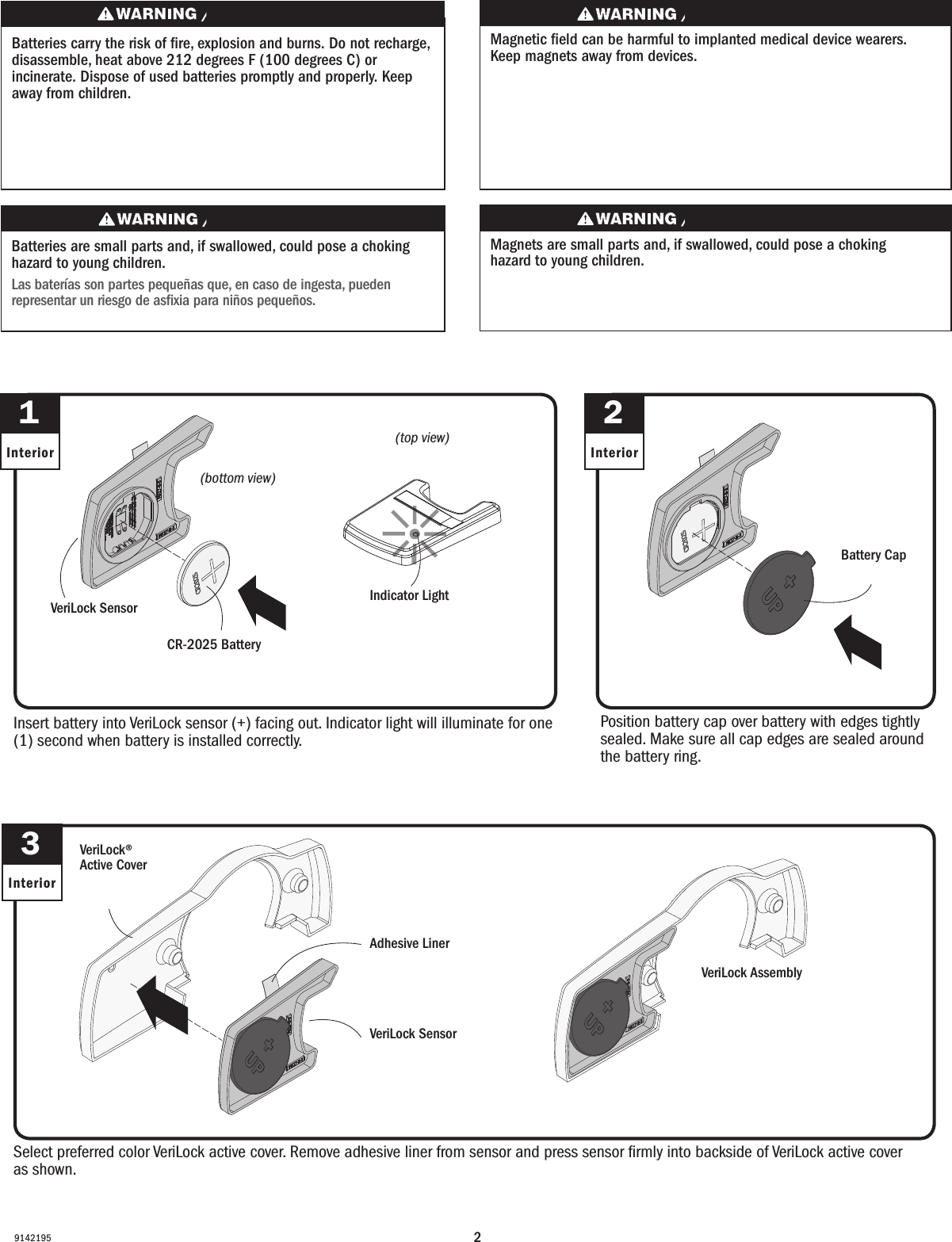

29142195Select preferred color VeriLock active cover. Remove adhesive liner from sensor and press sensor firmly into backside of VeriLock active cover as shown.Select preferred color VeriLock active cover. Remove adhesive liner from sensor and press sensor firmly into backside of VeriLock active cover as shown.Insert battery into VeriLock sensor (+) facing out. Indicator light will illuminate for one (1) second when battery is installed correctly.Insert battery into VeriLock sensor (+) facing out. Indicator light will illuminate for one (1) second when battery is installed correctly.3Interior1InteriorPosition battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.2InteriorVeriLock SensorVeriLock SensorCR-2025 BatteryCR-2025 BatteryBattery CapBattery CapAdhesive LinerAdhesive LinerVeriLock SensorVeriLock SensorVeriLock® Active Cover VeriLock® Active CoverVeriLock AssemblyVeriLock AssemblyBatteries carry the risk of re, explosion and burns. Do not recharge, disassemble, heat above 212 degrees F (100 degrees C) or incinerate. Dispose of used batteries promptly and properly. Keep away from children.Les piles représentent un risque d’incendie, d’explosion et de brûlures. Ne pas recharger, démonter, chauffer à une température excédant 100degrés C (212degrésF) ou incinérer. Éliminer les piles rapidement et de manière appropriée. Garder à l’écart des enfants.Magnets are small parts and, if swallowed, could pose a choking hazard to young children. Los imanes son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños.Magnetic eld can be harmful to implanted medical device wearers. Keep magnets away from devices.Magnetic eld can be harmful to implanted medical device wearers. Keep magnets away from devices.Batteries are small parts and, if swallowed, could pose a choking hazard to young children. Las baterías son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños. (top view)(top view)(bottom view)(bottom view)Indicator LightIndicator Light

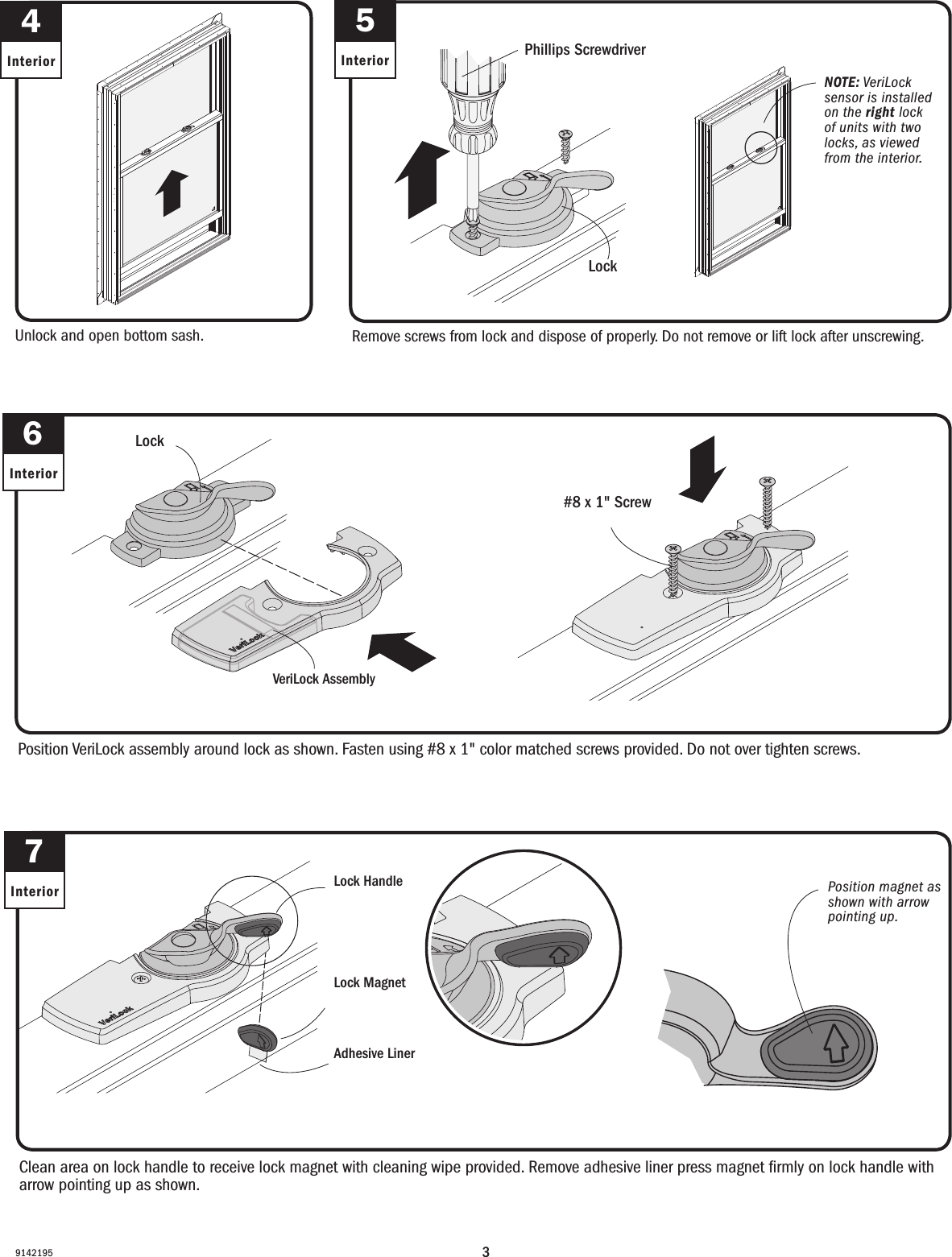

391421955InteriorRemove screws from lock and dispose of properly. Do not remove or lift lock after unscrewing.Retire los tornillos del cerrojo y deséchelos adecuadamente. Do not remove lock after unscrewing.6InteriorVeriLock AssemblyVeriLock AssemblyLockCerrojoPhillips ScrewdriverDestornillador PhillipsLockCerrojo4InteriorUnlock and open bottom sash.Desbloquee y abra la hoja inferior.Clean area on lock handle to receive lock magnet with cleaning wipe provided. Remove adhesive liner press magnet firmly on lock handle with arrow pointing up as shown. Clean area on lock handle to receive lock magnet with cleaning wipe provided. Remove adhesive liner press magnet firmly on lock handle with arrow pointing up as shown. 7Interior Lock HandleLock HandleLock MagnetLock MagnetAdhesive LinerAdhesive Liner#8 x 1" Screw#8 x 1" ScrewNOTE: VeriLock sensor is installed on the right lock of units with two locks, as viewed from the interior.NOTE: VeriLock sensor is installed on the right lock of units with two locks, as viewed from the interior.Position magnet as shown with arrow pointing up.Position magnet as shown with arrow pointing up.Position VeriLock assembly around lock as shown. Fasten using #8 x 1" color matched screws provided. Do not over tighten screws.Position VeriLock assembly around lock as shown. Fasten using #8 x 1" color matched screws provided. Do not over tighten screws.

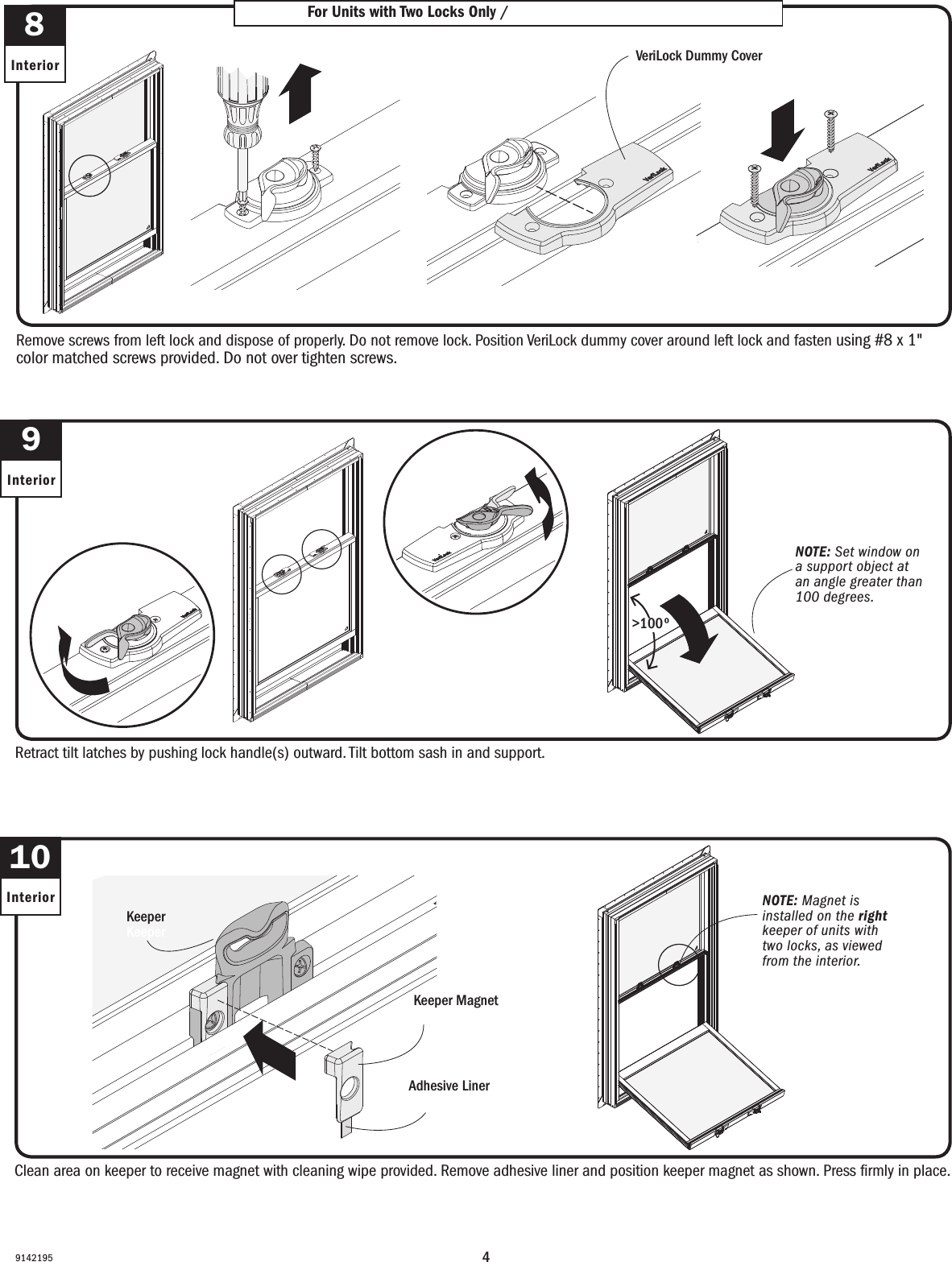

491421959InteriorRetract tilt latches by pushing lock handle(s) outward. Tilt bottom sash in and support.Retract tilt latches by pushing lock handle(s) outward. Tilt bottom sash in and support.8InteriorFor Units with Two Locks Only / For Units with Two Locks OnlyRemove screws from left lock and dispose of properly. Do not remove lock. Position VeriLock dummy cover around left lock and fasten using #8 x 1" color matched screws provided. Do not over tighten screws.Remove screws from left lock and dispose of properly. Do not remove lock. Position VeriLock dummy cover around left lock and fasten using #8 x 1" color matched screws provided. Do not over tighten screws.VeriLock Dummy CoverVeriLock Dummy Cover10InteriorClean area on keeper to receive magnet with cleaning wipe provided. Remove adhesive liner and position keeper magnet as shown. Press firmly in place.Clean area on keeper to receive magnet with cleaning wipe provided. Remove adhesive liner and position keeper magnet as shown. Press firmly in place.Keeper MagnetKeeper MagnetAdhesive LinerAdhesive LinerKeeperKeeperNOTE: Magnet is installed on the right keeper of units with two locks, as viewed from the interior.NOTE: Magnet is installed on the right keeper of units with two locks, as viewed from the interior.NOTE: Set window on a support object at an angle greater than 100 degrees.NOTE: Set window on a support object at an angle greater than 100 degrees.>100º

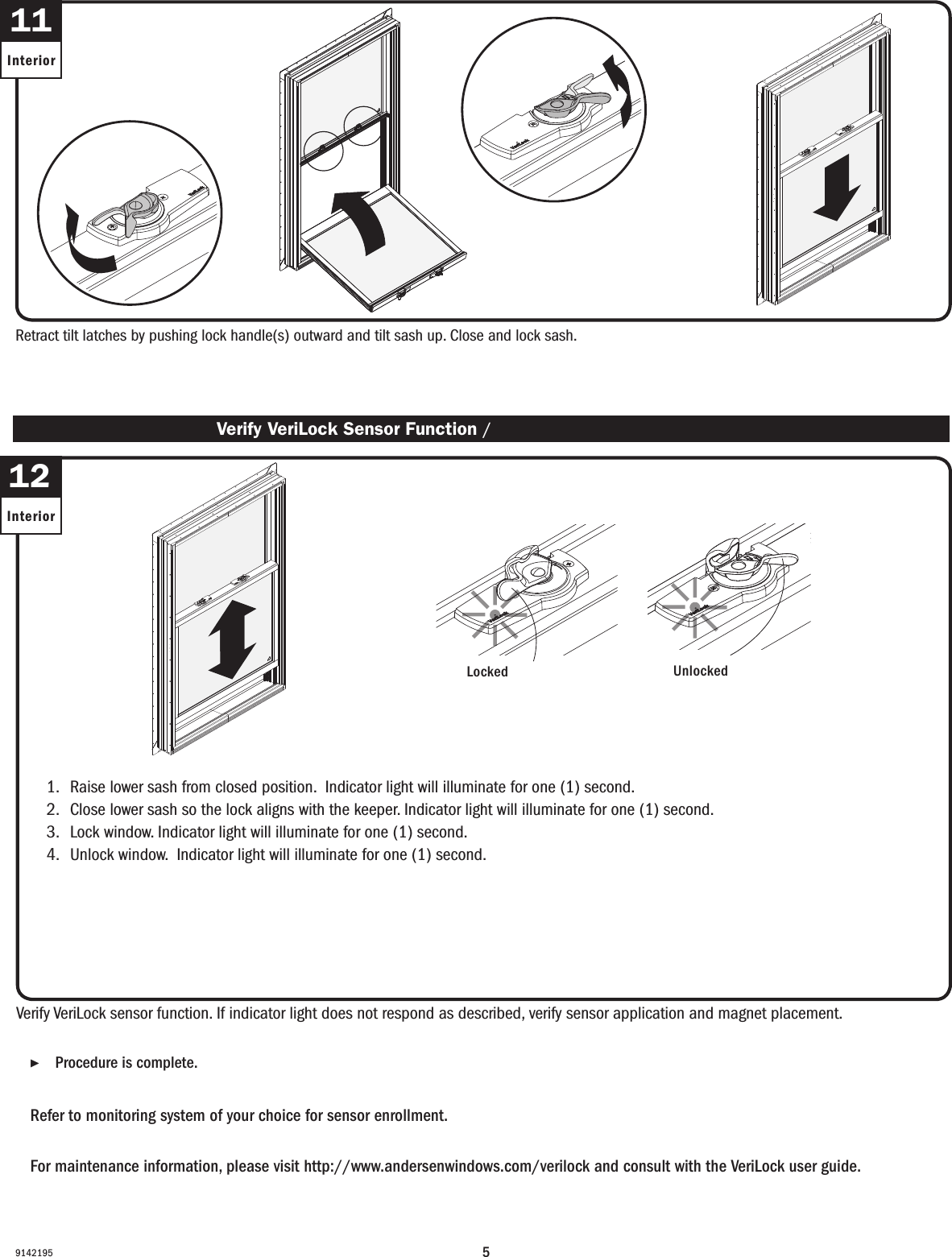

59142195Retract tilt latches by pushing lock handle(s) outward and tilt sash up. Close and lock sash. Retract tilt latches by pushing lock handle(s) outward and tilt sash up. Close and lock sash. 11Interior ▶Procedure is complete. Procedure is complete.Refer to monitoring system of your choice for sensor enrollment. Refer to monitoring system of your choice for sensor enrollment.For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock user guide.For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock user guide.1. Raise lower sash from closed position. Indicator light will illuminate for one (1) second.2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second. 3. Lock window. Indicator light will illuminate for one (1) second.4. Unlock window. Indicator light will illuminate for one (1) second.1. Raise lower sash from closed position. Indicator light will illuminate for one (1) second.2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second. 3. Lock window. Indicator light will illuminate for one (1) second.4. Unlock window. Indicator light will illuminate for one (1) second.Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application and magnet placement.Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application and magnet placement. Verify VeriLock Sensor Function / Verify VeriLock Sensor Function12InteriorLockedLockedUnlockedUnlocked

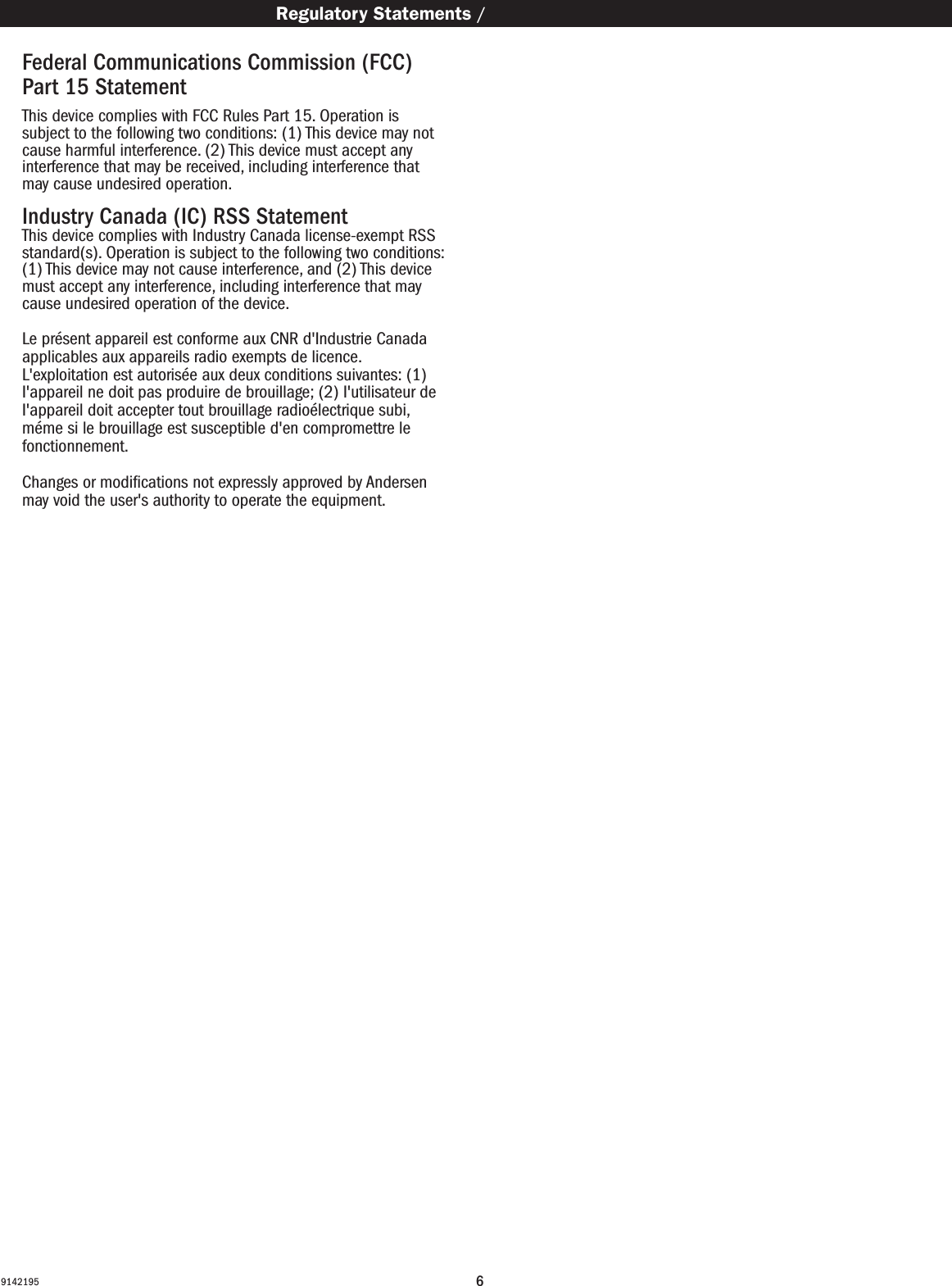

69142195Federal Communications Commission (FCC) Part 15 Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be received, including interference that may cause undesired operation. Industry Canada (IC) RSS StatementThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) I'appareil ne doit pas produire de brouillage; (2) I'utilisateur de I'appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by Andersen may void the user's authority to operate the equipment. Regulatory Statements / Regulatory Statements
