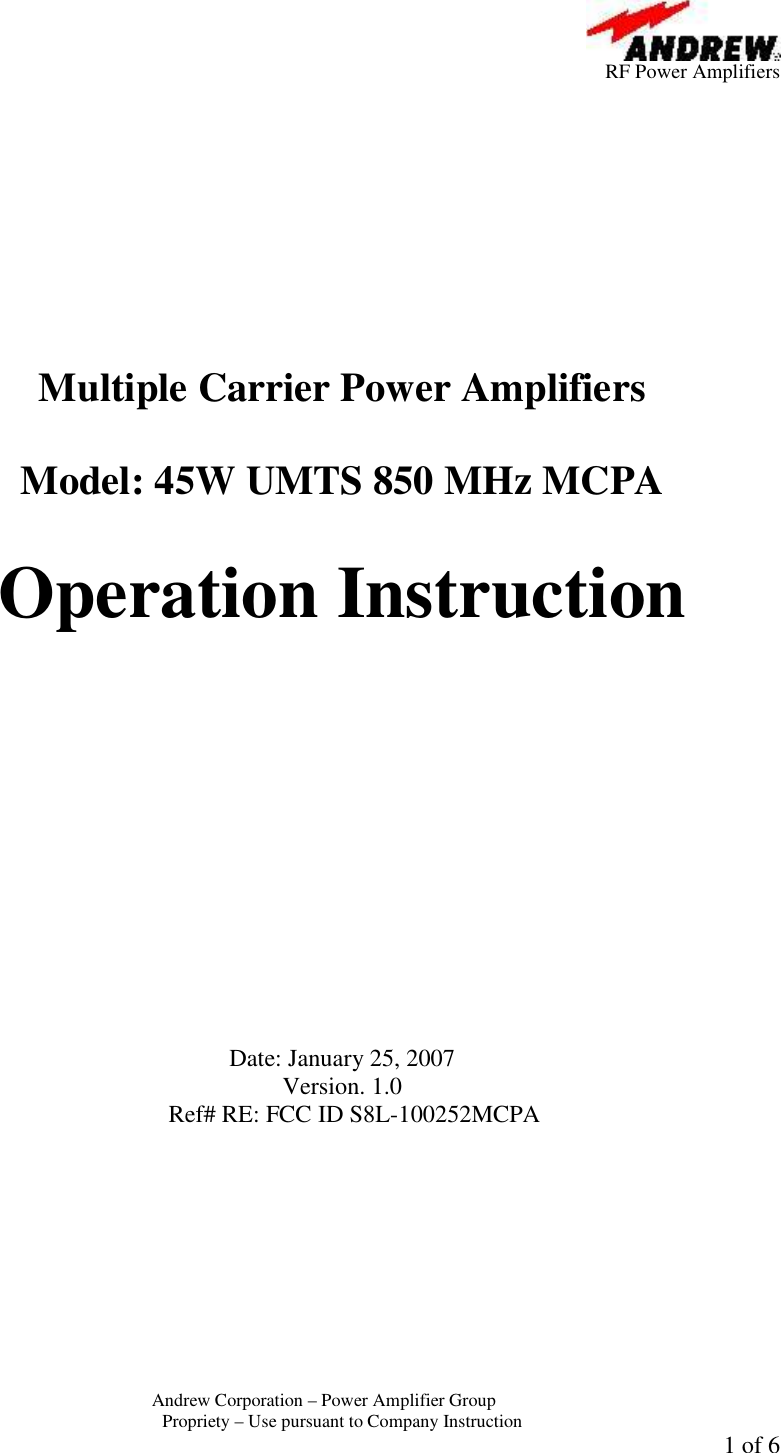

        RF Power Amplifiers Andrew Corporation – Power Amplifier Group  Propriety – Use pursuant to Company Instruction 1 of 6           Multiple Carrier Power Amplifiers   Model: 45W UMTS 850 MHz MCPA  Operation Instruction              Date: January 25, 2007 Version. 1.0 Ref# RE: FCC ID S8L-100252MCPA

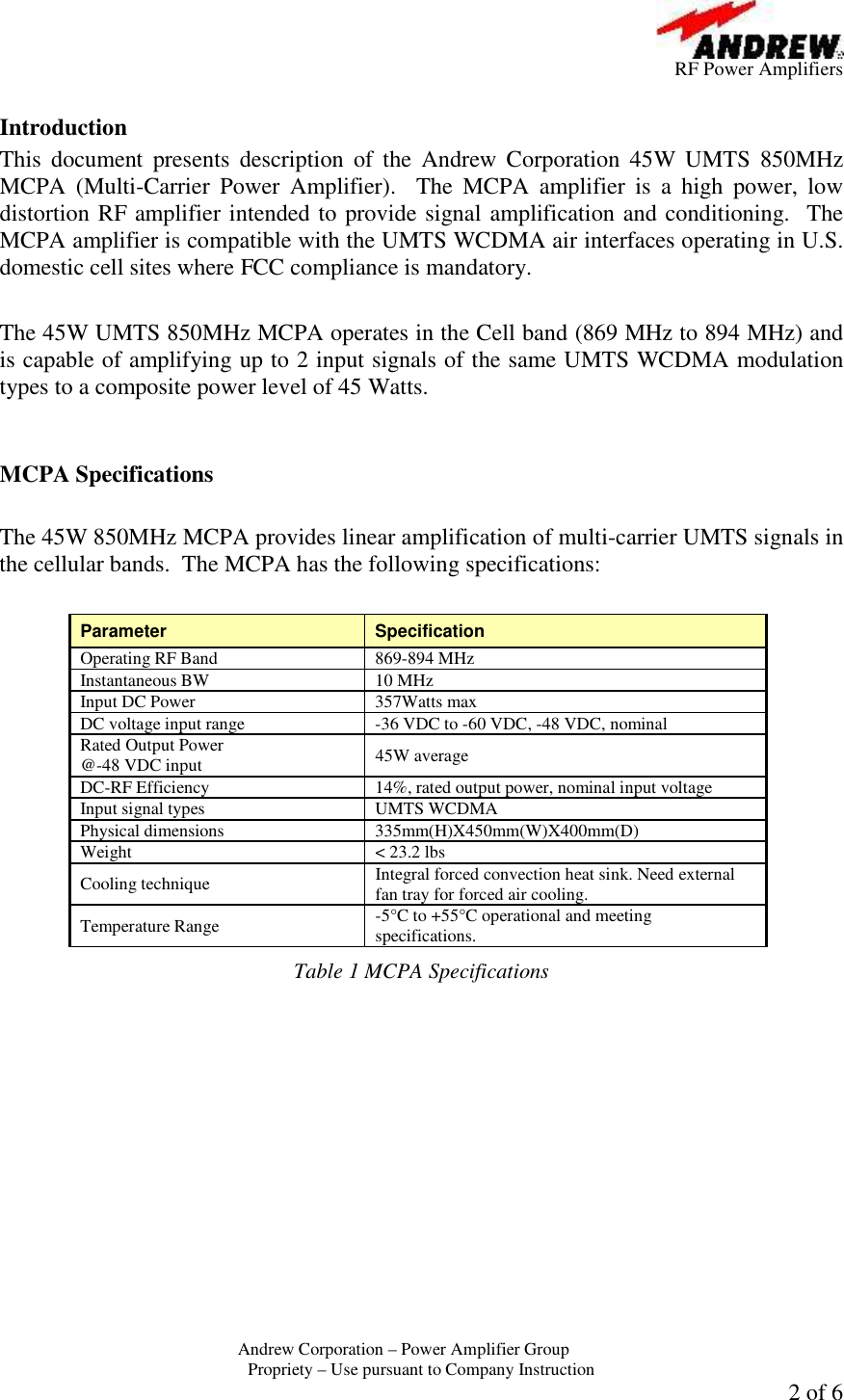

        RF Power Amplifiers Andrew Corporation – Power Amplifier Group  Propriety – Use pursuant to Company Instruction 2 of 6  Introduction This  document  presents  description  of  the  Andrew  Corporation  45W  UMTS  850MHz MCPA  (Multi-Carrier  Power  Amplifier).    The  MCPA  amplifier  is  a  high  power,  low distortion RF amplifier intended to provide signal amplification and conditioning.  The MCPA amplifier is compatible with the UMTS WCDMA air interfaces operating in U.S. domestic cell sites where FCC compliance is mandatory.   The 45W UMTS 850MHz MCPA operates in the Cell band (869 MHz to 894 MHz) and is capable of amplifying up to 2 input signals of the same UMTS WCDMA modulation types to a composite power level of 45 Watts.     MCPA Specifications  The 45W 850MHz MCPA provides linear amplification of multi-carrier UMTS signals in the cellular bands.  The MCPA has the following specifications:  Parameter  Specification Operating RF Band  869-894 MHz  Instantaneous BW  10 MHz Input DC Power  357Watts max DC voltage input range  -36 VDC to -60 VDC, -48 VDC, nominal Rated Output Power  @-48 VDC input  45W average DC-RF Efficiency  14%, rated output power, nominal input voltage Input signal types  UMTS WCDMA Physical dimensions  335mm(H)X450mm(W)X400mm(D) Weight  < 23.2 lbs Cooling technique  Integral forced convection heat sink. Need external fan tray for forced air cooling. Temperature Range  -5°C to +55°C operational and meeting specifications. Table 1 MCPA Specifications

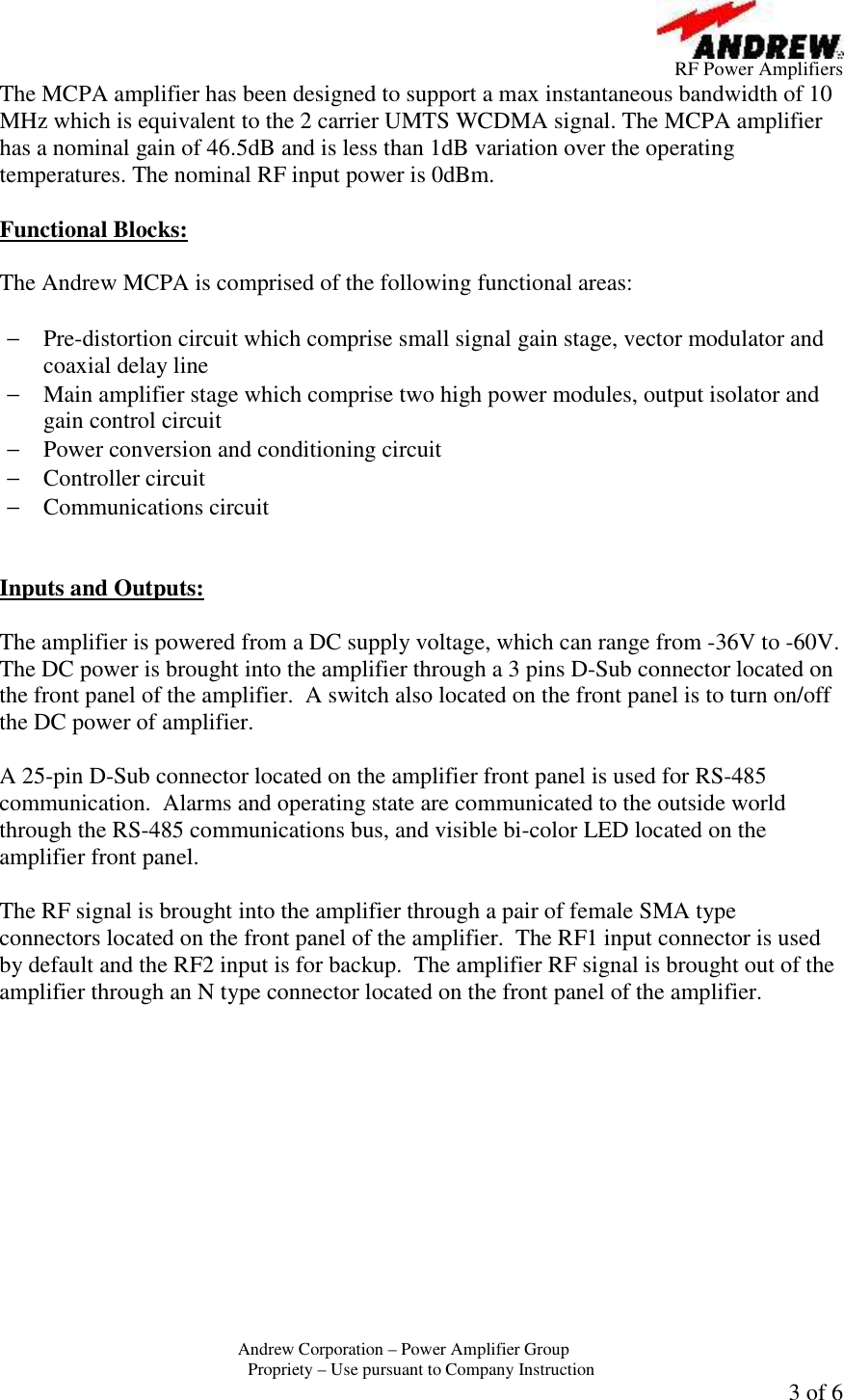

        RF Power Amplifiers Andrew Corporation – Power Amplifier Group  Propriety – Use pursuant to Company Instruction 3 of 6 The MCPA amplifier has been designed to support a max instantaneous bandwidth of 10 MHz which is equivalent to the 2 carrier UMTS WCDMA signal. The MCPA amplifier has a nominal gain of 46.5dB and is less than 1dB variation over the operating temperatures. The nominal RF input power is 0dBm.  Functional Blocks:  The Andrew MCPA is comprised of the following functional areas:  − Pre-distortion circuit which comprise small signal gain stage, vector modulator and coaxial delay line − Main amplifier stage which comprise two high power modules, output isolator and gain control circuit − Power conversion and conditioning circuit − Controller circuit − Communications circuit   Inputs and Outputs:  The amplifier is powered from a DC supply voltage, which can range from -36V to -60V.  The DC power is brought into the amplifier through a 3 pins D-Sub connector located on the front panel of the amplifier.  A switch also located on the front panel is to turn on/off the DC power of amplifier.  A 25-pin D-Sub connector located on the amplifier front panel is used for RS-485 communication.  Alarms and operating state are communicated to the outside world through the RS-485 communications bus, and visible bi-color LED located on the amplifier front panel.    The RF signal is brought into the amplifier through a pair of female SMA type connectors located on the front panel of the amplifier.  The RF1 input connector is used by default and the RF2 input is for backup.  The amplifier RF signal is brought out of the amplifier through an N type connector located on the front panel of the amplifier.

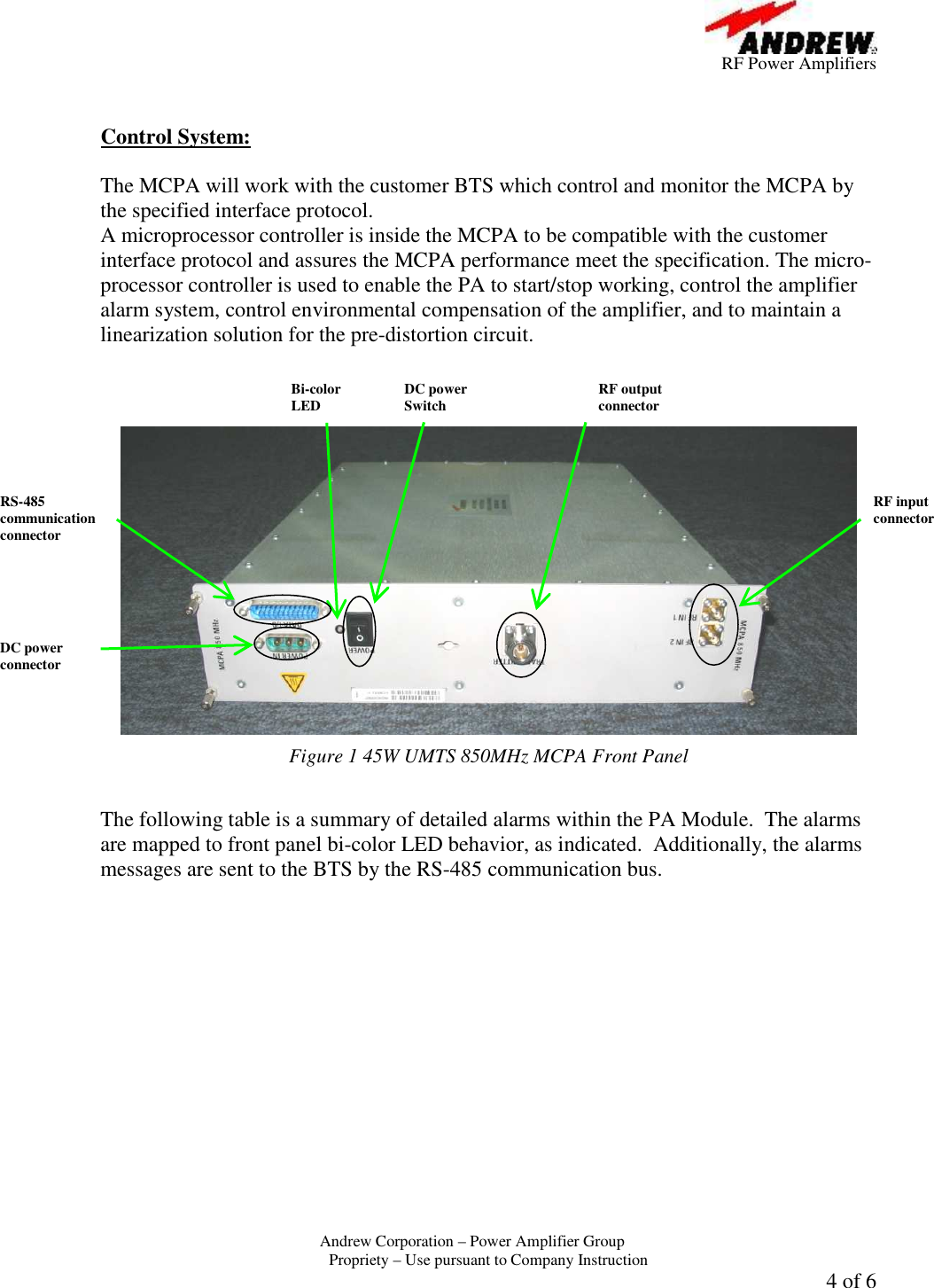

        RF Power Amplifiers Andrew Corporation – Power Amplifier Group  Propriety – Use pursuant to Company Instruction 4 of 6   Control System:  The MCPA will work with the customer BTS which control and monitor the MCPA by the specified interface protocol. A microprocessor controller is inside the MCPA to be compatible with the customer interface protocol and assures the MCPA performance meet the specification. The micro-processor controller is used to enable the PA to start/stop working, control the amplifier alarm system, control environmental compensation of the amplifier, and to maintain a linearization solution for the pre-distortion circuit.     Figure 1 45W UMTS 850MHz MCPA Front Panel  The following table is a summary of detailed alarms within the PA Module.  The alarms are mapped to front panel bi-color LED behavior, as indicated.  Additionally, the alarms messages are sent to the BTS by the RS-485 communication bus. Bi-color LED  DC power Switch RS-485 communication connector DC power connector RF output connector RF input connector

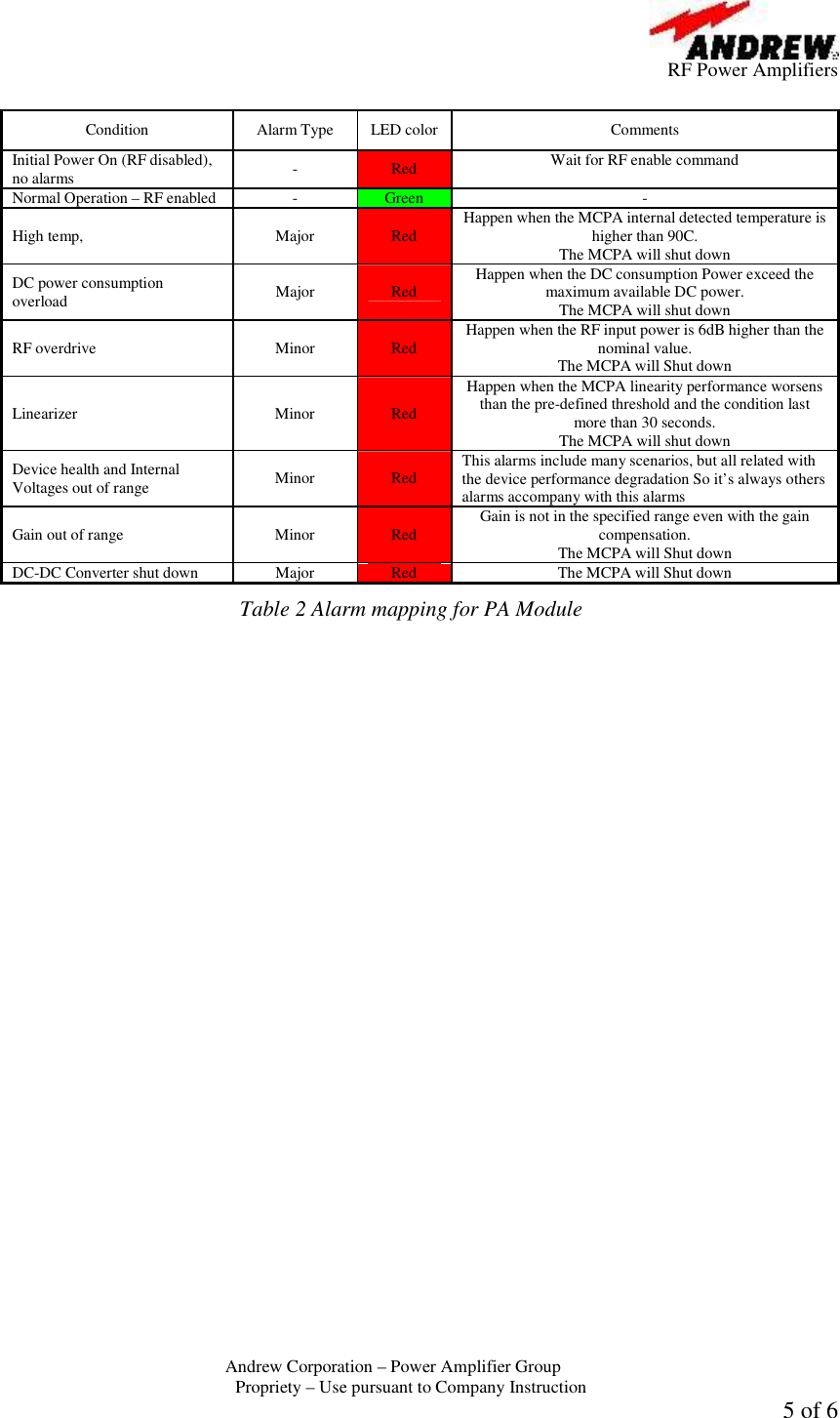

        RF Power Amplifiers Andrew Corporation – Power Amplifier Group  Propriety – Use pursuant to Company Instruction 5 of 6  Condition  Alarm Type  LED color Comments Initial Power On (RF disabled), no alarms  -  Red  Wait for RF enable command Normal Operation – RF enabled  -  Green  - High temp,  Major  Red  Happen when the MCPA internal detected temperature is higher than 90C. The MCPA will shut down DC power consumption overload  Major  Red  Happen when the DC consumption Power exceed the maximum available DC power. The MCPA will shut down RF overdrive  Minor  Red  Happen when the RF input power is 6dB higher than the nominal value. The MCPA will Shut down Linearizer   Minor  Red Happen when the MCPA linearity performance worsens than the pre-defined threshold and the condition last more than 30 seconds. The MCPA will shut down Device health and Internal Voltages out of range  Minor  Red  This alarms include many scenarios, but all related with the device performance degradation So it’s always others alarms accompany with this alarms Gain out of range  Minor  Red  Gain is not in the specified range even with the gain compensation.  The MCPA will Shut down DC-DC Converter shut down   Major  Red  The MCPA will Shut down Table 2 Alarm mapping for PA Module

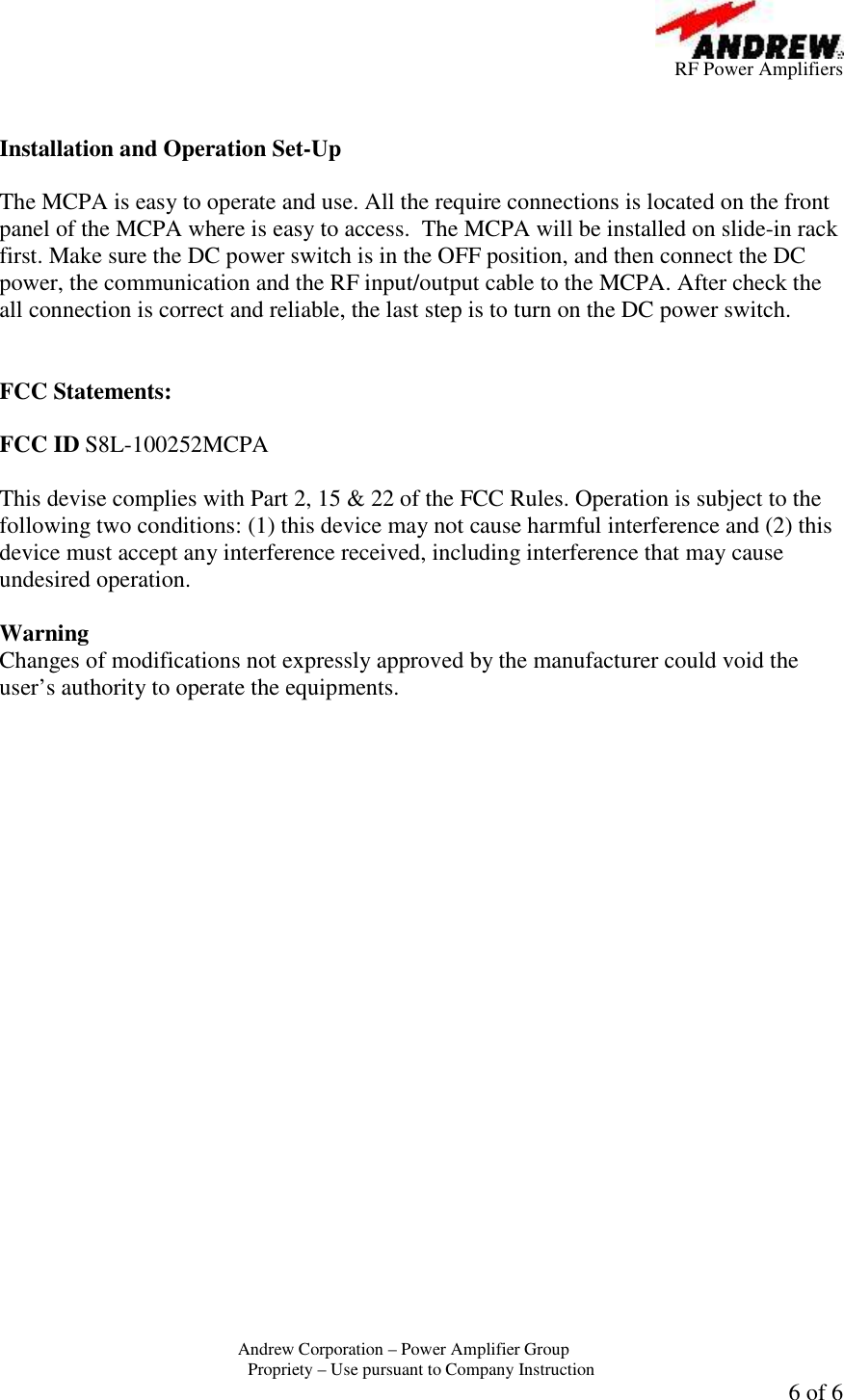

         RF Power Amplifiers Andrew Corporation – Power Amplifier Group  Propriety – Use pursuant to Company Instruction  6 of 6   Installation and Operation Set-Up  The MCPA is easy to operate and use. All the require connections is located on the front panel of the MCPA where is easy to access.  The MCPA will be installed on slide-in rack first. Make sure the DC power switch is in the OFF position, and then connect the DC power, the communication and the RF input/output cable to the MCPA. After check the all connection is correct and reliable, the last step is to turn on the DC power switch.    FCC Statements:  FCC ID S8L-100252MCPA  This devise complies with Part 2, 15 & 22 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.  Warning  Changes of modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipments.
