Andrew Base Station Subsystems Group RRH700L1 Remote Radio Head RRH 2x40W 700MHz RF101002 User Manual

Andrew Corporation, Base Station Subsystems Group Remote Radio Head RRH 2x40W 700MHz RF101002 Users Manual

Users Manual

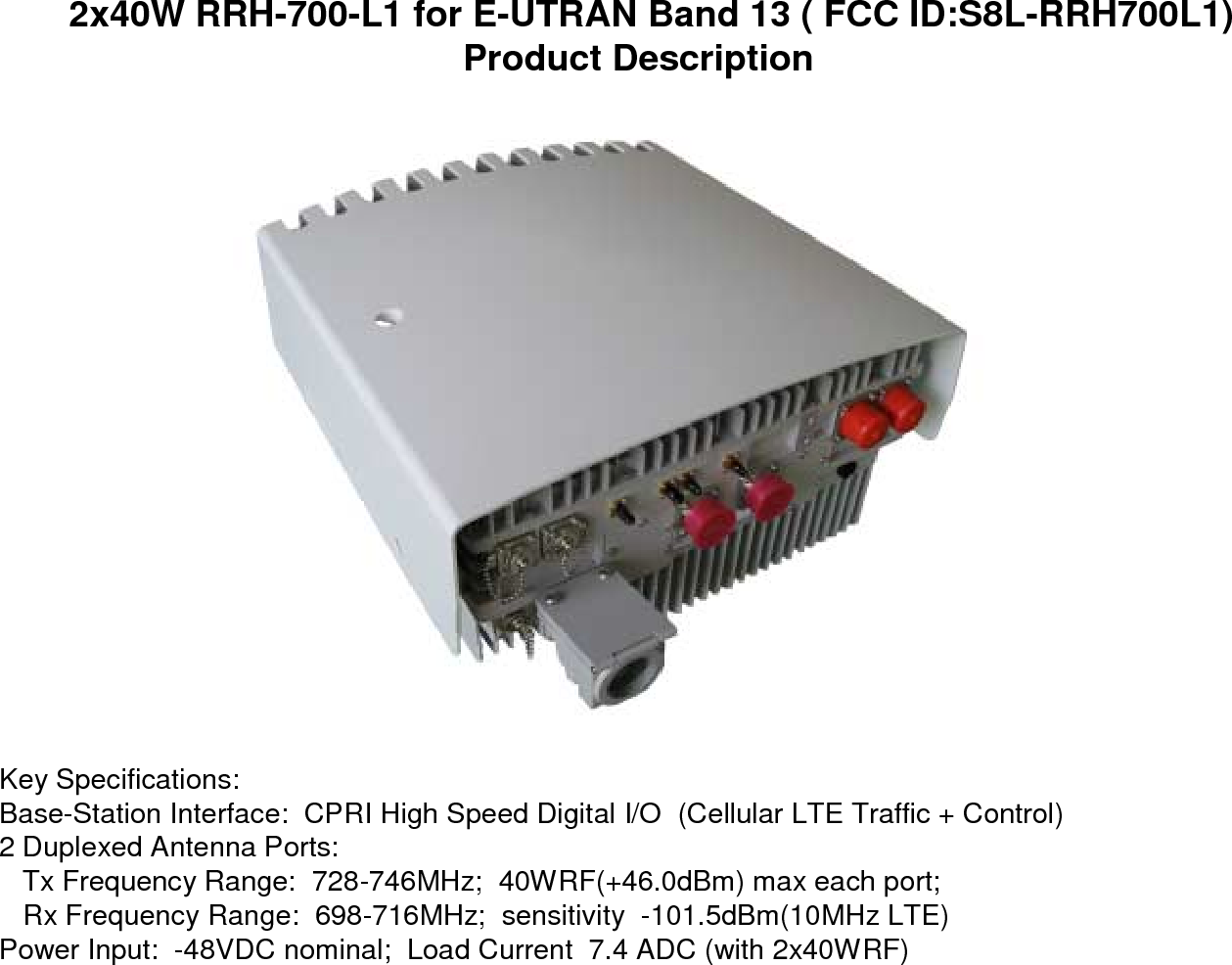

Key Specifications: Base-Station Interface: CPRI High Speed Digital I/O (Cellular LTE Traffic + Control)2 Duplexed Antenna Ports: Tx Frequency Range: 728-746MHz; 40WRF(+46.0dBm) max each port; Rx Frequency Range: 698-716MHz; sensitivity -101.5dBm(10MHz LTE)Power Input: -48VDC nominal; Load Current 7.4 ADC (with 2x40WRF)2x40W RRH-700-L1 for E-UTRAN Band 13 ( FCC ID:S8L-RRH700L1)Product Description
Functional Block Diagram 2 x 40W 700MHz RRH-see another file

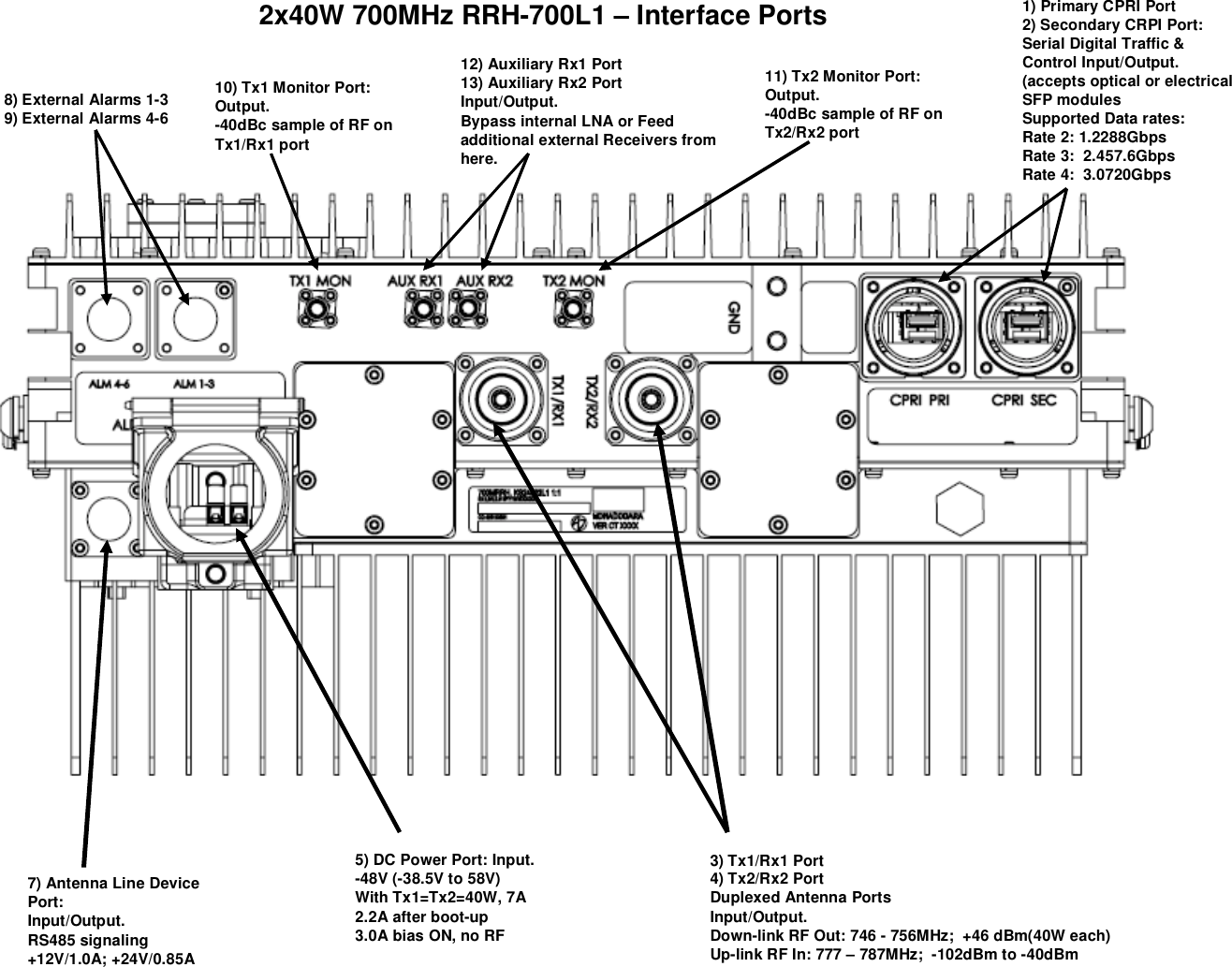

2x40W 700MHz RRH-700L1 – Interface Ports 3) Tx1/Rx1 Port4) Tx2/Rx2 Port Duplexed Antenna PortsInput/Output.Down-link RF Out: 746 - 756MHz; +46 dBm(40W each)Up-link RF In: 777 – 787MHz; -102dBm to -40dBm7) Antenna Line Device Port: Input/Output.RS485 signaling+12V/1.0A; +24V/0.85A5) DC Power Port: Input.-48V (-38.5V to 58V)With Tx1=Tx2=40W, 7A 2.2A after boot-up3.0A bias ON, no RF8) External Alarms 1-3 9) External Alarms 4-610) Tx1 Monitor Port: Output.-40dBc sample of RF on Tx1/Rx1 port12) Auxiliary Rx1 Port13) Auxiliary Rx2 PortInput/Output.Bypass internal LNA or Feed additional external Receivers from here.11) Tx2 Monitor Port: Output.-40dBc sample of RF on Tx2/Rx2 port1) Primary CPRI Port2) Secondary CRPI Port:Serial Digital Traffic & Control Input/Output.(accepts optical or electrical SFP modulesSupported Data rates: Rate 2: 1.2288GbpsRate 3: 2.457.6GbpsRate 4: 3.0720Gbps

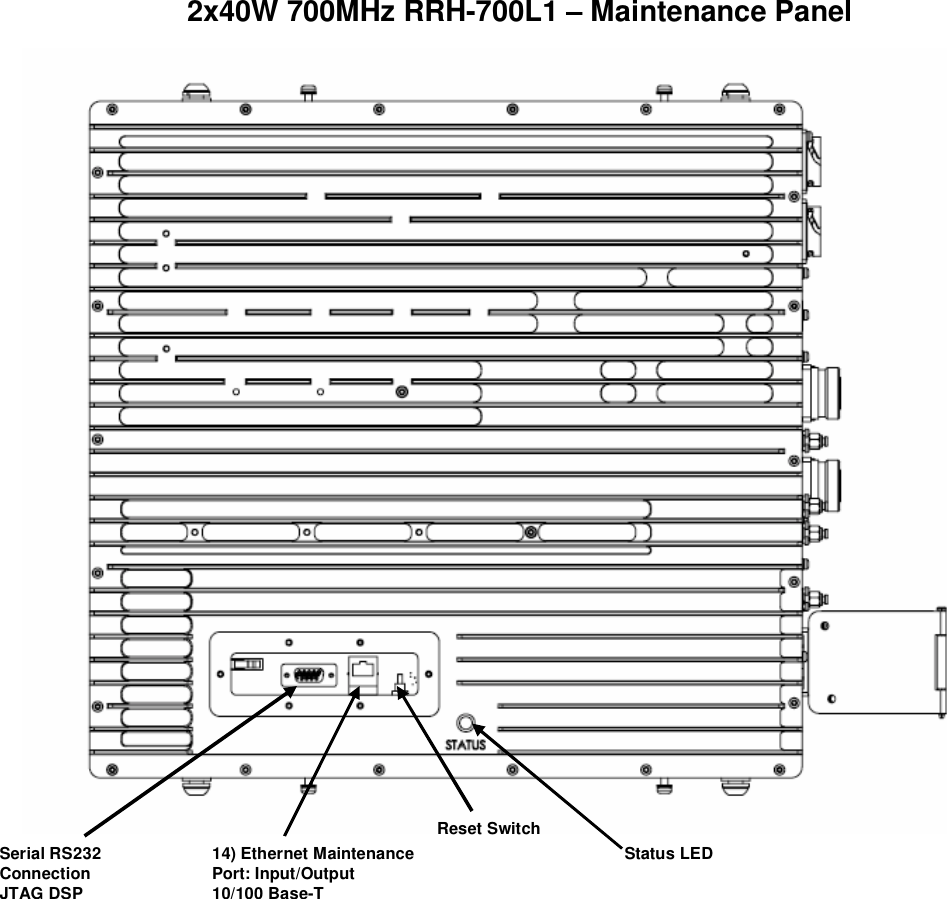

2x40W 700MHz RRH-700L1 – Maintenance PanelSerial RS232 ConnectionJTAG DSP 14) Ethernet Maintenance Port: Input/Output10/100 Base-TReset SwitchStatus LED

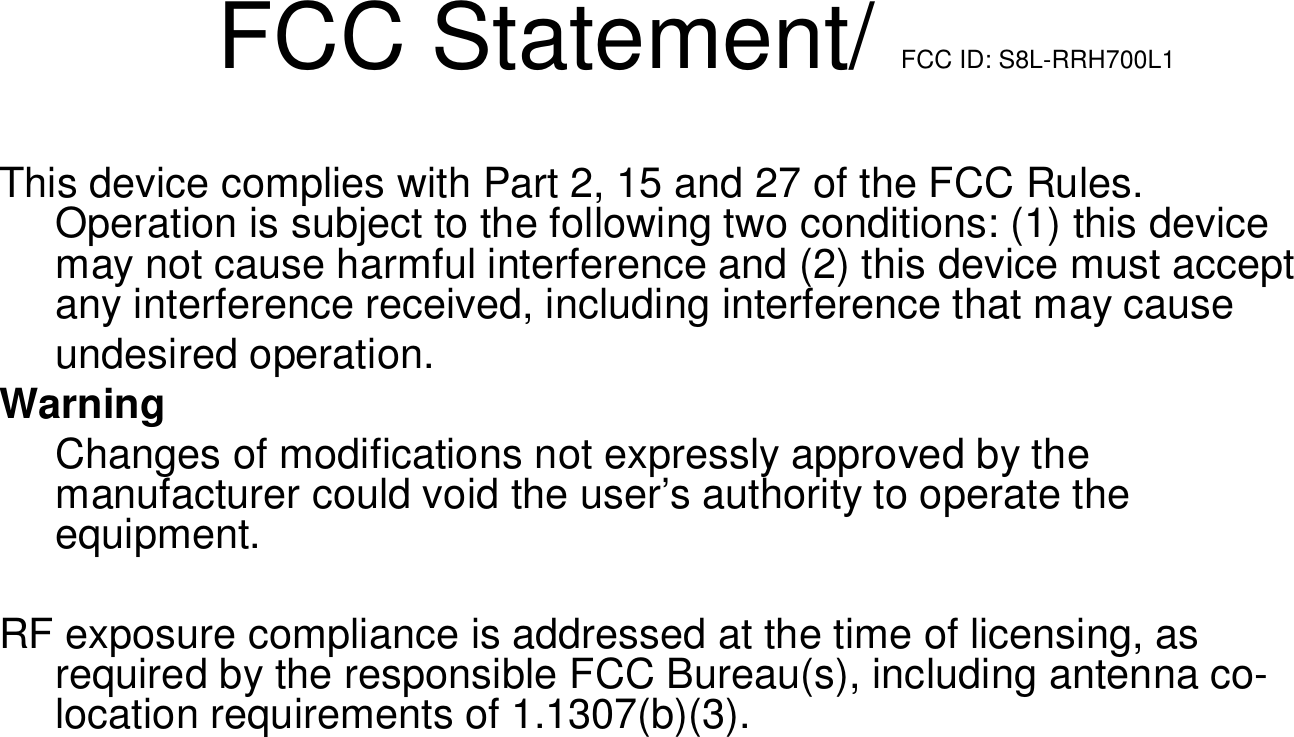

FCC Statement/ FCC ID: S8L-RRH700L1This device complies with Part 2, 15 and 27 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may causeundesired operation.WarningChanges of modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.RF exposure compliance is addressed at the time of licensing, asrequired by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).
