Andrew Base Station Subsystems Group RRH700L1 Remote Radio Head RRH 2x40W 700MHz RF101002 User Manual
Andrew Corporation, Base Station Subsystems Group Remote Radio Head RRH 2x40W 700MHz RF101002 Users Manual
Users Manual
Key Specifications:
Base-Station Interface: CPRI High Speed Digital I/O (Cellular LTE Traffic + Control)
2 Duplexed Antenna Ports:
Tx Frequency Range: 728-746MHz; 40WRF(+46.0dBm) max each port;
Rx Frequency Range: 698-716MHz; sensitivity -101.5dBm(10MHz LTE)
Power Input: -48VDC nominal; Load Current 7.4 ADC (with 2x40WRF)
2x40W RRH-700-L1 for E-UTRAN Band 13 ( FCC ID:S8L-RRH700L1)

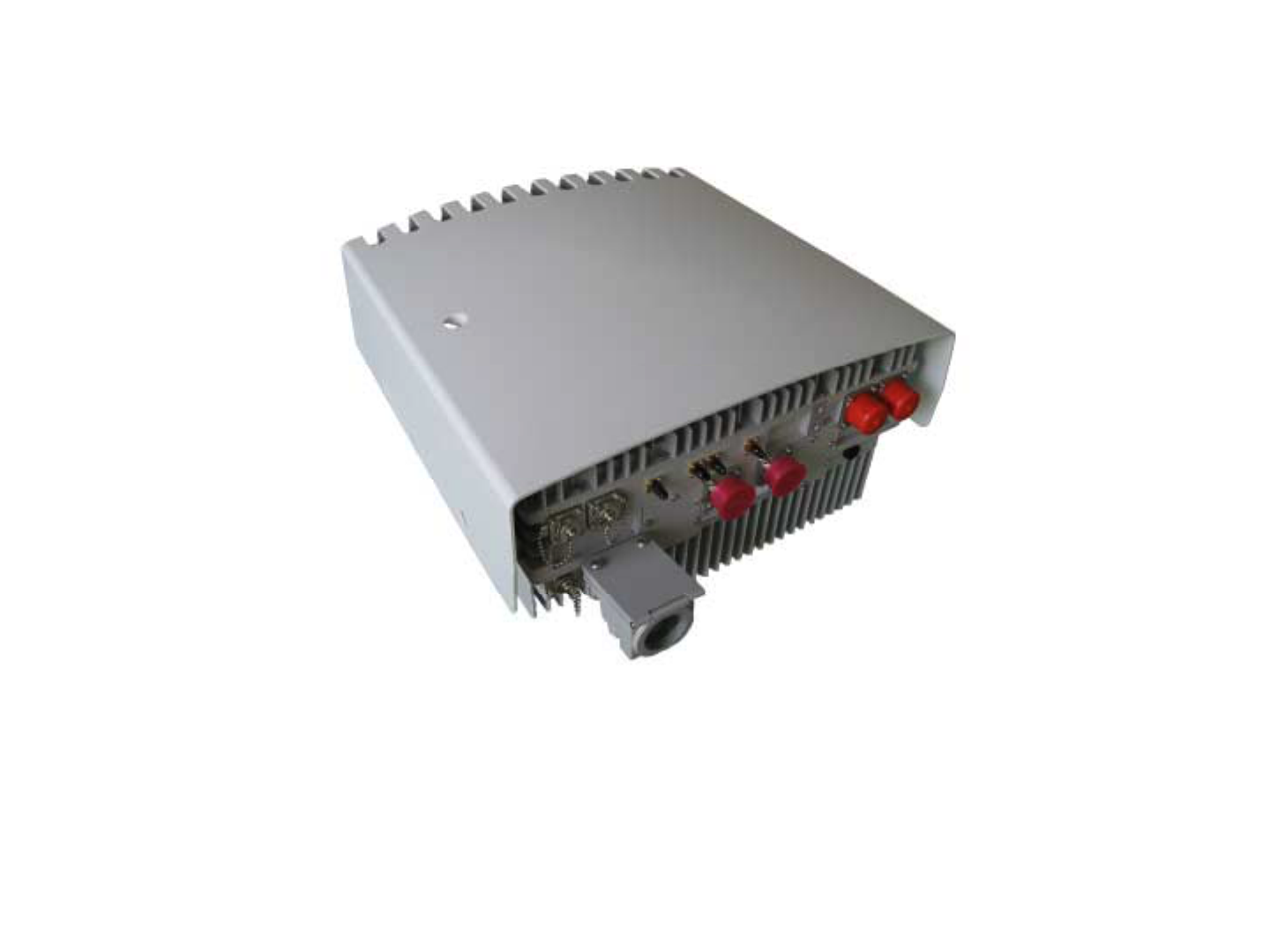

Product Description
Functional Block Diagram 2 x 40W 700MHz
RRH-see another file

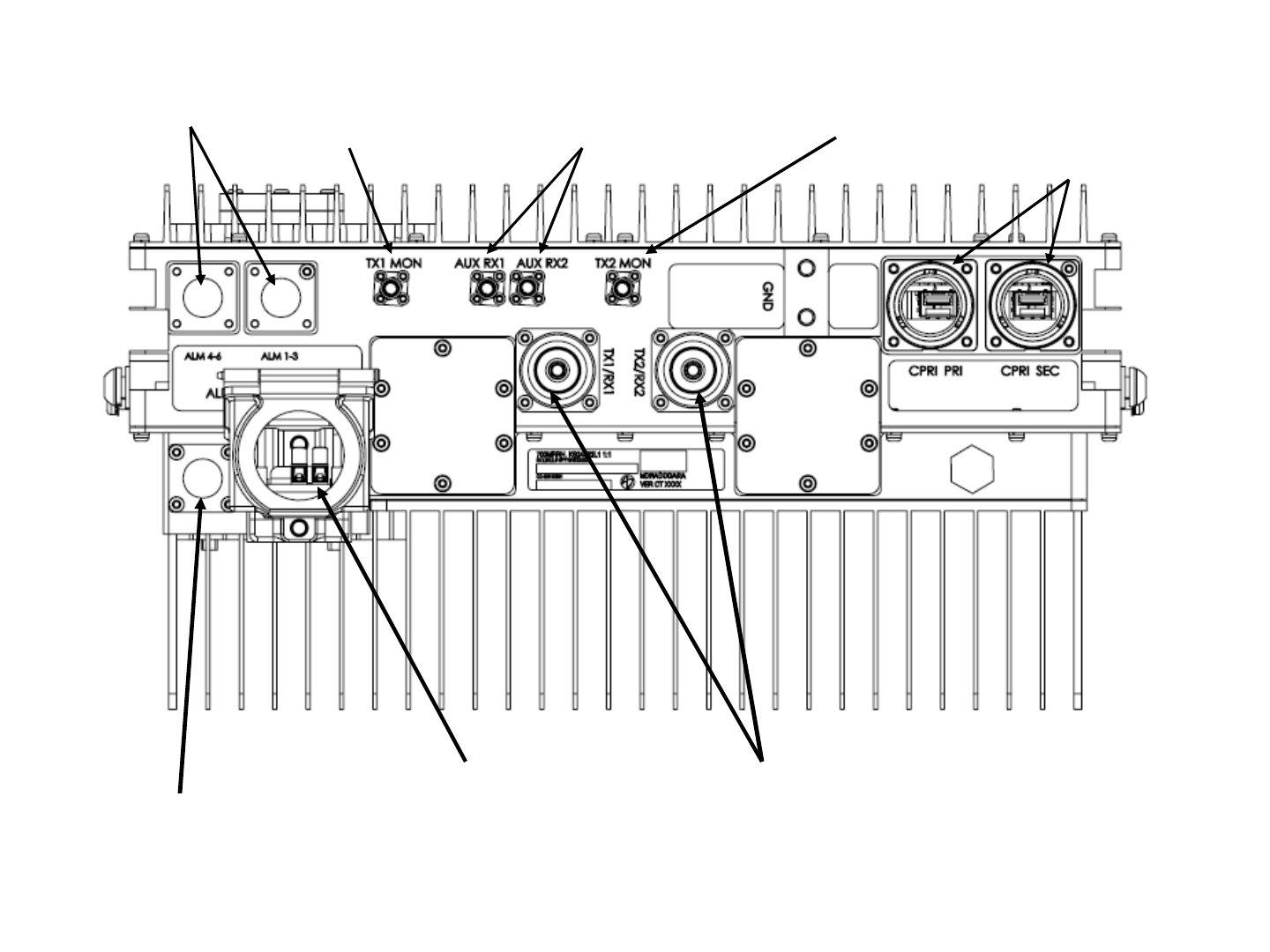

2x40W 700MHz RRH-700L1 – Interface Ports
3) Tx1/Rx1 Port
4) Tx2/Rx2 Port
Duplexed Antenna Ports
Input/Output.
Down-link RF Out: 746 - 756MHz; +46 dBm(40W each)
Up-link RF In: 777 – 787MHz; -102dBm to -40dBm
7) Antenna Line Device
Port:
Input/Output.
RS485 signaling
+12V/1.0A; +24V/0.85A
5) DC Power Port: Input.
-48V (-38.5V to 58V)
With Tx1=Tx2=40W, 7A
2.2A after boot-up
3.0A bias ON, no RF
8) External Alarms 1-3
9) External Alarms 4-6
10) Tx1 Monitor Port:
Output.
-40dBc sample of RF on
Tx1/Rx1 port
12) Auxiliary Rx1 Port
13) Auxiliary Rx2 Port
Input/Output.
Bypass internal LNA or Feed
additional external Receivers from
here.
11) Tx2 Monitor Port:
Output.
-40dBc sample of RF on
Tx2/Rx2 port
1) Primary CPRI Port
2) Secondary CRPI Port:
Serial Digital Traffic &
Control Input/Output.
(accepts optical or electrical
SFP modules
Supported Data rates:
Rate 2: 1.2288Gbps
Rate 3: 2.457.6Gbps
Rate 4: 3.0720Gbps

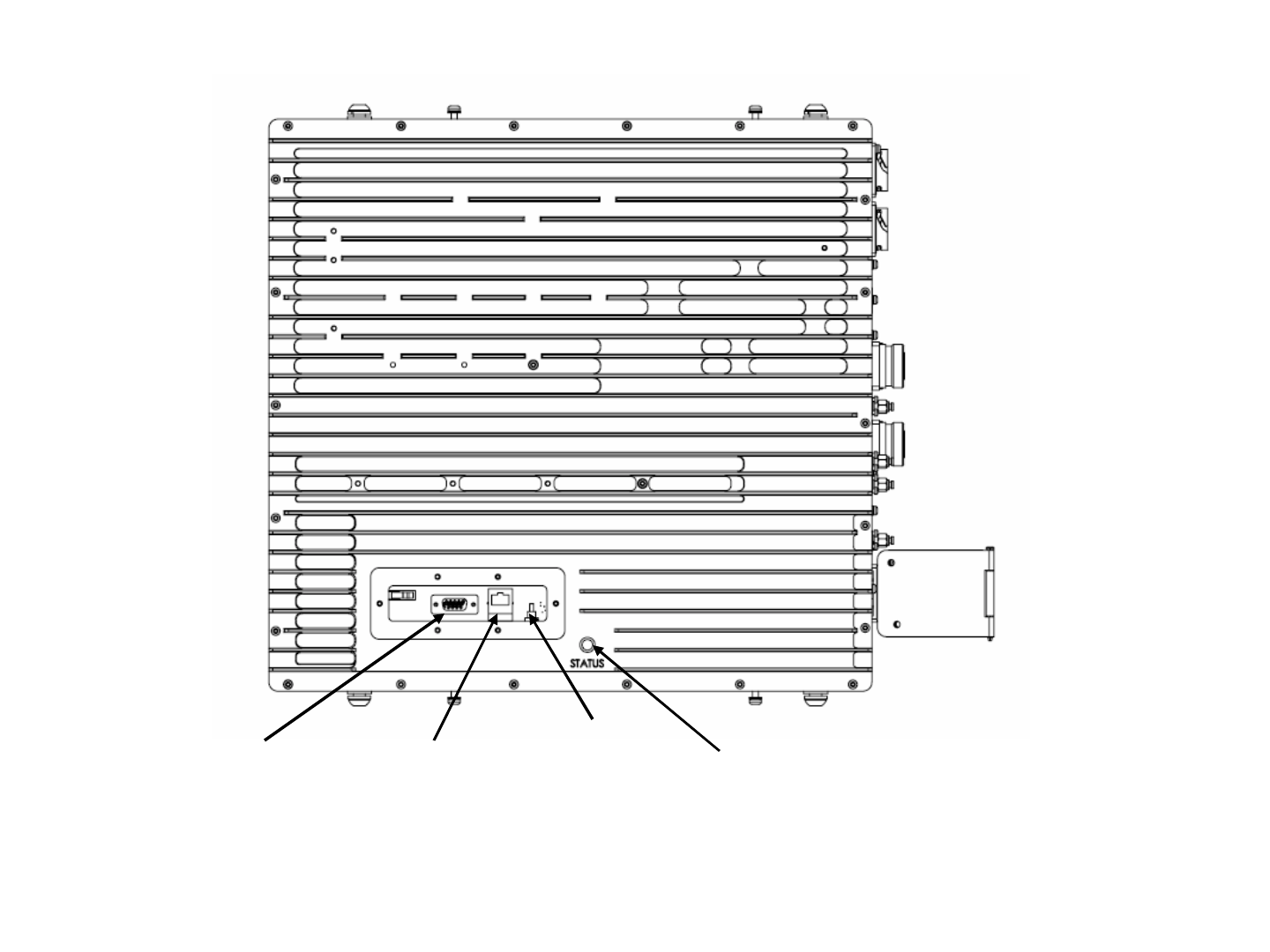

2x40W 700MHz RRH-700L1 – Maintenance Panel
Serial RS232
Connection
JTAG DSP
14) Ethernet Maintenance
Port: Input/Output
10/100 Base-T
Reset Switch
Status LED
FCC Statement/ FCC ID: S8L-RRH700L1
This device complies with Part 2, 15 and 27 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Warning
Changes of modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
RF exposure compliance is addressed at the time of licensing, as
required by the responsible FCC Bureau(s), including antenna co-
location requirements of 1.1307(b)(3).
