Users Manual
ION™-M7P/8P S
(Q cabinet)
Optical
Remote Unit
User's Manual
MF0132APA
User’s Manual for
ION-M7P/8P S
Page 2 MF0132APA.doc
© Copyright 2010 CommScope, Inc.
All rights reserved.
Andrew Solutions is a trademark of CommScope, Inc.
All information contained in this manual has been revised thoroughly. Yet Andrew
Solutions accepts no liability for any omissions or faults.
Andrew Solutions reserves the right to change all hard- and software characteristics
without notice.
Names of products mentioned herein are used for identification purposes only and
may be trademarks and / or registered trademarks of their respective companies.
No parts of this publication may be reproduced, stored in a retrieval system,
transmitted in any form or by any means, electronical, mechanical photocopying,
recording or otherwise, without prior written permission of the publisher.
Andrew Wireless Systems GmbH, 12-April-2010
Page 3
TABLE OF CONTENTS
1. GENERAL 7
1.1. USED ABBREVIATIONS 7
1.2. HEALTH AND SAFETY WARNINGS 9
1.3. ABOUT ANDREW SOLUTIONS 11
1.4. INTERNATIONAL CONTACT ADDRESSES FOR WIG CUSTOMER SUPPORT 12
2. INTRODUCTION 15
2.1. PURPOSE 15
2.2. THE ION-M7P/8P S (INTELLIGENT OPTICAL NETWORK; MMR) 15
3. FUNCTIONAL DESCRIPTION 17
3.1. GENERAL 17
3.2. COMPONENTS OF THE ION-M7P/8P S REMOTE UNIT 18
3.3. OPTIONAL EQUIPMENT - RELAY ALARM CONNECTING BOARD 18
4. COMMISSIONING 19
4.1. MECHANICAL INSTALLATION 19
4.1.1. General 19
4.1.2. Wall and Pole Mounting 20
4.2. ELECTRICAL INSTALLATION 21
4.2.1. General 21
4.2.2. Connections 22
4.2.3. Grounding 22
4.2.4. Power Connection 23
4.3. CONNECTION OF THE ANTENNA CABLES 24
4.4. CONNECTION OF THE RF CABLES MAIN UNIT TO COMBINING UNIT 24
4.5. OPTICAL-FIBRE-CABLE CONNECTION - RULES 25
4.5.1. Protective Plug 26
4.5.2. Protective-Tube Kit 28

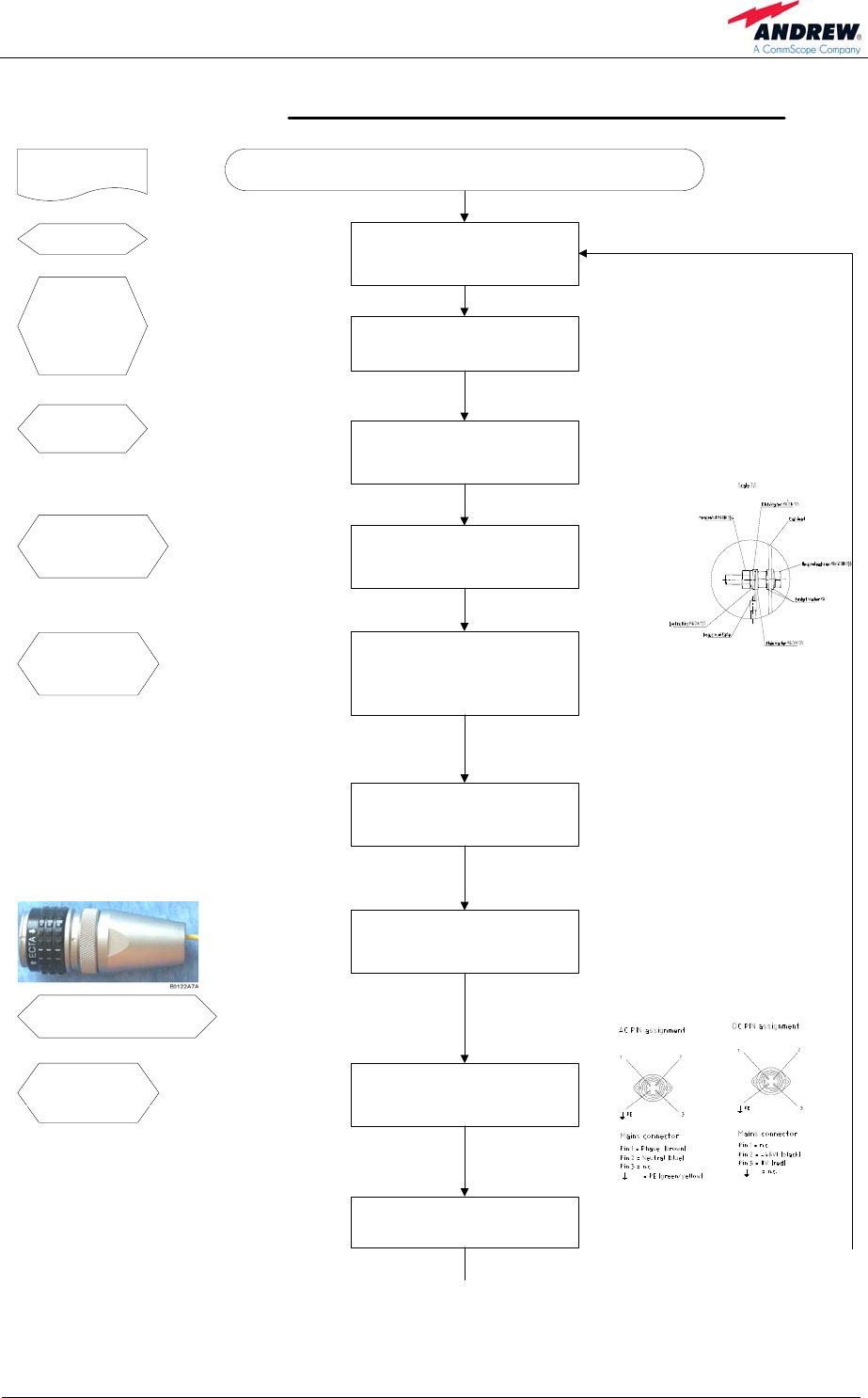

4.6. COMMISSIONING 30
User’s Manual for
ION-M7P/8P S
Page 4 MF0132APA.doc
5. ALARMS 33
5.1. BITE AND ALARMS 33
5.2. HANDLING OF ALARMS 33
5.3. ALARM STATUS 33
5.4. STATUS LED ALARMS 33
5.5. RELAY ALARM CONNECTING BOARD 35
5.5.1. External-Alarm Inputs and Outputs 35
5.5.2. Layout and Connector Description 36
5.6. REDUNDANCY RELAY CONFIGURATION 37
5.7. TROUBLESHOOTING 38
6. MAINTENANCE 39
6.1. GENERAL 39
6.2. OPENING AND CLOSING OF THE CABINET 40
6.3. REPLACEMENT OF POWER SUPPLY 41
6.4. REPLACEMENT OF FAN UNIT 42
7. APPENDIX 43
7.1. LAYOUT 43
7.2. SPECIFICATIONS 44
8. INDEX 45
Page 5
FIGURES AND TABLES

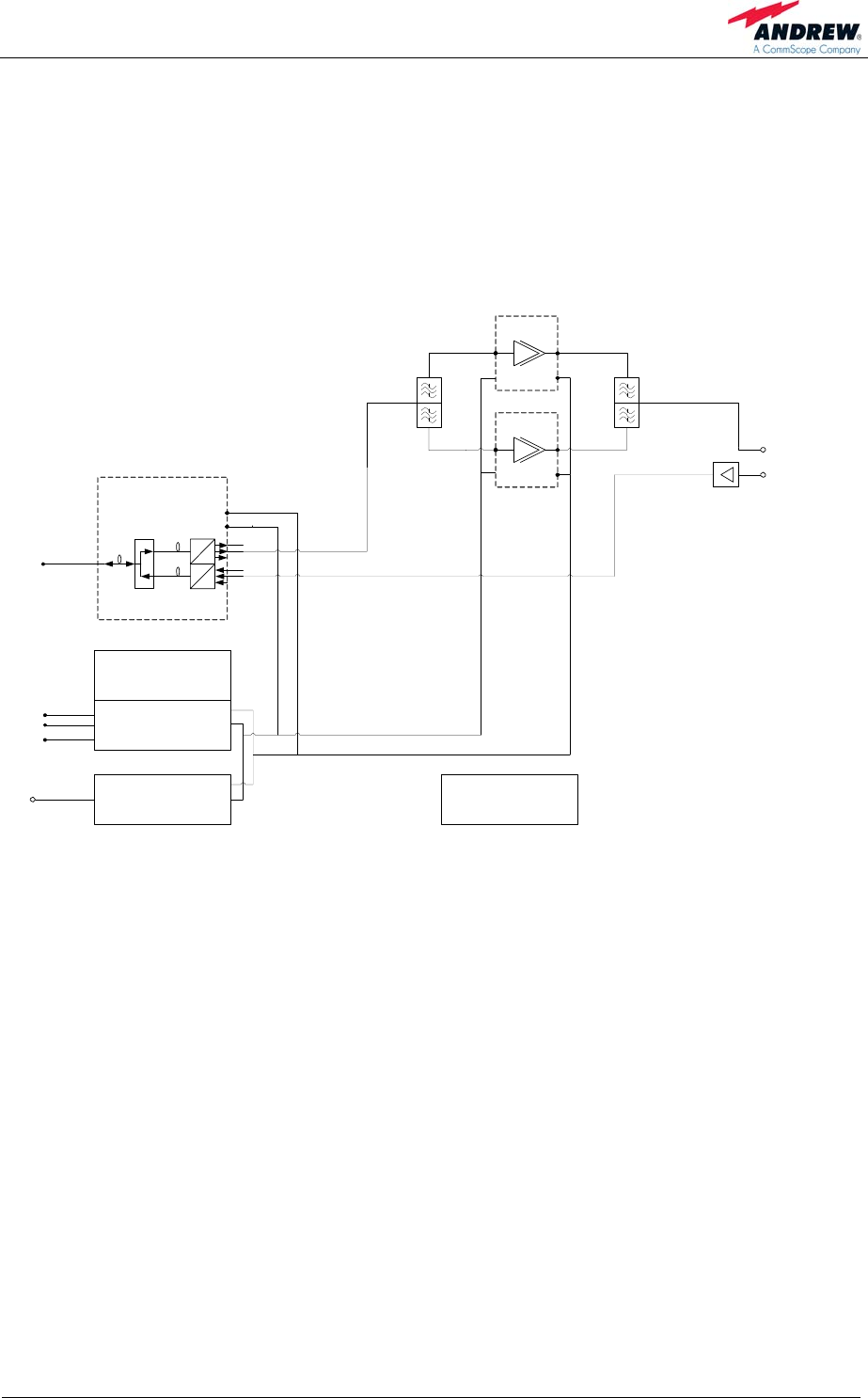

figure 3-1 Configuration of an ION-M7P/ 8P S.......................................................... 17
figure 3-2 ION-M7P/8P S, lid .................................................................................... 18
figure 3-3 ION-M7P/8P S, base................................................................................ 18

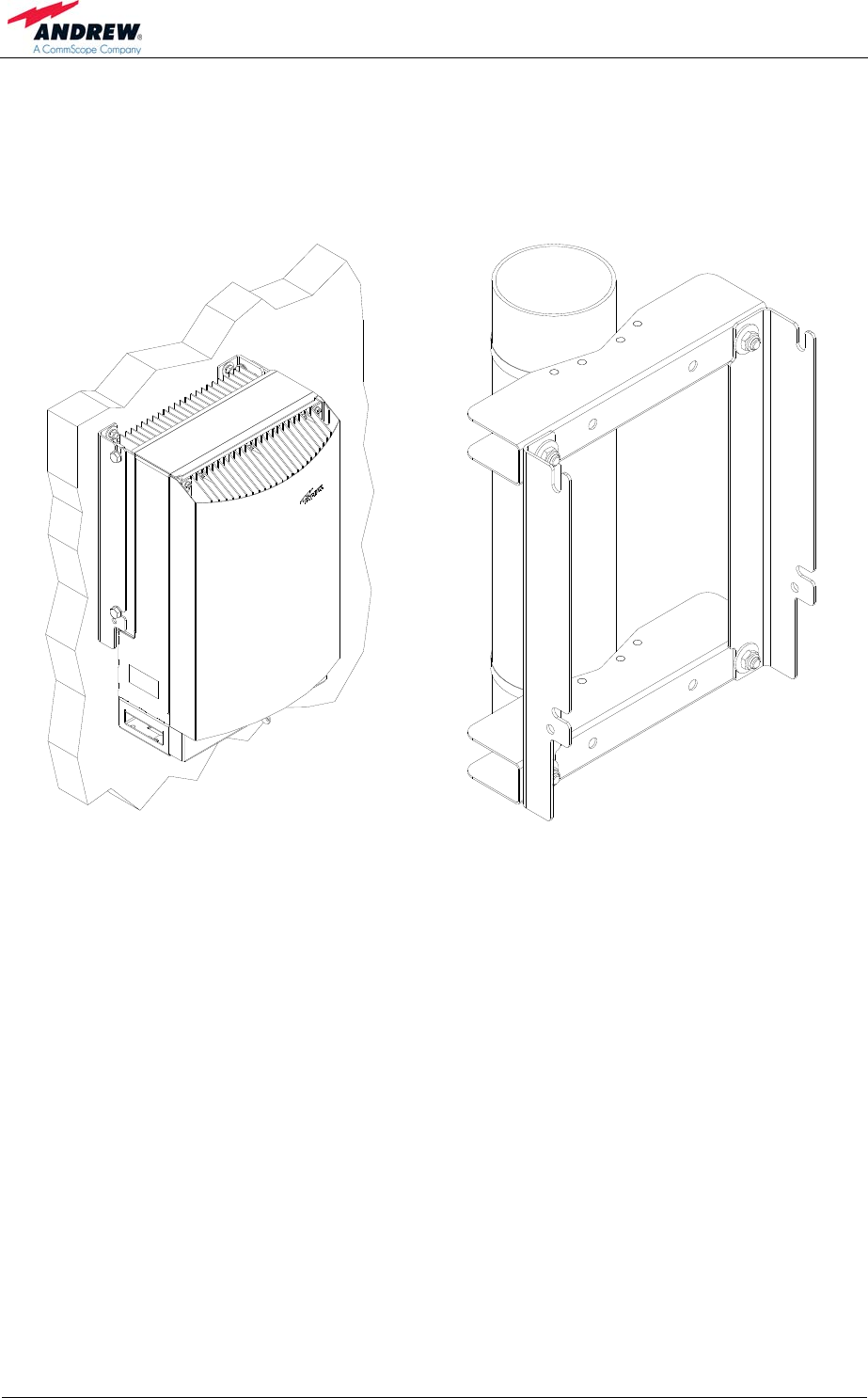

figure 4-1 Wall mounting........................................................................................... 20
figure 4-2 Pole mounting .......................................................................................... 20

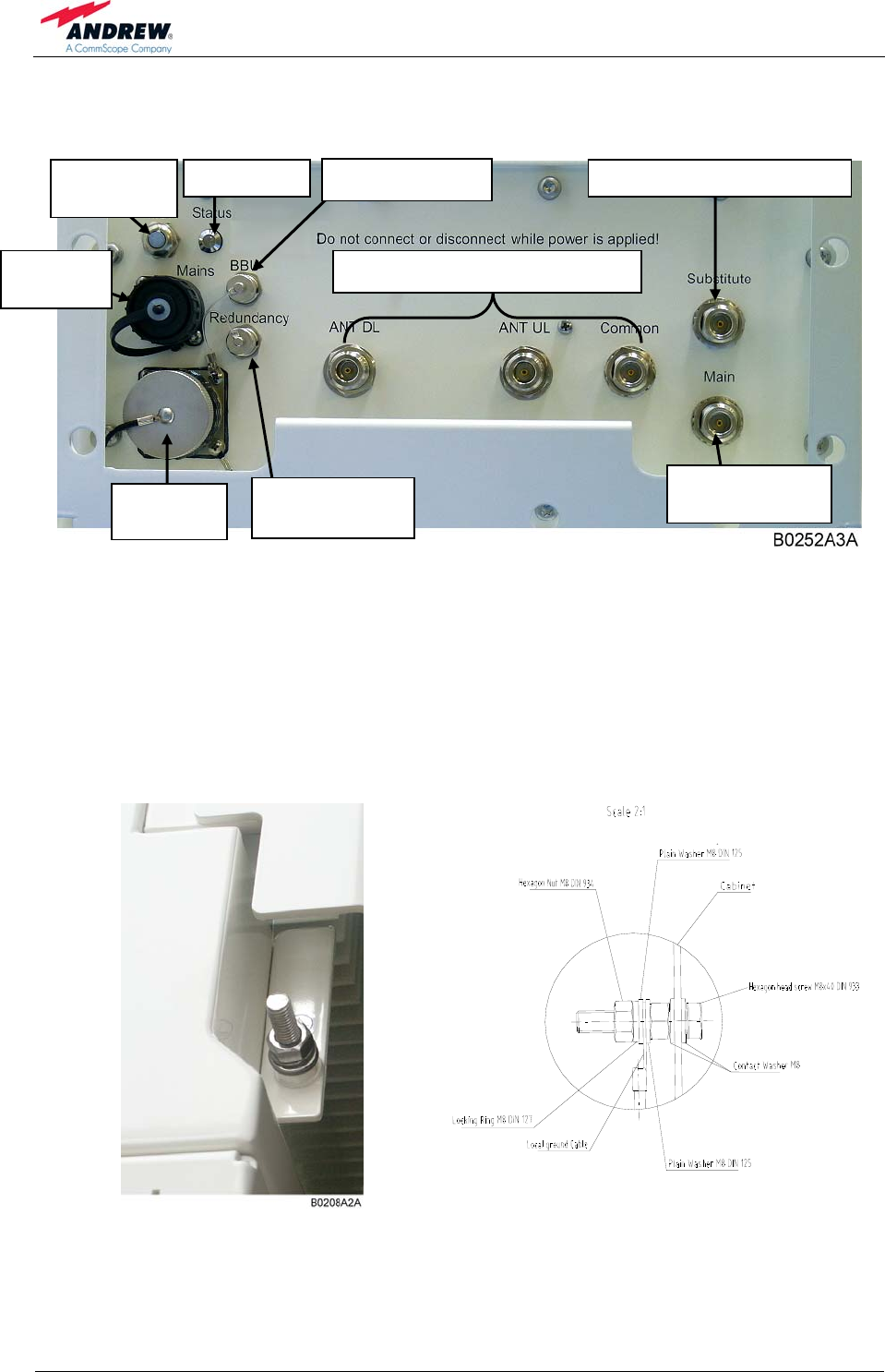

figure 4-3 ION-M7P/8P S, connector flange, exemplary........................................... 22
figure 4-4 Grounding bolt.......................................................................................... 22

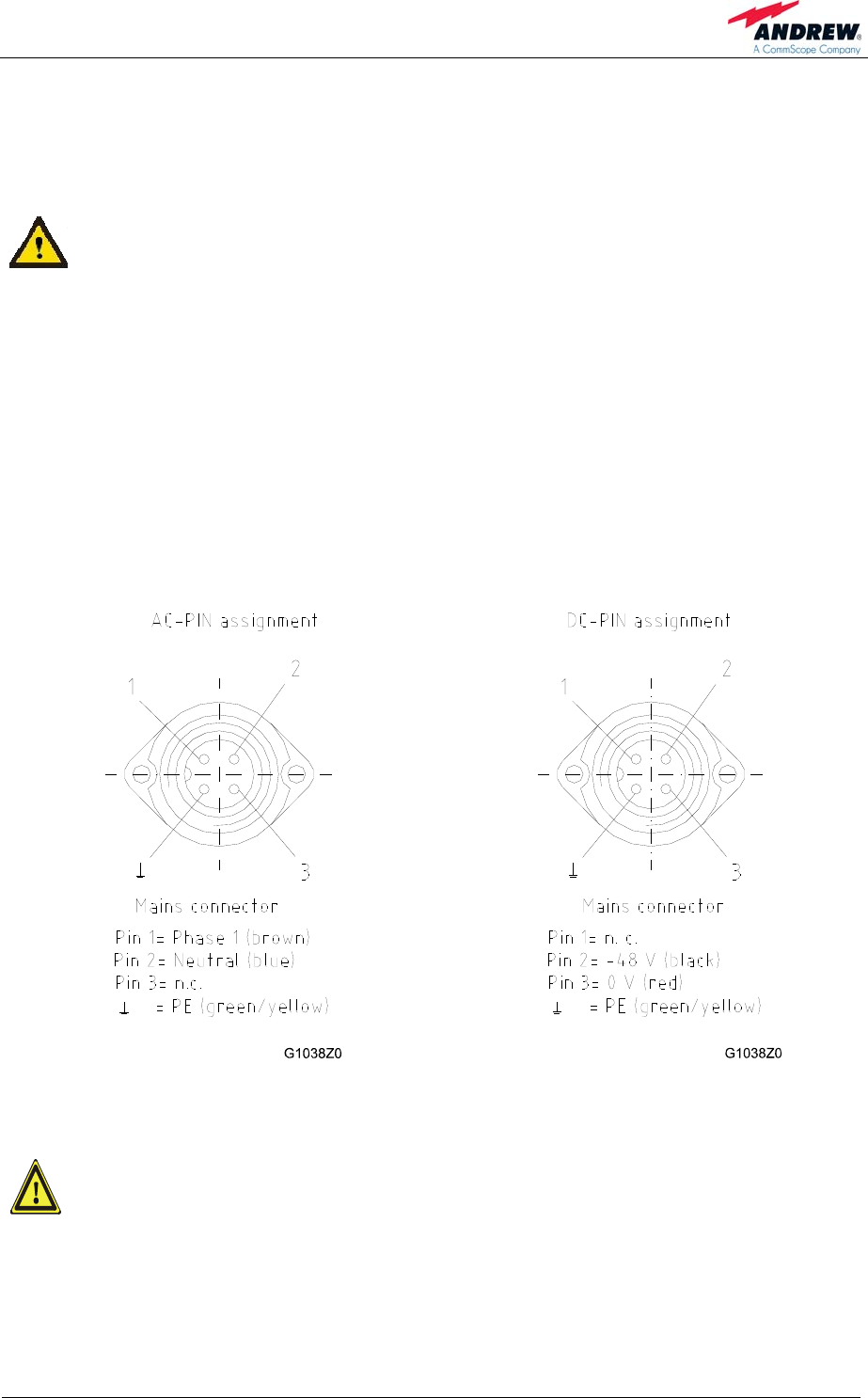

figure 4-5 AC mains plug .......................................................................................... 23
figure 4-6 DC mains plug.......................................................................................... 23

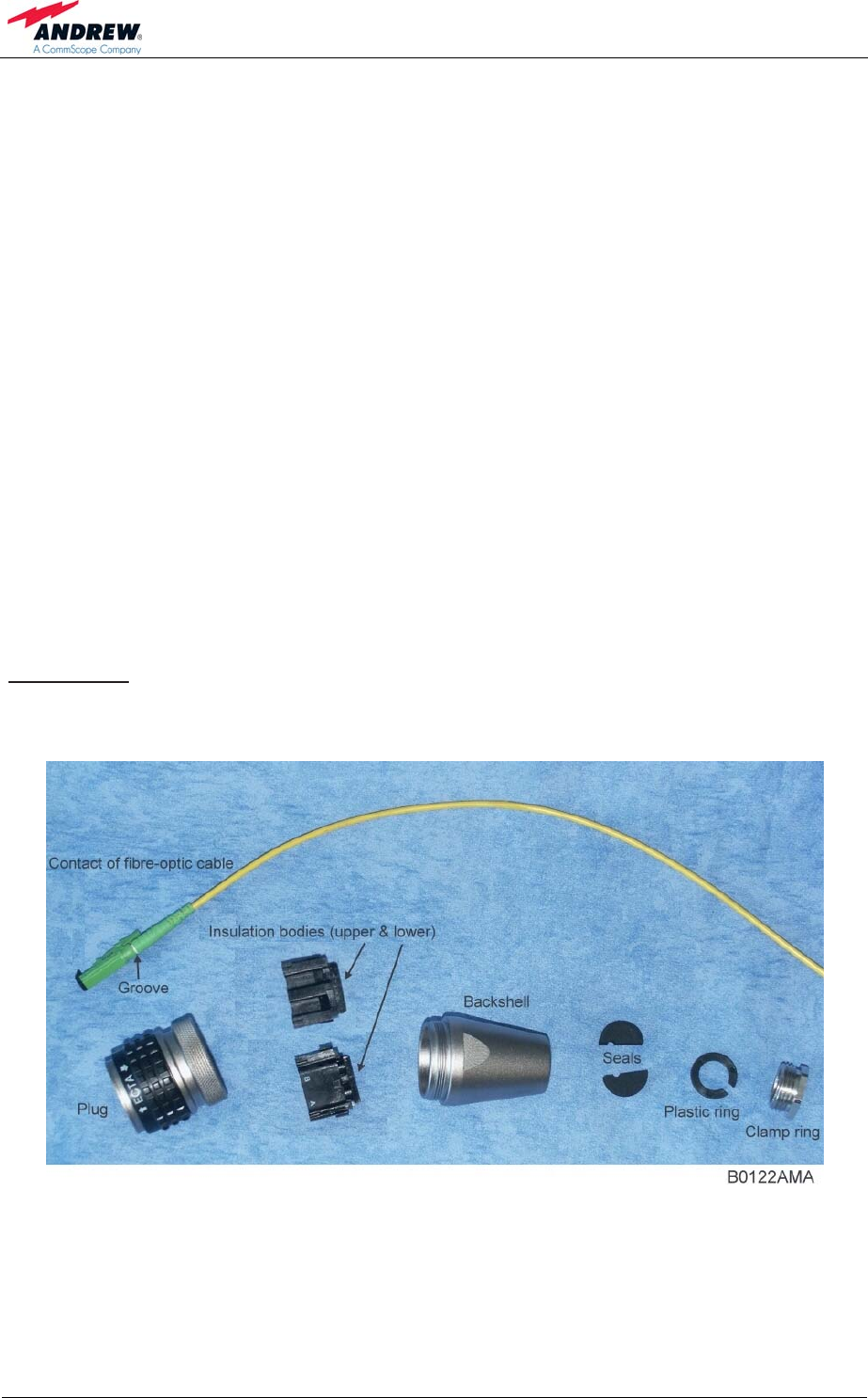

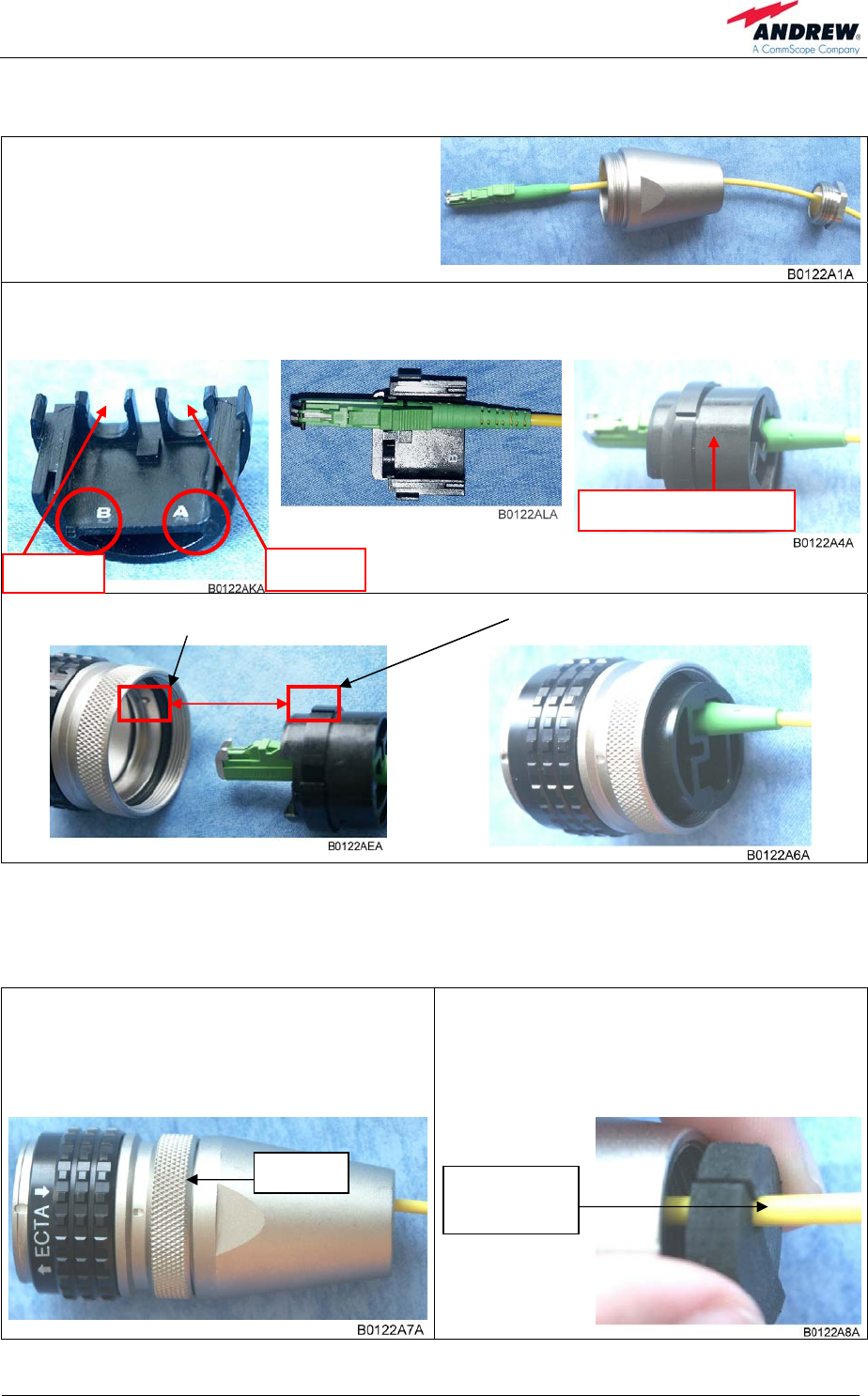

figure 4-7 Protective-plug assembly ......................................................................... 26

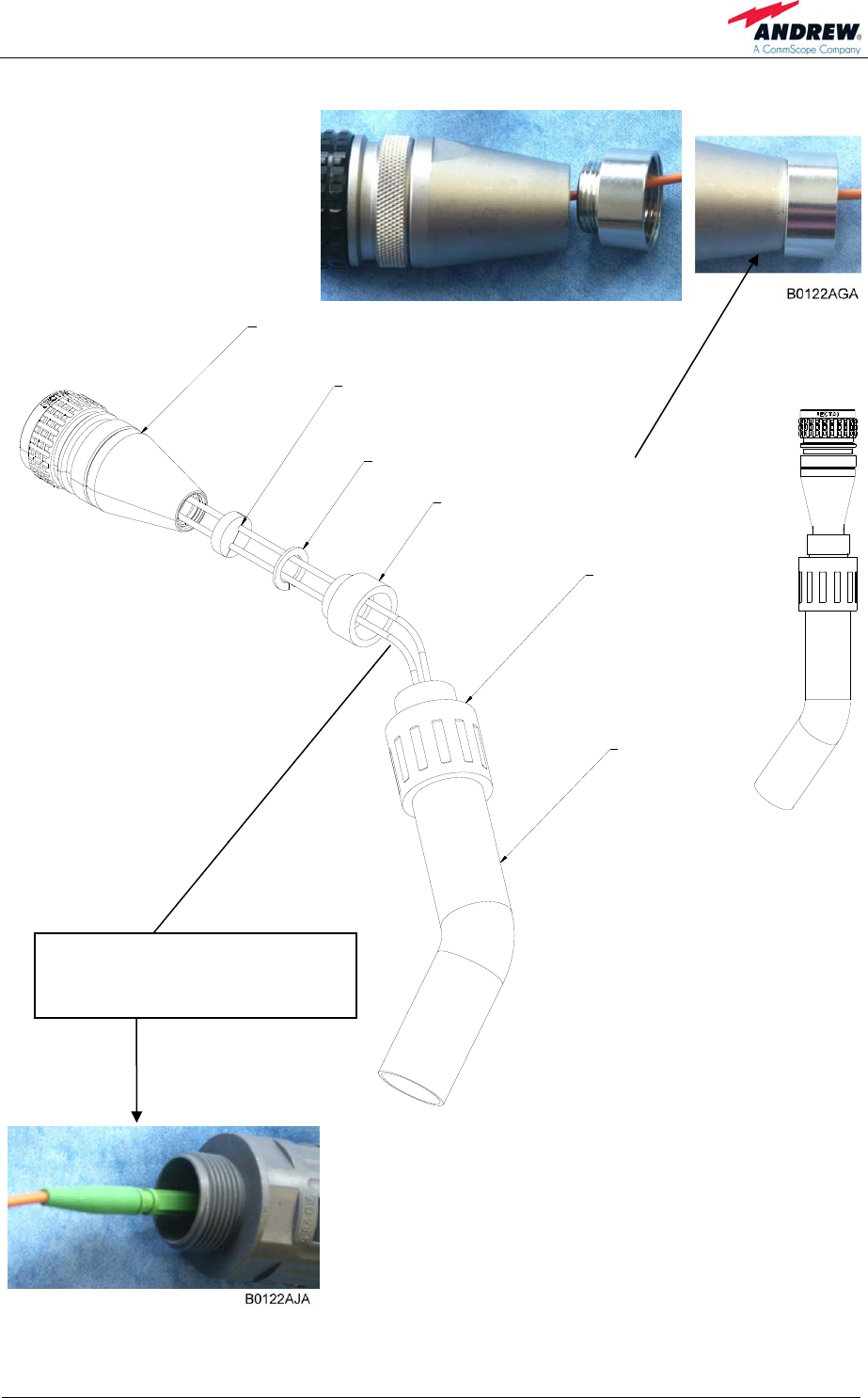

figure 4-8 Tube-kit installation................................................................................... 29

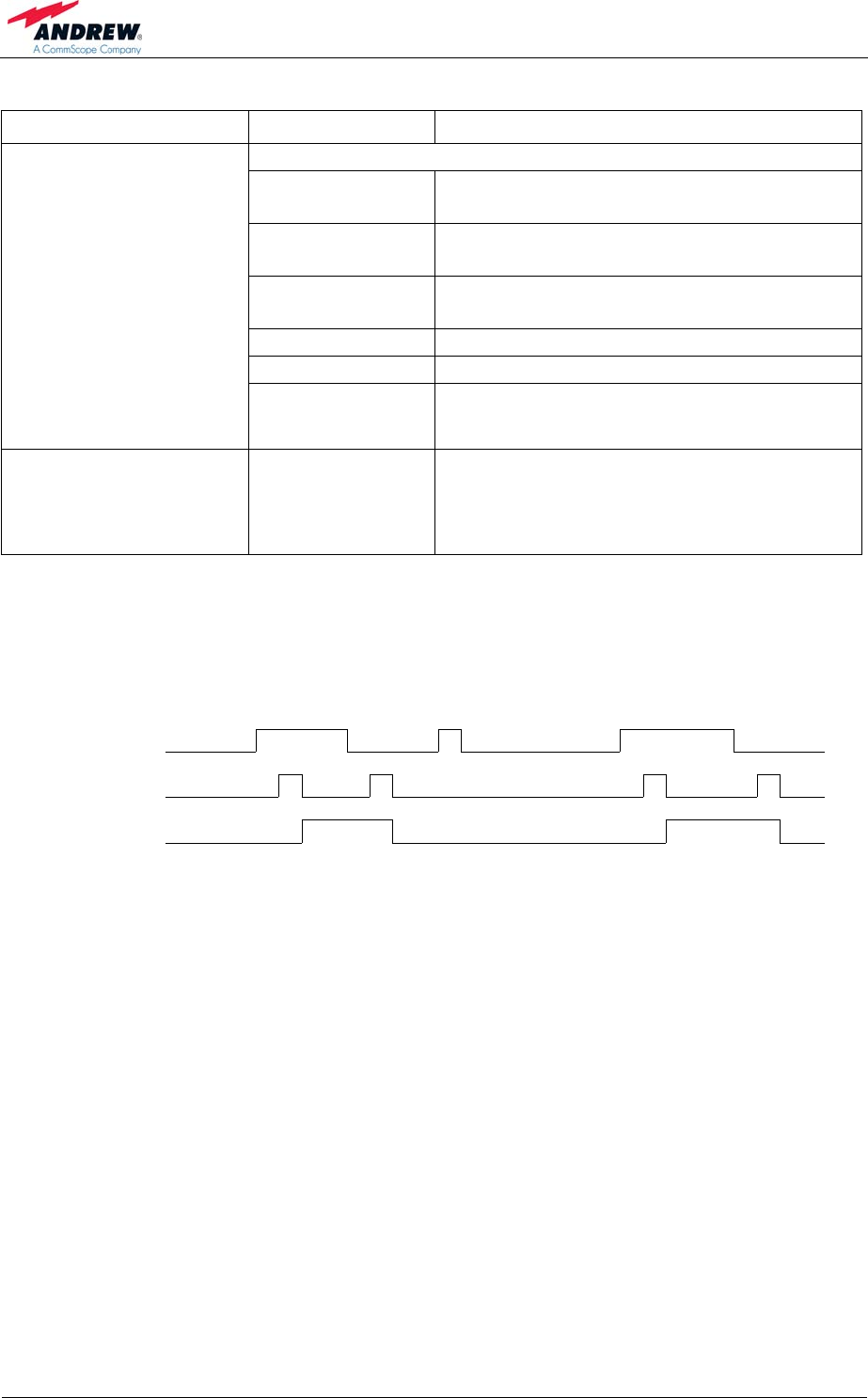

figure 5-1 Alarm triggering ........................................................................................ 34

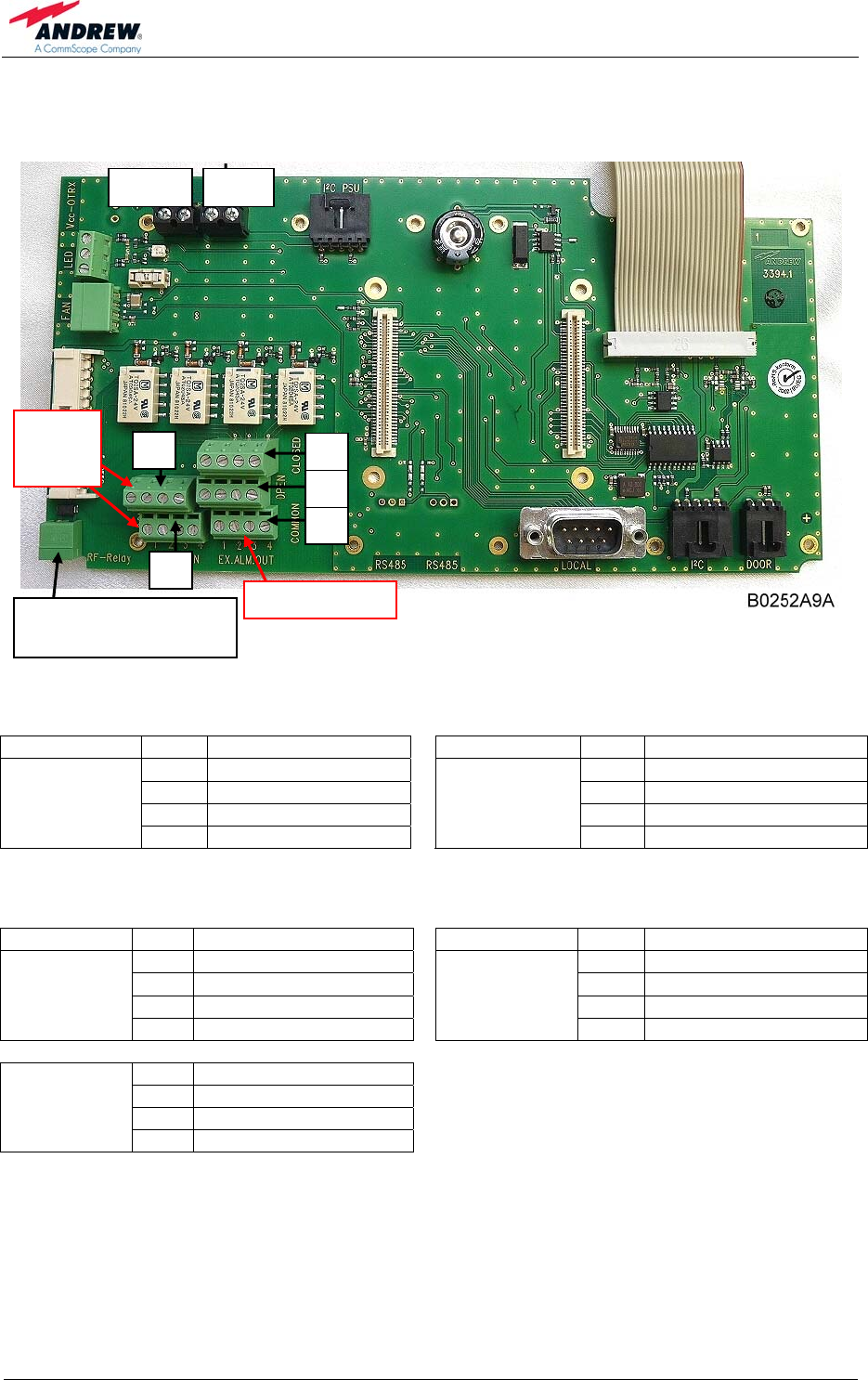

figure 5-2 Relay alarm connecting board, description of connectors ........................ 36
figure 5-3 Alarm-output contacts, alarm condition .................................................... 37

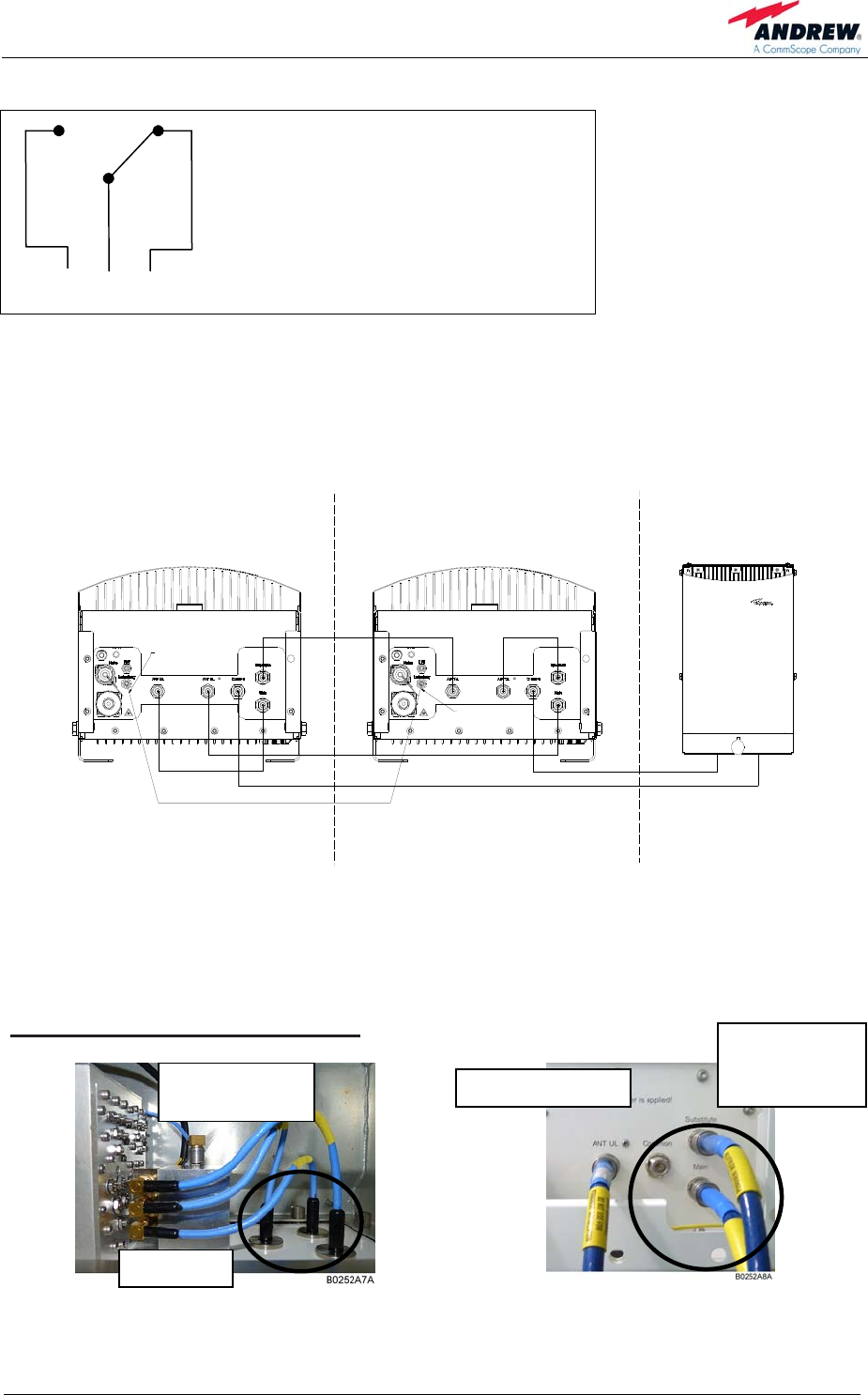

figure 5-4 Redundancy connection, cabling.............................................................. 37
figure 5-5 Redundancy RF relay............................................................................... 37
figure 5-6 Redundancy connectors, Main Unit and Substitute Unit........................... 37

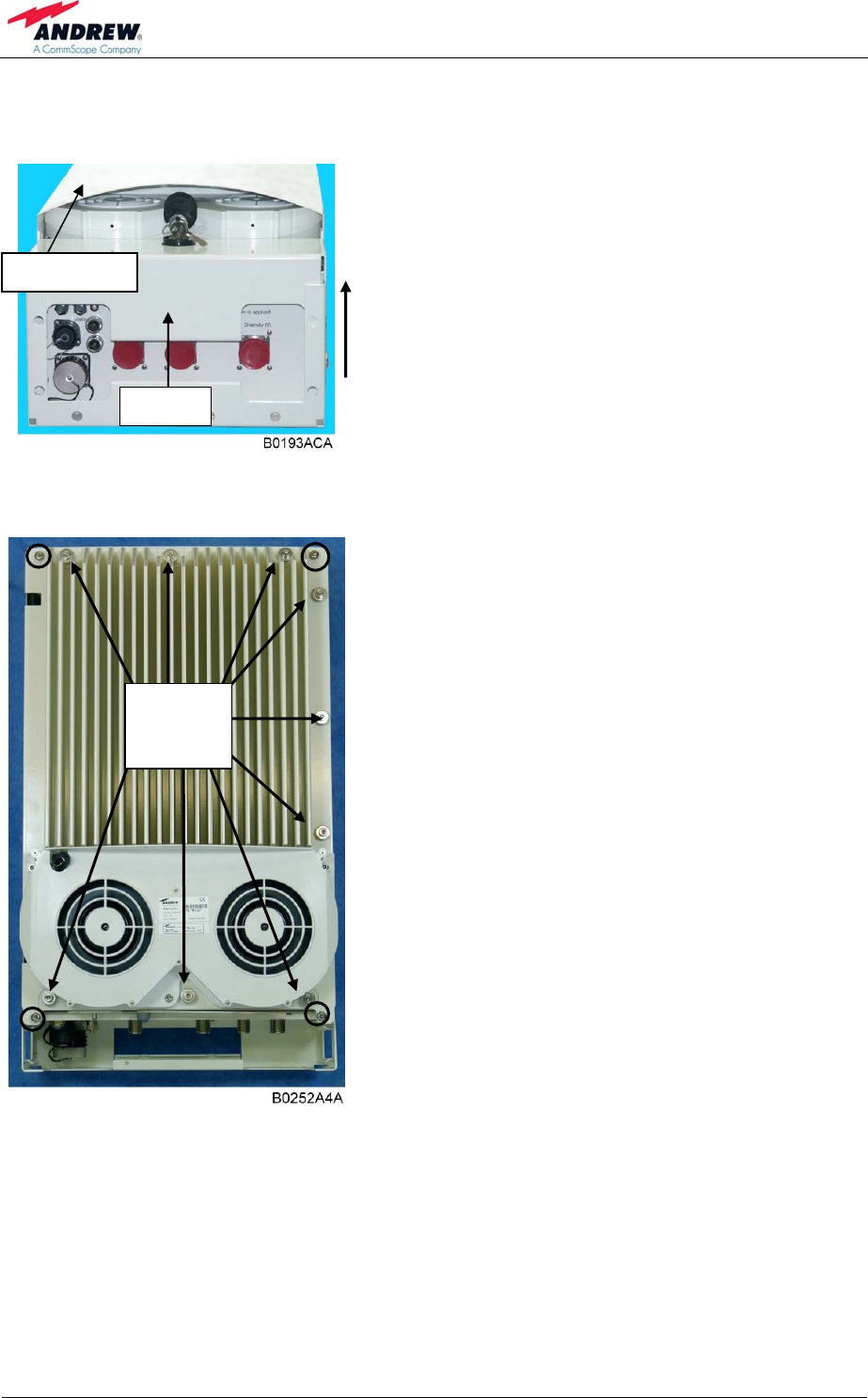

figure 6-1 Locker with key......................................................................................... 40
figure 6-2 Front and top cover screws ...................................................................... 40

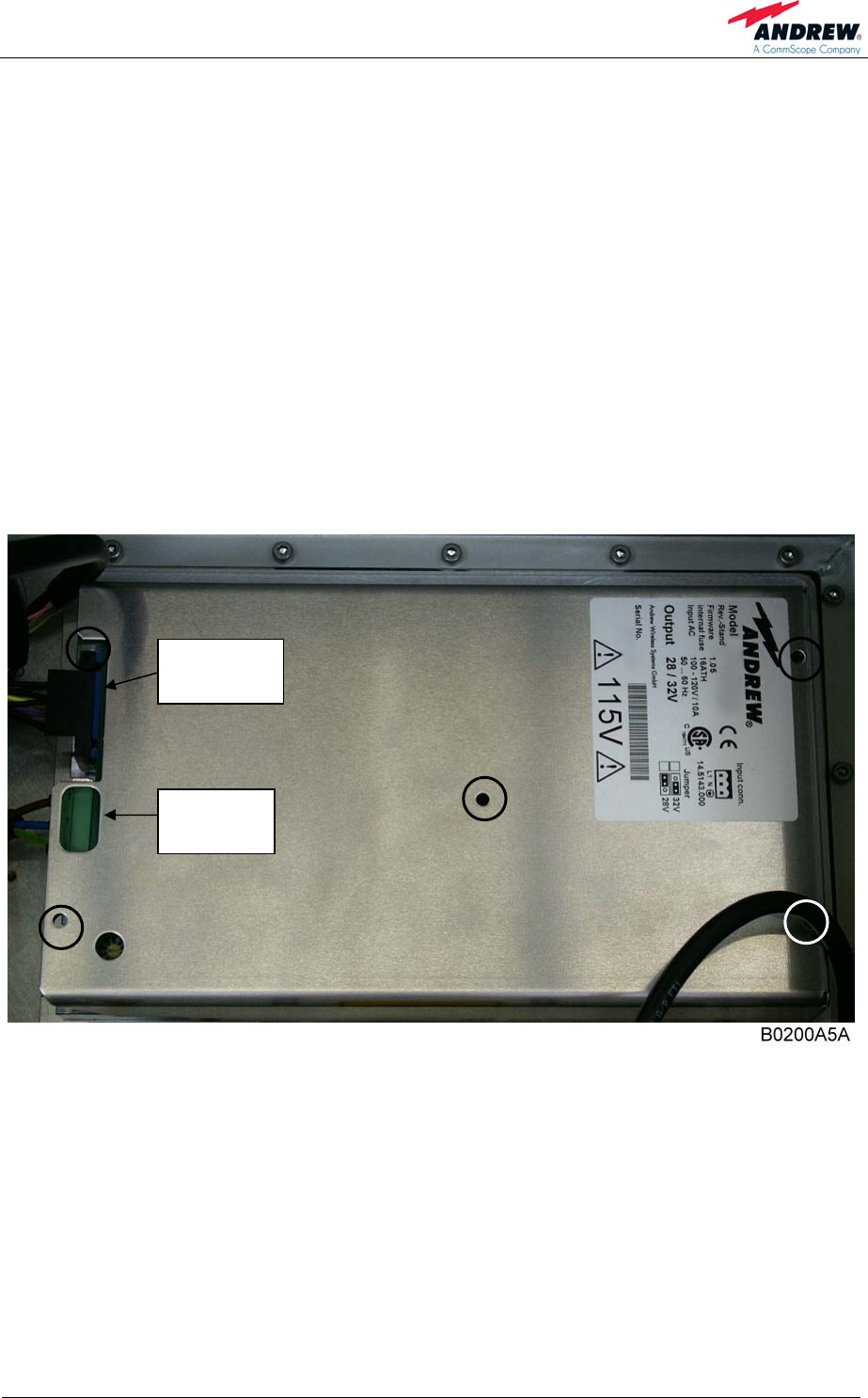

figure 6-3 Power supply screws................................................................................ 41
figure 6-4 Fan unit screws ........................................................................................ 42
figure 6-5 Fan-connector cable................................................................................. 42

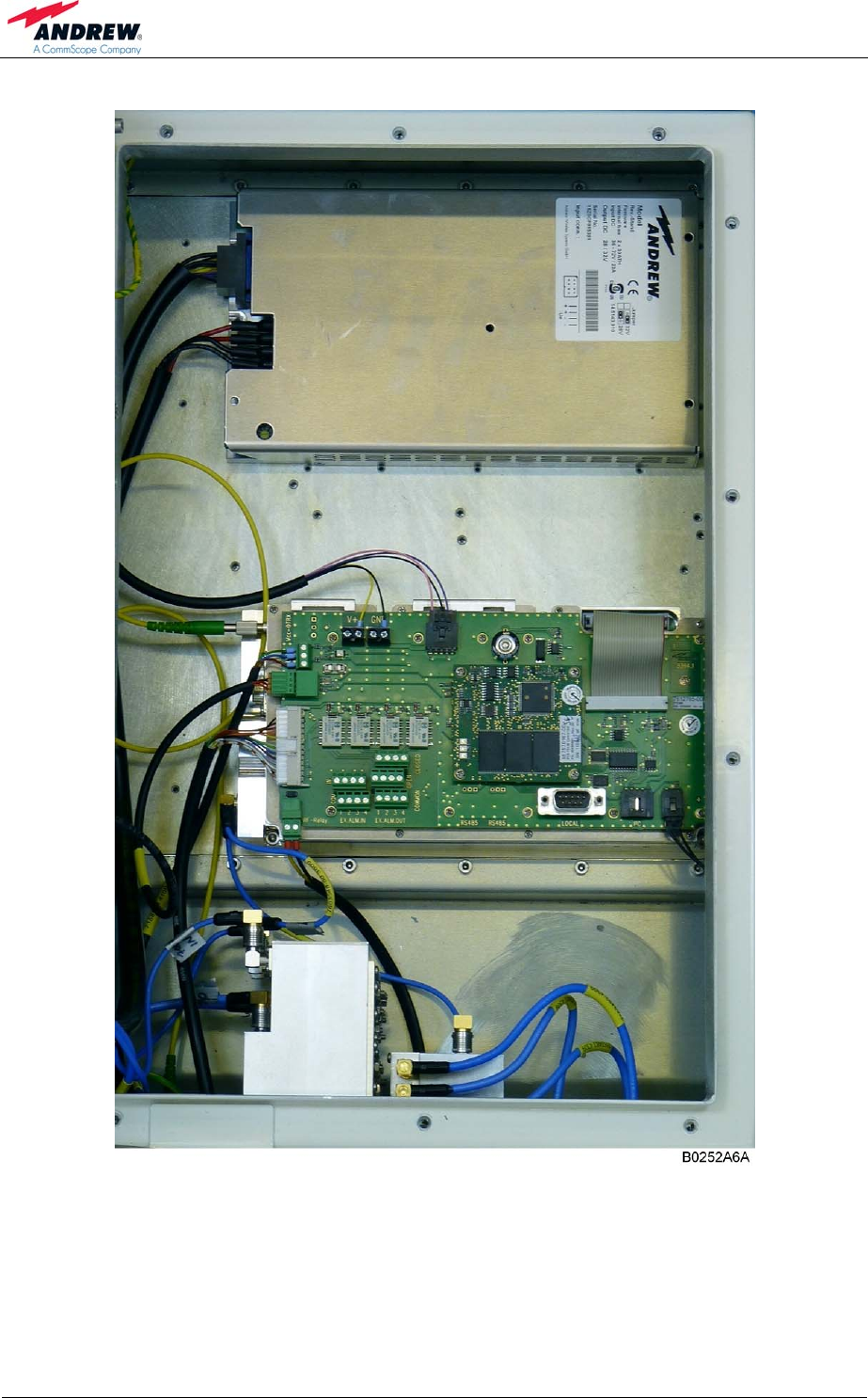

figure 7-1 Layout of ION-M7P/8P S, lid .................................................................... 43
figure 7-2 Layout of ION-M7P/8P S, base ................................................................ 44
table 1-1 List of international contact addresses....................................................... 13
table 5-1 Status LED alarms..................................................................................... 34
table 5-2 Relay alarm connecting board connectors, pin assignment....................... 36
table 6-1 Specified torques for various screw types ................................................. 39
User’s Manual for
ION-M7P/8P S
Page 6 MF0132APA.doc
For your notes:
1 General
Page 7
1. GENERAL
1.1. USED ABBREVIATIONS
ALC Automatic Level Control
AMPS American Mobile Phone System or Advanced Mobile Phone System
APAC Automatic Power Adjustment Circuit
AWS Advanced Wireless Services
BBU Battery Backup Unit
BCCH Broadcast Control Channel
BITE Built-In Test Equipment
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CEPT Conférénce Européenne des Postes et Télécommunications
CF Center Frequency
CFO Center Frequency Offset
CPD Channel Power Detection
DL Downlink
EDGE Enhanced Data Rates for GSM Evolution
ESD Electrostatic Discharge
ETS European Telecommunication Standard
ETSI European Telecommunication Standards Institute
FCC Federal Communications Commission
FSK Frequency Shift Keying
GSM Global System for Mobile Communication
GUI Graphical User Interface
I2C-Bus Inter Integrated Circuit Bus (Philips)
ID No Identification Number
IF Intermediate Frequency
LMT Local Maintenance Terminal
LNA Low-Noise Amplifier
MIMO Multiple Input Multiple Output
MS Mobile Station
NSO Network Supervision Option
OMC Operation and Maintenance Center
OTRx Optical Transceiver = SRMU (Subrack Master Unit)
PCMCIA Personal Computer Modem Communication International Association
PCS Personal Communication System
PSTN Public Switched Telephone Network
Rev Revision
RF Radio Frequency
RLP Radio Link Protocol
RSSI Receive Signal Strength Indication
RTC Real-Time Clock
RX Receiver
SCL Serial Clock
SDA Serial Data
User’s Manual for
ION-M7P/8P S
Page 8 MF0132APA.doc
SISO Single Input Single Output
SPD Switching Point Detector
SRMU Subrack Master Unit = OTRx (Optical Transceiver)
TCH Traffic Channel
TDD Time-Division Duplex
TDMA Time Division Multiple Access
TX Transmitter
UL Uplink
UMR Universal Measurement Receiver
UMTS Universal Mobile Telecommunication System
UPS Uninterruptible Power Supply
VSWR Voltage Standing Wave Ratio
WDM Wavelength Division Multiplex
WIG Wireless Innovations Group
WiMAX Worldwide Interoperability for Microwave Access
1 General
Page 9
1.2. HEALTH AND SAFETY WARNINGS
1. Only suitably qualified personnel is allowed to work on this unit and only after
becoming familiar with all safety notices, installation, operation and maintenance
procedures contained in this manual.
2. Read and obey all the warning labels attached to the unit. Make sure that the
warning labels are kept in a legible condition and replace any missing or
damaged labels.
3. Obey all general and regional installation and safety regulations relating to work
on high voltage installations, as well as regulations covering correct use of tools
and personal protective equipment.
4. Keep operating instructions within easy reach and make them available to all
users.
5. It is the responsibility of the network provider to implement prevention measures
to avoid health hazards which may be associated to radiation from the antenna(s)
connected to the unit.
6. For US and Canadian installations: To comply with FCC RF exposure compliance
requirements, the following antenna installation and device operating
configurations must be satisfied: A separation distance of at least 4 m must be
maintained between the antenna of this device and all persons. RF exposure
compliance may need to be addressed at the time of licensing, as required by the
responsible FCC Bureau(s), including antenna co-location requirements of
1.1307(b)(3). Maximum permissible antenna gain is 17 dBi.
7. Make sure access is restricted to qualified personnel.
8. Only licence holders for the respective frequency range are allowed to operate
this unit.
9. Use this equipment only for the purpose specified by the manufacturer. Do not
carry out any modifications or fit any spare parts which are not sold or
recommended by the manufacturer. This could cause fires, electric shock or other
injuries.
10. Due to power dissipation, the remote unit may reach a very high temperature. Do
not operate this equipment on or close to flammable materials.
11. Before opening the unit or (dis-)connecting the mains connector at the remote
unit, ensure that mains supply is disconnected.
User’s Manual for
ION-M7P/8P S
Page 10 MF0132APA.doc
12. ESD precautions must be observed! Before commencing maintenance work, use
the available grounding system to connect ESD protection measures.
13. This unit complies with European standard EN60950.
14. Make sure the system settings are according to the intended use (see also
product information of manufacturer) and regulatory requirements are met.
15. Although the remote unit is internally protected against overvoltage, it is strongly
recommended to earth the antenna cables close to the antenna connectors of the
remote unit for protection against atmospheric discharge.
16. Laser radiation – Class 1! Do not stare into the beam; do not view it directly or
with optical instruments.
1 General
Page 11
1.3. ABOUT ANDREW SOLUTIONS
Andrew Wireless Systems GmbH based in Buchdorf/ Germany, is a leading
manufacturer of coverage equipment for mobile radio networks, specializing in low
cost, high performance, RF and optical repeaters. Our optical distributed networks
and RF repeater systems provide coverage for every application: outdoor use, indoor
installations, tunnels, subways and many more.
Andrew Wireless Systems GmbH belongs to the Wireless Innovations Group (WIG).
Being a part of Andrew Solutions, WIG has unparalleled experience in providing RF
coverage and capacity solution for wireless networks in both indoor and outdoor
environment.
Andrew Solutions, a CommScope Company, is the foremost supplier of one-stop,
end-to-end radio frequency (RF) solutions. Our products are complete solutions for
wireless infrastructure from top-of-the-tower base station antennas to cable systems
and cabinets, RF site solutions, signal distribution, and network optimization.
Andrew Solutions has global engineering and manufacturing facilities. In addition, it
maintains field engineering offices throughout the world.
We operate a quality management system in compliance with the requirements of
ISO 9001. All equipment is manufactured using highly reliable material. In order to
ensure constant first-rate quality of the products, comprehensive quality monitoring is
conducted at all fabrication stages. Finished products leave the factory only after a
thorough final acceptance test, accompanied by a test certificate guaranteeing
optimal operation.
The declaration of conformity for the product is available upon request from the local
sales offices or from Andrew Solutions directly.
To make the utmost from this unit, we recommend you carefully read the instructions
in this manual and commission the unit only according to these instructions.
For technical assistance and support, contact the local office or Andrew Solutions
directly at one of the following addresses listed in the next chapter.
User’s Manual for
ION-M7P/8P S
Page 12 MF0132APA.doc
1.4. INTERNATIONAL CONTACT ADDRESSES FOR WIG CUSTOMER
SUPPORT
Wireless Innovations Group (WIG)
Americas:
Canada United States
Andrew Solutions Canada Andrew Solutions,
Andrew LLC, A CommScope Company
Mail 620 North Greenfield Parkway
Garner, NC 27529
U.S.A. Mail 620 North Greenfield Parkway
Garner, NC 27529
U.S.A.
Phone +1-905-878-3457 (Office)
+1 416-721-5058 (Mobile) Phone +1-888-297-6433
Fax +1-905-878-3297 Fax +1-919-329-8950
E-mail Peter.Masih@andrew.com
WIsupport.us@andrew.com
E-mail WIsupport.us@andrew.com
Brazil & South America Mexico, Central America &
Caribbean region
Andrew Solutions,
A CommScope Company Andrew Solutions Mexico
Mail
Av. Com. Camilo Julio 1256
Predio B
Zonal Industrial CP 597
Sorocaba SP 18086-000
Brazil
Mail
Monte Elbruz 124-402A
Col. Palmas Polanco 11560
Mexico, D.F.
Mexico
Phone + 55-15-9104-7722 Phone + 52-55-1346-1900 (Office)
+52-1-55-5419-5260 (Mobile)
Fax + 55-15-2102-4001 Fax +52-55-1346-1901
E-mail WIsupport@andrew.com
E-mail WIsupport@andrew.com
APAC Countries:
China Australia
Andrew Solutions Hong Kong Andrew Corporation (Australia)
LLC Pty Ltd.
Mail
Room 915
Chevalier Commercial Centre
8 Wang Hoi Rd
Kowloon Bay SAR
Hong Kong
Mail
Unit 1
153 Barry Road
Campbellfield
VIC 3061
Australia
Phone +852-310-661-00 Phone +613-9300-7969
Fax +852-2751-7800 Fax +613-9357-9110
E-mail WISupport.china@andrew.com
E-mail WIsupport.australia@andrew.com
1 General
Page 13
Europe:
United Kingdom France
Andrew Solutions UK Ltd Andrew Solutions France
Mail
Unit 15, Ilex House
Mulberry Business Park
Fishponds Road
Wokingham Berkshire
RG41 2GY
England
Mail
28, Rue Fresnel
Z.A Pariwest
BP 182
78313 Coignières Cedex
France
Phone +44-1189-366-792 Phone +33 1 30 05 45 50
Fax +44-1189-366-773 Fax +33 1 34 61 13 74
E-mail WIsupport.uk@andrew.com
E-mail WIsupport@andrew.com
Germany Czech Republic
Andrew Wireless Systems GmbH Andrew Solutions Czech Republic
C-Com, spol. s r.o
Mail Industriering 10
86675 Buchdorf
Germany Mail U Moruší 888
53006 Pardubice
Czech Republic
Phone +49-9099-69-0 Phone +420-464-6280-80
Fax +49-9099-69-930 Fax +420-464-6280-94
E-mail WIsupport@andrew.com
E-mail WIsupport@andrew.com
Austria Switzerland
Andrew Wireless Systems (Austria)
GmbH Andrew Wireless Systems AG
Mail Weglgasse 10
Wien-Schwechat 2320
Austria Mail Tiergartenweg 1
CH-4710 Balsthal
Switzerland
Phone +43-1706-39-99-10 Phone +41-62-386-1260
Fax +43-1706-39-99-9 Fax +41-62-386-1261
E-mail WIsupport.austria@andrew.com
E-mail support.ch@andrew.com
Italy Spain & Portugal
Andrew Wireless Systems S.r.l., Faenza,
Italy Andrew Solutions España S.A.
Mail Via de Crescenzi 40
Faenza 48018
Italy Mail C/ Salvatierra, 5 - 3a pt.
28034 Madrid
Spain
Phone +39-0546-697111 Phone +34-91-745-20 40
Fax +39-0546-682768 Fax +34-91-564-29 85
E-mail WIsupport.italia@andrew.com
E-mail WIsupport.iberia@andrew.com
table 1-1 List of international contact addresses
User’s Manual for
ION-M7P/8P S
Page 14 MF0132APA.doc
For your notes:
2 Introduction
Page 15
2. INTRODUCTION
2.1. PURPOSE
Cellular telephone systems transmit signals in two directions between a base
transceiver station (BTS) and mobile stations (MS) within the signal coverage area.
If weak signal transmissions occur within the coverage area because of indoor
applications, topological conditions or distance from the transmitter, extension of the
transmission range can be achieved by means of an optical distribution system.
Such a system contains an optical master unit and several remote units. The number
of the remote units depends on the hardware and software configuration. The remote
units are connected to the master unit with optical links. The optical loss must be less
than 10 dB inclusive optical couplers or splitters.
The master unit is the connection to the base transceiver stations. The configuration
of a master unit depends on the number of the remote units and the frequency range.
The optical transmission uses WDM-systems with a wavelength of 1550 nm in the
uplink and 1310 nm in the downlink.
2.2. THE ION-M7P/8P S (INTELLIGENT OPTICAL NETWORK; MMR)
The Andrew ION-M7P/8P S is a multi-operator remote unit with various extension
units. It is used in conjunction with a master unit in the ION optical distribution
system. This system transports the entire 700 MHz public safety and 800 MHz LMR
frequency bands simultaneously, providing a cost-efficient solution for distributing
capacity from one or more base stations.
The ION-M7P/8P S transports signals on the RF layer in a very inexpensive manner.
This means that multiple operators and multiple technologies are moved
simultaneously from a cluster of base stations to a remote location over the same
fiber.
The ION optical distribution system is a cost-effective coverage solution for dense
urban areas, tunnels, subway, airports, convention centers, high-rise buildings and
other locations where physical structures increase path loss. It has been specifically
designed to reduce zoning problems and to provide homogeneous coverage. The
compact, mechanical design is specifically architected to mount at poles or along
side structures in such a way that it has a minimum visual impact.
The ION-M7P/8P S performance is available both in single or multi-band
configuration supporting 700 MHz, and 800 MHz in parallel. It has been specifically
tested and optimized for TDMA, CDMA2000, and WCDMA. Furthermore it is
provisioned for future improvements to modulations (e.g. HSPA, EV-DO and OFDM)
and frequency bands. In addition it is backwards compatible to legacy standards
such as Analog.
User’s Manual for
ION-M7P/8P S
Page 16 MF0132APA.doc
The ION is easily set-up and supervised via a graphical user interface (GUI). Remote
units can be commissioned through the use of built-in test equipment. An auto
leveling function compensates for the optical link loss making installation easy and
quick. The entire system may be monitored remotely via an Andrew OMC. This is a
comprehensive management platform with SNMP protocol and X.733 standard
implemented. Should a sophisticated interface not be required, the master unit can
be directly connected to the alarm interface of a base station via relay alarming.
Features:
Multi-band, multi-operator support
Reduced visual impact form factor
High, efficient power amplifier
Single fiber for multiple bands and multiple remotes
Comprehensive operations and management system for configuration and
alarming
OMC with SNMP according to X.733 standard
Easy installation and commissioning
Redundancy configuration option
3 Functional Description
Page 17
3. FUNCTIONAL DESCRIPTION
3.1. GENERAL
The following figure shows the configuration of an ION-M7P/8P S:
Power Amplifier 1
+28 VDCI²C
o
e
o
e
DL
UL
UL/DL
WDM OTRX
from / to Master Unit
Optical Module
Drawer
Module
+28 VDC
I²C
Power Amplifier 1
+28 VDCI²C
Control Unit
C161 core module
Alarmboard w. relays
Drawer
PSU
Drawer
Module
Mains
+28 VDC
I²C
ANT DL
UL LNA
Drawer
Module
Ext. Al in
Ext. Al out
28V
E3202B0
Crossband Coupler (CC)
Part of output CC
Crossband Coupler (CC)
Drawer
Module
Drawer
Drawer
ANT UL
Subrack
figure 3-1 Configuration of an ION-M7P/ 8P S
User’s Manual for
ION-M7P/8P S
Page 18 MF0132APA.doc
3.2. COMPONENTS OF THE ION-M7P/8P S REMOTE UNIT
The actual configuration of the remote unit can be seen at the configuration list which
is part of the delivery.
The following figure shows an exemplary view of an ION-M7P/8P S remote unit to
illustrate the individual components.
figure 3-2 ION-M7P/8P S, lid figure 3-3 ION-M7P/8P S, base
Power
3.3. OPTIONAL EQUIPMENT - RELAY ALARM CONNECTING BOARD
For further information on the relay alarm connecting board please refer to chapter
5.5 Relay Alarm Connecting Board.
Control
unit
Optical
interface
Final
amplifiers
Relay alarm connecting board
supply
Crossband
coupler
RF relay
4 Commissioning
Page 19
4. COMMISSIONING
4.1. MECHANICAL INSTALLATION
4.1.1. General
Read the health and safety warnings in chapter 1.2 Health and Safety Warnings.
1. Do not install the unit in a way or at a place where the specifications
outlined in the Environmental and Safety Specifications leaflet of the
manufacturer are not met.
2. It is strongly recommended to install the unit vertically. If a different
installation of the remote unit is required, please contact customer service
for further information.
3. It is recommended only to use the mounting hardware delivered by the
manufacturer. If different mounting hardware is used, the specifications for
stationary use of the remote unit must not be exceeded.
) Note: Exceeding the specified load limits may cause the loss of warranty!
4. The unit is considerably heavy. Make sure that a suitable mounting surface
is used. Ensure there is adequate manpower to handle the weight of the
system.
5. Due to power dissipation, the remote unit may reach a very high
temperature. Ensure sufficient airflow for ventilation. Above and below the
unit a minimum distance of 300 mm to ceiling, floor, etc. has to be kept.
Also observe the instructions in the individual mounting procedures.
6. For outdoor installations, the pre-mounted front cover must be installed.
7. For indoor installations where the ambient temperature can reach above
40°C, the cover has to be removed.
8. When connecting and mounting the cables (RF, optical, mains, ...) ensure
no water can penetrate into the unit through these cables.
If any different or additional mounting material is used, ensure that the mounting
remains as safe as the mounting designed by the manufacturer. Ensure that the
static and dynamic strengths are adequate for the environmental conditions of the
site. The mounting itself must not vibrate, swing or move in any way that might cause
damage to the remote unit.
User’s Manual for
ION-M7P/8P S
Page 20 MF0132APA.doc
4.1.2. Wall and Pole Mounting
Wall and pole mounting equipment for the unit is available. For the according
mounting please refer to the mounting plan (drawing) that is part of the delivery.
figure 4-1 Wall mounting figure 4-2 Pole mounting
V1628M1
V1628M0
4 Commissioning
Page 21
4.2. ELECTRICAL INSTALLATION
4.2.1. General
Read the health and safety warnings in chapter 1.2 Health and Safety Warnings.
1. This unit contains dangerous voltages. Loss of life, severe personal injury or
property damage can be the result if the instructions contained in this manual are
not followed.
2. It is compulsory to ground the unit before connecting power supply. A grounding
bolt is provided on the cabinet to connect the ground-bonding cable.
3. Although the remote unit is internally protected against overvoltage, it is strongly
recommended to earth the antenna cables close to the antenna connectors of the
remote unit for protection against atmospheric discharge. In areas with strong
lightning it is strongly recommended to insert additional lightning protection.
4. If the mains connector of the remote unit is not easily accessible, a disconnect
device in the mains circuit must be provided within easy reach.
5. Before connecting or disconnecting the mains connector at the remote unit,
ensure that mains supply is disconnected.
6. Make sure that an appropriate circuit breaker and an overcurrent limiting device
are connected between mains and remote unit.
7. A connection of mains supply to a power socket requires the power socket to be
nearby the remote unit.
8. Incorrectly wired connections can destroy electrical and electronic components.
9. To avoid corrosion at the connectors caused by electrochemical processes, the
material of the cable connectors must not cause a higher potential difference than
0.6 V (see electrochemical contact series).
10. It is sufficient to tighten 7/16-antenna connectors hand-screwed. Any use of a tool
(e.g. pair of pliers) might cause damage to the connector and thus lead to
malfunctioning of the remote unit.
11. For unstabilized electric networks which frequently generate spikes, it is advised
to use a voltage limiting device.
12. The unit complies with the surge requirement according to EN 61000-4-5 (fine
protection); however, it is recommended to install an additional medium (via local
supply connection) and/or coarse protection (external surge protection) depending
on the individual application in order to avoid damage caused by overcurrent.
13. Observe the labels on the front panels before connecting or disconnecting any
cables.
User’s Manual for
ION-M7P/8P S
Page 22 MF0132APA.doc
4.2.2. Connections
figure 4-3 ION-M7P/8P S, connector flange, exemplary
4.2.3. Grounding
Grounding must be carried out. Connect an earth-bonding cable to the grounding
connection provided at the outside of the remote unit (see chapter 4.2.2
Connections). Do not use the grounding connection to connect external devices.
figure 4-4 Grounding bolt
Optical
connector
Status LED
Mains
connector
Connector to Substitute Unit
Connectors to
main unit
AUX BBU connector
connector
N-antenna connectors
Connectors to
Redundant RU
4 Commissioning
Page 23
After loosening the hex nut, connect the earth-bonding cable between the two
washers as illustrated in the figure above. Then, fasten all parts again with the hex
nut.
The PE cables must have a minimum cross section of 16mm2.
4.2.4. Power Connection
Before connecting electrical power to the units, the system must be grounded as
described in the previous chapter.
Mains power must be connected at the mains connector of the unit (see chapter
4.2.2 Connections).
The power supply plug is part of the delivery. The correct wiring of the power supply
plug is as follows:
figure 4-5 AC mains plug figure 4-6 DC mains plug
For the AC power supply connection, a minimum cross section of 1.5
mm2 is required and for the DC power supply connection, a minimum
cross section of 2.5 mm2 is required. Each wire must observe the
applicable national regulations regarding loop impedance, voltage drop,
and methods of installation. Make sure to connect the correct voltage to
the unit.
User’s Manual for
ION-M7P/8P S
Page 24 MF0132APA.doc
) Note: Do not connect or disconnect the power cord at the mains connector
while power is on. Turn off mains * power before connecting the
power cord at the remote unit, then, engage mains again.
* Mains power must be interrupted with an external mains breaker. For the mains
breaker, observe the following recommendation:
120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is
needed, i.e. the external AC breaker should be 20 Amps max. for 120-Volt service or
16 Amps for 240-Volt service.
For the DC power supply, observe the local regulations of the DC service provider.
4.3. CONNECTION OF THE ANTENNA CABLES
The Main Unit has N connectors. For its location, please refer to chapter 4.2.2
Connections. However, the Combining Unit has 7/16 antenna connectors (described
in separate manual). For mounting the cable connectors, it is recommended to refer
to the corresponding documentation of the connector manufacturer. The bending
radius of the antenna cables must remain within the given specifications.
For the selection of cable and antenna it should be considered that, on the one hand,
a cable with higher loss is less expensive but, on the other hand, it impairs
performance.
It is sufficient to tighten the 7/16 antenna connectors of the Combining
Unit hand-tight. The use of a tool (like pliers) may cause damage to the
connector and, therefore, lead to a malfunctioning of the remote unit.
4.4. CONNECTION OF THE RF CABLES MAIN UNIT TO COMBINING UNIT
To connect RF cables to Combining Unit, connect corresponding ports according to
frequency as labelled. For orientation of the location of connectors please refer to the
illustrations of Main Unit in chapter 4.2.2 Connections and/ or of Combining Unit in
chapter 5.6 Redundancy Relay Configuration.
4 Commissioning
Page 25
4.5. OPTICAL-FIBRE-CABLE CONNECTION - RULES
Optical signals are transmitted by use of optical fibres. When connecting these fibres
observe the following instructions.
) Note: Care should be taken when connecting and disconnecting
fibre-optic cables. Scratches and dust significantly affect system
performance and may permanently damage the connector. Always
use protective caps on fibre-optic connectors not in use.
In general, optical fibres do not need special protective measures. However,
protection against environmental influences e.g. rodents and humidity must be
considered.
The optical fibre is a single-mode fibre. Type is E9/125 µm with the following
minimum requirements.
Attenuation: <0.36 dB / km @ 1310 nm / <0.26 dB / km @ 1550 nm
Dispersion: <3.5 ps / nm km @ 1310 nm / <18.0 ps / nm km @ 1550 nm
The specified bending radius of the optical fibres must not be exceeded. The pigtails
for the connection between mini master and remote unit must have a sufficient
length. A protection for the feeding into units must be given. For ION-M7P/8P S, the
system attenuation of the optical fibres, including the connectors, must not exceed 10
dB.
System attenuation and attenuation of optical components must be determined. This
can be achieved by measuring attenuation and reflection with an appropriate
measuring instrument. For pigtails, a total value of < 0.4 dB (measured to a reference
plug) can be assumed due to the dead zone of the reflectometer. These
measurements must be made with a sufficient length of optical fibre, at the input and
output of the device which has to be measured.
Fibre-cable connectors have to be of the same type (E2000APC) as the connectors
used for the unit. The fibre-optic cables are connected to the optical transceiver.
Angled connectors are not compatible with straight optical connectors;
non-compatibility of connectors will result in permanent damage to
both connectors.
Before connecting the fibre cables, follow the procedure below to ensure optimized
performance. It is important for these procedures to be carried out with care:
User’s Manual for
ION-M7P/8P S
Page 26 MF0132APA.doc
¾ Remove fibre-optic protective caps.
¾ Do not bend the fibre-optic cable in a tight radius (< 4 cm) as this may cause
cable damage and interrupt transmission.
¾ Using high-grade alcohol and lint-free cotton cleaning swabs, clean the end of
the fibre-optic cable that will be inserted in the optical connectors on the donor
interface box.
¾ Blow out the laser receptacle with clean and dry compressed air to remove
any particulate matter.
¾ Connect the fibre-optic cables by inserting the cable end into the laser
receptacle and aligning the key (on the cable end) with the keyed slot.
¾ Do not use any index matching gels or fluids of any kind in these connectors.
Gels are intended for laboratory use and attract dirt in the field.
4.5.1. Protective Plug
Connection:
A protective plug is provided for the connection of the fibre-optic cables.
figure 4-7 Protective-plug assembly
) Note: Only high-quality connectors must be used for this type of plug.
Qualified brands are Diamond or Huber & Suhner.
4 Commissioning
Page 27
For plug assembly, observe the following instruction:
1. Pass one or two contacts through the
backshell and the clamp ring.
2. Place the contact(s) on the lower insulation body by pushing the groove of the
contact into the cavity. If there is only one contact, cavity A must be used. *
3. Then, mount the upper insulation body on the lower insulation body. **
4. Bring the insulator into the plug. The narrow groove of the insulator must be fitted
into the stamp of the plug.
* To release the contact for disassembling, push the inner snap to the side and pull the contact out.
** To release upper and lower insulation bodies for disassembling, use a small screwdriver and
carefully open the snap-connections at the left and the right side of the insulator without
damaging them.
5. Fasten the insulator by screwing the
backshell tight onto it. Use a spanner
with opening 32 to screw the
backshell tight (no gap).
6. Place the appropriate seal parts (with
one groove for one contact or two
grooves for two contacts) over the
cable(s) and push them into the
backshell.
Seals with
one groove
No gap
Cavity B
Upper insulation body
Cavity A
User’s Manual for
ION-M7P/8P S
Page 28 MF0132APA.doc
7. Bring the plastic ring over the cable(s), push it into the backshell and compress
the seals and plastic ring by screwing the clamp ring tight (no gap) using a
spanner with opening 20. ***
8. Connect the plug to the optical-fibre
connector of the remote unit, again by
fitting a stamp on the plug into the
groove of the connector.
9. To lock the connector, push the black
locking ring forward.****
Screw tight until gap is closed
*** For disassembling, release the clamping ring and remove the seals and the plastic ring first.
**** Locking mechanism: The system of locking the plug is based on a “push-pull” mechanism. The
locking ring has to be pushed forward to lock the connector and pulled back to free the
connection.
4.5.2. Protective-Tube Kit
As additional protection for the optical fibres, this connector type can be
supplemented by a special tube kit. To fasten the tube correctly, first unscrew the
clamp ring (if already installed) of the original plug kit.
Then, proceed according to the following instruction:
Groove Push forward to lock, pull
bac
k
to
fr
ee
co
nn
ect
i
o
n
4 Commissioning
Page 29
Screw t he r educer t o
t he pr ot ect ive plug
backshell wit hout gap.
Place t he appropr iat e seal
par t s (wit h) one gr oove f or
one cont act or t wo grooves
f or t wo cont act s) over t he
cable(s) and push t hem into
t he backshell .
G1055M0
pr ot ect ive plug
f ibr e cable
r educer
coupling
pr ot ect ive t ube
plast ic ring
figure 4-8 Tube-kit installation
Push the fibre-optic cable
carefully through the tube until
it comes out at the other end.
User’s Manual for
ION-M7P/8P S
Page 30 MF0132APA.doc
4.6. COMMISSIONING
Read the health and safety warnings in chapter 1.2 Health and Safety Warnings as
well as the description carefully to avoid mistakes and proceed step by step as
described!
Do not operate the remote unit without terminating the antenna connectors.
The antenna connectors may be terminated by connecting them to their
respective antennas or to a dummy load.
Only qualified personnel should carry out the electrical, mechanical,
commissioning and maintenance activities that require the unit to be powered
on when open.
When opening the remote unit do not damage the warranty labels on the
internal devices. The warranty is void if the seals are broken.
Ensure that all connections have been performed according to chapter 4.2
Electrical Installation.
4 Commissioning

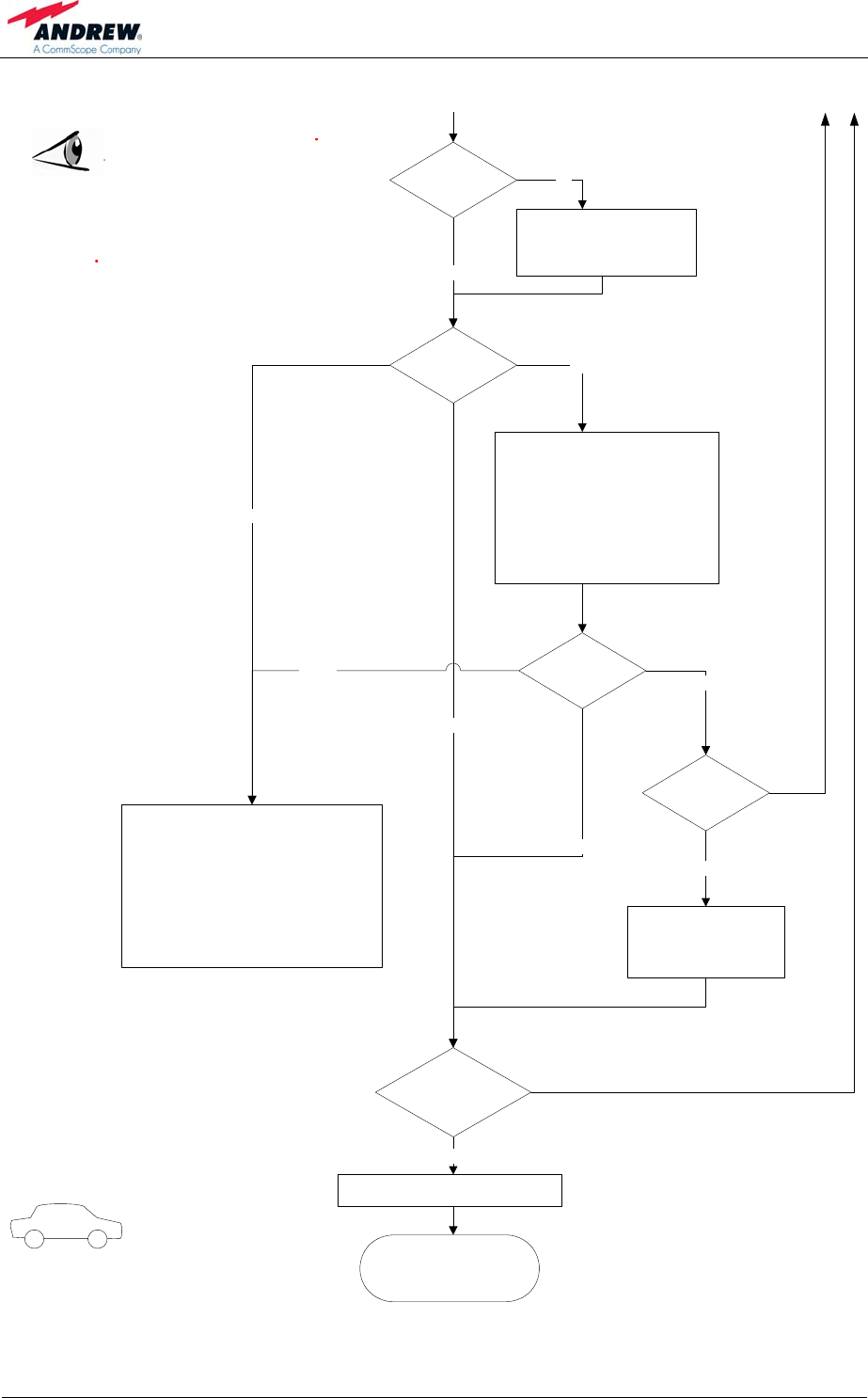

Commissioning an ION-M Remote Unit
Start
Mechanical installation
Fasten wall or pole mounting kit to wall or
pole.
Manual for Remote
Unit
Electrical connections
Connect grounding cable and
ground the RU.
Mains
Switch mains power on.
Philips
screwdriver
Screw driver
Spanner, size
13 mm
Electrical connections
Connect AC (DC) power to the power
cable. Ensure there is a circuit breaker
between mains and RU.
RF connection
Connect antenna cable to antenna port.
Optical connections
Mount the optical fibre with E2000 APC8°
connector into the connector. Plug the
connector into the RU.
Mechanical installation
Mount RU to mounting kit, ensure suffient
air flow and avoid thermal short circuits.
Preperation
Unpack RU, RU accessories and
mounting kit.
External devices
Connect external devices to the external
in or alarm out connectors, or to the
connecting board inside the RU.
G1055Z
0
G1055Z0
Mounting kit
Spanner, size
13 mm
Drilling
machine
Dowels
Screw driver
Grounding cable
Spanner 13 mm
Mains cable
Connecting kit
Alarm kit
(M-cabinet)
E2000 APC8° connector
Spanner with opening 32
Page 31
User’s Manual for
ION-M7P/8P S
Page 32 MF0132APA.doc
Output:
All RUs okay.
Go to MU
External error
Close the door (RUs with a door).
Check externally connected devices.
Check fibre loss of optical link.
Check optical connectors.
Clean optical connectors.
Check optical output power of corresponding
OTRx at master unit.
ALC alarm: Decrease DL input power of
affected band.
VSWR alarm: Check antenna and cable.
LED status
Proceed to MU to set up the SW
Orange
Yes
Internal Error
Change power supply (RUs with a
door).
Reduce environmental temperature.
Eliminate thermal short circuit.
Disconnect and connect mains. Fans
should run. If not, replace the fans at
RU.
MU: Change amplifier setting at MU
controller
Red
LED statusYellow
Green
Red
Finished setting up
all RUs?
Green
Spare RU
available?
Yes
Contact customer
service
No
Yes
LED on?
Check power switch inside RU
(RUs with door).
Check mains cabling.
Check mains power.
No
No
5 Alarms
Page 33
5. ALARMS
5.1. BITE AND ALARMS
The Built-In Test concept comprises the monitoring of the power supplies, the power
amplifiers and the optical interface.
All occurring alarms can be checked via software at the master unit.
5.2. HANDLING OF ALARMS
As soon as the software acknowledges a valid alarm, a message is transmitted to the
master unit.
If the reason for the alarm has been cleared or if the alarm should continue, a new
alarm message will not be repeated. If there was an interruption of at least five
seconds after acknowledgement, a new alarm message will be generated.
5.3. ALARM STATUS
For details refer to the corresponding software documentation of the master unit.
5.4. STATUS LED ALARMS
For local supervision, a status LED on the connector flange of the remote unit gives
an indication of possible reasons for alarms. The position of the status LED is
illustrated in chapter 4.2.2 Connections. This table shows possible on-site measures
that could be checked before referring to the master unit alarm list.
Status LED indication Alarms Possible on-site measures
Green No alarm Æ
Status ok
Door alarm Close the door (RUs with door).
Alarms not directly related to RU:
External alarms Check externally connected devices.
Optical alarm Rx
Check fibre loss of optical link.
Check optical connectors.
Clean optical connectors.
(MU: Check optical output power of
corresponding OTRx at master unit).
Orange
ALC alarm (MU: Decrease DL input power of
affected band).
User’s Manual for
ION-M7P/8P S
Page 34 MF0132APA.doc
Status LED indication Alarms Possible on-site measures
Alarms directly related to RU:
Power 28 V Change power supply (RUs with door).
Replace the affected remote unit.
Temperature Reduce environmental temperature.
Eliminate thermal short circuit.
Fan * Disconnect and connect mains. Fans
should run. If not, replace the fans at RU.
I²C Disconnect and connect mains.
Optical alarm Tx -
Red
A
mplifier “Power
Down” (MU: Change amplifier setting at MU
controller).
Status LED off Mains
Check power switch inside of RU (RUs
with door).
Check mains cabling.
Check mains power.
table 5-1 Status LED alarms
* only applicable if the RU is equipped with a fan
V1651A2
clear
Alarm LED
Alarm transmit
Alarm cause
raise
> 5 s < 5 s
raise
> 5 s
clear
figure 5-1 Alarm triggering
For the position of the LED see chapter 4.2.2 Connections.
Explicit troubleshooting is available in the MU software, (software manual or WEB
Interface).
5 Alarms
Page 35
5.5. RELAY ALARM CONNECTING BOARD
5.5.1. External-Alarm Inputs and Outputs
There are four alarm inputs and four alarm outputs. The alarm outputs are potential-
free relay contacts. They can be used to monitor alarms with an external-alarm
indicator. Each alarm output can be set individually to any alarm at the remote unit.
For details please refer to the according chapter in the software manual of the master
unit.
) Note: The manufacturer / supplier of this system accepts no liability for
damage caused by equipment connected to external outputs or by
effects from such equipment.
With the external-alarm inputs, it is possible to monitor the status of connected
devices, e.g. a UPS, via software. All alarm inputs are normally high (5 V) without
connection.
The device to be monitored must be connected so that the alarm contacts will be
closed in case of an alarm (maximum switching power of 28 Vdc, 0.5 A).
The location of the external-alarm inputs and outputs is illustrated in the following
chapter 5.5.2 Layout and Connector Description. Settings have to be done via the
ION-M Master Controller and are described in the according software documentation.
Please note that at the remote unit (RU), the alarm ground of the external-alarm
inputs is linked with the ground at the RU.
User’s Manual for
ION-M7P/8P S
Page 36 MF0132APA.doc
5.5.2. Layout and Connector Description
GND +28 V
figure 5-2 Relay alarm connecting board, description of connectors
Connector PIN Description Connector PIN Description
1 Ext. Alarm 1 Common 1 Ext. Alarm IN 1
2 Ext. Alarm 2 Common 2 Ext. Alarm IN 2
3 Ext. Alarm 3 Common 3 Ext. Alarm IN 3
Ext. Alarm
INPUTS * 1
4 Ext. Alarm 4 Common
Ext. Alarm
INPUTS * 2
4 Ext. Alarm IN 4
* Voltage: 0 - 5 V; Current: max. 7 mA (each input)
* Voltage: 0 - 5 V; Current: max. 7 mA (each input)
Connector PIN Description Connector PIN Description
1 Alarm OUT 1 Common 1 Alarm OUT 1 Open
2 Alarm OUT 2Common 2 Alarm OUT 2 Open
3 Alarm OUT 3 Common 3 Alarm OUT 3 Open
Alarm
OUTPUTS 1
4 Alarm OUT 4 Common
Alarm
OUTPUTS 2
4 Alarm OUT 4 Open
1 Alarm OUT 1 Closed
2 Alarm OUT 2 Closed
3 Alarm OUT 3 Closed
Alarm
OUTPUTS 3
4 Alarm OUT 4 Closed
table 5-2 Relay alarm connecting board connectors, pin assignment
Ext.
Alarm Outputs
RF Relay for
redundancy switchover
1
2
3
2
Alarm
In
p
uts
1
5 Alarms
Page 37
The alarm outputs are potential-free.
They can be used to monitor alarms with
an external alarm indicator. Devices
connected to these outputs must not
exceed a maximum switching power of
28 Vdc, 0.5 A. For the location of the
connecting clamps of the alarm outputs
see figure above.
Clamp 2 Clamp 3
Clamp 1
figure 5-3 Alarm-output contacts, alarm condition
5.6. REDUNDANCY RELAY CONFIGURATION
Main Unit Substitute Unit Combining Unit
UL DL
AC/DC cable, 1.2 m IP67
side labelled "MAIN"
AC/DC cable, 1.2m IP67
side labelled "Subsitute"
G1131M4
figure 5-4 Redundancy connection, cabling
) Note: The Combining Unit illustrated above is not part of this delivery.
Redundancy Relay – Description
figure 5-5 Redundancy RF relay figure 5-6 Redundancy connectors,
Main Unit and Substitute Unit
Exterior
connectors &
Cables in cables
Connector flange
interior cabinet
RF relay
User’s Manual for
ION-M7P/8P S
Page 38 MF0132APA.doc
Via the redundancy relay (see illustration below), signals are switched from the Main
Unit to the Substitute Unit in case an alarm raise appears in the main unit. Alarms
that shall switch service to Substitute Unit in alarm condition can be selected via web
interface, see description in separate software manual.
) Note: When the redundancy option is used, External Alarm IN 1, Alarm
OUT 1 and Alarm OUT 2 are not available.
5.7. TROUBLESHOOTING
The status of the remote unit can be checked via the master unit (for details please
refer to the software manual of the Master Controller). Locally, the status can be
checked at the LED, see chapter 4.2.2 Connections.
6 Maintenance
Page 39
6. MAINTENANCE
6.1. GENERAL
Read the health and safety warnings in chapter 1.2 Health and Safety Warnings.
) Note: The remote unit does not require preventative maintenance
measures.
Maintenance of the ION-M7P/8P S should be performed on a FRU (Field
Replaceable Unit) basis only. Do not damage the warranty labels on the
components, as this voids the warranty.
The spare parts list contains only units that can be replaced without tuning or
soldering work.
) Note: When sending back the unit, use an appropriate packaging. We
strongly recommend using the original packaging!
) Note: Defect parts should only be replaced by original parts from the
supplier. All interventions inside the housing are at one’s own risk.
) Note: During maintenance ensure that the unit has been disconnected
from mains.
) Note: Before disconnecting any cables, label any unlabelled cables to
ensure correct reconnection.
To replace an FRU, use the appropriate tools. Replacement tools may be ordered
from the supplier. All screws have a right-hand thread, turn the tool clockwise for
tightening and counter-clockwise for loosening.
SMA connectors have a specified torque of 100 Ncm. Use an appropriate tool to
fasten and unfasten these connectors. Do not over-tighten the connectors or screws.
The table below shows various screws with their respective torques.
Screw Type Tallow-drop Socket-head-cap Countersunk-head
Thread size Specified Torque (in Ncm)
M 2.0 40 not in use 40
M 2.5 82 not in use 82
M 3.0 145 100 145
M 4.0 330 330 330
M 5.0 650 tbd. 650
table 6-1 Specified torques for various screw types
If any FRU not contained in the following chapter needs to be replaced, contact
customer service for additional instructions.
User’s Manual for
ION-M7P/8P S
Page 40 MF0132APA.doc
6.2. OPENING AND CLOSING OF THE CABINET
figure 6-1 Locker with key
figure 6-2 Front and top cover
screws
Before opening the cabinet of the unit, observe
the instructions in chapter 4.1.1 General.
To open the cabinet of the remote unit, first
dismount the locker by unlocking it with the key
(which is part of the delivery) and pulling it out
carefully in direction of the arrow marked in
figure 6-1 Locker with key.
If the front cover is installed (see mechanical
installation in chapter 4.1.1 General) remove
the cover by loosening the four M5 socket head
cap screws (circle-marked in figure 6-2 Front
and top cover screws). Do not remove those
screws. When they are loosened, the front
cover can be taken off.
Before opening the cabinet, disconnect the
mains connector illustrated in chapter 4.2.2
Connections.
To open the cabinet, unscrew the nine M5
socket head cap screws (captive) of the top
cover of the remote unit (see figure 6-2 Front
and top cover screws).
After maintenance work, re-connect mains.
Close the cabinet.
To ensure safe operation, mount the front cover
if required (see mechanical installation in
chapter 4.1.1 General).
Check the status of the status LED. Ensure it is
showing a green light.
Front cover
Locker
Nine top
cover
screws
6 Maintenance
Page 41
6.3. REPLACEMENT OF POWER SUPPLY
To remove the power supply, disconnect mains, mains cable and DC cable.
Unscrew the five hexagon socket head cap screws (circle-marked in illustration
below) with an Allen key.
Pull the power supply out.
Apply heat-conducting paste to the mounting surface of the new power supply.
Carefully insert the new power supply.
Fasten the five socket head cap screws.
Re-connect all cables.
figure 6-3 Power supply screws
Mains
connector
DC
connector
User’s Manual for
ION-M7P/8P S
Page 42 MF0132APA.doc
6.4. REPLACEMENT OF FAN UNIT
The fan unit is an FRU in the ION-M7P/8P S.
figure 6-4 Fan unit screws
Unscrew the three M5x16 socket-head screws by which the fan unit is screwed to the
cabinet. Be careful not to lose the according washers.
Take off the fan unit and disconnect
the connector cable from the
cabinet.
To install the new fan unit, proceed
in reverse order.
In order not to squeeze the fan
connector cable, take care to
position it correctly after its re-
connection.
figure 6-5 Fan-connector cable
7 Appendix
Page 43
7. APPENDIX
7.1. LAYOUT
figure 7-1 Layout of ION-M7P/8P S, lid
User’s Manual for
ION-M7P/8P S
Page 44 MF0132APA.doc
figure 7-2 Layout of ION-M7P/8P S, base
7.2. SPECIFICATIONS
Detailed ION-M7P/8PS product specifications are available upon request.
8 Index
Page 45
8. INDEX
A
Abbreviations.......................................................... 7
Address of Andrew Wireless Systems GmbH....... 13
Alarms
Alarm Status .................................................... 33
Bite and Alarms ............................................... 33
External............................................................ 35
Handling of Alarms .......................................... 33
List ................................................................... 38
Outputs ............................................................ 35
RU ................................................................... 38
Status LED....................................................... 33
Andrew Solutions.................................................. 11
B
Block Diagram ...................................................... 17
C
Commissioning
General............................................................ 30
Components
Interior ............................................................. 18
Connecting Board
with Relays ................................................ 35, 36
Connection Rules
Optical Fibres................................................... 25
Optical-Fibre Cables ........................................ 25
Connections
Antenna Cables ............................................... 24
Connector Flange ............................................ 22
Optical-Fibre Cables ........................................ 25
Power .............................................................. 23
RF Cables MU to CU....................................... 24
Contact Addresses ............................................... 12
