PRODUCT
SPeCifiCaTiOn
moved simultaneously from a cluster of
base stations to a remote location over
the same fiber.
The ION optical distribution system is
a cost-effective coverage solution for
dense urban areas, tunnels, subway,
airports, convention centers, high-rise
buildings and other locations where
physical structures increase path loss.
It has been specifically designed to
reduce zoning problems and to pro-
vide homogeneous coverage. The
compact, mechanical design is specifi-
cally architected to mount inside of
poles or along side structures in such
a way that it has a minimal visual
impact.
The ION-M17EHP/19P is available
in a multi-band configuration support-
ing 1900 MHz and 1700/2100
MHz in parallel and with extension
option 700 MHz additionally. It has
been specifically tested and optimized
for GSM, CDMA2000, WCDMA,
and LTE signals. Furthermore it is pro-
visioned for future modulation schemes
and frequency bands.
The ION is easily set-up and super-
vised via a graphical user interface
(GUI). Remote units can be commis-
sioned through the use of built-in test
equipment. An auto-levelling func-
tion compensates for the optical link
PRODUCT
SPECIFICATION
ION® is the unified platform
for all conceivable optical
distribution scenarios.
The ION optical distribution
system leads the industry in
flexibility while minimizing
the overall deployment cost.
loss making installation easy and
quick. The entire system as well as
complete network of systems can be
managed remotely most efficiently
by Commscope`s A.I.M.O.S, which
includes alarm monitoring, task auto-
mation, inventory management and
many more features. Should a sophis-
ticated interface not be re-quired, the
master unit can be directly connected
to the alarm interface of a base station
via relay alarming.
• Multi-band, multi-operator support
• Reduced visual impact form factor
• Efficient, high power amplifier
• Single fiber for multiple bands
and multiple remotes
• Comprehensive operations and
management system for configura-
tion and alarming
• OMC with SNMP according to
X.733 standard
• With reference to 3GPP TS25.143/
TS25.106/ TS36.143/
TS36.106 and 3GPP2C.S0051-0
• Easy installation and commissioning
CommScope’s ION-M17EHP/19P
is a multi-band multi-operator remote
unit. It is used in conjunction with a
master unit in the ION optical distribu-
tion system. This system transports mul-
tiple frequency bands simultaneously
(1900 MHz and 1700/2100 MHz),
providing a cost-effective solution for
distributing capacity from one or more
base stations. By supporting the entire
AWS-3 spectrum, faster and more reli-
able wireless service is ensured and
network quality can be improved.
The ION-M17EHP/19P transports sig-
nals on the RF layer in a very inexpen-
sive manner. This means that multiple
operators and multiple technologies are
ION-M17EHP/19P
Multi-band, Multi-operator Remote Optical System
Support of AWS-3 Spectrum
ION® Series
SPECIFICATIONS
Electrical
Mains power, Vac
................nominal..............100 to 240
................operating .............85 to 264
Vdc mails power not possible.
Power consumption, W
................max. temp., fully loaded.....770
................room temp., idle .........400
Optical Link
Connectors..................................E2000/APC 8°
Optical return loss, dB ......................45 min.
Fiber type,mm ..............................Single mode E9/125
Optical link budget, dB .....................0 to 10
Input power
@ OTRx master side, dBm
................1900 MHz ............+2.5 composite
................1700/2100 MHz.........+5.5 composite
................700 MHz .............+3 composite
Minimum BTS Input power, dBm..............
................1900 MHz ............-19.5
................1700/2100 MHz.........-16.5
................700 MHz .............-19
Additional DL gain (22 dB) available in case of low power BTS
RF Interface
Master Unit
Number of connectors
................1900 MHz ............4
................1700/2100 MHz.........4
................700 MHz .............4
System optimized for BTS power, dBm
..................................33
..................................43
Antenna Port of Remote Unit
Connector ................ . . . . . . . . . . . . . . . . . N Female
Output power............. . . . . . . . . . . . . . . . . . See band specification
Return loss, dB ............ . . . . . . . . . . . . . . . . . 15 typical
1700/2100 MHz (AWS)
Frequency range, MHz
................Uplink ..............1710 to 1780
................Downlink .............2110 to 2180
RF output power per carrier *, dBm
Number of Carriers 1 2 4 8
CDMA 45.5 42.5 39.5 36.5
UMTS 45.5 42.5 39.5 36.5
LTE 45.5 42.5**** 39.5 36.5
Spurious emission ........ . . . . . . . . . . . . . . . . . <-13 dBm / 1 MHz
DL output tolerance over frequency, dB ........±1
DL output tolerance over temperature, dB .......±0.5**
UL Input ICP3, dBm
................ICP3 optimized ..........-12 min.
................Noise figure optimized ......-18 min.
UL Noise figure, dB
................ICP3 optimized ..........8
..................................11 max.
................Noise figure optimized ......4.5
..................................6 max.
1900 MHz
Frequency range, MHz
................Uplink ..............1850 to 1915
................Downlink ............1930 to 1995
RF output power per carrier *, dBm
Number of Carriers 1 2 4 8
GSM 42.5 39.5 36.5 33.5
CDMA 42.5 39.5 36.5 33.5
UMTS 42.5 39.5 36.5 33.5
LTE 42.5 39.5**** 36.5 33.5
Spurious emission......... . . . . . . . . . . . . . . . . . <-13 dBm / 1 MHz
DL output tolerance over frequency, dB ........±1
DL output tolerance over temperature, dB .......±0.5**
UL Input ICP3, dBm
................ICP3 optimized..........-12 min.
................Noise figure optimized......-18 min.
UL Noise figure, dB
................ICP3 optimized ..........8
..................................11 max.
................Noise figure optimized ......4.5
..................................6 max.
System Supervision and Control
Commands .................................RF on/off
..........................................External control ports
Alarms ..................................Summary
..................................Power supply
..................................Optical UL and DL failure
..................................Temperature
Supervision .................................Output power on a per-
..........................................channel and per-
..........................................band basis (optional)
Mechanical***
Height, width, depth mm (in) ................831 x 156 x 147
..........................................(32.7 x 6.1 x 5.8)
Weight, kg (Ib) ........... . . . . . . . . . . . . . . . . . 20 (44)
Environmental
Operating temperature range...............-33° C to +50° C
Ingress protection ......RF part .............IP67
................Fan part .............IP55
Minimum SW Requirements for Basic Support
ION-M SW V7.0.1
Ordering Information
ION-M17EHP/19P .........................7714210
Depending on the selected options and the configuration the ordering material number contains
an identifying suffix.
Extension Unit Options
ION-M7P EU ...............................7601170
Other Extension Units possible on request
* PAR 7.5 dB @ 0.1 %
** With active cooling
*** Spacing required 40 mm (1.58 in) around unit
**** 2 dB reduction of Pout @ carrier bandwidth < 5 MHz
All figures are typical values unless otherwise stated.
ION-M17EHP/19P - Product Specification
SPECIFICATIONS

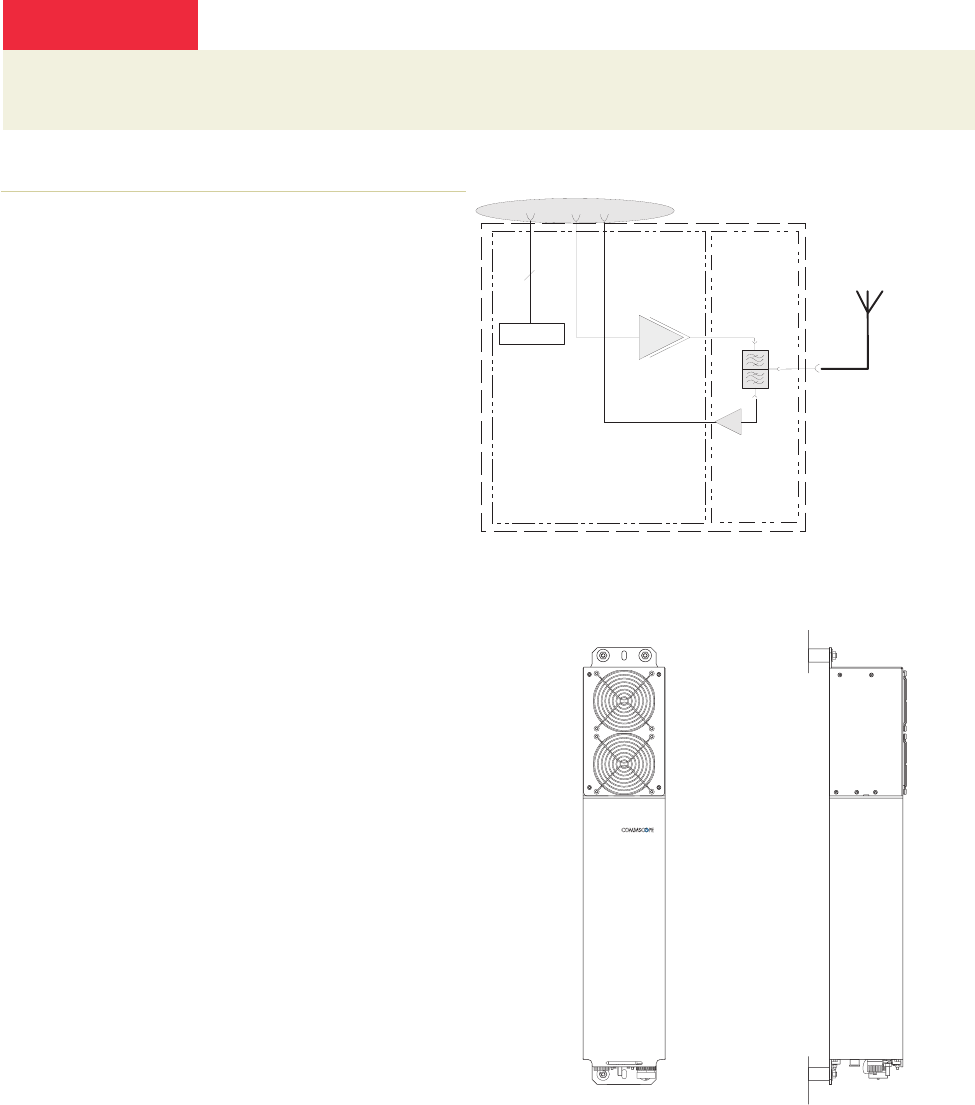

ION-M17EHP/19P Remote Unit Cabinet Drawing
ION-M17EHP/19P - Product Specification
700 MHz Extension Unit ION-M7P EU
Frequency range, MHz
................Uplink ..............698 to 716
..........................................776 to 787
................Downlink ............728 to 757
RF output power per carrier *, dBm
Number of Carriers 1 2 4 8
LTE 43 40*** 37 34
Spurious emission......... . . . . . . . . . . . . . . . . . <-13 dBm / 1 MHz
DL output tolerance over frequency, dB ........±1
DL output tolerance over temperature, dB .......±0.5**
UL Input ICP3, dBm
................ICP3 optimized..........-11 min.
................Noise figure optimized......-18 min.
UL Noise figure, dB
................ICP3 optimized..........7
..................................10 max.
................Noise figure optimized .....4.5
..................................6 max.
* Applicable to single modulation mode only
** With active cooling
*** 2 dB reduction of Pout @ carrier bandwidth < 5 MHz
All figures are typical values unless otherwise stated.
UL-Amp
Duplexer
Unit
PowerAmplifier
NConnector
from /to
Mobile Station
Controller
RS485
DPX
700 MHz
2
ExtensionInterface
ION-M7P Extension Unit
SPECIFICATIONS
www.commscope.com
Visit our Web site or contact your local Commscope representative for more information.
© 2015 Commscope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of Commscope, Inc.
This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to Commscope products or services.
CommScope reserves the right to change all hardware and software characteristics without notice.

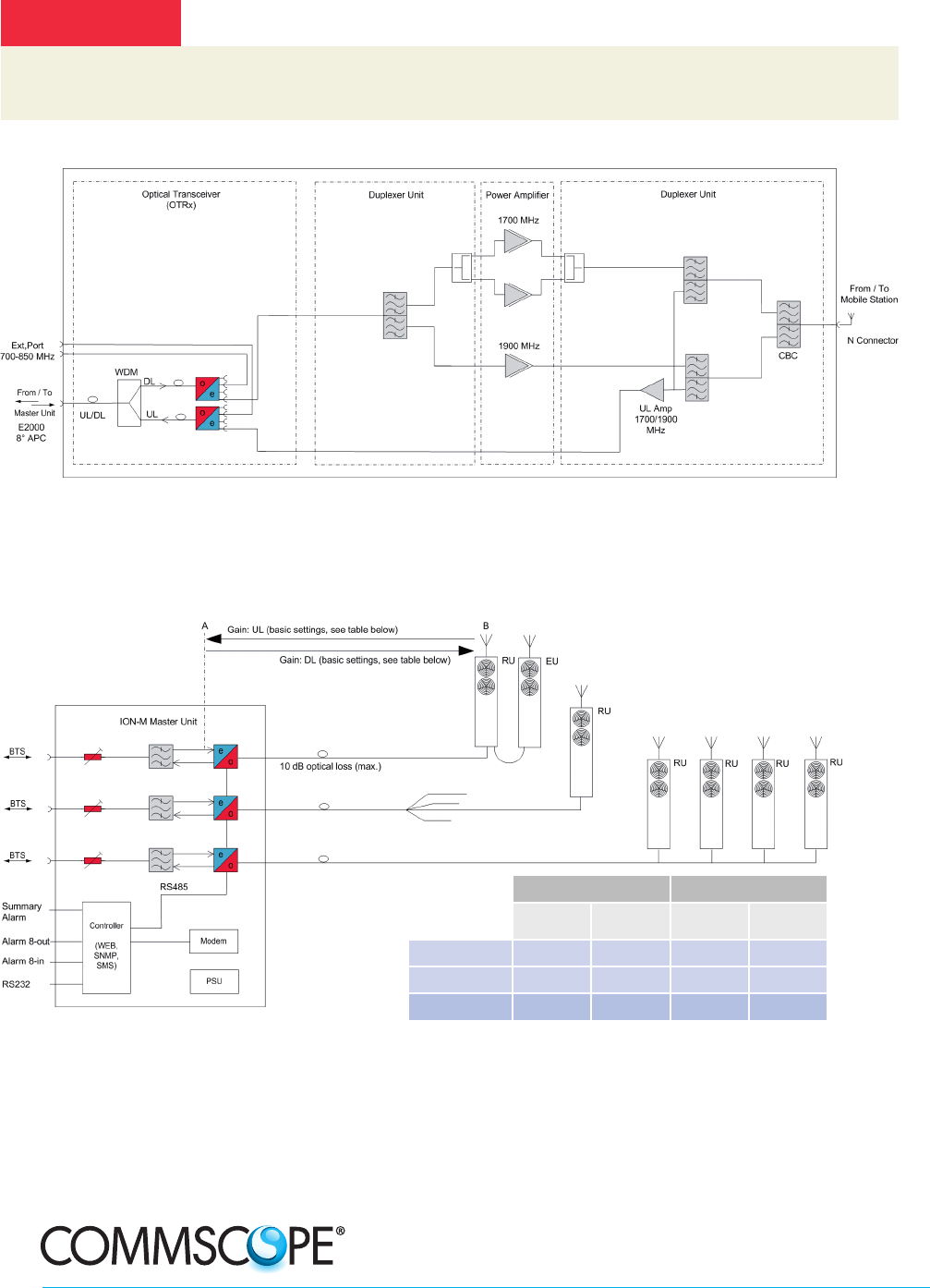

ION-M17EHP/19P Remote Unit Design Principle
Design Principle ION System
ION-M17EHP/19P - Product Specification
Bulletin PA-109873-EN.GB (11/15)
WARNING:
This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS.
You MUST have an FCC LICENSE or express consent of an FCC LICENSE to operate this device.
Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $ 100,000 for each continuing violation.
Gain DL Gain UL
ICP3
optimized
NF
optimized
ICP3
optimized
NF
optimized
700 MHz 40 dB 40 dB 40 dB 47 dB
PCS1900 40 dB 40 dB 39 dB 46 dB
AWS1700/2100 40 dB 40 dB 40 dB 47 dB
