Andrew Wireless System M778519P ION-M7P/7P/85P/19P User Manual Manual for ION M Remote Unit
Andrew Wireless System ION-M7P/7P/85P/19P Manual for ION M Remote Unit
Contents
- 1. user manual
- 2. installation instruction
user manual
Optical Remote Unit
ION™-M7P/7P/85P/19P
(ML-Cabinet)
Manual
MF0145A4A
Manual for
ION™-M7P/7P/85P/19P (ML-cab)
Page 2 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
© Copyright 2011 CommScope, Inc.
All rights reserved.
Andrew Solutions is a trademark of CommScope, Inc.
All information contained in this manual has been revised thoroughly. Yet Andrew
Solutions accepts no liability for any omissions or faults.
Andrew Solutions reserves the right to change all hard- and software characteristics
without notice.
Names of products mentioned herein are used for identification purposes only and
may be trademarks and / or registered trademarks of their respective companies.
No parts of this publication may be reproduced, stored in a retrieval system,
transmitted in any form or by any means, electronical, mechanical photocopying,
recording or otherwise, without prior written permission of the publisher.
Andrew Wireless Systems GmbH, 20-October-2011
Page 3
TABLE OF CONTENTS
1. GENERAL 6
1.1. USED ABBREVIATIONS 6
1.2. HEALTH AND SAFETY WARNINGS 7
1.3. ABOUT ANDREW SOLUTIONS 9
1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 10
2. FUNCTIONAL DESCRIPTION 12
2.1. PURPOSE 12
2.2. THE ION™-M7P/7P/85P/19P (INTELLIGENT OPTICAL NETWORK; MMR) 12
3. COMMISSIONING 14
3.1. MECHANICAL INSTALLATION 14
3.1.1. General 14
3.1.2. Wall Mounting of RU 16
3.1.3. Pole Mounting of RU 17
3.2. ELECTRICAL INSTALLATION 19
3.2.1. General 19
3.2.2. Connections 20
3.2.3. Grounding 21
3.3. CONNECTION OF THE ANTENNA CABLES 21
3.4. POWER CONNECTION 22
3.5. OPTICAL-FIBER-CABLE CONNECTION - RULES 23
3.5.1. Protective Plug 25
3.5.2. Protective-Tube Kit 27
3.6. COMMISSIONING 29
4. ALARMS 33
4.1. BITE AND ALARMS 33
4.2. HANDLING OF ALARMS 33
4.3. ALARM STATUS 33
4.4. STATUS LED ALARMS 34
4.5. EXTERNAL ALARM INPUTS AND OUTPUTS 35
Manual for
ION™-M4/8/9 EP (ML-cab)
Page 4 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
4.6. TROUBLESHOOTING 36
5. MAINTENANCE 37
5.1. GENERAL 37
5.2. REPLACING THE FAN UNIT 38
5.3. CLEANING THE HEAT SINK 39
6. APPENDIX 40
6.1. ILLUSTRATIONS 40
6.2. SPECIFICATIONS 41
6.2.1. Electrical Specifications 41
6.2.2. Mechanical Specifications 41
6.2.3. Environmental and Safety Specifications 41
6.3. SPARE PARTS 42
7. INDEX 43
Page 5
FIGURES AND TABLES
figure 3-1 Mounting bracket installation .................................................................... 16
figure 3-2 RU wall mounting ..................................................................................... 16
figure 3-3 Pole-mounting kit, view from different sides ............................................. 17
figure 3-4 Pole-mounting, ML-cabinet, assembly drawing ........................................ 18
figure 3-5 Pole mounting of RU, finished .................................................................. 18
figure 3-6 Connector flange of ION-M7P/7P/85P/19P .............................................. 20
figure 3-7 RS485 connector...................................................................................... 20
figure 3-8 Grounding bolt.......................................................................................... 21
figure 3-9 Grounding bolt, schematic view................................................................ 21
figure 3-10 AC power supply plug............................................................................. 22

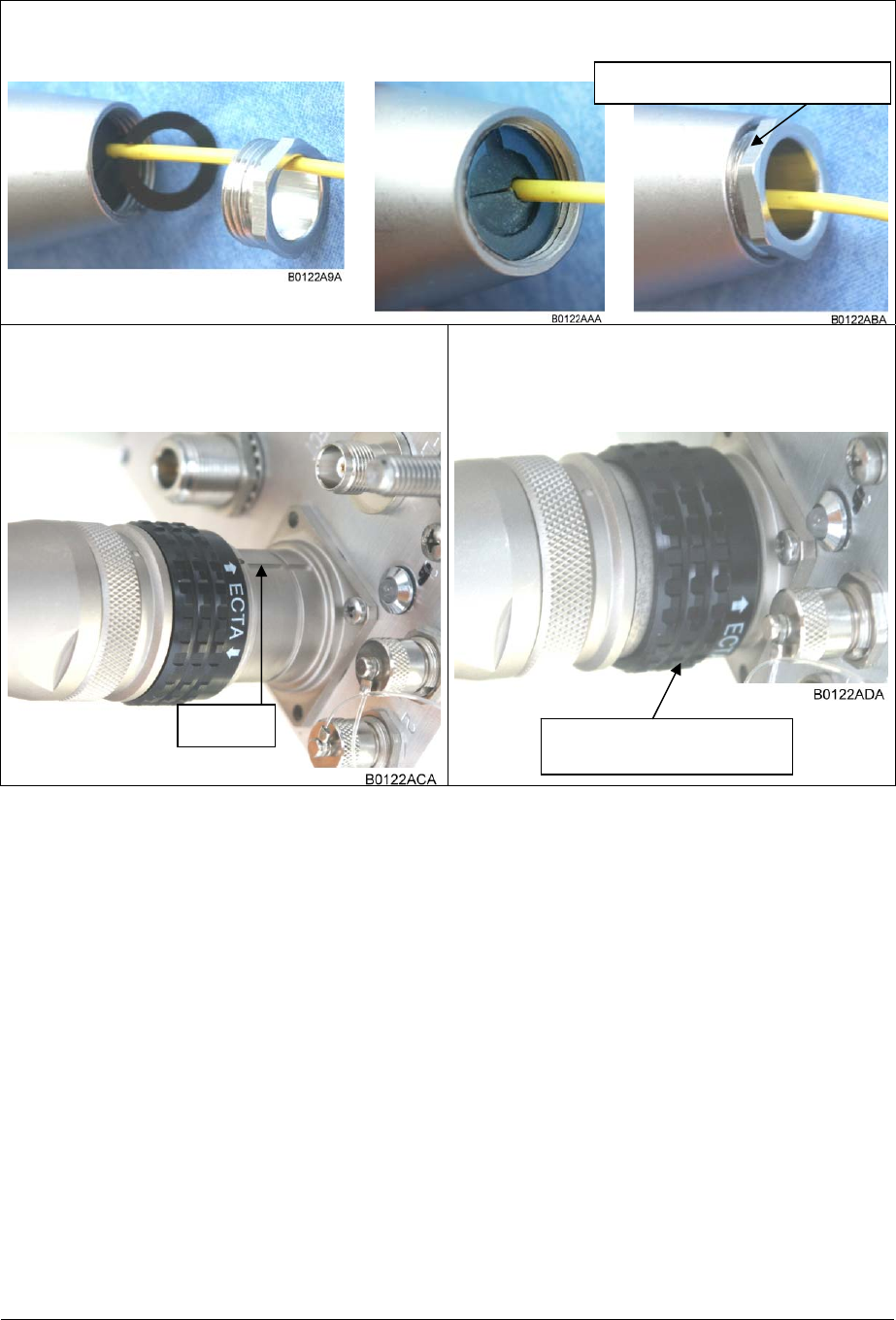

figure 3-11 Protective-plug assembly ....................................................................... 25
figure 3-12 Tube-kit installation................................................................................. 28

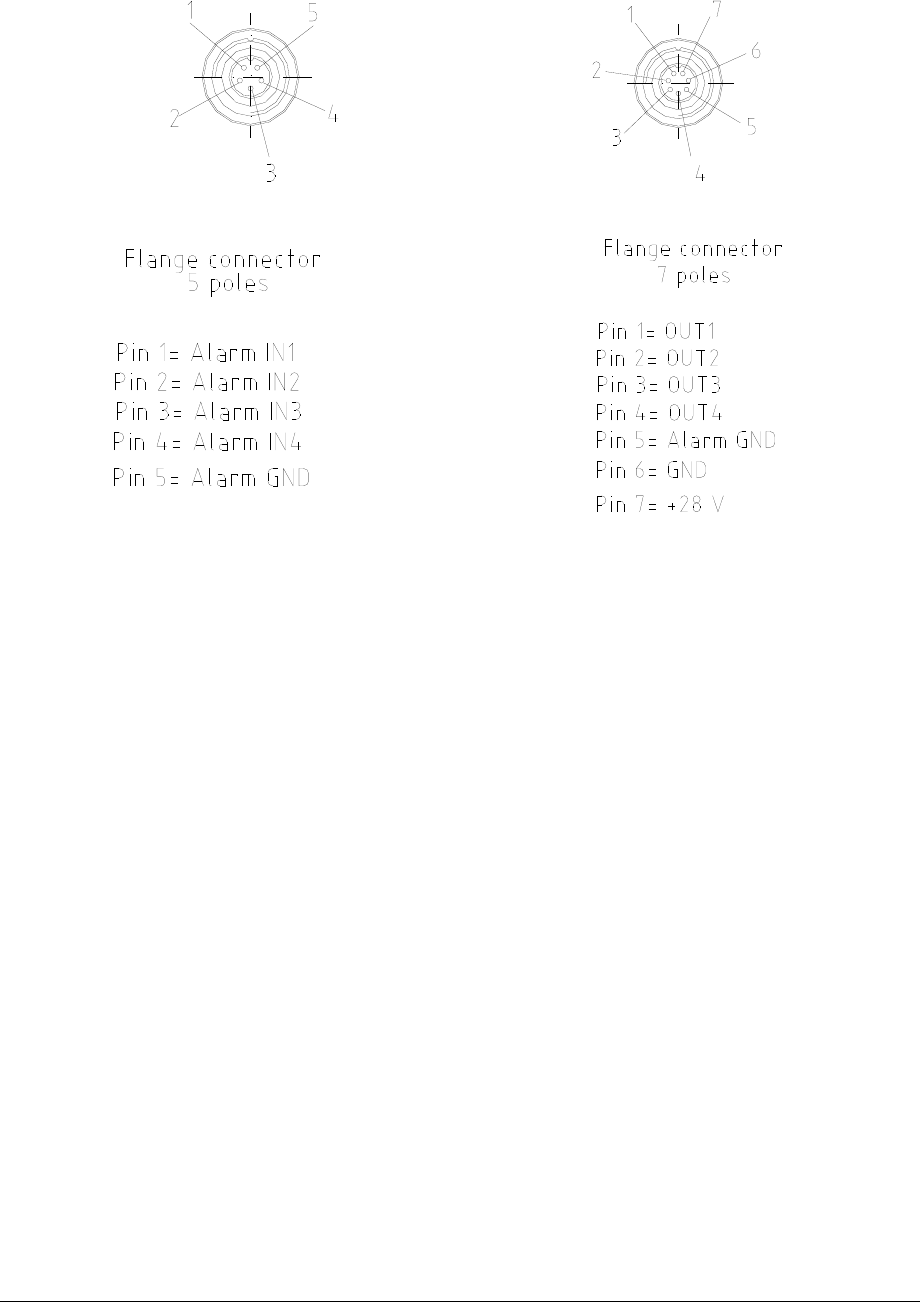

figure 4-1 Flange connector, 5 poles ........................................................................ 35
figure 4-2 Flange connector, 7 poles ........................................................................ 35

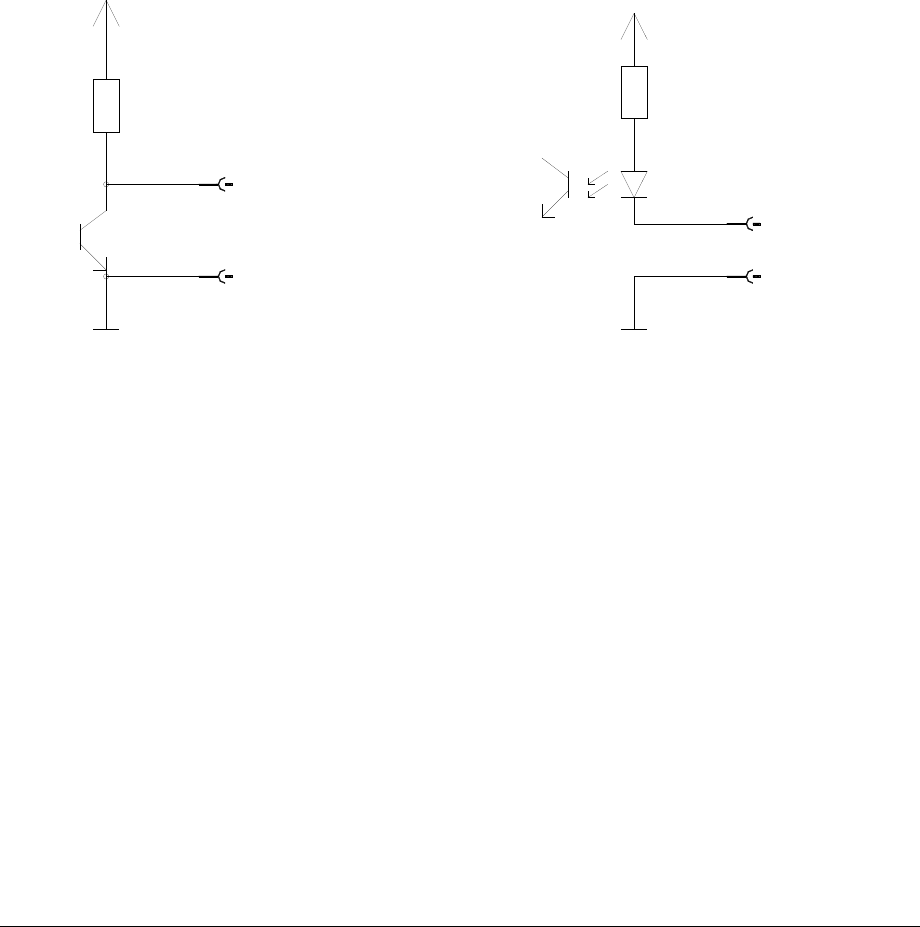

figure 4-3 Alarm inputs and outputs, standard.......................................................... 36
figure 5-1 Fan unit and heat sink .............................................................................. 38
figure 6-1 Cabinet drawing........................................................................................ 40
table 1-1 List of international contact addresses....................................................... 11
table 3-1 Specified torques....................................................................................... 15
table 3-2 RS485 connector, pin assignment............................................................. 20
table 4-1 Status LED alarms..................................................................................... 34
Page 6 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
1. GENERAL
1.1. USED ABBREVIATIONS
3GPP 3rd Generation Partnership Project
4G 4th Generation
ALC Automatic Level Control
AMPS American Mobile Phone System or Advanced Mobile Phone System
AWS Advanced Wireless Services
BBU Battery Backup Unit
BCCH Broadcast Control Channel
BITE Built-In Test Equipment
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CEPT Conférénce Européenne des Postes et Télécommunications
CF Center Frequency
CFO Center Frequency Offset
CPD Channel Power Detection
DL Downlink
DoC Declaration of Conformity
EDGE Enhanced Data Rates for GSM Evolution
ESD Electrostatic Discharge
ETS European Telecommunication Standard
ETSI European Telecommunication Standards Institute
FCC Federal Communications Commission
FSK Frequency Shift Keying
GSM Global System for Mobile Communication
GUI Graphical User Interface
I2C-Bus Inter Integrated Circuit Bus (Philips)
ID No Identification Number
IF Intermediate Frequency
LMT Local Maintenance Terminal
LNA Low-Noise Amplifier
LO Local Oscillator
LTE Long Term Evolution
MIMO Multiple Input Multiple Output
MS Mobile Station
OMC Operation and Maintenance Center
OTRx Optical Transceiver = SRMU (Subrack Master Unit)
PCMCIA Personal Computer Modem Communication International Association
PCS Personal Communication System
PSTN Public Switched Telephone Network
R&TTE Radio & Telecommunications Terminal Equipment
Rev Revision
RF Radio Frequency
RLP Radio Link Protocol
RSSI Receive Signal Strength Indication
RTC Real-Time Clock
RX Receiver
SCL Serial Clock
SDA Serial Data
SISO Single Input Single Output
SPD Switching Point Detector
SRMU Subrack Master Unit = OTRx (Optical Transceiver)
TCH Traffic Channel
TDD Time-Division Duplex
TDMA Time Division Multiple Access
TX Transmitter
UL Uplink
UMR Universal Measurement Receiver
UMTS Universal Mobile Telecommunication System
UPS Uninterruptible Power Supply
VSWR Voltage Standing Wave Ratio
WDM Wavelength Division Multiplex
WiMAX Worldwide Interoperability for Microwave Access
1.2. HEALTH AND SAFETY WARNINGS
1. Only suitably qualified personnel is allowed to work on this unit and only after
becoming familiar with all safety notices, installation, operation and maintenance
procedures contained in this manual.
2. Read and obey all the warning labels attached to the unit. Make sure that the
warning labels are kept in a legible condition and replace any missing or
damaged labels.
3. Obey all general and regional installation and safety regulations relating to work
on high voltage installations, as well as regulations covering correct use of tools
and personal protective equipment.
4. Keep operating instructions within easy reach and make them available to all
users.
5. It is the responsibility of the network provider to implement prevention measures
to avoid health hazards which may be associated to radiation from the antenna(s)
connected to the unit.
6. Note for a Class A digital device or peripheral:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
Page 7 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
7. Make sure, access is restricted to qualified personnel.
8. Only licence holders for the respective frequency range are allowed to operate
this unit.
9. Corresponding local particularities and regulations must be observed. For national
deviations please refer to the respective documents included in the manual CD
delivered.
10. Use this equipment only for the purpose specified by the manufacturer. Do not
carry out any modifications or fit any spare parts which are not sold or
recommended by the manufacturer. This could cause fires, electric shock or other
injuries.
11. Due to power dissipation, the repeater may reach a very high temperature. Do not
operate this equipment on or close to flammable materials.
12. Before opening the unit, disconnect mains.
13. ESD precautions must be observed! Before commencing maintenance work, use
the available grounding system to connect ESD protection measures.
14. This unit complies with European standard EN60950.
15. Make sure the repeater settings are according to the intended use (see also
product information of manufacturer) and regulatory requirements are met.
16. Although the repeater is internally protected against overvoltage, it is strongly
recommended to earth the antenna cables close to the repeater’s antenna
connectors for protection against atmospheric discharge.
17. Laser radiation! Do not stare into the beam; do not view it directly or with optical
instruments.
Page 8 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Page 9 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
1.3. ABOUT ANDREW SOLUTIONS
Andrew Wireless Systems GmbH based in Buchdorf/Germany, is a leading
manufacturer of coverage equipment for mobile radio networks, specializing in high
performance, RF and optical repeaters. Our optical distributed networks and RF
repeater systems provide coverage for every application: outdoor use, indoor
installations, tunnels, subways and many more.
Andrew Wireless Systems GmbH has unparalleled experience in providing RF
coverage and capacity solution for wireless networks in both indoor and outdoor
environment and belongs to Andrew Solutions, a CommScope Company.
Andrew Solutions is the foremost supplier of one-stop, end-to-end radio frequency
(RF) solutions. Our products are complete solutions for wireless infrastructure from
top-of-the-tower base station antennas to cable systems and cabinets, RF site
solutions, signal distribution, and network optimization.
Andrew Solutions has global engineering and manufacturing facilities. In addition, it
maintains field engineering offices throughout the world.
We operate a quality management system in compliance with the requirements of
ISO 9001. All equipment is manufactured using highly reliable material. In order to
ensure constant first-rate quality of the products, comprehensive quality monitoring is
conducted at all fabrication stages. Finished products leave the factory only after a
thorough final acceptance test, accompanied by a test certificate guaranteeing
optimal operation.
Note: Exceptions of and national deviations from this intended use may be
possible. To observe corresponding local particularities and
regulations, please refer to the respective documents (also in
national language) which are included in the manual CD delivered.
To make the most of this product, we recommend you carefully read the instructions
in this manual and commission the system only according to these instructions.
For technical assistance and support, please also contact the local office or Andrew
Solutions directly at one of the addresses listed in the following section.
Page 10 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT
Americas:
Canada United States
Andrew Solutions Canada Andrew Solutions,
Andrew LLC, A CommScope Company
Mail 620 North Greenfield Parkway
Garner, NC 27529
U.S.A. Mail 620 North Greenfield Parkway
Garner, NC 27529
U.S.A.
Phone +1-905-878-3457 (Office)
+1-416-721-5058 (Mobile) Phone +1-888-297-6433
Fax +1-905-878-3297 Fax +1-919-329-8950
E-mail Peter.Masih@commscope.com,
WIsupport.us@commscope.com
E-mail WIsupport.us@commscope.com
Brazil & South America Mexico, Central America &
Caribbean region
CommScope Cabos do Brasil Ltda. Andrew Corporation Mexico,
SA DE CV
Mail
Av. Com. Camilo Julio 1256
Zonal Industrial CP 597
Sorocaba SP 18086-000
Brazil
Mail
Av. Insurgentes Sur 688, Piso 6
Col. Del Valle, CP: 03100
Mexico City
Mexico
Phone + 55-15-9104-7722 Phone
+52-55-1346-1900 (Office)
+52-1-55-5419-5260 (Mobile)
Fax + 55-15-2102-4001 Fax +52-55-1346-1901
E-mail WIsupport@commscope.com
E-mail WIsupport@commscope.com
APAC Countries:
China, India and Rest of Asia Australia & New Zealand
Andrew International Corporation Andrew Corporation (Australia) Pty Ltd.
Mail
Room 915, 9/F
Chevalier Commercial Centre
8 Wang Hoi Rd
Kowloon Bay
Hong Kong
Mail
Unit 1
153 Barry Road
Campbellfield
VIC 3061
Australia
Phone +852-3106-6100 Phone +613-9300-7969
Fax +852-2751-7800 Fax +613-9357-9110
E-mail WIsupport.China@commscope.com
E-mail WIsupport.Australia@commscope.com
Page 11 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Europe:
United Kingdom France
Andrew Solutions UK Ltd CommScope France
Mail
Unit 15, Ilex Building
Mulberry Business Park
Fishponds Road
Wokingham Berkshire
RG41 2GY
England
Mail
Immeuble Le Lavoisier
4, Place des Vosges
92052 Courbevoie
France
Phone +44-1189-366-792 Phone +33-1 82 97 04 00
Fax +44-1189-366-773 Fax +33-1 47 89 45 25
E-mail WIsupport.uk@commscope.com
E-mail WIsupport@commscope.com
Germany Czech Republic
Andrew Wireless Systems GmbH Andrew Solutions Czech Republic
C-Com, spol. s r.o
Mail Industriering 10
86675 Buchdorf
Germany Mail U Moruší 888
53006 Pardubice
Czech Republic
Phone +49-9099-69-0 Phone +420-464-6280-80
Fax +49-9099-69-930 Fax +420-464-6280-94
E-mail WIsupport@commscope.com
E-mail WIsupport@commscope.com
Austria Switzerland
Andrew Wireless Systems (Austria) GmbH Andrew Wireless Systems AG
Mail Weglgasse 10
2320 Wien-Schwechat
Austria Mail Tiergartenweg 1
CH-4710 Balsthal
Switzerland
Phone +43-1706-39-99-10 Phone +41-62-386-1260
Fax +43-1706-39-99-9 Fax +41-62-386-1261
E-mail WIsupport.austria@commscope.com
E-mail WIsupport.ch@commscope.com
Italy Spain and Portugal
Commscope Italy S.r.l., Faenza, Italy Andrew Solutions España S.A.
A Commscope Company
Mail Via Mengolina, 20
48018 Faenza (RA)
Italy Mail
Avda. de Europa, 4 - 2ª pta.
Parque Empresarial La Moraleja
28108 Alcobendas (Madrid)
Spain
Phone +39-0546-697111 Phone +34-91-745-20 40
Fax +39-0546-682768 Fax +34-91-661-87 02
E-mail WIsupport.italia@commscope.com
E-mail WIsupport.iberia@commscope.com
table 1-1 List of international contact addresses
Page 12 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
2. FUNCTIONAL DESCRIPTION
2.1. PURPOSE
Cellular telephone systems transmit signals in two directions between base
transceiver station (BTS) and mobile stations (MS) within the signal coverage area.
If weak signal transmissions occur within the coverage area because of indoor
applications, topological conditions or distance from the transmitter, extension of the
transmission range can be achieved by means of an optical distribution system.
Such a system contains an optical Master Unit and several Remote Units. The
number of the Remote Units depends on the hardware and software configuration.
The Remote Units are connected to the Master Unit with optical links. The optical
loss must be less than 10 dB inclusive optical couplers or splitters.
The Master Unit is the connection to the base transceiver stations. The configuration
of a Master Unit depends on the number of the Remote Units and the frequency
range.
WDM (Wave Division Multiplex) filters are integrated in the optical modules. For the
UL, a wavelength within 1540 nm – 1562 nm is used. For the DL, a wavelength of
1310 ±20 nm is used. The maximum output power for the UL and DL is 5.7 mW.
2.2. THE ION™-M7P/7P/85P/19P (INTELLIGENT OPTICAL NETWORK; MMR)
The ION-M7P/7P/85P/19P is a LTE MIMO, 850 MHz, and1900 MHz CDMA/WCDMA
multi-operator Remote Unit with various Extension Units. It is used in conjunction
with a Master Unit in the ION optical distribution system. This system transports
multiple LTE channels, a 850 MHz, and a 1900 MHz wideband signal simultaneously,
providing a cost-effective solution for distributing capacity from one or more base
stations.
The ION-M7P/7P/85P/19P transports signals on the RF layer in a very inexpensive
manner. This means that multiple operators and multiple technologies are moved
simultaneously from a cluster of base stations to a remote location over the same
fiber.
The ION optical distribution system is a cost-effective coverage solution for dense
urban areas, tunnels, subway, airports, convention centers, high-rise buildings and
other locations where physical structures increase path loss. It has been specifically
designed to reduce zoning problems and to provide homogeneous coverage. The
compact, mechanical design is specifically architected to mount inside of poles or
along side structures in such a way that it has a minimal visual impact.
Page 13 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
The ION-M7P/7P/85P/19P is available in single (SISO) or multi-channel (MIMO)
configuration supporting 700 MHz, LTE, 850 MHz, and 1900 MHz in parallel. It has
been specifically tested and optimized for LTE, OFDM, CDMA, and WCDMA signals.
The ION is easily set-up and supervised via a graphical user interface (GUI). Remote
Units can be commissioned through the use of built-in test equipment. An auto-
leveling function compensates for the optical link loss making installation easy and
quick. The entire system may be monitored remotely via an Andrew OMC. This
platform uses SNMP protocol and is compliant to X.733 standard.
Should a sophisticated interface not be required, the Master Unit can be directly
connected to the alarm interface of a base station via its contact relay.
Features at a glance:
Multi-channel, multi-operator support
Reduced visual impact form factor
Efficient, high power amplifiers
Single fiber for MIMO and multiple remotes
Comprehensive operations and management system for configuration and
alarming
OMC with SNMP according to X.733 standard
3GPP TS25.143/TS25.106/ 36.143/TS36.106 and 3GPP2C.S0051-0
compliant
Easy installation and commissioning
3. COMMISSIONING
3.1. MECHANICAL INSTALLATION
3.1.1. General
Read the health and safety warnings in section 1.2 Health and Safety Warnings.
1. Do not install the unit in a way or at a place where the specifications outlined in
the Environmental and Safety Specifications leaflet of the supplier are not met.
2. Use the mounting hardware delivered by the manufacturer only. If different
mounting hardware is used, the specifications for stationary use of the Remote
Unit must not be exceeded.
Note: Exceeding the specified load limits may cause the loss of warranty!
3. The unit is considerably heavy. Ensure that a suitable mounting surface is used.
Ensure there is adequate manpower to handle the weight of the system.
4. Due to power dissipation the Remote Unit can reach very high temperatures.
Sufficient airflow for ventilation must be ensured as specified in the individual
mounting procedures.
5. When connecting and mounting the cables (RF, optical, power supply, ...) ensure
no water can penetrate into the unit through these cables.
6. Also observe all additional rules or restrictions regarding mounting that depend on
the type of Remote Unit. For details refer to section 7.2.2 Mechanical

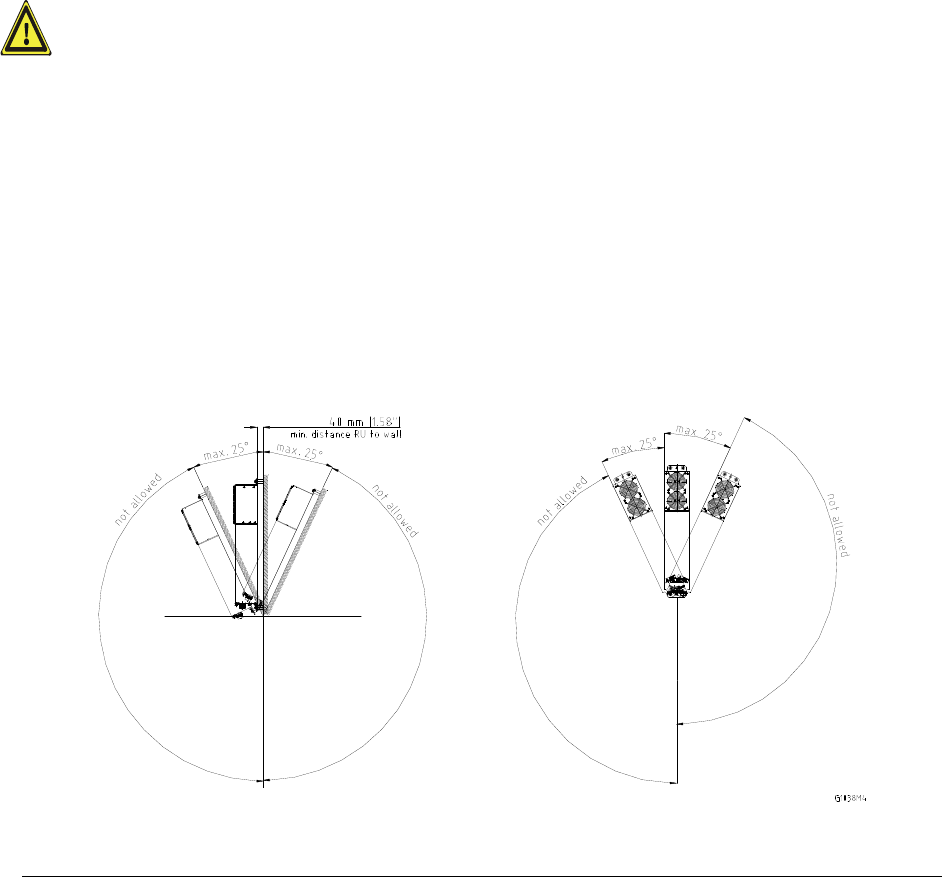

Specification. Install the unit vertically with the fan unit at the top. A maximum tilt
angle of 25° from a vertical position must be kept, as in the following illustrations:
Page 14 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Page 15 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
7. A spacing of 40 mm (1.58 inch) around the unit is required.
8. To ensure sufficient airflow when mounting the unit in enclosed spaces, two
lid openings (one for the air inlet and the other for the air outlet) have to be
provided. Do not block these air inlets and outlets when mounting the
Remote Unit. The size of each opening must equal at least 17 x 17 cm
(290 cm2). Make sure, too, there is no thermal short circuit between the air
inlet and air outlet.
If any different or additional mounting material is used, ensure that the mounting
remains as safe as the mounting designed by the manufacturer. Ensure that the
static and dynamic strengths are adequate for the environmental conditions of the
site. The mounting itself must not vibrate, swing or move in any way that might
cause damage to the Remote Unit.
Specified torques have to be observed for certain mounting procedures according to
the following table:
Type Lens head
screws Hex
nuts Spacing
bolts PG
(plastic) PG
(aluminium)
Thread M 4 M 8 M 4 M 8 PG 13.5 PG 29
Specified torques 3.3 Nm 27 Nm 2.3 Nm 27 Nm 3.75 Nm 10 Nm
table 3-1 Specified torques
Note: To avoid damage when mounting the unit, always make sure that
the M8 washers (DIN9021 or DIN125 depending on the mounting kit)
are placed behind and in front of the mounting drillings of the unit.
The mounting procedures for a stand-alone Remote Unit without optional
accessories are described and illustrated in the following sections. For further
information regarding special mounting procedures including mounting of accessory
equipment, please see separate manual.
3.1.2. Wall Mounting of RU
Check the suitability of the wall-mounting kit and the wall.
Mark the position of the drilling holes (for measurements and a more detailed
description refer to the wall mounting plan that is part of the delivery).
Drill four holes at the marked positions and insert dowels*.
Screw the mounting brackets to the wall / dowels using the four dowel screws as
illustrated in figure 3-1 Mounting bracket installation.
For each bracket, first screw in the 2 washers, then the 2 spring washers, then
the 2 M8x80 screws (see also figure 3-1 Mounting bracket installation).
Hang the Remote Unit into the upper mounting bracket at a slight angle and let it
move smoothly towards the wall so that it engages firmly into the brackets (see
figure 3-2 RU wall mounting). Then, screw the Remote Unit to the lower mounting
bracket using 2 of the M8x25 screws that are part of the delivery (4 are provided).
Ensure that there is free access to the electrical connections as well as to the
cabinet. The approved bending radius of the connected cables must not be
exceeded.

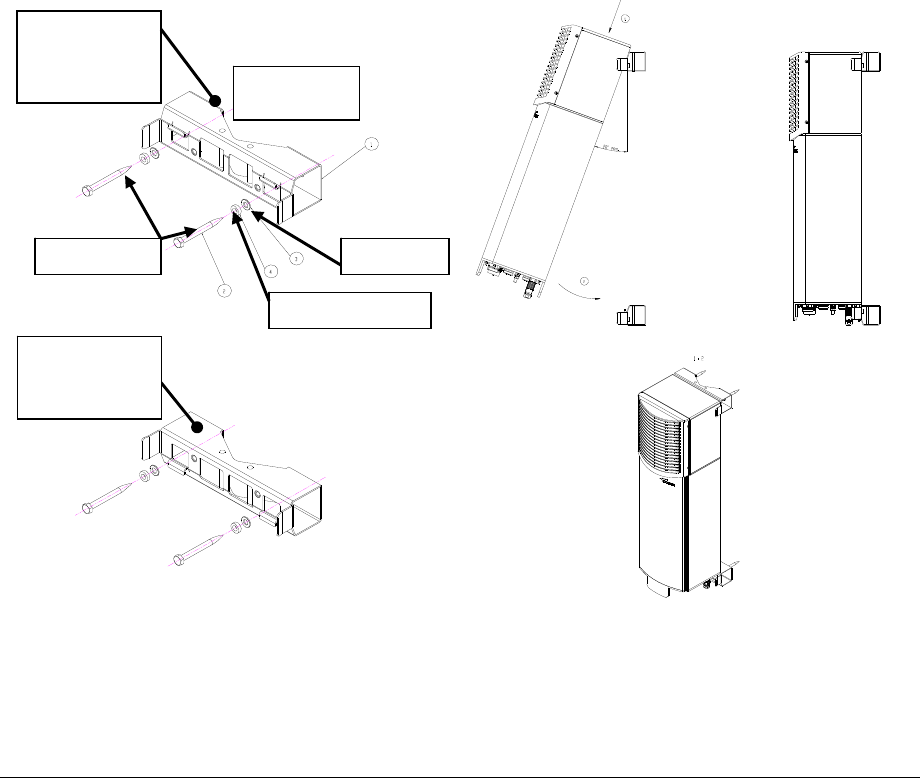

figure 3-1 Mounting bracket installation figure 3-2 RU wall mounting
Upper
mounting
bracket
Page 16 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
* The dowels are not part of the delivery since the suitable type depends on the on-site conditions
(material of wall). Therefore, use dowels that are appropriate for the mounting surface.
M8 screws
S
p
rin
g
washe
r
Washe
r
Position of
dowels *
Lower
mounting
bracket
3.1.3. Pole Mounting of RU
The standard mounting hardware also includes all parts required for pole mounting:
M8.0x25 hexagon
Page 17 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc

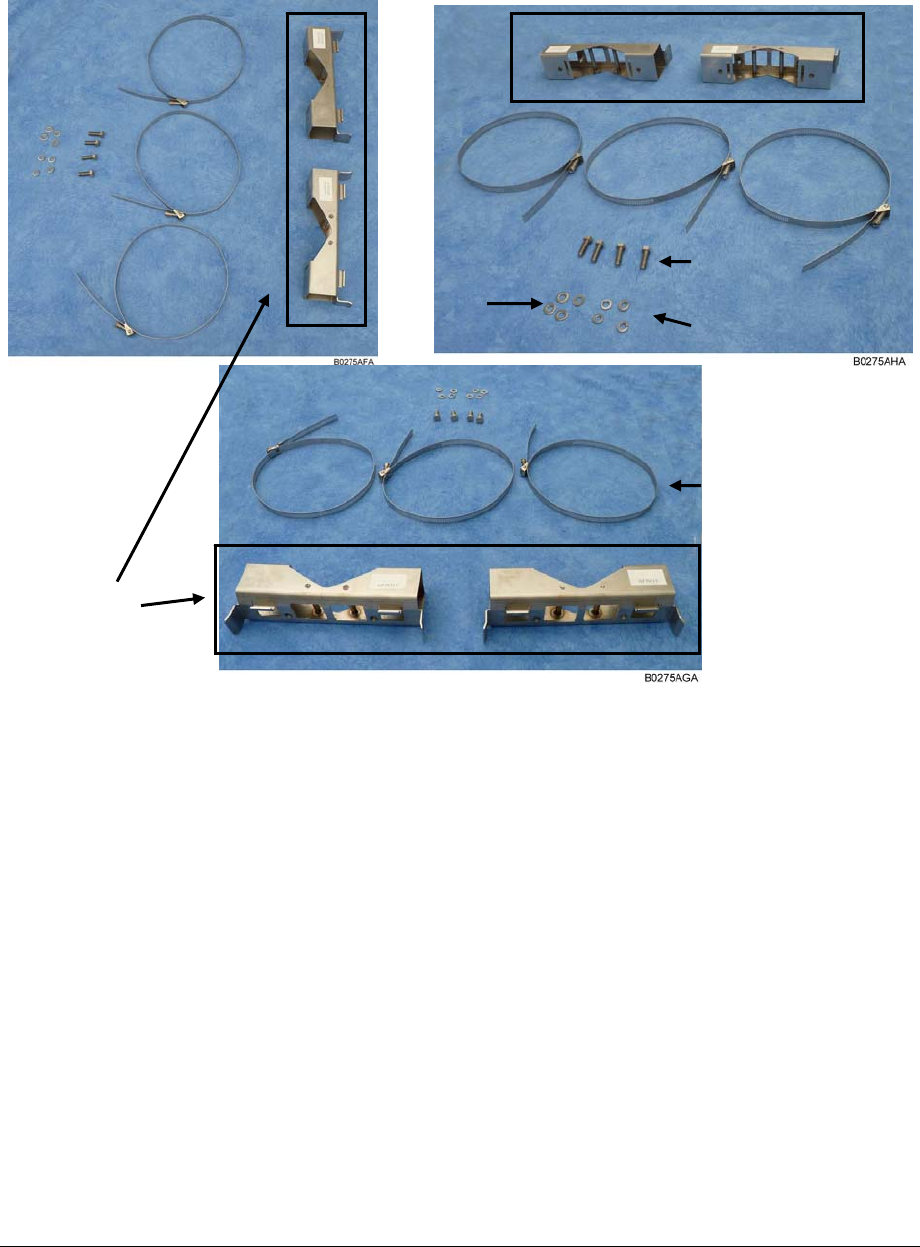

figure 3-3 Pole-mounting kit, view from different sides
Note: The screw bands illustrated above are equipped with quick-release snaplock
clamps which must be disengaged to be applied. The swivel-action locking
of screw to band makes installation and removal fast and easy.
Use the 3 screw bands with clamps to fasten the two mounting brackets to the
pole. Use 2 screw bands fitting next to each other on the upper side and 1 screw
band on the lower side.
Note: When fastening the mounting brackets make sure that they are
installed congruently and not at an angle to each other. To
determine the distance between the beams, refer to the wall/ pole
mounting plan that is part of the delivery.
Hang the Remote Unit into the hooks of the upper mounting bracket and screw
the Remote Unit to the lower mounting bracket.
Wall/ Pole
mounting brackets
Screw bands
(stainless steel)
head screws
Split-lock washers
Plain washers
for M8.0
Ensure that there is free access to the electrical connections as well as to the
cabinet. The approved bending radius of the connected cables must not be
exceeded.
Wall-/Pole
Page 18 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Note: All unmarked screw joints have nominal tightening torque values according to QA
7.5.1.090/F1011P0.
figure 3-4 Pole-mounting, ML-cabinet, assembly drawing
figure 3-5 Pole mounting of RU, finished
L_G3219X000
Pole mounting finished
(RU mounted to pole)
G3219M001
mounting bracket
Screw bands
Plain washer
for M8.0
Split-lock
washer
for M8.0
M8.0x25
Wall-/ Pole
mounting bracket
Screw
bands
hexagon
head-screw
3.2. ELECTRICAL INSTALLATION
3.2.1. General
Read the health and safety warnings in section 1.2 Health and Safety Warnings.
1. This unit contains dangerous voltages. Loss of life, severe personal injury or
property damage can be the result if the instructions contained in this manual are
not followed.
2. Ground the unit before connecting power supply. A grounding bolt is provided on
the cabinet to connect the ground-bonding cable.
3. Although the Remote Unit is internally protected against overvoltage, it is strongly
recommended to earth the antenna cables close to the antenna connectors of the
Remote Unit for protection against atmospheric discharge. In areas with strong
lightning it is highly recommended to insert additional lightning protection.
4. If the mains connector of the Remote Unit is not easily accessible, a disconnect
device in the mains circuit must be provided within easy reach.
5. Before connecting or disconnecting the mains connector at the Remote Unit,
ensure that mains supply is disconnected.
6. Make sure that an appropriate circuit breaker and an overcurrent limiting device
are connected between mains and Remote Unit.
7. A connection of mains supply to a power socket requires the power socket to be
nearby the Remote Unit.
8. Incorrectly wired connections can destroy electrical and electronic components.
9. To avoid corrosion at the connectors caused by electrochemical processes, the
material of the cable connectors must not cause a higher potential difference than
0.6 V (see electrochemical contact series).
10. Use an appropriate torque wrench for the coupling torque (25 N-m / 19 ft lb) of
7-16 DIN connectors with 1-1/4 in opening to tighten the 7/16-type antenna
connectors. For example, use torque wrench of item no. 244377 available from
the Andrew e-catalog. Do NOT use your hands or any other tool (e.g. a pair of
pliers)! This might cause damage to the connector and lead to a malfunction of
the Remote Unit.
11. Use a voltage limiting device for unstabilized electric networks that frequently
generate spikes.
12. The unit complies with the surge requirement according to EN 61000-4-5 (fine
protection); however, it is recommended to install an additional medium (via local
supply connection) and/or coarse protection (external surge protection),
depending on the individual application, in order to avoid damage caused by
overcurrent.
13. Observe the labels on the front panels before connecting or disconnecting any
cables.
Page 19 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
3.2.2. Connections
Page 20 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc

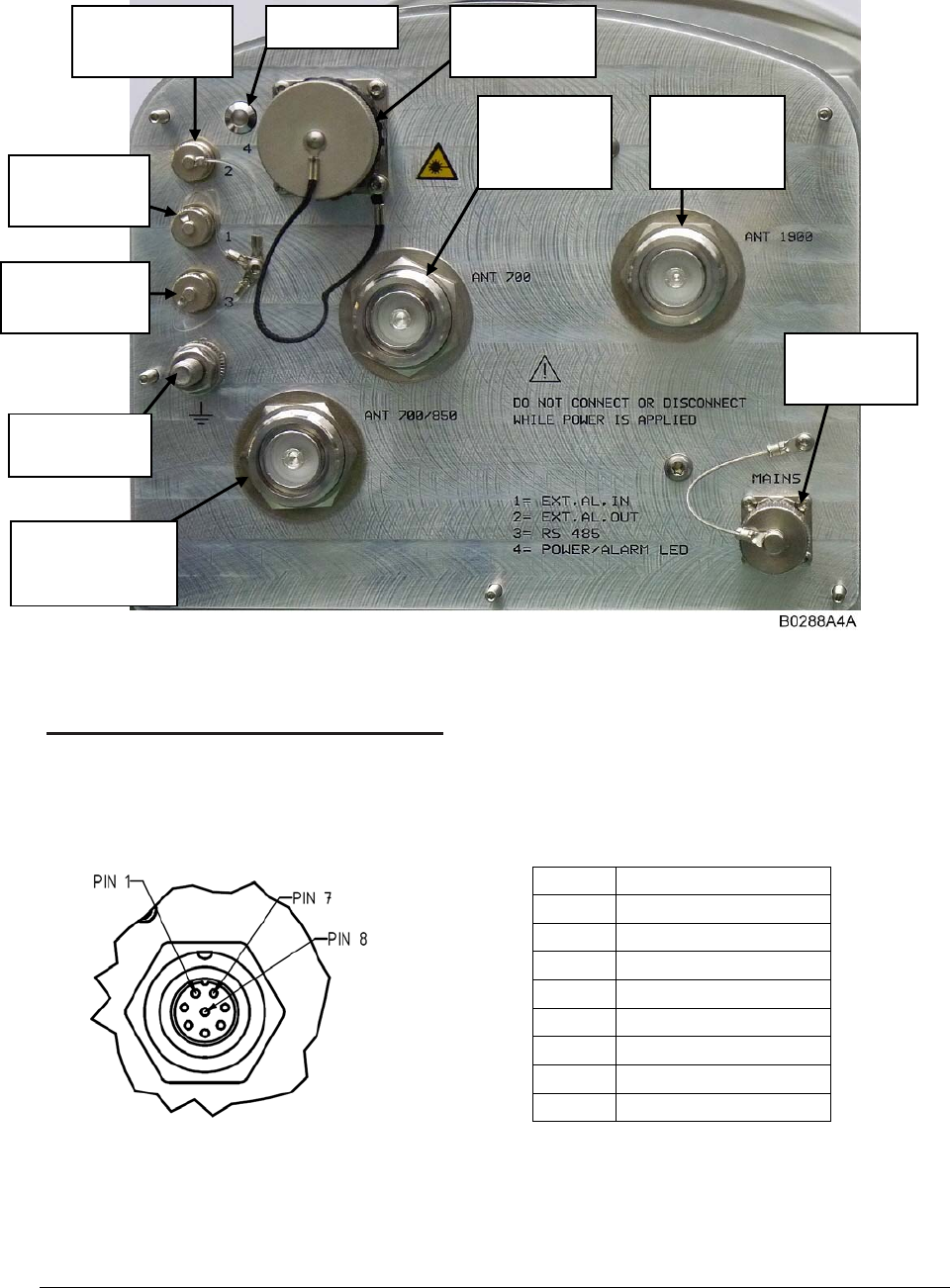

figure 3-6 Connector flange of ION-M7P/7P/85P/19P
Control Connector (RS485 / RS232)
This 8-pin male connector (type: Binder Series 712) primarily supports control of the
Extension Unit via RS485 bus.
PIN Assignment
1 not connected
2 RS232 Rx
3 RS232 Tx
4 not connected
5 GND (RS232)
6 RS485 R+/D+
7 RS485 GND
8 RS485 R-/D-
figure 3-7 RS485 connector table 3-2 RS485 connector, pin assignment
Alarm output
connector Optical-fiber
connector
Status LED
Antenna
connector
700 MHz
Antenna
connector
1900 MHz
Alarm input
connector
RS485 / 232
connector
Mains
connector
Grounding
bolt
Antenna
connector
700/ 850 MHz
3.2.3. Grounding
Grounding must be carried out. Connect an earth-bonding cable to the grounding
connection provided at the outside of the Remote Unit (see section 3.2.2
Connections). Do not use the grounding connection to connect external devices.

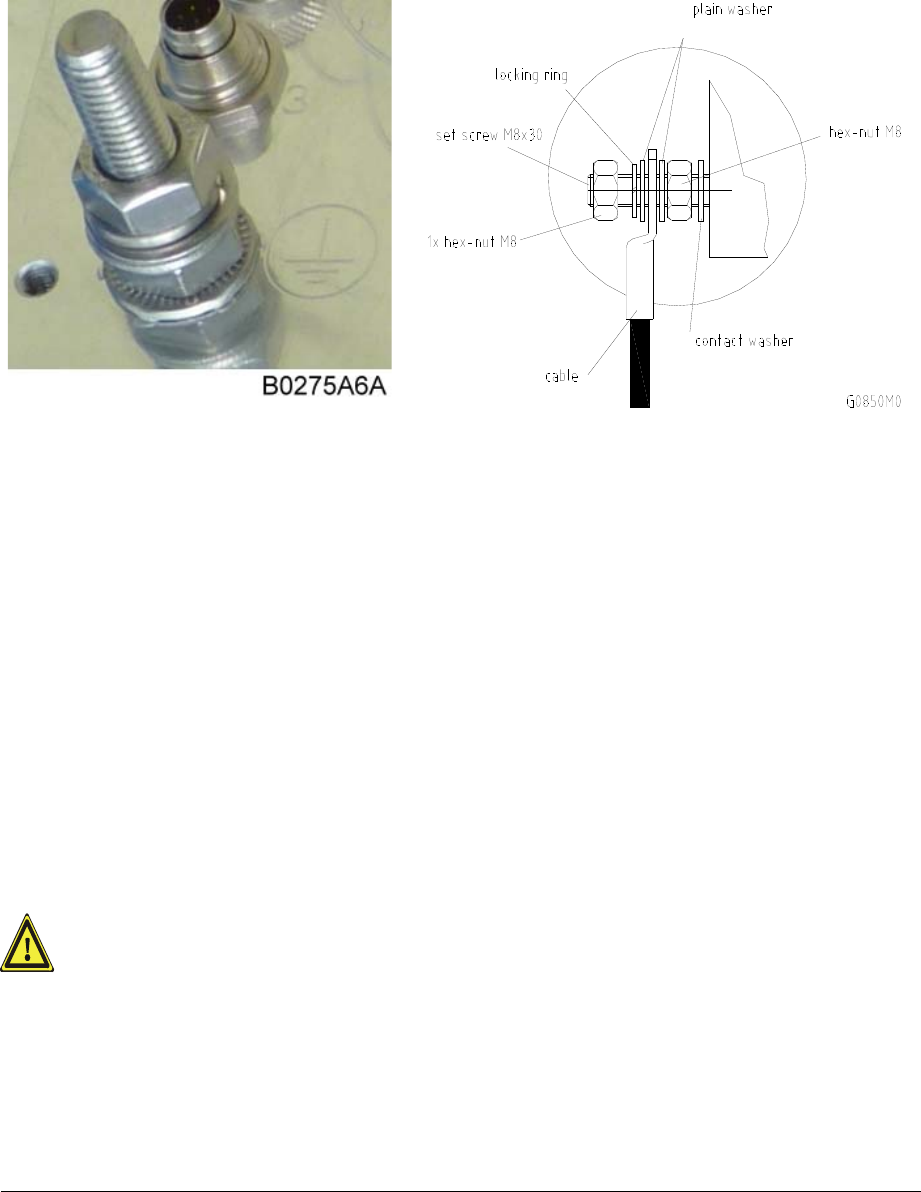

figure 3-8 Grounding bolt figure 3-9 Grounding bolt, schematic view
After loosening the hex nut, connect the earth-bonding cable between the two
washers as illustrated in the figures above. Then, fasten all parts again with the hex
nut.
3.3. CONNECTION OF THE ANTENNA CABLES
The Remote Unit has 7/16-type antenna connectors. Please refer to section 3.2.2
Connections for its location. Refer to the corresponding documentation of the
connector manufacturer for mounting the cable connectors.
For the selection of cable and antenna it should be considered that, on the one hand,
a cable with higher loss is less expensive but, on the other hand, it impairs
performance.
Use an appropriate torque wrench for the coupling torque (25 N-m / 19 ft
lb) of 7-16 DIN connectors with 1-1/4 in opening to tighten the 7/16-type
antenna connectors. For example, use torque wrench of item no. 244377
available from the Andrew e-catalog. Do NOT use your hands or any
other tool (e.g. a pair of pliers)! This might cause damage to the
connector and lead to a malfunction of the Remote Unit.
Page 21 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
To minimize passive inter-modulation (PIM) distortion, attention has to
be paid to the physical condition of the connector junctions. Do not use
connectors that show signs of corrosion on the metal surface. Prevent
the ingress of water into the connector. Attach and torque the
connectors properly.
3.4. POWER CONNECTION
Before connecting electrical power to the units, the system must be grounded as
described in the previous section.
Mains power must be connected at the power supply connector of the unit (see
section 3.2.2 Connections).
The power supply plug is part of the delivery. The correct wiring of the power supply
plug is as follows:
Page 22 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
figure 3-10 AC power supply plug
For the AC power supply connection, a minimum cross section of 1.5
mm2 is required. Each wire must observe the applicable national
regulations regarding loop impedance, voltage drop, and methods of
installation. Make sure to connect the correct voltage to the unit.
Note: Do not connect or disconnect the power cord at the power supply
connector while power is on. Turn off mains power * before
connecting the power cord at the Remote Unit, then, engage mains
power again.
* Mains power must be interruptible with an external power supply breaker. For the power supply
breaker, observe the following recommendation:
120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is needed, i.e.
the external AC breaker should be 20 Amps max. for 120-Volt service or 16 Amps for 240-Volt
service.
For the DC power supply, observe the local regulations of the DC service provider.

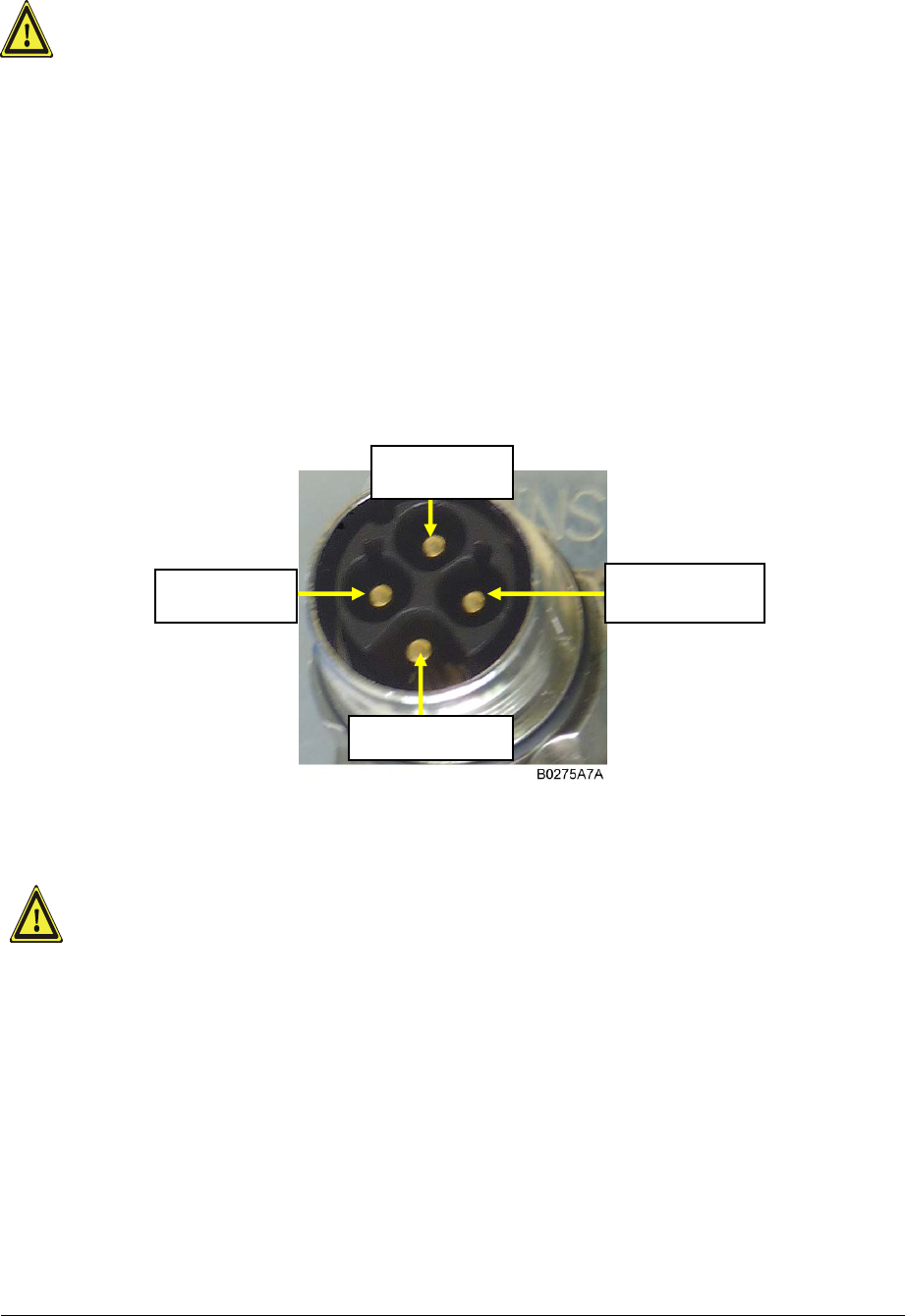

PIN 3 - n.c.
PIN 4 - PE
PIN 1 - L
PIN 2 - N
3.5. OPTICAL-FIBER-CABLE CONNECTION - RULES
Main optical system parameters:
Fiber:
Single mode fiber, type is E9/125 µm
Attenuation: <0.36 dB / km @ 1310 nm / <0.26 dB / km @ 1550 nm
Dispersion: <3.5 ps / nm km @ 1310 nm / <18.0 ps / nm km @ 1550 nm
Fibre-cable connectors E2000APC8°
ION-M system:
The specified bending radius (< 4 cm) of the optical fibers must not be
exceeded.
The pigtails for the connection between Master Unit and Remote Unit must
have a sufficient length. A protection for the feeding into units must be given.
The system attenuation of the optical fibers, including the connectors, must
not exceed 10 dB.
System attenuation and attenuation of optical components must be determined. This
can be achieved by measuring attenuation and reflection with an appropriate
measuring instrument. For pigtails, a total value of < 0.4 dB (measured to a reference
plug) can be assumed due to the dead zone of the reflectometer. These
measurements must be made with a sufficient length of optical fiber, at the input and
output of the device which has to be measured.
Fiber-System Installation:
Fiber-cable connectors have to be of the same type (E2000APC8°) as the
connectors used for the unit. The fiber-optic cables are connected to the optical
transceiver.
Angled connectors are not compatible with straight optical connectors;
non-compatibility of connectors will result in permanent damage to
both connectors.
Before connecting the fiber cables, follow the procedure below to ensure optimized
performance. It is important for these procedures to be carried out with care:
Remove fiber-optic protective caps.
Do not bend the fiber-optic cable in a tight radius (< 4 cm) as this may cause
cable damage and interrupt transmission.
Using high-grade alcohol and lint-free cotton cleaning swabs, clean the end of
the fiber-optic cable that will be inserted in the optical connectors on the donor
interface box. Use a fiber end-face inspection tool to scan both, the class fiber
and its surrounding area.
Page 23 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Check for dirt on the cladding, chips/pits, dirt on the ferrule, and scratches.
Connect the fiber-optic cables by inserting the cable end into the laser
receptacle and aligning the key (on the cable end) with the keyed slot.
Do not use any index-matching gels or fluids of any kind in these connectors.
Gels are intended for laboratory use and attract dirt in the field.
Note: Care should be taken when connecting and disconnecting fiber-
optic cables - use the connector housing to plug or unplug a fiber.
Scratches and dust significantly affect system performance and
may permanently damage the connector. Always use protective
caps on fiber-optic connectors not in use.
Cleaning Procedure for Fiber-Optical Components:
Any contamination in the fiber connection results in additional optical transmission
loss which could cause whole system failure. It is thus recommended that every fiber
connector be inspected and cleaned prior to mating.
The goal is to eliminate any dust or contamination and to provide a clean
environment for the fiber-optic connection.
When you clean fiber components, always complete the following steps carefully:
1. Turn off the ION system (laser sources) before you inspect fiber connectors.
Never look into a fiber while the system lasers are on!
2. Check the connectors or adapters with a fiberscope before cleaning.
3. If the connector is dirty, clean it with a lint-free wipe (dry cleaning).
4. Inspect the connector.
5. If the connector is still dirty, repeat the dry cleaning technique.
6. Inspect the connector.
7. If the connector is still dirty, clean it with 99% isopropyl alcohol (wet cleaning)
followed immediately with a dry clean in order to ensure no residue is left on
the endface.
8. Repeat steps 5 through 7 until endface is clean.
Note: For a more detailed description please refer to:
http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186
a0080254eba.shtml
Page 24 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
3.5.1. Protective Plug
Connection:
A protective plug is provided for the connection of the fiber-optic cables.

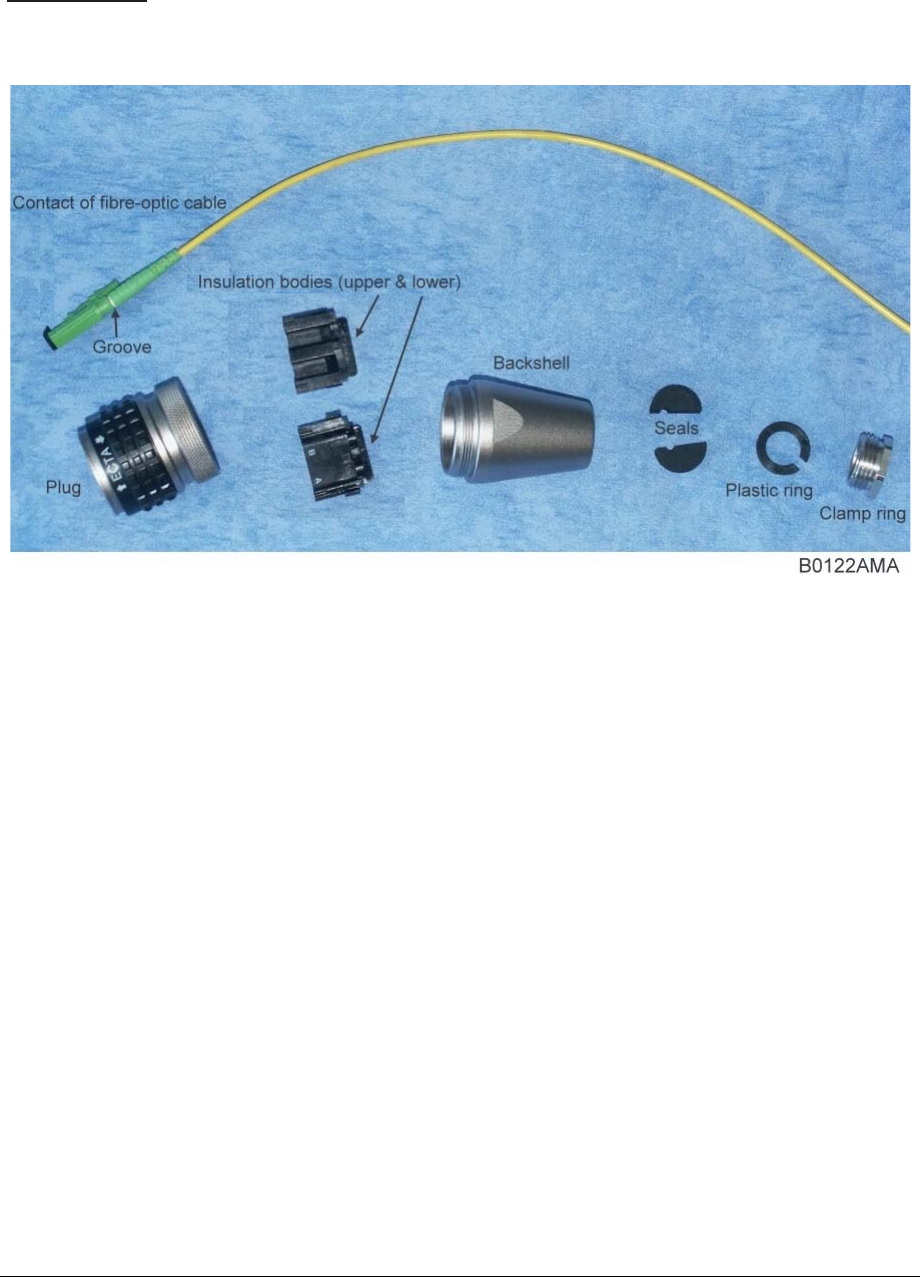

figure 3-11 Protective-plug assembly
Note: Only high-quality connectors must be used for this type of plug.
Qualified brands are Diamond or Huber & Suhner.
Page 25 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc

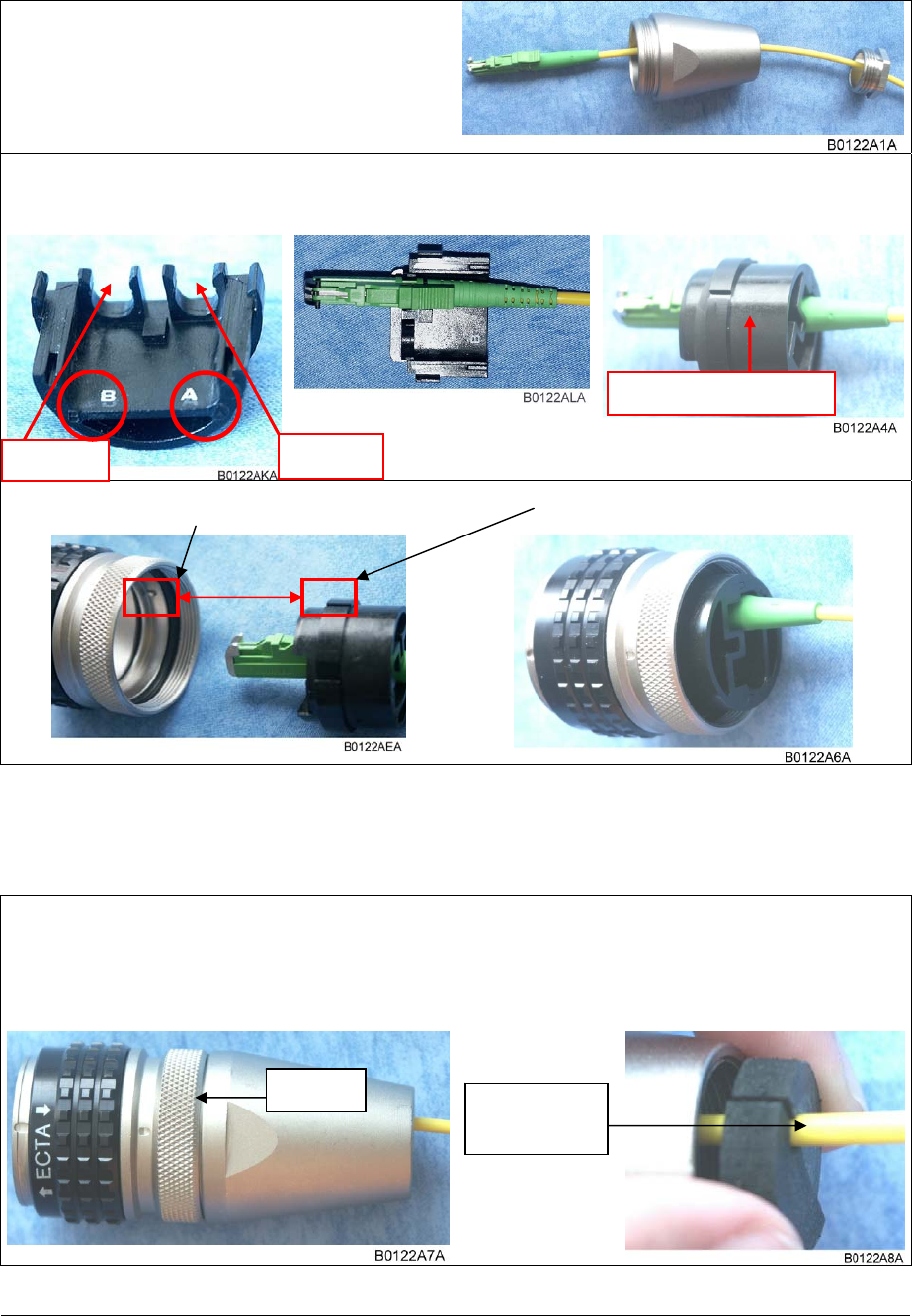

For plug assembly, observe the following instruction:
1. Pass one or two contacts through the
backshell and the clamp ring.
2. Place the contact(s) on the lower insulation body by pushing the groove of the
contact into the cavity. If there is only one contact, cavity A must be used. *
3. Then, mount the upper insulation body on the lower insulation body. **
4. Bring the insulator into the plug. The narrow groove of the insulator must be fitted
into the stamp of the plug.
Page 26 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
* To release the contact for disassembling, push the inner snap to the side and pull the contact out.
** To release upper and lower insulation bodies for disassembling, use a small screwdriver and
carefully open the snap-connections at the left and the right side of the insulator without
damaging them.
5. Fasten the insulator by screwing the
backshell tight onto it. Use a spanner
with opening 32 to screw the
backshell tight (no gap).
6. Place the appropriate seal parts (with
one groove for one contact or two
grooves for two contacts) over the
cable(s) and push them into the
backshell.
Seals with
one groove
No gap
Cavity B
Upper insulation body
Cavity A
7. Bring the plastic ring over the cable(s), push it into the backshell and compress
the seals and plastic ring by screwing the clamp ring tight (no gap) using a
spanner with opening 20. ***
8. Connect the plug to the optical-fiber
connector of the Remote Unit, again
by fitting a stamp on the plug into the
groove of the connector.
9. To lock the connector, push the black
locking ring forward.****
Screw tight until gap is closed
Page 27 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
*** For disassembling, release the clamping ring and remove the seals and the plastic ring first.
**** Locking mechanism: The system of locking the plug is based on a “push-pull” mechanism. The
locking ring has to be pushed forward to lock the connector and pulled back to free the
connection.
3.5.2. Protective-Tube Kit
As additional protection for the optical fibers, this connector type can be
supplemented by a special tube kit. To fasten the tube correctly, first unscrew the
clamp ring (if already installed) of the original plug kit.
Then, proceed according to the following instruction:
Groove Push forward to lock, pull
back to free connection
Page 28 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Screw the reducer to
the protective plug
backshell without any
gap!
Place the appropriate seal
parts (with) one groove for
one contact or two grooves
for two contacts) over the
cable(s) and push them into
the backshell! Protective tube
Reducer
Coupling
Protective plug
Fiber cable
Ring 3/4
G1055M0

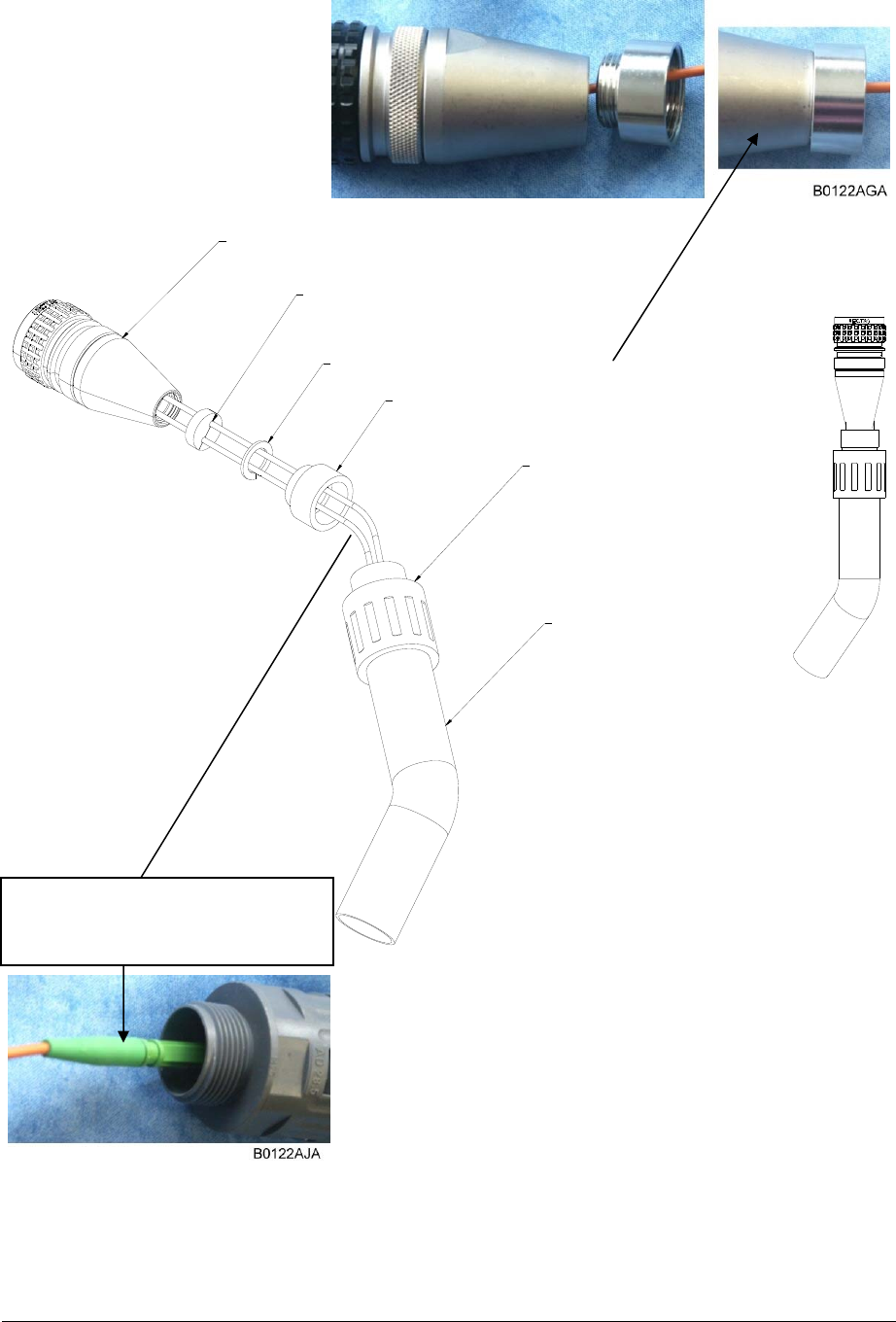

figure 3-12 Tube-kit installation
Push the fiber-optic cable carefully
through the tube until it comes out
at the other end.
Page 29 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
3.6. COMMISSIONING
Read the health and safety warnings in section 1.2 Health and Safety Warnings.
Keep these guidelines in mind before continuing to the instructions for
commissioning:
Do not operate the Remote Unit without terminating the antenna connectors.
The antenna connectors may be terminated by connecting them to their
respective antennas or to a dummy load.
Only qualified personnel should carry out the electrical, mechanical,
commissioning, and maintenance activities that require the unit to be powered
on when open.
Do not damage the warranty labels on the devices. The warranty is void if the
seals are broken.
Ensure that all connections have been performed according to section 3.2.1
General.

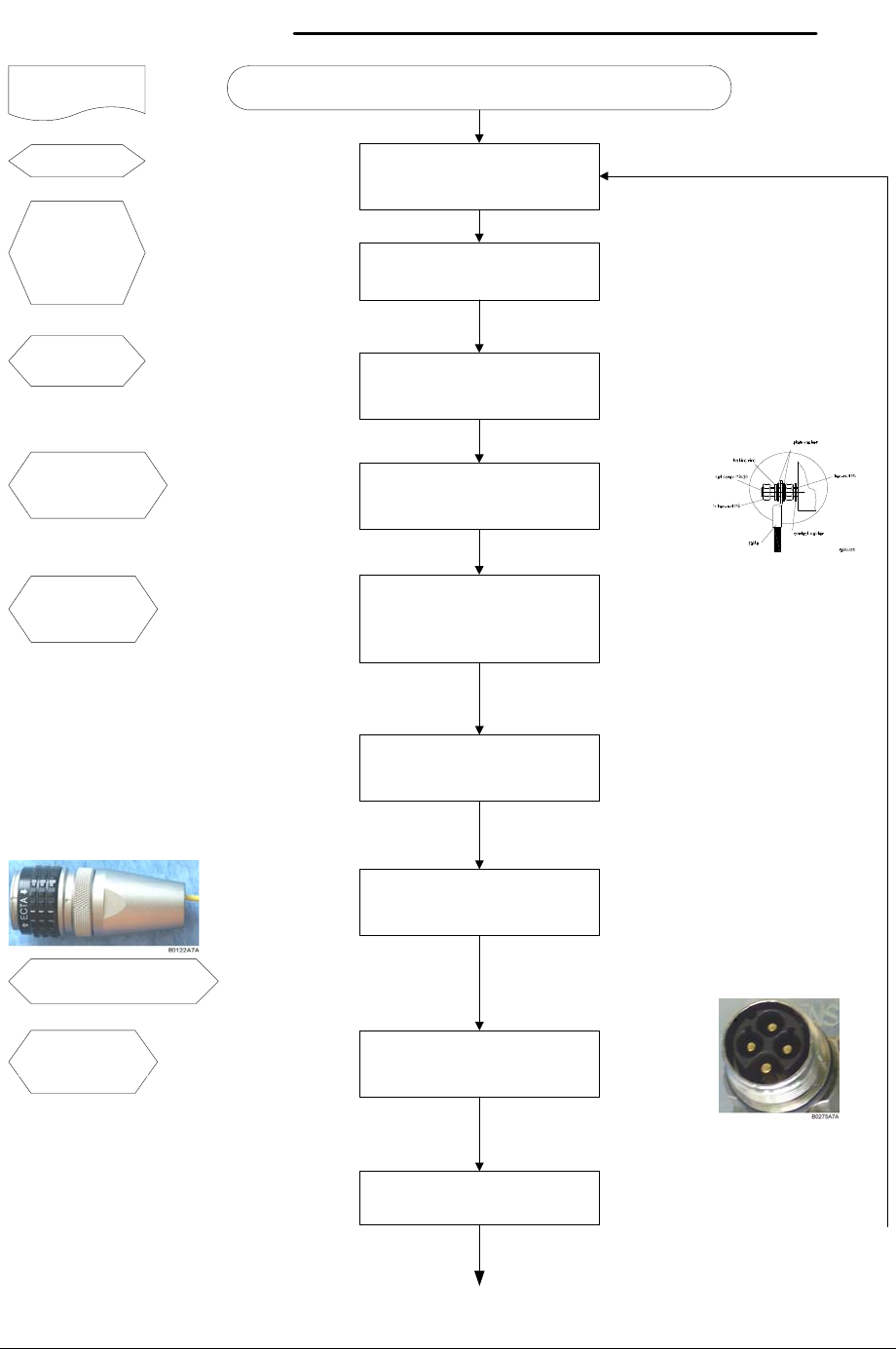

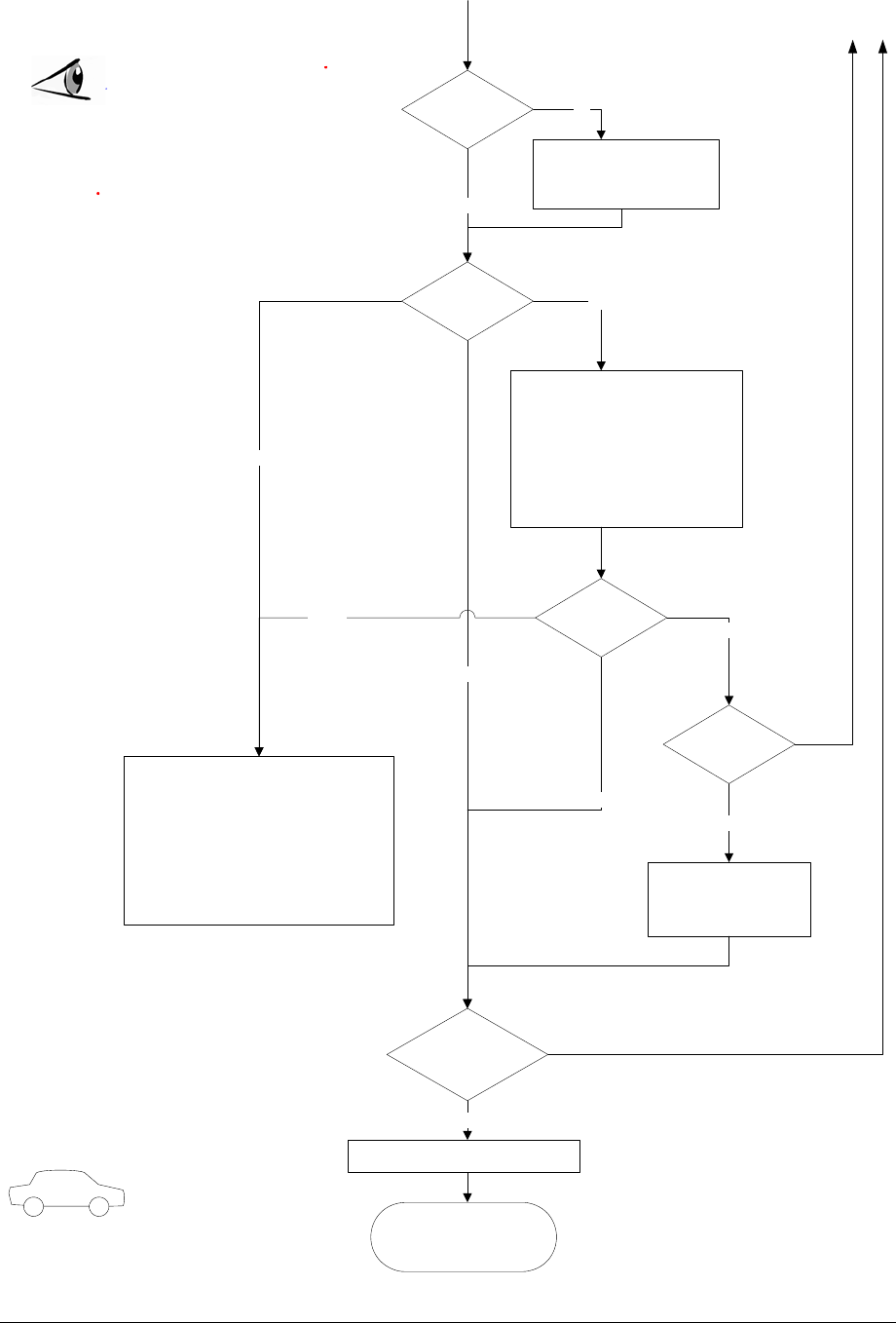

Commissioning an ION-M Remote Unit
Start
Mechanical installation
Fasten wall or pole mounting kit to wall or
pole.
Manual for Remote
Unit
Electrical connections
Connect grounding cable and
ground the RU.
Mains
Switch mains power on.
Philips
screwdriver
Screw driver
Spanner, size
13 mm
Electrical connections
Connect AC power to the power cable.
Ensure there is a circuit breaker between
mains and RU.
RF connection
Connect antenna cable to antenna port.
Optical connections
Mount the optical fibre with E2000 APC8°
connector into the connector. Plug the
connector into the RU.
Mechanical installation
Mount RU to mounting kit, ensure suffient
air flow and avoid thermal short circuits.
Preperation
Unpack RU, RU accessories and
mounting kit.
External devices
Connect external devices to the external
in or alarm out connectors, or to the
connecting board inside the RU.
Mounting kit
Spanner, size
13 mm
Drilling
machine
Dowels
Screw driver
Grounding cable
Spanner 13 mm
Mains cable
Connecting kit
Alarm kit
(M-cabinet)
E2000 APC8° connector
Spanner with opening 32
AC PIN assignment
PIN 3
= n.c.
PIN 4 =
PE
PIN 2 =
N
PIN 1
= L
Page 30 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Output:
All RUs okay.
Go to MU
External error
Close the door (RUs with a door).
Check externally connected devices.
Check fibre loss of optical link.
Check optical connectors.
Clean optical connectors.
Check optical output power of corresponding
OTRx at master unit.
ALC alarm: Decrease DL input power of
affected band.
VSWR alarm: Check antenna and cable.
LED status
Proceed to MU to set up the SW
Orange
Yes
Internal Error
Change power supply (RUs with a
door).
Reduce environmental temperature.
Eliminate thermal short circuit.
Disconnect and connect mains. Fans
should run. If not, replace the fans at
RU.
MU: Change amplifier setting at MU
controller
Red
LED statusYellow
Green
Red
Finished setting up
all RUs?
Green
Spare RU
available?
Yes
Contact customer
service
No
Yes
LED on?
Check power switch inside RU
(RUs with door).
Check mains cabling.
Check mains power.
No
No
Page 31 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Page 32 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
For your notes:
Page 33 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
4. ALARMS
4.1. BITe AND ALARMS
The Built-In Test (BITe) concept comprises the monitoring of the power supplies, the
power amplifiers and the optical interface.
All alarms occurring can be checked via software at the Master Unit.
4.2. HANDLING OF ALARMS
In alarm condition, an alarm message is sent to the Master Controller.
If the reason for the alarm is cleared, the alarm will disappear. Otherwise, i.e. if the
alarm continues, a new alarm message will not be repeated.
A new alarm message will be generated if the alarm is interrupted for at least five
seconds after alarm clearance by the RU.
4.3. ALARM STATUS
Refer to the corresponding software documentation of the Master Unit for details.
Page 34 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
4.4. STATUS LED ALARMS
For local supervision, a status LED on the connector flange of the Remote Unit gives
an indication of possible reasons for alarms. This table shows possible on-site
measures that could be checked before referring to the Master Unit alarm list.
Status LED Indication Alarms Possible on-site measures
Green No alarm
Status ok
Door alarm Close the door (RUs with door).
Alarms not directly related to RU:
External alarms Check externally connected devices.
Optical alarm Rx
Check fiber loss of optical link.
Check optical connectors.
Clean optical connectors.
(MU: Check optical output power of
corresponding OTRx at Master Unit).
Orange
ALC alarm (MU: Decrease DL input power of
affected band).
Alarms directly related to RU:
Power 28 V Change power supply (RUs with door).
Replace the affected Remote Unit.
Temperature Reduce environmental temperature.
Eliminate thermal short circuit.
Fan Disconnect and connect power supply.
Fans should run. If not, replace the fans
at RU.
I²C Disconnect and connect power supply.
Optical alarm Tx Exchange RU.
Red
A
mplifier “Power
Down” (MU: Change amplifier setting at MU
controller).
Status LED off Power supply
Check power switch inside of RU (RUs
with door).
Check power supply cabling.
Check power supply.
table 4-1 Status LED alarms
For the position of the status LED see section 3.2.2 Connections.
Explicit troubleshooting is available in the MU software, (software manual or WEB
Interface).
4.5. EXTERNAL ALARM INPUTS AND OUTPUTS
G1038Z0 G1038Z0
figure 4-1 Flange connector, 5 poles figure 4-2 Flange connector, 7 poles
The alarm outputs (open collector output 5 V / 1 mA) are normally low. In case of an
alarm they are high active (5 V). They can be used to monitor alarms with an external
alarm indicator.
The +28 V pin (for its location see figure 4-2 Flange connector, 7 poles) is protected
by a 500 mA thermoswitch. In case of exceeding this current between pin 7 and GND
and/or in case of a failure of the VSWR module, the thermoswitch turns into a high-
resistive status. In this case no fuse needs to be replaced. Just wait a few minutes
until the thermoswitch reaches the normal operating temperature again.
Note: The manufacturer / supplier of this system accepts no liability for
damage caused by equipment connected to external outputs or by
effects from such equipment.
As accessory equipment the alarm kit is available to connect external devices to the
external alarm inputs and outputs (for ID No see section 6.3 Spare Parts).
Page 35 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
With the external alarm inputs it is possible to monitor the status of connected
devices, e.g. a UPS, via software. All alarm inputs are normally high (5 V) without
connection. The polarity (high/ low) can be set via the software at the Master Unit (for
details please see according software manual).
The device to be monitored must be connected so that the alarm contacts will be
closed in case of an alarm (I max = 8 mA). The alarm inputs are potential-free with
common ground.
Subminiature circular connectors series 712 with five and seven contacts, which are
contained in the alarm kit, can be ordered directly from the Binder Connector Group,
the manufacturer, or indirectly from Andrew Solutions (for ID No of the alarm kit see
section 6.3 Spare Parts).
V1651A1
Alarm output
Alarm GND
Alarm GND
Alarm GND
Alarm GND
Alarm input
ION-M alarm outputs
4700R
+5 V
ION-M alarm inputs
+5 V
560R
figure 4-3 Alarm inputs and outputs, standard
4.6. TROUBLESHOOTING
The status of the Remote Unit can be checked via the Master Unit (for details please
refer to the software manual of the Master Controller). Locally, the status can be
checked at the LED, see section 4.4 Status LED Alarms.
Page 36 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Page 37 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
5. MAINTENANCE
5.1. GENERAL
Read the health and safety warnings in section 1.2 Health and Safety Warnings.
Note: The Remote Unit does not require preventative maintenance
measures.
Note: To prevent malfunctions of the cooling system due to dirt or
pollution, it is recommended to clean the heat sink at regular
intervals. These cleaning intervals depend mainly on the location
of the Remote Unit and the corresponding degree of pollution.
Maintenance of the ION-M7P/7P/85P/19P should be performed by replacing only
components that are contained in this section. Take care not to unintentionally
damage the seals on the modules to maintain warranty. Please keep these
guidelines in mind during maintenance:
The spare parts list, consequently, contains only units which can be replaced without
tuning or soldering work.
Note: Use an appropriate packaging when sending back the unit (see
section 6.2.3 Environmental and Safety Specifications for details).
We strongly recommend using the original packaging.
Note: Defect parts should only be replaced by original parts from the
supplier. All interventions inside the housing are at one’s own risk.
Note: Ensure the Remote Unit has been disconnected from mains during
maintenance.
Note: Label any unlabelled cables before disconnecting them to ensure
correct re-connection.
Maintenance procedures require appropriate tools are to ensure correct handling. All
these tools can be ordered from the supplier.
Note: All our screws have a right-hand thread and are fastened by
turning the tool clockwise and are unscrewed by turning the tool
counter-clockwise.
Due to the design of the Remote Unit the only component recommended to be
replaced is the fan unit. For replacing any other component, please contact the
supplier.
5.2. REPLACING THE FAN UNIT
Replacement of the fan unit is not required as a preventative measure. Only if an
alarm indicates a malfunctioning of a fan, must the unit be exchanged.
Note: Please observe that the fan unit can only be replaced as a whole.
Do NOT remove the fans separately!
Note: NEVER blow out the fan unit with compressed air! This would
cause permanent damage to the unit.
Read the health and safety warnings in section 1.2 as well as the instructions in
section 5.1 General before starting with the replacement.
1. Switch off the Remote Unit. Make sure the power supply connector is
disconnected for the following replacement procedure. Then, proceed as
follows:
2. Remove the fan guard by unscrewing (Torx 20) the four countersunk-head screws
(two at each side) by which it is fastened:1)
Page 38 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
3. Loosen the four fillister-head screws
M4x8 by which the fan unit is screwed
to the cabinet (circle-marked in the
figure to the right). 2)
4. Disconnect the fan-unit connector and
take out the fan unit.
5. To mount the new fan unit, re-connect
the fan unit connector and place the
fan unit back into its original position.
6. Screw the whole fan unit to the
cabinet with the four fillister-head
screws M4x8. 2)
7. Finally mount the fan guard and fasten
it with the four countersunk screws. 1) figure 5-1 Fan unit and heat sink
8. Then, mains power can be reconnected and the unit can be powered up.
1) In order not to exceed the specified torque of 82 Ncm, use an appropriate tool!
2) In order not to exceed the specified torque of 330 Ncm, use an appropriate tool!
Fan unit connector Fan unit
4x Fillister-head
screws
Heat sink
Page 39 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
5.3. CLEANING THE HEAT SINK
To avoid a malfunctioning of the Remote Unit, the heat sink should be cleaned in
case of pollution. In order to prevent any damage, proceed as explained in the
following.
Note: Read the health and safety warnings in section 1.2 Health and
Safety Warnings as well as the instructions in section 5.1 General
before starting with the replacement procedure. Then, proceed as
follows:
1. Switch off the Remote Unit. For the following procedure ensure that power supply
connector has been disconnected before and that the fans have stopped rotating!
2. Before any cleaning action, remove the fan guard and the fan unit from the
Remote Unit as described in the previous section 5.2 Replacing the Fan Unit.
3. Clean the ribs of the heat sink (see figure 5-1 Fan unit and heat sink) very
carefully with a soft brush (not metallic!). Take care that the material is not
scratched or damaged!
4. If necessary, use compressed air (max. 5 bar) to blow out the heat sink from
front to rear side.
5. In case the dirt cannot be blown out completely from the heat sink and parts of it,
still stick to the ribs, clean the parts concerned carefully from the front with the
soft brush. Take care that the material is not scratched or damaged.
6. After cleaning the heat sink, mount the fan unit and the fan guard again according
to section 5.2 Replacing the Fan Unit. Then, reconnect mains power and power
up the unit.
6. APPENDIX
6.1. ILLUSTRATIONS
G3219M0

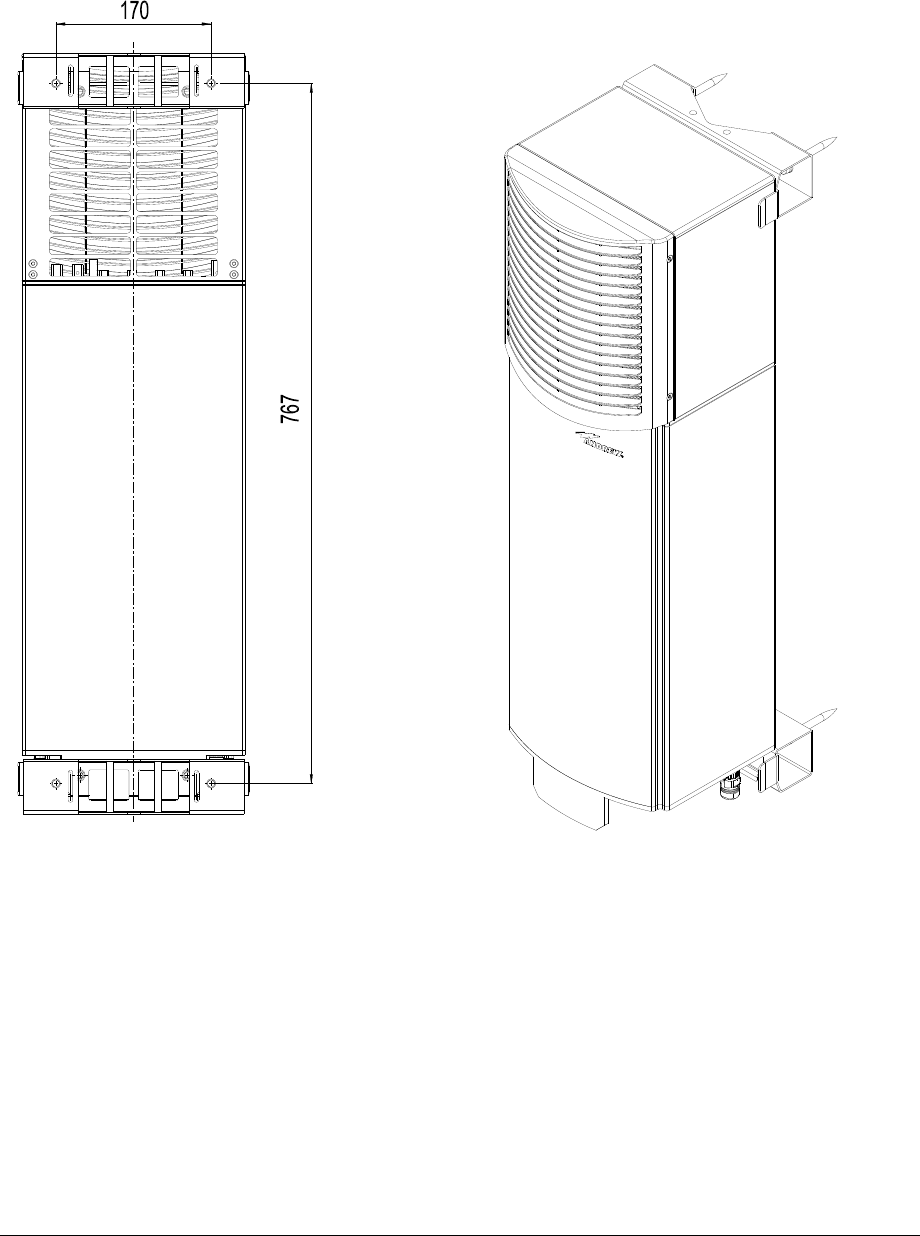

figure 6-1 Cabinet drawing
Page 40 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
Page 41 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
6.2. SPECIFICATIONS
6.2.1. Electrical Specifications
ION-M7P/7P/85P/19P
Electrical
Mains power 115 Vac or 230 Vac
Power supply Power consumption 1100 Watts max.
< 750 @ normal operation
Optical
Connectors E2000/APC 8°
Optical return loss, 45 dB
Fibre type Single mode E9/125 µm
Optical link
Optical link budget 0 dB to 10 dB
850 MHz 3.0 dBm composite Composite input power @
OTRx master side 1900 MHz 3.0 dBm composite
Input power range 7P/7P -15 dBm to +14 dBm
7 dBm nominal
All figures are typical values, unless otherwise stated.
All data is subject to change without notice.
6.2.2. Mechanical Specifications
Height, width, depth * 817 x 245 x 218 mm (32.2 x 9.6 x 8.6 in)
Weight 40 kg (88.2 Ib)
* Spacing required 40 mm (1.58 in) around unit
All data is subject to change without notice.
6.2.3. Environmental and Safety Specifications
Note: For detailed information, please refer to the Environmental and
Safety Specifications leaflet of the supplier, related to ETS 300 019
(European Telecommunication Standard).
Operating temperature range -33 to +50°C
RF part IP67
Ingress protection Fan part IP55
All figures are typical values, unless otherwise stated.
All data is subject to change without notice.
Page 42 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
6.3. SPARE PARTS
The following lists contain all parts available for the Remote Unit. The configuration of
the delivered unit meets the requirements of the customer and can differ depending
on the state of the delivery.
Maintenance of the ION-M7P/7P/85P/19P should be performed on an FRU (Field
Replaceable Unit) basis only. Do not damage the warranty labels on the
components, as this voids the warranty.
The following spare parts lists only contain units that can be replaced without tuning
or soldering work. To replace an FRU, use the appropriate tools. Replacement tools
may be ordered from the supplier. If any FRU not contained in the following list needs
to be replaced, please contact customer service for additional instructions.
Spare Parts List of the Remote Unit ION-M7P/7P/85P/19P
Designation: ID No: FRU
ION-M7P/7P/85P/19P 7631019
Protective Plug E2000 7160013 x
Protective Cap E 2000 7158914 x
Fan Unit ML-Cabinet 7632532-00 x
Manuals for ION-M7P/7P/85P/19P 7641044-00
Accessories
Wall Mounting Kit 7632566
Pole Mounting Kit 7636344
Alarm Kit 7157396
The manufacturer reserves the right to replace the spare parts listed above by
equivalent substitutes.
Note: Only the spare parts listed above are FRUs (= Field Replaceable
Units) – apart from the Manual - and can be replaced by the user. For
replacement of any other parts please send the entire Remote Unit
back to the manufacturer.
Page 43 Manual ION-M7P-7P-85P-19P
MF0145A4A.doc
7. INDEX
A
Abbreviations.......................................................... 6
Address of Andrew Wireless Systems GmbH....... 11
Alarms
Alarm Status .................................................... 33
Bite and Alarms ............................................... 33
External Inputs........................................... 35, 36
Handling of Alarms .......................................... 33
List ................................................................... 36
Outputs ...................................................... 35, 36
RU ................................................................... 36
Status LED....................................................... 34
Andrew Solutions.................................................... 9
C
Cleaning the Heat Sink......................................... 39
Commissioning
General............................................................ 29
Connection Rules
Optical-Fiber Cables ........................................ 23
Connections
Antenna ........................................................... 21
Connector Flange ............................................ 20
Power .............................................................. 22
Contact Addresses ............................................... 10
Control Connector for EU ..................................... 20
Customer Support Addresses............................... 10
E
Extension Unit
RS485/ RS232 Control Connector (8 pins)...... 20
External Inputs
Location ........................................................... 20
F
Fiber-Optical Components
Cleaning Procedure ......................................... 24
System Installation........................................... 23
Flange Connector
5 poles ............................................................. 35
7 poles ............................................................. 35
G
Grounding............................................................. 21
H
Health and Safety Warnings................................... 7
I
Illustrations ........................................................... 40
Installation
Electrical.......................................................... 19
Mechanical ...................................................... 14
M
Maintenance......................................................... 37
Mounting
Pole ................................................................. 17
Wall.................................................................. 16
O
Optical-Fibre Connection
Protective Plug ................................................ 25
Protective-Tube Kit .......................................... 27
Outputs
Location........................................................... 20
P
Pin Assignment
External Alarms ............................................... 35
R
Replacement of Fan Unit...................................... 38
RS485/ RS232 EU Control Connector ................. 20
S
Spare Parts .......................................................... 42
Specifications
Electrical.......................................................... 41
Environmental and Safety................................ 41
Mechanical ...................................................... 41
T
Troubleshooting.................................................... 36
