Anker Technology A7912 Bluetooth Speaker User Manual
Anker Technology Co., Limited Bluetooth Speaker
User Manual
Outdoor Bluetooth Speaker
Package Contents
Anker Outdoor Bluetooth Speaker
1ft Micro USB charging cable
Metal hook
Travel pouch
Welcome Guide
Product Features
●Enjoy music when hiking, rafting, at the poolside, in the shower and more with this
splashproof outdoor speaker.
●10 hour non-stop play time lets you listen to your music through the day.
●Connects automatically to the last connected Bluetooth device whenever powered on.
●Bluetooth 4.0 enables high definition audio, backward compatible with all Bluetooth
versions.
●Micro SD card reader lets you play your music without using your phone.
●Previous / Next Song, Volume, and Play / Pause buttons provide device-free control.
Specifications
Model A7912
Bluetooth Standard 4.0
Waterproof Level IPX 4
Product Weight 263g / 9.3oz
Product Size 181.0 × 41.6 × 41.6mm / 7.1 × 1.6 ×
1.6in
Play Time 10 hours
Charge Time 3 hours
Input 5V / 500mA
Operating Range 10m / 33ft
Speaker Output Power 1.5W × 2
Supported Bluetooth
Profiles
HSP, HFP, A2DP, AVRCP

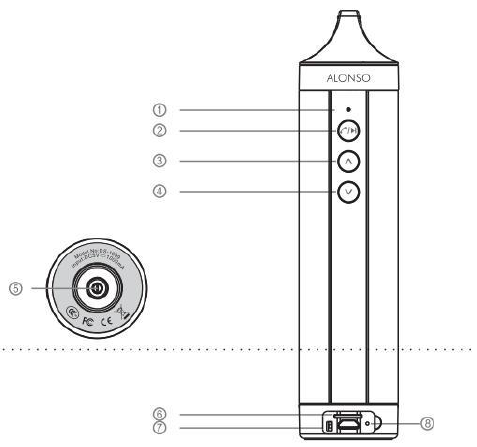

Product Overview
1. Status Indicator
2. Play / Pause
3. Volume Up / Next Song
4. Volume Down / Previous Song
5. Power / Function Button
6. Micro SD Card Slot
7. Micro USB Charging Port
8. Battery Indicator
HowtoPairwithYourDevice
1. Press the power button for 3 seconds. The speaker will turn on and automatically enter
pairing mode indicated by the flashing blue LED.
2. Activate your device’s Bluetooth function and search for the device.
3. Once the Bluetooth speaker has been detected, select the product name “Anker A7912” to
connect. (For devices with Bluetooth versions earlier than 3.0, press “Yes” to confirm pairing.
Enter a passkey or PIN code “0000” (4 zeros), then press the “Yes” or “OK” key to finish
pairing.)
4. When the Bluetooth speaker and your device are successfully paired, the blue LED will go
on and remain on while connected.
When turning on the speaker, it will automatically connect to the last connected device as
long as Bluetooth is still enabled. Before pairing with another device, disable the Bluetooth
function on the previous device and the speaker will automatically return to pairing mode.
Note: To switch to SD card mode, simply insert your Micro SD card when in
standby or Bluetooth mode. The speaker enters Bluetooth mode by default when
turning on the speaker or when a Micro SD card is not inserted.
Button Functions
Functions Button
Turn the Speaker On /
Off
Hold Power Button
Answer / End a Call Press Play / Pause
Reject a Call Hold Play / Pause for 2 seconds.
Turn Volume Up / Down Press “∧”or“∨”
Play Previous / Next
Song
Hold “∨”or“∧”
Delete Pairing Record Hold “∨”and“∧”for2seconds
Switch to SD Card Mode Hold Play / Pause for 3 seconds.
HowtoRechargeYourSpeaker
When the battery is low, the speaker will beep once and the red indicator will flash for about
10 minutes.
1. Plug the Micro USB cable into the speaker’s Micro USB charging port.
2. Insert the remaining end of the USB charging cable into (a) a USB AC adapter (not included)
connected to a wall socket, or (b) a charging computer USB port. A steady red battery
indicator will show that it is charging.
3. When fully charged, the red battery indicator will go off.
LED Indicators
Indicator Status
Bluetooth Indicator
Flashing blue In pairing mode
Blue Connected to a device
Flashing red Low battery
Off Micro SD Card mode
Battery Indicator
Red Charging
Off Fully charged
Usage Tips
1. Power off the speaker when not in use and before storing.
2. The operational range of the speakers may be influenced by obstructions such as walls and
pillars. To ensure a stable connection, we recommend avoiding such obstructions whenever
possible and/or shortening the distance during use.
3. To protect the long term performance of the battery, avoid placing the speaker in
temperatures exceeding 140°F/60°C such as in a hot vehicle or under direct sunlight.
4. Do not submerge the speaker in water or other liquids. It can resist splashes from all directions
up to IPX level
FAQ and Solutions
1. What should I do if the speaker doesn’t connect to my device?
Check to ensure your device’s Bluetooth function is enabled and is within 3ft/1m of the
speaker.
Delete the pairing record(s) on the speaker or your device and try again.
2. Can I use the speaker to play music while charging?
To protect the long-term performance of the battery, it is better to charge while the speaker
is turned off, especially when the battery is low.
3. What should I do if the speaker disconnects from my device?
Try turning off the speaker, and pair with your device again.
FCC Statement :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
