1 INTRODUCTION
1.1 PURPOSE
This manual discusses the purpose and usage of the Asset Tag (AGT-100D).
1.2 TECHNICAL DETAIL
Please refer to Technical Manual.pdf for a more detailed description of
the AGT-100D
1.3 REVISION HISTORY
The revision history for this manual is shown in Table 1.1.
Table 1.1: Revision History
Version Date Description
v 01 Feb 2006 Initial Release – applicable AGT-100D
v 03 Mar 2006 Minor Editing Done
V 1.0 Apr 2006 Minor Editing Done
V 1.1 Jul 2006 Added Alert Feature
V 1.2 Jul 2006 FCC Warning Statement Included
V 1.3 Jul 2006 Added description on how to start alert
feature
All Rights Reserved. 5/16
Asset Tag Users Manual (AGT-100D)
2 PHYSICAL CONTENTS

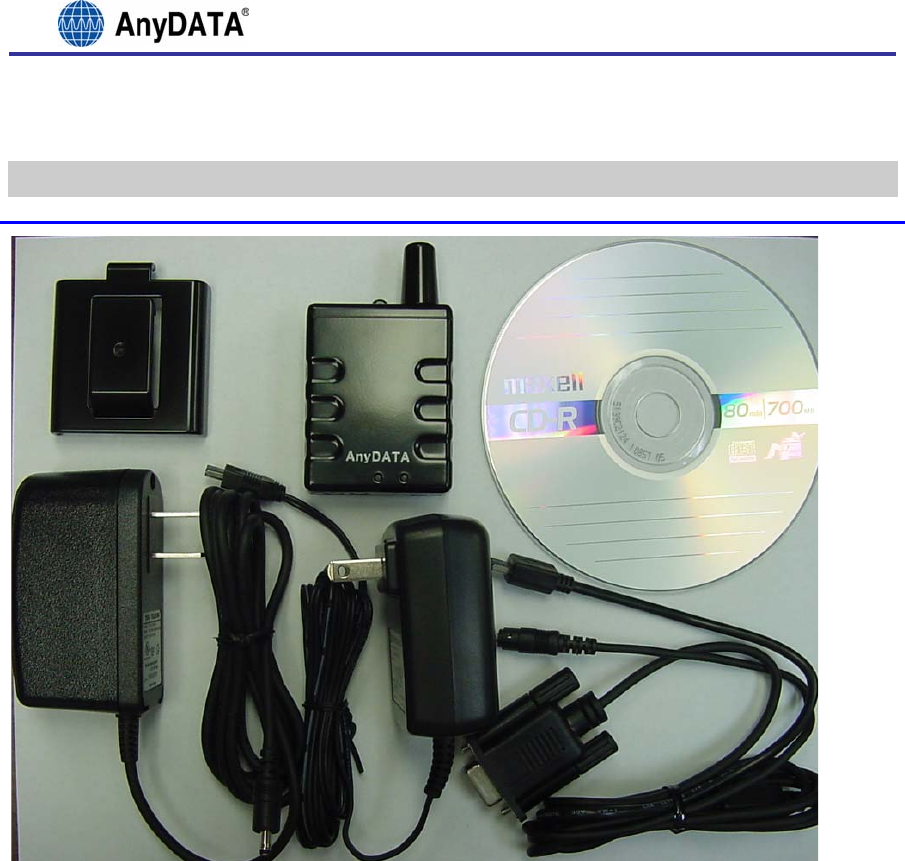

Figure 2.1: Package Contents
The box should contain:
One AGT-100D Asset Tag
One ATG-100D Belt Clip
One RS-232C Cable w/ Power Adaptor connecter
One Power Adaptor
One Wall Charger
One Application/Manual CD
If any of items on Figure 1.1 are missing, please contact AnyDATA.
All Rights Reserved. 6/16
Asset Tag Users Manual (AGT-100D)
Power
GEO Fence Set / CDMA Status
External Battery
Custom RS-232C

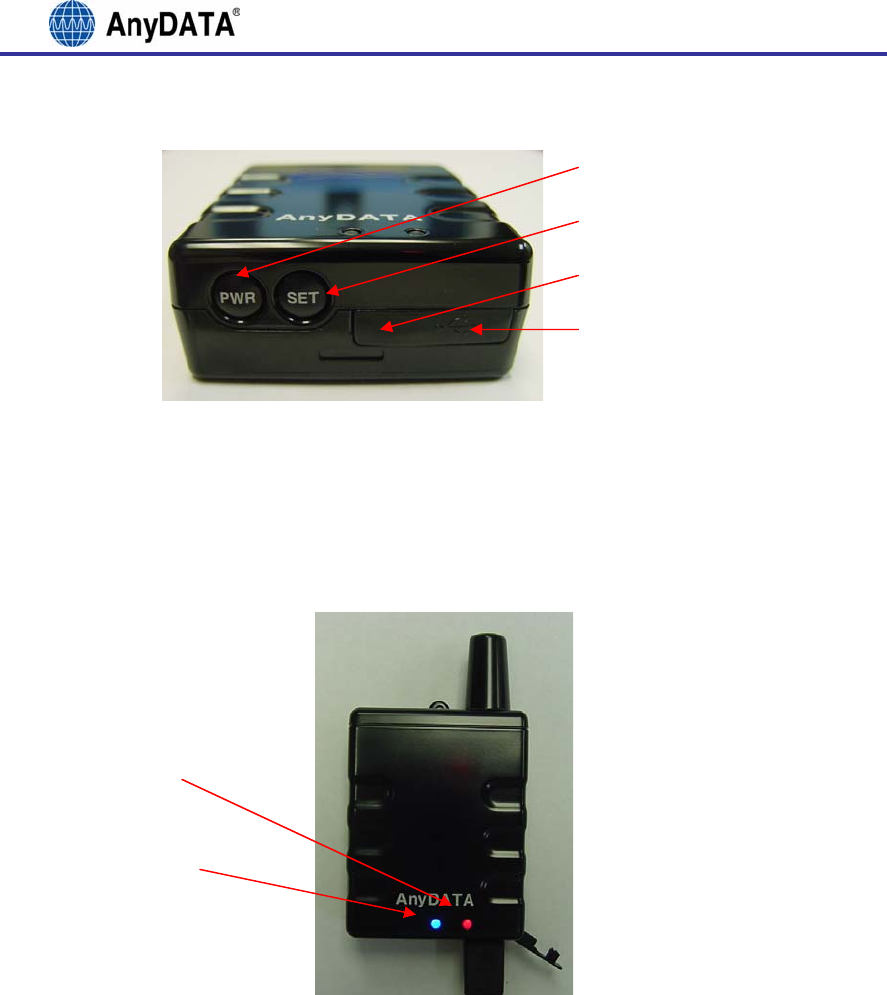

Figure 2.2: External Interface
GEO Fence /
CDMA Status Led
Power Led
Figure 2.3: LEDs
All Rights Reserved. 7/16
Asset Tag Users Manual (AGT-100D)
3 DESCRIPTION: ASSET TAG
The Asset Tag is a CDMA position reporting device that will let you keep
track of your most important assets. By using the following features, the
device can be used to track packages, people, and even pets.
Continuous Tracking – This application will allow you to keep a
close watch on your important asset. The device will connected to a web-
based application and provide you up to date information on its current
position.
Interval Tracking – This application will allow you to keep a
watch on your important asset. By setting a specific interval, the device
can be set to report to a web-based application to provide you
information on the location of your asset.
Geo Fence – A Geo Fence is an invisible perimeter set to a
specified origin by specifying the latitude and longitude. When activated,
the AGT-100D will check its current position on a specified interval time
period, changeable through the server. If the position returned is
outside of the Geo Fence radius, the AGT-100D will alert the server with
the Crossed Geo Fence Index and the current position of the device. If
the AGT-100D crosses back into the Geo Fence, it will send one more alert
with the current position of the device.
Currently, the AGT-100D is capable of supporting up to 3 different Geo
Fences. All 3 Geo Fences can be active at one time. Each Geo Fence can be
configured using a server designed to interact with the AGT-100D
The AGT-100D can also be configured to allow the user to set a Geo Fence
using the SET button on the device (this feature will be determined by
All Rights Reserved. 8/16
Asset Tag Users Manual (AGT-100D)
the company supporting the device). When the user is allowed to set a Geo
Fence, the server will only have permission to configure the Interval
and/or Radius of the user-defined Geo Fence. Only the user can turn the
Geo Fence ON and OFF.
All Rights Reserved. 9/16
Asset Tag Users Manual (AGT-100D)
4 CHARGING THE ASSET TAG
4.1 RS-232C CABLE W/ POWER ADAPTOR CONNECTER
1. Connect the power adaptor to the RS-232C Cable (See Figure 4.1).
2. Connect the RS-232C Cable to the bottom of the Asset Tag (See
). Figure 4.2
Figure
4.2
3. Plug power adapter to an outlet (The RS-232C cable does not need to
be plugged in the computer for the Asset Tag to charge).
4. The Red LED should turn to indicate the Asset Tag is charging.
4.2 WALL CHARGER
1. Connect the wall charger to bottom of the Asset Tag (See
).
2. Plug charger to an outlet.
3. The Red LED should turn on to indicate the Asset Tag is charging.

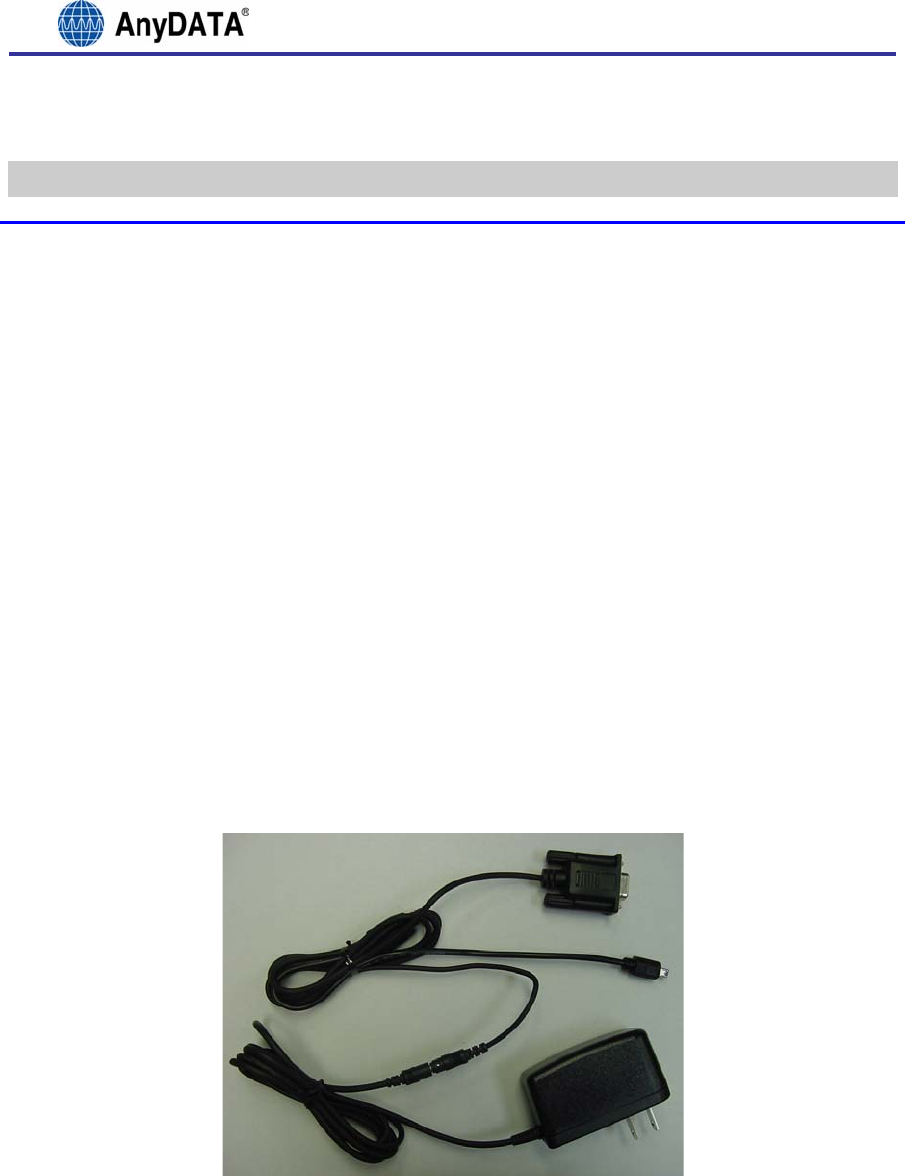

Figure 4.1: RS-232C Cable w/ Power Adaptor
All Rights Reserved. 10/16
Asset Tag Users Manual (AGT-100D)

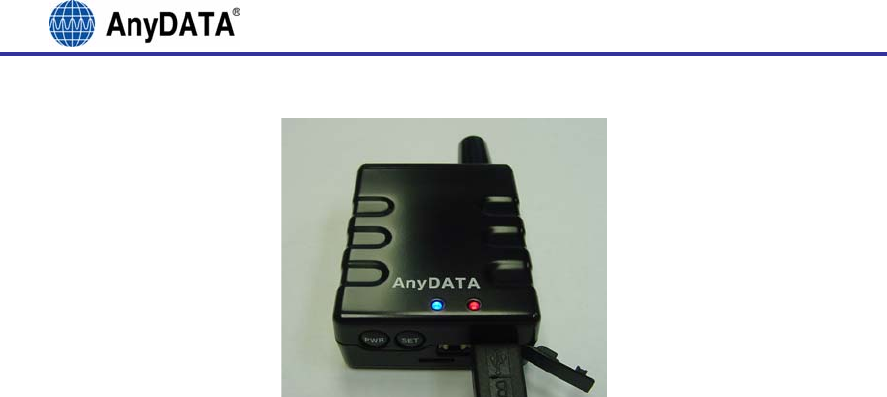

Figure 4.2: Asset Tag w/ External Power
All Rights Reserved. 11/16
Asset Tag Users Manual (AGT-100D)
5 POWERING ON/OFF THE ASSET TAG
5.1 POWERING ON
Press the PWR button to power up the Asset Tag. The Red LED will blink
once indicating the Asset Tag is powering up.
5.2 POWERING OFF
Press and hold the PWR button for approx. 2 seconds to power down the
Asset Tag. Both the Red LED and Blue LED will turn off during the power
down procedure. Both LEDs will turn off when the Asset Tag has powered
down.
5.3 RESETTING THE AGT-100D
In case the AGT-100D does not respond or appears to be locked up, the
unit may be forced to do a reset. On the back of the unit, there is a
small hole with the reset button inside. To reset, do the following:
1. Using a small pin, insert it into the hole (See Figure 5.1).
2. Press until a soft click it felt, hold for approximately 2 seconds.
3. The Red LED should turn on and then turn off when the phone is done
powering on.
All Rights Reserved. 12/16
Asset Tag Users Manual (AGT-100D)
Reset Hole

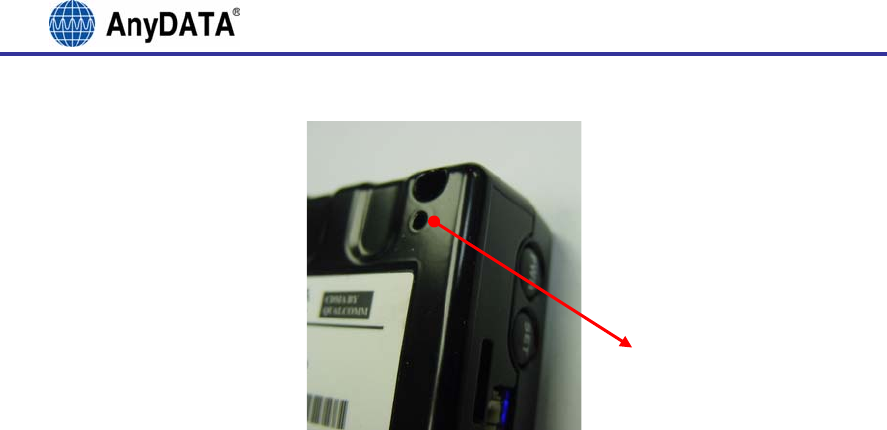

Figure 5.1: Reset Button
All Rights Reserved. 13/16
Asset Tag Users Manual (AGT-100D)
6 CHECKING THE ASSET TAG STATUS
To check the current status of the Asset Tag, press the SET button while
the device is turned on. Both LEDs will blink showing the current status
of the Asset Tag. Table 6.1 below describes the CDMA status, and Table
6.2 describes the Battery Status.
6.1 CDMA STATUS (RED LED)
Table 6.1: CDMA Status (Red LED)
# of blink Description
1 Idle
2 In use
3 No service / Offline
6.2 BATTERY STATUS (BLUE LED)
Table 6.2: Battery Status (Blue LED)
# of blink Description
1 Nearly empty
2 0 bar
3 1 bar
4 2 bar
5 3 bar
6 4 bar
6.3 EXTERNAL POWER STATUS (RED LED)
Red LED will always be ON while the Asset Tag is on external power.
Blue LED will turn ON when fully charged.
All Rights Reserved. 14/16
Asset Tag Users Manual (AGT-100D)
7 GEO FENCE ON/OFF (OPTIONAL)
GEO Fence #1 may be turned on and off by pressing and holding the set
button on the device.
NOTE: This feature will be enabled/disabled by the application provider.
7.1 SET GEO FENCE ON
Press and hold the SET button for approx 3 seconds. The GEO Fence LED
will blink continuously while it sets the origin. If the origin is set,
the LED will stay ON, if it fails, the led will turn OFF.
7.2 SET GEO FENCE OFF
Press and hold the SET button for approx 3 seconds. The GEO Fence LED
will stay turned OFF when the GEO Fence is off.
NOTE: The Radius and Interval will be set to the current setting. If no
Radius or Interval has been set, they well be set to the default values.
Radius = 100M, Interval = 5 Minutes. The Origin will be set to the
current location of the device. Please note the Origin can take up to 10
minutes to set depending in the environment the device is currently in.
All Rights Reserved. 15/16
Asset Tag Users Manual (AGT-100D)
8 ALERT MESSAGE (OPTIONAL)
This feature will send an alert message with the current position to the
application provider. To send the Alert Message, press the “Set” button 2
consecutive times (within 3 seconds). The device will then attempt to
obtain the current position and report it to the application provider.
When received, the application will do the appropriate processing.
NOTE: This feature will be enabled/disabled by the application provider.
All Rights Reserved. 16/16
