AnyDATA Corporation CDMA Development kit DTS-800 Service manual

Contents

Service manual

CDMA Development Kit
DTS-800 CDK
AnyDATA.NET Inc.
Hanvit Bank B/D 7F
Byulyang-dong Kwachon
KOREA
Tel) 82-2-504-3360
Fax) 82-2-504-3362
SERVICE MANUAL
Introduction
The CDMA development kit (CDK -800) is designed for the test and simulation of the CDMA wireless data
communications. User can connect the development kit to your PC or Notebook and easily test the wireless
communications. User can use this to develop your applications software even before user’s own hardware is
ready. It also can be used as a debugging during user’s hardware test.
Disclaimer and Limitation of Liability
AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its products.
AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which may arise through the
use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage or loss caused by the deletion
or loss of data as a result of malfunctions or repairs.
The information disclosed herein is the exclusive property of AnyDATA.NET Inc. and no part of this publication
may be reproduced or transmitted in any form or by any means including electronic storage, reproduction,
adaptation , translation , execution or transmission without the prior written consent of AnyDATA.NET Inc.
The information contained in this document is subject to change without notice.
FCC RF Exposure Information
Warning! Read this information before using this device.
In August 1996 the Federal Communications
Commission (FCC) of the United States with its action in Report and Order FCC 96-326
adopted an updated safety standard for human exposure to radio frequency electromagnetic
energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety
standard previously set by both U.S. and international standards bodies. The design of this
device complies with the FCC guidelines and these international standards.
CAUTION
! Operating Requirements
The user can not make any changes or modifications not expressly approved by the party responsible for
compliance, otherwise it could void the user's authority to operate the equipment.
To satisfy FCC RF exposure compliance requirements for a mobile transmitting device, this device and
its antenna should generally maintain a separation distance of 20cm or more from a person’s body.
Special accessories
In order to ensure this device in compliance with FCC regulation, the special accessories are provided with this
device and must be used with the device only. The user is not allowed to use any other accessories than the special
accessories given with this device
Table of Contents
General Introduction
.......................................................................................................................................... 2
CHAPTER 1. System Introduction
1. System Introduction ......................................................................................................... 3
2. Features and Advantages of CDMA Module .................................................................. 4
3. Structure and Functions of CDMA Module ..................................................................... 7
4. Specification ..................................................................................................................... 8
CHAPTER 2. NAM Input Method(Inputting of telephone numbers included)
1. NAM Programming Method and Telephone Number Input Method ..............................11
CHAPTER 3. Circuit Description
1. Overview.......................................................................................................................... 14
2. RF Transmit/Receive Part .............................................................................................. 14
3. Digital/Voice Processing Part ...................................................................…….. 17
CHAPTER 4. FCC Notice
Appendix
........................................................................................................................................ 22

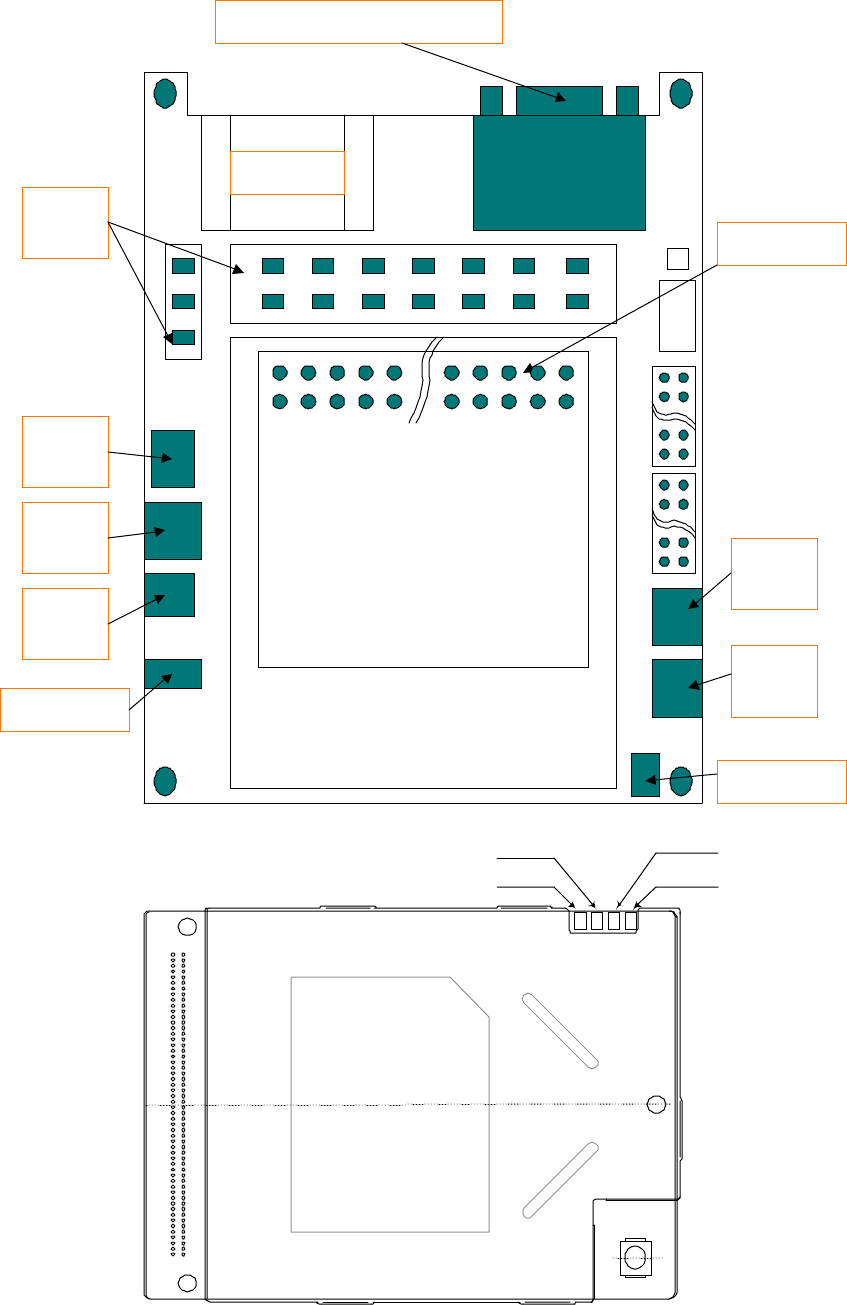

1. Assembly and Disassembly Diagram

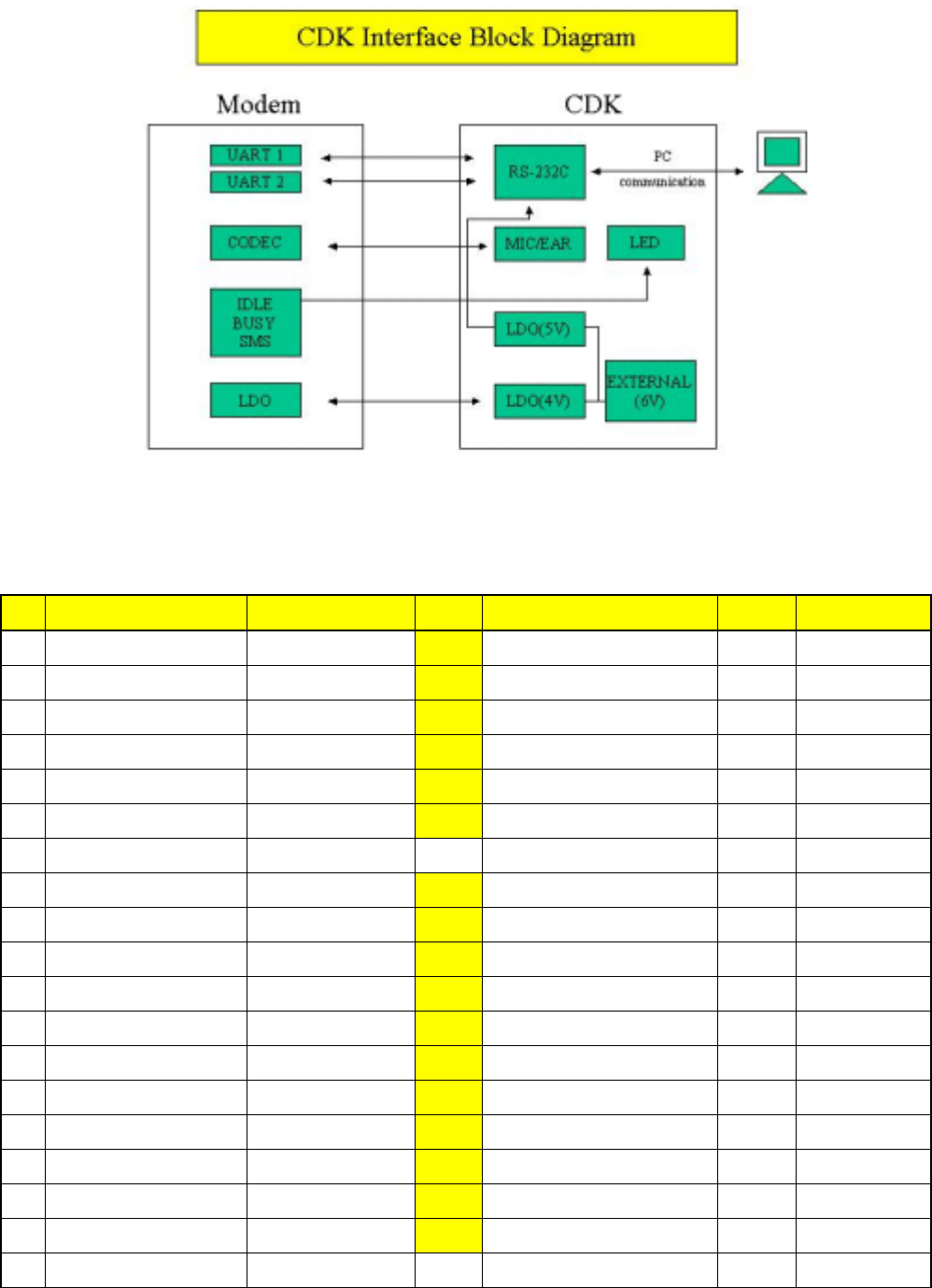

2. Block & Circuit Diagram
3. Part List
4. Component Layout
The DTS-800 CDK functions digital cellular module worked in CDMA (Code Division Multiple
Access) mode. CDMA type digital mode applies DSSS (Direct Sequence Spread Spectrum) mode
which is used in military.
This feature enables the phone to keep communication from being crossed and use one frequency
channel by multiple users in the same specific area, resulting that it increases the capacity 10 times
more compared with that in the analog mode currently used.
Soft/Softer Handoff, Hard Handoff, and Dynamic RF power Control technologies are combined into
this phone to reduce the call being interrupted in a middle of talking over phone.
CDMA digital cellular network consists of MSC (Mobile Switching Office), BSC (Base Station
Controller), BTS (Base station Transmission System), and MS (Mobile Station). Communication
between MS and BTS is designed to meet the specification of IS-95A (Common Air Interface). MS
meets the specifications of the below :
- IS-95A ( Common Air Interface ) : Protocol between MS and BTS
- IS-96A ( Vocoder ) : Voice signal coding
- IS-98 : Basic MS functions
- IS-126 : Voice loopback
- IS-99 : Short Message Service, Async Data Service, and G3 Fax Service
DTS-800 CDK is
digital mode is designed to be operated in full duplex.
General Introduction
DTS-800
1. System Introduction
1.1 CDMA Abstract
The cellular system has a channel hand-off function that is used for collecting the information on the locations and movements of
radio mobile telephones from the cell site by automatically controlling several cell site through the setup of data transmission
routes and thus, enabling one switching system to carry out the automatic remote adjustment. This is to maintain continuously the
call state through the automatic location confirmation and automatic radio channel conversion when the busy subscriber moves
from the service area of one cell site to that of another by using automatic location confirmation and automatic radio channel
conversion functions. The call state can be maintained continuously by the information exchange between switching systems when
the busy subscriber moves from one cellular system area to the other cellular system area.
In the cellular system, the cell site is a small-sized low output type and utilizes a frequency allocation system that considers
mutual interference, in an effort to enable the re-use of corresponding frequency from a cell site separated more than a certain
distance. The analog cellular systems are classified further into an AMPS system, E-AMPS System, NMT system, ETACS
system, and JTACS system depending on technologies used.
Unlike the time division multiple access (TDMA) or frequency division multiple access (FDMA) used in the band limited
environment, the Code Division Multiple Access(CDMA) system which is one of digital cellular systems is a multi-access
technology under the interference limited environment. It can process more number of subscribers compared to other systems
(TDMA system has the processing capacity three times greater than the existing FDMA system whereas CDMA system, about
12~15 times of that of the existing system).
CDMA system can be explained as follows: TDMA or SDMA can be used to enable each person to talk alternately or provide a
separate room for each person when two persons desire to talk with each other at the same time, whereas FDMA can be used to
enable one person to talk in soprano, whereas the other in bass (one of the two talkers can carry out synchronization for hearing
in case there is a bandpass filter function in the area of the hearer).
Another method available is to make two persons to sing in different languages at the same time, space, and frequency when
wishing to let the audience hear the singing without being confused. This is the characteristics of CDMA.
On the other hand, when employing the CDMA technology, each signal has a different pseudo-random binary sequence used to
spread the spectrum of carrier. A great number of CDMA signals share the same frequency spectrum. In the perspective of
frequency area or time area, several CDMA signals are overlapped. Among these types of signals, only desired signal energy is
selected and received through the use of pre-determined binary sequence; desired signals can be separated and then, received
with the correlator used for recovering the spectrum into its original state. At this time, the spectrums of other signals that have
different codes are not recovered into its original state and instead, processed as noise and appears as the self-interference of the
system.
CHAPTER 1. System Introduction
2. Features and Advantages of CDMA Module
2.1 Various Types of Diversities
In the CDMA broadband modulation(1.25MHz band), three types of diversities (time, frequency, and space) are used to reduce
serious fading problems generated from radio channels in order to obtain high-quality calls.
Time diversity can be obtained through the use of code interleaving and error correction code whereas frequency diversity can
be obtained by spreading signal energy to more wider frequency band. The fading related to normal frequency can affect the
normal 200~300kHz among signal bands and accordingly, serious affect can be avoided. Moreover, space diversity (also called
path diversity) can be realized with the following three types of methods.
First, it can be obtained by the duplication of cell site receive antenna. Second, it can be obtained through the use of multi-signal
processing device that receives a transmit signal having each different transmission delay time and then, combines them. Third, it
can be obtained through the multiple cell site connection (Soft Handoff) that connects the mobile station and more than two cell
sites at the same time.
2.2 Power Control
The CDMA system utilizes the forward (from a base station to mobile stations) and backward (from the mobile station to the
base station) power control in order to increase the call processing capacity and obtain high-quality calls. In case the originating
signals of mobile stations are received by the cell site in the minimum call quality level (signal to interference) through the use of
transmit power control on all the mobile stations, the system capacity can be maximized.
If the signal of mobile station is received too strong, the performance of that mobile station is improved. However, because of
this, the interference on other mobile stations using the same channel is increased and accordingly, the call quality of other
subscribers is reduced unless the maximum accommodation capacity is reduced.
In the CDMA system, forward power control, backward open loop power control, and closed loop power control methods are
used. The forward power control is carried out in the cell site to reduce the transmit power on mobile stations less affected by
the multi-path fading and shadow phenomenon and the interference of other cell sites when the mobile station is not engaged in
the call or is relatively nearer to the corresponding cell site. This is also used to provide additional power to mobile stations
having high call error rates, located in bad reception areas or far away from the cell site.
The backward open loop power control is carried out in a corresponding mobile station; the mobile station measures power
received from the cell site and then, reversely increases/decreases transmit power in order to compensate channel changes
caused by the forward link path loss and terrain characteristics in relation to the mobile station in the cell site. By doing so, all
the mobile office transmit signals in the cells are received by the cell site in the same strength.
Moreover, the backward closed loop power control used by the mobile station to control power with the commands issued out
by the cell site. The cell site receives the signal of each corresponding mobile station and compares this with the pre-set
threshold value and then, issues out power increase/decrease commands to the corresponding mobile station every 1.25 msec
(800 times per second).
By doing so, the gain tolerance and the different radio propagation loss on the forward/backward link are complemented.
2.3 Voice Encoder and Variable Data Speed
The bi-directional voice service having variable data speed provides voice communication which employs voice encoder
algorithm having power variable data rate between the mobile telephone cell site and mobile station. On the other hand, the
transmit voice encoder performs voice sampling and then, creates encoded voice packets to be sent out to the receive voice
encoder, whereas the receive voice encoder demodulates the received voice packets into voice samples.
One of the two voice encoders described in the above is selected for use depending on inputted automatic conditions and
message/data; both of them utilize four-stage frames of 9600, 4800, 2400, and 1200 bits per second. In addition, this type of
variable voice encoder utilizes adaptive threshold values when selecting required data rate. It is adjusted in accordance with the
size of background noise and the data rate is increased to high rate only when the voice of caller is inputted.
Therefore, background noise is suppressed and high-quality voice transmission is possible under the environment experiencing
serious noise. In addition, in case the caller does not talk, data transmission rate is reduced so that the transmission is carried out
in low energy. This will reduce the interference on other CDMA signals and as a result, improve system performance (capacity,
increased by about two times).
2.4 Protecting Call Confidentiality
CDMA signals have the function of effectively protecting call confidentiality by spreading and interleaving call information in
broad bandwidth. This makes the unauthorized use of crosstalk, search receiver, and radio very hard substantially. Also included
is the encryption function on various authentication and calls specified in IS-95 for the double protection of call confidentiality.
2.5 Soft Handoff
During the soft hand, the cell site already in the busy state and the cell site to be engaged in the call later participate in the call
conversion. The call conversion is carried out through the original call connection cell site, both cell sites, and then, new cell
site. This method can minimize call disconnection and prevent the user from detecting the hand-off.
2.6 Frequency Re-Use and Sector Segmentation
Unlike the existing analog cellular system, the CDMA system can reuse the same frequency at the adjacent cell and accordingly,
there is no need to prepare a separate frequency plan. Total interference generated on mobile station signals received from the
cell site is the sum of interference generated from other mobile stations in the same cell site and interference generated from the
mobile station of adjacent cell site. That is, each mobile station signal generates interference in relation to the signals of all the
other mobile signals.
Total interference from all the adjacent cell sites is the ratio of interference from all the cell sites versus total interference from
other mobile stations in the same cell site (about 65%). In the case of directional cell site, one cell normally uses a 120°sector
antenna in order to divide the sector into three. In this case, each antenna is used only for 1/3 of mobile stations in the cell site
and accordingly, interference is reduced by 1/3 on the average and the capacity that can be supported by the entire system is
increased by three times.
2.7 Soft Capacity
The subscriber capacity of CDMA system is flexible depending on the relation between the number of users and service classes.
For example, the system operator can increase the number of channels available for use during the busy hour despite the drop in
call quality. This type of function requires 40% of normal call channels in the standby mode during the handoff support, in an
effort to avoid call disconnection resulting from the lack of channels.
In addition, in the CDMA system, services and service charges are classified further into different classes so that more transmit
power can be allocated to high class service users for easier call set-up; they can also be given higher priority of using hand-off
function than the general users.
3. Structure and Functions of CDMA Module
The mobile station of CDMA system is made up of a radio frequency part and logic/control (digital) part. The mobile station is
fully compatible with the existing analog FM system. The mobile station antenna is connected with the transmitter/receiver via a
duplexer filter so that it can carry out the transmit/receive function at the same time.
The transmit frequency is the 25MHz band of 824~849MHz, whereas the receive frequency is the 25MHz band of 869~894MHz.
The transmit/receive frequency is separated by 45MHz. The RF signal from the antenna is converted into intermediate
frequency(IF) band by the frequency synthesizer and frequency down converter and then, passes the bandpass SAW filter having
the 1.25MHz band. IF output signals that have been filtered from spurious signal are converted into digital signals via an analog-
to-digital converters(ADC) and then, sent out respectively to 5 correlators in each CDMA de-modulator. Of these, one is called a
searcher whereas the remaining 4 are called data receiver(finger). Digitalized IF signals include a great number of call signals
that have been sent out by the adjacent cells. These signals are detected with pseudo-noise sequence (PN Sequence). Signal to
interference ratio (C/I) on signals that match the desired PN sequence are increased through this type of correlation detection
process. Then, other signals obtain processing gain by not increasing the ratio. The carrier wave of pilot channel from the cell
site most adjacently located is demodulated in order to obtain the sequence of encoded data symbols. During the operation with
one cell site, the searcher searches out multi-paths in accordance with terrain and building reflections. On three data receivers,
the most powerful four paths are allocated for the parallel tracing and receiving. Fading resistance can be improved a great deal
by obtaining the diversity combined output for de-modulation. Moreover, the searcher can be used to determine the most
powerful path from the cell sites even during the soft handoff during the two cell sites. Moreover, four data receivers are
allocated in order to carry out the de-modulation of these paths. Data output that has been demodulated change the data string in
the combined data row as in the case of original signals(deinterleaving), and then, are de-modulated by the forward error
correction decoder which uses the Viterbi algorithm.
On the other hand, mobile station user information sent out from the mobile station to the cell site pass through the digital voice
encoder via a mike. Then, they are encoded and forward errors are corrected through the use of convolution encoder. Then, the
order of code rows is changed in accordance with a certain regulation in order to remove any errors in the interleaver. Symbols
made through the above process are spread after being loaded onto PN carrier waves. At this time, PN sequence is selected by
each address designated in each call.
Signals that have been code spread as above are digital modulated (QPSK) and then, power controlled at the automatic gain
control amplifier (AGC Amp). Then, they are converted into RF band by the frequency synthesizer synchronizing these signals to
proper output frequencies.
Transmit signals obtained pass through the duplexer filter and then, are sent out to the cell site via the antenna.
4. Specification
4.1 General Specification
4.1.1 Transmit/Receive Frequency Interval : 45 MHz
4.1.2 Number of Channels (Channel Bandwidth)
CDMA : 20 CH (BW: 1.23MHz)
41.3 Operating Voltage : DC 6V
4.1.4 Operating Temperature : -30°
°°
° ~ +60°
°°
°
4.1.5 Frequency Stability : ±300 Hz
4.1.6 Antenna : Whip antenna, 50 Ω
ΩΩ
Ω
4.1.7 Size and Weight
1) Size : 102mm x 80mm x 36mm (L x W x D)
2) Weight : About 180g
4.1.8 Channel Spacing : 1.25MHz
4.2 Receive Specification
4.2.1 Frequency Range
Digital : 869.04 MHz ~ 893.97 MHz
4.2.2 Local Oscillating Frequency Range : 966.88MHz±12.5MHz
4.2.3 Intermediate Frequency : 85.38MHz
4.2.4 Sensitivity : -104dBm Under
4.2.5 Selectivity
CDMA : 3dB C/N Degration (With Fch±1.25 kHz : -30dBm)
4.2.6 Spurious Wave Suppression : Maximum of -80dB
4.2.7 CDMA Input Signal Range
•
••
• Dynamic area of more than -104~ -25dBm : 79dB at the 1.23MHz band.
4.3 Transmit Specification
4.3.1 Frequency Range
824.04 MHz ~ 848.97 MHz
4.3.2 Local Oscillating Frequency Range : 966.88 MHz±12.5 MHz
4.3.3 Intermediate Frequency : 130.38 MHz
4.3.4 Output Power : 0.32W
4.3.5 Interference Rejection
1) Single Tone : -30dBm at 900 kHz
2) Two Tone : -43dBm at 900 kHz & 1700kHz
4.3.7 CDMA TX Frequency Deviation : +300Hz or less
4.3.8 CDMA TX Conducted Spurious Emissions
•
••
• 900kHz : - 42 dBc/30kHz below
•
••
• 1.98MHz : - 54 dBc/30kHz below
4.3.9 CDMA Minimum TX Power Control : - 50dBm below
4.4 MS (Mobile Station) Transmitter Frequency
FA NO. CH.NO. CENTER FREQUENCY FA NO. CH.NO. CENTER FREQUENCY
1
2
3
4
5
6
7
8
9
10
1011
29
70
111
152
193
234
275
316
363
824.640 MHz
825.870 MHz
827.100 MHz
828.330 MHz
829.560 MHz
830.790 MHz
832.020 MHz
833.250 MHz
834.480 MHz
835.890 MHz
11
12
13
14
15
16
17
18
19
20
404
445
486
527
568
609
650
697
738
779
837.120 MHz
838.350 MHz
839.580 MHz
840.810 MHz
842.04 MHz
843.270 MHz
844.500 MHz
845.910 MHz
847.140 MHz
848.370 MHz
4.5 MS (Mobile Station) Receiver Frequency
FA NO. CH.NO. CENTER FREQUENCY FA NO. CH.NO. CENTER FREQUENCY
1
2
3
4
5
6
7
8
9
10
1011
29
70
111
152
193
234
275
316
363
869.640 MHz
870.870 MHz
872.100 MHz
873.330 MHz
874.560 MHz
875.790 MHz
877.020 MHz
878.250 MHz
879.480 MHz
880.890 MHz
11
12
13
14
15
16
17
18
19
20
404
445
486
527
568
609
650
697
738
779
882.120 MHz
883.350 MHz
884.580 MHz
885.810 MHz
887.04 MHz
888.270 MHz
889.500 MHz
890.910 MHz
892.140 MHz
893.370 MHz

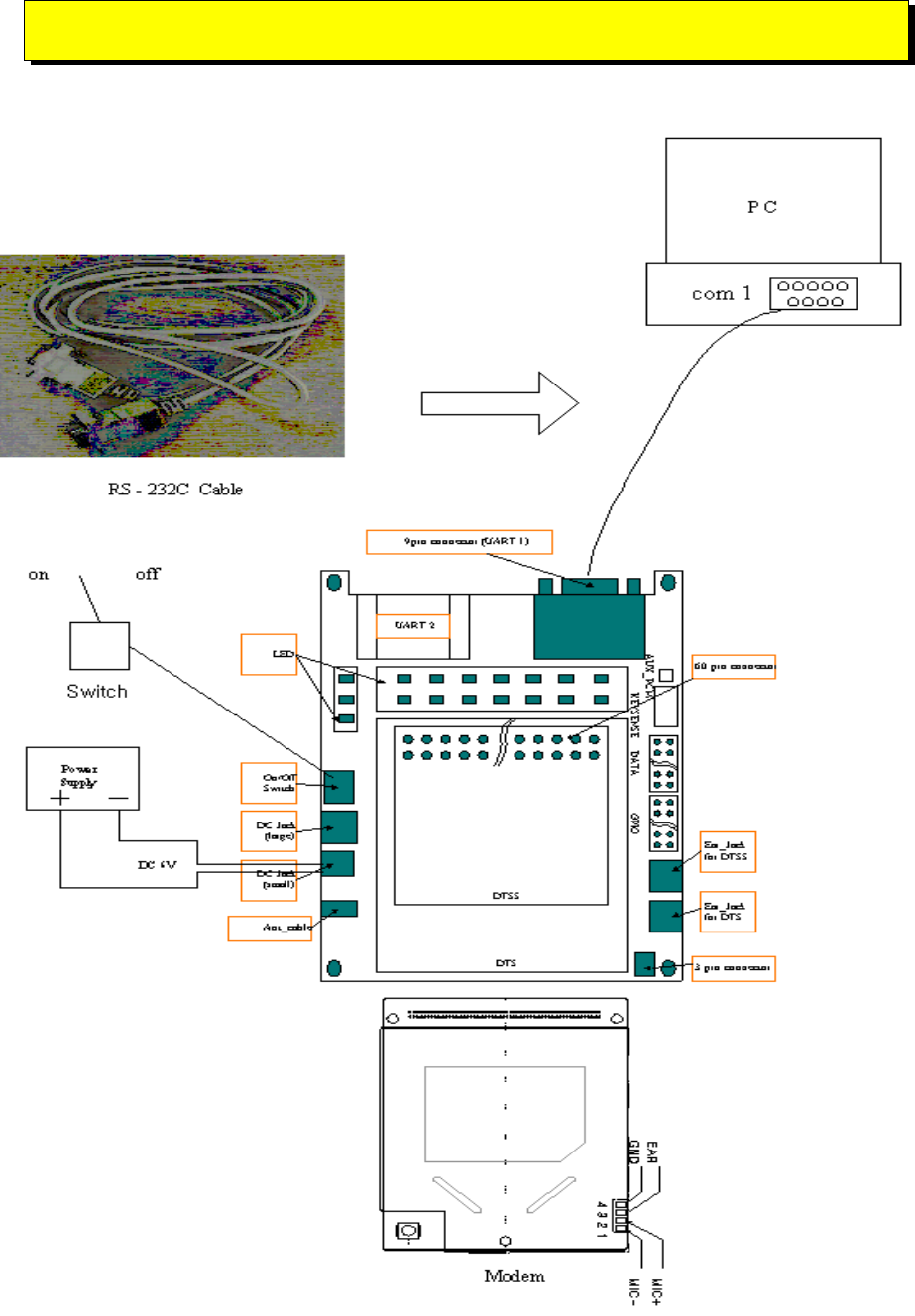

1.INSTALLATION METHOD
CHAPTER 2. NAM Input Method
1) Connect the MODEM to 60pin connector of Level Translator.
2) Supply the voltage of 5~7V to small or large jack of Level Translator.
3) Switch the power on.
4) Connect the UART1 to PC COM1 port with the RS-232C cable.
5) Install the operating program.

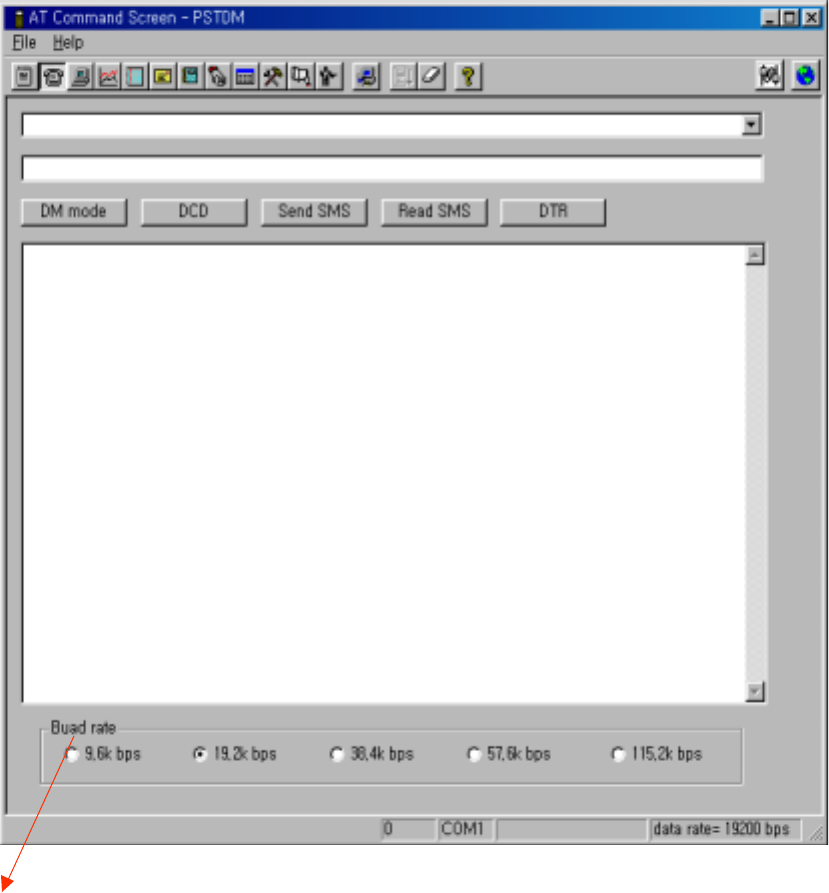

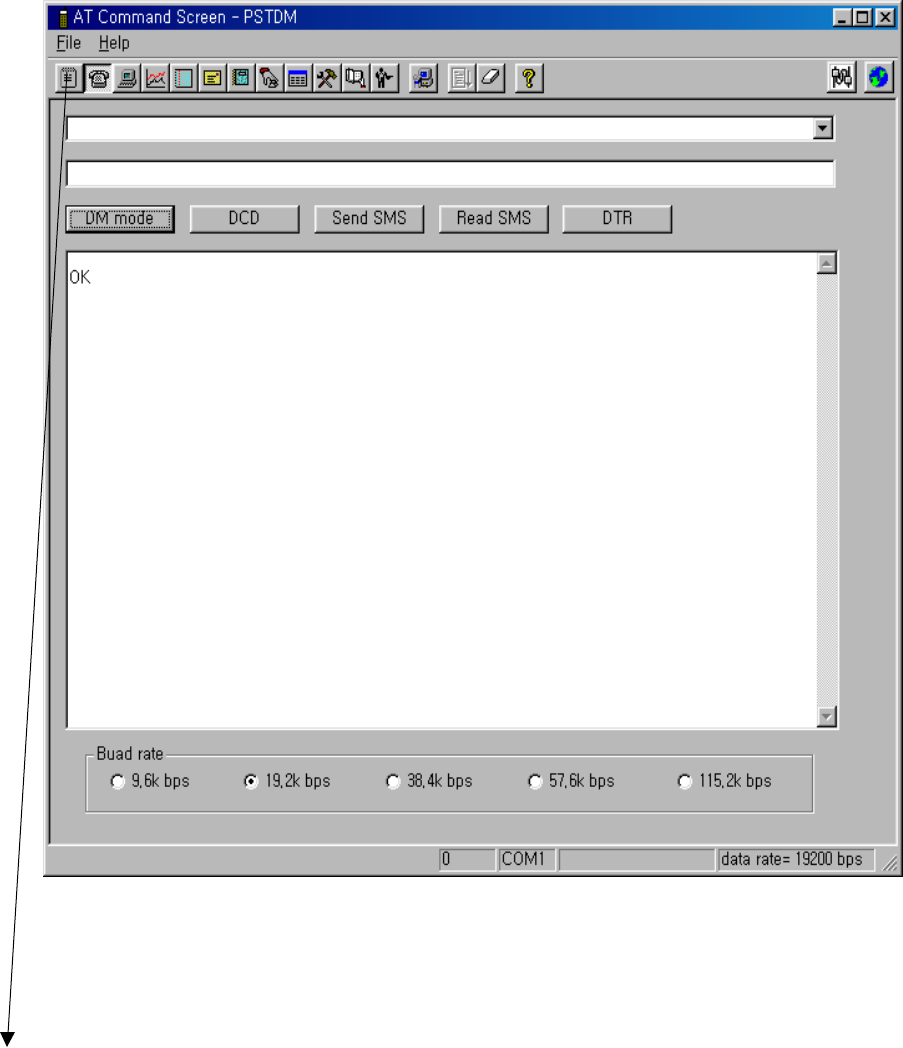

2. OPERATION METHOD
2) Set Buad rate to the modem’s.
3) Click [DM mode]
1) Run PSTDM program at Windows95 or Windows98
4) If OK is displayed in the message box, modem is now ready for
ommunication with PC.
A

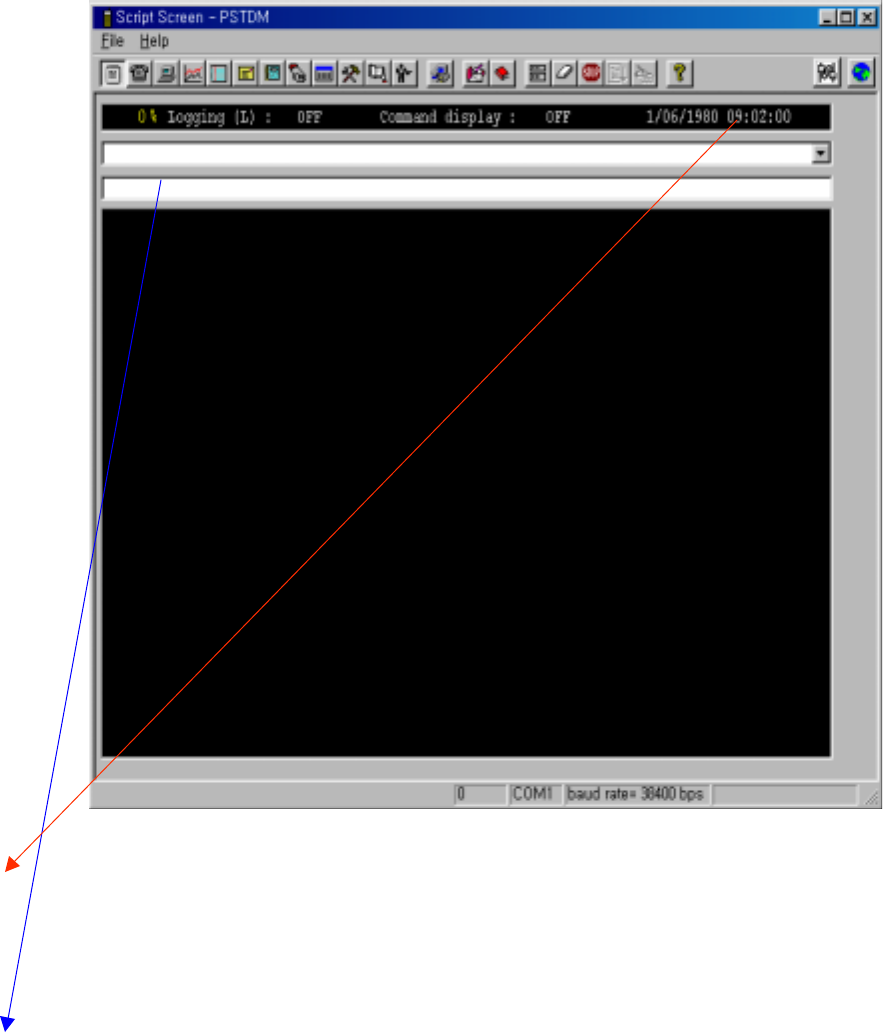

6) As shown in the picture above, service file input plane will be displayed
(See if clock is running. If it isn’t, communication with PC is not
activated.
Repeat step 1 through 5, or reset the power of modem and repeat step 1
through 5)
7) Type NAM Programming script like the example shown below,
<NAM Programming script example>
Mode offline-d [ENTER]
nv_write name_nam {0," AnyDATA telecom "} [ENTER]
nv_write name_nam {1," AnyDATA telecom "} [ENTER]
Mode reset [ENTER]
SCRIPTINPUT WINDOW
1. Overview
IRT3000 receives modulated digital signals from the MSM of the digital circuit and then, changes them into analog
signals by the digital/analog converter (DAC, D/A Converter) in order to create baseband signals. Created baseband
signals are changed into IF signals by IFT3000 and then, fed into the Mixer after going through AGC. IF signals that
have been fed are mixed with the signals of VCO and changed into the RF signals and then, they are amplified at the
Power AMP. Finally, they are sent out to the cell site via the antenna after going through the isolator and duplexer.
2. RF Transmit / Receive Part
2.1 CDMA Transmit End
8 bit I and Q transmit signals are inputted into 2 DACs (DIGITAL-TO-ANALOG CONVERTER) from the output
terminal TX_IQDATA0 ~ TX_IQDATA7 of MSM through the input terminals TXD0~TXD7 of BBA. Transmit
signal input speed is two times of TXCLK+, TXCLK- which are two transmit/receive reference frequency.
Among transmit signals being inputted, signals are inputted into I signal DAC when the transmit clock is in the rise
edge, whereas signals are inputted into Q Signal DAC during the drop edge. I and Q transmit signals are
compensated and outputted at MSM in order to compensate the 1/2 clock time difference generated between
reference clocks. In the signals coming out from the output terminal of DAC, there are spurious frequency
ingredients resulting from DAC output transition edge and parasite ingredients, transmit clock frequencies and
harmonics which are unwanted signals. Accordingly, spurious ingredients are removed by passing the signals
through LPF of passband 6.30KHz. Unlike the receive end, the transmit end LPF requires no OFFSET adjustment.
Analog baseband signals that have passed the CDMA LPF are mixed with I and Q signals of frequency 130.38 MHz
(260.76 MHz created in the BBA internal VCO are divided by half into frequency 130.38MHz having the phase
difference of 90 degrees) in two mixers. The mixed signals are added again and converted into IF frequency 130.38
MHz ±630 KHz (CDMA Spread Power Density Modulated Signals) and then, outputted.
2.2. Tx IF/Baseband Processors, IFT3000 (U105)
The IFT3000 includes digital-to-analog converters(DAC) for converting digital baseband to analog baseband, low-
pass filters, a mixer for up-converting to IF and an 85 dB dynamic range Tx AGC amplifier. The IFT3000 includes
a fully programmable phase-locked loop(PLL) for generating Tx LO and IF frequencies. The IFT3000 also has an 8-
bit general purpose ADC with three selectable inputs for monitoring battery level, RF signal strength and phone
CHAPTER 3. Circuit Description
temperature.
2.3. Upconverter (U104)
Upconverters made up of a mixer part and Driver AMP part. The mixer part is used to receive
double-balanced OUT+ and OUT- of transmit AGC from baseband and mix the output of VCO (U171) with UHF
output signal, whereas the Amp part is used to buffer the output of this mixer. U105 has the operation range of
RF500MHz~1500MHz and has the conversion gain of 0 dB. In addition, the suppression of spurious signals which
are unwanted noise is about 30 dBc when being compared to RF output. The IF input signal range of the mixer is
DC~200MHz. The isolation on RF output terminal and LO signal input terminal at the IF input terminal is 30dB.
The range of LO signal that can be inputted is 300~1700MHz and power level is -6~0 dBm.
2.4. Transmit Bandpass Filter (F102, F103)
Transmit signals that have been converted from IF signals into RF signals after passing through the upconverter
U105 are inputted into the Power Amp U102 after passing once again through RF BPF F102 in order to filter out
noise signals amplified during the amplification of RF signals after going through upconverter(U105). This is carried
out in order to create power level inputted to the Power AMP via RF BPF F102. IL of two RF BPFs is 4dB as a
maximum, whereas the ripple in the passing band is 2dB(maximum). The degree of the suppression of transmit
signals on receive band is at least 20dB or greater. The maximum power that can be inputted is about 25dBm.
2.5. Power Amplifier (U102)
The power amplifier U102 that can be used in the CDMA and FM mode has linear amplification capability,
whereas in the FM mode, it has a high efficiency. For higher efficiency, it is made up of one MMIC (Monolithic
Microwave Integrated Circuit) for which RF input terminal and internal interface circuit are integrated onto one IC
after going through the AlGaAs/GaAs HBT (heterojunction bipolar transistor) process. The module of power
amplifier is made up of an output end interface circuit including this MMIC. The maximum power that can be
inputted through the input terminal is +17dBm and conversion gain is about 28dB. RF transmit signals that have
been amplified through the power amplifier are sent to the duplexer and then, sent out to the cell site through the
antenna in order to prevent any damages on circuits, that may be generated by output signals reflected from the
duplexer and re-inputted to the power amplifier output end.
2.6. Description of Frequency Synthesizer Circuit
2.6.1 Voltage Control Temperature Compensation Crystal Oscillator(U174, VCTCXO)
The temperature range that can be compensated by U174 which is the reference frequency generator of mobile
terminal is -30 ~ +80 degrees. U174 receives frequency tuning signals called TRK_LO_ADJ from MSM as
0.5V~2.5V DC via R and C filters in order to generate the reference frequency of 19.68MHz and input it into the
frequency synthesizer of UHF band. Frequency stability depending on temperature is ± 2.0 ppm.
2.6.2 UHF Band Frequency Synthesizer (U172)
Reference frequency that can be inputted to U172 is 3MHz~40MHz. It is the dual mode
frequency synthesizer (PLL) that can synthesize the frequencies of UHF band 50MHz~1200MHz and IF band
20MHz~300MHz. U172 that receives the reference frequency of 19.68MHz from U174 creates 30kHz comparison
frequency with the use of internal program and then, changes the frequency of 900MHz band inputted from X200
which is the voltage adjustment crystal oscillator into the comparison frequency of 30kHz at the prescaler in U172.
Then, two signal differences are calculated from the internal phase comparator. The calculated difference is
inputted to DC for adjusting the frequency of U174 through U172 No.2 PIN and external loop filter in order to
generate UHF signals. In addition, outputs of other PIN17 are inputted into BBA after going through the VRACTOR
diode and tank circuit so that the outputs of BBA internal receive end VCO are adjusted to 170.76MHz.
2.6.3 Voltage Control Crystal Oscillator (U171)
U171 that generates the LO frequency (900MHz) of mobile terminal receives the output voltage of PLL U172 and
then, generates the frequency of 954MHz at 0.7V and the frequency of 980MHz at 2.7V. The sensitivity on control
voltage is 23MHz/v and the output level is 1dBm(maximum). Since LO frequency signal is very important for the
sensitivity of mobile terminal, they must have good spurious characteristics. U174 is -70dBc(maximum).
3. Digital/Voice Processing Part
3.1 Overview
The digital/voice processing part processes the user's commands and processes all the digital and voice signal
processing in order to operate in the phone. The digital/voice processing part is made up of a receptacle part, voice
processing part, mobile station modem part, memory part, and power supply part.
3.2 Configuration
3.2.2 Voice Processing Part
The voice processing part is made up of an audio codec into digital voice signals and digital voice signals into
analog voice signals, amplifying part for amplifying the voice signals and sending them to the ear piece, amplifying
part that amplifies ringer signals coming out from MSM3000, and amplifying part that amplifies signals coming out
from MIC and transferring them to the audio processor.
3.2.3 MSM (Mobile Station Modem) Part
MSM is the core elements of CDMA terminal and carries out the functions of CPU, encoder, interleaver,
deinterleaver, Viterbi decoder, Mod/Demod, and vocoder.
3.2.4 Memory Part
The memory part is made up of a flash memory, SRAM for storing data, and EEPROM.
3.2.5 Power Supply Part
The power supply part is made up of circuits for generating various types of power, used for the digital/voice
processing part.
+4.2V from external DC (+6V) is fed into five regulators(U605,U603,U602,U604,U606).
The five regulators produces +3.0V for the IFR3000(U204) and for Tx Parts.
3.3 Circuit Description
Ringer
FLASH
Memory
&
SRAM
EEPROM
Receptacle
Power Supply
AUDIO
Processor
M
S
M
3
0
0
0
Earpiece
Mic

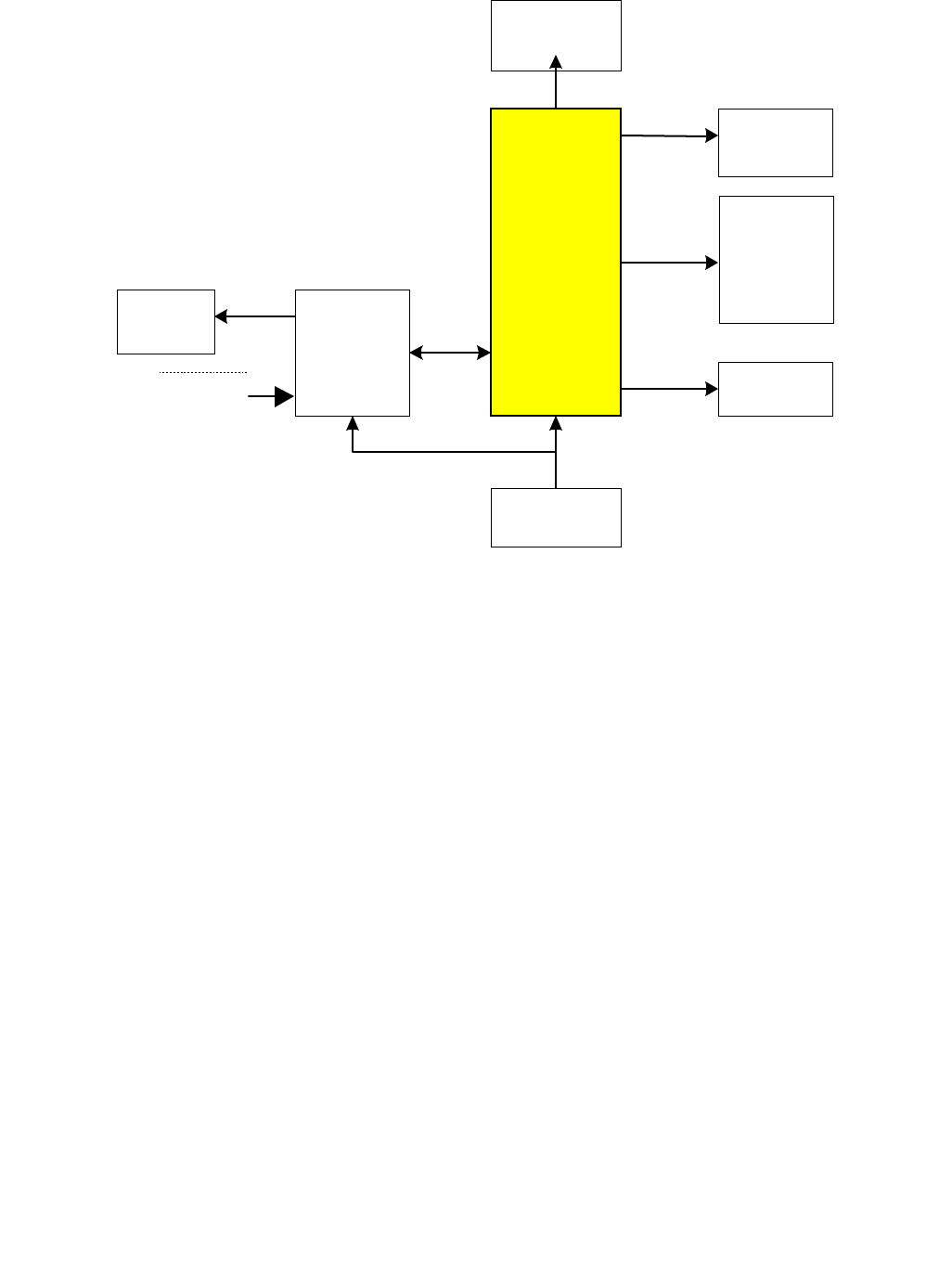

[Figure 3-1] Block Diagram of Digital/Voice Processing Part
3.3.2 Audio Processing Part
MIC signals are amplified through the audio codec which is U401 (TWL1103), and converted into digital signals.
Then, they are inputted into MSM3000. In addition, digital audio signals outputted from MSM3000 are converted
into analog signals after going through the audio codec to be amplified. and then transferred to the ear piece.
3.3.3 MSM Part
MSM3000, which is U301, is the core element of CDMA system terminal that includes ARM7TDMI
microprocessor core. It is made up of a CPU, encoder, interleaver, deinterleaver, Viterbi decoder, MOD/DEM, and
vocoder. MSM3000, when operated in the CDMA mode, utilizes CHIPX8 (9.8304MHz) as the reference clock that
is received from IFR3000, and uses TCXO (19.68MHz) that is received from U174. CPU controls the terminal
operation. Digital voice data that have been inputted are voice-encoded and variable-rated. Then, they are
convolutionally encoded so that error detection and correction are possible. Coded symbols are interleaved in order
to cope with multi-path fading. Each data channel is scrambled by the long code PN sequence of the user in order to
ensure the confidentiality of calls.
Moreover, binary quadrature codes are used based on Walsh functions in order to discern each channel.
Data created thus are 4-phase modulated by one pair of Pilot PN code and they are used to create I and Q data.
When received, I and Q data are demodulated into symbols by the demodulator and then, de-interleaved in reverse
to the case of transmission. Then, the errors of data received from Viterbi decoder are detected and corrected. They
are voice decoded at the vocoder in order to output digital voice data.
The MSM3000 has a improved feature not found on the MSM2300. The MSM3000 supports Enhanced Variable
Rate Coder (EVRC) operation in addition to the standard 8k and 13k vocoding rating.
3.3.4 Memory Part
Memory part consisit of Flash Memory,SRAM and EEPROM.
In the Flash Memory part included SRAM of U308 (8M x 2M bits), there are programs used for terminal operation.
The programs can be changed through down loading after the assembling of terminals. On the SRAM(2Mbits), data
generated during the terminal operation are stored temporarily. On EEPROM (128Kbits) which is U307, non-volatile
data such as unique numbers (ESN) of terminals are stored.
3.3.5 Power Supply Part
When the External DC (4.2V) is fed to the five regulators generated +3.0V. The generated voltages are used for
MSM3000, IFT3000,IFR3000, audio codec, and other LOGIC parts. PWR ASIC is operated by the control signal
SLEEP/ from MSM3000 and POWER_EN signal. Q606(DTC114EE) is turned on by ON_SW_SEN
SE/ and then, 'L' is outputted on ON_SW_SENSE/. MSM receives this signal and then, recognizes that the POWER
key has been pressed. During this time, MSM outputs PS_HOLD as 'H' and then, continues to activate D603 in
order to maintain power even if the PWR key is separated.
3.3.6 Logic Part
The Logic part consists of internal CPU of MSM, RAM, ROM and EEPROM. The MSM3000 receives TCXO
(=19.68Mz) from U7 and CHIPX8 clock signals from the IFR3000, and then controls the phone during the CDMA
and the FM mode. The major components are as follows:
CPU : ARM7TDMI core
FLASH MEMORY + SRAM: U308 (LRS13061)
• FLASH ROM : 8Mbits
• STATIC RAM : 2Mbits
EEPROM : U307 (X84129S161-2.5)
• 128Kbits EEPROM
CPU
ARM7TDMI CMOS type 16-bit microprocessor is used and CPU controls all the circuitry. For the CPU clock,
27MHz is used.
FLASH ROM and SRAM
Flash ROM is used to store the terminal’s program. Using the down-loading program, the program can be changed
even after the terminal is fully assembled.
SRAM is used to store the internal flag information, call processing data, and timer data.

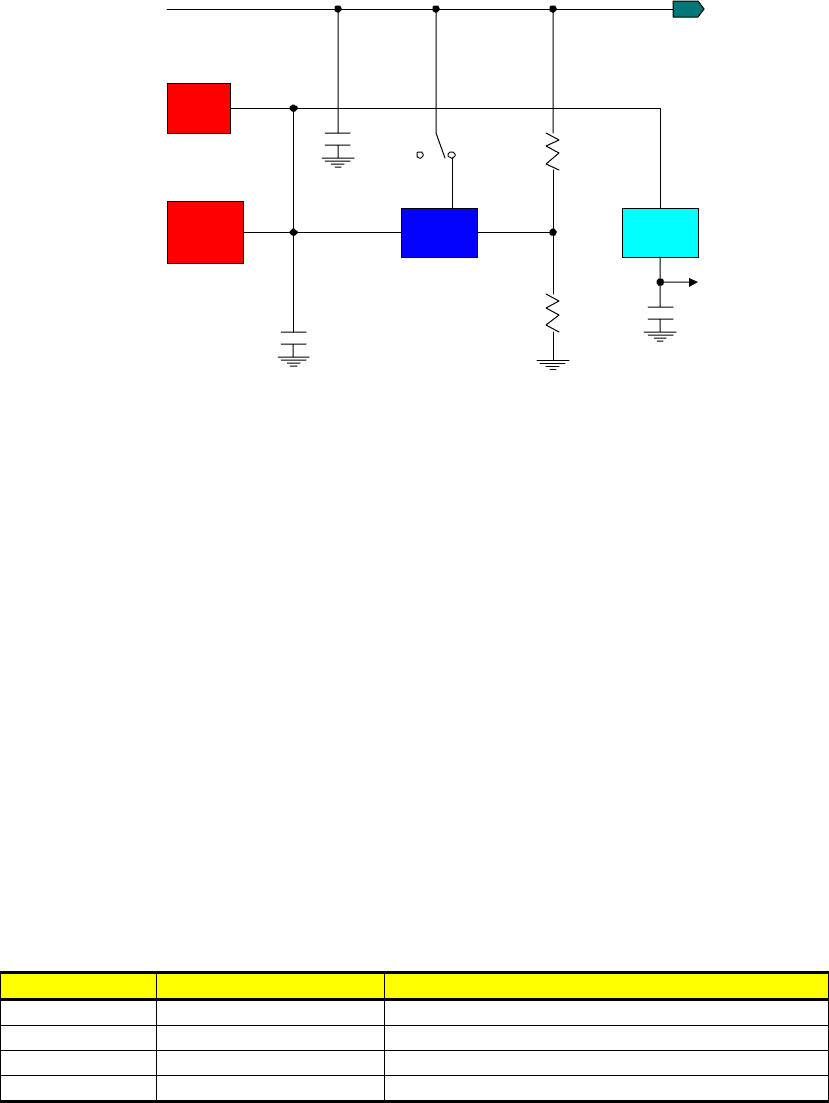

4. Level Translator Part
4.1 L/T supply power to Modem(4.2V).
DC/Jack
(small)
DC/Jack
(large)
Adjustable LDO
VEXT_DC
+4.2V
Fixed
LDO
+5V
max(207)
[Fig 4-1] The Block Diagram of Source (in brief)
4.2 UART Interface
The Universal Asynchronous Receiver Transmitter (UART) communicates with serial data that
conforms the RS-232 Interface protocol. The modem provides 3.0V CMOS level outputs and
3.0V CMOS switching input level. And all inputs have 5.0V tolerance but 3.0V or 3.3V CMOS
logic compatible signals are highly recommended.
All the control signals of the RS-232 signals are active low, but data signals of RXD, and TXD
are active high.
The UART has a 64byte transmit (TX) FIFO and a 64byte receive (RX) FIFO. The UART
Features hardware handshaking, programmable data sizes, programmable stop bits, and odd,
even, no parity. The UART operates at a 115.2kbps maximum bit rate.
4.2.1 UART Inter Pinouts
NAME DESCRIPTION CHARACTERISTIC
DP_DCD/ Data Carrier Detect Network connected from the modem
DP_RI/ Ring Indicator Output to host indicating coming call
DP_RTS/ Request to Send Ready for receive from host
DP_TXD Transmit Data Output data from the modem
NAME DESCRIPTION CHARACTERISTIC
DP_DTR/ Data Terminal Ready Host ready signal
DP_RXD Receive Data Input data to the modem
DP_CTS/ Clear to Send Modem output signal
GND Signal Ground Signal ground

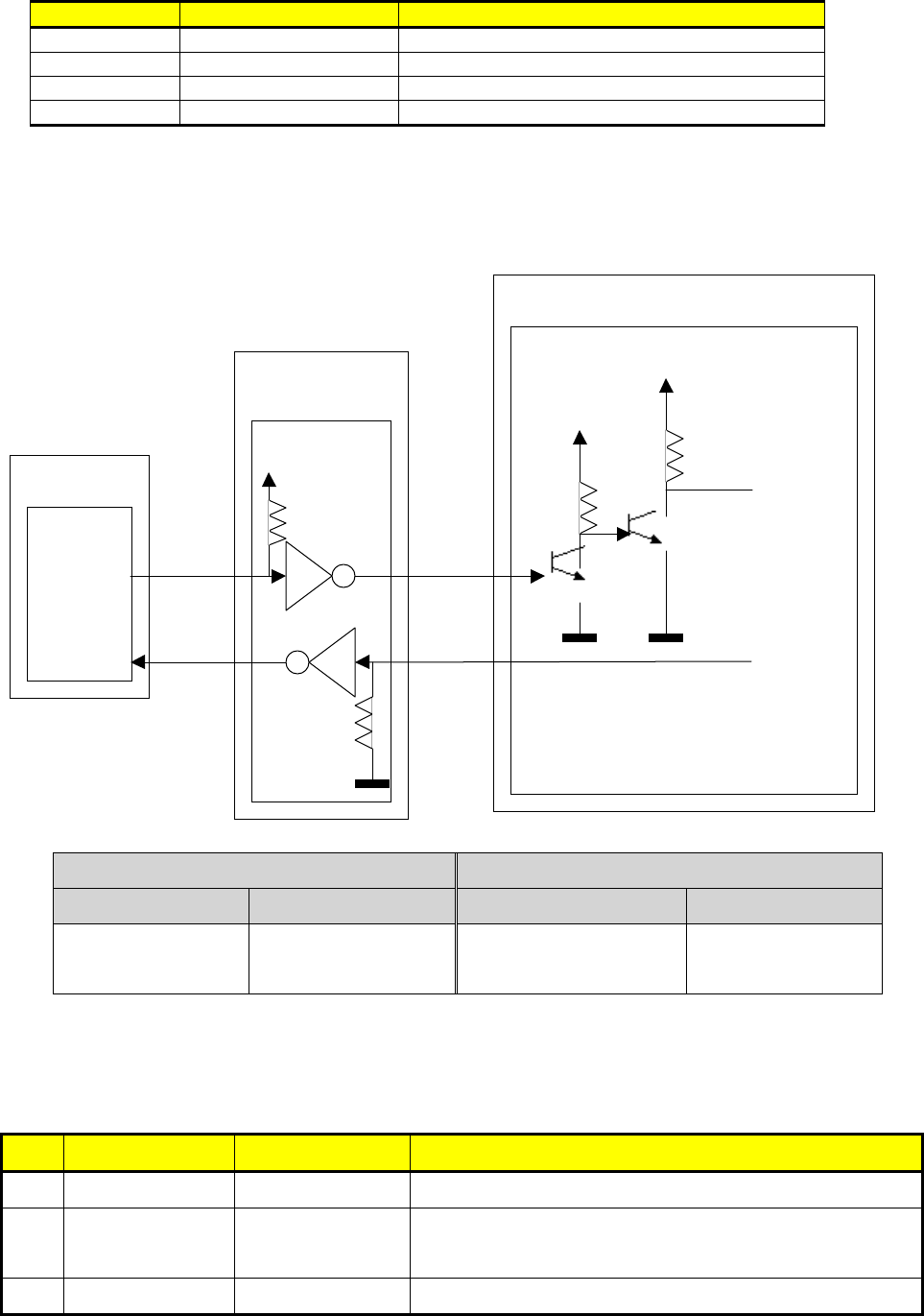

4.2.2 Signal level of RXD/TXD
RS232 PHONE
TX•
1RX•
2TX•
4RX•
3
VMAX = 7.68V
VMIN = -7.68V
VMAX = 6.00V
VMIN = -5.84V
VMAX = 3.00V
VMIN = 0V
VMAX = 4.88V
VMIN = 0V
[Figure 4-2] Signal Level of RXD, TXD
4.3 LED State Indication
Name Enable Description
1 D17(SMS) Low Shot Message Service
2 D1(BUSY) Low State that Data transmit and receive between DTE and
DCE
3 D2(IDLE) Low Stable State
PC
RS232
TX
RX
•
1 •
3
•
2 •
4
Phone
+3V
+3V
Vout = 2.8V
MSM_input
MSM_output
LT
MAXIM207
+5V
4.4 The function of Real Audio Test( including Voice Test)
NAME TYPE DESCRIPSION
MIC+ I Microphone audio input
MIC- IS Ear/microphone set detect
EAR O Ear audio output
GND_A Audio ground
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
! Reorient or relocate the receiving antenna.
! Increase the separation between the equipment and receiver.
! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
! Consult the dealer or an experienced radio/TV technician for help.
CHAPTER 4. FCC Notice
1. Assembly and Disassembly Diagram
2. Block & Circuit Diagram
3. Part List
4. Component Layout
APPENDIX
1. Assembly and Disassembly Diagram
UART 2
9pin connector (UART 1)
60 pin connector
Ear_Jack
for DTSS
Ear_Jack
for DTS
3 pin connector
DTS
DTSS
DC Jack
(small)
Ant_cable
DC Jack
(large)
On/Off
Switch
LED
GPIODATAKEYSENSE
AUX_PCM
MIC-
MIC+
GND
EAR
4 3 2 1
2. Block & Circuit Diagram
2.1. MODEM Block Diagram
2.2. CDK Block Diagram
3. Part List
3-1. MODEM Part List
NO COMPONENT NAME DESCRIPTION Lay. DESIGN NUMBER Q'ty MAKER
11SV273 Varactor Diode Top D104,D105,D203,D204 4 Toshiba
22SC4617 TR Top Q501 1 ROHM
32SC5006-T1 TR-IF AMP Top Q201 1 NEC
4CMY210 Down Mixer Top U203 1 SIEMENS
5 DTC124EE TR Top Q101,Q502,Q503,Q504 4 ROHM
6DTA143EE TR Top Q601 1 ROHM
7F0805B3R00FW Fuze Bot L605 1 AVX
8FDC634P MODFET Top U103 1 FAIRCHILD
9 FDDG8388A1 Duplexer Top F101 1 LG
10 FS0085D5 RX IF SAW Top F202 1 LG
11 FS0836B1 TX RF SAW Top F102,F103 2LG
12 FS0881B1 RX RF SAW Top F201 1 LG
13 HSMP389C Diode Top D201,D202 2 HP
14 IFR3000 RX AGC+BBA Top U204 1 QUALCOMM
15 IFT3000 TX AGC+BBA Top U105 1 QUALCOMM
16 KT16-DC30L-19.68M VCTCXO Top U174 1 AVX
17 LMX2332-LTMG PLL IC Top U172 1 NS
18 LMC7101AIM OP AMP Top U151 1 MICREL
19 LRS13061 Flash + SRAM Bot U308 1SHARP
20 MCA-ST-00T Mobile Switch Bot MS101 1 SUNRIDGE
21 MIC5219-3.0 LDO Bot U605 1MICREL
Top U602,U603,U606 3
22 MIC5245-3.0BM5 LDO : +3.0V/150mA Bot U604 1RICOH
23 MRFIC0954 Up MIX+Dr AMP Top U104 1 MOTOROLA
24 MSM3000-BGA uBGA Bot U301 1 QUALCOMM
25 NC7SZ125P5 Delay Device Bot U306 1FAIRCHILD
26 NDS332P P-CH FET Bot Q350 1FAIRCHILD
27 NT732ATD 683K Thermistor Top TH151 1 KOA
28 RI23124U PAM Top U102 1 CONEXANT
29 RF2361 LNA Top U201 1 RFMD
30 SSP-7T 32.768KHz OSC Bot X302 1 SEIKO
31 SSR27.00-BR-C15 Resonator Bot X301 1 AVX
32 TC7WH04FK Invertor Top U202 1 TOSHIBA
33 TC7S04FU •Bot U350 1 TOSHIBA
34 TWL1103-PBSR CODEC Bot U401 1 TI
35 UMC4N TR Top Q102,Q505 2 ROHM
36 UMH2N TR Bot Q405 1 ROHM
37 UPC8151TB Buffer Top U173 1 NEC
38 VC-3R0A80-0967A VCO Top U171 1 FUJITSU
39 VA-A1608-5R5J •Bot VD501 •CERATECH
40 X84129S161-2.5 EEPROM Bot U307 1XICOR
41 0805CS-270XGBC 27nH-2012 Coil Ind Top L114 1 COIL CRAFT
42 0805CS-680XGBC 68nH-2012 Coil Ind Top L217 1 COIL CRAFT
43 0805CS-121XJBC 120nH-2012 Coil Ind Top L111,L143 2 COIL CRAFT
44 0805CS-180XJBC 180nH-2012 Coil Ind Top L214,L215 2 COIL CRAFT
45 CI-B1608-12NKJT 1.2nH-1608 Inductor Top L109 1 CERATECH
46 CI-B1608-33NKJT 3.3nH-1608 Inductor Top L203 1 CERATECH
47 CI-B1608-68NSJT 6.8nH-1608 Inductor Top L105,L107,L207 3 CERATECH
48 CI-B1608-82NKJT 8.2nH-1608 Inductor Top L218,L211 2 CERATECH
49 CI-B1608-100JJT 10nH-1608 Inductor Top L106,L173 2 CERATECH
50 CI-B1608-120JJT 12nH-1608 Inductor Top L104,L108,L206 3 CERATECH
51 CI-B1608-150KJT 15nH-1608 Inductor Top L209 1 CERATECH
52 CI-B1608-680KJT 68nH-1608 Inductor Top L213 1 CERATECH
53 CI-B1608-820KJT 82nH-1608 Inductor Top L110 1 CERATECH
54 CI-B1608-101KJT 100nH-1608 Inductor Top L201,L202,L204,L205 4 CERATECH
55 FI-B1608-271KJT 270nH-1608 Inductor Top L220 1 CERATECH
56 FI-B1608-182KJT 1.8uH-1608 Inductor Top L112,L113 2 CERATECH
57 FI-A1608-272KJT 2.7uH-1608 Inductor Top L212 1CERATECH
58 HB-1M2012-601JT INDUCTOR (Bead) Bot L402 1CERATECH
59 HB-1B2012-222JT INDUCTOR (Bead) Bot L401 1CERATECH
Top L115,L121,L172,L174,L190,
L210,L216, L230,L602 9
60 BLM11A601SPT INDUCTOR (Bead)
Bot L604 1
CERATECH
61 GRM36C0G0R5C50PT 0.5pF-1005 Capacitor Top C188 1 MURATA
62 GRM36C0G1R5C50PT 1.5pF-1005 Capacitor Top C120,C225 2 MURATA
63 GRM36C0G020C50PT 2pF-1005 Capacitor Top C209,C223 2 MURATA
64 GRM36C0G030C50PT 3pF-1005 Capacitor Top C219 1MURATA•
65 GRM36C0G040C50PT 4pF-1005 Capacitor Top C144,C145,C213,C222 4MURATA
66 GRM36C0G060C50PT 6pF-1005 Capacitor Top C113 1MURATA
67 GRM36C0G070D50PT 7pF-1005 Capacitor Top C123,C124,C143,C147,C148 5MURATA
68 GRM36C0G080D50PT 8pF-1005 Capacitor Top C237,C226,C227 3MURATA
Top C146,C152,C216 3
69 GRM36C0G100D50PT 10pF-1005 Capacitor Bot C323 1MURATA
70 GRM36C0G120J50PT 12pF-1005 Capacitor Top C138 1MURATA
Top C125 1
71 GRM36COG150J50PT 15pF-1005 Cap Bot C329,C330,C302,C303 4MURATA
73 GRM36C0G270J50PT 27pF-1005 Capacitor Top C190 1MURATA
74 GRM36C0G330J50PT 33pF-1005 Capacitor Top C217,C220 2MURATA
75 GRM36C0G560J50PT 56pF-1005 Capacitor Top C136,C137 2MURATA
76 GRM36C0G820J50PT 82pF-1005 Capacitor Top C235,C236 2MURATA
Top
C108,C112,C114,C121,C122,
C175,C177,C178, C179,C180,
C187,C189,C192,C193,C197,
C201,C204,C207,C208,C212,
C240,C506
22
77 GRM36COG101J50PT 100pF-1005 Cap
Bot C407,C408 2
MURATA
78 GRM36COG471J50PT 470pF-1005 Cap
Top
C502,C504,C505,C507,C508,
C509,C510, C511,C631,C632,
C634
11
MURATA
Bot
C417,C421,C501,C503,C521,
C522,C523,C524,C525,C526,
C527,C528,C529,C530,C531,
C533,C534,C535,C536,C537,
C538,C539,C540,C541,C543,
C545,C546,C547,C548,C549,
C550,C551,C552,C553,C554,
C556,C557,C558,C559,C560,
C561,C562,C563,C610,C633
45
79 GRM36X7R102K50PT 1nF-1005 Capacitor Top C110,C116,C119,C172,C173,
C181,C191,C195, C215 9MURATA
Top
C111,C115,C127,C128,C129,
C130,C134,C135,C139,C151,
C171,C174,C176,C196,C203,
C206,C211,C218,C221,C224,
C229,C231,C232,C233,C234,
C238,C243,C245,C246,C248,
C312,C313,C315,C316,C317,
C318,C605,C607,C612
39
80 GRM36X7R103K50PT 10nF-1005 Cap
Bot C311,C314,C322,C324,C609,
C615,C622 7
MURATA
81 GRM36X7R223K50PT 22nF-1005 Capacitor Bot C409 1MURATA
82 GRM36X5R683K10PT 68nF-1005 Capacitor Top C155 1 MURATA
Top C106,C126,C132,C149,C194,
C239,C241,C242,C244 9
83 GRM36Y5V104Z25PT 100nF-1005 Cap
Bot C309,C310,C320,C321,C401,
C402,C403, C404,C405,C613 10
MURATA
84 GRM36Y5V105Z10PT 1uF-1005 Capacitor Top C230 1MURATA
85 GRM39X7R183K25PT 18nF-1608 Capacitor Top C183 1MURATA
86 GRM39X7R223K50PT 22nF-1608 Capacitor Top C185 1MURATA
Top C133,C182,C184 3
87 GRM39Y5V224Z16PT 220nF-1608 Cap Bot C308 1MURATA
Top C131 1
88 GRM39Y5V684Z25PT 680nF-1608 Cap Bot C301 1MURATA
89 GRM39Y5V105Z10PN 1uF-1608 Cap Bot C413 3MURATA
Top C109,C140,C186,C228,C604,
C606 6
90 TA-6R3TCMS4R7M-PR Tan Cap (4.7uF/6.3V/P)
Bot C608 1
TOWA
91 TA-010TCM4R7S-AR 4.7uF/10V/A Bot •0TOWA
Top C199,C621 2
92 TA-6R3TCMS100M-PR Tan Cap (10uF/6.3V/P) Bot C350,C406,C410,C416 4TOWA
93 TA-010TCMS100K-AR 10uF/10V/A Bot C611 1TOWA
94 TA-6R3TCMS220K-AR 22uF/10V/A Bot C415 1TOWA
95 TA-6R3TCMS470K-B2 Tan Cap
(47uF/6.3V/B2) Bot C630 1TOWA
Top R121,R197,R224,R247,R248 4
96 MCR01MZSJX000 0Ω 5%-1005 Resistor Bot R542,R555 2ROHM
97 MCR01MZSJ100 10Ω-1005 Resistor Bot R401 1 ROHM
98 MCR01MZSJ120 12Ω-1005 Resistor Top R141 1 ROHM
99 MCR01MZSJ150 15Ω-1005 Resistor Top R170,R207 2 ROHM
100 MCR01MZSJ220 22Ω-1005 Resistor Top R177,R181 2 ROHM
101 MCR01MZSJ560 56Ω-1005 Resistor Top R208 1 ROHM
102 MCR01MZSJ101 100Ω-1005 Resistor Top R111,R176,R183,R201,R203 5 ROHM
103 MCR01MZSJ221 220Ω-1005 Resistor Top R179 1 ROHM
104 MCR01MZSJ331 330Ω-1005 Resistor Bot R406,R407,R408 3 ROHM
Top R142,R144,R204,R504,R507,
R508,R519,R520 8
105 MCR01MZSJX471 470Ω 5%-1005 Resistor
Bot
R501,R502,R521,R522,R523,
R524,R525,R526,R527,R528,
R529,R530,R531,R533,R534,
R535,R536,R537,R538,R539,
R540,R541,R543,R545,R546,
R547,R548,R549,R550,R551,
R552,R553,R554,R556,R557
,R558,R559,R560,R561,R562,
R563
41
ROHM
106 MCR01MZSJ751 750Ω-1005 Resistor Bot R306 1 ROHM
107 MCR01MZSJ821 820Ω-1005 Resistor Bot R338 1 ROHM
108 MCR01MZS102 1kΩ-1005 Resistor Top R109,R143,R171,R172,R173,
R209 5 ROHM
109 MCR01MZSJ152 1.5kΩ-1005 Resistor Bot R317 1 ROHM
110 MCR01MZSJ182 1.8kΩ-1005 Resistor Bot R318 1 ROHM
Top R205 1
111 MCR01MZSJ202 2KΩ 5%-1005 Resistor Bot R403 1ROHM
112 MCR01MZSJ272 2.7kΩ-1005 Resistor Top R174,R206 2 ROHM
113 MCR01MZSJX332 3.3KΩ 5%-1005
Resistor
Top R112 1 ROHM
Bot R303 1
114 MCR01MZSJ392 3.9kΩ-1005 Resistor Top R175 1 ROHM
Top R532 1
115 MCR01MZSJX472 4.7KΩ 5%-1005
Resistor Bot R304,R316,R340,R402 4ROHM
116 MCR01MZSJ822 8.2kΩ-1005 Resistor Top R213 1 ROHM
Top R108,R117,R118,R119,R210,
R211,R505, R510,R513,R514 10 ROHM
117 MCR01MZSJX103 10KΩ 5%-1005 Resistor
Bot R301,R302,R305,R312,R313,
R349,R350,R615 8ROHM•
118 MCR01MZSJ183 18kΩ-1005 Resistor Bot R608 1 ROHM
Top R503,R509,R512,R515 4
119 MCR01MZSJX223 22KΩ 5%-1005 Resistor Bot R307,R315,R614 3ROHM
120 MCR01MZSJ363 36kΩ-1005 Resistor Top R114,R212 2 ROHM
121 MCR01MZSJ393 39kΩ-1005 Resistor Top R511 1 ROHM
122 MCR01MZSJ473 47kΩ-1005 Resistor Bot R405,R410 2 ROHM
Top R113,R202 2
123 MCR01MZSJX104 100KΩ 5%-1005
Resistor Bot R421,R422 2ROHM
124 MCR01MZSJ224 220kΩ-1005 Resistor Top R110,R115,R214 3 ROHM
125 MCR01MZSF2492 24.9kΩ 1%-1005
Resistor Top R165 1 ROHM
126 MCR01MZSF4992 49.9kΩ 1%-1005
Resistor Top R151 1 ROHM
127 MCR01MZSF6192 61.9kΩ 1%-1005
Resistor Top R116 1 ROHM
128 MCR01MZSF6802 68kΩ 1%-1005 Resistor Top R152 1 ROHM
129 MCR01MZSF8062 80.6kΩ 1%-1005
Resistor Top R164 1 ROHM
130 MCR01MZSF1003 100kΩ 1%-1005
Resistor Bot R404 1 ROHM
131 MCR01MZSF1743 174kΩ 1%-1005
Resistor Top R157 1 ROHM
132 MCR01MZSF2003 200kΩ 1%-1005
Resistor Top R159 1 ROHM
133 MCR01MZSF4703 470kΩ 1%-1005
Resistor Top R156,R158 2 ROHM
Top R166,R167 2
134 MCR01MZSFX1004 1MΩ 1%-1005 Resistor Bot •0ROHM
135 DTS-800 V1.0 PCB Main PCB • • 1LGE
136 B06F-4001-016 60 Pin Connector Top CN501 1 SAMTEK
137 DTS800 REAR REAR CASE 1JUNG IL
138 DTS800 FRONT FRONT CASE 1JUNG IL
139 DTS800 LABEL LABEL 1 SHINHUNG
140 DNI •Top
C107,C198,C202,C205,C210,
L102,L103,L208,R153,R154,
R155,R178,R180,R182
14 •
141 DNI •Bot
C305,C411,C412,C414,C542,
C555,C614,C616,L403,L404,
R308,R310,R314,R333,R337,
R339,R409,R604,R605,R607,
R612,R613,Q302, Q602,Q604,
D602,D603,
27 •
3-2. Level Translator Partlist
NO COMPONENT NAME DESCRIPTION Lay. DESIGN NUMBER Q'ty MAKER
1SP207-EA(24pin SSOP) RS232 TRANSCEIVER Bot U1,U2 2SIPEX
2 MIC29150-5.0BU LDO (5V) Bot U4 1MICREL
3 EZ1086CM LDO (Adjustable) Bot U3 1SEMTECH
4HDEP-9P 9 PIN CONN.(ANGLE
TYPE) Top CN4,CN5 2HIROSE
5 CON60_1.27_3 60 PIN CONN. (MALE) Top CN1 1SKY
6 HSJ1621-019011 EAR JACK Top U5,U15 2 HOSIDEN
7MCA R/A TO MCX R/A ANT_CABLE Top U7 1KUKJE CON.
8DC JACK(Large) DC POWER JACK(large) Top J1 1KUKJE CON.
9DC JACK(Small) DC POWER JACK(small) Top J2 1KUKJE CON.
10 53047-0310 3 PIN CONN Top CN10 1KUKJE CON.
11 Toggle 2p S/W SWITCH Top SW1 1 KUKJE CON.
12 UMT2907A TR(PNP) Bot Q1,Q2, Q3 3 ROHM
13 MB-S800 ANTENNA - 1HANKOOK ANT
14 SML-310MTT86 LED GREEN Bot D4,D6,D8,D10,D12,D14,D16 7 ROHM
15 SML-310YTT86 LED YELLOW GREEN Bot D3,D5,D7,D9,D11,D13,D15 7 ROHM
16 SML-310LTT86 LED RED Bot D1,D2, D17 3 ROHM
17 595D107X0016C2T TANTAL CAP. (100UF/16V) Bot C10,C11 2VISHAY
18 595D227X0010T2T TANTAL CAP. (220UF/10V) Bot C9 1VISHAY
19 TA-035TCMR10M-AR TANTAL CAP. (0.1UF/35V) Bot C1~C8 8TOWA
20 MCR03MZSJX102 RESISTOR(1608) 1K Bot R7~R13 7 ROHM
21 MCR04MZSJX101 RESISTOR (1608) 100R Bot R3,R4,R14,R16,R17,R18 6 ROHM
22 MCR05MZSJX331 RESISTOR (1608) 330R Bot R5 1 ROHM
23 MCR06MZSJX681 RESISTOR(1608) 680R Bot R6 1 ROHM
24 MCR07MZSJX332 RESISTOR (1608) 3.3K Bot R1,R2,R15 3 ROHM

Navigation menu
