Users Manual
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
EMIV-DUAL User Manual
Application Information
01-EMIVDUAL-1_X1
June 29, 2004
AnyDATA.NET Inc.
Hanvit Bank B/D 6F
Byulyang-dong Kwachon
KOREA
Tel) 82-2-504-3360
Fax) 82-2-504-3362
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
AnyDATA.NET Inc.
Hanvit Bank B/D 6F
Byulyang-dong Kwachon
KOREA
Copyright ⓒ 2001 AnyDATA.NET Inc..
All rights reserved. Printed in the Republic Of KOREA.
All data and information contained in or disclosed by this document are confidential and proprietary
information of AnyDATA.NET Inc., and all rights therein are expressly reserved. By accepting this
material, the recipient agrees that this material and the information contained therein are held in
confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents
revealed in any manner to others without the express written permission of AnyDATA.NET Inc..
AnyDATA.NET Proprietary: Restricted Distribution. This document contains critical information about
AnyDATA.NET products and may not be distributed to anyone without permission of AnyDATA.NET
Inc. All data and information contained in this document are proprietary and confidential information of
AnyDATA.NET Inc. No part of this document may be reproduced, in any form or any means without
written permission of AnyDATA.NET Inc.
Although the information in this document has been carefully reviewed and its believed to be reliable.
AnyDATA.NET Inc. does not assume any liability arising out of the application or use of any product
described herein, Neither does it convey any license under its patent rights nor rights of others.
Send Technical Questions to :
johnkim@anydata.net
EMIV-DUAL Reference Manual Application Information
01-EMIVDUAL-1_X1
June 29, 2004
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
Introduction
The EMIV-DUAL is designed for the test and simulation of the CDMA wireless data
communications. User can connect the EMIV-DUAL to your PC or Notebook and easily test the
wireless communications. User can use this to develop your applications software even before user’s
own hardware is ready.
It also can be used as a debugging during user’s hardware test.
Disclaimer and Limitation of Liability
AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its
products. AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which
may arise through the use of its products.
AnyDATA.NET Inc. assumes no responsibility for any damage or loss caused by the deletion or loss of
data as a result of malfunctions or repairs.
The information disclosed herein is the exclusive property of AnyDATA.NET Inc. and no part of this
publication may be reproduced or transmitted in any form or by any means including electronic storage,
reproduction, execution or transmission without the prior written consent of AnyDATA.NET Inc. The
information contained in this document is subject to change without notice.
Reproduction, adaptation or translation of this document is prohibited without prior written permission of
AnyDATA.NET Inc.
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
FCC RF Exposure Information
Warning! Read this information before using this device.
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard for human
exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previously set by both U.S. and international
standards bodies. The design of this device complies with the FCC guidelines and these
international standards.
CAUTION
Operating Requirements
The user can not make any changes or modifications not expressly approved by the party
responsible for compliance, otherwise it could void the user's authority to operate the equipment.
To satisfy FCC RF exposure compliance requirements for a mobile transmitting device, this
device and its antenna should generally maintain a separation distance of 20cm or more
from a person’s body.
Antenna Gain must not exceed 1dBi
Special accessories
In order to ensure this device in compliance with FCC regulation, the special accessories are provided
with this device and must be used with the device only. The user is not allowed to use any other
accessories than the special accessories given with this device
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
Contents
1 Introduction
1.1 Purpose
1.2 Organization
1.3 Revision History
2 Overview
2.1 Application Description
2.2 Technical Specifications
2.2.1 General Specification
2.2.2 Receive Specification
2.2.3 Transmit Specification
2.2.4 gpsOne Receiver Specification
2.2.5 Standards
2.3 Interface Diagram
2.4 EMIV-DUAL General Features
2.5 Internal Modem Features
3 PIN Description
3.1 8-Pin Connector (RS232 Standard)
3.2 3-Pin Connector (Debugging)
3.3 DC Power Connector
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
4 Interface Descriptions
4.1 Overview
4.2 RS232 Interface (Standard)
5 Electrical Specifications
5.1 Absolute Maximum Ratings
5.2 Recommended Operating Conditions
5.3 Power Consumption
5.4 Serial Interface Electrical Specifications

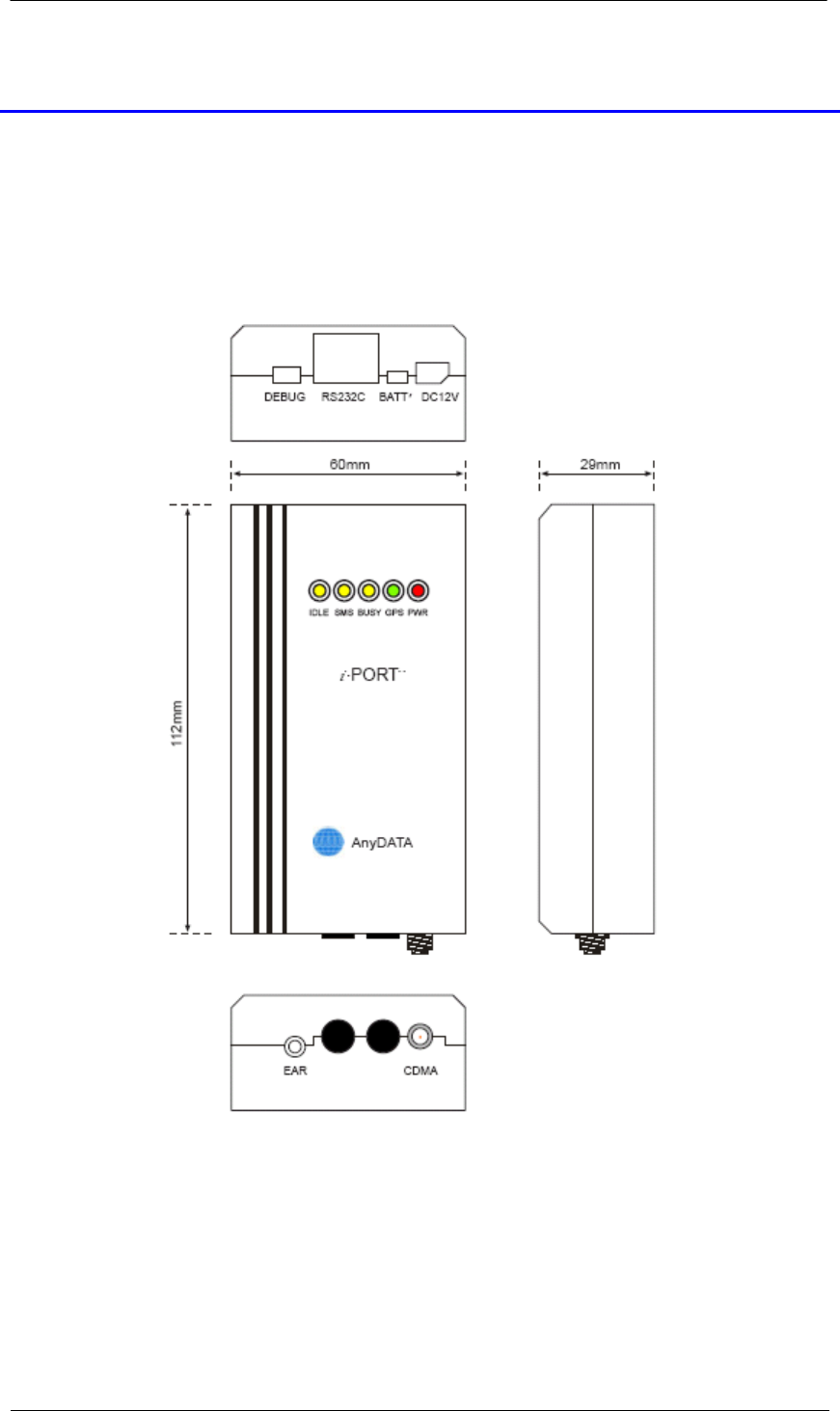

6 Mechanical Dimension
6.1 EMIV-DUAL Outline
7 FCC Notice

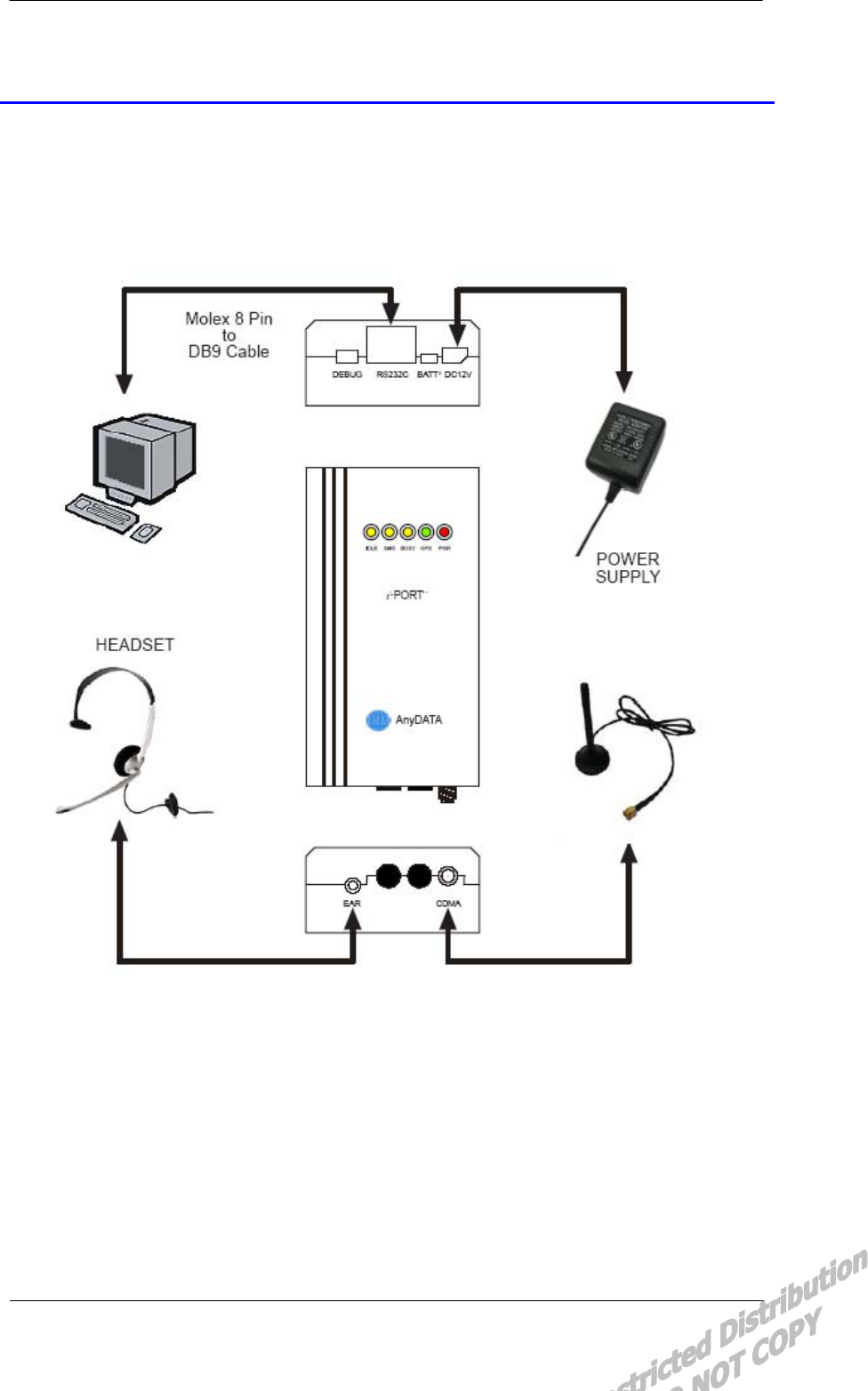

8 Installation Example
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
1. Introduction
1.1 Purpose
This Manual provides hardware interface and programming information for EMIV-DUAL CDMA
Wireless Data Modem.
1.2 Organization
The interface and operation section is organized into the following subsections:
Section 2 – Introduces users to the EMIV-DUAL CDMA Wireless Data Modem basic features
and general specifications.
Section 3 – Contains EMIV-DUAL Pin description - DC12V Input Port, 8pin Serial Port and
Debugging Port.
Section 4 – Describes the UART Interface.
Section 5 – Specifies the recommended operating conditions, DC voltage characteristics, I/O
timing, and power estimations for the modem.
Section 6 – Provides package dimensions and outlook features for the modem.
Section 7 – Describes the FCC Notice.
1.3 Revision History
The revision history for this document is shown in Table 1-1.
Table 1-1 Revision History
Version Date Description
X1 June 2004 Initial Release
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
2. Overview
2.1 Application Descriptions
The CDMA Wireless Data Modem is a complex consumer communications instrument that relies
heavily on both digital signal and embedded processor technologies. The Wireless Data Modem
manufactured by AnyDATA.NET supports Code-Division-Multiple-Access (CDMA). This operates in
800MHz CDMA and 1900MHz PCS spectrum.
In a continuing effort to simplify the design and to reduce the production cost of the Wireless Data
Modem, AnyDATA.NET has successfully developed the EMIV-DUAL. The EMIV-DUAL is
AnyDATA.NET’s latest compact Wireless Data Modem operating in 800MHz CDMA and 1900MHz
PCS spectrum, also contains complete digital modulation and demodulation system for CDMA standards
as specified in IS-95 A/B and IS-2000.
The subsystem within the EMIV-DUAL includes a CDMA processor (MSM6050), an integrated
CODEC with an ear piece and microphone amplifiers, and an RS-232 serial interface supporting forward
link data communications of a rate of 153kbps.
The EMIV-DUAL provides external interface. External interface includes the standard RS-232,
Digital Audio, External reset control, parallel LCD Display, Keypad, Ringer extension ports and R-UIM
for China market.
The EMIII-DUAL has the capability to power down unused circuits in order to dynamically
minimize power consumption.
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
2.2 Technical Specifications
2.2.1 General Specifications
PARAMETERS DESCRIPTIONS
External Access Code-Division-Multiple-Access (CDMA)
CDMA Protocol IS-95 A/B, IS-126, IS-637A, IS-707A, IS-2000
Data Rate 153.6Kbps
Transmit/Receive
Frequency Interval 45MHz for Cellular and 80MHz for PCS
Band Width 1.23MHz
Operating Voltage DC 7V ~ 16V
Current Consumption Sleep mode : 30mA, Idle mode (70mA) ,
Traffic mode : 350mA (Max) at 12V
Operating Temperature -30℃ ~ +60℃
Frequency Stability ±300Hz for 800MHz CDMA and ±150Hz for 1900MHz CDMA
Antenna Magnet mount helical antenna, 50ohm,
1dBi Gain for 800MHz and 1900MHz, -4dBi for 1575MHz
Size 60 X 112 X 29mm
Weight About 110g
External Interface RS-232, Analog audio, Power, Antenna, Debug port
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
2.2.2 Receive Specifications
PARAMETERS DESCRIPTIONS
Frequency Range 869.04 ~ 893.97 MHz for 800MHz CDMA and
1931.25 ~ 1988.75MHz for 1900MHz CDMA
Sensitivity Below –104dBm
Interference
Rejection
Single tone (-30dBm @900KHz): Below –101dBm for 800MHz
Single tone (-30dBm @1250KHz): Below –101dBm for 1900MHz
Spurious Wave
Suppression Below –80dBc
Input Dynamic Range -25dBm ~ -104dBm
2.2.3 Transmit Specifications
PARAMETERS DESCRIPTIONS
Frequency Range 824.04 ~ 848.97 MHz for 800MHz CDMA and
1851.25 ~ 1908.75MHz for 1900MHz CDMA
Nominal Max. Power 0.32 W (24.7dBm)
Peak Power in Operation
Mode 0.35W (25.5dBm)
Minimum Controlled
Output Power Below –50dBm
Max Power Spurious 900KHz: Below –42dBc/30KHz 1.98MHz: Below –54dBc/30KHz
1250KHz : Below –42dBc/30KHz 1.98MHz: Below –50dBc/30KHz
2.2.4 gpsOne Receiver Specifications
Parameters Descriptions
Frequency Range L1, 1575.42MHz
C/A Code 1.023MHz Chip Rate
Receiver Sensitivity -152dBm
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
2.2.5 Standards
IS-95A/B/C : Protocol Between MS & BTS
IS-96A : Voice Signal Coding
IS-98A : Base MS Function
IS-126 : Voice Loop-Back
IS-637 : Short Message Service
IS-707 : Data Service
Built-in TCP/IP : AnyDATA proprietary software
IS-657 : packet data
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions

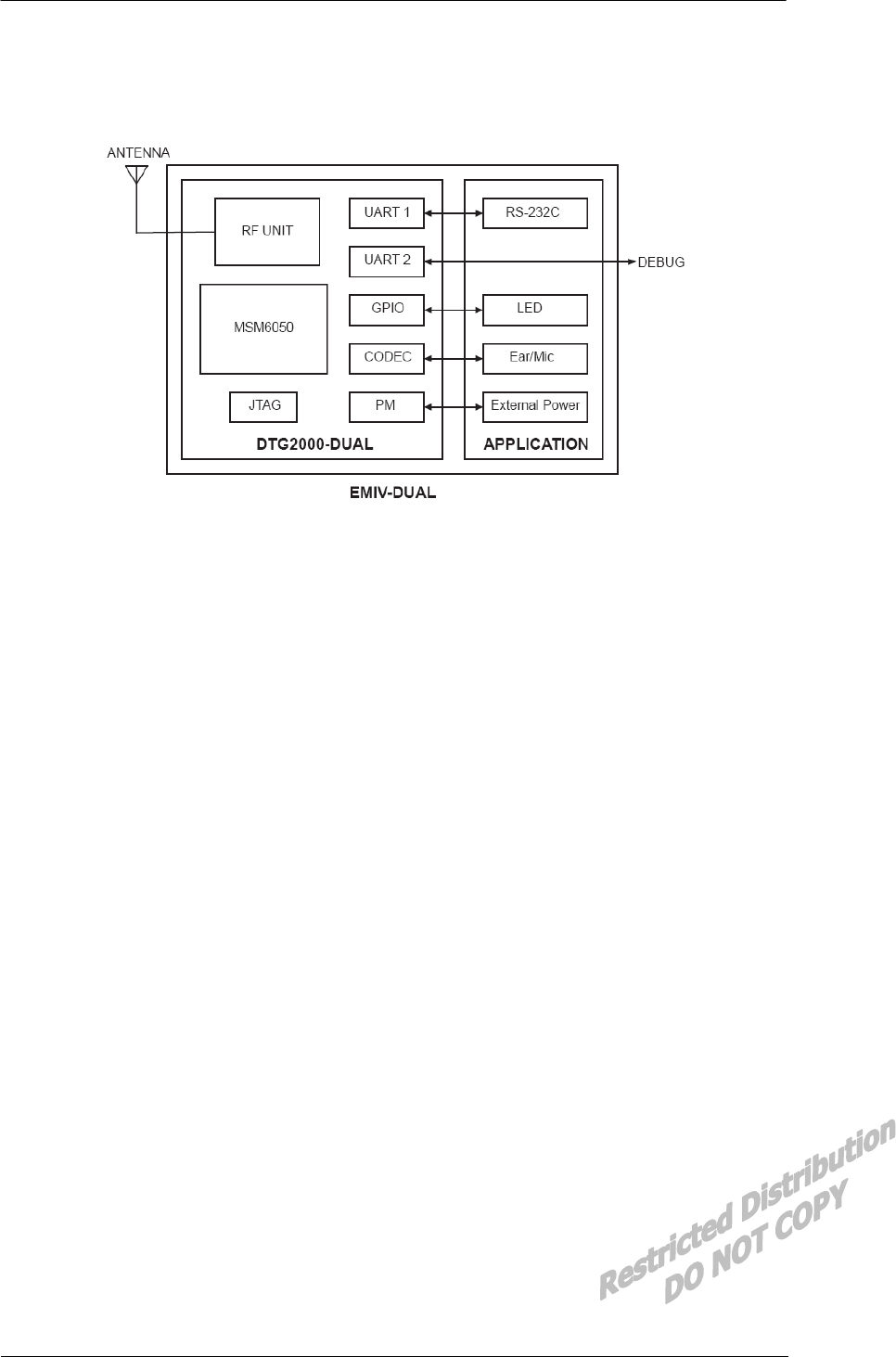

2.3 Interface Diagram
Figure 2-1 Interface Block Diagram
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions

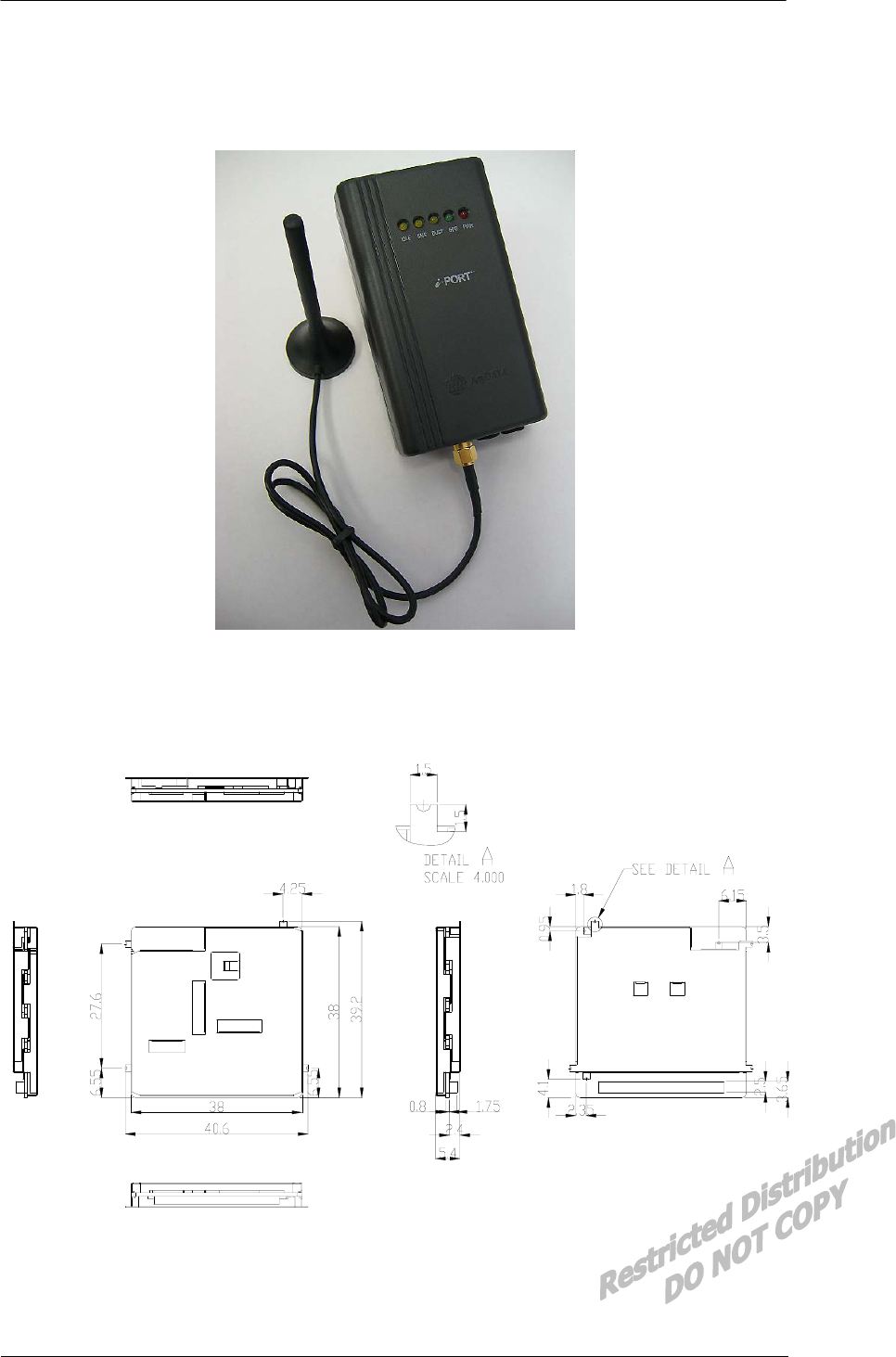

2.4 EMIV-DUAL General Features
Figure 2-2 EMIV-DUAL General Features
2.5 Internal Modem Features
Figure 2-3 Internal Modem General Features (DTG2000-DUAL)
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
3. PIN Description
3.1 8-Pin Male Modular Jacks (RS232 Standard)
Molex
(85503)
RS-232
(PC)
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
RI
GND
DTR
CTS
TX
RTS
RX
DCD

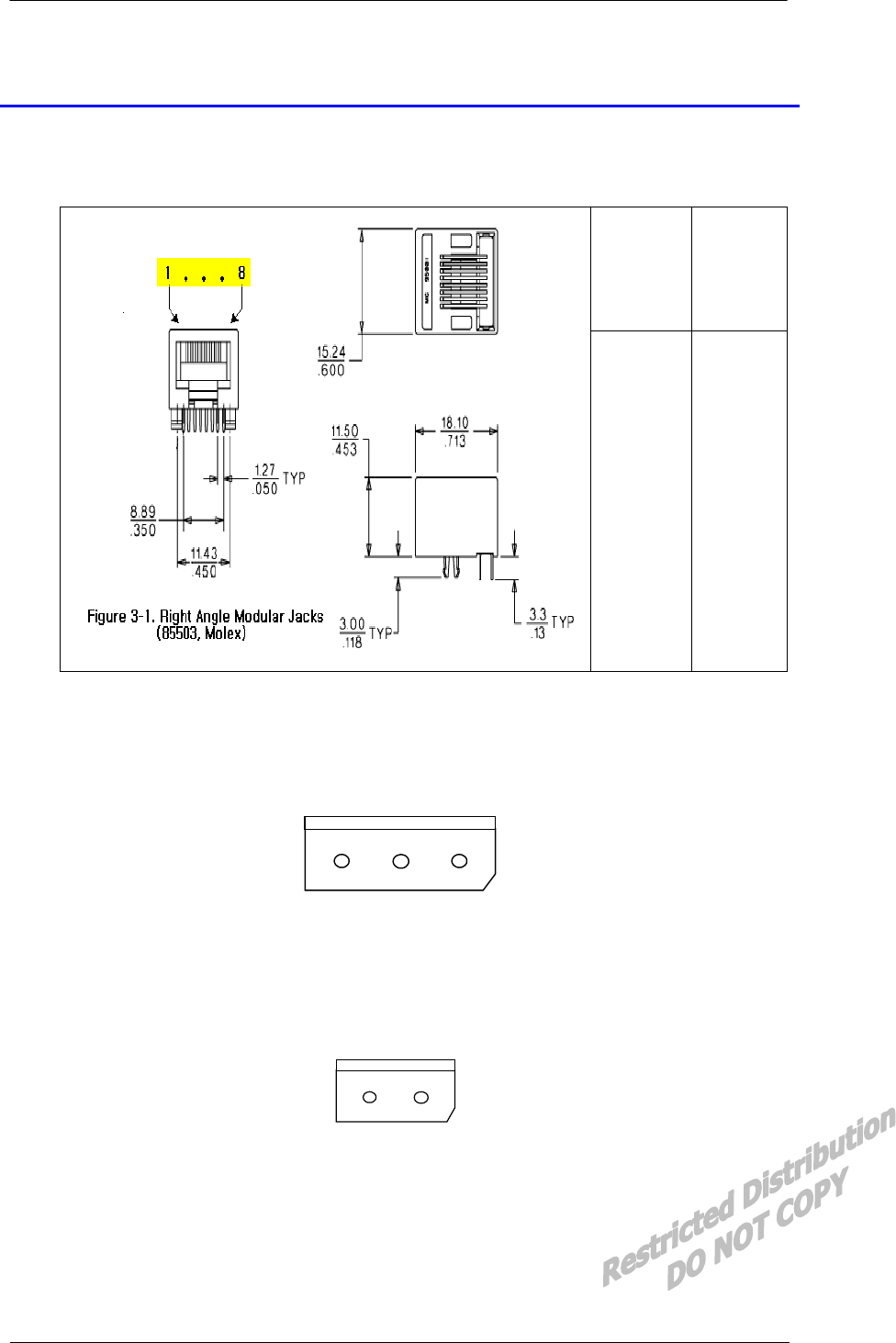

Figure 3-1 Right Angle Modular Jacks Pin Description (85503,Molex 8P)
3.2 3-Pin Connector (Debugging)
GND TXD RXD
Figure 3-2 Debugging Connector (5268,Molex 3P)
3.3 DC Power Connector
DC 12V
-+
Figure 3-3 DC 12V Power Connector (5268, Molex 2P)
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
4. Interface Descriptions
4.1 Overview
This chapter covers information required to design the EMIV-DUAL into a subscriber unit
application. In addition, the internal signals that are necessary for complete understanding of the UART
interfaces are described below.
4.2 RS232 Interface (Standard)
The Universal Asynchronous Receiver Transmitter (UART) communicates with serial data that
conforms the RS-232 Interface protocol. The modem provides 5.0V CMOS level.
All the control signals of the RS-232 signals are active low, but data signals of RXD, and TXD Are
active high. The UART has a 64byte transmit (TX) FIFO and a 64byte receive (RX) FIFO. The UART
Features hardware handshaking, programmable data sizes, programmable stop bits, and odd, even, no
parity. The UART operates at a 115.2kbps maximum bit rate.
NAME DESCRIPTION CHARACTERISTIC
DP_DCD/ Data Carrier Detect Network connected from the modem
DP_RI/ Ring Indicator Output to host indicating coming call
DP_RTS/ Request to Send Ready for receive from host
DP_TXD Transmit Data Output data from the modem
DP_DTR/ Data Terminal Ready Host ready signal
DP_RXD Receive Data Input data to the modem
DP_CTS/ Clear to Send Modem output signal
GND Signal Ground Signal ground
Figure 4-1 UART Interface Pinouts
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
5. Electrical Specifications
5.1 Absolute Maximum Ratings
Operating the modem under conditions that exceed those listed in the Absolute Maximum. The
Ratings table may result in damage to the modem.
Absolute Maximum Ratings may be considered as limiting values, and are considered individually.
While all other parameters are within their specified operating ranges, the functional operation of the
modem under any of the conditions in the Absolute Maximum Ratings table is not implied.
Table 5-1 Absolute Maximum Ratings
PARAMETER MIN MAX UNITS
Storage Temperature -40 +80 ºC
Voltage On Any Input - +20 V
Voltage On Any Output +10 V
Supply Voltage - +20 V
Initializing Current 100 mA
Drop No damages after 60-Inch drop over concrete floor
5.2 Recommended Operating Conditions
PARAMETER MIN MAX UNITS
Supply Voltage +7 +16 V
Operating Temperature -30 +60 ºC
Operating Humidity 95%(50ºC) Relative Humidity
5.3 Power Consumption
STANDBY
Conversation Idle Sleep
350mA (MAX) 70mA 30mA
5.4 Serial Interface Electrical Specifications
PARAMETER MIN MAX UNITS
Input High Voltage +2 +15 V
Input Low Voltage -15 -2 V
Output High Voltage +5 +7 V
Output Low Voltage -7 -5 V
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
6. Mechanical Dimensions
6.1 EMIV-DUAL Outline
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
7. FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15, Part22 and Part24 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Interface Description EMIV-DUAL Reference Manual Application Information
EMIV-DUAL V1.0 AnyDATA.NET Proprietary – Use Subject to Restrictions
8. Installation Example
