AnyDATA EMIVV2 CDMA DATA MODEM User Manual CDMA DATA TERMINAL

CDMA DATA TERMINAL

DTG2000-Dual Version 2.0 Reference Manual

Application Information

Mar. 16, 2006

01-DTG2000-Dual-V2 X2

AnyDATA.NET

AnyTime AnyPlace Any Wireless Data Solutions™

International Contact

AnyDATA Corp.

18902 Bardeen Ave

Irvine, CA 92612-1522, U.S.A.

e-mail : johnkim@anydata.net

Korea Contact

AnyDATA.NET

Hanvit Bank Bldg. 6th Fl., 1-12

Byulyang-dong Kwachon,

Kyunggi-do, Korea

e-mail : info@anydata.net

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

Notice

All data and information contained in or disclosed by this document are confidential and proprietary

information of AnyDATA.NET Inc., and all rights therein are expressly reserved. By accepting this

material, the recipient agrees that this material and the information contained therein are held in

confidence and in trust and will not be used, copied, reproduced, or distributed in whole or in part, nor its

contents revealed in any manner to others without the express written permission of AnyDATA.NET Inc.

AnyDATA.NET Inc. does not assume any liability arising out of the application or use of its products.

AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its

products. AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which

may arise through the use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage

or loss caused by the deletion or loss of data as a result of malfunctions or repairs.

The information contained in this document is subject to change without notice. Information contained

herein is for reference only and does not constitute a commitment on the part of AnyDATA.NET Inc.

Although the information in this document has been carefully reviewed and it’s believed to be reliable,

AnyDATA.NET Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear

in this document nor are they in anyway responsible for any loss or damage resulting from the use (or

misuse) of this document.

It is advised for the customers to contact our engineers for more information with respect to Keypad,

audio interface, RF interface and input power supply before they start an actual design.

OEM integrators and installers are instructed that the phrase 'This device contains transmitter FCC ID:

P4M-DTG2000V2 must be placed on the outside of the host.

-2-

!

Warning: Exposure to Radio Frequency Radiation

The radiated output power of this device is far below the FCC radio frequency exposure limits.

Nevertheless, the device should be used in such a manner that the potential for human contact

during normal operation is minimized. In order to avoid the possibility of exceeding the FCC

radio frequency exposure limits, human proximity to the antenna should not be less than 20cm

during normal operation and the gain of the antenna must not exceed 1dBi

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

Contents

1 Introduction

1.1 Purpose

1.2 Organization

1.3 Revision History

1.4 Reference

1.5 Acronym List

2 Overview

2.1 Application Description

2.2 Technical Specifications

2.2.1 General Specification

2.2.2 Receive Specification

2.2.3 Transmit Specification

2.2.4 Standards

2.3 Interface Diagram

3 PIN Description

3.1 I/O Description Parameters

3.2 PIN Names and Pin-outs

3.2.1 100-PIN Connector

3.3 100-Pin Connector Pin-out (Top view)

4 Interface Descriptions

4.1 Overview

4.2 Powering Up the Module

4.3 CODEC Interface

-3-

4.4 UART Interface

4.3.1 UART1 Interface

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.3.2 UART2 Interface

4.3.3 UART3 Interface

4.5 General Purpose Interface

4.6 External Hardware Reset and Power Down Registration

4.7 User Interface

4.7.1 Key Pad

4.7.2 LCD

4.7.3 Ringer

4.7.4 LED Interface

5 Electrical Specifications

5.1 DC Electrical Specifications

5.1.1 Absolute Maximum Ratings

5.1.2 Recommended Operating Conditions

5.1.3 Power Consumption

5.1.4 Serial Interface Electrical Specifications

5.2 Timing Characteristics

5.2.1 External CODEC Timing

5.2.2 LCD Timing

4 Mechanical Dimension

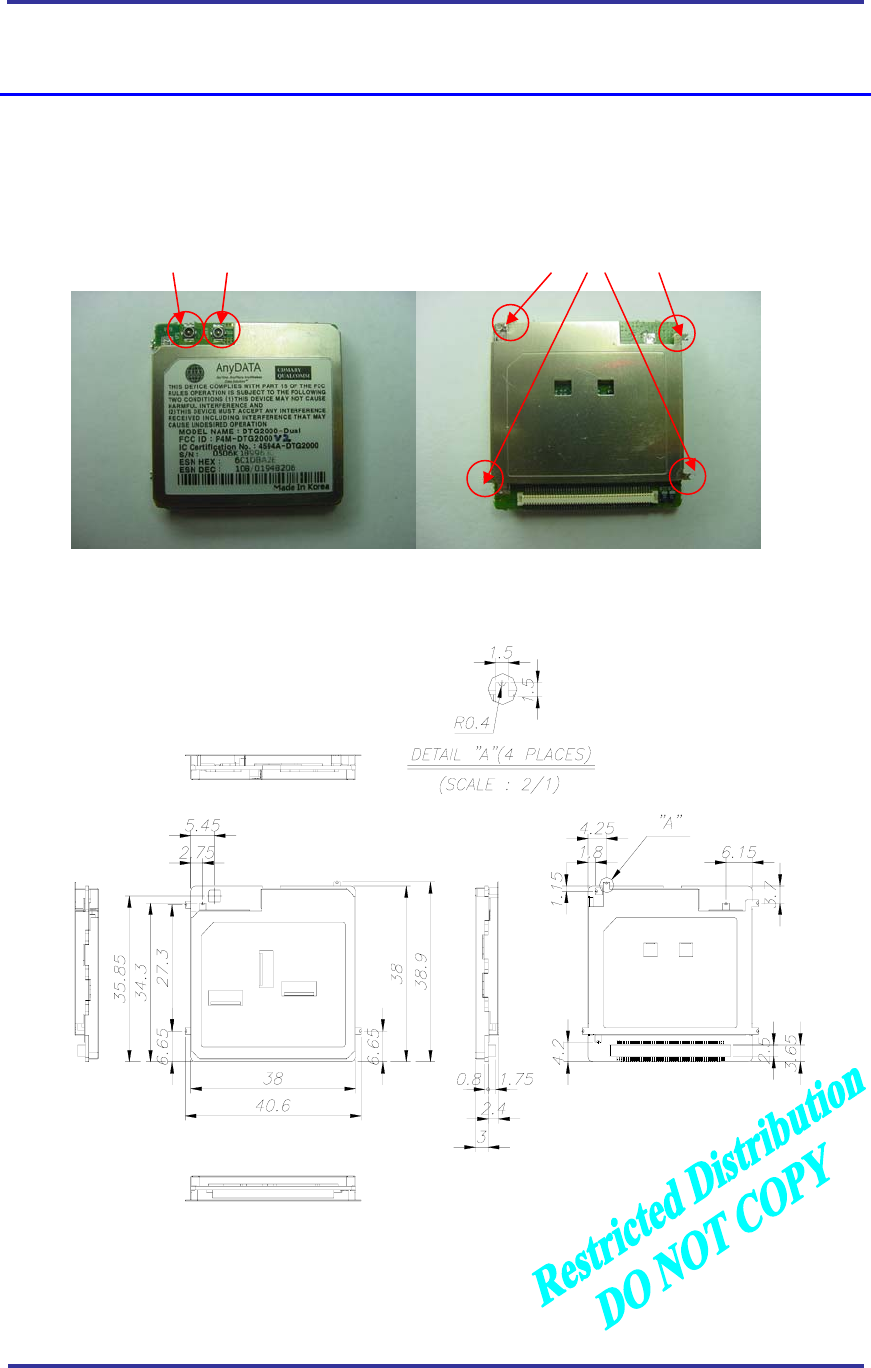

6.1 DTG2000-Dual V2.0 Outline

6.2 100-Pin Connector

6.3 RF Connector

7 Application Schematic

-4-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

Figures

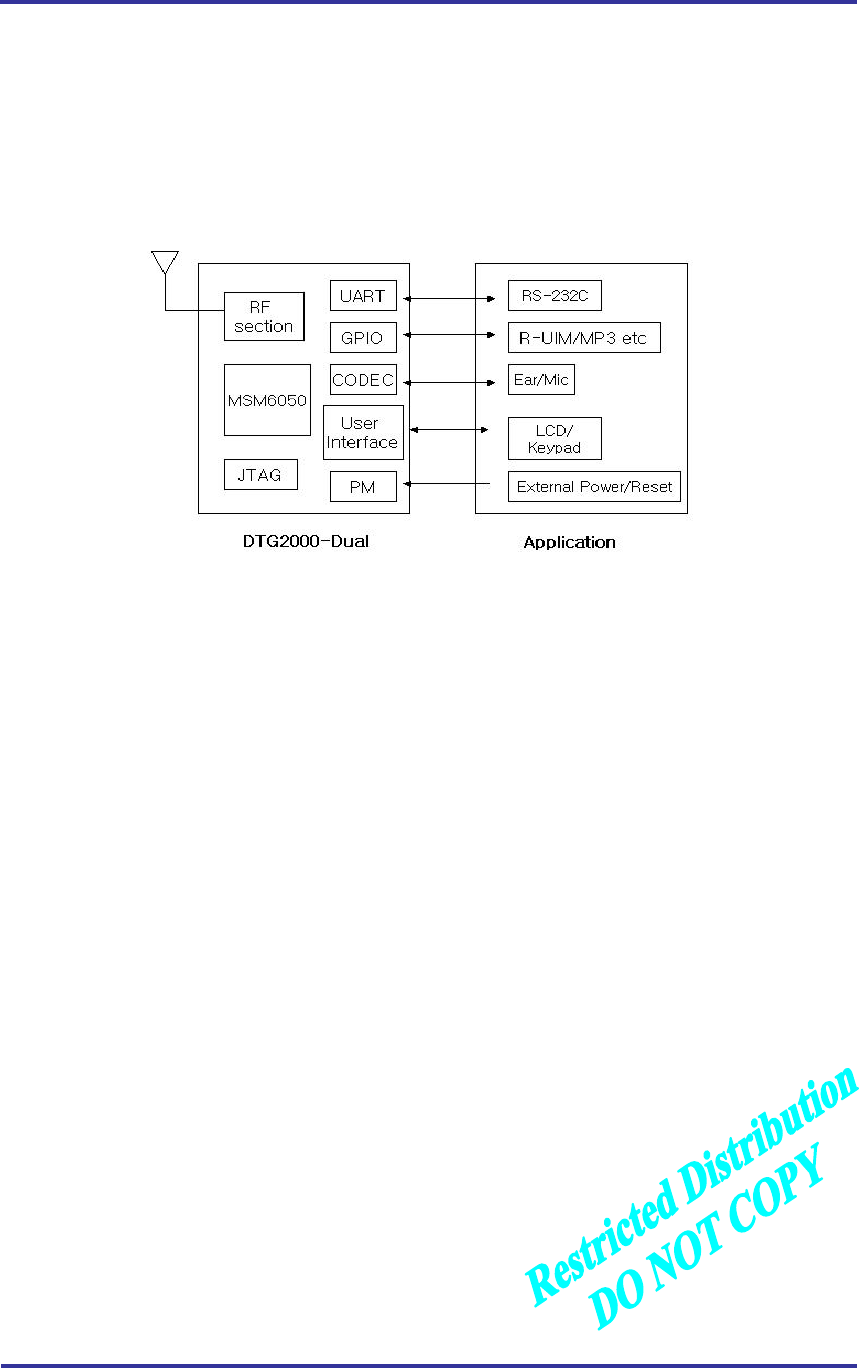

Figure 2-1 Interface Block Diagram ....................................................................................... 11

Figure 2-2 General Features ................................................................................................... 12

Figure 4-1 Interface Block Diagram ....................................................................................... 16

Figure 4-2 Keypad Matrix ...................................................................................................... 21

Figure 4-3 LCD Interface Block Diagram .............................................................................. 22

Figure 4-4 Reference External Ringer Driver Circuit ............................................................. 23

Figure 5-1 External PCM CODEC to Module timing ............................................................ 25

Figure 5-2 Module to External PCM CODEC timing ............................................................ 25

Figure 5-3 LCD Timing .......................................................................................................... 26

Figure 6-1 100-pin Female Connector …………………………………………………………... 29

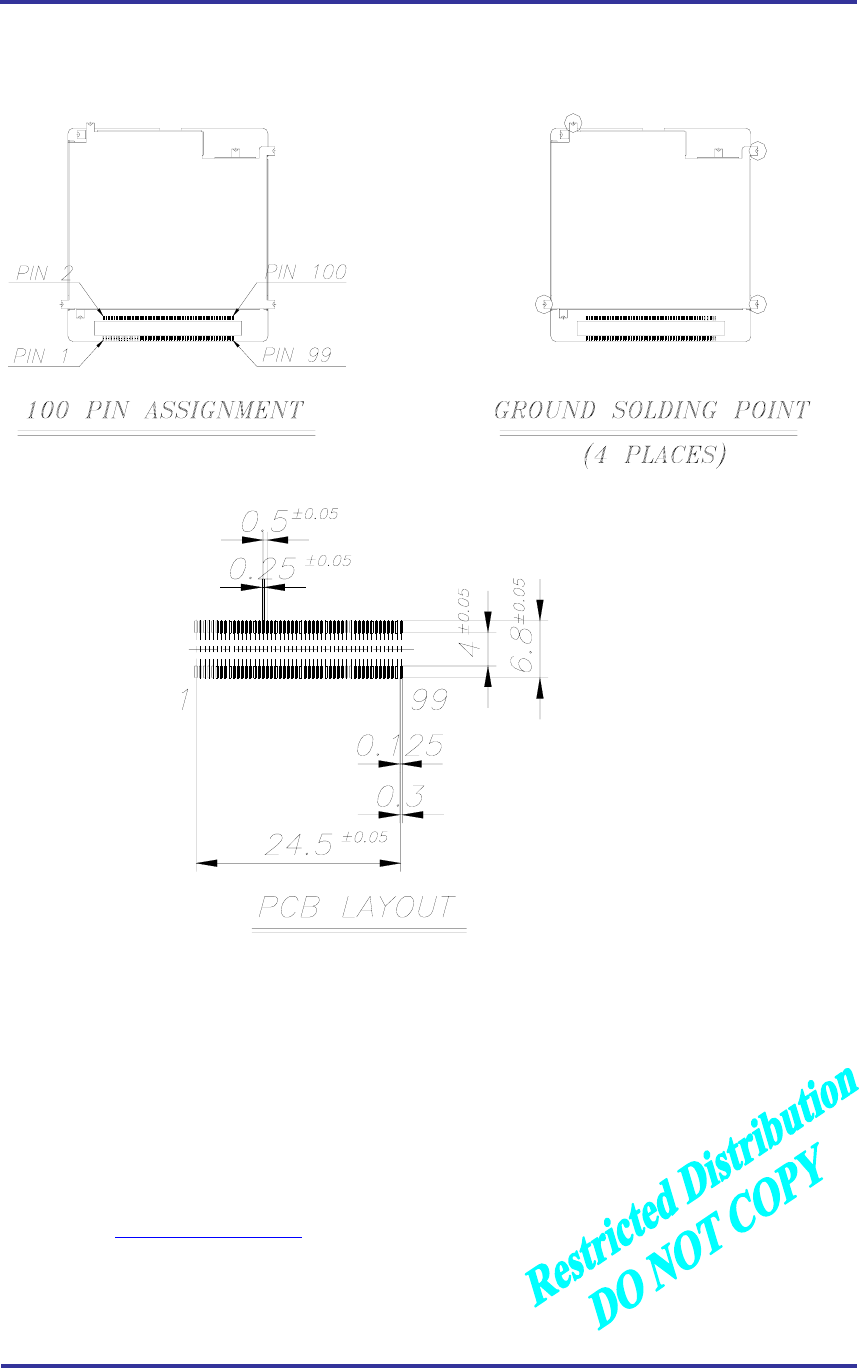

Figure 6-2 PCB Connector .……………………………………………………………………..30

Figure 6-3 PCB Connector Layout .……………………………………………………………. 30

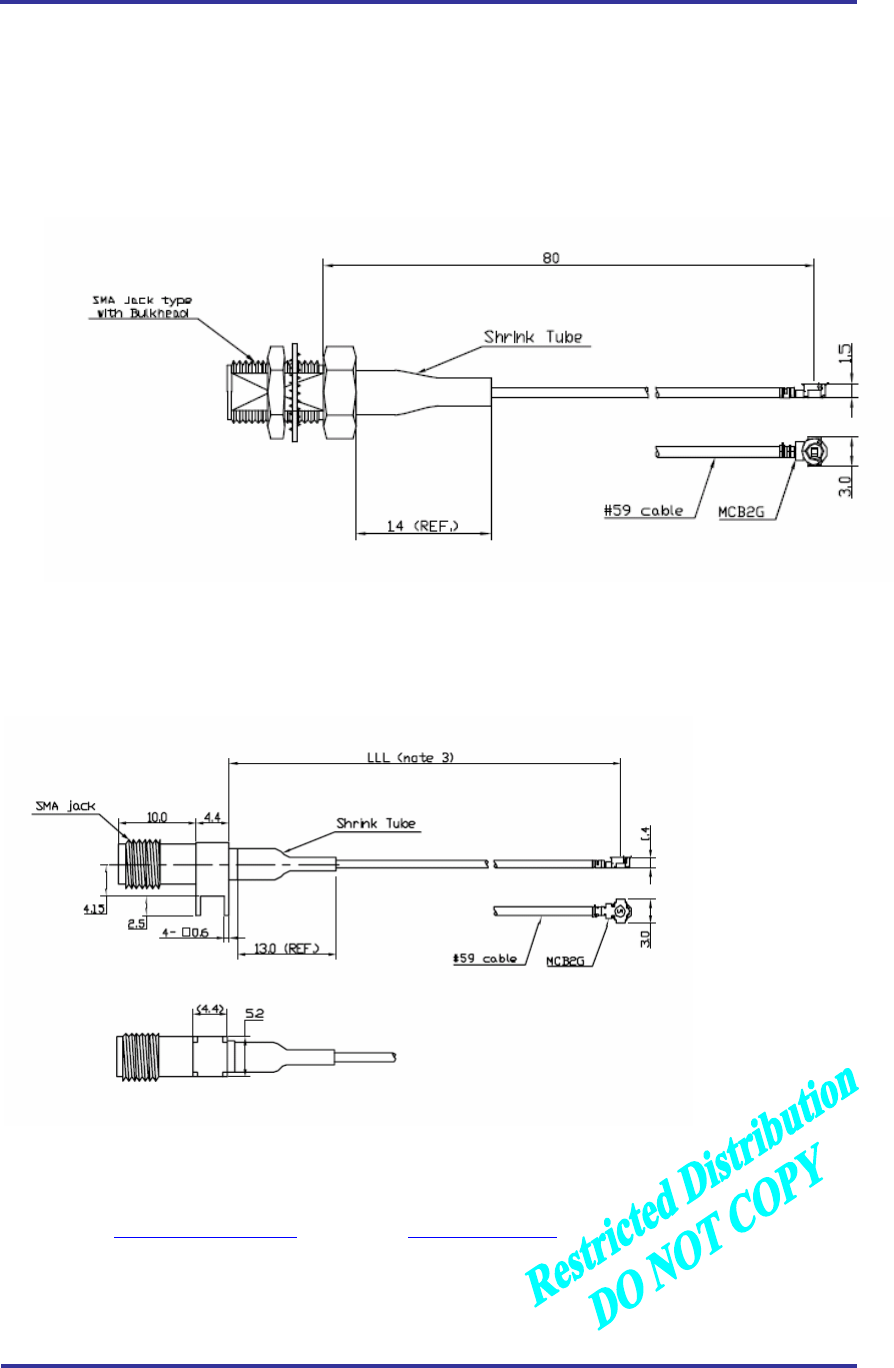

Figure 6-4 Mechanical Characteristics of Cable Harness Assembly .……………………….…. 31

-5-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

Tables

Table 1-1 Revision History ....................................................................................................... 7

Table 3-1 100-PIN Connector Pinouts ................................................................................... 15

Table 4-1 Analog Audio Pinouts ............................................................................................ 17

Table 4-2 Digital CODEC Pinouts ......................................................................................... 18

Table 4-3 UART Interface Pinouts ......................................................................................... 18

Table 4-4 UART2 Interface Pinouts ……………..…………………………………………… 19

Table 4-5 UART3 Interface Pinouts ....................................................................................... 19

Table 4-6 General Purpose Interface Pinouts ………………………………………………… 20

Table 4-7 LCD Interface Signals ............................................................................................ 22

Table 5-1 Absolute Maximum Ratings ................................................................................... 24

Table 5-2 External PCM CODEC Parameters ........................................................................ 26

Table 5-3 LCD Timing Parameters .......................................................................................... 27

-6-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

1. Introduction

1.1 Purpose

This manual provides hardware interface and programming information for the DTG2000-Dual V2.0

CDMA Wireless Data Module.

1.2 Organization

This manual will discuss the interface and operation of the module and is divided into the following

subsections:

 Section 2 – Introduces users to the DTG2000-Dual V2.0 CDMA Wireless Data Module’s basic

features and general specifications.

 Section 3 – Lists each DTG2000-Dual V2.0 pin and its function within the device. The pinout

for the module is listed in numeric sequence.

 Section 4 – Specifies the recommended operating conditions, DC voltage characteristics, I/O

timing, and power estimations for the module. Timing diagrams are also included.

 Section 5 – Details each subsystem or block within the module and shows how the subsystem

or block interfaces with external peripherals.

 Section 6 – Provides package dimensions for the module.

-7-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

1.3 Revision History

The revision history for this document is shown in Table 1-1.

Table 1-1 Revision History

Version Date Description

V2_X1 Feb. 2005 Initial Release

V2_X2 Mar. 2006 1st Revision

-

-8-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

1.4 References

1. QUALCOMM Incorporated. MSM6050 Mobile Station Modem: Component Supply

Specification. 80-V2466-1, April 13, 2002.

2. QUALCOMM Incorporated. MSM6050 Mobile Station Modem: Device Specification

(Preliminary Information). 93-V3185-1, March 29, 2002.

3. QUALCOMM Incorporated. SURF6050 User Manual. 80-V2551-40, March 29, 2002.

1.5 Acronym List

Te r m Definition

CDMA Code-Division Multiple Access

CODEC Coder-Decoder

GPIO General-purpose Input/Output

JTAG Joint Test Action Group (ANSI/ICEEE Std. 1149.1-1990)

LCD Liquid Crystal Display

LDO Voltage Regulator

LED Light Emitting Diode

PCB Printed Circuit Board

PCM Pulse Coded Modulation

PCS Personal Communications Service

RF Radio Frequency

Rx Receive

TCXO Temperature-Controlled Crystal Oscillator

Tx Transmit

UART Universal Asynchronous Receiver Transmitter

-9-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

2. Overview

2.1 Application Descriptions

The CDMA Wireless Data Module is a complex consumer communications instrument that relies

heavily on both digital signal and embedded processor technologies. The Wireless Data Modules

manufactured by AnyDATA.NET support Code-Division Multiple Access (CDMA). This operates in

both the cellular and PCS spectrum band.

In a continuing effort to simplify the design and to reduce the size and production cost of the

Wireless Data Module, AnyDATA.NET has successfully developed the DTG series. The DTG2000-Dual

V2.0 is AnyDATA.NET’s latest compact Wireless Data Module operating in the Cellular and PCS

spectrum band. The DTG2000-Dual V2.0 contains not only a complete digital modulation and

demodulation system for CDMA standards as specified in IS-95 A/B and IS-2000, but also GPSOne

position location solution which offers wireless callers their location wherever and whenever they need it.

GPSOne is QUALCOMM CDMA Technologies’ position location solution. It offers the availability

of position location determination in hostile environments (such as indoors) where conventional

GPS receivers do not work well.

GPSOne uses a hybrid approach that utilizes signals from the GPS satellite constellation and from

CDMA cell sites to determine location. Using the hybrid approach, GPSOne enhances location

services availability, accelerates the location determination process, and provides improved

accuracy.

The hybrid mode approach for position location uses signals from CDMA cell stations and GPS

satellites to compute the user’s location. This approach basically takes advantage of an accurate

knowledge of GPS system timing on a CDMA mobile station. The knowledge of system timing

allows the GPSOne solution to use both the CDMA signal measurements and GPS signal

measurements collectively to compute the user’s location. It also allows for a central entity, named

Position Determination Entity (PDE), to send estimated signal phases to the mobile. This knowledge

reduces the time to search the satellite pseudo ranges on the mobile, thus improving the time taken to

determine the user’s position.

The subsystem in the DTG2000-Dual V2.0 includes a CDMA processor (MSM6050), an integrated

CODEC with an ear piece and microphone amplifiers, and an RS-232 serial interface supporting forward

link data communications at a rate of 153kbps.

-10-

The DTG2000-Dual V2.0 provides an external interface that includes the standard RS-232, Digital

Audio, External reset control, parallel LCD Display, Keypad, Ringer extension ports and R-UIM for

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

China market.

The DTG2000-Dual V2.0 has the capability to power down unused circuits in order to dynamically

minimize power consumption.

-11-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

2.2 Technical Specifications

2.2.1 General Specifications

Parameters Descriptions

External Access Code-Division-Multiple-Access (CDMA)

CDMA Protocol IS-95 A/B, IS-98A, IS-126, IS-637A, IS-707A, IS-2000

Data Rate 153.6Kbps max

Transmit/Receive Frequency Interval 45MHz for Cellular and 80MHz for PCS

Vocoder EVRC, 13kQCELP

RF technology Zero Intermediate Frequency

Number of Channel 832 for Cellular and 42 for PCS

Operating Voltage DC +3.4V ~ +4.3V BATT_INT (Pin88 and 90)

DC +4.0V to +5.0V +VEXT_DC (Pin87 and 89)

Current Consumption 1. VCC applied to +VEXT_DC (Pin87 and Pin89)

Stand by mode: Idle (110mA), Sleep (less than 9mA)

Busy mode: 900mA (Max)

2. VCC applied to BATT_INT (Pin88 and Pin90)

Stand by mode: Idle (110mA), Sleep (less than 1mA)

Busy mode: 900mA (Max)

See section 4.5.1 for detail

Operating Temperature -30ºC ~ +60ºC

Frequency Stability ±300Hz for Cellular and ±150Hz for PCS

Antenna 2 x GSC Connectors, 50ohm

Size 38 X 38 X 5.4mm with case

Weight About 15g

External Interface RS-232s, Digital/Analog Audios, LCD, Keypad, Ringer

External Reset Control, R-UIM, MP3, MIDI, GPIOs

User Interface Software BREW support

Additional Function GPSOne position location solution

2.2.2 Receiver Specifications

Parameters Descriptions

Frequency Range 869.04 ~ 893.97 MHz for Cellular and 1931.25 ~ 1988.75MHz for PCS

Sensitivity Below –104 dBm

Interference Rejection Single tone (-30dBm @900KHz): Below –101dBm

Two tone (-43 dBm @900KHz and 1700KHz): Below –101dBm

Two tone (-32 dBm @900KHz and 1700KHz): Below –90dBm

Two tone (-21 dBm @900KHz and 1700KHz): Below –79dBm

Spurious Wave Suppression Below –80dBc

Input Dynamic Range -25 dBm ~ -104dBm

-12-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

2.2.3 Transmitter Specifications

Parameters Descriptions

Frequency Range 824.04 ~ 848.97 MHz for Cellular and 1851.25 ~ 1908.75MHz for PCS

Nominal Max Power 0.32 W (24.7dBm)

Peak Power in Operation Mode 0.45W (26.5dBm)

Minimum Controlled Output Power Below –50dBm

Max Power Spurious 900KHz: Below –42dBc/30KHz

1.98MHz: Below –54dBc/30KHz

2.2.4 gpsOne Receiver Specifications

Parameters Descriptions

Frequency Range L1, 1575.42MHz

C/A Code 1.023MHz Chip Rate

Receiver Sensitivity -152dBm

2.2.5 Standards

IS-95 A/B: Protocol Between MS & BTS

IS-96A: Voice Signal Coding

IS-98A: Base MS Function

IS-126: Voice Loop-Back

IS-637: Short Message Service

IS-707: Data Service

Built-in TCP/IP : AnyDATA proprietary software

IS-657 : packet data

IS-916 : Assisted GPS

-13-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

2.3 Interface Diagram

Figure 2-1 Interface Block Diagram

-14-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

3. PIN Description

3.1 I/O Description Parameters

Symbol Description

I CMOS Input

O Output

B Bi-directional

N Voltage or Current Level

IS Input with Schmitt Trigger

BS Bi-directional Schmitt Trigger

PU Internal Pull-Up

PD Internal Pull-Down

3.2 PIN Names and Pinouts

3.2.1 100-Pin Connector

-15-

PIN NAME TYPE DESCRIPTION

1 D15 B-K3 Data line

2 AGND AGND Analog Ground

3 D14 B-K3 Data line

4 AGND AGND Analog Ground

5 D12 B-K3 Data line

6 D13 B-K3 Data line

7 D10 B-K3 Data line

8 D11 B-K3 Data line

9 D08 B-K3 Data line

10 D09 B-K3 Data line

711 GND GND Signal ground

12 GND GND Signal ground

13 MSM_DP_DCD/ (GPIO_INIT44) BS-PD Data carrier detect ( UART1 )

14 MSM_DP_RI/ (GPIO_INIT54) BS-PD Ring indicator ( UART1 )

15 MSM_DP_RFR/ O Ready for Receive ( UART1 )

16 MSM_DP_TXD O Transmit data ( UART1 )

17 MSM_DP_DTR/ (GPIO_INIT50) BS-PU Data terminal ready ( UART1 )

18 MSM_DP_RXD IS-PD Receive data ( UART1 )

19 MSM_DP_CTS/ IS-PD Clear to send ( UART1 )

20 MSM_DP_RXD2(UIM_PWR_EN) BS_PD3 General purpose input output, Receive data ( UART2 )

21 MSM_DP_TXD2 (UIM_DATA) BS_PD3 General purpose input output,Transmit data ( UART2 )

22 MSM_DP_CTS2/ (UIM_RESET) BS_PD3 General purpose input output, Clear to send ( UART2 )

23 MSM_DP_RFR2/ (UIM_CLK) BS_PD3 General purpose input Output, Ready for Receive(UART2)

24 GPIO_INT15 BS_PU3 General purpose input output

25 AUX_PCM_CLK BS_PD3 External CODEC PCM clock

26 AUX_PCM_DOUT BS_PU3 External CODEC PCM data output

27 AUX_PCM_SYNC BS_PD3 External CODEC PCM data strobe

28 AUX_PCM_DIN IS-PD External CODEC PCM data input

29 GPIO_INT49 BS_HK2 General purpose input output

30 POWER_ON I POWER ON used only when to use 3.6V 1cell battery

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

PIN NAME TYPE DESCRIPTION

-16-

External pull-up required

31 EX_RESET I External Reset (Low Enable)

32 GPIO_INT18 BS_PD3 General purpose input output

33 GPIO_INT45 BS_PD3 General purpose input output

34 GPIO_INT33 (IDLE LED) BS_PD3 General purpose input output, Idle LED Enable

35 GPIO_INT47 (BUSY LED BS_PU3 General purpose input output, Busy LED Enable

36 GND GND Signal ground

37 GND GND Signal ground

38 D00 B-K3 Data line

39 D01 B-K3 Data line

40 D02 B-K3 Data line

41 D03 B-K3 Data line

42 D04 B-K3 Data line

43 D05 B-K3 Data line

44 D06 B-K3 Data line

45 D07 B-K3 Data line

46 A02 B-K3 Address line

47 A01 B_K3 Address line

48 RESET_OUT/ O Reset Out

49 GPIO_INT37(LCS_CS/) BS_PU3 General purpose input output

50 GPIO_INT36(LCD_EN) BS_PU3 General purpose input output

51 OE/ O-3 Output Enable Signal

52 WE/ O-3 Write Enable Signal

53 KEYSENSE0/ (GPIO_INT62) IS_PU3 Key sense input

54 KEYSENSE1/ (GPIO_INT63) IS_PU3 Key sense input

55 KEYSENSE2/ (GPIO_INT64) IS_PU3 Key sense input

56 KEYSENSE3/ (GPIO_INT65) IS_PU3 Key sense input

57 KEYSENSE4/ (GPIO_INT66) IS_PU3 Key sense input

58 GPIO_INT61 ( KEYPAD00 ) BS_PD3 General purpose input output, Keypad input

59 GPIO_INT60 ( KEYPAD01 ) BS_PD3 General purpose input output, Keypad input

60 GPIO_INT59 ( KEYPAD02 ) BS_PD3 General purpose input output, Keypad input

61 GPIO_INT58 ( KEYPAD03 ) BS_PD3 General purpose input output, Keypad input

62 GPIO_INT57 ( KEYPAD04 ) BS_PD3 General purpose input output, Keypad input

63 GPIO_INT56 ( KEYPAD05 ) BS_PD3 General purpose input output, Keypad input

64 GPIO_INT48(ON_SW_SENSE) BS_PU3 General purpose input output

65 GPIO_INT09 BS_HK2 General purpose input output

66 GPIO_INT10 BS_HK2 General purpose input output

67 SMS LED O SMS LED Enable

68 GPIO_INT17 BS_PU3 General purpose input output

69 GPIO_INT04 BS_PD3 General purpose input output

70 GPIO_INT16 BS_PU3 General purpose input output

71 VIBRATOR_DRV O VIBRATOR_DRV output

72 PS_HOLD O PS_HOLD output, POWER LED Enable

73 AUXON OA Auxiliary output (-)

74 RINGER O Ringer Enable output

75 AUXOP OA Auxiliary output (+)

76 GND GND Signal ground

77 GND GND Signal ground

78 GPIO_INT19(EAR_DET1) BS_PD3 General purpose input output, EAR Jack Detect

79 EAR2O OA Ear Jack speaker output

80 EAR1O_P OA External speaker (+) output

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

PIN NAME TYPE DESCRIPTION

81 EAR1O_N OA External speaker (-) output

82 MIC1P IA External Mic (+) input

83 MIC2P IA Ear Jack Mic (+) input

84 GND GND Signal Ground

85 GND GND Signal ground

86 +VBATT IA Battery Gauge input

87 +VEXT_DC V External DC input

88 VATT_INT V Battery input

89 +VEXT_DC V External DC input

90 VATT_INT V Battery input

91 GPIO_INT11(RXD3) BS_PD3 General purpose input output ( UART3 )

92 GPIO_INT12(TXD3) BS_PD3 General purpose input output ( UART3 )

93 GPIO_INT13(CTS/3) BS_PD3 General purpose input output ( UART3 )

94 GPIO_INT14(RFR/3) BS_PD3 General purpose input output ( UART3 )

95 GPIO_INT02 BS_PU3 General purpose input output

96 GP_ADC_DET BS_PD3 General purpose ADC input

97 GPIO_INT34 BS_PU3 General purpose input output

98 GPIO_INT35 BS_PU3 General purpose input output

99 GND GND Signal ground

100 GND GND Signal ground

-17-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

3.3 100-PIN Connect Pinouts (Topview)

Table 3-1 100-PIN Connector Pinouts

-18-

1 D15 2 AGND

3 D14 4 AGND

5 D12 6 D13

7 D10 8 D11

9 D08 10 D09

11 GND 12 GND

13 MSM_DP_DCD/ ( GPIO_INT44 ) 14 MSM_DP_RI/ ( GPIO_INT54 )

15 MSM_DP_RFR/ 16 MSM_DP_TXD

17 MSM_DP_DTR/ ( GPIO_INT50 ) 18 MSM_DP_RXD

19 MSM_DP_CTS/ 20 MSM_DP_RXD2 ( UIM_PWR_EN )

21 MSM_DP_TXD2 ( UIM_DATA) 22 MSM_DP_CTS2/ ( UIM_RESET )

23 MSM_DP_RFR2/ ( UIM_CLK ) 24 UART_EN

25 AUX_PCM_CLK 26 AUX_PCM_DOUT

27 AUX_PCM_SYNC 28 AUX_PCM_DIN

29 GPIO_INT49 30 POWER_ON

31 EX_RESET 32 GPIO_INT18

33 GPIO_INT45 34 IDLE LED

35 BUSY LED 36 GND

37 GND 38 D00

39 D01 40 D02

41 D03 42 D04

43 D05 44 D06

45 D07 46 A02

47 A01 48 RESET_OUT

49 LCD_CS/ ( GPIO_INT37 ) 50 LCD_EN ( GPIO_INT36 )

51 OE/ 52 WE/

53 KEYSENSE0/ ( GPIO_INT62 ) 54 KEYSENSE1/ ( GPIO_INT63 )

55 KEYSENSE2/ ( GPIO_INT64 ) 56 KEYSENSE3/ ( GPIO_INT65 )

57 KEYSENSE4/ ( GPIO_INT66 ) 58 KEYPAD00 ( GPIO_INT61 )

59 KEYPAD01 ( GPIO_INT60 ) 60 KEYPAD02 ( GPIO_INT59 )

61 KEYPAD03 ( GPIO_INT58 ) 62 KEYPAD04 ( GPIO_INT57 )

63 KEYPAD05 ( GPIO_INT56 ) 64 GPIO_INT48 (ON_SW_SENSE/ )

65 GPIO_INT09 66 GPIO_INT10

67 SMS LED 68 GPIO_INT17

69 GPIO_INT04 70 GPIO_INT16

71 VIBRATOR_DRV 72 PS_HOLD, Power On LED

73 AUXON 74 RINGER

75 AUXOP 76 GND

77 GND 78 GPIO_INT19 (EAR_DET1 )

79 EAR2O 80 EAR1O_P

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

81 EAR1O_N 82 MIC1P

83 MIC2P 84 GND

85 GND 86 +VBATT (NOT IN USE)

87 +VEXT_DC 88 VATT_INT

89 +VEXT_DC 90 VATT_INT

91 GPIO_INT11 ( MSM_DP_RXD3 ) * 92 GPIO_INT12 ( MSM_DP_TXD3 ) *

93 GPIO_INT13 ( MSM_DP_CTS3/ ) 94 GPIO_INT14 ( MSM_DP_RFR3 )

95 GPIO_INT02 96 GP_ADC_DET

97 GPIO_INT34 ( GP_CS0/ ) 98 GPIO_INT35 ( GP_CS1/ )

99 GND 100 GND

Notes:

* Pin 91 and Pin 92 can be used as the third UART for debugging. We strongly recommend that

the user have a 3-pin connector or 3 test points on their board, so that one can easily monitor and

diagnose their module.

* LEAVE UNUSED PINS OPEN AT ALL TIMES

-19-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4. Interface Descriptions

4.1 Overview

This chapter covers information required to convert the DTG2000-Dual V2.0 into a subscriber unit

application. In addition, some of the internal blocks of the device are described. Understanding these

internal blocks is necessary for one to completely grasp the functions of the various interfaces.

This chapter discusses the interface to the major blocks of the DTGD2000-Dual V2.0 as shown in

the following figure. These blocks include:

 Power Up

 CODEC Interface

 UART Interface

 General Purpose Interface

 External Hardware Reset

 User Interface

4.2 Powering Up the Module

There are two ways to power up the module and customers may choose one of the two ways to power

up DTG2000-Dual V2.0.

4.2.1 Supply input to +VEXT_DC (Pin 87 and Pin 89)

If the customers don’t need to save current in sleep mode, which is around 15mA, supplying the

voltage input to +VEXT_DC (Pin 87 and 89) is recommended.

When the input voltage from +4V to +5.0V is supplied, DTG2000-Dual V2.0 will automatically start its

power-on process and finish it within 2 seconds. In this case, using a regulator with an enable pin is

highly recommended so that the customer can reset the module using the enable pin if software lock-up

symptoms are found.

If a customer needs to use charging circuit built in the module, apply +4.5V DC to +VEXT_DC (Pin87

and 89) and connect the 3.6V 1cell lithium-ion battery to BATT_INT (Pin88 and 90).

-20-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.2.2 Supply Input to BATT_INT (Pin 88 and Pin 90)

If the customers need to get their device to operate in a very low sleep current mode, supplying the

voltage input to BATT_INT (Pin 88 and 90) is recommended.

When the input voltage from +3.4V to +4.3V is supplied to BATT_INT(Pin88 and 90), DTG2000-Dual

V2.0 won’t automatically start its power-on process without low assertion of POWER_ON (Pin 30). To

power the module on, first apply VCC to BATT_INT and have POWER_ON (Pin30) stay low for more

than 500 msec and less than 2 sec.

POWER_ON (Pin 30) needs to be externally pulled up to 3V to 3.6V thru 100kohm resistor.

To power off the module, have POWER_ON(Pin 30) stay low for more than 2sec and less than 4sec and

then the voltage in BATT_INT may or may not be removed.

If Vcc is supplied thru a regulator to BATT_INT(Pin88 and 90), using a regulator with an enable pin is

highly recommended so that the customer can shut off the power to the module using the enable pin if

software lock-up symptoms are found. If the modem is locked up, low assertion of POWER_ON(Pin 30)

won’t power on or off the module or Pin 31(Ext_Reset) may not work.

If Vcc is supplied directly from a battery, having a FET between the output of a battery and input of

DTG2000-Dual V2.0 is recommended that the customer can shut off the Vcc to DTG2000-Dual V2.0

using the FET as a reset method..

4.3 CODEC Interface

With the integrated microphone and earpiece amplifier including CODEC, the DTG2000-Dual V2.0

module interfaces directly, either differential or single-ended, to the microphone and earpiece.

The audio features in the module are

- Two microphone inputs

- Two earphone outputs and one auxiliary audio output.

4.3.1 Internal CODEC Interface

The module contains analog audio interface circuitry. The contained audio interface supports all of the

required conversation and amplification stages for the audio front end.

The audio interface includes the amplification stages for both the microphone and earphone.

The EAR10 and MIC1P are typically used for the handset microphone,

The EAR_JACK+ and MIC2P are typically used for the ear-jack.

Table 4-1 Analog Audio Pinouts

-21-

NAME DESCRIPTION CHARACTERISTIC

MIC2P Mic Jack Input Analog Input (Pin No. 83, for Ear-Mic Jack) *

EAR_DET1 EAR/MIC Set Detect Logic Input (Pin No. 78) **

EAR_JACK+ Earphone Output Analog Output (Pin No. 79 for Ear-Mic Jack)

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

NAME DESCRIPTION CHARACTERISTIC

GND_A Audio Ground Audio Ground (Pin No. 2, 4)

EAR10_N Speaker Output - Analog Output (Pin No. 81)

EAR10_P Speaker Output + Analog Output (Pin No. 80)

MIC1P Mic Input Analog Input (Pin No. 82),

Mic bias is supplied from this pin.

AUXON Auxiliary Output - Analog Output (Pin No. 73)

AUXOP Auxiliary Output + Analog Output (Pin No. 75)

Note:

* MIC2, along with being a microphone input, checks to see if the user has pressed the headset key,

which allows the user to connect to or disconnect from a call. This pin is internally pulled high and is

therefore normally in the high state. To activate this input and connect to or disconnect from a call, the

user must set the MIC2 pin to a low state for 100ms to 200ms.

** EAR_DET1 checks to see if a headset has been connected to the ear-jack. When there is no headset

connected to the ear-jack, the audio path thru an ear jack is disconnected. When a headset is connected to

the ear-jack, audio path is opened. To simulate a headset connected to the ear-jack, the user must apply a

low signal to the EAR_DET1 pin for as long as the user wants the audio path to be kept open.

4.3.2 Extended CODEC Interface

The PCM CODEC interface is used for the car-kit audio system. This interface is optional.

External CODEC interface signals are listed below:

Table 4-2 Digital CODEC Pinouts

NAME DESCRIPTION PINOUTS

AUX_PCM_CLK PCM Clock Pin No. 25

AUX_PCM_DIN PCM Data Input Pin No. 28

AUX_PCM_DOUT PCM Data Output Pin No. 26

AUX_PCM_SYNC PCM Sync. Pin No. 27

4.4 UART Interface

The Universal Asynchronous Receiver Transmitter (UART) communicates with serial data that

conforms to the RS-232 Interface protocol. The module has 3 UARTs which provides 3.0V CMOS level

outputs and 3.0V CMOS input levels. All the control signals of the RS-232 are active low, however the

data signals, RXD and TXD, are active high.

-22-

UART1 which has 512 bytes for Tx and Rx FIFO, supports high speed data communication up to

230.4kbps, program download and diagnostic monitor function.

UART2 and 3 which 64 bytes for T/Rx FIFO, support low speed data communication up to 115.2kbps,

program download and diagnostic monitor function.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

The UART features hardware handshaking, programmable data sizes, programmable stop bits, and

odd, even, no parity.

4.4.1 UART1 interface

Table 4-3 UART1 Interface Pinouts

NAME DESCRIPTION PIN NUNBER CHARACTERISTIC

DP_DCD/ Data Carrier Detect 13 Network connected from the module

DP_RI/ Ring Indicator 14 Output to host indicating coming call

DP_RFR/ Ready for Receive 15 Ready for receive to the host

DP_TXD Transmit Data 16 Output data from the module

DP_DTR/ Data Terminal Ready 17 Host ready signal from the host

DP_RXD Receive Data 18 Input data to the module

DP_CTS/ Clear to Send 19 Clear to send from the host

GND Signal Ground 11, 12 Signal ground

* Leave unused Pins open.

4.4.2 UART2 interface

The UART2 supports R-UIM interface.

Table 4-4 UART2 Interface Pinouts

NAME DESCRIPTION PIN NUMBER CHARACTERISTIC

DP_RXD2 Receive Data 20 Input data to the module

DP_TXD2 Transmit Data 21 Output data from the module

DP_CTS2/ Clear to Send 22 Clear to send from the host

DP_RFR2/ Ready for Receive 23 Ready for receive to the host

GND Signal Ground 11, 12 Signal ground

* Leave unused Pins open.

If a customer wants to use R-UIM card, UART2 can’t be used as UART.

4.4.3 UART3 interface

The UART3 is used to monitor and diagnose the status of the DTG2000-Dual V2.0. It is strongly

recommended for the user to have the following UART3 pins connected to an extra connector or to test

points, in order to easily troubleshoot any problems with the module.

Table 4-5 UART3 Interface Pinouts

-23-

NAME DESCRIPTION PIN NUMBER CHARACTERISTIC

DP_RXD3 Receive Data 29 Input data to the module

DP_TXD3 Transmit Data 30 Output data from the module

DP_CTS3/ Clear to Send 34 Clear to send from the host

DP_RFR3/ Ready for Receive 32 Ready for receive to the host

GND Signal Ground 11, 12 Signal ground

* Leave unused Pins open.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.5 General Purpose Interface

The general purpose interface consists of 11 user-definable bi-directional pins.

Each GPIO pin can be configured as an input interrupt source. In addition, some GPIO pins can be

used as output control pins from the module. The user can define these pins properly as follows.

Table 4-6 General Purpose Interface Pinouts

NAME PIN NUMBER CHARACTERISTIC

GPIO_INT15 24 Configured as a pull-up, Bi-directional

GPIO_INT45 33 Configured as a pull-up, Bi-directional

GPIO_INT17 68 Configured as a pull-up, Bi-directional

GPIO_INT04 69 Configured as a pull-down, Bi-directional

GPIO_INT16 70 Configured as a pull-down, Bi-directional

GPIO_INT09 65 Configured as a pull-down, Bi-directional

GPIO_INT10 66 Configured as a pull-up, Bi-directional

GPIO_INT13 93 Configured as a pull-up, Bi-directional

GPIO_INT49 29 Configured as a pull-down, Bi-directional

GPIO_INT02 95 Configured as a pull-down, Bi-directional

GPIO_INT18 32 Configured as a pull-down, Bi-directional

4.6 External Hardware Reset and Power Down Registration

4.6.1 External Hardware Reset (Pin #31)

There are two types of resets that the user can employ to restart the module. The first type will reset

the MSM and the memory and is performed when the user gives the AT command, AT+RESET, to the

MSM. Another way to reset the module is by using the external hardware reset. This type of reset will

reset the hardware as well as the MSM and the memory. The flash memory will be the only information

that is kept. To perform an external hardware reset, make sure the module has powered on and is not in

the initialization stage, and then pull low the external hardware reset pin (Pin #31) for 200ms to 500ms.

Keep the external hardware reset pin high or floating when the module is initializing and booting up as

well as during normal operation. This pin is internally pulled up to +3.0V.

4.6.2 Power Down Registration

Before DTG2000-Dual V2.0 is powered off, it has to send power down registration message to the

CDMA base station to help the base station to maximize its capacity. Depending on air interface

environment, it may take 12 seconds at maximum according to CDMA technical standard.

-24-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.6.2.1 Power Down Registration Protocol for CDMA device

4.6.2.1.1 Using AT command (When Vcc is applied to +VEXT_DC)

After waiting for 12 seconds, the host device may shut down the power to DTG-2000.

Before powering off DTG-2000, send “AT+POWEROFF” to DTG-2000.

Device connected to DTG

-

2000

DTG

-

2000

4.6.2.1.2 Using POWER_ON (Pin 30) (Only when Vcc is applied to BATT_INT)

Status of POWER_ON(Pin 67)

L

HIGH

LOW

Booting stage. In normal operation Powering the module off. 2 sec T1+12sec. Shut off the Vcc to DTG-2000

T1

-25-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.7 User Interface

4.7.1 Keypad

The keypad interface consists of a 5 X 6 matrix pattern. The 5-KEYSENSE/[4:0] pins are used to

connect a matrix keypad to the module. The KEYSENSE/ pins are active low.

The 6-KEYPAD pins are necessary to construct the other side of the matrix. These KEYPAD pins

must be active high in order for the keypad matrix to work properly. The general keypad matrix is shown

below:

32 1

65 4

98 7

END

#

0

*

SEND

KEYSENSE0

KEYSENSE1

KEYSENSE2

KEYSENSE3

KEYSE

NSE4

KEYPAD00

KEYPAD01

KEYPAD02

KEYPAD03

KEYPAD04

KEYPAD05

Reserved

Figure 4-1 Keypad Matrix

DTMF

When key is pressed, CDMA Module generates standard DTMF tone and sends it to the local

audio path (speaker). If the Mobile station is in traffic state, the CDMA Module sends DTMF Message to

the Base Station and to the local audio path (speaker) at the same time. The network will deliver the

analog DTMF tone or DTMF Message to its final destination.

-26-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.7.2 LCD

The module supports the 16 bits parallel LCD interface as well as the 8 bits. The LCD interface is

composed of 23-signals. Direct access to the LCD driver is not applicable.

Table 4-7 LCD Interface Signals

NAME TYPE CHARACTERISTIC

LWR/ BS_PU LCD RW pin out from the module

RD/ BS LCD E pin out from the module

A01 B LCD RS pin out from the module

LCD_CS/ O LCD Chip Select pin out from the module

RES_OUT/ O LCD Reset from the module

D00 ~ D015 O LCD Data Lines from the module

VDD LCD Power Supply

GND LCD Signal Ground

-27-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

4.7.3 Ringer (Pin74)

The Ringer pin provides the output to drive the sound transducer on the host. It alerts the user of a

voice call event and outputs key tones if the keypad is connected.

The DTG2000-Dual V2.0 module includes Ringer Driver and drives Buzzer directly.

Table 4-8 Ringer/Buzzer Driver Output Spec.

PARAMETER TEST CONDITION TYPICAL VALUE

Drive Frequency Max 8kHz

Load Current R_load=10 ohm Min 300mA

Load Resistance Typ 10 ohm

4.7.4 LED Interface

Table 4-9 LED interface

PIN NUMBER USE REMARK

34 Idle LED High Enable, High indicates

“The device is in CDMA service area”

35 Busy LED High Enable, High indicates

“The device is in CDMA Traffic state”

67 SMS LED High Enable High indicates

“The device has received SMS message

72 Power On LED High Enable High indicates

“The device is turned on”

Above pins can not drive LED directly. Must use driver ICs to drive LEDs

-28-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

5. Electrical Specifications

5.1 DC Electrical Specifications

5.1.1 Absolute Maximum Ratings

Operating the module under conditions that exceed those listed in the Absolute Maximum Ratings

table may result in damage to the module.

Absolute Maximum Ratings should be considered as limiting values. The module may not function

properly and should not be operated if any one of the parameters is not within its specified operating

range.

Table 5-1 Absolute Maximum Ratings

PARAMETER MIN MAX UNITS

Storage Temperature -50 +85 ºC

Voltage On Any Input or Output Pin -0.8 +3.5 V

+VEXT_DC -1.0 +5.0 V

Supply Voltage BATT_INT -1.0 +4.4 V

Initializing Current 250 mA

Drop No damages after 60-Inch drop over concrete floor

5.1.2 Recommended Operating Conditions

PARAMETER MIN TYP MAX UNITS

+VEXT_DC +4.0 +4.5 +5.0 V

Supply Voltage

BATT_INT +3.4 +4.0 +4.3 V

Operating Temperature -30 +60 ºC

Operating Humidity 95% (50°C) Relative Humidity

5.1.3 Power Consumption

-29-

STANDBY

CONVERSATION

(Busy) Idle Sleep

900mA (MAX) 110mA +VEXT_DC : 9mA

BATT_INT : 1mA

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

5.1.4 Serial Interface Electrical Specifications

PARAMETER MIN TYP

(NO LOAD) MAX UNITS

Input High Voltage +2.0 +3 +3.3 V

Input Low Voltage -0.5 0 +0.8 V

Output High Voltage +2.4 +2.85 +3.0 V

Output Low Voltage 0 +0.4 V

5.2 Timing characteristics

5.2.1 External CODEC Timing

t

clk

t

clkl

t

clkh

t

su(sync)

t

h(sync)

t

su(din)

t

h(din)

MSB LSB

PCM_CLK

PCM_SYNC

PCM_DIN

Figure 5-1 External PCM CODEC to Module timing

t

clk

t

clkl

t

clkh

t

su(sync)

t

h(sync)

MSB LSB

PCM_CLK

PCM_SYNC

PCM_DOUT

t

pdout

t

pdout

t

zdout

-30-

Figure 5-2 Module to External PCM CODEC timing

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

Table 5-2 External PCM CODEC Parameters

PARAMETER DESCRIPTION MIN TYP. MAX UNIT

tclk PCM-CLK cycle time 400 500 ns

tclkl PCM-CLK low time 200 250 ns

tclkh PCM-CLK high time 200 250 ns

tsu(sync) PCM_SYNC setup time to PCM_CLK falling 150 ns

th(sync) PCM_SYNC hold time after PCM_CLK falling 350 ns

tsu(din) PCM_DIN setup time to PCM_CLK falling 50 ns

th(din) PCM_DIN hold time after PCM_CLK falling 10 ns

tpdout Delay from PCM_CLK falling to PCM_DOUT 50 ns

5.2.2 LCD Timing

t

WRS

MCLK

(modem)

A[21:0]

LWR/

Write

Data[7:0]

LCD_CS/

RD/

LCD_E

Read

Data[7:0]

T

t

WRH

t

LCDES

t

LCDEHI

t

LCDEH

t

RDS

t

RDH

LCD Data Write

LCD Data Read

Figure 5-3 LCD Timing

-31-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

Table 5-3 LCD Timing Parameters

PARAMETER DESCRIPTION MIN MAX UNIT

tLCDES LCD_CS/ active to LCD_E active ns

tLCDEHI Pulse width if LCD_E active ns

tLCDEH LCD_E inactive to LCD_CS/ inactive (write) ns

tLCDEHR LCD_E inactive to LCD_CS/ inactive (Read)

tRDS Read data setup ns

tRDH Read data hold ns

tWRS Write data setup to LCD_E inactive ns

tWRH Write data hold from LCD_E inactive ns

z k, I, n is integer lower than 16, MCLK is internal Clock of module

-32-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

6. Mechanical Dimensions

6.1 DTG2000-Dual V2.0 Outline

`

These 4 solder points in red circles MUST be

soldered to PCB GND in the host device

GPS Connector CDMA Connector

-33-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

6.2 100-Pin Connector Mechanical Dimension

Figure 6-1 100pins Connector (Units: mm)

Counter-Part (the 100-pins socket connector (not on the DTG2000-Dual V2.0)):

Part Name: Socket pin connector (0.5mm pitch, straight, dual row)

Part Number: AXK5F00545J

Manufacture : NAIS

Note: For more information on the 100-pins socket connector,

-34-

Please visit http://www.nais-e.com/ , click connector, and “NARROW PITCH(0.5mm) CONNECTORS

P5 SERIES P5KF” .

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

6.3 RF Connector

6.3.1 Sunridge Corp. Part

6.3.1.1 Bulkhead SMA Type cable : MCB2G-RH-59-LLL-SMAJB101

(Example, MCB2-RH-59-080-SMAJB101, 80mm-long RF cable)

6.3.1.2 PCB mountable right angle SMA cable : MCB2G-RH-59-LLL-SMAJX103

(Example, MCB2G-RH-59-100-SMAJX103, 100mm-long RF cable)

6.3.1.3 Contact Info.

Chris Su Tony Su

chrissu@sunridge.com tsu@sunridge.com

-35-

Tel: 626-535-1780 (CA, U.S.A.)

Fax : 626-535-1788 (CA, U.S.A.)

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

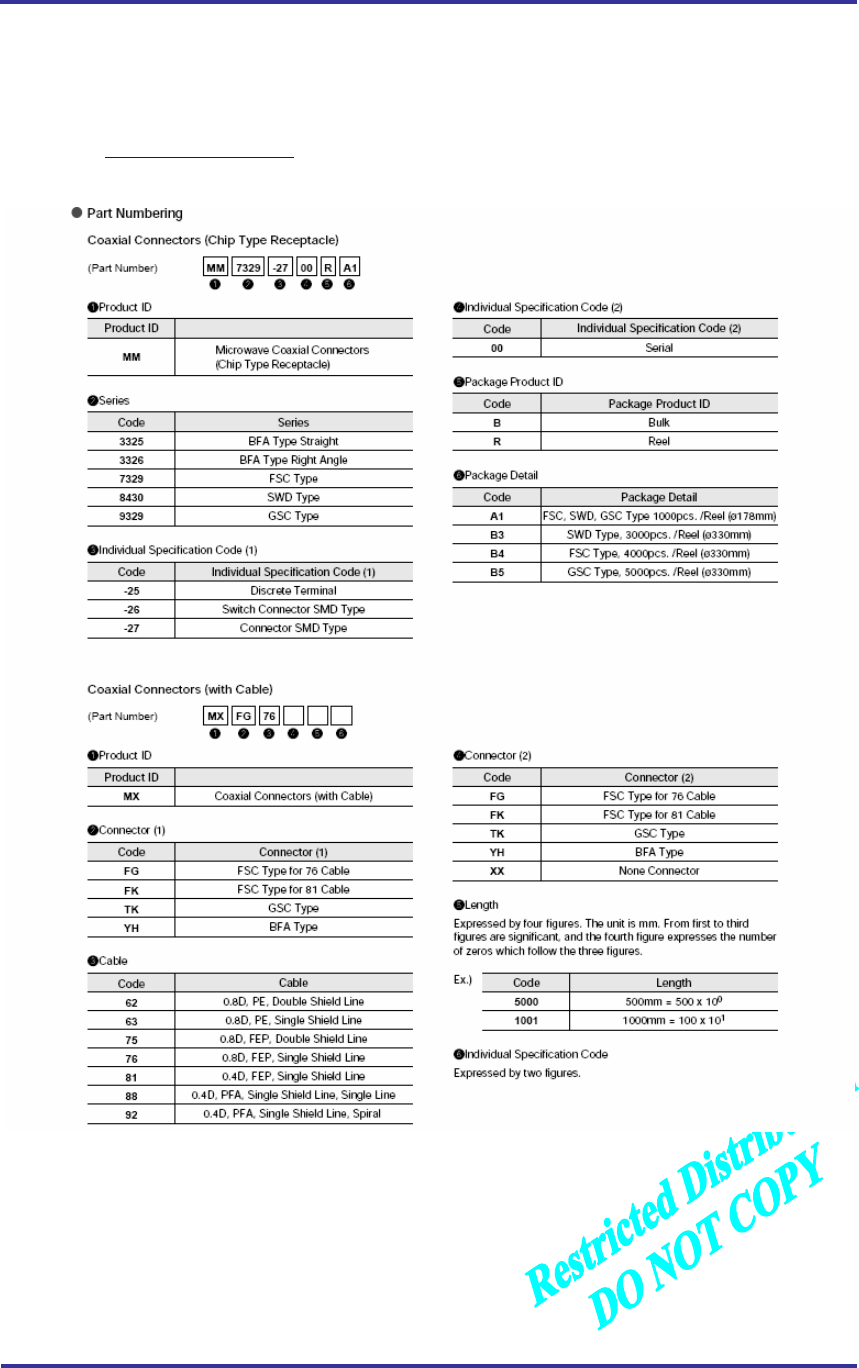

6.3.2 Murata Part

Our part number : MM9329-2700.

Counter part number : MXTK92( )( )( )

Please, visit http://www.murata.com and search for MXTK92 in product search engine

-36-

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

7. Application Schematic

-37-

AnyDATA EMIVV2 CDMA DATA MODEM User Manual CDMA DATA TERMINAL

AnyDATA Corporation CDMA DATA MODEM CDMA DATA TERMINAL

Contents

Users Manual 2

Navigation menu

Namespaces

Views

Navigation
