I2367F /I2267FWH/
I2367F I2267FW
/ /I2067F
LED Backlight
LCD Monitor User Manual
2
Safety ........................................................................................................................................................................ 3
National Conventions ......................................................................................................................................... 3
Power ................................................................................................................................................................ 4
Installation .......................................................................................................................................................... 5
Cleaning ............................................................................................................................................................. 6
Other .................................................................................................................................................................. 7
Setup ........................................................................................................................................................................ 8
Contents in Box ................................................................................................................................................. 8
Setup Stand & Base .......................................................................................................................................... 9
Adjusting Viewing Angle ................................................................................................................................... 11
Connecting the Monitor .................................................................................................................................... 12
Adjustin ................................................................................................................................................................. 14
Setting Optimal Resolution .............................................................................................................................. 14
Windows Vista .......................................................................................................................................... 14
Windows XP ............................................................................................................................................. 16
Windows ME/2000 .................................................................................................................................... 17
Hotkeys ............................................................................................................................................................ 18
OSD Setting ..................................................................................................................................................... 19
Luminanc ................................................................................................................................................ 20
Image Setup ............................................................................................................................................. 22
Color Setup ............................................................................................................................................... 24
Picture Boost ............................................................................................................................................ 26
OSD Setup ............................................................................................................................................... 28
Extra ......................................................................................................................................................... 30
Exit ............................................................................................................................................................ 32
LED Indicator ................................................................................................................................................... 33
Driver ...................................................................................................................................................................... 34
Monitor Driver .................................................................................................................................................. 34
Windows 7 ................................................................................................................................................ 34
Windows Vista .......................................................................................................................................... 37
Windows XP ............................................................................................................................................. 39
Windows 2000 .......................................................................................................................................... 42
Windows ME ............................................................................................................................................. 42
i-Menu .............................................................................................................................................................. 43
e-Saver ............................................................................................................................................................ 44
Screen+ ........................................................................................................................................................... 45
Troubleshoot ........................................................................................................................................................... 46
Specification ............................................................................................................................................................ 47
General Specification ....................................................................................................................................... 47
Preset Display Modes ...................................................................................................................................... 50
Pin Assignments .............................................................................................................................................. 51
Plug and Play ................................................................................................................................................... 52
Regulation ............................................................................................................................................................... 53
FCC Notice
CE Declaration of Conformity
WEEE Declaration ........................................................................................................................................... 54
Service .................................................................................................................................................................... 56
Warranty Statement for Europe ....................................................................................................................... 56
Warranty Statement for North & South America (excluding Brazil) ........................................................... 58
...........................
.
........................................................................................................................... 53
..........................................................................................................................53
g
e
3
Safety
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.
4
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug
will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat
the safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect
the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100 - 240V ~, Min. 5A
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for
monitors with power adapter).
Manufacturers:
1) TPV ELECTRONICS(FUJIAN) CO., LTD model : ADPC1245
2) HONOR ELECTRONIC CO.,LTD model: ADS-65LSI-12-1 12045G
1) TPV ELECTRONICS(FUJIAN) CO., LTD model : ADPC1236
2)
HONOR ELECTRONIC CO., LTD model : ADS-45NP-12-1 12036G
I2367FH/I2267FWH
I2367F/I2267FW/I2067F
5
Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the stand:
6
Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
7
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
8
Setup
Contents in Box
check with the local dealer or AOC branch office for confirmation.
Monitor
CD Manual Base Adapter
Power Cable
*
Audio Cable
Not all signal cables (Analog,
and HDMI cables) will be provided for all countries and regions. Please
HDMI Cable
*
Analog Cable
*
*
CableDVI
9
Setup Stand & Base
Please setup or remove the base following the steps as below.
Setup:
Remove:
1
2
10
Unit standing without base is available. (Caution: must put unit in flat surface. Any uneven or sloped surface may
result unit damaged or injury to user.)

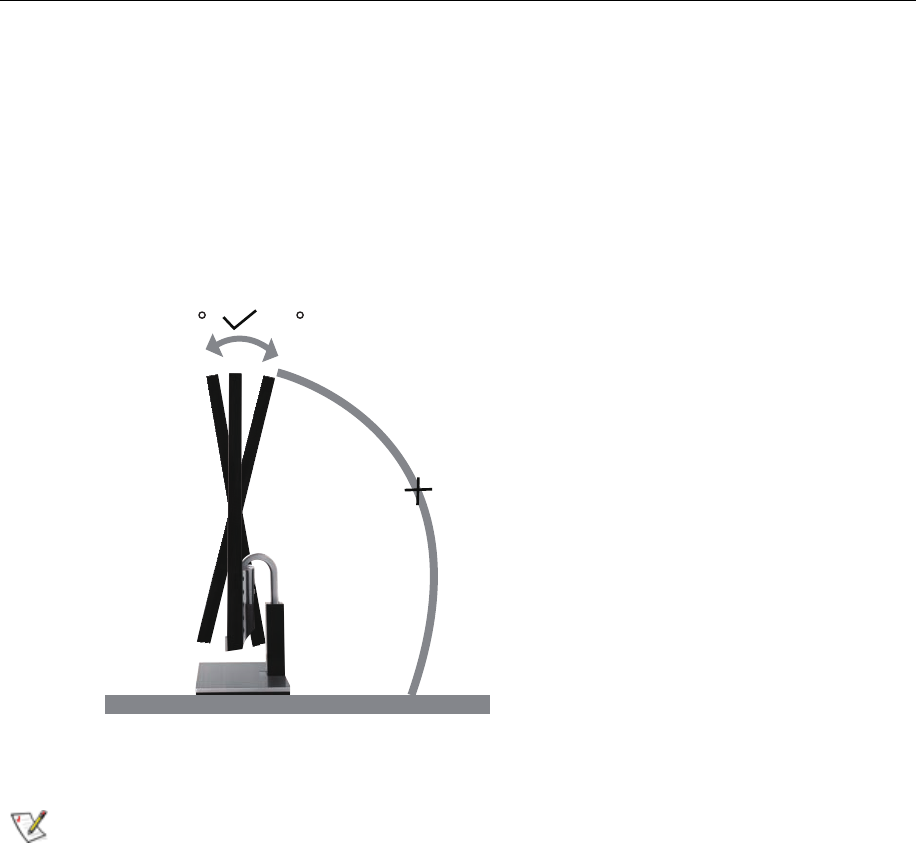

Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
You are able to adjust the monitor's angle from -5° to 23 °.
NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
11
-5 23
12
Connecting the Monitor
1. Power
2.
5. HDMI
3.
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub/HDMI cable to the back of the monitor and connect the other end to the
computer's D-Sub/HDMI port.
3 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
4. D-Sub
Audio
Earphone
Cable Connections In Back of Monitor and Computer:
1 2 3 4 5
13
Connecting the Monitor
1. Power
2.
DVI
3.
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub/DVI cable to the back of the monitor and connect the other end to the
computer's D-Sub/DVI port.
3 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
D-Sub
Cable Connections In Back of Monitor and Computer:
123
Adjusting
Setting Optimal Resolution
Windows Vista
For Windows Vista:
1 Click START.
2 Click CONTROL PANEL.
3 Click Appearance and Personalization.
4 Click Personalization
1 4
5 Click Display Settings.
6 Set the resolution SLIDE-BAR to .
1
Optimal preset resolution .
5
Windows XP
For Windows XP:
1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Click Appearance and Themes.
5 Double click DISPLAY.
16
6 Click SETTINGS.
7 Set the resolution SLIDE-BAR to
Windows ME/2000
For Windows ME/2000:
1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR to .
1
Optimal preset resolution
Optimal preset resolution
7

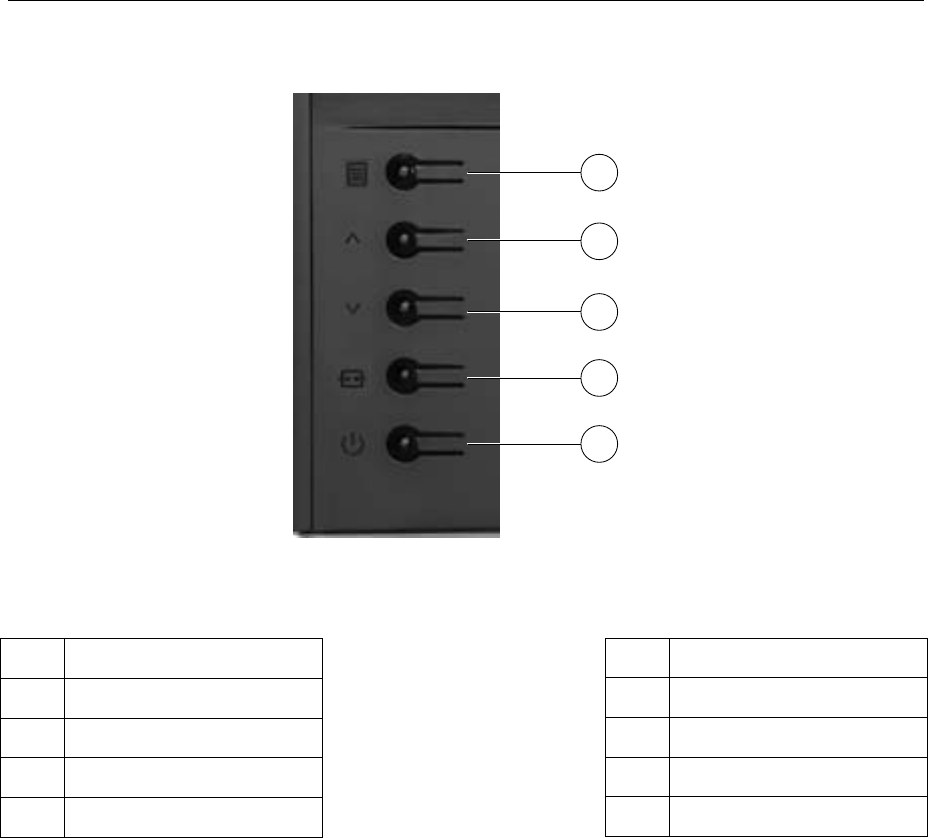

Hotkeys
1
2
3
Menu/Enter
4
5
Power
Press the Power button to turn on/off the monitor.
1
1
2
3
4
5
4:3 or wide /
Source/Auto/Exit
Power
Eco (DCR)/
Eco (DCR)
Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD. (Eco
mode hot key may not be available in all models).
1
2
3
Menu/Enter
4
5
Volume/
Source/Auto/Exit
Power
Eco (DCR)/
When there is no OSD, press Volume adjust volume.
9ROXPH
Auto / Exit / Source hot key
When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure.
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.
4:3 or wide image ratio /
When there is no OSD, press hotkey continuously to change 4:3 or wide image ratio. (If the product screen size
is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )
8

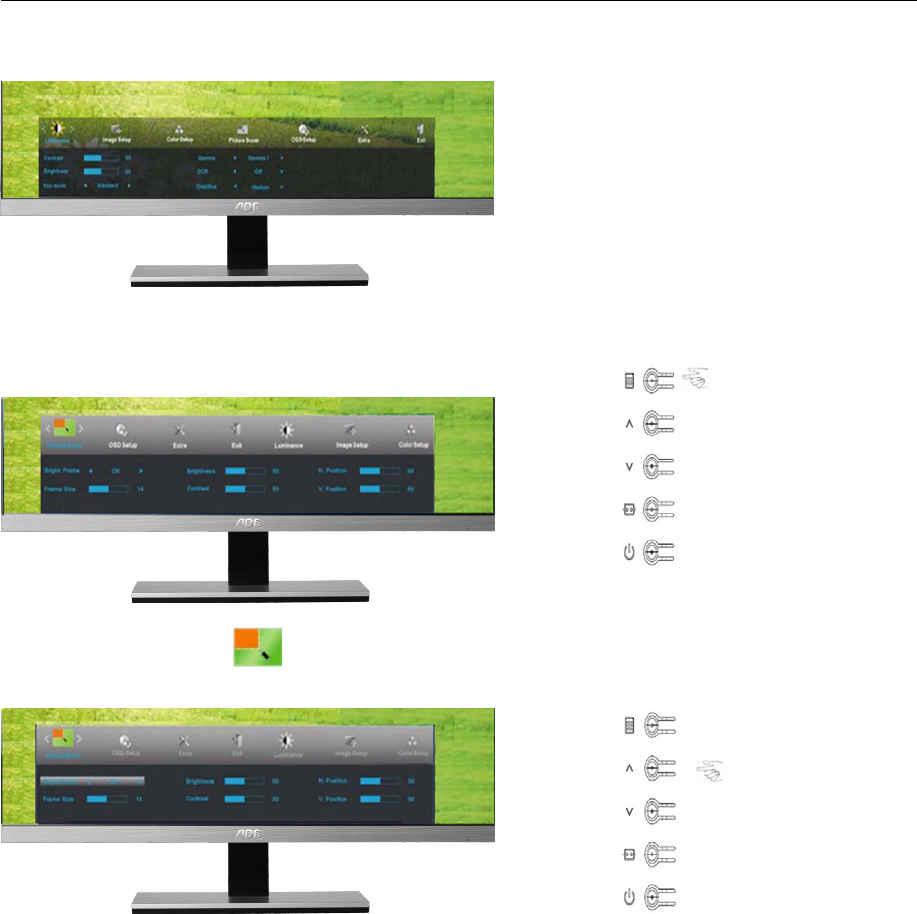

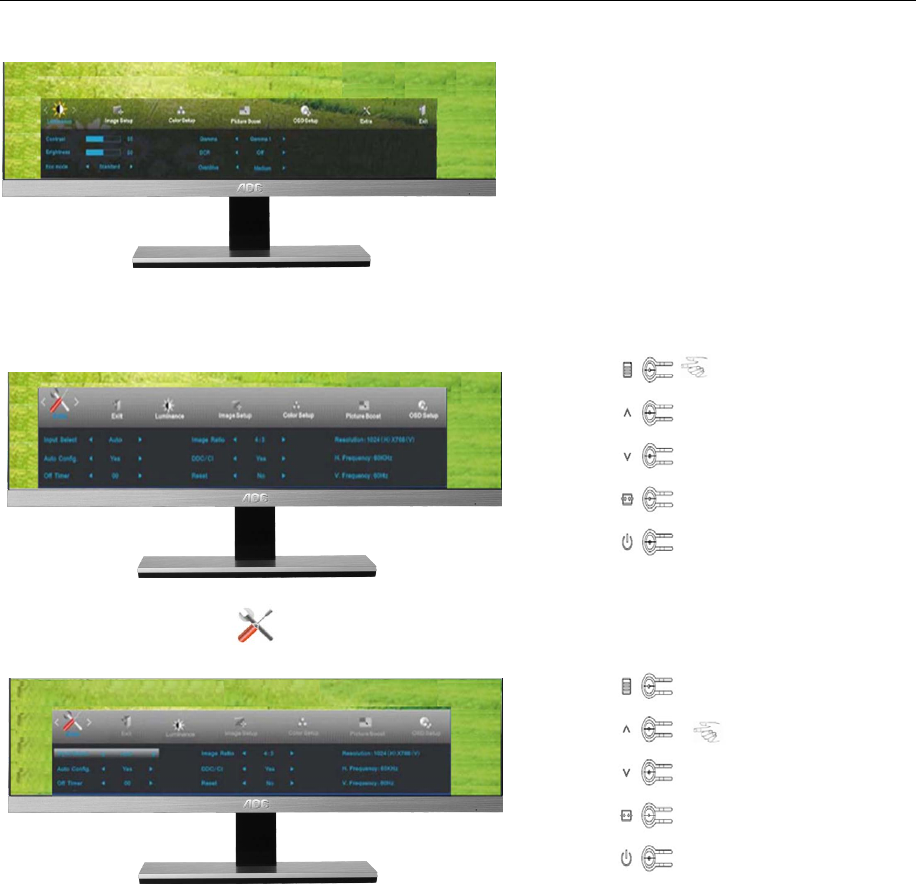

OSD Setting
Basic and simple instruction on the control keys.
1) Press the MENU-button to activate the OSD window.
2) Press or to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate it . press or to navigate through the sub-menu functions. Once the desired
function is highlighted, press MENU-button to activate it.
3) Press or to change the settings of the selected function. Press AUTO to exit. If you want to adjust any
other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor
is off and then press power button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) of non-standard ECO, DCR , DCB, Picture Boost is activated the other three of
,
One functions are turned off
accordingly.
1
Certain m odels m ay not have the Overdrive option. Please refer to the actual O SD of the display.
4)
9
Luminance
1. Press MENU (Menu) to display menu.
2. Press or to select (Luminance), and press MENU to enter.
3. Press or to select submenu, and press MENU to enter.
20
4. Press or to adjust.
5. Press AUTO to exit.
Brightness 0-100 Backlight Adjustment
Contrast 0-100 Contrast from Digital-register.
Eco mode
Standard Standard Mode
Text Text Mode
Internet Internet Mode
Game Game Mode
Movie Movie Mode
Sports Sports Mode
Gamma
Gamma1 Adjust to Gamma1
Gamma2 Adjust to Gamma 2
Gamma3 Adjust to Gamma 3
A
DCR
Off Disable dynamic contrast ratio
On Enable dynamic contrast ratio
21
Overdrive djust the response time
Weak
Medium
Strong
O ff
Image Setup
1. Press MENU (Menu) to display menu.
2. Press or to select (Image Setup), and press MENU to enter.
3. Press or to select submenu, and press MENU to enter.
2
2
4. Press or to adjust.
5. Press AUTO to exit.
Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise
Sharpness 0-100 Adjust picture sharpness
H.Position 0-100 Adjust the horizontal position of the picture.
V.Position 0-100 Adjust the vertical position of the picture.
2
3
Color Setup
1. Press MENU (Menu) to display menu.
2. Press or to select (Color Setup), and press MENU to enter.
3. Press or to select submenu, and press MENU to enter.
2
4
4. Press or to adjust.
5. Press AUTO to exit.
Color setup.
Warm Recall Warm Color Temperature from EEPROM.
Normal Recall Normal Color Temperature from EEPROM.
Cool Recall Cool Color Temperature from EEPROM.
sRGB Recall SRGB Color Temperature from EEPROM.
User
Red Red Gain from Digital-register
Green Green Gain Digital-register.
Blue Blue Gain from Digital-register
DCB Mode
Full Enhance on or off Disable or Enable Full Enhance Mode
Nature Skin on or off Disable or Enable Nature Skin Mode
Green Field on or off Disable or Enable Green Field Mode
Sky-blue on or off Disable or Enable Sky-blue Mode
AutoDetect on or off Disable or Enable AutoDetect Mode
DCB Demo On or off Disable or Enable Demo
2
5
Picture Boost
1. Press MENU (Menu) to display menu.
2. Press or to select (Picture Boost), and press MENU to enter.
3. Press or to select submenu, and press MENU to enter.
2
6
4. Press or to adjust.
5. Press AUTO to exit.
Frame Size 14-100 Adjust Frame Size
Brightness 0-100 Adjust Frame Brightness
Contrast 0-100 Adjust Frame Contrast
H. position 0-100 Adjust Frame horizontal Position
V.position 0-100 Adjust Frame vertical Position
Bright Frame on or off Disable or Enable Bright Frame
2
7
OSD Setup
1. Press MENU (Menu) to display menu.
2. Press or to select (OSD Setup), and press MENU to enter.
3. Press or to select submenu, and press MENU to enter.
2
8
4. Press or to adjust.
5. Press AUTO to exit.
H.Position 0-100 Adjust the horizontal position of OSD
V.Position 0-100 Adjust the vertical position of OSD
Timeout 5-120 Adjust the OSD Timeout
Transparence 0-100 Adjust the transparence of OSD
Language Select the OSD language
2
9
Extra
1. Press MENU (Menu) to display menu.
2. Press or to select (Extra), and press MENU to enter.
3. Press or to select submenu, and press MENU to enter.
30
4. Press or to adjust.
5. Press AUTO to exit.
I2367FH/I2267FWH
I2367F/I2267FW/I2067F
31
Input Select
Auto Select to Auto Detect input signal
Select Signal Source as Input
Select Source as Input
Auto Config yes or no Auto adjust the picture to default
Image Ratio wide or 4:3 Select wide or 4:3 format for display
DDC-CI yes or no Turn ON/OFF DDC-CI Support
Off Timer 0~24hours Select timing to turn off the monitor.
Information Show the information of the main image
and
sub-image source
HDMI
Select Source as Input
D-SUB
HDMI 2
D-SUB
Reset Reset the menu to default
yes or no
1
HDMI
HDMI 2
1
Input Select
Auto Select to Auto Detect input signal
Select Signal Source as Input
Select Source as Input
Auto Config yes or no Auto adjust the picture to default
Image Ratio wide or 4:3 Select wide or 4:3 format for display
DDC-CI yes or no Turn ON/OFF DDC-CI Support
Off Timer 0~24hours Select timing to turn off the monitor.
Information Show the information of the main image
and
sub-image source
D-SUB
D-SUB
Reset Reset the menu to default
yes or no
DVI
3 2
Exit
1. Press MENU (Menu) to display menu.
2. Press or to select (Exit), and press MENU to enter.
3. Press AUTO to exit.
Exit Exit the main OSD
33
LED Indicator
Status LED Color
Full Power Mode Blue
Active-off Mode orange
34
Driver
Monitor Driver
Windows 7
1.Start Window7
2.Click on the 'Start' button and then click on 'Control Panel'.
3. Click on the 'Display' icon.
35
4.Ckick on theChange display settingsbutton.
5.Click the Advanced Settings” button.
6.Click the “Monitor” tab and then click the “Properties” button.
3 6
7.Click the “Driver” tab.
8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver...and then
click the "Browse my computer for driver software" button.
9. Select "Let me pick from a list of device drivers on my computer".
37
10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
11. Select the "xxx.inf" file and click the “Openbutton. Click the “OKbutton.
12. Select your monitor model and click the “Next button. The files will be copied from the CD to your hard disk
drive.
13. Close all open windows and remove the CD.
14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
3 8
Windows Vista
1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization".
2. Click "Personalization" and then "Display Settings".
3. Click "Advanced Settings...".
39
4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your
monitor is completed. The monitor can be used as is.
If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".
5. Click "Update Driver..." in the "Driver" tab.
6. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers
on my computer".
7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive
F:\Driver (CD-ROM Drive).
8. Select your monitor model and click on the 'Next' button.
9. Click "Close" "Close" "OK" "OK" on the following screens displayed in sequence.
40
Windows XP
1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.
3. Select and click on the category ‘Appearance and Themes’
4. Click on the 'Display' Item.
4 1
5. Select the 'Settings' tab then click on the 'Advanced' button.
6. Select 'Monitor' tab
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
- If the 'Properties' button is active, click on 'Properties' button.
Please follow the steps below.
7. Click on the 'Driver' tab and then click on 'Update Driver...' button.
4 2
8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.
9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.
10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:
(CD-ROM Drive).
11. Click on the 'Open' button, then click the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,
please click on the 'Continue Anyway' button.
13. Click on the 'Finish' button then the 'Close' button.
14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.
4 3
Windows 2000
1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
7. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on
'Next' and then click on 'Have disk...'.
8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).
9. Click on the 'Open' button, then click on the 'OK' button.
10. Select your monitor model and click on the 'Next' button.
11. Click on the 'Finish' button then the 'Close' button.
If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.
Windows ME
1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click
on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.
4
4

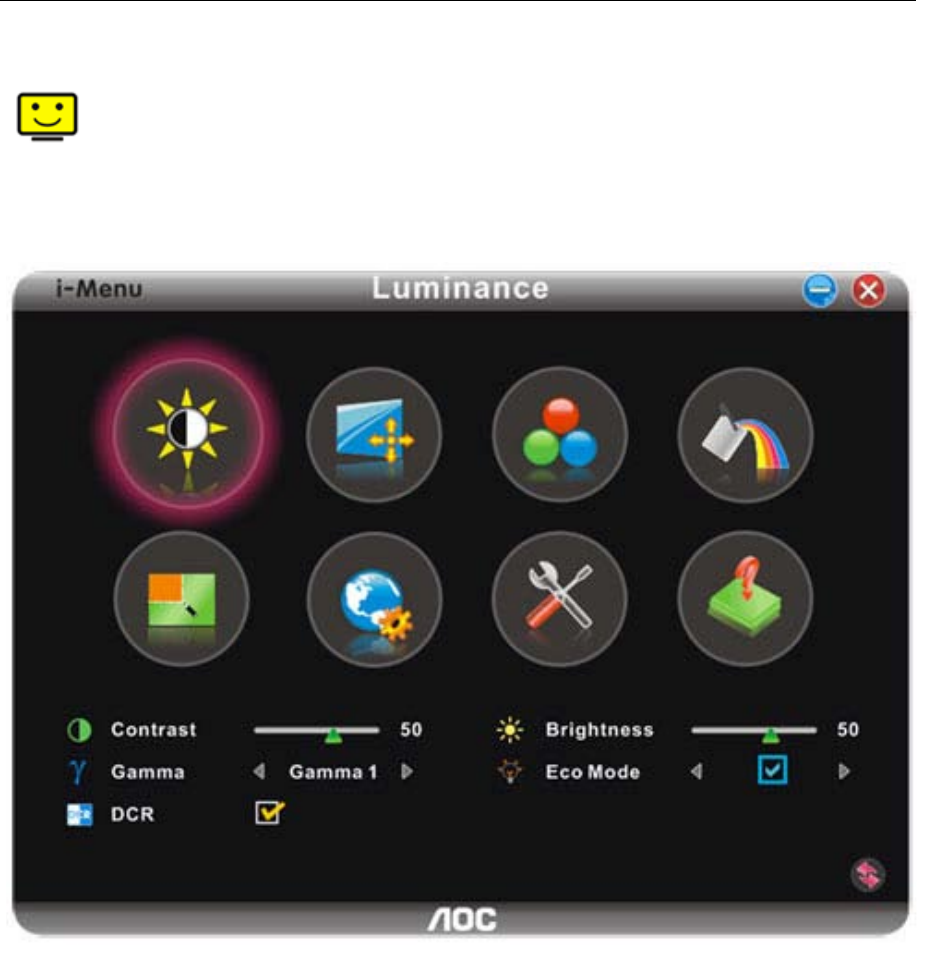

i-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on
screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation
guide.
45

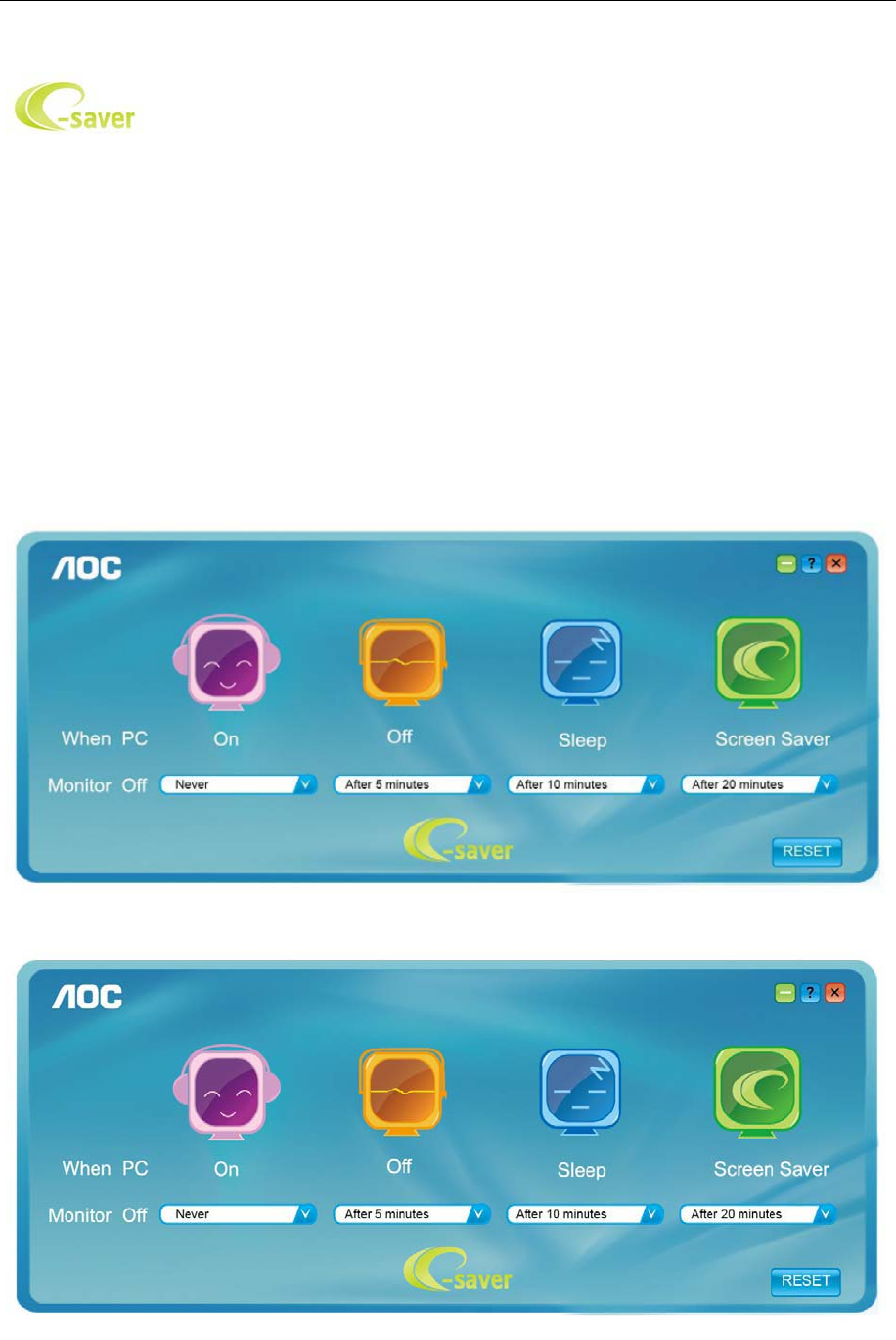

e-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown
functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or
Screen Saver); the actual shutdown time depends on your preferences (see example below).
Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to
complete software installation.
Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your
monitor to automatically shutdown. The example above illustrated:
1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.
You can click “RESET” to set the e-Saver to its default settings like below.
46
Screen+
Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop
into different panes, each pane displays a different window. You only need to drag the window to a corresponding
pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the
installation software to install it.
47
Troubleshoot
Problem & Question Possible Solutions
Power LED Is Not ON Make sure the power button is ON and the Power Cord is properly connected
to a grounded power outlet and to the monitor.
No images on the screen
Is the power cord connected properly?
Check the power cord connection and power supply.
Is the cable connected correctly?
(Connected using the D-sub cable)
Check the DB-15 cable connection.
(Connected using the DVI cable)
Check the DVI cable connection.
* DVI input is not available on every model.
If the power is on, reboot the computer to see the initial screen (the login
screen), which can be seen.
If the initial screen (the login screen) appears, boot the computer in the
applicable mode (the safe mode for Windows ME/XP/2000) and then change
the frequency of the video card.
(Refer to the Setting the Optimal Resolution)
If the initial screen (the login screen) does not appear, contact the Service
Center or your dealer.
Can you see "Input Not Supported" on the screen?
You can see this message when the signal from the video card exceeds the
maximum resolution and frequency that the monitor can handle properly.
Adjust the maximum resolution and frequency that the monitor can handle
properly.
Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has
Ghosting Shadowing Problem
Adjust the Contrast and Brightness Controls.
Press to auto adjust.
Make sure you are not using an extension cable or switch box. We
recommend plugging the monitor directly to the video card output connector
on the back .
Picture Bounces, Flickers Or
Wave Pattern Appears In The
Move electrical devices that may cause electrical interference as far away
from the monitor as possible.
Use the maximum refresh rate your monitor is capable of at the resolution
your are using.
Monitor Is Stuck In Active
Off-Mode"
The Computer Power Switch should be in the ON position.
The Computer Video Card should be snugly fitted in its slot.
Make sure the monitor's video cable is properly connected to the computer.
Inspect the monitor's video cable and make sure no pin is bent.
Make sure your computer is operational by hitting the CAPS LOCK key on
the keyboard while observing the CAPS LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
Inspect the monitor's video cable and make sure that no pin is damaged.
Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered
or sized properly Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects
(white does not look white) Adjust RGB color or select desired color temperature.
Horizontal or vertical
disturbances on the screen
Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and
FOCUS.
Press to auto-adjust.
Specification
General Specification
Panel
Model name I2367FH
Driving system TFT Color LCD
Viewable Image Size 584.2mm Diagonal
Pixel pitch 0.0884*RGB( H )mm x 0.2652(V)mm
Video R, G, B Analog lnterface ,HDMI
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 148.5MHz
Resolution
Horizontal scan range 30kHz to 83kHz
Horizontal scan Size(Maximum) 509.18mm
Vertical scan range 50Hz to 76Hz
Vertical scan Size(Maximum) 286.42mm
Optimal preset resolution 1920×1080@60Hz
Plug & Play VESA DDC2B/C1
Input Connector VGA,HDMI×2
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive HDMI
Power Source 100-240V~, 50/60Hz
Power Consumption Active<40W(Typical)
Standby < 0.5 W
Off timer 0-24 hrs
Physical
Characteristics
Connector Type VGAHDMI×2
Signal Cable Type Detachable
Dimensions & Weight:
Height (with base) 394mm
Width 531.4mm
Depth 120 mm
Weight (monitor only) 3.75kg
Environmental Temperature:
I2367FH
4
.6
8
51
Operating 0° to 40°
Non-Operating -25°to 55°
Humidity:
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
A
ltitude:
Operating 0~ 2000m (0~ 6562 ft )
Non-Operating 0~ 12192m (0~ 40000 ft )
49
52
Panel
Model number I2267FWH
Driving system TFT Color LCD
Viewable Image Size 546.2 mm diagoanl
Pixel pitch 0.08265*RGB (H)mm x 0.24795(V)mm
Video R, G, B Analog lnterface, HDMI
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 148.5 MHz
Resolution
Horizontal scan range 30 kHz - 83 kHz
Horizontal scan Size(Maximum) 476.06 mm
Vertical scan range 55 Hz - 75 Hz
Vertical scan Size(Maximum) 267.79 mm
Optimal preset resolution 1920 x1080 60 Hz
Plug & Play VESA DDC2B/CI
Input Connector VGA,HDMI x2
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive HDMI
Power Source 100~240VAC, 50/60Hz
Power Consumption Active < 40 W
Standby < 0.5W
Physical
Characteristics
Connector Type VGA,HDMI x2
Signal Cable Type Detachable
Dimensions & Weight:
Height (with base) 375.6mm
Width 498.3mm
Depth 120.6mm
Weight (monitor only) 3.48 kg
Environmental
Operating 0° to 40°
Non-Operating -25°to 55°
Humidity:
Operating 10% to 85% (non-condensing)
,
Off timer 0-24 hrs
Temperature:
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 2000m (0~ 6562 ft )
Non-Operating 0~ 12192m (0~ 40000 ft )
I2267FWH
@
50
Panel
Model number I2367F
Driving system TFT Color LCD
Viewable Image Size 584.2 mm diagoanl
Pixel pitch 0.0884*RGB (H)mm x 0.2652(V)mm
Video R, G, B Analog lnterface, DVI
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 148.5 MHz
Resolution
Horizontal scan range 30 kHz - 83 kHz
Horizontal scan Size(Maximum) 509.18 mm
Vertical scan range 55 Hz - 75 Hz
Vertical scan Size(Maximum) 286.42 mm
Optimal preset resolution
Plug & Play VESA DDC2B/CI
Input Connector VGA,DVI
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive
Power Source 100~240VAC, 50/60Hz
Power Consumption Active < 30 W
Standby < 0.5W
Physical
Characteristics
Connector Type VGA,DVI
Signal Cable Type Detachable
Dimensions & Weight:
Height (with base) 3
Width mm
Depth 120.6mm
Weight (monitor only) 3.75 kg
Environmental
Operating 0° to 40°
Non-Operating -25°to 55°
Humidity:
Operating 10% to 85% (non-condensing)
,DVI
Off timer 0-24 hrs
Temperature:
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ m (0~
Non-Operating 0~ 12192m (0~ 40000 ft )
I2367F
1920 x1080 60 Hz
@
94mm
531.4
51
5000 16404 ft )
31
Panel
Model number I2267Fw
Driving system TFT Color LCD
Viewable Image Size 546.2 mm diagoanl
Pixel pitch 0.08265*RGB (H)mm x 0.24795(V)mm
Video R, G, B Analog lnterface, DVI
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 148.5 MHz
Resolution
Horizontal scan range 30 kHz - 83 kHz
Horizontal scan Size(Maximum) 476.06 mm
Vertical scan range 55 Hz - 75 Hz
Vertical scan Size(Maximum) 267.79 mm
Optimal preset resolution 1920 x1080 60 Hz
Plug & Play VESA DDC2B/CI
Input Connector VGA,DVI
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive
Power Source 100~240VAC, 50/60Hz
Power Consumption Active < 30 W
Standby < 0.5W
Physical
Characteristics
Connector Type VGA,DVI
Signal Cable Type Detachable
Dimensions & Weight:
Height (with base) 375.6mm
Width 498.3mm
Depth 120.6mm
Weight (monitor only) 3.48 kg
Environmental
Operating 0° to 40°
Non-Operating -25°to 55°
Humidity:
Operating 10% to 85% (non-condensing)
,DVI
Off timer 0-24 hrs
Temperature:
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ m (0~
Non-Operating 0~ 12192m (0~ 40000 ft )
I2267Fw
@
52
5000 16404 ft )
Panel
Model number I2067F
Driving system TFT Color LCD
Viewable Image Size 508.05 mm diagoanl
Pixel pitch 0.09225*RGB (H)mm x 0.27675(V)mm
Video R, G, B Analog lnterface, DVI
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 140 MHz
Resolution
Horizontal scan range 30 kHz - 83 kHz
Horizontal scan Size(Maximum) 442.8 mm
Vertical scan range 55 Hz - 75 Hz
Vertical scan Size(Maximum) 249.075 mm
Optimal preset resolution
Plug & Play VESA DDC2B/CI
Input Connector VGA,DVI
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive
Power Source 100~240VAC, 50/60Hz
Power Consumption Active < 23 W
Standby < 0.5W
Physical
Characteristics
Connector Type VGA,DVI
Signal Cable Type Detachable
Dimensions & Weight:
Height (with base) 357.5mm
Width 464.8mm
Depth 120.6mm
Weight (monitor only) 3.18 kg
Environmental
Operating 0° to 40°
Non-Operating -25°to 55°
Humidity:
Operating 10% to 85% (non-condensing)
,DVI
Off timer 0-24 hrs
Temperature:
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 000m (0~ 6 ft )
Non-Operating 0~ 12192m (0~ 40000 ft )
I2067F
1600 x 60Hz900@
53
5 1 404
Preset Display Modes
STAND Resolution HORIZONTAL
FREQUENCY(kHz)
VERTICAL
FREQUENCY(Hz)
VGA
640x480@60Hz 31.469 59.940
640x480@72Hz 37.861 72.809
640x480@75Hz 37.500 75.00
SVGA
800x600@56Hz 35.156 56.250
800x600@60Hz 37.879 60.317
800x600@72Hz 48.077 72.188
800x600@75Hz 46.875 75.000
XGA
1024x768@60Hz 48.363 60.004
1024x768@70Hz 56.476 70.069
1024x768@75Hz 60.023 75.029
SXGA 1280x1024@60Hz 63.981 60.020
1280x1024@75Hz 79.976 75.025
WXGA+ 1440x900@60Hz 55.935 59.887
WSXGA 1680x1050@60Hz 65.290 59.954
HD 1920x1080@60Hz 67.500 60.000
*** 1280x960@60HZ 60.000 60.000
IBM
MODE
DOS
640x350@70Hz 31.469 70.087
720x400@70Hz 31.469 70.087
MAC MODE
VGA 640x480@67Hz 35.000 66.667
5
MAC MODE
SVGA 832x624@75Hz 49.725 74.551
MAC MODE
GA 1024x768@75Hz 60.241 74.927
X
I2367/
FHI2267FWH I2367F I2267Fw
/ /
4
I2067F
STAND Resolution HORIZONTAL
FREQUENCY(kHZ)
V
ERTICAL
FREQUENCY(Hz)
VGA
640x480@60Hz 31.469 59.940
640x480@72Hz 37.861 72.809
640x480@75Hz 37.500 75.00
SVGA
800x600@56Hz 35.156 56.250
800x600@60Hz 37.879 60.317
800x600@72Hz 48.077 72.188
800x600@75Hz 46.875 75.000
XGA
1024x768@60Hz 48.363 60.004
1024x768@70Hz 56.476 70.069
1024x768@75Hz 60.023 75.029
SXGA 1280x1024@60Hz 63.981 60.020
1280x1024@75Hz 79.976 75.025
WSXGA 1280x720@60Hz 45.000 60.000
HD 1600x900@60Hz 60.000 60.000
IBM
MODE
DOS
640x350@70Hz 31.469 70.087
720x400@70Hz 31.469 70.087
MAC MODE
VGA 640x480@67Hz 35.000 66.667
MAC MODE
SVGA 832x624@75Hz 49.725 74.551
MA
C
X
C
MODE
X
G
A
102
4
4
x768@75Hz 6
0
0
.241
7
7
4.927
55
5
Pin Assignments
Pin Number 15-Pin Side of the Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
9 +5V
10 Ground
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1 TMDS Data 2+ 9 TMDS Data 0 17 DDC/CEC Ground
2 TMDS Data 2 Shield 10 TMDS Clock + 18 +5V Power
3 TMDS Data 2 11 TMDS Clock Shield 19 Hot Plug Detect
4 TMDS Data 1+ 12 TMDS Clock
5 TMDS Data 1Shield 13 CEC
6 TMDS Data 1 14 Reserved (N.C. on
device
7 TMDS Data 0+ 15 SCL
8 TMDS Data 0 Shield 16 SDA
6
5
Pin Number
24-Pin Color Display Signal
Cable
Pin Number
24-Pin Color Display Signal
Cable
1
TMDS data 2
13
TMDS data 3
2
TMDS data 2
14
5V Power
3
TMDS data 2/4 Shield
15
Ground (for+5V)
4
TMDS data 4
16
Hot Plug Detect
5
TMDS data 4
17
TMDS data 0
6
DDC Clock
18
TMDS data 0
7
DDC Data
19
TMDS data 0/5 Shield
8
N.C.
20
TMDS data 5
9
TMDS data 1
21
TMDS data 5
10
TMDS data 1
22
TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12
TMDS data 3
24
TMDS Clock
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional
information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over
the DDC2B channel.
7
58
Regulation
FCC Notice
FCC Class B Radio Frequency Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE :
The changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this
equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to
correct such interference.
This product is in conformity with the following standards
• EN60950-1:2006 and A11+A1 (Safety requirement of Information Technology Equipment).
• EN 55022:2006+A1: 2007 (Radio Disturbance requirement of Information Technology Equipment).
• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment).
• EN 61000-3-2:2006+A1: 2009+A2: 2009 (Harmonic current emissions).
• EN 61000-3-3:2008 (Voltage fluctuations & flicker) following provisions of directives applicable.
• 2006/95/EC (Low Voltage Directive).
• 2004/108/EC (EMC Directive).
• 2005/32/EC (EuP Directive, EC No. 1275/2008 mplementing Directive for Standby and Off mode
power consumption) and is produced by a manufacturing organization on ISO9000 level.
CE Declaration of Conformity
WARNING: (FOR FCC CERTIFIED MODELS)
59
WEEE Declaration
Disposal of Waste Equipment by Users in Private Household in the European Union.
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other
household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment.The separate collection
and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city office, your household waste
disposal service or the shop where you purchased the product .
WEEE/E-Waste declaration for India
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other
household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment.The separate collection
and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling in India, please visit the below web link.
www.aocindia.com/ewaste.php
5605
61
Service
Warranty Statement for Europe
LIMITED THREE-YEAR WARRANTY*
AOC Color Monitors sold within Europe
AOC International (Europe) BV warrants this product to be free from defects in material and workmanship for a
period of Three (3) years after the original date of consumer purchase. During this period, AOC International
(Europe) BV will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a
new or rebuilt product at no charge except as *stated below. The defective products that are replaced become the
property of AOC International (Europe) BV.
If the product appears to be defective, please contact your local dealer or refer to the warranty card when attached
to the product.
Deliver
the dated proof of purchase to the AOC Authorized Service Center.
If you cannot deliver the product in person:
Pack it in its original shipping container (or equivalent)
Put the RMA number on the address label
Put the RMA number on the shipping carton
Insure it (or assume the risk of loss/damage during shipment)
Pay all shipping charges
AOC International (Europe) BV is responsible neither for any damage or loss during inbound transport damage
nor to inbound product that was not properly packaged.
AOC International (Europe) BV will pay the return shipping charges within one of the countries specified within
this warranty statement. AOC International (Europe) BV is not responsible for any costs associated with the
transportation of product across international borders. This includes the international border within the European
Union.
* This limited warranty does not cover any losses or damages that occur as a result of
Shipping or improper installation or maintenance
Misuse
Neglect
Any cause other than ordinary commercial or industrial application
Adjustment by non-authorized source
Repair, modification, or installation of options or parts by anyone other than an AOC Authorized Service Center
Improper environment
Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities
This limited warranty does not cover any of the product firmware or hardware that you or any third party have
62
modified or altered; you bear the sole responsibility and liability for any such modification or alteration.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A
PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER
PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD.
AOC INTERNATIONAL (EUROPE) BV OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY
AND EXCLUSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) BV LIABILITY, WHETHER
BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED
THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO
EVENT SHALL AOC INTERNATIONAL (EUROPE) BV BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF
USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM
COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE
MEMBER COUNTRIES OF THE EUROPEAN UNION.
Information in this document is subject to change without notice.
For more details, please visit: http://www.aoc-europe.com/en/service/index.php
63
Warranty Statement for North & South America (excluding Brazil)
WARRANTY STATEMENT
for AOC Color Monitors
Including those Sold within North America as Specified
Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of
three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer
purchase. During this period, EPI ( EPI is the abbreviation of Envision Peripherals, Inc. ) will, at its option, either
repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except
as *stated below. The parts or product that are replaced become the property of EPI.
In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center
closest to your area. Deliver the dated proof of purchase to the EPI Authorized Service Center.
If you cannot deliver the product in person:
Pack it in its original shipping container (or equivalent)
Put the RMA number on the address label
Put the RMA number on the shipping carton
Insure it (or assume the risk of loss/damage during shipment)
Pay all shipping charges
EPI is not responsible for damage to inbound product that was not properly packaged.
EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is
not responsible for any costs associated with the transportation of product across international borders. This
includes the international borders of the countries within this warranty statements.
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free
number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty.
* This limited warranty does not cover any losses or damages that occur as a result of:
Shipping or improper installation or maintenance
Misuse
Neglect
Any cause other than ordinary commercial or industrial application
Adjustment by non-authorized source
Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center
Improper environment
Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities
This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third
party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A
PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL
FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR
IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY
NOT APPLY TO YOU.
EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE.
EPI’ LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER
THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE
BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF
PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
In the United States of America, this limited warranty is only valid for Products purchased in the Continental United
States, Alaska, and Hawaii.
Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.
Information in this document is subject to change without notice.
For more details, please visit:
USA: http://us.aoc.com/support/warranty
ARGENTINA: http://ar.aoc.com/support/warranty
BOLIVIA: http://bo.aoc.com/support/warranty
CHILE: http://cl.aoc.com/support/warranty
COLOMBIA: http://co.aoc.com/warranty
COSTA RICA: http://cr.aoc.com/support/warranty
DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty
ECUADOR: http://ec.aoc.com/support/warranty
EL SALVADOR: http://sv.aoc.com/support/warranty
GUATEMALA: http://gt.aoc.com/support/warranty
HONDURAS: http://hn.aoc.com/support/warranty
NICARAGUA: http://ni.aoc.com/support/warranty
PANAMA: http://pa.aoc.com/support/warranty
PARAGUAY: http://py.aoc.com/support/warranty
PERU: http://pe.aoc.com/support/warranty
URUGUAY: http://pe.aoc.com/warranty
VENEZUELA: http://ve.aoc.com/support/warranty
IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty
64
WARRANTY
PERIOD COVERAGE AT
NO CHARGE CUSTOMER
CHARGES
Within the first three months of
purchase: Covered by EASE
- New AOC monitor
- Call tag dispatched and return freight
charges via UPS
- None*
Between 4 months – 1 Year - All Parts & Labor Including CRT
Tube & LCD Panel
- UPS Return Freight to AOC
Between 1 Year - 3 Years:
Covered by standard limited
warranty
- Parts & Labor (excluding CRT Tube
& LCD Panel)
- UPS Return Freight to AOC
Only for AOC branded monitors sold within the continental United States.
All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at any time
during the first three months, AOC will provide a replacement monitor within 72 hours after you are approved
for our program. If your monitor qualifies for the EASE program, AOC will pay for freight both ways.
Step 1: Phone our TECH Department at 888.662.9888
Step 2: Fill out and return EASE registration forms by mail or fax.
Step 3: We will issue a Return Authorization Number upon verification into the program.
Step 4: A monitor will be advance shipped to your location.
Step 5: We will issue a UPS Call Tag to pick up the defective unit.
Step 6: Please review the following chart to see your EASE program qualifications.
*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit
arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC
service center.
us
.aoc.com
5
TCO Certified Document for Displays version. 2.3
Congratulations!
This product is designed for both you and the planet!
TCO Development works for sustainable IT -
manufacture, use and recycling of IT products
reflecting environmental, social and economic
responsibility.
TCO Certified is a third party verified program,
where every product model is tested by an
accredited impartial test laboratory. TCO
Certified represents one of the toughest certifications for ICT products worldwide.
Some of the Usability features of TCO Certified Displays:
Visual Ergonomics for image quality is tested to ensure top performance and
reduce sight and strain problems. Important parameters are Resolution,
Luminance, Contrast, Reflection and Colour characteristics
Products are tested according to rigorous safety standards at impartial laboratories
Electric and magnetic fields emissions as low as normal household background
levels
Workload ergonomics to ensure a good physical environment
Some of the Environmental features of TCO Certified Displays:
Production facilities have an Environmental Management System (EMAS or ISO
14001)
Low energy consumption to minimize climate impact
Restrictions on Chlorinated and Brominated flame retardants, plasticizers, plastics
and heavy metals such as cadmium, mercury and lead (RoHS compliance)
Both product and product packaging is prepared for recycling
The brand owner offers take-back options
Corporate Social Responsibility
The brand owner demonstrates the product is manufactured under working
practices that promote good labour relations and working conditions.
The Criteria Document can be downloaded from our web site. The criteria included in
this label have been developed by TCO Development in co-operation with scientists,
experts, users as well as manufacturers all over the world. Since the end of the 1980s
TCO has been involved in influencing the development of IT equipment in a more
user and environmentally friendly direction. Our ICT product labeling system began in
1992 and is now requested by users and ICT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com

Navigation menu
