Preface

This manual explains how to install, operate and maintain the HH-6600.

No part of this publication may be reproduced or used in any form, or by any electrical or

mechanical means, without permission in writing from the manufacturer. This includes electronic

or mechanical means, such as photocopying, recording, or information storage and retrieval

systems. The material in this manual is subject to change without notice.

AWID website address: http//www.awid.com

AWID is a registered trademark of Applied Wireless Identications Group, Inc.

Bluetooth is a registered trademark of Bluetooth SIG.

Regulatory Compliance Statements

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

Reorient or relocate the receiving antenna.

●

Increase the separation between the equipment and receiver.

●

Connect the equipment into an outlet on a circuit different from that to which the receiver is ●

connected.

Consult the dealer or an experienced radio/TV technician for help.

●

FCC Caution:

Any changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

About This Manual

This device and its antenna(s) must not be co-located or operating in conjunction with any other

antenna or transmitter.

RoHS Statement

This device conforms to RoHS (Reduction Of Hazardous Substances) European Union

regulations that set maximum concentration limits on hazardous materials used in electrical and

electronic equipment.

Laser Information

The AWID HH-6600 series is certied in the U.S. to conform to the requirements of DHHS/CDRH

21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are

not considered to be hazardous. The HH-6600 series contains internally a Visible Laser Diode

(VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.

The scanner is designed so that there is no human access to harmful laser light during normal

operation, user maintenance or during prescribed service operations.

The laser safety warning label required by the DHHS/IEC for the HH-6600 series’s optional laser

scanner module is located on the memory compartment cover, on the back of the unit.

CAUTION!

Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous laser light. Use of optical instruments

with the scanner will increase eye hazard. Optical instruments include binoculars,

microscopes, and magnifying glasses. This does not include eye glasses worn by

the user.

Notices

This unit is equipped with battery packs and backup battery. It is possible that the AWID HH-

6600 may not power-on due to battery discharge as a result of storage.

In the above situation, plug the HH-6600 to the USB charging cable which is with DC in port or

put the unit into the AWID HH-6600 Cradle (with 12V/2A AC-DC adapter), and recharge the unit

for 16 hours in order to fully charge its backup battery.

The backup battery will charge from external power or the main battery (if the main battery still

has enough power to turn on). In the event the main battery is fully charged, refrain from using

the HH-6600 for 16 hours in order for the main battery to fully charge the backup battery.

Backing-up data by backup battery only without the main battery installed in battery compartment

may take as long as 6 hours. Therefore, in order to prevent data protection failure due to backup

battery failure, do not leave the HH-6600 without the rechargeable battery pack installed, or

without connection to AC power for an extended period of time.

NOTE:

The rst time you use the HH-6600, you must turn on the backup battery switch. ●See turn on

the backup battery & grip battery switch on page 6 for more information.

iii

Battery Charge Notice

It is important to consider the environment temperature whenever you are charging the Lithium-

Ion battery pack. The process is most efcient at normal room temperature or slightly cooler. It

is essential that you charge batteries within the stated range of 0°C to 40°C. Charging batteries

outside of the specied range could damage the batteries and shorten their charging life cycle.

Storage and Safety Notice

Although charged Lithium-Ion batteries may be left unused for several months, their capacity may

be depleted due to build up of internal resistance. If this happens they will require recharging

prior to use. Lithium-Ion batteries may be stored at temperatures between -20°C to 60°C,

however they may be depleted more rapidly at the high end of this range. It is recommended to

store batteries within normal room temperature ranges.

IMPORTANT NOTE

FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits

set forth for an uncontrolled environment. This equipment should be installed and operated with

minimum distance 1.5cm between the radiator & your body.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment . End users must follow the specific operating instructions

for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure

compliance requirements, please follow operation instruction asdocumented in this manual.

For hdesktop operation only. This PRFID Handheld Terminal meets FCC RF exposure

guidelines when used in hand-held or desktop operation.

Table of Contents

Preface ...................................................................................i

About This Manual ................................................................................ i

Regulatory Compliance Statements ............................................................................... i

Federal Communication Commission Interference Statement ................................. i

RoHS Statement ...................................................................................................... ii

Laser Information .......................................................................................................... ii

Notices .......................................................................................................................... ii

Battery Charge Notice .............................................................................................iii

Storage and Safety Notice .......................................................................................iii

Chapter 1 ..............................................................................1

Getting Started ..................................................................................... 1

Introducing the HH-6600 ...............................................................................................1

Features ...................................................................................................................1

Package Contents .........................................................................................................2

A Tour of the HH-6600 ...................................................................................................3

Back View ................................................................................................................4

Bottom View .............................................................................................................5

Setting up the HH-6600 .................................................................................................5

Installing the Battery ................................................................................................5

Charging the Battery ................................................................................................8

Charging the Battery using the Synchronization Power Cable ..........................8

Charging the Battery with the Docking Station ...................................................8

Checking the Battery Status ...............................................................................9

Connecting the HH-6600 to a PC ............................................................................9

Turning the HH-6600 on for the First Time ............................................................10

Powering On ....................................................................................................10

Calibrating the HH-6600 Screen ...................................................................... 11

Setting the Time and Date ...............................................................................12

Adjusting the Screen Brightness ......................................................................12

Chapter 2 ............................................................................13

Using the Hardware ........................................................................... 13

Using Function keys ..............................................................................................13

Toggle to Alpha Mode and CAPS ..........................................................................14

Adjusting Settings ........................................................................................................15

Checking the Main and Backup Battery Status ...........................................................16

Using the Stylus ..........................................................................................................17

Using the Laser Scanner .............................................................................................17

Scanner Settings .........................................................................................................18

Scan2Key ....................................................................................................................19

Using the RFID ............................................................................................................19

Launching UHF RFID Demo Program ...................................................................19

Chapter 3 ............................................................................22

Getting Connected ............................................................................. 22

Establishing Device-PC Connection ............................................................................22

Installing Microsoft ActiveSync ..............................................................................22

Connecting the Device to Your Computer ..............................................................22

Using ActiveSync to Exchange Files ...........................................................................23

Using the WLAN ..........................................................................................................24

Setting up the Wireless Local Area Network Card .................................................24

Obtaining an IP Address via DHCP Server ......................................................24

Specifying an IP Address .................................................................................25

WiFi Connection ...............................................................................................26

Using the Summit Utilities ................................................................................28

Admin Login ...........................................................................................................28

Scan Available AP ..................................................................................................28

Encryption: .............................................................................................................29

Commit and Activate ..............................................................................................29

Appendix .............................................................................30

System Specications ........................................................................ 30

Chapter 1

Introducing the HH-6600

Thank you for purchasing the HH-6600 handheld terminal. Your HH-6600 was

designed for RFID mobile application.

HH-6600 UHF

AWID’s HH-6600 UHF handheld terminal is a rugged dual technology multi-tag UHF RFID and

barcode reader. It can read both EPC Gen 1 and Gen 2 RFID tags and comes with embedded

RFID middleware and Windows CE 5.0 for easy integration. The HH-6600 has a battery life of

up to 12 hours – long enough for operation. Connectivity options include WLAN 802.11b/g and

Bluetooth. It has an IP54 rated and 4 feet (1.2 meter) drop tested rugged PDA construction.

Features

Dual technology barcode scanner & RFID reader ●

Built in Barcode Scanner

●

IP54 rated and 4 feet (1.2m) drop tested

●

Lightest in its class

●

Windows WinCE 5.0 Professional Plus operating system

●

WLAN 802.11b/g and Bluetooth connectivity built–in

●

Getting Started

Package Contents

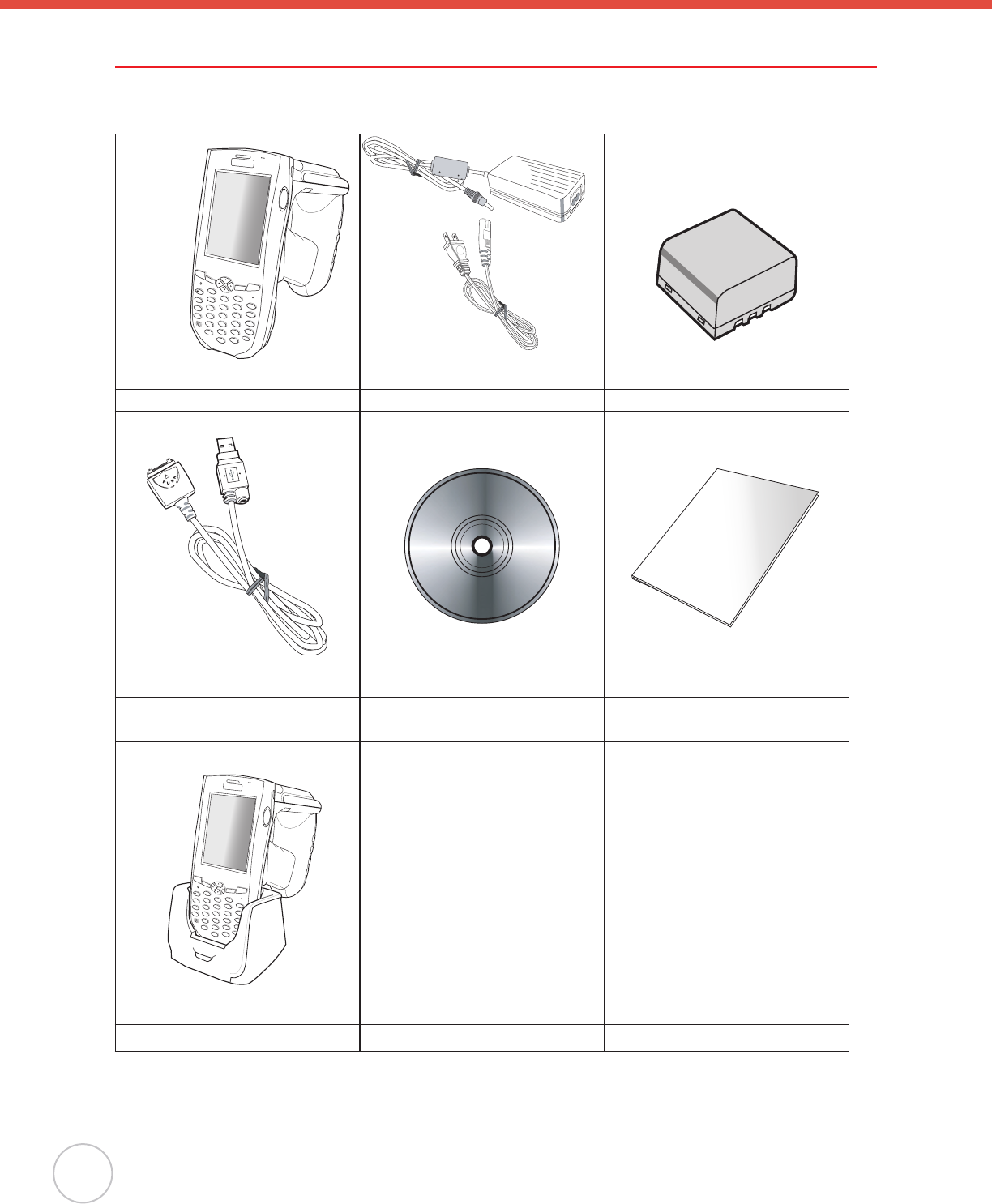

After opening the box, ensure the following accessories for the HH-6600 are present:

HH-6600 Terminal Power Adapter and Cable Battery Pack

Synchronization and Power

Cable CD-ROM User Manual

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

123

456

“

(

[

Cradle (optional)

If anything is missing or appears damaged in any way, please contact your AWID service team.

Esc

alpha

Func Enter

fgh

Del

BkSp

uvw

123

456

“

(

[

Chapter 1 Getting Started

A Tour of the HH-6600

The following sections describe the main components and features of the HH-6600.

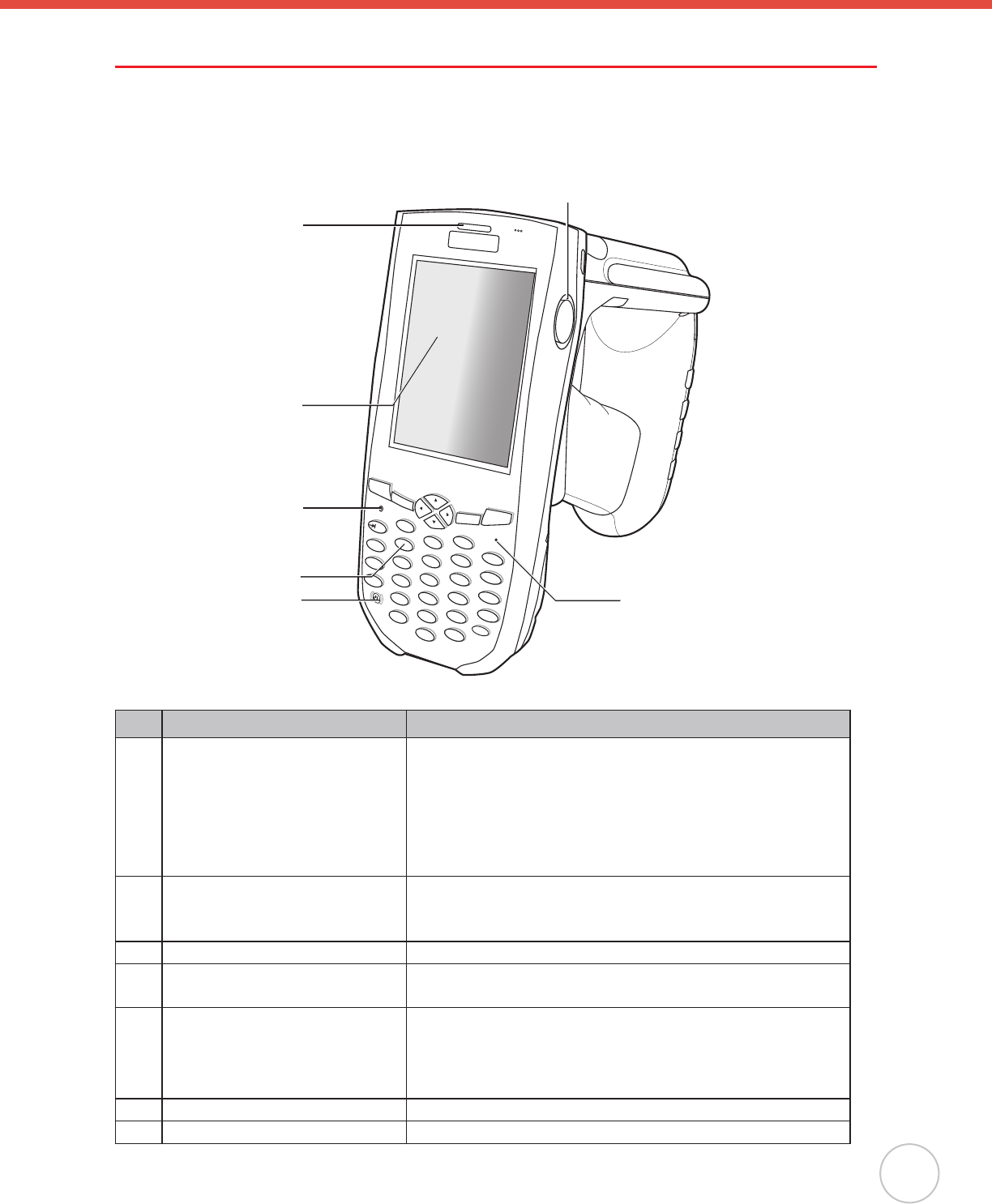

Front Right View

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

123

456

“

(

[

No. Component Description

1. Status Indicator Indicates the battery charging and barcode scanning

status.

Green - Battery is fully charged or barcode scanning

process is completed without error.

Red - Battery is charging, barcode scanner is activated

and processing.

2. LCD Touch Screen Displays the applications and data stored on your

device. It is touch-sensitive and responds to the stylus

or nger.

3. Alpha Mode Indicator Indicates the Alpha Mode status.

4. Keypad Keypad interface for controlling the HH-6600. See

Using the Hardware on page 13 for more information.

5. Power Button If the device is off, press this button to turn it on.

Alternatively, when the unit is on, this key must be

pressed and held down for about two seconds in order

to turn the device off.

6. Microphone Used to receive sound.

7. Right scanner trigger button Press to activate the barcode laser scanner.

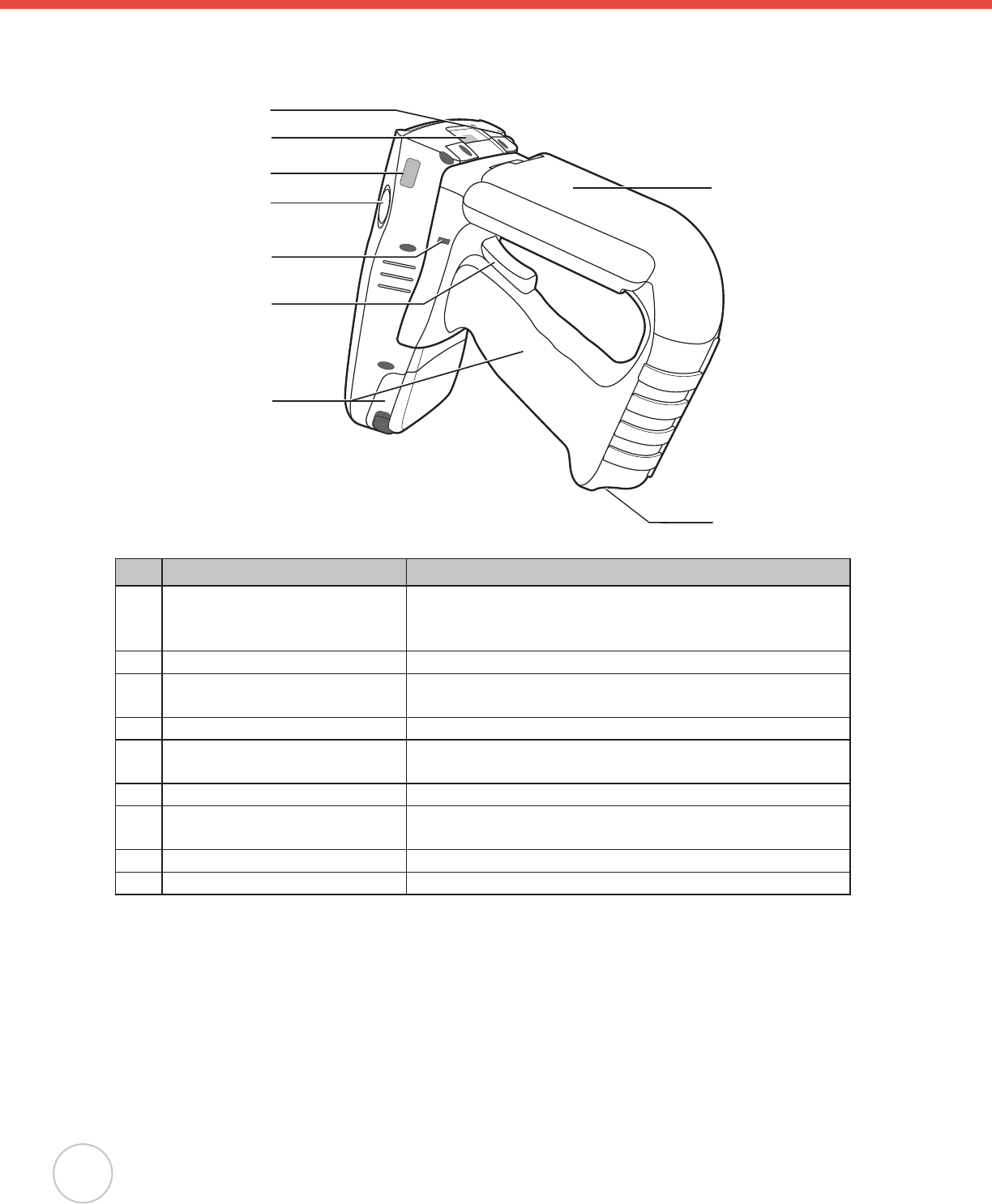

Back View

No. Component Description

8. Stylus Enables you to interact with the operating system. To

use the stylus, remove it from its holder and hold it the

same way you hold a pen or pencil.

9. Barcode Scanner Window Used to scan barcodes.

10. Infrared (IR) Port Uses infrared technology to transmit and receive data

from other IR-enabled devices.

11. Left Scanner Trigger Button Press to activate the barcode laser scanner.

12. Reset Button Uses paper clip press into the button to reset your

device.

13. Bar Code Scanner Trigger Press to activate the barcode scanner.

14. Battery Compartment Houses the removable and rechargeable 7.4V

4050mAh lithium-ion battery pack

15. Strap Lug Attach the strap with the termial.

16. RFID Antenna Used to receive data from RFID tag.

Chapter 1 Getting Started

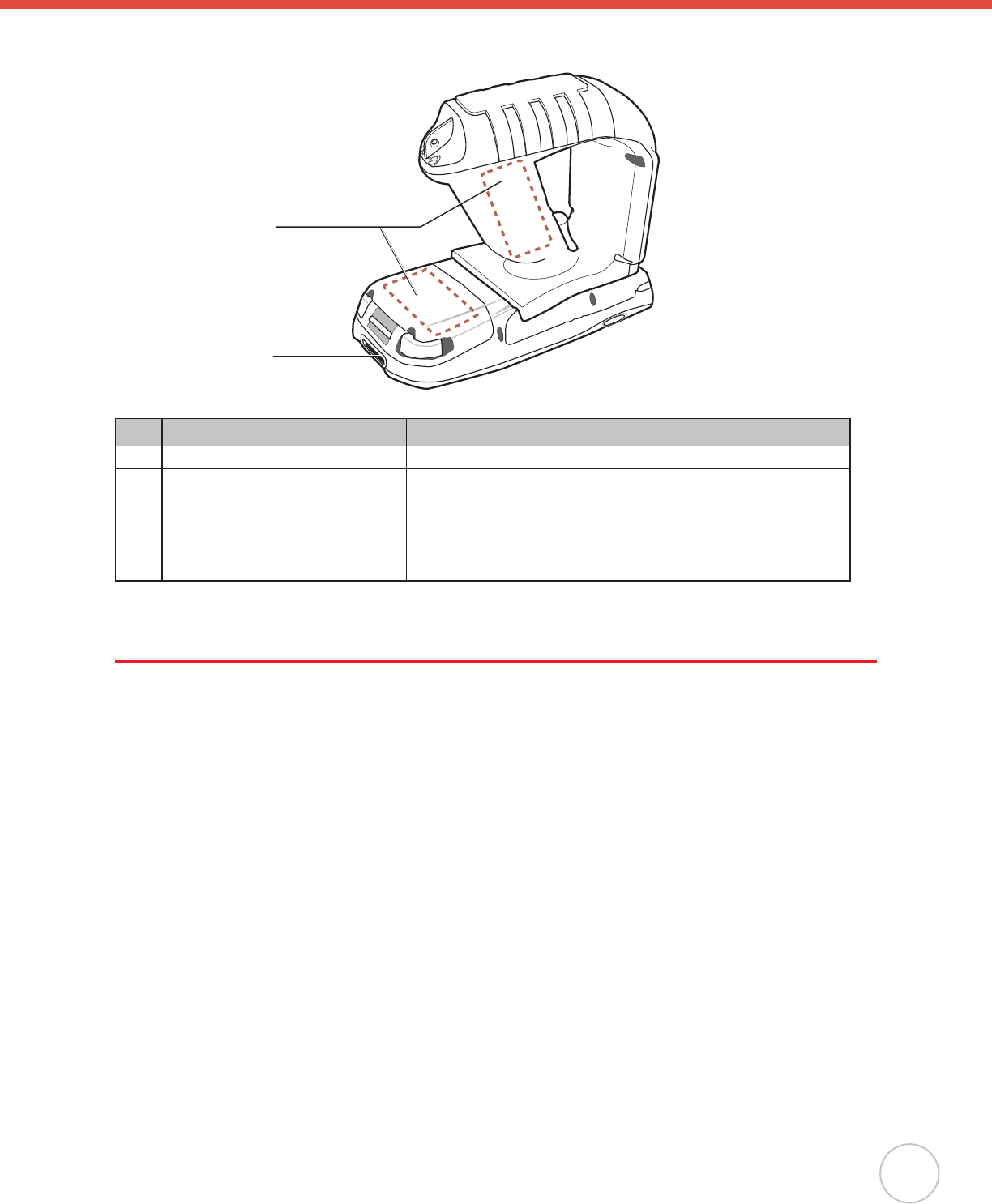

Bottom View

No. Component Description

17. Battery Pack Houses the rechargeable lithium-ion battery pack

18. Universal connector Connects your device to a synchronization power cable,

which in turn connects to the computer’s USB port and

through the AC adapter to an electrical outlet.

This allows you to recharge your device and perform an

ActiveSync operation.

Setting up the HH-6600

This section explains how to install and charge the battery, how to check battery status, how to

connect the HH-6600 to a PC, how to turn on the HH-6600 for the rst time, how to install an

optional Wireless Local Area Network PCMCIA card, and how to calibrate the screen.

Installing the Battery Pack

WARNING!

There is a risk of re and burns if the battery pack is handled improperly. DO NOT

disassemble, crush, puncture, short external contacts, or dispose the battery pack in

re or water. DO NOT attempt to open or service the battery pack. Dispose of used

batteries according to local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss in instances when the

removable battery pack is removed or completely discharged. This backup battery cell will only

support the system for a maximum of 72 hours.

NOTE:

To enable the internal battery cell to provide backup power supply, charge your device with ●

the main battery pack for at least 16 hours.

The rst time you use the HH-6600, you must turn on the backup battery switch. ●See turn on

the backup battery & grip battery switch on page 6 for more information.

The first time you use the HH-6600, you must activate the LCD heater switch. When ●

activated, LCD heater will turn on automatically when the temperature is lower than 14° F /

-10°C.

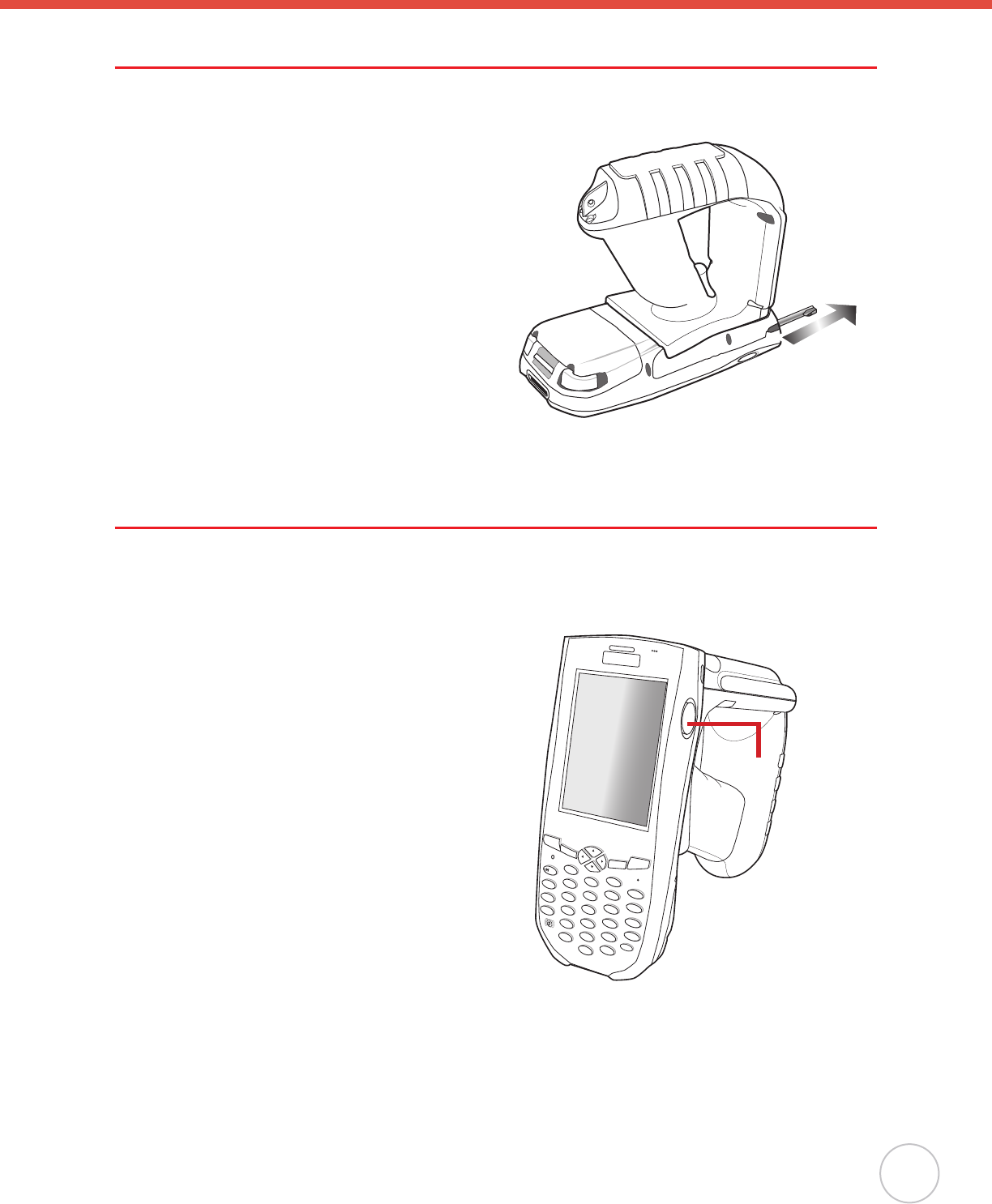

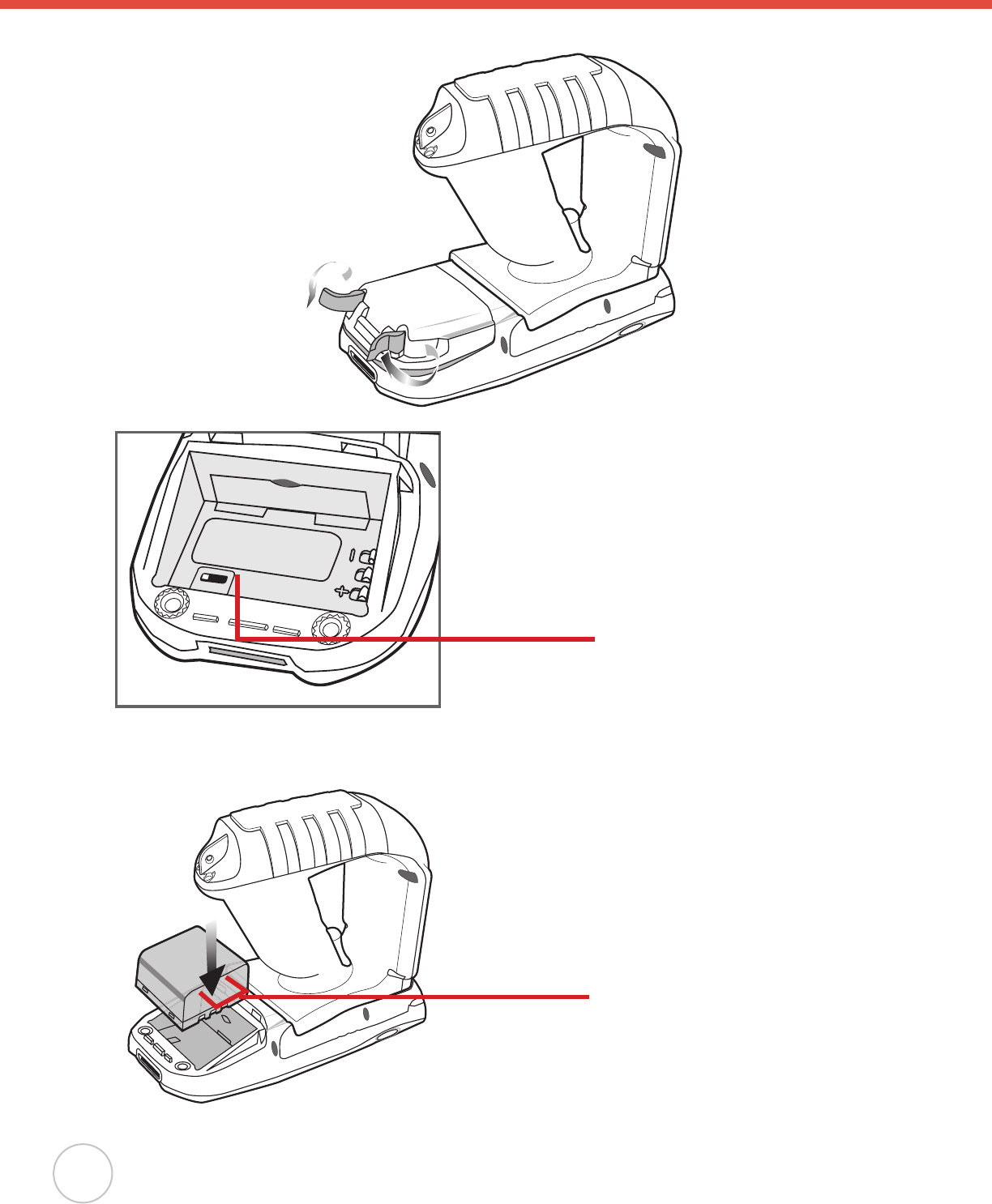

1. Open the battery compartment using the slide tabs in the direction shown in the illustration.

2. Locate the grip battery switch and turn left to power on.

ON OFF

3. Position the battery pack, making sure the battery contacts are aligned with the contacts in the

compartment, as shown in the following illustration.

Backup battery & grip

battery switch

Battery contacts

Chapter 1 Getting Started

4. Place the battery pack into the battery bay and press the battery securely into the

compartment.

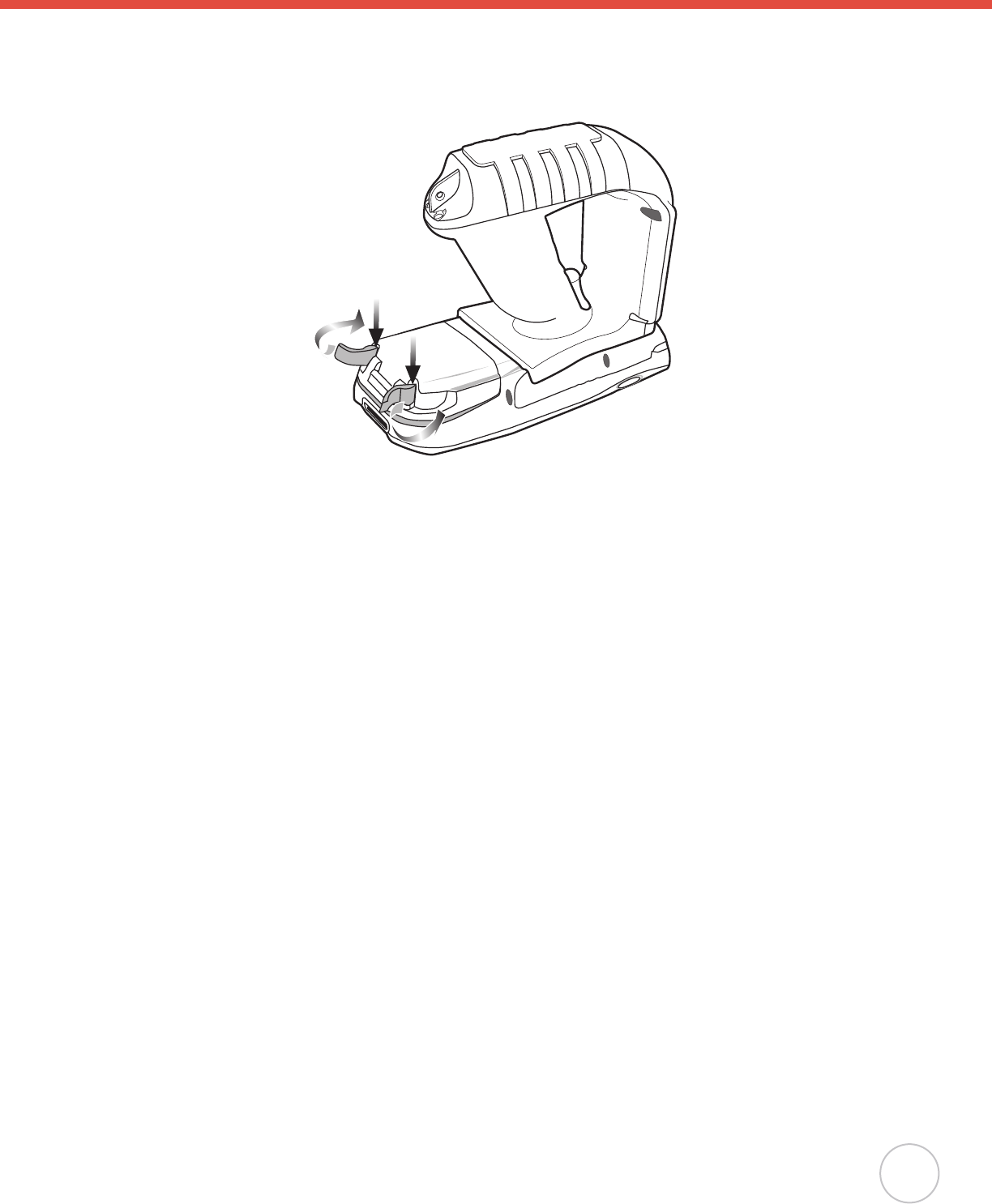

5. Replace the battery compartment cover, push down the tabs and slide them back into place

as shown in the illustration.

Charging the Battery

Before using the HH-6600 for the rst time, you need to charge it for about 16 hours. After that,

you can charge the HH-6600 every day to recharge the battery to full capacity. Charge the HH-

6600 using the synchronization power cable or the docking station.

CAUTION!

Operating the HH-6600 for the rst time without the AC adapter, and without fully

charging the backup battery may result in loss of data stored in RAM memory.

When the main battery is removed, the backup battery retains RAM data in memory

for 72 hours; charge the battery as soon as possible to avoid the data loss in RAM

memory.

NOTE:

Turn the backup battery swith on before charging the battery. Data you enter may not be

properly stored until the built-in backup battery has been adequately charged.

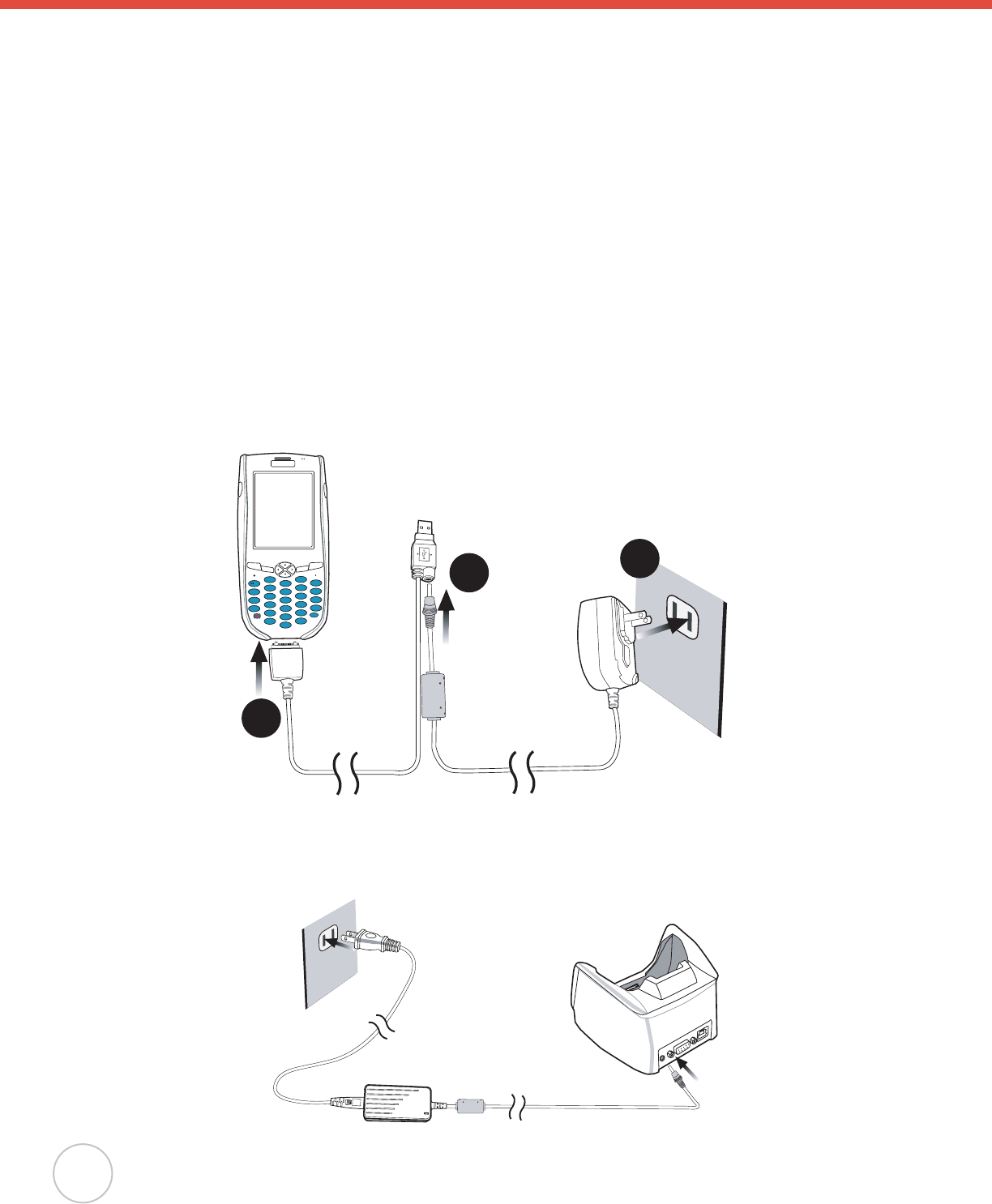

Charging the Battery using the Synchronization Power Cable

1. Connect the synchronization power cable connector to the HH-6600 (1).

2. Plug the AC adapter cable into the power jack on the USB connector (2).

3. Connect the AC adapter into an electrical outlet (3).

Esc alphaFunc Enter

123

[

Del

“

abc

Bksp

Charging the Battery with the Docking Station

1. Plug the AC adapter cable into the power jack on the docking station, then connect the AC

adapter into an electrical outlet.

Chapter 1 Getting Started

2. Slide the device into the docking station until it clicks into

place.

3. The connection is secure when the bottom edge of the

device is aligned with the docking station, and the LED

indicator on the device lights up red.

LED Status

LED Meaning

HH-6600 Solid Red Charging

Solid Green Charging complete

Docking Station Solid Green Power is on

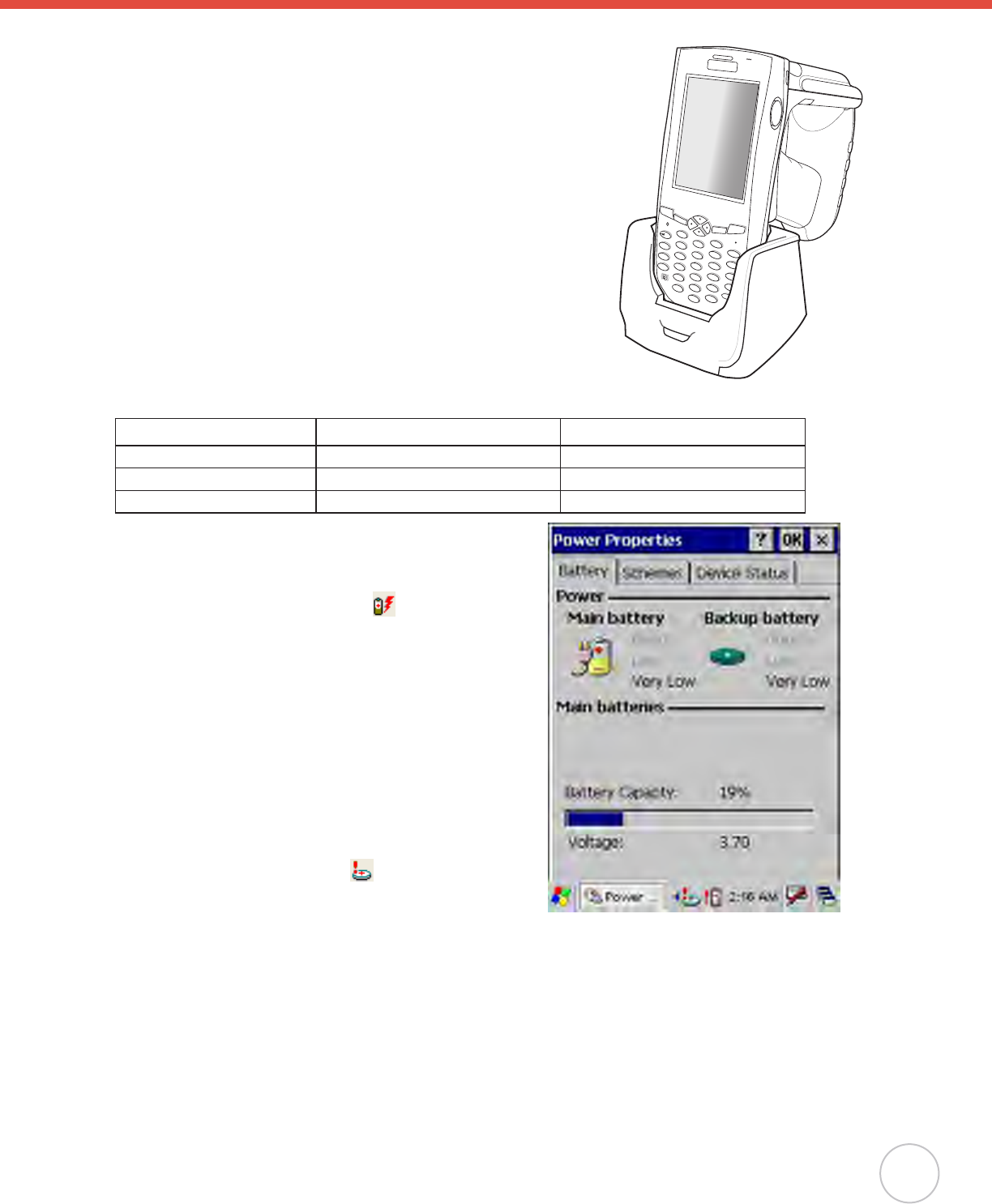

Checking the Battery Status

If the main battery level becomes low in the course

of normal use, a status icon appears on the

device screen system tray indicating low or very low

battery status. In both cases, perform an ActiveSync

operation to back up your data, then recharge your

device as soon as possible. If the battery level

reaches low status, the device will enter suspend

mode; if the battery level reaches very low status, the

device will enter deep sleep mode. In this case, you

have about 72 hours to recharge your device after

which you risk losing all data on your device’s internal

memory.

When the backup battery charge is low, an icon

appears in the system tray indicating that you

should replace the backup battery as soon as

possible.

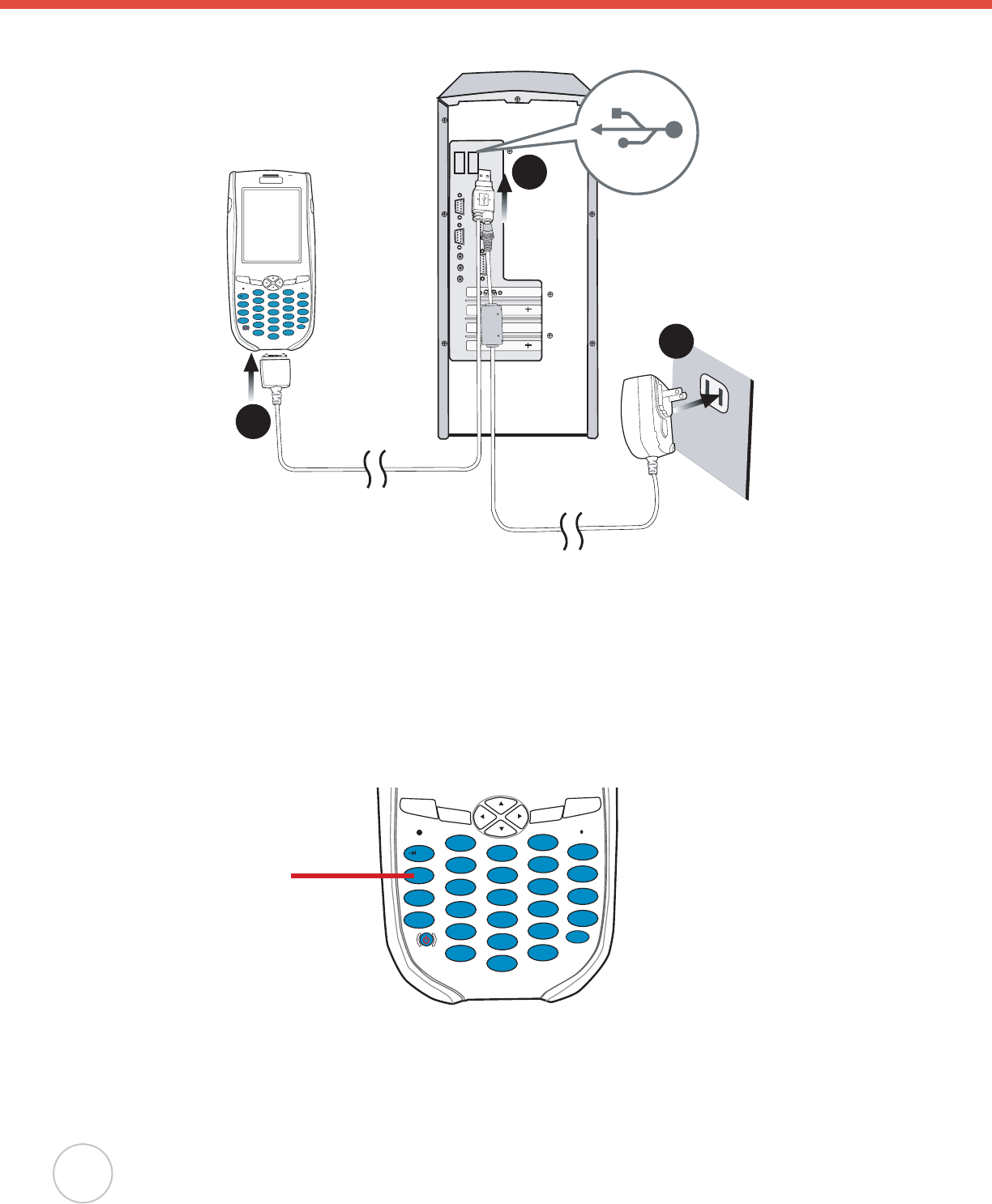

Connecting the HH-6600 to a PC

Use the synchronization power cable to connect the HH-6600 to a PC to use with ActiveSync.

1. Connect the USB connector jack to the HH-6600 (1).

2. Plug the USB connector into a serial port on the PC and connect the AC adapter into the USB

connector (2).

3. Connect the AC adapter into an electrical outlet (3).

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

123

456

“

(

[

Esc alpha Func Enter

123

[

Del

“

abc

Bksp

Turning the HH-6600 on for the First Time

After you have initially charged your device for about 16 hours, the device is ready to be used.

You can now start up your device where you’ll adjust the screen brightness, calibrate the display,

and set up the system time zone, date and time.

Powering On

1. Turn on your device by pressing the power buttonon the front panel.

2. The AWID HH-6600 welcome screen appears for a moment followed by the calibration screen.

Esc alpha Func Enter

123

[

Del

“

abc

Bksp

Power Button

Chapter 1 Getting Started

Calibrating the HH-6600 Screen

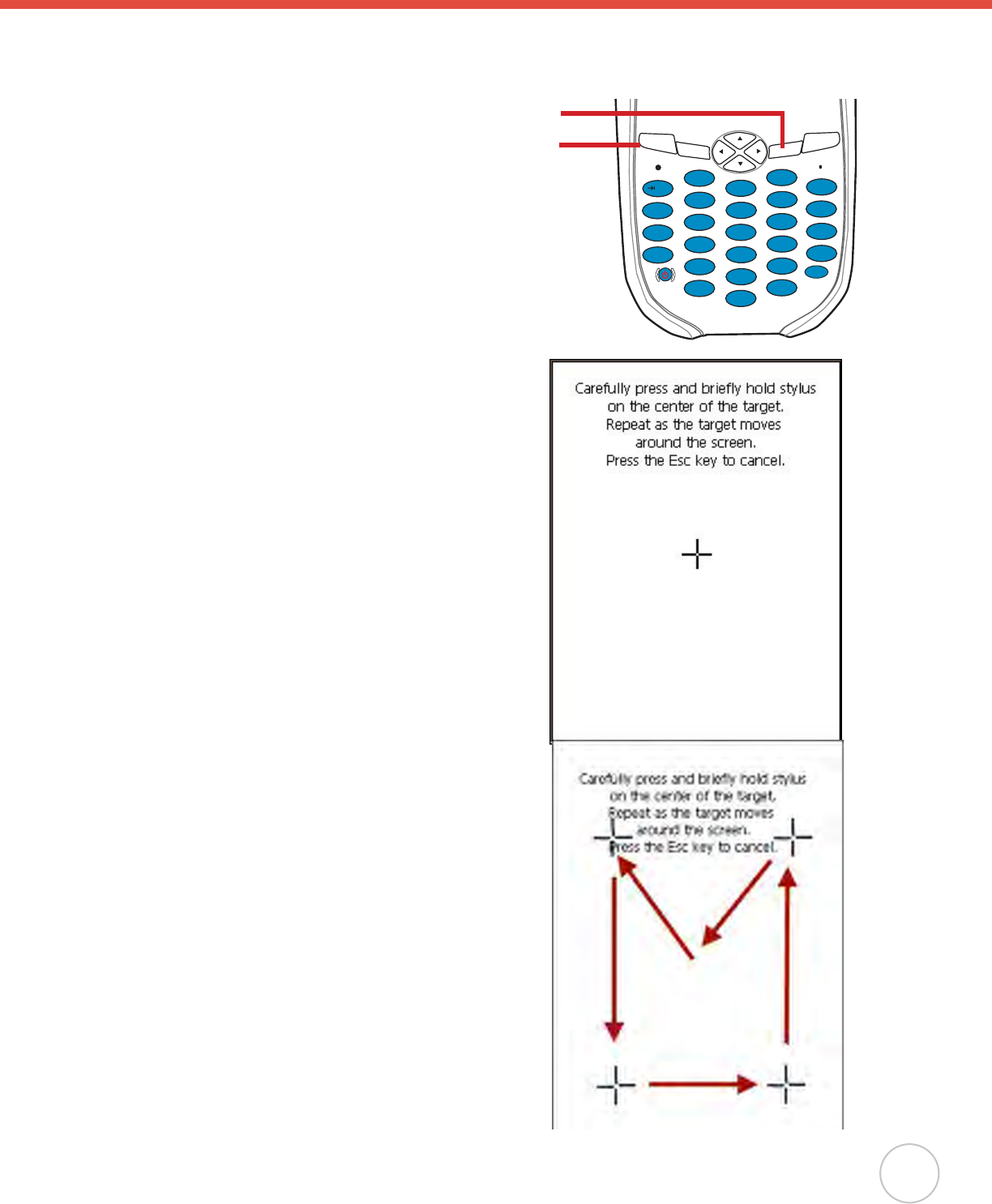

The calibrate screen automatically

appears when the unit is powered-on

for the rst time or after the system is

reset.

This screen will automatically appear

when the unit is powered-on for the

first time or after the system is reset.

This screen can also be accessed

at any time by pressing the hot key

[FUNC] and the [ESC] key.

The HH-6600 prompts you to calibrate the unit by

tapping a sequence of screen locations. Tap gently

but rmly.

When you have completed the series of taps,

press the [ENT] key to confirm calibration or

press the [ESC] key to cancel it. After confirming

calibration, the Date/Time Properties screen

appears prompting you to set the date and time.

Esc alpha Func Enter

123

[

Del

“

abc

Bksp

Function Kay

ESC key

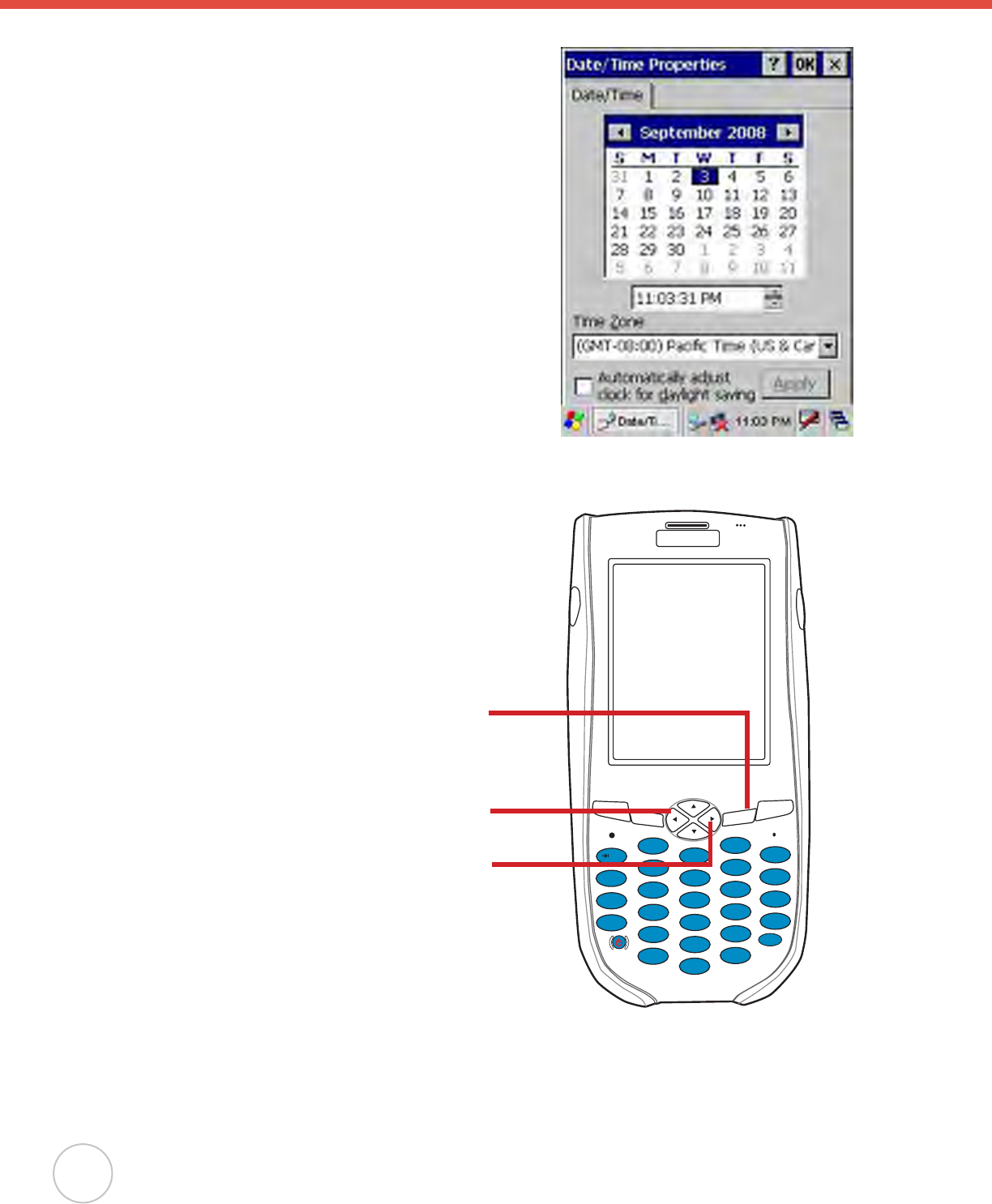

Setting the Time and Date

In the Date/Time Properties window, use the stylus

to select the current date and time, time zone, and

daylight saving time option.

Adjusting the Screen Brightness

Adjust the screen brightness by pressing the

Function button [FUNC] to enable the soft keys

and pressing the left (decrease brightness) or right

(increase brightness) cursor buttons.

Esc alpha Func Enter

123

[

Del

“

abc

Bksp

Function Button

Increase Brightness

Decrease Brightness

Chapter 2

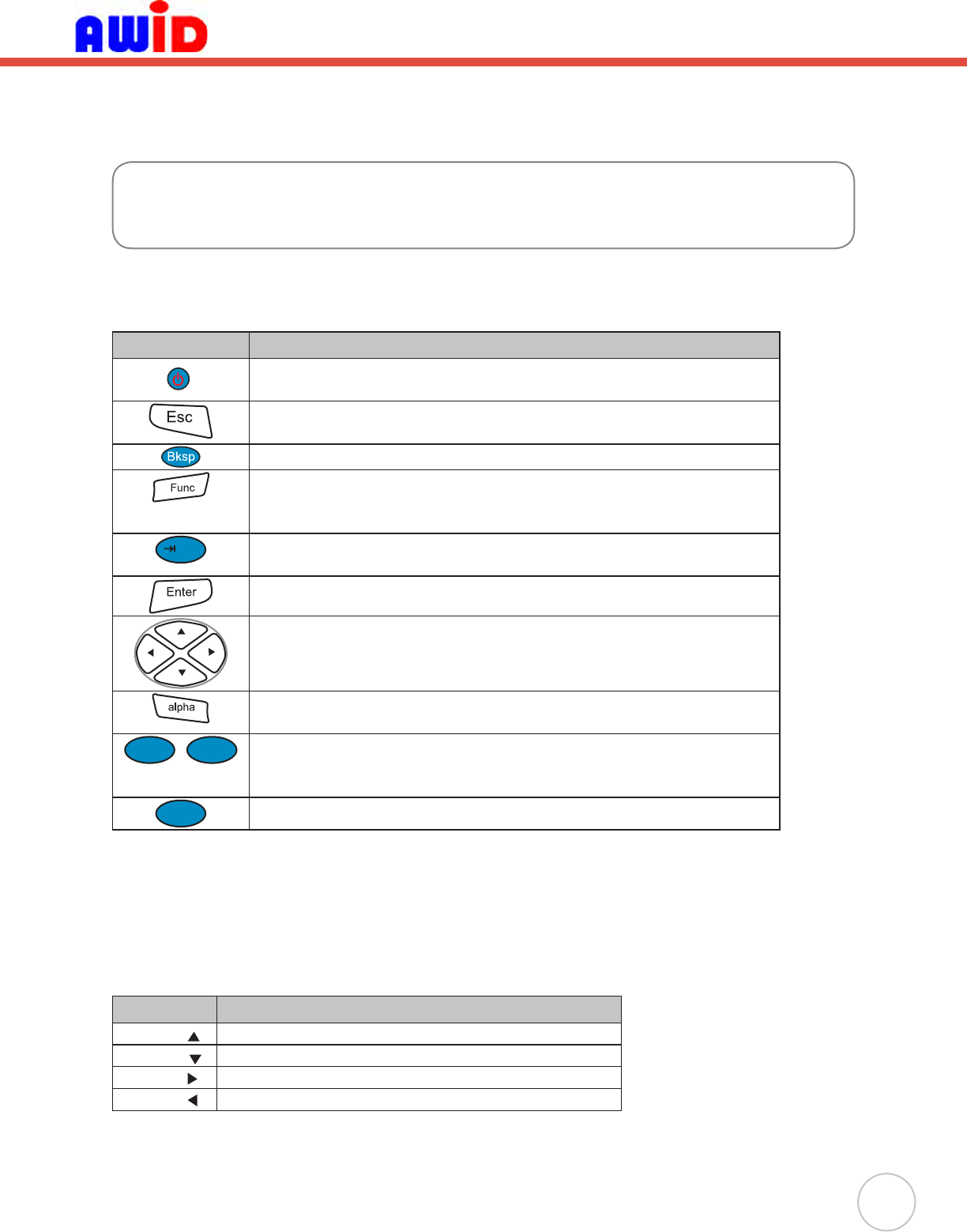

The following table describes the main keypad keys.

Key Main Function

Press this button to turn the HH-6600 on. Press and hold this button

for two seconds to turn the HH-6600 off.

Pressing this button corresponds to tapping the cancel or X button

on the screen.

Press the backspace key to erase characters.

Press the function key to perform alternative key functions. This key

is also used to toggle between upper and lower case alphabetic

characters. Refer to Using Hotkeys on page 13.

Use the tab key to toggle between elds or to tab forward in word

processing applications.

Press the enter key to conrm an action or entry by the user.

Use the cursor keys to navigate in applications. Press and hold the

Function key and then press the right and left arrows to raise and

lower the screen brightness.

Press the alpha key to toggle between numeric and alphabetic entry

modes.

Press these keys to enter numbers or characters depending on

whether the Alpha key has been pressed. Press the 0 key to enter a

space.

Press this key to add punctuation.

Using Function keys

The HH-6600 provides many combination hot keys to activate specied screen setting functions

or programs. These hotkeys are useful for calibrating the touch screen, toggling the backlight,

and adjusting screen contrast when the menu-driven operation is disabled. Below is the list of

hotkeys. To use them, Press and hold the [FUNC] key in combination with the corresponding

second key.

Key Function

[FUNC]+ Toggle Display Backlight

[FUNC]+ Toggle Keypad LED Backlight

[FUNC]+ Increase screen brightness

[FUNC]+ Decrease screen brightness

Using the Hardware

Toggle to Alpha Mode and CAPS

When the HH-6600 boots, the default condition is Numeric Mode on. When you toggle to Alpha

Mode, the default condition is CAPS mode off. Please use the alpha Key and Function key to

toggle to CAPS.

Key Alpha OFF Alpha ON

FUNC UP FUNC DOWN FUNC UP FUNC DOWN

ESC ESC ESC ESC ESC

Backspace Backspace Backspace Backspace Backspace

Enter Enter Enter Enter Enter

1/F1/a 1 F1 a A

2/F2/b 2 F2 b B

3/F3/c 3 F3 c C

TAB/d TAB ` d D

4/F4/e 4 F4 e E

5/F5/f 5 F5 f F

6/F6/g 6 F6 g G

+/^/h + ^ h H

%/BL/i % Backlight i I

7/F7/j 7 F7 j J

8/F8/k 8 F8 k K

9/F9/l 9 F9 l L

-/_/m - _ m M

./;/n . ; n N

@/!/o @ ! o O

0/$/p 0 $ p P

(/)/q ( ) q Q

*/#/r * # r R

SPACE/s SPACE SPACE s S

“/’/t “ ‘ t T

,/?/u , ? u U

[/]/v [ ] v V

//\/w / \ w W

</>/x < > x X

=/&/y = & y Y

DEL/z DEL ~ z Z

Chapter 2 Using the Hardware

Adjusting Settings

This section describes how to adjust the settings of your

device to accommodate your work habits.

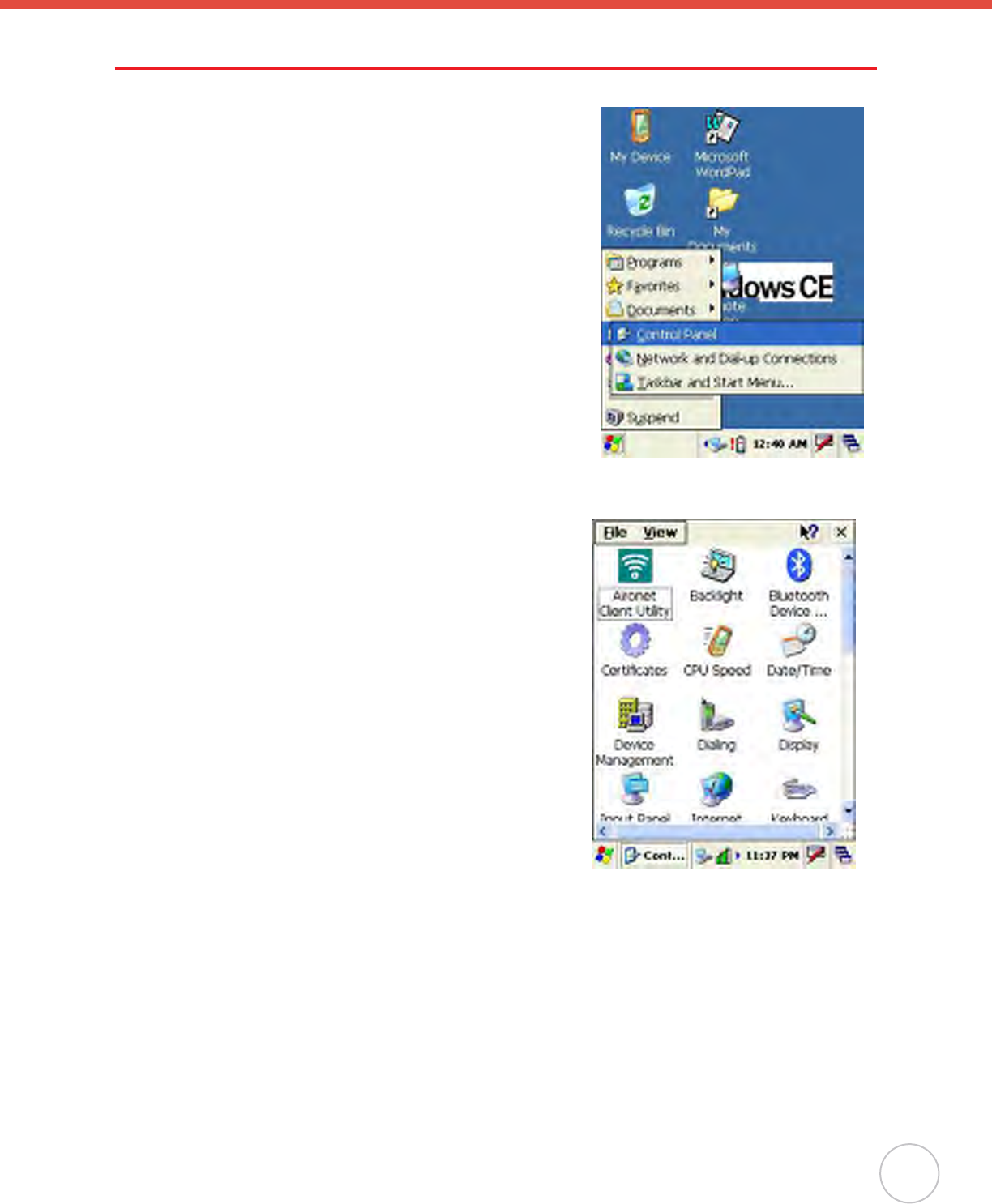

To access Settings, tap

Start → Settings→ Control Panel

The Control Panel appears.

From here you can adjust such user congurable items as

the backlight, auto power off timer, system volume, and

processor speed. You can also assign functions to buttons,

configure menus, enter owner information, and set up

connections.

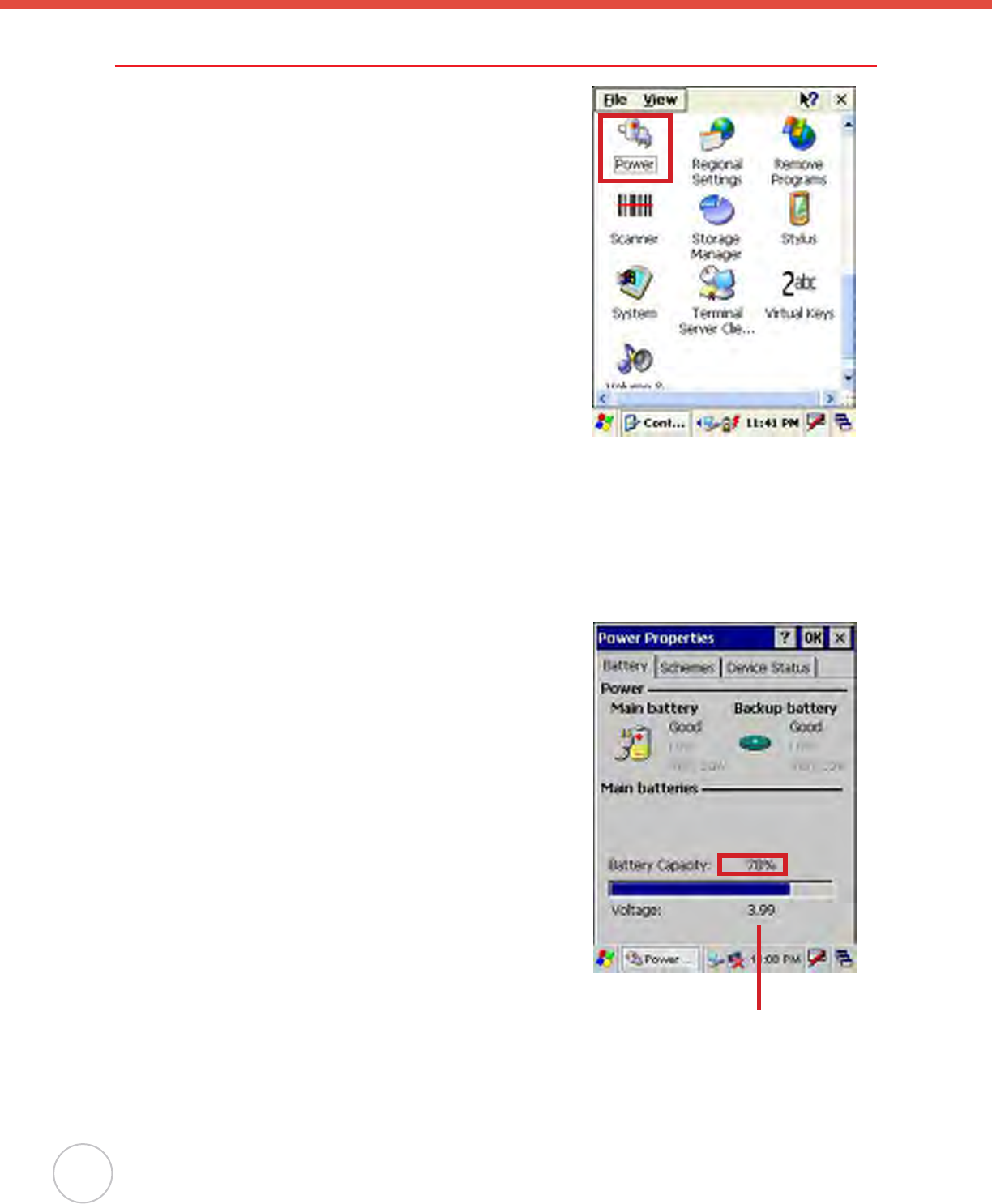

Checking the Main and Backup Battery Status

This section describes how to view the power level for

both the main and backup battery. To minimize power

consumption, you can define settings for the auto-off

function and the processor’s operation speed.

To check the main and backup battery status:

1. Tap Start → Settings → Control Panel → Power:

The Power Properties screen appears.

2. The battery menu item displays the status of the main

and backup batteries.

On the screen shown here, the main battery is good,

but the backup battery charge is very low. You should

charge the backup battery as soon as possible in this

case.

NOTE:

It is necessary to charge the battery when the

battery charge reaches below 10%. If the battery

does not accept a charge, contact AWID Technical

Support.

Main battery voltage

Chapter 2 Using the Hardware

Using the Stylus

CAUTION!

Never use anything other than the HH-6600 stylus on the screen. Otherwise this

could cause a permanent damage.

1. Remove the stylus from its holder.

2. Hold the stylus as you would a pencil.

3. To make a choice from a menu, lightly tap the

tip of the stylus on that choice.

4. To write data into a field on a form, use the

stylus to print the letters or numbers. Use

very light pressure.

Using the Laser Scanner

The HH-6600 has an integrated laser scanner which reads all major bar code labels with

excellent performance.

NOTE:

Reading software must be enabled in

order to operate the scanner. This can be

a userloaded application or a pre-loaded

utility such as Scanner Setting.

Activate the laser scanner by pressing either one

of the trigger keys located on the left and right

side of the unit.

The HH-6600 has a built-in Scanner Setting utility

that allows you to test the device’s barcode scan

function.

1. To launch Scanner Settings, press

[FUNC] + [7].

NOTE:

Alternatively, tap Start → Settings →

System →Scanner Settings.

Esc

alpha

Func

Enter

fgh

Del

BkSp

uvw

123

456

“

(

[

Scan button

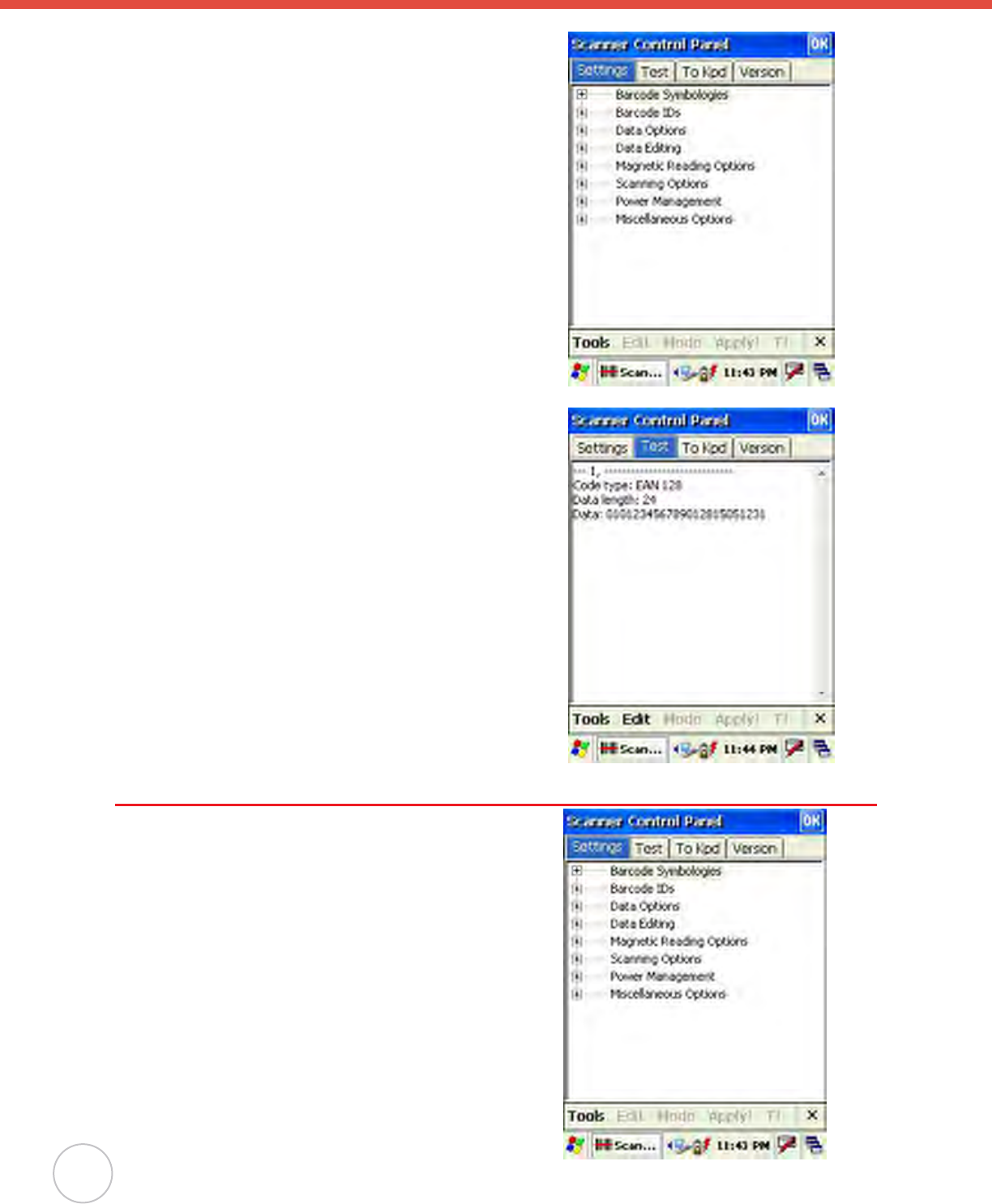

2. The Scanner Control Panel opens.

From here you can configure barcode scanner

parameters such as enabling or disabling barcode

symbologies, setting data transmission options,

configuring magnetic and proximity reading

options, and setting power management options.

3. To test the barcode scanner, tap the Test tab and

press one of the scanner buttons on a barcode.

The screen will display the results of the scan.

Scanner Settings

When it is necessary for the user to change the default

barcode symbology for a different application, the

Scanner Control Panel provides the ability to change

default symbology, place delimiter characters behind

scanned data, and save the settings.

Press [FUNC] + 7 to display the Scanner Control

Panel.

NOTE:

Alternatively, tap Start → Settings →

System → Scanner Settings to display the

Scanner Control Panel.

Chapter 2 Using the Hardware

Scan2Key

The Scan2Key application routes input from a scanner

port to a keypad buffer, making all input from the scanner

emulate input from the keypad. Using Scan2Key,

scanned data can be directly input into a scanner port

aware application such as MS Mobile Word.

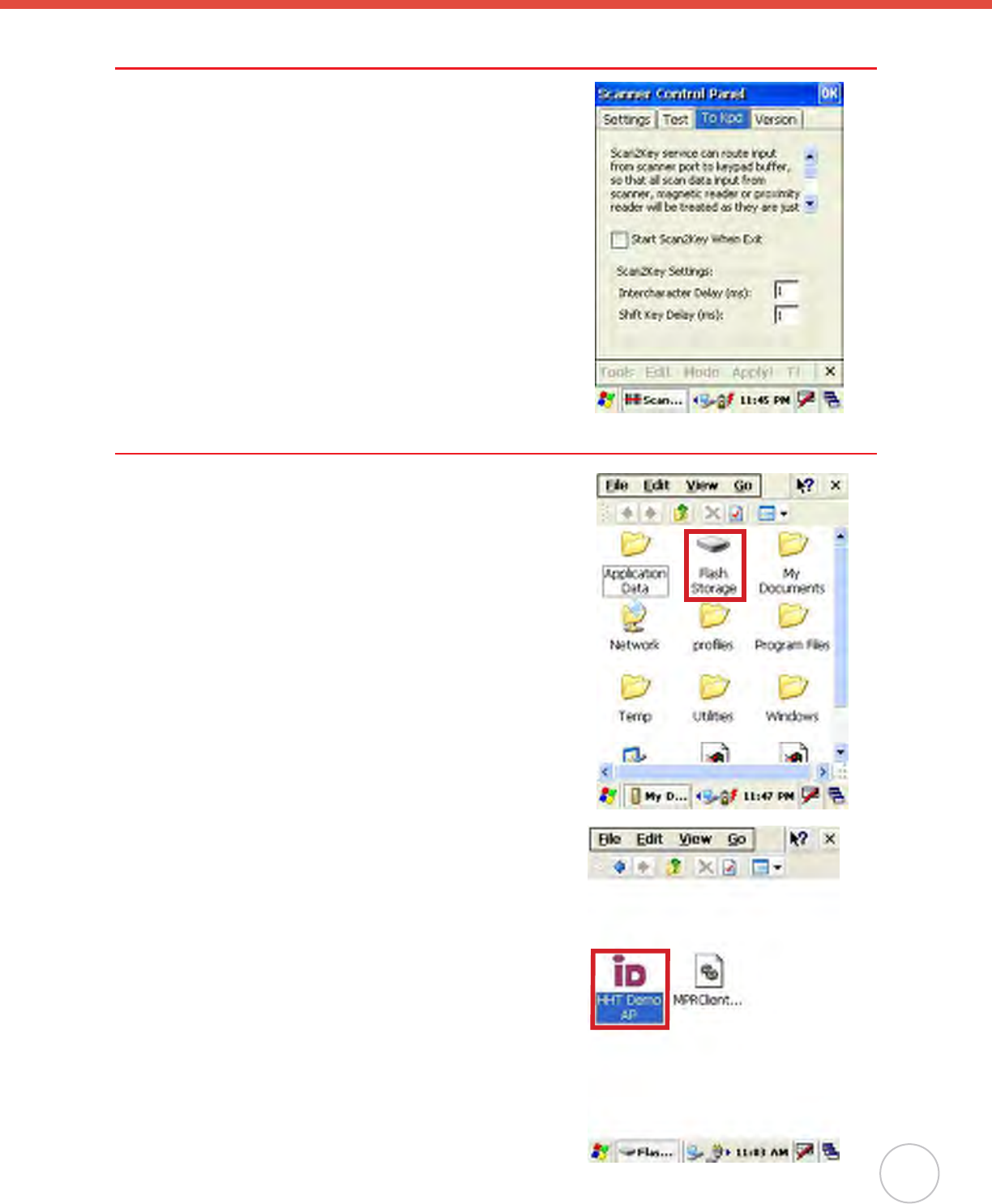

Press [FUNC] + [7] to display the Scanner Control Panel,

then tap To Kpd to access Scan2Key settings.

Using the RFID

The HH-6600 RFID sample application is provided for

reading RFID tags. The RFID demo program is pre-

loaded in the Flash Storage.

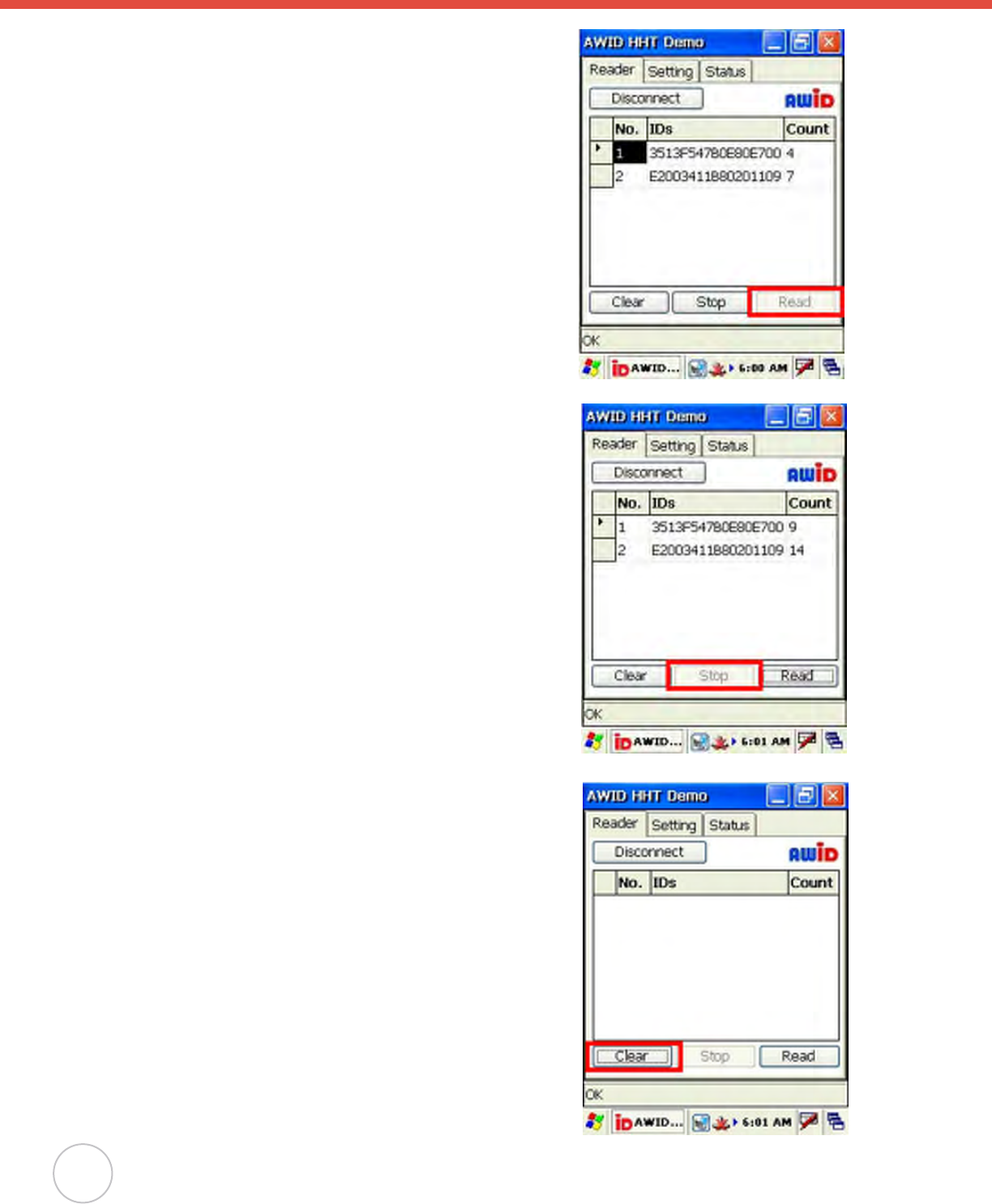

Launching UHF RFID Demo Program

To launch the AWID HHT Demo program,

1. Double-tap My Device, then double-tap Flash Storge.

2. Double-tap the HHT Demo AP icon, then tap the

Connect Reader/Disconnect button to connect/

disconnect reader.

3. Tap the Read button or pull the trigger to enable

reading tags.

4. Tap the Stop button or release the trigger

to stop reading tags.

5. Tap the Clear button to clear the table contents.

Chapter 2 Using the Hardware

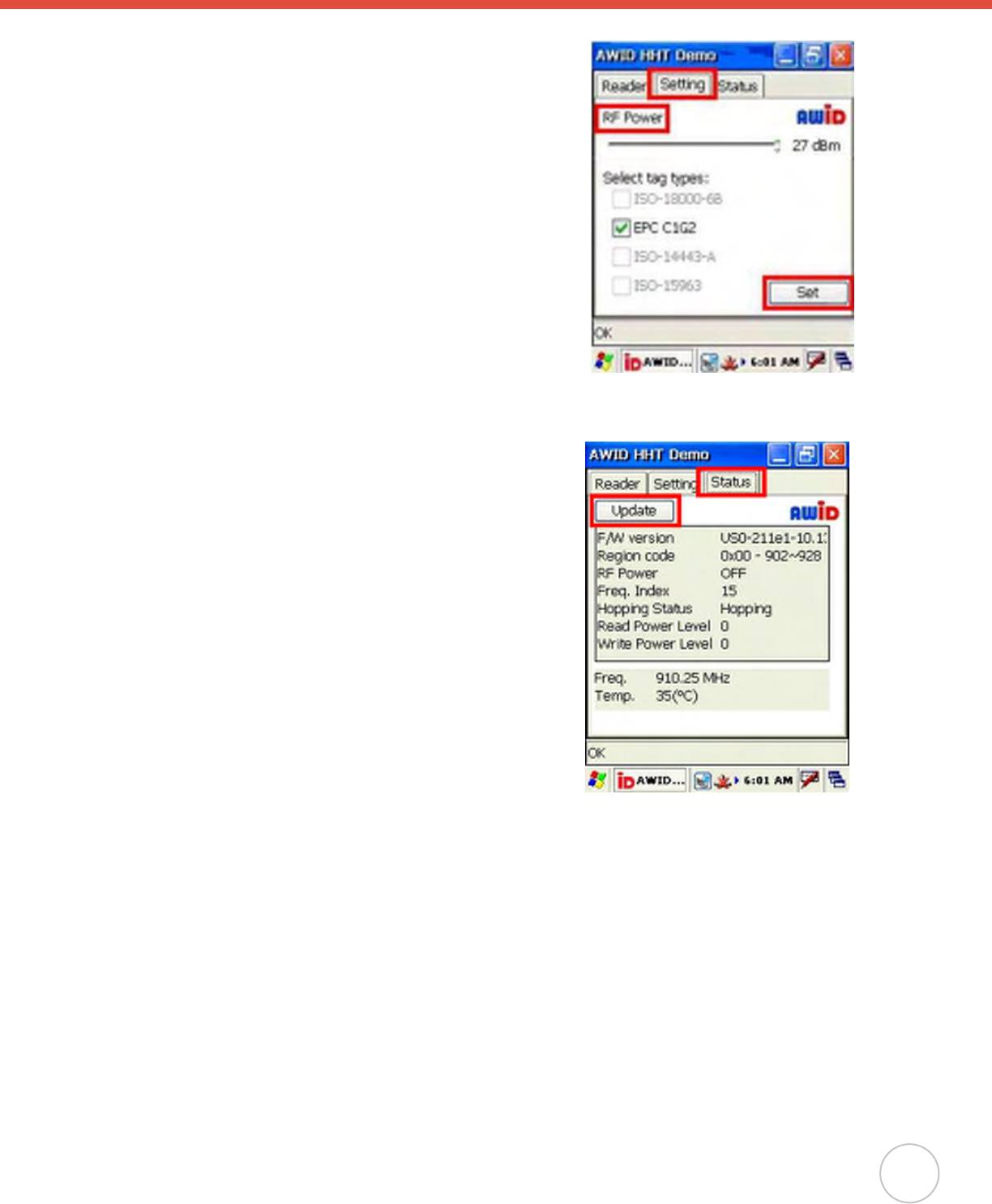

6. Tap the Setting tab.

7. Set the RF Power by moving the slide bar.

8. Tap the Set button to conrm.

9. Tap the Status tab.

10. Tap the Update button to refresh module status.

Chapter 3

The AWID HH-6600 enables users to link to a host computer using an RS-232, IrDA, or

WLAN connection for data communication. This chapter provides an overview of HH-6600

communication options.

Establishing Device-PC Connection

Installing Microsoft ActiveSync

In order to exchange data between your computer and the HH-6600, Microsoft ActiveSync must

be installed on your computer. Use the USB charging cable that comes with your device or the

docking station to connect the device to your computer.

NOTE:

If you have a previous version of the Microsoft ActiveSync installed in your computer,

uninstall it rst before installing the latest version of Microsoft ActiveSync. The HH-6600

Ultra Rugged Mobile Computer requires ActiveSync version 4.2 or higher.

To install Microsoft ActiveSync on your computer:

1. Close any open programs, including those that run at startup, and disable any virus-scanning

software.

2. Download the ActiveSync software from the Microsoft ActiveSync Download page at

http://www.microsoft.com/downloads/details.aspx?FamilyID=7269173a-28bf-4cac-a682-

58d3233efb4c&DisplayLang=en.

3. Browse to the location of the downloaded file, and double-click it. The installation wizard

begins.

4. Follow the instructions on the screen to install Microsoft ActiveSync.

Connecting the Device to Your Computer

1. After ActiveSync has been installed,

connect the HH-6600 to your PC as

described in Connecting the HH-6600 to a

PC on page 9.

2. Turn the HH-6600 on.

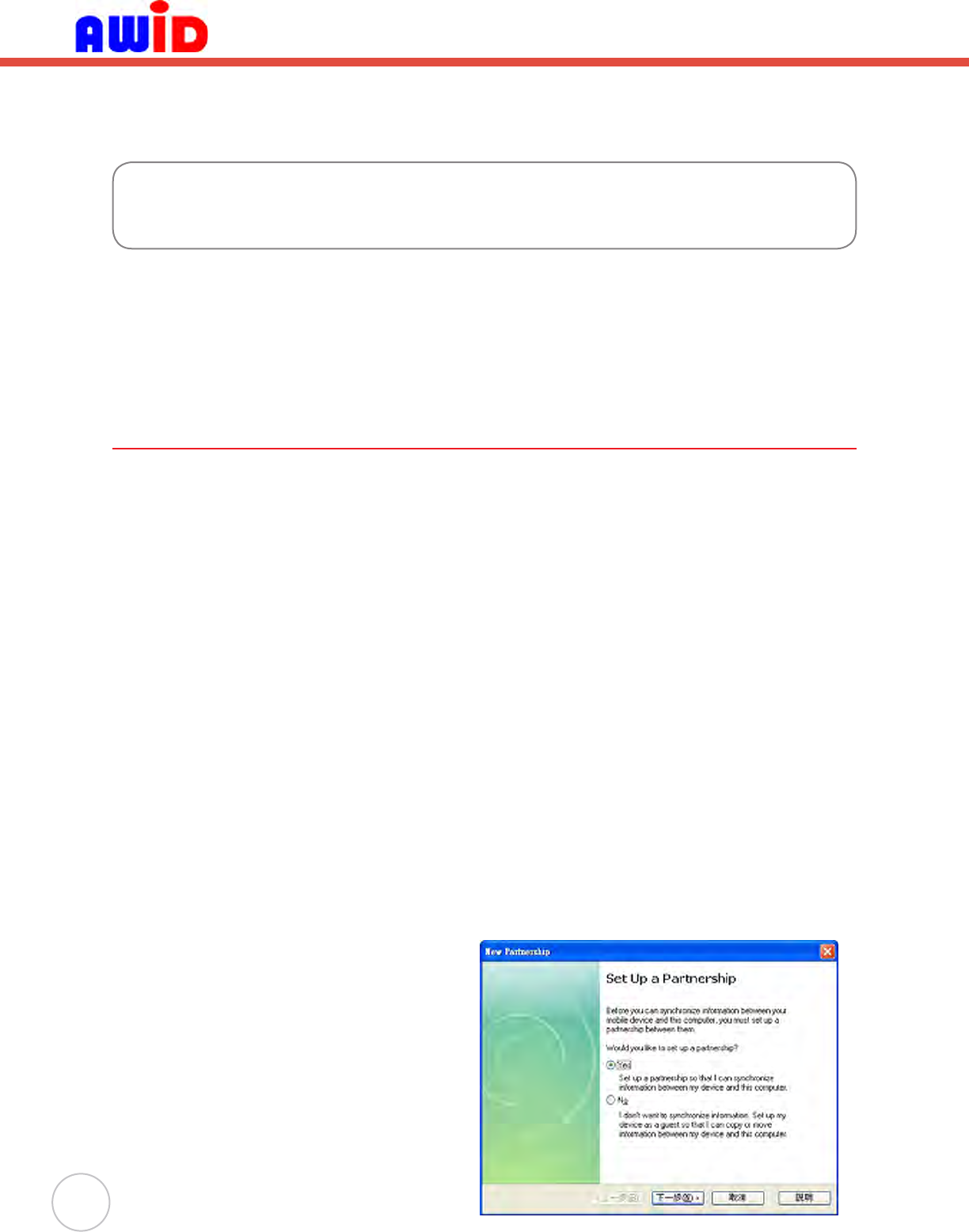

3. ActiveSync starts automatically and

configure the USB port to work with the

HH-6600. The New Partnership setup

wizard automatically starts.

Getting Connected

Chapter 3 Getting Connected

NOTE:

If ActiveSync doesn’t start automatically, click Start → Programs → Microsoft

ActiveSync.

If a message appears indicating that it is unable to detect a connection, click the Cancel

button and manually congure the communication settings.

4. Follow the onscreen instructions.

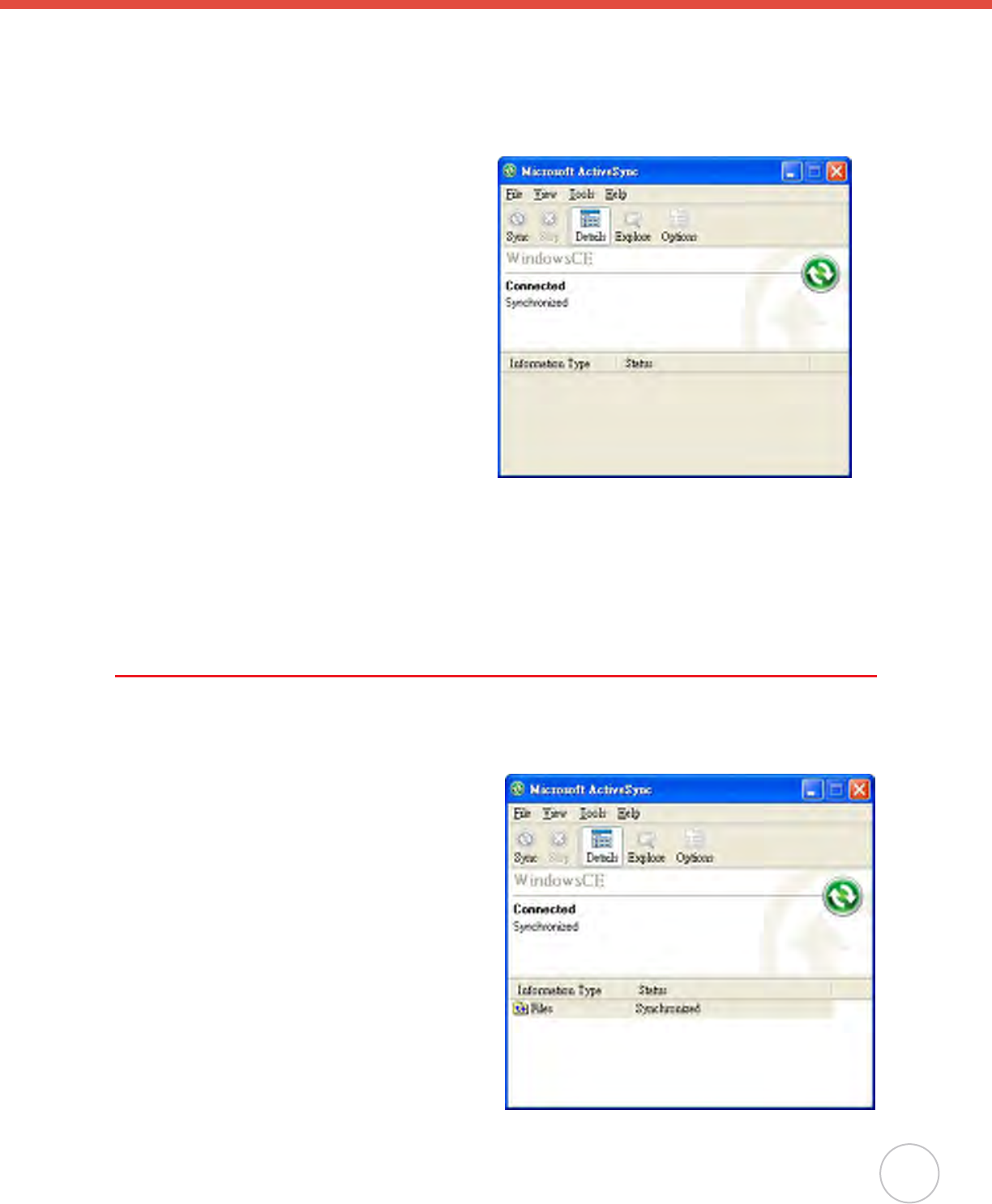

5. When the configuration process is

complete, the ActiveSync window appears.

6. Synchronization will be initialized and will take place if you’ve chosen to synchronize

periodically or upon connection.

NOTE:

Your computer can create a partnership with multiple HH-6600s. Also, a HH-6600 can

create a partnership with up to two computers.

Using ActiveSync to Exchange Files

You can use ActiveSync to exchange information from your device your computer and vice

versa. Changes you make to the information on one location will not affect the information on the

other one. If you want to automatically update information on both your device and computer,

synchronize the information instead.

You can copy two types of information to your

device: files and Pocket Access Windows CE

Store information.

The following procedure only applies to copying

files. Refer to the ActiveSync Help on your

computer for instructions on how to copy

Pocket Access Windows CE Store information.

NOTE:

Files created on your computer may

need to be converted by ActiveSync so

that they can be viewed and edited on

your device, and vice versa.

To copy les:

1. Connect your device to your computer.

2. In ActiveSync on your computer, click

Explore.

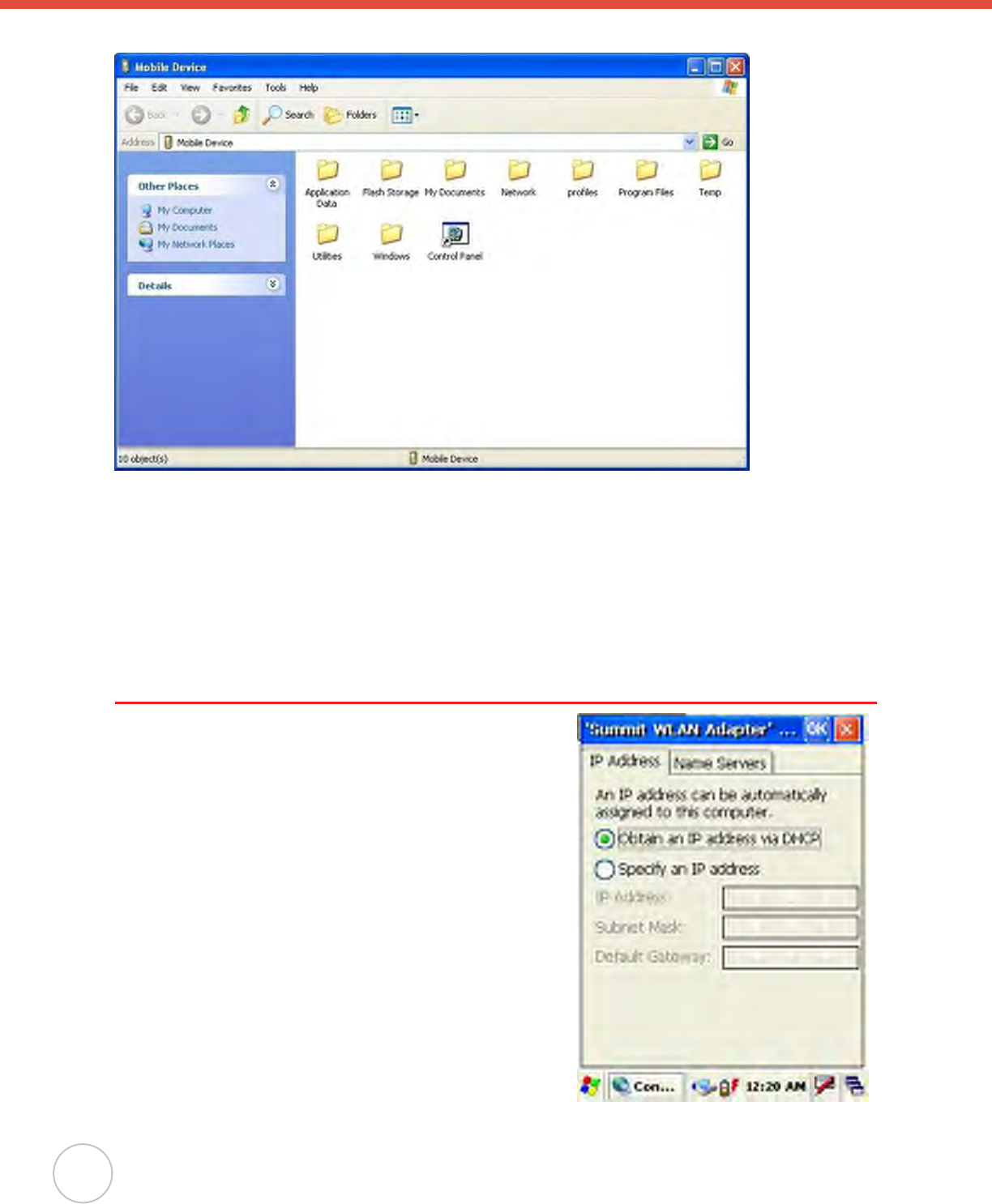

Windows Explorer opens the Mobile Device window for your device.

3. Locate the le that you want to copy on your device or computer.

4. Do either one of the following:

– To copy the file to your device, right-click the file and click Copy. Place the cursor in the

desired folder for your device, right-click, then click Paste.

– To copy the le to your computer, right-click the le and click Copy. Place the cursor in the

desired folder for your computer, right click, then click Paste.

Using the WLAN

Setting up the Wireless Local Area

Network Card

The HH-6600 is pre-loaded with connection software.

The HH-6600 automatically detects RF cards and then

displays this screen during the first-time installation.

Note that you can use one of the following two ways to

set the IP address:

Obtaining an IP Address via DHCP Server

●

Specifying an IP Address

●

Obtaining an IP Address via DHCP

Server

Check with your MIS department to determine whether

a DHCP server is available in your LAN environment.

If available, tap the radio button next to Obtain an IP

address via DHCP, and then tap the OK button.

Chapter 3 Getting Connected

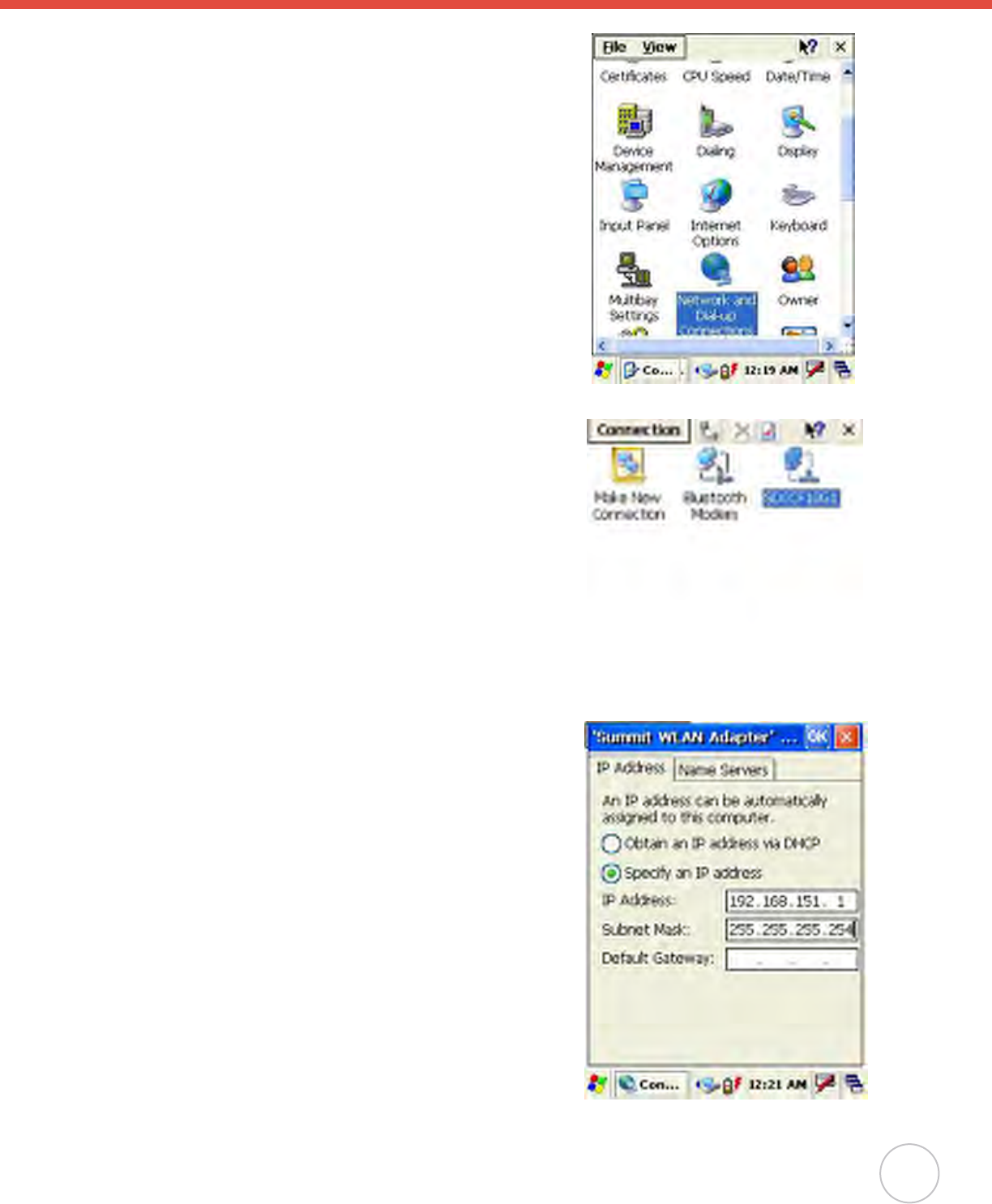

Specifying an IP Address

If there is no DHCP server in your LAN environment,

assign IP addresses to each HH-6600 as follows:

1. Tap Start → Settings → Control Panel and then

double-tap Network and Dial-up Connections.

2. Tap the SDCCF10G1 icon next to Specify IP Address.

3. Input the proper IP address, Subnet Mask, and Default

Gateway.

4. Tap the Name Servers tab, and then input the proper

Primary DNS, Secondary DNS, Primary WINS, and

Secondary WINS.

To avoid conflict with your LAN environment, consult

with your MIS department for the correct TCP/IP

setting.

WiFi Connection

AWID terminals come with built-in RF facility.This chapter

guides the user on how to setup the RF setting.

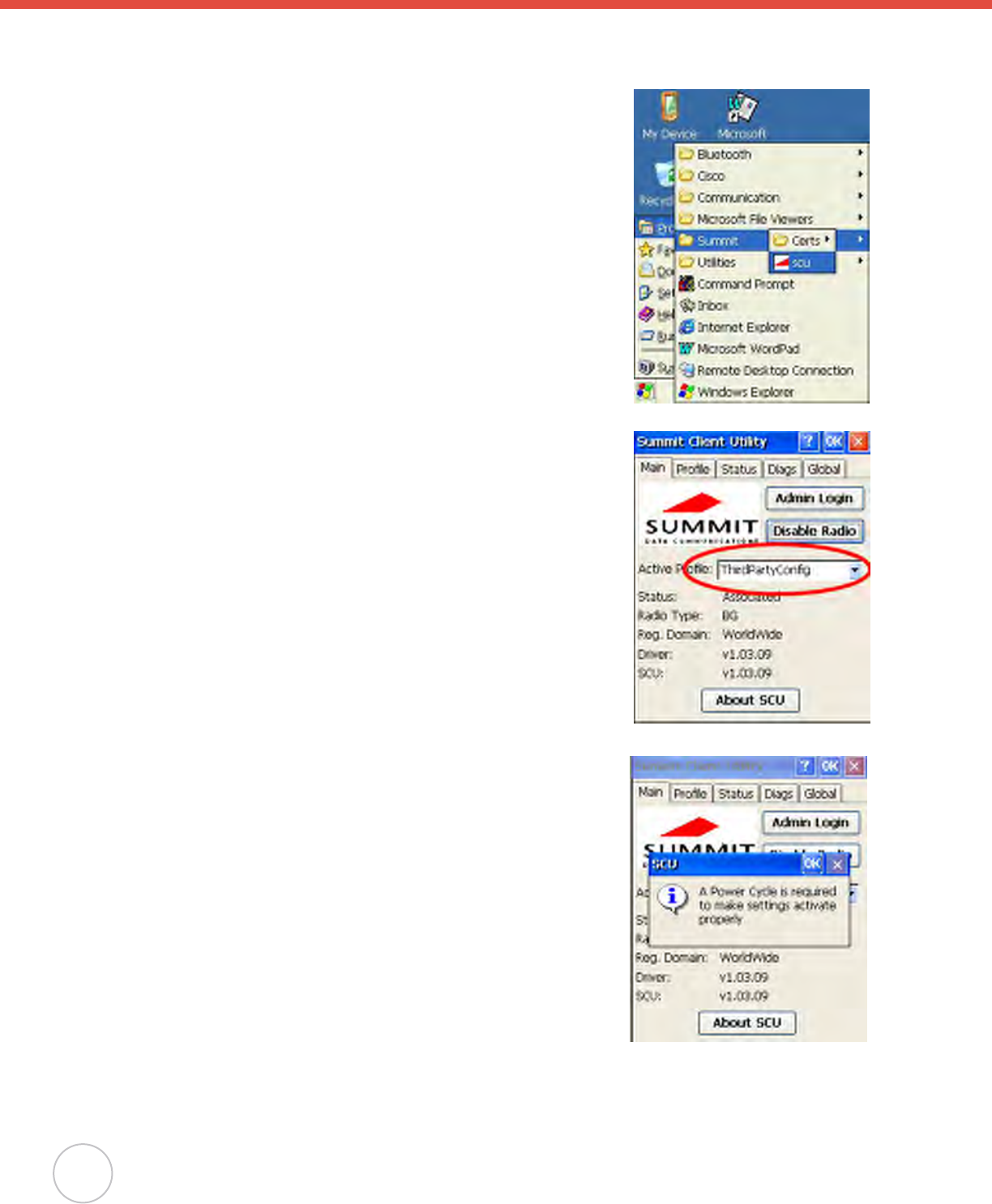

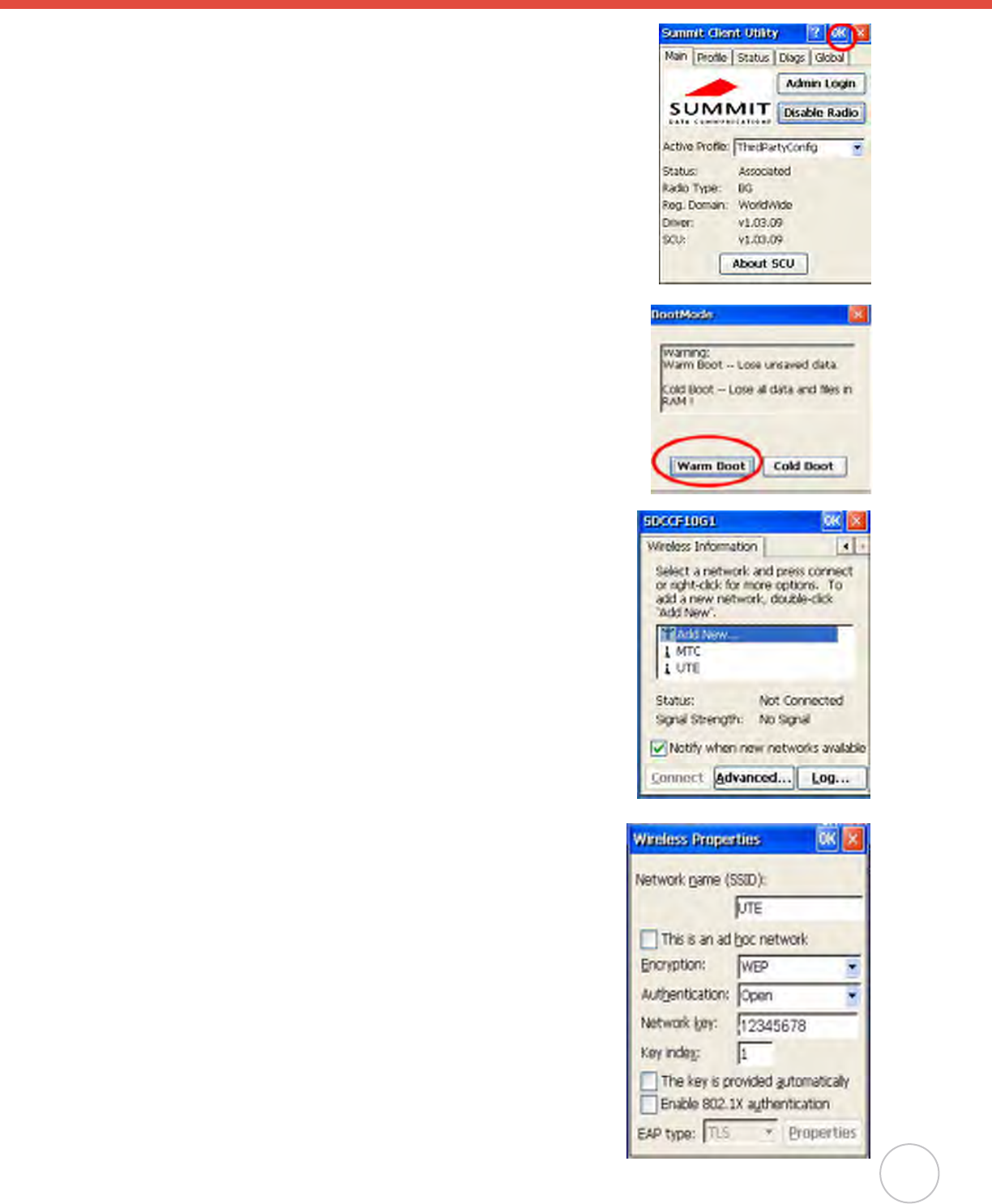

1. Tap Start → Programs → Summit → scu.

Under “Main” tab, for Active Prole,

select “Third-PartyCong”.

3. A Power Cycle is required to make settings activate properly.

Tap “OK”.

Chapter 3 Getting Connected

4. Tap “OK”.

5. Warm Start the terminal

Once the RF card is detected, you will see the

RF setting window pop up.

Tap “Add New”(Or double tap your preferred

network) to add a new SSID.

Enter the SSID. Uncheck “The key is provided

automatically”.Enter the network key.

Tap OK. Start to search for RF signal and the

RF is connected.

Using the Summit Utilities

You can use the Summit Utility tool to setup or change the WiFi

setting.

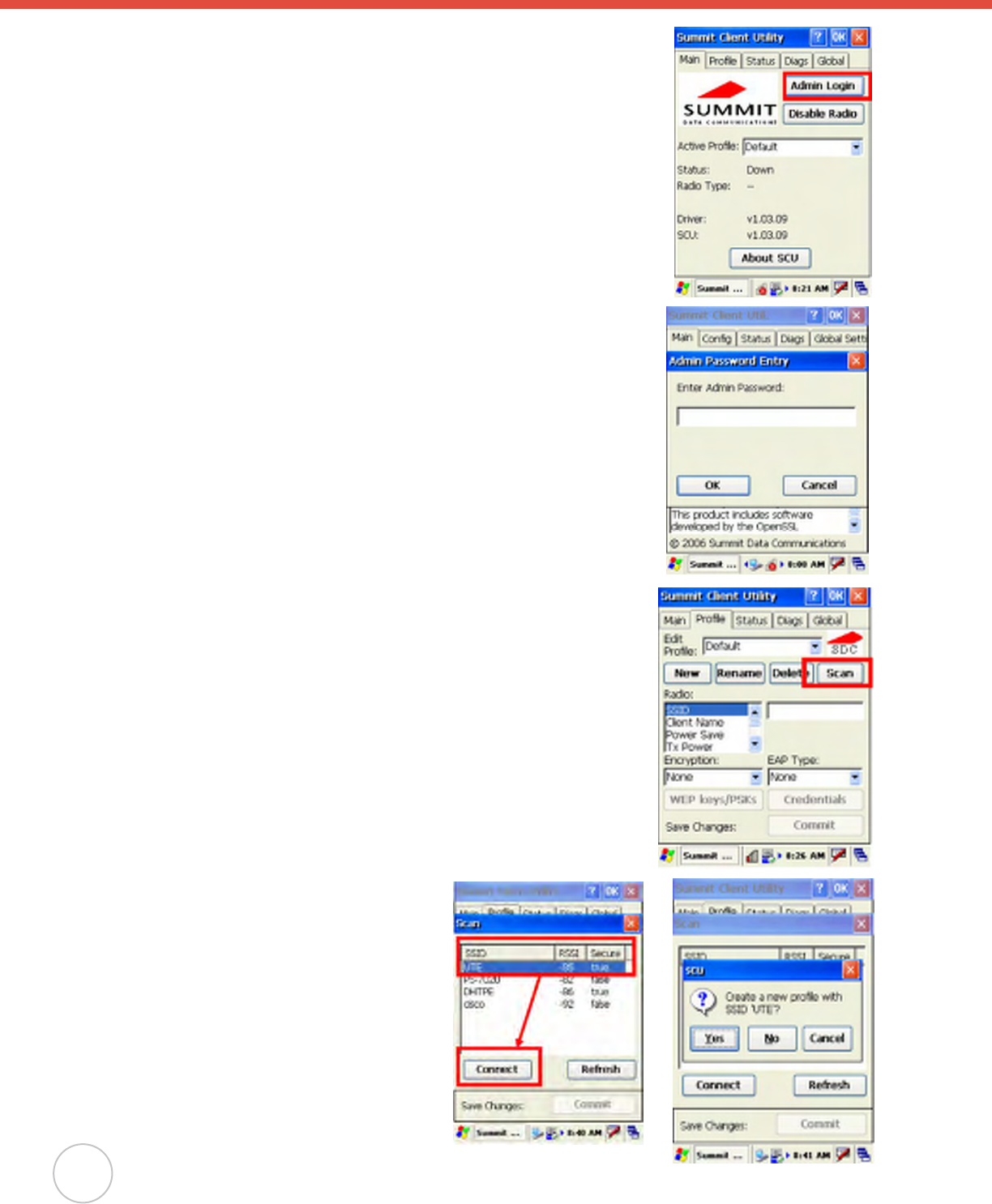

Admin Login

To login as an administrator, tap “Admin Login”

Enter the password. (Default password: SUMMIT)

Scan Available AP

In “Prole” tab, tap “Scan” for available AP.

You may select the AP you want to connect to and tap “Connect”.

Press “Yes” to connect.

Chapter 3 Getting Connected

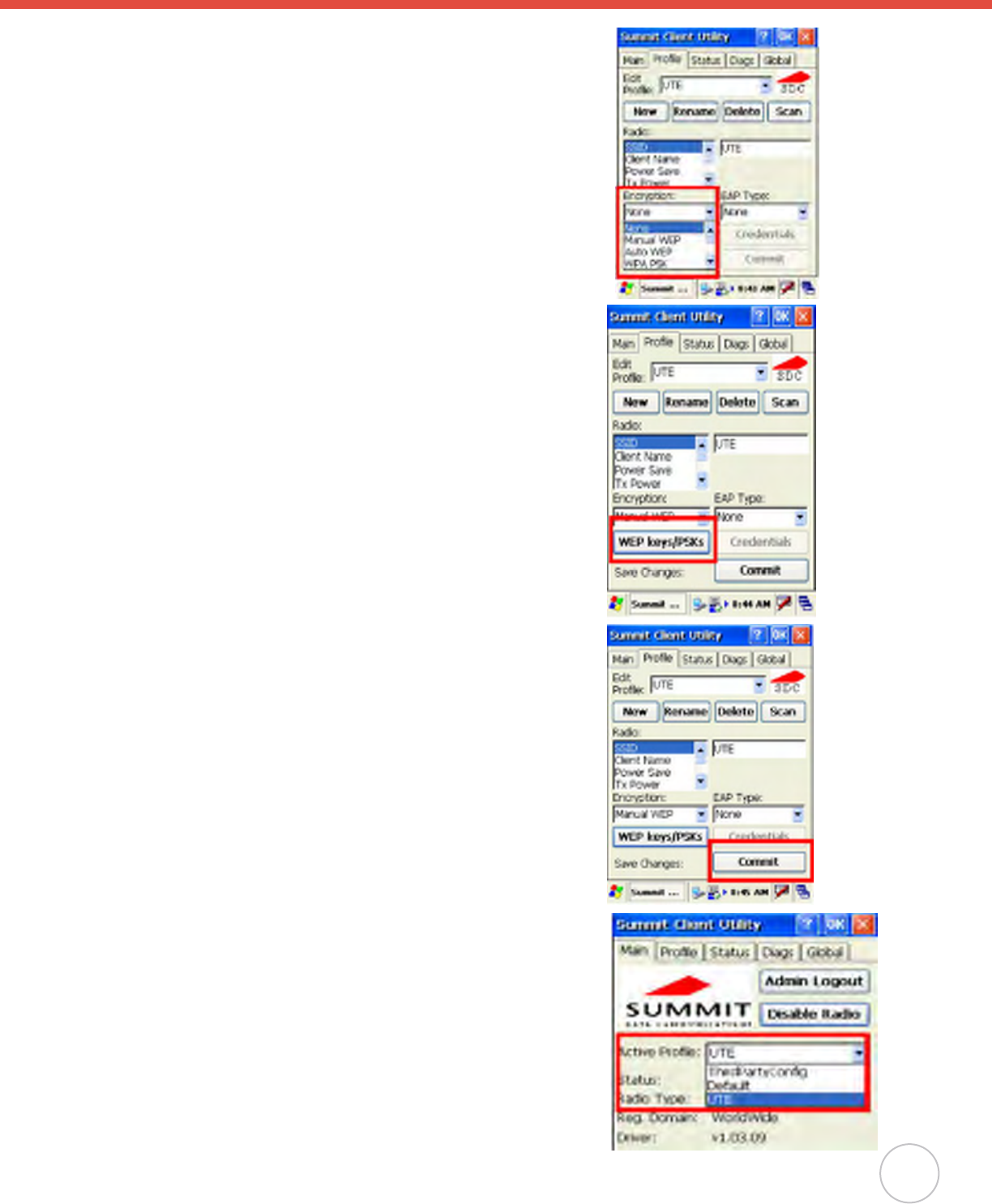

Encryption:

To setup the encryption, scroll down the encryption list and

select the encryption type in your network.

2. Tap "WEP keys/PSK's"

3. Enter the WEP keys and tap "OK".

Commit and Activate

Tap "Commit" to activate the setting.

In "Main" tab, select the prole you want to activate.

In "Status" tab, you can see the IP address and the signal

strength.

Appendix

Hardware

Memory: 64 MB ROM / 64MB SDRAM

Microprocessor: Intel X-Scale 400MHz

Display: NEC 240*320 Transflective TFT Color LCD, support 256K

color, with backlight, with touch screen.

Operating System

Microsoft Windows CE.NET5.0 Professional Plus

Power

Battery Type: Rechargeable Lithium-Ion

Battery System: 7.4V 4050mAh (double cell)

Battery Life: Up to 16 hours

Recharging Time: Within 6 hours when power status is very low

Keypad with LED backlight

36 key keypad with numeric key, alpha key and function key

Standard Communications

Bluetooth, 802.11b/g, USB 1.0, IrDA

Scanner Engine Integrated SE950 laser scanner (Optional)

RFID Reader UHF 902~928MHz, EPCG1, Gen 2

Physical

Characteristics Lx W x H: 7.17”3.46”5.91”

Weight: 26.81oz

Environment

Operating Temp -5º to 50ºC

Storage Temp -20º to 60ºC

Relative Humidity: 5% to 95% (non-condensing)

Key Accessories Desktop Cradle

2 Slot Battery Charger

4 Slot Battery Charger

4 Slot Multi-bay

Charging & Communication Cable

Software

Development Kit AWID HH-6600 SDK

Microsoft Embedded Visual Tool

Regulatory FCC

System Specications

Applied Wireless Identifications Group HH6600 RFID Handheld Terminal User Manual

Applied Wireless Identifications Group Inc. RFID Handheld Terminal

User manual

Navigation menu

Namespaces

Views

Navigation
