www.JBL.de

5 START PLUS

5 START PLUS

CO2 fertilization

CO2 fertilization

GB Art.No. 9721310 V01

Your specialist retailer

'!0B41GC-jhcbdc!

'!0B41GC-abibfb!

D

GB

'!0B41GC-abibgi!

F

'!0B41GC-abibhf! NL

'!0B41GC-abidbb! I

Step 5 of the JBL 7 step

success concept for perfect

aquarium plants

Step 5 of the JBL 7 step

success concept for perfect

aquarium plants

2

Content

Why CO2? .................................................................................................... 3

Can an aquarium run without CO2? ............................................................... 3

Why does CO2 help combat algae? .............................................................. 4

Does CO2 fertilization mean less oxygen in the water? .................................. 4

How much CO2 is needed? .......................................................................... 4

The right CO2 level in the aquarium ............................................................... 5

First steps in CO2 fertilization: JBL ProFlora BioCO2 ...................................... 6

Is CO2 alone sufcient or do I need other fertilizers? ...................................... 7

Why select the JBL CO2 fertilizer system? ..................................................... 8

Installing the JBL ProFlora u-m systems is as simple as this ......................... 9

JBL CO2 Plant Care: Product Range .................................................... 10-13

JBL CO2 Plant Care: Poster .................................................................. 14-16

CO2 fertilization Content

3

All plants need carbon dioxide (CO2) as a

basic nutrient, supplemented by minerals

from fertilizers (e.g. JBL Ferropol).

During photosynthesis, the energy of light

combines CO2 with water, producing sug-

ar (nourishment for plants). In the course

of this process, oxygen (O2) is released

which is needed by other creatures. Inci-

dentally, plants also need a certain amount

of oxygen at night, which is why night-time

ventilation is really a good idea for densely

planted aquariums.

Why CO2?

In an aquarium there is

not sufcient CO2 avail-

able for plants; that’s

why aquarium-keepers

have to lend a helping

hand by installing a CO2

fertilization system. Some

aquarium-keepers nd that

their aquarium can function

without a CO2 system. However, it needs

to be said that there are only a few species

of plants which can survive in the long-

term without additional CO2 fertilization.

Any sensitive plant, and in particular red

plants, will waste away without additional

CO2 fertilization. And even “hardy” plants

will grow noticeably faster and stronger

with CO2!

CO2 fertilization Why CO2? • Can an aquarium run without CO2?

O2

CO2Light

Can an aquarium run without CO2?

Sugar

4

Why does CO2

help combat algae?

Plants and algae compete for food in an

aquarium. If plants ourish, there is not

enough nutrition left for algae and they

waste away. CO2 fertilization encourages

plant growth, leaving no chance for algae

to grow. Even in aquariums which usually

have few plants, for example Lake Malawi-

Tanganyika aquariums, these few plants

should be particularly well-nourished to

actively combat the growth of algae. By

the way, in comparison to the availability

of nutrients, light plays a very minor role!

Does CO2 fertilization

mean less oxygen in the

water?

Many people believe that CO2 reduces ox-

ygen levels in the water. This is not correct!

However, the link needs to be explained in

more detail. If, despite adding CO2, the

surface of the water is strongly agitated by

air stones or the spray bar from a lter, the

oxygen level in the water will increase, but

the CO2 will be expelled at the same time

(like shaking a bottle of Coca Cola). The

calmer the surface of the water, the more

CO2 will remain in the water. Both gases

(CO2 and O2) can be present together in

high concentrations in the water.

How much CO2 is needed?

The right amount of CO2 depends on

the carbonate hardness (KH) and the pH

level. The harder the water (the higher the

KH), the more CO2 is required to reduce

the pH level. However, CO2 cannot be ar-

bitrarily dissolved in the water to reduce

the pH level. The proportions are shown

in the table. The green sector shows the

optimum CO2 levels.

CO2 fertilization Why does CO2 help combat algae? • Does CO2 fertilization mean less oxygen in the water? • How much

CO2 is needed?

Hair algae ➤

5

6,3

32

48

64

80

96

111

127

143

158

175

191

207

223

6,4

25

38

51

63

76

80

101

114

128

139

152

164

177

6,5

20

30

40

50

60

70

80

90

10

110

121

131

141

6,6

16

24

32

40

48

56

64

72

80

88

96

82

112

6,7

13

19

25

32

38

44

51

57

63

70

76

82

89

6,8

10

15

20

25

30

35

40

45

60

55

60

65

70

6,9

8

12

16

20

24

28

32

36

40

44

48

52

56

7,0

6

10

13

16

19

22

25

29

32

35

38

41

44

7,1

5

8

10

13

15

18

20

23

25

28

30

33

35

7,2

4

6

7

10

12

14

16

18

20

22

24

26

28

7,3

3

5

6

8

10

11

13

14

16

18

19

21

22

7,4

3

4

5

6

8

9

10

11

13

14

15

16

18

7,5

2

3

4

5

6

7

8

9

10

11

12

13

14

2

3

4

5

6

7

8

9

10

11

12

13

14

KH pH

CO2 overdosed Suitable dose of CO2CO2 underdosed

CO2 fertilization The right CO2 level in the aquarium

The right CO2 level in the

aquarium

The optimum CO2 level is colour-coded

in the table. It can be seen that each level

of water hardness is linked to a certain

CO2 level which in turn determines the pH

level. So although even at high degrees of

hardness (e.g. 14 KH) a pH level of 6.3 can

be attained by adding CO2, the amount of

CO2 (223 mg/l) this would require is lethal

for the inhabitants of an aquarium. If an

aquarium-keeper wants to attain a low

pH level of 6.3, for example, he must rst

reduce the carbonate hardness to 2. Con-

versely, the table also shows when too

little CO2 is available. If an aquarium has

a KH of 5 and a pH level of 7.5, the CO2

content is only 5 mg/l. By adding CO2, a

CO2 level of 16 – 32 mg/l should be aimed

for, which will then reduce the pH level to

7.0 – 6.7.

6

CO2

First steps

in CO2 fertilization:

JBL ProFlora BioCO2

The JBL ProFlora BioCO2 system is ide-

ally suited to aquariums up to 120 litres.

Reasonably priced and simple to install,

it gives everyone the opportunity to see

for themselves the advantages of CO2-

fertilization. Then you have a choice: either

to continue with JBL ProFlora BioCO2

and only buy rells or to change to the gas

cylinders of the JBL ProFlora u or m sys-

tems. In the JBL BioCO2 system two com-

ponents are combined in a reaction ask

(nutrient-micro organism system), which

then produce CO2 for 45 days, which is

then simply dissolved into the water via

an air stone or a short JBL ProFlora Taifun

(reactor).

CO2 fertilization First steps in CO2 fertilization: JBL ProFlora BioCO2

7

1 START

2 START

3 START

4 START PLUS

5 START PLUS

6 PROFESSIONELL

7 RESTART

Is CO2 alone sufcient or do I need other fertilizers?

A comparison with our own diet explains the situation well: CO2 forms the basic

nutrient (like carbohydrates for animals), but it is vital that this is supplemented.

We humans need vitamins, minerals and bre; plants “only” need minerals and light

to grow.

The basis for plant roots with JBL AquaBasis plus

(ready-mixed) or JBL Florapol (concentrate to mix

yourself). This gives the plant roots all the vital nutrients

over the long-term.

JBL Ferropol provides aquarium plants with all the

essential nutrients which can be given on a weekly basis.

JBL Ferropol is thus the liquid basic fertilizer.

JBL Ferropol 24 contains all the sensitive trace elements

which have to be added daily and cannot be given as a dose

to be held in stock.

Light with similar properties to sunlight from JBL full-spectrum

tubes (rated excellent by the scientific IFM Geomar Institute and

specialist aquatic magazines). JBL SOLAR Tropic for warm

colours and JBL SOLAR Natur for bright light.

Provides plants with the main nutrient, carbon dioxide

(CO2), dissolved in the water. Promotes plant growth,

combating algae!

Warm feet for the plants with JBL ProTemp Basis,

ensuring good current flow through the ground material.

Nutrients reach the plant roots more quickly and the

ground-covering material is always actively rinsed.

JBL The 7 Balls re-charges the ground fertilizer with

nutrients, minerals and trace elements after several

months, so that plant growth is boosted further.

Ground fertilizer

Basic fertilizer

Supplementary daily fertilizer

The right light

CO2- fertilizing

Ground heating

Re-fertilizing the roots

CO2 fertilization Is CO2 alone sufcient or do I need other fertilizers?

8

Why select the

JBL CO2 fertilizer system?

Many of the advantages are in the small,

but ne, details, whilst some of the advan-

tages are obvious:

• The reactor (JBL ProFlora Taifun),

which dissolves the CO2 in the wa-

ter, can be extended. If more plants

are added or the pH level reduced, the

JBL Reactor can be extended by simply

adding modules.

• No separate pump is needed for the

JBL ProFlora Taifun and it can be posi-

tioned anywhere in the aquarium (in the

water current or not), as it produces its

own micro-currents through the micro-

slits between the modules.

• The JBL ProFlora u001/m001 (pres-

sure regulator) can be used with rellable

as well as disposable cylinders (tting or

removing adapter (accessory)). This means

that for holiday periods (as a precaution)

the system can simply be changed to dis-

posable cylinders with reserve cylinders.

• The 500 g rellable cylinder (JBL Pro-

Flora m500) does not require any com-

plicated holder screwed or drilled into the

cupboard, instead it is simply placed on

the JBL Cylinder Base.

• The JBL CO2/pH Permanent Test takes

the water hardness (KH) into account!

As described above, the optimum CO2

amount varies depending on the carbon-

ate harness of the water. Therefore the

optimum CO2 level is colour-coded ac-

cording to the hardness of the water. That

means a CO2 overdose cannot happen!

CO2 fertilization Why select the JBL CO2 fertilizer system?

9

CO2 fertilization Installing the JBL ProFlora u-m systems is as simple as this

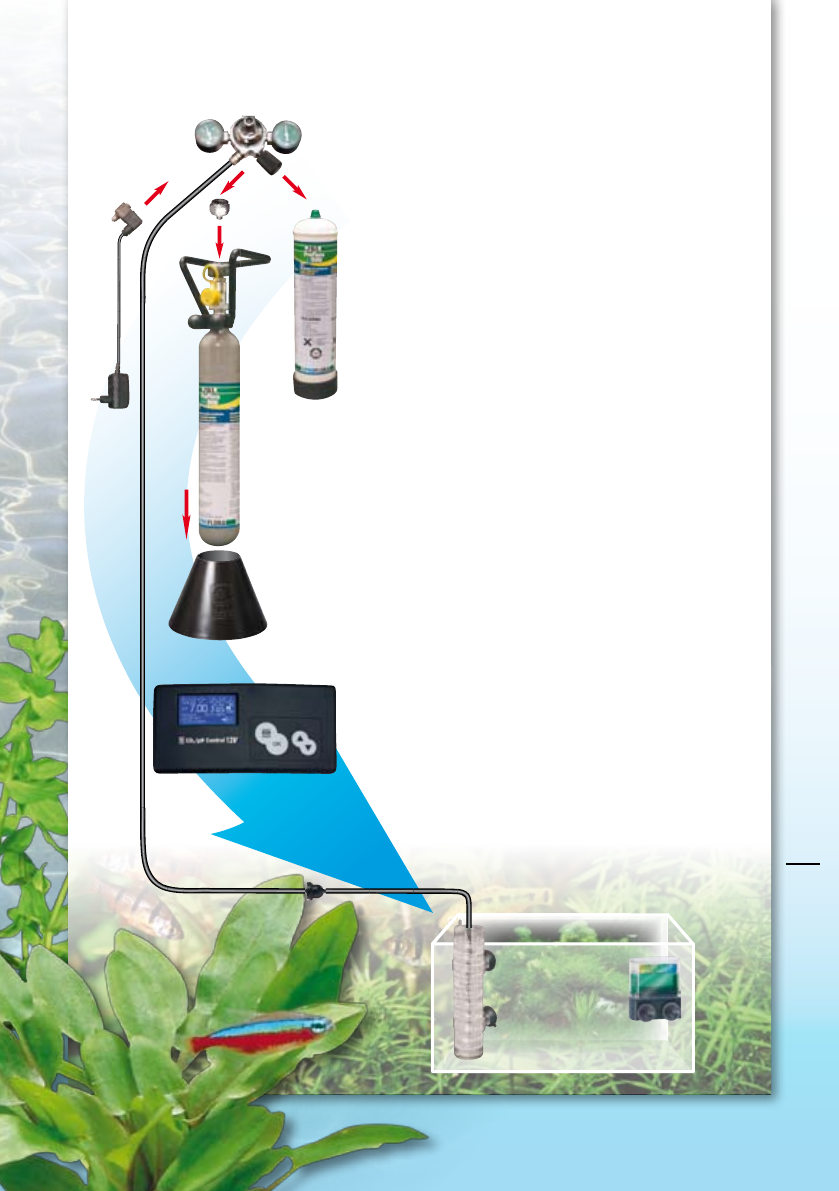

Installing the JBL ProFlora

u-m systems is as simple

as this:

Installation is simple, anyone can do it in

just a short time. In brief, this is how you

install the system:

The pressure regulator is screwed onto

the CO2 storage cylinder, which is then

con

nected by hose to a reactor in the

aquarium.

CO2 is fed through this into the aquarium,

where it is dissolved in the water with the

help of the reactor.

A solenoid valve can be connected to in-

terrupt the CO2 supply at night (plants only

need CO2 during the day). This is avail-

able separately and is already included in

the JBL ProFlora u402 and JBL ProFlora

m602.

If you would like to control the CO2-

supply and the pH level automatically, you

can install the JBL ProFlora pH-Control

(available separately or included in the

JBL ProFlora u403, m603 and m1003).

This computer measures and regulates

the CO2 supply.

1

2

3

4

10

JBL CO2 Plant Care:

Product Range

JBL CO2 Plant Care: Product Range

JBL ProFlora BioCO2 100

Component 1

• Reaction ask with nutrients for micro-organisms.

JBL ProFlora BioCO2 vario

Complete and professional BioCO2 system for aquariums

of up to 120 litres.

• Contains 5 diffusor modules for the effective and loss-free CO2

enrichment of aquarium water.

• Supplies aquariums holding up to some 120 litres, with CO2 over

about 45 days.

• No compressed gas bottle.

• Each component is available individually.

• The vario diffusor of the system does not require a separate

pump!

JBL ProFlora BioCO2 100

Component 2

• Micro-organismus, sufcient for a minimum of 5 applications.

JBL ProFlora BioCO2 100

Complete set for newly set up aquariums

• Provides sufcient CO2 for aquariums of up to 100 litres

(26 US gal.) for approx. 45 days.

• Simple to install in only a few minutes.

• No gas bottle.

• Each component available individually.

11

JBL CO2 Plant Care:

Product Range

JBL ProFlora u401

CO2-fertilizer system with 500 g disposable cylinder

• Complete system with: 500 g CO2 cylinder, pressure regulator, CO2 diffusion

reactor JBL Taifun 190 mm, 2 meter CO2 special hose, CO2 non-return valve,

CO2/pH Permanent Test.

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to multiple

use system).

• The system is ready to use and designed for aquariums from 50 to 400 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

JBL ProFlora u402

CO

2

-

fertilizer system with 500 g disposable cylinder and night switch-off

• Complete system with: 500 g CO2 cylinder, pressure regulator, night switch-off,

CO2 diffusion reactor JBL Taifun 190 mm, 2 meter CO2 special hose, CO2

non-return valve, CO2/pH Permanent Test.

• With night switch-off which interrupts the CO2-supply by means of a time-switch

(not included) as plants do not need CO2 in the darkness (halves CO2 consump-

tion!)

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to multiple

use system).

• The system is ready to use and designed for aquariums from 50 to 400 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

JBL ProFlora u403

CO2-fertilizer system with 500 g disposable cylinder and pH control

instrument

• Complete system with: 500 g CO2 cylinder, pressure regulator, pH control

instrument, CO2 diffusion reactor JBL Taifun 190 mm, 2 meter CO2 special hose,

CO2 non-return valve, CH Test

• With pH control instrument (JBL pH Control), which automatically regulates CO2

supply and adjusts to the pH level selected (incl. calibration solution but without

pH electrode!).

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to multiple

use system).

• The system is ready to use and designed for aquariums from 50 to 400 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

JBL ProFlora u001

Pressure regulator for disposable CO2 cylinders

• Precision pressure regulator, regulates cylinder pressure from 60 to 1.5 bar. The

correct bubble count (amount of CO2) is then adjusted on the ne needle valve.

• Preset working pressure (1.5 bar) means no need for complicated re-adjusting

(adjustment possible, if required).

• 2 pressure gauges display working pressure and cylinder pressure.

• Can be converted to rellable cylinder system using adapter.

JBL ProFlora Adapt u-m

Converts pressure regulator from disposable to refillable system

F• or simple, problem-free conversion of the JBL CO2 pressure regulator u001

to rellable cylinders (such as the JBL m-System).

Conversion can be reversed at any time.•

Using a 6 Allen key (not included), the adapter is screwed in to the JBL u •

pressure regulator. Time taken: 20 seconds.

JBL CO2 Plant Care: Product Range

12

JBL CO2 Plant Care: Product Range

JBL ProFlora m601

CO2-fertilizer system with 500 g refillable cylinder

• Complete system with: 500 g CO2 cylinder with stand, pressure regulator, CO2

diffusion reactor JBL Taifun 270 mm, 2 meter CO2 special hose, CO2 non-return

valve, CO2/pH Permanent Test.

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to

disposable system).

• The system is ready to use and designed for aquariums from 100 to 600 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

JBL ProFlora m603

CO2-fertilizer system with 500 g refillable cylinder and pH control

instrument

• Complete system with: 500 g CO2 cylinder with stand, pressure regulator, pH

control instrument, CO2 diffusion reactor JBL Taifun 270 mm, 2 meter CO2

special hose, CO2 non-return valve, CH Test.

• With pH control instrument (JBL pH-Control), which automatically regulates

CO2 supply and adjusts to the pH level selected (incl. Calibration solution but

without pH electrode!).

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to

disposable system).

• The system is ready to use and designed for aquariums from 100 to 600 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

JBL ProFlora m602

CO2 fertilizer system with 500 g refillable cylinder and night switch-off

• Complete system with: 500 g CO2 cylinder with stand, pressure regulator, night

switch-off, CO2 diffusion reactor JBL Taifun 270 mm, 2 meter CO2 special hose,

CO2 non-return valve, CO2/pH Permanent Test.

• With night switch-off which interrupts the CO2-supply by means of a time-switch

(not included) as plants do not need CO2 in the darkness (halves CO2

consumption!)

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to

disposable system).

• The system is ready to use and designed for aquariums from 100 to 600 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

JBL ProFlora m1003

CO2-fertilizer system with 2 kg refillable cylinder and pH control

instrument

• Complete system with: 2 kg CO2 cylinder with stand, pressure regulator,

pH control instrument, CO2 diffusion reactor JBL Taifun 430 mm, 2 meter CO2

special hose, CO2 non-return valve, CH Test.

• With pH control instrument (JBL pH-Control), which automatically regulates

CO2 supply and adjusts to the pH level selected (incl. calibration solution but

without pH electrode!).

• Professional pressure regulator with pre-set working pressure (= no adjustment

required, but possible if required) and 2 pressure gauges displaying the residual

pressure in the cylinder and the working pressure set (can be adapted to

disposable system).

• The system is ready to use and designed for aquariums from 300 to 1000 litres.

• With JBL Ferropol (liquid fertilizer) and JBL Ferropol 24 (daily fertilizer).

13

JBL CO2 Plant Care: Product Range

JBL ProFlora m001

Pressure regulator for refillable CO2 cylinders

• Precision pressure regulator, regulates cylinder pressure from 60 to 1.5 bar. The

correct bubble count (amount of CO2) is then adjusted on the ne needle valve.

• Preset working pressure (1.5 bar) means no need for complicated re-adjusting

(adjustment possible, if required).

• 2 pressure gauges display working pressure and cylinder pressure.

• Can be simply converted to disposable cylinder system.

JBL ProFlora Taifun

CO2 High-diffusion reactor

• Dissolves CO2 gas in aquarium water without loss.

• Suitable for aquariums from 30 cm high to max. 400 litres with 4° CH

(to 200 l for 10° CH).

• Can be extended for higher hardness levels or larger aquariums.

• Operates without additional pumps.

• No separate bubble counter required.

• Can be completely dismantled, easy to clean (with JBL PowerClean).

JBL ProFlora Taifun extend

Extension module for JBL Taifun CO2 Reactor

• If the capacity of the JBL Taifun is no longer sufcient (changed to larger

aquarium or higher water hardness levels), JBL Taifun can be extended by

adding this module.

• Increases capacity by 100 litres at 10° GCH or 200 litres at 4° GCH.

• Extends the diffusion length of CO2 by 50 cm.

JBL ProFlora u500

CO2 disposable 500 g storage cylinder

• Ready-lled with 500 g CO2.

• Height: 29 cm, diameter: 7.5 cm.

• With integrated stand.

• High safety, tested to 165 bar.

• Thread connection: M 10 x 1.

JBL ProFlora m500

CO2 refillable 500 g storage cylinder

• Ready-lled with 500 g CO2.

• Overall dimensions: 43 x 11 cm (with stand: 45 x 16 cm).

• With external international valve (W 21.8 x 1/14).

• Safety valve protection (cage).

JBL ProFlora m2000

CO2 refillable 2000 g storage cylinder

• Ready-lled with 2 kg CO2.

• Overall dimensions: 46 x 11.5 cm.

• With external international valve (W 21.8 x 1/14).

• Safety valve protection (cage)..

• Free-standing, no stand required.

pH

6,4

pH

6,8

pH

7,0

pH

7,2

pH

7,6

www.jbl.de

JBL CO2-fertilizing system - The Easy Way of Professional Plant Care

JBL ProFlora

m001

JBL ProFlora

u001

CO2

pressure regulator

Reduces the high pressure of the gas

bottle from approx. 50 bar to a lower

working pressure of 1 bar. The working

pressure is pre-set and displayed on the

pressure gauge on the right. The amount

of

CO

2

required can be adjusted using

the small handwheel.

Art. No.

63332

Art. No.

63333

JBL

ProFlora CO2 /pH Control 12 V

The latest measurement and monitoring technology meas-

ures the pH value and temperature and reliably regulates

the pH value and supply of CO2 fully automatically. This

ensures luxuriant plant growth and healthy fish. The JBL

CO2/pH control 12 V has an integral solenoid valve as well

as offering a whole range of useful features never before

incorporated in equipment of this class. A simple multi-lin-

gual menu guides you safely through all the functions. The

complete equipment runs on 12 V low voltage, providing

the highest possible safety.

Art. No.

63418

JBL

ProFlora Count

Bubble counter. Using the bubble

counter, the amount of CO2 gas ad-

ded can be precisely counted. The

bubble counter is only required if

the vario-Reactor is hidden behind

decorative objects and cannot be

seen.

Art. No.

63483

JBL

ProFlora SafeStop

Non-return valve

Prevents a flowback of aquarium wa-

ter into the gas bottle, solenoid valve

and pressure reducer It should be

installed directly before the diffusor

(JBL ProFlora

CO

2

vario). Check the

direction of installation.

Art. No.

64515

JBL

ProFlora Taifun

CO2 diffusor

This dissolves the

CO

2

gas in

water. The

CO

2

bubbles slowly

rise inside the 1 meter long

coil, dissolving in the water.

The diffusor is sufficient for

aquariums of up to 400 litres,

given a carbonate hardness of

max. 4° dCH.

Art. No.

63473

JBL

ProFlora

pH Sensor

Gel electrode to measure

the pH level. The tempe-

rature influence on the

pH level is automatically

compensated for.

The electrode should be

checked every 3 months

using a calibrating liquid,

and adjusted as necessary.

Art. No.

63414

JBL

ProFlora m2000

2 kg Filled Gas Bottle

With cage and safety release panel.

Large refillable gas storage bottle with

2000 g

CO

2

. CE (TÜV) approved.

Art. No.

63202

JBL

ProFlora m500

500g Gas Bottle

This CE (TÜV) approved bottle contains

500 g carbon dioxide (

CO

2

). The valve

is protected by a safety bar (cage). The

bottle can be refilled at a specialist pet

shop.

Art. No.

63172

JBL

ProFlora Taifun extend

diffusor extension set

This set extends your JBL Taifun

reactor for an aquarium of over

400 litres. The extension set is

simply to install between the two

modules of your JBL Taifun diffu-

sor, extending the contact area to

the aquarium by 50 cm.

Art. No.

63474

JBL Permanent Test

CO

2 plus pH

This device displays the

CO

2

content and the pH level of the

aquarium water. In the case of

too high or too low

CO

2

content,

re-adjust the

CO

2

supply on the

pressure reducer.

Art. No.

25388

JBL ProFlora u500

500 g

CO2

storage bottle

This disposable bottle cannot be refilled.

It contains 500 g

CO

2

gas. CE (TÜV) approved.

Art. No.

63174

JBL

Stand for JBL ProFlora m500

Provides a firm base for a 500 g gas bottle.

CO

2

bottles should always be placed in an upright position

when in use.

Art. No.

63176

JBL

ProFlora T3 CO2-hose

This special hose is designed to

connect the individual devices.

It is made of

CO

2

-resistant

material.

CO

2

gas leaks through the walls

of normal hose.

Art. No.

63462

JBL

ProFlora Adapt u-m

Adapts the JBL ProFlora u001

pressure regulator for use with

refillable cylinders (JBL m

system). To use the JBL m001

pressure regulator on disposable

cylinders (JBL u system) simply

remove the locking nut from the

pressure regulator. Adaptation

can be reversed in either direc-

tion at any time.

Art. No.

64518

JBL

ProFlora v002

Solenoid valve

The solenoid valve is designed to

interrupt the

CO

2

supply. This is useful at

night as plants only require

CO

2

during

the lighting phase.

Art. No.

63413

Sensor for temperature

Checks the water

temperature for the

JBL

ProFlora

CO

2/

pH Control 12 V

pH

6,4

pH

6,8

pH

7,0

pH

7,2

pH

7,6

www.jbl.de

JBL CO2-fertilizing system - The Easy Way of Professional Plant Care

JBL ProFlora

m001

JBL ProFlora

u001

CO2

pressure regulator

Reduces the high pressure of the gas

bottle from approx. 50 bar to a lower

working pressure of 1 bar. The working

pressure is pre-set and displayed on the

pressure gauge on the right. The amount

of

CO

2

required can be adjusted using

the small handwheel.

Art. No.

63332

Art. No.

63333

JBL

ProFlora CO2 /pH Control 12 V

The latest measurement and monitoring technology meas-

ures the pH value and temperature and reliably regulates

the pH value and supply of CO2 fully automatically. This

ensures luxuriant plant growth and healthy fish. The JBL

CO2/pH control 12 V has an integral solenoid valve as well

as offering a whole range of useful features never before

incorporated in equipment of this class. A simple multi-lin-

gual menu guides you safely through all the functions. The

complete equipment runs on 12 V low voltage, providing

the highest possible safety.

Art. No.

63418

JBL

ProFlora Count

Bubble counter. Using the bubble

counter, the amount of CO2 gas ad-

ded can be precisely counted. The

bubble counter is only required if

the vario-Reactor is hidden behind

decorative objects and cannot be

seen.

Art. No.

63483

JBL

ProFlora SafeStop

Non-return valve

Prevents a flowback of aquarium wa-

ter into the gas bottle, solenoid valve

and pressure reducer It should be

installed directly before the diffusor

(JBL ProFlora

CO

2

vario). Check the

direction of installation.

Art. No.

64515

JBL

ProFlora Taifun

CO2 diffusor

This dissolves the

CO

2

gas in

water. The

CO

2

bubbles slowly

rise inside the 1 meter long

coil, dissolving in the water.

The diffusor is sufficient for

aquariums of up to 400 litres,

given a carbonate hardness of

max. 4° dCH.

Art. No.

63473

JBL

ProFlora

pH Sensor

Gel electrode to measure

the pH level. The tempe-

rature influence on the

pH level is automatically

compensated for.

The electrode should be

checked every 3 months

using a calibrating liquid,

and adjusted as necessary.

Art. No.

63414

JBL

ProFlora m2000

2 kg Filled Gas Bottle

With cage and safety release panel.

Large refillable gas storage bottle with

2000 g

CO

2

. CE (TÜV) approved.

Art. No.

63202

JBL

ProFlora m500

500g Gas Bottle

This CE (TÜV) approved bottle contains

500 g carbon dioxide (

CO

2

). The valve

is protected by a safety bar (cage). The

bottle can be refilled at a specialist pet

shop.

Art. No.

63172

JBL

ProFlora Taifun extend

diffusor extension set

This set extends your JBL Taifun

reactor for an aquarium of over

400 litres. The extension set is

simply to install between the two

modules of your JBL Taifun diffu-

sor, extending the contact area to

the aquarium by 50 cm.

Art. No.

63474

JBL Permanent Test

CO

2 plus pH

This device displays the

CO

2

content and the pH level of the

aquarium water. In the case of

too high or too low

CO

2

content,

re-adjust the

CO

2

supply on the

pressure reducer.

Art. No.

25388

JBL ProFlora u500

500 g

CO2

storage bottle

This disposable bottle cannot be refilled.

It contains 500 g

CO

2

gas. CE (TÜV) approved.

Art. No.

63174

JBL

Stand for JBL ProFlora m500

Provides a firm base for a 500 g gas bottle.

CO

2

bottles should always be placed in an upright position

when in use.

Art. No.

63176

JBL

ProFlora T3 CO2-hose

This special hose is designed to

connect the individual devices.

It is made of

CO

2

-resistant

material.

CO

2

gas leaks through the walls

of normal hose.

Art. No.

63462

JBL

ProFlora Adapt u-m

Adapts the JBL ProFlora u001

pressure regulator for use with

refillable cylinders (JBL m

system). To use the JBL m001

pressure regulator on disposable

cylinders (JBL u system) simply

remove the locking nut from the

pressure regulator. Adaptation

can be reversed in either direc-

tion at any time.

Art. No.

64518

JBL

ProFlora v002

Solenoid valve

The solenoid valve is designed to

interrupt the

CO

2

supply. This is useful at

night as plants only require

CO

2

during

the lighting phase.

Art. No.

63413

Sensor for temperature

Checks the water

temperature for the

JBL

ProFlora

CO

2/

pH Control 12 V

pH

6,4

pH

6,8

pH

7,0

pH

7,2

pH

7,6

www.jbl.de

JBL CO2-fertilizing system - The Easy Way of Professional Plant Care

JBL ProFlora

m001

JBL ProFlora

u001

CO2

pressure regulator

Reduces the high pressure of the gas

bottle from approx. 50 bar to a lower

working pressure of 1 bar. The working

pressure is pre-set and displayed on the

pressure gauge on the right. The amount

of

CO

2

required can be adjusted using

the small handwheel.

Art. No.

63332

Art. No.

63333

JBL

ProFlora CO2 /pH Control 12 V

The latest measurement and monitoring technology meas-

ures the pH value and temperature and reliably regulates

the pH value and supply of CO2 fully automatically. This

ensures luxuriant plant growth and healthy fish. The JBL

CO2/pH control 12 V has an integral solenoid valve as well

as offering a whole range of useful features never before

incorporated in equipment of this class. A simple multi-lin-

gual menu guides you safely through all the functions. The

complete equipment runs on 12 V low voltage, providing

the highest possible safety.

Art. No.

63418

JBL

ProFlora Count

Bubble counter. Using the bubble

counter, the amount of CO2 gas ad-

ded can be precisely counted. The

bubble counter is only required if

the vario-Reactor is hidden behind

decorative objects and cannot be

seen.

Art. No.

63483

JBL

ProFlora SafeStop

Non-return valve

Prevents a flowback of aquarium wa-

ter into the gas bottle, solenoid valve

and pressure reducer It should be

installed directly before the diffusor

(JBL ProFlora

CO

2

vario). Check the

direction of installation.

Art. No.

64515

JBL

ProFlora Taifun

CO2 diffusor

This dissolves the

CO

2

gas in

water. The

CO

2

bubbles slowly

rise inside the 1 meter long

coil, dissolving in the water.

The diffusor is sufficient for

aquariums of up to 400 litres,

given a carbonate hardness of

max. 4° dCH.

Art. No.

63473

JBL

ProFlora

pH Sensor

Gel electrode to measure

the pH level. The tempe-

rature influence on the

pH level is automatically

compensated for.

The electrode should be

checked every 3 months

using a calibrating liquid,

and adjusted as necessary.

Art. No.

63414

JBL

ProFlora m2000

2 kg Filled Gas Bottle

With cage and safety release panel.

Large refillable gas storage bottle with

2000 g

CO

2

. CE (TÜV) approved.

Art. No.

63202

JBL

ProFlora m500

500g Gas Bottle

This CE (TÜV) approved bottle contains

500 g carbon dioxide (

CO

2

). The valve

is protected by a safety bar (cage). The

bottle can be refilled at a specialist pet

shop.

Art. No.

63172

JBL

ProFlora Taifun extend

diffusor extension set

This set extends your JBL Taifun

reactor for an aquarium of over

400 litres. The extension set is

simply to install between the two

modules of your JBL Taifun diffu-

sor, extending the contact area to

the aquarium by 50 cm.

Art. No.

63474

JBL Permanent Test

CO

2 plus pH

This device displays the

CO

2

content and the pH level of the

aquarium water. In the case of

too high or too low

CO

2

content,

re-adjust the

CO

2

supply on the

pressure reducer.

Art. No.

25388

JBL ProFlora u500

500 g

CO2

storage bottle

This disposable bottle cannot be refilled.

It contains 500 g

CO

2

gas. CE (TÜV) approved.

Art. No.

63174

JBL

Stand for JBL ProFlora m500

Provides a firm base for a 500 g gas bottle.

CO

2

bottles should always be placed in an upright position

when in use.

Art. No.

63176

JBL

ProFlora T3 CO2-hose

This special hose is designed to

connect the individual devices.

It is made of

CO

2

-resistant

material.

CO

2

gas leaks through the walls

of normal hose.

Art. No.

63462

JBL

ProFlora Adapt u-m

Adapts the JBL ProFlora u001

pressure regulator for use with

refillable cylinders (JBL m

system). To use the JBL m001

pressure regulator on disposable

cylinders (JBL u system) simply

remove the locking nut from the

pressure regulator. Adaptation

can be reversed in either direc-

tion at any time.

Art. No.

64518

JBL

ProFlora v002

Solenoid valve

The solenoid valve is designed to

interrupt the

CO

2

supply. This is useful at

night as plants only require

CO

2

during

the lighting phase.

Art. No.

63413

Sensor for temperature

Checks the water

temperature for the

JBL

ProFlora

CO

2/

pH Control 12 V

www.JBL.de

5 START PLUS

5 START PLUS

CO2 fertilization

CO2 fertilization

GB Art.No. 9721310 V01

Your specialist retailer

'!0B41GC-jhcbdc!

'!0B41GC-abibfb!

D

GB

'!0B41GC-abibgi!

F

'!0B41GC-abibhf! NL

'!0B41GC-abidbb! I

Step 5 of the JBL 7 step

success concept for perfect

aquarium plants

Step 5 of the JBL 7 step

success concept for perfect

aquarium plants
