User manual

User Manual
Content
H/W Parts
System Settings
Application
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
21
23
24
26
Warranty
Components
Troubleshooting & FAQ
Date & Time
Wi-Fi
Application Settings
CRM - Full
CRM - Simple
Hydration
Sebum
Pore
Melanin
Acne
Wrinkle
Hemoglobin
Result
Send Result -Email
Send Result - Mirroring
Device Functions
Device Settings
Components
Components
3

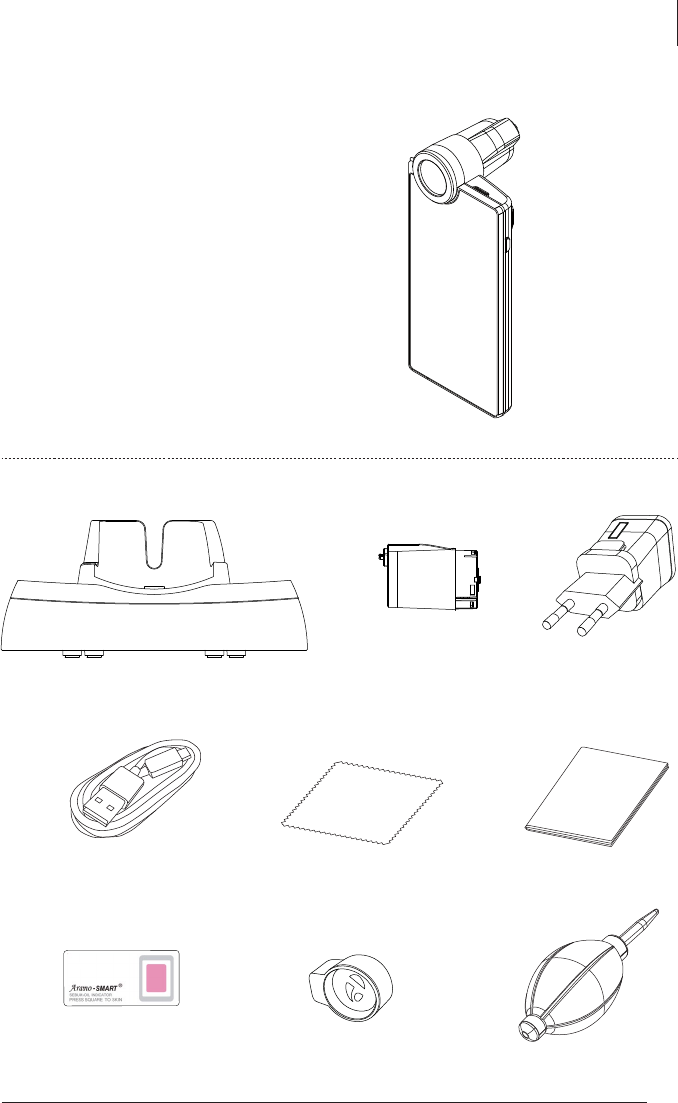

Main unit with skin lens
(APM PRO)
Charger
Skin tone sensor
(ST model only)
Cleaning cloth ManualUSB cable
Sebum paper 2 box Air blowerLens cap 2ea
Cradle
4

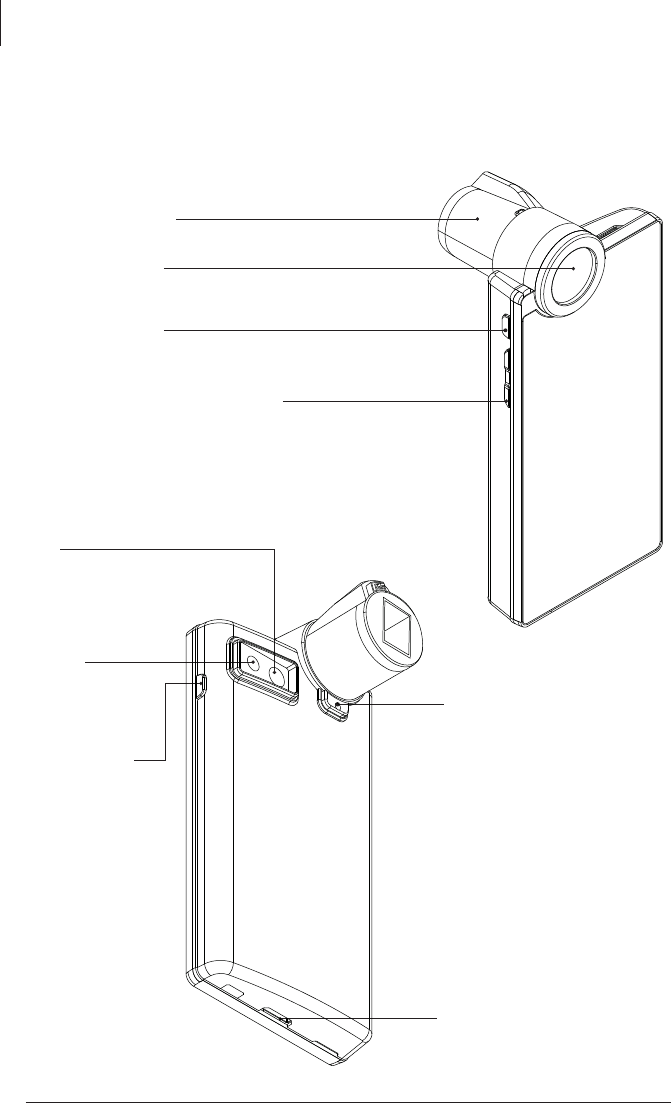

APM PRO lens
Indicate LED
Lens module change button
USB slot (DC 5V 3A)
On/off button
X1 Lens
Flash
Flash button
Volume up & down button
Device Functions
H/W Parts
To turn on & off the power
Press and hold “power” button.
Then “Indicate LED” will be twinkled
and turned on white.
1
2
Device Settings
B. H/W Parts
5

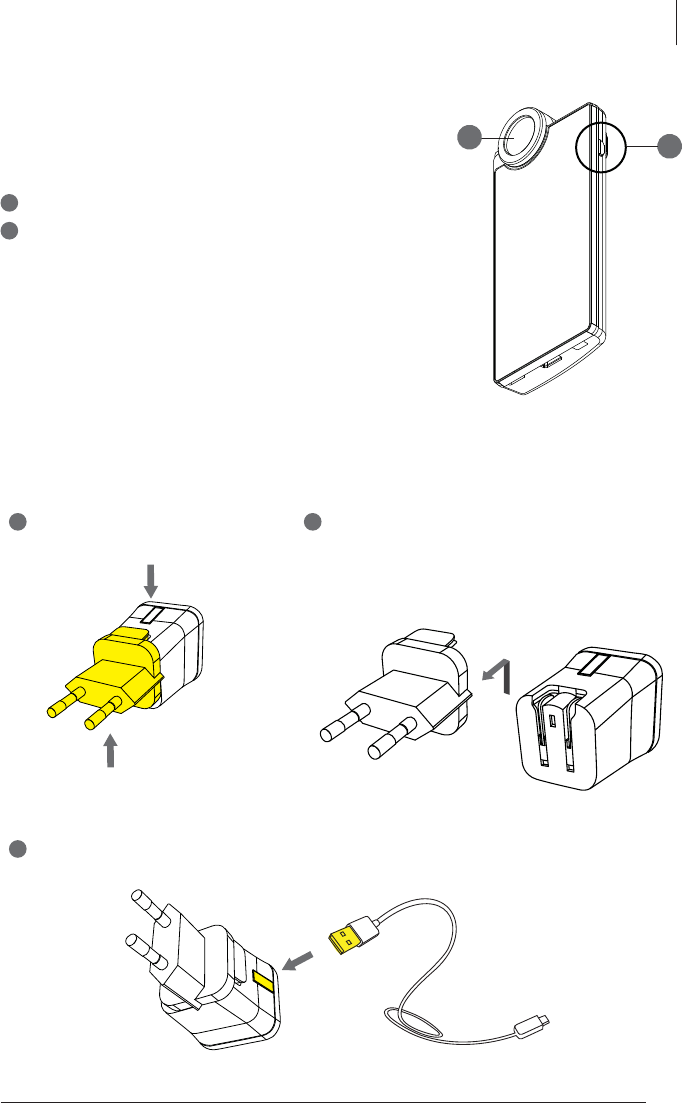

Charger can be used for Amercian type & European type. The default
is European type.
21
Push the plug up.
1
Then 220V European type is disassembled
and you can see the 110V-220V
American type inside of the charger.
2
3
Choose the one you want to use and connect USB cable in adaptor.
6
Date & Time
System Settings
Touch “Date & time”.
Touch “Set date”. Please check the setting
is correctly applied.
Press button.
2
Change the date and
touch “OK” button.
Touch button.
2 3
4 5 6
1
System Settings
7
Wi-Fi

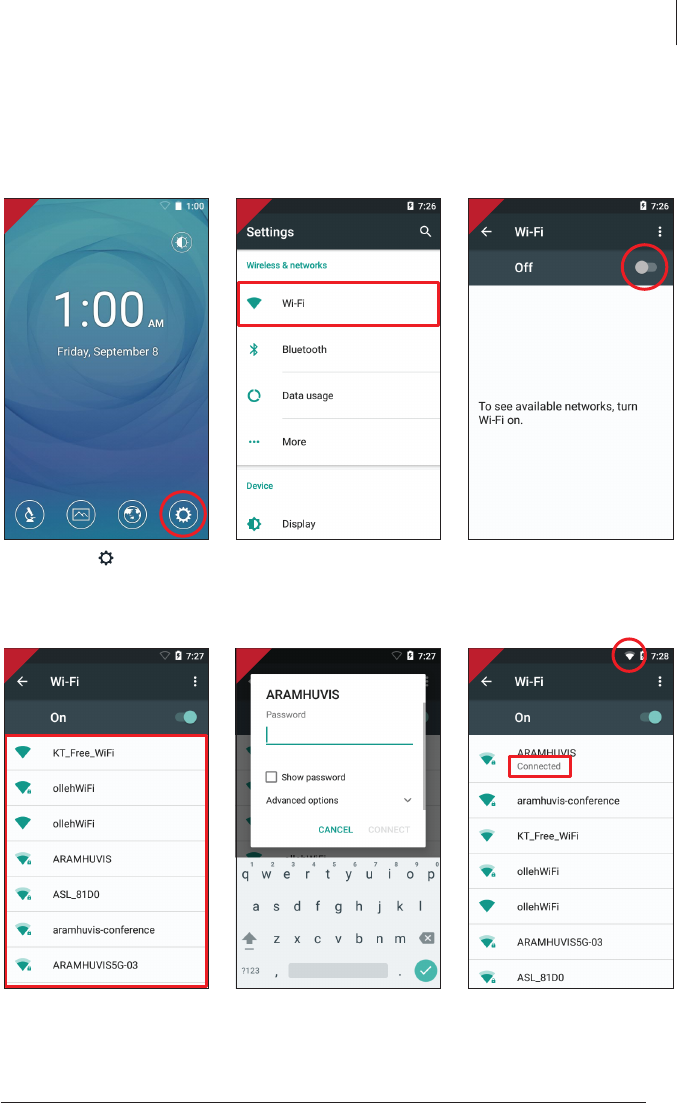

Touch “Wi-Fi”. Turn on toggle switch.
Touch button.
Wi-Fi list will be appeared.
Among the lists, select the
Wi
-
Fi
connection you could use.
Wait until the device is
connected to with Wi-Fi.
1 2 3
4 5 6
2

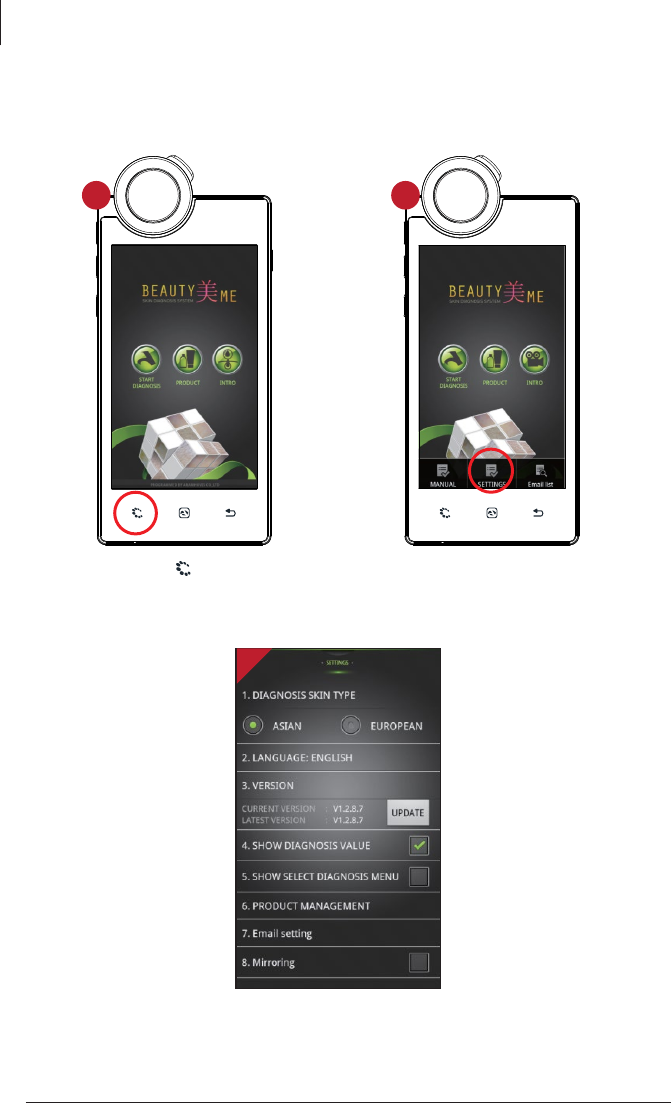

Touch "SETTINGS".
2
2
Language, version,
email setting is available.
1
Press button.
8
Application
Application Settings
1 2
3

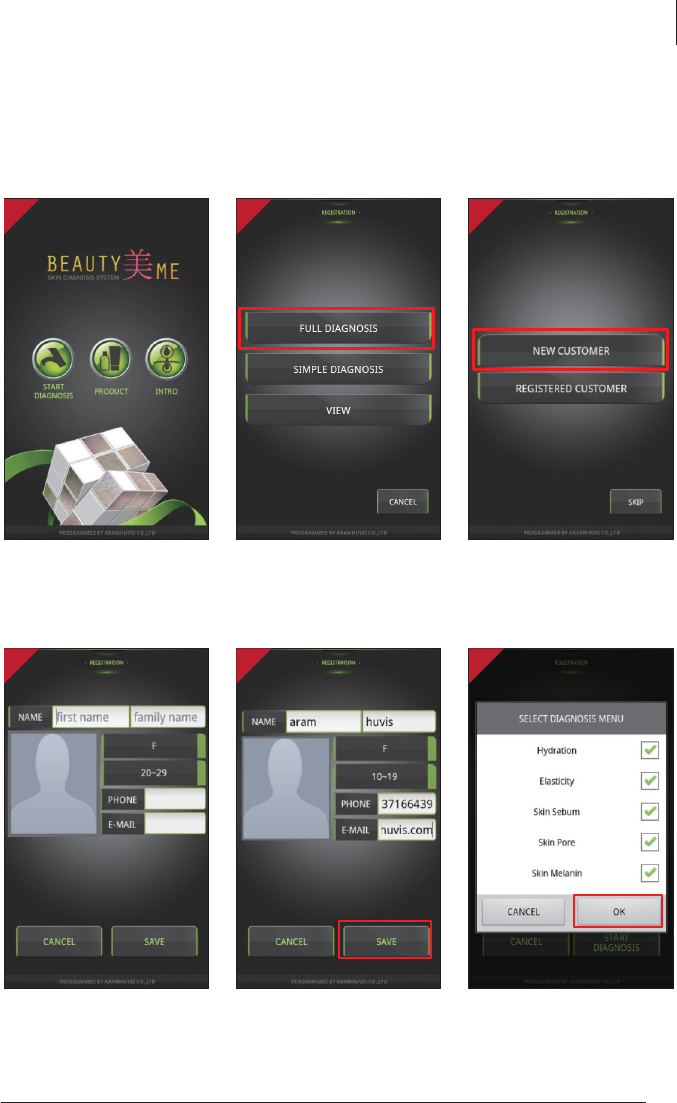

Touch "START DIAGNOSIS".
1
If you are new customer,
touch “NEW CUSTOMER”.
3
Input the information as below.
- Full Name, phone number, email address.
- Gender and age group.
Touch "FULL DIAGNOSIS".
After registering all information,
touch “SAVE” button.
Check the diagnosis
menu and touch "OK".
CRM - Full
Application
9
1 2 3
4 5 6

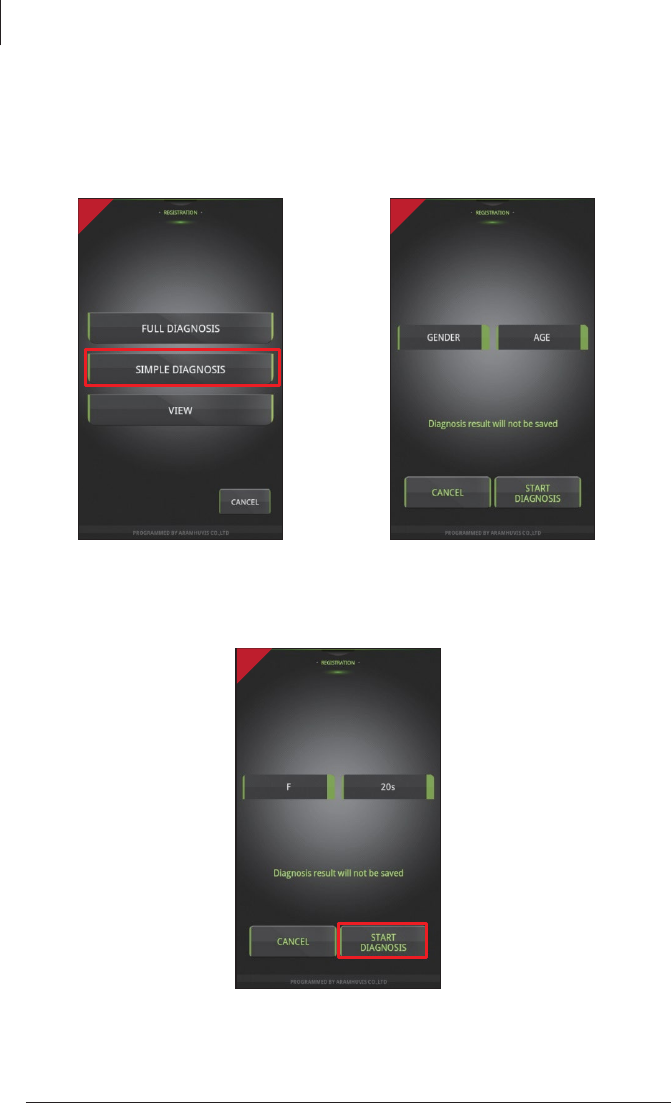

Touch “SIMPLE DIAGNOSIS”
button.
1
Select the “GENDER” and
“AGE” group.
2
“START DIAGNOSIS”
10
CRM - Simple
Application
1 2
3
Check the result.
21
Application
11
Hydration
1 2
Touch the “SCAN” button.
After beep sound, place the
sensor on the skin.
And hold it for 3~4 seconds
until vibration and sound.

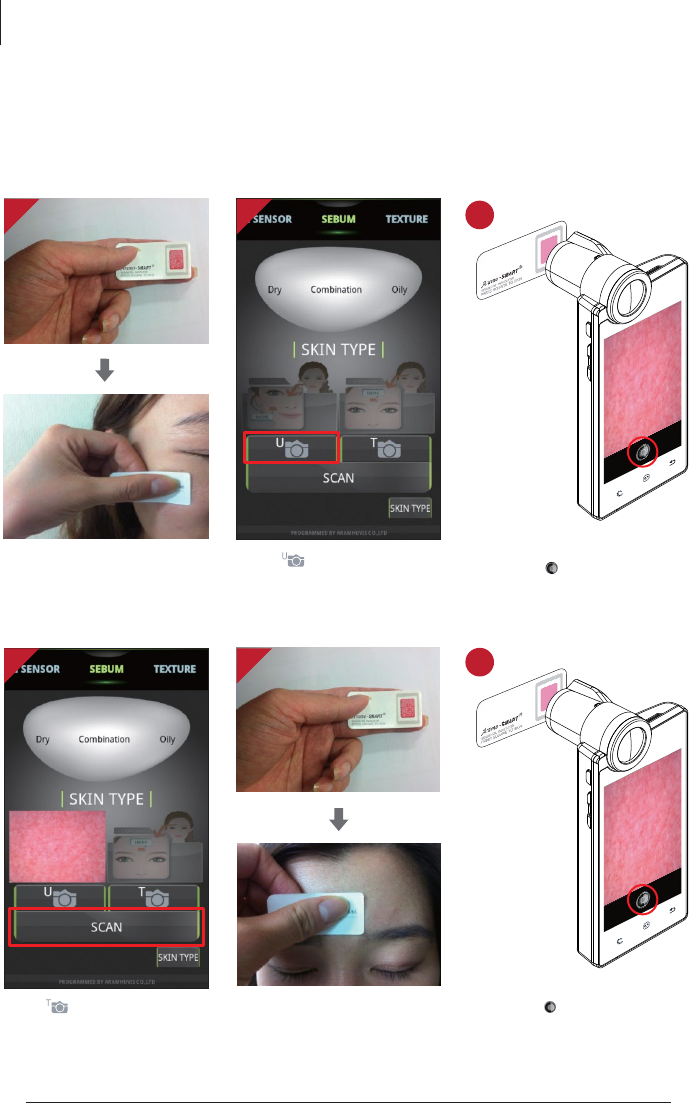

Put the sebum paper(pink area)
onto the U-zone of your face for
seconds.
Put the sebum paper (pink area)
onto the T-zone of your face for
seconds.
Touch to take picture
the pink area only.
Touch to activate camera.
Touch to activate camera. Touch to take picture
the pink area only.
12
Application
Sebum
1 2
4 5
3
6

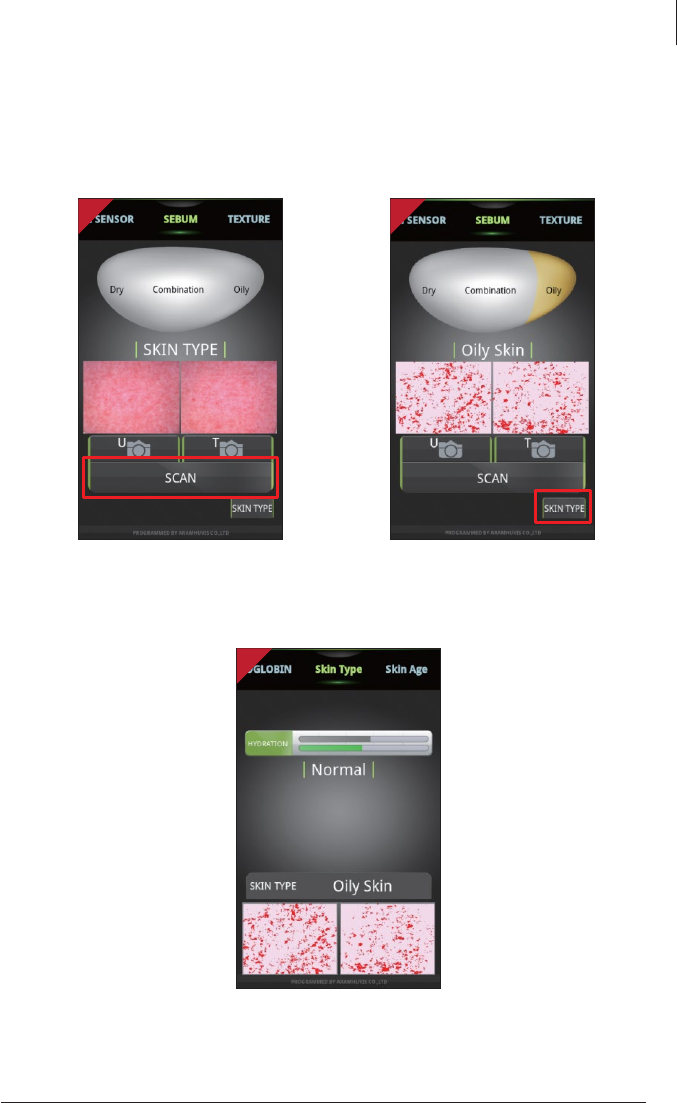

Touch “SCAN” to measure.
Check the result.
Touch the “SKIN TYPE” button.
8
Sebum
Application
13
6 7
8

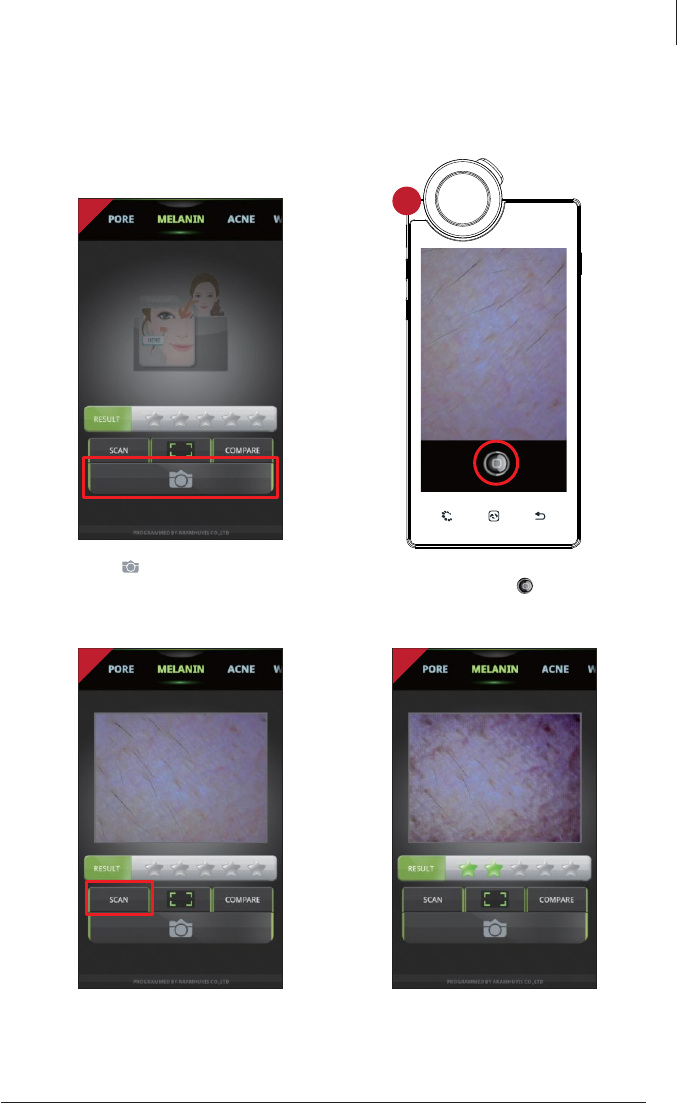

Touch to activate camera. Place the lens onto your
skin and touch button.
Touch “SCAN ” to analyze. Check the result.
14
Pore
Application
1
3 4
2

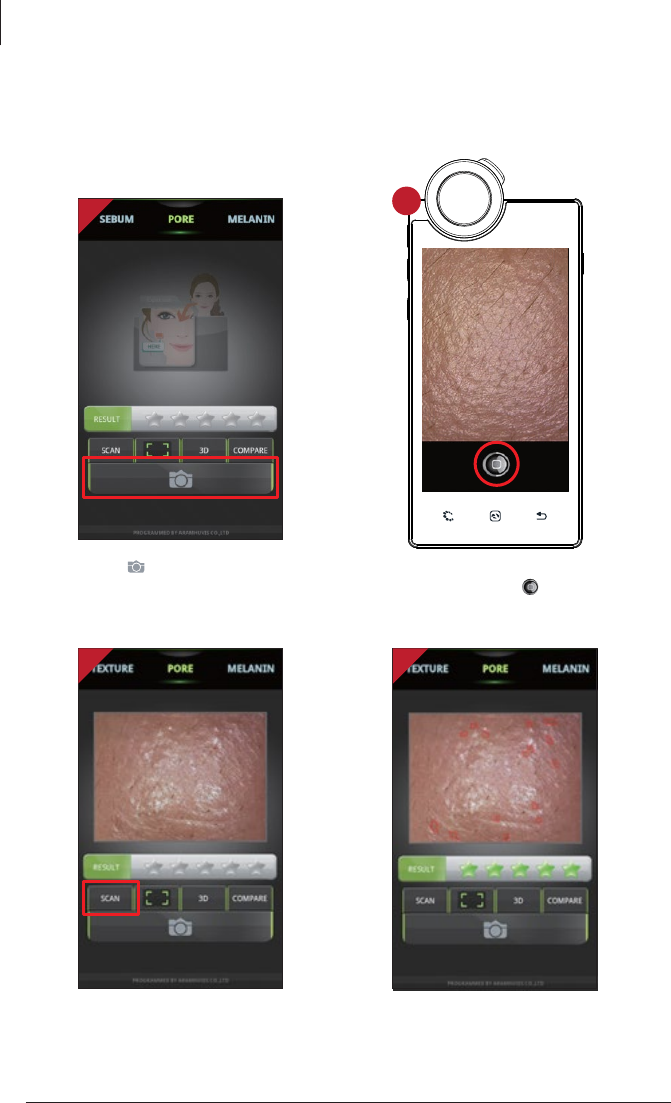

Touch to activate camera.
Touch “SCAN” to analyze. Check the result.
Place the lens onto your
skin and touch button.
Application
15
Melanin
1
3 4
2
Touch “SCAN” to analyze. Check the result.
Touch to activate camera. Place the lens onto your
skin and touch button.
16
Application
Acne
1
3 4
2

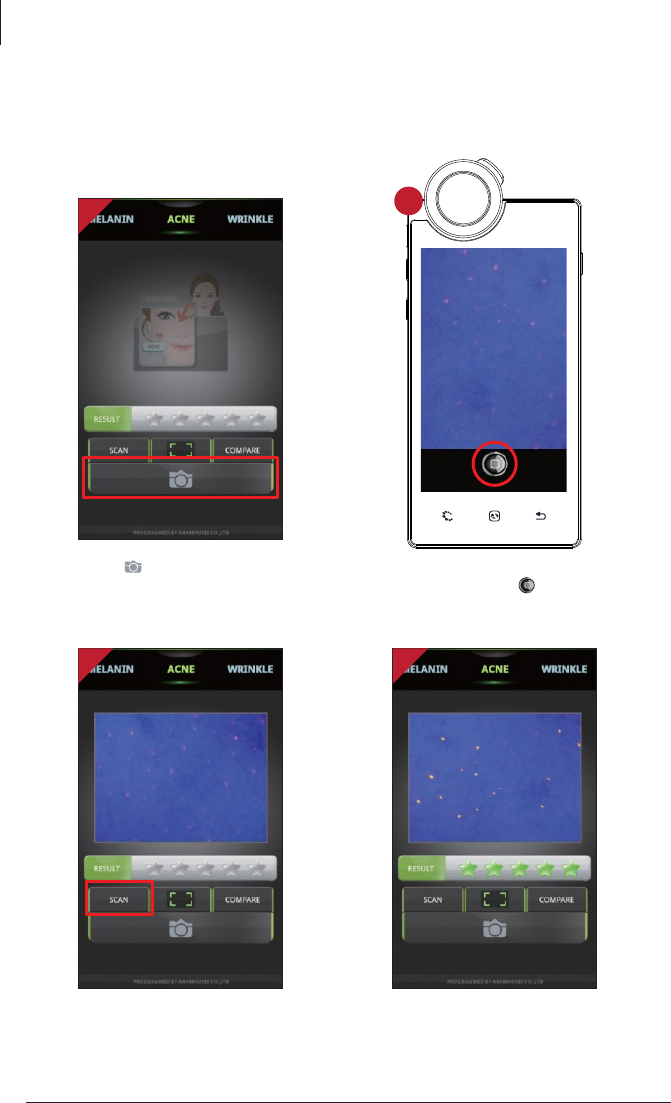

Touch “SCAN ” to analyze. Check the result.
Move the white box and
touch “SAVE” button.
Touch to activate camera. Place the lens onto your
skin and touch button.
Wrinkle
Application
17
4 5
1 3
2
Touch “SCAN ” to analyze. Check the result.
Touch to activate camera. Place the lens onto your
skin and touch button.
18
Hemoglobin
Application
1
3 4

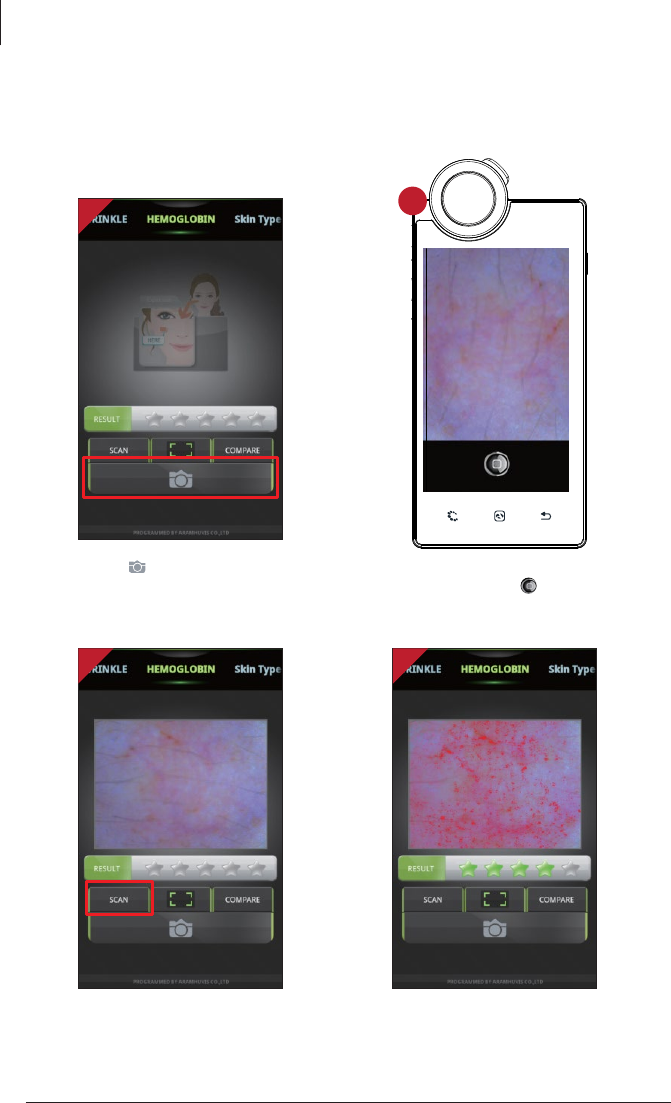

2
Available to check
the diagnosis result.
Product recommendation.

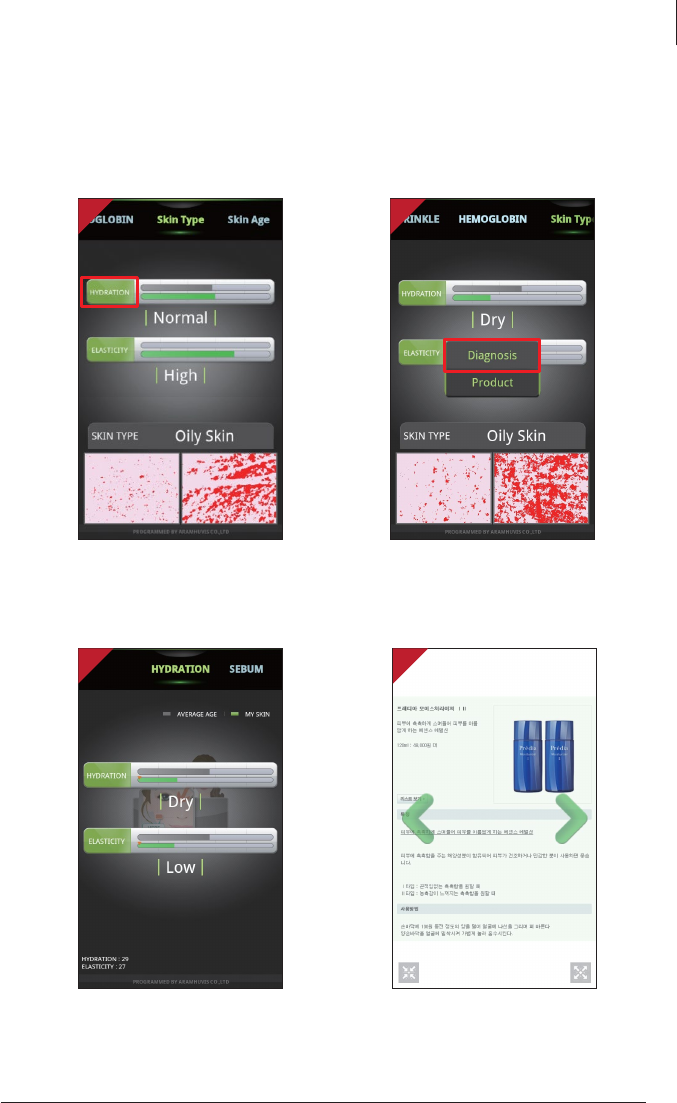

Touch “ELASTICITY” or “HYDRATION”. Touch “Diagnosis”.
Application
19
Result
1 2
3 4

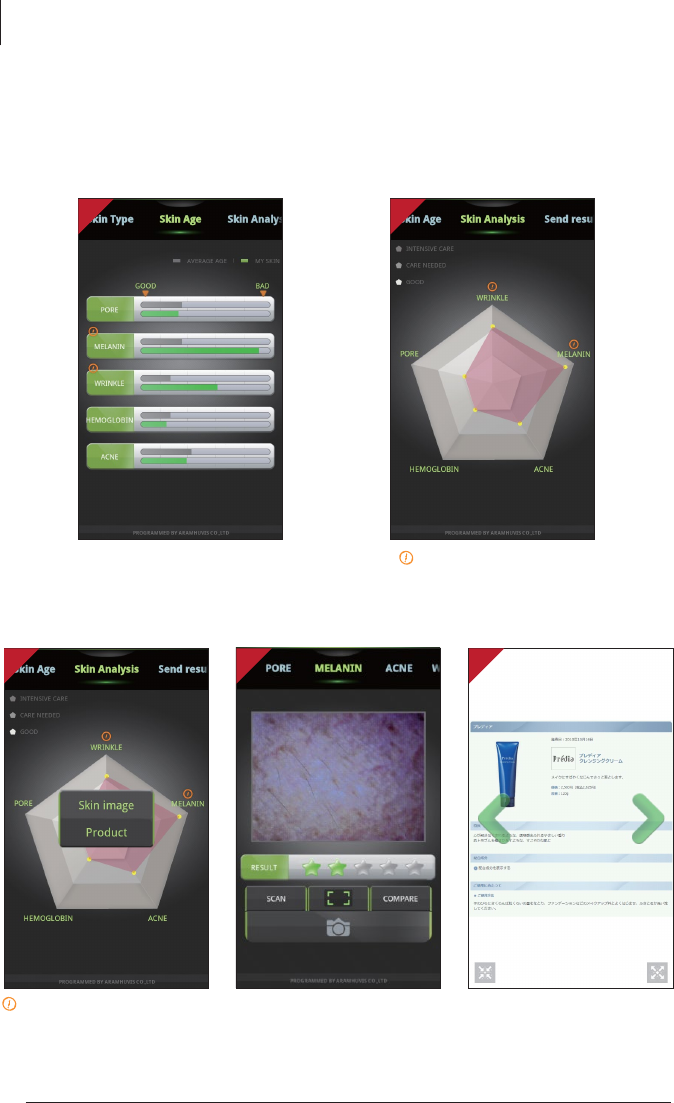

means the worst status
in your diagnosis result.
- Main concern.
Touch each parameter you want
to check “skin image’ & ”product”
Touch ”Pore” or “Melanin”
or etc you want to check .
Available to check the
diagnosis result.
Available to check
“product image”.
1 2
20
Application
Result
3 4 5

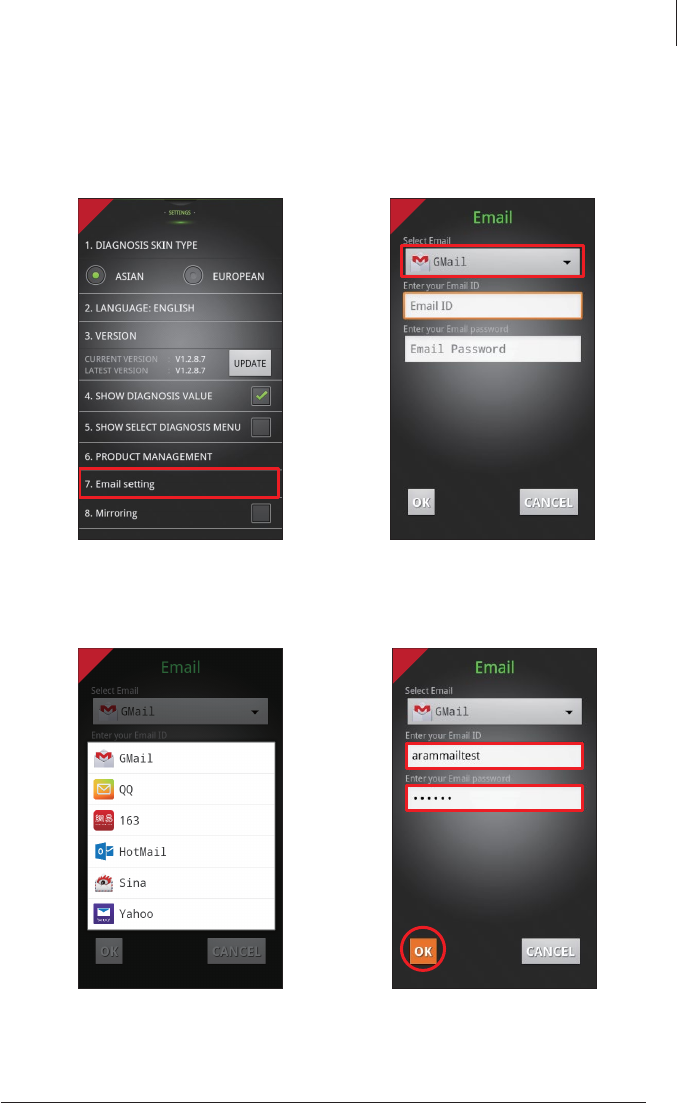

After select the mail account,
please Input the ID only and
password. Then touch “OK”.
Select the mail account to
register on the list.
In SETTINGS page,
touch “7.Email setting”.
Touch “Mail account”
Send Result - Email
Application
21
1 2
3 4
Press button. Touch button. Touch “Wireless & networks”
Check the square box.
In “Send result” page,
touch “Email”.
22
Send Result - Email
Application
3
4 5 6
“Receiver”s email address will be
appeared with your CRM information.
Otherwise, input the email address.
21
Touch "SETTINGS".Press button.

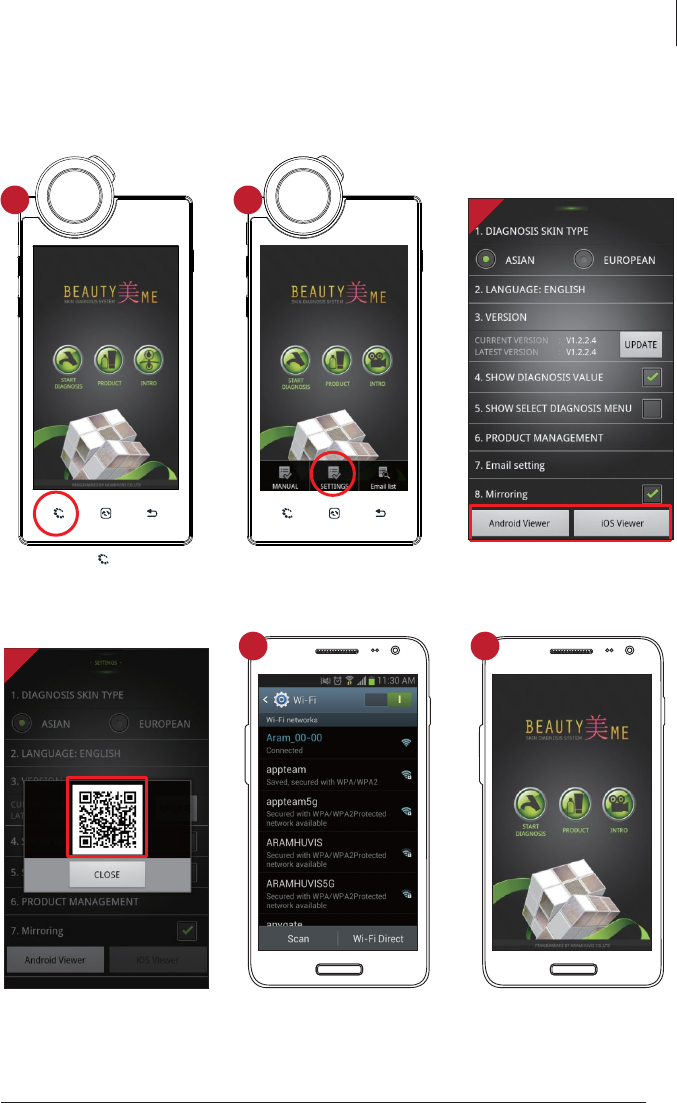

It is able to connect to “Android Viewer”
& “iOS Viewer” system when AP success
is shown up on the screen.
With your mobile device,
capture QR code.
Then program will be installed.
In your mobile device go to Wi-Fi
setting. Then find "ARAMHUVIS"
code and connect it.
Mirroring system is started.
Application
23
Send Result - Mirroring
3
4
21
5 6
24
Troubleshooting & FAQ
I cannot turn on the device.
Connect and charge the device (or the battery) using the adaptor provided the supplier.
(The battery charging indicator will be shown on the system main page.)
1
I cannot power on the device even the battery is still full.
The battery might be dislocated on the device. Please separate the battery from the device
and put it on, and then power on again.
2
The battery is not charging very well.
Separate the battery from the device and put it on again.
Check the connection among a device, a battery and a charger.
A battery cannot be charged if there is an alien substance on the charging port.
In this case, please use the device aer cleaning the charging port of the device or check
whether the sticker is attached on charging port.
3
The using time of the battery is dierent from the manual.
The battery using time will be shorten if you put the charged battery in a low or high temperature.
The battery using time varies in service type, using environment, using period of the battery.
The battery is consumed without using the device, and the battery using time will be shorten
if you use additional functions of the device.
4
The device turns on but the diagnosis doesn’t work.
Check the smart card is correctly inserted (SD card slot on the button of the device.)
5
There are dust on the device.
Clean the dust by using a smooth fabric. Do not use bemzene, alcohol, and a synthetic detergent.
6
The screen is frozen and the keys not working when using the device.
Separate the battery from the device and put it on again.
If the device is still not working please contact to the customer servise center.
7
A “force close” message appears on the screen.
The repetition of commands can trigger a bug. Sometimes there may be a brief delay
before the command is completed. Do not repeat/multiply the tasks as the device will no longer
be able to follow them.
8
I cannot connect to Wi-Fi.
Check the connection status on setting page.
Try to connect to another Wi-Fi.
Bluetooth : check the pairing status and try to re-pair the device with host device.
9
Troubleshooting & FAQ
25
The touchscreen doesn’t react to my finger commands.
Before using for the first time remove the protective plastic film.
10
I cannot connect to Blue-tooth.
Make sure to use the Bluetooth hosting devices that have Bluetooth certified with the logo.
You may need an external Bluetooth dongle for those devices that do not have Bluetooth feature.
bring the device to closer with the Bluetooth hosting device.
Try to re-pair the device with host device.
The password of pairing is “0”(number).
* Blue-tooth function is not allowed to use in IOS device without APPLE’S oicial permission.
11
The screen was turned o.
Press the on/o button to turn on the screen.
The device has a power save function that turn the screen o aer 1minute.
For the setting, please refer to Page 8.
12
I can see the black screen only during measurement.
Check the LED light inside lens on the head part when you try to measurement.
If you cannot see the light, please contact the customer service via email or phone call.
13
The image is not clear.
Tap the screen while capturing focus.
14
I cannot update the diagnsis application.
Check the network connection. The update process can be done aer connecting to Wi-Fi.
15
26
Warranty
The product undergoes strict quality management and inspection process before production
and introduction to market.
1
In case of functional or operational defect occurs under normal condition of use within
10 days aer purchase, we will repair it for free or replace in new product.
2
When this product goes out under the normal use, we will repair it free of charge under warranty.
3
Please keep the warranty card when you ask for repair service.
4
Customer needs to pay repair charge aer warranty runs out.
5
For this product, warranty period is 14 months from the Invoice date.
6
Cost
Within warranty : Sending delivery(Buyer), repair cost and returning delivery(Aram)
- If the product is broken by user's fault, repair cost could be charged.
Aer warranty : Sending delivery and repair cost(Buyer), returning delivery(Aram)
7
How to send :
- As sending a present from person to person by EMS or FEDEX.
(Do not write the company name)
- Total value should be under US $ 99.(Write non-commercial value)
8
Service request form
Date of
purchase
Contact person
Address :
Tel :
Product name, serial No :
Problems :
Company
/ /
PRODUCTION DIVISION & FACTORY (SHIPPING ADDRESS) :
#909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si,
Gyeonggi-do, 13230 Rep. Korea
Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: support@aramhuvis.com
http://www.aramhuvis.com
27
Warranty
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
FCC Radiation Exposure Statement
IEEE 802.11b or 802.11g operation of this product in the USA is firmware-limited to channels 1
through 11.
If the device is going to be operated in the 5.15 - 5.25 frequency range, then it is restricted to
indoor environment only. This device meets all other requirements specified in Part 15E, Section
15.407 of the FCC Rules.
HEAD OFFICE
Jung-Ja Dong-Rm401-402, Seoul National University Hospital’s Health Care Innovation Park, 172, Dolma-ro,
Bundang-gu, Seongnam-si, Gyeonggi-do, 13605 Rep. Korea
PRODUCTION DIVISION & FACTORY
#909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Rep. Korea
Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: info@aramhuvis.com
http://www.aramhuvis.com

Navigation menu
