User Manual: Arcade F-Zero Ax Std Manual

Open the PDF directly: View PDF .
Page Count: 176 [warning: Documents this large are best viewed by clicking the View PDF Link!]

420-6770-01UK REV 0

SERVICE MANUAL

TWIN TYPE

Before using this product, read this SERVICE MANUAL carefully to understand the contents stated herein.

After reading this manual, be sure to keep it available nearby the product or somewhere convenient in

order to be able to refer to it whenever necessary.

Manufactured in the UK by

CONTENTS

1. BEFORE USING THIS PRODUCT .................................................................................................. 5

1.1. Inspections Immediately After Transporting The Product To The Location................................................6

2. INTRODUCTION TO THIS SERVICE MANUAL .............................................................................. 8

3. INSTALLATION AND SERVICE INSTRUCTIONS........................................................................... 9

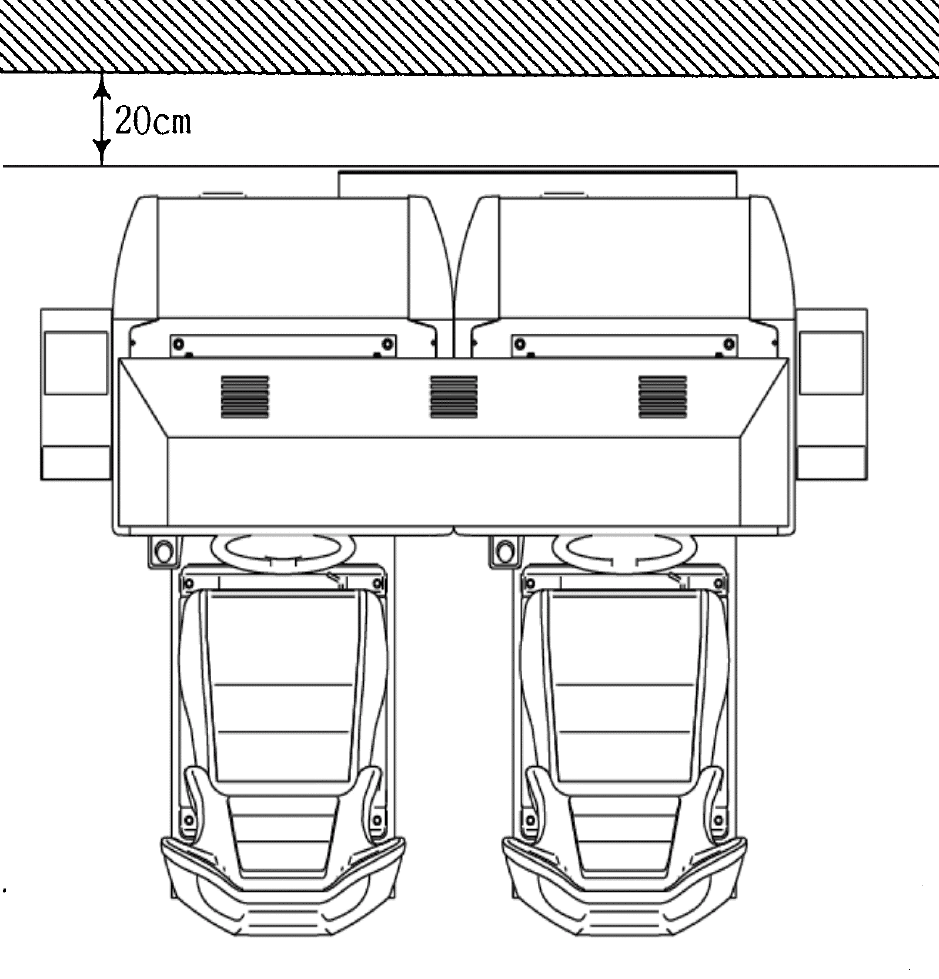

3.1. Handling And Installation Precautions........................................................................................................9

3.2. Coin Handling...........................................................................................................................................11

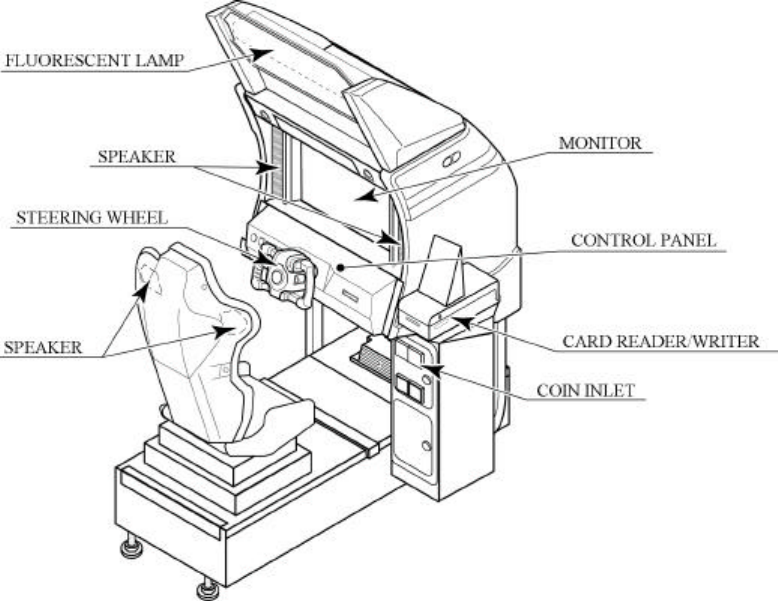

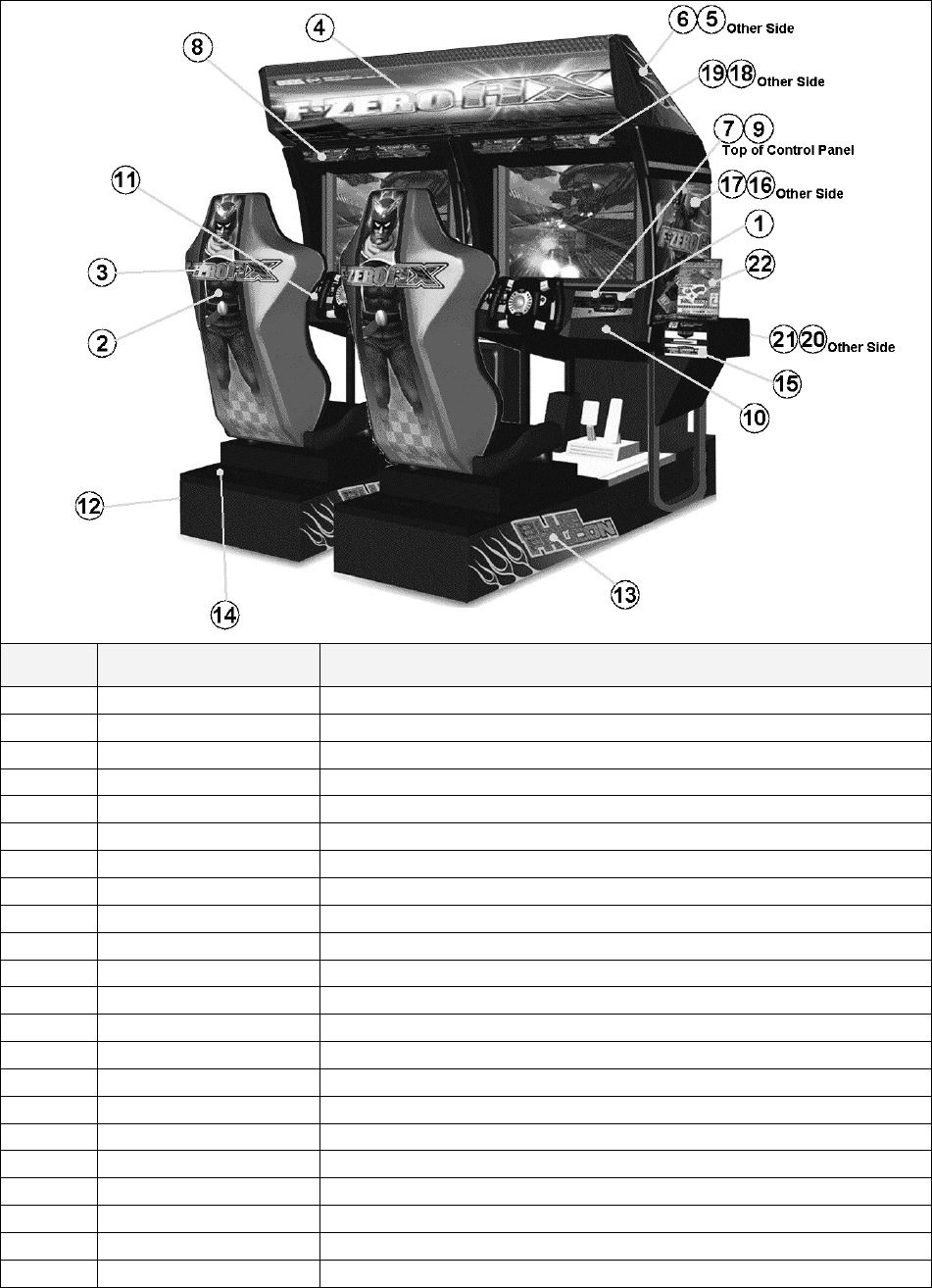

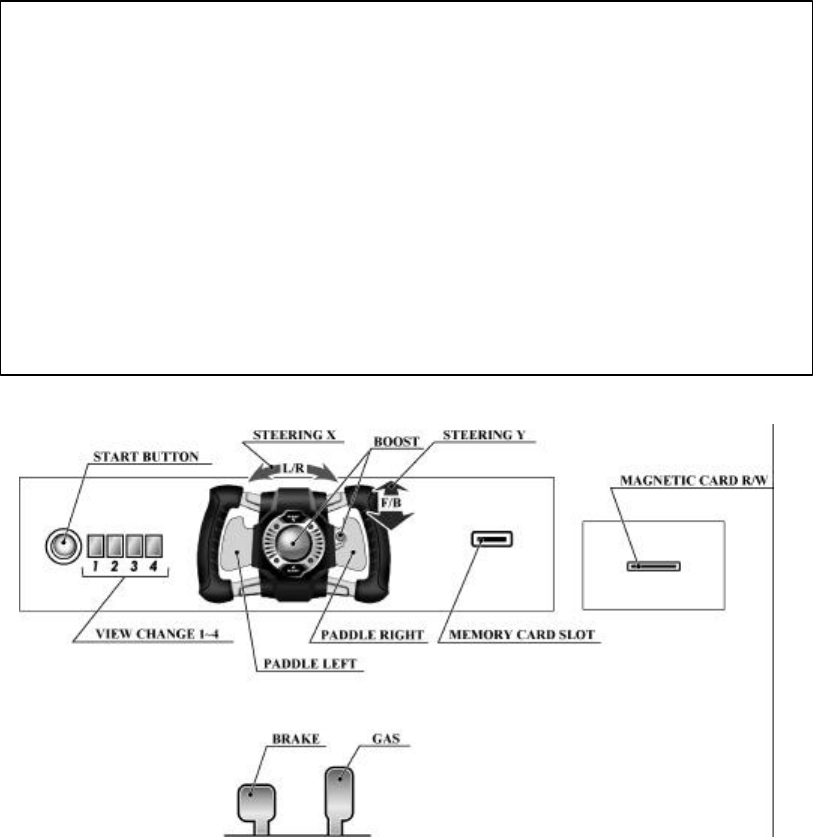

3.3. Name Of Parts.........................................................................................................................................12

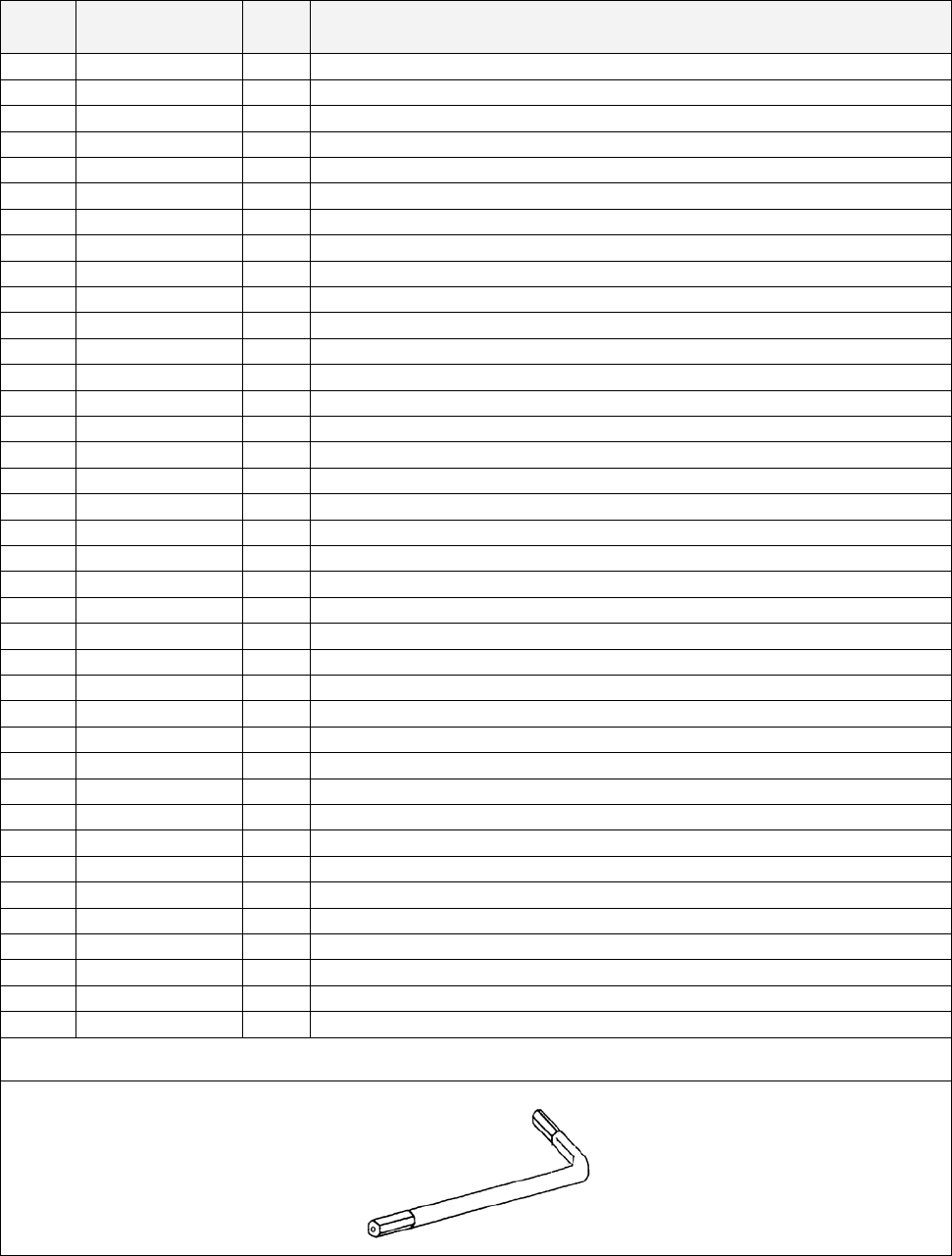

3.4. Accessories..............................................................................................................................................13

3.5. Shipping The Game Board and GD-ROM Drive ......................................................................................14

3.5.1. How To Use The Triforce Carton Box...................................................................................14

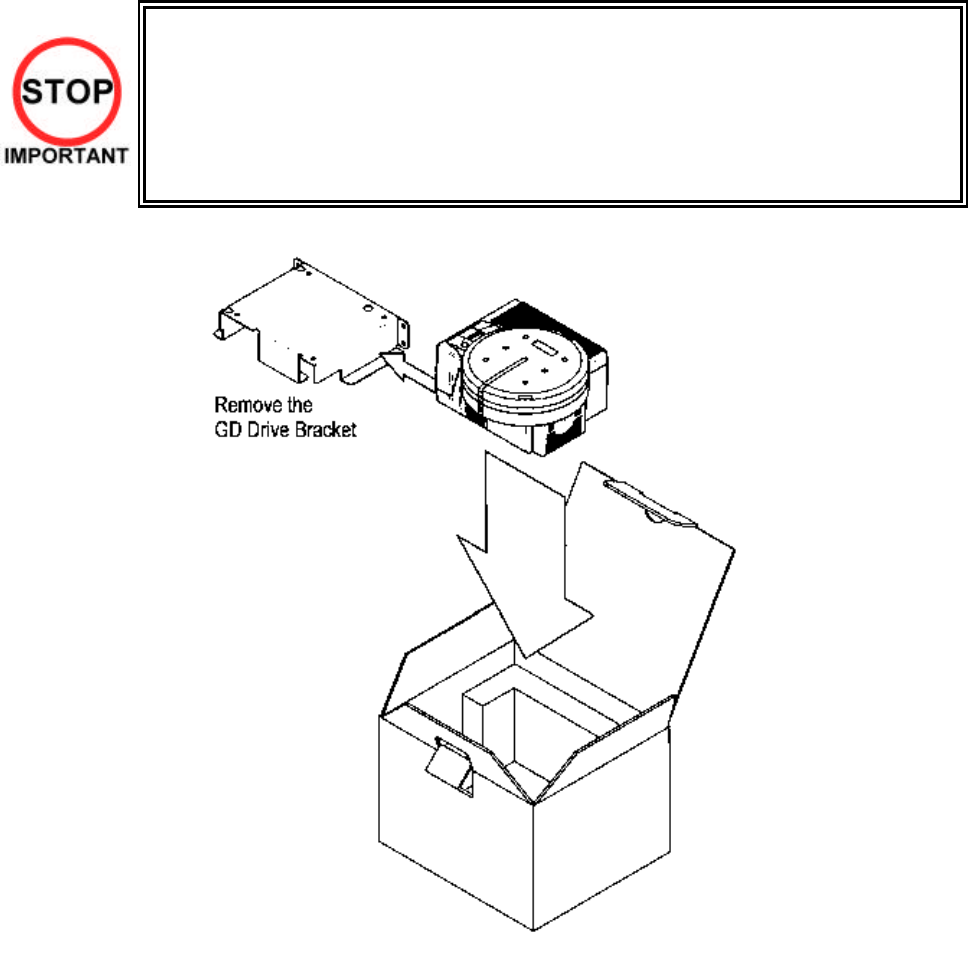

3.6. Shipping The GD-ROM Drive...................................................................................................................15

3.7. Assembly Instructions ..............................................................................................................................16

3.7.1. Applying The Play Instructions .............................................................................................17

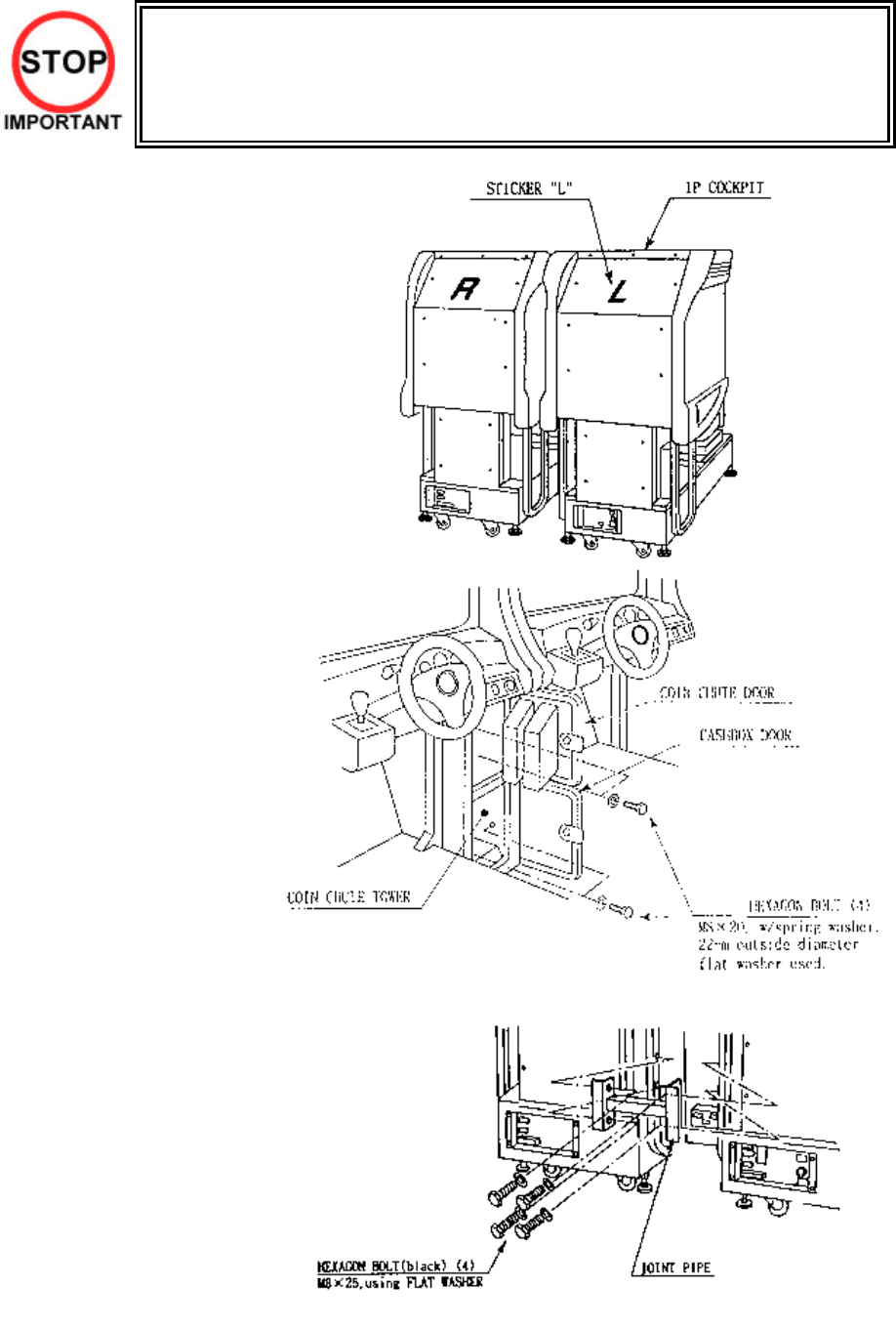

3.7.2. Assembling The Cockpit.......................................................................................................18

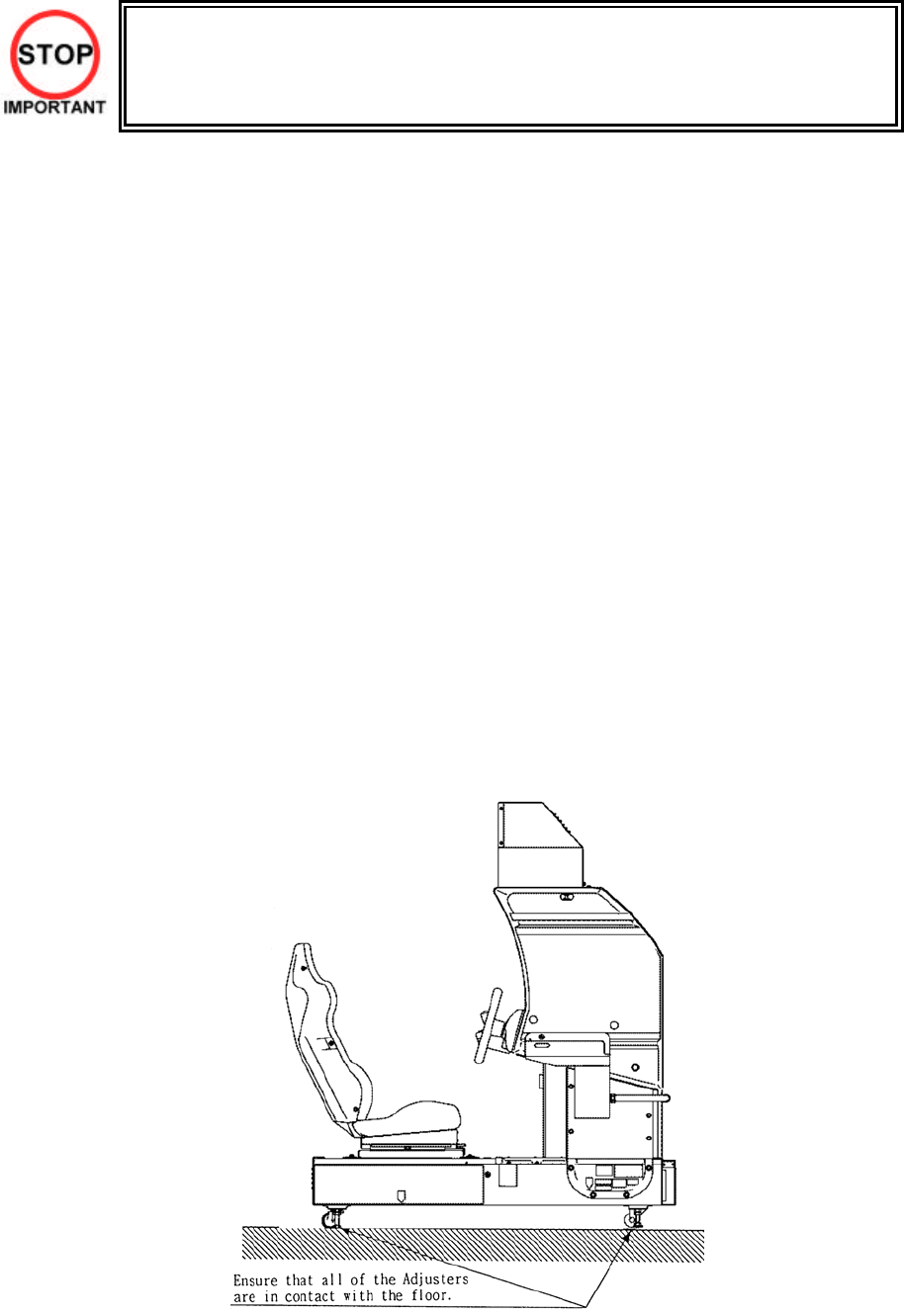

3.7.3. Securing In Place (Leg Adjuster Adjustment)........................................................................19

3.7.4. Billboard Installation.............................................................................................................21

3.7.5. Installing The AC Covers (Wire Covers )..............................................................................22

3.7.6. Coin Handling Installation.....................................................................................................23

3.7.6.1. Wiring Connections. ......................................................................................................24

3.7.7. Communication Cables ........................................................................................................25

3.7.8. Connection To The Power Supply ........................................................................................26

3.7.9. Assembly Check ..................................................................................................................28

3.7.9.1. Memory Test .................................................................................................................28

3.7.9.2. Input Test......................................................................................................................29

3.7.9.3. Sound Test....................................................................................................................30

3.7.9.4. CRT Test ......................................................................................................................30

3.7.9.5. Output Test ...................................................................................................................31

3.7.10. Moving The Machine ........................................................................................................32

3.8. Fuses.......................................................................................................................................................33

3.9. Maintenance ............................................................................................................................................34

3.9.1. Removing The Control Panel ...............................................................................................35

3.9.1.1. Adjusting/Replacing The Volume...................................................................................36

3.9.1.2. Greasing .......................................................................................................................38

3.9.2. Steering Unit ........................................................................................................................39

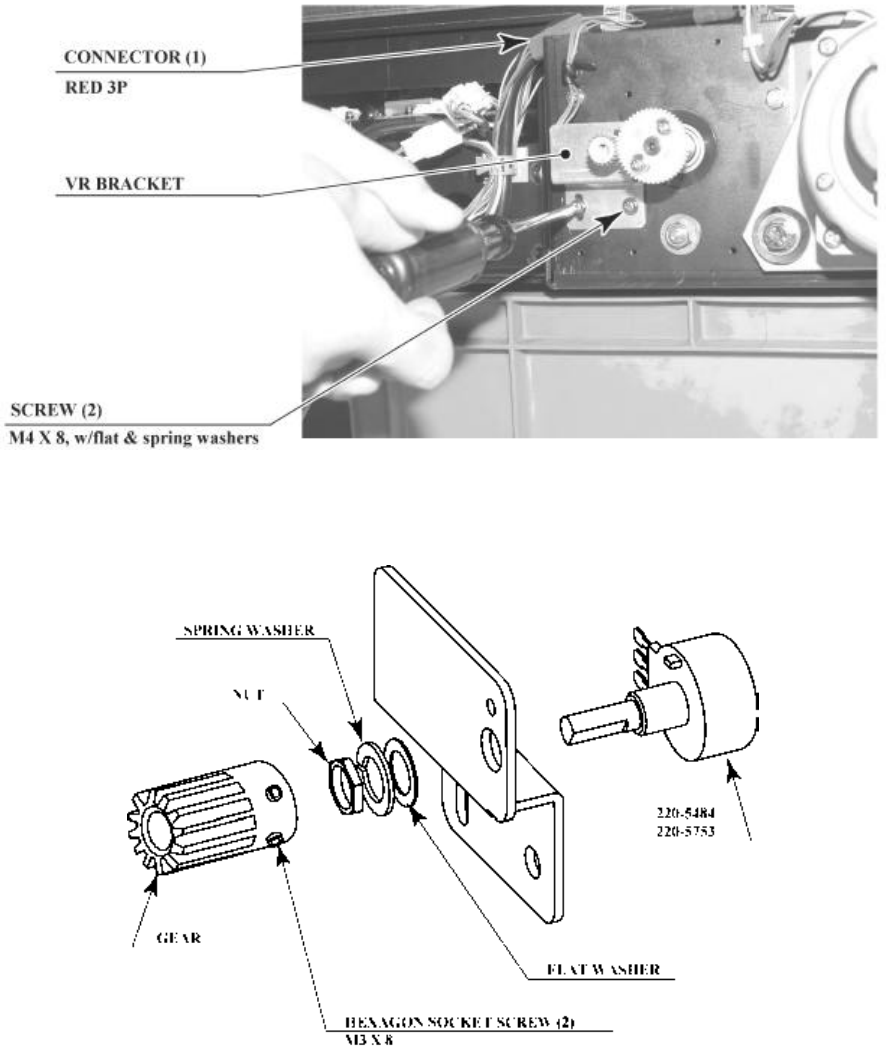

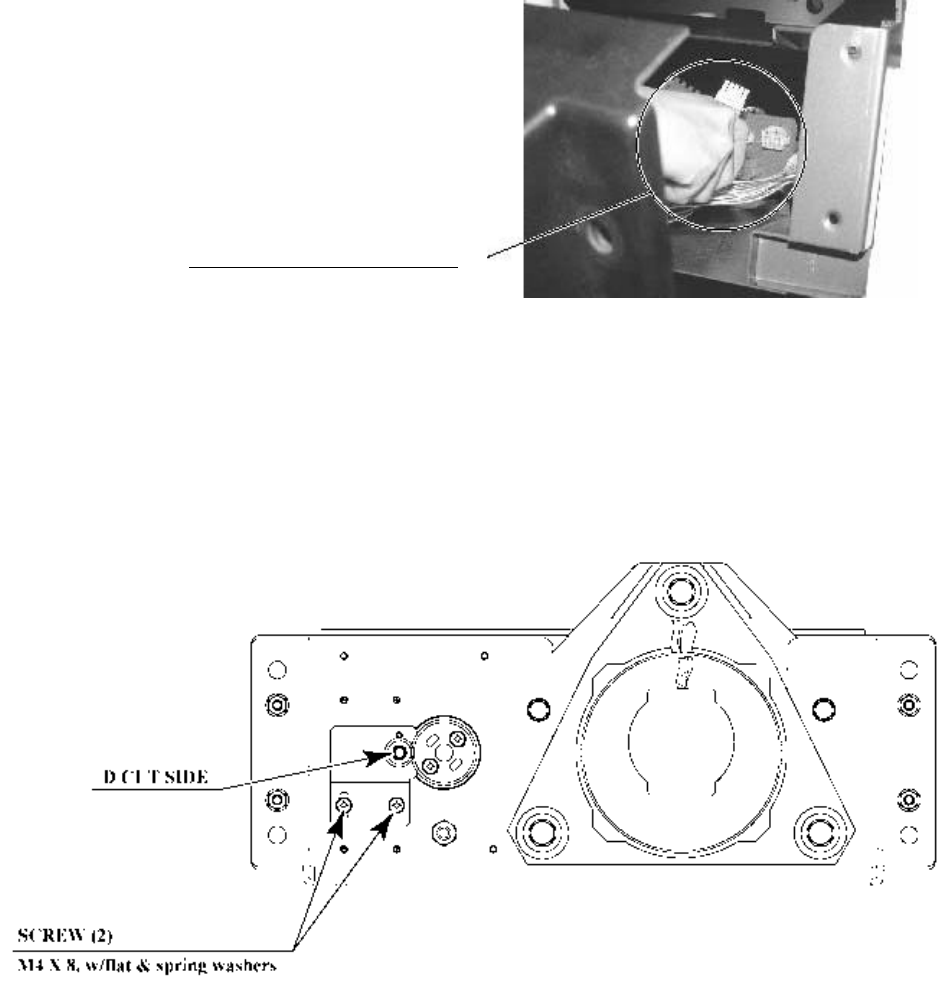

3.9.2.1. Adjusting And Replacing The Y-Axis VR .......................................................................40

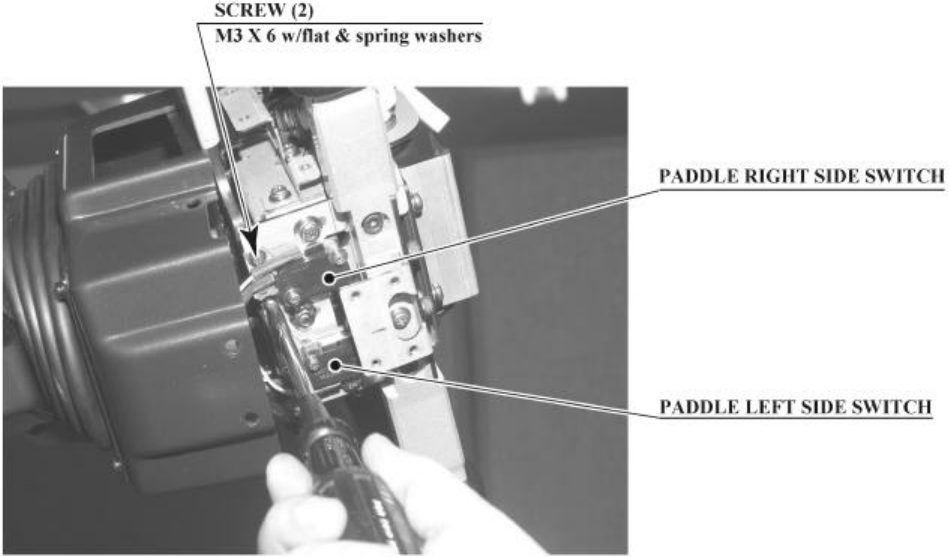

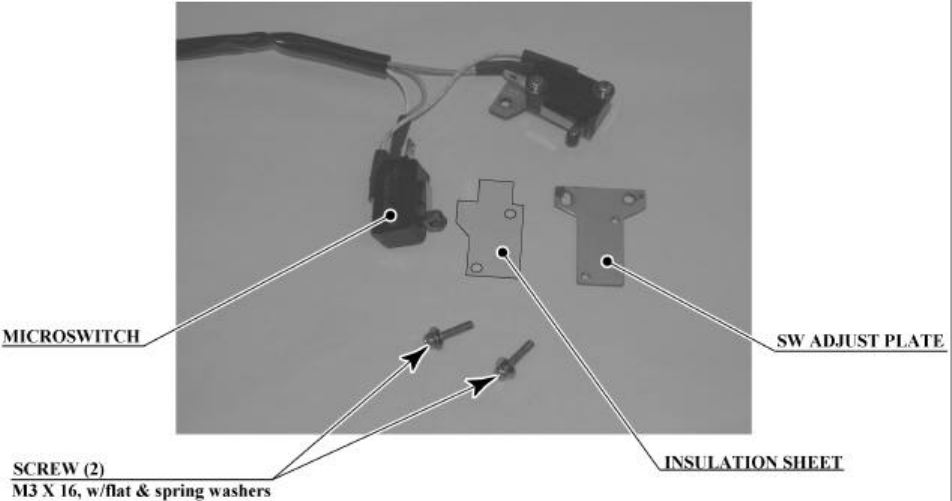

3.9.2.2. Replacing The Microswitches ........................................................................................46

3.9.2.3. Greasing .......................................................................................................................49

3.9.3. Card Reader/Writer Unit.......................................................................................................50

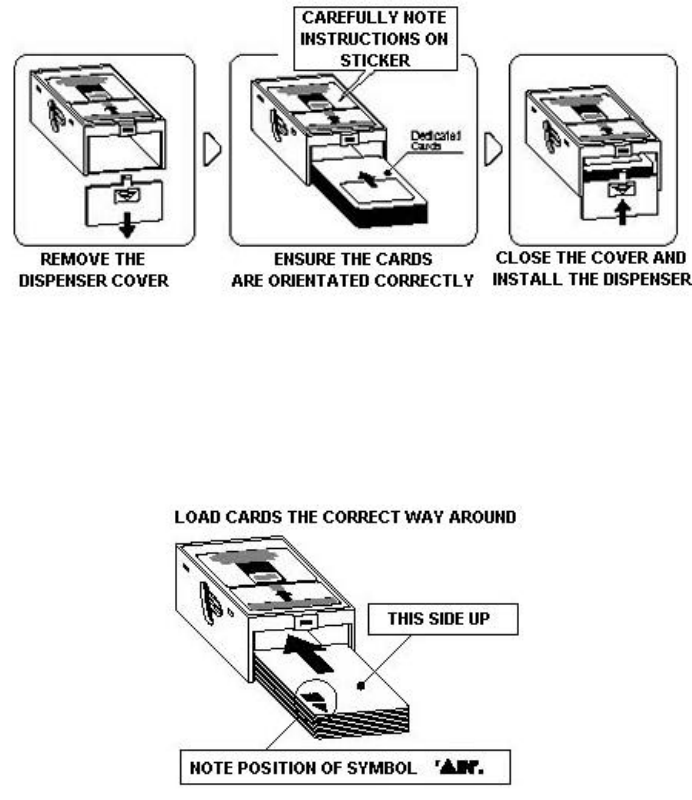

3.9.3.1. Setting Dedicated Cards................................................................................................50

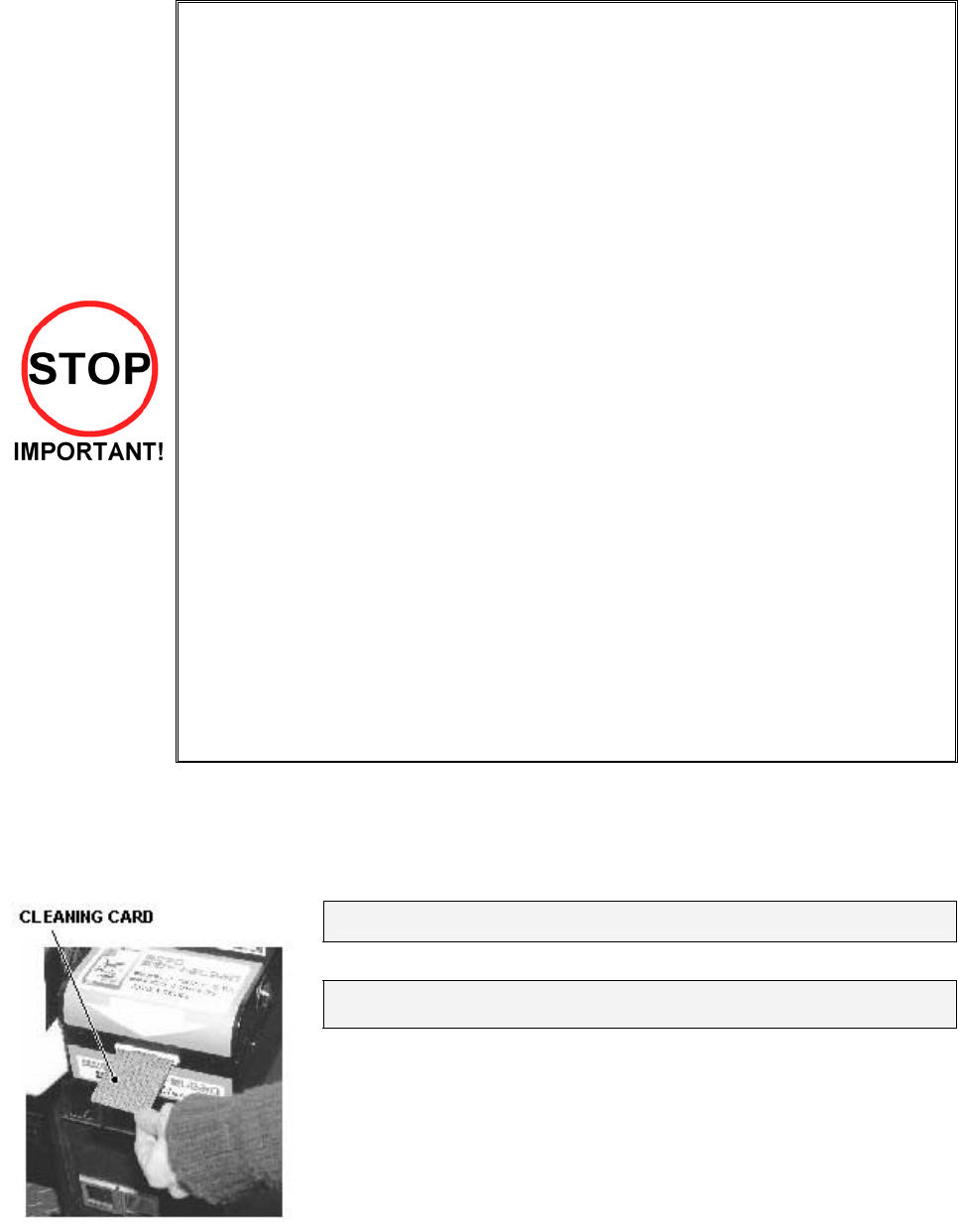

3.9.3.2. Head Cleaning ..............................................................................................................52

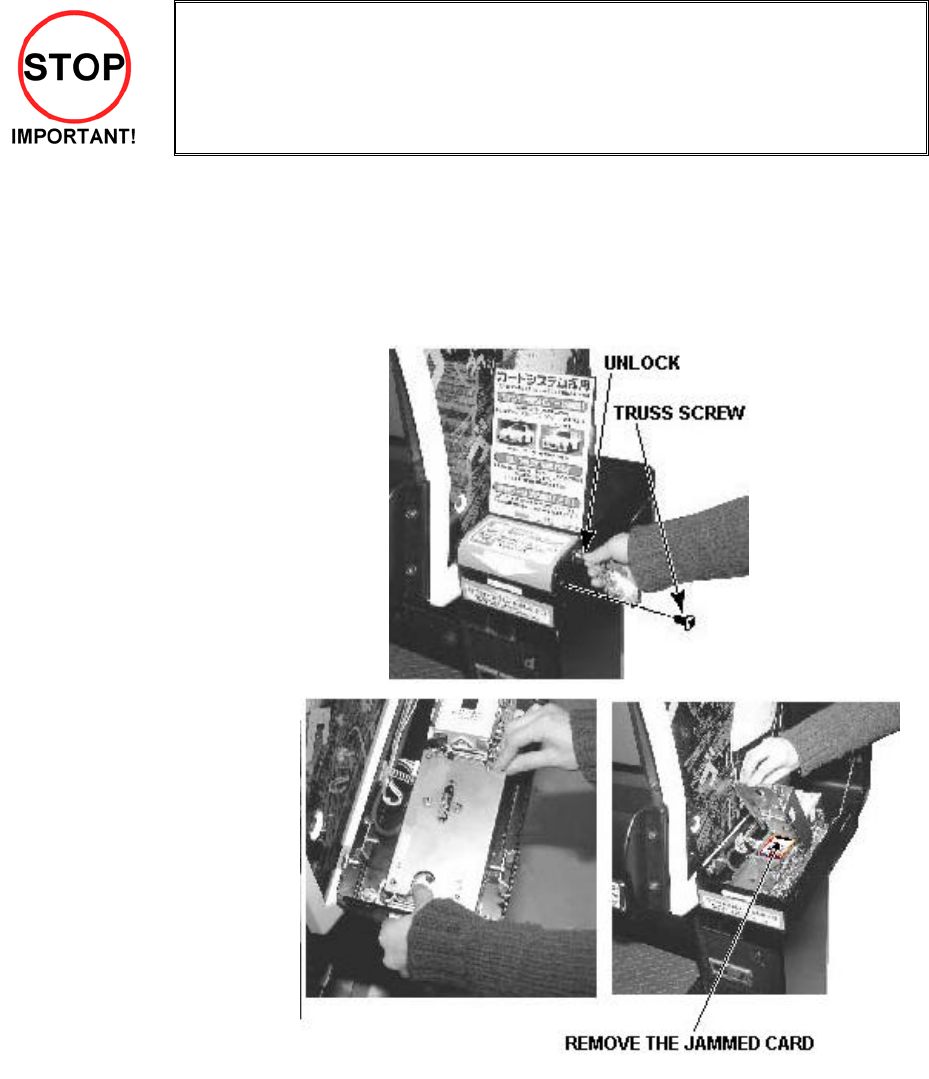

3.9.3.3. Clearing Card Jams.......................................................................................................53

3.9.4. Accelerator & Brake .............................................................................................................54

3.9.4.1. Removing the Accelerator & Brake................................................................................54

3.9.4.2. Adjusting the V.R. .........................................................................................................55

3.9.4.3. Replacing the V.R. ........................................................................................................56

3.9.4.4. Greasing .......................................................................................................................56

3.10. Replacement Of Fluorescent Lamp And Other Lamps ........................................................................57

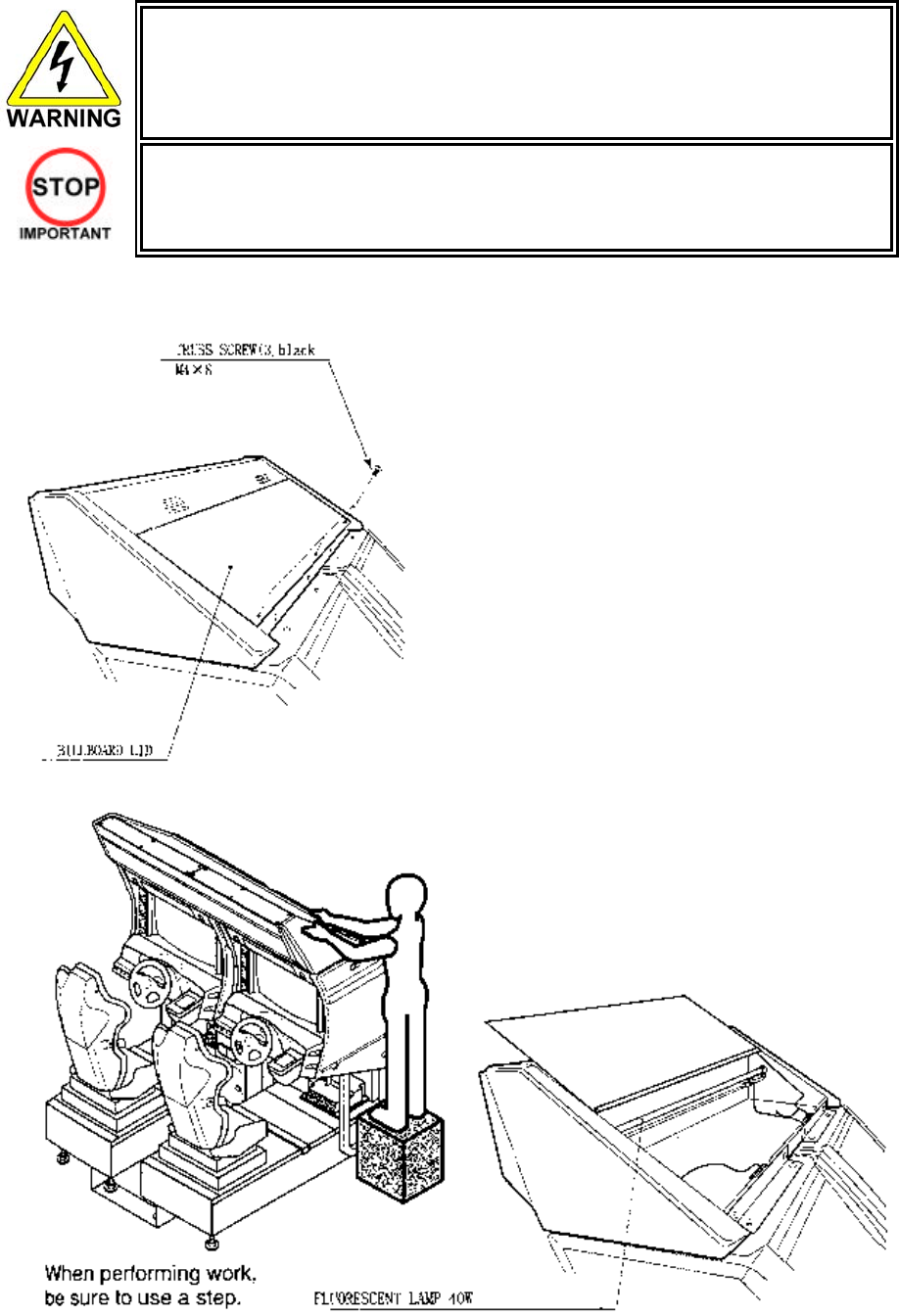

3.10.1. Fluorescent Lamp Replacement .......................................................................................57

3.11. Cleaning The Cabinet Surfaces............................................................................................................58

3.12. Seat (Greasing To Seat Rail Portion)...................................................................................................58

3.13. Troubleshooting....................................................................................................................................59

3.13.1. Card Reader/Writer ..........................................................................................................59

3.13.2. Troubleshooting (When No Error Message Is Shown) .......................................................62

3.14. Gameboard..........................................................................................................................................65

3.14.1. Removing The Board........................................................................................................65

3.14.2. Removing The GD-ROM Drive.........................................................................................66

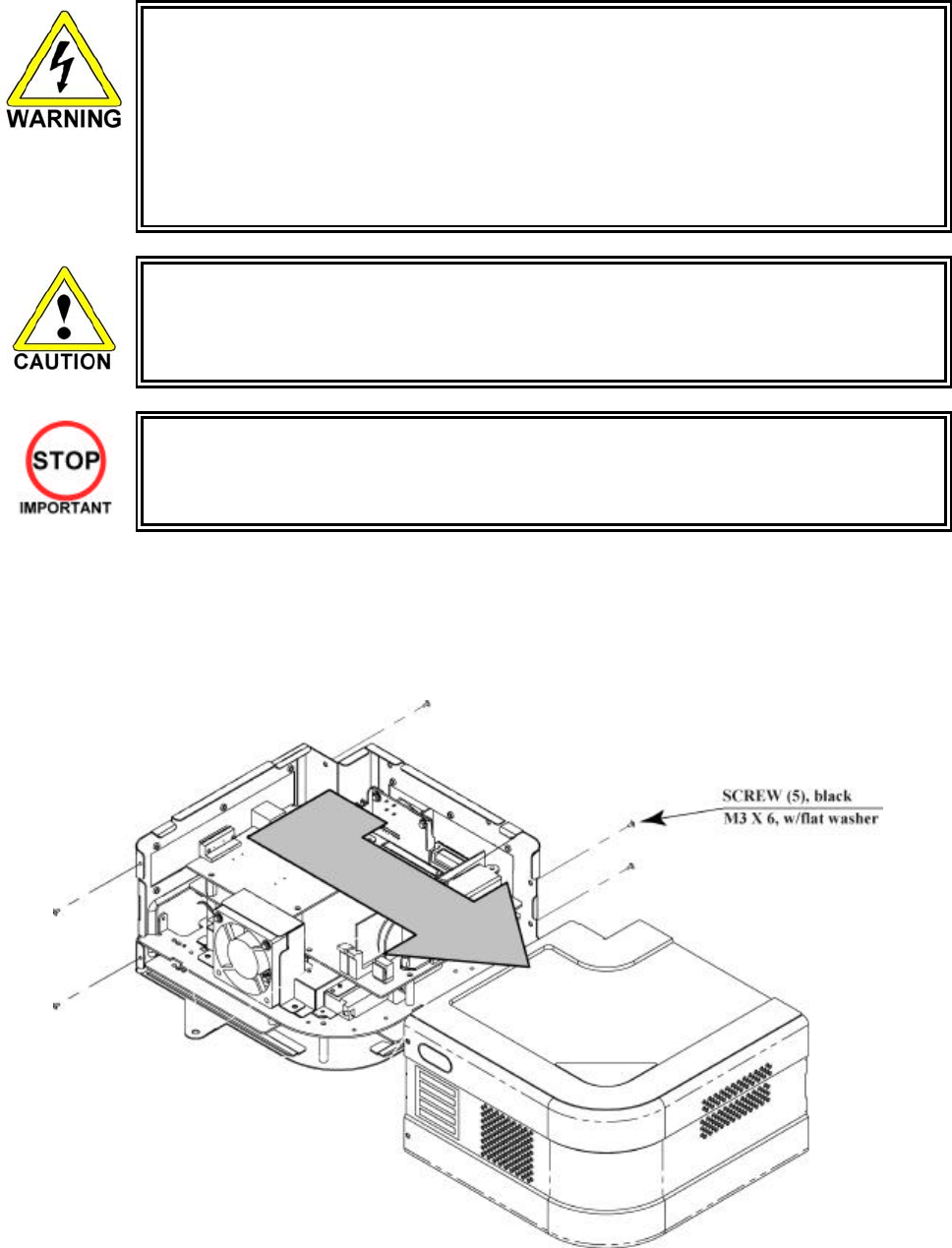

3.14.3. Removing The Game Board (Triforce)..............................................................................68

3.14.4. Composition Of The Game Board.....................................................................................69

3.14.4.1. DIP SW Setting ............................................................................................................69

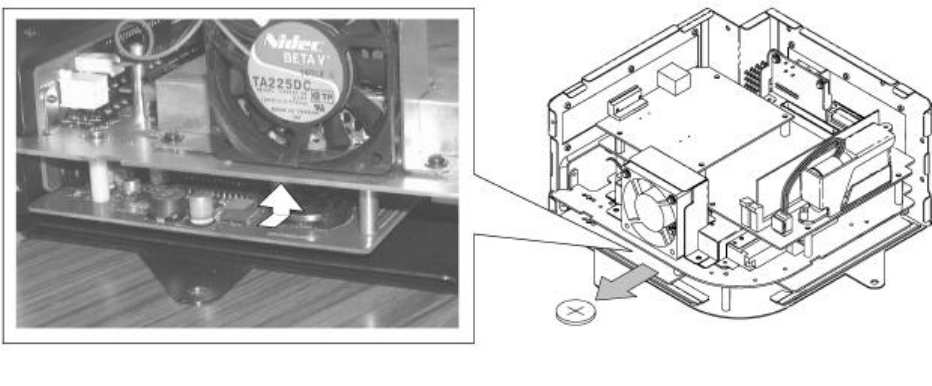

3.14.5. Replacing The Main Board Battery ...................................................................................70

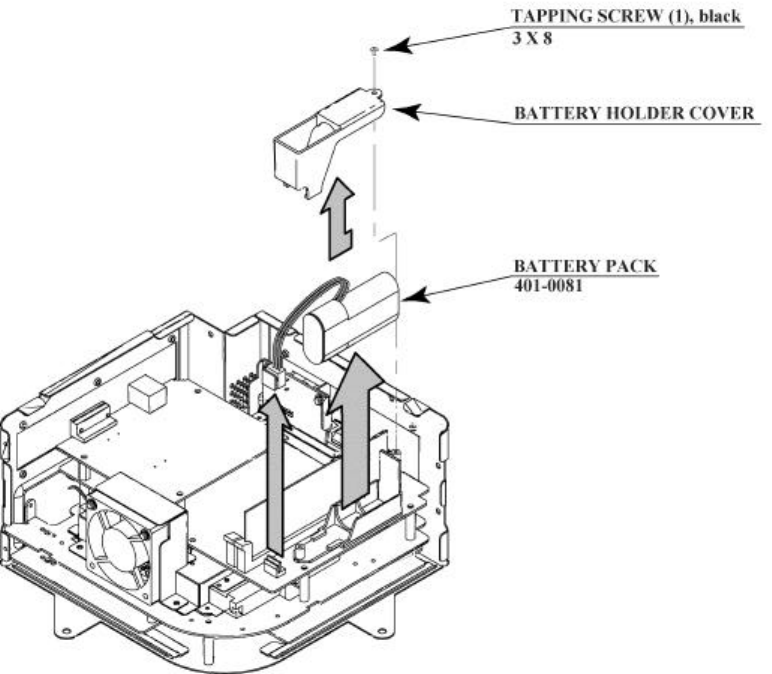

3.14.6. Replacing The DIMM Board Battery Pack.........................................................................72

3.14.6.1. Warnings And Restrictions Concerning The Battery Pack .............................................72

3.14.7. Shipping The Game Board And GD-ROM Drive ...............................................................75

3.14.7.1. How To Use The Triforce Carton Box ...........................................................................75

3.14.8. Machine Set Up................................................................................................................76

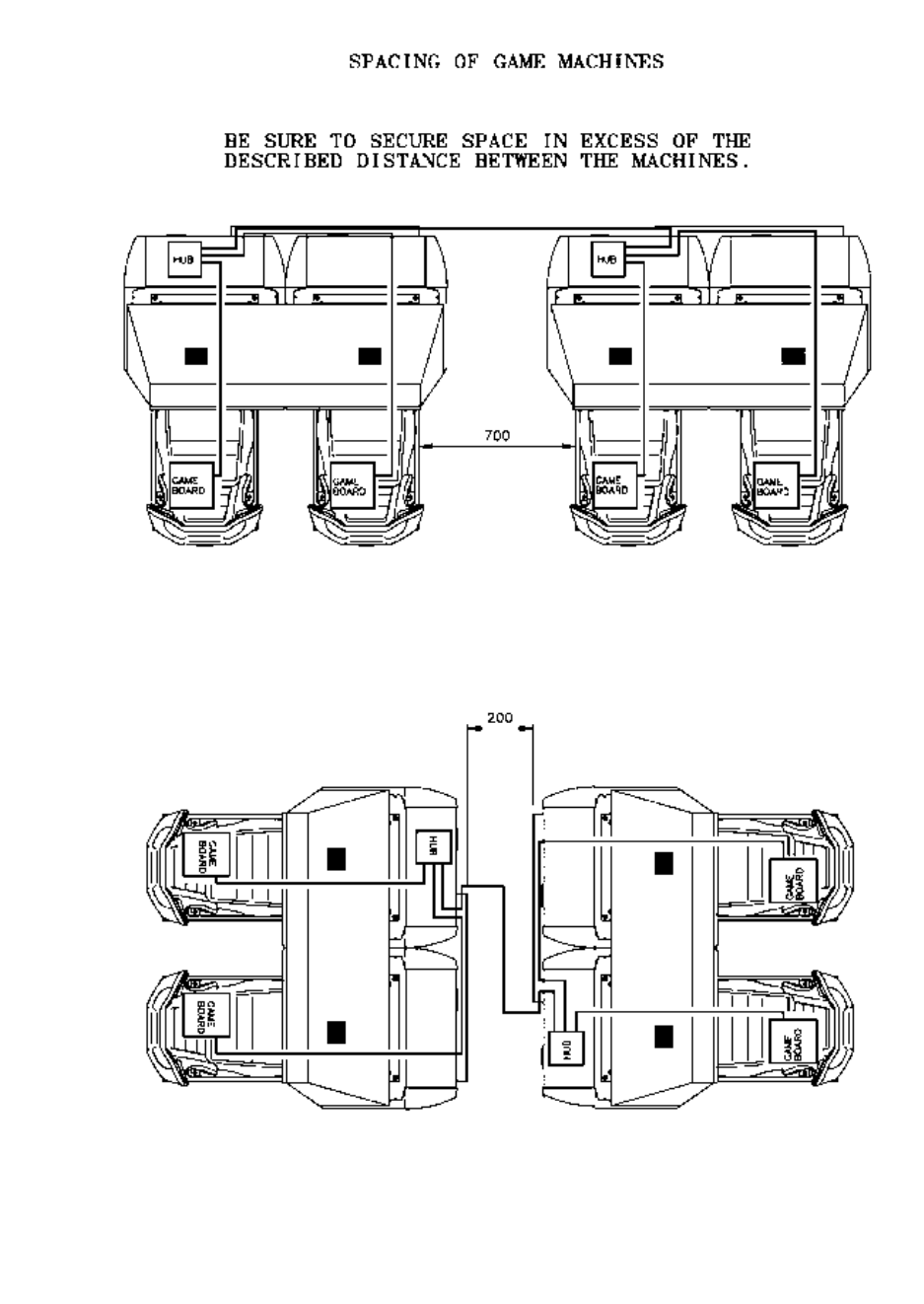

3.14.8.1. Network Play ................................................................................................................77

3.15. Periodic Check And Inspection.............................................................................................................82

4. HOW TO PLAY ..............................................................................................................................83

4.1. Game Description....................................................................................................................................83

4.1.1. Game Outline.......................................................................................................................84

4.1.2. Game Mode .........................................................................................................................85

4.1.3. Playing the Game ................................................................................................................85

4.1.3.1. The Card Check Screen ................................................................................................85

4.1.3.2. The F-Zero License Card Screen ..................................................................................86

4.1.3.3. The Name Entry Screen................................................................................................86

4.1.3.4. The License Card Screen..............................................................................................86

4.1.3.5. The Versus Screen........................................................................................................87

4.1.3.6. The Course Select Screen.............................................................................................88

4.1.3.7. The Machine Select Screen ..........................................................................................88

4.1.3.8. The Machine Setting Screen .........................................................................................89

4.1.3.9. Race .............................................................................................................................89

4.1.3.10. VS Result Screen .........................................................................................................90

4.1.3.11. Results Screen (Race Mode), Time Attack Ranking Screen (Time Attack Mode) .........90

4.1.3.12. The Pilot Points Screen ................................................................................................90

4.1.3.13. The Configuration Screen .............................................................................................91

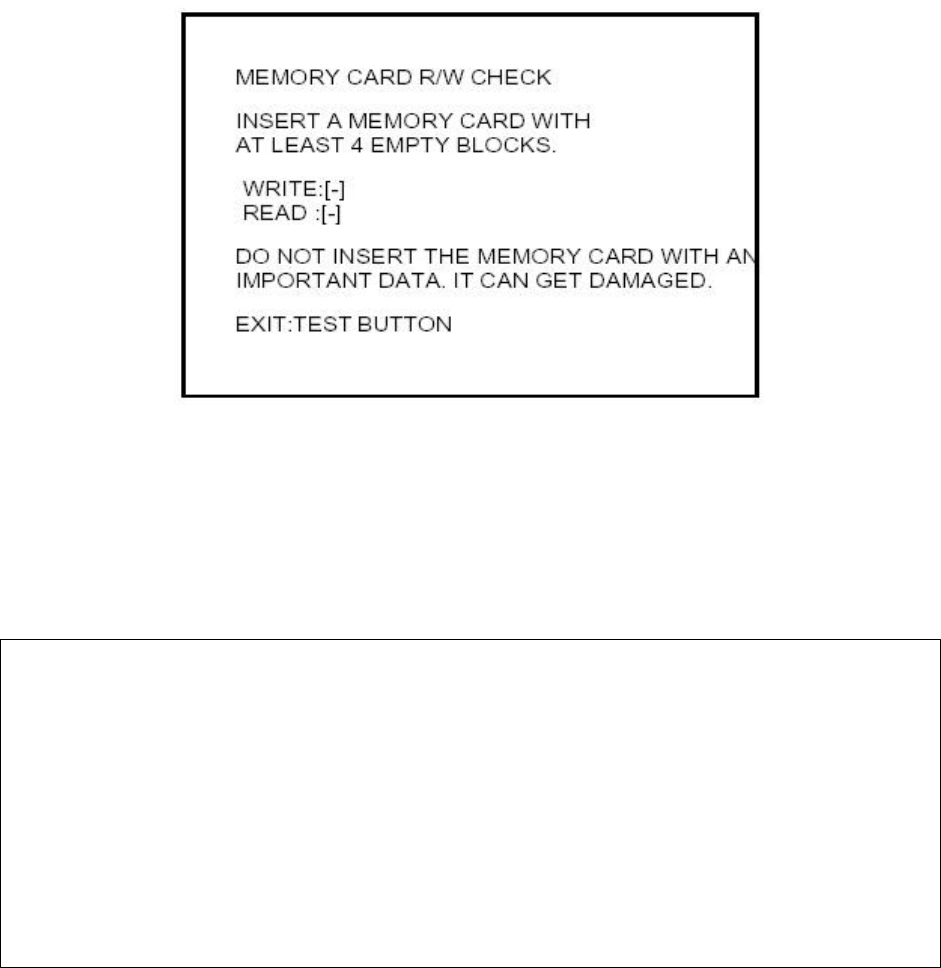

4.1.3.14. Memory Card Screen....................................................................................................91

4.1.3.15. The Password Screen...................................................................................................92

4.1.3.16. The Game Over Screen................................................................................................92

4.1.4. Other Warnings....................................................................................................................93

4.1.4.1. Error Display .................................................................................................................93

4.1.4.2. Secret Codes ................................................................................................................93

5. MAINTENANCE INSTRUCTIONS ..................................................................................................94

5.1. Explanation Of Test And Data Display.....................................................................................................94

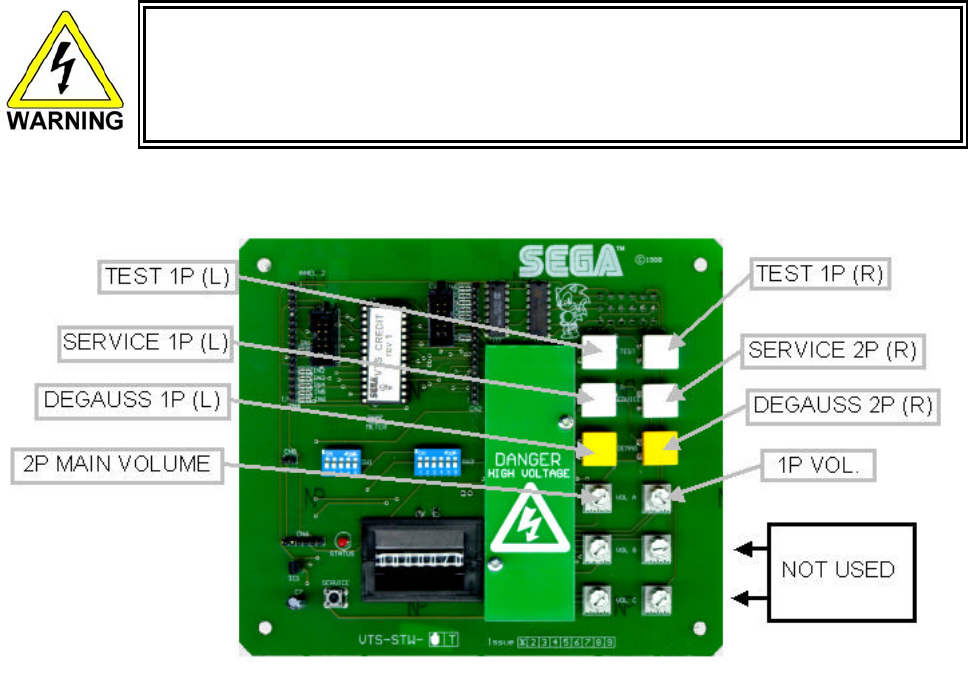

5.1.1. VTS Assembly .....................................................................................................................95

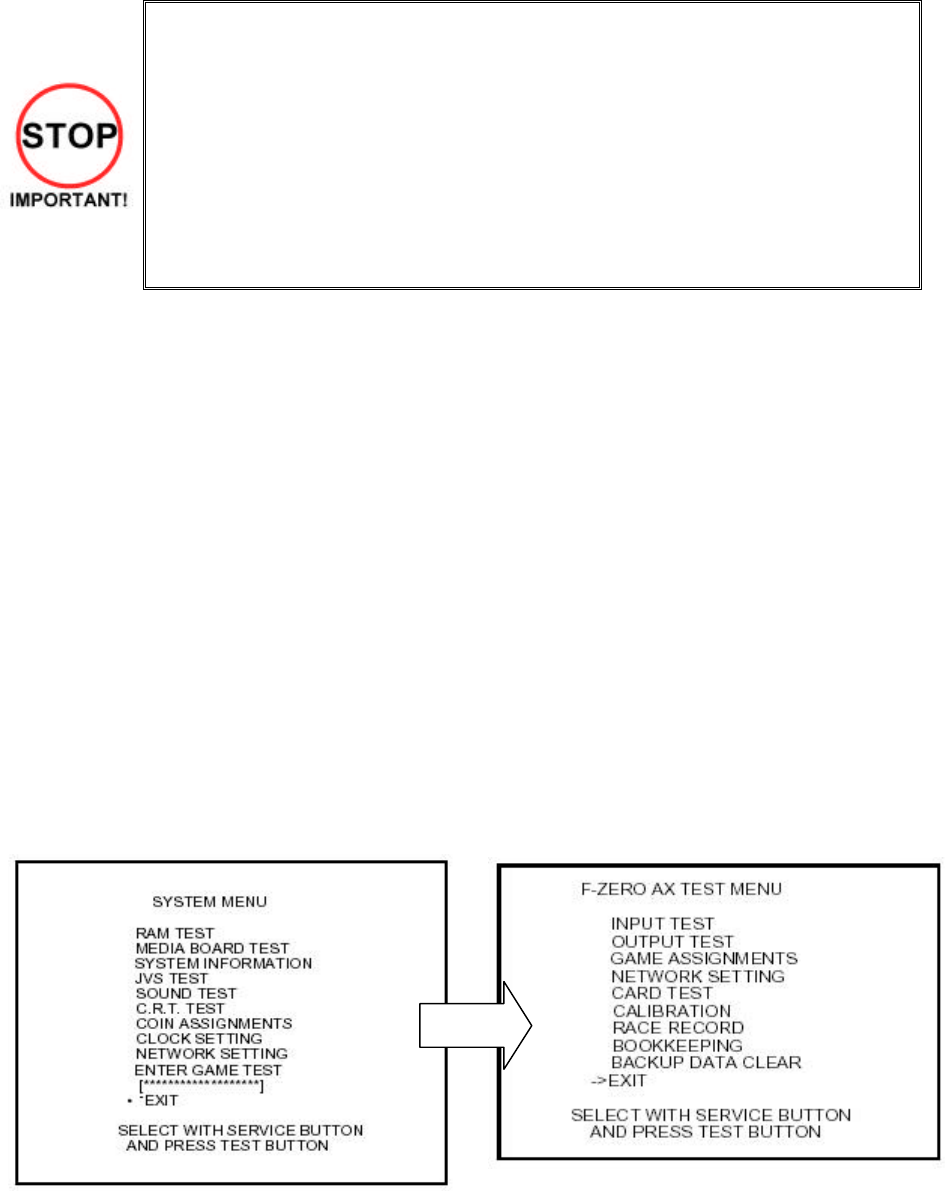

5.2. System Test Mode...................................................................................................................................96

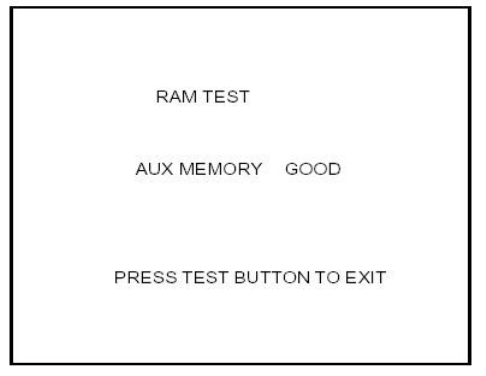

5.2.1. RAM Test.............................................................................................................................97

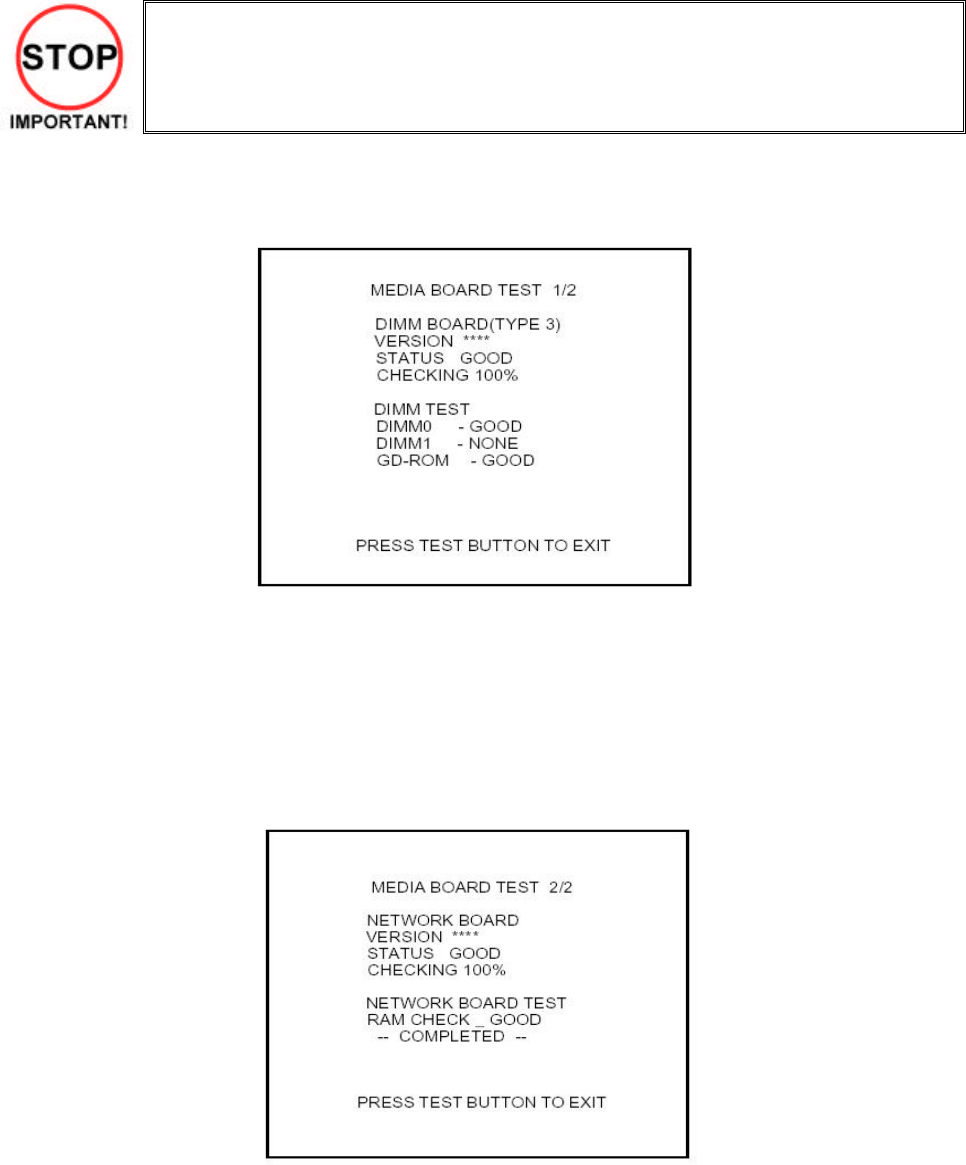

5.2.2. Media Board Test.................................................................................................................98

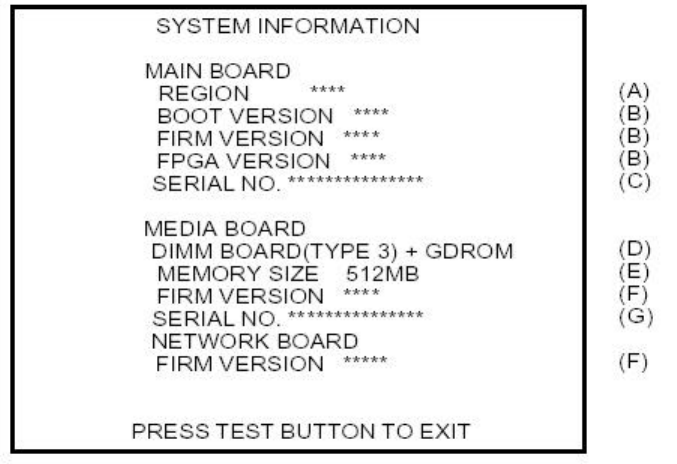

5.2.3. System Information..............................................................................................................99

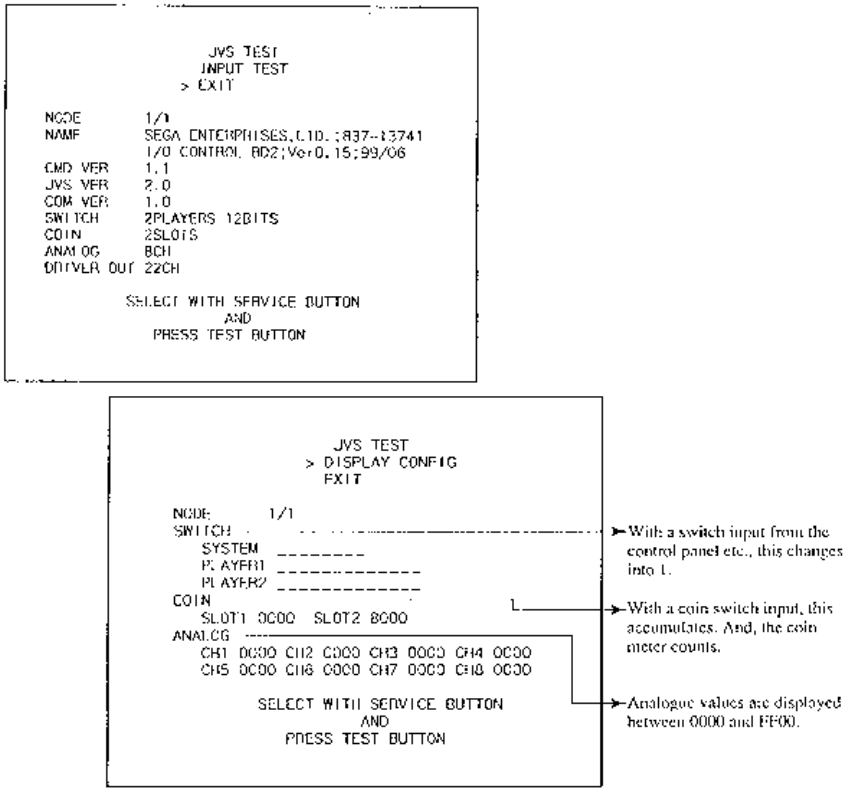

5.2.4. JVS Test ............................................................................................................................100

5.2.5. Sound Test.........................................................................................................................101

5.2.6. C.R.T Test .........................................................................................................................101

5.2.7. System Assignments..........................................................................................................102

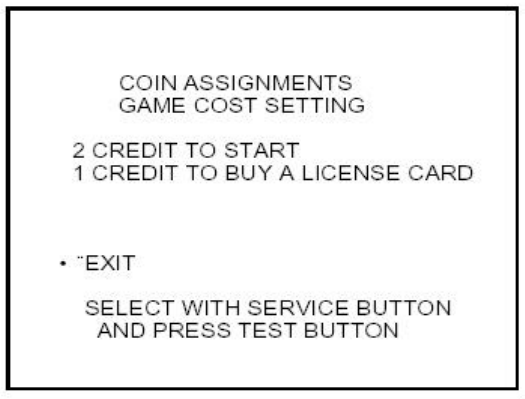

5.2.7.1. Coin Assignments .......................................................................................................102

5.2.7.2. Coin/Credit Setting (Coin Chute Common Type) .........................................................103

5.2.7.3. Coin/Credit Setting (Coin Chute Individual Type) ........................................................104

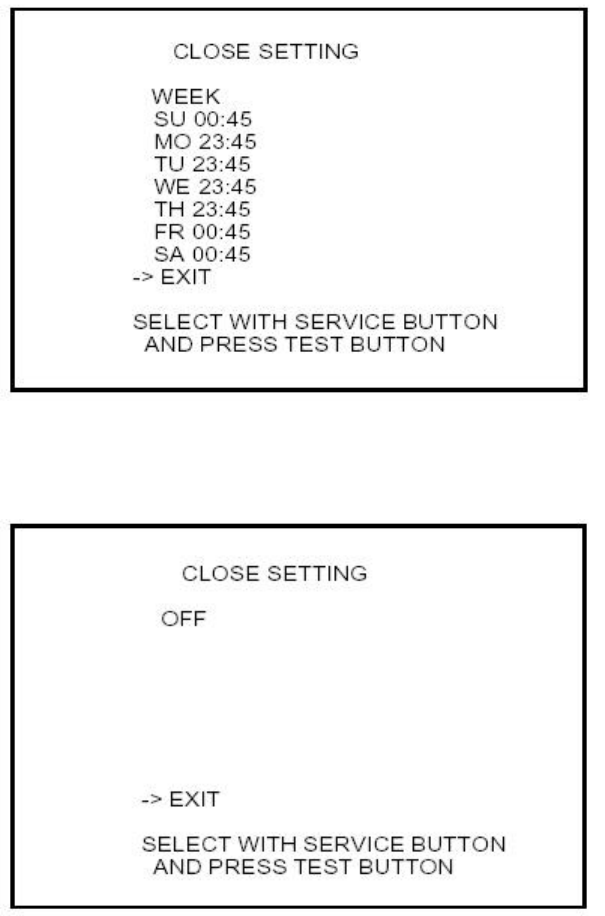

5.2.8. Clock Setting......................................................................................................................107

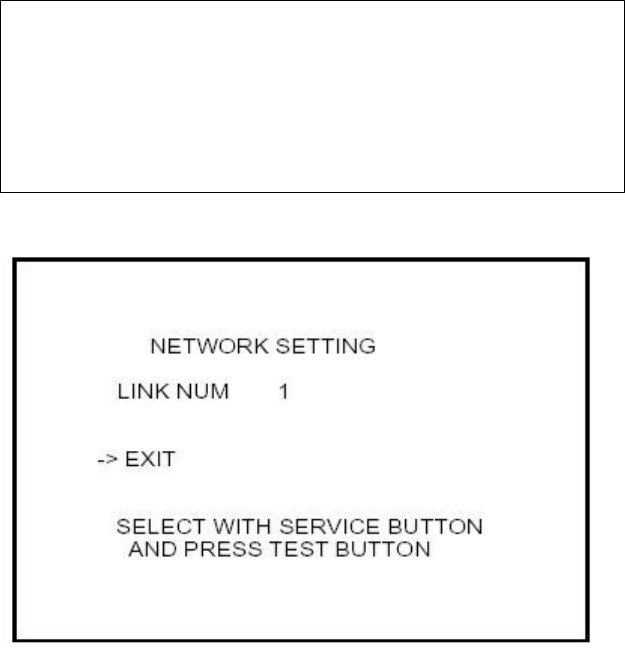

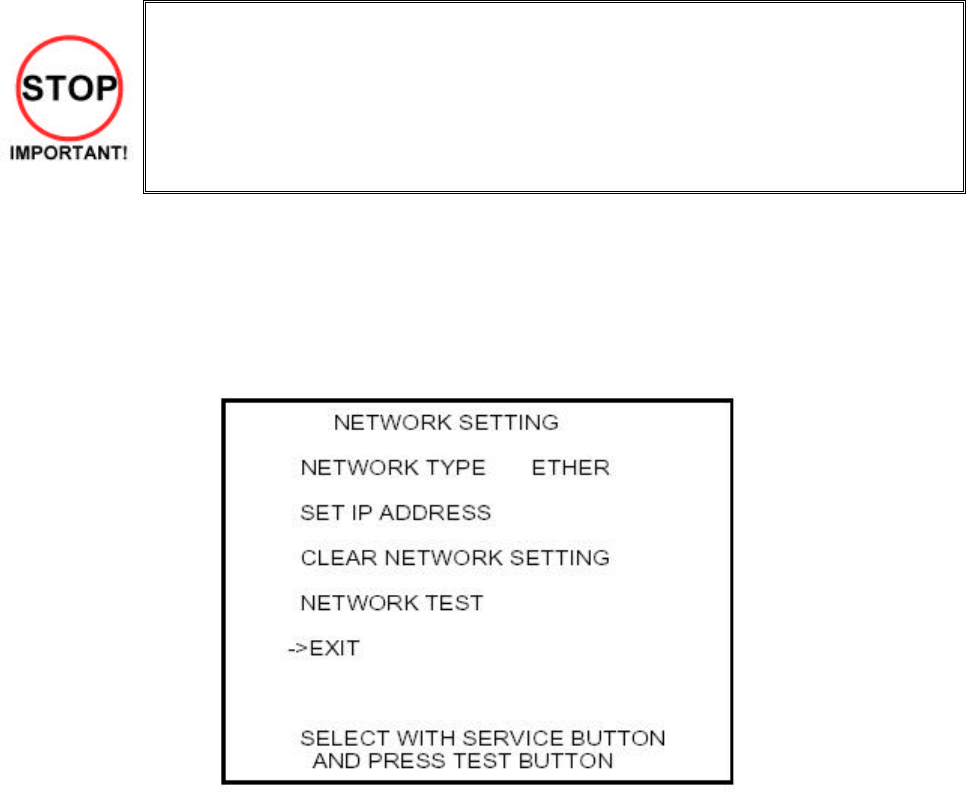

5.2.9. Network Setting..................................................................................................................108

5.2.10. Game Test Mode............................................................................................................110

5.2.10.1. Game Test Menu........................................................................................................110

5.2.10.2. Input Test ...................................................................................................................111

5.2.10.3. Output Test.................................................................................................................112

5.2.10.4. Game Assignments.....................................................................................................114

5.2.10.5. Network Settings.........................................................................................................116

5.2.10.6. Card Test....................................................................................................................117

5.2.10.7. Callibration .................................................................................................................121

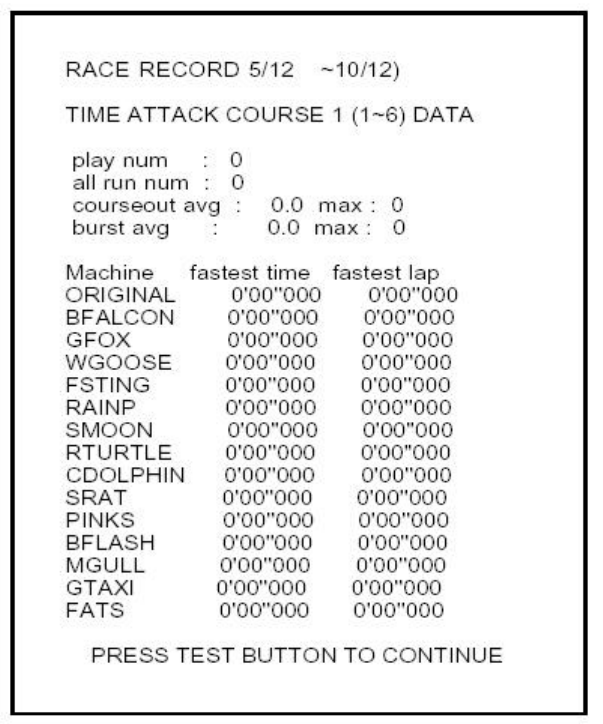

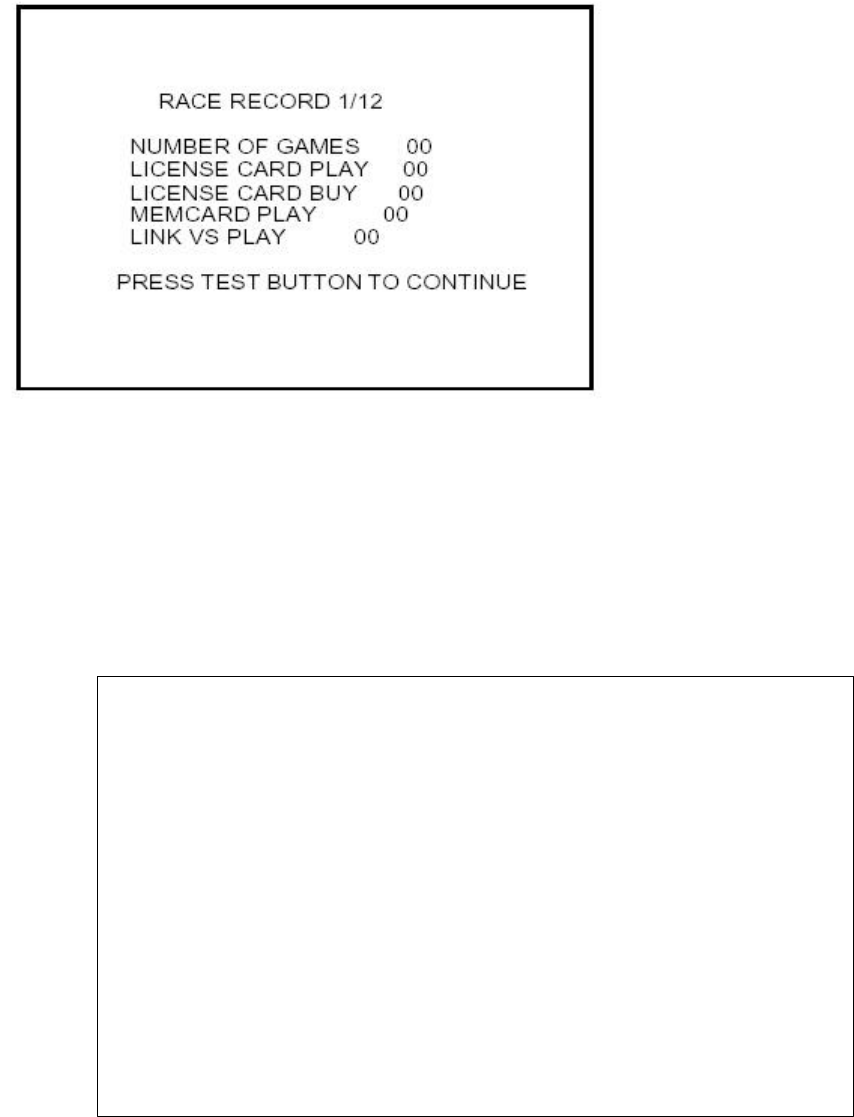

5.2.10.8. Bookkeeping...............................................................................................................126

5.2.11. Backup Data Clear..........................................................................................................128

6. COIN MECH INSTALLATION AND CREDIT BOARD SET UP .....................................................129

6.1. Introduction ............................................................................................................................................129

6.1.1. Price Of Play Settings UK..................................................................................................131

6.1.2. Price Of Play Settings Euro ...............................................................................................132

6.1.3. Price Of Play Settings Austria-Czech-Denmark-Norway-Israel-France2 ............................133

7. DESIGN RELATED PARTS..........................................................................................................134

8. PARTS LIST.................................................................................................................................135

8.1. Assembly Structure................................................................................................................................135

8.2. FZR-00001UK TOP ASSY TWIN..........................................................................................................136

8.3. FZR-10001UK ASSY COCKPIT 1P ......................................................................................................138

8.4. DUT-1120UK ASSY SUB MAIN BASE.................................................................................................141

8.5. FZR-1550 ASSY MONITOR COVER L 2P ...........................................................................................142

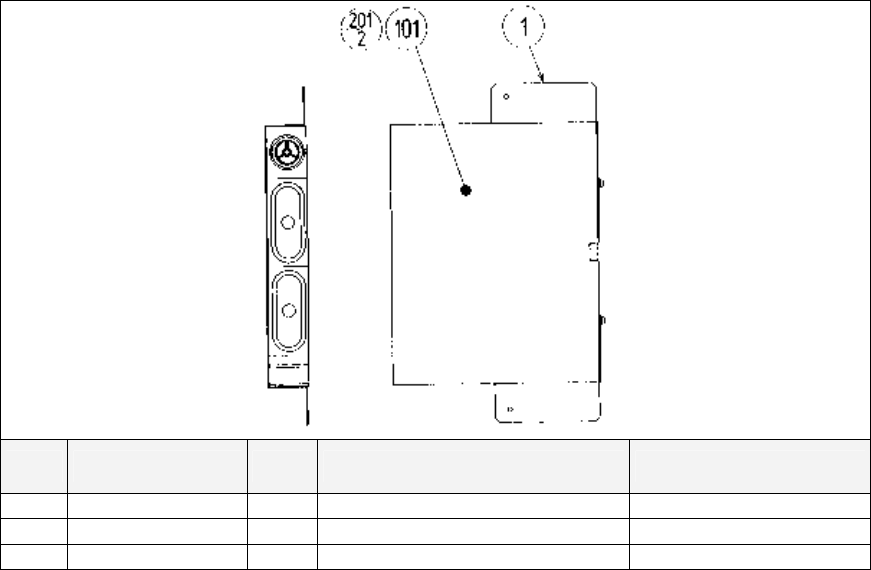

8.6. APC-1560 ASSY SPEAKER L.............................................................................................................143

8.7. FZR-1555UK ASSY MONITOR COVER R 2P......................................................................................144

8.8. APC-1565 ASSY SPEAKER R ............................................................................................................145

8.9. FZR-20001UK ASSY CONTROL PANELSTD......................................................................................146

8.10. FZR-2500 ASSY STEERING.............................................................................................................148

8.11. FZR-2600 ASSY HANDLE MECHA ..................................................................................................151

8.12. FZR-2150UK-ASSY START VIEW ...................................................................................................153

8.13. FZR-2160UK ASSY MEMORY SLOT ...............................................................................................154

8.14. ORT-1100UK ASSY PEDAL BASE ORT..........................................................................................155

8.15. SPG-2200 ASSY BRAKE & ACCELL ...............................................................................................156

8.16. FZR-1600UK ASSY SEAT TWIN 1P.................................................................................................158

8.17. FZR-4500UK ASSY MAIN BD...........................................................................................................160

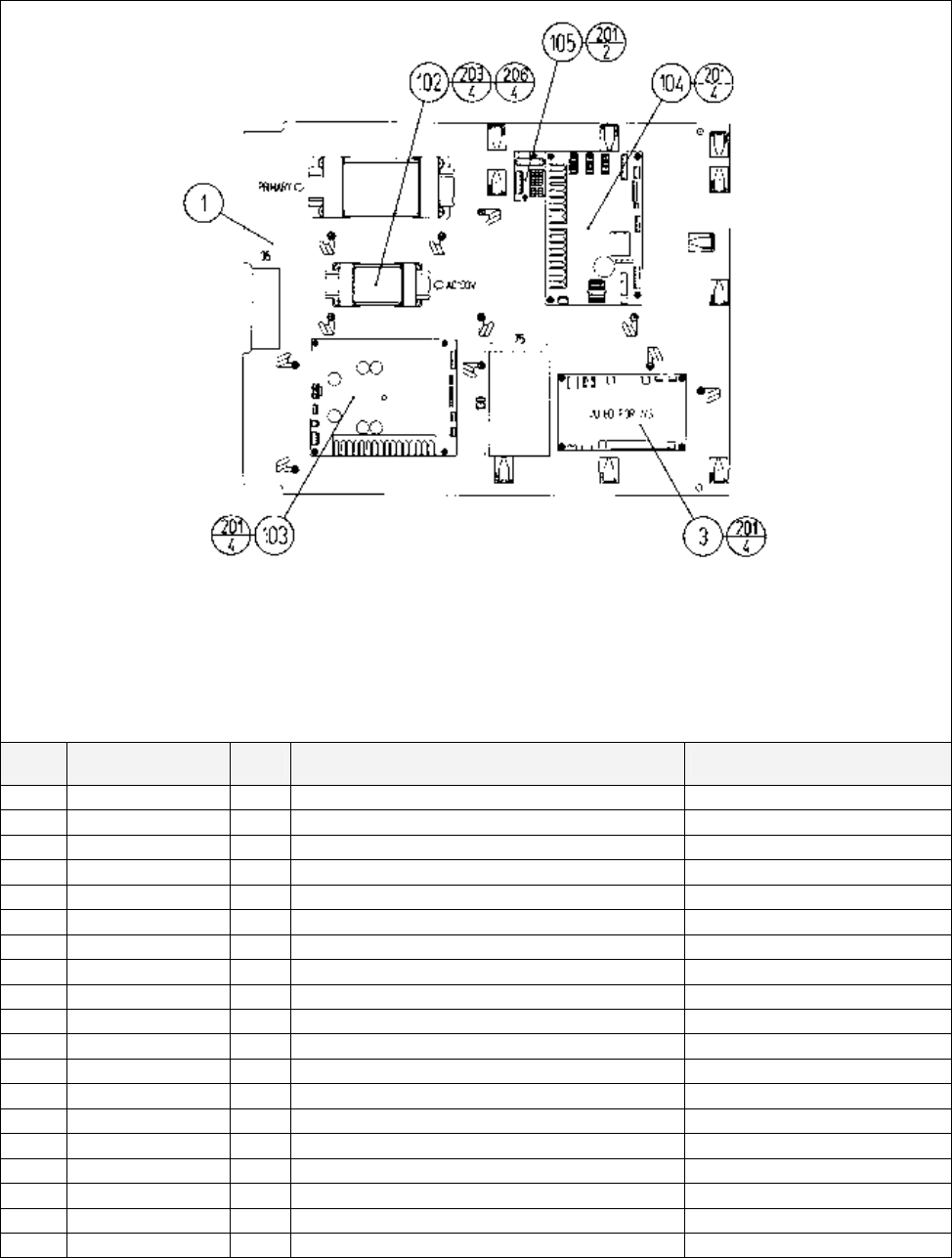

8.18. FZR-4600UK ASSY ELEC BD ..........................................................................................................161

8.19. FZR-1510UK ASSY BASE LID R......................................................................................................163

8.20. FZR-INST-TW ASSY INST KIT FZR TWIN.......................................................................................164

8.21. FZR-0200UK ASSY BILLBOARD......................................................................................................165

8.22. FRI-0300UK ASSY COINCHUTE TOWER FRI................................................................................167

8.23. ORT-0500UK ASSY WIRE COVER ORT TWIN...............................................................................168

8.24. ORT-0400UK ASSY AC BRKT MAIN................................................................................................169

8.25. ORT-0700UK ASSY AC BRKT SUB.................................................................................................170

8.26. VOF-0450UK CARD UNIT TWIN L ...................................................................................................171

8.27. VOF- 0460UK CARD UNIT TWIN R..................................................................................................172

9. APPENDIX A - ELECTRICAL SCHEMATIC..................................................................................173

9.1. Wire Colours..........................................................................................................................................173

9.2. Electrical Schematic ..............................................................................................................................173

1. BEFORE USING THIS PRODUCT

To ensure the safe usage, be sure to read the following before using the product. The following instructions are

intended for the use of QUALIFIED SERVICE PERSONNEL ONLY.

If any activity is carried out on the product, this should be done only after carefully reading and sufficiently

understanding the instructions.

Only qualified service personnel should carry out maintenance on the product.

Depending on the potential risk, terms such as” WARNING!” “CAUTION” and “IMPORTANT!” are used where an

explanation is given that requires special attention. SEGA is not responsible for injury or damage caused by use in a

manner contrary to the instructions given in this document.

In order to prevent accidents warning stickers and printed instructions are applied in the places where a potentially

hazardous situation relating to the product could arise. Be sure to comply with these warnings.

Indicates that mishandling the product by disregarding this warning will cause a potentially

hazardous situation that can result in death or serious injury.

Indicates that mishandling the product by disregarding this caution will cause a potentially

hazardous situation that can result in personal injury and or material damage.

This is cautionary information that should be complied with when handling the product.

Indicates that mishandling the product by disregarding this will cause a potentially

hazardous situation that may not result in personal injury but could damage the product.

Be sure to turn off the power and disconnect from the mains supply before working on the machine.

Ensure that the correct fuses are fitted to the machine. Details of these are enclosed in the Service Manual.

Ensure that only qualified Service Engineers perform any maintenance work on the machine.

Specification changes, removal of equipment, conversion and/or additions not designated by SEGA are not permitted

and will invalidate this product’s CE conformity.

Warning labels or safety covers for personal protection etc, are component parts of the product. A potential hazard

will be created if the machine is operated while any parts have been removed. Do not operate the product if any

doors, lids or protective covers become damaged or lost. SEGA is not liable in any whatsoever for any injury and/or

damage caused by specification changes not designated by SEGA.

Before installing the product, check for the Electrical Specification Sticker, SEGA products have a sticker on which the

electrical specifications are detailed. Ensure that the product is compatible with the power supply voltage and

frequency requirements of the location in which the machine is to be installed.

Install and operate the machine only in places where appropriate lighting is available, allowing warning stickers to be

clearly read.

To ensure maximum safety for customers and operators, stickers and printed instructions describing potentially

hazardous situations are applied to potentially hazardous locations. Ensure that the product’s operating location has

sufficient lighting to allow any warnings to be read. If any sticker or printed warning is removed or defaced, do not

operate the machine until an identical item has replaced it.

Exercise great care when handling the monitor (applies only to product with monitor). Some of the monitor (TV) parts

are subject to high-tension voltage. Even after turning the power off some components are liable to high-tension

voltage. Only qualified service engineers should perform monitor repair and replacement.

In cases where commercially available monitors and printers are used, only the items relating to this product are

contained in this manual. Some commercially available equipment will have functions and reactions not referred to in

this manual. This manual should be read in conjunction with the specific manufacturer’s manual for such equipment.

Descriptions contained herein may be subject to change without prior notification.

The contents described herein are fully prepared with due care. However, should any question arise or errors be found

please contact SEGA AMUSEMENTS EUROPE LTD.

Descriptions contained herein may be subject to change without prior notification.

The contents described herein are fully prepared with due care. However, should any question arise or

errors be found please contact SEGA.

1.1. Inspections Immediately After Transporting The Product To The

Location

• Only QUALIFIED SERVICE PERSONNEL should carry out inspection.

Normally, at the time of shipment, SEGA products are in a state to allowing usage immediately after

transporting to the location. Nevertheless, an irregular situation may arise during transportation preventing

this. Before turning on the power, check the following points to ensure that the product has been

transported safely.

• Are then any dented parts or defects (cuts, etc.) on the external surfaces of the product?

• Are castors and leg adjusters present and undamaged?

• Do the power supply voltage and frequency requirements meet with the local supply?

• Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,

connector connections cannot be made successfully. Do not insert connectors forcibly.

• Are all IC’s of each IC BD firmly inserted?

• Does the power cord have any cuts or dents?

• Do fuses meet the specified rating?

• Are such units such as monitors, control equipment, IC BD, etc. firmly secured?

• Are all earth wires connected?

• Are all accessories available?

• Can all doors and lids be opened with the accessory keys and/or tools?

CONCERNING THE STICKER DISPLAY CONCERNING WARNING STICKERS

SEGA product has stickers describing the product

manufacture number (Serial Number) and

electrical specification. If you require service

assistance you will require the Serial Number.

Identical machines may have different parts fitted

internally. Only by quoting the Serial Number will

the correct parts be identified.

SEGA product has warning displays on

stickers, labels or printed instructions

adhered/attached to or incorporated in the

places where hazardous situations can arise.

The warning displays are intended for the

accident prevention of customers and service

personnel.

SPECIFICATIONS

Installation Space (cm):

202 x 170

Height (cm):

187

Weight (kg):

492

Power consumption (max):

Rated Voltage (V.AC): TBA (See Rating Plate on Base Box)

Rated Current (A): TBA (See Rating Plate on Base Box)

Note: Descriptions in this manual are subject to change without prior notice.

2. INTRODUCTION TO THIS SERVICE MANUAL

SEGA ENTERPRISES LTD. supported by its experience in electronic high technology of VLSI’s,

microprocessors etc. and with a wealth of experience, has for more than 30 years been supplying various

innovative and popular games to the world market. This Service Manual is intended to provide detailed

descriptions together with all the necessary information covering the general operation of electronic

assemblies, electro-mechanicals, servicing controls, spare parts, etc. as regards this new SEGA product.

This manual is intended for those who have knowledge of electricity and technical expertise especially in

IC’s, CRT’s, microprocessors etc. Carefully read this manual to acquire sufficient knowledge before

working on the machine. Should there be any malfunction, non-technical personnel should under no

circumstances touch the internal systems. Should such a situation arise contact our head office.

SEGA AMUSEMENTS EUROPE LTD./ SEGA SERVICE CENTRE

Suite 3a

Oaks House

12 - 22 West Street

Epsom

Surrey

United Kingdom

KT18 7RG

3. INSTALLATION AND SERVICE INSTRUCTIONS

• Only QUALIFIED SERVICE PERSONNEL should carry out installation and

commissioning.

3.1. Handling And Installation Precautions

When installing or inspecting the machine, be very careful of the following points and pay attention to

ensure that the player can enjoy the game safely.

The game must NOT be installed under the following conditions:

• Outside, the game is designed for indoor use only.

• In areas directly exposed to sunlight, high humidity, dust, excessive heat, or extreme cold.

• In locations that would present an obstacle in the case of an emergency i.e. near fire equipment or

emergency exits.

• On unstable surfaces or surfaces subject to vibration.

• Where liquids, other than routine cleaning, may come into contact with the game.

Important:

• Only Qualified Service Personnel should install this machine.

• Be sure to switch the supply power OFF and remove the mains supply plug from the machine before

any work is carried out on the machine.

• Do not attempt to repair the PCB’s (Printed Circuit Boards) yourself. This will void the warranty. The

PCB’s contain static sensitive devices that could be damaged.

• Always return a faulty part to your distributor with adequate packaging and protection.

• When removing the plug from the mains always grasp the plug not the cable.

• Do not use a fuse that does not meet the specified rating.

• Make sure all connections are secure before applying power.

Installation Space

• Ensure that the mains lead is not damaged. If the mains lead is damaged in any

way there could be a danger of electric shock or a fire hazard.

• Ensure that the power supply is fitted with circuit protection. Using the power

supply without circuit protection is a fire hazard.

3.2. Coin Handling

Standard Sega machines are fitted with a SR3 coin mechanism, however, as a service to our customers

Sega machines can be supplied with no coin mechanism or door allowing the customer to fit a coin

handling option from the approved list. Fit only the coin handling arrangements detailed below and follow

the instructions provided in Section 3.7.6. Failure to fit the coin handling options detailed or failure to

follow the installation instructions will render the machine, under the CE marking directive, void.

Approved coin handling options:

• Coin controls SR3

• Generic mechanical

• Mars (MS111B1 and ME115)

• SECI RM4-G20

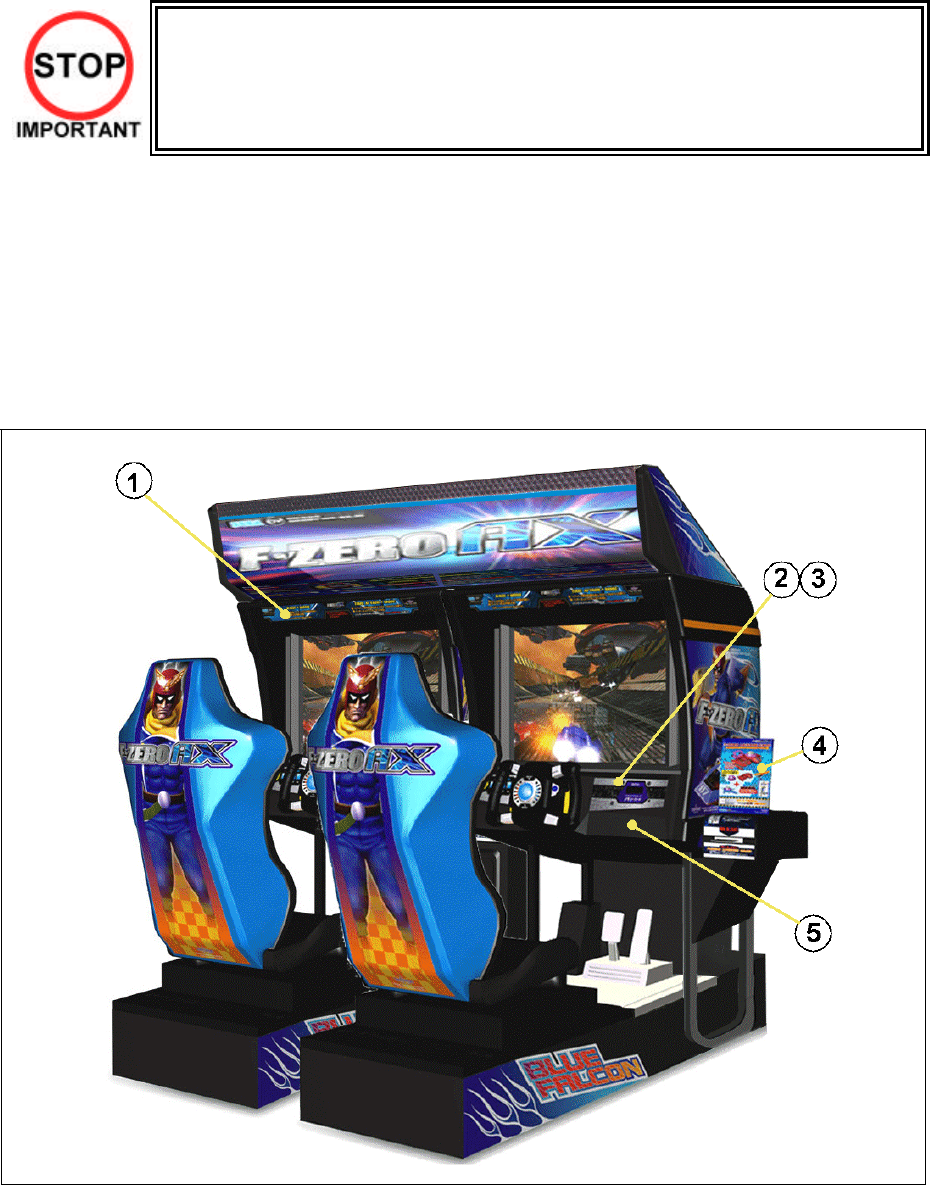

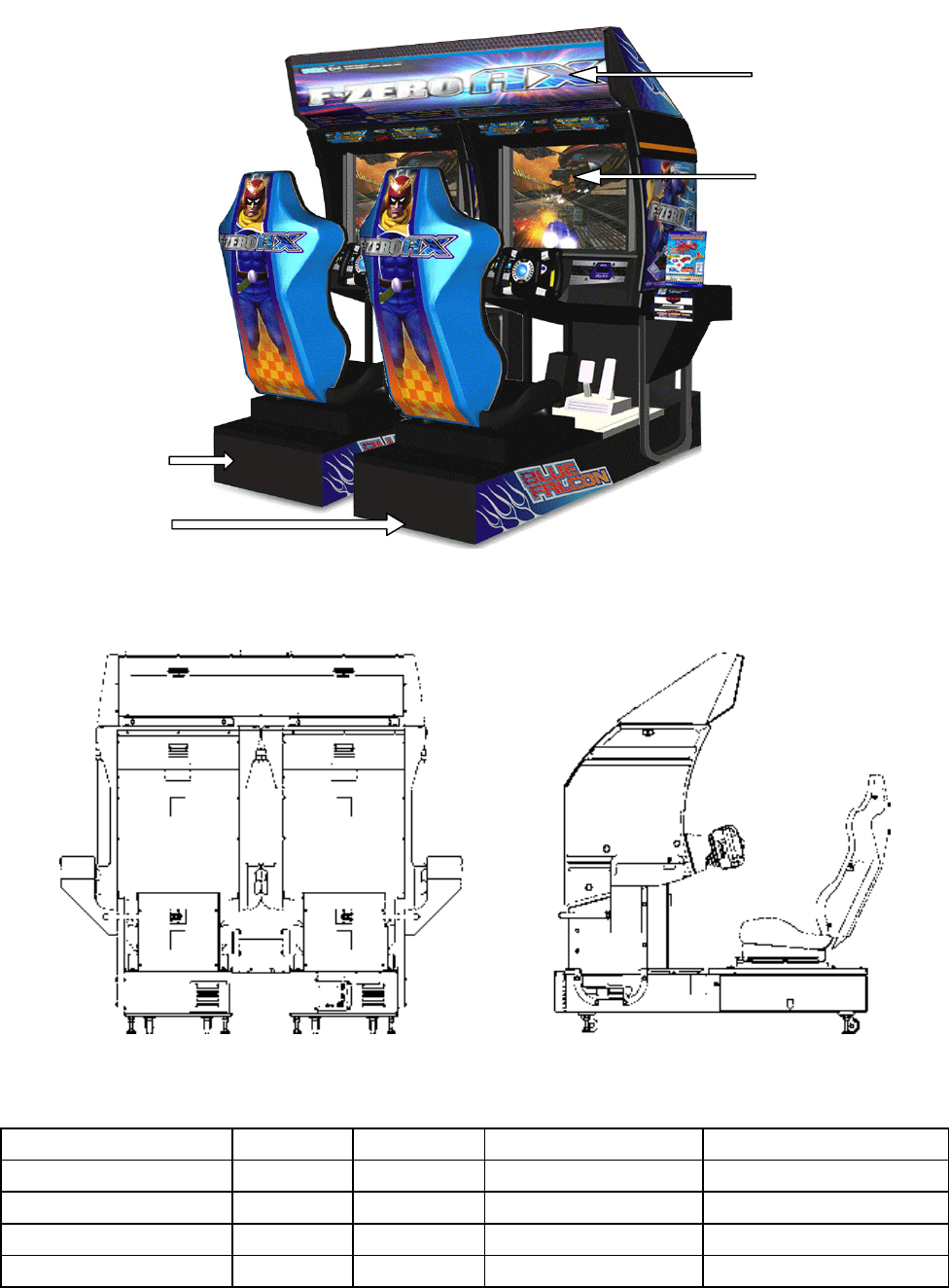

3.3. Name Of Parts

Width (cm) Length (cm) Height (cm) Weight (kg)

¯COCKPIT (EACH) 101 165 152 224

COIN CHUTE TOWER 27 33 57 15

BILLBOARD 160.9 61.7 35.4 36

When Assembled 202 170 186.4 492 Approx.

29 TYPE MONITOR

BILLBOARD

2P SIDE COCKPIT

1P SIDE COCKPIT

3.4. Accessories

The machine is supplied with an installation kit. Please ensure the following parts are supplied:

ITEM PART NO. QTY DESCRIPTION

1 FZR-0200UK 1 ASSY BILLBOARD

2 FRI-0300UK 1 ASSY COINCHUTE TOWER FRI

3 ORT-0500UK 1 ASSY WIRE COVER ORT TWIN

4 DYN-0013 1 JOINT PIPE

5 DYN-0006XUK 1 AC COVER B

6 SRT-0018UK 1 AC COVER C

7 DYN-0019UK 1 AC COVER D

8 RAL-XXXX-14UK

1 TIE BRACKET RALLY

9 SPG-0008 2 BILLBOARD HOLDER

10 422-0911UK 1 PLAY INSTR FZR TWIN MULTI

11 422-0912UK 2 SUB INSTR FZR TWIN MULTI

13 PK0347 1 INST KIT BOX FZR TWIN

15 FZR-0022-01 2 STICKER CARD SLOT FZR B ENG

16 601-11334-01 3 CARD PACKAGE FZR ENG

17 601-11050-91 2 CLEANING KIT

18 220-5753 1 VOL CONT B-5K OHM (TOCOS)

19 PK0343 0.5 PALLET INST KIT

20 FZR-0020UK 2 STICKER CARD SLOT FZR C MULTI

21 FZR-1297UK 2 STICKER MEMORY CAUTION MULTI

22 FZR-2024UK 2 STICKER MEMORY SLOT LWR MULTI

101 440-CS0186UK 2 STICKER C EPILEPSY MULTI

104 OS1241 6.5 TAPE RF20 XWEAVE 50mmX50M ROLL

201 030-000825-SB 20 M8X25 BLT W/S BLK

202 068-852216-0B 20 M8 WSHR 22OD FLT BLK

203 000-P00412-WB 15 M4X12 MSCR PAN W/FS BLK

204 050-F00400 3 M4 NUT FLG SER PAS

401 420-5827 1 SERVICE MANUAL SANWA 31K

402 420-6770-01UK 1 SERVICE MANUAL FZR TWIN

403 OS1019 2 SELF SEAL BAG 9X12.3/4

404 540-0006-01 1 WRENCH M4 TMP PRF

405 540-0007-01 1 WRENCH M5 TMP PRF

406 540-0009-01 1 WRENCH M8 TMP PRF

407 220-5484 1 VOL CONT B-5K OHM

408 SAECE-xxx 1 DECLARATION OF CONFORMITY

409 514-5078-5000 2 FUSE 5X20 CERAMIC SB 5000mA

411 420-6620UK 1 SERVICE MANUAL GD ROM SYSTEM

416 509-6036 1 SW MICRO MATSUSHITA AM51615A7

418 220-5775 1 VOL CONT B-10K OHM W/BD

Item 404-406 - Tamper-proof TORX wrench.

3.5. Shipping The Game Board and GD-ROM Drive

Observe the following precautions when sending the TRIFORCE or GD-ROM drive out for servicing or

repairs.

The carton boxes (included) are needed to ship these parts, and should therefore be stored in a safe place

to ensure that they are not lost.

• When sending parts in for repairs, they should be configured as follows:

(1) TRIFORCE:

- Leave the key chip installed in the board.

(2) GD-ROM drive:

- Remove the drive bracket.

- Eject the GD-ROM disc, place it in its case, and store in a safe place.

• Remove the wire harnesses and cables from the TRIFORCE and GD-ROM drive before sending

them in for repairs.

• Do not disassemble the TRIFORCE or GD-ROM drive. Place them in the carton box as is when

sending them in for repairs.

• Provide a clear, detailed description of the game used and the observed problems when sending

to the indicated repair center.

3.5.1. How To Use The Triforce Carton Box

Fold the packaging in the order specified in the diagram and wrap it around the TRIFORCE, making sure

that board and box are aligned correctly. Finally, place it in the carton box.

Failure to wrap the product as specified in the diagram may cause damage to parts.

3.6. Shipping The GD-ROM Drive

• When returning the GD-ROM DRIVE for repair or replacement, be sure to package it

in the original card transit box - THERE ARE NO USER-SERVICEABLE PARTS

INSIDE.

• Ensure the GD-ROM Disk is removed and the GD-ROM Drive Lid is replaced on the

unit, with fixing screw, before packaging. Also, remove the GD-ROM Drive Bracket

and store with the four screws for reuse.

• Failure to return the GD-ROM DRIVE in this manner may invalidate the warranty.

3.7. Assembly Instructions

• Perform the assembly by following the procedure herein stated. Failure to

comply with the instructions, for example, inserting the plug into an outlet at a

stage not mentioned in this manual can cause an electric shock

• Assembling should be performed as per this manual. Since this is a complex

machine, erroneous assembling can cause damage to the machine, or

malfunction to occur.

• Do not attempt to complete this work alone, a minimum of 2 people are required.

• Only QUALIFIED SERVICE PERSONNEL should carry out assembly.

When carrying out the assembly work, follow the procedure in the following 7 item sequence

STEP 1 ASSEMBLING THE COCKPIT

STEP 2 SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)

STEP 3 BILLBOARD INSTALLATION

STEP 4 INSTALLING THE AC COVERS (WIRE COVERS)

STEP 5 COIN HANDLING INSTALLATION

STEP 6 CONNECTION TO POWER SUPPLY

STEP 7 ASSEMBLY CHECK

Note that the parts contained within the installation kit are required for the assembly work.

• Fit all fixings loosely first as detailed in step 1, then position all components

before finally tightening fixings at step 6.

3.7.1. Applying The Play Instructions

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

Supplied in the installation kit are 5 sets of play instructions in 5 languages. Select the language of

your choice and apply in the following areas:

1. 422-0912UK: Instructions (on monitor mask)

2. FZR-1297UK (on top control panel over memory slot)

3. 422-0911UK: Instructions (on top of control panel)

4. FZR-0020UK Card Instructions (on card R/W lid)

5. FZR-2024UK (under memory slot)

3.7.2. Assembling The Cockpit

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

1. Place the two cockpits

side by side. Position the

1P cabinet, which has the

IEC inlet at the left hand

side when viewed facing

the monitor. STICKER L

is attached to the back of

the 1P cabinet and

STICKER R on the back

of the 2P cabinet

2. Install the coin chute

tower in between both

cabinets. Open the coin

chute door and the cash

door and secure with the

4 hexagon bolts from

inside the doors. At this

time, make sure the bolts

are only loosely fitted.

Note: Door may open in opposite way to that shown above

3. Install the joint pipe on

the rear-side of both

cabinets by securing with

4 hexagon bolts, at this

time loosely.

3.7.3. Securing In Place (Leg Adjuster Adjustment)

• Make sure all of the leg adjusters are in contact with the floor. If they are not the

machines may move and cause injury. This operation requires 2 people.

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

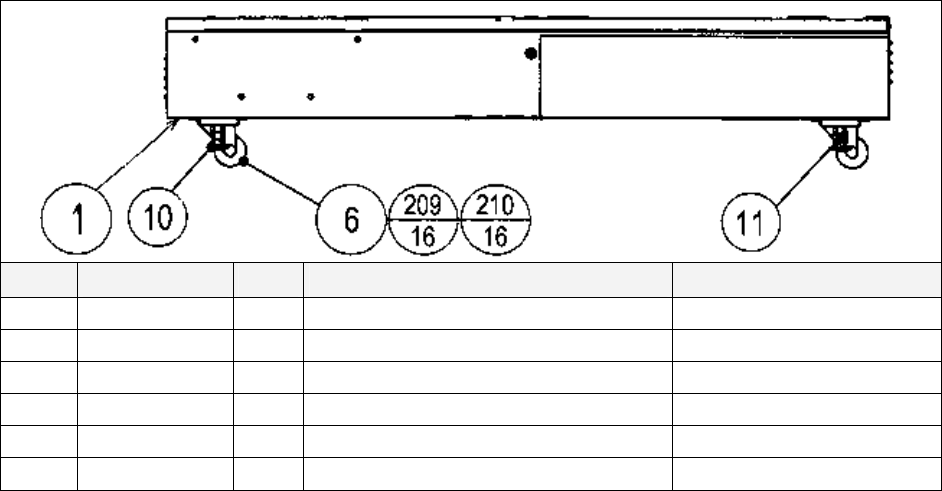

This machine has eight castors and eight leg adjusters. When the installation position is decided, unscrew

the leg adjusters so that they raise each caster a minimum of 5mm from the floor. Make sure the machine

is level.

1. Move the machine to the installation position.

When installing against or close to a wall, be

sure to allow an adequate space to allow the

player access to the machine.

2. Make the leg adjusters contact the floor.

Adjust using a spanner as shown below so

that a minimum of 5mm exists between the

casters and the floor. Make additional

adjustment so that the machine is level.

3. Slide the joint plate onto the shafts of the

indicated leg adjusters. Tighten the lock nut

on all eight leg adjusters. This will secure the

joint plate.

After securing the leg adjuster bolts, fully tighten all bolts temporarily attached in STEP 1 above.

Ensure adequate ventilation is maintained as detailed below

3.7.4. Billboard Installation

• One person alone cannot perform the installation of the billboard assembly. Seek

assistance before attempting this operation

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

1. Install the billboard base over the two cockpits.

2. Mount the billboard by fitting it onto the billboard base.

3. Install the billboard holders using 2 hexagon bolts each to secure them to the cabinets.

4. Connect the wire connectors from the billboard box to the connectors on the cabinets and install

the connector covers using two screws for each.

3.7.5. Installing The AC Covers (Wire Covers )

• Be sure that the machine is not connected to the mains supply before attempting

this operation.

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

The AC Wire Covers are used for protecting the interconnecting wiring and the fibre optic cables. When

carrying out this operation be very careful so as not to trap any wire between the covers. Pay attention

when handling the fibre optic cables as excessive bending may cause damage.

1. Attach AC Cover A to the rear of the cabinet using 5 screws.

2. Make all the wiring connections between the two cockpits and the Coin Chute Tower. The wiring

connectors are colour coded and cannot be fitted into the wrong size connectors. Do not force any

connectors together.

3. Connect the earth wires between the two AC Brkts, the AC Covers and the Coin Chute Tower.

4. Insert the fibre optic cables into the fibre optic connectors. Ensure that the “RX” connection on the

1P cockpit is connected to the “TX” connector on the 2P cockpit. The other fibre optic connects

the “TX” connector of the 1P cockpit to the “RX” connector of the 2P cockpit.

5. Insert AC Cover B into AC Cover A from above and secure using 2 screws. Be sure not to trap

any cables.

6. Secure AC Cover C and AC Cover D using 4 screws each.

3.7.6. Coin Handling Installation

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

When fitting the coin mechanism to the door please refer to the specific manufacturers installation

instructions for that coin mechanism. To fit the door to the machine, follow the procedure below.

• Loosen all of the bolts on the frame, which secure the clips.

• Turn all clips in towards the door.

• Position the door into the aperture in the machine.

• Turn the clips around so that they will hold the door in the

machine.

• Tighten all of the bolts.

• Ensure that the door is earthed to the frame and the frame is

earthed to either the VTS bracket or the coin chute tower.

3.7.6.1.Wiring Connections.

COIN MECH LOOM INSTALLATION

C220B LM1006IDC

LM1006LAMP-0.1

• Attach the lamp holder to the bracket on the coin return

button.

• Attach one 15-way connector to the C220 coin mech.

• Attach the other 15-way connector to Validator A on the

credit board.

• Attach the 2-way connector to ‘LAMP’ on the VTS

board.

GENERIC

MECHANICALS LM1008

LM1008-LAMP

• Fit the two lamp holders behind the coin return buttons.

• Attach the blue cable and orange cable to one mech’s

microswitch switch.

• Attach the blue/green cable and orange/green cable to

the other mech’s microswitch.

• Attach the 2-way mate and lok plug to the 2-way mate

and lok cap provided.

• Attach one 15-way connector to Validator A and the

other to Validator B on the credit board

MARS

MS111B1

MARS ME115

LM1007

LM1008-LAMP

• Fit the lamp holder to the bracket behind the coin return

button.

• Fit one of the 13-way connectors to the coin mech.

• Fit the other 13-way connector to Validator A on the

credit board. Note the 13-way connector is keyed and

this key must coincide with the key on the credit board.

SECI, C120,

SR3 OWN LOOM AND

LM1006LAMP-0.1 • Attach the lamp holder to the bracket on the coin return

button.

• Attach the 2- connector to ‘LAMP’ on the VTS board.

• Attach the validator’s own loom to position A on the

credit board

VTS credit board assembly

3.7.7. Communication Cables

The master (left) machine’s LAN cable will come pre-connected to hub.

Connect the slave machine’s LAN cable (bundled up at the back in a loop) across via the AC cover to the

hub of the master machine and connect to one of the hub’s ports.

For machine set-up refer to Section 5.2.10.5.

3.7.8. Connection To The Power Supply

• This operation may only be carried out once the machine has been completely

assembled.

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

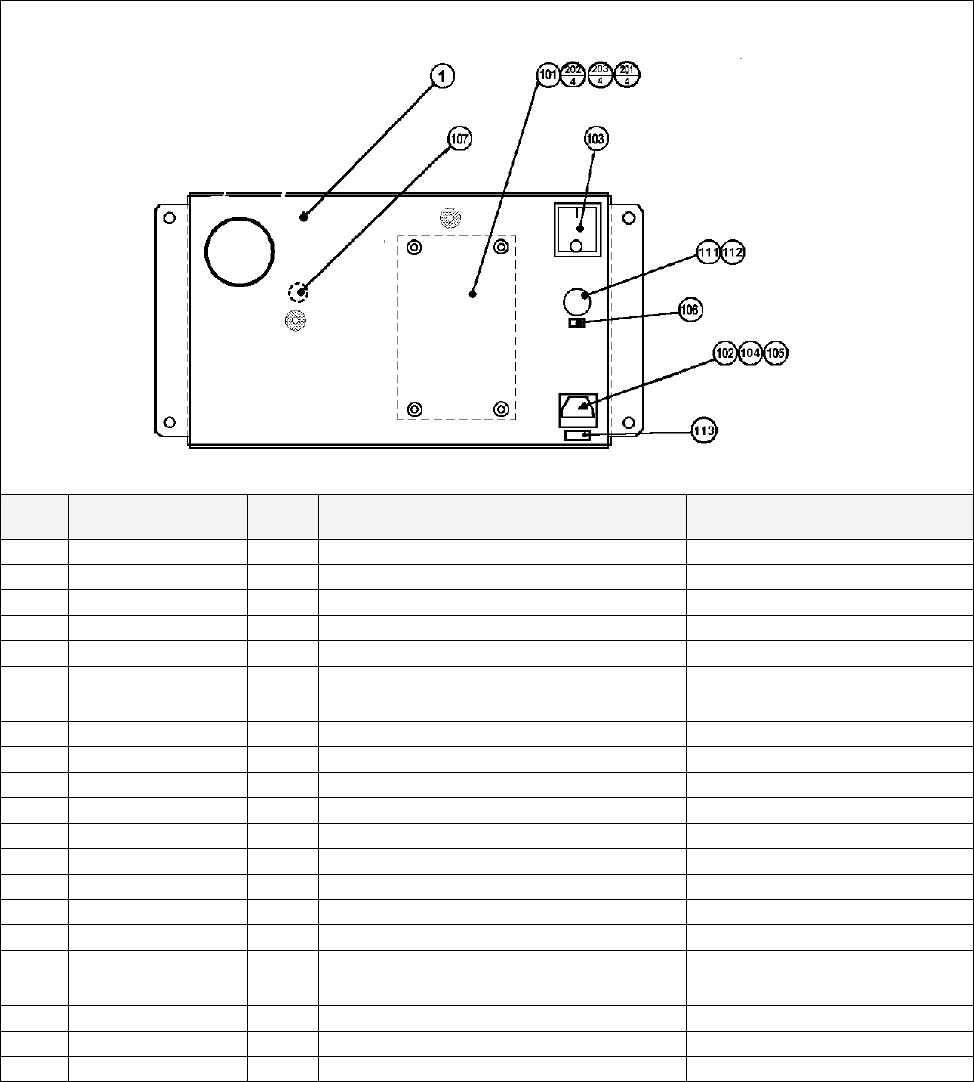

The AC Unit is located on the rear of the 1P cockpit. Using the power

lead supplied connect this to the mains socket at the wall.

1. Turn the mains switch on.

2. Turn the switch on the AC bracket on.

3. Once power is turned on, the fluorescent lamp lights up. The

Start System Screen displays after a lapse of several

seconds. This is followed by the screen that indicates that the

network is currently being checked if the communication

mode has been set. If there is a bad or improper

communication connection, each screen will not proceed to

the next, remaining on the currently Network Check Screen.

If this occurs, resolve the error according to the instructions

in this document.

4. If the communication mode has not been set or the

communication check ends normally, the Motor Check

Screen returns. While the Motor Check Screen is on-screen,

the steering wheel can move either clockwise or counter

clockwise. If you touch the wheel, the motor check is

hindered and the game will not operate normally. So, you

must not touch it at this time. Failures are displayed, if found.

Resolve the errors according to the instructions in this

document.

5. Once all the above steps have been completed, the

Advertise Screen displays and voices are output through the

left and right loudspeakers, unless you have set the machine

so that no voices are output during the Advertise mode.

6. This product retains the number of credits and the ranking

data even after the power is turned off. It does not retain data

about the fractional number of coins (i.e., the number of

coins not reaching one credit) or the bonus adder count.

Fluorescent lamps are always lit

Ste

ering wheels turn in both

directions Control Panel

Sound is

emitted

On screen

images are

output

3.7.9. Assembly Check

In the Test Mode, ascertain that the assembly has been made correctly and IC BD is satisfactory (see

Section 5.2.1).

In the test mode perform the following test:

3.7.9.1.Memory Test

Selecting RAM TEST or MEDIA BOARD TEST

from the menu screen in System Test mode will

cause the machine to automatically perform a test

of memory on the game boards. If GOOD is

displayed next to the number of each memory

segment, the game boards are working properly.

Select SYSTEM INFORMATION to display

information on the main game board and the media

board. If the information is displayed correctly, this

indicates that the game boards are functioning

properly.

RAM TEST

AUX MEMORY GOOD

TEST BUTTON TO EXIT

MEDIA BOARD TEST 1/2

DIMM BOARD(TYPE 3)

VERSION ****

STATUS GOOD

CHECKING 100%

DIMM TEST

DIMM0 - GOOD

DIMM1 - NONE

GD-ROM - GOOD

PRESS TEST BUTTON TO EXIT

MEDIA BOARD TEST 2/2

NETWORK BOARD

VERSION ****

STATUS GOOD

CHECKING 100%

NETWORK BOARD TEST

RAM CHECK _ GOOD

-- COMPLETED --

PRESS TEST BUTTON TO EXIT

SYSTEM INFORMATION

MAIN BOARD

REGION ****

BOOT VERSION ****

FIRM VERSION ****

FPGA VERSION ****

SERIAL NO. ***************

MEDIA BOARD

DIMM BOARD(TYPE 3) + GDROM

MEMORY SIZE 512MB

FIRM VERSION ****

SERIAL NO. ***************

NETWORK BOARD

FIRM VERSION *****

PRESS TEST BUTTON TO EXIT

3.7.9.2.Input Test

Select INPUT TEST from the menu screen in either System Test mode

JVS TEST

INPUT TEST

NODE 1/1

SYSTEM 00

PLAYER 1 1 0000

PLAYER 2 2 0000

COIN 1 1 0000

COIN 2 2 0000

ANALOG 1 0000

ANALOG 2 0000

ANALOG 3 0000

ANALOG 4 0000

ANALOG 5 0000

ANALOG 6 0000

ANALOG 7 0000

ANALOG 8 0000

INPUT TEST

STEERING X 0(~FF) SERVICE OFF(ON)

STEERING Y 0(~FF) TEST OFF(ON)

PADDLE LEFT OFF(ON)

PADDLE RIGHT OFF(ON)

BOOST OFF(ON)

GAS 0(~FF)

BRAKE 0(~FF)

START BUTTON

VIEW CHANGE 1 OFF(ON)

VIEW CHANGE 2 OFF(ON)

VIEW CHANGE 3 OFF(ON)

VIEW CHANGE 4 OFF(ON)

PRESS TEST AND SERVICE BUTTON TO EXIT

3.7.9.3.Sound Test

In the system test mode, selecting SOUND TEST

causes the screen (on which sound related BD and

wiring connections are tested) to be displayed.

Check if the sound is satisfactorily emitted from

each speaker and the sound volume is appropriate.

3.7.9.4.CRT Test

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

C.R.T TEST

PAGE 1/2

C.R.T. TEST 1/2

PRESS TEST BUTTON TO CONTINUE

RED

GREEN

BLUE

WHITE

In the TEST mode select CRT test to check the

screen is satisfactory.

Although the projector has been set up at the

factory before shipment, check to see if the screen

needs adjustment.

C.R.T. TEST 2/2

PRESS TEST BUTTON TO EXIT

SOUND TEST

OUTPUT TYPE STEREO

RIGHT SPEAKER OFF

LEFT SPEAKER OFF

àEXIT

SELECT WITH SERVICE BUTTON

AND PRESS TEST BUTTON

3.7.9.5.Output Test

Select OUTPUT TEST from the menu screen in

Game Test mode to bring up a test screen for the

output devices (lamps, etc.).

If each output device activates correctly, the output

devices and their wiring connections are working

properly.

Perform the above inspections also at the time of monthly inspection

OUTPUT TEST

START BUTTON OFF(ON)

VIEW CHANGE 1 OFF(ON)

VIEW CHANGE 2 OFF(ON)

VIEW CHANGE 3 OFF(ON)

VIEW CHANGE 4 OFF(ON)

BOOST OFF(ON)

STEERING

CENTER OFF(ON)

LEFT OFF(ON)

RIGHT OFF(ON)

àEXIT

SELECT WITH SERVICE BUTTON

3.7.10. Moving The Machine

• When moving the machine, be sure to remove the plug from the power supply.

Moving the machine with the plug inserted can cause the power cord to be damaged,

resulting in a fire or electric shock.

• When moving the machine, retract the leg adjusters fully and ensure the casters make

contact with the floor. During movement pay careful attention so that the casters or leg

adjusters do not damage any other cabling laid on the floor. Such damage could result

in a fire or electric shock.

• Don’t push the cockpit cabinets from the side, as they may topple and cause damage.

• Don’t put excessive pressure on the glass or plastic components as damage or

personal injury may result if there is a breakage.

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

Disassemble the cabinet into its components if

transporting up or down step level changes!

Do not push an individual cockpit from the side!

3.8. Fuses

• Never touch places other than those specified. Touching places other than those

specified can cause electric shock and short circuit. Disconnect the machine

from the supply before attempting the replacement of any fuse.

• Only QUALIFIED SERVICE PERSONNEL should replace FUSES.

There are a number of fuses used on this machine to protect the user and the machine from damage. Only

replace the fuse once you have remove the cause of its failure. Detailed below is a list of the fuses used,

their location and if relevant PCB reference:

PART NUMBER LOCATION TYPE & DETAILS QTY PER COCKPIT

514-5078-5000 IEC INLET (EP1302) 5x20 HRC SB 5000mA 1

514-5078-6300 838-11856CE-02 5x20 HRC SB 6300mA 1

514-5078-4000 400-5397-01 (F1) 5x20 HRC SB 4000mA 1

514-5078-6300 838-13578 (F1) 5x20 Ceramic SB 6300mA 1

514-5080-15000 838-14174(F1) 32x6.35 HRC SB 15000mA 1

514-5078-2500 838-14174(F2) 5x20 HRC SB 2500mA 1

514-5033-5000 400-5421-07512 (F11) 5x20 Glass T 125v 5 A 1

There are also fuses located on the Monitor PCB. Refer to the relevant Monitor manual supplied to

reference these fuses.

3.9. Maintenance

• Only Qualified Service Personnel must carry out maintenance.

• Ensure that the mains power is switch OFF and disconnected before attempting any

work.

• The CONTROL PANEL ASSEMBLY is heavy and may cause injury or damage to the

machine if dropped. Use an assistant when removing and replacing it.

• In order to prevent an electric shock and short circuit, be sure to turn power off before

performing work by touching the interior parts of the product.

• Be careful not to damage the wires. Damaged wires may cause electric shock or short

circuit or present a fire risk.

• Do not touch undesignated places. Touching places not designated can cause electric

shock or short circuit.

• This work should be performed by the site maintenance individual or other skilled

professional. Performing work by non-technical personnel can cause electric shock

hazard.

• Do not perform work other than those specified in this Manual in order to prevent

accidents during performing work and operation after performing work. Performing

work not specified in this Manual may require special training for this product. If

performing work other than those stated in this manual is required for repair, contact

the offices herein stated in this manual or where you purchased the product from and

ask for repair or inquire how to repair.

• Be very careful when soldering. Handling a soldering iron carelessly may result in a

fire or a burn.

• Be extremely careful when heating the heat-shrinkable tube. Failure to do so may

result in a fire or burns.

• Do not drop parts when removing them. Dropping parts may damage them or cause

sudden accidents.

• To prevent accidents, more than one person must perform these operations.

• Exercise extreme caution when handling the internal parts of the Control Panel. Watch

out for damage, warping and loss. The loss of just one piece may result in damage to

or lead to faulty operation of the entire unit.

• When securing the plastic-made parts, do not excessively fasten screws and nuts.

Failure to observe this may damage the parts and cause injury due to fragments

resulting from damage.

• Be sure to perform volume's move value setting in the Volume Setting in the Test

Mode after replacing or adjusting the Volume. (See Section 5.)

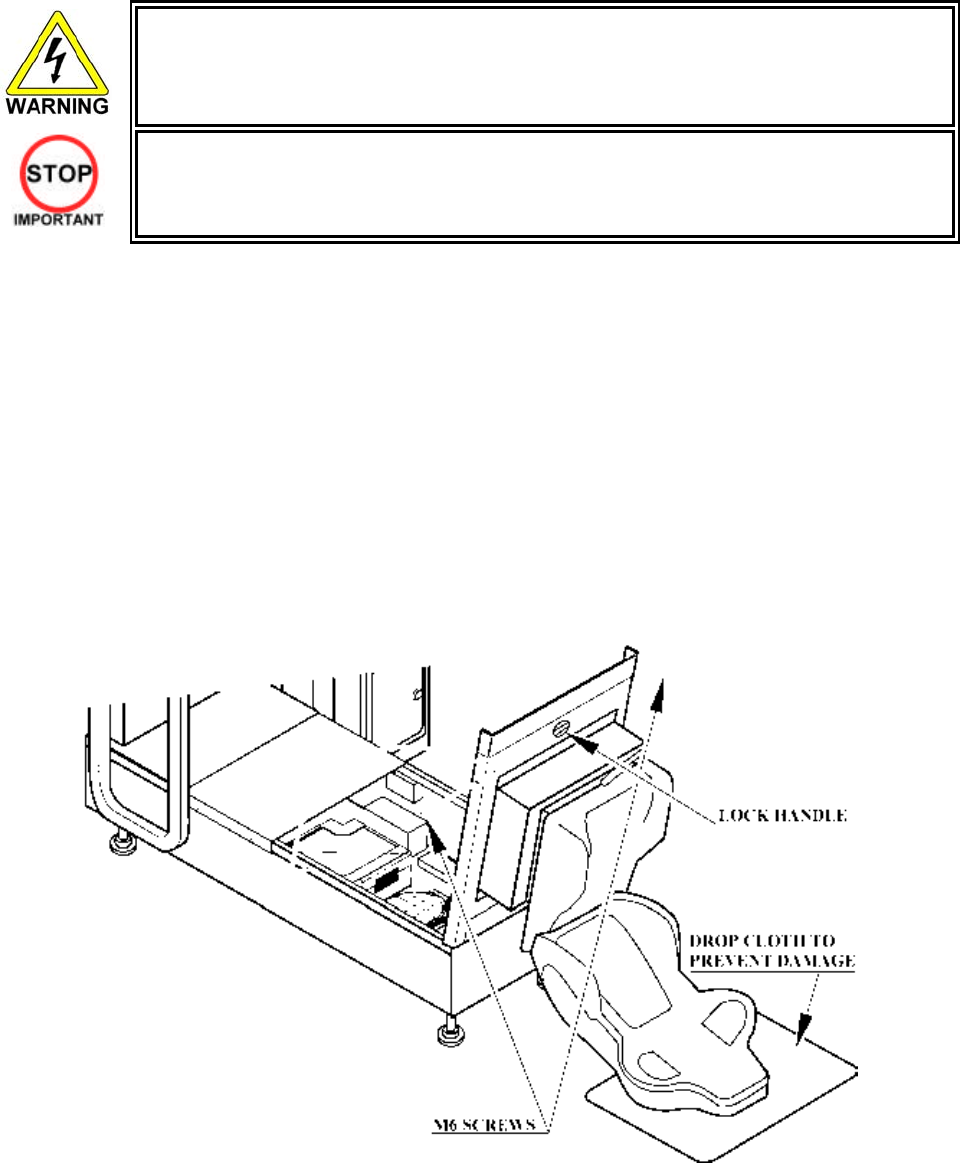

3.9.1. Removing The Control Panel

Poor handle response/lack of response when adjusting the Volume in Test Mode may be caused by faulty

Volume alignment and/or a damaged Volume.

Follow the instructions below to adjust the gear alignment and/or replace the Volume.

If the Volume Shaft is rotating within its normal area of mobility, there is little chance the Volume can be

damaged by rotating the handle as far as possible to the left/right. With the handle in the centre position,

i.e. straight, and the Volume Shaft in the same direction shown in the diagram, attach the Volume so that it

aligns properly with the gears. The recommended value of the VR is within the range 78H | 88H when the

steering unit is in the straight position. In order to adjust or replace the Volume, follow the instructions

below to remove the Control Panel.

A 5 mm hexagonal wrench is required for the following procedure.

1. Turn off the power.

2. A Remove the 6 hexagon socket screws from the Control Panel.

3. The mass of the control panel is

approximately 23 kg. Removal and

installation of the control panel

should be performed by at least 2

people working together. The panel

should be firmly supported using

both hands.

4. Unplug the 8 connectors and re move the

Control Panel. Be careful not to damage

any of the wiring.

3.9.1.1.Adjusting/Replacing The Volume

3.9.1.1.1.Adjustment Procedure

1. Loosen the 2 screws that secure the VR Bracket and move the VR Bracket to adjust the angle

and condition of the gear alignment.

2. Keeping the handle straight, align the gears so that the direction of the D Cut side of the Volume

Shaft matches that shown in the diagram.

3. Tighten the 2 screws and secure the VR Base.

4. Adjust the variable resistor settings on the Volume Setting screen (see 5.2.10.7).

5. Check to make sure the "STEERING X" value on the Input Test screen is within the range 80H+/-

8H when the steering unit is in the straight position.

ISCONNECT CONNECTOR

3.9.1.1.2.Replacement Procedure

This procedure requires the following tools: Philips screwdriver for the M4 screws, 1.5 mm hexagonal

wrench, 11\12mm monkey wrench, nipper, cutter, wire stripper, soldering iron and industrial dryer.

1. Remove the connectors.

2. Remove the 2 screws securing the VR Bracket and remove the entire Bracket and Volume.

3. Loosen the 2 hexagon socket screws on the Gear and remove the Gear.

4. Remove the nut securing the VR Bracket, then separate the Volume from the VR Bracket and

replace it.

5. Adjust the variable resistor settings on the Volume Setting screen.

6. Check to make sure the "STEERING X" value on the Input Test screen is within the range 80H+/-

8H when the steering unit is in the straight position.

3.9.1.2.Greasing

• Be sure to use the designated type of grease. If a non-designated type grease is used,

components may break.

• Do not apply grease to any part of the machine other than those parts specifically

indicated. Doing so may result in malfunctioning and/or deterioration of parts.

• The period for greasing specified herein is a standard. Apply greasing to the specified

portions as occasion arises.

• Be sure to use a good quality, synthetic lubricant. Using a mineral-based lubricant will

cause damage to the plastic parts.

3.9.2. Steering Unit

• In order to prevent an electric shock and short circuit, be sure to turn power off before

performing work by touching the interior parts of the product.

• Be careful not to damage the wires. Damaged wires may cause electric shock or short

circuit or present a fire risk.

• Do not touch undesignated places. Touching places not designated can cause electric

shock or short circuit.

• This work should be performed by the site maintenance individual or other skilled

professional. Performing work by non-technical personnel can cause electric shock

hazard.

• Do not perform work other than those specified in this Manual in order to prevent

accidents during performing work and operation after performing work. Performing

work not specified in this Manual may require special training for this product. If

performing work other than those stated in this manual is required for repair, contact

the offices herein stated in this manual or where you purchased the product from and

ask for repair or inquire how to repair.

• Be very careful when soldering. Handling a soldering iron carelessly may result in a

fire or a burn.

• Be extremely careful when heating the heat-shrinkable tube. Failure to do so may

result in a fire or burns.

• Exercise extreme caution when handling the internal parts of the Steering Unit. Watch

out for damage, warping and loss. The loss of just one piece may result in damage to

or lead to faulty operation of the entire unit.

• When securing the plastic-made parts, do not excessively fasten screws and nuts.

Failure to observe this may damage the parts and cause injury due to fragments

resulting from damage.

• When adjusting or changing the variable resistor, set the variable resistor values on

the Volume Settings screen and check the values on the Input Test screen in Test

mode.

• After adjusting or replacing a microswitch, be sure to verify that the switch turns on

and off correctly on the Input Test screen in Test mode.

If steering unit response is less than ideal and adjusting the settings on the Volume Settings screen in Test

mode has no effect, the problem is most likely due to an incorrectly engaged gear, an improperly placed

microswitch, or a broken variable resistor or microswitch.

Follow the steps listed below to correct the gear engagement, adjust the position of the switch, or replace

the variable resistor or switch.

Refer to Section 12, "Control Panel", for instructions on how to: adjust and replace the direction control

variable resistor.

3.9.2.1.Adjusting And Replacing The Y-Axis VR

The variable resistor that detects the forward and backward tilting operation of the steering unit is called

the Y-axis steering VR. Follow the steps listed below to adjust the gear engagement or re place the VR.

In this machine, the VR will not be damaged as long as its axle is rotating within its range of motion when

the handles on the machine are tilted to their maximum extent. Secure the VR so that its axle points in the

indicated direction and the gear is properly engaged when the handles are not being tilted.

The recommended value of the VR is within the range 70H- 80H when the steering unit is in the horizontal

position (see 5.2.10.2).

The following tools and instruments are required to perform these operations:

• 3mm diameter hexagonal screwdriver or wrench

• M4-size Phillips screwdriver

• 1.5mm diameter hexagonal screwdriver or wrench

• 10mm diameter spanner

• Soldering iron

3.9.2.1.1.Adjustment Procedure

1. Turn off

the power.

2. Remove

the 4

hexagon

socket

screws

around the

boost

button.

3. Remove

the 4 truss

screws

holding the

top and

bottom of

the front

steering

cover in

place.

4. Remove the 4 truss screws holding

the left and right sides of the front

steering cover in place.

5. Detach the front steering cover.

There are several wires connected to

the inside of the cover. Remove the

cover slowly and unplug the

connectors, taking care not to

damage the wiring.

6. Remove the 4 truss screws holding

the top and bottom of the rear

steering cover in place.

7. Remove the 4 truss screws

holding the left and right

sides of the rear steering

cover in place.

8. Push the rear steering cover towards the interior of the machine, pressing down on the accordion-

fold behind the cover. The Y-axis VR should now be visible inside the cover, on the left side when

facing the monitor.

NOTE: The steering unit has been removed in this photograph for better visibility. It is not

necessary to remove the steering unit when performing the actual operation.

9. Loosen the 2 screws holding the

variable resistor bracket in place, move

the variable resistor bracket, and adjust

the gear engagement for angle and

positioning.

10. Engage and secure the gear at such an angle that the D-cut side of the VR axle is horizontal and

facing downward when the steering unit is not tilted.

11. Manipulate the steering unit and make sure the gear is turning smoothly.

12. Repeat the above steps in reverse to replace the front and rear steering covers. Take care not to

pinch the wires or overtighten screws.

Note that the screws used to secure the left and right sides of the front steering cover have

different dimensions from the others. Check the screw sizes before installing them.

13. Adjust the variable resistor settings on the Volume Settings screen (see 5.2.10.7.)

14. Check to make sure the "STEERING Y" value on the Input Test screen is within the range 78H+/-

8H.

3.9.2.1.2.Replacement Procedure

1. Perform steps 1 through 7 under "Adjustment Procedure" to detach the front and rear steering

covers.

2. Unplug the Y-axis VR wire

connectors and unfasten the

harness lug holding the wiring in

place.

3. Remove the 2 screws holding the variable resistor bracket in place and then remove the Y-axis

VR, bracket and all.

4. Loosen the 2 hexagon socket

screws holding the gear in place

and disengage the gear from the

VR axle.

5. The wires connected to the old VR can be

reused for the new VR. Use the soldering iron to

melt the welds and remove the wires from the

VR.

6. Solder the wires to the new VR. Check the

wiring diagram to make sure there are no

mistakes in the wiring.

7. Attach the gear to the new VR.

8. Install the new Y-axis VR. Engage and secure the gear at such an angle that the D-cut side of the

VR axle is level and facing downward when the steering unit is not being tilted.

9. Manipulate the steering unit make sure the gear is turning smoothly.

10. Plug in the wiring connectors and secure the wires with the harness lug.

11. Repeat the above steps in reverse to replace the front and rear steering covers. Take care not to

pinch the wires or overtighten screws.

Note that the screws used to secure the left and right sides of the front steering cover have

different dimensions from the others. Check the screw sizes before installing them.

12. Adjust the variable resistor settings on the Volume Settings screen. (see .)

13. Check to make sure the "STEERING Y" value on the Input Test screen is within the range 78H+/-

8H.

3.9.2.2.Replacing The Microswitches

Movement in the steering unit's paddle levers is detected by 2 microswitches on the bottom of the interior

of the steering cover. Follow the steps listed below to replace or adjust the position of these switches.

Note that each of the 2 microswitches on the bottom of the steering unit is linked to the paddle on the

OPPOSITE side in the "PADDLE LEFT/RIGHT" test on the Input Test screen; that is, the microswitch on

the right controls the "PADDLE LEFT" value, and vice-versa. Check to make sure the switch being

replaced or adjusted is the correct one.

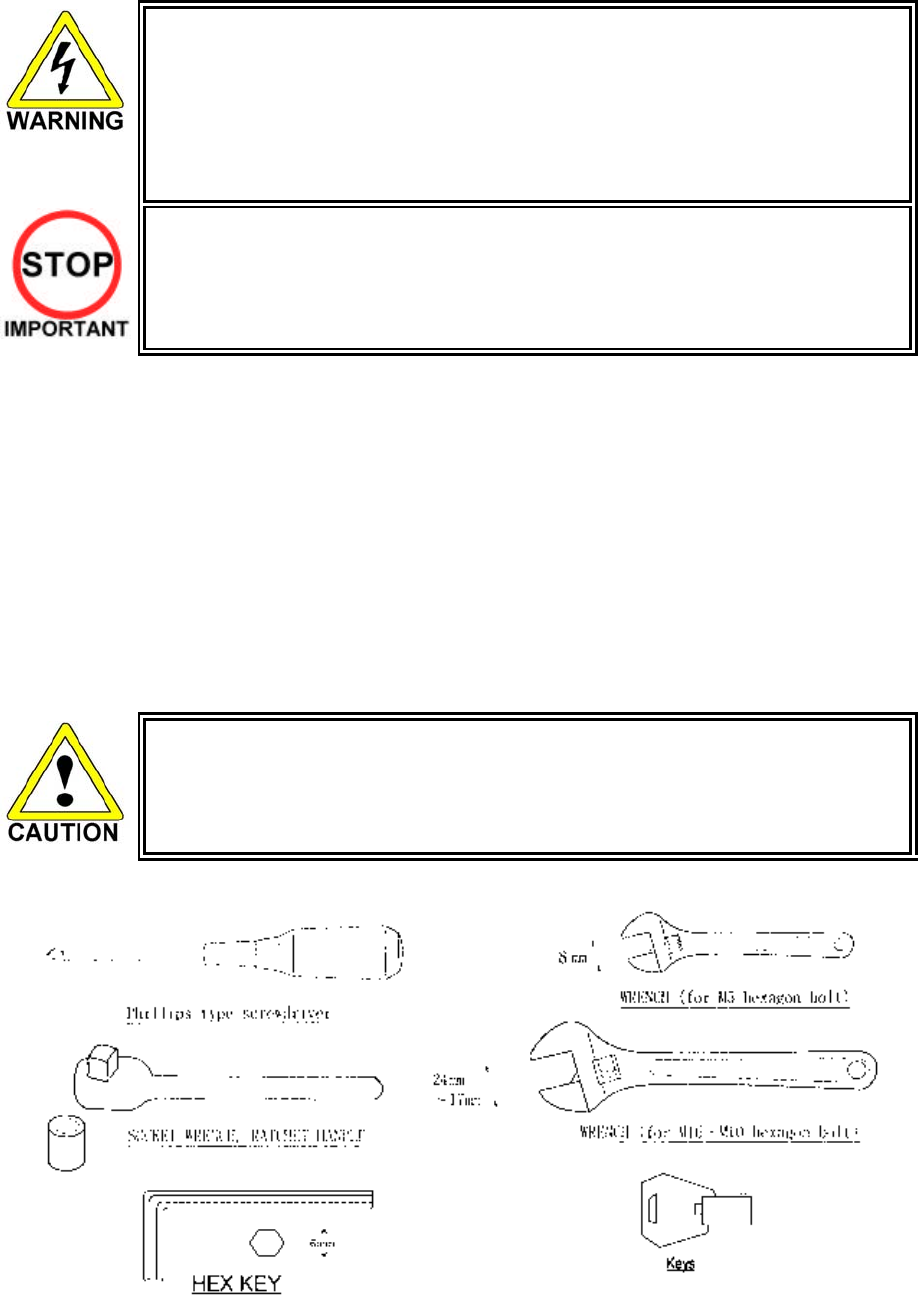

The following tools and instruments are required for the following operations:

• 3mm diameter hexagonal screwdriver or wrench

• M4-size Phillips screwdriver

• M3-size Phillips screwdriver

• Nippers

• Cutters

• Soldering iron

• Industrial dryer

3.9.2.2.1.Adjustment Procedure

1. Perform steps 1 through 7 for adjusting the Y-axis VR to remove the front steering cover and

detach the rear steering cover (see 3.9.2.1).

2. Loosen the 2 screws securing the SW ADJUST plate on which the microswitch to be adjusted in

installed, and then move the SW ADJUST plate to adjust it. Do not loosen the screws on the side

the microswitch is installed on.

3. Adjust the switch so that the roller on its actuator terminal touches the pin that interlocks with the

paddle lever when the lever is not being manipulated.

4. Tighten the 2 screws.

5. Manipulate the paddle lever to make sure the microswitches are turning on and off properly.

Listen for a clicking sound. Also, make sure that the switch does not adhere to the actuator itself

when turned on.

6. Replace the front and rear steering covers. Take care not to pinch the wires or over tight en the

screws.

Note that the screws used to secure the left and right sides of the front steering cover have

different dimensions from the others. Check the dimensions of the screws before installing them.

7. On the Input Test screen, check to make sure that the microswitches turn on and off consistently

when the paddle levers are manipulated (see 5.2.10.2).

3.9.2.2.2.Replacement Procedure

1. Remove the front steering cover and detach the rear steering cover (see 3.9.2.1).

2. Unplug the wire connectors from the

microswitch and unfasten the harness

lug holding the wires in place

3. Remove the 2 screws holding the SW ADJUST plate in place and then remove the microswitch

together with the SW ADJUST plate.

4. Remove the 2 screws securing the microswitch to be replaced and then remove the SW ADJUST

plate and the transparent insulation sheet.

5. The wires connected to the old microswitch can be reused for the new microswitch. Remove the

heat contraction tube covering the soldered areas, use the soldering iron to melt the solder, and

remove the wires from the microswitch.

6. Solder the wires to the new microswitch. Check the wiring diagram to make sure there are no

mistakes in the wiring. In addition, use a heat contraction tube or other protection to prevent

short-circuiting.

7. Attach the SW ADJUST plate and the insulation sheet to the new microswitch and secure them

with 2 screws. Be sure to insert the insulation sheet between the switch and the plate.

8. Install the SW ADJUST plate with the new microswitch in the bottom of the steering unit. Adjust

the position of the plate so that the roller on the microswitch's actuator terminal touches the pin

that interlocks with the paddle lever when the lever is not being manipulated, and secure it with 2

screws.

9. Connect the wire connectors and secure the wires with a harness lug.

10. Manipulate the paddle lever to make sure the microswitches are turning on and off properly.

Listen for a clicking sound. Also, make sure that the switch does not adhere to the actuator itself

when turned on.

11. Replace the front and rear steering covers. Take care not to pinch the wires or over tight en the

screws.

Note that the screws used to secure the left and right sides of the front steering cover have

different dimensions from the others. Check the dimensions of the screws before installing them.

12. On the Input Test screen, check to make sure that the microswitches turn on and off consistently

when the paddle levers are manipulated (see 5.2.10.2).

3.9.2.3.Greasing

• Be sure to use the designated type of grease. If a non-designated type grease is

used, components may break.

• Do not apply grease to any part of the machine other than those parts

specifically indicated. Doing so may result in malfunctioning and/or deterioration

of parts.

• The period for greasing specified herein is a standard. Apply greasing to the

specified portions as occasion arises.

Use spray grease once every three months to grease up the gear mesh portion of the constituent parts.

Use "Grease Mate" (part number 090-0066) for the spray grease.

3.9.3. Card Reader/Writer Unit

• Take care to work on the machine with the power turned off. In the powered

state, the machine may operate suddenly and can cause fingers to be pinched

or cut.

3.9.3.1.Setting Dedicated Cards

• Be sure to use dedicated cards available for this product. Use of ones other

than such dedicated cards may cause a malfunction or failure of the machine.

• Be sure to set the specified number of card in the specified orientation by

using the specified procedure. Wrong setting of the cards may cause the

machine to fail.

• This machine allows you to set up to 100 cards at a time. You must not set

over 101 cards at a time. If you do so, a trouble such as card jamming may

occur.

• Set virgin cards taken out from a container that was unpacked immediately

before use.

• Use of any deformed or deteriorated card may cause a trouble.

• Do not include a corrugated, bent, or used card in the card deck.

When the unit is out of cards, a message will be displayed at the upper right of the screen during

advertisements. Follow the instructions below to restock the system with cards. Cards may be stocked

when the unit is on or off.

After restocking the system with cards, the message displayed after the "SEGA" logo will be updated.

Gameplay can be resumed without waiting for the updated message.

Remove the truss screw

A) Unlock and open the cover to find the card reader/writer.

The dispenser on which you should place the cards is located at the rear of the reader/writer.

B) From the card reader/writer, take out the dispenser upward in a straight line.

C) Remove the cover from the back of the dispenser.

Place the cards into the dispenser according to the instructions on the sticker attached to the dispenser.

Refer to the diagram shown on the sticker and insert the cards. Be careful not to insert the cards in the

wrong direction or with the wrong side facing up.

The Dispenser can only hold 100 cards. Do not attempt to insert more than 100 cards, as too many

cards may cause the Dispenser to jam or result in other problems.

Insert magnetic cards into the Dispenser in complete packs of 100 or after carefully counting the

number of cards (not to exceed 100).

E) Reinstall the cover to the dispenser.

F) Insert the dispenser into the card reader/writer. The dispenser can be inserted only in the

predetermined orientation.

G) Close and lock the cover.

H) Secure with the truss screw

3.9.3.2.Head Cleaning

• The unit enters Head Cleaning Mode when any of the following conditions are

met:

• At power-up if the Card Reader/Writer has operated 100 times or more

• At power-up if the date has been updated

• At boot time after performing Backup Data Clear

• Once the unit enters Head Cleaning Mode, follow the on-screen instructions and

perform Head Cleaning. The unit will not exit Cleaning Mode (i.e. games may not

be played) until head cleaning is complete.

• Always use the designated Cleaning Card. Using anything other than the

designated card or carrying out any other procedure other than

the one outlined in

the manual may cause faulty printing, faulty operation and/or unit failure.

• Cleaning Cards may only be used once. Dispose of them after use.

• Cleaning Cards should be used immediately after removal from the package.

Cleaning Cards will not clean effectively if dried out.

• Perform head cleaning only when there are cards in the Card Reader/Writer

Dispenser. If the Dispenser is empty, the part that secures the cards inside the

Dispenser may touch the rotating part of the Card Reader/Writer and cause

noise.

• Always remember to remove the Cleaning Card after completing head cleaning.

• After head cleaning, wait for the "SEGA LOGO" to be displayed at least twice

before resuming gameplay.

This machine records the number of times the Card Reader/Writer is used.

The Card Reader/Writer writes data to and reads data from cards. Each write and read is counted, so the

Card Reader/Writer usage count will not be the same as the number of times the game is played.

Once head cleaning of the Card Reader/Writer is complete, the unit will exit this mode.

Follow the on-screen instructions to carry out cleaning.

PLEASE INSERT CLEANING CARD

Insert the Cleaning Card into the card slot.

NOW CLEANING...

Indicates that the unit is undergoing cleaning. Wait for cleaning to be

completed.

The unit exits to normal mode after cleaning is complete.

Do not forget to remove the Cleaning Card.

Wait for the "SEGA LOGO" to be displayed at least twice before

resuming gameplay after cleaning.

The Card Reader/Writer usage count described above is reset when cleaning is performed.

Manual head cleaning may also be performed from Test Mode. Refer to Test Mode Section 5.2.10.6 for

more details.

3.9.3.3.Clearing Card Jams

When attempting to perform this operation without powering down so that

gameplay can be restored, exercise extreme caution. Machine parts may move

unexpectedly when the power is ON. This may result in fingers being caught or

severed and other injuries.

Verify the Stay Lock on the top cover before attempting this procedure. If the top

cover closes during the procedure, it may result in serious injury.

If a problem, such as card jamming, occurs on the card reader/writer it will be reported on the screen. Play

cannot proceed unless this problem is resolved. Identify the nature of the problem before any action is

taken.

If repeated attempts continue to generate errors, follow the instructions below to remove the card.

Removing the card may force the game to shut down. If the game shuts down, existing customer game

data will not be saved.

A) Remove the truss screw.

B) Unlock and open the cover.

C) Unlock the hatch by drawing the green

shaft attached to the top cover on the

card reader/writer. While drawing the

shaft, open the cover up.

D) Remove the card jammed in the card

reader/writer.

E) While drawing the shaft,

close the cover. With the top

cover closed, release the

green shaft. Check that the

top cover has been locked

securely.

E) Close and lock the cover.

F) Secure with the truss screw.

3.9.4. Accelerator & Brake

• Only Qualified Service Personnel must carry out maintenance. Ensure that the

mains power is switched OFF and disconnected before attempting any work.

In the TEST MODE, if the brake or accelerator V.R. variations are not within the allowable limit, the V.R.

installation position requires adjustment or the V.R. needs replacement. Also be sure to apply grease to all

moving parts every 3 months.

3.9.4.1.Removing the Accelerator & Brake.

1. Turn the POWER switch OFF

2. Remove a total of 4 screws securing the

covers over the ACCELERATOR & BRAKE

3. Fine adjustment of the V.R. values is

accomplished with just these covers

removed.

4. Coarse adjustment requires the

ACCELERATOR & BRAKE mounting bolts to

be removed. If this is necessary, remove the

bolts from the unit, but do not remove the

unit from the machine. Take extreme care

when operating the unit in this condition as

damage to other components can occur.

3.9.4.2.Adjusting the V.R.

• Never touch places other than those specified. Touching places other than

those specified can cause electric shock and short circuit.

• After the replacement or adjustment of the V.R. be sure to set the values in the

INPUT TEST.

1. Remove the cover panels as detailed above.

2. Fine Adjustment - By using a screwdriver

loosen the 2 machine screws that secure the

V.R. arm. Move the V.R. arm to adjust the V.R.

value within the relaxed range.

3. Coarse Adjustment - Remove the four hexagon

bolts detailed above and remove the side

covers of the Accelerator & Brake.

4. Loosen the two machine screws holding the

V.R. rack

5. Move the V.R. rack away so as to disengage

the V.R.

6. Gently rotate the V.R. until its value is within the

range of the centring position.

7. Mesh the gears together. Make sure that a

correct amount of backlash is maintained.

8. If the V.R. value is still not correct make fine

adjustments as detailed above.

The required values are:

GAS PEDAL: Under 30H ⇒ Over C0H

BRAKE PEDAL: Under 30H

(THE PEDAL

RELEASED)

⇒ Over C0H

(THE PEDAL

PRESSED)

3.9.4.3.Replacing the V.R.

1. Loosen and withdraw the V.R. rack as detailed above.

2. Using a hexagon key loosen the two grub screws holding the V.R. gear onto the V.R.

3. Remove the V.R. gear

4. Using a spanner remove the nut holding the V.R. in position.

5. Gently remove the V.R. and its wire harness.

6. Refit is the reverse of removal.

7. When complete you must readjust the V.R. in accordance with the paragraph above.

3.9.4.4.Greasing

• Be sure to use a good quality, synthetic lubricant. Using a mineral-based lubricant will

cause damage to the plastic parts.

• Do not apply lubricant to parts other than those specified. Doing so may cause

damage or deterioration of parts.

Apply lubricant to gear mesh portions once every 3 months.

3.10. Replacement Of Fluorescent Lamp And Other Lamps

• Never touch places other than those specified. Touching places other than those

specified can cause electric shock and short circuit. Disconnect the machine

from the supply before attempting the replacement of any lamp.

• Prepare a secure step when working on the upper parts of the machine.

• Only QUALIFIED SERVICE PERSONNEL should replace lamps.

3.10.1.Fluorescent Lamp Replacement

1. Turn the POWER switch OFF.

2. Take out the 3 screws and open the Billboard lid.

3. Remove the end caps from the fluorescent tube.

4. Pull the tube out of the clips with a twisting

action.

3.11. Cleaning The Cabinet Surfaces

When the cabinet surfaces are badly soiled, remove stains with a soft cloth dipped in water or diluted

(with water) chemical detergent and squeezed dry. To avoid damaging surface finish, do not use such

solvents as thinner, benzine, etc. other than ethyl alcohol, or abrasives, bleaching agent and chemical

dustcloth.

3.12. Seat (Greasing To Seat Rail Portion)

Move the Seat to the rearmost position

and apply spray greasing to the portion

shown at the right once every 3 months by

using NOK KLUBER L60 or GREASE

MATE SEGA PART No. 090-0066.

After greasing, move the Seat a few times

forward and backward so as to allow the

grease to be applied all over uniformly. Be

sure to wipe grease which attaches to the

surfaces of the PROTECT RUBBER on

the Seat Rail, or any excess grease.

3.13. Troubleshooting

• Only QUALIFIED SERVICE PERSONNEL should carry out these procedures.

3.13.1.Card Reader/Writer

If this machine detects an error during the operation of the Card Reader/Writer, it will display the error

messages listed below. Perform the appropriate maintenance based on the content of the error message

displayed.

Should an error occur, do not attempt to open the top cover of the Card Reader/Writer. The unit will

attempt to save the data to the customer's card and restore the game if the top cover is closed and the

RESTORE command (hold down the Start button + Change View button for a short time) is used.

However, attempting to use the RESTORE command after the top cover has been opened may force the

game to shut down and not save data to the card.

When the game shuts down or the unit is reset, the data on the customer's card is not saved. In order to

save customer data, perform the proper maintenance carefully.

ERROR DISPLAY CAUSE COUNTERMEASURES

Error occurred while reading

card. Card will be ejected

without saving data. Please

press the Start and Change

View buttons.

This message is displayed after

several failed attempts to save data

to the card at the end of the game.

Press the Start button and Change View

button at the same time to eject the card and

end the game.

Error occurred while saving

data. Please notify a store

attendant. Please press the

Start and Change View

buttons.

This message is displayed after

several failed attempts to print at the

end of the game.

Leave the card in place and press the Start

button and Change View button at the same

time to retry the save operation.

Remove the card and press the Start button

and Change View button at the same time to

restore or end the game.

If this error occurs several times, use Test

Mode to perform manual cleaning. (See

Cleaning Section 3.9.3.2)

Printing error. Card will be

ejected without printing or

saving data. Please press

the Start and Change View

buttons.

This message is displayed after

several failed attempts to read the

card at the end of the game.

Press the Start button and Change View

button at the same time to eject the card and

end the game.

A shutter error has

occurred. Please remove

any cards present in card

insertion slot. Please press

the Start and Change View

buttons.

This message is displayed when the

shutter is forced open or if the unit

detects a problem with the shutter.

This message is displayed when the

unit is unable to open/close the

shutter.

Correct the problem, then press the Start

button and Change View button at the same

time to restore the game. Circumstance may

force the game to shut down.

Correct the problem, then press the Start

button and Change View button at the same

time to restore the game.

This card cannot be used.

Card will be ejected without

saving data. Please press

the Start and Change View

buttons.

This message is displayed when the

card in the Card Reader/Writer is not

a proper player card at the end of the

game.

Press the Start button and Change View

button at the same time to eject the card and

end the game.

Card jam. Ejecting card.

Please press the Start and

Change View buttons.

This message is displayed when

various operations fail because of

dirty rollers or heads.

Press the Start button and Change View

button at the same time to eject the card and

restore the game.

If this error occurs several times, use Test

Mode to perform manual cleaning. (See

Section 3.9.3.2)

Continued from previous page

ERROR DISPLAY CAUSE COUNTERMEASURES

There is a problem with the

card reader/writer. Please

notify a store attendant.

Please turn off the power

and start again.

This message is displayed when

there is a problem with the Card

Reader/Writer and it sends improper

signals.

Verify there are no problems with the

shutter and that the top cover is closed

and then restart the unit.

The card reader/writer is not

responding. Please notify a

store attendant. Check the

card reader/writer is

connected properly, turn off

the power and start again.

This message is displayed at power-

up during advertisements when the

Card Reader/Writer is not connected

properly or when it is broken and

unresponsive.

Verify that the Card Reader/Writer is

connected properly and then restart the

unit.

SCIF Error. Please notify a

store attendant. Check that

the card reader/writer is

connected properly, turn off

the power and start again.

This message is displayed when a

communication error occurs between

the Card Reader/Writer and the

game board.

Verify that the Card Reader/Writer is

connected properly and then restart the

unit.

If this error occurs several times, check

the immediate area for sources of

possible interference.

This message is displayed when

various operations fail because of

dirty rollers or heads.

Leave the card in place and press the

Start button and Change View button to

retry the operation.

Remove the card and press the Start

button and Change View button at the

same time to restore or end the game

(refer to 3.9.2).

If this error occurs several times, use

Test Mode to perform manual cleaning.

Card jam. Remove the card

and press the Start and

Change View buttons. If the

card cannot be removed,

please notify a store

attendant.

This message is displayed when a

card jam is suspected when there

should be no card in the Card.

Press the Start button and Change View

button at the same time after removing

the card or correcting the problem to

restore the game.

The following error messages are displayed when problems are detected during unit power-up (during

initialization of the Card Reader/Writer). Perform the appropriate maintenance based on the content of the

error message displayed.

ERROR DISPLAY CAUSE COUNTER MEASURES

CARD R/W ERROR! This message is displayed at

power-up when the Card

Reader/Writer is not

connected properly or when

it is broken and

unresponsive.

Verify that the Card Reader/Writer is

connected properly and then restart

the unit..

If broken, contact the company from

whom the unit was purchased.

PLEASE INSERT CLEANING CARD. This message is displayed

when the conditions

prompting an automatic Card

Reader/Writer cleaning are

met.

Perform the Card Reader/Writer

cleaning. (See 3.9.3.2)

PLEASE WAIT This message is displayed

during network setup while

the other unit is being

initialized.

This message disappears once

initialization of the other network

game unit is complete.

This message is displayed at

power-up when, after

attempting to do so, the Card

Reader/Writer is unable to

eject a card for some reason.

Remove all cards from the Card

Reader/Writer. (See 3.9.3.)

CAN'T EJECT

This message is displayed at

power-up when the shutter

cannot be opened/closed

properly.

Verify that there are no problems with

the shutter and then restart the unit. If

this error occurs several times,

contact the company from whom the

unit was purchased.

The following messages are displayed when there are limits to the Card Reader/Writer Operation Mode.

The messages are displayed in the upper right of the screen during advertisements. The message content

is updated after the "SEGA LOGO" is displayed.

If the message is not one displayed intentionally by the Operation Mode, perform the appropriate

maintenance based on the content of the error message displayed.

ERROR DISPLAY CAUSE COUNTER MEASURES

The machine is currently

unable to issue new cards.

Please see a store attendant to

have the machine restocked

with cards.

The Card Reader/Writer

Dispenser is empty (no cards). Restock the Dispenser with cards.

(See 3.9.3)

If no cards are available, contact the

company from whom the unit was

purchased

Cards may not be used at this

time. Cards may not be used due to

the Store Closing setting being

activated.

If there is a mistake in the settings,

use Test Mode to change the Store

Closing setting.

If the setting is correct, but not

operating properly, check the internal

clock settings on the game board

(Refer to the Service Manual.)

3.13.2.Troubleshooting (When No Error Message Is Shown)

• In order to prevent electric shock and short circuit, be sure to turn power off

before performing work.

• Be careful so as not to damage wirings. Damaged wiring can cause electric shock

or short circuit.

• After removing the cause of the functioning of the Circuit Protector, reinstate the

Circuit Protector. Depending on the cause of the functioning, using the Circuit

Protector as is without removing the cause can cause generation of heat and fire

hazard.

• In the event that a problem cannot be resolved by employing the procedures

listed in this Manual, be sure to request service from the office shown on this

Manual or the dealer from whom the product was originally purchased. Attempts

to employ procedures other than those specified in this Manual can cause

electrical shock, shorting, or fire.

• In the event of a problem that is not described here, be sure to contact the office

shown on this Manual or the dealer from whom the product was originally

purchased. Careless attempts at repair can result in electrical shock, shorting, or

fire.

If a problem occurs, first check to make sure that the wiring connectors are properly connected.

PROBLEM CAUSE COUNTER MEASURES

The power is not ON. Firmly insert the plug into the outlet.

Incorrect power source/voltage. Make sure that the power

supply/voltage are correct.

When the main SW is

turned ON, the machine

is not activated.

The fuse of the connect board was blown

out due to momentary overcurrent. After eliminating the cause of

overload, replace the specified rating

fuse.

Connector connection fault. Check connector connections

between the Cabinet and the FL box.

Fluorescent lamp inside

FL box doesn't light up. Fluorescent lamp and Glow lamp need

replacement. Replace the fluores

cent lamp and the

glow lamp (See Section 3.10)

PROBLEM CAUSE COUNTER MEASURES

Sound volume adjustment is not

correct. Adjust the Switch Unit's sound adjustment

volume.

Faulty connections for various

connectors. Check the connections for the game board,

amp, speakers and Volume connectors.

Sound is not emitted.

Malfunctioning BD, Amp. and

Speaker. Perform SOUND TEST. (See 5.2.5)

Faulty connections for the visual

signal connector or the monitor

power connector.

Check the connections for the monitor and

game board connectors.

Sounds are emitted and

the lamps are lit, but the

screen is black.

Broken monitor. Contact the company from whom the unit

was purchased.

Irregular/uneven colors on

the monitor screen. Magnetization of the CRT. Press the Degauss. switch on the VTS

Assembly (See Section 5.1.1.)

Faulty connection for the visual

signal connector. Check the visual signal connector

connection and make sure it is secured

properly.

Colors on the monitor

screen are strange.

Screen adjustment is not appropriate.

Make adjustment appropriately. (See

Monitor Manual)

The on-screen image

sways and/or shrinks.

The power source and voltage are no

correct. Make sure that the power supply and

voltage are correct.

Check the connection for the I/O Board and

Cabinet connector.

Does not accept input

from any switch or

volume.

Faulty connector connections.

Check the power for the I/O Board.

Incomplete power on check. Power on and verify that the power on

check completes properly. (See 3.7.8 )

Deviation of the volume value. Adjust the volume value in the Test Mode.

Volume gear engagement fault. Adjust the engagement of the gear. (See

Sections 3.9)

Volume malfunctioning. Replace the volume. (See 3.9.)

STEERING (Servomotor)

response is incorrect.

Detached wires. Check for faulty wire connections around

moving parts.

When replacing wires, secure them so that

they do not touch any moving parts.

PROBLEM CAUSE COUNTER MEASURES

Failure of power-on checking

procedure. Reconnect the power and complete a

power-on checking procedure. (See

Section 3.7)

Faulty connector connections. Check the connections for the connectors

between the Game Board and

Servodriver and between the Servodriver

and the Servomotor.

Thermal element in the

Servodriver is operating. Occurs when the internal temperature

reaches 70°C (158°F) and corrects

automatically when the unit cools.

No response from Steering

(Servomotor).

Momentary overload caused a fuse

on the Servodriver to blow. Contact the company from whom the unit

was purchased.

Steering (Servomotor) is

week in its force feedback. Aging of the force feedback

mechanism. Reset in the Test Mode.

Incorrect volume setting. Adjust the volume value in the Test

Mode. (See Section 5.)

Faulty Volume attachment or

adjust gear alignment. Adjust the volume attachment and verify

in Test Mode. (See Section 5.)

Faulty connector connection. Check the connections for the Accel and

Brake connectors and the connectors

between the Accel, Brake and Cabinet.

Unsatisfactory Accel and

Brake operation.

Failure of the volume. Replace the volume.

Start button and Change

View button input does not

work and they do not flash.

Faulty connector connections. Check the connections for the connectors

between the I/O Board, the Cabinet and

the Control Panel and those inside the

Control Panel.

Unverified settings or operation. The Start button only flashes when Free

Play is set. Check the operation in Test

Mode.

(See Section 3.9)

Start button and Change

View button input works,

but they do not flash.

The lamp is burnt out. Replace the lamp.

Network play is wrongly set. Reset correctly. (See Section 5)

Communication cables are wrongly

connected.

Communication cables are

disconnected.

Reconnect the cables.

(See Sections 3.7 and 5)

Failure of the network play.

Damage of communication cables.

Reconnect cables correctly. (See Section

Replace the cables. Contact the

company from whom the unit was

purchased.

3.14. Gameboard

• Turn off the mains power and remove the power cord before opening the machine.

• The GAME BOARD should not require any work to be carried out upon it. All settings

and tests can be achieved without access to the GAME BOARD.

• All work to be carried out by QUALIFIED SERVICE PERSONNEL

3.14.1.Removing The Board

To return the game board for servicing, take out the board using the following procedure.

1. Turn the main switch OFF.

2. Unlock the base and remove the 2 M6 bolts.

3. Tip the seat carefully backwards as shown. Be careful not to damage the seat back when resting it on

the floor. Use a protective mat under the seat back to protect it on hard floors.

4. Disconnect all connectors from the game board, remove the four screws securing the game board to

the wooden base, and lift it out. Do not attempt to service the game board. THERE ARE NO USER

SERVICEABLE PARTS INSIDE! Return the game board to the Service Department inside the special

packaging provided.

3.14.2.Removing The GD-ROM Drive

1. Turn the power off.

2. Remove 1 truss screw from each side of Base Lid R.

3. Unlock the base with the Master Key.

4. Turn the Lock Handle on Base Lid R to unlock the lid.

5. Lower the seat towards the backrest. Slowly lower the backrest until it touches the floor to prevent

damage to the seat part. Put a drop cloth on the floor to prevent damaging the surface of the seat

part.

6. Remove the GD cable connector and the power cord connector from the GD-ROM drive.

7. Remove the 4 screws to remove the GD-ROM drive.

3.14.3.Removing The Game Board (Triforce)

• When returning the game board for replacement or repair, make sure that the

connectors are attached correctly. Incorrect connections can lead to accidents such as

electric shock, short circuits, and/or fire.

• When plugging in connectors, pay close attention to the direction of the connection.

The connectors are designed to be connected in a specific direction. Attempting to

plug in a connector by applying excessive force may damage the connector or its

terminal clasp, possibly resulting in electric shock, short circuits, and/or fire.

1. Follow the above described action 1 to 5.

2. Remove all the connectors from the TRIFORCE.

3. Remove the 3 screws that fix the Game Board.

3.14.4.Composition Of The Game Board

• With the key chip installed, the TRIFORCE board becomes a proprietary game board

for this product.

ASSY TRF FZR USA (842-02DD511U): USA

ASSY TRF FZR EXP (842-02DD511E): OTHERS

ASSY TRF FZR ASIA (842-04DD511E): ASIA

3.14.4.1.DIP SW Setting

Use this product with the DIP SW settings shown in the figure below.

3.14.5.Replacing The Main Board Battery

• To prevent overheating, explosion, or fire:

• Do not recharge, disassemble, heat, incinerate, or short the battery.

• Do not allow the battery to come into direct contact with metallic objects or other

batteries.

• To preserve the battery, wrap it in tape or other insulating material.

• Follow local regulations when disposing of the battery.

• Improper disposal can damage the environment.

• To avoid risk of malfunction and damage:

• Make sure the positive and negative ends are aligned correctly.

• Use only batteries approved for use with this unit.

• If an error appears indicating that the battery power is very low within the first year of

use, it is usually an indication of a problem or abnormality with something other than

the battery. Be sure to inspect the board that the battery is connected to.

1. Remove the 5 screws holding the TRIFORCE and its cover in place.

2. Slide the cover off of the TRIFORCE, being careful of the hook that holds them together.

3. Gently remove the battery from the battery holder. The battery holder is located on the very

bottom of the main board.

4. Insert the new battery (CR2032) so that the + terminal is pointing upward.

Removed batteries should be disposed of in accordance with relevant national laws and/or local

regulations.

TRIFORCE MAIN BOARD BATTERY

SEGA PART No.: 401-0065

SEGA PART NAME: BATTERY CR2032 HITACHI

3.14.6.Replacing The DIMM Board Battery Pack

3.14.6.1.Warnings And Restrictions Concerning The Battery Pack

Observe the following precautions when handling the DIMM board's battery pack. Sega cannot assume

responsibility for any problems that arise from handling the battery pack in disregard of the guidelines set

forth in the manual.

• Do not disassemble the battery pack and the batteries.

• If you should fail to observe this instruction, the internal wires and/or protective

devices may be damaged; as a result the safety system may not function when

discharging and recharging, eventually causing an over heating, fire and explosion. If

you should disassemble the batteries, the generated gases may harm your throat and

the negative plate may overheat and make a fire.

• Do not make an external short circuit of the battery pack and the batteries.

• If you should fail to observe this instruction, the batteries may overheat, make a fire,

and explode.

• Do not fire the battery pack and the batteries.

• If you should fail to observe this instruction, the batteries may make a fire and

explode.

• Do not leave the battery pack and the batteries nearby the heat source (fire or heater)

or under the intense direct sunlight and flaming sun. If you should fail to observe this

instruction, the batteries may reduce the service life and in the worst case may

overheat, make a fire, and explode.

• Do not leave the battery pack and the batteries in water or seawater. Also do not apply

water or seawater onto the battery pack and the batteries. If you should fail to observe

this instruction, the internal wires and/or protective devices may be damaged; as a

result the safety system may not function when discharging and re charging,

eventually causing an overheating, fire and explosion. Also water may be electrolyzed

into oxygen and hydrogen, and eventually the battery's sealed section may be

corroded and the internal liquid may leak.

• Do not solder on the battery pack's terminals.

• If you should fail to observe this instruction, the armor may be heated and melted or

the internal wires may be damaged, eventually causing an overheating, fire and

explosion. Also, when the battery's temperature reaches to 100C or more, the battery

may leak its internal liquid due to destruction of its plastic parts (gasket, separator,

etc.), or may overheat, make a fire, or explode due to internal short-circuit.

• Do not insert or connect the battery in a reversal polarity.

• If you should fail to observe this instruction, the battery may be externally short-

circuited and eventually overheat, make a fire, or explode, depending on the device

you connect with.

• Do not tightly seal the battery pack when installing it onto an external device.

• Flammable gas is generated from the battery when its safety mechanism has

functioned. If you should fail to observe the above-described instruction, sparks from

motors, switches, etc. may cause the gas to fire. Therefore, install the battery pack so

that the gas can be quickly released from the external device.

• Do not use the battery pack for the device/usage other than this game system.

• If you should fail to observe this instruction, the battery and/or the device may be

damaged due to non-applicable specifications.

• Do not strike a nail in, hammer, step on, or apply any other forms of pressures and

shocks on, the battery.

• If you should fail to observe this instruction, the battery may be deformed. As a result,

the battery may burst at its sealed sections to leak the internal liquid, or may be short-

circuited internally to overheat, make a fire, and explode.

• Do not use a battery charger because any battery charger is not usable for this battery

pack.

• If you should fail to observe this instruction, the gas may be suddenly generated in the

battery and eventually the battery may overheat, make a fire or explode.

• If the battery in use or in keeping shows an abnormal indication (deformation, change

of colour, bursting of the armour cover, etc.), immediately stop using or keeping it. If it

leaks and smells abnormally, immediately keep it away from fire and put it in a safety

box.

• If the liquid leaks from the battery and gets in your eyes, do not rub your eyes but

immediately wash them with clean water (city water etc.); and consult a medical doctor

for a treatment. If you should fail to observe this instruction, the liquid may harm your

eyes.

• The battery pack armour (a polyvinyl chloride tube) may be damaged or deformed by

external force or heat. When transporting the battery pack or replacing it with a new

one, therefore, be careful not to drop or excessively shock it. Do not continue to use

any damaged or deformed battery pack. If you should fail to observe this instruction,

the battery may overheat, make a fore, or explode.

• The battery pack contains a printed circuit board (PCB) for protective circuitry. It may

be destroyed by the static electricity. When handling or servicing the battery pack,

therefore, take preventive measures against the static electricity.

• If your battery pack has shown destruction of a protective circuitry PCB, do not

continue to use it. If you should fail to observe this instruction, the battery may

overheat, make a fore, or explode.

• When wiring the battery pack to a device, be careful not to apply excessive force onto

the connectors and lead wires. The battery may overheat, make a fire, or explode if

the connectors and lead wires are damaged.

• Do not do away with the used battery packs carelessly because they may contaminate

the environment. Submit them to an industrial waste disposal plant.

• Be sure to dispose of the used battery pack in accordance with relevant national laws

and/or local regulations.

If the GD-ROM drive appears to be taking too long to read the disc, the battery pack on the DIMM board

may need replacing. The battery pack should last approximately 16 months under normal usage.

There is no recharging unit for the battery pack.

Follow the steps listed below to replace the battery pack.

1. Follow steps 1 and 2 in Section 3.14.5 to remove the cover.

2. Unplug the battery pack's connector.

3. Remove the single tapping screw and slide the battery holder cover to remove it.

4. Remove the battery pack.

5. Repeat the above steps in reverse to install the new battery pack.

The used battery pack is considered industrial waste.

As such, it should be disposed of in accordance with relevant national laws and/or local regulations.

DIMM BOARD BATTERY PACK

SEGA PART No.: 401-0081

SEGA PART NAME: BATTERY PACK CGR-B/246A

3.14.7.Shipping The Game Board And GD-ROM Drive

Observe the following precautions when sending the TRIFORCE or GD-ROM drive out for servicing or

repairs.

The carton boxes (included) are needed to ship these parts, and should therefore be stored in a safe place

to ensure that they are not lost.

• When sending parts in for repairs, they should be configured as follows:

(1) TRIFORCE:

- Leave the key chip installed in the board.

(2) GD-ROM drive:

- Remove the drive bracket.

- Eject the GD-ROM disc, place it in its case, and store in a safe place.

• Remove the wire harnesses and cables from the TRIFORCE and GD-ROM drive before sending

them in for repairs.

• Do not disassemble the TRIFORCE or GD-ROM drive. Place them in the carton box as is when

sending them in for repairs.

• Provide a clear, detailed description of the game used and the observed problems when sending

to the indicated repair center.

3.14.7.1.How To Use The Triforce Carton Box

Fold the packaging in the order specified in the diagram and wrap it around the TRIFORCE, making sure

that board and box are aligned correctly. Finally, place it in the carton box.

Failure to wrap the product as specified in the diagram may cause damage to parts.

3.14.8.Machine Set Up

During linked play, if the test mode is not finished within three minutes on all linked machines, the

NETWORK CHECK cannot be performed, causing a NETWORK ERROR.

First, set up each linked machine to meet the requirements of communication play. If the settings are

incorrect, communication play is not possible.

3.14.8.1.Network Play

Up to 4 machines can be linked for network play. Properly connected network cables and correct network

play settings are required for network play.

3.14.8.1.1.Precautions Regarding Network Play Setup

• Before starting to work, ensure that the Power SW is OFF. Failure to observe this

can cause electric shock or short circuit.

• Use care so as not to damage wirings. Damaged wiring can cause electric shock

or short circuit.

• Do not touch undesignated places. Touching places not designated can cause

electric shock or short circuit.

• This work should be performed by the site maintenance individual or other skilled

professional. Performing work by non-technical personnel can cause electric shock

hazard.

• When linking a number of machines, be sure to supply sufficient power for the

corresponding number of machines. Be sure to secure per machine current as

stated in this manual. Failure to observe this can cause a fire and an electric shock

accident.

• Due to the length of the network cable, the distance in between the machines is

limited. However, to avoid accidents, be sure to secure space in excess of 70 cm

between the machines.

• To perform work safely and avoid serious accident such as the cabinet's falling

down, do not perform work in places where step-like grade differences, a ditch, or

slope exist.

• To perform work safely, be sure to secure the space corresponding to number of

machines to be linked. Failure to observe this can cause accident.

• To avoid accidents, use a cable cover that will not cause patrons to trip when laying

network cables in areas of heavy foot traffic.

• To prevent accidents and acts of vandalism, cover the network cables with the

strongest cover possible.

• Network play is not possible between game machines with different cabinet types.

When connecting several games machines together, make sure that a sufficient amount of electrical power

is available for each machine. Plan on providing 15A for each machine in 100-120V locations, and 7A in

220-240V locations.

3.14.8.1.1.1.Spacing of Game Machines

Leave at least 70 cm of space between game machines.

3.14.8.1.2.Connecting Network Cables

To enable network play, the hubs inside each of the game machines involved must be connected with

network (LAN) cables. Connect the hub inside one of the machines to the hub in the other machine using

LAN cables. There is no need to connect the other machines to each other in any other way.

Do not connect LAN cables between twin machines when they are not used for network play.

1. Turn off the power and unplug the power cord from the outlet. Place the power cord so as not to

damage it while working.

2. Using the illustration on the previous as reference, move the machines so that they are lined up.

Leave enough space on the front lid side of the machine to perform the rest of the operations in

this procedure.

3. Remove the lower back lids of machines denoted ‘L’ on back.

4. Remove the front covers on both machines.

5. Take off the required hole lids at the ends of the AC covers (see diagram above).

6. Route a spare LAN cable through both machines connecting both hubs.

Any of the ports 2 or above can be used to connect to any of the other game machines.

7. Replace all lids and covers.

8. Once the machines have been linked for network play, line them up. Leave as much space as

possible between the machines.

9. Secure all adjustors on each machine. (See Section 3.7.3)

10. Connect the power cord and grounding wire for each machine. (See 3.7.8)

3.14.8.1.3.Network Play Settings

Each of the linked machines must be set up for network play. If the machines are not set up correctly,

network play will not be possible.

3.14.8.1.3.1.How To Set Up A Machine For Network Play

1. Turn off the power on each machine to be used in network play.

2. Enter Test mode on each machine. (See Section 5.1)

3. Select GAME TEST MODE and press the TEST Button. The machine will enter Game Test mode

and the screen will display the Game Test menu. (See Section 5.2.10)

4. Select NETWORK SETTINGS from the Game Test menu and press the TEST Button. The

Network Settings screen will appear. Network settings are carried out on this screen.

5. Set the LINK NUM setting on the Network Settings screen to the number of game machines linked

for network play.

6. Set up the GROUP setting on the Network Settings screen. The GROUP setting is used to divide

the machines linked for network play into groups. For example, a network of 4 machines could be

divided into 2 groups of 2 machines.

7. Set the NUMBER setting on the Network Settings screen so that each machine within a group has

a different number. Make sure that one machine in each group is set to "1".

8. Exit Test mode on each machine. Be sure to choose EXIT from the System Test Menu to exit Test

mode properly.

9. Once each machine has exited Test mode and gone through initialization, it will begin a network

test. During the network test, the monitor will display a network test screen.

10. If there are no problems with network play settings or cable connections, the machine will enter

Advertising mode.

11. If the advertising screen appears after the network test is finished, network settings are complete.

12. The network test should last roughly 20 to 30 seconds. If the network test screen fails to disappear,

the problem is most likely due to one of the following: incorrect settings, an improperly connected

LAN cable, a faulty LAN cable connection, or a severed wire.

NETWORK SETTING

LINK NUM 2(2•`4)

GROUP A(A•`Z)

NUMBER 2(1•`4)

-> EXIT

SELECT WITH SERVICE BUTTON

AND PRESS TEST BUTTON

3.14.8.1.4.General Precautions Regarding Network Play

• When setting up machines for network play, settings such as the game's difficulty

level will be derived from the machine whose "NUMBER" is set to "1". If settings on

machine "1" are changed, the other machines will have their settings changed

accordingly. On machines other than "1", settings derived from machine "1" will not

be displayed on screen and cannot be changed.

• Should a network connection fail during network play, gameplay will be suspended

and the Network Error Screen will be displayed.

• If one of the units attached for network play enters Test Mode, the other unit will

display the same Test Mode Screen.

• Even when units are connected for network play, each seat, each game may be

given different cost settings. Incorrect cost settings may cause budget balancing

problems.

Note that when 2 or more machines are linked together for network play, some functions are different than

for stand-alone machines.

Whenever Test mode is used on a machine linked for network play, all machines connected to the network

will display the network test screen. When patrons are engaged in network play, do not enter Test mode on

any of the machines in the network, even if the machine is not in use.

However, machines whose GROUP setting is different from that of the machine entering Test mode will

not be affected.

3.15. Periodic Check And Inspection

The items listed below require periodic check and maintenance to retain the performance of the machine

and ensure safe operation:

• Be sure to check annually to see if the power cords are damaged. The plug is

securely inserted and that there is no dust in the interior of the machine or

between the socket and the power cord. Using the product in an unclean

condition may cause a fire or electric shock.

• Only QUALIFIED SERVICE PERSONNEL should carry out periodic checks.

The items listed below require periodic check and maintenance to retain the performance of this machine

and to ensure safe business operation.

When handling the controller, the player will be in direct contact with it . In order to always allow the player

to enjoy the game, be sure to clean it regularly. Also, it is advisable to provide wet tissue, etc. available for

player use.

ITEMS DESCRIPTION PERIOD

CABINET Check Adjusters' contact with surface. Daily

CARD READER/WRITER Head cleaning Every 151 counts of the card

reader/writer or Daily

Cleaning As necessary

Inspection of VR Monthly

Inspection of adjusting gear mesh Tri-monthly

CONTROL PANEL

Greasing Tri-monthly

Inspection of SW Monthly SHIFT LEVER

Greasing Tri-monthly

Inspection of VR Monthly ACCEL. & BRAKE

Gear and Spring portion greasing Tri-monthly

SCREEN cleaning. Weekly MONITOR

Check adjustments. Monthly or when moving.

Inspection of COIN SW Monthly

Coin insertion test Monthly

COIN CHUTE DOOR

Cleaning of COIN SELECTOR. Tri-monthly

SEAT Greasing to the seat rail Tri-monthly

MEMORY TEST Monthly GAME BD

Check settings. Monthly

POWER SUPPLY PLUG Inspection and cleaning Annually

INTERIOR Cleaning As necessary

CABINET SURFACES Cleaning As necessary

4. HOW TO PLAY

4.1. Game Description

The following explanations apply to the case the product is functioning satisfactorily. Should there be any

moves different from the following contents, some sort of faults may have occurred. Immediately look into

the cause of the fault and eliminate the cause thereof to ensure satisfactory operation.

Whenever power is flowing to the machine, the fluorescent lamp is lit up. While in Advertising mode, the

monitor will go through an advertising display loop, explaining the game's content and card system,

displaying the rankings, and so on.

Sound is output from the speakers to the left and right of the monitor and on the left and right of the seat's

headrest. Sound output during Advertising mode can be turned on or off by adjusting the corresponding

setting in test mode.

The "Start" button and the 4 "View Change" buttons on top of the control panel are able to light up. They

are not lit during Advertising mode.

The "Start" button will blink when enough credits have been inserted to play the game, and cease to blink

when it is pressed to start the game. If there are still enough credits to play again after the game ends, the

button will begin to blink again. After the race starts, the "View Change" button corresponding to the

currently selected view will light up; all the others will remain unlit.

1 START BUTTON: start game

2 STEERING UNIT: control direction

3 BOOST BUTTON: accelerate

4 LICENSE CARD SLOT

5 VIEW CHANGE BUTTON (1 - 4)

6 PADDLE LEVER: control centre

of gravity (while driving)

7 MEMORY CARD SLOT

8 BRAKE PEDAL: brake

9 GAS PEDAL: control speed

4.1.1. Game Outline

This product is a racing game. It has two modes, RACE MODE and TIME ATTACK MODE. When the

cabinets are connected (up to four cabinets), VERSUS PLAY is available. The game features six courses

from which the players can choose freely. Each course has a time limit, and if you don't reach the goal

within the time limit, your time is up and the race will end. Passing through checkpoints and control lines

increases your time. Each course has a different number of checkpoints. A time penalty occurs when the

player leaves the course and when his car explodes (energy goes to zero).

F-ZERO LICENSE CARD

You can receive your very own machine by purchasing a license card at the start of play. You can save

player data to the card, including your name, pilot rank, pilot points, and time attack records. 1st-place data

and numbers of wins are also recorded on the card.

Pilot Points

Use your license card to earn pilot points based on your play in Race and Time Attack Modes. Once you've

collected enough points, you can get custom parts to customize your machine with!

Pilot Rank

Your pilot rank increases based on your play. Your rank can never decrease in this game.

NINTENDO GAMECUBE MEMORY CARD

Use your Memory Card to link the game with F-ZERO GX for Nintendo GameCube. But in order to use this

special feature you must have F-ZERO GX game data on your card. Please note that the game cannot link

with a Memory Card that does not contain F-ZERO GX game data.

4.1.2. Game Mode

Race Mode

A single-course race. Thirty machines go head to head for first place. In linked play, players can go head-

to-head against other players.

When using a license card, the game ends when the player takes first place on every course.

Time Attack Mode

Race a set number of laps in time-trial format and fight for the best total time record. Ghost play is also

available.

Internet rankings via PC are also planned. A license card is needed for Internet rankings.

Internet Rankings

When PASSWORD DISP is set to OFF, the Internet Rankings guide is not shown during advertising.

When it is set to ON, a password is shown after playing Time Attack. Enter this password with a PC to join

the F-ZERO Internet Rankings.

The rankings will be available on the F-ZERO Official Home Page (http://f-zero.jp/).

4.1.3. Playing the Game

4.1.3.1.The Card Check Screen

If you already have a license card, place it in the License Card Slot to continue automatically to the next

screen. You can insert the Memory Card in this screen as well, but if you do not insert the Memory Card

before the license card, it will not work properly.

4.1.3.2.The F-Zero License Card Screen

Press down on the accelerator in the Card Check Screen to move to the Purchase Screen. When creating

a new card, insert the required number of coins to make a new license card. When your license card's

credits have been used up, you will be moved to the Renewing Purchase Screen.

You can insert the Memory Card in this screen as well, but if you do not insert the Memory Card before the

license card, it will not work properly.

Creating a New Card

Renewing

4.1.3.3.The Name Entry Screen

(Shown the first time a license card is purchased)

When you purchase a new license card, you are moved to the Name Entry Screen.

(Inappropriate words will be changed into asterisks.)

4.1.3.4.The License Card Screen

(Not shown if a license card is not used)

Shows your personal car and play information.

4.1.3.4.1.The Mode Select Screen

Choose either RACE MODE or TIME ATTACK MODE. Different descriptions will appear below based on

the cabinet and Test Mode settings. In Versus Play, select the race mode while holding down the brake to

bypass the Versus Screen.

4.1.3.5.The Versus Screen

(When linked and playing Race Mode.)

When you choose Race Mode in the usual way, you will be taken to the Versus Screen. Empty cabinets

will display a similar screen.

If you are using a license card, Race Mode-related data will appear. If others are also using license cards,

you can take a look at their data. The layout of the screen differs according to the number of linked

cabinets (though the information shown is the same).

* You cannot skip this screen.

2 Cabinets Linked

3-4 Cabinets Linked

4.1.3.6.The Course Select Screen

Select your favourite course from the six available. In Time Attack Mode, you can also configure Ghost

settings. (Use the pedal lever to choose a ghost.) If you are using a License Card, you can look at

information on each course. In Race Mode, wins, win percentage, and other data appear. In Time Attack

Mode, total time, best lap, and max speed are shown.

Race Mode

Time Attack Mode

4.1.3.7.The Machine Select Screen

Select your machine. You always get to choose machines, regardless of your card.

The machines you can choose from change based on the card(s) you've inserted.

- No Card: Select from the default 14 machines.

- License Card: Select from 15 machines, including your own on the far left.

- Memory Card: Adds machines from your F-ZERO GX garage on the far right.

If there are no cars in your F-ZERO GX garage, no machines will appear.

4.1.3.8.The Machine Setting Screen

Use the graph to configure your machine.

In multiplayer Race Mode, you can view other players' machines. If you are using a License Card in Time

Attack Mode, you can look at best total times, machines used and settings.

If there is no data, NO DATA appears.

Race Mode

Time Attack Mode

4.1.3.9.Race

This is the racing screen. The basic controls of the machine are the steering wheel and the accelerator.

You can use the booster after the second lap, so feel free to press the button in the centre of the steering

wheel. When the booster is used, the energy drain rate increases. If energy reaches zero and your

machine takes damage, your machine will flash red, you will be unable to move, and an official car will

come with extra energy. If you leave the course, an official car will come to return your machine to the

course.

Race Mode

Lap Time

Time

Energy Meter

Laps

Time Left

Rank

Top 6 You Your Speed

Course Radar

Time Attack Mode

4.1.3.10.VS Result Screen

When you complete the race, the results of the race appear. Results do not appear when you retire. The

display for COM races and multiplayer races are different in Race Mode. In Time Attack Mode, your

personal best and other data are also shown if you use a license card.

Race Mode: COM

Race Mode: Multiplayer

Time Attack Mode

4.1.3.11.Results Screen (Race Mode),

Time Attack Ranking Screen (Time Attack Mode)

The Results Screen shows the results of the race, while the Time Attack Ranking Screen shows the best

times recorded in the cabinet. When using a License Card, your username is automatically entered. If you

are not using a License Card, you can enter a three-letter rankings name.

Race Mode

Time Attack Mode

4.1.3.12.The Pilot Points Screen

(Only with License Card)

Gives you Pilot Points based on your race performance. Points are added and totalled for each category.

When your Pilot Points exceed the required value, you are congratulated and moved to the Configuration

Screen. This screen also informs you of Pilot Rank promotions.

4.1.3.13.The Configuration Screen

(Only with a License Card and sufficient Pilot Points)

Lets you switch out your personal machine's parts and change pilots. Changing parts and pilots costs Pilot

Points. When you change machine parts, the old parts are disposed of.

4.1.3.14.Memory Card Screen

(Only with a Nintendo GameCube Memory Card inserted)

If you play with a Memory Card inserted and satisfy certain conditions, you can download special F-ZERO

AX data to your Memory Card. You can then use the downloaded data in F-ZERO GX.

4.1.3.15.The Password Screen

(Only with a License Card, when playing Time Attack Mode, and when the course has completed data)

Once you complete a course in Time Attack Mode, you are taken to the Password Screen and given a

password. This password is for your best total time. It is shown every time, but it is not necessarily the

password for the race.

Enter the ID and name written to your License Card and the password shown on this screen into the F-

ZERO Official Home Page to join the Internet Rankings. The Internet Rankings are announced on the F-

ZERO Official Home Page (http://f-zero.jp/).

Set PASSWORD DISP to OFF in GAME ASSIGNMENTS in Test Mode to hide this screen.

You cannot continue to the next screen until the License Card is removed.

4.1.3.16.The Game Over Screen

This screen is shown when the game is over. A reminder regarding your card is shown.

And if your license card will need to be renewed next time, this screen will indicate that.

4.1.4. Other Warnings

4.1.4.1.Error Display

Basic errors related to magnetic cards and memory cards cause detailed instructions to appear on the

screen. Mechanical errors in the cabinet, however, are displayed with error numbers. The following is a

description of those errors. (See 18-3.)

Error 05 F Steering I/O Error

Error 06: Steering Overheat/Overload Error

Error 07: Steering Encoder Error

Error 08: Steering Excess Current Error

4.1.4.2.Secret Codes

Race Mode: "No Versus"

Description: Play by yourself, with no VERSUS screen.

To access: Hold down the brake when selecting a race mode in the MODE SELECT screen.

This is explained in the MODE SELECT Screen help.

Note: No Versus cannot be used when there is only one cabinet.

Race Mode: "VS BATTLE" (Human-only race)

Description: A race with only human competitors. COM machines cannot join the race.

For two to four players.

To access: Participants must hold down the brake when selecting their machine in the

MACHINE SELECT screen.

Note: Cannot be used with only one cabinet or in one-player play.

COM machines will always join.

Race Mode: "No Handicap"

Description: In Race Mode, cars in the rear are given supplemental speed and can go faster

(player-controlled machines only). To turn off supplemental speed, use No Handicap.

To access: All players (even in one-player races) must hold down the brake when selecting a machine

from the Machine Settings Screen.

Note: In Race Mode, even one-player games are handicapped, so use the above to turn

handicapping OFF.

Time Attack: Racing Staff Ghosts

Description: Lets you race against Staff Ghosts

To access: Hold down the brake with the cursor on "Champion Ghost" in the Course Selection

Screen and select a course.

5. MAINTENANCE INSTRUCTIONS

5.1. Explanation Of Test And Data Display

Use the switches on the VTS to enter the TEST MODE. This will allow you to carry out post installation and

periodic checks and adjustments. The following Section details the function of each of the tests:

• Be very careful about entering TEST MODE. If the machine you wish to test is

linked to other machines, exiting test on your machine will cause a network

check to be carried out. This will disable all other machines linked to it.

ITEM DESCRIPTION / REFERENCE INTERVAL

INSTALLATION

OF THE

MACHINE

When the machine is installed perform the following checks:

Check to see that each setting is as per the standard settings input at

the time of shipment.

In the INPUT TEST mode, check each switch and VR. Section

5.2.10.2.

In the OUTPUT TEST mode, check each of the lamps. Section

5.2.10.3.

In the MEMORY TEST mode check all of the IC’s on the IC BD.

Section 5.2.1

Monthly

MEMORY On the TEST MENU screen choosing the MEMORY TEST allows self

test to be performed. In this test RAM & ROM are tested. Monthly

PERIODIC

CHECKS Periodically perform the following

MEMORY TEST. Section 5.2.1.

Ascertain each setting:

In the INPUT TEST mode, test the control devices. Section 5.2.10.2.

In the OUTPUT TEST mode, check each of the lamps. Section

5.2.10.3.

Monthly

CONTROL

SYSTEM In the INPUT TEST mode, check each switch and VR. Section

5.2.10.2.

Adjust or replace each switch and VR. Section 3.9

Monthly

MONITOR In the CRT TEST mode, check to ensure the monitor is adjusted

correctly. Section 5.2.6

Clean screen (switch off machine and remove the plug)

Monthly

Weekly

IC BOARD MEMORY TEST

In the SOUND TEST mode, check the sound related ROMs. 5.2.5

Monthly

DATA CHECK Check such data as held in the bookkeeping screens, relating to

number and length of plays. Section 5.2.10.8. Monthly

EXTERIOR

MAINTENANCE Clean surfaces

Lubricate seat sliders

Monthly

COIN

MECHANISM Check switch operation (if fitted) Monthly

5.1.1. VTS Assembly

• Do not touch places other than those specified. Touching places not specified could

cause an electric shock or short circuit.

Opening the Coin Chute door will reveal the VTS Assembly shown above. The function of each switch is

as follows. The controls on the left affect the 1P cockpit, those on the right the 2P

TEST BUTTON

(TEST SW)

Used to enter TEST mode. Also has function during TEST mode.

Refer to the later Section detailing TEST mode.

SERVICE BUTTON

(SERVICE SW)

Gives credits without registering on the coin counter. Also used

during TEST mode.

DEMAG Demagnetises (degausses) the CRT to remove colour

unevenness.

VOLUME MAIN Adjusts the volume of the left and right main speakers.

VOLUME WOOFER Adjusts the volume of the woofer.

5.2. System Test Mode

• The contents of settings changed in the TEST mode are stored when the test

mode is finished from EXIT in the menu mode. If the power is turned off before

the TEST mode is finished, the contents of setting change become ineffective.

• Executing "BACKUP DATA CLEAR" in the SYSTEM TEST MODE does not

clear the BOOKKEEPING data in the GAME TEST mode.

• Entering the TEST mode clears fractional number of coins less than one credit

and BONUS ADDER data.

• Perform setting as per specified in this manual for operation. If setting not

specified is performed for operation, proper function of this product may not be

obtained.

In the SYSTEM TEST MODE, IC BD functioning can be checked, the monitor adjusted, and the coin

setting performed.

Refer to NAOMI NETWORK SYSTEM SERIVCE MANUAL for the details. Note that the setting of the

following items need to be performed in accordance with the instruction given.

CABINET TYPE : 1 PLAYER(S)

MONITOR TYPE : HORIZONTAL

SERVICE TYPE : COMMON

COIN CHUTE TYPE : COMMON

NETWORK TYPE : NONE

The SEQUENCE SETTING items of COIN/CREDIT SETTING are as follows.

SEQUENCE SETTING

SEQUENCE 1: Number of credits required for starting the game.

SEQUENCE 2: Number of credits required for continuing the play.

SEQUENCE 3: Number of credits required for dedicated CARD purchase.

SEQUENCE 4 -8: NOT USED

Press the TEST BUTTON to bring up the screen shown to the left.

Press the SERVICE BUTTON to move downwards through the list. The arrow shows the current selection.

Press the TEST BUTTON to activate the selected test.

To finish TEST MODE, move the arrow to EXIT and press the TEST.

5.2.1. RAM Test

The memory test mode is for automatically

checking the on-board memory IC functioning.

“GOOD” is displayed for normal IC’s and “BAD “

for abnormal IC’s

• When the test is completed, if the results are

similar to those shown on the left then the

Game Board is satisfactory.

• The test should take approximately thirty

seconds to complete. If the test exceeds this

time the board may have malfunctioned.

• After finishing the test press the TEST

BUTTON or START BUTTON to exit.

5.2.2. Media Board Test

• Powering off the system during the MEDIA BOARD TEST with a DIMM BOARD will

erase the game programme data. It may be necessary to reload the data.

• Always wait for the test to complete before attempting to exit.

MEDIA BOARD TEST is used to check the memory and IC on the MEDIA BOARD connected to the

TRIFORCE. Test screens and test times may differ depending on the type of MEDIA BOARD connected to

the unit.

1. MEDIA BOARD TEST begins immediately upon entering this test mode.

2. If "GOOD" is displayed to the right of each item, the MEDIA BOARD components are

functioning properly.

3. Press the TEST Button to move to Screen 2/2.

4. Press the TEST Button on Screen 2/2 to return to the System Menu screen.

5.2.3. System Information

Use SYSTEM INFORMATION to check version and other information for system programmes.

Screens may differ depending on the type of MEDIA BOARD connected to the unit.

Press the TEST Button to return to the SYSTEM MENU screen.

A. REGION

The COUNTRY CODE of the MAIN BOARD.

B. BOOT VERSION, FIRM VERSION, FPGA VERSION

Version information for the MAIN BOARD system programmes.

C. SERIAL NO.

Serial number of the MAIN BOARD.

D. DIMM BOARD + GDROM

Type of MEDIA BOARD. This example shows a DIMM BOARD (TYPE 3) with a GD-ROM

DRIVE connected.

E. MEMORY SIZE

Capacity of DIMM memory installed on the DIMM BOARD.

F. FIRM VERSION

Version information for the DIMM BOARD system programme.

G. SERIAL NO.

Serial number of the DIMM BOARD.

100

5.2.4. JVS Test

• In this test, functioning of the I/O Board

connected to the Game Board is displayed,

and INPUT TEST can be performed. Select

EXIT to return to the MENU screen, or select

INPUT TEST to display the second screen.

Select EXIT to return to the MENU screen.

101

5.2.5. Sound Test

Select the sound test to check the status of the amplifiers, soundboards, and speakers.

Press the SERVICE button or view change button to move the arrow to the desired test item.

Press TEST button to output the sound.

• Select the sound source with SERVICE.

• On pressing TEST, the test sound is emitted

from the selected source.

Select EXIT to return to MENU screen.

5.2.6. C.R.T Test

C.R.T TEST

PAGE 1/2

C.R.T. TEST 1/2

PRESS TEST BUTTON TO CONTINUE

RED

GREEN

BLUE

WHITE

Selecting CRT test allows the projector adjustment

to be checked for colour and distortion.

Press the test or start button to have the second

CRT test screen appear.

C.R.T. TEST 2/2

PRESS TEST BUTTON TO EXIT

102

5.2.7. System Assignments

Allows system options to be set. Select required setting with SERVICE button, confirm with TEST button.

Default settings are indicated in parentheses.

• CABINET TYPE specifies Control Panel and number of Coin Chutes. The number of players displayed

in BOOKKEEPING varies in accordance with the value displayed here. (1PLAYER)

• ADVERTISE SOUND allows the sound emission to be turned (ON) or OFF during ADVERTISE MODE.

• MONITOR TYPE changes the orientation of the image on the screen (HORIZONTAL)

• SERVICE TYPE sets the functioning of the SERVICE button, should several SERVICE buttons exist.

INDIVIDUAL: Service credit is applied to the machine on which the SERVICE button is pressed.

(COMMON): Service credit is applied to all machines when SERVICE button is pressed.

5.2.7.1.Coin Assignments

Select the coin assignments mode to set the coin to credit ratios.

This can be any of the pre-set values or can be done manually.

Coin Chute Type - Common Coin Chute Type - Individual

103

5.2.7.2.Coin/Credit Setting (Coin Chute Common Type)

SETTING FUNCTIONING OF COIN CHUTE #1 FUNCTIONING OF COIN CHUTE #2

SETTING #1 1 COIN 1 CREDIT 1 COIN 1 CREDIT

SETTING #2 1 COIN 2 CREDITS 1 COIN 1 CREDIT

SETTING #3 1 COIN 3 CREDIT 1 COIN 1 CREDIT

SETTING #4 1 COIN 4 CREDITS 1 COIN 1 CREDIT

SETTING #5 1 COIN 5 CREDITS 1 COIN 1 CREDIT

SETTING #6 1 COIN 2 CREDITS 1 COIN 2 CREDITS

SETTING #7 1 COIN 5 CREDITS 1 COIN 2 CREDITS

SETTING #8 1 COIN 3 CREDITS 1 COIN 3 CREDITS

SETTING #9 1 COIN 4 CREDITS 1 COIN 4 CREDITS

SETTING #10 1 COIN 5 CREDITS 1 COIN 5 CREDITS

SETTING #11 1 COIN 6 CREDITS 1 COIN 6 CREDITS

SETTING #12 2 COINS 1 CREDIT 2 COINS 1 CREDIT

SETTING #13 1 COIN 1 CREDIT 2 COINS 1 CREDIT

SETTING #14 1 COIN 2 CREDITS 2 COINS 1 CREDIT

SETTING #15 1 COIN

2 COINS 1 CREDIT

3 CREDITS 1 COIN

2 COINS 1 CREDIT

3 CREDITS

SETTING #16 1 COIN 3 CREDITS 1 COIN

2 COINS 1 CREDIT

3 CREDITS

SETTING #17 3 COINS 1 CREDIT 3 COINS 1 CREDIT

SETTING #18 4 COINS 1 CREDIT 4 COINS 1 CREDIT

SETTING #19 1 COIN

2 COINS

3 COINS

4 COINS

1 CREDIT

2 CREDITS

3 CREDITS

5 CREDITS

1 COIN

2 COINS

3 COINS

4 COINS

1 CREDIT

2 CREDITS

3 CREDITS

5 CREDITS

SETTING #20 1 COIN 5 CREDITS 1 COIN

2 COINS

3 COINS

4 COINS

1 CREDIT

2 CREDITS

3 CREDITS

5 CREDITS

SETTING #21 5 COINS 1 CREDIT 5 COINS 1 CREDIT

SETTING #22 1 COIN 2 CREDITS 3 COINS

5 COINS 1 CREDIT

2 CREDITS

SETTING #23 2 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

2 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

SETTING #24 1 COIN 3 CREDITS 2 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

SETTING #25 1 COIN

2 COINS

3 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

4 CREDITS

6 CREDITS

1 COIN

2 COINS

3 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

4 CREDITS

6 CREDITS

SETTING #26 1 COIN 6 CREDITS 1 COIN

2 COINS

3 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

4 CREDITS

6 CREDITS

SETTING #27 FREE PLAY FREE PLAY

104

5.2.7.3.Coin/Credit Setting (Coin Chute Individual Type)

SETTING FUNCTIONING OF COIN CHUTE #1

SETTING #1 1 COIN 1 CREDIT

SETTING #6 1 COIN 2 CREDITS

SETTING #8 1 COIN 3 CREDITS

SETTING #9 1 COIN 4 CREDITS

SETTING #10 1 COIN 5 CREDITS

SETTING #11 1 COIN 6 CREDITS

SETTING #12 2 COINS 1 CREDIT

SETTING #15 1 COIN

2 COINS 1 CREDIT

3 CREDITS

SETTING #17 3 COINS 1 CREDIT

SETTING #18 4 COINS 1 CREDIT

SETTING #19 1 COIN

2 COINS

3 COINS

4 COINS

1 CREDIT

2 CREDITS

3 CREDITS

5 CREDITS

SETTING #21 5 COINS 1 CREDIT

SETTING #22 3 COINS

5 COINS 1 CREDITS

2 CREDITS

SETTING #23 2 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

SETTING #25 1 COIN

2 COINS

3 COINS

4 COINS

5 COINS

1 CREDIT

2 CREDITS

3 CREDITS

4 CREDITS

6 CREDITS

SETTING #27 FREE PLAY

105

5.2.7.3.1.Detail Setting

DETAIL SETTING

Select manual setting to manually set the coin to

credit ratios.

The available combinations are detailed below.

COIN TO CREDIT 1 COIN 1 CREDIT

2 COINS 1 CREDIT

3 COINS 1 CREDIT

4 COINS 1 CREDIT

5 COINS 1 CREDIT

6 COINS 1 CREDIT

7 COINS 1 CREDIT

8 COINS 1 CREDIT

9 COINS 1 CREDIT

BONUS ADDER NO BONUS ADDER

2 COINS GIVE 1 EXTRA COIN

3 COINS GIVE 1 EXTRA COIN

4 COINS GIVE 1 EXTRA COIN

5 COINS GIVE 1 EXTRA COIN

6 COINS GIVE 1 EXTRA COIN

7 COINS GIVE 1 EXTRA COIN

8 COINS GIVE 1 EXTRA COIN

9 COINS GIVE 1 EXTRA COIN

COIN CHUTE MULTIPLIER 1 COIN COUNTS AS 1 COIN

1 COIN COUNTS AS 2 COINS

1 COIN COUNTS AS 3 COINS

1 COIN COUNTS AS 4 COINS

1 COIN COUNTS AS 5 COINS

1 COIN COUNTS AS 6 COINS

1 COIN COUNTS AS 7 COINS

1 COIN COUNTS AS 8 COINS

1 COIN COUNTS AS 9 COINS

106

5.2.7.3.2.Game Cost Setting

Use this mode to set the number of credits required to start a game and buy a license card.

107

5.2.8. Clock Setting

Use CLOCK SETTING to set the TRIFORCE internal clock.

1. Use the SERVICE Button to move the cursor to the item to be set.

2. Move the cursor to the desired item and press the TEST Button to increase values.

The max value for YEAR is "2099"; further increases return the value to "2000".

3. Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU

screen.

108

5.2.9. Network Setting

• This product should only be used with the factory settings indicated in this manual.

Selecting certain options from the screens listed below may alter settings or bring up

other screens. However, since these functions are not used by this machine, they

are not described in this manual.

• In the event that settings are altered on a screen not mentioned in this manual, the

machine may cease to function properly. Restore the settings to the values shown

on the screens below. Refer to 3.14.8.1 for actual network play settings.

Use NETWORK SETTING to establish and test network connections.

1. Use the SERVICE Button to move the cursor to the desired test item.

2. Press the TEST Button to change the setting or to open the detailed settings.

3. Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU screen.

NETWORK TYPE

Choose a type of the communication network.

Set to ETHER in this game machine.

NONE

Sets that the communication system does not perform. Sets to none when

you don't set the network system

ETHER

Sets ETHER for the communication network.

MOBILE

Sets a mobile communication terminal for the communication network.

ETHER+MOBILE

DEFAULT ETHER

Set ETHER or MOBILE automatically for the communication network.

Priority is given to ETHER.

ETHER+MOBILE

DEFAULT MOBILE

Set ETHER or MOBILE automatically for the communication network.

Priority is given to MOBILE.

109

SET IP ADDRESS

This sets up the details of the communication network. Depending on the NETWORK TYPE setting, the

contents of setting vary. If setting to NONE, it does not appear.

ETHER Setting

REMOTE

This option determines whether network settings will be handled automatically.

For this machine, the option should be set to DISABLE.

The other items are set up automatically. It's not necessary to change anything.

SET IP ADDRESS 1/1

REMOTE DISABLE (C)

IP ADDRESS(E)

*******

SUBNET MASK(E)

----.----.----.----

GATEWAY(E)

----.----.----.----

PRIMARY DNS

----.----.----.----

SECONDARY DNS

----.----.----.----

->EXIT

SELECT WITH SERVICE BUTTON

AND PRESS TEST BUTTON

110

5.2.10.Game Test Mode

• When changing the game configuration, changes will not be enabled until the Game

Test Mode has been completed. Be sure to exit the Game Test Mode properly after

configuration changes.

• Do not configure the game in ways not described in this text, as this may lead to

game malfunctions.

5.2.10.1.Game Test Menu

Select GAME TEST MODE from the System Menu screen to display the Game Test Menu screen as

follows.

Use the SERVICE Button to move the cursor to the desired test item. Press the TEST Button to enter the

selected item.

After selecting an item, read the explanations below regarding operation.

After making changes, be sure to select EXIT and press the TEST Button in order to enable the new

settings.

Move the cursor to EXIT and press the TEST Button to return to the System Menu screen.

111

5.2.10.2.Input Test

Select INPUT TEST to display the following screen and check the status of input devices.

This test should be used periodically to check that each input device is functioning correctly.

Test the STEERING, GAS and BRAKE controls to ensure that they are functioning properly and that the

parameters change smoothly as each input device is operated.

If the other input devices (switches, buttons, sensors) switch from "OFF" to "ON" when operated, they are

functioning normally.

Press the SERVICE and TEST Buttons simultaneously to return to the Game Test Menu screen.

INPUT TEST

STEERING X 0(~FF) SERVICE OFF(ON)

STEERING Y 0(~FF) TEST OFF(ON)

PADDLE LEFT OFF(ON)

PADDLE RIGHT OFF(ON)

BOOST OFF(ON)

GAS 0(~FF)

BRAKE 0(~FF)

START BUTTON

VIEW CHANGE 1 OFF(ON)

VIEW CHANGE 2 OFF(ON)

VIEW CHANGE 3 OFF(ON)

VIEW CHANGE 4 OFF(ON)

PRESS TEST AND SERVICE BUTTON TO EXIT

112

5.2.10.3.Output Test

• Select STEERING and press the TEST Button to make the steering wheel turn. To

avoid injury, first make sure that no one is touching the wheel.

• To avoid injury, first check that no one is touching the steering wheel.

Select OUTPUT TEST and press the TEST Button. After initialization the steering

wheel will turn.

Selecting OUTPUT TEST and pressing the TEST Button will cause the next screen to initialize and load.

This allows you to check the status of each output device.

This test should be used periodically to check that the lamps are functioning correctly.

OUTPUT TEST

START BUTTON OFF(ON)

VIEW CHANGE 1 OFF(ON)

VIEW CHANGE 2 OFF(ON)

VIEW CHANGE 3 OFF(ON)

VIEW CHANGE 4 OFF(ON)

BOOST OFF(ON)

STEERING

CENTER OFF(ON)

LEFT OFF(ON)

RIGHT OFF(ON)

-> EXIT SELECT WITH SERVICE BUTTON

AND PRESS TEST BUTTON

113

The START BUTTON, VIEW CHANGE 1-4, and BOOST allow you to check the status of the lights on top

of the control panel. Select each item and press the TEST Button to turn the respective light on and off as

indicated by the display to the right of the item.

Come to this screen periodically to check that the lamps light up with ON and turn off with OFF.

When you select STEERING or SEAT and press the TEST Button, it will move in the selected direction for

a set period of time and stop. SEAT LOCK locks the seat in place.

Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu screen.

114

5.2.10.4.Game Assignments

Select GAME ASSIGNMENTS to display the current game settings and make changes.

Periodically come to this screen to check game settings.

Press the SERVICE Button and move the cursor to the setting you wish to change. Press the TEST Button

to cycle the parameters on the left of the item through its various settings.

Note that GAME DIFFICULTY, HANDICAP, VS BATTLE MODE, PASSWORD DISP and RACE MODE

LAPS are shown on the machine whose NUMBER on the NETWORK SETTING screen is set to 1.

Changing the configuration of the NUMBER 1 machine automatically follows the settings of the other

numbered machines.

ADVERTISE SOUND

Turn advertising sound output ON and OFF.

(Default setting: ON)

FORCE FEEDBACK

There are three settings for steering resistance. (Default setting: 2)

1: Weak

2: Normal

3: Strong

MAGNETIC CARD R/W USE

Configure the usability of the card reader/writer. Turn the card reader/writer on and off.

(Default setting: ON)

Set it to ON if you want to activate card reader/writer, and to OUT OF SERVICE or OFF if a malfunction or

other factor makes the card reader/writer unusable.

If you set this option to OUT OF SERVICE, the advertising loop (demo screen) will display the

message, "The F-ZERO LICENSE CARD can not be used or purchased at this time," and users will

be unable to play with license cards.

If you set this option to OFF, no message regarding license cards will be shown during the advertising

loop.

GAME•ASSIGNMENTS

ADVERTISE SOUND ON (OFF)

FORCE FEEDBACK 2 (1~3)

MAGNETIC CARD R/W USE ON (ON?OFF?OUT OF SERVICE)

MEMORY CARD SLOT USE OFF (OFF?OUT OF SERVICE?ON)

GAME DIFFICULTY NORMAL (VERY EASY?EASY?NORMAL ?HARD? HARDEST)

HANDICAP ON (OFF)

VS BATTLE MODE OFF (ON)

PASSWORD DISP OFF (ON)

RACE MODE LAPS NORMAL (SET1~5)

1[Sonic Oval] 8 ( 10?15?20?30?40)

2[Screw Drive] 6 ( 8?10?15?20?30)

3[Meteor Stream] 4 ( 6?8?10?15?20)

4[Cylinder Wave] 3 ( 5?7?9?10?15)

5[Thunder Road] 3 ( 5?7?9?10?15)

6[Spiral] 3 ( 5?7?9?10?15)

-> EXIT SELECT WITH SERVICE BUTTON AND PRESS TEST BUTTON

115

MEMORY CARD SLOT USE

Configure Nintendo GameCube Memory Card usage. This option lets you enable or disable the memory

card slot. (Default setting: ON).

• Set this option to ON to enable compatibility with F-ZERO GX for the Nintendo GameCube.

Note that this option cannot be used if the player does not have F-ZERO GX game data.

Please set this option to OUT OF SERVICE or OFF until F-ZERO GX is released.

• If you set this option to OUT OF SERVICE, the advertising loop will display the message,

"Can not use Nintendo GameCube Memory Card."

• If you set this option to OFF, no message regarding the Memory Card will be shown during

the advertising loop.

NOTES:

◊ If both license cards and memory cards are set to OUT OF SERVICE, the advertising loop will

display the message, "Cards cannot be used."

◊ If both are set to OFF, no message will be shown.

◊ If one of the two is set to OUT OF SERVICE, the message specific to that card will be shown.

◊ If one is set to OUT OF SERVICE and the other to OFF, no card instructions will be shown

during the advertising loop.

GAME DIFFICULTY

Set the game's difficulty level to five settings: VERY EASY, EASY, NORMAL, HARD, and HARDEST.

(Default setting: NORMAL)

This changes the amount of bonus time given at checkpoints and the speed of COM machines (Race

Mode only).

HANDICAP

Turns the Race Mode (COM battles, player battles) handicap ON or OFF.

(Default setting: ON).

VS BATTLE MODE

Sets COM machine participation in Race Mode ON or OFF. (Default setting: OFF)

When set to ON, players race only against other players.

However, note that COM machines will join in Single Mode and Play Solo Even when in Linked Mode.

PASSWORD DISP

Turn password display during Time Attack Mode ON and OFF. When set to ON, the password screen is

shown after racing in Time Attack Mode. This password lets users join the F-ZERO Internet Rankings via

their home computers. Please set this to OFF if Internet Rankings are not being listed. The launch of

Internet Rankings will be announced on the Official F-ZERO Home Page, http://f-zero.jp/. (Default setting:

ON)

RACE MODE LAPS

In Race Mode, there are six setting levels for the number of laps; Normal and Settings 1 to 5. (Default

setting: NORMAL). The game features six courses, and the number to the left of each course is its number

of laps. The number of laps in Time Attack Mode cannot be changed.

Changes to settings are not enabled until Test Mode is exited. After changing settings, be sure to exit Test

Mode.

After changing the settings, select EXIT and press the TEST Button to return to the Game Test Menu

screen.

116

5.2.10.5.Network Settings

Select NETWORK SETTING to display the following screen and configure linked play settings.

Press the SERVICE Button and move the cursor to select an option to change. Press the TEST Button to

cycle through the settings shown to the left of the item.

LINK NUM

Set the number of game machines to link. Set this to "1" for the single setting. "2" or more allows

linked play. You will need to set up groups and configure the NUMBER to enable linked play.

GROUP

Used to set groups among the linked machines. For instance, if four machines are connected and you

want two groups of two, set two to "A" and the other two to "B." Ensure that you always have a group

"A".

NUMBER

Assigns a number for each machine within a group. Do not use the same number twice in one group.

Also note that you must set one machine as "1."

Changing the GAME DIFFICULTY, HANDICAP, VS BATTLE MODE, PASSWORD DISP, and RACE

MODE LAPS settings of the "1" machine will automatically change the settings of machines numbered

"2" to "4."

After changing the settings, select EXIT and press the TEST Button to return to the Game Test Menu

screen.

NETWORK SETTING

LINK NUM 2(2~4)

GROUP A(A~Z)

NUMBER 1(1~4. LINK NUM NO.)

EXIT

SELECT WITH SERVICE BUTTON

AND PRESS TEST BUTTON

117

5.2.10.6.Card Test

Test the functionality of or clean the card read/writer. The card read/writer should be tested and cleaned

periodically.

• Clean the card reader/writer periodically.

• Set the TRIFORCE's internal clock to the correct time (see Section 5.2.8). If the

internal clock is not set to the correct time, card play may be turned off at a different

time from the one intended.

MAGNETIC CARD R/W CHECK

Checks the card reader/writer.

When checking, the message "Checking the card reader/writer" is shown and a read test, write test, and

print test are automatically performed. Checking uses up one magnetic card.

If the test is completed without an error, the machine dispenses the card from the card reader/writer slot

and posts a message asking you to remove the card. When the card has been taken, the screen reads

"Succeeded to read/write."

If an error occurs, the screen produces an error display (see 18-1). If the error persists, try cleaning the

read/write heads.

MAGNETIC CARD CLEANING

This allows you to clean the card reader/writer head. For instructions on handling the cleaning card, see

3.9.3.2.

1. Select MAGNETIC CARD CLEANING and press the TEST Button. The message "Insert the

CLEANING CARD." will appear on the screen.

2. Insert the cleaning card into the card slot.

3. When cleaning is complete, the cleaning card will be automatically ejected and the user will be

instructed to "Retrieve the CLEANING CARD."

4. Remove the cleaning card and throw it away. When the card has been removed, the screen reads

"Succeeded to cleaning."

118

MEMORY CARD R/W CHECK

This checks the Memory Card slot. To perform the check, you will need a Nintendo GameCube

Memory Card with four blocks of free space.

Note that there is a chance of data loss. Do not use a Memory Card that contains important

information.

Insert the Memory Card to automatically begin reading and writing tests.

Re-insertion is directed when the Card is already inserted.

If all goes well, "NOW CHECKING..." will switch to "SUCCEEDED TO READ/WRITE." and a circle [O] will

appear by each item.

If there is a problem, the message "FAILED TO READ/WRITE" will appear and an "X" will be displayed by

each item.

If the "X" continues to appear after repeated tests with different memory cards, check the wiring. If you

cannot find anything wrong with the wiring, you will need to replace the Memory Card slot.

MEMORY CARD R/W CHECK

NOW CHECKING- (SUCCEDED TO READ/WRITE OR FAILED TO READ/WRITE)

WRITE: [--]

READ: [--]

DO NOT INSERT THE MEMORY CARD WITH AN IMPORTANT DATA. IT CAN BE DAMAGED

EXIT: TEST BUTTON

119

Card Close Setting

• Users will be unable to use their cards during the time(s) that you set. Be sure to set

the appropriate time(s) based on the circumstances.

This allows you to assign the "card close" times. Players will not be able to use their cards from the time

that you set; cards will remain unusable until the power is reset.

Be sure to set the appropriate time given the circumstances. For instance, if you close at midnight, try

setting the time to fifteen minutes before closing, at 11:45.

If you have set RACE MODE LAPS to SET5, the large number of laps may take some time to complete,

so 30 minutes before closing time (11:30) might be more appropriate.

There are three ways to set the "card close": WEEK, DAY, and OFF. Set the cursor to DAY and press the

TEST Button to change the type.

Day Time Settings

Use this to set the "card close" time to be the same every day. Configure in the same way as with WEEK.

(The default setting is 23:45.)

120

Weekly Time Settings

Set the "card close" time for each day. Press the SERVICE Button to select the day and the TEST Button

to change the time. Times can be changed in fifteen-minute intervals. (The default setting is 0:45 for

Friday, Saturday and Sunday, and 23:45 for other days.)

The OFF Setting

Disable "card close" setting.

After changing the settings, select EXIT and press the TEST Button to return to the Game Test

Menu screen.

121

5.2.10.7.Callibration

• To calibrate the input devices, be sure to move them to their maximum extent. The

input devices will not be calibrated unless the number displayed exceeds "10".

Calibration adjusts the controls to eliminate inconsistencies.

This calibrates the input magnitudes for the steering wheel, accelerator (GAS), and brake. To calibrate the

steering wheel, move the handle all the way up, down, right and left, and press the pedal all the way down.

The adjustments made to the values with this program are reflected in the game's controls.

After the input devices have been moved and their input values adjusted, the screen display will change

from "PRESS TEST BUTTON TO CANCEL" to "PRESS TEST BUTTON TO EXIT". Press the TEST

Button to return to the menu screen; the input devices will be calibrated to reflect the input values.

If the TEST Button is pressed while the screen displays "PRESS TEST BUTTON TO CANCEL", the input

devices will not be calibrated.

Press the TEST Button to return to the Game Test Menu screen.

PULL/PUSH HANDLE

LEFT/RIGHT HANDLE

AND STEP PEDALS

STEERING PULLING 0(~255)

STEERING PUSHING 0(~255)

STEERING LEFT 0(~255)

STEERING RIGHT 0(~255)

GAS 0(~255)

BRAKE 0(~255)

PRESS TEST BUTTON TO CANCEL

122

Race Record

Select RACE RECORD to display the twelve screens of play data.

Press the TEST Button to cycle through each screen from (1/12) to (12/12). Pressing the TEST Button

while the (12/12) screen is displayed returns you to the Game Test

§ NUMBER OF GAMES: Total number of games

§ LICENSE CARD PLAY: Number of times license cards have been used

§ LICENSE CARD BUY: Number of license cards sold

§ MEMCARD PLAY: Number of times players have played using the Memory Card

§ LINK VS PLAY: Number of times link play has been played

Shows the machines and colors chosen by the players.

RACE RECORD 2/12

MACHINE DATA

Machine Play Col 1 Col 2 Col 3 Col 4

ORIGINAL 0 0 0 0 0

BFALCON 0 0 0 0 0

GFOX 0 0 0 0 0

WGOOSE 0 0 0 0 0

FSTING 0 0 0 0 0

RAINP 0 0 0 0 0

SMOON 0 0 0 0 0

RTURTLE 0 0 0 0 0

CDOLPHIN 0 0 0 0 0

SRAT 0 0 0 0 0

PINKS 0 0 0 0 0

BFLASH 0 0 0 0 0

MGULL 0 0 0 0 0

GTAXI 0 0 0 0 0

FATS 0 0 0 0 0

PRESS TEST BUTTON TO CONTINUE

123

Race Mode play data by course.

§ Course: Course number

§ Play: Times played

§ Runall: Number of times completed

§ destroy: Number of rival cars which have been destroyed in a single game (shows average and

maximum)

§ courseout: Number of times the player has run off course in a single game (shows average and

maximum)

§ burst: Number of times the player's machine has been destroyed in a single game (shows

average and maximum)

Shows rank information by course for Race Mode.

124

This is play data by course for Time Attack Mode. Course-specific information is shown on screens (5/12)

through (10/12). Press the TEST Button to change the screen (the number "X" will change in the TIME

ATTACK COURSE "X" DATA title).

§ play num: The number of times each course has been played

§ all run num: The number of times races have been completed

§ courseout: The number of times players have run off the course (shows average and maximum)

§ burst: The number of times machines have exploded (shows average and maximum)

125

Shows information regarding parts swapped in the Configuration Screen. The denominator is the number

of times the part has appeared, and the numerator is the number of times it has been acquired.

Shows pilot points earned by course.

126

5.2.10.8.Bookkeeping

Select BOOKKEEPING to display three screens of operating status data.

Press the TEST Button to cycle through each screen from (1/3) to (3/3). Pressing the TEST

Button while the (3/3) screen is displayed returns you to the Game Test Menu.

§ COIN CHUTE 1: Number of coins inserted into Coin Slot 1.

§ COIN CHUTE 2: Number of coins inserted into Coin Slot 2.

§ TOTAL COINS: Total number of coins inserted into the coin slots.

§ COIN CREDITS: Number of credits for the coins inserted.

§ SERVICE CREDITS: Number of credits input by the SERVICE Button.

§ TOTAL CREDITS: Total credits from coins and the SERVICE Button.

§ NUMBER OF GAMES: Total number of games played

§ TOTAL TIME: Powered-up time (length of time the machine has been on)

§ PLAY TIME: Total playing time

§ AVERAGE PLAY TIME: Average game play time

§ LONGEST PLAY TIME: Longest game play time

§ SHORTEST PLAY TIME: Shortest game play time

127

TIME HISTOGRAM shows the number of plays and the respective play times.

This histogram should be referred to when setting the Game Difficulty.

128

5.2.11.Backup Data Clear

Delete all BOOKKEEPING screen data. Use BACKUP DATA CLEAR in the SYSTEM TEST MODE to

delete data about coin/credit collection.

Deleting this data does not affect the game settings or other data stored by the game.

Deleting this data will delete the data showing how many times the CARD R/W was used.

After deleting the data, the CARD R/W automatically enters Head Cleaning mode.

Refer to Section <7-2> Head Cleaning for more information about head cleaning.

To clear data, use the SERVICE Button to move the cursor to YES (CLEAR) and then press the TEST

Button. When the data has been cleared, the message "COMPLETED" will be displayed.

Press the TEST Button again to return to the Game Test Menu screen.

Move the cursor to NO (CANCEL) and press the TEST Button to return to the Game Test Menu screen

without clearing the data.

129

6. COIN MECH INSTALLATION AND CREDIT BOARD SET UP

6.1. Introduction

Game credits between the Coin Mechanism and the game board for this machine are controlled by a VTS

board. This electronic circuit allows the price of play to be set for a range of different countries. These

functions are set on Dual In Line (DIL) PCB mounted switches.

SW1 is used to set the currency (or coin ratio) and SW3 the price of play. Refer to the Tables on the

following pages for the correct settings for your environment.

The VTS board pictured below is mounted in the Coin Chute Tower.

The VTS board is connected to the coin validator and lamps via a dedicated wiring harness depending

upon the coin validator used:

Wiring Harness Validator

LM1006 Coin Controls (15 way connector)

LM1007 Mars (13 way connector)

LM1008 Mechanical See note 2

N/A NRI See note 1

Notes

1. If NRI mechanisms are to be used, these should be ordered with the highest denomination coin on coin

path #1 and the lowest denomination on coin path #4. The VTS board should be then be set up for

either the UK or Switzerland settings. A minimum connecting lead length of 600mm is required.

2. Mechanical coin mechanisms may be connected in parallel allowing two identical mechanisms to be

fitted.

The VTS Board

130

Credit Board Mode Settings Switch 3

Country

Setting Switch 3 Setting Coin Validator Programming C120/SR3 Only

SW1

SW2

SW3

SW4

SW5

SW6

COIN1 COIN2 COIN3 COIN4 COIN5 COIN6

COIN7 COIN8 COIN9

COIN10

COIN11

COIN12

UK Coin Controls

C220 Parallel OFF

OFF

£1 50p new

20p 10p - 50p old

- -

UK Coin Controls

C220 Binary ON OFF

OFF

£1 50p new

20p 10p - 50p old

- £2

UK Coin Controls

C220 Binary OFF

ON OFF

OFF

£1 50p new

20p 10p - £2 - 50p

old

UK Coin Controls

SR3 Parallel ON ON OFF

OFF

£1 50p new

20p 10p - £2 - 50p

old - - - -

Euro

Coin Controls

SR3 Parallel OFF

OFF

ON OFF

£2

€2 £1

€1 50p new

50¢ 20p

20¢ 10p

10¢ - - - 50p old

- - -

UK Mars ME/MS

111 Parallel ON OFF

ON OFF

£1 £2 20p 10p 50p new

50p old

UK NRI Parallel OFF

ON ON OFF

10p 20p 50p £1 £2 -

Belgium

Parallel ON ON ON OFF

- 50BFr 20BFr 5BFr

Holland

Parallel OFF

OFF

ON - 5NLG 2.5NLG 1NLG

Austria

SR3 Parallel ON OFF

OFF

ON 20Sch 10Sch 5Sch 1Sch

Spain Coin Controls

C220 Binary OFF

ON OFF

ON 500Pta 200Pta

100Pta 50Pta 25Pta 200Pt

old 50Pta

old 25Pta

old

Spain SR3/NRI

Parallel ON ON OFF

ON 500Pta 200Pta

100Pta 50Pta 25Pta - - 200Pta

- 50Pta

old 25Pta

old -

Spain Coin Controls

C220 Parallel OFF

OFF

ON ON 100Pta 50Pta

new - 25Pta

new - 50Pta

old - 25Pta

old

Portugal

Euro

Parallel ON OFF

ON ON 200Es

€1 100Es

50¢ 50Es - - - - -

TBA OFF

TBA Please Note

The credit board automatically sets the validator for parallel and binary

operation through an output on pin 8 of the 17 way pinstrip. For the feature to

work it is necessary for the validator interconnecting cable to include at wire at

this position

TBA

Channels OFF

Direct Mode

ON 2 channel Mode

Note: These switch settings are under constant review and may change due to world currency updates.

• Set SW 1 according to the option settings found in the relevant Price of Play Settings Table on the following pages.

• For Germa

ny (DM), France (Fr) & Switzerland (SFr), use the appropriate existing setting shown above (from another country) that matches the coin ratios programmed into your coin mech.

• Set SW 3 on the VTS /Excel board as shown in the table above corresponding to the country required.

131

6.1.1. Price Of Play Settings UK

Price Bonus DIL Switch 1

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

1 10p No Bonus OFF OFF OFF OFF OFF

2 10p 6 = 50p ON OFF OFF OFF OFF

3 20p No Bonus OFF ON OFF OFF OFF

4 20p 3 = 50p 6 = £1 12 =£2 ON ON OFF OFF OFF

5 30p No Bonus OFF OFF ON OFF OFF

6 30p 1.66 = 50p

4 = £1 8 = £2 ON OFF ON OFF OFF

7 30p 2 = 50p 4 = £1 OFF ON ON OFF OFF

8 30p AMLD * 3 = £1 6 = £2 ON ON ON OFF OFF

9 40p No Bonus OFF OFF OFF ON OFF

10 40p 1.25 = 50p

3 = £1 6 = £2 ON OFF OFF ON OFF

11 50p No Bonus OFF ON OFF ON OFF

12 50p 3 = £1 6 = £2 ON ON OFF ON OFF

13 50p 2 = £1 5 = £2 OFF OFF ON ON OFF

14 60p No Bonus ON OFF ON ON OFF

15 60p 2 = £1 4 = £2 OFF ON ON ON OFF

16 80p No Bonus ON ON ON ON OFF

17 80p 1.25 = £1 2 = £1.50

2.5 = £2 OFF OFF OFF OFF ON

18 £1 No Bonus ON OFF OFF OFF ON

19 £1 3 = £2 OFF ON OFF OFF ON

20 £1 2 = £2 5 = £4 ON ON OFF OFF ON

21 £1.50 No Bonus OFF OFF ON OFF ON

22 £1.50 2 = £2 ON OFF ON OFF ON

23 £2 No Bonus OFF ON ON OFF ON

24 £2 3 = £5 ON ON ON OFF ON

25 £3 No Bonus OFF OFF OFF ON ON

26 £3 2 = £5 ON OFF OFF ON ON

27 £5 No Bonus OFF ON OFF ON ON

28 £5 3 = £10 ON ON OFF ON ON

29 £7.50 No Bonus OFF OFF ON ON ON

30 £7.50 2 = £10 ON OFF ON ON ON

31 £10 No Bonus OFF ON ON ON ON

32 Free Play ON ON ON ON ON

132

6.1.2. Price Of Play Settings Euro

Price Bonus DIL Switch 1

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

1 10¢ No Bonus OFF OFF OFF OFF OFF

2 10¢ 6 = 50¢ ON OFF OFF OFF OFF

3 20¢ No Bonus OFF ON OFF OFF OFF

4 20¢ 3 = 50¢ 6 = €1 12 =€2 ON ON OFF OFF OFF

5 30¢ No Bonus OFF OFF ON OFF OFF

6 30¢ 1.66 = 50¢

4 = €1 8 = €2 ON OFF ON OFF OFF

7 30¢ 2 = 50¢ 4 = €1 OFF ON ON OFF OFF

8 30¢ AMLD * 3 = €1 6 = €2 ON ON ON OFF OFF

9 40¢ No Bonus OFF OFF OFF ON OFF

10 40¢ 1.25 = 50¢

3 = €1 6 = €2 ON OFF OFF ON OFF

11 50¢ No Bonus OFF ON OFF ON OFF

12 50¢ 3 = €1 6 = €2 ON ON OFF ON OFF

13 50¢ 2 = €1 5 = €2 OFF OFF ON ON OFF

14 60¢ No Bonus ON OFF ON ON OFF

15 60¢ 2 = €1 4 = €2 OFF ON ON ON OFF

16 80¢ No Bonus ON ON ON ON OFF

17 80¢ 1.25 = £1 2 = €1.50

2.5 = €2 OFF OFF OFF OFF ON

18 €1 No Bonus ON OFF OFF OFF ON

19 €1 3 = €2 OFF ON OFF OFF ON

20 €1 2 = €2 5 = €4 ON ON OFF OFF ON

21 €1.50 No Bonus OFF OFF ON OFF ON

22 €1.50 2 = €2 ON OFF ON OFF ON

23 €2 No Bonus OFF ON ON OFF ON

24 €2 3 = €5 ON ON ON OFF ON

25 €3 No Bonus OFF OFF OFF ON ON

26 €3 2 = €5 ON OFF OFF ON ON

27 €5 No Bonus OFF ON OFF ON ON

28 €5 3 = €10 ON ON OFF ON ON

29 €7.50 No Bonus OFF OFF ON ON ON

30 €7.50 2 = €10 ON OFF ON ON ON

31 €10 No Bonus OFF ON ON ON ON

32 Free Play ON ON ON ON ON

133

6.1.3. Price Of Play Settings Austria-Czech-Denmark-Norway-Israel-

France2

Price Bonus Switch 1

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

1 1 No Bonus OFF OFF OFF OFF OFF

2 1 11 = 10 ON OFF OFF OFF OFF

3 1 6 = 5 OFF ON OFF OFF OFF

4 2 No Bonus ON ON OFF OFF OFF

5 2 6 = 10 OFF OFF ON OFF OFF

6 2 3 = 5 ON OFF ON OFF OFF

7 3 No Bonus OFF ON ON OFF OFF

8 3 4 = 10 ON ON ON OFF OFF

9 3 2 = 5 OFF OFF OFF ON OFF

10 4 No Bonus ON OFF OFF ON OFF

11 4 3 = 10 OFF ON OFF ON OFF

12 5 No Bonus ON ON OFF ON OFF

13 5 3 = 10 OFF OFF ON ON OFF

14 6 No Bonus ON OFF ON ON OFF

15 6 4 = 20 OFF ON ON ON OFF

16 8 No Bonus ON ON ON ON OFF

17 10 No Bonus OFF OFF OFF OFF ON

18 10 3 = 20 ON OFF OFF OFF ON

19 20 No Bonus OFF ON OFF OFF ON

20 20 3 = 50 ON ON OFF OFF ON

21 30 No Bonus OFF OFF ON OFF ON

22 30 2 = 50 ON OFF ON OFF ON

23 50 No Bonus OFF ON ON OFF ON

24 50 3 = 100 ON ON ON OFF ON

32 Free Play ON ON ON ON ON

134

7. DESIGN RELATED PARTS

ITEM PART NO, DESCRIPTION

1 FZR-2162UK STICKER MEMORY SLOT

2 FZR-1601-BUK STICKER SEAT BACK

3 FZR-1601-CUK STICKER SEAT BACK LOGO

4 FZR-0215UK BILLBOARD PLATE FZR TWIN

5 FZR-0202-BUK STICKER SIDE COVER L

6 FZR-0203-BUK STICKER SIDE COVER R

7 422-0911UK PLAY INSTR FZR TWIN MULTI

8 422-0912UK SUB INSTR FZR TWIN MULTI

9 FZR-1297UK STICKER MEMORY CAUTION MULTI

10 FZR-2024UK STICKER MEMORY SLOT LWR MULTI

11 FZR-2152 STICKER START VIEW

12 FZR-1501 STICKER BASE L

13 FZR-1502 STICKER BASE R

14 FZR-1503 STICKER BASE LID

15 FZR-0022-01 STICKER CARD SLOT FZR B ENG

16 FZR-1551-A STICKER COVER PANEL L

17 FZR-1556-A STICKER COVER PANEL R

18 FZR-1551-B STICKER LINE L

19 FZR-1556-B STICKER LINE R

20 FZR-1551-C STICKER LOWER L

21 FZR-1556-C STICKER LOWER R

22 FZR-0020UK STICKER CARD SLOT FZR C MULTI

135

8. PARTS LIST

8.1. Assembly Structure

FZR-00001UK ~ TOP ASSY F-ZERO AX TWIN

FZR-10001UK (x2) ~ ASSY COCKPIT 1P

DUT-1120UK ~ ASSY SUB MAIN BASE

FZR-1550UK~ ASSY MONITOR COVER L 2P

APC-1560 ~ ASSY SPEAKER L

FZR-1555UK~ ASSY MONITOR COVER R 2P

APC-1565~ ASSY SPEAKER R

FZR-20001UK~ ASSY CONTROL PANEL STD

FZR-2500~ ASSY STEERING

FZR-2600~ ASSY HANDLE MECHA

FZR-2150UK~ ASSY START VIEW

FZR-2160UK ~ ASSY MEMORY SLOT

ORT-1100UK ~ ASSY PEDAL BASE ORT

SPG-2200 ~ ASSY BRAKE & ACCELL

FZR-1600UK~ ASSY SEAT TWIN 1P

FZR-4500UK ~ ASSY MAIN BD

FZR-4600UK ~ ASSY ELEC BD

FZR-1510UK~ ASSY BASE LID R

FZR-INST-TW ~ ASSY INST KIT FZR TWIN

FZR-0200UK~ ASSY BILLBOARD

FRI-0300UK~ ASSY COINCHUTE TOWER FRI

ORT-0500UK ~ ASSY WIRE COVER ORT TWIN

ORT-0400UK~ ASSY AC BRKT MAIN

ORT-0700UK ~ ASSY AC BRKT SUB

VOF-0450UK~ CARD UNIT TWIN L

VOF-0460UK ~ CARD UNIT TWIN R

136

8.2. FZR-00001UK TOP ASSY TWIN

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 FZR-10001UK ASSY COCKPIT 1P

3 FZR-INST-TW ASSY INSTALLATION KIT FZR

TWIN

4 ORT-0400UK ASSY AC BRKT MAIN

5 ORT-0700UK ASSY AC BRKT SUB

6 VOF-0450UK CARD UNIT TWIN L

7 VOF-0460UK CARD UNIT TWIN R

8 421-7020UK STICKER CAUTION FORK

9 LB1102 STICKER DANGEROUS VOLTAGE

BACK LIDS-4, REAR FLR-2

12 421-7987-FZR-T

STICKER ELEC SPEC FZR TW MAIN CABI, LHS OF MAIN BASE

14 421-7988-91UK STICKER SERIAL NUMBER UK 1P-1,2P-2,CCT INSIDE TOP DOR

15 421-8543UK STICKER CABINET L UK 1P

16 421-8544UK STICKER CABINET R UK 2P

18 SGM-3863 2 POLY COVER 1800X950X1700

19 SDW-0001UK 12 BLIND CAP UK 1P CABI (LHS), 2P CABI (RHS)

22 INY-0004 2 BACK LID INY

23 CKT-0001UK 2 BACK LID B W/HOLE UK

24 FZR-1551-A 1 STICKER COVER PANEL L

25 FZR-1556-A 1 STICKER COVER PANEL R

137

Cont.

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

26 CKT-0015UK 2 STICKER CARD LOADING INSTR

27 LB1046 1 LABEL TESTED FOR ELEC.

SAFETY

28 RAL-XXX-13UK 2 LOCK COVER UK (R.FLOORS)-2

30 CKT-0004 1 SIDE PNL L

31 CKT-0005 1 SIDE PNL R

32 CKT-0006UK 1 CARD UNIT BASE L

33 CKT-0007UK 1 CARD UNIT BASE R

35 FZR-1551-B 1 STICKER LINE L

36 FZR-1556-B 1 STICKER LINE R

37 FZR-1551-C 1 STICKER LOWER L

38 FZR-1556-C 1 STICKER LOWER R

101 601-8956-01 1 EARTH OUTLET WK3001W LEFT UNIT

102 601-11071-IS 1 SW HUB PCI FX-08IS LEFT UNIT

201 000-P00412-WB

10 M4X12 MSCR PAN W/FS BLK (4)-4,(5)-4,(301)-2

202 000-P00408-WB

26 M4X8 MSCR PAN W/FS BLK (22)-18,(23)-8

203 010-P00412 4 M4X12 S-TITE PAN PAS (22)-4

204 008-T00408-0C 16 M4X8 TMP PRF TH CRM (28)-8,(F.FLOORS)-8

205 029-B00620-0B 4 M6X20 SKT BH BLK (R.FLOORS)-4

206 060-S00600-0B 4 M6 WSHR SPR BLK (R.FLOORS)-4

207 060-F00600-0B 4 M6 WSHR FORM A FLT BLK (R.FLOORS)-4

209 030-000820-SB 24 M8X20 BLT W/S BLK (6)-4, (7)-4, (30)-4, (31)-4, (32)-4,

(33)-4

210 068-852216-0B 16 M8 WSHR 22OD FLT BLK (30)-4, (31)-4, (32)-4, (33)-4

211 060-F00800 8 M8 WSHR FORM A FLT PAS (6)-4, (7)-4

214 012-P03512-F 2 N6X1/2" S/TAP FLG PAS (101)-2

301 CKT-61009UK 2 WH EXT CARD R/W C

302 600-7269-0200 1 ASSY LAN CABLE 0200CM

303 ORT-64001UK 1 WH POWER HUB

304 600-7269-0500 1 ASSY LAN CABLE 0500CM

401 PK0348 2 SLEEVE COCKPIT FZR TWIN

402 PK0349 2 PALLET FZR

403 PK0348-LID 2 LID FZR TWIN

405 290241 2 C-BUFFER-MK2-UNIVERSAL BANDING PROTECTION

138

8.3. FZR-10001UK ASSY COCKPIT 1P

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 DUT-1120UK 1 ASSY SUB MAIN BASE

2 FZR-1550UK 1 ASSY MONITOR COVER L 2P

3 FZR-1555UK 1 ASSY MONITOR COVER R 2P

4 FZR-20001UK 1 ASSY CONTROL PANEL STD

5 POD-1023UK 1 MONITOR STAND

6 ORT-1100UK 1 ASSY PEDAL BASE ORT

7 POD-1021UK 1 MONITOR SUPPORT

8 DUT-1008UK 1 ROOF LID DUT

9 POD-1022 1 MONITOR MASK

10 SPG-1005 1 MASK HOLDER

12 FZR-1600UK 1 ASSY SEAT TWIN 1P

14 FZR-4500UK 1 ASSY MAIN BD

15 FZR-4600UK 1 ASSY ELEC BD

17 FZR-1510UK 1 ASSY BASE LID R

18 RAL-2007 1 RUBBER HOLDER R TWIN (12)-1

19 RAL-2008 RUBBER HOLDER L TWIN (12)-1

20 FZR-1501 STICKER BASE L

21 FZR-1502 STICKER BASE R

22 FZR-1503 STICKER BASE LID (17)-1, CUT ENDS TO SUIT

23 POD-1026UK CRT SPACER (POD) (5)-2,(7)-2

24 DUT-2031UK FRONT FLOOR UK DUT FIX DOWN AT NEXT LEVEL UP

25 SRT-1009UK MONITOR SPASHGUARD SRT TW FIX TO (10)

26 SRT-2031UK NEOPRENE RUBBER STRIP 10X3mm

(24)-0.5,(1)-0.4 4X10cm STRIPS

27 OS1004 DRAFT EXCLDR 4 X7MM BLK x 10M (9)-705mm ON FRONT LIP

30 440-WS0220UK WARNING STICKER TRAP HAZARD

101 200-5949 ASSY CLR DSPL 29 TYPE 31K UK

139

Cont.

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

105 280-5112 4 BUSH FOR TV (101)-4

106 280-5113 4 COLLAR FOR TV (101)-4

107 068-652516 4 M6 WSHR 25OD FLT PAS (101)-4

108 280-L00716-OS 3 STANDOFF 7OD 4ID 16L (101)-3 REMOTE BD

109 601-6231-C100 2 EDGING NEW TYPE TOP OF WIRE COVER –2

110 601-6231-D100 2 EDGING NEW TYPE INSIDE OF PEDAL BASE -2

111 260-0011-02 1 AXIAL FLOW FAN AC100V 50-60Hz

112 440-WS0220UK 1 WARNING STICKER TRAP HAZARD

NEXT TO STEERING GEARS

113 FN1012 2 MESH GUARD METAL 120mm FAN (111)-2

114 OS1195 8 RIVET SNAP MOSS SR1811 (113)-8

115 280-A00900-A 20 ROUTER TWIST D9 ADH

116 280-A00748-PM 4 ROUTER TWIST D7 SO4.8PA MONITOR STAND HORIZONTAL

BAR

117 280-A02048-PM 12 ROUTER TWIST D20 SO4.8PA WIRE COVER BOX 2X4 CORNER

DROP

201 030-000840-SB 12 M8X40 BLT W/S BLK (2)-4,(3)-4,(7)-4

202 008-B00825-0B 6 M8X25 TMP PRF BH BLK (4)-6

203 060-S00800-0B 6 M8 WSHR SPR BLK (4)-6

204 060-F00800-0B 18 M8 WSHR FORM A FLT BLK (2)-4,(3)-4,(4)-6,(7)-4

205 030-000850-SB 8 M8X50 BLT W/S BLK (5)-8

206 068-852216-0B 12 M8 WSHR 22OD FLT BLK (5)-8,(12)-4

207 030-000616-SB 6 M6X16 BLT W/S BLK (6)-6

208 068-651616-0B 6 M6 WSHR 16OD FLT BLK (6)-6

209 000-P00408-WB 6 M4X8 MSCR PAN W/FS BLK (8)-4,(6)-2

210 000-T00530-0B 2 M5X30 MSCR TH BLK (9)-2

211 000-T00512-0B 3 M5X12 MSCR TH BLK (9)-3

212 068-552016-0B 5 M5 WSHR 20OD FLT BLK (9)-5

213 000-F00512 4 M5X12 MSCR CSK PAS (10)-4

214 030-000820-SB 4 M8X20 BLT W/S BLK (12)-4

215 032-000425 4 M4X25 W/BLT PAS (14)-2,(15)-2

216 068-441616 4 M4 WSHR 16OD FLT PAS (14)-2,(15)-2

217 008-T00512-0B 4 M5X12 TMP PRF TH BLK (17)-4

218 050-F00600 4 M6 NUT FLG SER PAS (101)-4

219 000-P00320 3 M3X20 MSCR PAN PAS (101)-3 REMOTE BD

220 012-HB0512 8 N10X1/2" S/TAP HEX B PAS (111)-8

221 060-F00500 8 M5 WSHR FORM A FLT PAS (111)-8

301 TOF-60100UK 1 WH EXT VIEW BUTTON A

302 FZR-61011UK 1 WH EXT MEM CARD A

303 FZR-61012UK 1 WH EXT MEM CARD PWR A

305 FZR-61006UK 1 WH EXT HANDLE A

306 600-6373-77-91 1 WIRE HARNESS PLAYER SEL EXT

307 TOF-60101UK 1 WH EXT FRONT SP B

308 FRI-61042UK 1 WIRE HARN EXT VR B

140

Cont.

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

309 NCR-61011UK 1 WIRE HARN VIEW BUTTON B

310 600-7009-2500 1 ASSY RGB CA D-SUB 15P

2500MM

311 FZR-61007UK 1 WH EXT HANDLE B

312 FRI-61041UK 1 WIRE HARN EXT MOTOR B

313 FZR-61013UK 1 WH EXT MEM CARD B

314 FZR-61014UK 1 WH EXT MEM CARD PWR B

315 TOF-60052UK 1 WH EARTH FOR DRIVER MAIN

BASE

316 POD-61012UK 1 WIRE HARN 100V EXT COCKPIT

317 TOF-60015UK 1 WH EXT ENCODER B

318 NCR-61008UK 1 WH EXT FRONT SP A

319 POD-61026UK 1 WIRE HARN EXT AC UNIT

320 TOF-60103UK 1 WH VTS EXT

321 TOF-60010UK 1 WH EXT CARD R/W A

323 600-9020-44K 1 WIRE HARN EARTH 200mm

M4/M4 K MON STAND TO WIRE COVER

BOX

324 600-9100-44K 2 WIRE HARN EARTH 1000mm

M4/M4 K MON STAND TO MON SUPPORT

& C.PNL

325 600-9020-44K 1 WIRE HARN EARTH 200mm

M4/M4 K MON SPPORT TO ROOF LID

326 600-9060-46K 1 WIRE HARN EARTH 600mm

M4/M6 K MON STAND TO LH BOT OF 101

141

8.4. DUT-1120UK ASSY SUB MAIN BASE

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 DUT-1121UK 1 MAIN BASE

6 MA1007 4 CASTOR SWIVEL 63mm NYLON

10 601-5699UK-01

2 LEG ADJ M16X100 1L/NUT

11 601-5699UK-03

2 LEG ADJ M16X100 3 L/NUT

209 030-000816 16 M8X16 BLT PAS

210 060-S00800 16 M8 WSHR SPR PAS

142

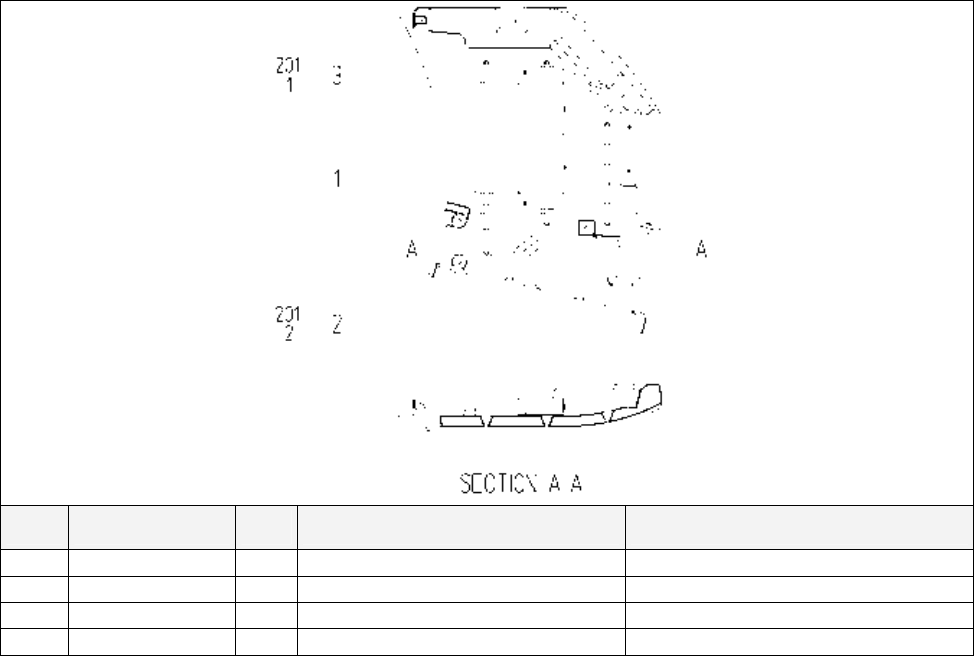

8.5. FZR-1550 ASSY MONITOR COVER L 2P

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 POD-1151X-A 1 COVER PANEL L BLANK

2 APC-1560 1 ASSY SPEAKER L

3 DYN-1032UK 1 MASK BRKT

201 000-P00408-W 3 M SCR PH W/FS M4X8 (2)-2,(3)-1

143

8.6. APC-1560 ASSY SPEAKER L

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 APC-1561 1 SPEAKER BRKT

101 130-5156 1 SPEAKER BOX 8OHM 20W TWEETER @ TOP

201 000-P00512-W 2 M SCR PH W/FS M5X12 (101)-2

144

8.7. FZR-1555UK ASSY MONITOR COVER R 2P

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 POD-1161X-A 1 COVER PANEL R BLANK

2 APC-1565 1 ASSY SPEAKER R

3 DYN-1032UK 1 MASK BRKT

201 000-P00408-W

3 M SCR PH W/FS M4X8 (2)-2,(3)-1

145

8.8. APC-1565 ASSY SPEAKER R

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 APC-1561 1 SPEAKER BRKT

101 130-5156 1 SPEAKER BOX 8OHM 20W TWEETER @ TOP

201 000-P00512-W 2 M SCR PH W/FS M5X12 (101)-2

146

8.9. FZR-20001UK ASSY CONTROL PANELSTD

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 FZR-2500 1 ASSY STEERING

2 FZR-2600 1 ASSY HANDLE MECHA

3 FZR-2150UK 1 ASSY START VIEW

4 FZR-2160UK 1 ASSY MEMORY SLOT

5 FZR-2020 1 CONTROL PANEL COVER

6 FZR-2021UK 1 CONTROL PANEL BRKT

7 FZR-2022UK 1 HANDLE COLLAR

8 FZR-0014UK 1 HANDLE SPACER RING

9 TOF-2006UK 1 COVER HOLDER

10 FZR-2023 1 CTRL PNL COVER LID

12 FZR-1019 1 WIRE HOLDER

15 440-WS0220UK 1 WARNING STICKER TRAP HAZARD

16 MGL-2003 1 DENOMINATION PLATE

101 280-D16636 2 CABLE NYLON SCR MTG 166L 3.6W

102 601-0460 4 CABLE TIE 100mm

103 280-A02000-A 6 ROUTER TWIST D20 ADH

104 601-6231-C100 1 EDGING NEW TYPE

106 280-A01200-A 3 ROUTER TWIST D12 ADH

147

Cont.

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

201 050-U00800 4 M8 NUT NYLOK PAS (2)-4

202 060-S00800 4 M8 WSHR SPR PAS (2)-4

204 000-T00412-0B 14 M4X12 MSCR TH BLK (3)-4,(4)-4,(10)-4,(16)-2

205 000-P00408-W 4 M4X8 MSCR PAN W/FS (9)-2,(101)-2

206 050-U01000 1 M10 NUT NYLOK PAS (1)-1

207 060-S01000 1 M10 WSHR SPR PAS (1)-1

208 000-F00310 2 M3X10 MSCR CSK PAS (12)-2

209 000-P00408 2 M4X8 MSCR PAN PAS earth?

210 060-S00400 2 M4 WSHR SPR PAS earth?

211 060-F00400 2 M4 WSHR FORM A FLT PAS earth?

301 TOF-60016UK 1 WH EXT VOLUME C

302 600-6873-043 1 WIRE HARN VIEW BUTTON

303 FZR-61008UK 1 WH EXT HANDLE

304 CKT-62037UK 1 WIRE HARN ENCODER EXT 2

305 CKT-62036UK 1 WIRE HARN SERVO OUTPUT EXT 2

306 FZR-61019UK 1 WH EXT MEM CARD C

307 FZR-61020UK 1 WH EXT MEM CARD PWR C

148

8.10. FZR-2500 ASSY STEERING

149

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 FZR-2501 HANDLE

2 FZR-2502 STEERING COVER FRONT

3 FZR-2503 STEERING COVER REAR

4 FZR-2504 STEERING BELLOWS

5 FZR-2505 GEAR 77

6 FZR-2506 BOOST PANEL

7 FZR-2507 SUB BOOST PANEL

8 FZR-2508 SUB BOOST HOLDER

9 FZR-2509 STEERING SHAFT BASE

10 FZR-2510 STEERING BASE A

11 FZR-2511 STEERING BASE B

12 FZR-2512 STEERING STAND L

13 FZR-2513 STEERING STAND R

15 FZR-2515 CENTERING BASE

16 FZR-2516 CENTERING SHAFT

17 FZR-2517 CENTERING COLLAR

18 FZR-2518 CENTERING SPRING A

19 FZR-2519 PADDLE L

20 FZR-2520 PADDLE R

21 FZR-2521 PIN L

22 FZR-2522 PIN R

23 FZR-2523 PADDLE SHAFT A

24 FZR-2524 PADDLE SHAFT B

25 FZR-2525 PADDLE STOPPER PIN

26 FZR-2526 PADDLE SPRING

27 FZR-2527 STOPPER SHAFT

28 FZR-2528 STOPPER RUBBER

29 FZR-2529 SW ADJUST PLATE

30 FZR-2530 BUSH

31 FZR-2531 CENTERING SPRING B

32 FZR-2532 HEX SPACER

33 FZR-2533 BOOST BUTTON BASE B

34 FZR-2534 BEARING COLLAR

35 FZR-2535 INSULATION SHEET

36 FZR-2536 HANDLE COLLAR

37 FZR-2537 BELLOWS PLATE A

38 FZR-2538 BELLOWS PLATE B

39 FZR-2539 COVER STAY A

40 FZR-2540 COVER STAY B

41 FZR-2541 COVER STAY L

42 FZR-2542 COVER STAY R

43 FZR-2543 PADDLE COVER L

44 FZR-2544 PADDLE COVER R

45 FZR-2545 SLIDE PLATE L

150

Cont.

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

46 FZR-2546 SLIDE PLATE R

47 FZR-2547 BOOST BUTTON PLATE

48 FZR-2548 SUB BOOST STAY

49 350-5580 GEAR 10.5

50 FZR-2549 CORD CLAMP STAY

51 FZR-2550 SPONGE SHEET

101 509-6035 SW OBSA-60UMQ-B-1TLED-B-12V

102 509-5524-01 PUSH BUTTON SW BLUE

103 220-5775 VOL CONT B-10K OHM W/BD

104 509-6036 SW MICRO MATSUSHITA AM51615A7

105 100-5365-0803 OILES BEARING 80F 0803

106 100-5102 BEARING 9 NSK F699ZZ

107 280-6622-40080 SPACER TUBE

108 601-6563-48 BUSH 2.4T

109 280-5008 CORD CLAMP 15

110 280-5275-SR10 CORD CLAMP SR10

111 280-0419 HARNESS LUG

112 310-5029-D15 SUMITUBE F D 15MM

113 310-5029-G20 SUMITUBE F G 20MM

114 280-5257 TIE BASE TA1S8

115 601-0460 PLASTIC TIE BELT 100 MM

201 028-A00304-P SET SCR HEX SKT CUP P M3•~4

202 028-A00404-P SET SCR HEX SKT CUP P M4•~4

203 000-P00510-W M SCR PH W/FS M5•~10

204 000-P00408-W M SCR PH W/FS M4•~8

205 000-P00412-WB M SCR PH W/FS BLK M4•~12

206 FAS-000125 M SCR PH W/SMALL FS BLK M4•~14

207 000-P00420-W M SCR PH W/FS M4•~20

208 000-P00316-W M SCR PH W/FS M3•~16

209 000-P00306-W M SCR PH W/FS M3•~6

210 000-T00406-0B M SCR TH BLK M4•~6

211 FAS-000124 M SCR TH BLK M4•~4

212 FAS-200053 HEX SKT H CAP SCR CRM M4•~10

213 050-F00500 FLG NUT M5

214 020-000520-0Z HEX SKT H CAP SCR BLK M5•~20

215 060-S00500-0B SPR WSHR BLK M5

216 031-000410-0B CRG BLT BLK M4•~10

217 050-F00400 FLG NUT M4

218 060-S00400-0B SPR WSHR BLK M4

219 FAS-600019 SPR WSHR BLK D=8.5 M5

220 020-000412-0Z HEX SKT H CAP SCR BLK OZ M4•~12

151

8.11. FZR-2600 ASSY HANDLE MECHA

152

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 SPG-2501X HANDLE BASE

2 SPG-2502 BASE LID

3 FZR-2601 HANDLE SHAFT

4 SPG-2504 PULLEY 20 S5M

5 SPG-2505 PULLEY 60 S5M

6 SPG-2506 MOTOR BRKT

7 FZR-2602 VR BRKT

8 SPG-2108 STOPPER BOLT

9 SPG-2109 STOPPER RUBBER

10 SPG-2453 KEY 4•~4•~40

11 ASK-3502 MOTOR SPACER

12 ASK-3503 MOTOR COLLAR

13 DYN-1270 STOPPER KEY

14 SLC-1130 ADJUST RING

15 SPG-2454 MOTOR SHAFT COLLAR

101 350-5448-01 SERVO MOTOR 500W NEW

102 100-5112 BEARING 17 (NSK 6003ZZ)

103 601-7945 GEAR 20

104 601-6172 GEAR 48

105 601-9173 TIMING BELT (150 S5M 475)

106 220-5484 VOL CONT B-5K OHM

106 220-5753 VOL CONT B-5K OHM (TOCOS)

107 310-5029-F20 SUMITUBE F F 20MM

201 028-A00408-P SET SCR HEX SKT CUP P M4•~8

202 028-A00308-P SET SCR HEX SKT CUP P M3•~8

203 065-S012S0-Z STP RING BLK OZ S12

204 065-S020S0-Z STP RING BLK OZ S20

205 000-P00408-W M SCR PH W/FS M4•~8

206 000-P00412-W M SCR PH W/FS M4•~12

207 030-000612-S HEX BLT W/S M6•~12

208 060-F00600 FLT WSHR M6

209 050-U00600 U NUT M6

210 030-000840-S HEX BLT W/S M8•~40

211 068-852216 FLT WSHR 8.5-22 •~1.6

212 050-U00800 U NUT M8

301 600-6866 WIRE HARN ASSY HANDLE MECHA VR

153

8.12. FZR-2150UK-ASSY START VIEW

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 FZR-2151 1 START VIEW PLATE

2 FZR-2152 1 STICKER START VIEW

101 509-5779-RE 1 SW PB W/LAMP 6V RED

102 509-5779-BL 1 SW PB W/LAMP 6V BLUE

103 509-5779-YE 1 SW PB W/LAMP 6V YELLOW

104 509-5779-GR 1 SW PB W/LAMP 6V GREEN

105 509-0161 1 SW PB TYPE 1T YEL W/LAMP

301 FZR-61021UK 1 WH VR SW

154

8.13. FZR-2160UK ASSY MEMORY SLOT

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 FZR-2161UK 1 MEMORY SLOT PLATE

2 FZR-2162UK 1 STICKER MEMORY SLOT

3 FZR-1293 1 MEMORY SLOT BASE

4 FZR-1294 1 MEMORY SLOT HOLD BRKT

5 FZR-2163 1 MEMORY BD BASE STD

6 837-14399 1 MEMORY CARD I/F MC BD

8 117-5164UK 1 PLATE START 37x42 UK

101 280-D16636 2 CABLE NYLON SCR MTG 166L 3.6W

102 509-5440 1 PUSH BTN SW IT GRN W/L DC 14V (8)-1

201 050-U00400 6 M4 NUT NYLOK PAS (3)-4,(5)-2

202 060-F00400 6 M4 WSHR FORM A FLT PAS (3)-4,(5)-2

203 012-P00308 4 N4X5/16" S/TAP PAN PAS (4)-4

204 000-P00320-W 4 M3X20 MSCR PAN W/FS (6)-4

205 FAS-000128 2 M2X8 MSCR PH W/FS (6)-2

206 000-P00408-W 2 M4X8 MSCR PAN W/FS (101)-1

207 050-F00300 2 M3 NUT FLG SER PAS (8)-2

301 FZR-60077UK 1 WH MEM CARD01

302 FZR-60078UK 1 WH MEM CARD02

303 TOT-61078UK 1 WH PLAYER SELECT SW

155

8.14. ORT-1100UK ASSY PEDAL BASE ORT

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 SPG-2200 1 ASSY BRAKE & ACCELL

2 TOF-1501UK 1 PEDAL BASE

3 FZR-1021UK 1 WIRE COVER BOX

4 SPG-2222UK 1 ANTI FINGER TRAP PLATE LEFT

5 SPG-2223UK 1 ANTI FINGER TRAP PLATE RIGHT

6 SPG-2224UK 1 PEDAL GASKET

7 SRT-2031UK 0.52

NEOPRENE RUBBER STRIP 10 (2)-520mm X1 INSIDE FLANGE

101 280-A01200-A 6 ROUTER TWIST D12 ADH WIRE COVER BOX

201 068-852216-0B 4 M8 WSHR 22OD FLT BLK (1)-4

202 030-000820-SB 4 M8X20 BLT W/S BLK (1)-4

203 000-P00408-WB 4 M4X8 MSCR PAN W/FS BLK (3)-4

204 050-F00400 3 M4 NUT FLG SER PAS (3)-3 EARTHS

301 600-9050-44K 1 WIRE HARN EARTH 500mm M4/M4 K WIRE COVER TO MAIN BASE

156

8.15. SPG-2200 ASSY BRAKE & ACCELL

157

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 SPG-2201 1 BASE

2 SPG-2202 1 ACCEL PEDAL

3 SPG-2203 1 BRAKE PEDAL

4 SPG-2204 1 ACCEL SPRING

5 SPG-2205 1 BRAKE SPRING

6 SPG-2206 2 SHAFT

7 SPG-2207 1 ACCEL

8 SPG-2208 1 BRAKE GEAR

9 SPG-2209 1 NEUTRAL STOPPER

10 SPG-2210 1 VR PLATE ACCEL

11 SPG-2211 1 VR PLATE BRAKE

12 SPG-2212 1 AMPL GEAR

13 SPG-2213 1 GEAR SHAFT

14 SPG-2214 2 STOPPER

15 SPG-2215 1 RUBBER CUSHION

16 SPG-2216 1 COVER

17 SPG-2217 1 VR COVER

19 SPG-2219 2 GEAR STAY

20 SPG-2220 4 WSHR

21 SPG-2221 1 NEUTRAL STOPPR D

101 100-5263 4 BEARING 12 (OILES 80F-1212)

102 220-5484 2 VOL CONT B-5K OHM

104 601-7944 2 GEAR 15

105 310-5029-F15 6 SUNITUBE F F15MM

106 280-0419 2 HARNESS LUG

201 028-A00304-P 4 SET SCR HEX SKT CUP P M3X4

202 020-000516-OZ 4 HEX SKT H CAP SCR BLK OZ M5X16

203 000-P00420 4 M SCR PH M4X20

204 000-P00508-W 2 M SCR PH W/FS M5X8

205 000-T00408-OC 4 M SCR TH CRM M4X8

206 FAS-450005 2 SPR PIN BLK OZ 6X10

207 000-P00405 3 M SCR PH M4X5

208 FAS-000001 2 M SCR TH CRM M3X6

209 050-H00500 1 HEX NUT M5

210 060-F00400 7 FLT WSHR M4

158

8.16. FZR-1600UK ASSY SEAT TWIN 1P

159

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

2 SPG-2401-AUK

UPPER SEAT BLANK

4 SPG-2402-AUK

LOWER SEAT BLANK

5 STC-1603 1 SEAT BASE

7 STC-1604 2 SEAT FRAME

8 STC-1606 1 SEAT MOUNT TRAY

9 STC-1607 2 SP MOUNT BRKT

10 STC-1608 1 SPEAKER NET L

11 STC-1609 1 SPEAKER NET R

12 STC-1610 1 SAFETY GUARD

14 STC-1612 2 PROTECT RUBBER

15 STC-1613 1 SAFETY GUARD F

16 OS1004 0.8 DRAFT EXCLDR 4 X7MM BLK x 10M (103)-0.8M

17 SPG-2401-BUK 1 UPPER SEAT INSERT (2)-1

18 SPG-2402-BUK 1 LOWER SEAT INSERT (4)-1

19 FZR-1601-AUK 1 SEAT BACK COVER BLANK UK

20 SRT-2409 2 SHOULDER PAD BETWEEN SPKR NETS & SEAT

21 FZR-1601-BUK 1 STICKER SEAT BACK

22 FZR-1601-CUK 1 STICKER SEAT BACK LOGO

101 601-9059-91 1 SEAT RAIL L

102 601-9060-91 1 SEAT RAIL R

103 130-5186-91 2 DUMMY SPEAKER

104 280-K02529-WX 18 DRIVE FASTENER 25FH 24L 7.9DIA (17)-8,(18)-10

105 280-5297 6 SCRIVET 8 1K31 (19)-6

201 030-000850-S 8 M8X50 BLT W/S PAS (2)-4,(4)-4

202 068-852216 20 M8 WSHR 22OD FLT PAS (2,4,8,101,102)-4EA

203 030-000816-S 4 M8X16 BLT W/S PAS (8)-4

204 000-P00410-W 8 M4X10 MSCR PAN W/FS PAS (9)-8

205 000-T00408-0B 8 M4X8 MSCR TH BLK (12)-4,(15)-4

206 012-P03512-F 8 N6X1/2" S/TAP FLG PAS (103)-8

207 050-U00800 8 M8 NUT NYLOK PAS (101)-4,(102)-4

160

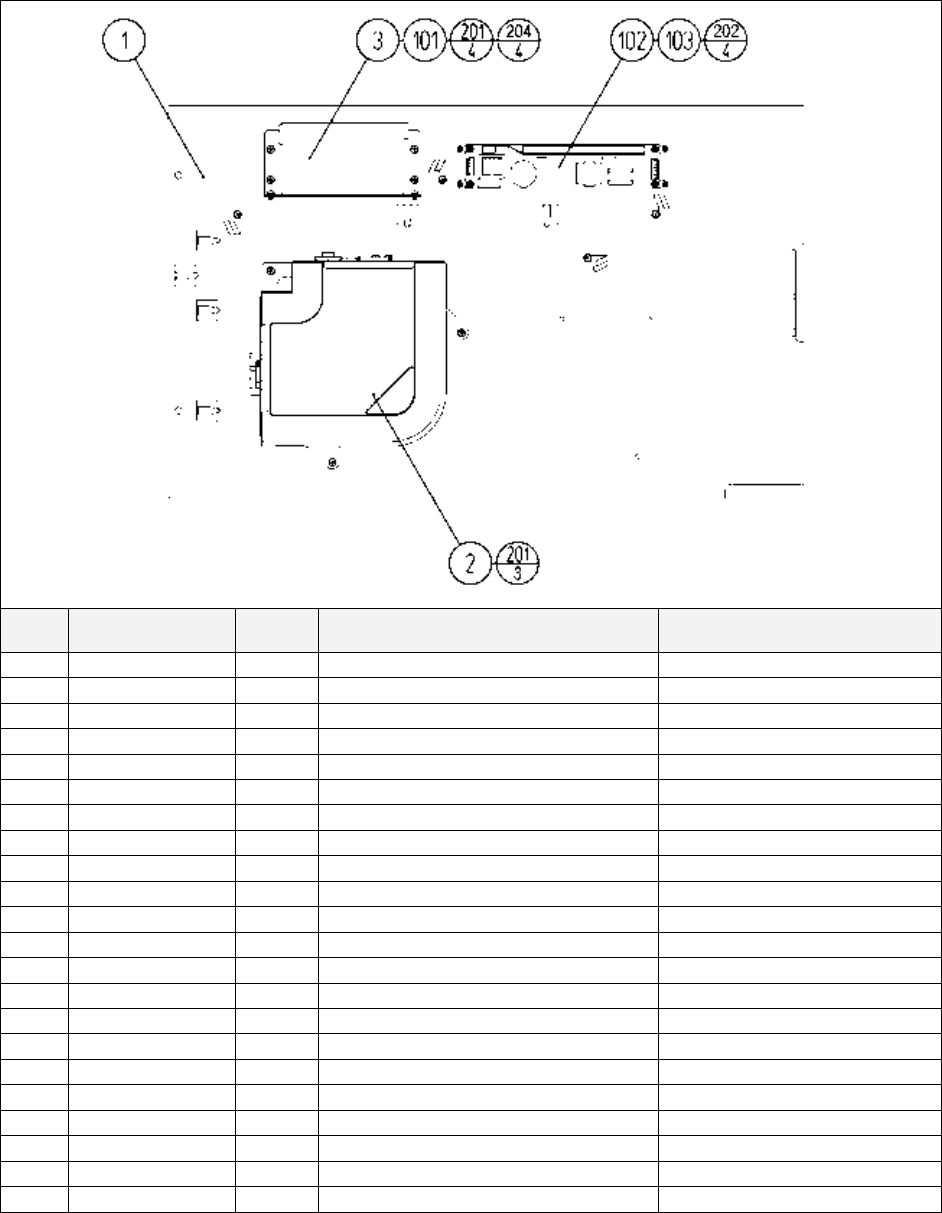

8.17. FZR-4500UK ASSY MAIN BD

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 ORT-4501UK 1 MAIN BD BASE

2 842-02DD511E 1 ASSY TRF FZR EXP

3 APC-4002 1 SW REG BRKT

4 105-5435 1 GD DRIVE BRKT STD

5 LB1111 1 STICKER PLEASE RECYCLE

6 610-0617 1 GD-ROM DRIVE UNIT NAOMI

7 610-0649-0004 1 GD SOFT FZR

101 400-5397-01 1 SW REGU FOR JVS VA

102 400-5421-07512 1 SW REGU LCA75S-12

103 OS1071 1 FEET P.C.B PKT OF 4 (102)-4 FEET

104 354081 4 TWIST LOK BHKL-450-4

105 354083 4 (A)TWIST N LOK BHKL-750-4

106 280-A00964-WX 6 ROUTER TWIST D09 SO6.4

107 LB1101 1 STICKER WARNING BATTERY GAME BD

201 000-P00416-W 10 M4X16 MSCR PAN W/FS PAS (2)-3,(4)-3,(3)-4

202 012-P03516 4 N6X5/8" S/TAP PAN PAS (102)-4

203 012-P00410-F 4 N8X3/8" S/TAP FLG PAS (6)-4

204 000-P00408-W 4 M4X8 MSCR PAN W/FS PAS (101)-4

302 TOF-60002UK 1 WH MAIN BD AC

303 TOF-60003UK 1 WH JVS PWR 6P W/CARD

304 TOF-60004UK 1 WH JVS PWR 8P W/GD

307 600-7247-500 1 CABLE SCSI ST-L TYPE2 500MM

161

8.18. FZR-4600UK ASSY ELEC BD

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 TOF-4601UK 1 WOODEN BASE ELEC

3 837-13551-92 1 I/O CONTROL BD FOR JVS

102 560-5394UK 1 TRANSFORMER DUT TW

103 838-13578 1 PWR AMP 2CH & MIXER

104 838-14174 1 SERVO MOTOR DRIVE BD MIDI

105 838-11856CE-02

1 CONNECT BD W/FUSE 6.3A CE

107 354081 11 TWIST LOK BHKL-450-4

108 354083 10 (A)TWIST N LOK BHKL-750-4

109 280-A00964-WX 12 ROUTER TWIST D09 SO6.4 WOOD X

201 012-P00325 14 N4X1" S/TAP PAN PAS (3)-4,(103)-4,(104)-4,(105)-2

203 000-P00416-W 4 M4X16 MSCR PH W/FS (102)-4

206 068-441616 4 M4 WSHR 16OD FLT PAS (102)-4

301 600-7141-100 1 CABLE JVS TYPE A-B 100CM

302 600-6985-006UK

1 WIRE HARN 100V OUT

303 FRI-61003UK 1 WIRE HARN CONN BD B

305 FRI-61027UK 1 WIRE HARN EXT AC100V A

306 TOF-60104UK 1 PWR AMP 14V AC IN

307 NCR-61002UK 1 WH AMP VR

309 NCR-61004UK 1 WH AMP SP F

162

Cont.

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

310 ORT-60001UK 1 WH CONN BD OUT A HUB

311 TOF-60007UK 1 WH MIDI

312 TOF-60008UK 1 WH ELEC BD I/O PWR

313 FZR-61003UK 1 WH I/O BD

315 POD-61057UK 1 WH EARTH AC UNIT

316 FRI-61030UK 1 WIRE HARN EXT MOTOR A

317 TOF-60011UK 1 WH EXT ENCODER A

318 TOF-60021UK 1 WH EXT AC100V B

319 FZR-61017UK 1 WH MAIN BD SOUND

163

8.19. FZR-1510UK ASSY BASE LID R

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 FZR-1511UK 1 BASE LID R

2 DUT-1511-CUK 1 GASKET STRIP (1)-1

3 DUT-1511-DUK 1 LOCK TONGUE DUT (101)-1

101 220-5575UK 1 LOCK

201 050-F00400 1 M4 NUT FLG (301)-1

301 600-9020-44K 1 WIRE HARN EARTH 200mm M4/M4 K R.FLOOR TO MAIN BASE

164

8.20. FZR-INST-TW ASSY INST KIT FZR TWIN

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 FZR-0200UK 1 ASSY BILLBOARD

2 FRI-0300UK 1 ASSY COINCHUTE TOWER FRI

3 ORT-0500UK 1 ASSY WIRE COVER ORT TWIN

4 DYN-0013 1 JOINT PIPE

5 DYN-0006XUK 1 AC COVER B

6 SRT-0018UK 1 AC COVER C

7 DYN-0019UK 1 AC COVER D

8 RAL-XXXX-14UK

1 TIE BRACKET RALLY

9 SPG-0008 2 BILLBOARD HOLDER

10 422-0911UK 2 PLAY INSTR FZR TWIN MULTI

11 422-0912UK 2 SUB INSTR FZR TWIN MULTI

13 PK0347 1 INST KIT BOX FZR TWIN

15 FZR-0022-01 2 STICKER CARD SLOT FZR B ENG

16 601-11334-01 3 CARD PACKAGE FZR ENG

17 601-11050-91 2 CLEANING KIT

18 220-5753 1 VOL CONT B-5K OHM (TOCOS) spare (mecha)

19 PK0343 0.5 PALLET INST KIT

20 FZR-0020UK 2 STICKER CARD SLOT FZR C MULTI

21 FZR-1297UK 2 STICKER MEMORY CAUTION MULTI

22 FZR-2024UK 2 STICKER MEMORY SLOT LWR MULTI

101 440-CS0186UK 2 STICKER C EPILEPSY MULTI

104 OS1241 6.5 TAPE RF20 XWEAVE 50mmX50M ROLL AROUND MONITOR

201 030-000825-SB 20 M8X25 BLT W/S BLK (1,2,4)-4EA,(9)-8

202 068-852216-0B 20 M8 WSHR 22OD FLT BLK (1,2,4)-4EA,(9)-8

203 000-P00412-WB 15 M4X12 MSCR PAN W/FS BLK (3)-5,(5)-4,(6)-2,(7)-4

204 050-F00400 3 M4 NUT FLG SER PAS (AC UNITS)-1EA, (2)-1

301 600-7269-0500 1 ASSY LAN CABLE 0500CM

401 420-5827 1 SERVICE MANUAL SANWA 31K

402 420-6770-01UK 1 SERVICE MANUAL FZR TWIN

403 OS1019 2 SELF SEAL BAG 9X12.3/4

404 540-0006-01 1 WRENCH M4 TMP PRF

405 540-0007-01 1 WRENCH M5 TMP PRF

406 540-0009-01 1 WRENCH M8 TMP PRF

407 220-5484 1 VOL CONT B-5K OHM spare (accel/brake)

408 SAECE-xxx 1 DECLARATION OF CONFORMITY DECLARATION OF

409 514-5078-5000 2 FUSE 5X20 CERAMIC SB 5000mA

411 420-6620UK 1 SERVICE MANUAL GD ROM SYSTEM

416 509-6036 1 SW MICRO MATSUSHITA AM51615A7

418 220-5775 1 VOL CONT B-10K OHM W/BD spare (steering)

165

8.21. FZR-0200UK ASSY BILLBOARD

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 FRI-0201UK 1 BILLBOARD BOX

2 FZR-0202UK 1 SIDE COVER L

3 FZR-0203UK 1 SIDE COVER R

4 FRI-0204UK 1 BILLBOARD LID

5 FRI-0205 1 UPPER SASH

7 ORT-0207UK 1 UPPER COVER

8 FRI-0208 2 UPPER LID

9 FRI-0209 1 SASH SIDE L

10 FRI-0210 1 SIDE SASH R

12 VOT-0208 2 SIDE COVER BRKT

13 FZR-0215UK 1 BILLBOARD PLATE FZR TWIN

14 421-7501-10 1 STICKER FL 40W

15 LB1104 1 STICKER CAUTION, HOT SURFACE

ON BACK LID

16 LB1102 3 STICKER DANGEROUS VOLTAGE BACK LID-1, UPPER LID-1EA

17 FRI-0211 2 CUSHION SPONGE 40

18 390-5695-40-CUK 1 FL TRAY 110V 40W (T12)

19 390-5695-40-BUK 1 FL TUBE 40W 4' DIA 1.5" T12

166

Cont.

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

20 280-A00900-A 7 ROUTER TWIST D9 ADH

21 FZR-0202-BUK 1 STICKER SIDE COVER L

22 FZR-0203-BUK 1 STICKER SIDE COVER R

202 000-T00408-0B 27 M4X8 MSCR TH BLK (4)-6,(7)-9,(8)-12

203 000-T00412-0B 10 M4X12 MSCR TH BLK (2)-5,(3)-5

205 068-441616-0B 13 M4 WSHR 16OD FLT BLK (2)-5,(3)-5,(4)-3

206 000-P00408-W 12 M4X8 MSCR PAN W/FS PAS (9)-4,(10)-4,(12)-4

207 050-F00400 5 M4 NUT FLG SER PAS (101)-2,(EARTHS)-3

210 000-P00408 2 M4X8 MSCR PAN PAS (102)-2

302 600-7064-031UK 1 WIRE HARN FL

303 600-9020-44K 1 WIRE HARN EARTH 200mm B/BD BOX- B/BD LID

167

8.22. FRI-0300UK ASSY COINCHUTE TOWER FRI

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 ECA-0301UK 1 COIN CHUTE TOWER ECA

2 VTS-FRI-T 1 VTS BOARD FRI TWIN

3 PP1087 1 BOX CASH FOR MINI DOOR

4 SRT-0302UK 1 CCT FLOOR TWIN

5 DUT-0302UK 1 COIN PATH PLATE FIX TO TOP OF VAULT ROOF

201 000-P00410-W 11 M4X10 MSCR POSI PAN W/FS (2)-4,(4)-2,(5)-5

301 FRI-61056UK 1 WIRE HARN VTS BOARD

168

8.23. ORT-0500UK ASSY WIRE COVER ORT TWIN

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 DYN-0005UK 1 AC COVER A

2 DYN-0009UK 2 HOLE LID (1)-2

201 000-P00308-WB 4 M3X8 MSCR PAN W/FS BLK (2)-4

202 050-F00400 1 M4 NUT FLG SER PAS EARTH - 1

203 280-A02000-A 5 ROUTER TWIST D20 ADH (1)-5

301 600-6817-104 1 WIRE HARN EXT AC (SPG)

302 600-6817-102 1 WIRE HARN EXT TOWER L (SPG)

303 600-6817-103 1 WIRE HARN EXT TOWER R (SPG)

304 600-6373-76 1 WIRE HARNESS PLAYER SEL EXT A

305 600-9075-44K 1 WIRE HARN EARTH 750mm M4/M4 K SUB AC-AC COVER

306 600-9030-44K 1 WIRE HARN EARTH 300mm M4/M4 K MAIN AC-AC COVER

307 600-9040-45K 1 WIRE HARN EARTH 400mm M4/M5 K AC COVER - CCT

169

8.24. ORT-0400UK ASSY AC BRKT MAIN

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 ORT-0401UK 1 AC BRKT UK

101 EP1379 1 FILTER EMI 10A ARCOTRONICS

102 EP1302 1 EUROSOCKET FUSED 1OA 250Vac

103 EP1303 1 SWITCH ROCKER DPST 10A 250Vac

104 514-5078-10000 1 FUSE 5X20 CERAMIC SB 10000mA IEC INLET

105 310-5029-D508 5 HEAT SHRINK SLEEVING 50.8DIA

OVER ITEM 102(50MM OVER

SOCKET)

106 421-6595-5000-T 1 STICKER FUSE 5000mA TYPE T FUSE HOLDER

107 LB1096 1 STICKER PROTECTIVE EARTH EARTH POINT INSIDE

111 EP1334 1 FUSE HOLDER 20mm 10A 240Vac

112 514-5078-5000 1 FUSE 5X20 CERAMIC SB 5000mA

113 421-6595-10000T 1 STICKER FUSE 10000mA TYPE T IEC INLET

114 360168 1 SNAP-BUSHING-HEYCO-400 2182

201 060-S00300 4 M3 WSHR SPR PAS (101)-4

202 060-F00300 4 M3 WSHR FORM A FLT PAS (101)-4

203 000-P00310 4 M3X10 MSCR PAN PAS (101)-4

204 050-F00400 3 M4 NUT FLG SER PAS (INSIDE EARTH)-

2,(OUTSIDE)-1

301 600-6873-001UK 1 WIRE HARN XFMR IN

303 600-9030-44K 1 WIRE HARN EARTH 300mm M4/M4 K AC BRKT TO MAIN BASE

304 600-9040-45K 1 WIRE HARN EARTH 400mm M4/M5 K AC BRKT - XFMR

170

8.25. ORT-0700UK ASSY AC BRKT SUB

ITEM

PART NO. QTY DESCRIPTION COMPONENT REF.

1 ORT-0401UK 1 AC BRKT UK

106 421-6595-5000-1 STICKER FUSE 5000mA TYPE T FUSE HOLDER

107 LB1096 1 STICKER PROTECTIVE EARTH EARTH POINT INSIDE

111 EP1334 1 FUSE HOLDER 20mm 10A 240Vac

112 514-5078-5000 1 FUSE 5X20 CERAMIC SB 5000mA

114 360168 1 SNAP-BUSHING-HEYCO-400 2182

204 050-F00400 3 M4 NUT FLG SER PAS (INSIDE EARTH)-2,(OUTSIDE)-

303 600-9030-44K 1 WIRE HARN EARTH 300mm M4/M4 K AC BRKT TO MAIN BASE

304 600-9040-45K 1 WIRE HARN EARTH 400mm M4/M5 K AC BRKT - XFMR

305 600-6999-201UK

1 WIRE HARN SUB AC BRKT

171

8.26. VOF-0450UK CARD UNIT TWIN L

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 CKT-0401UK 1 CARD R/W BASE TWIN

2 CKT-0402UK 1 CARD R/W COVER TWIN L

3 CKT-0403UK 1 LOCKING TONGUE NARROW

4 253-5512 1 CARD GUIDE

5 CKT-0404UK 1 PLATE STAY

6 CKT-0408UK 2 LOCK BRKT S

7 CKT-1307 2 STUD PLATE

8 VOF-0451UK 1 CARD R/W BRKT FOR VOF

9 170048 1 SPACER-L+F REF 9203602

10 CKT-0406UK 1 GATE

11 CKT-0407UK 1 INSULATOR PLATE CKT

12 VOF-0452UK 1 INSULATOR PLATE VOF

13 100-5365-0606 1 OILES BEARING 80T 0606 (2)-1

101 220-5575UK 1 LOCK (9)-1

102 601-11082 1 CARD R/W UNIT CRP-1231BR-10

103 280-A01200-A 3 ROUTER TWIST D12 ADH

201 000-P00308-W 7 M3X8 MSCR PAN W/FS PAS (2)-3,(102)-4

202 000-F02508 2 M2.5 X 8 MSCR CSK BZP (4)-2

203 065-E00500 2 DIA5 E RING (5)-2

204 068-652016 4 M6 WSHR 20OD FLT PAS (5)-4

205 050-F00400 8 M4 NUT FLG SER PAS (6)-4,(11)-2,(12)-2

206 000-F00308 4 M3X8 MSCR CSK PAS (11)-2,(12)-2

301 VOF-60050UK 1 WH CARD R/W

172

8.27. VOF- 0460UK CARD UNIT TWIN R

ITEM

PART NO. QTY

DESCRIPTION COMPONENT REF.

1 CKT-0401UK 1 CARD R/W BASE TWIN

2 CKT-0422UK 1 CARD R/W COVER TWIN R

3 CKT-0403UK 1 LOCKING TONGUE NARROW

4 253-5512 1 CARD GUIDE

5 CKT-0404UK 1 PLATE STAY

6 CKT-0408UK 2 LOCK BRKT S

7 CKT-1307 2 STUD PLATE

8 VOF-0451UK 1 CARD R/W BRKT FOR VOF

9 170048 1 SPACER-L+F REF 9203602

10 CKT-0406UK 1 GATE

11 CKT-0407UK 1 INSULATOR PLATE CKT

12 VOF-0452UK 1 INSULATOR PLATE VOF

13 100-5365-0606 1 OILES BEARING 80T 0606 (2)-1

101 220-5575UK 1 LOCK (9)-1

102 601-11082 1 CARD R/W UNIT CRP-1231BR-10

103 280-A01200-A 3 ROUTER TWIST D12 ADH

201 000-P00308-W 7 M3X8 MSCR PAN W/FS PAS (2)-3,(102)-4

202 000-F02508 2 M2.5 X 8 MSCR CSK BZP (4)-2

203 065-E00500 2 DIA5 E RING (5)-2

204 068-652016 4 M6 WSHR 20OD FLT PAS (5)-4

205 050-F00400 8 M4 NUT FLG SER PAS (6)-4,(11)-2,(12)-2

206 000-F00308 4 M3X8 MSCR CSK PAS (11)-2,(12)-2

301 VOF-60050UK 1 WH CARD R/W

173

9. APPENDIX A - ELECTRICAL SCHEMATIC

9.1. Wire Colours

THE WIRE COLOUR CODE IS AS FOLLOWS:

A PINK

B SKY BLUE

C BROWN

D PURPLE

E LIGHT GREEN

Wires other than those of any of the colours listed above will be displayed by 2 alphanumeric characters:

1 RED

2 BLUE

3 YELLOW

4 GREEN

5 WHITE

7 ORANGE

8 BLACK

9 GREY

If the right hand side numeral of the code is 0, then the wire will be of a single colour shown by the left

hand side numeral (see the list above).

Note 1: If the right hand side alphanumeric is not 0, that particular wire has a spiral colour code. The left

hand side character shows the base colour and the right hand side one, the spiral colour.

[Example] 51------------- WHITE/RED = WHITE wire with RED stripes

Note 2: The character following the wire colour code indicates the size of the wire.

K: AWG18, UL1015

L: AWG20, UL1007

None AWG22, UL1007

9.2. Electrical Schematic

The following pages contain the electrical schematic for this machine.

174

Schematic 1 here

175

Schematic 2 here

176

Schematic 3 here
