OWNERS AND SERVICE MANUAL

INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.

10123 MAIN STREET, CLARENCE, NY 14031

SERVICE: 1-716-759-0360

FAX: 1-716-759-0884

E-MAIL: service@icegame.com

WEBSITE: www.icegame.com

NBA Jr. Basket Ball

2

TABLE OF CONTENTS

INTRODUCTION

1

SET UP/ TESTING/

MAINTENANCE

2-5

PROGRAMMING

6-9

QUICK TROUBLESHOOTING

10-11

GAME REPAIR

12-14

PARTS LISTINGS

15

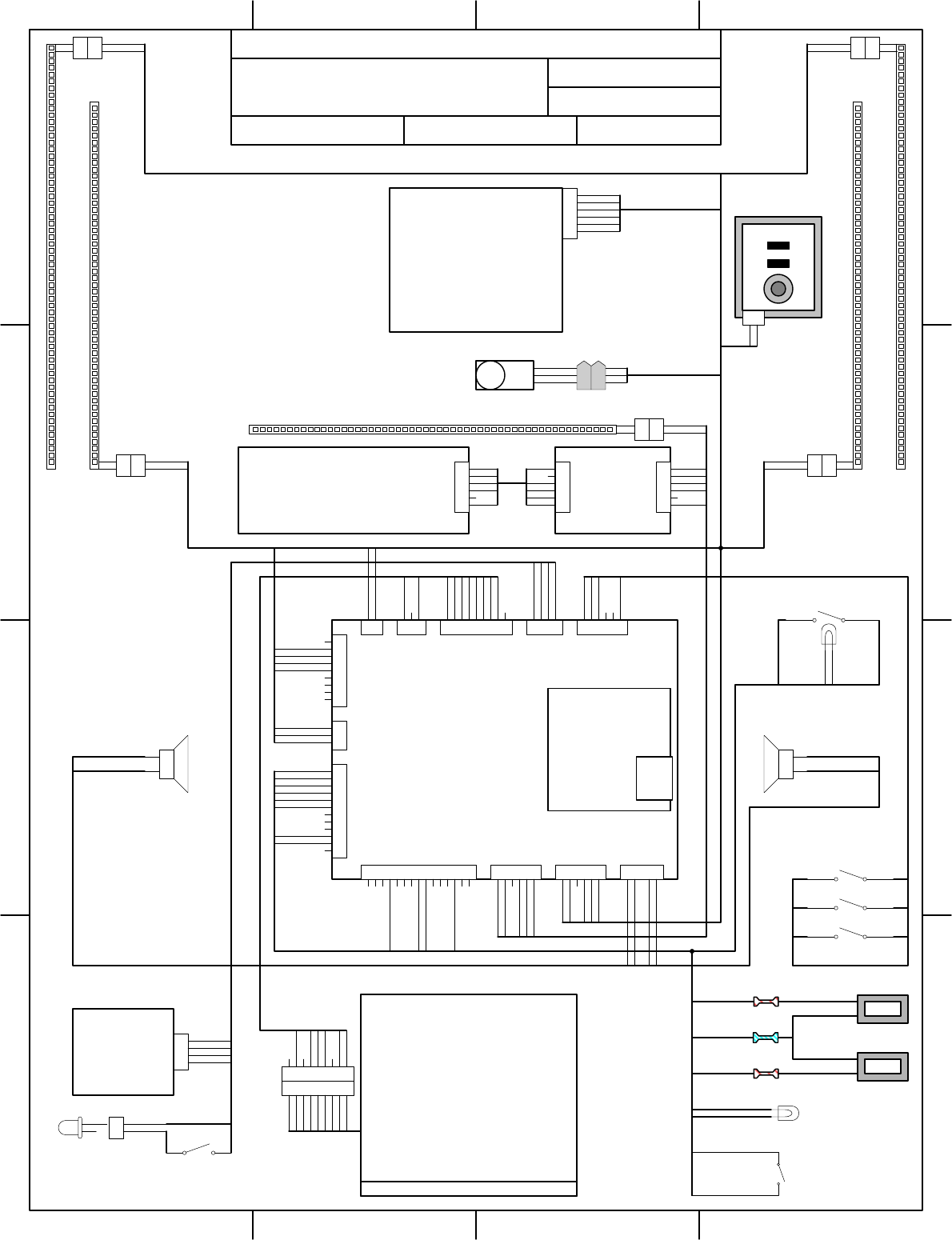

SCHEMATICS

16-32

WARRANTY INFORMATION

33

TABLE OF CONTENTS

ASSEMBLY……………………………...………………..PAGE 3

 SAFETY PRECAUTIONS

 GAME SET-UP

 DISASSEMBLY

CUSTOMIZING YOUR GAME..…………………...…...PAGE 7

 ENTERING SET-UP MODE

 CHANGING GAME SETTINGS

 PROGRAMMING MODES

 ERROR CODES

MAINTENANCE & TROUBLESHOOTING...……........PAGE 10

 OPERATIONAL BACKGROUND

 MECHANICAL REPAIR

 MECHANICAL MAINTENANCE

 ELECTRONIC & ELECTRICAL REPAIR

 FUSES

 HOOP SENSOR

 MAIN BOARD & POWER SUPPLY

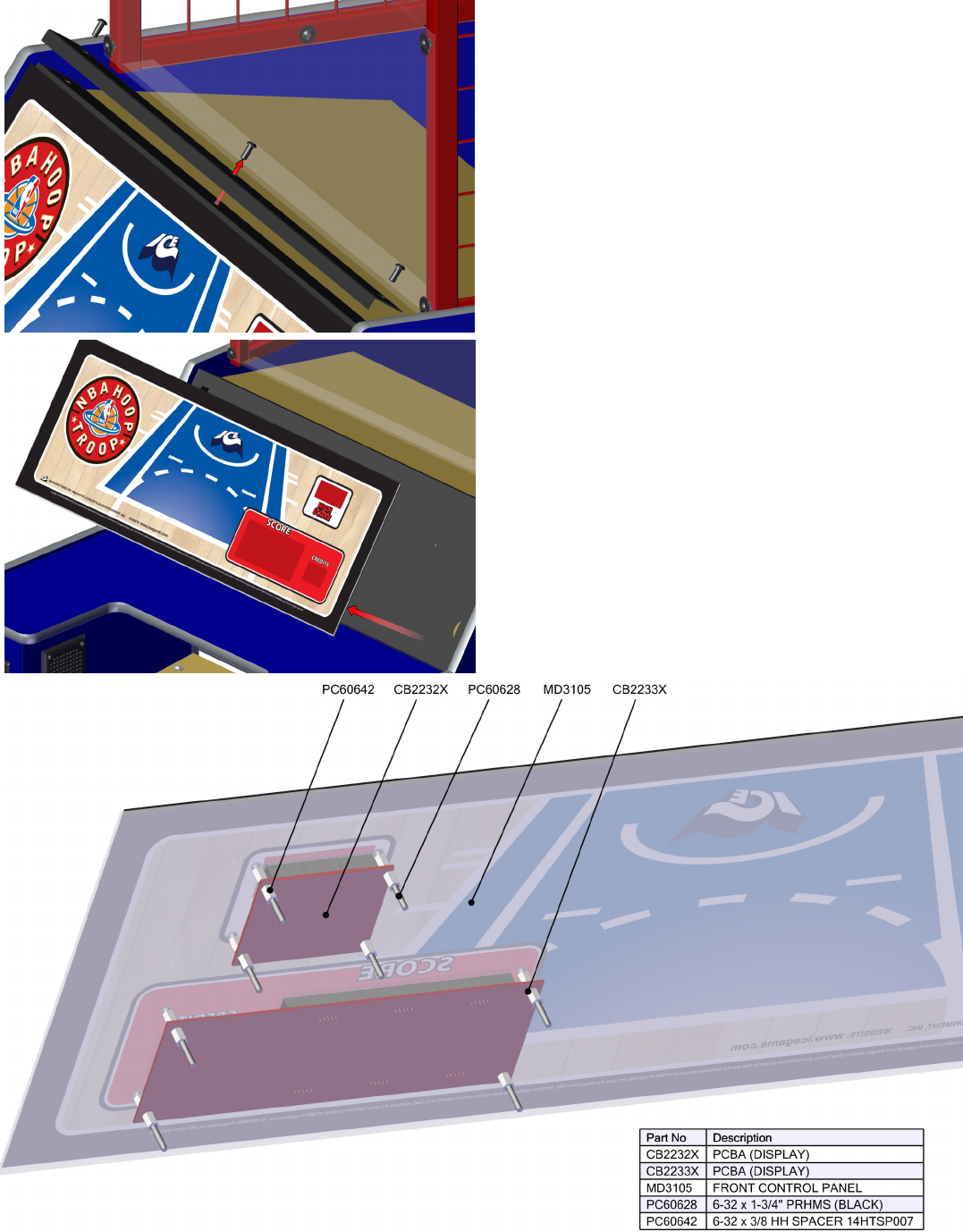

 DISPLAY PANEL REMOVAL

QUICK TROUBLESHOOTING…..………………..……PAGE 12

ASSEMBLIES…………………………………………….PAGE 14

 BALL GATE ASSEMBLY

PARTS LISTING………………………………………....PAGE 16

WARRANTY INFORMATION…………………………..PAGE 17

REVISION B 4/8/2011

3

BEFORE YOU BEGIN

WARNING: WHEN INSTALLING THIS GAME,

A 3 PRONG GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO

YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER

GAME OPERATION, OR DAMAGE TO THE ELECTRONICS

DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME REASON AS

GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD VOID YOUR WARRANTY.

HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE GROUND IS FUNCTION-

ING PROPERLY.

SET-UP

The game is fully assembled and requires no further assembly. Although the game is shipped with our suggested set-

tings as its default we still suggested that you read through “Customizing Your Game” to fully understand all options

available to you in setting your game for your location.

DISASSEMBLY

The game can be dissembled if necessary to accommodate small door ways. You will need to remove rebound guard

first. Then remove the cages starting with the top and then the sides. The back board then can be removed. The up-

per mounting bolts on the backboard must be removed in order for the cages to come out. The front podium can be re-

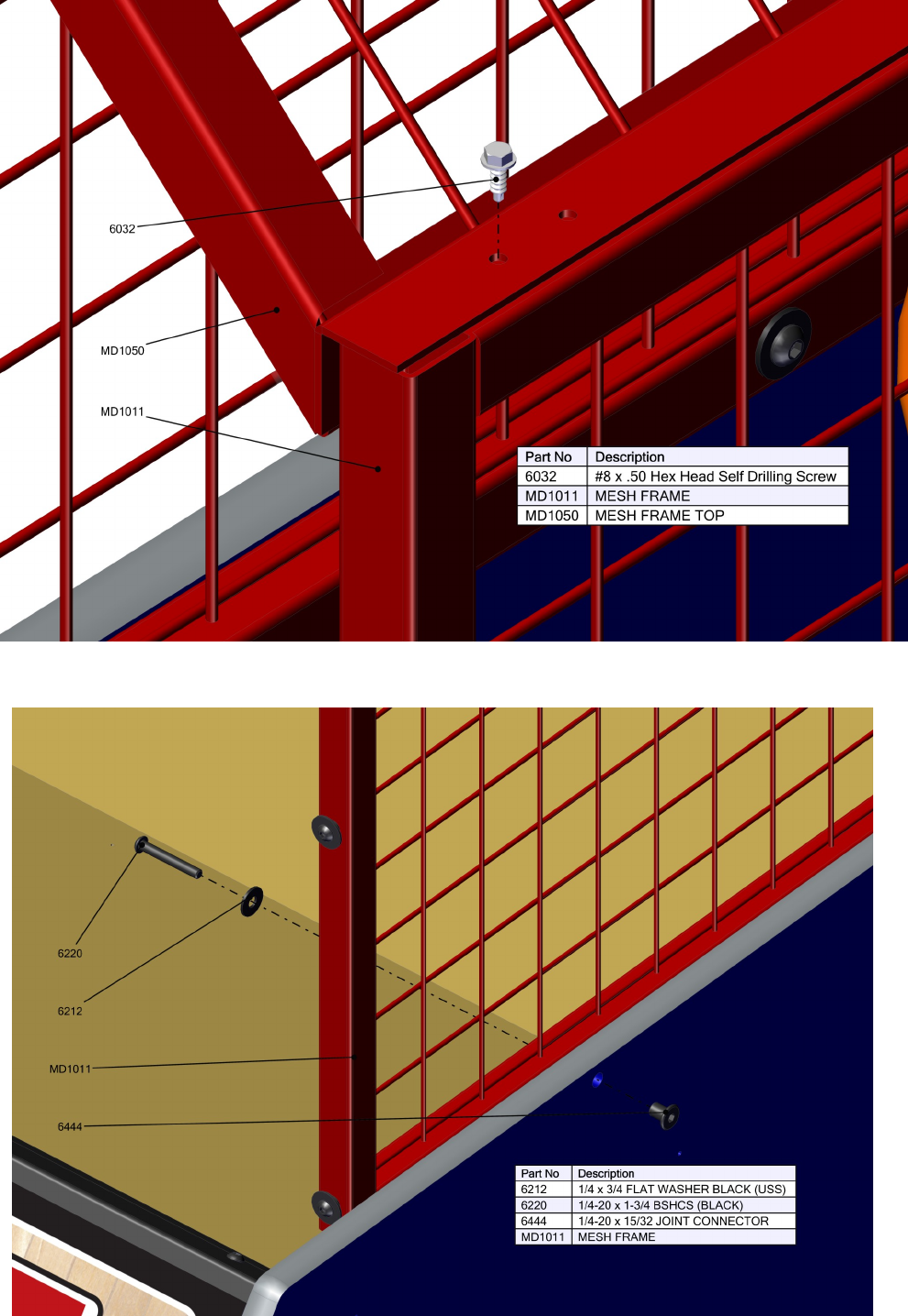

moved once the supporting bars are removed. Refer to the diagrams in the next few pages for how each of the compo-

nents are attached to each other. The game can now be brought in and reassembled.

4

5

6

Using a latch tool, from the sides of the cabinet,

unlatch each side.

7

CUSTOMIZING YOUR GAME

CUSTOMIZING YOUR GAME

This section will discuss subjects such as setting up

credits, time per game, awards, etc. the section be-

low will show how to enter into the programming

mode and how to adjust many of the game’s operat-

ing parameters.

ENTERING SET-UP MODE

You must enter set-up mode to adjust all of the

game features. This can be accomplished in the fol-

lowing manner:

1. Open the game’s coin door. This is the upper

door located on the upper right side of the lower

cabinet.

2. Locate the PROG button. It is located on the left

hand side of the bracket that is attached to the

cash box enclosure.

3. Press the PROG button. You are now in the

program mode.

CHANGING GAME SETTINGS

When you push the PROG button, you will notice

that the credits display will show “PR”. This confirms

you are in programming mode and not game mode.

1. To advance through the different modes, press

the “SEL” button located next to the PROG but-

ton. . Each push of the button will advance you

to the next mode. The modes are displayed on

the “Score” display. Whenever you are done

with any programming changes, push the PROG

button to return to normal game play.

2. The current value for each mode will be shown

in the “High Score” display.

3. To change the shown value to the next number,

press the “ADV” button next to the “SEL” button

in the coin door.

MODE 0

(VOLUME)

This option is used to change the relative sound vol-

ume of the game. “0” is the lowest the game can be

set to play at while “8” is the loudest. Each time the

button is pushed, a sound is played to make it easier

to determine where the volume level should be set.

The factory default for this option mode is “3”.

MODE 1

(COINS PER CREDIT)

COIN INPUT #1

This mode determines how many coins are needed

to create 1 credit for coin input #1. (This is also the

only coin input normally adjusted for most usage)

This value can be adjusted from 0-10. Setting a “1”

would indicate 1 coin is needed to obtain 1 credit. A

“2” would indicate 2 coins are needed to obtain 1

credit. Setting a “0” sets the game to the “FREE

PLAY” mode. The factory default for this setting is

“2”.

MODE 2

(COINS PER CREDIT)

COIN INPUTS #2

This adjusts how many coins are required to receive

1 credit on the game’s RIGHT HAND COIN MECHA-

NISM. This mechanism is set differently, so it can be

used for fractional credits. For normal use, set a “1”

for this mode. If you wish to use this for coins with a

different value than that of coin mech #1, contact our

service department for set-up information for your

particular application. The factory default for this set-

ting is “1”.

MODE 3

(CREDITS PER DOLLAR BILL)

This option controls how many credits you will re-

ceive for each dollar bill inserted. This value can be

adjusted from 0-10. The factory default for this set-

ting is “4”.

8

CUSTOMIZING YOUR GAME

MODE 4

(COIN DISCOUNTING)

This option is used to create “Bonus Credits”. The

way this option works is as follows: if a “3” is set, for

every 3 coins put in AT THE SAME TIME, 1 extra

credit would be given. The range for this option is 0-

10. Setting a “0” turns this option off. The default

value for this option is ”0”.

MODE 5

(TIME PER CREDIT)

This adjusts, in seconds, how long each game will

last. The game can be adjusted from 20 to 60 sec-

onds. The recommended time is 40 seconds.

MODE 6

(JUST FOR PLAYING TICKETS)

This feature is valuable in 2 respects…..

1. This can be set from 0 to 10 tickets. So that if a

player, especially a young child who can not get

the minimum points required to earn awards, can

still be dispensed. The default value for this op-

tion is ”0”.

2. This setting can give a predetermined amount of

tickets, REGARDLESS of points scored, if mode

7 and mode 8 are also used.

MODE 7

(GAME POINTS PER TICKET)

This adjusts how many points are needed for the

game. The settings for this mode are 10 to 50. tick-

ets. The number displayed set the points required to

win an award. Setting this number to “0” will turn off

the dispenser.

MODE 8

(TICKET CAP)

This mode is used to set the minimum number of

points needed to get any awards whatsoever. The

settings for this mode are 0 to 99 tickets. Set the

number to match the score you wish to achieve be-

fore awards are dispensed. Setting this number to

“0” turns the option off.

The default for this option is “0”.

MODE 9

(ATTRACT TYPE)

Use this setting to control the type of attract mode

you would like. Setting a “1” gives you attract mode

sound only. Setting a “0” turns the attract mode off.

The default for this mode is “1”.

MODE 10

(ATTRACT TIME)

This mode determines the length of time between

attract modes. Change this number to change the

amount of time in MINUTES between attract modes.

The settings for this mode can be adjusted from 1 to

60 minutes. The default for this mode is “3”.

MODE 11

(BONUS TICKETS)

This mode allows you to set the number of Bonus

Tickets. The settings for this mode are from 0 to

200. the default setting for this mode is 20.

MODE 12

(BONUS SCORE)

This mode allows you to select the number of tickets or a

free game for a player reaching the “Bonus Score”. The

settings for this mode can be adjusted from 0 to 200 tick-

ets. The default setting for this mode is 100.

MODE 13

(FACTORY DEFAULTS)

When this mode is selected, the game will revert to all

factory default settings.

ERROR CODES

If any error occurs then a single dot will appear in

the far right location of the credit display. To see

what that error is you press the advance button

(when not in accounting). To exit this display just

press advance again. It should be noted that this will

work even during a game. When you are in this dis-

play the letters Er will show up in the credits display.

These are the errors:

9

CUSTOMIZING YOUR GAME

1. Ticket Error – Self Clearing

This error will occur when either a ticket jam occurs

or there are no tickets available to dispense. This

error will clear when it sees the ticket notch line

change state.

2. Compact Flash Error

This error will occur when the compact flash card

cannot be accessed. Game sounds and music will

be missing. Replace with a good flash card with the

power off to clear this error.

5. Hoop Blocked – Self Clearing

This error occurs when the sensor is blocked or

has become defective. See adjusting sensor for

proper operation. If the net is not tied back

away from the sensor, it can block the sensor.

When the sensor is no longer blocked the error

will clear.

6. Coin 1 Stuck Down – Self Clearing

This error occurs when the coin switch is con-

nected to the normally open position or held

closed. The error will clear when corrected.

7. Coin 2 Stuck Down – Self Clearing

See error 6.

8. DBV Stuck Down – Self Clearing

See error 7.

9. Start button stuck - Self Clearing

This error will occur either if the start button is

wired to normally closed or the button is stuck

on. Fixing this will clear the error.

10. Ignore - Not used – Self Clearing

Self clearing errors can correct themselves without a

reboot, all others will require a reboot. This can be

accomplished by entering and then exiting program-

ming, or a physical power cycle.

Compact flash error only indicates that the CF is not

detected. The CF access light on the brain board

will appear to be on solid if there was an error on

power-up. Should you not get audio but the access

light is not on solid, then either the card data is bad,

or the card was put in with power on and cycled the

game by entering and exiting programming. Possi-

ble conditions are:

CF error code and CF access Light solid = either

bad/wrong/no card or card inserted with power on

the game

CF error code and CF Light blinks = should not oc-

cur but this would indicate that the card has gone

bad during operation

NO CF error code and CF light blinks = Normal op-

eration during sound

No CF error code and CF light off = Normal opera-

tion without sound playing or card removed and rein-

serted with power on.

No CF error code and CF light solid = error with CF

access light/driver.

Setting the game ID to 9 will enter burn in mode.

This mode can only be exited by a power cycle with

the ID set to anything other then 9. This mode will

cycle the audio and move the ball gate. Additionally

it will cycle the segments on all displays. During this

burn in the error conditions described above do not

work.

10

MAINTENANCE & TROUBLESHOOTING

FUSES

Normally fuses are the first items that should be checked

when the game is inoperable or works incorrectly.

There is only 1 fuse in the game and it is resettable. It is

located on the backside of the front podium by the AC

input cord.

HOOP SENSOR

It might be necessary to adjust the score sensor of your

game depending on your lighting conditions of your loca-

tion. Located at the top of the sensor is a small adjust-

ment screw that adjusts the sensitivity of the sensor and a

operation indicator.

The sensor is mounted sideways onto the hoop. The ad-

justment screw and indicators are located on the right

side of the game. When the sensor is properly working,

the Green LED will be constantly on to indicate the sensor

is operating. When the sensor detects a object in front, it

will briefly light the orange LED. If the object continues to

block the sensor, the orange LED will remain on until the

object is removed.

To adjust the sensor, turn the adjustment screw clockwise

towards its maximum position. Now turn the adjustment

screw counter clockwise until the green LED turns off. Go

slow. Now turn the adjustment screw halfway between

this point and maximum sensitivity.

GENERAL CLEANING

Clean the surfaces of the cabinet and decals with a com-

mercial cleaner such as 409™ or Fantastic™. Do NOT

use cleaners such as Wildcat pinball cleaner or alcohol. It

can take the finish off of the decals. Use Pledge™ on all

plastic and painted surfaces. This product works

especially well on clear plastics. Please note that other

spray polishes do not work as well.

MECHANICAL REPAIRS

IT IS IMPORTANT TO USE ONLY ICE REPLACEMENT

PARTS WHEN SERVICING YOUR GAME. USING NON-

ICE APPROVED PARTS COULD VOID YOUR WAR-

RANTY, AND COULD CAUSE SERIOUS DAMAGE TO

THE GAME OR INJURY TO OTHERS.

ELECTRICAL REPAIR

WARNING: EXERCISE CAUTION WHENEVER WORK-

ING WITH ELECTRONICS, THEY CAN BE VERY SUS-

CEPTIBLE TO DAMAGE FROM SHORT CIRCUITING,

OR PHYSICAL ABUSE. ALWAYS UNPLUG THE GAME

WHEN WORKING ON HIGH VOLTAGE AREAS OF THE

GAME, SUCH AS THE TRANSFORMER.

USE EXTREME CAUTION WHEN USING VOLTME-

TERS TO DO CIRCUIT CHECKS IF THE GAME POWER

HAS BEEN LEFT ON.

WHEN USING A VOLTMETER, BE SURE IS SET TO

THE CORRECT VOLTAGE OR RESISTANCE RANGE

BEFORE USING. THIS CAN PREVENT POSSIBLE

DAMAGE TO THE PC BOARD OR MISDIAGNOSIS.

ALWAYS REMOVE POWER TO THE GAME WHEN

PLUGGING OR UNPLUGGING PC BOARDS.

IT IS NECESSARY TO USE ONLY ICE REPLACEMENT

PARTS TO CONTINUE WARRANTY COVERAGE. USE

OF NON-ICE APPROVED PARTS WILL NOT ONLY

VOID YOUR WARRANTY, BUT COULD CAUSE SERI-

OUS HARM TO THE GAME, OR CAUSE SERIOUS

BODILY INJURY.

IF YOU HAVE ANY QUESTIONS REGARDING REPAIR,

PARTS, OR OPERATION PLEASE CALL OUR SERVICE

DEPARTMENT AT:

I.C.E. SERVICE DEPARTMENT

716-759-0360

NORMAL BUSINESS HOURS ARE:

MONDAY – FRIDAY, 9:00 AM TO 6:00 PM EST

Adjustment screw Indicator

11

ACCESS TO MAIN BOARD AND POWER ADJUSTMENTS

To gain access to the main circuit board, adjust the power supply or replace the power supply you

will need to remove the four mounting bolts that hold the podium floor. See Figure 1. Now remove

the floor piece. See figure 2. The main board is located on a small shelf and held down with plastic

standoffs. Remove the standoffs to remove main board.

The power supply is located at the bottom of the cabinet. There you will also find a small knob (or

pot) that has a arrow to indicate which way to turn to increase power. Use a volt meter to confirm

the +12 volt output.

Figure 1 Figure 2

Figure 3

Adjustment

12

Display Panel Removal

The control panel has two different displays

boards. One display shows the high score while

the other has both the current score and credits

remaining.

To replace either displays remove the three

mounting screws shown to the left and remove

the mounting bracket.

Now lift the display panel assembly up and out.

Disconnect the wire harness.

Each display is attached to the display panel

with four plastic standoffs. Remove the stand-

offs on the display you wish to replace.

Assembly in reverse order.

13

QUICK TROUBLESHOOTING

PROBLEM PROBABLE CAUSE SOLUTION

BALL GATE WILL NOT OPEN OR

CLOSE OR MOVES VERY SLOW

BAD OR LOW +12 TO MOTOR

BAD WIRING TO BALLGATE

BAD MAIN PC BOARD

BAD BALL GATE BOARD

CHECK POWER SUPPLY - ADJUST

CHECK WITH VOLTMETER

REPAIR OR REPLACE PC BOARD

REPLACE ACTUATOR

PUSHBUTTONS DO NOT LIGHT

OR WORK PROPERLY

BAD BULB IN BUTTON

BAD MICROSWITCH IN BUTTON

BAD WIRING TO MAIN PC BOARD

BAD MAIN PC BOARD

BUTTON STUCK SHUT

CHANGE LIGHT BULB

REPLACE MICROSWITCH

CHECK WITH VOLTMETER

REPLACR MAIN PC BOARD

REMOVE AND CLEAN BUTTON

BALLS DO NOT SCORE

CORRECTLY

BAD SENSOR

SENSOR DIRTY

REFLECTIVE STRIP DIRTY

BAD HARNESSING OR WIRING

BAD MAIN PC BOARD

REPLACE SENSOR

CLEAN (USE NO SOLVENTS)

CLEAN (USE NO SOLVENTS)

CHECK WITH VOLTMETER

REPLACE MAIN PC BOARD

GAME DOES NOT TAKE OR ADD

MONEY CORRECTLY

BAD MAIN PC BOARD

BAD MICROSWITCH OR DBV

BAD WIRING TO MICROSWITCH OR DBV

GAME PROGRAMMING SET WRONG

REPLACE MAIN PC BOARD

REPLACE SWITCH OR DBV

CHECK WITH VOLTMETER

RESET GAME PROGRAMMING

GAME DOES NOT DISPENSE

TICKETS CORRECTLY

BAD TICKET DISPENSER

BAD WIRING TO DISPENSER

OUT OF TICKETS

TICKET SENSOR IS DIRTY

DISPENSER JAMMED

GAME PROGRAMMING SET WRONG

BAD MAIN PC BOARD

REPLACE TICKET DISPENSER

CHECK WITH VOLTMETER

ADD TICKETS

CLEAN SENSOR ON DISPENSER

REMOVE TICKET JAM

RESET PROGRAMMING

REPLACE MAIN PC BOARD

NO OR LOW GAME SOUND

VOLUME TURNED DOWN

BAD SPEAKER

BAD WIRING TO MAIN PC BOARD

BAD MAIN PC BOARD

TURN UP VOLUME

REPLACE SPEAKER

CHECK WITH VOLTMETER

REPLACE MAIN PC BOARD

BALLS DO NOT DISPENSE

QUICKLY ENOUGH OR JAM IN

THE GAME

GAME HAS EITHER TOO MANY OR TOO FEW

BALLS

GAME IS DESIGNED TO WORK

WITH 7 BALLS

DISPLAY LED’S DO NOT WORK

PROPERLY

BAD MAIN PC BOARD

BAD POWER

REPLACE PC BOARD

CHECK POWER OUTPUT

GAME WILL NOT RETAIN

CUSTOM PROGRAM SETTINGS

BAD MAIN PC BOARD

REPLACE PC BOARD

14

BACK BOARD DISSASSEMBLY

To remove the hoop you will need to remove the front panel.

It is attached to the back board with 7 mounting bolts and washers.

Remove these.

Now you can access the four mounting bolts and washers that hold the

hoop. Assembly in reverse.

BACK BOARD DISPLAY ASSEMBLY

To access the back display, remove

the back access panel as shown.

15

16

MECHANICAL PARTS

BB3008 Net

MD3017 Re-bounce guard

201 Chrome T-Molding

HP3001 Basket Ball 5” rubber

HP3019 Ball Inflation gauge

MD1050-P100 Top cage

MD1139-P200 Hoop

MS1013-P802 Side cage

3028 Screw cap royal blue

3030 Screw cap black

5014 Lock #45

5101X Mech holder assembly

BB1009 Cash box enclosure

BB1023 Bracket for Ball gate motor

BB5001 Cash Box

BG3002 Speaker Grill

HG1008-P802 Cash box door black

1024 Ticket Bin

1026 Low ticket switch bracket

HP1009 Ball gate motor cover

HP1023 Ball gate shaft

MD1009-p802 Coin door

MD1013-p802 Ticket door

ELECTRICAL & ELECTRONIC

PART

E00210MDJX Net Sensor

CB2233X Display

CB2232X Display

2007 4” round Speaker

E00418AMDX 51 LED white tape strip

E00418BMDX 75 LED white tape strip

E00418CMDX 51 LED white tape strip

E2034X PCBA Brain board

HH5005CL Ticket Dispenser

HP2005 Orange start button

MD2008X ASY Gate Motor

MD3106 LED Frosted Strip Upper left

MD3107 LED Frosted Strip Upper right

MD3108 LED Frosted Strip Lower

NB2032X Display

NB2234X Main I/O

WA2010CB Power supply

2289X Reset Button assembly

E00211 Ticket low switch

GRAPHICS & DECALS

MD3137 High Score Red Filter

MD3138 Score/Credits Red Filter

MD3102 Backboard

MD3105 Display Panel Decal

MD7102 Display Panel Reflector Decal

MD3102P Back Board (white lines)

MD7101 Cabinet Top Decal

MD7103 Rear Cabinet sides

MD7104 Front Cabinet sides

MD7105 Backboard Logo

MD7106 Ticket Door decal

MD7107 Cash Door logo

NB7011 NBA logo front

HARNESSES

MD2152MX Coin door harness

MD2153MX Ticket door harness

MD2155LX Programming harness

MD2160LX Main DC power harness

MD2170LX Hoop ground extension harness

MD2171LX Hoop ground harness

MD2180MX Backboard/Ball gate harness

MD2181LX Display/control panel harness

MD2183LX Speaker harness

NB2253X Display harness

PARTS LISTINGS

17

WARRANTY POLICY

I.C.E. Inc warrants all components in new machines to be free of defects in materials and workmanship for

the period listed below:

■ 180 days on Main PCB’s, Computers & Motors

■ 1 year on all LCD monitor panels

■ 90 days on all other electronic and mechanical components

■ 30 days on all I.C.E. repairs and parts purchases

I.C.E. Inc shall not be obligated to furnish a warranty request under the following conditions:

■ Equipment or parts have failed through normal wear and tear

■ Equipment has been subjected to unwarranted stress, abuse or neglect

■ Equipment has been damaged as a result of arbitrary repair/modification

Products will only be covered under warranty by obtaining an I.C.E. authorized RMA #. To obtain an RMA #

please provide I.C.E. tech support with the game serial # or original I.C.E. invoice # and a detailed description

of the failure or fault symptoms.

I.C.E. Inc will assume no liability whatsoever for costs associated with labor or travel time to replace defective

parts. All defective warranty covered components will be replaced with new or factory refurbished compo-

nents equal to OEM specifications.

I.C.E. Inc will cover domestic UPS ground, or comparable shipping costs during the warranty period. Interna-

tional or expedited shipments are available for an additional charge. To obtain credit defective parts must be

returned to I.C.E. Inc, at the customer’s expense, within 30 days. After 30 days a 15% re-stocking fee will

apply to all returns.

ICE distributors are independent, privately owned and operated. In their judgment, they may sell parts and/or

accessories other than those manufactured by I.C.E. Inc. We cannot be responsible for the quality, suitability

or safety of any non-I.C.E. part or modification (including labor) that is performed by such a distributor.

Innovative Concepts in Entertainment

10123 Main St.

Clarence, NY 14031

Phone #: (716) - 759 – 0360

Fax #: (716) – 759 – 0884

www.icegame.com

1

2

D

C

B

A

4321

D

C

B

A

4321

DATE 6/19/07

DESCRIPTION NBA HOOPS SYSTEM SCHEMATIC

DRAWN BY NBRANCATO

FILENAME MD1100X

SCHEMATIC.VSD

PAGE 1 OF 1

REVISED 3/14/11

TITLE NB1200X

1

2

3

4

5

E2034X

NB

1.00

WA2010CB

POWER SUPPLY

red

black

BLACK

ORANGE

red/white

brown/white

PROGRAM

SELECT

ADVANCE

white/green

white/blue

white/violet

black

black x 2

black x 2

black x 2

COIN LAMP

#161 BULB

COIN

SWITCH 1

white/brown

black x 2

orange x 2

TICKET

DISPENSER

1

2

3

4

violet/blue

black x 2

violet/white

orange x 2

1

2

orange

violet/green

LOW TICKET SWITCH

START

BUTTON & LIGHT

orange

yellow/green

black

gray/green

CB2233X

SCORE & CREDIT

DISPLAY

RED

WHITE

BROWN

GREEN

BLACK

RED

GREEN

WHITE

BROWN

BLACK

ORANGE

violet/blue

BLACK

violet/white

white/green

white/blue

white/violet

black

red

green

black

orange

black

yellow/green

gray/green

RED

BLACK

WHITE

GREEN

BROWN

RED

BLACK

WHITE

GREEN

BROWN

red/white

brown/white

red/gray

brown/gray

MD2153MX

MD2160LX

MD2183LX

E00210MDJX

NET SENSOR

8212 FLASHING LED

MD2155LX

MD2005

BULB

#161

MD2180MX

black

orange

white/brown

black

orange

white/orange

white/yellow

RED

RED

RED

BLACK

BLACK

BLACK

WHITE

YELLOW

BLUE

0000

red

black

COIN

TICKET

(white/orange)

(orange)

(white/yellow)

black

red 0000

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

9

red

red

BLACK

BLACK

BLACK x 2

ORANGE

J25

J18

J4

J9

J14

J10

J11

J13

J15

J24

1

2

3

4

5

6

1

2

3

4

5

6

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

J16

J20

NB2234X

I/O BOARD

1

2

3

1

2

1

2

3

4

5

6

7

8

9

1

2

3

1

2

3

4

5

6

7

8

9

10

11

12

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

ORANGE

ORANGE x 2

BLACK x 2

red

BLACK

BLACK

BLACK

red

1

2

3

4

black/white x 2

orange x 2

black

red

red/gray

brown/gray

CB2232X

HIGH

SCORE

DISPLAY

1

2

3

4

5

6

P1

1

2

3

4

5

6

P2

RED

GREEN

WHITE

BROWN

BLACK

1

2

3

4

5

6

P1

1

2

3

1

2

3

red

green

black

brown

black

blue

1

2

red

black 1

2

RED x 2

BLACK x 2

RED

BROWN

GREEN

WHITE

BLACK x 2

BLACK

1

2

3

4

5

6

red

black 1

2

red

black

1

2

orange

black/white 1

2

orange

black/white

1

2

red

black 1

2

red

black 1

2

red

black

1

2

red

black

NB2032X

SHOT CLOCK

DISPLAY

MD2180MX

MD2152MX

MD2181LX

NB2253X

MD2152MX

E00418CMDX

E00418BMDX

E00418BMDX

E00418AMDX

E00418AMDX

2007

SPEAKER 2007

SPEAKER

P1

HP2029X

1

2

red

black

MD2008X

BALLGATE MOTOR
