Arcadyan Technology Corporation Wi-Fi MODU
User Manual
Page: 1
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
Delivery Specification
Compal Model Name: 1T8C000002I/1T8C000003I
Arcadyan Model Name: WN8122BTEAC-HF-CP
Arcad
y
an
Com
p
al
T
i
t
l
e
P
r
o
je
ct
M
a
n
a
g
e
r
S
a
l
e
s
P
u
r
ch
a
s
i
n
g
RD
Name Nia Hsiao Alvin Yang
S
i
g
n
a
t
u
r
e
Date 2018/06/15 2018/06/15
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation
Page: 2
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
Document Updates Log
Rev. Revision Date Revision Contents Requested by
V 0.1 09/07/2017 Initial Document Bill Chang
V 0.2 11/13/2017 Update 2.4G HT40- MCS7 Power setting Nia Hsiao
V 0.3 01/12/2018 Update 2.4G HT40- MCS7 Power setting & Power Consumption Sho Tu
V 0.4 03/27/2018 Update Packing Label information Nia Hsiao
V 0.5 04/10/2018 Update PCB dimension Nia Hsiao
V 0.6 04/20/2018 Update Compal 2D Barcode Rule & Packing Nia Hsiao
V 0.7 05/08/2018 Update PCBA photo Nia Hsiao
V 0.8 06/12/2018 Update Certification Statement, External Antenna List, SN/MAC
Label for certification ID, Carton Label for FCC statement
Nia Hsiao
Page: 3
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
Table of Contents
1. SPECIFICATION .................................................................................................................................... 4
1-1 Basic Specification ............................................................................................................................. 4
1-2 Certification Verified (Module level) ................................................................................................... 5
2. DETAIL SPECIFICATION ..................................................................................................................... 5
2-1. Product Specification ........................................................................................................................ 5
2-1-1. Connector Specification .......................................................................................................... 5
2-1-2. Power Consumption ............................................................................................................... 6
2-1-3. Electrical Characteristics ........................................................................................................ 6
3. NOTICE ................................................................................................................................................... 7
3-1-1. ESD protection ........................................................................................................................ 7
4. CERTIFICATION STATEMENT ........................................................................................................... 8
4-1. Federal Communication Commission Interference Statement .................................................. 8
4-2. IC Statement ............................................................................................................................ 10
Page: 4
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
1. SPECIFICATION
1-1 Basic Specification
Item Contents
Manufacture Arcadyan Technology Corporation
Arcadyan Part Number FICCP8122000J
Product Name Wireless LAN Network Module
Chip SOC Vendor Model name
CPU None
2.4GHz MAC/BB/RF MediaTek MT7668AUN
2.4GHz PA(Tx) MediaTek Embedded in MT7668AUN
2.4GHz LNA(Rx) MediaTek Embedded in MT7668AUN
2.4GHz BPF(Tx/Rx) ACX Diplexer:DP1608-A2455D
TA2T
Murata Diplexer:LFD182G45MJK
E484
5GHz MAC/BB/RF MediaTek MT7668AUN
5GHz PA(Tx) MediaTek Embedded in MT7668AUN
5GHz LNA(Rx) MediaTek Embedded in MT7668AUN
5GHz BPF(TX/Rx) Used with 2.4G
FW ODM Arcadyan Technology Corporation
FW spec Manufacturing Firmware
Driver/Utility Driver No need
ODM
Support Band Refer wireless spec
Interface Item Type Number of ports
USB2.0 10 pin connector 1
Supply Voltage 5V
Power consumption 2.415W
Weight(with head think) TBD
Dimensions 40mm*46.5mm*9.06mm
Operating Environment Temperature 0~70 Degree C
Humidity 10~90 % (Non Condensing)
Storage Environment Temperature -10~75 Degree C
Humidity 10~90 % (Non Condensing)
Design life time TBD
Factory location China
Page: 5
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
1-2 Certification Verified (Module level)
Regulatory/Connectivity/Safety Certification
Countries and Regions Regulatory
USA FCC Part 15B,C,E, (including MPE report)
Canada RSS-247, RSS-102 and ICES003
BQB RF.TS.5.0.0 and RF-PHY.TS.5.0.0
2. Detail Specification
2-1. Product Specification
Items Contents
WiFi/BT
Chip
Vendor MediaTek
Parts number MT7668AUN
USB - Standard USB2.0 Client
- Bus power 5V External supply
2-1-1. Connector Specification
Items Contents
Box header connector Female 10p @CON8
CON1 – 10 pin connector
Pin NO. Define
1 WIFI-reset
2 BT_WAKE_HOST
3 GND
4 WoWL
5 GND
6 USB_DM
7 USB_DP
8 SET_PWR
9 BT_IR
10 GPIO_X
Page: 6
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8

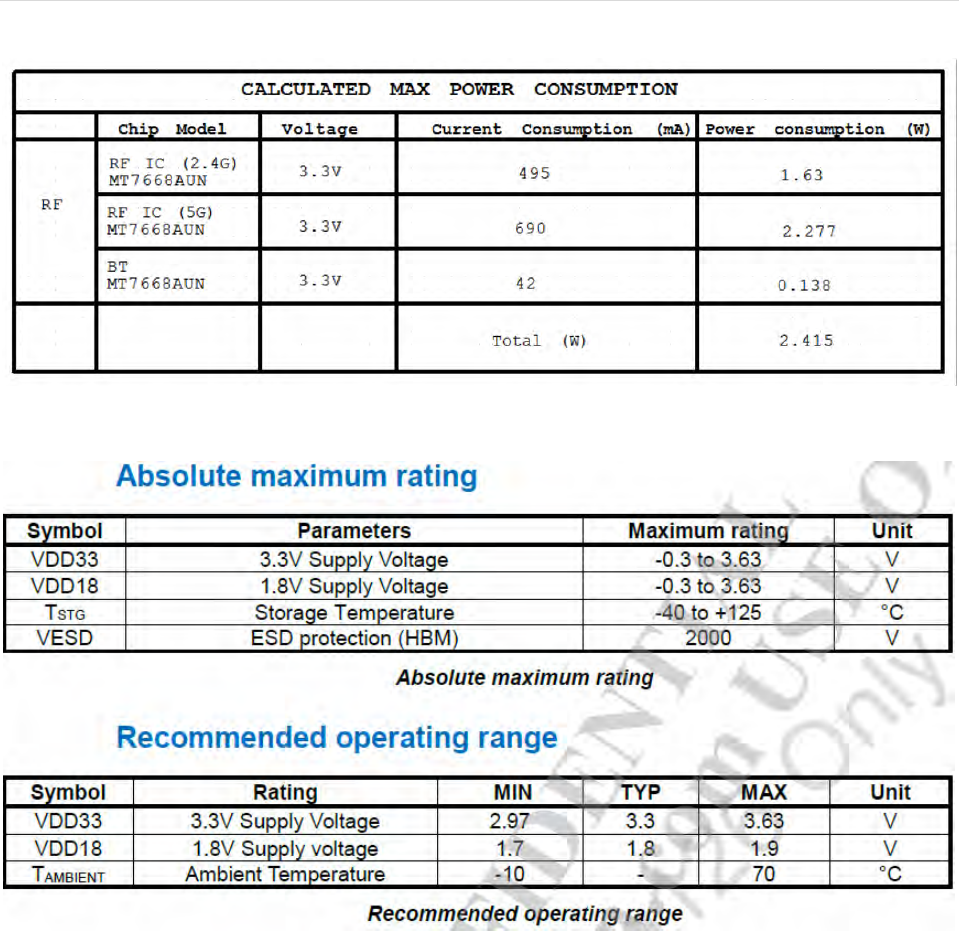

2-1-2. Power Consumption
2-1-3. Electrical Characteristics
Page: 7
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
3. Notice
3-1-1. ESD protection
ATTENTION: Operators need to wear the antistatic ring when assembled module.
CAUTION: Improper operation without proper prevention for ESD may cause equipment damage.
Page: 8
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
4. Certification Statement
4-1. Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device is restricted for indoor use.
IMPORTANT NOTE:
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
Page: 9
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied.
The end user has to also be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment.
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
RAXWN8122B ".
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Ant. Port Brand P/N Antenna
Type Connector
Gain (dBi)
Remark
WLAN
2.4GHz
WLAN
5GHz BT
1 1 arcadyan - Printed
Antenna N/A 3.5 4.7 -
Internal
antenna
2 2 arcadyan - Printed
Antenna N/A 0.8 3.8 -
3 1 arcadyan 120800060900J PIFA Antenna I-PEX 0.1 3.16 -
External
antenna
4 2 arcadyan 120800060400J PIFA Antenna I-PEX -0.7 3.25 -
5 1 arcadyan 120800060300J PIFA Antenna I-PEX - - 2.04
Page: 10
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
4-2. IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être
exploités. Sélection d'autres canaux n'est pas possible.
This radio transmitter (IC:4711A-WN8122B) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this
list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with
this device.
Le présent émetteur radio (IC:4711A-WN8122B) a été approuvé par Industrie Canada pour fonctionner avec
les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement
interdits pour l'exploitation de l'émetteur.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as
appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le
cas.
Page: 11
CONFIDENTIAL Arcadyan Technology Corporation
Ver.0.8
IMPORTANT NOTE:
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied.
The end user has to also be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains IC: 4711A-WN8122B".
The Host Model Number (HMN) must be indicated at any location on the exterior of the end product or
product packaging or product literature which shall be available with the end product or online.
Ant. Port Brand P/N Antenna
Type Connector
Gain (dBi)
Remark
WLAN
2.4GHz
WLAN
5GHz BT
1 1 arcadyan - Printed
Antenna N/A 3.5 4.7 -
Internal
antenna
2 2 arcadyan - Printed
Antenna N/A 0.8 3.8 -
3 1 arcadyan 120800060900J PIFA Antenna I-PEX 0.1 3.16 -
External
antenna
4 2 arcadyan 120800060400J PIFA Antenna I-PEX -0.7 3.25 -
5 1 arcadyan 120800060300J PIFA Antenna I-PEX - - 2.04
