User manual
All specifications are subject to change without notice
MOBILE PRINTER
MODEL : LK-P41W
23
Table of Contents
1. Product overview
3
2.
Unpacking
4
3. Usage and Installation 5
3-1. Control panel usage
5
3-2. Battery Installation
6
3-3. Battery charging
7
3-4. Battery charger usage
8
3-5. Roll paper installation
9
3-6. Leather case usage
10
3-7. Self test
11
4.
Peripherals connection 13
4-1. Wifi(802.11b/g) Connection
13
4-2. Interface cable connection
14
5.
Printer specification 15
5-1. Specification
15
6.
CPCL Command Compatibility 17
7.
Setting up the software 20

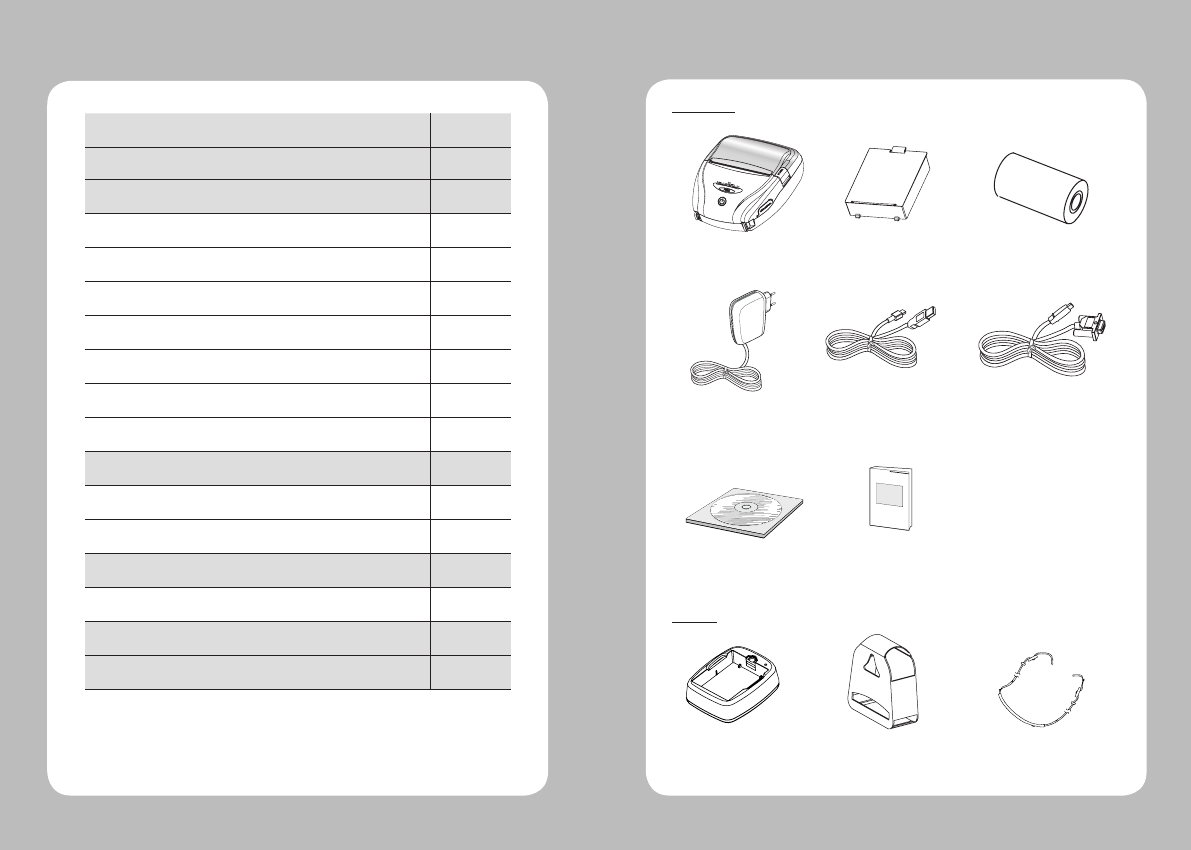

1. Unpacking
Standard
Option
Printer Battery
Serial Cable
Roll paper
USB Cable Shielded
Charger
CD Quick Manual
Battery Holder (Cradle) Leather case Shoulder strip
4
5
2. Product overview 3. Usage and Installation
3-1 Control panel usage
Paper feed
button
Power
switch
DC Power
Battery
SERIAL
USB
Open Button
Button
Name
function
Power
button
This button is used to turn the printer on and off.
When the printer is off, press this button for approximately 3 seconds
and it will turn on the power. When you press this button in a state
that the printer is on, the printer will turn off.
Paper
Feed
Button
Paper output can be done manually by pressing this button.
Additionally, self-testing and Hexadecimal Dumping can be
processed..
1. Refer to “3-10” for self test information.
2. Refer to the service manual regarding Hexadecimal Dumping.
Battery
Status
Lamp
1. If the Batt, LED are Lit, the battery is fully charged.
2. If you can hear beeping sound and LED light is turned off, it means
that the battery is at the lowest level.
3. If the battery is not charged at all, the printer turns off
automatically.
Error
Lamp
If the red light is turned on, it means there is no paper roll or the
paper cover is open.
6
7

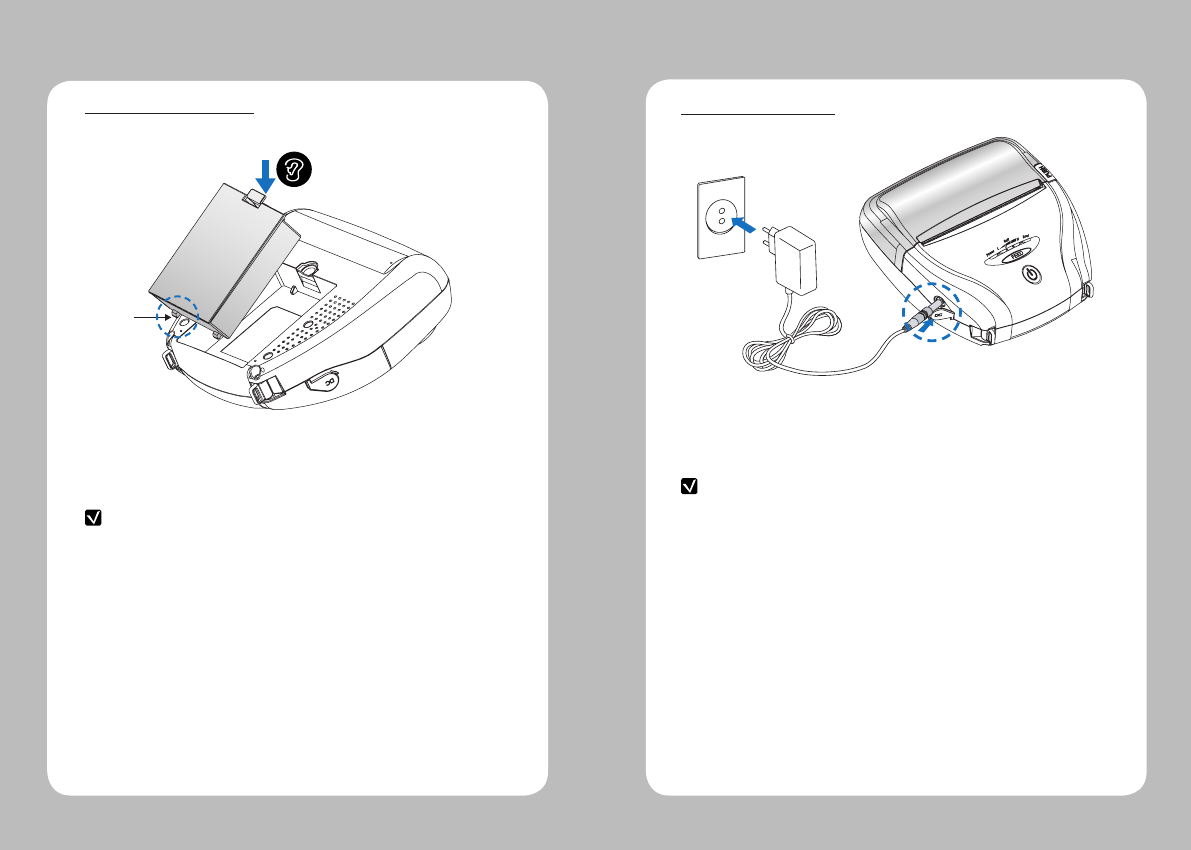

1. Align battery hook as shown in the picture
2. Push the battery into the printer until it locks in place.
NOTE
As the battery is not charged at the time of your purchase, charge the
battery prior to using the printer
(Battery charger or Cradle can be used to charge)
Hook
3-2 Battery Installation
NOTE
1. Unless the exclusive charger is used provided by the manufacturer, the printer
can be damaged, and the manufacturer is not liable for the consequential damage.
2. Before removing the battery, make sure that power is turned off.
3. Printer does not work in the status of being connected with charger only.
4. The battery should be installed to operate printer.
5. While charging, do not turn on the power.
6. Do not operate the print while charging the battery.
7. Do not connect the charger while the printer is operated.
1. Be sure that the printer is turned off
2. After open the DC JACK cover, insert DC JACK into the printer.
3. Plug the power code to electrical outlet.
3-3 Battery charging
☞CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
8
9
3-5-1 The status of lamp in charging
Status charging charging complete
Charging Lamp Red
Green
NOTE
In the case the battery is not fixed properly in the holder, the red lamp will be
blinking, Then, extract and reinsert the battery.

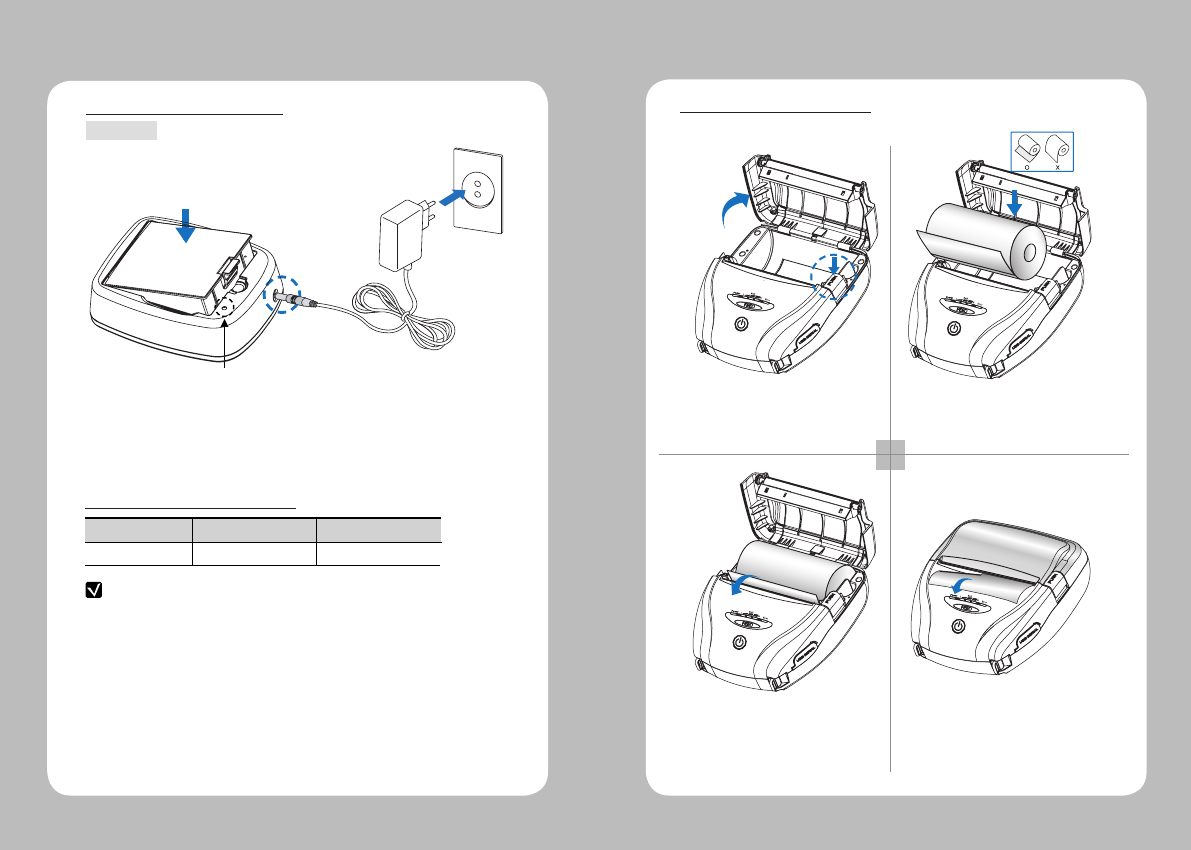

3-4 Battery charger usage
lamp
DC Jack
1. Insert the battery into the battery holder as shown above
2. Connect the DC JACK to the power electrical outlet.
3. Plug the power code into the electrical outlet.
4. Once the charging is completed, remove the battery from the holder.
Optional
1 2
34
Press the PUSH button to open
the paper cover
Pull a short length of paper out of
the printer and close the cover.
Insert the paper in the right
direction
Tear off the additional paper using
tear bar.
3-5 Roll Paper installation
10
11

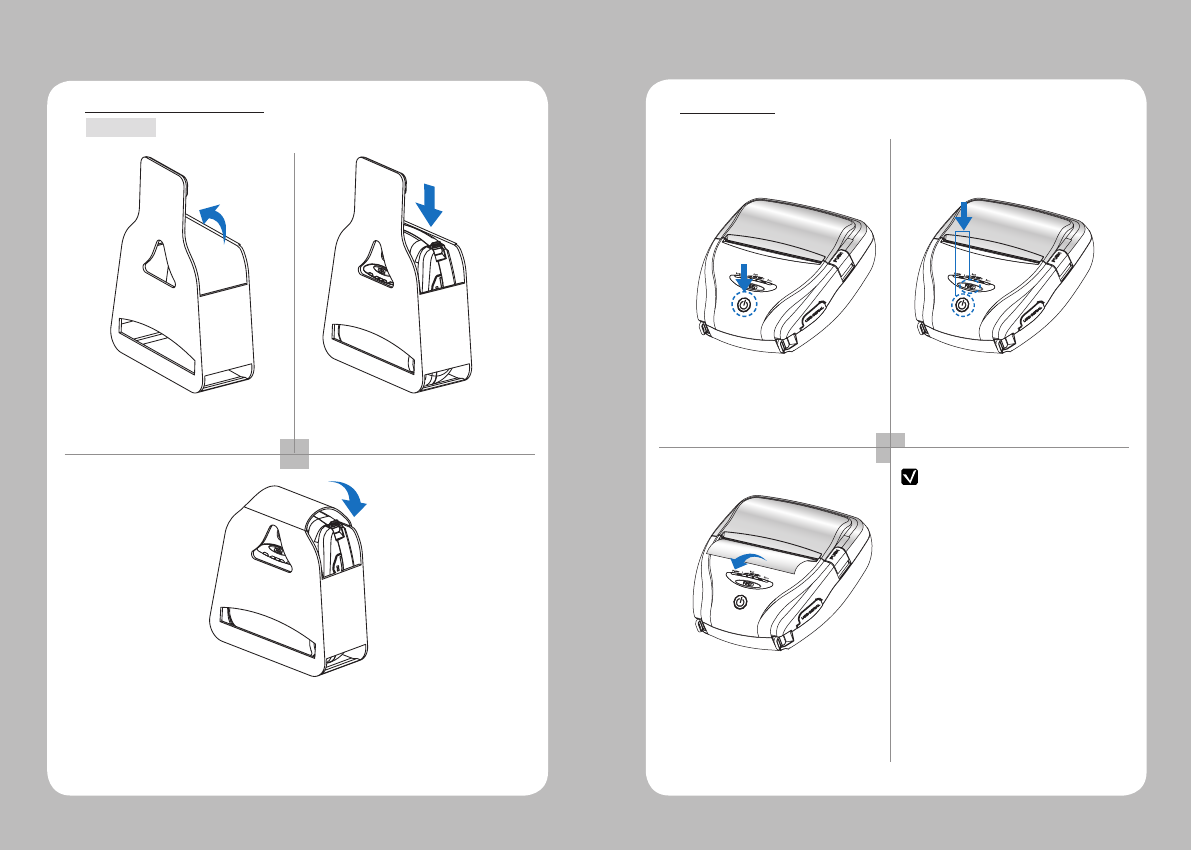

3-6 Leather case usage
1 2
3
Open the leather case
Close the Velcro and stick the
cover.
Place the printer into the leather
case
Optional
1 2
3
NOTE
Turn off the power pressing the
power button for approximately
3 seconds.
The printout is produced.
While you are pressing the FEED
button, press the power button
3-7 Self Test
1. To print ASCII pattern additionally,
press the Feed button once more
2. After printing ASCII pattern, the
self test will be finished automatically.
3. If the Feed button is not pressed
to print ASCII pattern, self test will be
finished automatically after 30 seconds.
12
13
When the printer is installed initially or when you face a problem, you can run the
self test and check the information about
-Control Circuit, Mechanism, Print Quality, ROM Version
After checking with self-test and no issues are found, you can examine other
devices and software. This function is working independent of devices and software.

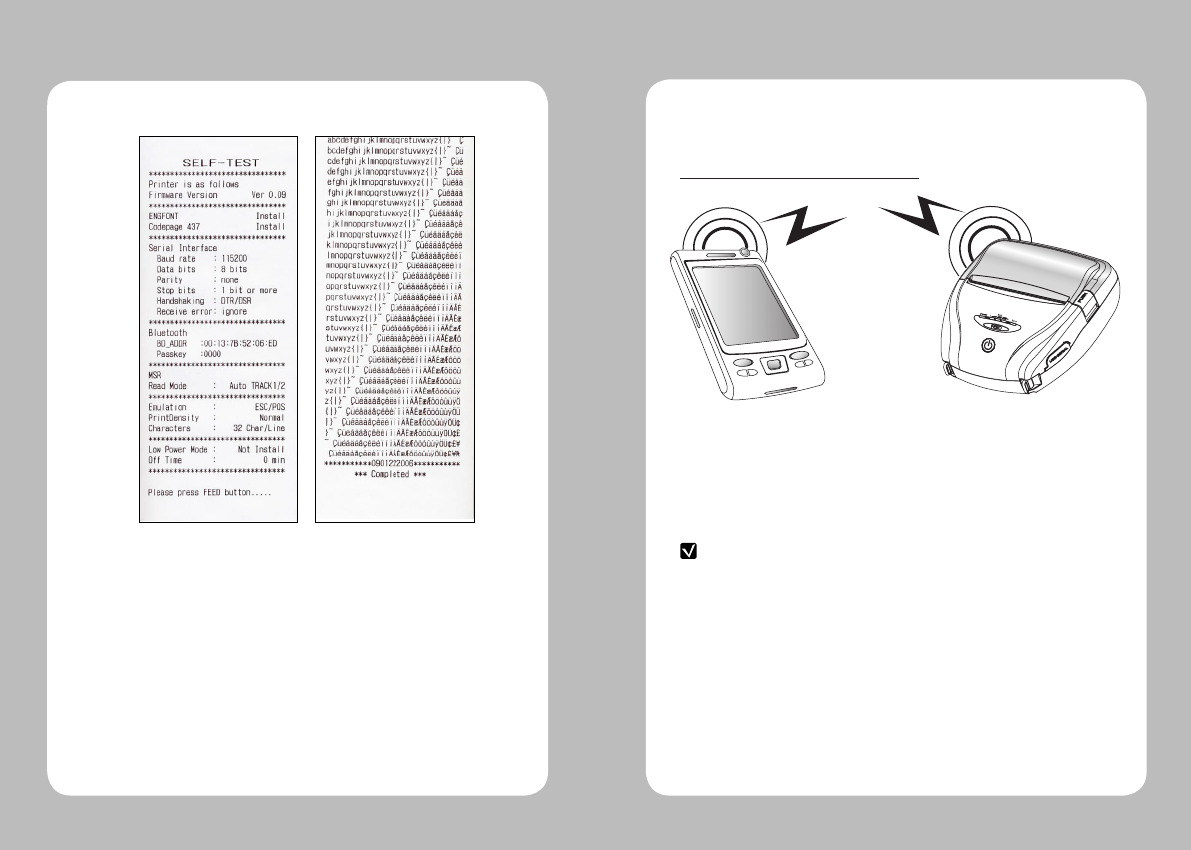

<The sample of self test printout>
●
Motor protection from being overheated
The motor should be stopped and cooled about more than 30 seconds after
continuous printing 1.5 meter
4. Peripherals connection
NOTE
Refer to the wifi(802.11b/g) Manual for more details on connection.
This product can communicate with other devices via Wifi(802.11b/g)
communication and cable.
4-1 Wifi(802.11b/g) Connection
1. The Printer can be connected to devices equipped with wifi(802.11b/g)
communication capacity (PDAs, PCs, etc.)
2. Use the wifi(802.11b/g) connection function supported by the device to
connect to the printer.
14
15

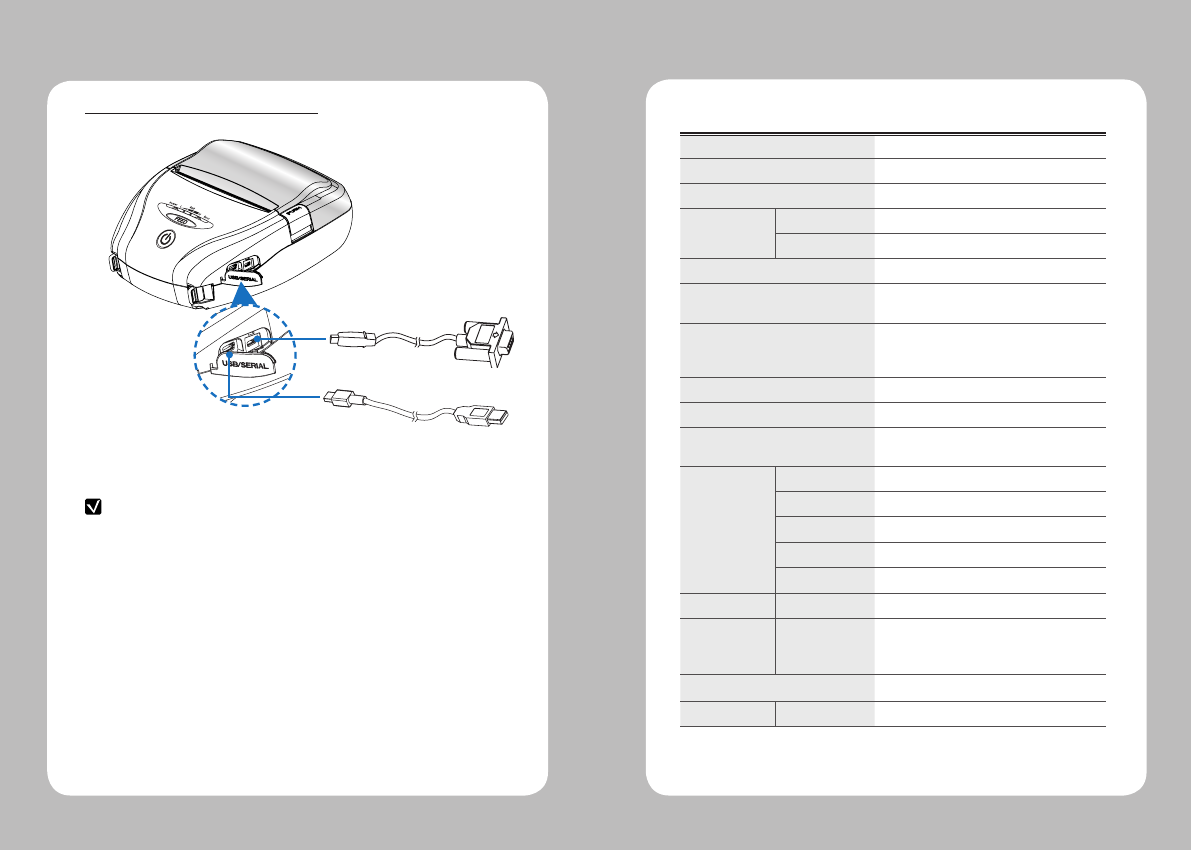

4-2 Interface Cable Connection
1. Connect USB or Serial cable into the cable connector on the printer.
2. Connect the interface cable into the USB or Serial port of the device
(PDA, PC, etc.)
NOTE
Use the cable offered by the manufacturer (USB, Serial)
Serial
USB
Printing Method Direct Thermal
Printing Speed 80mm/sec
Resolution 203 DPI X 203 DPI
Character CPCL 7 Different Font Size (12~48pt)
ESC/POS Font A (12X24), Font B (9X17)
Character per line Font A : 48pt , Font B : 64pt
Character set ALPHA NUMERIC Character, Extension
Character
Barcode EAN-8, EAN-13, Code39, ITF, UPC-A, UPC-E,
Codabar, Code93, Code128, PDF417(2D),
MAXICode (2D)
Emulation ESC/POS, CPCL, Commanl Compatible
Driver Window CE 4.2&5.0, Window Mobile 5.0
Sensor Paper End Sensor , Gap Sensor , Cover Open
Sensor , Black Mark Sensor
Paper paper type Thermal Paper / Label
width 25.4mm ~112mm
thickness 0.06mm ~ 0.09mm
External Diameter Max. Φ56mm
Internal Diameter 12.5mm +/-0.5mm
Reliability TPH 50km
Battery Continuous printing operation: 1hr and 30min
Standby: 24hrs
Printing length: 162m
Communications Serial(RS-232C), USB, Wireless Lan *802.11b/g
Battery Charger input AC100~240V, 50/60 Hz
5. Pritner Specification
5-1 Specification
16
17
Battery Charger Battery type Li-ion
output 7.4V, 2200mAh
Charging time 3 hour 40 minute
Size W X D X H(mm) 149 X 161 X 69
W X D X H” 5.8 X 6.3 X 2.7
Weight 0.53kg (With Battery)
Temperature operation -10 ~ 50℃
storage -20 ~ 60℃
Humidity operation 35 ~ 95%
Printer Commands Compatibility
PRINT
○
FORM
○
JOURNAL
○
UNITS
○
Comments
○
TEXT Compatibility
TEXT
○
FONT-GROUP(FG)
○
TEXT CONCATENATION
○
MULTILINE(ML)
○
COUNT
○
SETMAG
○
SCALABLE TEXT
X
Linear Bar Codes Compatibility
BARCODE
○
BARCODE-TEXT
○
Two-Dimensional Bar Codes Compatibility
PDF417 (PORTABLE DATA FILE)
○
MAXICODE
○
QRCODE
●
DATAMATRIX
●
GS1(RSS)
●
NOTE
Compatible Partially
Compatible
Not
Compatible
○●△x
Compatible with only
commanders provided
by the manufacturer.
6. CPCL Command Compatibility
18
19
Graphics Compatibility
BOX
○
LINE
○
INVERSE-LINE
○
PATTERN
○
GRAPHICS
○
PCX
○
Advanced Commands Compatibility
CONTRAST
○
TONE
○
JUSTIFICATION
○
PAGE-WIDTH
○
PACE
○
NO-PACE
○
WAIT
○
REWIND
X
TENSION
X
SPEED
○
SETSP
○
ON-OUT-OF-PAPER
X
ON-FEED
○
PREFEED
○
POSTFEED
○
PRESENT-AT
X
COUNTRY/CODE PAGE
○
FORMAT FILES
○
BEEP
○
CUT
X
PATIAL-CUT
X
MCR
●
Line Print Mode Compatibility
SETLP
○
SETLF
○
Moving With X and Y Coordinates
○
LMARGIN
○
SETBOLD
○
SETSP
○
Special ASCII Characters
○
SETFF
○
SET-TOF
○
SETLP-TIMEOUT
○
20
21
Please refer to the programming manual included in CD.
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to
the following two conditions:
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for
CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instuctions, may cause harmful interference
to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the
interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from
that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
♣Certification
7. Setting up the software
CAUTION
Antenna shall be mounted in such a manner to minimize the potential for
human contact during normal operation. The antenna should not be contacted
during operation to avoid the possibility of exceeding the FCC radio frequency
exposure limit.
The device meets the FCC requirements for radio
frequency (RF) radiation exposure in the standard body
worn configuration with no minimum configuration. In this
configuration, which applies whether the belt clip or
shoulder strap is used, the face of the printer from which
paper is transported is facing away from the user’s body.
The standard configuration must always be used when the
printer is body worn
Rev. 1.0
SEWOO TECH CO.,LTD.
ADDRESS Doosung Bd, 689-20, Kumjung-dong, Kunpo-si, Kyunggi-do, Korea
TEL 82-31-459-8200 FAX 82-31-459-8880
URL http://www.miniprinter.com
